User manual for microwave oven

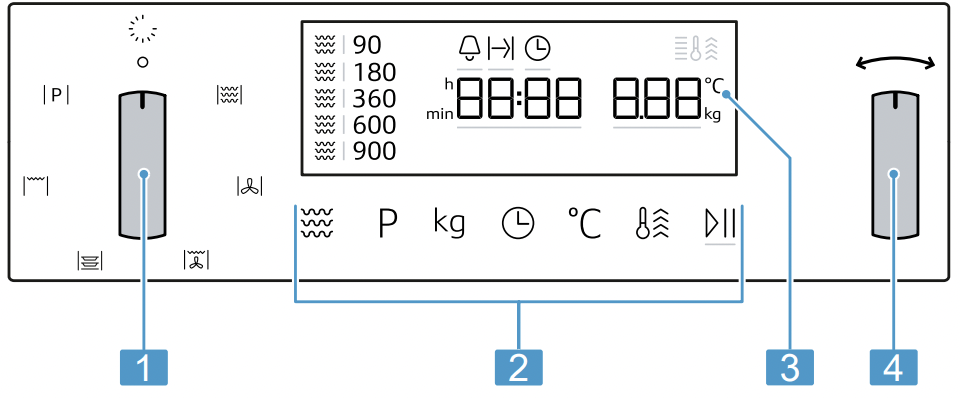

Familiarising yourself with your appliance 

On certain models, specific details such as the colour and shape may differ from those pictured.

1 Function selector

2 Touch fields

3 Display

4 Rotary selector

Function selector

Use the function selector to set the types of heating and other functions. On some product variants, the function selector can be pushed in.

If you turn the function selector from the off position to a function, it takes a few seconds for the relevant function to be available.

Rotary selector

Use the rotary selector to change the settings values shown in the display. On some product variants, the rotary selector can be pushed in. In selection lists, e.g. programmes, the first selection follows the last. For values, e.g. weight, turn the rotary selector back the other way when you reach the minimum or maximum value.

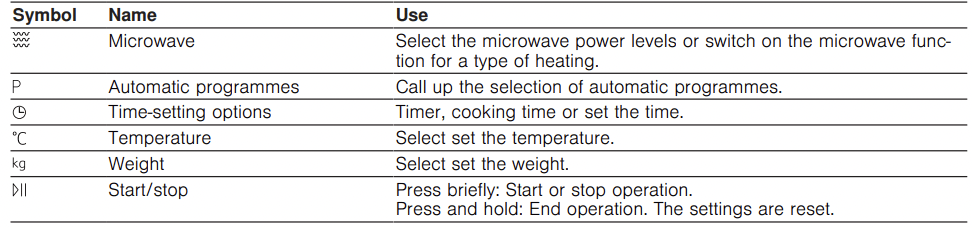

Touch fields

Touch fields are touch-sensitive surfaces. To select a function, touch the relevant field

Display

You can see the current setting values or options in the display

Active value The directly adjustable value is highlighted white with a red bar underlined. You can use the rotary selector to change the active value.

Passive value You cannot directly adjust the values outside the brackets. If you want to change a value, you must first activate the value.

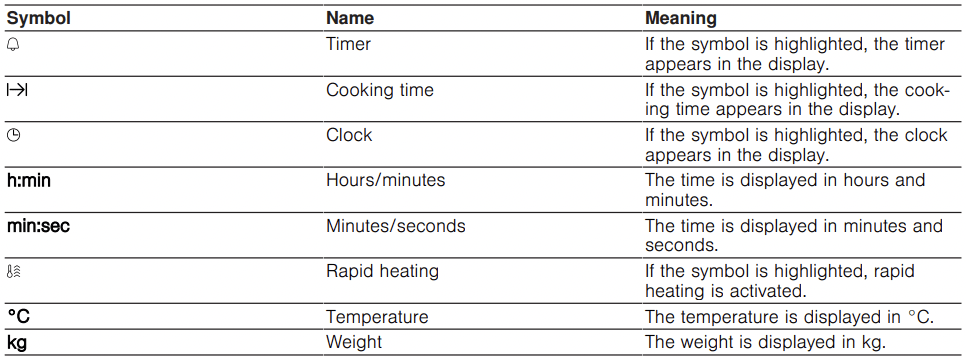

Display elements

Here you can find a short explanation of the various display elements.

Temperature display

The temperature display shows the heating progress.

After operation starts, the thermometer lights up and the bars next to it light up one after another to display the heating up progress of the interior temperature. When all the bars are lit, the appliance has reached the set temperature. When using the grill, all the bars are lit from the start. When using the microwave, there is no temperature display.

Due to thermal inertia, the temperature displayed may differ slightly from the actual temperature inside the cooking compartment.

Night mode

To save energy, the control panel brightness is automatically reduced to a lower level between 10 p.m. and 5.59 a.m.

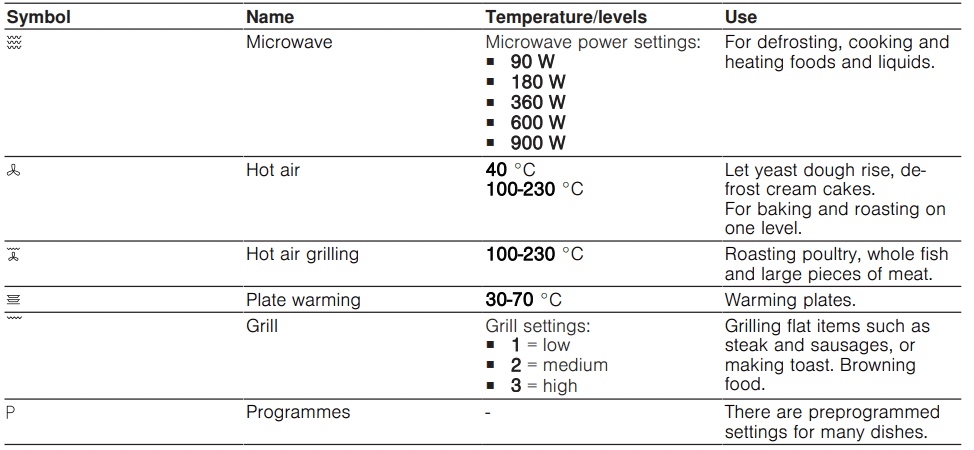

Types of heating

Here you can find an overview of the types of heating. You can find recommendations on using the types of heating.

Cooking compartment

The features of the cooking compartment make your appliance easier to use.

Interior lighting

When you open the appliance door, the light in the cooking compartment switches on. If the appliance door remains open for longer than 15 minutes, the light switches off again.

In most operating modes, the interior lighting switches on as soon as operation starts. The interior lighting switches off again when operation stops.

You can specify whether you want the interior lighting to switch on during operation in the → "Basic settings", Page 17.

Cooling fan

The cooling fan switches on and off as required. The hot air escapes through the ventilation slots above the appliance door.

ATTENTION! Covering the ventilation slots will cause the appliance to overheat.

▶ Do not cover the ventilation slots.

To cool the cooking compartment more quickly after operation, the cooling fan continues to run for a certain period afterwards. If the appliance is running in microwave operation, the appliance remains cool, but the cooling fan still switches on. The cooling fan may continue to run even when microwave operation has ended.

Condensation

Condensation can occur in the cooking compartment and on the appliance door when cooking. Condensation is normal and does not adversely affect appliance operation. Wipe away the condensation after cooking.

Appliance door

If you open the appliance door during operation, operation stops. If the appliance door is closed, you can continue operation with .

Before using for the first time

Configure the settings for initial start-up. Clean the appliance and accessories.

Performing the initial configuration

After connecting the appliance to the power supply or following a power cut, the following prompt appears in the display for the setting the time. It may take a few seconds for the prompt to appear.

▶ Connect the appliance to the power supply.

√ : flashes in the display and lights up.

Setting the time

1. Set the time using the rotary selector.

2. Press .

√ The clock time is set.

Cleaning the appliance before using it for the first time

Clean the cooking compartment and accessories before using the appliance to prepare food for the first time.

1. Make sure that there is no leftover packaging, accessories or other objects in the cooking compartment.

2. Close the appliance door.

3. Use the function selector to set Hot air .

4. Use the rotary selector to set the temperature to 180 °C.

5. Press .

a The appliance starts.

6. After one hour, press .

7. Turn the function selector to the off position.

√ The appliance is cleaned.

√ The appliance is switched off.

Cleaning the accessories

▶ Clean the accessories thoroughly using soapy water and a soft cloth.

Basic operation

You can find out everything you need to know about operating your appliance here.

Switching on the appliance

▶ Turn the function selector to switch on the appliance.

√ The appliance is ready to use.

√ A default value appears in the display.

Switching off the appliance

Switch your appliance off when you are not using it. If no settings are applied for an extended period, the appliance switches itself off automatically.

▶ Turn the function selector to the off position.

√ The appliance stops any ongoing functions.

√ The time appears in the display.

√ Some displays also remain visible in the display when the appliance has been switched off.

Setting the type of heating and temperature

1. Use the function selector to set the required type of heating.

√ A default value appears in the display.

2. If necessary, change the settings. To do this, touch the appropriate field and use the rotary selector to change the value.

3. Press .

√ The appliance starts.

lights up.

√ With a type of heating with temperature, the temperature display lights up gradually.

4. If necessary, use the rotary selector to change the temperature while the oven is in operation. When the appliance is in operation, you cannot set the temperature to 40 °C.

Pausing operation

You can pause operation at any time.

1. Press or open the appliance door.

√ Operation is paused.

flashes.

2. To continue operation, close the appliance door and press .

√ Operation continues.

lights up.

Stopping operation

You can stop operation at any time.

▶ Turn the function selector to the off position. The fan may continue to run after operation has been paused or stopped.

√ The appliance stops any ongoing functions.

Rapid heating

To save time, you can shorten the preheat time for certain types of heating from a minimum temperature of 100 °C. You can use rapid heating for the following types of heating:

  • Hot air, exception: Hot air 40 °C
  • Hot air grilling

Configuring rapid heating

To ensure an even cooking result, do not place the accessory with the food in the cooking compartment until rapid heating has finished. Do not set a cooking time until rapid heating has finished.

1. Set a suitable type of heating and a temperature of at least 100 °C.

2. Press .

lights up in the display.

3. Press .

√ Rapid heating starts.

lights up.

√ Once the set temperature has been reached, the rapid heating process ends. A signal sounds and goes out in the display. Your appliance continues to run with the set type of heating and temperature.

√ Rapid heating is automatically deactivated within no more than 15 minutes

Cancelling rapid heating

▶ Press .

goes out in the display. Your appliance continues to run with the set type of heating and temperature.

Safety switch-off function

For your safety, the appliance has a safety switch-off function. The appliance is automatically switched off if it has been in operation for an extended period. How long the appliance waits before switching itself off depends on the setting:

  • Hot air 40 °C and preheating: 24 hours
  • Hot air 100-230°C and hot air grilling: 5 hours
  • Grill: 90 minutes

If the appliance has been switched off by the safety switch-off function, is shown in the display. You can confirm this message by pressing .

Microwave

You can use the microwave to cook, heat up, bake or defrost food very quickly. The microwave can be used on its own or in combination with a type of heating.

Microwave power settings

Here you can find an overview of the different microwave power settings and when to use them

Microwave output in watts Maximum cooking time Use
90 W 1:30 hours Defrosting delicate foods
180 W 1:30 hours Defrosting food and continued cooking.
360 W 1:30 hours Cooking meat and fish or heating delicate foods.
600 W 1:30 hours Heating and cooking food.
900 W 30 minutes Heating liquids. The maximum power setting is not designed for heating food.

Default settings

The appliance suggests a cooking time for each microwave power setting. You can accept this value or change it in the relevant area.

Microwave-safe cookware and accessories

To heat food evenly and avoid damaging your appliance, it is important to use the right cookware and accessories.

Read the manufacturer's instructions before using any cookware in the microwave. If in doubt, carry out a cookware test. Testing cookware for microwave suitability → Page 13

Microwave-safe

Cookware and accessories Reason

Cookware made from heat-resistant, microwavesafe material:

  • Glass
  • Glass ceramic
  • Porcelain
  • Temperature-resistant plastic
  • Fully glazed ceramic without cracks
Microwaves do not damage heat-resistant material.
Accessories supplied: Wire rack The wire rack supplied has been designed specifically for the appliance and is therefore suitable for microwave use
Metal cutlery

You can use metal cutlery, e.g. place a spoon in a glass, to prevent delayed boiling.

Note: Metal may create sparks, which could damage the cooking compartment and the inner door pane. Metal must be kept at least 2 cm from the cooking compartment walls and the inside of the door.

Not microwave-safe

Cookware and accessories Reason
Metal cookware Microwaves cannot pass through metal. The food is barely heated or not heated at all.
Cookware with gold or silver decoration Microwaves can damage gold and silver decoration. Only use this kind of cookware if the manufacturer guarantees that it is microwave-safe

Microwave-safe in MicroCombi mode

In MicroCombi mode, a microwave output of up to 600 W watts can be added to a type of heating. This means that metal dishes can be used in MicroCombi mode.

Cookware and accessories Reason
Accessories supplied The accessories supplied, e.g. the wire rack, do not create sparks in MicroCombi mode.
Metal baking tins

Cakes will brown both on top and on the bottom, as baking tins made of metal conduct heat more efficiently.

Note: Metal may create sparks, which could damage the cooking compartment and the inner door pane. Metal must be kept at least 2 cm from the cooking compartment walls and the inside of the door.

Testing cookware for microwave suitability

Test cookware to see whether it is suitable for microwave use. Testing cookware is the only time the appliance should be operated in microwave mode without any food inside.

WARNING ‒ Risk of scalding! The accessible parts of the appliance become hot during operation.

▶ Never touch these hot parts.

▶ Keep children at a safe distance.

1. Place the empty cookware in the cooking compartment.

2. Set the appliance to run for 30 seconds to 1 minute at maximum power.

3. Press to start.

4. Check the cookware several times:

– If the cookware is cold or warm to the touch, it is suitable for microwave use.

– If the cookware becomes hot or sparks are created, the stop the cookware test. The cookware is not microwave-safe.

Configuring the microwave settings

Different power levels and settings are available for different types of food and recipes.

1. Read the safety instructions → Page 4 and the section on how to prevent material damage → Page 5.

2. Read the information on microwave-safe cookware and accessories. → Page 12

3. Set the function selector to .

4. To set the required microwave power setting, press .

5. Use the rotary selector to set the required cooking time.

6. Pressto start. You can change the cooking time at any time during operation using the rotary selector.

√ The cooking time starts to count down and the microwave starts.

√ Once the cooking time has elapsed, the microwave stops and a signal sounds.

7. When the dish is cooked, turn the function selector to the off position.

Intervals for the time settings

The interval for setting a cooking time in microwave operation changes with the length of the cooking time.

Cooking time Interval
0–1 minutes 5 seconds
1-3 minutes 10 seconds
3–15 minutes 30 seconds
15 minutes – 1 hour 1 minute
1 hour – 1 hour 30 minutes 5 minutes

Changing the microwave power

▶ Press .

Repeatedly pressing switches from the highest to the lowest microwave power setting. If the microwave function is only added after starting, the appliance pauses. Press to start.

Pausing operation

You can pause operation at any time.

1. Press or open the appliance door.

√ Operation is paused.

flashes.

2. To continue operation, close the appliance door and press .

√ Operation continues.

lights up.

Stopping operation

You can stop operation at any time.

▶ Turn the function selector to the off position. The fan may continue to run after operation has been paused or stopped.

√ The appliance stops any ongoing functions.

MicroCombi

To reduce the cooking time, you can use certain of the types of heating in combination with microwave mode. MicroCombi mode can be used with the following types of heating:

  • Hot air
  • Hot air grilling
  • Grill

Exceptions:

  • Microwave power setting 900 W
  • Hot air 40 °C
  • Warming plates

Configuring MicroCombi mode

Switch on microwave mode in addition to a type of heating.

1. Set the function selector to a combinable type of heating.

√ A default value for the temperature is displayed.

2. Set the temperature using the rotary selector.

3. To set the required microwave power setting, press .

√ A default value for the cooking time is displayed.

4. Use the rotary selector to set the cooking time.

5. Press to start.

√ The cooking time counts down and MicroCombi mode starts.

√ Once the cooking time has elapsed, MicroCombi mode ends automatically and a signal sounds.

Changing the microwave power

▶ Press

Repeatedly pressing switches from the highest to the lowest microwave power setting. If the microwave function is only added after starting, the appliance pauses. Press to start.

Pausing operation

You can pause operation at any time.

1. Press or open the appliance door.

√ Operation is paused.

flashes.

2. To continue operation, close the appliance door and press .

√ Operation continues.

lights up.

Stopping operation

You can stop operation at any time.

▶ Turn the function selector to the off position. The fan may continue to run after operation has been paused or stopped.

√ The appliance stops any ongoing functions.

Heating and drying the cooking compartment

Always dry the cooking compartment after operation to ensure that no moisture remains.

1. Allow the appliance to cool down.

2. Remove the worst of the food residues from the cooking compartment immediately.

3. Wipe any humidity from the cooking compartment floor.

4. Use the function selector to set the type of heating.

5. Press .

6. Use the rotary selector to set the temperature to 150 °C.

7. Press twice.

is highlighted in the display.

8. Use the rotary selector to set a cooking time of 15 minutes.

9. Press to start.

√ The drying process starts and ends after 15 minutes.

10. Open the appliance door to allow the steam to escape.

Drying the cooking compartment by hand

Always dry the cooking compartment after operation to ensure that no moisture remains.

1. Allow the appliance to cool down.

2. Remove the worst of the food residues from the cooking compartment.

3. Dry the cooking compartment with a sponge.

4. Leave the appliance door open for 1 hour so that the cooking compartment dries completely.

Automatic programmes

Automatic programmes can help you prepare different dishes by selecting the optimal settings automatically.

Tips on configuring the settings for dishes

Follow these tips to achieve optimal cooking results

  • Only use food that is in perfect condition.
  • Only use meat at refrigerator temperature.
  • Only use frozen food straight from the freezer.
  • Take the food out of its packaging and weigh it. If you cannot set the exact weight on the appliance, round the weight up or down.
  • Place the food in the cold cooking compartment.
  • Always use microwave-safe, heat-resistant cookware, for example made of glass or ceramic.

Overview of dishes

The appliance prompts you to enter the weight. You can only enter weights within the intended weight range.

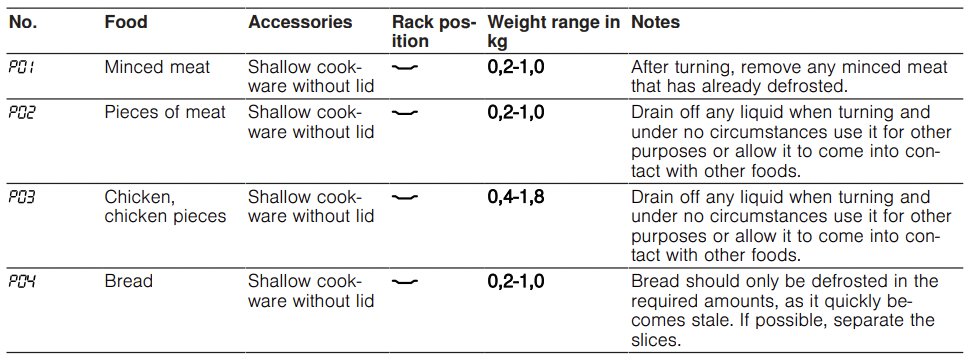

Defrosting

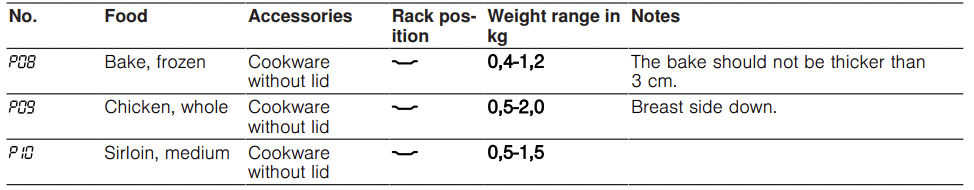

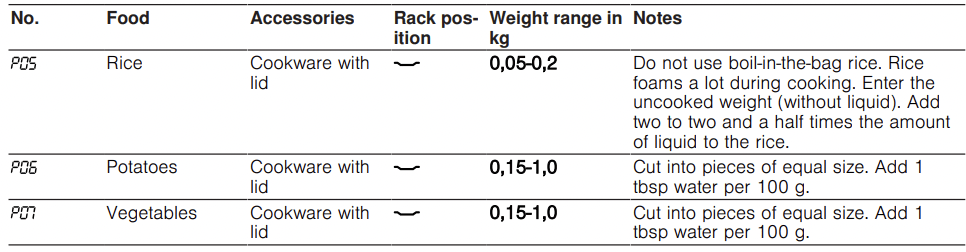

Cooking programmes

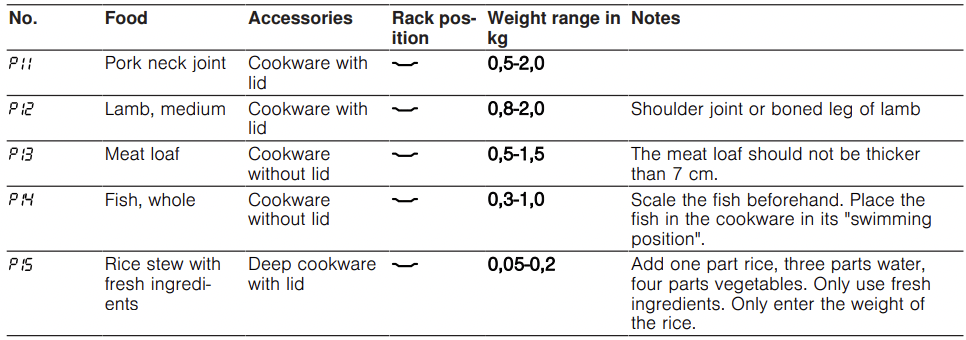

Combi cooking programmes

Applying settings for dishes

1. Set the function selector to .

√ The display shows the first dish number and a default value for the weight.

2. Use the rotary selector to set the required weight.

3. Press .

4. Turn the rotary selector to set the weight. Before starting, you can use and to switch between the dish and the weight.

√ The appliance automatically sets the right cooking time.

5. Press . After starting, the dish and weight cannot be changed. The set weight can be displayed with .

√ The appliance starts.

lights up.

√ You will see the cooking time counting down.

√ For some programmes, a short audible signal sounds when you have to stir or turn the dish.

6. When the cooking time has elapsed:

‒ A signal sounds. The appliance stops heating.

‒ Turn the function selector to the off position.

Pausing operation

You can pause operation at any time.

1. Press or open the appliance door.

√ Operation is paused.

flashes.

2. To continue operation, close the appliance door and press .

√ Operation continues.

lights up.

Stopping operation

You can stop operation at any time.

▶ Turn the function selector to the off position. The fan may continue to run after operation has been paused or stopped.

√ The appliance stops any ongoing functions.

Basic settings

You can configure the appliance to meet your needs.

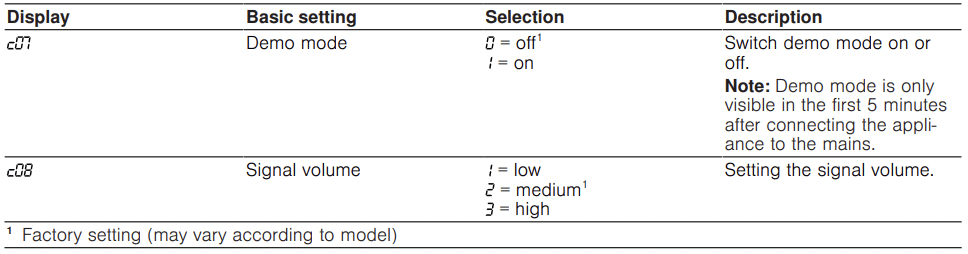

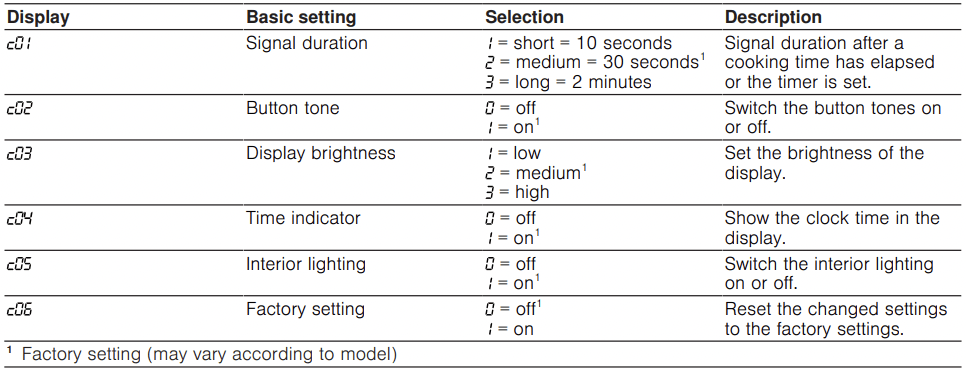

Overview of the basic settings

Here you can find an overview of the basic settings and factory settings. The basic settings depend on the features of your appliance.

Changing the basic settings

Requirement: The appliance must be switched off.

1. Press and holdfor a few seconds.

√ The first basic setting is shown in the display.

2. Use the rotary selector to change the basic setting.

3. Press .

√ The next basic setting is shown in the display.

4. Use to select all the required basic settings and change the values.

5. To save the changes, press and hold for a few seconds.

Tip: Your changes to the basic settings will be retained even after a power cut.

Discarding changes to the basic settings

▶ Turn the function selector.

√ All changes are discarded and not saved.

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning products

Only use suitable cleaning products.

WARNING ‒ Risk of electric shock! An ingress of moisture can cause an electric shock.

▶ Do not use steam- or high-pressure cleaners to clean the appliance.

ATTENTION!

  • Unsuitable cleaning products may damage the surfaces of the appliance.

▶ Do not use harsh or abrasive detergents.

▶ Do not use cleaning products with a high alcohol content.

▶ Do not use hard scouring pads or cleaning sponges.

▶ Do not use any special cleaners for cleaning the appliance while it is hot.

▶ Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.

▶ Wash sponge cloths thoroughly before use.

  • Using oven cleaner while the cooking compartment is still warm may damage the enamel.

▶ Never use oven cleaner in the cooking compartment when it is still warm.

▶ Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance. You can find out which cleaning products are suitable for each surface or part of the appliance in the individual cleaning instructions.

Cleaning the appliance

Clean the appliance as specified. This will ensure that the different parts and surfaces of the appliance are not damaged by incorrect cleaning or unsuitable cleaning products.

WARNING ‒ Risk of burns! The appliance gets very hot.

▶ Never touch the inside surfaces of the cooking compartment or the heating elements while they are hot.

▶ Always allow the appliance to cool down.

▶ Keep children at a safe distance.

WARNING ‒ Risk of fire! Loose food remnants, fat and meat juices may catch fire.

▶ Before using the appliance, remove the worst of the food residues and remnants from the cooking compartment, heating elements and accessories.

WARNING ‒ Risk of injury! Scratched glass in the appliance door may develop into a crack.

▶ Do not use glass scrapers, sharp or abrasive cleaning aids, or harsh cleaning products.

1. Follow the instructions for → "Cleaning products", Page 18.

2. Follow the instructions on cleaning the appliance components or surfaces.

3. Unless otherwise specified:

‒ Clean the appliance components with hot soapy water and a dish cloth.

‒ Dry with a soft cloth.

Cleaning the cooking compartment

1. Follow the instructions for → "Cleaning products", Page 18.

2. Use hot soapy water or a vinegar solution for cleaning.

3. Use oven cleaner to remove very heavy soiling. Only use oven cleaner when the cooking compartment is cold. Do not use oven spray, other aggressive oven cleaners or abrasive materials. To avoid scratching the surface, do not use scouring pads, rough sponges or pan cleaners.

Tip: To eliminate unpleasant odours, heat up a cup of water with a few drops of lemon juice for 1 to 2 minutes at maximum microwave power. Always place a spoon in the container to prevent delayed boiling.

4. Dry with a soft cloth.

Cleaning the glass floor

1. Follow the instructions for → "Cleaning products", Page 18.

2. Clean the glass floor with hot soapy water and a soft dish cloth. Do not use metal or glass scrapers for cleaning. Do not scour.

3. Dry with a soft cloth.

Cleaning the front of the appliance

1. Follow the instructions for → "Cleaning products", Page 18.

2. Clean the front of the appliance using hot soapy water and a dish cloth. Follow the cleaning instructions.

Part/surface Cleaning instructions
Appliance front Do not use glass cleaners or metal or glass scrapers for cleaning.
Appliance front with stainless steel Do not use glass cleaners or metal or glass scrapers for cleaning. To prevent corrosion, remove any limescale, grease, starch or albumin (e.g. egg white) stains on stainless steel fronts immediately. On stainless steel surfaces, use special stainless steel cleaning products suitable for hot surfaces. You can obtain stainless steel cleaning products from our after-sales service or from specialist retailers. Apply a thin layer of the stainless steel cleaning product with a soft cloth.

Note: Slight differences in colour on the front of the appliance are caused by the use of different materials, such as glass, plastic or metal.

3. Dry with a soft cloth.

Cleaning the display

1. Follow the instructions for → "Cleaning products", Page 18.

2. Wipe the display using a microfibre cloth or a slightly damp cloth. Do not wipe with a wet cloth.

3. Dry with a soft cloth.

Cleaning the accessories

1. Follow the instructions for → "Cleaning products", Page 18.

2. Soften burnt-on food residues with a damp dish cloth and hot soapy water.

3. Clean the accessories with hot soapy water and a soft dish cloth or washing-up brush.

4. Clean the wire rack with stainless steel cleaner or in the dishwasher. Use steel wool or oven cleaner to remove very heavy soiling.

5. Dry with a soft cloth.

Tips on caring for your appliance

Follow the tips on appliance care to make sure your appliance functions properly at all times.

Measure Advantage
Always keep the appliance clean and remove dirt immediately. Always clean the cooking compartment after use. Prevents dirt from accumulating and burning on.
Remove splashes and patches of limescale, grease, starch and albumin (e.g. egg white) immediately Prevents corrosion.
Use the pizza tray for very moist cakes. Keeps the cooking compartment cleaner
Use suitable cookware for roasting, e.g. a roasting dish. Keeps the cooking compartment cleaner.
You can purchase suitable cleaning and care products from our aftersales service. Always follow the manufacturer's instructions.

Cleaning the door panels

1. Follow the instructions for → "Cleaning products", Page 18.

2. Clean the door panels with a damp dish cloth and glass cleaner. Do not use a glass scraper.

Note: Shadows on the door panels, which look like streaks, are caused by reflections made by the interior lighting.

3. Dry with a soft cloth.

Cleaning the door seal

1. Follow the instructions for → "Cleaning products", Page 18.

2. Clean the door seal with hot soapy water and a soft dish cloth. Do not use metal or glass scrapers for cleaning. Do not scour.

3. Dry with a soft cloth.

Drying the cooking compartment by hand

WARNING ‒ Risk of burns! The appliance will become hot during operation.

▶ Allow the appliance to cool down before cleaning it.

1. Remove any food remnants from the cooking compartment.

2. Dry the cooking compartment with a soft cloth.

3. Leave the appliance door open until the cooking compartment has dried completely

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING ‒ Risk of injury! Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ If the appliance is defective, call Customer Service.

WARNING ‒ Risk of electric shock! Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

Malfunctions

Fault Cause troubleshooting
The appliance is not working. The mains plug of the power cord is not plugged in. ▶ Connect the appliance to the power supply.
The circuit breaker is faulty ▶ Check the circuit breaker in the fuse box
There has been a power cut. ▶ Check whether the lighting in your kitchen or other appliances are working.
Malfunction

1. Switch off the fuse in the fuse box.

2. Switch the fuse back on after approx. 10 seconds.

√ If the fault was a one-off, the message disappears.

3. If the message appears again, call the after-sales service. Please specify the exact error message when calling. → "Customer Service", Page 35

Appliance is not heating, colon is flashing in the display Demo mode is activated in the basic settings.

1. Disconnect the appliance from power supply by briefly switching off the circuit breaker in the fuse box.

2. Deactivate demo mode in the basic settings in the next 3 minutes.

Microwave operation is stopped. Malfunction

1. Switch off the fuse in the fuse box.

2. Switch the fuse back on after approx. 10 seconds.

√ If the fault was a one-off, the message disappears.

3. If the message appears again, call the after-sales service. Please specify the exact error message when calling. → "Customer Service", Page 35

Food takes longer than usual to heat up.


See other models: C47C22N0GB/45 T67S76N0/05 D9910A0/04 K5524X0/42 C18FT44N1/31
The microwave power setting was too low. ▶ Select a higher microwave power setting.
You have placed a larger amount of food than normal in the appliance. ▶ Set a longer cooking time. Double the amount needs double the cooking time.
The food was colder than usual. ▶ Stir or turn the food during cooking.
The microwave does not work. The door was not fully closed. ▶ Check whether food residue or debris is trapped in the door.
has not been pressed. ▶ Press .
12:00 flashes in the display and the symbol lights up. There has been a power cut. ▶ Reset the time. → "Setting the time", Page 11
The appliance is not in operation. A cooking time is shown in the display. has not been pressed. ▶ Press

Information on display panel

Fault Cause troubleshooting
A message with "D" or "E" appears in the display, e.g. D0111 or E0111. Malfunction

1. Switch off the fuse in the fuse box.

2. Switch the fuse back on after approx. 10 seconds.

√ If the fault was a one-off, the message disappears.

3. If the message appears again, call the after-sales service. Please specify the exact error message when calling. → "Customer Service", Page 35

The message appears in the display. The automatic safety cut-out function has been activated. ▶ Press any button.
The message E11 appears in the display. Moisture in the control panel. ▶ Allow the control panel to dry.

Neff C1AMG84N0B | File type: PDF | Filename: 15836672_c1amg84n0b.pdf | Size: 5.16 MB | Language: English | Other documents: 3 files.

Download User Manual

Product Infomation and Reviews - C1AMG84N0B photo

C1AMG84N0B Photo

View more photos

T: @manualsFile

https://manualsFile.com

Neff C1AMG84N0B Questions and Answers

Find answers or Ask a question.
  • Total questions: 2
  • Questions unAnswered : 2

#1 Will two of these - C1AMG84N0B x 2 in one tall oven housing
with a 900mm aperture align exactly to B3ACE4HN0B
andN1AHA02N0B in the oven housing immediately next to the
the housing described above (same 900mm aperture) Or do I
need an additional Neff trim?
2 x C1AMG84N0B will require 900 mm high aperture.
B3ACE4HN0B and N1AHA02N0B requires 880 mm high aperture.
The top ovens will align, handles, control panels also the side trims
of all the appliances are the same width and will align.

#2 When grilling the manual says to place food directly on the wire
rack. As there is no grill pan, can I place something on the base
of the oven to catch juices etc dripping from the food. Is there a
glass/ enamel tray I can purchase for this purpose?
You can use any tray suitable for grilling to catch drips.
Unfortunately there isn't an accessory for this model to cater for
this.

#3 Hi can you tell me does the C1AMG84N0B come with a 13A plug or
is to be to hard wired to a cooker outlet point?
This model is 3350 Watts and will require hard wiring.

#4 Can you recommend an appropriate tray/pan to use for grilling with
this model as the glass tray is not compatible with the model.
The accesories for this model are
17000903 Glass roaster
00471963 Pizza tray
11035268 Grill grid

#5 Do you have to close door when using grill ?
The door must be closed at all times whilst grilling.
