Sharp CD-CH1500H Audio Tower System User Manual

– 1 –

CD-CH1500

CONTENTS

Page

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

OPERATION MANUAL ...................................................................................................................................................... 5

DISASSEMBLY .................................................................................................................................................................. 9

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13

TYPES OF TRANSISTOR AND LED............................................................................................................................... 13

BLOCK DIAGRAM ........................................................................................................................................................... 14

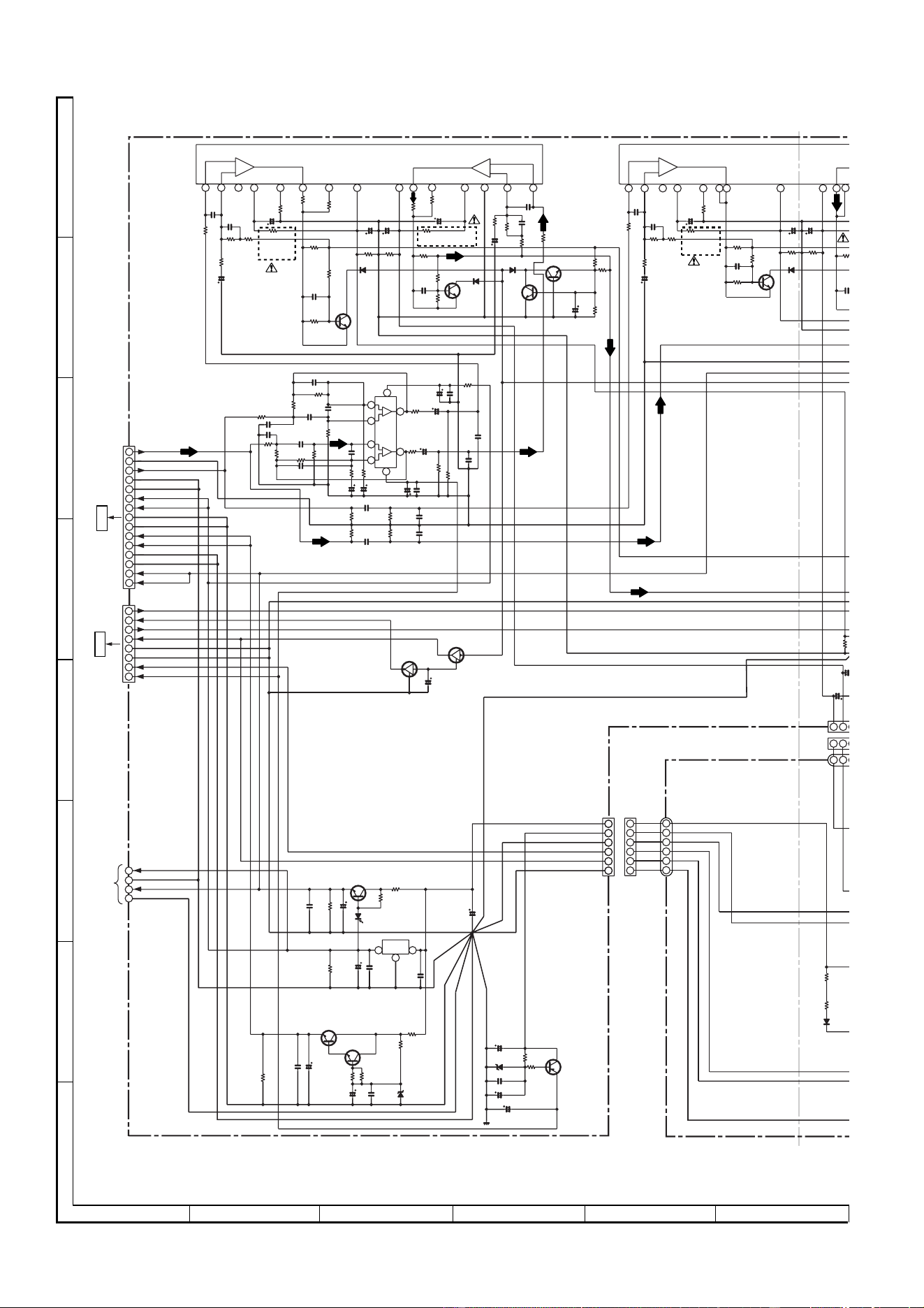

SCHEMATIC DIAGRAM .................................................................................................................................................. 20

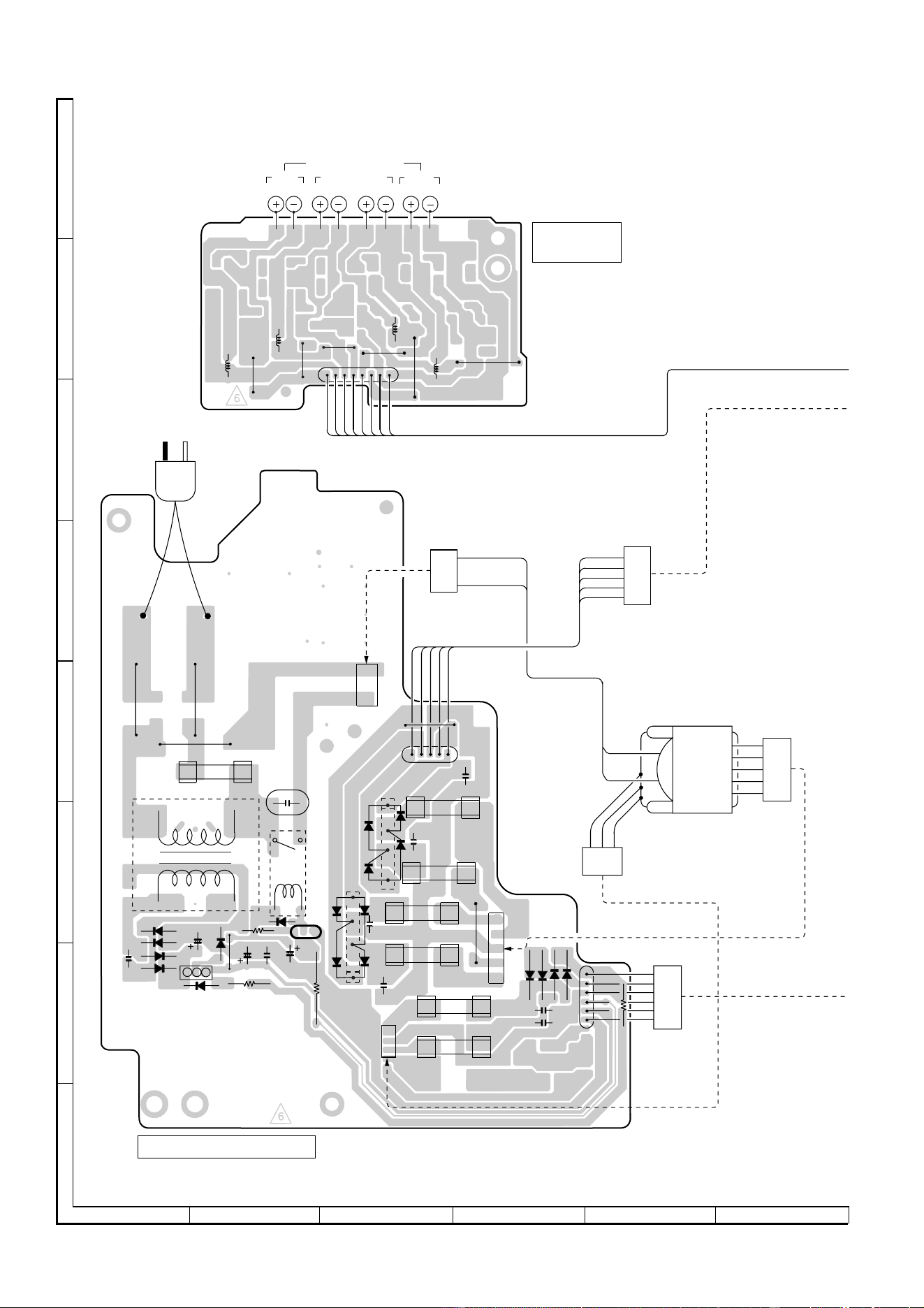

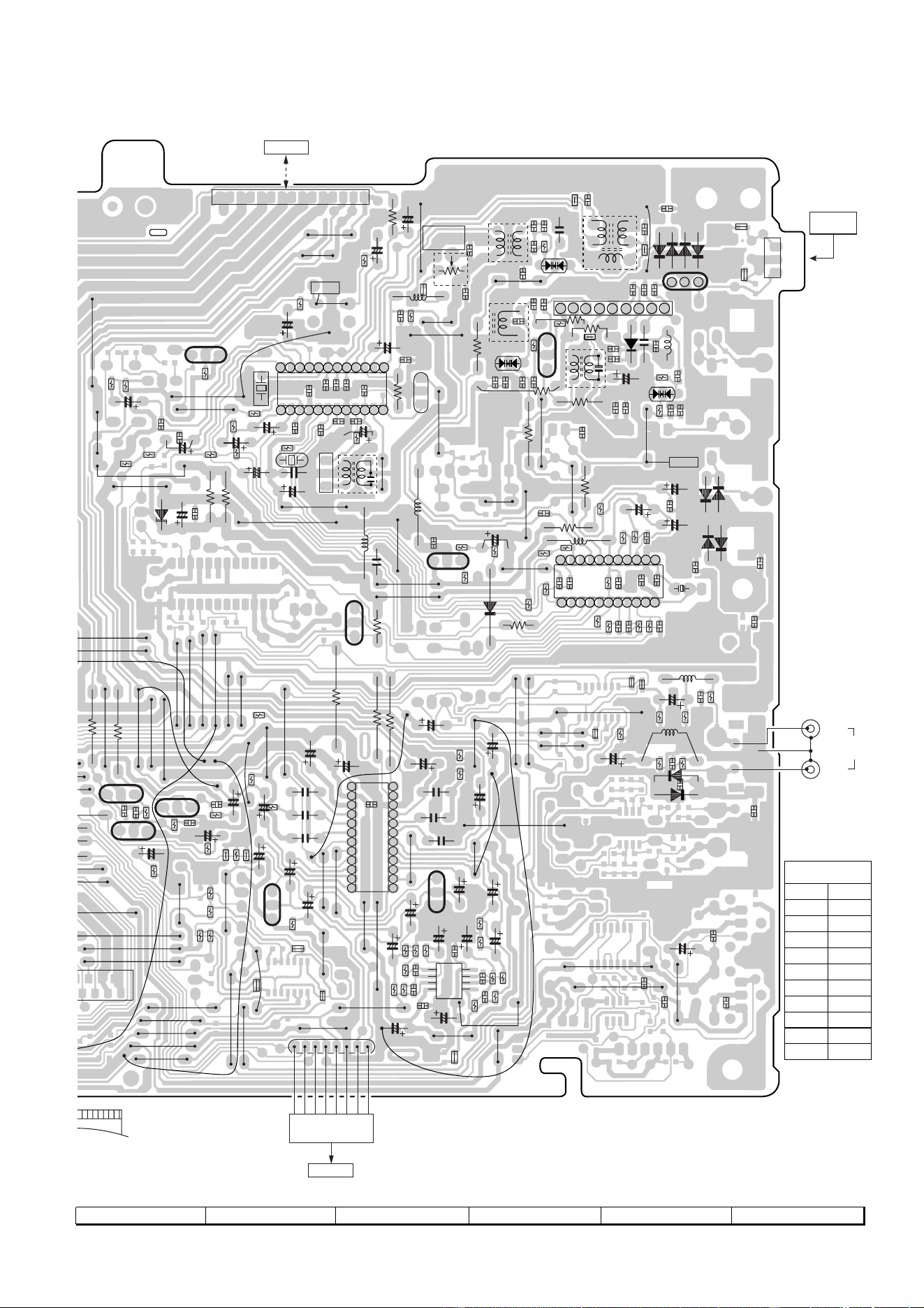

WIRING SIDE OF P.W.BOARD ....................................................................................................................................... 31

FUNCTION TABLE OF IC................................................................................................................................................ 40

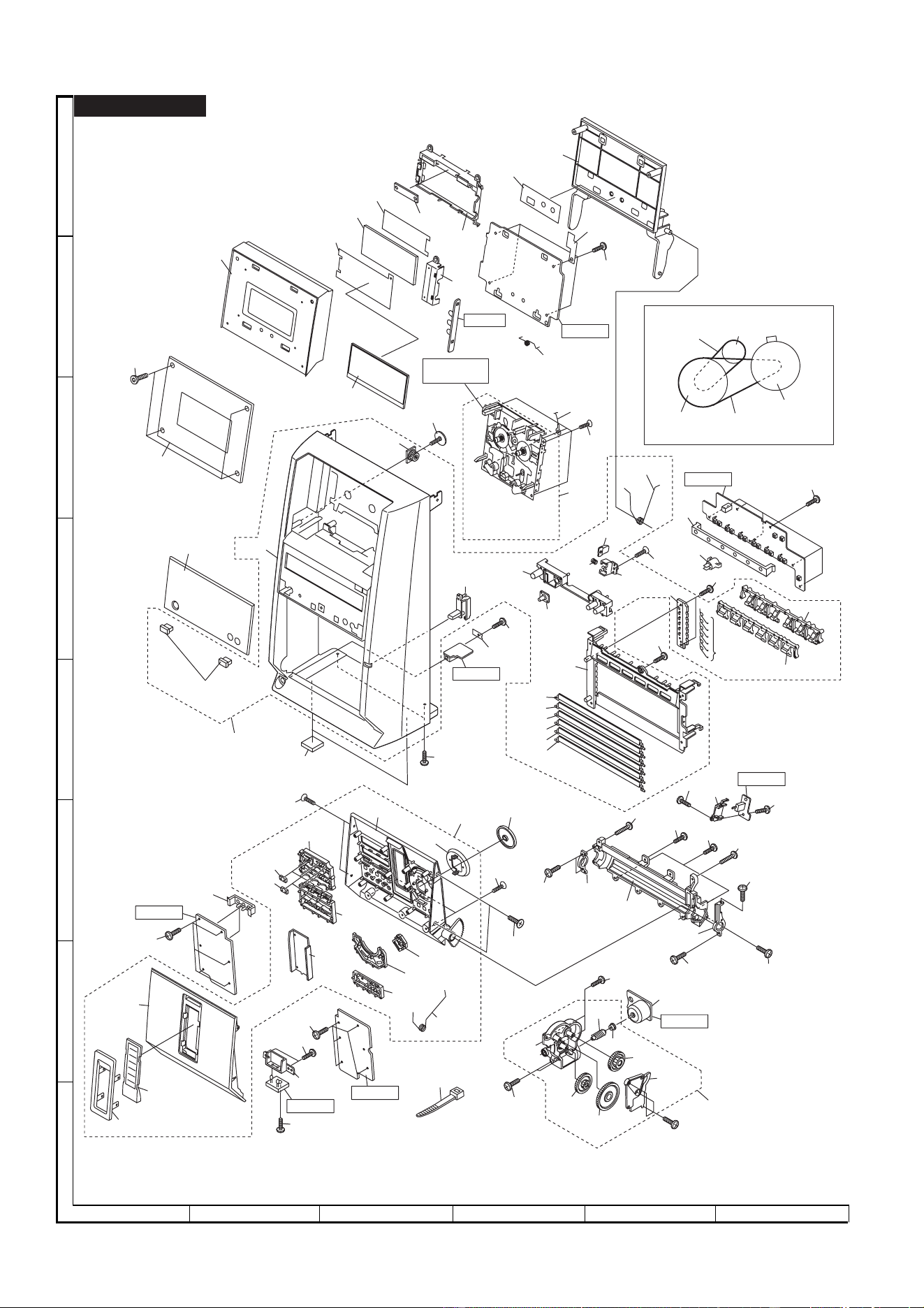

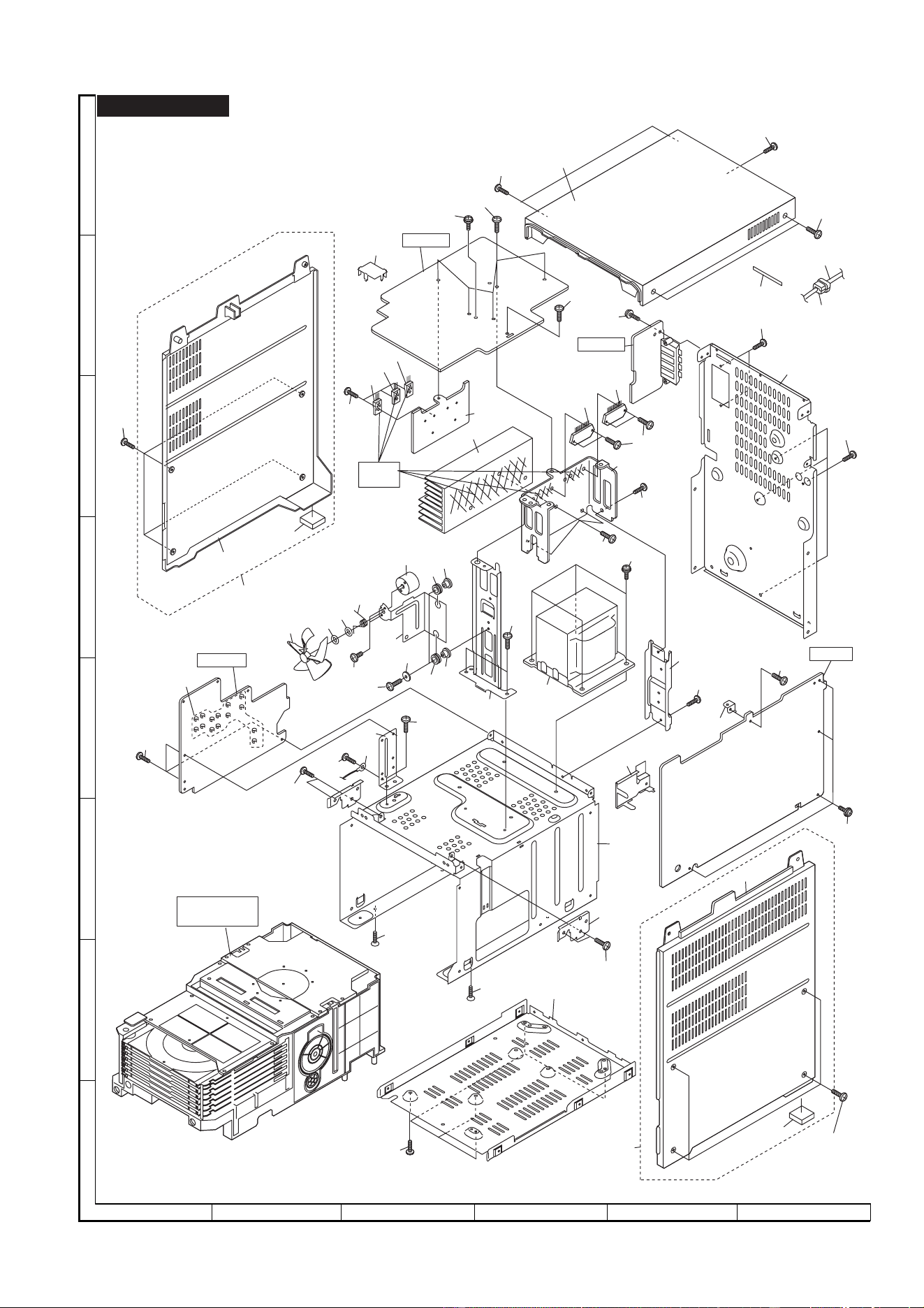

PARTS GUIDE/EXPLODED VIEW

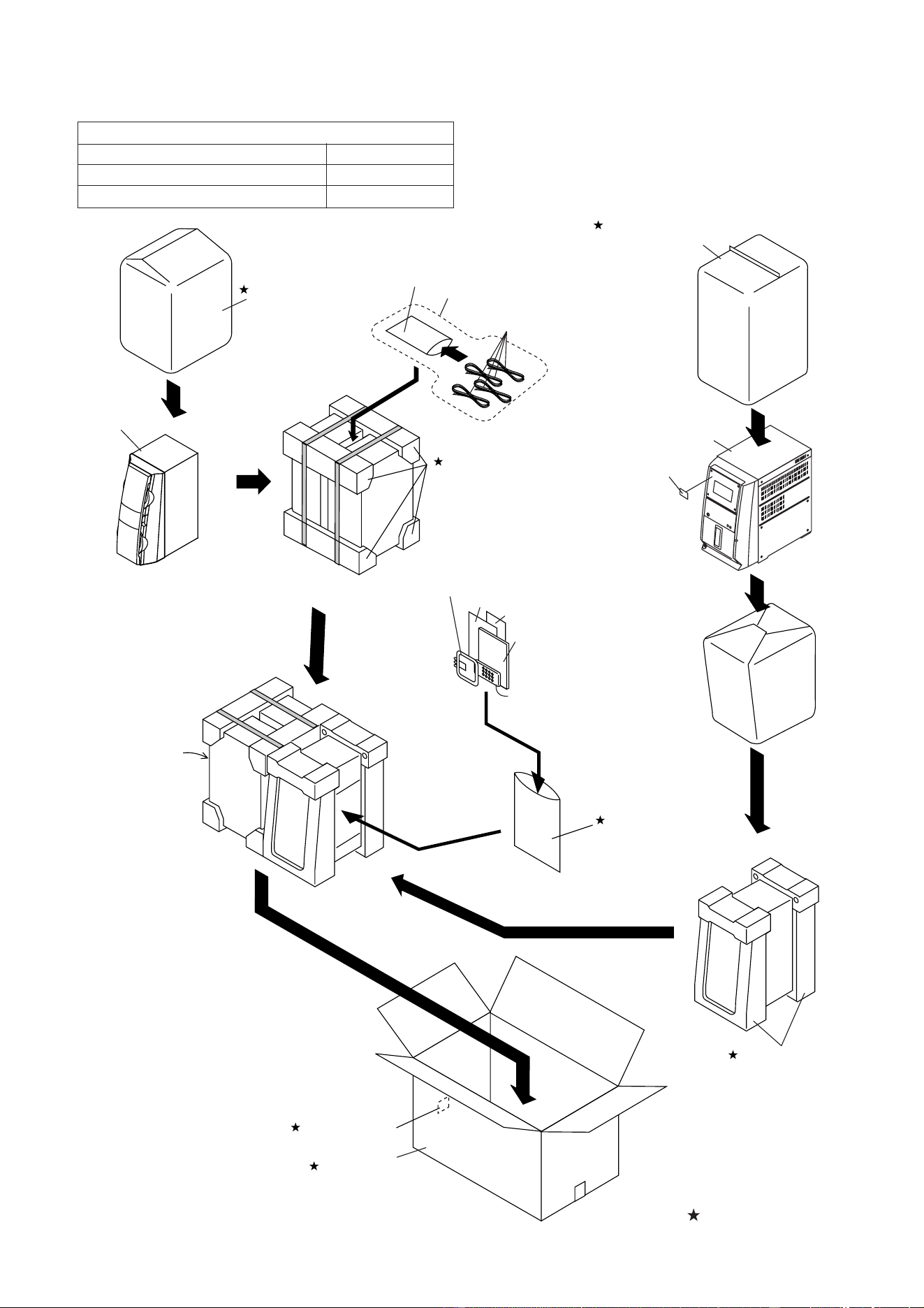

PACKING OF THE SET (FOR U.S.A. ONLY)

SERVICE MANUAL

SHARP CORPORATION

No. S1107CDCH1500

• In the interests of user-safety the set should be restored to its original

condition and only parts identical to those specified should be used.

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

CD-CH1500 Audio Tower System consisting of CD-CH1500 (main

unit) and CP-RW5500 (speaker system).

CD-CH1500

MODEL

AUDIO TOWER SYSTEM

The Service Manual is for the CD-CH1500, which is a minor-modification model

of the CD-CH1000. This manual, therefore, describes only the changed points

from the service manual. Please refer to the CD-CH1000 service manual

(S8070CDCD1000) together with this manual.

CD-CH1000

REMOVING AND REINSTALLING THE MAIN PARTS .................. 12

CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/

ADJUSTING PROCEDURE ............................................................ 13

ADJUSTMENT ................................................................................. 20

TEST MODE .................................................................................... 21

ERROR MESSAGE LIST................................................................. 24

WAVEFROMS OF CD CIRCUIT ..................................................... 52

TROUBLESHOOTING ..................................................................... 53

LCD DISPLAY .................................................................................. 62

CD-CH1500

– 2 –

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not

pinched or that hardware is not lodged between the chassis

and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,

cabinet, terminal board, adjustment and compartment covers

or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage

current in the following manner.

* Plug the AC line cord directly into a 120 volt AC outlet.

* Using two clip leads, connect a 1.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all exposed

metal cabinet parts and a known earth ground, such as

conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the

resistor (See diagram).

* Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet,

screw heads, knobs and control shafts, escutcheon, etc.)

and measure the AC voltage drop across the resistor.

All tests must be repeated with the AC line cord plug connection

reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.

AC.) or more is excessive and indicates a potential shock

hazard which must be corrected before returning the audio

product to the owner.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

AC SCALE

VTVM

1.5k ohms

10W

0.15∝F

TEST PROBE

TO EXPOSED

METAL PARTS

CONNECT TO

KNOWN EARTH

GROUND

SPECIFICATIONS

CD-CH1500

CP-RW5500

Specifications for this model are subject to change without

prior notice.

General

Power source AC 120 V, 60 Hz

Power consumption 175 W

Dimensions Width: 7-7/8" (200 mm)

Height: 13-7/8" (352 mm)

Depth: 14-7/8" (377 mm)

Weight 21.4 lbs. (9.7 kg)

Amplifier

Output power 100 watts minimum RMS per channel into 6 ohms from

60 Hz to 20 kHz, 10 % total harmonic distortion

Subwoofer: 60 W/ch

(60 Hz - 200 Hz, 6 ohms, 10 % T.H.D.)

Main: 40 W/ch

(200 Hz - 20 kHz, 6 ohms, 10 % T.H.D.)

Output terminals Speakers: 6 ohms

Headphones: 16-50 ohms (recommended; 32 ohms)

Input terminals Auxiliary: 500 mV/47 kohms

CD player

Type 6-disc multi-play compact disc player

Signal readout Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response 20 - 20,000 Hz

Dynamic range 90 dB (1 kHz)

Tuner

Frequency range FM: 87.5-108.0 MHz

AM: 530-1,720 kHz

Type 3-way type speaker system

2" (5 cm) Tweeter

5-1/4" (13 cm) Woofer

5-1/4" (13 cm) Subwoofer

Maximum input power (Total)

200 W

Rated input power (Total) 100 W

Impedance 6 ohms

Dimensions Width: 7-5/16" (185 mm)

Height: 16-7/16" (417 mm)

Depth: 12-1/4" (311 mm)

Weight 10.6 lbs. (4.8 kg)/each

Cassette deck

Frequency response 50-14,000 Hz (Normal tape)

Signal/noise ratio 50 dB (recording/playback)

Wow and flutter 0.3 % (WRMS)

– 3 –

CD-CH1500

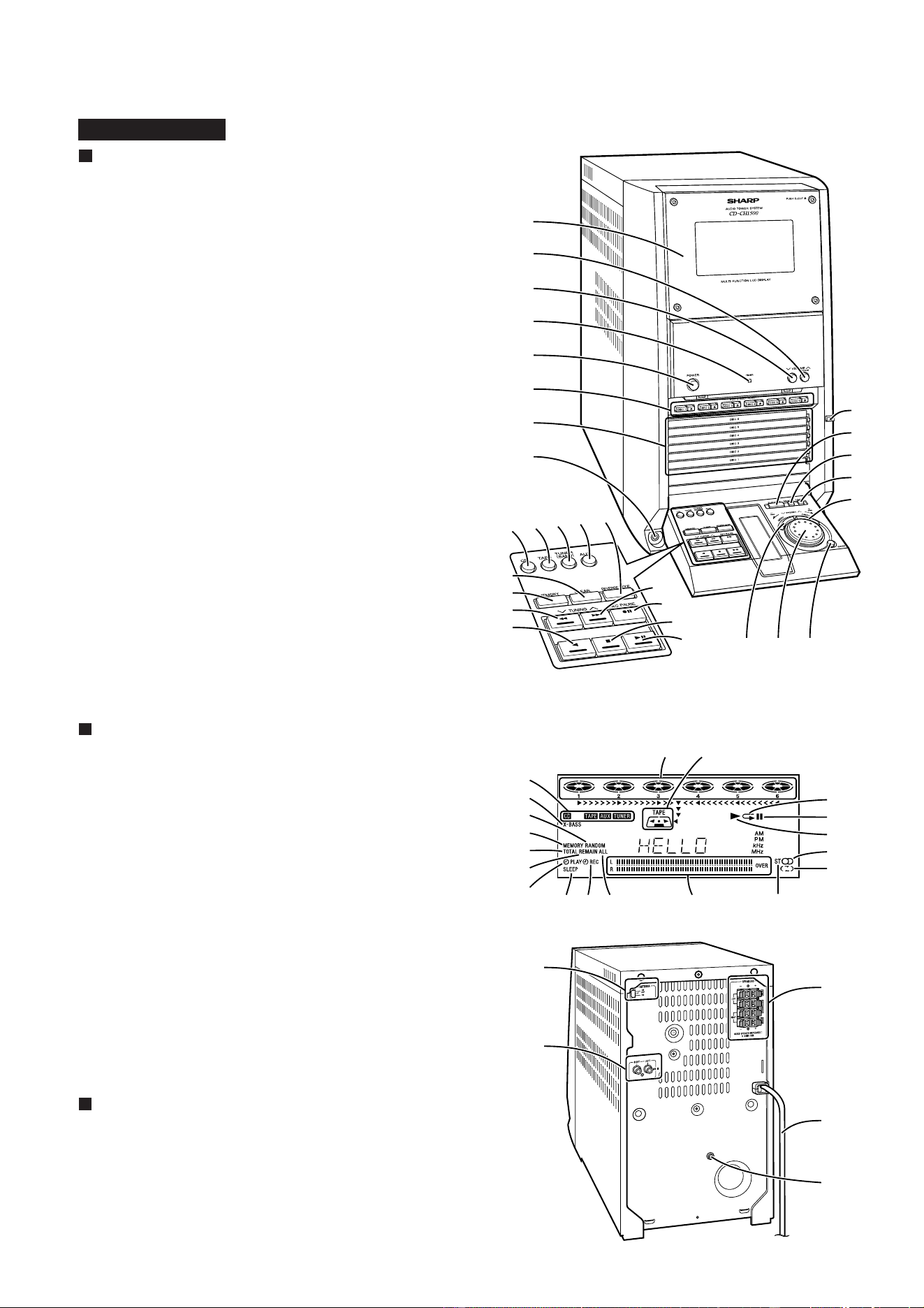

NAMES OF PARTS

CD-CH1500

Front panel

1. Cassette Compartment

2. Volume Up/Demo Button

3. Volume Down Button

4. Timer Set Indicator

5. Power Button

6. CD Direct Play Buttons (with Indicator)/

CD Eject Buttons

7. Disc Trays

8. Headphone Jack

9. Control Panel Open/Close Button

10. CD Play Mode Select Button

11. Equalizer Mode Select Button

12. Extra Bass Button

13. Display Button

14. Menu Button

15. Jog Dial

16. Enter Button

17. CD Button

18. Tape Button

19. Tuner (Band) Button

20. Auxiliary Button

21. Tape Reverse Mode Select Button

22. Clear Button

23. Memory Button

24. CD Fast Reverse, Tape Fast Wind or

Tuning Down Button (with Indicator)

25. Tape Reverse Play Button (with Indicator)

26. CD Fast Forward, Tape Fast Wind or

Tuning Up Button (with Indicator)

27. Tape Record Pause Button

28. Stop Button (with Indicator)

29. CD Play or Pause, Tape Forward Play Button

(with Indicator)

14 15 16

Multi-function LCD display

1. Function Indicator

2. Extra Bass Indicator

3. Random Play Indicator

4. Memory Indicator

5. Total Indicator

6. Remain Indicator

7. Timer Play Indicator

8. CD Indicators

9. Cassette Indicator

10. Sleep Indicator

11. Timer Recording Indicator

12. All Disc Play Indicator

13. Level Meter

14. FM Stereo Mode Indicator

15. CD Repeat Indicator

16. CD Pause Indicator

17. CD Play Indicator

18. FM Stereo Indicator

19. Tape Reverse Mode Indicator

Rear panel

1. FM/AM Antenna Jack

2. Auxiliary Input Jacks

3. Speaker Terminals

4. AC Power Cord

5. Transport Screw

8 9

10 11 12 13 14

CD-CH1500

– 4 –

CD-CH1500

CP-RW5500

Remote control

1. Remote Control Transmitter

2. Tuner (Band) Button

3. CD Button

4. Auxiliary Button

5. CD Direct Play Buttons

6. Memory Button

7. Clear Button

8. CD Track Down or Fast Reverse, Tape Fast Wind,

Tuner Preset Down Button

9. Enter Button

10. Stop Button

11. Menu Button

12. Control Panel Open/Close Button

13. Tape Button

14. Power Button

15. Time Button

16. FM Stereo Mode Button

17. Display Button

18. Dimmer Button

19. CD Play Mode Select Button

20. CD Track Up or Fast Forward, Tape Fast Wind,

Tuner Preset Up Button

21. CD Play or Pause, Tape Play Button

22. Tape Record Pause Button

23. Tape Reverse Mode Select Button

24. Equalizer Mode Select Button

25. Extra Bass Button

26. Volume Up or Down Buttons

✱

Buttons with “✱” mark in the illustration can be operated on the

remote control only.

Other buttons can be operated both on the main unit and the remote

control.

1. Woofer

4. Subwoofer Terminals

2. Tweeter

5. Main Speaker Terminals

3. Subwoofer

6. Bass Reflex Duct

– 5 –

CD-CH1500

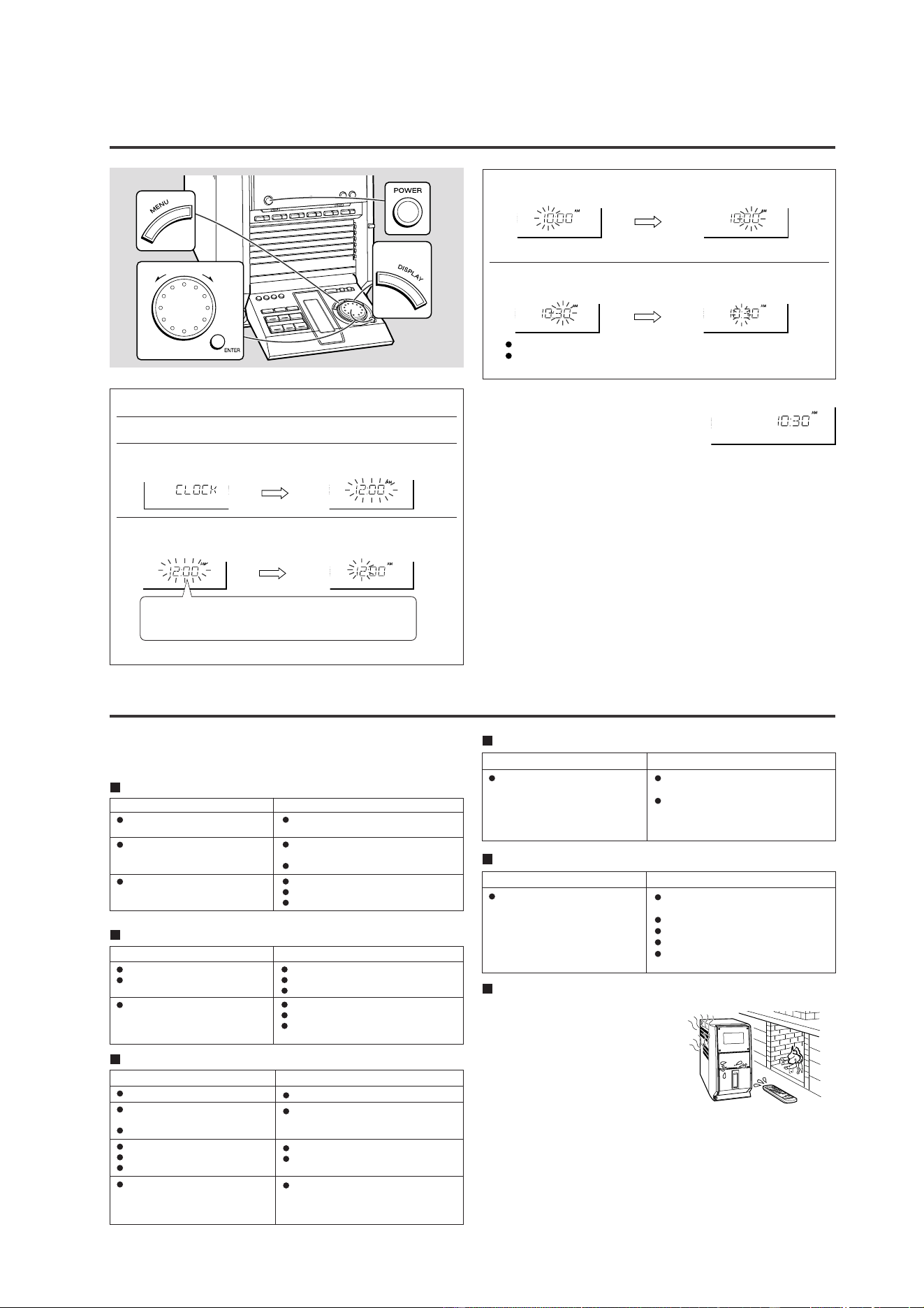

OPERATION MANUAL

To confirm the time display:

[When the unit is in the stand-by mode]

Press the DISPLAY button on the remote control.

The time display will appear for about 3 seconds.

[When the power is on]

Press the MENU button.

The time display will appear for about 10 seconds.

Note:

“CLOCK” will appear or time will flash at the push of the DISPLAY button when the AC

power supply is restored after a power failure or unplugging the unit.

Reset the clock as follows.

To reset the clock:

[When time is flashing]

1. Press the POWER button.

2. Press the MENU button.

3. Press the ENTER button.

4. Perform “Setting the Clock” from step 5.

[When “CLOCK” appears]

Perform “Setting the Clock” from the beginning.

To change the 24-hour or 12-hour display:

1. Clear all the programmed contents.

[Refer to “Clearing all the memory (reset)”.]

2. Perform “Setting the Clock” from the beginning.

Setting the Clock

In this example, the clock is set for the 12-hour (AM12:00) display.

Press the POWER button to turn the power on.

Press the MENU button.

Turn the jog dial to select “CLOCK” and within 10 seconds, press

the ENTER button.

Turn the jog dial to select the 12-hour or 24-hour display and

within 2 minutes, press the ENTER button.

Turn the jog dial to adjust the hour and within 2 minutes, press

the ENTER button.

When the 12-hour display is selected, “AM” will change automatically to “PM”.

Turn the jog dial to adjust the minutes and within 2 minutes, press

the ENTER button.

The hour will not advance even if minutes advance from “59” to “00”.

The clock starts from “0” second. (Seconds are not displayed.)

The time display will disappear after a few seconds.

“AM 12:00” →

The 12-hour display will appear. (AM 12:00 - PM 11:59)

“AM 0:00” →

The 12-hour display will appear. (AM 0:00 - PM 11:59)

“0:00” → The 24-hour display will appear. (0:00 - 23:59)

Note that this can only be set when the unit is first installed or it has been reset.

[Refer to “Clearing all the memory (reset)”.]

Troubleshooting Chart

Many potential “problems” can be resolved by the owner without calling a service tech-

nician.

If something is wrong with this product, check the following before calling your autho-

rized SHARP dealer or service center.

Tuner

Symptom

Radio makes unusual noise con-

secutively.

Remote control

Symptom

The remote control does not op-

erate.

Possible cause

Is the unit placed near the TV or com-

puter?

Is the FM/AM loop antenna placed prop-

erly?

Move the AC power cord away from the

antenna if located near.

Possible cause

Is the AC power cord of the unit plugged

in?

Is the battery polarity correct?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

General

Symptom

The clock is not on time.

When a button is pressed, the unit

does not respond.

No sound is heard.

Possible cause

Did a power failure occur?

Reset the clock.

Set this unit to the power stand-by

mode and then turn it back on.

If the unit still malfunctions, reset it.

Is the volume level set to “0”?

Are the headphones connected?

Are the speaker wires disconnected?

Cassette deck

Symptom

Cannot record.

Cannot record tracks with proper

sound quality.

Cannot erase completely.

Sound skipping.

Cannot hear treble.

Sound fluctuation.

Cannot remove the tape.

Possible cause

Is the erase-protection tab removed?

Is it a normal tape?

(You cannot record on a metal or CrO

tape.)

Is there any slack? Is the tape stretched?

Are the capstan, pinch rollers, or heads

dirty?

If a power failure occurs during playback,

the heads remain engaged with the tape.

Do not open the compartment forcibly.

Wait until electricity resumes.

CD player

Symptom

Playback does not start.

Playback stops in the middle or is

not performed properly.

Playback sounds are skipped, or

stopped in the middle of a track.

Possible cause

Is the disc loaded upside-down?

Does the disc satisfy the standards?

Is the disc distorted or scratched?

Is the unit located near excessive vibrations?

Is the disc very dirty

Has condensation formed inside the

unit?

Condensation

Sudden temperature changes, storage or op-

eration in an extremely humid environment may

cause condensation inside the cabinet (CD

pickup, tape heads, etc.) or on the transmitter

on the remote control.

Condensation can cause the unit to malfunction.

If this happens, leave the power on with no disc

(or cassette) in the unit until normal playback is

possible (about 1 hour). Wipe off any conden-

sation on the transmitter with a soft cloth before

operating the unit.

CD-CH1500

– 6 –

Troubleshooting Chart

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, ex-

cessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is oper-

ated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1. Set the unit to the stand-by mode and turn the power on again.

2. If the unit is not restored in the previous operation, unplug and plug in the unit, and

then turn the power on.

Clearing all the memory (reset)

If neither operation above restores the unit, clear

all the memory by following the instructions be-

low.

1. Press the POWER button to enter the power

stand-by mode.

2. While pressing down the VOLUME button,

press the POWER button until “ALL CLEAR” ap-

pears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset and CD program.

Before transporting the unit

On the back of this unit is equipped with a transport

safety screw in order to prevent damage during trans-

portation.

1. Press the POWER button to turn the power on.

2. Remove all discs from the unit, close the disc

tray.

“CD NO DISC” is displayed.

3. Press the POWER button to enter the stand-by

mode.

“GOOD-BYE” is displayed.

4. When “GOOD-BYE” disappears, unplug the AC

power cord from the AC outlet.

5. Insert the transport safety screw into the back

of the unit and tighten it with a flat-blade screw-

driver.

Notes concerning use:

Replace the batteries if the operating distance is reduced or if the operation be-

comes erratic.

Periodically clean the transmitter on the remote control and the sensor on the ste-

reo system with a soft cloth.

Exposing the sensor on the stereo system to strong light may interfere with opera-

tion. Change the lighting or the direction of the stereo system.

Keep the remote control awa

from moisture, heat, shock, and vibrations.

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the POWER button. Does the power turn on? Now, you can enjoy the music.

8" - 20'

(0.2 m - 6 m)

Remote Control

Remote sensor

– 7 –

CD-CH1500

Accessories

Accesorios

FM/AM loop antenna × 1

Antena de cuadro de FM/AM

Remote control × 1

Controlador remoto

Blue

Azul

Black

Negro

Black

Negro

Red

Rojo

Speaker wire for

MAIN terminals × 2

Cable del altavoz para

los terminales MAIN

Speaker wire for

SUBWOOFER terminals × 2

Cable del altavoz para los

terminales SUBWOOFER

Battery Installation of the Remote Control

Instalación de las pilas del controlador remoto

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.

Use dos pilas del tamaño“AA” (UM/SUM-3, R6, HP-7 o equivalentes). Las pilas no están incluidas.

Remove the

Insert the batteries

Replace the cover.

battery cover.

as shown.

Extraiga la cubierta Inserte las pilas Vuelva a colocar la

de las pilas. como se muestra. cubierta.

,,,,

,,,

,,,,,,

System Connections

Conexiones del sistema

FM antenna

Antena de FM

AM loop antenna

Antena de cuadro de AM

Blue

Azul

Red

Rojo

Black

Negro

Right speaker

Altavoz derecho

Left speaker

Altavoz izquierdo

AC outlet

(AC 120 V, 60 Hz)

A un tomacorriente de CA

(120 V de CA, 60 Hz)

Right speaker

Altavoz derecho

Left speaker

Altavoz izquierdo

RCA cord (not

supplied)

Cable RCA (no

suministrado)

To the line output jack

A la toma de salida de línea

VCR, DVD, etc.

Videograbadora

DVD, etc.

Before turning the power on, be sure to re-

move this transport screw on the back of the

unit using a flat-blade screwdriver or a coin.

This screw is required when transporting

the unit again. Please keep it.

Antes de conectar la alimentación,

asegúrese de extraer este tornillo para el

transporte de la parte posterior del aparato

empleando un destornillador de punta plana

o una moneda.

Este tornillo es necesario cuando el aparato

se transporta de nuevo. Gu r

ádelo.

CD-CH1500

– 8 –

Listening to a CD (CDs)

Audición de un disco CD (discos CD)

Turning on Your System

Conexión de la alimentación de su sistema

The first time the unit is plugged,

the unit will enter the demonstra-

tion mode. You will see words

scroll.

Cuando se enchufe por primera vez

el aparato, se establecerá en el modo

de demostración. Verá un desplaza-

miento de palabras.

Press the DEMO

button to cancel the

demonstration mode.

Pulse el botón DEMO

para cancelar el modo

de demostración.

Press the POWER

button to turn the

power on.

Pulse el botón POWER

para conectar la

alimentación.

Press the CD button.

Pulse el botón CD.

Press the DISC 1 button to open the

disc tray 1.

Pulse el botón DISC 1 para abrir la

bandeja del disco 1.

Place a CD on the disc tray 1, label side

up.

Coloque un disco compacto en la bandeja

del disco 1, con el lado de la etiqueta

arriba.

Press the DISC 1 button to close the

disc tray 1.

Pulse el botón DISC 1 para cerrar la

bandeja del disco 1.

You can place discs on the trays 2 - 6 by

following steps 2 - 4.

Podrá colocar discos en las bandejas 2 - 6

según los pasos 2 - 4.

Press the button to start playback.

Pulse el botón para iniciar la

reproducción.

5” (12 cm)

12 cm

3” (8 cm)

8 cm

Listening to the Radio

Audición de la radio

Press the TUNER (BAND) button repeat-

edly to select the desired frequency

band (FM or AM).

Pulse repetidamente el botón TUNER

(BAND) para seleccionar la banda de

frecuencia deseada (FM o AM).

Press the TUNING ( or ) button to

tune in to the desired station.

Pulse el botón TUNING ( o ) para

sintonizar la emisora deseada.

To receive an FM stereo transmission:

Press the ST-MODE button on the remote control

to display the “ST” indicator.

Para recibir una transmisión de FM en estéreo, pulse

el botón ST-MODE del controlador remoto para que

se encienda el indicador “ST” .

Listening to a Cassette Tape

Audición de un cassette

Press the TAPE button.

Pulse el botón TAPE.

Open the cassette door by pushing the

area marked “PUSH EJECT ”.

Abra la puerta del cassette pulsando la

parte marcada “PUSH EJECT ”.

Load a cassette into the compartment

with side A facing you.

Inserte un cassette en el compartimiento

del cassette.

Press the REVERSE MODE button to

choose one side or both side.

Pulse el botón REVERSE MODE para

seleccionar una cara o ambas caras.

... To listen to both sides.

Para escuchar ambas caras.

...

For repeat play of both sides.

Para repetir ambas caras.

... To listen to one side.

Para escuchar una cara.

Press the button to listen to side A,

or the button for side B.

Pulse el botón para escuchar la cara

A, o el botón para la cara B.

PUSH EJECT

– 9 –

CD-CH1500

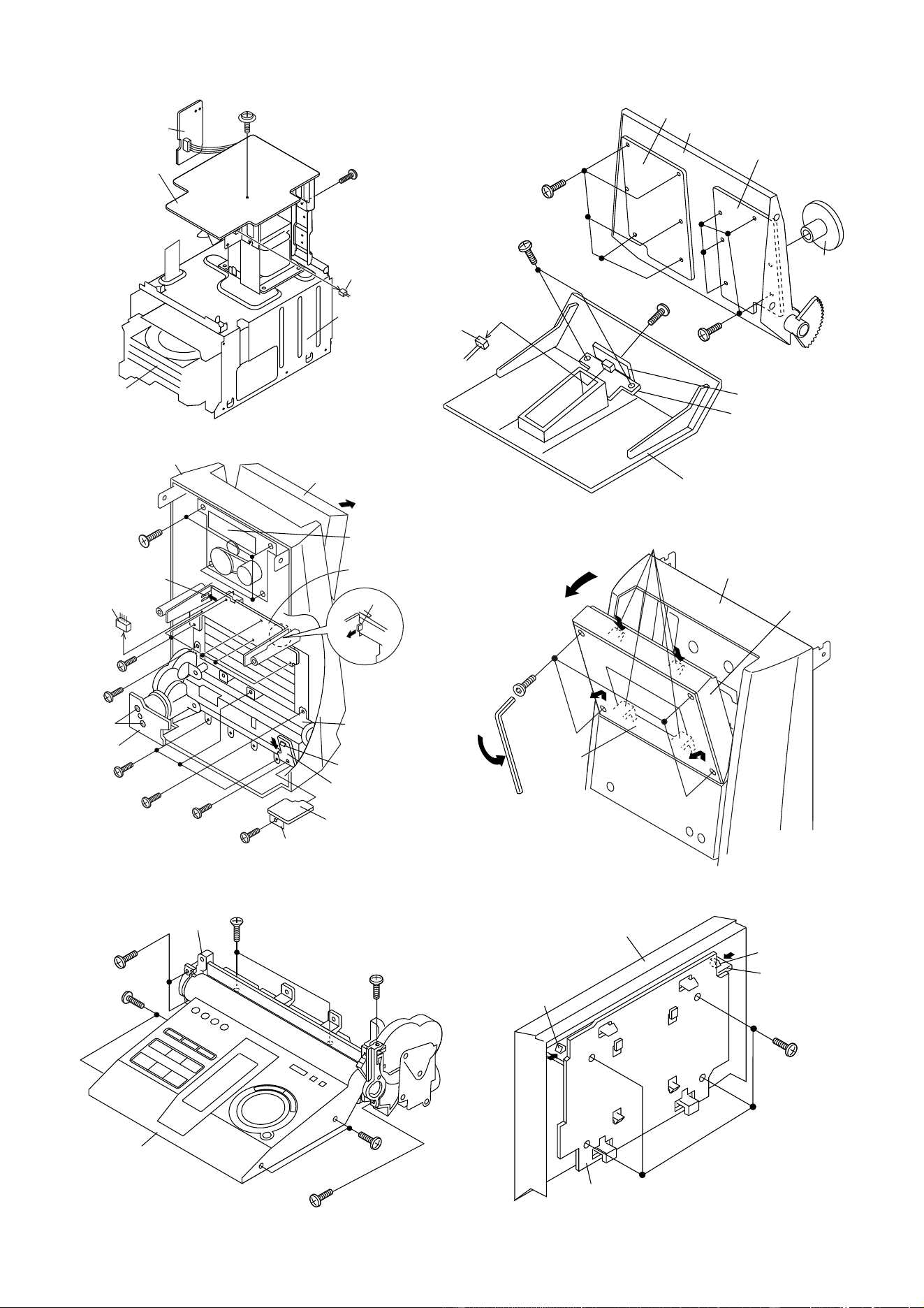

1 Top Cabinet 1. Screw ................ (A1) x5 9-1

2 Side Panel 1. Screw ................ (B1) x8 9-1

(Left/Right)

3 Rear Panel 1. Screw ................ (C1) x3 9-2

2. Screw ................ (C2) x6

4 Front Panel 1. Flat Cable .......... (D1) x1 9-2

2. Screw ................ (D2) x5

3. Socket ............... (D3) x6

5 Sub Trans PWB 1. Screw ................ (E1) x3 9-2

2. Socket ............... (E2) x5

6 Main PWB 1. Flat Cable .......... (F1) x1 9-2

2. Screw ................ (F2) x2

3. Screw ................ (F3) x1

4. Socket ............... (F4) x3

7 Power PWB/ 1. Socket ............... (G1) x1 10-1

Speaker PWB 2. Screw ................ (G2) x2

8 Tape Mechanism 1. Open the cassette holder. 10-2

2. Screw ................ (H1) x4

9 CD Switch PWB 1. Socket ............... (J1) x1 10-2

2. Screw ................ (J2) x6

3. Hook .................. (J3) x2

10 Switch PWB 1. Screw ................ (K1) x1 10-2

2. Hook .................. (K2) x1

11 Headphones PWB 1. Screw ................ (L1) x1 10-2

2. Bracket .............. (L2) x1

12 CD Changer Door 1. Screw ................ (M1) x3 10-2

Panel/Control Panel

2. Screw ................ (M2) x2

13 Motor PWB 1. Solder ................ (P1) x2 10-2

14 CD Changer Door 1. Screw ................ (Q1) x4 10-3

Panel

15 Control Panel 1. Screw ................ (R1) x6 10-3

16 Control PWB 1. Screw ................ (S1) x5 10-4

2. Socket ............... (S2) x1

17 Jog PWB 1. Knob .................. (T1) x1 10-4

2. Screw ................ (T2) x5

18 LED B PWB 1. Screw ................ (U1) x3 10-4

19 Cassette Holder 1.

Open the cassette holder cover.

10-5

Cover 2. Screw ................ (V1) x4

3. Display Panel .... (V2) x1

4. Hook .................. (V3) x4

20 Display PWB/ 1. Screw ................ (W1) x4 10-6

LED A PWB 2. Hook .................. (W2) x2

DISASSEMBLY

STEP REMOVAL

PROCEDURE

FIGURE

CD-CH1500

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Front Panel

Top Cabinet

Side Panel(Right)

Side Panel

(Left)

Rear Panel

(B1)x4

ø3x10mm

(A1)x2

ø3x16mm

(B1)x4

ø3x10mm

(A1)x1

ø3x10mm

(A1)x2

ø3x16mm

(C2)x6

ø3x10mm

Main PWB

Front Panel

Tape Mechanism PWB

(D3)x2

Speaker

PWB

(C1)x1

ø3x10mm

(F2)x2

ø3x10mm

(C1)x2

ø3x10mm

Rear

Panel

(D2)x2

ø3x8mm

(F3)x1

ø3x8mm

(F4)x1

(F1)x1

(D1)x1

CD PWB

Power PWB

(F4)x1

Main

PWB

(D2)x1

ø3x8mm

(E1)x3

ø3x8mm

(D3)x4

(D2)x1

ø3x8mm

(E2)x2

(E2)x3

Power PWB

Main PWB

Sub Trans

PWB

Lug Wire

Speaker

PWB

(D2)x1

ø3x8mm

Figure 9-1

Figure 9-2

CD-CH1500

– 10 –

(V1)x4

ø2.6x12mm

Front Panel

(V2)x1

(V3)x4

Open

Cassette

Holder Cover

(W1)x4

ø3x14mm

(W2)x1

LED A

PWB

Cassette

Holder Cover

Display PWB

(W2)x1

(G2)x1

ø3x10mm

(G2)x1

ø3x10mm

(G1)x1

Power PWB

Speaker

PWB

CD Changer

Block

Main

Chassis

(J2)x6

ø3x10mm

(M2)x1

ø3x20mm

(H1)x4

ø3x10mm

Tape

Mechanism

Front Panel

Cassette

Holder

Open

(J1)x1

(J3)x1

Switch PWB

Headphones

PWB

(L2)x1

(M1)x3

ø3x10mm

(K1)x1

ø2.6x10mm

(L1)x1

ø3x10mm

CD Changer

Door Panel

Motor

PWB

(P1)x2

CD Switch

PWB

(M2)x1

ø3x20mm

(K2)x1

(R1)x2

ø2.6x12mm

(Q1)x1

ø2.6x10mm

(Q1)x1

ø2.6x10mm

(Q1)x2

ø2.6x10mm

(R1)x2

ø2.6x12mm

(R1)x2

ø2.6x12mm

CD Changer

Door Panel

Control Panel

(S1)x5

ø2.6x10mm

(S2)x1

(U1)x2

ø2.6x10mm

(U1)x1

ø2.6x10mm

(T2)x5

ø2.6x10mm

Control Panel B

Control PWB

Control Panel A

LED B PWB

LED Holder

Jog PWB

(T1)x1

Figure 10-1

Figure 10-2

Figure 10-3

Figure 10-4

Figure 10-5

Figure 10-6

– 11 –

CD-CH1500

1 Front Panel 1. Net ...................... (A1) x1 11-3

2. Catching Holder . (A2) x4

3. Screw ................. (A3) x4

Woofer/Sub Woofer

1. Screw ................. (B1) x8 11-4

3 Tweeter 1. Screw ................. (C1) x2 11-4

STEP REMOVAL

PROCEDURE

FIGURE

CP-RW5500

(X3)x3

ø3x10mm

(X2)x1

ø3x10mm

Bottom Side

CD Changer

Mechanism

Front Side

(X2)x1

ø3x10mm

(X3)x2

ø3x10mm

Main Chassis

CD PWB

(X1)x1

1 Top Cabinet 1. Screw ................. (A1) x5 9-1

2 Side Panel 1. Screw................. (B1) x8 9-1

(Left/Right)

3 Rear Panel 1. Screw................. (C1) x3 9-2

2. Screw................. (C2) x6

4 Front Panel 1. Flat Cable .......... (D1) x1 9-2

2. Screw................. (D2) x5

3. Socket ................ (D3) x6

5 CD Changer 1. Flat Cable .......... (X1) x1 11-1

Mechanism 2. Screw................. (X2) x2

3. Screw................. (X3) x5

6 CD Servo PWB 1. Screw................. (Y1) x4 11-2

(Note) 2. Socket ................ (Y2) x4

3. Flat Wire ............ (Y3) x2

7 CD Mechanism 1. Screw................. (Z1) x4 11-2

STEP

REMOVAL PROCEDURE FIGURE

CD-CH1500 (CD CHANGER MECHANISM UNIT)

Note:

After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the

front end of connector remove to protect the optical pickup

from electrostatic damage.

(Y1)x4

ø3x10mm

(Y3)x1

(Y2)x1

(Y3)x1

(Y2)x2

(Z1)x4

ø2.6x10mm

CD Servo PWB

CD Changer

Mechanism

CD Mechanism

Figure 11-1

Figure 11-2

Figure 11-3

Figure 11-4

(A2)x4

(A1)x1

Front Panel

(A3)x4

ø3x12mm

Tweeter

Woofer

Sub Woofer

(C1)x2

ø3x10mm

(B1)x4

ø4x16mm

(B1)x4

ø4x16mm

CD-CH1500

– 12 –

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 4 and 8 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (See Fig. 12-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the pinch roller (See Fig. 12-2)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (B1) x1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (See Fig. 12-3)

1. Remove the motor.

2. Remove the main belt (C1) x 1 pc., from the motor side.

3. Remove the FF/REW belt (C2) x 1 pc.

How to remove the motor (See Fig. 12-4)

1. Remove the belt.

2. Remove the screws (D1) x 2 pcs., to remove the motor.

(A1)x2

Ø2 x 6mm

Record/

Playback

Head

Erase

Head

Pinch

Roller

(B1)x1

<A>

Pinch

Roller

Pawl

Pull

<B>

Pull

(Left)

<A>

Pinch

Roller

Pawl

Pull

<B>

Pull

(Right)

Main Belt

(C1)x1

FF/REW Belt

(C2)x1

Motor

(D1)x2

Ø 2.6 x 5mm

Motor

Figure 12-1

Figure 12-2

Figure 12-3

Figure 12-4

– 13 –

CD-CH1500

SW756 PLAY/PAUSE ON—OFF

SW757 STOP ON—OFF

SW758 PLAY ON—OFF

SW761 AUX ON—OFF

SW762 TUNER ON—OFF

SW763 TAPE ON—OFF

SW764 CD ON—OFF

SW772 EQUALIZER MODE ON—OFF

SW773 X-BASS ON—OFF

SW778 ENTER ON—OFF

SW783 PLAY MODE ON—OFF

SW784 DISPLAY ON—OFF

SW786 MENU ON—OFF

SWB101 DISC DETECT 1 ON—OFF

SWB102 DISC DETECT 2 ON—OFF

SWB103 DISC DETECT 3 ON—OFF

SWB104 MODE 1 ON—OFF

SWB105 MODE 2 ON—OFF

SWB106 MODE 3 ON—OFF

SWB107 MODE 4 ON—OFF

SWB108 MODE 5 ON—OFF

SWB109 TRAY 1 ON—OFF

SWB110 TRAY 2 ON—OFF

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ 1 ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means pico-farad and the unit of the capacitor

without such a symbol is microfarad. As to electrolytic

capacitor, the expression “capacitance/withstand voltage”

is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

NSW1 PICKUP IN ON—OFF

SW701 POWER ON—OFF

SW705 OPEN/CLOSE ON—OFF

SW710 PANEL OPEN/CLOSE ON—OFF

SW711 VOLUME DOWN ON—OFF

SW712 VOLUME UP ON—OFF

SW720 CD 1 EJECT ON—OFF

SW721 CD 2 EJECT ON—OFF

SW722 CD 3 EJECT ON—OFF

SW723 CD 4 EJECT ON—OFF

SW724 CD 5 EJECT ON—OFF

SW725 CD 6 EJECT ON—OFF

SW730 CD 1 PLAY ON—OFF

SW731 CD 2 PLAY ON—OFF

SW732 CD 3 PLAY ON—OFF

SW733 CD 4 PLAY ON—OFF

SW734 CD 5 PLAY ON—OFF

SW735 CD 6 PLAY ON—OFF

SW750 R-MODE ON—OFF

SW751 CLEAR ON—OFF

SW752 MEMORY ON—OFF

SW753 FAST REVERSE ON—OFF

SW754 FAST FORWARD ON—OFF

SW755 TAPE RECORD ON—OFF

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

TYPES OF TRANSISTOR AND LED

ECB

(S)(G)(D)

FRONT

VIEW

FRONT

VIEW

BCE

FRONT

VIEW

2SA562 Y

2SA1015 GR

2SB561 C

2SB562 C

2SC1740 R

DTC363 TS

KRA102 M

KRA107 M

KRC102 M

2SD2012

HLMP1700

K5052UL

LNG995PF

L934MBC5

SVC211C

SVC348S

1 2 3

(1) (2) (3)

KRC104 M

KRC107 M

KTA1046 Y

KTA1266 GR

KTC2026

KTC3194 Y

KTC3199 GR

KTC3203 Y

CD-CH1500

– 14 –

TO MAIN PWB

(IC901)

LASER

DRIVER

TRACKING COIL

FOCUS COIL

PICKUP UNIT

KEY

SWB101-SWB110

IC2

TC9490F

SERVO/SIGNAL

CONTROL

16.934MHz

IC6

TA2147F

SERVO PRE

AMP.

CNP1

IC5

BA5939S

FOCUS/TRACKING/

SPIN/SLED DRIVER

NSW1

PICKUP IN

NM2

SLED

MOTOR

NM1

SPINDLE

MOTOR

MOB1

MAIN CAM

MOTOR

MOB2

TRAY

MOTOR

+3.3V

/RST

GND

BUS1

T-MO_REV

T-MO_FOR

BUS3

BUCK

/CCE

CD/CD-RW_SEL

CD FUNC

PU-IN

CD_R-CH

CD_L-CH

CD_+B

A_GND

C-MO_REV

C-MO_FOR

CD_GND

BUS0

BUS2

CD-RW

CANB_B

CANA_E

CANA_C

CANA_A

TRAY_A

TRAY_C

TRAY_B

CANA_B

CANA_D

CANB_A

DVDD

DVSS

XVDD

XVSS

TESIN

DVSS

DVDD

SEL

VREF

DMO

AVDD3

FMO

TEBC

RFGC

TRO

FOO

SBAD

TEI

FEI

RFRP

RFI

PVREF

LPFO

LPFN

TMAX

AVSS

AVDD

RFCT

PDO

PVDD

DVSS

DVDD

/HSO

/RST

/CCE

BUCK

VSS

VDD

BUS3

BUS2

BUS1

BUS0

DVSS

GND

RFN

RFO

AGCI

RFGO

RFIS

RFRP

FEO

VRO

GVSW

SBAD

TEO

RFGC

TEB

SEL

FNI

FPI

TPI

TNI

MDI

LDO

TR+

FO+

TR–

SL+

SL–

SP–

SP+

FO–

+5V

VCC

3.3V

CONSTANT

VOLTAGE

SWITCHING

POWVCC

PREVCC

LOADING1

VCC

LOADING2

VCC

POWVCC

PREVCC

MUTE

+5V

Figure 14 BLOCK DIAGRAM (1/6)

– 15 –

CD-CH1500

TO MAIN PWB

AC POWER

SUPPLY

CORD

MAIN

SUB

WOOFER

IC802

SO201

BI950A

TO MAIN PWB

BI960

IC808

SP L-CH

SP R-CH

GND

SP R-CH

SP L-CH

GND

SP L-CH

GND

SP R-CH

GND

-B

FAN MOTOR

DRIVER

RELAY

DRIVER

MICON +5V

-B

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

-B

HIGH

LOW

Q200

CNP807

Q210

Q212

Q211

IC808

KIA7805AP

CONSTANT VOLTAGE

REGULATOR

F807

5A/125V

RY801

SO201

SPEAKER

TERMINALS

RY202

Q209

RY201

Q810

Q805

CNP806

F808

2.5A/125V

Q806

IC202

STK40204(2Ch)

POWER AMP.

Q204

Q203

Q208

Q207

Q206

Q201

Q813 Q812

IC201

STK40271(2Ch)

POWER AMP.

Q205

F801

2.5A/125V

F804

5A/125V

F803

5A/125V

F806

4A/125V

D816

D817

F805

4A/125V

T802

SUB POWER

TRANSFORMER

Q807

Q809

IC802

KIA7810AP

VOLTAGE

REGULATOR

C203

KIA4558P

OPE AMP.

T801

MAIN POWER TRANSFOMER

MO200

FAN

MOTOR

Q202

M+10V

D812~D815

D804~D807

A_+10V

A_GND

M_+10V

BIAS_GND

TO DECK SECTION

D_GND

FAN_CTL

D_GND

-8V

AC_RLY CTL

UN_SW 5V

SP_RLY

SP_DET

4 6

7 2 5

CD_GND

M_GND

CD_+B

M_10V

A_GND

A_+10V

M_10V

M_GND

CD_GND

CD_+B

A_GND

A_+10V

A_GND2

R-CH

L-CH

9 8

4 3

–

–Vcc

+Vcc

Ch1

Ch2

Out

Ch1

3 2

–

Out

Ch2

Out

Ch2

Ch1

–

+Vcc

–Vcc

AC 120V,

60Hz

JK701

HEADPHONES

MICON +5V

Figure 15 BLOCK DIAGRAM (2/6)

CD-CH1500

– 16 –

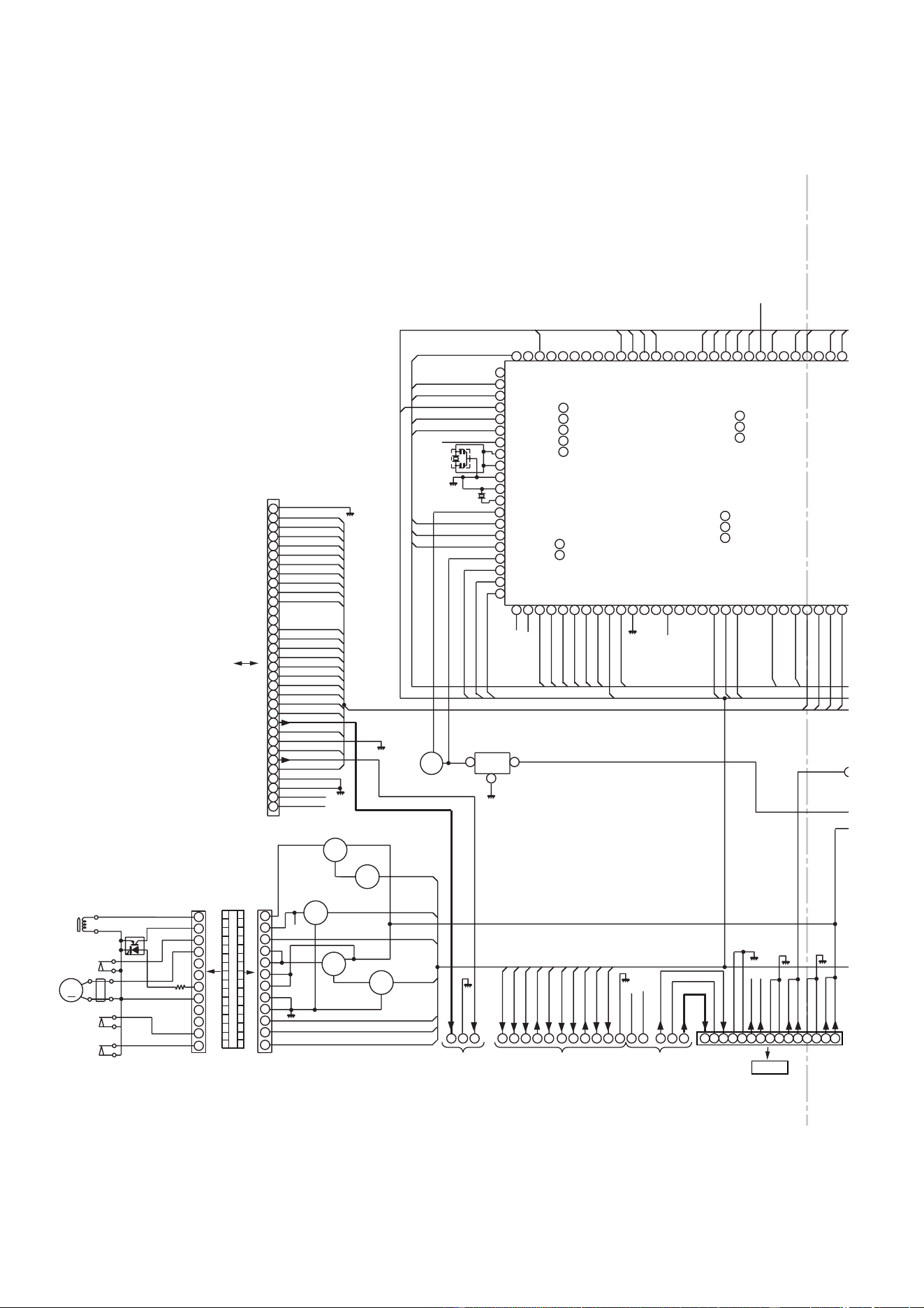

Figure 16 BLOCK DIAGRAM (3/6)

TO CD PWB

PXY

TO POWER

PWB

IC905

CNP806

VOL

X902

32.768kHz

Q909

Q908

Q907

Q906

Q905

IC905

KIA7042AP

RESET

Q901

X901

600kHz

CNP970

FFC970

IC901

IX0417AW

SYSTEM

MICROCOMPUTER

CNP901

FH_A-SW_A

FH_T-SW_C

FH_T-SW_B

FH_T-SW_A

FH_A-SW_B

FH_A-SW_C

FH_A-SW_D

FH_A-SW_E

FH_C-SW_A

FH_C-SW_B

CD_BUS3

CD_BUCK

CD_CCE

CD_RES

CD_BUS2

CD-RW

CD_BUS1

T-MO_REV

CD_BUS0

T-MO_FOR

CD_L

PU-IN

A_GND

C-MO_REV

CD_R

C-MO_FOR

CD_GND

CD_+B

SOLENOID

–

F_REC

R_REC

CST_SW

–COM

+MTR

+5V SENSOR

SENSOR OUT

+SOL

M_+B

M_GND

CD_+B

CD_GND

A_+10V

A_GND

L CH

R CH

A_GND

A_+10V

A_GND

CD_+B

CD_GND

M_GND

M_+B

A_-B

AUX_SEL

L_CH

R_CH

A_GND2

C2B_CL

C2B_DO

C2B_CE

C2B_DI

S-MUTE

VSM

TO AUDIO SECTION

D_GND

A_+B

PB_MUTE

CD_MUTE

CD-R_SEL

A_GND

CD_R

CD_L

TO AUDIO SECTION

SIDE-A

SIDE-B

CST-SW

LEVEL_L

LEVEL_R

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

9 8 7 6 5 4 3 2

CD RE

83 FH T-SW C

82 FH T-SW B

81 FH T-SW A

LCD E

FH A-SW B

CD MUTE

FH M

AVref1

AVSS

Vref 0

AVDD A

RESET

XT1

XT2

VSS

VDD

TIMER LCD

30 LCD R/W

29 LCD RS

28 POWER RLY

27 N.C.

26 LCD DB7

CD PIC

TEST/Vpp

LCK2

LCK1

VDD

DEST_OUT2

FH C-

FH A-SW E

FH A-SW D

FH A-SW C

CD B

JOG-B

KEY 4

KEY 3

KEY 2

KEY 1

KEY 0

BACK LED CONT

LCD DB6

LCD DB5

3 REC BIAS

2 REC

1 PB MUTE

LCD DB4

DATA

JOG-A

CST SW

CAM SW

B-FP SW

A-FP SW

DEST_OUT1

REMOCON

VSM

PROTECT

C FUTA OP

SPAN

CD B

C FUTA CL

SYS MUTE

CD B

REC M

DEST_IN

LCD-RW

LCD-E

TUNER DI

TUNER DO

TUNER CL

CLK

RUN PULSE

T-SOL

T-MOTOR

CAM-SW

RUN_PUL

MOTOR

SOL

PLAY SW

TAPE

MOTOR

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

49 SP RLY

50 POWER KEY

GND

PLAY

SWITCH

SOLENOID DRIVER

RUN PULSE

MOTOR DRIVER

SYS STOP

+5V

– 17 –

CD-CH1500

Figure 17 BLOCK DIAGRAM (4/6)

8 7 6 5 4 3 2 1

TO POWER PWB

TO POWER

PWB

IC913

CNP102

CNP807

P806

SW750~SW758

KEY0

Q954

Q955

IC701

TA7291S

MOTOR DRIVER

1 2 3 4 5 6 7 8 9

IC913

KIA7805AP

VOLTAGE REGULATOR

BI940

CNS940

BI950

BI960

IC912

BU2092F

INPUT/OUTPUT

EXPANDER

CNP934

CNP931

REC_RCH

REC_LCH

A_GND

TAPE_L

TAPE_R

TO AUDIO SECTION

TAPE_R

TAPE_L

A_GND

REC_LCH

REC_RCH

REC_MUTE

REC_CONT

REC_BIAS

8 7 6 5 4 3 2 1

POWER_RLY

SP_RLY

PROTECT

FAN

D_GND

SP_DET

SP_RLY

UN_SW 5V

AC_RLY CTL

A_-B

D_GND

FAN_CTL

1 2 3 4 5 6 7 8

M_+B

M_GND

CD_+B

CD_GND

CD_+B

GND

M_GND

M_+B

PNL_OP

PNL_CL

D GND

A +B

SDA

SCL

D +B

D_GND

KEY4

KEY3

KEY2

JOG-B

JOG-A

A_+B

D_+B

CD-R_SEL

SW12

LCK

SW10

SW11

SW5

SW7

SW8

SW9

VSS

DATA

CLK

VDD

A_+B

D_+B

D_GND

REMOCON

POW_KEY

KEY0

KEY1

LCK

DATA

POW_IND

LEVEL_R

100

73 74 75 76 77 78 79 80

8 7 6 5 4 3 2 1

CD RESET

CD CCE

FH A-SW B

FH M B-

FH A-SW A

FH M B+

FH M A-

FH M A+

CD RW

CD PICK IN

DEST_OUT2

VSS

FH C-SW B

FH C-SW A

FH A-SW E

FH A-SW D

FH A-SW C

CD BUS3

CD BUS2

CD BUS1

IAS

UTE

DEST_OUT1

CD BUCK

CD BUS0

REC MUTE

LCD-RW

LCD-E

RUN PULSE

T-SOL

T-MOTOR

CD-SW

8 9

10 11 12 13 14 15

IC701

SW711,SW712,

SW720~SW725

Q724

Q720

Q721

Q723

Q725

Q722

SW710,

SW730~SW735

LED759

LED731

LED754

LED756

LED757

LED758

LED755

SW701

POWER

RX701

REMOTE

SENSOR

LED770

JOG701

JOG DIAL

SW761~SW764

Q708

LED772~

LED776

SW770,SW772,

SW773,SW778,

SW784,SW786

CNS720

CNS770

IC702

INPUT/OUTPUT

EXPANDER

BU2092F

LED_4

LED_1

LED_2

LED_3

LED_5

LED_6

Q10

VDD

Q11

LCK

CLOCK

VSS

POW_IND

DATA

LCK

KEY1

POW_KEY

REMOCON

D_GND

D_+B

A_+B

LED_EG

LED_5

LED_4

LED_3

LED_2

LED_1

A_+B

JOG-A

JOG-B

KEY2

KEY3

KEY4

D_GND

3 2

DATA

CNP701

Q707

LED735,

LCD720

LCD DISPLAY

LED737,LED738

VDD

VSS

VLCD

SW705

OPEN/CLOSE

MO700

CONTROL

PANEL MOTOR

MOTOR_–

MOTOR_+

D_GND

CLOSE_SW

OPEN_SW

DIMMER

CD-CH1500

– 18 –

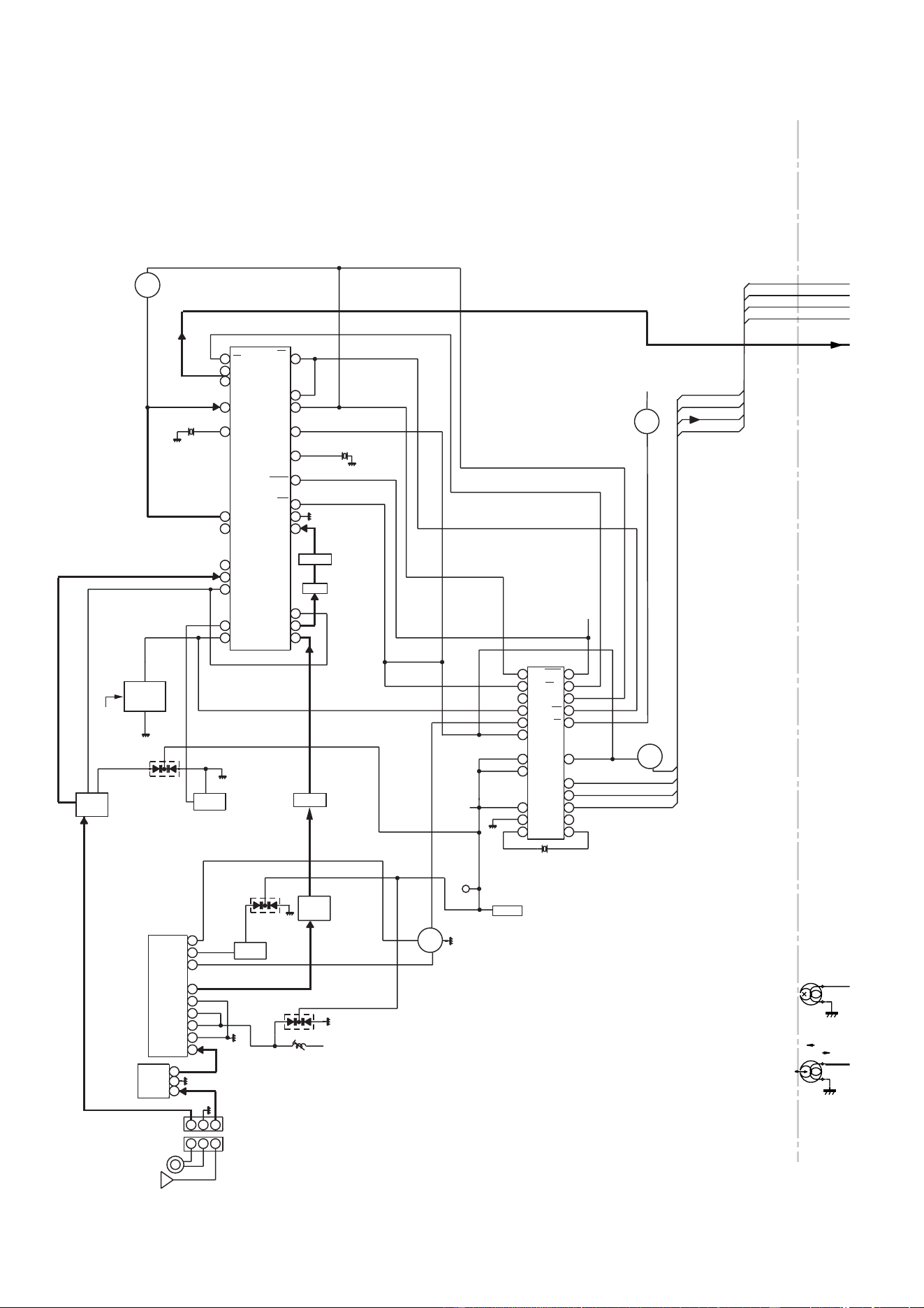

Figure 18 BLOCK DIAGRAM (5/6)

TP301

AM IF

FM IF

FM OSC.

SWITCHING

FM RF

OSC BUFF

SWITCHING

T311

AC BIAS

ERASE

HEAD

L-CH

R-CH

P.B

REC

RECORD/

PLAYBACK

HEAD

X351

456kHz

IC303

LA1832S

CF351

FM IF

T351

CF352

Q351

CF302

ANTENNA

AM OSC.

VD301

BF301

T312

CNP303

L312

IC301

TA7358AP

FM FRONT END

VD302

Q371

Q360

IC302

LC72131

X352

4.5MHz

BAND

PASS

FILTER

VD303

Q302

VR351

FM MUTE

LEVEL

FM IF DET./FM MPX./AM IF

IC302

LC72131

PLL(TUNER)

T306

FM IF

VT_CK

TUN_R

TUN_L

A_+B

C2B_CE

C2B_CL

C2B_DI

C2B_DO

13 12

FM IF IN

AM MIX OUT

AM OSC OUT

FM AFC

AM OSC IN

AM RF IN

AM LOW CUT

VSM

FM/AM OUT

MPX

VCO

MPX IN

R-CH OUT

L-CH OUT

PHASE

(FM/AM)

PHASE

IF OUT

VCC

FM DET

STEREO

GND

AM IF IN

REG

MO/ST

MUTE

IO2

IF IN

X OUT

X IN

AM IN

FM IN

VDD

AIN

AOUT

VSS

MO/ST

ST IND

C2B_CL

C2B_DI

C2B_CE

C2B_DO

FM/AM

LOOP

ANTENNA

A_+B

– 19 –

CD-CH1500

Figure 19 BLOCK DIAGRAM (6/6)

H/N

P.B

REC

R REC

L REC

POP REDUCE

R NF

L NF

R NF

L NF

1211

2324

VCC

AC BIAS

ERASE

HEAD

L-CH

R-CH

P.B

REC

REC MUTE

REC

P.B

TO POWER

SECTION

CNS940

Q119

Q120

IC102

BA3126N

HEAD

SELECTOR

Q101

Q102

CNP102

Q116

Q114

Q115

IC101

AN7345K

PLAYBACK AND

RECORD/PLAY BACK

AMP.

SWITCHING

BIAS

BIAS OSC.

SWITCHING

RECORD/

PLAYBACK

HEAD

REC_MUTE

REC_CONT

REC_L-CH

REC_R-CH

TAPE_R-CH

TAPE_L-CH

REC_BIAS

A_+10V

M_+10V

BIAS_GND

A_GND

L-CH

FROM MAIN PWB

A_GND

PB_MUTE

S-MUTE

C2B_DI

C2B_CE

C2B_DO

C2B_CL

D_GND

TO MICOM SECTION

Q507

Q508

JK501

AUX IN

Q509

Q501

Q502

IC502

LC75341

AUDIO

PROCESSOR

IC503

NJM4558M

MOTOR DRIVER

R-CH

L-CH

LSEL0

RSEL0

RIN

VDD

CLK

LIN

VSS

A_+B

A_-B

L_CH

TO MICOM

SECTION

C2B_DO

C2B_CL

C2B_DI

C2B_CE

TUNER

TAPE

AUX

REC_R-CH

TAPE_L

TO MICOM

SECTION

TO MICOM

SECTION

CD_L

-B

SWITCHING

SYSTEM

MUTE

REC_L-CH

CD-CH1500

– 20 –

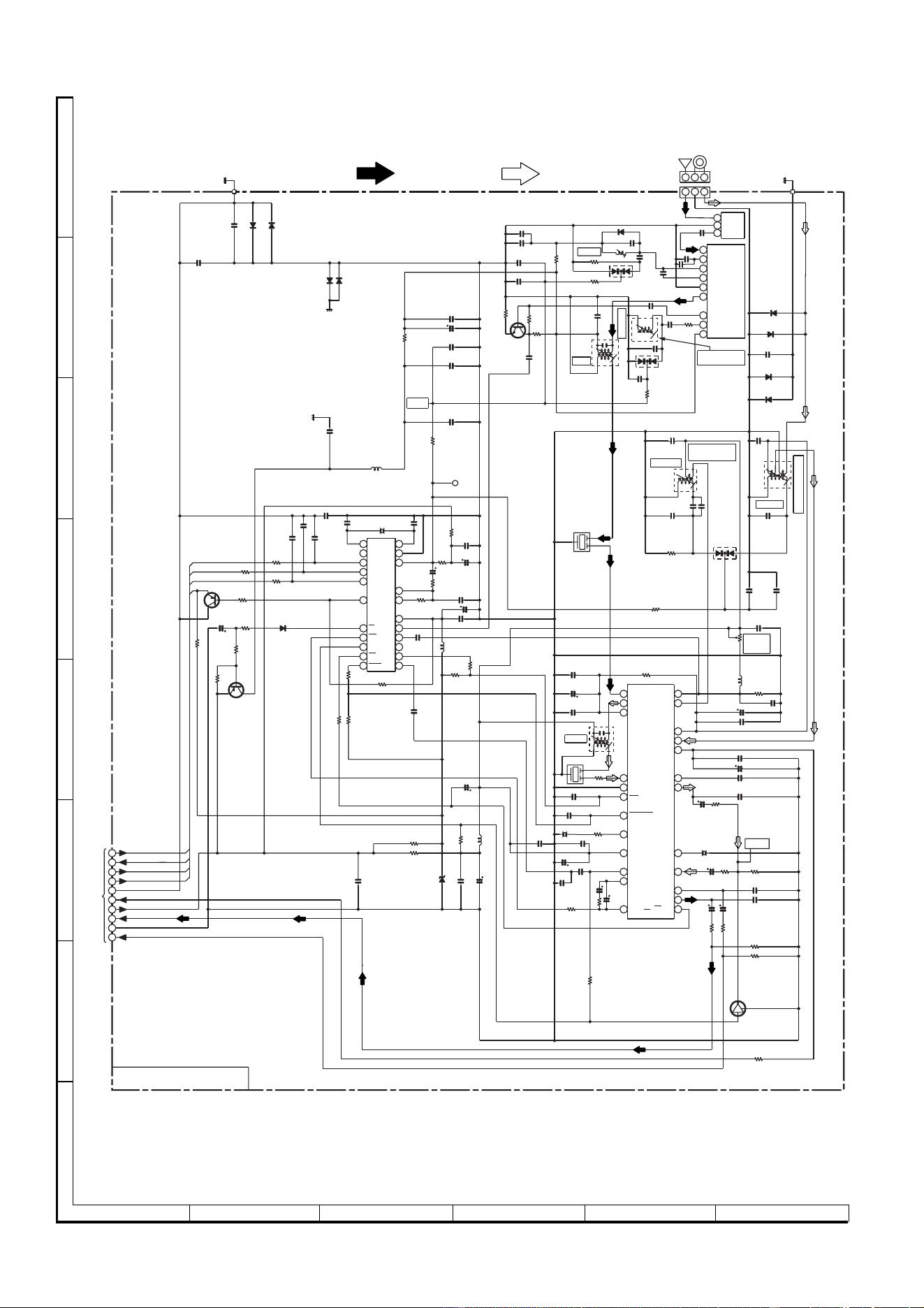

Figure 20 SCHEMATIC DIAGRAM (1/11)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

MAIN PWB-A(1/3)

AM IF

FM IF

FM OSC.

SWITCHING

AM TRACKING fL

AM BAND

COVERAGE fL

FM RF

TP301

C319

0.1

C370

1/50

R327

C317

0.001

C316

0.1

R354

3.9K

R389

3.9K

L352

100µH

R391

390

R393

R377

47K

C395

0.022

C396

100/16

X351

456kHz

R359

1.8K

C367

1/50

C364

4.7/50

C363

0.022

C365

0.022

L353

1mH

C362

3.3/50

C350

0.047

C361

0.022

C342

0.022

IC303

LA1832S

FM IF DET./FM MPX./AM IF

R351

5.6K

C352

10/50

C351

0.022

R355

3.3K

C356

0.001

C357

2.2/50

C355

22P

(CH)

C399

0.022

R353

270

C354

0.022

C353

0.022

C366

0.001

R356

C368

1/50

CF351

T351

C358

1/50

R352

C343

33P

(CH)

C374

0.015

R358

8.2K

R363

1.2K

C373

0.015

R357

470K

Q351

KRC104M

R364

1.2K

C372

1/50

C371

1/50

R362

18K

R361

18K

R370

CF352

CF302

C330

15P(CH)

R336

10K

C323

0.022

C332

0.022

C331

0.047

T306

C335

330P(CH)

C337

0.022

VD301

SVC348S

R323

68K

C339

100P

(CH)

R325

47K

C318

100P(CH)

R322

270

C303

10P(CH)

BF301

D301

DS1SS133

D302

DS1SS133

C338

0.001

D304

DS1SS133

D303

DS1SS133

C327

0.1

T312

R311

100K

R313

33K

CNP303

C309

0.001

C324

4P(CH)

C326

18P(CH)

L312

C305

5P(CH)

C315

0.0047

R302

C314

0.0047

C304

0.01

D310

DS1SS133

R314

C313

22P

(CH)

IC301

TA7358AP

FM FRONT END

C325

15P(CH)

VD302

SVC211C

R309

10K

T311

D311

DS1SS133

D312

DS1SS133

C310

100P

(CH)

C311

100P(CH)

C312

100P

(CH)

C384

0.001

R372

R373

R374

D305

DS1SS133

D306

DS1SS133

R399

10K

C389

0.001

R392

390

DZ351

DZ5.1BSB

C320

0.047

R383

5.6K

Q371

KTA1266 GR

Q360

2SB562 C

R384

5.6K

R371

4.7K

C391

47/16

R385

5.6K

D352

DS1SS133

IC302

C390

0.001

L351

100µH

C394

47/16

C387

0.022

R380

1.5K

R379

2.2K

C385

0.01

C392

0.001

C393

1/50

R381

10K

R345

4.7K

C321

100/16

R376

C386

330P

(CH)

C341

0.1

C346

0.022

L342

2.2µH

X352

4.5MHz

C381

12P(CH)

C382

15P(CH)

R378

82K

C397

0.022

R360

4.7K

R382

150

R395

47K

C347

0.022

C301

0.001

C345

0.022

C334

15P(CH)

BAND

PASS

FILTER

VD303

SVC211C

Q302

KTC3194 Y

R369

820

C308

5P(CH)

C380

10/50

MUTE

LEVEL

VR351

10K(B)

R350

2.7K

C398

100/16

IC302

LC72131

PLL(TUNER)

T302

C306

0.001

AM OSC.

0.8V

1.6V

3.6V

1.6V

3.6V

2.9V

3.6V

0.1V

1.8V

0.8V

2.3V

4.7V

0.1V

3.5V

4.1V

3.6V

4.7V

0.8V

4.7V

2.3V

4.7V

9.2V

10V

4.6V

4.7V

2.5V

4.6V

3.9V

3.4V

4.6V

2.4V

0.3V

2.3V

2.1V

1.2V

3.6V

3.4V

2.3V

1.3V

2.1V

VT_CK

A_GND

TUN_R

VSM

TUN_L

A_+B

D_GND

C2B_CE

C2B_CL

C2B_DI

C2B_DO

1312

FM IF IN

AM MIX OUT

AM OSC OUT

FM AFC

AM OSC IN

AM RF IN

AM LOW

CUT

VSM

FM/AM

OUT

MPX VCO

MPX IN

R-CH OUT

L-CH OUT

PHASE

(FM/AM)

PHASE

IF OUT

VCC

FM DET

STEREO

GND

AM IF IN

REG

MO/ST

MUTE

IO2

IF IN

X OUT

X IN

AM IN

FM IN

VDD

AIN

AOUT

VSS

MO/ST

ST IND

C2B_CL

C2B_DI

C2B_CE

C2B_DO

FM/AM

LOOP

ANTENNA

P21 10 - A

TO AUDIO SECTION

AM SIGNAL

FM SIGNAL

FM BAND

COVERAGE fL

AM ANT.

OSC BUFF

SWITCHING

TP302

– 21 –

CD-CH1500

Figure 21 SCHEMATIC DIAGRAM (2/11)

8 9 10 11 12

PB_MUTE

S-MUTE

VSM

C2B_DI

C2B_CE

C2B_DO

C2B_CL

D_GND

S-MUTE

PB_MUTE

TO MICOM SECTION

P22 5 - H

C599

0.001

R582

22K

C566

22/50

Q508

DTC363 TS

Q507

DTC363 TS

C550

22/50

R542

1.5K

R552

47K

R538

C534

47P(CH)

C532

100P(CH)

C537

0.1

C536

10/50

R537

C533

47P

(CH)

R551

47K

C551

22/50

R541

1.5K

C531

100P(CH)

C535

0.1

C530

10/50

JK501

AUX IN

C523

1/50

R550

39K

C525

1/50

C527

1/50

C517

1/50

C515

0.0027(ML)

C519

1/50

C521

1/50

R531

3.9K

R533

3.9K

C522

1/50

C524

1/50

C526

1/50

C528

1/50

C518

1/50

C520

1/50

C516

0.0027(ML)

C512

0.1

C514

0.1

R530

3.9K

R534

3.9K

R532

3.9K

R528

2.2K

C510

10/50

C529

10/50

R526

D508

DS1SS133

D507

DS1SS133

C562

0.1

L501

2.2µH

L502

2.2µH

C541

390P

C540

390P

R549

39K

C573

2.2/50

C574

2.2/50

R548

2.2K

R547

2.2K

R592

47K

R591

47K

R543

47K

R544

47K

Q509

KRA107 M

R539

10K

R540

10K

R512

8.2K

R511

8.2K

R513

1.2K

R514

1.2K

C503

22/50

R507

22K

Q502

KTC3199 GR

C502

0.001

R504

2.2K

Q501

KTC3199 GR

C501

0.001

R503

2.2K

R502

330

R525

R524

R501

330

R535

47K

R536

47K

C564

0.1

C563

10/50

C511

0.1

R529

3.9K

C513

0.1

R527

2.2K

C509

10/50

IC502

LC75341

AUDIO PROCESSOR

IC503

NJM4558M

MOTOR DRIVER

C597

0.0027

C598

0.0027

10V

2.6V

0V 0V 0V 0V

0.7V0.7V

10V

3.6V

8.2V

R-CH

L-CH

CHASSIS

GND

–

CD_R

TUNER_R

TAPE_R

AUX_R

23 22

21 20

17 16

876

321

ROUT

LBASS

LSEL0

CCB

INTERFACE

RSEL0

RIN

RTRE

RBASS

VREF

VDD

CLK

LIN

LTRE

LOUT

VSS

AUX

DECK

TUNER

A_GND

A_+B

A_GND2

A_-B

R_CH

L_CH

P22 5 - H

TO MICOM SECTION

P20 1 - F

TO TUNER SECTION

A_GND

TUN_L

TUN_R

A_+B

D_GND

VSM

C2B_DO

C2B_CL

C2B_DI

C2B_CE

CD_L

TUNER_L

TAPE_L

AUX_L

A_GND

REC_RCH

REC_LCH

TAPE_L

TAPE_R

P23 10 - H

TO MICOM SECTION

P22 4 - H

TO MICOM SECTION

CD_R

CD_L

A_GND

–

IC503

GF I

MAIN PWB-A (2/3)

+B+B

-B

CD SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

SWITCHING

SYSTEM MUTE

CD-CH1500

– 22 –

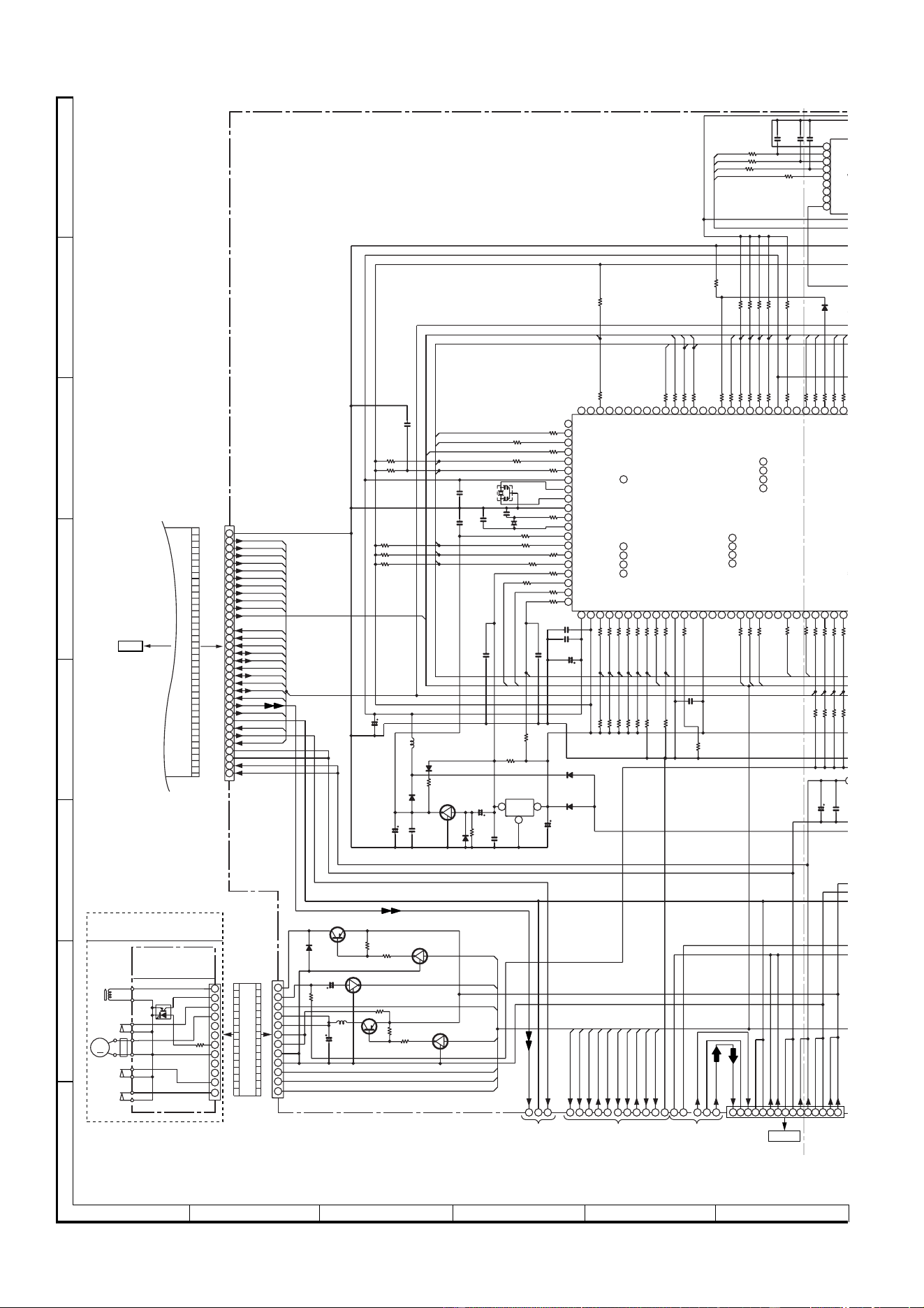

Figure 22 SCHEMATIC DIAGRAM (3/11)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

TAPE MECHANISM

ASSEMBLY (1/2)

PXY

TAPE

MECHANISM

PWB-H

IC905

DIMMER

S-MUTE

LED-TIMER

P-CLOSE

P-OPEN

-B

R1133

470

R1062

3.3K

R1124

10K

R1119

R1118

R902 1K

C945

0.1

R1046

12K

R946

R991

C1003

47/50

R1106

10K

R1107

10K

R1108

10K

R1109

10K

D951

DS1S

R1105

10K

C936

100P

(CH)

R984

R1085

5.6K

R985

R1086

5.6K

R986

R987

R1087

5.6K

R1088

5.6K

R988

R995

R1066

10K

R966

R1065

10K

R965

X902

32.768kHz

C941

22P

(CH)

C902

0.1

R969

R1068

10K

R1060

100K

D902

DS1SS133

D901

DS1SS133

R1008

R1031

R1007

Q909

KRC107 M

R1015

820

Q908

2SB561 C

C913

2.2/50

R1014

100K

Q907

KRC107 M

R1013

47K

D910

DS1SS133

C912

47/16

Q906

KRC107 M

R1012

Q905

2SB561 C

L910

47µH

R1011

100K

C901

1000/6.3

C903

0.1/50

D905

DS1SS133

L901

100µH

C904

0.01

R1003

4.7K

IC905

KIA7042AP

RESET

R1002

100K

R1001

47K

C906

0.1

C905

3.3/50

Q901

KRC102 M

D906

DS1SS133

D907

DS1SS133

C907

10/50

R962

C964

0.1

C916

0.1

C917

0.1

R920 1K

R904 1K

R1056

10K

R1058

100K

R1036

5.6K

R921 1K

R1053

10K

R968

R948

R918 1K

R919 1K

R914 1K

R958

R934

R915 1K

R957

R956

R1055

10K

R947

R955

R954

X901

600kHz

R959

R960

C957

150P

(CH)

R901 1K

R941

330K

R932

R906 1K

C958

390P

C943

0.1

R943

R908 1K

R910 1K

R970

R933

C950

150P

(CH)

R1044

22K

R1057

10K

R1054

10K

R905 1K

C942

18P

(CH)

R953

R944

R936

R935

R1035

5.6K

R911 1K

R912 1K

R913 1K

R903 1K

CNP970

FFC970

R1141

IC901

IX0417AW

SYSTEM

MICROCOMPUTER

CNP901

FFC901

C998

22/10

C1013

0.022

1.1V

5V5V

4.4V

11.3V

11.4V

11.3V

0.8V

0.2V

2.6V

2.3V

2.8V

4.4V

0.3V

4.8V

(4.8V)

(4.6V)

0.2V

FH_A-SW_A

FH_T-SW_C

FH_T-SW_B

FH_T-SW_A

FH_A-SW_B

FH_A-SW_C

FH_A-SW_D

FH_A-SW_E

FH_C-SW_A

FH_C-SW_B

CD_BUS3

CD_BUCK

CD_CCE

CD_RES

CD-SW

CD_BUS2

CD-RW

CD_BUS1

T-MO_REV

CD_BUS0

T-MO_FOR

CD_L

PU-IN

A_GND

C-MO_REV

CD_R

C-MO_FOR

CD_GND

CD_+B

SOLENOID

–

F_REC

R_REC

CST_SW

–COM

+MTR

+5V SENSOR

SENSOR OUT

+SOL

M_+B

M_GND

CD_+B

CD_GND

A_+10V

A_GND

L CH

R CH

A_GND

A_+10V

A_GND

CD_+B

CD_GND

M_GND

M_+B

A_-B

AUX_SEL

L_CH

R_CH

A_GND2

C2B_CL

C2B_DO

C2B_CE

C2B_DI

S-MUTE

VSM

P21 7 - H

TO AUDIO SECTION

P21 12 - C

TO AUDIO SECTION

D_GND

A_+B

PB_MUTE

CD_MUTE

CD-R_SEL

A_GND

CD_R

CD_L

P21 9 - H

TO AUDIO SECTION

SIDE-B

SIDE-A

CST-SW

EX-DATA

EX-CLK

LCK1

CD-SW

CD-R

LCK

VSS

DAT

CLK

POWER

SP_RLY

PROTECT

LEVEL_L

KEY3

KEY2

KEY4

KEY0

KEY1

VSM

LEVEL_R

51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

9 8 7 6 5 4 3 2

CD R

FH T-

FH A-SW B

FH A-SW A

AVref1

AVSS

Vref 0

AVDD A

RESET

XT1

XT2

VSS

VDD

TIMER LCD

28 POWER RLY

CD PI

LCK2

LCK1

VDD

DEST_OUT2

FH C-

FH A-SW E

FH A-SW D

FH A-SW C

JOG-B

KEY 4

LEVEL_L

LEVEL_R

KEY 3

KEY 2

KEY 1

KEY 0

BACK LED CONT

3 REC BIAS

2 REC

1 PB MUTE

DATA

REVERSE

JOG-A

CST SW

CAM SW

B-FP SW

A-FP SW

DEST_OUT1

REMOCON

VSM

PROTECT

C FUTA OP

SPAN

C FUTA CL

SYS MUTE

REC

DEST_IN

LCD-RW

LCD-E

TUNER DI

TUNER DO

TUNER CL

CLK

RUN PULSE

T-SOL

T-MOTOR

LCD-RW

LCD-E

LCK2

POWER_RLY

REC_BIAS

REC_CONT

CST-SW

CAM-SW

SIDE-B

SIDE-A

RUN_PUL

C2B_CE

PB MUTE

EX-CLK

LCK1

SOL

EX-DATA

MOTOR

C2B_CL

C2B_DI

C2B_DO

CAM-SW

RUN_PUL

MOTOR

SOL

RX_IN

JOG-B

JOG-A

RES

PLAY SW

TAPE

MOTOR

CD-S

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

SP RLY

POWER KEY

GND

PLAY

SWITCH

CASSETTE

SWITCH

SOLENOID DRIVER

RUN PULSE

MOTOR DRIVER

SYS STOP

TO CD SERVO PWB

P26 1 - E

CNP1

P28 1 - C

TO POWER PWB

CNP806

– 23 –

CD-CH1500

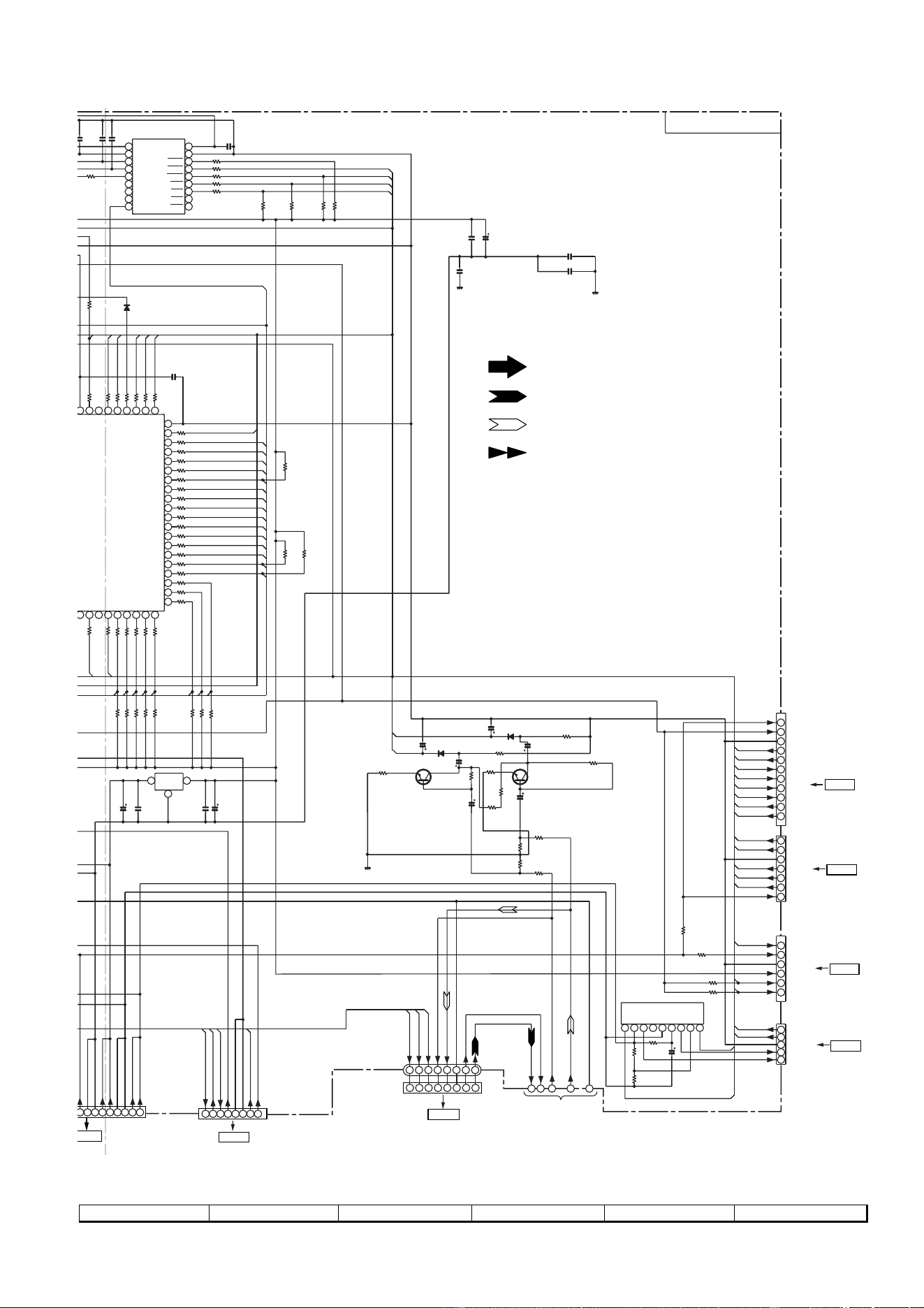

Figure 23 SCHEMATIC DIAGRAM (4/11)

8 9 10 11 12

8 7 6 5 4 3 2 1

MAIN PWB-A (3/3)

IC913

DIMMER

CD-R_SEL

CD SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

R1140

2.2

R1142

2.2

R1138

560K

R1130

4.7K

R1139

560K

R1129

4.7K

R999 1K

R982 1K

R949 1K

R997 1K

R998 1K

R996 1K

R1132

220

Q954

KTC3199 GR

C1008

1/50

C1007

1/50

R1131

220

Q955

KTC3199 GR

C925

1/50

C926

1/50

IC701

TA7291S

MOTOR DRIVER

1 2 3 4 5 6 7 8 9

R763

2.7K

R762

6.8K

C714

47/16

R768

2.2

(1/2W)

R1017

10K

R1016

10K

CNP933

R1028

27K

R1090

5.6K

R1089

5.6K

R1119

R1118

R1094

5.6K

R902 1K

C1006

47/50

C1005

0.1

C1003

47/50

C1004

0.1

IC913

KIA7805AP

VOLTAGE

REGULATOR

R1112

12K

R1113

12K

C1002

2.2/50

C1001

2.2/50

D954

DS1SS133

D953

DS1SS133

D951

DS1SS133

R1105

10K

R978 1K

R989 1K

R916

R928 1K

R976 1K

R977 1K

R979 1K

R980 1K

R981 1K

R990 1K

R1093

5.6K

R993

R1092

5.6K

R992

R1084

5.6K

R984

R1085

5.6K

R985

R1086

5.6K

R986

R987

R1087

5.6K

R1088

5.6K

R988

R1071

33K

R1072

33K

R1081

5.6K

R1082

5.6K

R1023 1K

R904 1K

R1050 1K

R1027

10K

R1026

10K

C957

150P

(CH)

R901 1K

R906 1K

C958

390P

R1048

10K

R1024

10K

R908 1K

R1051 1K

C970

0.1

C914

0.1

R905 1K

R1032 1K

R1052 1K

C977

100P(CH)

C976

0.1

C975

1/50

C974

0.1

C978

100P

(CH)

R903 1K

R994 1K

R1141

BI940

CNS940

BI950

BI960

IC912

BU2092F

INPUT/OUTPUT

EXPANDER

CNP934

CNP935A

CNP931

IC701

0V 5V

2.8V

1.1V

3.5V

0.3V

3.4V

0.3V

8.6V

0.5V

11.4V

1.3V

0.5V

(4.8V)

(4.6V)

0.2V

REC_RCH

REC_LCH

A_GND

TAPE_L

TAPE_R

P21 12 - H

TO AUDIO SECTION

TAPE_R

TAPE_L

A_GND

REC_LCH

REC_RCH

REC_MUTE

REC_CONT

REC_BIAS

8 7 6 5 4 3 2 1

POWER_RLY

SP_RLY

PROTECT

FAN

D_GND

SP_DET

SP_RLY

UN_SW 5V

AC_RLY CTL

A_-B

D_GND

FAN_CTL

1 2 3 4 5 6 7 8

M_+B

M_GND

CD_+B

CD_GND

+10V

CD_+B

CD_GND

M_GND

M_+B

PNL_OP

PNL_CL

MOTOR_–

MOTOR_+

OPEN_SW

CLOSE_SW

D_GND

P-OPEN

P-CLOSE

LCD-E

LCD-RW

D GND

A +B

SDA

SCL

D +B

KEY2

JOG-B

JOG-A

KEY4

KEY3

D_GND

KEY4

KEY3

KEY2

JOG-B

JOG-A

A_+B

D_+B

CD-R_SEL

SW12

LCK

SW10

SW11

SW5

SW7

SW8

SW9

VSS

DATA

CLK

VDD

P_CONT

LCD_RESET

AUX_SEL

DIG_SEL

FAN

PNL_OP

PNL_CL

A_+B

D_+B

D_GND

REMOCON

POW_KEY

KEY0

KEY1

LCK

DATA

POW_IND

KEY0

KEY1

LCK2

EX-CLK

EX-DATA

RX_IN

LED-TIMER

POWER

LEVEL_R

100

2 73 74 75 76 77 78 79 80

9 8 7 6 5 4 3 2 1

CD RESET

CD CCE

FH T-SW C

FH T-SW B

FH T-SW A

FH M B-

FH M B+

FH M A-

FH M A+

CD RW

CD PICK IN

VDD

DEST_OUT2

VSS

FH C-SW B

FH C-SW A

FH A-SW E

CD BUS3

CD BUS2

CD BUS1

BIAS

MUTE

T_OUT1

CD BUCK

CD BUS0

REC MUTE

LCD-RW

LCD-E

RUN PULSE

T-SOL

T-MOTOR

T-MO_REV

T-MO_FOR

C-MO_REV

C-MO_FOR

PU-IN

FH_C-SW_B

FH_C-SW_A

CD_CCE

CD_BUCK

CD_BUS3

CD_BUS2

CD_BUS1

CD_BUS0

REC_MUTE

CD-RW

CD_RES

LCD-RW

LCD-E

FH_T-SW_C

FH_T-SW_B

FH_T-SW_A

FH T-SW C

FH T-SW B

REC_BIAS

REC_CONT

RUN_PUL

PB_MUTE

SOL

MOTOR

CD-SW

7 8 9

10 11 12 13 14 15

P25 8 - B

P24 6 - B

P25 7 - H

P24 6 - E

28 1 - C

WER PWB

NP806

CNP807

P28 1 - D

TO POWER PWB

CNP102

P30 2 - A

TO POWER PWB

FROM

MOTOR PWB

CNP741

FROM

DISPLAY PWB

CNS702

FROM

JOG PWB

CNS770

FROM

DISPLAY PWB

CNS720

CD-CH1500

– 24 –

Figure 24 SCHEMATIC DIAGRAM (5/11)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

C705

10P

C706

0.022

BI705B

SW724

CD 5

EJECT

SW725

CD 6

EJECT

SW720

CD 1

EJECT

R720

6.8K

R710

4.7K

SW722

CD 3

EJECT

SW723

CD 4

EJECT

R735

33K

C703

0.022

R792

2.7K

SW712

VOLUME

SW711

VOLUME

DOWN

R733

1.8K

R726

2.2K

Q724

KRA102 M

Q720

KRA102 M

Q721

KRA102 M

Q723

KRA102 M

Q725

KRA102 M

Q722

KRA102 M

R791

2.7K

R723

1.8K

SW731

CD 2

PLAY

R712

2.2K

SW710

PANEL

OPEN/CLOSE

R708

2.7K

R729

15K

SW734

CD 5

PLAY

SW735

CD 6

PLAY

SW730

CD 1

PLAY

R736

33K

R721

6.8K

R711

4.7K

SW732

CD 3

PLAY

SW733

CD 4

PLAY

R707

2.7K

R728

15K

SW721

CD 2

EJECT

R747

LED759

K5052UL

C708

0.022

LED731

HLMP1700

R705

R701

R702

LED754

K5052UL

LED756

K5052UL

LED757

K5052UL

LED758

K5052UL

R704

R703

R706

LED755

K5052UL

C716

2.2/50

CNP701

R750

100

C709

47/25

C707

100P

SW701

POWER

RX701

N64H380A

REMOTE

SENSOR

R715 1K

R714 1K

R713 1K

C704

10P

Q707

KTC3203 Y

R748

10K

BI705A

CNS702

BI702

R749

R731

R730

L702

2.2µH

BI720

CNS720

CNS772

CNP721

LCD720

LCD DISPLAY

IC702

INPUT/OUTPUT

EXPANDER

BU2092F

R788

330

LED738

LNG995PF

R790

330

R789

150

LED735

LNG995PF

LED737

LNG995PF

0.1V

3.1V

3.4V

0.8V

0.1V

0.2V

1.8V

0.3V

8.8V

9.8V

10V

10V 10V

10V

LED_4

LED_1

LED_2

LED_3

LED_5

LED_6

Q10

VDD

Q11

LCK

CLOCK

VSS

POW_IND

DATA

LCK

KEY0

KEY1

POW_KEY

REMOCON

D_GND

D_+B

A_+B

VDD

SCL

SDA

A_+B

D_GND

SDA

SCL

VDD

VSS

VLCD

D_+5

SCL

SDA

A_+10

D_GND

DIMMER

DISPLAY PWB-B1

LED_1

LED_2

LED_3

LED_4

LED_5

LED_EG

3 2

LED A PWB-B2

CD SWITCH PWB-B3

DIMMER

IC702

DATA

P23 12 - G

TO MAIN PWB

CNP935A

P23 12 - E

TO MAIN PWB

CNP931

– 25 –

CD-CH1500

Figure 25 SCHEMATIC DIAGRAM (6/11)

8 9 10 11 12

–

R767

LED772

K5052UL

R772

R776

R780

R787

R753

1.2K

R756

1.5K

R759

1.8K

R765

2.2K

BI741

C715

0.1

BI740B

SW705

OPEN/CLOSE

BI740A

L705

2.2µH

C710

100P

(CH)

C711

100P

(CH)

JK701

HEADPHONES

BI730

RA711

150

RA710

150

LED770

L934MBC5

R781

18K

R769

3.9K

R773

4.7K

SW758

PLAY

SW753

FAST

REVERSE

R755

1.5K

R764

2.2K

SW752

MEMORY

R777

8.2K

R752

1.2K

SW750

R-MODE

SW755

TAPE

RECORD

SW751

CLEAR

R758

1.8K

SW756

PLAY/

PAUSE

R760

1.8K

R754

1.2K

R779

8.2K

R766

2.2K

SW772

EQUALIZER

MODE

R757

1.5K

SW773

X-BASS

SW778

ENTER

R771

3.9K

R775

4.7K

R783

18K

C712

0.001

C713

0.001

JOG701

JOG DIAL

SW761

AUX

SW762

TUNER

SW763

TAPE

SW764

BI771A

CNP775

BI773

R761

330

Q708

KRA102 M

BI770

BI771B

BI772

LED775

K5052UL

LED786

K5052UL

LED774

K5052UL

LED773

K5052UL

SW786

SW784

DISPLAY

SW783

PLAY

MODE

MO700

CONTROL

PANEL MOTOR

CNS741

CNS730

CNS773

CNS770

SW757

STOP

SW754

FAST

FORWARD

R785

47K

R774

4.7K

R778

8.2K

R770

3.9K

R782

18K

10V

1.3V

TO MAIN PWB

MOTOR PWB-B7

MOTOR_–

MOTOR_+

D_GND

CLOSE_SW

OPEN_SW

HEADPHONES PWB-B9

CONTROL PWB-B4

TO POWER PWB

>II

LED_EG

LED_5

LED_4

LED_3

LED_2

LED_1

A_+B

JOG-A

JOG-B

KEY2

KEY3

KEY4

D_GND

CNP933

CNP207

JOG PWB-B5

LED B PWB-B6

SWITCH PWB-B8

P23 12 - G

P29 12 - B

P23 12 - F

FM SIGNAL

TO MAIN PWB

CNP934

CD-CH1500

– 26 –

• The numbers 1 to 17 are waveform numbers shown in page 52. (CD-CH1000)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

Figure 26 SCHEMATIC DIAGRAM (7/11)

CD SERVO PWB-C

CNP901

P22 1 - D

TO MAIN PWB

R30

2.2M

100/10

C64

0.001

C65

0.001

C51

100/10

C29

0.022

0.82µH

R91

47K

R92

47K

C92

470P

C91

470P

CORE1

120

0.82µH

R19

10/16

R13 1K

R12 1K

R11 1K

R10 1K

R9 1K

R8 1K

R7 1K

C13

0.022

DZ1

MTZJ5.1A

R14

100/10

0.022

C14

0.022

R18

100

R16

100

100/10

0.022

R27

47K

C30

47/10

IC2

TC9490F

SERVO/SIGNAL

CONTROL

R17

C16

0.047

C19

0.047

C15

0.047

C17

0.047

R21

5.6K

C18

0.033(ML)

C22

0.033(ML)

R31

10K

C23 0.01

C24

0.0027

C25 0.01

R29

100K

R32

15K

C26

0.015

R25

5.6K

C20

47P

R28

47K

0.82µH

C31

220/10

C28

0.022

C21

0.001

C27

0.0047

0.022

C11

15P

C12

22P

16.934MHz

C10

0.022

CNP1

FFC901

2.6V

3.3V

1.6V

3.3V

1.7V

1.6V

1.7V

3.3V

0.7V

1.7V

1.3V

1.8V

3.3V

3.1V

1.3V

1.4V

1.5V

3.1V

4.8V

5.1V

2.6V

/RST

GND

BUS1

BUS3

BUCK

/CCE

CD/CD-RW_SEL

CD FUNC

PU-IN

CD_R-CH

CD_L-CH

CD_+B

GND

CD_GND

BUS0

BUS2

CANB_B

CANA_E

CANA_C

CANA_A

TRAY_A

TRAY_C

TRAY_B

CANA_B

CANA_D

CANB_A

BUCK

BUS3

BUS2

BUS1

BUS0

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

DVR

DVDD

DVSS

XVDD

XVSS

TESIN

DVSS

DVDD

SEL

VREF

DMO

AVDD3

FMO

TEBC

RFGC

TRO

FOO

SBAD

TEZI

TEI

FEI

RFRP

RFI

SLCO

PVREF

LPFO

LPFN

VCOF

AVSS

AVDD

RFCT

RFZI

10 11 12 13 14 15 16

1 2 3 4 5 6 7 8 9

PDO

PVDD

SBSY

SFSY

DATA

DVSS

DVDD

CLCK

SBOK

IPF

DOUT

AOUT

BCK

LRCK

/UHSO

/HSO

/RST

/CCE

BUCK

VSS

VDD

BUS3

BUS2

BUS1

BUS0

DVSS

ZDET

TMAX

DATA

CLCK

TP5

TP7

TP8

/CCE

TP9

TP10

TP6

CD SIGNAL

– 27 –

CD-CH1500

Figure 27 SCHEMATIC DIAGRAM (8/11)

8 9 10 11 12

PICKUP UNIT

CAM SWITCH

PWB-G

TRAY SWITCH

PWB-F

IC5

R73

8.2K

R37

33K

C67

0.001

C51

100/10

C29

0.022

C96 100P

C36

27P

2SC1740 R

C34

22P

C40

0.1(ML)

R42

56K

C33

0.022

C32

0.022

R44

68K

C97 100P

C98 100P

C99

100P

C93 100P

C94 100P

C95 100P

C58 100P

C59 100P

C60

100P

CNP3 CNP2

0.82µH

R74

8.2K

R71

10K

R72

10K

R78

8.2K

R77

8.2K

R76 10K

R75 10K

R50

1.2K

R49

1.2K

R46

1.2K

C42

0.0068

R43

820

C49

0.1

C50

0.1

CNP4

CNP6

C46

0.022

C45

470/10

C48

100/10

R47

10K

R38

C38

10/50

C37

0.022

2SD2012

DZ2

MTZJ3.9B

KTA1266 GR

C44

220/10

R48

C47

100/10

R53

68K

R51

68K

R57 47K

R55 68K

R56 68K

R54 47K

C43

0.022

R35

R40

100

C39

3.9P

R36

2.2K

R39

10K

7/10

0.82µH

C31

220/10

C27

0.0047

C41

0.1(ML)

CNP5

CNP7

IC6

TA2147F

SERVO PRE

AMP.

SWB110 TRAY 2

SWB109 TRAY 1

SWB103

DISC DETECT 3

SWB104 MODE 1

SWB105 MODE 2

SWB106 MODE 3

SWB101

DISC DETECT 1

SWB102

DISC DETECT 2

CNS5B

SWB108 MODE 5

SWB107 MODE 4

R41

3.3K

R45

8.2K

IC5

BA5939S

FOCUS/

TRACKING/

SPIN/

SLED DRIVER

CNS7A

CNS7B

CNS5A

NSW1

PICKUP IN

NM2

SLED

MOTOR

NM1

SPINDLE

MOTOR

CNS6A

CNS6B

CNS4

MOB1

MAIN CAM

MOTOR

MOB2

TRAY MOTOR

FW3

FW2

CNP6A

KRA102 M

8.6V

3.3V

4.3V

8.6V

4.3V

8.6V

1.7V

2.3V

2.7V

1.5V

3.3V

1.7V

0.7V

2.7V

0.8V

1.2V

2.4V

1.1V

0.3V

GND

RFN

RFO

AGCI

RFGO

RFIS

RFRP

FEN

FEO

VRO

GVSW

SBAD

TEO

TEN

RFGC

TEB

SEL

FNI

FPI

TPI

TNI

MDI

LDO

32 31

MUTE

PREVCC

LEVEL SHIFT

BIAS

POWVCC

LOADING2

VCC

LEVEL

SHIFT

LEVEL

SHIFT

LEVEL SHIFT

LOADING1

VCC

VREFSW

BIAS

PREVCC

POWVCC

BIAS

LEVEL

SHIFT

LEVEL

SHIFT

CANB_A

CANA_E

CANA_D

CANA_C

CANA_B

CANA_A

CANB_B

TRAY_A

TRAY_B

TRAY_C

–

SP+

SP–

GND

PU-IN

SL–

SL+

SP–

SP+

–

GND

PU-IN

SL–

SL+

TR+

FO+

GND

TR–

GND

FO–

FO+

TR+

ACTUATOR

TR–

FO–

FO+

TR+

FO–

–

VCC

MON

GND

1/2VCC

VREF

+5V

1/2V

+5V

LTOH41M1

VCC

TP12

TP14

GND(D)

SWITCHING

CONSTANT

VOLTAGE

LASER

DRIVER

CD MOTOR

PWB-E

CD-CH1500

– 28 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

Figure 28 SCHEMATIC DIAGRAM (9/11)

1 2 3

4 5 6 7 8 9

14 15

1 2

4 5 6 7 8 9

1 2

IC802

-B

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

C844

3.3/50

C247

47/50

C226

220P(CH)

C227

2.2/50

R204

820

LED801

K5052UL

R836

270

R811

3.3(1/2W)

R835

R834

FR252

100(1/4W)

Fusible

CNP807

FR213 100(1/4W)

Fusible

FR214

100(1/4W)

Fusible

R830

100

CNP805

BI804

D802

DS1N

C209

100/50

C821

100/25

C820

0.047

(ML)

C822

10/50

C252

2200/50

C253

3300/63

R803

22K

R821

470

C838

220/16

Q810

KTC3199 GR

DZ804

MTZJ10B

R822

1.5K

C840

0.022

C837

0.022

R837

3.3(1/2W)

C839

100/16

R820

470

R807

22K

C815

0.1

C814

47/25

C816

0.1

C817

6800/25

Q805

KTC2026

C807

0.047

(ML)

R806

22K

C810

22/50

C230

0.15

C229

0.15

C221

0.015(ML)

C222

0.015(ML)

C213

0.022

C217

100P

(CH)

C211

0.15(ML)

C212

0.15(ML)

C207

0.15

CNP806

DZ803

MTZJ9.1B

Q806

KTA1046 Y

C819

470/25

IC202

STK40204(2Ch)

POWER AMP.

C238

100/50

D204

DS1SS133

R215

22K

R244

C232

220P

R246

820

C234

1/50

C236

15P

R248

56K

R250

R256

0.1(1W)

C240

0.022

R258

10K

R260

Q204

KTC3199 GR

C242

10/50

C241

10/50

0.1(

0.0

R261

56K

R230

0.22(2W)

R220

0.22

(2W)

R229

0.22(2W)

R219

0.22(2W)

C205

15P

R209

R205

56K

R203

820

C203

47/50

D205

DS1SS133

R201

D201

DS1SS133

Q206

KTC3199 GR

C251

47/50

R262

56K

R278

56K

Q201

KTC3199 GR

R231

IC201

STK40271(2Ch)

POWER AMP.

R225

10K

C215

0.022

R223

0.1(1W)

D202

DS1SS133

C223

10/50

C224

10/50

R828

22K

R829

22K

Q202

KTC3199 GR

R232

R226

10K

C216

0.022

R224

0.1(1W)

R210

R206

56K

C206

15P

C204

47/50

C202

220P

R202

C210

100/50

C201

220P

Q205

KTC3199 GR

R216

22K

R239

R279

22K

C225

220P(CH)

R238

68K

R237

68K

R233

100K

R234

100K

R212

18K

C208

0.15

R211

18K

C248

0.022

R241

68K

R242

68K

C219

10/50

C220

10/50

R235

1.8K

R236

1.8K

R240

R221

4.7K

R217

18K

C218

100P(CH)

C228

2.2/50

C249

47/25

C250

0.022

(ML)

C214

0.022

R222

4.7K

R218

18K

R277

330

IC203

R227

8.2K

R228

8.2K

Q809

2SD2012

R813

1.5K

IC802

KIA7810AP

VOLTAGE

REGULATOR

CNS804

C203

KIA4558P

OPE AMP.

Q813

KRA107M

Q812

KRA107M

R298

22K

R297

22K

-0.2V

36V

37V

-35V

-37V

-36V

-0.2V

4.6V

8.4V

-8.2V

11.3V 17V

12V

10V

17V

8.6V

17V

9.2V

9.8V

9.2V

-19.5V

-8.3V

-9V

-0.2V

30V

31V

-30V

-31V

4.6V

A_+10V

A_GND

M_+10V

BIAS_GND

P30 4 - A

TO DECK SECTION

D_GND

FAN_CTL

D_GND

-8V

AC_RLY CTL

UN_SW 5V

SP_RLY

SP_DET

A_GND2

CD_GND

M_GND

CD_+B

M_10V

A_GND

A_+10V

M_10V

M_GND

CD_GND

CD_+B

A_GND

A_+10V

A_GND2

R-CH

L-CH

–

–Vcc

+Vcc

Ch1

Ch2

Out

Ch1

–

Ch1

Out

Ch2

Out

Ch1

–

+Vcc

–Vcc

1 2

P22 6 - H

TO MAIN PWB

BI960

P23 8 - H

TO MAIN PWB

BI950

– 29 –

CD-CH1500

Figure 29 SCHEMATIC DIAGRAM (10/11)

8 9 10 11 12

8 9

12 13 14

1 2 3 4 5

AC POWER

SUPPLY

CORD

SUB TRANS PWB-D2

SPEAKER PWB-D3

MAIN

SUB

WOOFER

POWER PWB-D1 (1/2)

+B1

IC808

SP L-CH

SP R-CH

GND

SP R-CH

SP L-CH

GND

SP L-CH

GND

SP R-CH

GND

FM SIGNAL

FAN MOTOR

DRIVER

RELAY DRIVER

+B+B

-B

R271

4.7(1/2W)

R274

22K

COR801

R213

100

R835

R834

Q200

KTC3203Y

C200

47/16

R200

100

R296

220K

CNP204

FR251 100

(1/4W) Fusible

C258

100/16

DZ201

MTZJ5.6B

R299

3.9K

D210

DS1SS133

C257

10/50

R283

470K

R284

Q210

KTC3199 GR

Q212

2SA562 Y

R281

12(1/2W)

R251

10K

Q211

KTC3199 GR

D802

DS1N404S

C237

100/50

CNP207

D812

D815

D814

D813

C835

0.047

(ML)

C830

470/35

C825

1000/6.3

IC808

KIA7805AP

CONSTANT VOLTAGE

REGULATOR

D818

DS1SS133

F807

5A/125V

C836

0.0047

RY801

D819

DS1SS133

C252

2200/50

C253

3300/63

C254

3300/63

C255

2200/50

R275

22K

R276

22K

R273

22K

SO201

SPEAKER

TERMINALS

L201

0.29µH

L204

0.29µH

D208

DS1SS133

RY202

Q209

KTC3199 GR

R268

330(1/2W)

RY201

D207

DS1SS133

R270

330(1/2W)

R269

330(1/2W)

R267

330(1/2W)

R254

10K

R253

R272

4.7(1/2W)

C246

0.1(ML)

C245

0.1(ML)

BI201B

BI201A

L203

0.29µH

L202

0.29µH

C243

0.1(ML)

R265

4.7

(1/2W)

R266

4.7(1/2W)

C244

0.1(ML)

CNP803

C824

0.047(ML)

C823

100/16

CNP802

F808

2.5A/125V

R264

56K

R280

56K

R263

56K

C256

47/50

IC202

40204(2Ch)

WER AMP.

D204

DS1SS133

C231

220P

)

R260

Q204

C3199 GR

C242

10/50

C241

10/50

R255

0.1(1W)

C239

0.022

R257

10K

R259

Q203

KTC3199 GR

Q208

KTC3199 GR

D203

DS1SS133

R243

D206

DS1SS133

C233

1/50

R245

820

R247

56K

R249

C235

15P

Q207

KTC3199 GR

F801

2.5A/125V

F804

5A/125V

F803

5A/125V

F806

4A/125V

CNP203

R279

22K

BI808

D816 TS6B04GM

C833

0.047

(ML)

C832

0.047(ML)

C831

0.047(ML)

D817 TS6B04GM

C834

0.047

(ML)

F805

4A/125V

C827

0.047(ML)

D807

D805

C826

0.047

(ML)

D804

D806

T802

SUB POWER

TRANSFORMER

Q807

KTC3199 GR

R814

100

R815

47K

CNS200

CNS808

CNP801

T801

MAIN POWER TRANSFOMER

MO200

FAN

MOTOR

R207

12(1/2W)

R295

R298

22K

R297

22K

D804~D807: DS1N404S

D812~D815: DS1N404S

31V

-30V

-31V

-0.2V

4.6V

0.1V

0.8V

0.2V

0.8V

5.7V

10V

0.7V

8.2V

8.6V

Ch2

Out

Ch2

–

+Vcc

–Vcc

1 2 3 4 5

1 1

AC 120V,

60Hz

1 2 3 4 5

FROM

HEADPHONES

PWB

CNS730

P25 8 - C

CD-CH1500

– 30 –

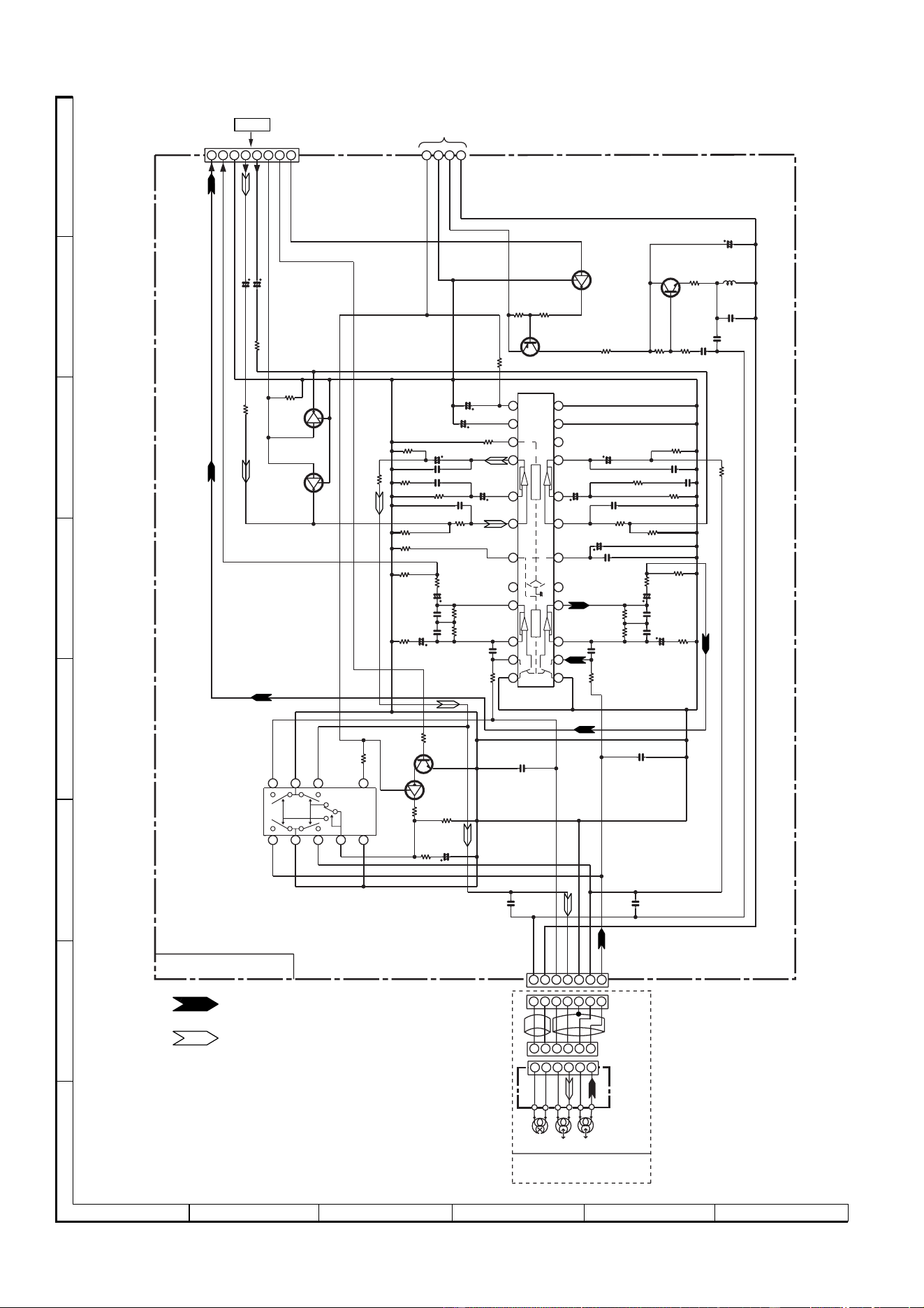

Figure 30 SCHEMATIC DIAGRAM (11/11)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

POWER PWB-D1 (2/2)

TO POWER SECTION

1 2 3 4 5 6 7

IC101

RECORD SIGNAL

PLAYBACK SIGNAL

CNS940

P23 9 - H

FROM MAIN PWB

P28 1 - F

TAPE MECHANISM

ASSEMBLY(2/2)

1 2 3 4 5 6

1 2 3 4 5 6 7

1 2 3 4 5 6

ERASE

HEAD

RECORD/

PLAYBACK

HEAD

R-CH

L-CH

R156

33K

R155

33K

Q119

DTC363 TS

Q120

DTC363 TS

R102

2.2K

R101

R103

2.2K

C103

10/16

R105

100

IC102

BA3126N

HAED

SELECTOR

Q101

KRA107 M

R104

5.6K

Q102

KTC3199 GR

R154

47K

C141

1/50

C140

1/50

C105

560P

C101

180P

CNP102

C104

560P

R143

R114

R137

10K

R141

47K

C138

0.0033

C130

1/50

C135

0.047(ML)

C137

0.0082

C111

47/25

R117

C119

1/50

C113

560P

C107

0.033

R125

5.6K

R119

100K

R121

3.9K

C110

47/25

C112

560P

C120

1/50

R124

5.6K

C106

0.033

R109

15K

R132

1.5K

C126

22/50

R134

100

C116

3.3/50

R131

6.8K

Q116

KTC3203 Y

C127

0.0033

C132

220/16

C131

22/50

R135

100

R128

68K

C118

0.022

R138

10K

C123

0.022

R150

6.8K

R116

C102

180P

C129

1/50

C121

270P

R148

4.7

R136

10K

R133

1.5K

L104

330µH

R149

15K

Q114

2SA1015 GR

R153

47K

R147

4.7K

Q115

KRC104 M

R130

R126

15K

R127

15K

R129

R118

100K

C108

330P

C109

330P

R120

3.9K

C125

22/50

C122

270P

C124

0.022

R144

220

R139

22K

R115

C134

47/25

C133

0.039(ML)

CNP101

CNS101A

CNS101B

IC101

AN7345K

PLAYBACK AND

RECORD/PLAYBACK

AMP.

11.3V

SWITCHING

BIAS OSC.

REC MUTE

SWITCHING

3.7V

6.8V

3.3V

0.5V

1.9V

0.5V

1.9V

10V

4 3 2

1 2 3 4 5 6 7 8

REC_MUTE

REC_CONT

REC_L-CH

REC_R-CH

A_GND

TAPE_R-CH

TAPE_L-CH

REC_BIAS

A_+10V

M_+11V

BIAS_GND

A_GND

M_GND

ERASE

T2_R2

T2_R1

T2_L1

T2_L2

L-CH

R-CH

Vcc

ALC

GND

ALC

RIPPLE

Nor/CrO2

–

Hich=T1

–

Hich=CHROME

56K

112K

56K

112K

A B C D

– 31 –

CD-CH1500

Figure 31 WIRING SIDE OF P.W.BOARD (1/9)

8 9 10 11 12

C716

L702

R730

R731

CNP701

C704

C705

R749

Q707

R748

C706

R788

LED737

LED738

LED735

R789

R790

BI705B

BI705A

BI702

CNS702

LED A PWB-B2

DISPLAY PWB-B1

LCD720

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

TAPE MOTOR

SOLENOID

TAPE MECHANISM

PWB-H

CNP970

P34 4 - A

TO MAIN PWB

TO POWER PWB

P51 8 - G

FFC970

CNP101

TAPE MECHANISM ASSEMBLY

RECORD/

PLAYBACK

HEAD

ERASE

HEAD

CNP935A

P34 1 - A

TO MAIN PWB

CNS101ACNS101B

CD-CH1500

– 32 –

Figure 32 WIRING SIDE OF P.W.BOARD (2/9)

23456

R707

R708

SW730

CD1

PLAY

Q725

SW701

POWER

R701

R726

LED759

R710

SW731

CD2

PLAY

RX701

R711

R702

C708

LED758

SW721

CD2

EJECT

Q723

Q724

R703

SW720

CD1

EJECT

LED755

LED756

LED757

SW734

CD5

PLAY

SW723

CD4

EJECT

R721

SW733

CD4

PLAY

SW722

CD3

EJECT

SW732

CD3

PLAY

R750

C709

R747

BI720

C707

C703

R713

R791

LED731

R714

R715

R792

CNP721

Q721

IC702

LED754

Q720

R704

SW725

CD6

EJECT

SW735

CD6

PLAY

SW724

CD5

EJECT

R736

R728

Q722

SW711

VOLUME

DOWN

R733

SW712

VOLUME

R705

R729

R723

R706

SW710

PANEL

OPEN/

R735

R712

R720

CNS720

CD SWITCH

PWB-B3

CNP931

P34 3 - A

TO MAIN PWB

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

– 33 –

CD-CH1500

Figure 33 WIRING SIDE OF P.W.BOARD (3/9)

8 9 10 11 12

R764

SW758

PLAY

SW757

STOP

R781

R777

R773

LED773 LED772 LED786

SW750

R-MODE

R752

SW751

CLEAR

R755

R774

R778

R770

R785

R782

SW753

FAST

REVERSE

SW754

FAST

FORWARD

SW752

MEMORY

R758

LED775

LED774

R769

SW764

SW763

TAPE

SW762

TUNER

SW761

AUX

R765

R759

R756

R753

R787

R780

R776

R772

R767

Q708

R761

BI772

BI771A

BI773

R754

SW770

PLAY

MODE

C712

R775

C713

R757

SW772

EQUALIZER

MODE

R760

SW773

X-BASS

BI770

BI771B

R771

R766

SW784

DISPLAY

JOG701

JOG DIAL

SW786

R783

R779

SW778

ENTER

LED770

CNP755

C715

BI740B

BI741

SW705

OPEN/

BI740A

JK701

HEADPHONES

RA710

L705

RA711

C710

C711

BI730

SW755

TAPE

RECORD

SW756

PLAY/

PAUSE

CNS730

CNS770

CNS741

CONTROL PWB-B4

JOG PWB-B5

CNS772

CNS773

456

CNP934

LED B

PWB-B6

CNP933

MOTOR PWB-B7

MO700

CONTROL

PANEL

MOTOR

SWITCH PWB-B8

HEADPHONES

PWB-B9

CNP207

P34 2 - A

TO MAIN PWB

P34 3 - A

TO MAIN PWB

P39 7 - C

TO POWER PWB

CD-CH1500

– 34 –

Figure 34 WIRING SIDE OF P.W.BOARD (4/9)

23456

R1071

C1007

Q955

C925

C1001

C926

R1072

Q954

C1008

D954

R960

C1002

C964

R968

R969

R970

R989

R982

R1068

CNP901

R999

R916

C1003

Q509

R501

R901

R903

R902

C1006

IC913

D951

R908

R906

R905

R1142

R915

R914

R1008

R934

CNP935A

R991

X901

X902

C1013

D953

R966

R965

R946

R954

R953

C901

D907

L901

R995

R948

R947

D906

C905

IC905

R1003

C907

CNP933

R768

R1013

C714

Q905

C913

D910

R1141

L910

C912

Q907

Q908

Q909

Q906

R1105

BI950

CNP970

R1133

R1140

Q901

C903

D905

D902

D901

CNP934

CNP931

IC701

1 2 3 4 5

1 2 3 4 5 6

579

111315

171921232527

246810121416182022242628

3032

1 2 3 4 5 6 7

1 2 3 4 5 6 7 8 9

FFC901

FFC970

MAIN PWB-A

P39 12 - E

TO POWER PWB

P31 11 - F

TO TAPE MECHANISM PWB

CNP807

CNS720

P32 2 - D

FROM

CD SWITCH PWB

CNP741

P33 8 - F

FROM MOTOR PWB

CNS770

P33 11 - E

FROM JOG PWB

CNS702

P31 12 - C

FROM DISPLAY PWB

3 1

C998

R1028

R928

R997

R996

R998

R1094

R977

R1093

R949

R1092

R1084

R1085

R1086

R1087

R1088

R1089

R1090

R981

R979

R978

R994

R990

R980

R988

R987

R986

R985

R984

R992

R993

R1118

R1119

R959

R958

R1113

R1058

R1138

R1132

R1082

R1130

R962

R1062

R1081

R1131

R1129

R1139

R1112

R1057

R1056

R957

R956

R955

C917

R943

R944

C916

C943

R1124

R941

C941

C942

C902

R936

R935

R933

R932

R1017

R1016

IC901

R921

R920

R919

C914

R918

R1007

R910

R911

R912

R913

R1031

R1024

R904

C1005

C1004

R364

R362

R1109

R1032

C958

R1052

R1012

C970

R1014

R1027

C950

C957

R1015

R1048

R1026

IC912

R1050

R762

R1023

R1011

R763

C936

R1035

C906

R1036

R1002

R1053

R1054

C945

R1046

R1044

R1066

R1065

C904

R1001

R1107

R1106

R1108

R1055

R1060

R976

R1051

345

789 6

1 2 3

100

1012

10 11

8 6 4 2

9 7 5 3 1

8 7 6 5 4 3 2 1

CNP1

P36 3 - A

TO CD SERVO PWB

C597

– 35 –

CD-CH1500

Figure 35 WIRING SIDE OF P.W.BOARD (5/9)

8 9 10 11 12

1003

C566

C528

Q508

C524

C527

IC502

C530

C518

C520

C536

Q507

C550

C523

C551

C517

C519

C975

X352

L502

D508

D507

C574

L501

C573

R360

C521

D352

C525

C515

C511

C513

C522

C509

R525

R524

R399

Q371

C563

R526

C529

C516

C514

C512

C526

C510

C503

Q502

Q509

R502

Q501

R501

C372

DZ351

C371

C396

Q351

R392

R391

C357

C370

C358

X351

CF351

C398

C368

IC303

CF352

C352

T351

L352

C362

R351

L342

CF302

Q360

R336

C391

VD303

R369

R309

Q302

R382

L351

R327

R345

T312

R314

IC302

C321

C393

D310

VD302

C380

C394

D305

D312

D306

D311

CNP303

D304

D303

BF301

D302

D301

T302

C331

R302

VD301

T311

T306

VR351

L353

C364

R370

C367

BI940

BI960

IC301

TP302

246

B C E

E C B

1 2 3

E C B

R-CH

JK501

AUX IN

L-CH

CNP806

FM MUTE

LEVEL

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

1413121110

321

P39 12 - C

TO POWER PWB

C319

C306

C320

345

789 6

12 11 10

13 14 15 17 18 1916

22 23 242120

345

789 6

11 10

13 14 15 17 18 1916

222120

TP301

C976

C974

C977

C978

R537

R533

R541

C531

C533

R551

R539

IC503

C537

C535

R542

C534

C532

R538

R540

R534

R535

R536

R512

R507

R514

R582

C501

R503

R504

C502

R528

R544

R527

R530

C564

R529

R395

R376

C386

R371

R372

C312

R591

R373

R374

C381

R547

C541

C562

R549

R548

C540

R550

C599

C301

C384

C316

C309

R311

C397

R313

C392

R380

C314

C390

R379

C315

C327

R381

C345

R393

R322

R377

C385

C318

C313

C347

C346

R384

R385

R383

C341

C361

C351

C350

R352

C353

C363

C365

C366

C354

C399

R353

C356

R354

R359

R355

R389

R357

C395

C373

C374

R361

R363

R364

R362

R356

R350

C343

R358

C342

C337

C332

C324

C326

C325

C323

C305

C304

C303

C338

C317

C330

C339

C335

C334

R323

R513

R511

R532

R552

R531

C389

C310

R592

C382

C355

C311

R543

R378

C387

R325

C308

L312

345

FM/AM

ANTENNA

8 7 6 5 4 3 2 1

CNP102

CNS940

GND

P39 12 - G

TO POWER PWB

C598

C597

CD-CH1500

– 36 –

Figure 36 WIRING SIDE OF P.W.BOARD (6/9)

23456

• The numbers 1 to 17 are waveform numbers shown in page 52. (CD-CH1000)

CNP7

C44

R48

CNP5

C47

C15

R50

R49

C45

C67

C48

IC5

CNP6

R76

R75

C49

C50

CNP1

DZ2

R38

CORE1

C38

C31

R14

C64

C16

C65

C19

C17

C18

C40

C22

C41

C30

C51

R27

DZ1

CNP4

CNP2

CNP3

B C E

E C B

4 3 2 1

TRAY SWITCH

PWB-F

FW2

3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32

1617

FW3

CNP901

FFC901

SWB104

MODE1

SWB105

MODE2

SWB106

MODE3

SWB107

MODE4

SWB108

MODE5

SWB109

TRAY1

SWB110

TRAY2

CD SERVO PWB-C

P34 6 - H

TO MAIN PWB

R71

R72

R74

R73

C46

C27

R46

R47

R77

R45

R78

TP8

TP14

C42

R44

R43

IC6

R53

R54

C32

C43

R55

R51

R56

R57

C33

C60

C59

C58

R41

R37

R35

C34

C36

C20

TP6

C39

R36

R39

R32

R40

C23

R25

C26

R28

R29

R30

C29

C24

R31

DATA

R42

TP5

C13

TP12

CLCK

TP9

IC2

C21

R21

R13

R19

R17

TP7

C11

R10

R12

C12

C10

C14

TP10

R18

R11

R16

C28

R92

C91

C37

C92

R91

C93

C94

C95

C97

C98

C96

C99

C25

12 576

– 37 –

CD-CH1500

Figure 37 WIRING SIDE OF P.W.BOARD (7/9)

8 9 10 11 12

PICKUP UNIT

CD MOTOR PWB-E

CAM SWITCH PWB-G

8 7 6 5 4 3 2 1

7 6 5 4 3 2 1

CNS6A

CNS4

CNS6B

CNS5A CNS5B

CNS7A CNS7B

MOB2

TRAY MOTOR

MOB1

MAIN CAM MOTOR

SWB103

DISC DETECT3

SWB102

DISC DETECT2

SWB101

DISC DETECT1

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

NM1

SPINDLE

MOTOR

NSW1

PICKUP IN

CNP6A

NM2

SLED

MOTOR

CD-CH1500

– 38 –

Figure 38 WIRING SIDE OF P.W.BOARD (8/9)

23456

L203

L201

BI201B

L204

L202

C836

CNP801

BI808

C834

C835

D812

D813

R835

C823

C824

C825

R814

C831

CNP803

CNP802

D807

C827

C826

D806

D805

D804

BI804

R834

C833

D816

C832

D817

Q807

RY801

D819

R815

D818

C830

D814

D815

D802

F801

2.5A 125V

F806

4A 125V

F805

4A 125V

F804

5A 125V

F803

5A 125V

IC808

F808

2.5A 125V

F807

5A 125V

T802

SUB POWER

TRANSFORMER

R-CH GND

GND GND

GNDR-CH

L-CH L-CH

SO201

SPEAKER TERMINALS

MAIN MAINSUB WOOFER

SPEAKER

PWB-D3

AC POWER SUPPLY CORD

AC 120V,

60Hz

CNS808

T801

MAIN POWER

TRANSFORMER

CNS804

SUB TRANS PWB-D2

– 39 –

CD-CH1500

Figure 39 WIRING SIDE OF P.W.BOARD (9/9)

8 9 10 11 12

10 12

ECB

231

D203

D206

Q207

Q208

R280

R254

C256

Q211

R251

R213

C257

R267

R284

R269

R268

D208

R270

C246

R272

R276

CNP203

BI201A

C255

R271

R266

C252

R275

R273

C245

C244

R274

D210

R265

RY201

D207

C243

Q209

R263

R264

R256

R249

R260

R250

R255

R259

R297

R298

R257

C235

C239

R247

Q203

IC202

RY202

C240

R248

C236

Q204

R258

D204

R234

C222

C226

R233

C221

R237

R253

C233

C225

C228

R243

R245

R202

C204

C231

R828

R829

R215

R244

FR251

C232

C238

C237

FR252

R246

C241

C242

C234

R238

D201

R216

R201

C201

R203

C209

C203

C227

C249

R241

C229

R277

R239

C219

R235

R221

C213

R217

C217

R227

C211

C207

CNP806

R211

C248

C247

R228

IC203

R212

C218

R222

C212

C214

R218

R236

R240

C250

C220

C208

C230

R242

C223

C210

FR213

C202

FR214

R204

IC201

C224

C840

C253

R261

C807

R223

R231

R209

C215

C205

Q201

R219

R225

R205

R229

R220

R226

D202

R279

Q202

C216

C206

R206

R210

R232

R224

R262

C254

C814

C815

COR801

C837

R230

R821

R820

Q810

R836

C839

Q805

DZ804

R811

R822

R837

R803

R807

IC802

Q809

CNP207

C816

C838

LED801

C817

CNP805

C810

R806

Q200

R295

Q812

Q813

C844

C200

R281

C822

C821

DZ803

C820

R813

R830

R147

Q806

C819

R278

C251

Q206

Q205

D205

CNP807

R138

R120

C121

C130

C132

C126

R128

R136

C125

C131

C120

R132

C138

C124

C127

R134

C122

R129

R155

R144

Q119

C141

C140

R126

R150

R156

R154

R124

Q120

R130

DZ201

R104

C258

CNP102

CNP204

R200

Q212

R299

Q210

R283

R296

R207

R153

Q114

C123

R135

C129

R131

R127

R137

R133

Q115

R149

R125

R117

C116

C118

CNP101

C102

C105

R105

R116

C104

C108

R114

C110

R118

IC101

R109

C112

C106

C111

C119

R121

C113

C109

C107

R119

Q102

R115

C101

R143

R102

R103

R101

Q101

C103

C134

C133

C137

R141

R148

C135

R139

Q116

L104

IC102

POWER PWB-D1

BI960

TO MAIN PWB

BI950A

TO MAIN PWB

CNS200

MO200

FAN MOTOR

FROM MAIN PWB

CNS940

CNS730

COLOR TABLE

BR BROWN

RD(R) RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WH(W) WHITE

BLACK

PINK

P33 11 - H

FROM

HEADPHONES PWB

P35 8 - A

P34 6 - A

P35 8 - H

CNS101A

P31 10 - H

FROM

TAPE MECHANISM

ASSEMBLE

(TAPE PLATE BLOCK)

CD-CH1500

– 40 –

FUNCTION TABLE OF IC

IC2 VHiTC9490F/-1: Servo/Signal Control (TC9490F) (1/2)

1* BCK Output Bit clock output terminal. 32fs, 48fs or 64fs can be selected by command.

2* LRCK Output L/R channel clock output terminal. L channel: "L", R channel: "H".

the output polarity can be inverted by command.

3* AOUT Output Audio data output terminal. MSB/LSB fast can be selected by command.

4* DOUT Output Digital out output terminal. Up to double speed can be output.

5* IPF Output Correction flag output terminal. When the correction impossible symbol appears if the AOUT

output corresponds to the C2 correction output: "H".

6 DVDD — Digital 3.3V power supply terminal.

7 DVSS — Digital GND terminal.

8* SBOK Output Subcode Q data CRCC decision result output terminal. When the decision result is OK: "H".

9* CLCK Input/Output Clock input/output terminal for subcodes P-W data reading.

The input/output polarity can be selected by command.

10* DATA Output Subcodes P-W data output terminal.

11* SFSY Output Playback system frame sync signal output terminal.

12* SBSY Output Subcode block sync output terminal.

In the S1 position when the subcode sync is detected: "H".

13,14* /HSO,/UHSO Output Playback speed mode flag output terminal.

15 PVDD — 3.3V power supply terminal for PLL system.

16 PDO Output EFM signal/PLCK signal phase error signal output terminal.

17 TMAX Output TMAX detection result output terminal.

18 LPFN Input Amp's inversion input terminal for PLL system low-pass filter.

19 LPFO Output Amp's output terminal for PLL system low-pass filter.

20 PVREF — VREF terminal only for PLL system.

21 VCOF Output Filter terminal for VCO.

22 AVSS — Analog GND terminal.

23 SLCO Output DAC output terminal for data slice level generation.

24 RFI Input RF signal input terminal. Zin can be selected by command.

25 AVDD — Analog 3.3V power supply terminal.

26 RFCT Input RFRP signal center level input terminal.

27 RFZI Input Input terminal for RFRP signal zero crossing.

28 RFRP Input RF ripple signal terminal.

29 FEI Input Focus error signal input terminal.

30 SBAD Input Sub-beam addition signal input terminal.

31 TEI Input Tracking error input terminal. Fetch when the tracking servo is on.

32 TEZI Input Input terminal for tracking error signal zero crossing.

33 FOO Output Focus equalizer output terminal.

34 TRO Output Tracking equalizer output terminal.

35 VREF — Analog reference power supply terminal.

36 RFGC Output RF amplitude adjustment control signal output terminal.

37 TEBC Output Tracking balance control signal output terminal.

38 SEL Output APC circuit ON/OFF signal output terminal.

When the laser is on, UHS="L": "Hi-z", UHS="H": "H" output.

Pin No.

Terminal Name

Function

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

H H Normal speed playback

H L Double speed playback

L L 4-time speed playback

———

/UHSO

/HSO

Playback speed

Longer than the specified period "PVDD3"

Within the specified period "Hi-z"

Shorter than the specified period "AVSS3"

TMAX detection result

TMAX output

– 41 –

CD-CH1500

IC2 VHiTC9490F/-1: Servo/Signal Control (TC9490F) (2/2)

39 AVDD3 — Analog 3.3V power supply terminal.

40 FMO Output Feed equalizer output terminal.

41 DMO Output Disc equalizer output terminal.

42 DVSS — Digital GND terminal.

43 DVDD — Digital 3.3V power supply terminal.

44 TESIN Input Test input terminal. Usually "L" fixed.

45 XVSS — GND terminal for system clock oscillation circuit.

46 XI Input System clock oscillation circuit input terminal.

47 XO Output System clock oscillation circuit output terminal.

48 XVDD — 3.3V power supply terminal for system clock oscillation circuit.

49 DVSS — GND terminal for D/A converter.

50 RO Output R channel data normal rotation output terminal.

51 DVDD — 3.3V power supply terminal for D/A converter.

52 DVR — Reference voltage terminal.

53 LO Output L channel data normal rotation output terminal.

54 DVSS — D/A converter section GND terminal.

55* ZDET Output 1-bit D/A converter 0 detection flag output terminal.

56 VSS — GND terminal for microcomputer interface.

57-60 BUS0-BUS3 Input/Output Data input/output terminal for microcomputer interface.

61 BUCK Input Clock input terminal for microcomputer interface.

62 /CCE Input Chip enable signal input terminal for microcomputer interface.

In case of "L", BUS3-0 are active.

63 /RST Input Reset signal input terminal. Reset: "L".

64 VDD — 5V power supply terminal for microcomputer interface.

Pin No.

Terminal Name

Function

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Note:

AI/F: Analog input/output terminal

3-5I/F: Terminal with a built-in 3-5 interface (5V system input/output terminal)

3I/F: 3V system input/output terminal

Figure 41 BLOCK DIAGRAM OF IC

XVDD

XVSS

TESIN

DVDD

DVSS

DMO

FMO

AVDD3

SEL

TEBC

RFGC

VREF

TRO

FOO

TEZI

TEI

SBAD

FEI

RFRP

RFZI

RFCT

AVDD

RFI

SLCO

AVSS

VCOF

PVREF

LPFO

LPFN

TMAX

PDD

PVDD

/HSO

/UHSO

SBSY

SFSY

DATA

CLCK

SBOK

DVSS

DVDD

IPF

DOUT

AOUT

LRCK

BCK

DVSS

DVDD

DVR

DVSS

ZDET

VSS

BUS1

BUS2

BUS3

BUCK

/CCE

/RST

VDD

15 16

3435

4243

4546

LPF

1-bit

DAC

PWM

D/A

A/D

VCO

ROM

RAM

16K RAM

PLL

TMAX

BUS0

Clock

generator

Servo control

Digital equalizer

adjustment circuit

Data

slicer

CLV

servo

Synchronizing

signal guarantee

EFM demodulation

Sub-code

demodulation

circuit

Address

circuit

Correction

circuit

Digital

out

Audio output

circuit

Microcomputer

interface

CD-CH1500

– 42 –

IC6 VHiTA2147F/-1: Servo Pre Amp. (TA2147F)

1 VCC — 3.3V power supply terminal

2 FNI Input Main beam amp input terminal

3 FPI Input Main beam amp input terminal

4 TPI Input Sub-beam amp input terminal

5 TNI Input Sub-beam amp input terminal

6 MDI Input Monitor photodiode amplifier input terminal

7 LDO Output Laser diode amp output terminal

8 SEL Input APC circuit ON/OFF signal, LDO terminal control input terminal and bottom/peak

detection frequency switching terminal

9 TEB Input Tracking error balance adjustment signal input terminal

• TEBC input voltage

10 TEN Input Tracking error signal generation amp antiphase input terminal

11 TEO Output Tracking error signal generation amp output terminal

12 SBAD Output RF signal peak detection output terminal

13 GVSW Input AGC, FE, TE amp gain switching terminal

14 VRO Output Reference voltage (VRO) output terminal • VCC=3.3V: VRO=1/2 VCC

15 FEO Output Focus error signal generation amp output terminal

16 FEN Input Focus error signal generation amp antiphase input terminal

17 RFRP Output Signal generation amp output terminal for track count

18 RFIS Input Signal generation amp input terminal for track count

19 RFGO Output RF signal amplitude adjustment amp output terminal

20 RFGC Input RF amplitude adjustment control signal input terminal • RFGC input voltage

21 AGCI Input RF signal amplitude adjustment amp input terminal

22 RFO Output RF signal generation amp output terminal

23 RFN Input RF signal generation amp input terminal

24 GND — GND terminal

Terminal Name

Pin No.

Input/Output

Function

GND OFF Connection to VCC via 1kΩ

Hi-z ON Control signal output

VCC ON Control signal output

SEL

APC circuit

LDO

GND CD-RW

Hi-z CD-DA

VCC CD-CA

GVSW Mode

Figure 42 BLOCK DIAGRAM OF IC

SEL

(APC_SW)

TEB

(TE_BAL)

RFGC

(AGC_Gain)

GVSW

(CD/RW)

CTRL

HiZ

GND

APC ON

APC OFF

(LDO=H)

-50%

+50%

+12dB

+6dB

0dB

(0dB)

(+12dB)

GVSW

VRO

FEO

FEN

RFRP

20K

15K

10p

50u

20µ

12K

20K

40K

50K

40K

10p

1.3V

14K

SBAD

TEO

TEN

TEB

SEL

LDO

MDI

TNI

TPI

FPI

FNI

VCC

80K

20K

240K

15p

240K

15p

180K

40p

60k

180K

40K

20K

30K

20K

12K

RFGC

AGCI

RFO

RFN

GND

RFIS

RFGO

13 14 15

19 20 21 22

BOTTOM

PEAK

x0.5

– 43 –

CD-CH1500

1 P60/A16 PB MUTE Output Cassette playback mute

2 P62/A18 REC Output Recording output (Cassette)

3 P61/A17 REC BIAS Output Recording bias output (Cassette)

4 P63/A19 SMK SP1 Output Span output for destination 1

5 P64/RD T-MOTOR Output Cassette operation motor output

6 P65/WR T-SOL Output Cassette solenoid output

7* P66/WAIT SMK SP2 Output Span output for destination 2

8 P67/ASTB RUN PULSE Input Pulse for tape running check

9 VDD — Input To be connected to VDD

10 P100/T15/TO5 A-FP SW Input A side foolproof switch

11 P101/T16/TO6 B-FP SW Input B side foolproof switch

12 P102/T17/TO7 CAM SW Input Cassette CAM switch

13 P103/T18/TO8 CST SW Input Cassette detection switch

14 P30/TO0 CE Output Tuner chip enable

15 P31/TO1 SIMUKE Input Destination input

16* P32/TO2 CD MUTE Output CD mute

17* P33/TI1 SPSW Input Tuner span select

18 P34/TI2 DATA Output Extension port output

19 P35/TI00 CLK Output Extension port clock

20 P36/TI01 LCK1 Output Extension port 1 latch clock

21 P37 LCK2 Output Extension port 2 latch clock

22* TEST/Vpp — Input Not used

23* P90 — Output Not used

24* P91 — Output Not used

25* P92 — Output Not used

26* P93 — Output Not used

27* P94 — Output Not used

28 P06/INTP6 POWER RLY Output POWER relay control

29* P120/RTP0 — Output Not used

30* P121/RTP1 — Output Not used

31* P122/RTP2 — Output Not used

32 P123/RTP3 TIMER LED Output LED output for timer

33 P124/RTP4 DIMMER Output LCD backlight

34 P125/RTP5 SYS-MUTE Output System mute output

35 P126/RTP6 C FUTA CL Input Panel close switch

36 P127/RTP7 C FUTA OP Input Panel open switch

37 Vdd — Input Connected to VDD

38 X2 — Output 8 MHz sera - lock

39 X1 — Input 8 MHz sera - lock

40 Vss — Input Ground potertial to be connected to VSS

41 XT2 — Output 32.768 kHz crystal

42 XT1 — Input 32.768 kHz crystal

43 RESET — Input Reset input

44 P00/INTP0 REMOCON Input Remote control signal input

45 P01/INTP1 JOG-A Input JOG A input

46 P02/INTP2/NMI JOG-B Input JOG B input

47 P03/INTP3 SYS_STOP Input Power failure detection

48 P04/INTP4 PROTECT Input Speaker abnormal detection

49 P05/INTP5 SP RLY Output Speaker relay

50 P95 POWER KWY Input POWER key input

51 Avdd — — Analog power supply

Pin No.

Input/Output

Port Name

Terminal Name

IC901 RH-iX0417AWZZ: System Microcomputer (IX0417AW) (1/2)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

CD-CH1500

– 44 –

52 AVref0 — — Analog reference potential 0

53 P10/ANI0 KEY0 Input Key input 0 (AD port)

54 P11/ANI1 KEY1 Input Key input 1 (AD port)

55 P12/ANI2 KEY2 Input Key input 2 (AD port)

56 P13/ANI3 KEY3 Input Key input 3 (AD port)

57 P14/ANI4 KEY4 Input Key input 4 (AD port)

58 P15/ANI5 LEVEL_L Input Level meter input L-ch

59 P16/ANI6 VSM Input Tuner state input

60 P17/ANI7 LEVEL_R Input Level meter input R-ch

61 Avss — — Analog GND

62 P130/ANO0 TAPE MECHA Input Tape mecha select single/reverse

63* P131/ANO1 — Output Not used

64 AVref1 — Input Analog reference potential 1

65* P70/RxD2/SI2 RX Input Not used

66* P71/TxD2/SO2 TX Output Not used

67*

P72/ASCK2/SCK2 —

Input Not used

68 P20/RxD1/SI1 TUNER DI Input Tuner data input

69 P21/TxD1/SO1 TUNER DO Output Tuner data output

70 P22/ASCK1/SC TUNER CL Output Tuner clock output

71* P23/PCL — Output Not used

72* P24/BUZ — Output Not used

73 P25/SI0/SDA0 LCD R/W Input/Output Control output read/write to LCD driver

74* P26/SO0 — Output Not used

75 P27/SCK0/SCL0 LCD E Output Control output clock to LCD driver

76 P80/A0 FH A-SW E Input CAM A switch e

77 P81/A1 FH A-SW D Input CAM A switch d

78 P82/A2 FH A-SW C Input CAM A switch c

79 P83/A3 FH A-SW B Input CAM A switch b

80 P84/A4 FH A-SW A Input CAM A switch a

81 P85/A5 FH T-SW A Input TRAY identification switch a

82 P86/A6 FH T-SW B Input TRAY identification switch b

83 P87/A7 FH T-SW C Input TRAY identification switch c

84 P40/AD0 FH C-SW B Input CAM C switch b

85 P41/AD1 FH C-SW A Input CAM C switch a

86 P42/AD2 CD CCE Output CD LSI chip enable

87 P43/AD3 CD BUCK Output CD LSI clock

88 P44/AD4 CD BUS3 Input/Output CD LSI data input/output

89 P45/AD5 CD BUS2 Input/Output CD LSI data input/output

90 P46/AD6 CD BUS1 Input/Output CD LSI data input/output

91 P47/AD7 CD BUS0 Input/Output CD LSI data input/output

92 P50/A8 CD RESET Output CD LSI reset

93 P51/A9 CD RW Output CD-RW reproduction switching

94 P52/A10 CD PICK IN Input CD pickup inner switch input

95 P53/A11 FH MOTOR Output Tray motor forward rotation

96 P54/A12 FH MOTOR Output Tray motor reverse rotation

97 P55/A13 FH MOTOR Output CAM motor forward rotation

98 P56/A14 FH MOTOR Output CAM motor reverse rotation

99 P57/A15 REC MUTE Output TAPE REC mute

100 Vss — Input Ground potertial connected to VSS

IC901 RH-iX0417AWZZ: System Microcomputer (IX0417AW) (2/2)

Pin No.

Input/Output

Port Name

Terminal Name

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

– 45 –

CD-CH1500

Input/OutputPort Name Terminal Name

1 VSS — Input GND

2 DATA — Input Serial data input

3 CLOCK — Input Serial clock input

4 LCK — Input Latch clock input

5 Q0 LED_EG Output Panel LED

6 Q1 LED1 Output Stop LED

7 Q2 LED2 Output < REV PLY

8 Q3 LED3 Output << LED

9 Q4 LED4 Output >> LED

10 Q5 LED5 Output > I I LED

11 Q6 CD LED 6 Output CD 6 LED

12 Q7 CD LED 5 Output CD 5 LED

13 Q8 CD LED 4 Output CD 4 LED

14 Q9 CD LED 3 Output CD 3 LED

15 Q10 CD LED 2 Output CD 2 LED

16 Q11 CD LED 1 Output CD 1 LED

17 OE — Output Output enable

18 VDD — Input Power supply

Pin No.

IC702 VHiBU2092F/-1: Input/Output Expander (BU2092F)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

1 VSS — Input GND

2 DATA — Input Serial data input

3 CLK — Input Serial clock input

4 LCK — Input Latch clock input

5 Q0 CD_POWER Output For CD power control

6* Q1 — Output Not used

7* Q2 — Output Not used

8* Q3 — Output Not used

9 Q4 — Output Not used

10* Q5 LCD RESET Output LCD reset

11* Q6 P-CON Output Panel control output switching

12 Q7 MOV PNL CL Output Panel control output

13 Q8 MOV PNL OP Output Panel control output open

14 Q9 FAN Output Fan motor ON/OFF

15 Q10 — Output Not used

16 Q11 — Output Not used

17 OE — Output Output enable

18 VDD — Input Power supply

IC912 VHiBU2092F/-1: Input/Output Expander (BU2092F)

Function

Input/OutputPort Name Terminal NamePin No.

Function

CD-CH1500

– 46 –

— M E M O —

– 47 –

CD-CH1500

PARTS GUIDE

NOTE:

Parts marked with “1” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

CD-CH1500

CD-CH1500 Audio Tower System consisting of CD-CH1500 (main unit) and

CP-RW5500 (speaker system).

MODEL

AUDIO TOWER SYSTEM

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

– 1 –

INTEGRATED CIRCUITS

IC2 VHITC9490F/-1 J AX Servo/Signal Control,TC9490F

IC5 VHIBA5939S/-1 J AH Focus/Tracking/Spin/Sled Driver,

BA5939S

IC6 VHITA2147F/-1 J AM Servo Pre Amp.,TA2147F

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC102 VHIBA3126N/-1 J AF Head Selector,BA3126N

IC201 VHISTK40271-1 J AZ Power AMP.,STK40271

IC202 VHISTK40204-1 J AX Power AMP.,STK40204

IC203 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC502 VHILC75341/-1 J AM Audio Processor,LC75341

IC503 VHINJM4558M-1 J AC Motor Driver,NJM4558M

IC701 VHITA7291S/-1 J AH Loading Motor Driver,TA7291S

IC702 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC802 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

IC808 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

IC901 RH-IX0417AWZZ J AY System Microcomputer,

IX0417AW

IC905 VHIKIA7042AP1 J AC Reset,KIA7042AP

IC912 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC913 VHIKIA7805AP1 J AF Voltage Regulator,KIA7805AP

TRANSISTORS

Q1 VS2SC1740R/-1 J AB Silicon,NPN,2SC1740 R

Q3 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q4 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q5 VSKRA102M//-1 J AC Digital,PNP,KRA102 M

Q101 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q102 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q114 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR

Q115 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q116 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q119,120 VSDTC363TS/-1 J AC Digital,NPN,DTC363 TS

Q200 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q201~211 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q212 VS2SA562-Y/-1 J AC Silicon,PNP,2SA562 Y

Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y

Q351 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q360 VS2SB562-C/-1 J AD Silicon,PNP,2SB562 C

Q371 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q501,502 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q507,508 VSDTC363TS/-1 J AC Digital,NPN,DTC363 TS

Q509 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q707 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q708 VSKRA102M//-1 J AC Digital,PNP,KRA102 M

Q720~725 VSKRA102M//-1 J AC Digital,PNP,KRA102 M

Q805 VSKTC2026//-1 J AF Silicon,NPN,KTC2026

Q806 VSKTA1046Y+-1 J AF Sillicon,PNP,KTA1046 Y

Q807 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q809 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q810 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q812,813 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q901 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q905 VS2SB561-C/-1 J AC Silicon,PNP,2SB561 C

Q906,907 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q908 VS2SB561-C/-1 J AC Silicon,PNP,2SB561 C

Q909 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q954,955 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

DIODES

D201~208 VHDDS1SS133-1 J AB Silicon,DS1SS133

D210 VHDDS1SS133-1 J AB Silicon,DS1SS133

D301~306 VHDDS1SS133-1 J AB Silicon,DS1SS133

D310~312 VHDDS1SS133-1 J AB Silicon,DS1SS133

D352 VHDDS1SS133-1 J AB Silicon,DS1SS133

D507,508 VHDDS1SS133-1 J AB Silicon,DS1SS133

D802 VHDDS1N404S-1 J AB Silicon,DS1N404S

1 D804~807 VHDDS1N404S-1 J AB Silicon,DS1N404S

D812~815 VHDDS1N404S-1 J AB Silicon,DS1N404S

1 D816,817 VHDTS6B04GM-1 J AP Silicon,TS6B04GM

D818,819 VHDDS1SS133-1 J AB Silicon,DS1SS133

D901,902 VHDDS1SS133-1 J AB Silicon,DS1SS133

D905~907 VHDDS1SS133-1 J AB Silicon,DS1SS133

D910 VHDDS1SS133-1 J AB Silicon,DS1SS133

D951 VHDDS1SS133-1 J AB Silicon,DS1SS133

D953,954 VHDDS1SS133-1 J AB Silicon,DS1SS133

DZ1 VHEMTZJ5R1A-1 J AB Zener,5.1V,MTZJ5.1A

DZ2 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B

DZ201 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

DZ351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

DZ803 VHEMTZJ9R1B-1 J AB Zener,9.1V,MTZJ9.1B

DZ804 VHEMTZJ100B-1 J AB Zener,10V,MTZJ10B

LED731 VHPHLMP1700-1 J AC LED,Red,HLMP1700

LED735 VHPLNG995PF-1 J AT LED,Blue,LNG995PF

LED737,738 VHPLNG995PF-1 J AT LED,Blue,LNG995PF

LED754~759 VHPK5052UL/-1 J AD LED,Green,K5052UL

LED770 VHPL934MBC5-1 J AL LED,White,L934MBC5

LED772~775 VHPK5052UL/-1 J AD LED,Green,K5052UL

LED786 VHPK5052UL/-1 J AD LED,Green,K5052UL

LED801 VHPK5052UL/-1 J AD LED,Green,K5052UL

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter

CF302 RFILF0124AFZZ J AD FM IF,10.7 MHz

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T302 RCILA0062AWZZ J AC AM Antenna

T306 RCILB0066AWZZ J AD AM Oscillation

T311 RCILB0065AWZZ J AC FM Oscillation

T312 RCILI0017AWZZ J AB FM IF

T351 RCILI0019AWZZ J AD AM IF

1 T801 RTRNP0315AWZZ J BF Power,Main

1 T802 RTRNP0312AWZZ J AM Power,Sub

COILS

L1,2 VP-DHR82M0000 J AB 0.82 µH,Playback PLL

L7 VP-DHR82M0000 J AB 0.82 µH,Playback PLL

L104 VP-MK331K0000 J AB 330 µH,Choke

L201~204 RCILZ0137AFZZ J AA 0.29 µH

L312 RCILR0056AWZZ J AB FM RF

L342 VP-DH2R2K0000 J AB 2.2 µH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L353 VP-DH102K0000 J AB 1 mH,Choke

L501,502 VP-DH2R2K0000 J AB 2.2 µH,Peaking

L702 VP-XH2R2K0000 J AB 2.2 µH,Choke

L705 VP-XH2R2K0000 J AB 2.2 µH,Choke

L901 VP-DH101K0000 J AB 100 µH,Choke

L910 VP-YF470K0000 J AB 47 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0026AWZZ J AC 10 kohm (B),Semi-VR

[FM Mute Level]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X1 RCRSP0005AWZZ J AF Crystal,16.934 MHz

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

X901 RCRM-0038AFZZ J AD Ceramic,600 kHz

X902 RCRSP0011AWZZ J AC Crystal,32.768 kHz

CAPACITORS

C1 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C2,3 VCTYMN1EF223Z J AA 0.022 µF,25V

C4 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C5,6 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C7 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C8 VCTYMN1EF223Z J AA 0.022 µF,25V

C10 VCTYMN1EF223Z J AA 0.022 µF,25V

C11 VCCSMN1HL150J J AA 15 pF,50V

CD-CH1500

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

C12 VCCSMN1HL220J J AA 22 pF,50V

C13,14 VCTYMN1EF223Z J AA 0.022 µF,25V

C15~17 VCKYPA1HF473Z J AB 0.047 µF,50V

C18 VCQYKA1HM333J J AB 0.033 µF,50V,Mylar

C19 VCKYPA1HF473Z J AB 0.047 µF,50V

C20 VCCSMN1HL470J J AA 47 pF,50V

C21 VCKYMN1HB102K J AA 0.001 µF,50V

C22 VCQYKA1HM333J J AB 0.033 µF,50V,Mylar

C23 VCTYMN1CY103K J AA 0.01 µF,16V

C24 VCTYMN1CX272K J AA 0.0027 µF,16V

C25 VCTYMN1CY103K J AA 0.01 µF,16V

C26 VCTYMN0JY153M J AA 0.015 µF,6.3V

C27 VCTYMN1CX472K J AA 0.0047 µF,16V

C28,29 VCTYMN1EF223Z J AA 0.022 µF,25V

C30 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C31 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C32,33 VCTYMN1EF223Z J AA 0.022 µF,25V

C34 VCCSMN1HL220J J AA 22 pF,50V

C36 VCCSMN1HL270J J AA 27 pF,50V

C37 VCTYMN1EF223Z J AA 0.022 µF,25V

C38 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C39 VCCSMN1HL3R9C J AA 3.9 pF,50V

C40,41 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C42 VCTYMN1CX682K J AA 0.0068 µF,16V

C43 VCTYMN1EF223Z J AA 0.022 µF,25V

C44 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C45 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

C46 VCTYMN1EF223Z J AA 0.022 µF,25V

C47,48 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C49,50 VCTYPA1HF104Z J AB 0.1 µF,50V

C51 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C58~60 VCKYMN1HB101K J AA 100 pF,50V

C64,65 VCKYBT1HB102K J AA 0.001 µF,50V

C67 VCKYPA1HB102K J AA 0.001 µF,50V

C91,92 VCKYMN1HB471J J AB 470 pF,50V

C93~99 VCKYMN1HB101K J AA 100 pF,50V

C101,102 VCKYPA1HB181K J AA 180 pF,50V

C103 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C104,105 VCKYPA1HB561K J AA 560 pF,50V

C106,107 VCTYPA1EX333K J AA 0.033 µF,25V

C108,109 VCCSPA1HL331J J AA 330 pF,50V

C110,111 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C112,113 VCKYPA1HB561K J AA 560 pF,50V

C116 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C118 VCKYPA1HF223Z J AB 0.022 µF,50V

C119,120 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C121,122 VCKYPA1HB271K J AA 270 pF,50V

C123,124 VCKYPA1EX223K J 0.022 µF,25V

C125,126 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C127 VCKYPA1HB332K J AA 0.0033 µF,50V

C129,130 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C131 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C132 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic

C133 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C134 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C135 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C137 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C138 VCKYPA1HB332K J AA 0.0033 µF,50V

C140,141 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C200 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C201,202 VCCSPA1HL221J J AA 220 pF,50V

C203,204 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C205,206 VCCSPA1HL150J J AA 15 pF,50V

C207,208 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film

C209,210 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C211,212 VCQYKA1HM154K J AB 0.15 µF,50V,Mylar

C213,214 VCKYPA1HF223Z J AB 0.022 µF,50V

C215,216 VCKZPA1HF223Z J AA 0.022 µF,50V

C217,218 VCCCPA1HH101J J AA 100 pF (CH),50V

C219,220 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C221,222 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar

C223,224 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C225,226 VCCCPA1HH221J J AA 220 pF (CH),50V

C227,228 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C229,230 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film

C231,232 VCCSPA1HL221J J AA 220 pF,50V

C233,234 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C235,236 VCCSPA1HL150J J AA 15 pF,50V

C237,238 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C239,240 VCKZPA1HF223Z J AA 0.022 µF,50V

C241,242 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C243~246 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C247 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C248 VCKYPA1HF223Z J AB 0.022 µF,50V

C249 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C250 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar

C251 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C252 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C253,254 RC-EZ0027AWZZ J AN 3300 µF,63V,Electrolytic

C255 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C256 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C257 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C258 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C301 VCKYCY1HB102K J AA 0.001 µF,50V

C303 VCCCCY1HH100D J AA 10 pF (CH),50V

C304 VCKYCY1HB103K J AA 0.01 µF,50V

C305 VCCCCY1HH5R0C J AA 5 pF (CH),50V

C306 VCKYBT1HB102K J AA 0.001 µF,50V

C308 VCCCCY1HH5R0C J AA 5 pF (CH),50V

C309 VCKYCY1HB102K J AA 0.001 µF,50V

C310~312 VCCCCY1HH101J J AA 100 pF (CH),50V

C313 VCCCCY1HH220J J AA 22 pF (CH),50V

C314,315 VCKYCY1HB472K J AA 0.0047 µF,50V

C316 VCKYCY1EF104Z J AA 0.1 µF,25V

C317 VCKYCY1HB102K J AA 0.001 µF,50V

C318 VCCCCY1HH101J J AA 100 pF (CH),50V

C319 VCTYPA1EX104K J AB 0.1 µF,25V

C320 VCTYPA1EX473K J AA 0.047 µF,25V

C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C323 VCKYCY1HB223K J AA 0.022 µF,50V

C324 VCCCCY1HH4R0C J AA 4 pF (CH),50V

C325 VCCCCY1HH150J J AA 15 pF (CH),50V

C326 VCCCCY1HH180J J AA 18 pF (CH),50V

C327 VCKYCY1EF104Z J AA 0.1 µF,25V

C330 VCCCCY1HH150J J AA 15 pF (CH),50V

C331 VCKYPA1HF473Z J AB 0.047 µF,50V

C332 VCKYCY1HB223K J AA 0.022 µF,50V

C334 VCCCCY1HH150J J AA 15 pF (CH),50V

C335 VCCCCY1HH331J J AA 330 pF (CH),50V

C337 VCKYCY1EB223K J AB 0.022 µF,25V

C338 VCKYCY1HB102K J AA 0.001 µF,50V

C339 VCCCCY1HH101J J AA 100 pF (CH),50V

C341 VCKYCY1EF104Z J AA 0.1 µF,25V

C342 VCKYCY1EB223K J AB 0.022 µF,25V

C343 VCCCCY1HH330J J AA 33 pF (CH),50V

C345~347 VCKYCY1EB223K J AB 0.022 µF,25V

C350 VCKYCY1CB473K J AA 0.047 µF,16V

C351 VCKYCY1EB223K J AB 0.022 µF,25V

C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C353,354 VCKYCY1EB223K J AB 0.022 µF,25V

C355 VCCCCY1HH220J J AA 22 pF (CH),50V

C356 VCKYCY1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCKYCY1EB223K J AB 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCKYCY1EB223K J AB 0.022 µF,25V

C364 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C365 VCKYCY1EB223K J AB 0.022 µF,25V

C366 VCKYCY1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCKYCY1HB153K J AA 0.015 µF,50V

C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C381 VCCCCY1HH120J J AA 12 pF (CH),50V

C382 VCCCCY1HH150J J AA 15 pF (CH),50V

C384 VCKYCY1HB102K J AA 0.001 µF,50V

C385 VCKYCY1HB103K J AA 0.01 µF,50V

C386 VCCCCY1HH331J J AA 330 pF (CH),50V

C387 VCKYCY1EB223K J AB 0.022 µF,25V

C389,390 VCKYCY1HB102K J AA 0.001 µF,50V

C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C392 VCKYCY1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C395 VCKYCY1EB223K J AB 0.022 µF,25V

C396 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C397 VCKYCY1EB223K J AB 0.022 µF,25V

C398 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C399 VCKYCY1EB223K J AB 0.022 µF,25V

C501,502 VCKYCY1HB102K J AA 0.001 µF,50V

C503 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C509,510 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C511~514 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

C515,516 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar

C517~528 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C529,530 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C531,532 VCCCCY1HH101J J AA 100 pF (CH),50V

C533,534 VCCCCY1HH470J J AA 47 pF (CH),50V

C535 VCKYCY1EF104Z J AA 0.1 µF,25V

C536 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C537 VCKYCY1EF104Z J AA 0.1 µF,25V

C540,541 VCKYCY1HB391K J AA 390 pF,50V

C550,551 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C562 VCKYCY1EF104Z J AA 0.1 µF,25V

C563 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C564 VCKYCY1EF104Z J AA 0.1 µF,25V

C566 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C573,574 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C597,598 VCKYCY1HB272K J AA 0.0027 µF,50V

C599 VCKYCY1HB102K J AA 0.001 µF,50V

C703 VCTYBT1EF223Z J AA 0.022 µF,25V

C704,705 VCCSPA1HL100J J AA 10 pF,50V

C706 VCKYPA1HF223Z J AB 0.022 µF,50V

C707 VCKYBT1HB101K J AA 100 pF,50V

C708 VCTYBT1EF223Z J AA 0.022 µF,25V

C709 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C710,711 VCCCPA1HH101J J AA 100 pF (CH),50V

C712 VCKYBT1HB102K J AA 0.001 µF,50V

C713 VCKYPA1HB102K J AA 0.001 µF,50V

C714 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C715 VCTYPA1CX104K J AB 0.1 µF,16V

C716 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C807 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C810 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C814 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C815,816 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film

C817 VCEAZW1EW688M J AL 6800 µF,25V,Electrolytic

C819 VCEAZV1EW477M J AC 470 µF,25V,Electrolytic

C820 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C821 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C822 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C823 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C824 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C825 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C826,827 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C830 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic

C831~835 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

1 C836 RC-KZ002LAWZZ J AE 0.0047 µF,250V,Ceramic

C837 VCKYPA1HF223Z J AB 0.022 µF,50V

C838 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic

C839 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C840 VCKYPA1HF223Z J AB 0.022 µF,50V

C844 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C901 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C902 VCKYCY1EF104Z J AA 0.1 µF,25V

C903 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C904 VCKYCY1HB103K J AA 0.01 µF,50V

C905 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C906 VCKYCY1EF104Z J AA 0.1 µF,25V

C907 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C912 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C913 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C914 VCKYCY1EF104Z J AA 0.1 µF,25V

C916,917 VCKYCY1EF104Z J AA 0.1 µF,25V

C925,926 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C936 VCCCCY1HH101J J AA 100 pF (CH),50V

C941 VCCCCY1HH220J J AA 22 pF (CH),50V

C942 VCCCCY1HH180J J AA 18 pF (CH),50V

C943 VCKYCY1EF104Z J AA 0.1 µF,25V

C945 VCKYCY1EF104Z J AA 0.1 µF,25V

C950 VCCCCY1HH151J J AA 150 pF (CH),50V

C957 VCCCCY1HH151J J AA 150 pF (CH),50V

C958 VCKYCY1HB391K J AA 390 pF,50V

C964 VCTYPA1HF104Z J AB 0.1 µF,50V

C970 VCKYCY1EF104Z J AA 0.1 µF,25V

C974 VCKYCY1EF104Z J AA 0.1 µF,25V

C975 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C976 VCKYCY1EF104Z J AA 0.1 µF,25V

C977,978 VCCCCY1HH101J J AA 100 pF (CH),50V

C998 RC-GZA226AF1A J AB 22 µF,10V,Electrolytic

C1001,1002 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C1003 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C1004,1005 VCKYCY1EF104Z J AA 0.1 µF,25V

C1006 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C1007,1008 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C1013 VCTYBT1EF223Z J AA 0.022 µF,25V

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

VRS-CY1JB000J J AA

0 ohm,Jumper,0.8×1.55mm,Green

1 FR213,214 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

1 FR251,252 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

J728 VRD-ST2CD102J J AA 1 kohm,1/6W

R6 VRD-ST2EE121J J AA 120 ohms,1/4W

R7~13 VRD-MN2BD102J J AA 1 kohm,1/8W

R14 VRD-ST2CD820J J AA 82 ohms,1/6W

R16 VRD-MN2BD101J J AA 100 ohm,1/8W

R17 VRD-MN2BD102J J AA 1 kohm,1/8W

R18 VRD-MN2BD101J J AA 100 ohm,1/8W

R19 VRD-MN2BD105J J AA 1 Mohm,1/8W

R21 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R25 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R27 VRD-ST2CD473J J AA 47 kohms,1/6W

R28 VRD-MN2BD473J J AA 47 kohms,1/8W

R29 VRD-MN2BD104J J AA 100 kohm,1/8W

R30 VRD-MN2BD225J J AA 2.2 Mohms,1/8W

R31 VRD-MN2BD103J J AA 10 kohm,1/8W

R32 VRD-MN2BD153J J AA 15 kohms,1/8W

R35 VRD-MN2BD102J J AA 1 kohm,1/8W

R36 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R37 VRD-MN2BD333J J AA 33 kohms,1/8W

R38 VRD-ST2CD102J J AA 1 kohm,1/6W

R39 VRD-MN2BD103J J AA 10 kohm,1/8W

R40 VRD-MN2BD101J J AA 100 ohm,1/8W

R41 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R42 VRD-MN2BD563J J AA 56 kohms,1/8W

R43 VRD-MN2BD821J J AA 820 ohms,1/8W

R44 VRD-MN2BD683J J AA 68 kohms,1/8W

R45 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R46 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R47 VRD-MN2BD103J J AA 10 kohm,1/8W

R48 VRD-ST2EE100J J AA 10 ohm,1/4W

R49,50 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R51 VRD-MN2BD683J J AA 68 kohms,1/8W

R53 VRD-MN2BD683J J AA 68 kohms,1/8W

R54 VRD-MN2BD473J J AA 47 kohms,1/8W

R55,56 VRD-MN2BD683J J AA 68 kohms,1/8W

R57 VRD-MN2BD473J J AA 47 kohms,1/8W

R71,72 VRD-MN2BD103J J AA 10 kohm,1/8W

R73,74 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R75,76 VRD-ST2CD103J J AA 10 kohm,1/6W

R77,78 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R91,92 VRD-MN2BD473J J AA 47 kohms,1/8W

R101 VRD-ST2CD102J J AA 1 kohm,1/6W

R102,103 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R104 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R105 VRD-ST2CD101J J AA 100 ohm,1/6W

R109 VRD-ST2CD153J J AA 15 kohms,1/6W

R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W

R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W

R118,119 VRD-ST2CD104J J AA 100 kohm,1/6W

R120,121 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R124,125 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R126,127 VRD-ST2CD153J J AA 15 kohms,1/6W

R128 VRD-ST2CD683J J AA 68 kohms,1/6W

R129,130 VRD-ST2CD102J J AA 1 kohm,1/6W

R131 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R132,133 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R134,135 VRD-ST2CD101J J AA 100 ohm,1/6W

R136~138 VRD-ST2CD103J J AA 10 kohm,1/6W

R139 VRD-ST2CD223J J AA 22 kohms,1/6W

R141 VRD-ST2CD473J J AA 47 kohms,1/6W

R143 VRD-ST2EE820J J AA 82 ohms,1/4W

R144 VRD-ST2EE221J J AA 220 ohms,1/4W

R147 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R148 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R149 VRD-ST2CD153J J AA 15 kohms,1/6W

R150 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R153,154 VRD-ST2CD473J J AA 47 kohms,1/6W

R155,156 VRD-ST2CD333J J AA 33 kohms,1/6W

R200 VRD-ST2EE101J J AA 100 ohm,1/4W

R201,202 VRD-ST2CD102J J AA 1 kohm,1/6W

R203,204 VRD-ST2CD821J J AA 820 ohms,1/6W

R205,206 VRD-ST2CD563J J AA 56 kohms,1/6W

R207 VRD-RT2HD120J J AA 12 ohms,1/2W

R209,210 VRD-ST2CD102J J AA 1 kohm,1/6W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

R211,212 VRD-ST2CD183J J AA 18 kohms,1/6W

R213 VRD-ST2CD101J J AA 100 ohm,1/6W

R215,216 VRD-ST2CD223J J AA 22 kohms,1/6W

R217,218 VRD-ST2CD183J J AA 18 kohms,1/6W

R219,220 VRN-VV3DAR22J J AC 0.22 ohms,2W

R221,222 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R223,224 VRN-VV3AAR10J J AB 0.1 ohm,1W

R225,226 VRD-ST2CD103J J AA 10 kohm,1/6W

R227,228 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R229,230 VRN-VV3DAR22J J AC 0.22 ohms,2W

R231,232 VRD-ST2CD102J J AA 1 kohm,1/6W

R233,234 VRD-ST2CD104J J AA 100 kohm,1/6W

R235,236 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R237,238 VRD-ST2CD683J J AA 68 kohms,1/6W

R239,240 VRD-ST2CD102J J AA 1 kohm,1/6W

R241,242 VRD-ST2CD683J J AA 68 kohms,1/6W

R243,244 VRD-ST2CD102J J AA 1 kohm,1/6W

R245,246 VRD-ST2CD821J J AA 820 ohms,1/6W

R247,248 VRD-ST2CD563J J AA 56 kohms,1/6W

R249,250 VRD-ST2CD102J J AA 1 kohm,1/6W

R251 VRD-ST2CD103J J AA 10 kohm,1/6W

R253 VRD-ST2CD102J J AA 1 kohm,1/6W

R254 VRD-ST2CD103J J AA 10 kohm,1/6W

R255,256 VRN-VV3AAR10J J AB 0.1 ohm,1W

R257,258 VRD-ST2CD103J J AA 10 kohm,1/6W

R259,260 VRD-ST2CD102J J AA 1 kohm,1/6W

R261~264 VRD-ST2CD563J J AA 56 kohms,1/6W

R265,266 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

R267~270 VRD-RT2HD331J J AA 330 ohms,1/2W

R271,272 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

R273~276 VRD-ST2CD223J J AA 22 kohms,1/6W

R277 VRD-ST2CD331J J AA 330 ohms,1/6W

R278 VRD-ST2CD563J J AA 56 kohms,1/6W

R279 VRD-ST2CD223J J AA 22 kohms,1/6W

R280 VRD-ST2CD563J J AA 56 kohms,1/6W

R281 VRD-RT2HD120J J AA 12 ohms,1/2W

R283 VRD-ST2CD474J J AA 470 kohms,1/6W

R284 VRD-ST2CD102J J AA 1 kohm,1/6W

R295 VRD-ST2CD102J J AA 1 kohm,1/6W

R296 VRD-ST2CD224J J AA 220 kohms,1/6W

R297,298 VRD-ST2CD223J J AA 22 kohms,1/6W

R299 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R302 VRD-ST2CD100J J AA 10 ohm,1/6W

R309 VRD-ST2CD103J J AA 10 kohm,1/6W

R311 VRS-CY1JB104J J AA 100 kohm,1/16W

R313 VRS-CY1JB333J J AA 33 kohms,1/16W

R314 VRD-ST2CD220J J AA 22 ohms,1/6W

R322 VRS-CY1JB271J J AA 270 ohms,1/16W

R323 VRS-CY1JB683J J AA 68 kohms,1/16W

R325 VRS-CY1JB473J J AA 47 kohms,1/16W

R327 VRD-ST2CD330J J AA 33 ohms,1/6W

R336 VRD-ST2CD103J J AA 10 kohm,1/6W

R345 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R350 VRS-CY1JB272J J AA 2.7 kohms,1/16W

R351 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R352 VRS-CY1JB102J J AA 1 kohm,1/16W

R353 VRS-CY1JB271J J AA 270 ohms,1/16W

R354 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R355 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R356 VRS-CY1JB102J J AA 1 kohm,1/16W

R357 VRS-CY1JB474J J AA 470 kohms,1/16W

R358 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R359 VRS-CY1JB182J J AA 1.8 kohms,1/16W

R360 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R361,362 VRS-CY1JB183J J AA 18 kohms,1/16W

R363,364 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R369 VRD-ST2EE821J J AA 820 ohms,1/4W

R370 VRD-ST2CD102J J AA 1 kohm,1/6W

R371 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R372~374 VRS-CY1JB102J J AA 1 kohm,1/16W

R376 VRS-CY1JB102J J AA 1 kohm,1/16W

R377 VRS-CY1JB473J J AA 47 kohms,1/16W

R378 VRS-CY1JB823J J AA 82 kohms,1/16W

R379 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R380 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R381 VRS-CY1JB103J J AA 10 kohm,1/16W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383~385 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R389 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W

R393 VRS-CY1JB102J J AA 1 kohm,1/16W

R395 VRS-CY1JB473J J AA 47 kohms,1/16W

R399 VRD-ST2CD103J J AA 10 kohm,1/6W

R501,502 VRD-ST2CD331J J AA 330 ohms,1/6W

R503,504 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R507 VRS-CY1JB223J J AA 22 kohms,1/16W

R511,512 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R513,514 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R524~526 VRD-ST2CD102J J AA 1 kohm,1/6W

R527,528 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R529~534 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R535,536 VRS-CY1JB473J J AA 47 kohms,1/16W

R537,538 VRS-CY1JB102J J AA 1 kohm,1/16W

R539,540 VRS-CY1JB103J J AA 10 kohm,1/16W

R541,542 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R543,544 VRS-CY1JB473J J AA 47 kohms,1/16W

R547,548 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R549,550 VRS-CY1JB393J J AA 39 kohms,1/16W

R551,552 VRS-CY1JB473J J AA 47 kohms,1/16W

R582 VRS-CY1JB223J J AA 22 kohms,1/16W

R591,592 VRS-CY1JB473J J AA 47 kohms,1/16W

R701~706 VRD-ST2CD102J J AA 1 kohm,1/6W

R707,708 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R710,711 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R712 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R713~715 VRD-ST2CD102J J AA 1 kohm,1/6W

R720,721 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R723 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R726 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R728,729 VRD-ST2CD153J J AA 15 kohms,1/6W

R730,731 VRD-ST2CD102J J AA 1 kohm,1/6W

R733 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R735,736 VRD-ST2CD333J J AA 33 kohms,1/6W

R747 VRD-ST2CD102J J AA 1 kohm,1/6W

R748 VRD-ST2CD103J J AA 10 kohm,1/6W

R749 VRD-ST2CD102J J AA 1 kohm,1/6W

R750 VRD-ST2CD101J J AA 100 ohm,1/6W

R752~754 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R755~757 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R758~760 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R761 VRD-ST2CD331J J AA 330 ohms,1/6W

R762 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R763 VRS-CY1JB272J J AA 2.7 kohms,1/16W

R764~766 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R767 VRD-ST2CD102J J AA 1 kohm,1/6W

R768 VRD-RT2HD2R2J J AA 2.2 ohms,1/2W

R769~771 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R772 VRD-ST2CD102J J AA 1 kohm,1/6W

R773~775 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R776 VRD-ST2CD102J J AA 1 kohm,1/6W

R777~779 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R780 VRD-ST2CD102J J AA 1 kohm,1/6W

R781~783 VRD-ST2CD183J J AA 18 kohms,1/6W

R785 VRD-ST2CD473J J AA 47 kohms,1/6W

R787 VRD-ST2CD102J J AA 1 kohm,1/6W

R788 VRD-ST2CD331J J AA 330 ohms,1/6W

R789 VRD-ST2EE151J J AA 150 ohms,1/4W

R790 VRD-ST2EE331J J AA 330 ohms,1/4W

R791,792 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R803 VRD-ST2CD223J J AA 22 kohms,1/6W

R806,807 VRD-ST2CD223J J AA 22 kohms,1/6W

R811 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W

R813 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R814 VRD-ST2CD101J J AA 100 ohm,1/6W

R815 VRD-ST2CD473J J AA 47 kohms,1/6W

R820,821 VRD-ST2CD471J J AA 470 ohms,1/6W

R822 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R828,829 VRD-ST2CD223J J AA 22 kohms,1/6W

R830 VRD-ST2CD101J J AA 100 ohm,1/6W

R834,835 VRD-RT2HD560J J AA 56 ohms,1/2W

R836 VRD-ST2EE271J J AA 270 ohms,1/4W

R837 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W

R901~903 VRD-ST2CD102J J AA 1 kohm,1/6W

R904 VRS-CY1JB102J J AA 1 kohm,1/16W

R905,906 VRD-ST2CD102J J AA 1 kohm,1/6W

R908 VRD-ST2CD102J J AA 1 kohm,1/6W

R910~913 VRS-CY1JB102J J AA 1 kohm,1/16W

R914~916 VRD-ST2CD102J J AA 1 kohm,1/6W

R918~921 VRS-CY1JB102J J AA 1 kohm,1/16W

R928 VRS-CY1JB102J J AA 1 kohm,1/16W

R932,933 VRS-CY1JB102J J AA 1 kohm,1/16W

R934 VRD-ST2CD102J J AA 1 kohm,1/6W

R935,936 VRS-CY1JB102J J AA 1 kohm,1/16W

R941 VRS-CY1JB334J J AA 330 kohms,1/16W

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

R943,944 VRS-CY1JB102J J AA 1 kohm,1/16W

R946~948 VRD-ST2CD102J J AA 1 kohm,1/6W

R949 VRS-CY1JB102J J AA 1 kohm,1/16W

R953,954 VRD-ST2CD102J J AA 1 kohm,1/6W

R955~959 VRS-CY1JB102J J AA 1 kohm,1/16W

R960 VRD-ST2CD102J J AA 1 kohm,1/6W

R962 VRS-CY1JB102J J AA 1 kohm,1/16W

R965,966 VRD-ST2CD102J J AA 1 kohm,1/6W

R968~970 VRD-ST2CD102J J AA 1 kohm,1/6W

R976~981 VRS-CY1JB102J J AA 1 kohm,1/16W

R982 VRD-ST2CD102J J AA 1 kohm,1/6W

R984~988 VRS-CY1JB102J J AA 1 kohm,1/16W

R989 VRD-ST2CD102J J AA 1 kohm,1/6W

R990 VRS-CY1JB102J J AA 1 kohm,1/16W

R991 VRD-ST2CD102J J AA 1 kohm,1/6W

R992~994 VRS-CY1JB102J J AA 1 kohm,1/16W

R995 VRD-ST2CD102J J AA 1 kohm,1/6W

R996~998 VRS-CY1JB102J J AA 1 kohm,1/16W

R999 VRD-ST2CD102J J AA 1 kohm,1/6W

R1001 VRS-CY1JB473J J AA 47 kohms,1/16W

R1002 VRS-CY1JB104J J AA 100 kohm,1/16W

R1003 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R1007 VRS-CY1JB102J J AA 1 kohm,1/16W

R1008 VRD-ST2CD102J J AA 1 kohm,1/6W

R1011 VRS-CY1JB104J J AA 100 kohm,1/16W

R1012 VRS-CY1JB102J J AA 1 kohm,1/16W

R1013 VRD-ST2CD473J J AA 47 kohms,1/6W

R1014 VRS-CY1JB104J J AA 100 kohm,1/16W

R1015 VRS-CY1JB821J J AA 820 ohms,1/16W

R1016,1017 VRS-CY1JB103J J AA 10 kohm,1/16W

R1023 VRS-CY1JB102J J AA 1 kohm,1/16W

R1024 VRS-CY1JB103J J AA 10 kohm,1/16W

R1026,1027 VRS-CY1JB103J J AA 10 kohm,1/16W

R1028 VRS-CY1JB273J J AA 27 kohms,1/16W

R1031,1032 VRS-CY1JB102J J AA 1 kohm,1/16W

R1035,1036 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R1044 VRS-CY1JB223J J AA 22 kohms,1/16W

R1046 VRS-CY1JB123J J AA 12 kohms,1/16W

R1048 VRS-CY1JB103J J AA 10 kohm,1/16W

R1050~1052 VRS-CY1JB102J J AA 1 kohm,1/16W

R1053~1057 VRS-CY1JB103J J AA 10 kohm,1/16W

R1058 VRS-CY1JB104J J AA 100 kohm,1/16W

R1060 VRS-CY1JB104J J AA 100 kohm,1/16W

R1062 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R1065,1066 VRS-CY1JB103J J AA 10 kohm,1/16W

R1068 VRD-ST2CD103J J AA 10 kohm,1/6W

R1071,1072 VRD-ST2CD333J J AA 33 kohms,1/6W

R1081,1082 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R1084~1090 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R1092~1094 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R1105 VRD-ST2CD103J J AA 10 kohm,1/6W

R1106~1109 VRS-CY1JB103J J AA 10 kohm,1/16W

R1112,1113 VRS-CY1JB123J J AA 12 kohms,1/16W

R1118,1119 VRS-CY1JB102J J AA 1 kohm,1/16W

R1124 VRS-CY1JB103J J AA 10 kohm,1/16W

R1129,1130 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R1131,1132 VRS-CY1JB221J J AA 220 ohms,1/16W

R1133 VRD-ST2CD471J J AA 470 ohms,1/6W

R1138,1139 VRS-CY1JB564J J AA 560 kohms,1/16W

R1140 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W

R1141 VRD-ST2CD102J J AA 1 kohm,1/6W

R1142 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W

RA710,711 VRD-ST2CD151J J AA 150 ohms,1/6W

OTHER CIRCUITRY PARTS

BI201A/B QCNWN1658AWZZ J AF Connector Ass’y,8/8Pin

BI702/CNS702 QCNWN1823AWZZ J Connector Ass’y,6/6Pin

BI705A/B QCNWN1674AWZZ J AD Connector Ass’y,2/2Pin

BI720/CNS720 QCNWN1665AWZZ J AH Connector Ass’y,11/11Pin

BI730/CNS730 QCNWN1675AWZZ J AE Connector Ass’y,4/4Pin

BI740A/B QCNWN1673AWZZ J AE Connector Ass’y,3/3Pin

BI741/CNS741 QCNWN1666AWZZ J AG Connector Ass’y,5/5Pin

BI770/CNS770 QCNWN1667AWZZ J AG Connector Ass’y,7/7Pin

BI771A/B QCNWN1684AWZZ J AE Connector Ass’y,4/4Pin

BI772/CNS772 QCNWN1683AWZZ J AG Connector Ass’y,6/6Pin

BI773/CNS773 QCNWN1682AWZZ J AD Connector Ass’y,2/2Pin

BI804/CNS804 QCNWN1656AWZZ J AE Connector Ass’y,6/6Pin

BI808/CNS808 QCNWN1655AWZZ J AE Connector Ass’y,5/5Pin

BI940/CNS940 QCNWN1661AWZZ J AF Connector Ass’y,8/8Pin

BI950 QCNCW010HAWZZ J AD Socket,8Pin

BI960 QCNCW010QAWZZ J AE Socket,15Pin

CNP1 QCNCWZF33AWZZ J AF Socket,33Pin

CNP2 QCNCW026HAWZZ J AC Socket,8Pin

CNP3 QCNCW026DAWZZ J AC Socket,4Pin

CNP4 92LCONE4P53254 J AC Plug,4Pin

CNP5 QCNCM704HAWZZ J AC Plug,8Pin

CNP6 92LCONE6P53253 J AC Plug,6Pin

CNP6A 92LCONE6P53254 J AC Plug,6Pin

CNP7 QCNCM704GAWZZ J AC Plug,7Pin

CNP101 QCNCM704GAFZZ J AC Plug,7Pin

CNP102 QCNCM704HAFZZ J AC Plug,8Pin

CNP203 92LCONE5P5268 J AD Plug,5Pin

CNP204 92LCONE2P53254 J AB Plug,2Pin

CNP207 92LCONE4P53254 J AC Plug,4Pin

CNP303 92LCONE3P5268 J AC Plug,3Pin

CNP701 QCNCWZG05AWZZ J AB Socket,5Pin

CNP721 92LCONE6P53254 J AC Plug,6Pin

CNP775 92LCONE2P53253 J AB Plug,2Pin

CNP801 QCNCM049BAWZZ J AC Plug,2Pin

CNP802 QCNCM051EAWZZ J AD Plug,5Pin

CNP803 QCNCM035CAWZZ J AB Plug,3Pin

CNP805 92LCONE6P5268 J AC Plug,6Pin

CNP806 QCNCM010QAWZZ J AD Plug,15Pin

CNP807 QCNCM010HAWZZ J AC Plug,8Pin

CNP901 QCNCWZF33AWZZ J AF Socket,33Pin

CNP931 92LCONPB11BPHK J AC Plug,11Pin

CNP933 92LCONE5P53253 J AB Plug,5Pin

CNP934 92LCONE7P53253 J AC Plug,7Pin

CNP935A 92LCONPB6BPHK J AB Plug,6Pin

CNP970 QCNCWZG12AWZZ J AC Socket,12Pin

CNS4 QCNWN1692AWZZ J AD Connector Ass’y,4Pin

CNS5A/B QCNWN1690AWZZ J AG Connector Ass’y,8/8Pin

CNS6A/B QCNWN1668AWZZ J AF Connector Ass’y,6/6Pin

CNS7A/B QCNWN1689AWZZ J AF Connector Ass’y,7/7Pin

CNS101A/B QCNWN1670AWZZ J AH Connector Ass’y,6/6Pin

CNS200 QCNWN1659AWZZ J AC Connector Ass’y,2Pin

COR801 RCORF0015AWZZ J AB Core

CORE1 RCORF0015AWZZ J AB Core

1 F801 QFS-D252BSJNI J AB Fuse,2.5A/125V

1 F803,804 QFS-D502BSJNI J AE Fuse,5A/125V

1 F805,806 QFS-D402BSJNI J AB Fuse,4A/125V

1 F807 QFS-D502BSJNI J AE Fuse,5A/125V

1 F808 QFS-D252BSJNI J AB Fuse,2.5A/125V

FFC901 QCNWN1672AWZZ J AF Flat Cable,33Pin

FFC970 QCNWN1686AWZZ J AE Flat Cable,12Pin

FW2 QCNWN1691AWZZ J AD Flat Wire,8Pin

FW3 QCNWN1693AWZZ J AC Flat Wire,4Pin

JK501 92LJACKL1776A J AF Jack,AUX IN

JK701 QJAKM0010AWZZ J AF Jack,Headphones

JOG701 QSW-Z0011AWZZ J AG Switch,Push Type [Jog Dial]

LCD720 RUNTZ0020AWZZ J BC LCD Display

MO200 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

MO700 RMOTV0027AWZZ J AM Motor,Control Panel

MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y

MOB2 92LMTR3435DASY J AM Tray Motor Ass’y

NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]

NM2 92LMTR1854BASY J AP Motor with Gear [Sled]

NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

RX701 VHLN64H380A-1 J AK Remote Sensor,N64H380A

1 RY201,202 RRLYD0004AWZZ J AP Relay

1 RY801 RRLYD0001SJZZ J AQ Relay

SO201 QTANA0806AWZZ J AG Terminal,Speaker

SW701 92LSWICH1401AT J AC Switch,Key Type [Power]

SW705 QSW-B0002AWZZ J AF Switch,Lever Type [Open/Close]

SW710 92LSWICH1401AT J AC Switch,Key Type

[Panel Open/Close]

SW711 92LSWICH1401AT J AC Switch,Key Type [Volume Down]

SW712 92LSWICH1401AT J AC Switch,Key Type [Volume Up]

SW720 92LSWICH1401AT J AC Switch,Key Type [CD1 Eject]

SW721 92LSWICH1401AT J AC Switch,Key Type [CD2 Eject]

SW722 92LSWICH1401AT J AC Switch,Key Type [CD3 Eject]

SW723 92LSWICH1401AT J AC Switch,Key Type [CD4 Eject]

SW724 92LSWICH1401AT J AC Switch,Key Type [CD5 Eject]

SW725 92LSWICH1401AT J AC Switch,Key Type [CD6 Eject]

SW730 92LSWICH1401AT J AC Switch,Key Type [CD1 Play]

SW731 92LSWICH1401AT J AC Switch,Key Type [CD2 Play]

SW732 92LSWICH1401AT J AC Switch,Key Type [CD3 Play]

SW733 92LSWICH1401AT J AC Switch,Key Type [CD4 Play]

SW734 92LSWICH1401AT J AC Switch,Key Type [CD5 Play]

SW735 92LSWICH1401AT J AC Switch,Key Type [CD6 Play]

SW750 92LSWICH1401AT J AC Switch,Key Type [R-Mode]

SW751 92LSWICH1401AT J AC Switch,Key Type [Clear]

SW752 92LSWICH1401AT J AC Switch,Key Type [Memory]

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

SW753 92LSWICH1401AT J AC Switch,Key Type [Fast Reverse]

SW754 92LSWICH1401AT J AC Switch,Key Type [Fast Forward]

SW755 92LSWICH1401AT J AC Switch,Key Type [Tape Record]

SW756 92LSWICH1401AT J AC Switch,Key Type [Play/Pause]

SW757 92LSWICH1401AT J AC Switch,Key Type [Stop]

SW758 92LSWICH1401AT J AC Switch,Key Type [Play]

SW761 92LSWICH1401AT J AC Switch,Key Type [AUX]

SW762 92LSWICH1401AT J AC Switch,Key Type [Tuner]

SW763 92LSWICH1401AT J AC Switch,Key Type [Tape]

SW764 92LSWICH1401AT J AC Switch,Key Type [CD]

SW772 92LSWICH1401AT J AC Switch,Key Type

[Equalizer Mode]

SW773 92LSWICH1401AT J AC Switch,Key Type [X-BASS]

SW778 92LSWICH1401AT J AC Switch,Key Type [Enter]

SW783 92LSWICH1401AT J AC Switch,Key Type [Play Mode]

SW784 92LSWICH1401AT J AC Switch,Key Type [Display]

SW786 92LSWICH1401AT J AC Switch,Key Type [Menu]

SWB101 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 1]

SWB102 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 2]

SWB103 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 3]

SWB104 QSW-P9003AWZZ J AD Switch,Push Type [Mode 1]

SWB105 QSW-P9003AWZZ J AD Switch,Push Type [Mode 2]

SWB106 QSW-P9003AWZZ J AD Switch,Push Type [Mode 3]

SWB107 QSW-P9003AWZZ J AD Switch,Push Type [Mode 4]

SWB108 QSW-P9003AWZZ J AD Switch,Push Type [Mode 5]

SWB109 QSW-P9004AWZZ J AE Switch,Push Type [Tray 1]

SWB110 QSW-P9004AWZZ J AE Switch,Push Type [Tray 2]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LMCUSN1524A J AD Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

307 PCUSG0001AWSA J AD Cushion

308 PCUSG0004AWSA J AD Cushion

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm

NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]

NM2 92LMTR1854BASY J AP Motor with Gear [Sled]

NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

CHANGER MECHANISM PARTS

101 LCHSM0106AWZZ J AQ Main Base

102 PGIDM0033AWZZ J AH Changer Box,Left

103 PGIDM0034AWZZ J AG Changer Box,Right

104 NGERH0121AWZZ J AC Gear,Stabilizer B

105 PGIDM0035AWZZ J AH Bracket,Stabilizer Gear

106 MLEVP0098AWZZ J AB Lever,Tray Lock

107 MSPRP0040AWFW J AD Spring,Tray Lock Lever

108 GCOVA1354AWZZ J AF Disc Tray 1

109 GCOVA1355AWZZ J AF Disc Tray 2

110 GCOVA1356AWZZ J AF Disc Tray 3

111 GCOVA1357AWZZ J AF Disc Tray 4

112 GCOVA1358AWZZ J AF Disc Tray 5

113 GCOVA1359AWZZ J AF Disc Tray 6

114 LPLTP0010AWZZ J AG Top Plate,Rear

115 MCAMP0009AWZZ J AE Cam,Lift

116 NSFTT0057AWFD J AE Shaft,Lift Cam

117 LPLTP0009AWZZ J AH Top Plate,Front

118 MLEVP0099AWZZ J AB Lever,Disc OB

119 NGERH0098AWZZ J AC Gear,Stabilizer Drive,Left/Right

120 NGERH0099AWZZ J AC Gear,Stabilizer Drive,Left

121 MLEVF0055AWFW J AC Lever,OS,Left/Right

122 NGERH0100AWZZ J AC Gear,Stabilizer Drive,Right

123 MSPRT0040AWFJ J AB Spring,OS Lever

124 NGERH0111AWZZ J AC Gear,Tray Drive,Rear

125 NGERH0113AWZZ J AF Gear,Tray Joint,Rear

126 NGERH0116AWZZ J AH Gear,Mode Big

127 NGERH0117AWZZ J AC Gear,Lift A

128 NGERH0118AWZZ J AB Gear,Lift B

129 NGERH0119AWZZ J AF Gear,Lift C

130 NGERH0115AWZZ J AC Gear,Tray Idler

131 NGERH0106AWZZ J AC Gear,Motor Idler,F

132 NGERH0120AWZZ J AB Gear,Stabilizer A

133 NSFTT0055AWM1 J AH Stabilizer Gear Ass’y

133- 1 NGERH0122AWZZ J AC Gear,Stabilizer C

133- 2 NSFTT0055AWFD J AG Shaft,Stabilizer Gear

133- 3 NGERH0123AWZZ J AC Gear,Stabilizer D

134 NGERH0108AWZZ J AK Gear,Tray Big

135 NGERH0109AWZZ J AB Gear,Tray A

136 NGERH0110AWZZ J AC Gear,Tray B

137 NGERH0103AWZZ J AB Gear,Motor Idler,C

138 NGERH0102AWZZ J AC Gear,Motor Idler,B

139 NGERH0105AWZZ J AB Gear,Motor Idler,E

140 NGERH0104AWZZ J AB Gear,Motor Idler,D

141 NGERH0101AWZZ J AD Gear,Motor Idler,A

142 NGERH0114AWZZ J AB Gear,Tray C

143 NGERH0107AWZZ J AC Gear,Tray Drive,Front

144 NGERH0112AWZZ J AF Gear,Tray Joint,Front

145 MLEVP0097AWZZ J AB Lever,Left

146 NSFTT0056AWFD J AC Shaft,Lift Lever

147 LHLDZ1270AWZZ J AH Holder,Stabilizer

148 PMAGF0001AWZZ J AF Magnet

149 LHLDM1011AWZZ J AD Stabilizer

150 92LNBAND1318A J AA Nylon Band,80mm

151 QCNCW025DAWZZ J AB Holder,Flat Wire,4Pin

152 QCNCW025HAWZZ J AC Holder,Flat Wire,8Pin

801 XBPSD26P04000 J AA Screw,ø2.6×4mm

802 XEBSD20P07000 J AB Screw,ø2×7mm

803 XEBSD20P10000 J AA Screw,ø2×10mm

804 XHBSD20P05000 J AA Screw,ø2×5mm

805 LX-EZ0005AWFD J AA Screw,ø2.6×10mm

806 LX-EZ0026AWFD J AB Screw,ø2×9mm

807 LX-JZ0105AFFN J AA Screw,ø1.7×5mm

808 XEBSD30P10000 J AA Screw,ø3×10mm

MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y

MOB2 92LMTR3435DASY J AM Tray Motor Ass’y

CABINET PARTS

201 92LCAB3623AASY J Front Panel Ass’y

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 GDORF0081AWSA J AD Door,Changer 1

201- 3 GDORF0084AWSA J AD Door,Changer 2

201- 4 GDORF0085AWSA J AD Door,Changer 3

201- 5 GDORF0086AWSA J AD Door,Changer 4

201- 6 GDORF0087AWSA J AD Door,Changer 5

201- 7 GDORF0088AWSA J AD Door,Changer 6

201- 8 HDECQ0597AWSA J AK Panel,Changer Door

201- 9 MLOKC0005AWZZ J AC Cassette Lock

201-10 JKNBZ0724AWSA J AF Button,Power

201-11 JKNBZ0726AWSA J AG Button,CD Play

201-12 JKNBZ0735AWSA J AF Button,Control Eject

201-13 JKNBZ0741AWSA J AK Button,CD Eject

201-14 LHLDZ1271AWSA J AD Holder,Changer Door

201-15 LHLDZ1276AWZZ J AC Holder,Cassette Lock

201-16 MLIFP0008AWZZ J AD Damper

201-17 MSPRC0029AWFJ J AB Spring,Cassette Lock

201-18 MSPRD0140AWFJ J AC Spring,Cassette Up

201-19 MSPRD0141AWFJ J AB Spring,Changer Door

201-20 PCOVA1323AWSA J AB Cover,Remote Sensor

201-21 PCUSG0053AWSA J AB Cushion,Center Panel

202 92LCAB3435BASY J AP Side Panel Ass’y,Left

202- 1 ———— — Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg,Left

203 92LCAB3435CASY J AP Side Panel Ass’y,Right

203- 1 ———— — Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg,Right

204 GCAB-1188AWSA J AN Top Cabinet

205 92LPNL3623AASY J Control Panel Ass’y

205- 1 GCOVA1311AWSA J AN Control Panel A

205- 2 GCOVA1312AWSA J AB Indicator A,Button

205- 3 GCOVA1313AWSA J AB Indicator B,Button

205- 4 GDORF0106AWSA J AN Control Panel B

205- 5 HDECQ0601AWSA J AM Decoration Plate,Outer Window

205- 6 HDECQ0602AWSA J AG Outer Window

205- 7 HDECQ0603AWSA J AG Inner Window

205- 8 HDECQ0604AWSA J AG Ring,Jog Knob

205- 9 JKNBZ0727AWSA J AH Button,Function

205-10 JKNBZ0734AWSA J AH Button,Control

205-11 JKNBZ0730AWSA J AG Button,Play Mode

205-12 JKNBZ0731AWSA J AG Button,Menu

– 6 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

205-13 JKNBZ0732AWSA J AE Button,Enter

205-14 MSPRD0142AWFJ J AD Spring,Control Panel

206 GEAR3435AASY1 J AT Gear Ass’y

206- 1 LHLDZ1261AWZZ J AE Gear Box A

206- 2 LHLDZ1262AWZZ J AC Gear Box B

206- 3 PSPAZ0023AWZZ J AC Spacer,Warm Gear

206- 4 NGERH0097AWZZ J AC Gear,Reduc.A

206- 5 NGERH0124AWZZ J AF Gear,Reduc.B

206- 6 NGERW0013AWZZ J AC Gear,Warm

206- 7 NGERW0014AWZZ J AF Gear,Warm Wheel

207 GITAR0699AWSA J AQ Rear Panel [Except for Canada]

207 GITAR0700AWSA J Rear Panel [For Canada]

208 HDECQ0715AWSA J AQ

Decoration Plate,Display Window

209 LANGK0197AWFW J AG Bracket,Center Support

210 LANGK0253AWFW J AG Bracket,Fan Motor Support

211 LANGK0258AWFW J AF Bracket,Heat Sink Support

212 LANGK0200AWFW J AE Bracket,PWB Support

213 LANGK0226AWFW J AD Bracket,Panel Support,Left

214 LANGK0227AWFW J AD Bracket,Panel Support,Right

215 LANGT0042AWFW J AC Bracket,Power PWB/Main PWB

216 LBSHC0005AWZZ J AD Bushing,AC Power Supply Cord

217 LCHSM0126AWFW J AW Main Chassis

218 LCHSZ0017AWFW J AN Chassis,Bottom

219 LHLDK9001AW00 J AB Poly Core Tie

220 GCOVA1314AWSA J AF

Cover,Changer Door Panel,Bottom

221 LHLDZ1272AWZZ J AC Holder,Switch

222 PSPAZ0024AWZZ J AC Spacer,LCD PWB

223 LHLDZ1265AWZZ J AC Holder,LED,A

224 LHLDZ1266AWZZ J AC Holder,LED,B

225 MSPRD0108AWFJ J AC Spring,Fan Motor

226 NBRGC0003AWZZ J AC Bearing Metal

227 NFANP0001AWZZ J AD Rotary Fan,Motor

228 PCUSG0008AWZZ J AB Cushion,Spacer

229 PCUSG0022AWZZ J AB Cushion,Leg

230 PRDAR0163AWFW J AP Heat Sink,Main

231 PRDAR0164AWFW J AS Heat Sink,Sub A

232 PRDAR0165AWFW J AH Heat Sink,Sub B

233 92LNBAND1318A J AA Nylon Band,80mm

234 PSHEP0041AWZZ J AG Sheet,LCD

235 LHLDZ1269AWZZ J AD Holder,LCD

236 PSLDM3075AWFW J AD Shield Plate,Power PWB

237 PSLDM3076AWFW J AF Shield Plate,Phone

238 PSPAS0003AWZZ J AC

Spacer,Fan Motor Support Bracket

1 239 QACCD0022AWZZ J AM AC Power Supply Cord

1 240 QFSHD0001AWZZ J AB Holder,Fuse

241 92LCSPR1431C J AA Spring,Fan Ring

242 LHLDZ1274AWZZ J AC Holder,LED,E

243 LHLDZ1268AWZZ J AC Holder,LED,D

244 PCOVU1004AWZZ J AC Cover,LCD

245 QCNWN1730AWZZ J AC Lug Wire

246 PREFL0006AWSA J AG Illuminator

247 PSHEP0050AWSA J AD Colour Filter

248 GCOVA1329AWSA J Cover,Cassette Holder

249 GDORF0080AWSA J AG Cassette Holder

250 KMECB0016AWZZ J BD Tape Mechanism Ass’y

250- 1 92PF513-853 J BL Head Plate Block

250- 2 92PF525-332 J BD Motor with Pulley [Tape]

250- 3 92PF567-647 J BA Tape Mechanism PWB Ass’y

250- 4 92PFF19U- J Belt,Main

250- 5 92PF514-133 J AL Pinch Roller,Right

250- 6 92PF514-134 J AL Pinch Roller,Left

250- 7 92PFF19S- J Belt,FF/REW

250- 8 92PFD58M- J Gear,Cam

250- 9 92PF765-286 J AR Solenoid

251 HDECQ0717AWSA J AN Center Window

252 LANGK0210AWFW J AB Bracket,Headphones Support

253 LHLDS1005AWZZ J AC Holder,Saft,Left

254 LHLDS1006AWZZ J AC Holder,Saft,Right

255 PSHEM0010AWZZ J AC Shield Sheet,Tape Head

256 PSHEM0009AWZZ J AC Earth Sheet,Display PWB

257 MSPRZ0010AWFJ J AB Spring,Display PWB

258 JKNBK0080AWSA J AG Knob,Jog

601 LX-BZ0880AFZZ J AC Screw,ø2×2.2mm

602 LX-BZ2222AXZZ J AB Screw,Special

603 LX-EZ0028AWFN J AC Screw,ø2.6×12mm

604 LX-HZ0082AFZZ J AA Screw,ø4×8mm

605 LX-JZ0010AFFD J AA Screw,ø3×10mm

606 XBBSD20P05000 J AA Screw,ø2×5mm

607 XEBSD26P10000 J AA Screw,ø2.6×10mm

608 XEBSD30P10000 J AA Screw,ø3×10mm

609 XEBSD30P14000 J AA Screw,ø3×14mm

610 XEBSD30P20000 J AA Screw,ø3×20mm

611 XESSD26P12000 J AB Screw,ø2.6×12mm

612 XESSD30P10000 J AA Screw,ø3×10mm

613 XESSN26P12000 J AA Screw,ø2.6×12mm

614 XJBSD30P08000 J AA Screw,ø3×8mm

615 XJBSD30P10000 J AA Screw,ø3×10mm

616 XJBSD30P14000 J AA Screw,ø3×14mm

617 XJBSF30P10000 J AA Screw,ø3×10mm

618 XJBSF30P16000 J AA Screw,ø3×16mm

619 XJSSD30P10000 J AA Screw,ø3×10mm

620 XWHSD32-10130 J AA Washer,ø3.2×ø13×1.0mm

621 XESSD30P14000 J AA Screw,ø3×14mm

622 XEBSF26P10000 J AA Screw,ø2.6×10mm

PACKING PARTS (Except for U.S.A.)

SPAKA0305AWZZ J Packing Add.,Front/Rear

SPAKC1158AWZZ J Packing Case

[Except for Canada]

SPAKC1159AWZZ J Packing Case [For Canada]

SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

SSAKH0038AWZZ J AE Polyethylene Bag,Unit

TLABR1193AWZZ J AB Label,Bar Code,Packing Case

ACCESSORIES

QANTL0007AWZZ J AK AM/FM Loop Antenna

TCAUS0042AWZZ J AB Caution,Sheet

TCAUZ0075AWZZ J Caution,Transport

TINSE0345AWZZ J AE Operation Manual

[Except for Canada]

TINSK0112AWZZ J Operation Manual [For Canada]

TINSZ0652AWZZ J AC Quick Guide [U.S.A.Only]

TLABZ0593AWZZ J AB Energy Star Label (Set)

TLABZ0885AWZZ J Label,Feature

RRMCG0245AWSA J AU Remote Control

GFTAB1030AWSA J Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB3623MANS J — Main

PWB-B1~9 92LPWB3623DPLS J —

Display/LED A/LED B/CD Switch/

Control/Jog/Motor/Switch/

Headphones (Combined Ass’y)

PWB-C 92LPWB3435CDUS J — CD Servo

PWB-D1~3 92LPWB3623PWRS J — Power/Sub Trans/Speaker

(Combined Ass’y)

PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-F QPWBF0644AWZZ J AD Tray Switch (PWB Only)

PWB-G QPWBF0645AWZZ J AC Cam Switch (PWB Only)

PWB-H 92PF567-648 J — Tape Mechanism

OTHER SERVICE PARTS

QCNWN6931AFZZ J AN Extension Flat Cable (33Pin)

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner Disc

SPEAKER BOX PARTS

701 GBOXS0063AWSA J Speaker Box Ass’y

702 CPNLS1029AW01 J Front Panel Ass’y

703 CWAKP1049AW01 J Net Frame Ass’y

704 HDECQ0723AWSA J Cover,Tweeter

705 LHLDZ8001AWSA J AD Catching Holder

706 PCUSG0022AWZZ J AB Cushion,Leg

707 QCNWN1934AWZZ J Speaker Cord Ass’y,Woofer with

Capacitor

708 QCNWN1935AWZZ J Speaker Cord Ass’y,Sub Woofer

709 PCUSS0051AWZZ J Cushion,Speaker Cord

710 QTANA9009AWZZ J Speaker Terminal,Woofer

711 QTANA9010AWZZ J Speaker Terminal,Sub Woofer

712 TSPC-0828AWZZ J Label,Specifications

713 PFLT-0049AWZZ J Felt

714 XEBSD30P10000 J AA Screw,ø3×10mm

715 XEBSD30P12000 J AA Screw,ø3×12mm

716 XEBSD40P16000 J Screw,ø4×16mm

717 PDUC-0006AWZZ J Paper Duct

SP601,602 RSPA10014AW6W J Woofer

SP603,604 RSPA00012AW6T J Tweeter

SP605,606 RSPA10015AW6W J Sub Woofer

– 7 –

CP-RW5500

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-CH1500

– 8 –

PACKING PARTS

SPAKA0306AWZZ J Packing Add.,Top/Bottom,

Speaker

SSAKH0059AWZZ J Polyethylene Bag,Speaker

ACCESSORIES

1 CQNWN1949AW01 J Speaker Cord Ass’y

1- 1 QCNWN1949AWZZ J

Speaker Wire for MAIN Terminals

1- 2 QCNWN1950AWZZ J Speaker Wire for SUB WOOFER

Terminals

1- 3 SSAKH0062AWZZ J Polyethylene Bag,Speaker Cord

CD-CH1500

23456

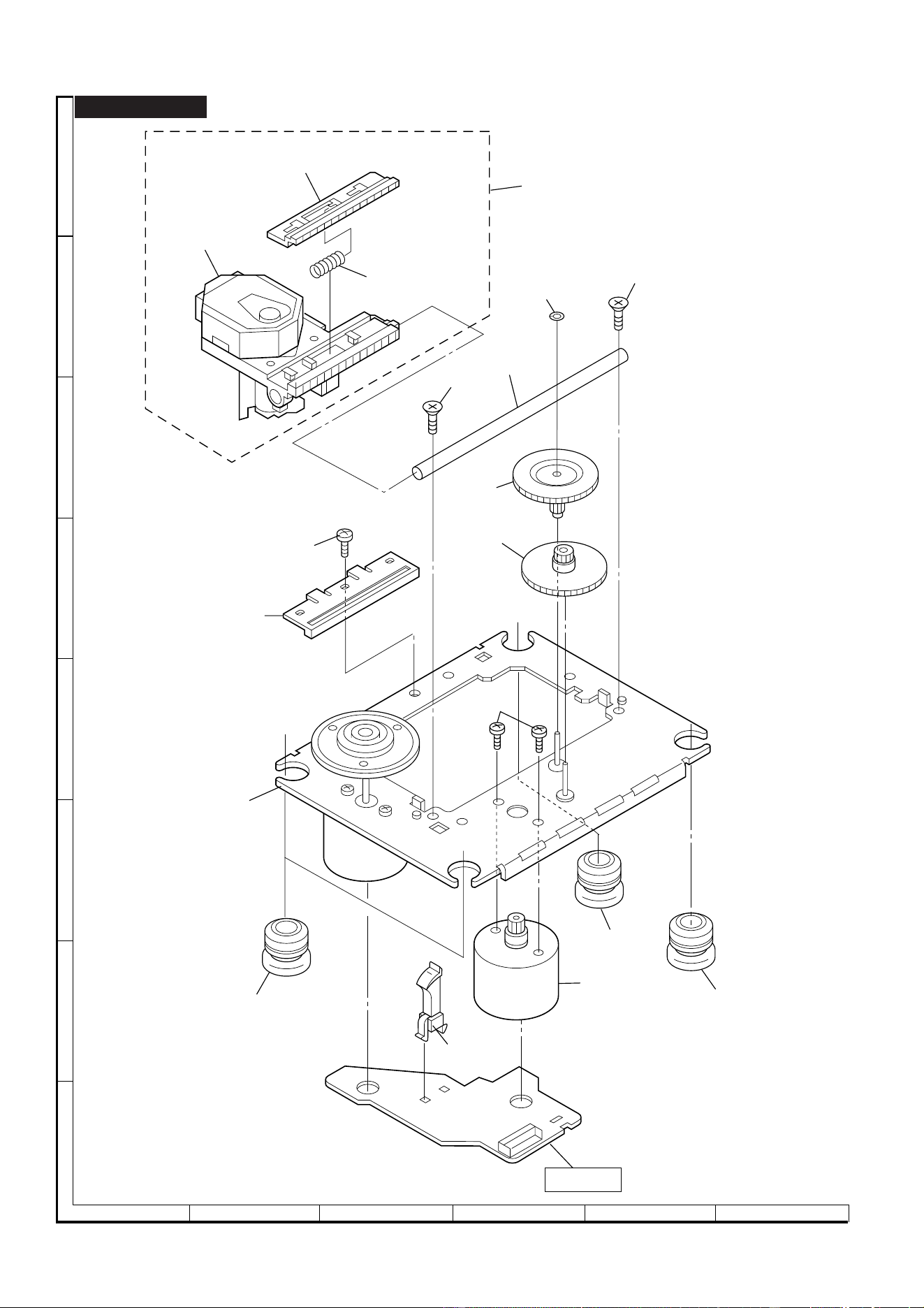

Figure 9 CD MECHANISM EXPLODED VIEW

– 9 –

701

304

701

302

301

NM1

703x2

305x2

NSW1

NM2

308

PWB-E

306-2

306

704

307

306-1

306-3

702

303

CD-CH1500

23456

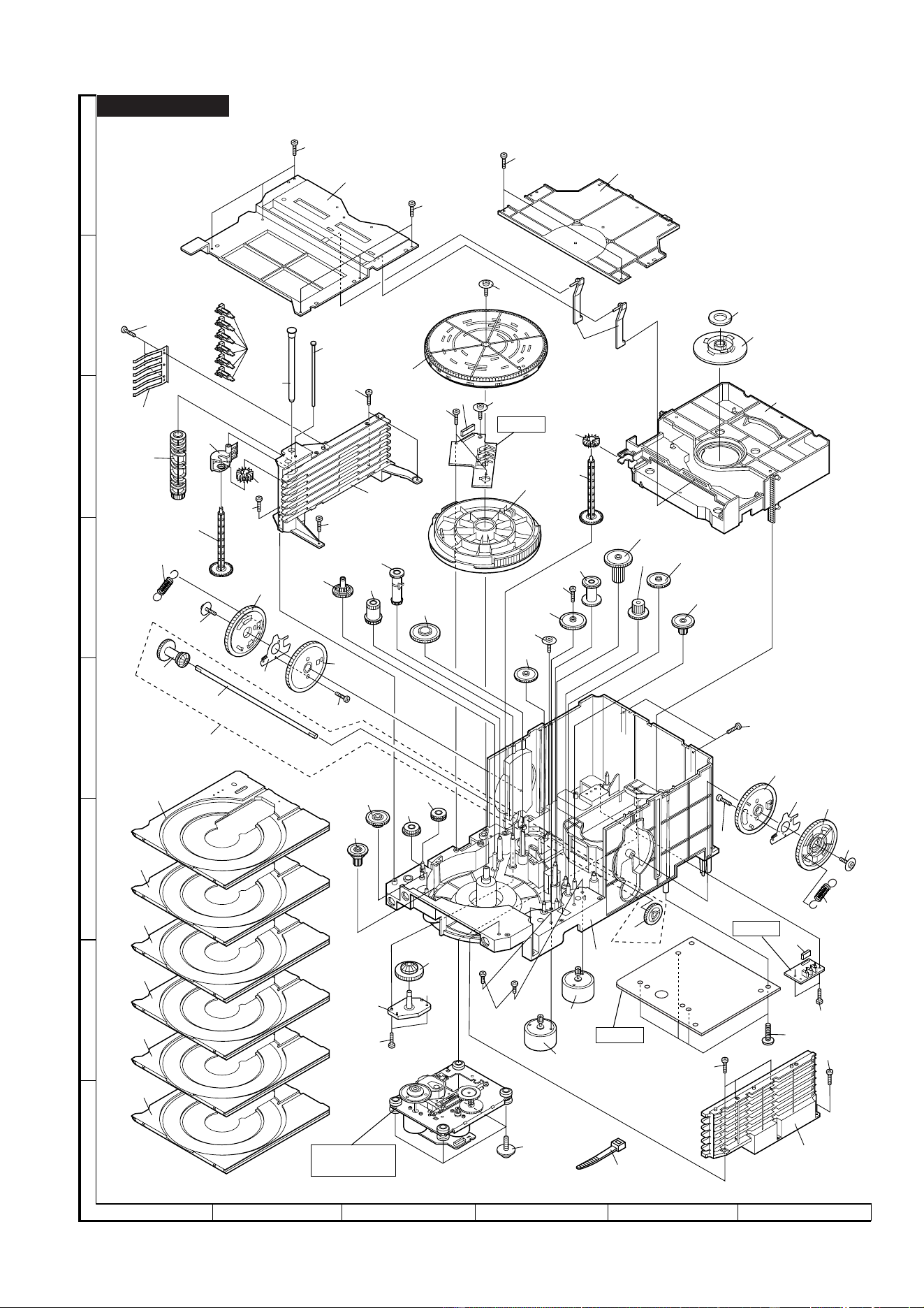

Figure 10 CD CHANGER MECHANISM EXPLODED VIEW

– 10 –

803x3

803x2

803x3

148

149

147

806

802x2

126

118x2

106x6

146

116

802x3

107

115

145

144

143

803

803x2

102

152

134

124

125

PWB-F

140

141

138

139

131

807

137

805

141

142

127

130

132

805

120

121

119

804

133-1

133-2

129

128

135

136

803x2

804

119

121

122

805

133-3

113

112

111

110

109

108

104

105

803x2

805x4

801x4

808x4

MOB1

MOB2

803x3

802x2

151

803

103

PWB-G

PWB-C

MECHANISM

133

150

123

114

117

101

CD-CH1500

Figure 11 CABINET EXPLODED VIEW (1/2)

23456

– 11 –

Note: Only the unit and consumale parts are supplied as parts supply for the Tape mechanism.

CD-CH1500

PWB-B2

244

222

234

247

246

235

TAPE

MECHANISM

612x4

250-1, 250-2, 250-3,

250-4, 250-5, 250-6,

250-7, 250-8, 250-9

250

245

610

607

608

610

608x2

254

PWB-B8

221

607

253

258

607x2

607

MO700

PWB-B7

206-3

206-4

206-2

607

206-6

206-7

206-5

PWB-B9

PWB-B1

PWB-B3

607x2

606x2

607x3

206-1

206

205-14

205-8

205-4

205-9

205-10

205-3x2

205-2x3

205-1

205-6

622

205-5

243

PWB-B6

PWB-B5

PWB-B4

242x2

607x5

613x2

611x2

205-7

205-12

205-13

607x5

607x2

205-11

233

201-21x2

251

201-16

602

201-12

252

201-7

201-6

201-5

201-4

201-3

201-2

608

229x2

208

603x4

248

249

201-18

609x4

256

257

LCD720

201-10

201-9

201-17

201-20

201-8

201-15

608

201-14

621

201-19x6

201-11

201-13

224

608x6

223

Main Belt

Flywheel

FF/REW

Clutch

FF/REW

Belt

BELT CONNECTION

Tape

Motor

614x2

201-1

201

613x2

608x2

220

205

255

CD-CH1500

Figure 12 CABINET EXPLODED VIEW (2/2)

23456

– 12 –

CD-CH1500

Silicon

Grease

232

231

617

618x2

617x5

236

614

IC202

IC201

615x3

T801

616x4

617

230

605

617x2

207

617x4

604x4

211

614

615

237

215

203-2

617x4

203

614x2

605

204

219

614

239

216

617x4

202-1

202-2

615x3

202

Q809

Q805

IC802

PWB-A

PWB-D2

PWB-D1

PWB-D3

605x4

217

214

203-1

212

245

614x2

614

213

601x2

227

241

226

225

210

MO200

228

238

228

238

620x2

616x2

209

614

614x3

240x14

CD CHANGER

MECHANISM

218

608x5

619

CD-CH1500

– 13 –

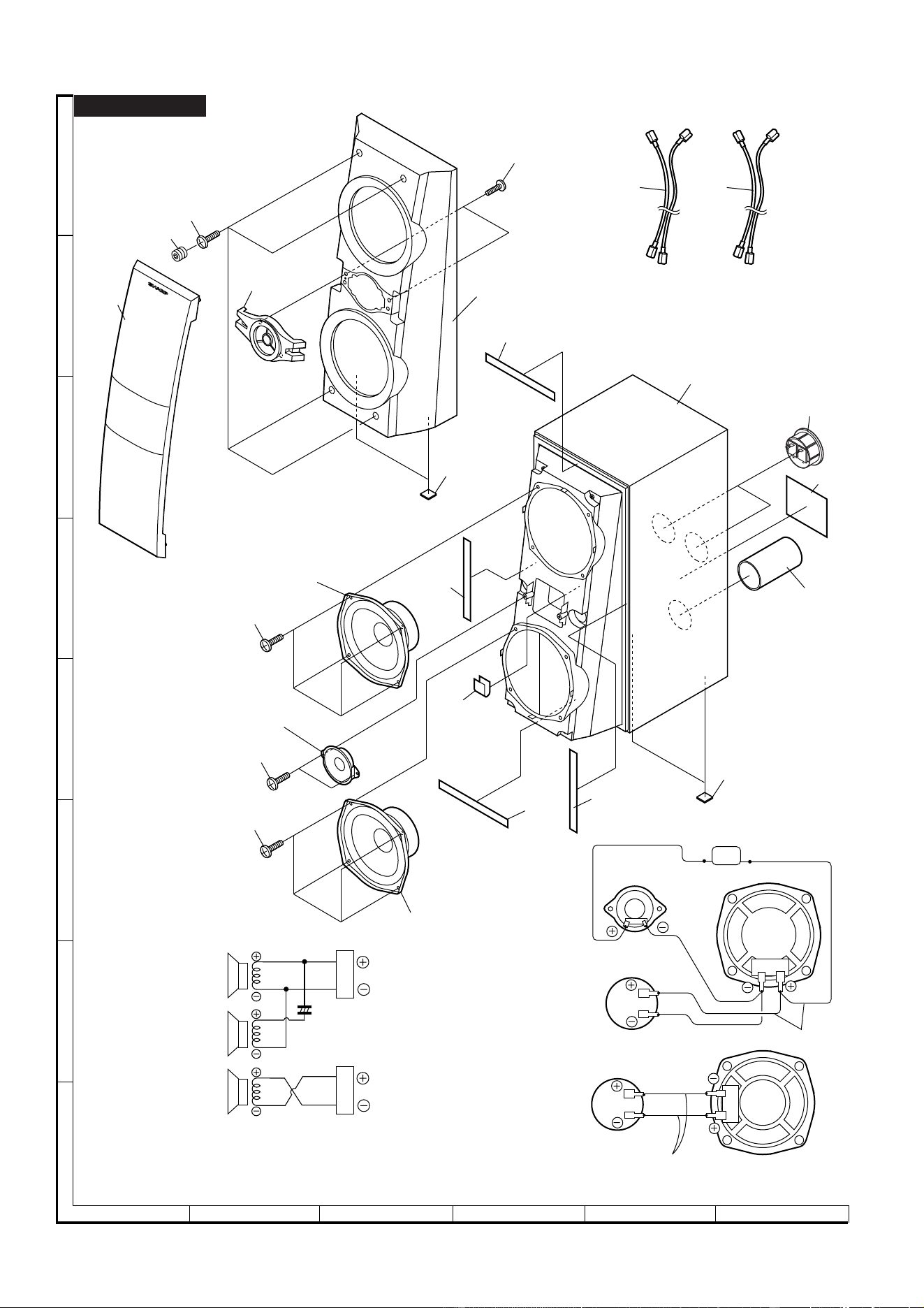

Figure 13 SPEAKER EXPLODED VIEW

23456

CP-RW5500

SP605(L-CH)

SP606(R-CH)

SP603(L-CH)

SP604(R-CH)

SP601(L-CH)

SP602(R-CH)

715x4

705x4

703

716x4

714x2

706x2

710,711

706x2

714x2

716x4

704

702

713

707

708

712

717

701

713

709

SUB WOOFER

SP605(L-CH)

SP606(R-CH)

SUB WOOFER

SP605(L-CH)

SP606(R-CH)

WOOFER

SP601(L-CH)

SP602(R-CH)

WOOFER

SP601(L-CH)

SP602(R-CH)

TWEETER

SP603(L-CH)

SP604(R-CH)

TWEETER

SP603(L-CH)

SP604(R-CH)

Capacitor

SPEAKER

TERMINAL

(710)

SPEAKER

TERMINAL

WOOFER

(710)

SPEAKER

TERMINAL

SUB WOOFER

(711)

SPEAKER

TERMINAL

SUB WOOFER

(711)

(708)

(707)

Capacitor

2.7µF,100V

Electrolytic

(N.P.)

CD-CH1500

– 14 –

Setting position of switches and knobs

Tape Mechanism STOP

Cassette Holder CLOSE

Control Panel CLOSE

PACKING OF THE SET (FOR U.S.A. ONLY)

SSAKH0038AWZZ

Polyethylene Bag, Unit

SSAKH0059AWZZ

Polyethylene Bag, Speaker

SPAKC1158AWZZ

Packing Case

TLABR1193AWZZ

Bar Code Label

Bottom

CD-CH1500

CP-RW5500

Front

side of

Speakers

Speaker Cord Ass'y

AM/FM Loop

Antenna

Quick Guide

Operation

Manual

Remote

Control

SSAKA0007AWZZ

Polyethylene Bag

Accessories

SPAKA0305AWZZ

Packing Add.,Front/Rear

Polyethylene Bag,

Speaker

Speaker Cord

Energy

Star Label

Caution Sheet

SPAKA0306AWZZ

Packing Add.,

Top/Bottom,Speaker

Top

FRONTFRONT

Front

Not Replacement Item

CD-CH1500

— M E M O —

– 15 –

CD-CH1500

– 16 –

— M E M O —

CD-CH1500

A0101-????DS•HA•M

SC • SL • LAG

SHARP CORPORATION

Communication Systems Group

Quality & Reliability Control Center

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Sharp CD-CH1500H Audio Tower System

Product's Documents

Service Manual

Specifications

Sharp CD-CH1500H Questions and Answers

Related Products

Sharp CD-CH1000H Audio Tower System

Sharp CD-CH1000H Audio Tower System

Blaupunkt BPT6021BT Sound Tower Audio System with NFC & Bluetooth

Sharp CD-CH1000H Audio Tower System

JL Audio 93690 M6 Series 7.7-inch Enclosed Tower Coaxial System in Gloss White Pair

JL Audio 93691 M6 Series 8.8-inch Enclosed Tower Coaxial System in Gloss White Pair
