Your new tumble dryer
You have opted for a tumble dryer
manufactured by Bosch.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Bosch, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Table of contents
en Installation and operating instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Energy-saving tips. . . . . . . . . . .12
5 Installing and connecting
the appliance . . . . . . . . . . . . . . .12

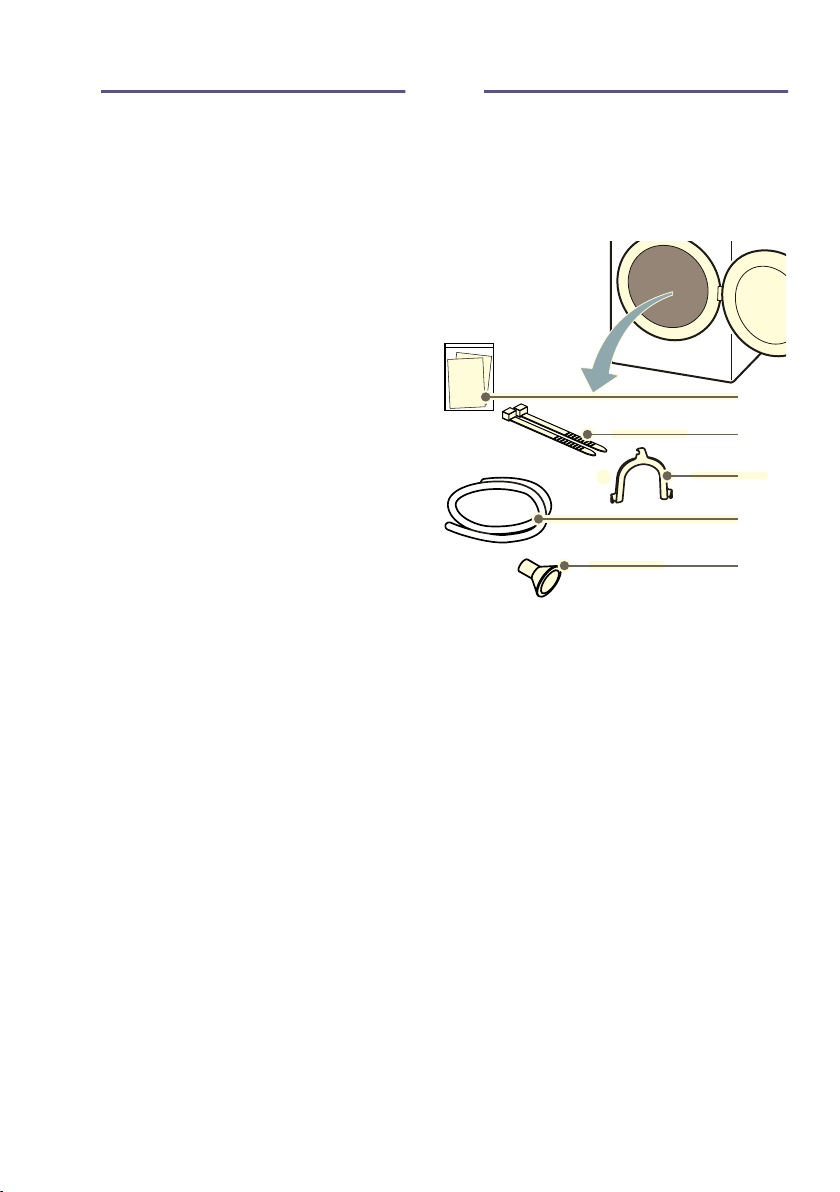

Included with the appliance: . . . . . . . 12
Installing the appliance . . . . . . . . . . . 13
Connecting the appliance. . . . . . . . . 14
Before using the appliance
for the first time. . . . . . . . . . . . . . . . . 16
Optional accessories . . . . . . . . . . . . 16
9 Quick reference guide . . . . . . . .17
* Familiarising yourself
with your appliance . . . . . . . . . .18

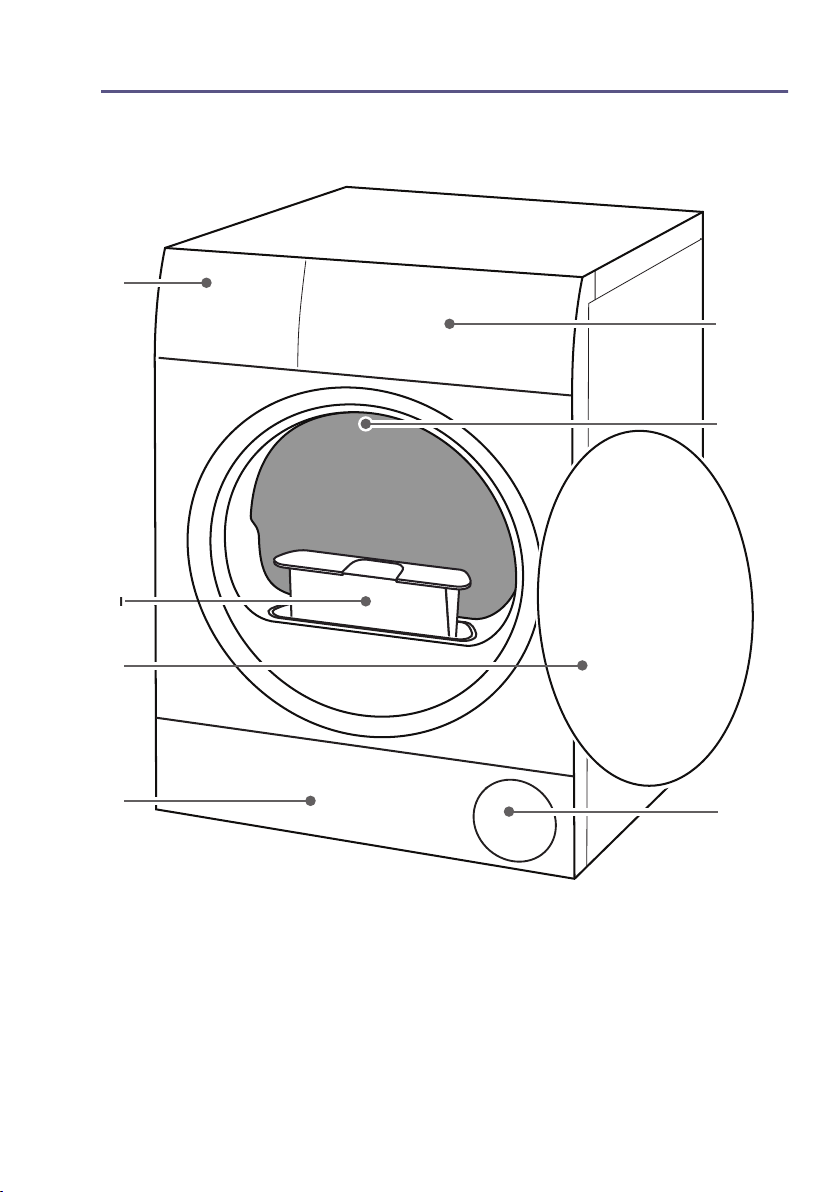

Appliance overview. . . . . . . . . . . . . . 18
Panel . . . . . . . . . . . . . . . . . . . . . . . . 19
Y Display . . . . . . . . . . . . . . . . . . . .19
/ Overview of programmes . . . . .23
0 Programme settings . . . . . . . . .25
Z Laundry. . . . . . . . . . . . . . . . . . . .28
Preparing the laundry . . . . . . . . . . . . 28
Sorting laundry . . . . . . . . . . . . . . . . . 28
1 Operating the appliance . . . . . .29
Loading laundry and switching
on the appliance. . . . . . . . . . . . . . . . 29
Setting a programme . . . . . . . . . . . . 30
Starting a programme. . . . . . . . . . . . 30
Programme progress . . . . . . . . . . . . 31
Changing the programme or
adding more laundry . . . . . . . . . . . . .31
Cancelling the programme . . . . . . . .31
Programme end . . . . . . . . . . . . . . . .31
Removing laundry and
switching off the appliance . . . . . . . .31
Emptying the condensation
container . . . . . . . . . . . . . . . . . . . . . .32
Removing the fluff . . . . . . . . . . . . . . .33
2 Appliance settings . . . . . . . . . . 34
Childproof lock . . . . . . . . . . . . . . . . .34
Quiet drying. . . . . . . . . . . . . . . . . . . .34
Altering the appliance settings . . . . .34
ΠDraining the condensation
water . . . . . . . . . . . . . . . . . . . . . . 37
D Cleaning and maintenance. . . . 40
Cleaning the appliance . . . . . . . . . . .40
Cleaning the moisture sensor . . . . . .40
Cleaning the filter in the
condensation container . . . . . . . . . . .41
Cleaning the base unit . . . . . . . . . . .42
ÖAppliance care . . . . . . . . . . . . . . 44
Preparing the appliance
for appliance care . . . . . . . . . . . . . . .44
Running the basic appliance
care programme . . . . . . . . . . . . . . . .45
Running the intensive
appliance care programme . . . . . . . .47
3 Help with the appliance . . . . . . 50
L Transporting the appliance . . . 52
[ Consumption values . . . . . . . . . 54
Consumption values table . . . . . . . . .54
Most efficient programme
for cotton laundry . . . . . . . . . . . . . . .54
en Intended use
4
{ Technical specifications . . . . . 55
) Disposal. . . . . . . . . . . . . . . . . . . 55
4 After-sales service . . . . . . . . . . 56
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructions
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
en Safety instructions
6
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Make sure
that:
■ The mains voltage on your
power socket matches the
rated voltage specified on
the appliance (identification
plate). The connected loads
and the required fuse
protection are specified on
the identification plate.
■ The appliance is only
connected to a source of
alternating current via a
nationally recognized and
grounded outlet that has
been correctly installed.
■ The mains plug and the
grounded socket match and
the earthing system has
been correctly installed.
■ The cross section of the
cable is sufficiently large
enough.
■ The mains plug is accessible
at all times.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
Safety instructions en
7
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ Incorrectly placing (stacking)
this appliance on top of a
washing machine may result
in injury, material damage
and/or damage to the
appliance.
If this appliance is to be
placed on top of a washing
machine, the washing
machine must be of at least
the same depth and width as
the appliance, and it must be
secured in place with the
appropriate connection set if
available. ~ Page 16
The appliance MUST be
secured with this connection
set. Stacking the appliance
in any other way is forbidden.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
en Safety instructions
8
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ If there is any residual
material left in the fluff filter,
this may ignite when drying
is in progress, or even cause
the appliance to catch fire or
explode.
Clean out the fluff filter each
time the appliance is used to
dry laundry.
Risk of explosions/fire!
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
Safety instructions en
9
:Warning
Risk of fire/material damage/
damage to the appliance!
The appliance contains R290, a
refrigerant that is
environmentally friendly but
flammable.
Keep open fire and ignition
sources away from the
appliance.
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning/material
damage!
Condensation water is not
suitable for drinking and may
be contaminated with lint.
Contaminated condensation
water may be hazardous to
health and may cause material
damage.
Do not drink or reuse.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
en Safety instructions
10
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs. ~ Page 23
Material damage/damage to the appliance
■ If you operate the appliance
without a fluff catcher (e.g.
fluff filter, fluff depot,
depending on appliance
specifications), or if the fluff
catcher is incomplete or
defective, this may result in
damage to the appliance.
Do not operate the appliance
without a fluff catcher, or with
a fluff catcher that is
incomplete or defective.
Material damage/damage to the appliance
■ Light objects such as hair
and lint may be sucked into
the air inlet when the
appliance is in operation.
Keep these away from the
appliance.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Material damage/damage to the appliance
■ If the appliance overheats, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Make sure that the
appliance's air inlet is never
obstructed when the
appliance is in operation,
and that the area around the
appliance is adequately
ventilated.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
Safety instructions en
11
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
en Energy-saving tips
12
7 Energy-saving tips
Energy-saving tips
■ Spin the laundry before drying. The
drier the laundry, the shorter the
programme will be, in turn reducing
energy consumption.
■ Load the appliance with the
maximum loads permitted for the
programmes.
Note: If the maximum load is
exceeded, this extends the programme
duration and increases energy
consumption.
■ Operate the appliance in a ventilated
room and make sure that the air inlet
on the appliance is unobstructed so
that air exchange can take place
unhindered.
■ Regularly remove the fluff from the
appliance. If there is fluff in the
appliance, this extends the
programme duration and increases
energy consumption.
■ If you do not perform any actions on
the appliance for an extended period
before the programme starts or once
the programme has ended, the
appliance will automatically switch to
Energy saving mode. The display
and indicator lights will go out after a
few minutes and A (Start/Pause)
will flash.To end Energy saving
mode, all you need to do is perform
an action on the appliance, such as
opening and closing the door.
■ If you do not perform any actions on
the appliance for an extended period
when it is in Energy saving mode,
the appliance will automatically
switch itself off.
5 Installing and
connecting the
appliance
Installing and connecting the appliance
Included with the appliance:
1. Remove any packaging and
protective covers completely from
the appliance.
2. Open the door.
3. Remove all the accessories from the
drum.
You can now install and connect the
appliance.
( Accompanying documents (e.g.
installation and operating
instructions)
0 Fastening parts
8 U-piece for fixing the drain hose
in place
@ Drain hose
H Connection adapter
+
#
Installing and connecting the appliance en
13
Caution!
Risk of material damage/damage to the
appliance
Objects remaining in the drum that are
not designed for operation with the
appliance may result in material
damage and damage to the appliance.
Remove these objects, along with all
accessories, from the drum.
Installing the appliance
:Warning
Risk of death!
Children may lock themselves inside
appliances and find themselves in a life-
threatening situation.
■ Do not position the appliance behind
a door, as this may obstruct the
appliance door or prevent it from
opening completely.
■ Once an appliance has reached the
end of its life, pull the mains plug
from the socket before severing the
mains cable, and then destroy the
lock on the appliance door.
:Warning
Risk of explosions/fire!
If there is coal dust or flour in the air
around the appliance, this may cause
an explosion.
Make sure that the area around the
appliance is kept clean when it is in
operation.
:Warning
Risk of fire/material damage/damage
to the appliance!
The appliance contains R290, a
refrigerant that is environmentally
friendly but flammable. In the event of a
leak, escaping refrigerant can result in
poisoning and the production of a
flammable air/gas mixture if the size of
the room is not sufficient.
Operate this appliance only in rooms
that have a sufficiently large volume. For
every 8 g of refrigerant, there must be at
least 1 m³ of space in the room. You
can find the quantity of refrigerant in
your appliance by looking at the back
panel of the appliance.
:Warning
Risk of fire/material damage/damage
to the appliance!
The appliance contains R290, a
refrigerant that is environmentally
friendly but flammable.
Keep open fire and ignition sources
away from the appliance.
:Warning
Risk of injury/material damage/
damage to the appliance!
■ The appliance may vibrate or move
when in operation, potentially
resulting in injury or material
damage.
Place the appliance on a clean,
even, solid surface and, using a
spirit level to guide you, level it with
the screw-in feet.
Risk of injury/material damage/damage to the appliance!
en Installing and connecting the appliance
14
■ Incorrectly placing (stacking) this
appliance on top of a washing
machine may result in injury, material
damage and/or damage to the
appliance.
If this appliance is to be placed on
top of a washing machine, the
washing machine must be of at least
the same depth and width as the
appliance, and it must be secured in
place with the appropriate
connection set if available.
~ Page 16
The appliance MUST be secured
with this connection set. Stacking the
appliance in any other way is
forbidden.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts (e.g. the
appliance door) in order to lift or
move it, these parts may break off
and cause injury.
Do not take hold of any of the
appliance's protruding parts in order
to move the appliance.
:Warning
Risk of injury!
■ The appliance is very heavy. Lifting it
may result in injury.
Do not lift the appliance on your
own.
Risk of injury!
■ The appliance has sharp edges on
which you could cut your hands.
Do not take hold of the appliance by
its sharp edges. Wear protective
gloves to lift it.
Caution!
Material damage/damage to the
appliance
If the appliance overheats, it may not be
able to operate properly, or this may
result in material damage or damage to
the appliance.
Make sure that the appliance's air inlet
is never obstructed when the appliance
is in operation, and that the area around
the appliance is adequately ventilated.
Install the appliance as follows:
1. Place the appliance on a clean,
even, solid surface.
2. Check that the appliance is level
using a spirit level.
3. If necessary, turn the appliance feet
to make sure it is level.
You can now connect the appliance.
Notes
■ All appliance feet must stand firmly
on the ground.
■ If appliances are not installed
correctly, this may result in noises,
vibrations, uneven drum operation
and/or to residual water leaking out
of the appliance.
Connecting the appliance
:Warning
Risk of electric shock/fire/material
damage/damage to the appliance!
If the appliance is not installed properly,
this may lead to a dangerous situation.
Make sure that:
■ The mains voltage on your power
socket matches the rated voltage
specified on the appliance
(identification plate). The connected
loads and the required fuse
protection are specified on the
identification plate.
Installing and connecting the appliance en
15
■ The appliance is only connected to a
source of alternating current via a
nationally recognized and grounded
outlet that has been correctly
installed.
■ The mains plug and the grounded
socket match and the earthing
system has been correctly installed.
■ The cross section of the cable is
sufficiently large enough.
■ The mains plug is accessible at all
times.
■ If using a residual current circuit
breaker, only use one that bears the
following mark: z. The presence of
this mark is the only way to be sure
that it fulfils all the applicable
regulations.
:Warning
Risk of electric shock/fire/material
damage/damage to the appliance!
If the appliance's mains cable is altered
or damaged, this may result in electric
shock, short circuiting or fire due to
overheating.
The mains cable must not be kinked,
crushed or altered, and must not come
into contact with any heat sources.
:Warning
Risk of fire/material damage/damage
to the appliance!
The use of extension cords or power
strips may result in fire due to
overheating or short circuiting.
Connect the appliance directly to an
earthed socket that has been correctly
installed. Do not use extension cords,
power strips or multi-way couplers.
:Warning
Risk of injury!
If the hoses and mains cables are not
correctly routed, they may constitute a
tripping hazard, which may result in
injury.
Route hoses and cables such that they
do not constitute a tripping hazard.
Connect the appliance as follows:
1. Connecting the drain hose.
~ Page 37
2. Plug the appliance's mains plug into
the designated socket.
3. Check that the mains plug is in
securely.
Your appliance is now ready to use.
Caution!
Risk of material damage/damage to the
appliance
The appliance contains refrigerant and
may be damaged if it is operated
immediately after transportation.
Allow the appliance to rest for two hours
before initial use.
Note: If in doubt, have your appliance
connected by a qualified professional.
en Installing and connecting the appliance
16
Before using the appliance for
the first time
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Note: Once the appliance has been
properly installed and connected, it is
ready to use. No further steps are
necessary.
Optional accessories
Order optional accessories
*
from the
after-sales service:
■ Basket for woollens:
Dry or air individual woollen items,
sports shoes and soft toys in the
basket for woollens.
– Order number: WMZ20600.
■ Washer-dryer stack connection kit:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
Only this connection kit may be used
to secure the dryer to the washing
machine.
– Order number with pull-out
worktop: WTZ27400
– Order number without pull-out
worktop: WTZ27410.
* Depending on the appliance features
Quick reference guide en
17
9 Quick reference guide
Quick reference guide
--------
--------
--------
--------
1
Before starting
the programme:
@ @ @
Sort the laundry. Switch on the
appliance.
Select a
programme.
2 @ @ @
Open the door and
place the laundry in
the drum.
Close the door. If necessary: Adjust
the programme
settings.
Start the
programme.
3
Once the
programme has
ended:
@ @ @
Switch off the
appliance.
Open the door and
remove the laundry.
Empty the
condensation
container.
4
Remove the fluff.
en Familiarising yourself with your appliance
18
* Familiarising yourself with your appliance
Familiarising yourself with your appliance
Appliance overview
( Condensation container
0 Control panel
8 Drum interior lighting (depending on the model)
@ Air inlet
H Maintenance flap on the base unit
P Door
X Fluff filter
#
3
+
;
;
Display en
19
Panel
Y Display
Display
The display on this appliance responds to touch (touch display).You can activate
settings by pressing lightly on the touch-sensitive buttons in boxes. The activated
settings are illuminated particularly brightly to highlight them on the display. You can
change or deactivate the activated settings by repeatedly pressing on the relevant
buttons on the display.
Caution!
Material damage/damage to the appliance.
Exerting excessive pressure on the display may damage it. Do not use a sharp
object on the display or exert excessive pressure on it.
( Programme selector
■ Press to switch the appliance on/off
■ Turn to set a programme
0 Programmes: ~ Page 23
8 Display:
The display on this appliance responds to touch (touch display).
■ Operate the appliance by pressing buttons in boxes
■ View settings and information
en Display
20
--------
Buttons Explanation
Ò
+1; +2; +3
Dryness level: Cupboard Dry Plus
Degree of dryness can be finely adjusted
» ü
+1; +2; +3
Dryness level: Cupboard Dry
Degree of dryness can be finely adjusted
ö
+1; +2; +3
Dryness level: Iron Dry
Degree of dryness can be finely adjusted
Q 120min
Q 60min
Anti-Crease 120 min
Anti-Crease 60 min
ñ "Ready in" time
s Low-Heat Drying
â Favourite programme
E 3sec Childproof lock (press for 3 seconds) ~ Page 34
Á Dry quietly without audible operating and notification signals ~ Page 34
˜
ª
Selection buttons
A Start and Pause
Detailed description of the programme settings from ~ Page 25
Display en
21
Symbol Description Information
Š
■ ö
■ »
■ Ò
Q
- ˜ -
“Ÿš
Programme status:
Drying
■ Dryness level: Iron Dry
■ Dryness level:
Cupboard Dry
■ Dryness level:
Cupboard Dry Plus
Anti-Crease
Pause
Programme end
Lit: status indicator
‹ ‹ : ‹ ‹ Programme duration Expected programme duration in hours and minutes.
e.g. ñ 02:45 Programme delay Appears when altering and activating the "Ready in"
time
ð Empty the condensation con-
tainer ~ Page 32
■ Empty the condensation container and then rein-
sert it.~ Page 32
Then press A (Start/Pause).
■ Clean the filter in the condensation container.
■ If the optional drain hose* is installed, make sure
that the drain hose:
– Is correctly connected. ~ Page 37
– Is not kinked or bent.
– Is not blocked or clogged, e.g. by deposits.
■ Run the intensive appliance care programme.
■ Check that no debris has found its way into the base
unit. Open the maintenance flap and remove any
debris.
å Fluff filter Remove the fluff ~ Page 33
ó
ªªª
Automatic heat exchanger
rinse
Rinsing progress indicator
The heat exchanger is cleaned automatically. Do not
pull out the condensation container while this is dis-
played.
’‘§“ Basic appliance care pro-
gramme
Not a fault. After a certain period, the appliance will
automatically recommend that you run the basic appli-
ance care programme. Run the basic appliance care
programme. ~ Page 45
œ Appliance settings Alter the appliance settings ~ Page 34
en Display
22
--------
•©£ CoolDown The appliance can reach high temperatures when dry-
ing. The CoolDown process reduces the temperature to
prevent damage to the laundry when you:
■ Pause the programme
■ Cancel the programme
■ Switch off the appliance via the app
The CoolDown process does not start until 30 seconds
after pausing/cancelling the programme or switching
off the appliance via the app. You can continue to oper-
ate the appliance during the CoolDown process.
Notes
■ The drum continues to rotate during the CoolDown
process, even if you have paused the programme.
■ Do not change the programme during the
CoolDown process.
■ Temperature regulation can take up to 10 minutes.
Overview of programmes en
23
/ Overview of programmes
Overview of programmes
Programme Maximum load
Programme name
Brief explanation of the programme and the items for which it is suitable.
Maximum load
based on the dry
weight of the items
ü Cottons
Hard-wearing items and heat-resistant items made of cotton or linen.
8 kg
Easy-Care
Items made of synthetic or blended fabrics.
3.5 kg
Mixed Load
Mixed load consisting of items made from cotton and synthetic fabrics.
3 kg
Delicates
Delicate, washable items, e.g. made from satin, or synthetic or blended fabrics.
2 kg
Wool Finish
Machine-washable items made of wool or containing wool.
Notes
■ Laundry becomes fluffier but not dry.
■ Remove laundry once the programme has ended and allow to dry.
0.5 kg
Time Progr. cold
Timed programme for all types of fabric except for wool and silk.
For freshening up or airing clothing that has hardly been worn.
Note: You can adjust the programme duration.
~ "Programme settings" on page 25
3 kg
Time Progr. warm
Timed programme for all types of fabric except silk.
Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick
laundry.
Notes
■ Dry woollens, sports shoes and soft toys only with the basket for woollens.
■ In the timed programme, the laundry's remaining moisture is not automatically
detected. If the laundry is still too damp when the drying programme has
ended, repeat the programme and, if required, extend the programme dura-
tion.
~ "Programme settings" on page 25
3 kg
Max. load for
woollens/soft toys
in the basket:
1 basket load
Max. load for shoes
in the basket: 1 pair
Shirts
Shirts/blouses made of cotton, linen, or synthetic or blended fabrics.
Note: Once the laundry is dry, iron it or hang it up. This will allow the residual mois-
ture to be distributed evenly.
1.5 kg
en Overview of programmes
24
--------
Duvet
Clothing, pillows, quilts or bedspreads filled with synthetic fibres.
Note: Dry large items individually. Follow the instructions on the care label.
2.5 kg
Down
Clothing, pillows, bedspreads or eiderdowns filled with down.
Note: Dry large items individually.
1.5 kg
Sportswear
Weatherproof and outdoor clothing with a membrane coating and water-repellent
fabrics.
1.5 kg
Towels
Hard-wearing towels and dressing gowns made of cotton.
6 kg
Super Quick 40’
Synthetic fabrics and light cottons.
2 kg
Allergy+
Hard-wearing items.
Note: Particularly suitable for strict hygiene requirements.
4 kg
Programme settings en
25
0 Programme settings
Programme settings
Buttons Indicators/
symbols
Explanations and notifications
Note: Not all buttons and their functions can be activated in every programme. The activated settings are
illuminated particularly brightly to highlight them on the display. You can change or deactivate the activated
settings by repeatedly pressing on the relevant buttons on the display.
Drying target : Select the dryness level that you require for the laundry you
need to dry.
Ò
(Cupboard-dry plus)
Ò Multi-layered, thick laundry that does not dry readily.
» ü
(Cupboard-dry)
» Normal, single-layered laundry.
ö
(Iron Dry)
ö Normal, single-layered laundry that still needs to be damp after
drying and is suitable for ironing or hanging up.
Adjust drying level +1
+2
+3
If you think the laundry is still too damp when the drying pro-
gramme has ended, you can adjust the degree of dryness to
achieve a particular dryness level. To increase the dryness level,
set the degree of dryness to between +1 and +3. This will
extend the programme duration but the temperature will remain
the same.
Press a dryness level, e.g. ö (Iron Dry), repeatedly until the
required degree of dryness +1, +2, +3 is shown.
Once you have adjusted the degree of dryness for a dryness
level, this setting will be retained even after the appliance has
been switched off.
en Programme settings
26
ñ
(ready in)
ñ‹.† - ƒ… Before the programme starts, you can use the "Ready in"
time to set the time at which you want the programme to finish.
This allows you to delay the end of the programme by up to 24
hours:
1. Set the programme.
The programme duration will be displayed for the selected
programme, e.g. ‹‹:…† (hours:minutes).
2. Press ñ (ready in).
Note: You can use the ˜ and ª selection buttons to alter
the setting values.
3. Press A (Start/Pause).
This will activate the "Ready in" time.
Before the programme starts, the selected "Ready in" time
(e.g. ñ ‹‰:…†) is shown on the display and counts down
until the drying programme starts. The duration of the pro-
gramme will then be displayed.
Note: The programme duration is included in the "Ready in"
time.
E.g. ‹ : …‹ The drying time for timed programmes can be extended to up
to 3 hours 30 minutes in 10-minute increments.
Note: You can use the ˜ and ª selection buttons to alter the
setting values.
Q 60min
(Anti-crease 60 min.)
Q 120min
(Anti-crease 120 min.)
Q The drum moves the laundry at regular intervals after drying to
prevent creasing. You can activate the Anti-Crease function for
60 minutes (press Q 60min (Anti-crease 60 min.)) or 120 min-
utes (press Q 120min (Anti-crease 120 min.)), or you can
deactivate this function.
s
(Low heat)
Reduced temperature for delicate fabrics, e.g. polyacrylic or
elastane; may increase the drying time.
Programme settings en
27
--------
â
(Favourite programme)
Press â (Favourite programme) to save the settings and acti-
vate a programme with customised programme settings.
Saving or overwriting a favourite programme:
1. Set the programme you require.
The programme settings will appear on the display.
2. Adjust the programme settings if required.
3. Press and hold â (Favourite programme) for 3 seconds.
This programme with your customised programme settings has
now been saved to your list of favourites.
Note: The selected settings will be retained even after the ap-
pliance has been switched off.
Activating a favourite programme:
1. Press # to switch on the appliance.
2. Press â(Favourite programme).
This favourite programme with your customised programme set-
tings has now been activated.
en Laundry
28
Z Laundry
Laundry
Preparing the laundry
:Warning
Risk of explosions/fire!
Certain objects may ignite when drying
is in progress, or even cause the
appliance to catch fire or explode.
Remove any lighters or matches from
pockets on items of clothing.
Caution!
Risk of damage to the drum and
laundry
Leaving objects in the pockets of your
clothing can cause damage to the drum
and laundry when the appliance is in
operation. Remove all objects (e.g.
metal items) from clothing pockets.
Prepare the laundry as follows:
■ Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■ Close zips, hooks, eyelets and
buttons. Button up large items of
laundry, such as covers.
■ Always dry very small items of
laundry, e.g. babies' socks, together
with large items such as towels.
■ Use timed programmes for single
items.
■ Knitted items, such as T-shirts and
jerseys, often shrink slightly the first
time they are tumble-dried. Use a
gentle programme.
■ Do not overdry easy-care laundry.
This leads to increased creasing of
your laundry.
■ Some detergents and care products,
e.g. starch or softeners, contain
particles that may accumulate on the
moisture sensor. This may impair the
sensor's performance and, in turn,
the drying result.
Notes
– When washing laundry to be
tumble-dried, use the correct
amount of detergent and care
products as specified in the
manufacturer's instructions.
– Clean the moisture sensor
regularly ~ Page 40.
Sorting laundry
Note: Load the laundry item by item
into the appliance. For more effective
drying, do not stuff an entire bundle of
laundry into the dryer at once.
Caution!
Risk of material damage to the dryer or
laundry
Laundry that is unsuitable for tumble-
drying may damage the appliance and
the laundry when it is dried. Before you
dry it, sort the laundry according to the
information given on the care label:
When sorting the laundry to be dried,
take the following points into account:
■ To achieve an even drying result,
only dry laundry of the same type of
fabric and texture together.
If you dry thin, thick and multi-
layered fabrics together, they will dry
to differing degrees.
■ Use the fabric descriptions given for
the individual drying programmes to
help you choose the most
appropriate programme.
~ "Overview of programmes"
on page 23
Note: You can select a timed
programme to add extra drying time for
laundry that is still damp.
c Suitable for tumble drying
a Dry at normal temperature
` Dry at low temperature
b Do not tumble-dry
Operating the appliance en
29
Caution!
Risk of material damage to the
appliance and laundry
Do not tumble-dry the following items or
fabrics in the appliance:
■ Laundry contaminated with solvents,
wax or grease.
■ Unwashed items.
■ Items made from non-breathable
fabrics (e.g. rubber-coated).
■ Items made from delicate fabrics,
such as silk and curtains made of
synthetic material.
1 Operating the
appliance
Operating the appliance
Loading laundry and
switching on the appliance
Note: The appliance must be correctly
installed and connected. ~ Page 12
1. Prepare and sort the laundry.
2. Press # to switch on the appliance.
3. Open the door.
Check that the drum has been
completely emptied. Empty it if
necessary.
en Operating the appliance
30
4. Load the laundry unfolded into the
drum.
5. Close the appliance door.
Caution!
Risk of material damage to the
appliance or laundry.
Make sure that laundry is not
trapped in the door.
Note: The appliance's drum is lit up
after the door is opened and closed and
once the programme has started. The
drum's interior light goes out on its own.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme.
~ Page 34
1. Set the programme you require.
The programme settings will appear
on the display.
2. Adjust the programme settings, if
required.
~ "Programme settings"
on page 25
Starting a programme
Press A (Start/Pause).
Note: If you want to prevent the
programme from being adjusted
inadvertently, you can activate the
childproof lock. ~ Page 34
Operating the appliance en
31
Programme progress
The programme status will be indicated
on the display.
Note: When a programme is selected,
the expected drying time for the
maximum permitted load is displayed.
The moisture sensor measures the
residual moisture in the laundry as it is
being dried. The programme duration
and the remaining time indicated on the
display are automatically adjusted as
the programme progresses, depending
on how damp the laundry is (exception:
Timed programmes).
Changing the programme or
adding more laundry
You can remove or add laundry and
change or adjust the programme at any
time during drying.
1. Open the door or press A (Start/
Pause) to pause the programme.
Note: The drum will continue to
rotate when the CoolDown process
is in progress, even if you have
paused the programme. You can
stop the CoolDown process at any
time by opening the door.
2. Add or remove laundry.
3. If required, select a different
programme or a different
programme setting.~ "Overview of
programmes" on page 23
~ "Programme settings"
on page 25
Note: Do not change the
programme during the CoolDown
process.
4. Close the door.
5. Press A (Start/Pause).
Note: The programme duration is
updated on the display, depending on
the load and on the residual moisture in
the laundry. The values displayed may
change when the programme or load is
changed.
Cancelling the programme
The programme can be cancelled at
any time by opening the door or
pressing A (Start/Pause).
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, remove all
items of laundry from the dryer and
spread them out to allow the heat to
dissipate.
Programme end
“Ÿš will appear on the display.
Removing laundry and
switching off the appliance
1. Remove the laundry.
en Operating the appliance
32
2. Press # to switch off the appliance.
Emptying the condensation
container
By default, the condensation from the
appliance runs into the condensation
container.
Alternatively, you have the option of
discharging the condensation water
*
supplied depending on the model. If you
choose to discharge the condensation
water into the waste-water system, you
will not need to empty the condensation
container during the drying programme
or after each time you use the dryer.
1. Pull out the condensation container
horizontally.
2. Pour out the condensation water.
Caution!
Risk of harm to health and material
damage
Condensation water is not suitable
for drinking and may be
contaminated with fluff.
Contaminated condensation water
may be harmful to your health and
cause material damage. Do not drink
the condensation water or reuse it.
3. Push the condensation container
back into the appliance until you feel
it lock into place.
Note: The filter in the condensation
container filters the condensation water,
which is used during the appliance's
automatic cleaning cycle. The filter is
cleaned by emptying out the
condensation water. You should still
check the filter regularly for any build-
up, and remove this if necessary.
~ "Cleaning the filter in the
condensation container" on page 41
* into the waste-water system via a
drain hose
Operating the appliance en
33

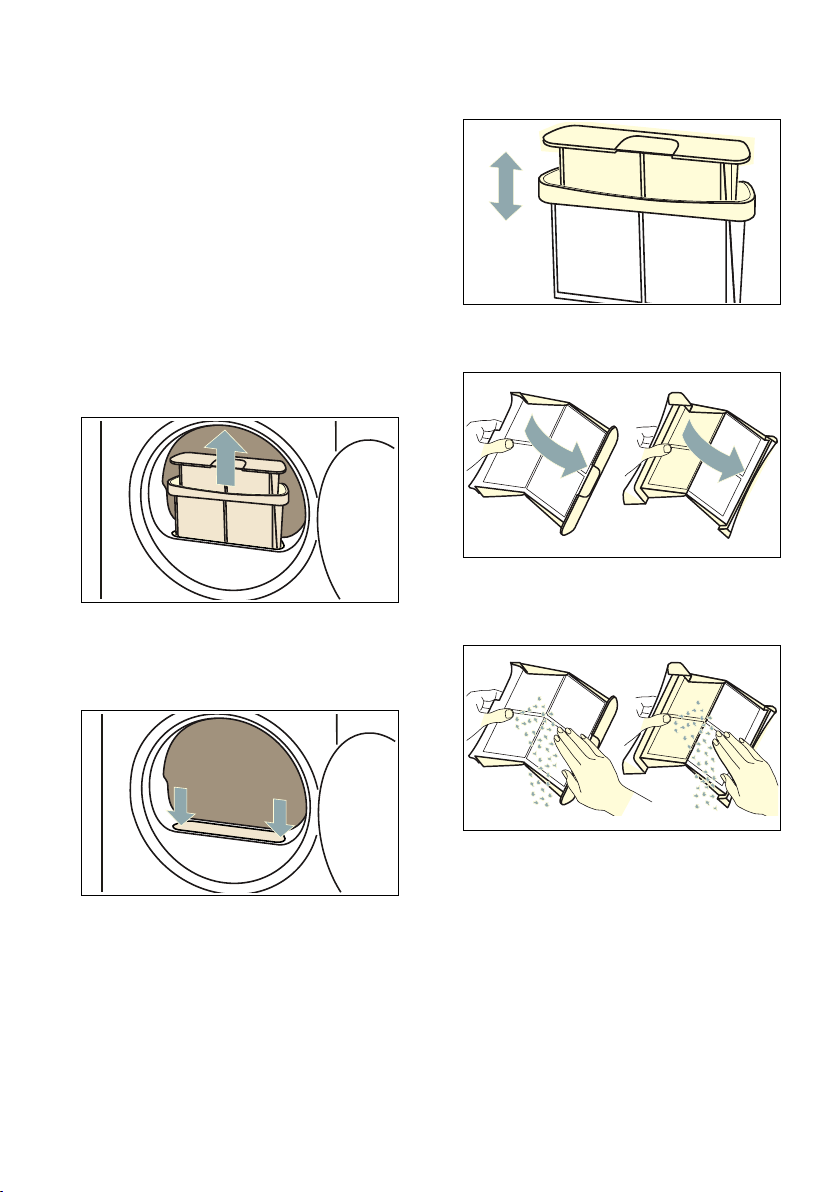

Removing the fluff
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is clogged or dirty, this
reduces the flow of air, preventing the
appliance from achieving optimal drying
results. Dirty fluff filters increase the
power consumption and increase the
required drying time.
Clean the fluff filter after each drying
cycle:
1. Open the door and remove all fluff
from it.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the fluff filter
recess. Ensure that no fluff falls into
the open shaft.
4. Pull the two-part fluff filter apart.
5. Open the two parts of the filter.
6. Remove all fluff from both parts of
the filter.
en Appliance settings
34
7. Rinse off fluff under warm, running
water.
8. Dry the two parts of the fluff filter,
snap them shut and reinsert the
filter.
Caution!
Material damage/damage to the
appliance
If you operate the appliance without a
fluff catcher (e.g. fluff filter, fluff depot,
depending on appliance specifications),
or if the fluff catcher is incomplete or
defective, this may result in damage to
the appliance.
Do not operate the appliance without a
fluff catcher, or with a fluff catcher that is
incomplete or defective.
2 Appliance settings
Appliance settings
You can activate/deactivate appliance
settings directly or alter them under œ.
Childproof lock
Activating the childproof lock prevents
the settings from being accidentally
changed on the control panel.
Activating/deactivating the childproof
lock:
■ Press and hold E 3sec (Child lock)
for 3 seconds.
Note: The childproof lock will remain
active, even once the appliance has
been switched off. If you wish to change
settings on the control panel when you
turn on the appliance, you will need to
deactivate the childproof lock.
Quiet drying
If you activate Á (Quiet drying), the
appliance will operate without any
audible operating or notification signals.
Activating/deactivating "Quiet drying":
■ Press Á (Quiet drying).
The appliance's audible operating and
notification signals are now activated/
deactivated.
Altering the appliance settings
You can change the following appliance
settings under œ:
■ Volume of the audible operating
signals
■ Display brightness
■ Volume of the audible notification
signals (e.g. at the end of a
programme)
Appliance settings en
35
Call up œ as follows:
1. Press # to switch on the appliance.
2. Press and hold Á (Quiet drying) for
3 seconds.
œ will be shown on the display.
You can now alter the appliance
settings.
Adjusting the volume of the audible
operating signals
1. Set the programme to position 2.
› and the current setting value will
appear on the display.
2. Press and hold ˜ until the setting
value you require appears on the
display.
Setting values:
3. Alter any additional appliance
settings you require or save and exit
the appliance settings.
Adjusting the display brightness
1. Set the programme to position 3.
’ and the current setting value will
appear on the display.
#
+
3
;
0 Off
1 Low
2 Medium
3 High
4 Very high
#
+
3
;
en Appliance settings
36
2. Press and hold ˜ until the setting
value you require appears on the
display.
Setting values:
3. Alter any additional appliance
settings you require or save and exit
the appliance settings.
Adjusting the volume of the audible
notification signals
1. Set the programme to position 1.
‘ and the current setting value will
appear on the display.
2. Press and hold ˜ until the setting
value you require appears on the
display.
Setting values:
3. Alter any additional appliance
settings you require or save and exit
the appliance settings.
Saving and exiting the appliance
settings
Save and exit the appliance settings as
follows:
■ Press Á (Quiet drying) or:
■ Wait 10 seconds or:
■ Press # to switch off the appliance.
Note: The selected settings will be
retained even after the appliance has
been switched off.
1 Low
2 Medium
3 High
4 Very high
#
+
3
;
0 Off
1 Low
2 Medium
3 High
4 Very high
Draining the condensation water en
37
ΠDraining the
condensation water
Draining the condensation water
Condensation will form in the appliance
as it dries the laundry.
You must ensure that the drain hose is
connected when you operate the
appliance.
If there is no drain hose connected to
the appliance, the condensation water
from the appliance will run into the
condensation container. In this case,
you will need to empty the condensation
container each time the dryer finishes
drying the laundry, and also if it
becomes full before drying is complete.
Connect the drain hose as follows:
1. Remove any accessories from the
drum.
2. Remove all items from the bag.
3. Detach the condensation hose from
the socket.
Note: The appliance comes
delivered with the condensation
hose already fitted to the socket.
4. Place the condensation hose in the
"parked" position.
5. Take the drain hose from the
accessories and attach it to the free
socket, pushing it up to the stop.
6. Secure the other end of the drain
hose in place using the remaining
accessories (depending on the
connection type).
en Draining the condensation water
38
Wash basin:
Siphon:
The connection point must be
secured using a hose clamp
(clamping range 12-22 mm).
Floor drain:
Caution!
Risk of material damage due to
leaks or draining water.
Secure the drain hose to prevent it
from slipping out. Do not kink the
drain hose. The difference in height
between the installation surface and
the drain should not exceed 100 cm.
Caution!
Risk of accumulated water being
drawn back into the appliance and
causing material damage.
Check that the water drains away
quickly. The drain must not be
sealed or blocked.
7. Pull out the condensation container
horizontally and empty it.
8. Turn the condensation container
180° onto its underside and remove
the stopper that is fitted.
Draining the condensation water en
39

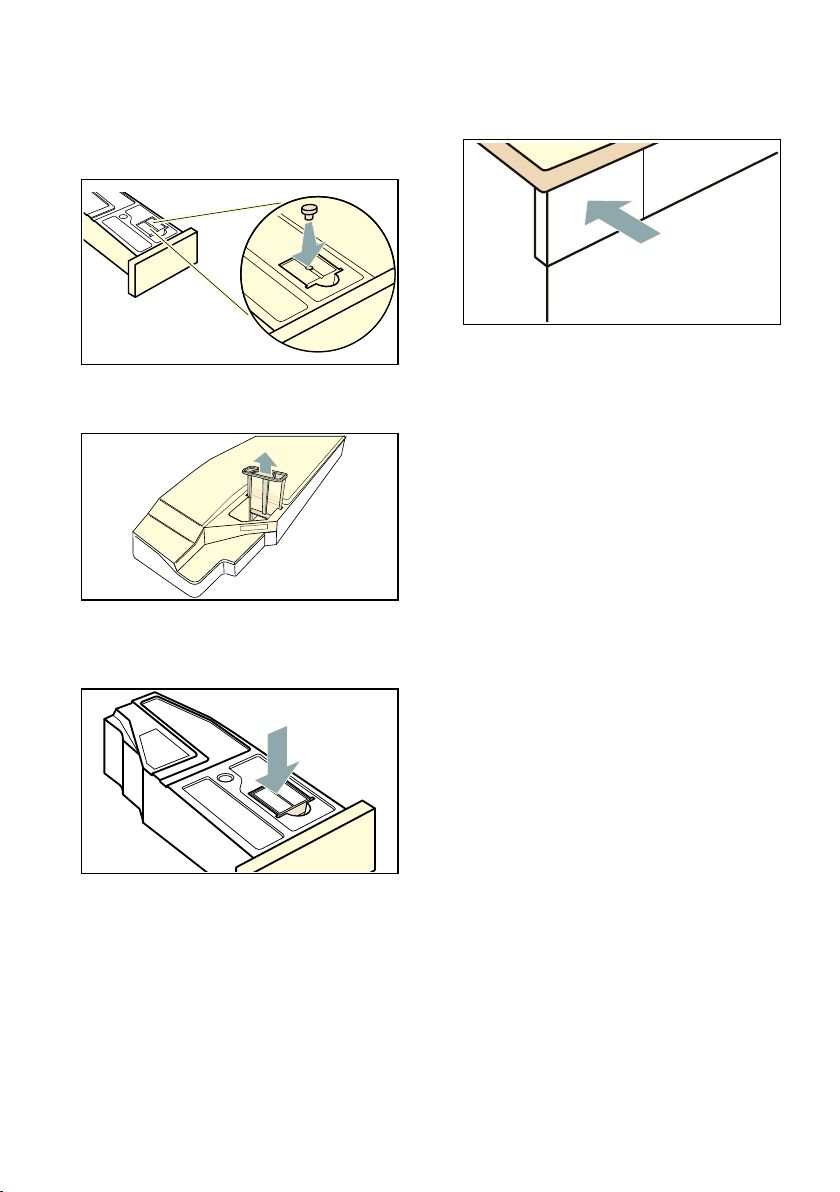

9. Turn the condensation container
180° again and insert the stopper
into the recess in the top of the
condensation container.
10.Pull the filter out of its snap-in lock.
11.Place the filter into the recess on the
condensation container.
12.Slide in the condensation container
until it clicks into place.
The condensation water is now
discharged via the drain hose into the
waste-water system or into a washbasin.
Note: If you want to drain the
condensation water back into the
condensation container, reverse these
steps.
Caution!
Risk of material damage/damage to the
appliance
If you are draining condensation water
into the condensation container, liquid
may leak out of the socket and cause
material damage. Before operating the
appliance, make sure that the
condensation hose is secured to the
socket.
en Cleaning and maintenance
40
D Cleaning and
maintenance
Cleaning and maintenance
Cleaning the appliance
:Warning
Risk of death!
The appliance is powered by electricity.
There is a risk of electric shock if you
come into contact with live components.
Therefore please note:
■ Switch off the appliance. Disconnect
the appliance from the power supply
(pull out the plug).
■ Never take hold of the mains plug
with wet hands.
■ When removing the mains plug from
the socket, always take hold of the
plug itself and never the mains
cable, otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the appliance or its
features.
■ Repairs and any other work on the
appliance must only be conducted
by our customer service or by an
electrician. The same applies for
replacing the mains cable (when
necessary).
■ Spare mains cables can be ordered
from our customer service.
:Warning
Risk of poisoning!
Poisonous fumes may be given off by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
:Warning
Risk of electric shock/material
damage/damage to the appliance!
If moisture penetrates the appliance,
this may cause it to short circuit.
Do not use a pressure washer, steam
cleaner, hose or spray gun to clean
your appliance.
Caution!
Material damage/damage to the
appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain removers,
prewash sprays, etc.) may cause
damage if they come into contact with
the surfaces of the appliance. Therefore
please note:
■ Do not allow these agents to come
into contact with the surfaces of the
appliance.
■ Clean the appliance with nothing but
water and a soft, damp cloth.
■ Remove any detergent, spray or
other residues immediately.
Cleaning the moisture sensor
Note: The moisture sensor measures
the amount of moisture in the laundry.
After long periods of usage, the
moisture sensor may become covered
by a fine layer of limescale or detergent
and care product residue. These
deposits must be removed regularly,
otherwise the drying results may not be
optimal.
Cleaning and maintenance en
41
1. Open the door.
2. Clean the moisture sensor with a
rough sponge.
Caution!
Risk of damaging the moisture sensor.
The moisture sensor is made from
stainless steel. Do not clean the sensor
with abrasive cleaning products or wire
wool.
Cleaning the filter in the
condensation container
Note: The filter in the condensation
container cleans the condensation
water, which is used during the
appliance's automatic cleaning cycle.
1. Pull out the condensation container
horizontally.
2. Pour out the condensation water.
3. Remove the filter.
4. Clean the filter under warm, running
water or in the dishwasher.
5. Push the filter in until you feel it lock
into place.
Caution!
If the filter is not inserted, fluff can
find its way inside the appliance
and damage it.
Only operate the appliance with the
filter inserted.
6. Push the condensation container in
until you feel it lock into place.
en Cleaning and maintenance
42
Cleaning the base unit
You can clean the appliance's base unit
if it has fluff in it, for example.
Note: Allow the appliance to cool down
for approximately 30 minutes after use
before commencing cleaning.
Clean the base unit as follows:
1. To open the maintenance flap, take
hold of it at the top at both sides and
pull it down.
2. Clean the maintenance flap with a
soft, damp cloth.
3. Unlock the levers on the heat
exchanger cover.
4. Pull the heat exchanger cover out by
its grip.
5. Use a soft brush to clean the heat
exchanger cover.
Note: Make sure that no dirt or
debris is left on the seal.
6. Pull the insert out horizontally.
7. Rinse the insert under running water
and dry it off.
Cleaning and maintenance en
43
8. Clean the opening in the appliance
with a soft, damp cloth.
Notes
– Be careful not to damage the
heat exchanger, as it is exposed.
– Thanks to the appliance's self-
cleaning function, you do not
need to clean the heat
exchanger.
9. Slide the insert in horizontally as far
as it will go.
10.Slide the heat exchanger cover in by
its grip.
Note: You can only slide the heat
exchanger cover in if the insert is in
the appliance.
11.Lock the levers on the heat
exchanger cover.
12.Close the maintenance flap.
You have now finished cleaning the
appliance's base unit.
en Appliance care
44
ÖAppliance care
Appliance care
The appliance offers both a basic
appliance care programme for long-
lasting, optimal drying results, and an
intensive appliance care programme for
eliminating any unpleasant odours that
may have built up if the appliance has
not been used for an extended period.
Before running an appliance care
programme, the appliance must be
suitably prepared.
:Warning
Risk of scalding/material damage/
damage to the appliance!
Boiling or hot water can cause severe
scalding as well as material damage
and damage to the appliance if it is
spilled or leaks out.
Do not use boiling water for this
appliance or its components or
accessories. Do not allow hot water or
steam to come into contact with your
skin.
:Warning
Risk of poisoning/material damage!
Condensation water is not suitable for
drinking and may be contaminated with
lint. Contaminated condensation water
may be hazardous to health and may
cause material damage.
Do not drink or reuse.
Preparing the appliance for
appliance care
Preparing the appliance for appliance
care
The appliance must be prepared before
you can run a basic or intensive
appliance care programme.
Prepare the appliance for appliance
care as follows:
1. Remove the laundry.
2. Clean the fluff filter.~ Page 33
3. Close the door.
4. Pull out the condensation container
horizontally and empty it.
5. Press # to switch on the appliance.
The appliance is now ready to run the
appliance care programme.
Appliance care en
45
Preparing the condensation container
for appliance care
If you are draining the condensation
water from the appliance using the drain
hose, the condensation container must
be prepared before the basic or
intensive appliance care programme
can be run.
Prepare the condensation container
for appliance care as follows:
1. Remove the filter from the recess on
the condensation container.
2. Remove the stopper inserted in the
recess on the condensation
container.
3. Turn the condensation container
180° onto its underside and insert
the stopper.
The condensation container is now
ready for the appliance care
programme.
Note: If you are draining the
condensation water from the appliance
using the drain hose, reverse these
steps after running the basic or
intensive appliance care programme.
Running the basic appliance
care programme
To ensure that you achieve optimal
drying results again and again, you can
run the basic appliance care
programme.
Note: After a certain period, your
appliance will automatically recommend
that you run the basic appliance care
programme. ’‘§“ will then appear on
the display for 5 seconds before the
programme starts, and again once the
programme ends. This message will
appear repeatedly until you have run the
basic appliance care programme
through to the end.
Run the appliance care programme as
follows:
1. Prepare the appliance for appliance
care. ~ Page 44
en Appliance care
46

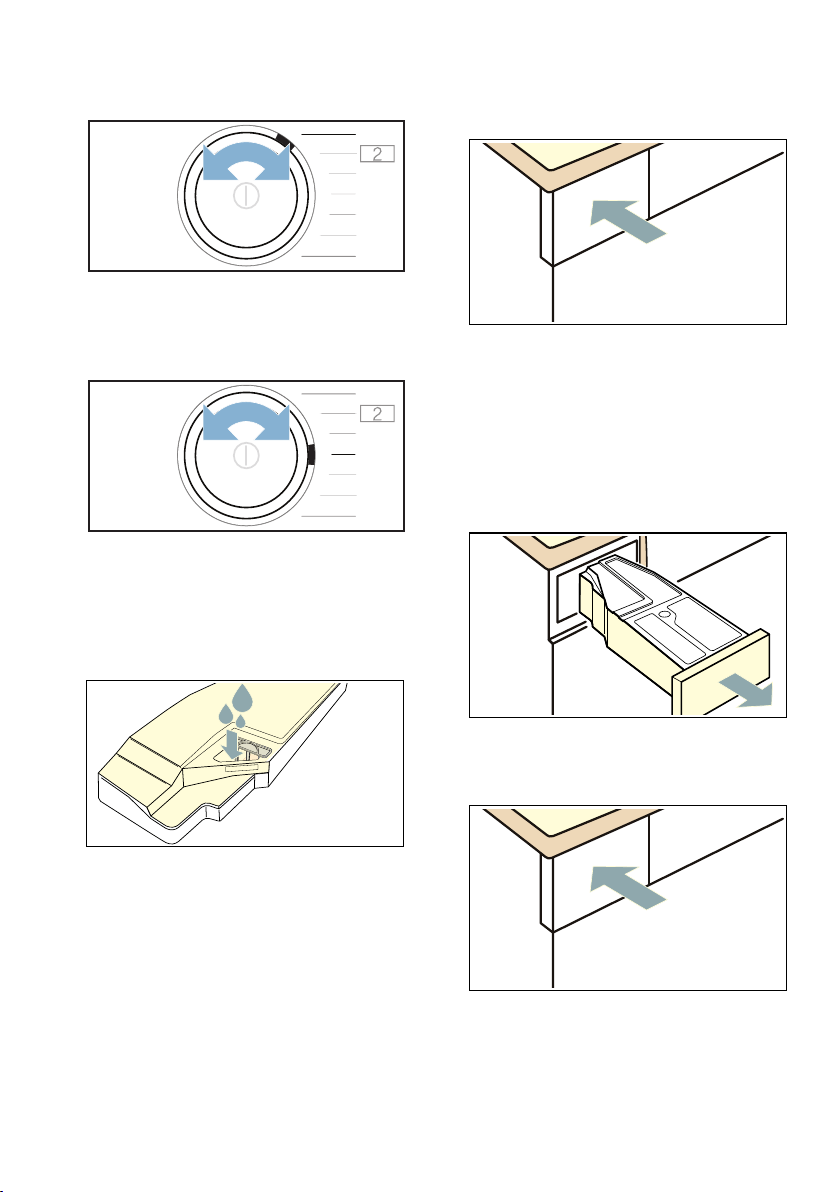

2. Set the programme to position 1.
3. Press and hold ö (Iron Dry). At the
same time:
4. Set the programme to position 4.
’˜‚ and the programme duration will
now alternate on the display.
5. Pour approx. 1 ^ litres of hot tap
water into the condensation
container.
Note: Hold the full condensation
container horizontally at all times so
that no liquid spills out.
6. Slide in the condensation container
until it clicks into place.
7. Press A (Start/Pause).
The appliance care programme will start
and an audible signal will sound.
“Ÿš will appear on the display once the
appliance care programme has ended
and an audible signal will sound.
8. Pull out the condensation container
horizontally and empty it.
9. Slide in the condensation container
until it clicks into place.
#
+
3
;
#
+
3
;
Appliance care en
47

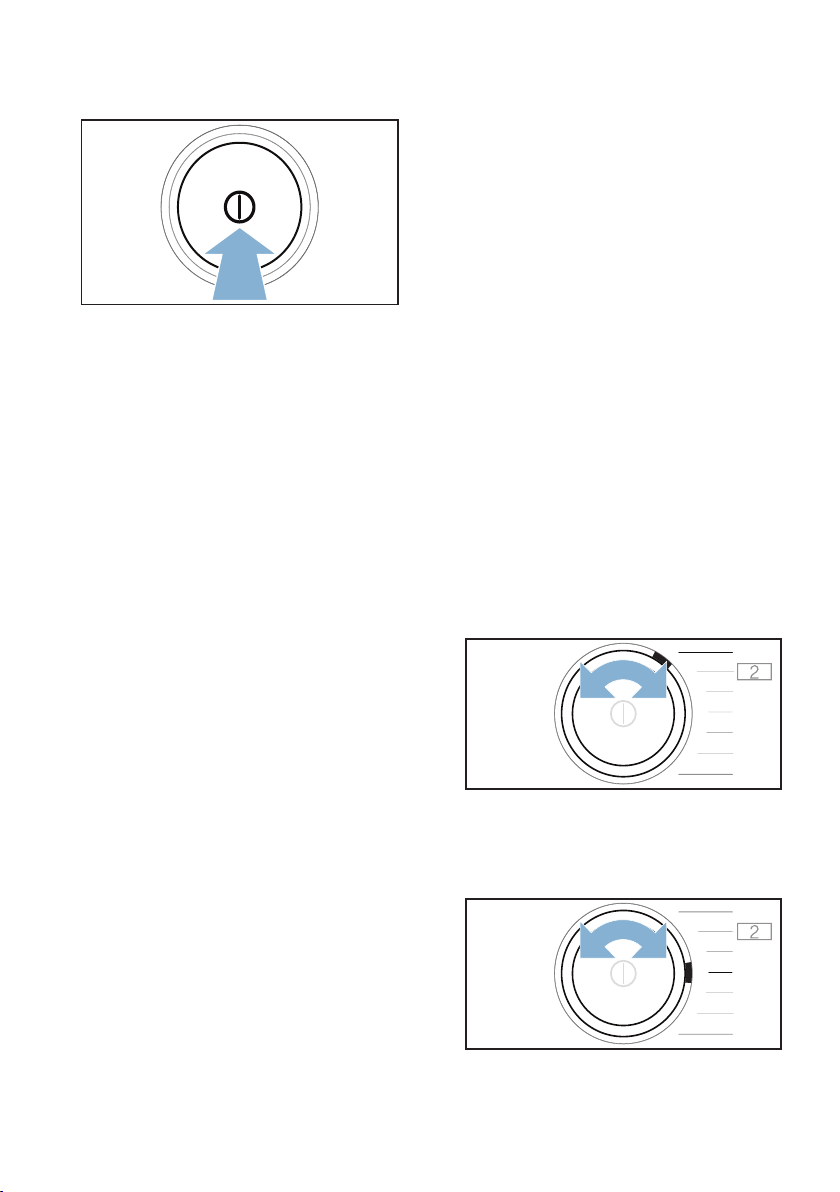

10.Press # to switch off the appliance.
You have now completed the appliance
care programme.
Running the intensive
appliance care programme
If your appliance has not been used for
an extended period (more than one
month), you should run the intensive
appliance care programme. This
prevents any unpleasant odours from
building up in the appliance.
Notes
■ The intensive appliance care
programme runs for approximately 4
hours. The programme may take
longer if you do not carry out the
necessary steps in good time while
the programme is running.
■ Once it has started, the intensive
appliance care programme should
not be cancelled.
■ When you run the intensive
appliance care programme, you will
need to use the original appliance
care product. This can be ordered
from our after-sales service using
spare part number 00311829.
Contact information for all countries
can be found in the enclosed after-
sales service directory.
:Warning
Risk of injury/material damage/
damage to the appliance!
The use of spare parts and accessories
supplied by other brands is dangerous
and may result in injury, material
damage or damage to the appliance.
For safety reasons, use genuine spare
parts and accessories only.
Caution!
Material damage/damage to the
appliance
If you pour the wrong quantity of
detergent or cleaning agent into the
appliance, this may result in material
damage or damage to the appliance.
Use detergents/care products/cleaning
agents and softeners in accordance
with the manufacturers' instructions.
Run the appliance care programme as
follows:
1. Prepare the appliance for appliance
care. ~ Page 44
2. Set the programme to position 1.
3. Press and hold ö (Iron Dry). At the
same time:
4. Set the programme to position 4.
#
+
3
;
#
+
3
;
en Appliance care
48
’˜‚ and the programme duration will
now alternate on the display.
5. Press ˜.
’˜ƒ and the programme duration
will now alternate on the display.
6. Pull out the condensation container
horizontally and empty it.
7. Pour a bottle of the original
appliance care product and
approx. 1 ^ litres of hot tap water
into the condensation container.
Note: Hold the full condensation
container horizontally at all times so
that no liquid spills out.
8. Slide in the condensation container
until it clicks into place.
9. Press A (Start/Pause).
The appliance care programme will start
and an audible signal will sound.
After a while, the appliance will pause
the appliance care programme and the
remaining programme duration will flash
on the display.
10.Pull out the condensation container
horizontally and empty it.
11.Pour approx. 1 ^ litres of hot tap
water into the condensation
container.
Note: Hold the full condensation
container horizontally at all times so
that no liquid spills out.
Appliance care en
49

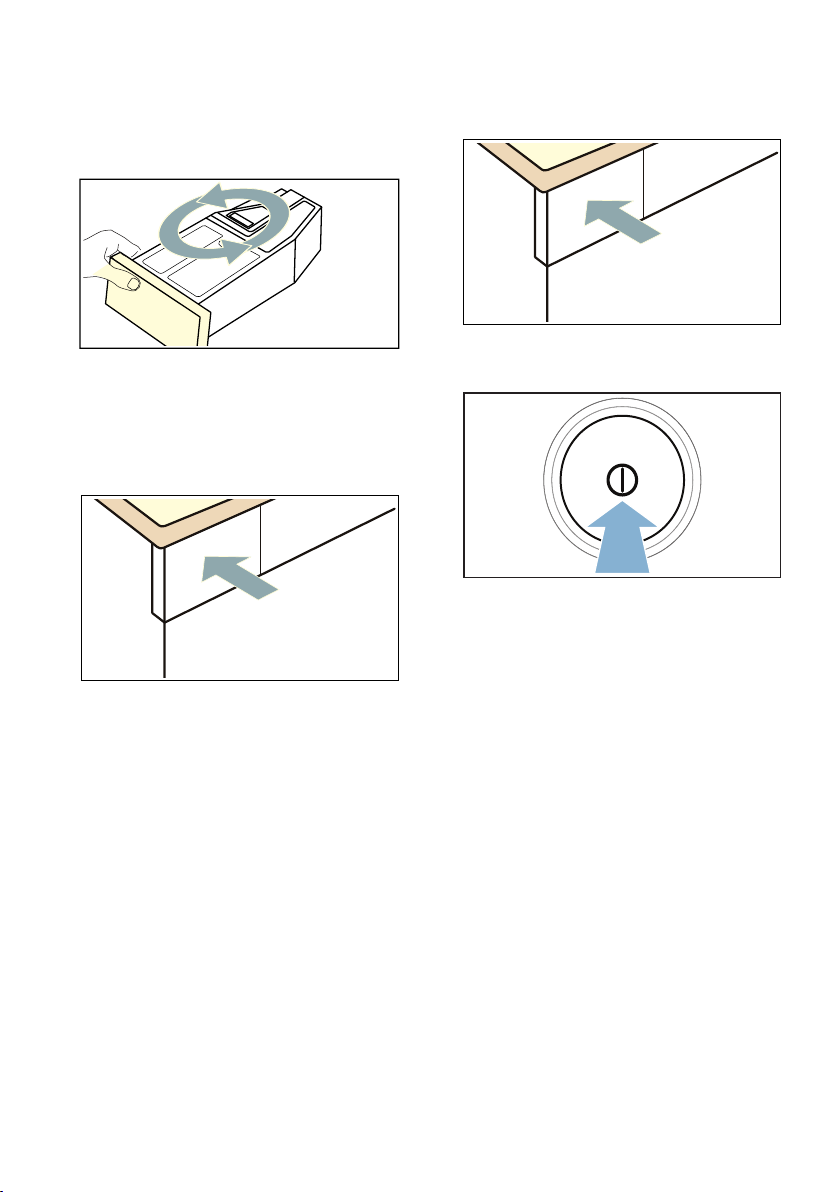

12.Carefully swing the condensation
container round horizontally and
empty it to dispose of any remaining
original appliance care product.
13.Pour another approx. 1 ^ litres of
hot tap water into the condensation
container.
14.Slide in the condensation container
until it clicks into place.
15.Press A (Start/Pause).
The appliance care programme will then
be resumed.
“Ÿš will appear on the display once the
appliance care programme has ended
and an audible signal will sound.
16.Empty the condensation container
again.
17.Slide in the condensation container
until it clicks into place.
18.Press # to switch off the appliance.
You have now completed the appliance
care programme.
en Help with the appliance
50
3 Help with the appliance
Help with the appliance
Faults Cause/remedy
The appliance will not start. Check the mains plug and the fuses.
Creasing. ■ Load exceeded or incorrect programme selected for a type of fabric.
All the required information can be found in the programme
table.~ Page 23
■ Remove laundry from the drum as soon as the drying programme
has finished. Creasing occurs when clothing is left in the drum.
Water is leaking out. ■ The appliance may be positioned at an angle. Level the appliance.
■ In the base unit, make sure that:
– The heat exchanger cover is properly locked.
– There is no dirt or debris on the heat exchanger cover's seal.
~ Page 42
■ If the optional drain hose* is installed, make sure that the drain hose
is correctly connected. ~ Page 37
Programme duration displayed
changes as drying progresses.
Not a fault. The moisture sensor measures the residual moisture in the
laundry and adjusts the programme duration (with the exception of timed
programmes).
Laundry is not dried properly or
is still too damp.
■ After the programme has ended, warm laundry feels damper than it
actually is. Spread out the laundry and let it cool down.
■ Adjust the drying time or increase the degree of dryness. This will
extend the drying time but the temperature will remain the same.
■ Select a timed programme to add extra drying time for laundry that is
still damp.
■ Select a timed programme for a small load.
■ Do not exceed the maximum load for a programme.~ Page 23
■ Clean the moisture sensor in the drum. The sensor may become cov-
ered in a fine layer of limescale or detergent and care product resi-
due, which then impairs its performance.~ Page 40
■ Drying has been interrupted as a result of a power cut, because the
condensation container is full or because the maximum drying time
has been exceeded.
Note: See also the laundry tips.~ Page 28
The programme will not start Make sure that:
■ The door is closed.
■ E 3sec (Child lock) has been deactivated
■ You have pressed A (Start/Pause)
Note: If the programme has been delayed by setting ñ (ready in), the
programme will start later.
Help with the appliance en
51
--------
Note: If you cannot rectify the fault yourself by turning the appliance off and then on
again, please contact our after-sales service.~ Page 56
Drying is taking too long. ■ The appliance may have fluff in it. This will increase the required dry-
ing time.Remove the fluff.~ Page 33
■ The heat exchanger may have fluff in it. Run the basic appliance care
programme. ~ Page 45
■ If the air inlet on the appliance is blocked or not fully open, this may
increase the drying time. Make sure that the air inlet remains unob-
structed.
■ If the ambient temperature is lower than 15 °C or higher than 30 °C,
this may increase the drying time.
■ Inadequate air circulation in the room may increase the drying time.
Make sure the room is adequately ventilated.
Unpleasant odour in the appli-
ance
Run the intensive appliance care programme. ~ Page 47
Humidity in the room is increas-
ing.
Make sure the room is sufficiently ventilated.
Unusual noises when drying. When drying is in progress, the pump and compressor generate noise
when operating normally. This does not indicate that the appliance is
malfunctioning.
The appliance feels cold
despite drying.
Not a fault. The appliance can dry effectively at low temperatures using a
heat pump.
Drying programme is stopped. If the drying programme is stopped due to a power failure, restart the
programme or remove the laundry and spread it out.
Residual water in the conden-
sation container despite the
appliance being connected to
the drain hose*.
If the optional drain hose is installed, residual water remains in the con-
densation container due to the appliance's self-cleaning function.
* Depending on how the appliance is equipped or the available accessory
en Transporting the appliance
52
L Transporting the
appliance
Transporting the appliance
:Warning
Risk of injury/material damage/
damage to the appliance!
If you take hold of any of the appliance's
protruding parts (e.g. the appliance
door) in order to lift or move it, these
parts may break off and cause injury.
Do not take hold of any of the
appliance's protruding parts in order to
move the appliance.
:Warning
Risk of injury!
■ The appliance is very heavy. Lifting it
may result in injury.
Do not lift the appliance on your
own.
Risk of injury!
■ The appliance has sharp edges on
which you could cut your hands.
Do not take hold of the appliance by
its sharp edges. Wear protective
gloves to lift it.
Prepare the appliance for
transportation as follows:
1. Pull out the condensation container
horizontally and empty it.
2. Push the condensation container
back into the appliance until you feel
it lock into place.
3. Press # to switch on the appliance.
4. Select any programme.
5. Press A (Start/Pause).
6. Wait for 5 minutes.
The condensation water will be drained.
7. Empty the condensation container
again.
Transporting the appliance en
53
8. If installed, remove the drain hose
from the washbasin, siphon or floor
drain. ~ Page 37
Caution!
Secure the drain hose to the
appliance to prevent it from slipping
out. Do not kink the drain hose.
9. Switch off the appliance.
10.Disconnect the appliance's mains
plug from the power supply.
The appliance is now ready to be
transported.
Caution!
Risk of material damage/damage to the
appliance
Despite draining, there will always be
some residual water in the appliance.
Any residual water may leak out and
cause material damage.
The appliance should therefore be
transported upright.
en Consumption values
54
[ Consumption values
Consumption values
Consumption values table
Most efficient programme for cotton laundry
The "standard cottons programme" below (denoted by the ü symbol) is suitable
for drying cotton laundry with a normal dampness level, and is the most efficient
programme for drying damp cotton laundry in terms of combined energy
consumption.
Programme
Spin speed used for
spinning the laundry
(in rpm)
Duration**
(in min)
Energy consumption**
(in kWh)
ü Cottons 8 kg 4 kg 8 kg 4 kg
Cupboard Dry »* 1400 132 87 1.22 0.74
1000 148 95 1.44 0.85
800 164 103 1.66 0.96
Iron Dry ö* 1400 97 61 0.87 0.51
1000 113 69 1.09 0.62
800 129 77 1.31 0.73
Easy-Care 3.5 kg 3.5 kg
Cupboard Dry »* 800 57 0.43
600 66 0.53
* Programme setting for testing in accordance with the applicable EN 61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry to
be dried, residual moisture in the laundry, the degree of dryness that has been set, the amount of laun-
dry being loaded, the environmental conditions, and any additional functions that have been activated.
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme + dryness level Load
(in kg)
Energy consump-
tion
(in kWh)
Programme dura-
tion
(in min)
ü Cottons + Cupboard dry » 8/4 1.44/0.85 148/95
Programme setting for testing and energy labelling in accordance with Directive 2010/30/EU.
Technical specifications en
55
{ Technical
specifications
Technical specifications
Dimensions:
850 x 600 x 640 mm
(height x width x depth)
Weight:
56 kg (depending on the model)
Mains connection:
Mains voltage 220 - 240 V, 50 Hz
Nominal current 10 A
Nominal power 800 W
Maximum load:
8 kg
Power consumption when switched
off:
0.10
Power consumption when left on:
0.10
Drum interior light
*
Ambient temperature:
5 - 35 °C
) Disposal
Disposal
Caution!
Risk of fire/risk of poisoning/risk of
material damage and damage to the
appliance
The appliance contains R290, a
refrigerant that is environmentally
friendly but flammable. If it is not
disposed of correctly, this may result in
fire or poisoning.
Dispose of the appliance correctly and
do not damage the pipes in the
refrigerant circuit.
* Depending on the appliance features
)
Dispose of packaging and the
appliance in an
environmentally responsible
manner.
This appliance is labelled in
accordance with the European
Directive 2012/19/EU, which
governs waste electrical and
electronic equipment (WEEE).
The directive provides a
framework for the collection
and recycling of old
appliances, which is valid
across the EU.
en After-sales service
56
4 After-sales service
After-sales service
If you cannot rectify the fault yourself by
turning the appliance off and then on
again, please contact our after-sales
service.~ Enclosed after-sales service
directory or cover page
We will always find an appropriate
solution in order to avoid unnecessary
visits by engineers.
Please provide the after-sales service
with the product number (E no.) and the
production number (FD) of the
appliance.
You can find this information,
depending on the model*:
On the inside of the door*/open service
flap* and at the rear of the appliance.
Trust in the expertise of the
manufacturer.
Contact us for assistance. By doing so,
you can be sure that the repairs are
carried out by trained service engineers
using genuine spare parts.
E no. Product number
FD Production number
(1U )'
6
6
6
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
*9001257051*
9001257051 (9702)
You can find the contact information for all countries in the attached after-sales
service directory.
7 Advice and repair order in the event of faults
GB 0344 892 8979 (Calls charged at local or mobile rate.)
IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)
