We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
Broken or missing parts?
Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
STOP
ASSEMBLY INSTRUCTIONS
Town Square Console Table
135099
Panel List
Hardware List
A
B C
E
F G
D
Screw (20pcs)
Cable e (2pcs)
Allen Wrench (1pc)
Eyelet screw (2pcs)
Non-slip disk (12pcs)
Anchor (2pcs)
Polishing cloth (1pc)
*Please count and verify all parts before assembly .*
Page 2 of 6
(2pcs)
(2pcs)
1
2
(1pc )
3
(3pcs)
4
Frame
Glass
Rail
Front Rail
Page 3 of 6

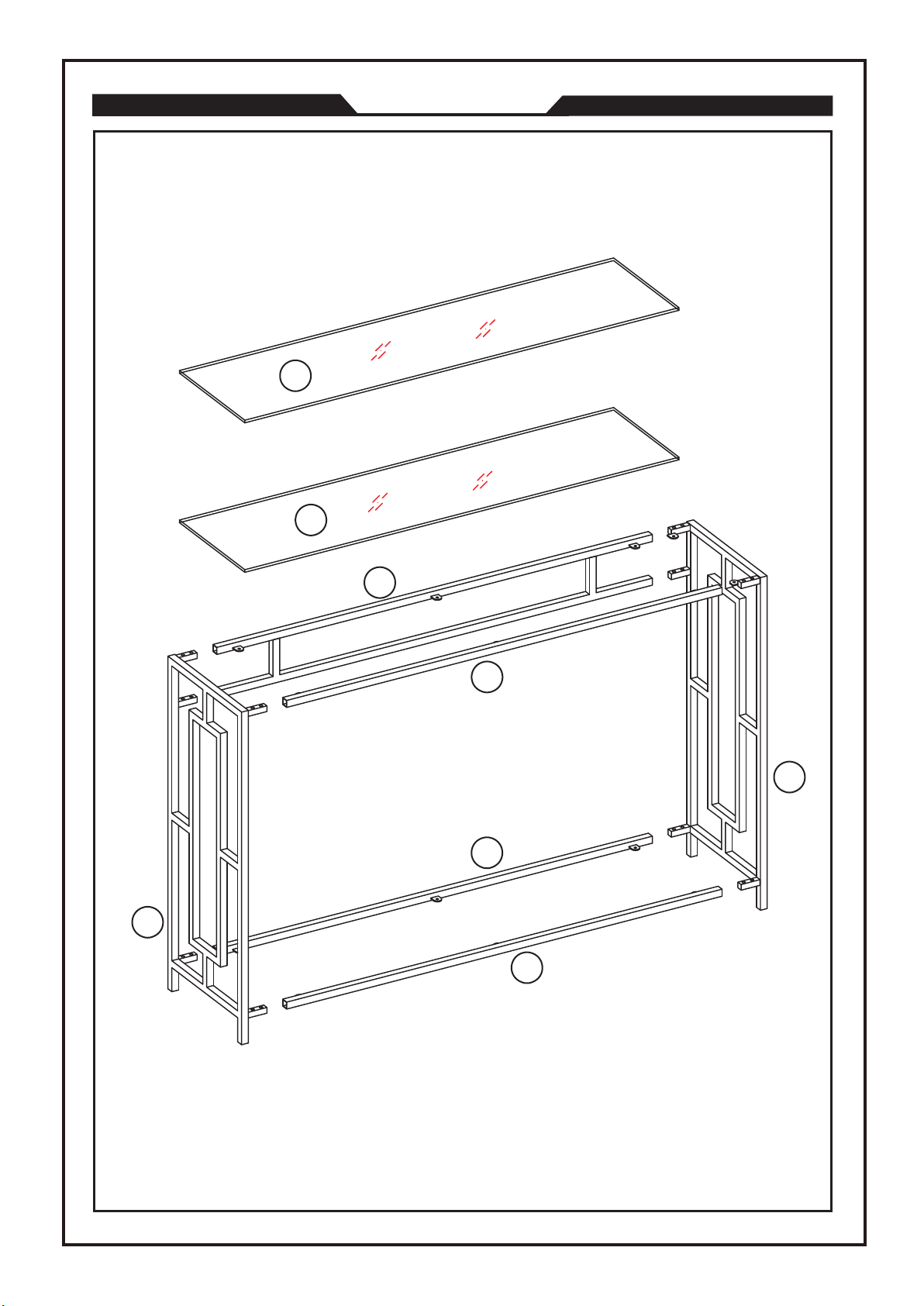

Exploded View
3
1
2
2
4
4
4
1
Page 4 of 6
Step 1
X
16
X
1
A
B
*Assemble unit on carpet or another so surface.
1.Connect frames (2) together by sliding them
into rails (4) and front rail (3) as shown.
2.
Secure front rail ( 3 ) and rails ( 4) to frames ( 2 ) as shown using
screws (A) and allen wrench (B) .
*Do not fully ghten Screws (A) unl all have been started.*
A
A
A
A
A
A
A
A
A
A
B
2
2
4
4
3
4
Page 5 of 6
Step 2
Step 3
1
1
C
C
C
C
C
C
C
C
C
C
C
C
1.Place non-slip disks (C) into assembly as shown to support glass shelf.
1. Retighten all screws.
2. Using a slight angle, carefully insert glass ( 1 ) into unit.
Page 6 of 6
Step 4
1.Drill holes slightly smaller than anchors (E)into drywall and gently tap anchors into
holes.
2.Insert eyelet screws (G) into anchors and fasten unit to wall using cable ties (F).
E
F
G
