HDTV Receiver designed to work with hospitality pay-per-view systems. Pro:Idiom™
content protection, designed exclusively for the hospitality industry, enables you to receive
the latest Hollywood releases in pure HDTV quality.
Reception
• ATSC/NTSC/QAM
• Pro:Idiom™ Encryption Support
Convenience
• 32-bit Graphical User Interface
• Integrated SmartPlug™ Two-Way Addressable Interface with Hospitality Features
• Cloneable Setup feature for easy duplication
Flexibility
• Small form factor designed to mount directly to the back of TV
• Multiple video standards :MPEG2 SD and HD, MPEG4, H.264
• Upgradeable Software
Secure HDTV delivery with
Pro: Idiom

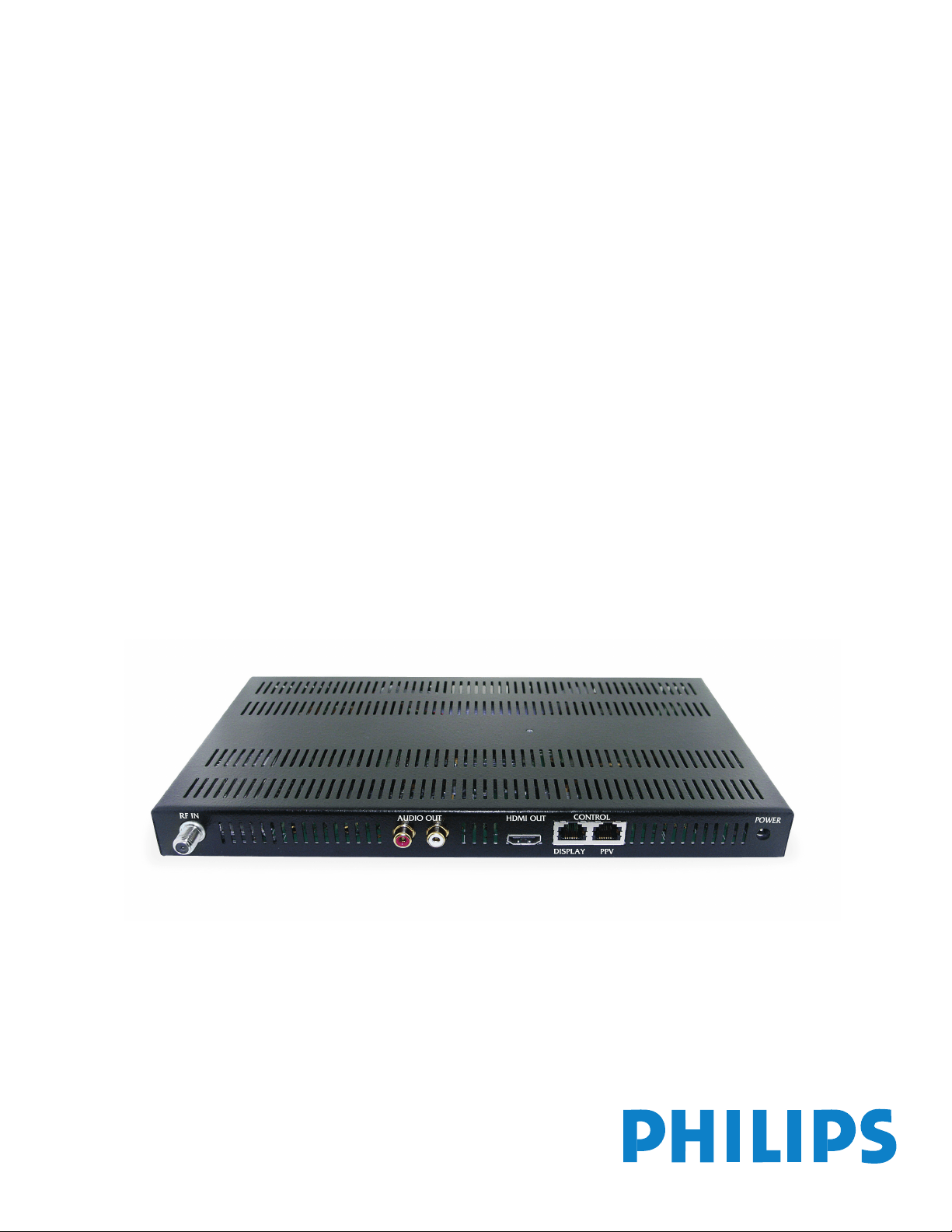

HD-PPV Set-Back-Box
HD-PPV Set-Back-Box HD-PPV Set-Back-Box
SBB250D/27
PRELIMINARY
Tuning
•
ATSC:
8-VSB modulation.
ATSC: 8-VSB modulation.ATSC:
•
QAM (Quadrature amplitude modulation):
64-QAM, and 256-QAM per ITU-T J.83, Annex B.
•
NTSC:
NTSC-M (3.58-4.5 Mhz)
NTSC: NTSC-M (3.58-4.5 Mhz)NTSC:
Video
• MPEG 2 4:2:0, SD MP@ML and HD MP@HL
(transport and program streams)
• MPEG 4*
• H.264*
• Windows Media 9*
• Maximum data rate: 19 Mbps
Audio
• MPEG 2 (layer 1 & 2)
• AC 3
• MP3 (MPEG-1 layer 3)*
• LPCM*
• PCM*
• AAC*
Video Resolutions
• NTSC (480i)
• PAL (576i)*
• 480p
• 576p*
• 720p
• 1080i
Audio Modes
• Single Channel
• Dual Mono
• Stereo
• Downmix of 5.1 Channels to 2 Channels
Aspect Ratios
• 4:3
• 16:9 Letterbox Format
Connectivity
• RF Input for QAM or 8-VSB and NTSC
• HDMI with HDCP Output
• L/R Audio Out
• SPDIF Out
• Smart Plug – RJ11
• DB-9 Serial Connector
Graphical User Interface
• On Screen Display (OSD) providing 32-bit graphics
with full-screen resolutions up to 1080i*
• Video and graphic planes with independent scaling,
positioning and alpha blending
Encryption Support
•
Pro:Idiom™:
128-bit AES based encryption
algorithm
Included Accessories
• Mounting Hardware
• Power Supply
• HDMI Cable
• RJ-12 Cable
• Cover
Dimensions
•
Dimensions (WxHxD):
11.5" x 6.25" x 1.25"
•
Weight
: tbc lbs
•
Weight incl. Packaging:
tbc lbs
Power
•
Power Consumption:
TBC
•
Standby power consumption:
< 2 W
Standby power consumption: < 2 W Standby power consumption:
•
Mains power:
AC 108 - 132 V, 60 Hz
Mains power: AC 108 - 132 V, 60 Hz Mains power:
•
Ambient temperature:
+5 -/+ 40 C
Warranty
• 1 year Parts and Labor
This product is designed to work exclusively with Philips BDS,
Smart Plug equipped televisions.
*Feature is available in hardware but requires a software update
Specifi cations are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved. CCM315
Philips Business Solutions
64 Perimeter Center East
Atlanta, GA 30346
www.bds.philips.com
PRELIMINARY
Date of issue 2006-04-05
UPC:
HD-PPV Set-Back-Box
HD-PPV Set-Back-Box HD-PPV Set-Back-Box
SBB250D/27
Technical specifi cations
