For HBC24D553B/45. Series: Serie 8
Also, The document are for others Bosch models: HBC24D5.3

• [en] Instruction manual1
• Ú Table of contents[en] Instruction manual3
  • : Important safety information3
    • Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.3
    • This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.3
    • Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.3
    • Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.3
    • This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.3
    • This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible ...3
    • Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.4
    • Keep children below the age of 8 years old at a safe distance from the appliance and power cable.4
    • Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.4
    • Risk of fire!4
      • Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off ...4
    • Risk of burns!4
      • ■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.4
      • Risk of burns!4
        • ■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.4
      • Risk of burns!4
        • ■ Hot steam may escape during operation. Do not touch the ventilation openings. Keep children away.4
    • Risk of scalding!4
      • ■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.4
      • Risk of scalding!4
        • ■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.4
      • Risk of scalding!4
        • ■ When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.4
      • Risk of scalding!4
        • ■ The water in the evaporator dish is still hot even after the appliance has been switched off. Do not empty the evaporator dish immediately after switching off the appliance. Allow the appliance to cool down before cleaning it.4
      • Risk of scalding!4
        • ■ Hot liquid may spill over the sides of cooking containers when they are removed from the cooking compartment. Remove hot cooking containers with care and always wear oven gloves.4
    • Risk of injury!4
      • ■ Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, or sharp or abrasive cleaning aids or detergents.4
      • Risk of injury and risk of fire!4
        • ■ Flammable liquids can catch fire in the cooking compartment when it is hot (explosion). Do not fill the water tank with any flammable fluids (e.g. alcoholic drinks). Only fill the water tank with water or with the descaling solution that is recom...4
    • Risk of electric shock!4
      • ■ Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.4
      • Risk of electric shock!4
        • ■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.4
      • Risk of electric shock!4
        • ■ Penetrating moisture may cause an electric shock. Do not use any high- pressure cleaners or steam cleaners.4
      • Risk of electric shock!4
        • ■ When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.4
      • Risk of electric shock!4
        • ■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.4
  • Causes of damage5
    • Caution!5
    • ■ Aluminium foil in the cooking compartment must not come into contact with the door panel. This could cause permanent discolouration of the door panel.5
    • ■ Ovenware must be heat and steam resistant.5
    • ■ Do not use ovenware that shows signs of rust. Even the smallest spots of rust can lead to corrosion in the cooking compartment.5
    • ■ When steaming with a perforated cooking container, always insert the baking tray or the solid cooking container underneath. Dripping liquid is caught.5
    • ■ Do not store moist food in the closed cooking compartment for long periods. It can lead to corrosion in the cooking compartment.5
    • ■ If the door seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the door seal clean and replace when necessary.5
    • ■ Do not place anything on the open appliance door. The appliance could be damaged.5
    • ■ Do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance, and could break.5
      • Your new appliance5
        • Control panel5
        • Operating modes6
  • Automatic calibration6

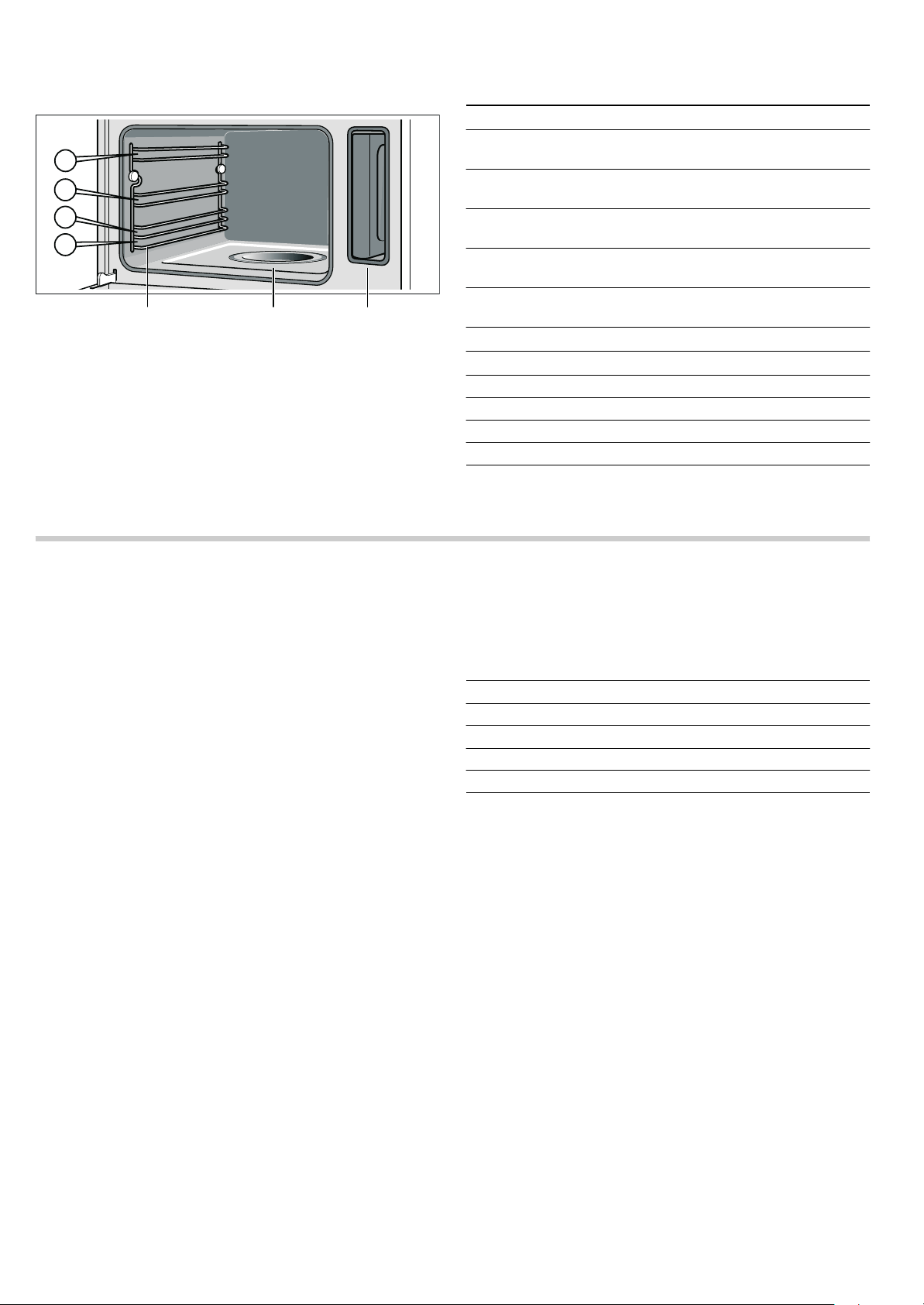

    • Your accessories6
      • Accessories6
  • Inserting accessories6
    • Note6
  • Cooking compartment7
    • Caution!7
  • Optional accessories7
    • Before using for the first time7
      • Setting the clock7
        • 1. Press the 0 button.7
          • 2. Use the @ or A button to set the clock.7
  • Setting the water hardness range7
    • 1. If required, turn the operating mode selector to Û to switch off the appliance.7
    • 2. Press and hold the0 button until ™‹ „ appears in the display.7
    • 3. Press the 0 button repeatedly until ™† ƒ appears (“medium” water hardness range).7
    • 4. Press the @ or A button to change the water hardness range. Possible values:7
    • 5. Press and hold the0 button to exit basic settings.7
  • Before first use7
    • 1. Fill and insert the water tank (see section: Filling the water tank).7
      • 2. Turn the operating mode selector to è Steam.7
      • 3. Turn the temperature selector to 100 °C.7
      • 4. Press the n button.7
      • The appliance heats up to 100 °C. The cooking time (20 minutes) does not start to count down until the set temperature has been reached. Do not open the appliance door during this time.7
        • 5. To switch off the appliance, turn the operating mode and temperature selectors to Û.7
  • Cleaning the accessories before use8
    • Operating the appliance8
      • Filling the water tank8
        • Caution!8
          • Use of unsuitable liquids may damage the appliance8
            • 1. Open the appliance door and take out the water tank (fig. A).8
            • 2. Fill the water tank with cold water up to the “max” mark (fig. B).8
              • 3. Close the tank cover until you feel it engage.8
            • 4. Slide in the water tank all the way (fig. C).8
  • Switching on the appliance8
    • 1. Turn the operating mode selector to the required operating mode.8
    • 2. Turn the temperature selector to set the temperature.8
      • 3. Use the @ or A button to set the cooking time.8
    • 4. Press the n button.8
    • The appliance heats up.8
    • The t symbol lights up until the set temperature has been reached and each time the temperature rises.8
    • 1. Open the appliance door carefully.8
      • 2. Remove the water tank, fill up to the "max" mark and slide the tank back in.8
      • 3. Press the n button.8
  • Switching off the appliance8
    • : Risk of scalding!8
  • After each use9
    • Emptying the water tank.9
    • 1. Open the appliance door carefully.9
      • 2. Remove and clean the water tank.9
      • 3. Thoroughly dry the seal in the tank cover and the tank recess in the appliance.9
      • Caution!9
      • Drying the cooking compartment9
        • : Risk of scalding!9
          • 1. Leave the appliance door ajar until the appliance has cooled down.9
          • 2. Once it has cooled down, wipe out the cooking compartment and the evaporator dish with the enclosed cleaning sponge and dry well with a soft cloth.9
          • 3. Remove food residues in the cooking compartment as soon as the appliance has cooled down.9
          • 4. Wipe units and handles dry where condensation has formed.9
    • Time-setting options9
      • Setting the timer9
        • 1. Press the 0 button.9
          • 2. Use the @ or A button to set the timer.9
          • Default value for the @ button = 10 minutes9
          • Default value for the A button = 5 minutes9
  • Setting the cooking time9
    • 1. Press 0repeatedly until the brackets are around the r Cooking time.9
      • 2. Use the @ or A button to set the cooking time.9
      • Default value for the @ button = 30 minutes9
      • Default value for the A button = 10 minutes9
        • 3. Press the n button.9
      • The appliance heats up. The cooking time starts counting down in the display. The [r] symbol lights up.9
  • Setting a later end time10
    • 1. Press 0 repeatedly until the brackets are around the r Cooking time.10
    • 2. Use the@ orA button to set the cooking time.10
    • 3. Press the 0 button.10
    • 4. Use the @ button to delay the end time.10
    • 5. Press the n button.10
  • Setting the clock10
    • 1. Press the 0 repeatedly until the [0] Clock symbol appears.10
    • 2. Use the@ orA button to set the clock.10
    • Automatic programmes10
      • Setting a programme10
        • 1. Turn the operating mode selector to `.10
          • 2. Use the @ or A button to set the programme.10
          • 3. Press the f button.11
          • A default weight appears in the display.11
            • 4. Use the @ or A button to set the weight of the food.11
            • 5. Press the n button.11
          • : Risk of scalding!11
  • Notes about the programmes11
    • Programme tables11
    • Childproof lock12
      • Activating the childproof lock12
  • Deactivating the childproof lock12
    • Basic settings12
      • 1. If required, turn the operating mode selector to Û to switch off the appliance.12
      • 2. Press and hold the 0 button until ™‹ „ (display brightness = bright) appears in the display.12
      • 3. Press the0 button until the desired basic setting appears.12
      • 4. Press the A or @ button to change the basic setting.12
      • 5. Press and hold the0 button to exit basic settings.12
    • Care and cleaning13
      • : Risk of short circuit!13
      • Caution!13
        • Risk of surface damage13
      • Caution!13
        • Risk of surface damage13
      • Cleaning agents13
        • The cooking compartment could rust.13
        • Risk of surface damage14
        • Cleaning sponge14
        • Microfibre cloth14
  • Descaling14
    • Descaler14
      • 1. Prepare a descaling solution by mixing 300 ml water and 60 ml liquid descaler.14
      • 2. Empty the water tank and fill with descaling solution.14
    • Caution!14
      • Risk of surface damage14
    • Starting descaling14
      • 1. Turn the operating mode selector to r Descale.14
      • 2. Slide in the water tank containing the descaling solution and close the appliance door.14
      • 3. Press the n button.14
    • Emptying the evaporator dish and refilling the water tank14
      • 1. Open the appliance door.14
      • 2. Rinse the water tank thoroughly, fill with water and reinsert.14
      • 3. Remove the descaling solution from the evaporator dish using the cleaning sponge supplied.14
      • 4. Close the appliance door.14
    • 1st rinse14
    • Empty evaporator dish14
      • 1. Open the appliance door.14
      • 2. Thoroughly rinse out the cleaning sponge.14
      • 3. Remove the remaining water from the evaporator dish using the cleaning sponge.14
      • 4. Close the appliance door.14
    • 2nd rinse14
    • Removing the remaining water14
      • 1. Open the appliance door.14
      • 2. Remove the remaining water from the evaporator dish using the cleaning sponge.14
      • 3. Wipe out the cooking compartment using the cleaning sponge and then dry with a soft cloth.14
      • 4. To switch off the appliance, turn the operating mode selector back to Û.14
    • Cancelling the descaling14
    • Note14
    • 1. Press and hold the nbutton to cancel the descaling process.14
      • [r] ‹‹:…‹ min appears in the display.14
        • 2. Press the n button.14
      • Descaling the evaporator dish only14
        • 1. Prepare a descaling solution by mixing 100 ml water and 20 ml liquid descaler.14
        • 2. Completely fill the evaporator dish with descaling solution.15
        • 3. Fill the water tank with water only.15
        • 4. Start the r Descale operating mode as described.15
  • Removing and fitting the appliance door15
    • : Risk of injury!15
    • : Risk of injury!15
    • Removing the appliance door15

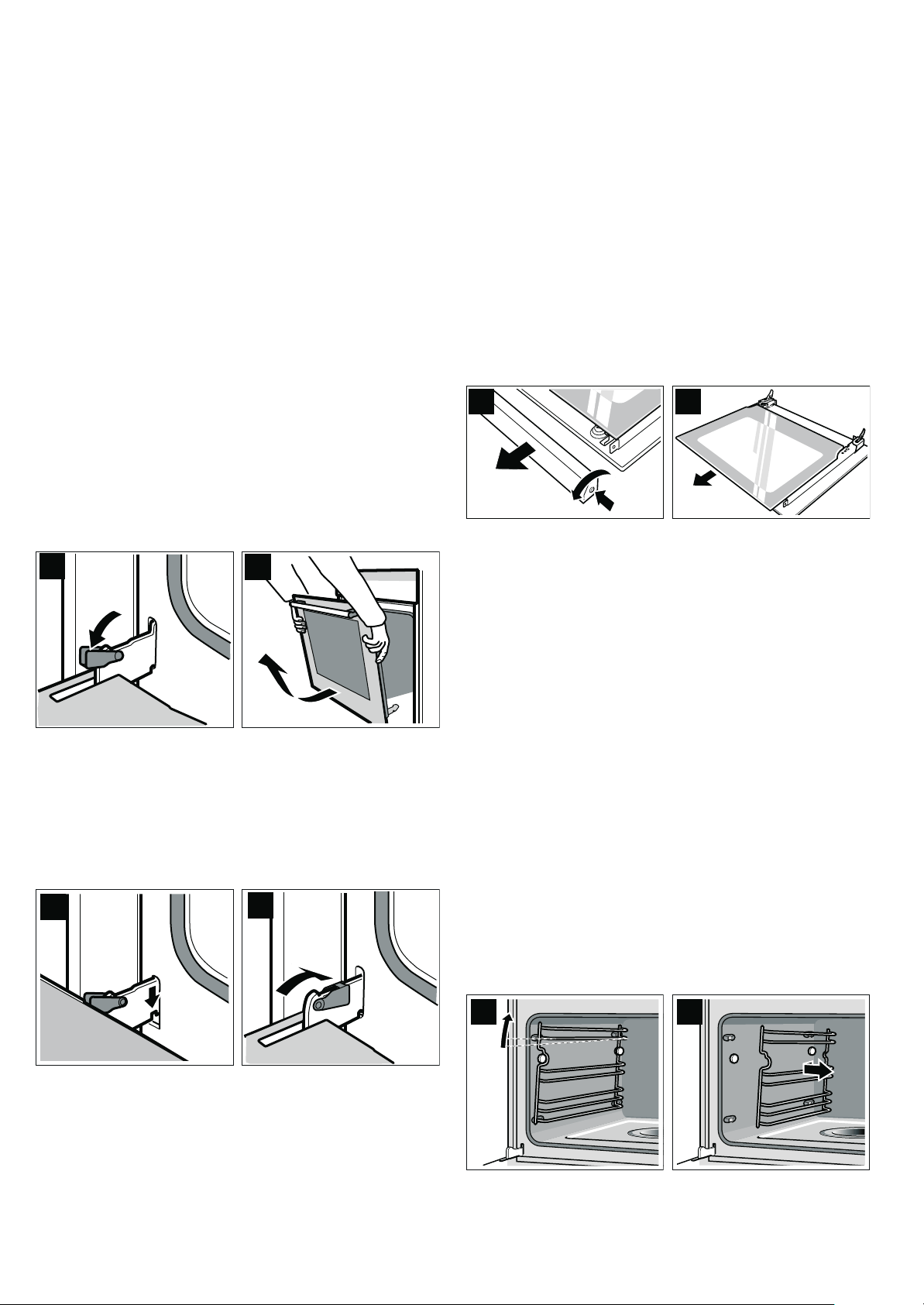

      • 1. Open the appliance door fully.15
      • 2. Fold out the locking levers on the left and right fully (figure A).15
        • 3. Close the appliance door until you feel some resistance.15
        • 4. With both hands, grip the door on the left and right-hand side, close the door a little more and pull it out (Fig. B).15
    • Fitting the appliance door15
    • 1. Insert the hinges in the left and right-hand bracket (figure C).15
      • 2. Open the appliance door fully.15
      • 3. Close the locking levers on the left and right-hand side fully (figure D).15
        • 4. Close the appliance door.15
  • Cleaning the door panels15
    • : Risk of injury!15
    • : Risk of injury!15
    • Removing the door panel15
    • Note15
      • 1. Unhook the appliance door and lay it on a soft, clean surface with the front side facing downwards (see section: Removing and installing the appliance door).15
      • 2. Unscrew the cover at the top left and right of the appliance door and detach it (figure A).15
      • 3. Lift the door panel and remove it (figure B).15
    • Cleaning15
    • Caution!15
    • Fitting the door panel15
      • 1. Slide in the door panel all the way.15
      • 2. Put the cover back in place and screw it in.15
      • 3. Refit the appliance door.15
  • Cleaning the rails15
    • : Risk of burning due to hot components in the cooking compartment!15
    • Note15
      • 1. Carefully press the front of the rail upwards until it becomes detached, and release it from the holder at the side (fig. A).15
      • 2. Detach the rail from the holder and remove it (fig. B).15
        • 3. Clean the rails with washing-up liquid and a sponge/brush or Clean the rails in the dishwasher.15

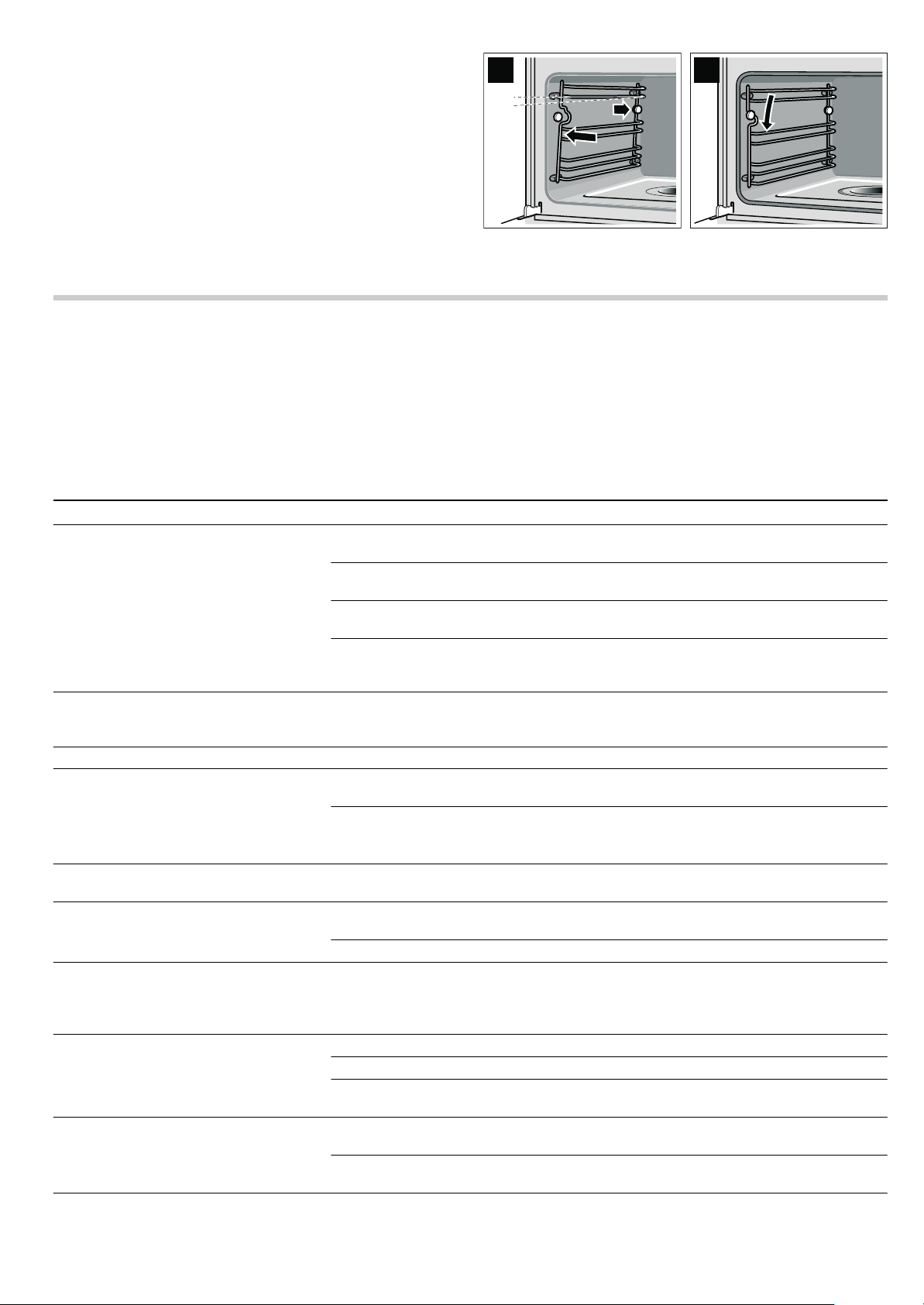

        • 1. Position the rail so that the indentations are facing upwards.16
        • 2. Hook the rail in at the back and push it towards the rear until it engages (fig. C).16
      • 3. Hook the front of the rail onto the holder and press down until it engages and is fixed level in place in the appliance once more (fig. D).16
    • Troubleshooting16
      • : Risk of electric shock!16
  • Replacing the cooking compartment bulb17
    • : Risk of burns!17
      • 1. Switch off the fuse in the fuse box or unplug at the mains.17
      • 2. Turn the cover anti-clockwise to remove.17
      • 3. Screw out the bulb by turning it anti-clockwise and replace with a bulb of the same type.17
      • 4. Slide the new seals and the clamping ring onto the glass cover in the right order.17
        • 5. Screw the glass cover with the seals back on again.17
        • 6. Connect the appliance to the mains and reset the clock.17
  • Changing the door seal17
    • 1. Open the appliance door.17
    • 2. Pull off the old seal.17
    • 3. Push in the new door seal at one point and pull it in all the way round. The joint must be at the side.17
    • 4. Check again that the seal is correctly fitted in the corners.17
    • After-sales service18
      • E number and FD number18
        • To book an engineer visit and product advice18
    • Environmental protection18
      • Environmental protection18
  • Tips for saving energy18
    • Tables and tips18
      • Accessories18
  • Cookware18
  • Cooking time and quantity18
  • Distributing food evenly18
  • Pressure-sensitive food18
  • Cooking a menu18
  • Vegetables19
    • Side dishes and pulses19
    • Poultry and meat20
      • Poultry20
      • Beef20
      • Pork20
      • Sausages20
  • Fish20
  • Soup vegetables, Miscellaneous21
    • Dessert, compote21
    • Reheating food21
    • Defrosting21
      • : Health risk!21
    • Proving dough22
    • Juicing22
    • Preserving22
    • Frozen products23
