code:
VIM201604/BVC/01
Armoire à vin
BeveragePreservationTechnology
USERMANUAL
V40BVCAL/S3/BK
V20BVCS3/BK
V20BVC
V26BVC
code:
VIM201604/BVC/01
1
WARNING
Theinformationinthisdocumentissubjecttomodificationwithout
anypriornotice.
Somesmodelsareavailableindedicatedcountriesonly.
.
VINTEC offersnoguaranteeforourBeverageCenterifitisbeingusedforanypurpose
otherthanthatforwhichitwasspecificallydesigned. VINTEC cannotbeheld
responsibleforanyerrorinthismanual. VINTEC isnotresponsibleorliableforany
spoilageordamagetobeverageoranyothercontentsincidentalorconsequentialto
possibledefectsoftheBeverageCenter.WarrantyappliestotheBeverageCenteronlyand
nottothecontentoftheBeverageCenter.
Thisapplianceisnotintendedforusebypersons(includingchildren)withreduced
physical,sensoryormentalcapabilities,orlackofexperienceandknowledge,unlessthey
havebeengivensupervisionorinstructionconcerninguseoftheappliancebyaperson
responsiblefortheirsafety.
Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance.
R600AWARNINGS
ThefollowingmodelsusesmallquantityofR600A(iso-butane)flammablerefrigerant:
V40BVC – 35g AL/S3/BK
V26BVC – 30g
V20BVC – 25g S3/BK
Foryoursafetypleaseobservethefollowingrecommendations:
•
This
appliance
contains
a
small
quantity
of
R600A
refrigerant
which
is
environmentallyfriendly,butflammable.Itdoesnotdamagetheozonelayer,nor
doesitincreasethegreenhouseeffect.
•
During
transportation
and
installation,
ensure
that
the
tubing
of
the
refrigerant
circuitisnotdamaged.
•
Avoid
using
or
manipulating
sharp
objects
near
by
the
appliances.
•
Leaking
refrigerant
can
ignite
and
may
damage
the
eyes.
•
In
the
event
any
damage
does
occur,
avoid
exposure
to
open
fires
and
any
device
thatcreatesaspark.Disconnecttheappliancefromthemainspower.
•
Thoroughly
ventilate
the
room
in
which
the
appliance
is
located
for
several
minutes.
•
Notify
Customer
Service
for
necessary
action
and
advice.
code:
VIM201604/BVC/01
2
•
The
room
for
installing
the
appliance
must
be
at
least
1
cubic
metre
per
8
grams
of
refrigerant.Therefrigerantquantitycontainedinthisapplianceislistedabovein
grams;itisalsonotedontheRatingPlateoftheappliance.
ItishazardousforanyoneotherthananAuthorisedServicePersontocarryout
servicingorrepairstothisappliance.
– WARNING:Keepventilationopeningsintheapplianceenclosureorinthebuilt-in
structureclearofobstruction.
– WARNING:Donotusemechanicaldevicesorothermeanstoacceleratethedefrosting
process,otherthanthoserecommendedbythemanufacturer.
– WARNING:Donotdamagetherefrigerantcircuit.
– WARNING:Donotuseelectricalappliancesinsidecompartmentsoftheappliance.
– WARNING:InQueenslandAustraliatheauthorizedpersonmustholdaGasWork
Authorisationforhydrocarbonrefrigerants,beforecarryingoutservicingorrepairswhich
involvetheremovalofcovers.
Theenvironmentandpersonalsafetymustbeconsideredwhendisposingofthisappliance.
Pleaseensuretheapplianceistakentoarecyclecenterforsaferecycling. DONOT
disposeoftheapplianceinlandfillastheinsulationandrefrigerantgascontainedinthese
appliancesareflammable.
Allow24hoursbeforeswitchingontheBeverageCenter.Duringthistimewe
recommendthatyouleavethedooropentoclearanyresidualodors.
BEFORELOADING&PLUGGINGINTHEBEVERAGECENTER
Important:Allmodelswithoutfrontventing(airopening)arestrictlyforfreestanding
only.(seetechnicalchart)
Recommendations:
ThelocationyouhaveselectedforyourBeverageCentershould:
-beunencumberedandwellventilated;
-bewellawayfromanyheatsourceanddirectsunlight;
-notbetoodamp(laundry,pantry,bathroometc.);
-haveaflatfloor;
-haveastandardandreliableelectricitysupply(standardsockettocountrystandards,
linkedtotheground),itisNOTrecommendedtouseamulti-socketorextensionlead.
-haveasurgeprotectorfittedtotheelectricaloutlet;
-awayfromthemicrowaveoven.Certainmicrowaveovensdonothavewaveinterference
shield.Whenplacedwithin1metervicinityoftheBeverageCenter,theymayaffectthe
operationoftheBeverageCenter.
code:
VIM201604/BVC/01
3
TheBeverageCentershouldbeplacedwheretheambienttemperatureisbetween5ºCto
35ºC.Iftheambienttemperatureisaboveorbelowthisrange,theperformanceoftheunit
maybeaffected.Placingyourunitinextremecoldorhotconditionsmaycauseinterior
temperaturestofluctuate. Theidealrangeoftemperaturemaynotbereached.(See
ClimateClassattheendofthismanual)
Groundinginstructions
TheBeverageCentermustbegroundedincaseofanelectricalshortcircuit.Grounding
reducestheriskofelectricalshock.TheBeverageCenterisequippedwithapowercord
havingagroundingwireandplug.TheBeverageCenterplugmustbepluggedintoa
properlyaffixedandgroundedelectricaloutlet.
Note: Inlocationswherethereisfrequentlightning,surgeprotectorsMUSTbeused.
Improperuseofthegroundingplugcanresultintheriskofelectricshock.Consulta
qualifiedelectricianorservicepersonifthegroundinginstructionsarenotcompletely
understood.
Ifthesupplycordisdamaged,itmustbereplacebyaqualifiedpersoninordertoavoid
electricalhazard.
InstallingyourBeverageCenter
Unpackandremovealloftheprotectionandadhesivestripsfromthepackagingaround
andinsidetheBeverageCenter.
TheBeverageCentermustbepositionedsuchthattheplugisaccessible.Releasethe
powercord.MoveyourBeverageCentertoitsfinallocation.TheBeverageCentershould
beinstalledinasuitableplacewherethecompressorwillnotbesubjecttophysicalcontact.
Thiscentercannotbeintegratedbehindasoliddoor – doingsovoidsthewarranty.
LevelingyourBeverageCenter: BeverageCentermustbeleveledBEFORE loading
yourbeverages.
YourVintecBeverageCenterisequippedwith4adjustablefeettofacilitateeasyleveling.
VINTEC recommendsthatyouscrewthebackfeettowardthebasesotheyareinthe
shortestpositionandadjustthefrontfeettoleveltheBeverageCenter.

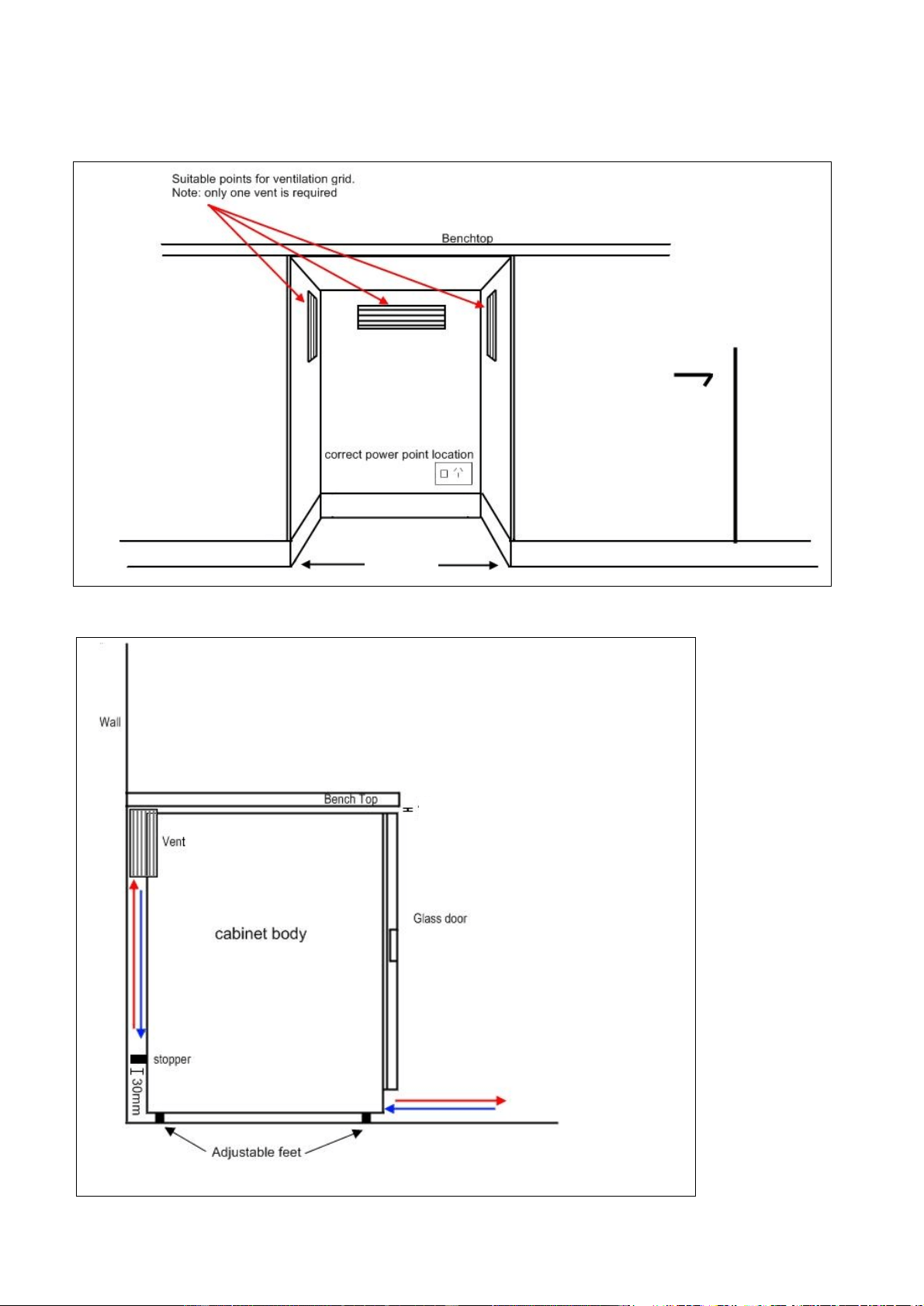

Backspacer:
Compressorrunappliancesrequireproperventilationforproperandlongerusage.Your
VintecBeverageCenterissuppliedwithabackspacer.Affixedthebackspaceratthe
backofaircirculationandheatevacuation.
code:
VIM201604/BVC/01
4
IMPORTANT-THISSPACERMUSTBEATTACHEDTOTHEUNITBEFORE
INSTALLATIONFORVENTILATIONPURPOSE.FAILURETODOSOVOIDSTHE
WARRANTY
TURNINGONYOURBEVERAGECENTER
Pluginandswitchontheunitbypressingonthepowerbutton forafewseconds.
WhenyouusetheBeverageCenterforthefirsttime(orrestarttheBeverageCenterafter
havingitshutoffforalongtime),therewillbeafewdegrees,variancebetweenthe
temperatureyouhaveselectedandtheoneindicatedontheLEDreadout.Thisisnormal
anditisduetothelengthoftheactivationtime.OncetheBeverageCenterisrunningfora
fewhourseverythingwillstabilize.
Important:Iftheunitisunplugged,powerislost,orturnedoff,wait5minutesbefore
restartingtheunit.TheBeverageCenterwillnotstartifyouattempttorestartbefore
thistimedelay.
code:
VIM201604/BVC/01
5
OperatingNoises
Toreachthedesiredtemperaturesettings, VINTEC BeverageCenter,likeallBeverage
Centersoperatingwithcompressorsandfans,mayproducethefollowingtypesofnoises.
Thesenoisesarenormalandmayoccurasfollows:
-Gurglingsound-causedbytherefrigerantflowingthroughtheappliance’scoils.
-Cracking/poppingsounds-resultingfromthecontractionandexpansionofthe
refrigerantgastoproducecold.
-Fanoperatingsound-tocirculatetheairwithintheBeverageCenter.
Anindividual’sperceptionofnoiseisdirectlylinkedtotheenvironmentinwhichthe
BeverageCenterislocated,aswellthespecifictypeofmodels. VINTEC Beverage
Centersareinlinewithinternationalstandardsforsuchappliances. VINTEC willalways
doitsutmosttosatisfyitscustomersbutwillnotretakepossessionofthegoodsdueto
complaintsbasedonnormaloperatingnoiseoccurrences.
LOADINGYOURBEVERAGECENTER
Youmayloadyourbeveragebottlesinsingleordoublerowswhiletakingnoteofthe
following:ifyoudonothaveenoughbottlestofillyourBeverageCenter,itisbetterto
distributetheloadthroughouttheBeverageCentersoastoavoid “allontop” or “all
below” typeloads.
-Doremoveorrelocateadjustableshelvestoaccommodatelargertypeofbottlesor
increasethecapacityofthecellarbystackingthebottlesupwhennecessary.(See
removingshelves)
-Keepsmallgapsbetweenthewallsandthebottlestoallowaircirculation.Asinan
undergroundcellar,aircirculationisimportanttopreventmouldandforabetter
homogeneoustemperaturewithinthecellar.
-DonotoverloadyourBeverageCentertofacilitateaircirculation.
-Avoidobstructingtheinternalfans(locatedinsideonthebackpaneloftheBeverage
Center).
-Donotslidetheshelvesoutwardsbeyondthefixedpositioninordertopreventthe
bottlesfromfalling.
-DonotpulloutmorethanoneloadedshelfatatimeasthismaycausetheBeverage
Centertotiltforward.
-Donotcovertheshelveswithalloyfoilorothermaterials,asitwillobstructair
circulation.
-DonotmoveyourBeverageCenterwhileitisloadedwithbeverages.Thismightdistort
thebodyoftheBeverageCenterandcausebackinjury.
code:
VIM201604/BVC/01
6
TYPESOFREGULATION
Pleasenotethat,dependingontheloadingandsettingschosen,ittakesabout24hoursfor
theBeverageCentertoseethetemperaturestabilizing.
DuringthistimeLEDseemstomoveerratically.Itisnormalandthisprocessoccurs
wheneverthesettingismodifiedand/orwheneveralargeamountofbottlesareaddedto
theunit.
TEMPERATURESETTINGS
Important:TheLCDdisplays,bydefault,theactualinternalairtemperature.
Thetemperaturesettingsarepre-setatthefactorysettingof5ºC.Intheeventofapower
interruption,allprevioustemperaturesettingsareautomaticallyerasedanditwillrevertto
thepresettemperaturesettings.
Itisimportanttounderstandthatthereisadifferencebetweentheairtemperatureinside
the BeverageCenter andtheactualtemperatureofthe Beverage: Youwillneedtowait
approximately12hoursbeforenoticingtheeffectsoftemperatureadjustmentduetothe
criticalmasswithinafullBeverageCenter.
Oncethetemperatureisset,itisstronglyadvisednottotoywithitoradjustfrequently.
ThethermostatwillmaintainthetemperatureinsidetheBeverageCenterwithina+/-
2.5ºCrange.Butthethermalinertiaofthebeveragesandtheglassissuchthat,withinthis
temperaturerange,theactualtemperatureoftheBeveragewillonlyfluctuate0.5ºCto1ºC.
The
controls
of
your
beverage
center
AdjustthedesiredcoolingtemperaturebypressingtheUPorDOWNbuttons.Each
depressionofthebuttonwillscrollthroughtheavailabletemperaturesettingsin
incrementsof1degreeCelsius.Thetemperaturesettingcanbeadjustedfrom2
℃
to10
℃
Tovisualizethe “set” temperature,pressandholdtheUPorDOWNbuttons,the “set”
temperaturewilltemporarily “flash” intheLEDdisplayfor5seconds.
code:
VIM201604/BVC/01
7
Internallight
Inordertoreduceenergyconsumption,thiswinecabinetwillautomaticallyswitchoffthe
LEDlightsafter10minutes.
IfyouwanttheLEDlighttoremainoncontinuously,thisispossible.Pleasepressand
holdthe"LIGHT"buttonfor5seconds,thedisplaywillshow"LP".After4secondsthe
displaywillrevertbacktonormalandthelightwillremainonuntilmanuallyswitchedoff.
Ifyouwanttorevertbackandconserveenergy(recommended),pleasepressandholdthe
"LIGHT"buttonfor5second,thedisplaywillshow"LF",after4secondsthedisplaywill
revertbacktonormal,andthelightwillautomaticallyswitchoffafter10minutes.
DEFROSTING/CONDENSATION/HYGROMETRY/VENTILATION
Yourbeveragecenterisdesignedwith “Auto-cycle” defrostsystem.During “Off-cycle”
therefrigeratedsurfacesofthebeveragecenterdefrostautomatically.Defrostwaterfrom
thebeveragecenterstoragecompartmentdrainsautomaticallyandpartofitgoesintoa
drainagecontainer,whichislocatedatthebackofthebeveragecenternexttothe
compressor.Theheatistransferredfromthecompressorandevaporatesanycondensation
thathascollectedinthepan.Partoftheremainingwateriscollectedwithinthebeverage
centerforhumiditypurposes.
Thissystemenablesthecreationofthecorrecthumiditylevelinsideyourbeveragecenter
requiredbythenaturalcorktomaintainalonglastingseal.
Notes: Thewatercollectedbycondensation,isthereforerecycled.Underextremelydry
environmentalconditions,youmayhavetoaddsomewaterintothewatercontainer
providedwithyourbeveragecenter.
Allunitsareequippedwithadoubleglazedglassdoorthathasathirdinternalacrylic
layertominimizecondensationontheglassdoor.
Thebeveragecenterisnottotallysealed;freshairadmissionispermittedthroughthe
drainpipe.Airiscirculatedthroughtheunitbymeansofafan/fansandtheslattedshelves.
Notes: Duringtherefrigeratingcycle,heatisgivenoffanddispersesthroughtheexternal
surfacesofthebeveragecenter.Avoidtouchingthesurfacesduringthosecycles.
ADJUSTABLESHELVES
Adjusting/removingtheshelves
Whenremovinganyoftheseshelvesoutoftherailcompartment-tofitorremovethe
shelf-tilttheshelfasperthediagramandsimplypullout,orpushintheshelfuntilitsits
onthesupportbracketssecurely.
code:
VIM201604/BVC/01
8
REVERSIBILITYOFTHEDOOR
Warning:Toavoidaccidentsduringtheprocessofchangingthedoor,werecommendthat
yougetassistance.Theglassdoorisheavyandmaycauseinjuryifdropped.
-Dependingontothemodelandthetypeofhandleyourwinecabinetisequippedwith,
youmayhavetorotatethedoorthrough180degrees.
-
Depending
on
the
type
of
handle
your
wine
cabinet
is
equipped
with,
the
door
may
not
be
reversible
or
may
require
that
a
left
or
right
opening
door
be
ordered
to
change
the
opening
side.
40BVC/AL
1Lowerhinge(Right) 2Lockscrews 3Tophinge(Right)
4LockScrews 5Tophinge(Left) 6Lowerhinge(Left)
7Door
code:
VIM201604/BVC/01
9
- Whileholdingthedoorfirmly, removethethreelockscrews(2)fromthelower
righthingemodule,andremoveit.
（
Fig.1)
-Removethethreelockscrews(4)fromthetoprighthingeandremovethehinge
(3).(Fig.3)
-Fixthetoplefthinge(5)atthetopleftcornerwiththethreelockscrews(4).(Fig.4)
-Whileholdingthedoor, inserttheaxiscoreintothedoor’s(7)upperlefthinge
hole.Fixtheleftbottomhingesbyinsertingtheaxiscorefirstintothedoor’slower
lefthingehole(6).Thensecurethelowerlefthingetofinishthedoorreplacement.
(Fig.5)
V40BVCS3&BK
1.Lowerhinge(Right) 2.Screws 3.Dooraxis
4.Door 5.Tophinge(Right) 6.HingeScrews
7.Tophinge(Left) 8.Decorativenail 9.Lowerhinge(Left)
10.Doorlimitdevice 11.Screw
1.
Open
the
door
to
90
degree
angle,
take
out
the
2
screws
(2)
from
lower
door
axis
(3),
removethedoor(4),Removetheaxisplate(3)fromthedoor,(Fig.A).
2.
U
nscrew
the
screw
(11)
located
underneath
the
door
frame
and
the
limit
device
(10),
andrelocateitatleftendsideofthedoorframe.(Fig.A/B)
3.
Take
out
the
3
hinge
screws
(6)
from
the
top
hinge
(right)
(5)
and
remove
it.
(Fig.
C)
code:
VIM201604/BVC/01
10
4.
Remove
decorative
nail
(8)
from
left
top
of
cabinet
and
install
spare
top
hinge
(Left)
(7)
atlefttopofcabinetwith3screws.(Fig.D)
5.
Following
the
above
procedure,
install
the
spare
lower
hinge
to
the
left
(9).
(Fig.
E)
6.
I
nstall
and
aligned
the
door.
7.
Insert
the
plastic
caps
to
cover
the
holes(8).
V26BVC&V20BVC /S3/BK
1Lockscrews 2Lowerhinge(Right) 3Dooraxis
4Tophinge(Right) 5Door 6Cabinetbody
7Tophinge(Left) 8Lowerhinge(Left)
-Unscrewthelockscrews(1);(Fig.1)toremovethedooraxislocatedatthebottom.
- Whileholdingthedoorfirmly, pullthedoor(5)outwardandtakeitout;(Fig.2)
-Removethe3boltsandtakeouttherighttophinge(2);(Fig.3)
-FixthelefttophingeandthebottomlefthingewiththeboltsasperFig.4,
-Re-installthedoorthesamewayitwasremovedandfixbackthedooraxis.
code:
VIM201604/BVC/01
11
Ifitislefthinge,reversethedoorasthesameway.
V40/V26/V20SERIES
UNDER-BENCHINSTALLATIONINSTRUCTIONS
1.
Vintec
beverage
Center
dimensions:
V40
Height820mm – 860mm(40mmadjustablefeet)
Width595mm
Depth571mm+30mmstopper(Totalof601mm)
V26
Height820mm – 830mm(10mmadjustablefeet)
Width380mm
Depth572mm+30mmstopper(Totalof602mm)
V20
Height810mm – 830mm(10mmadjustablefeet)
Width295 – 300mm
Depth561– 592mm+30mmstopper(Totalof622mm)
2.
This
Vintec
Beverage
Center
is
not
designed
to
be
fully
integrated
behind
a
joinery
door.
3.
Please
note
that
:
ForV40aminimumcutoutwidthof615mmisrequiredtofacilitateinstallation,
removalandservicing.
ForV26aminimumcutoutwidthof400mmisrequiredtofacilitateinstallation,
removalandservicing.
ForV20aminimumcutoutwidthof320mmisrequiredtofacilitateinstallation,
removalandservicing.
4. Toprovidegoodperformancethiscabinetrequiresadequateventilation.TheVintec
BeverageCentercabinetrequires10mmclearanceonbothsides,ontop;and30mm
clearanceattherear.(Youmustfitthebackspacerprovided,itwillensurethe
minimum30mmclearanceattherear).Aventilationgridneedstobeinstalledin
this30mmclearanceareaattherear.Forgoodventilation,itisnecessarytoinstalla
grillwithaminimumsizeof200x40mmatthetopofthebackwalloroneitherside
atthetoprear – refertodiagramsonthefollowingpages.Thisistoallowcooler
freshairtoflowintothe30mmgapattherearofthecabinet.Theventilationgrill
mustnotbeinstalledclosetoanovenornexttoasealedareawithoutaccessto
freshcoolair.(DocallVintec’sServiceDepartmentforfurtherexplanation.Failure
tocomplywiththeabovespecificationscouldvoidtheWARRANTY.)
code:
VIM201604/BVC/01
12

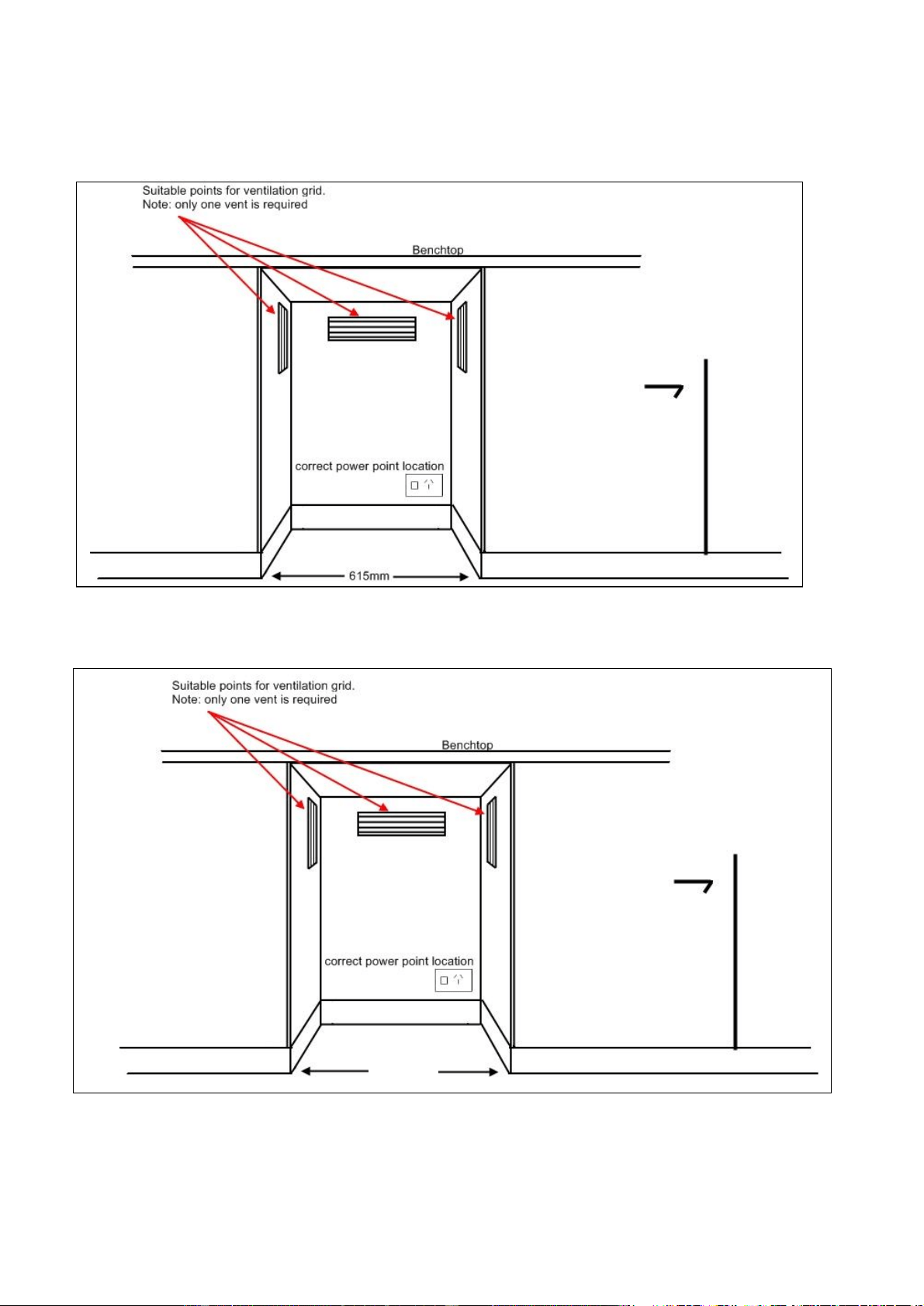

VENTSPECIFICATIONS
FrontView(V40)
FrontView(V26)
FrontView(V20)
400mm
code:
VIM201604/BVC/01
13
FrontView(V20)
FrontView(V20)
Crosssection
400mm
320mm
30mm *
ThisappliestoallV40&V20BVC
BK&S3models.
*only10mmrequiresfor
V
26
&V20&AL-V40BVC
etc
.
code:
VIM201604/BVC/01
14
5.
This
Vintec
Beverage
Center
is
front
venting.
The
cabinet
draws
air
from
the
front
andrearandexpelsthroughthegrillunderthedooratthefront.Ifajoinerykick
boardisbeingplacedinfrontoftheBeverageCenter,agrillofatleastthesame
widthastheBeverageCentergrillandwithaminimumairflowallowanceof
150cm2mustbeinstalledintothekickboard.
6.
This
unit
has
a
power
switch
located
on
the
control
panel.
Power
point
location
is
thereforenotcritical.
7.
This
unit
requires
a
standard
240
volt/10
amp
power
point.
8.
The
power
cord
is
1.9m
in
length
and
is
affixed
to
the
right
side
at
the
back
of
the
cabinet.
9.
As
with
most
appliances
of
today,
this
cabinet
has
sensitive
electronic
components
whicharesusceptibletodamagebylightningandelectricitysupplyfaults.Itis
thereforeadvisabletouseapowersurgeprotectortoavoidproblemsofthisnature.
10.
Please
see
detailed
dimensional
diagrams
in
the
preceding
pages.
Please
note:
The
precedingdiagramisforthe85mmplinthrecessmodels.
FurtherInstructions:
ThelocationyouhaveselectedforyourBeverageCentreshould:
-beunencumberedandwellventilated;
-bewellawayfromanyheatsourceanddirectsunlight;
-notbetoodamp(laundry,pantry,bathroometc.);
-haveaflatfloor;
-haveastandardandreliableelectricitysupply(standardsockettocountrystandards,
linkedtotheground).ItisNOTrecommendedtouseamulti-socketorextensionlead;
-haveasurgeprotectorfittedtotheelectricaloutlet;
-beawayfromthemicrowave;
Note:Certainmicrowaveovensdonothavewaveinterferenceshield.Whenplacedwithin
a1metervicinityoftheBeverageCenter,theymayaffecttheoperationofthewine
cabinet.
-donotcovertheglassdoorwithanyotherkindofdoor -thisunitCANNOTbe
integratedbehindjoinery
Notes: NotcomplyingwithanyoftheaboveinstructionsmayresultinWARRANTYvoid.
code:
VIM201604/BVC/01
15
Dimensionaldrawings:
V40BVCS3/BK
AL-V40BVC
10
30
31
30
555
525
30
555
525
30
10
10
850
820
615
595
10
Side View
Front View Top View
10
30
31
Side View
30
555
525
30
555
525
10
10
10
830
820
615
595
Front View Top View
10
code:
VIM201604/BVC/01
16
V26BVC
V20BVC
code:
VIM201604/BVC/01
17
V20BVCS3/BK
OPERATIONANOMALIES
Ensurethatthereispowertotheelectricalsupplyplugbyconnectinganotherelectrical
appliancetoit.Checkfuse,ifany.Makesurethatthedoorisclosedproperly.
Ifyourbeveragecenterappearstobemalfunctioning,unplugitandcontactyour
VINTEC’s aftersalesservice.Anyinterventiononthecoldcircuitshouldbeperformed
byarefrigerationtechnicianwhoshouldcarryoutaninspectionofthecircuitsealing
system.Similarly,anyinterventionontheelectricalcircuitshouldbeperformedbya
qualifiedelectrician.
Notes: AnyinterventionperformedbyanonauthorizedtechniciansbyVintecwillleadto
thewarrantybeingconsideredasnullandvoid.
POWERFAILURES
Intheeventofapowerinterruption,allprevioustemperaturesettingsareautomatically
erasedanditwillreverttoapresettemperaturesetting.(seepresetchart)
Mostpowerfailuresarecorrectedwithinashortperiodoftime.Anhourortwo’slossof
powerwillnotaffectyourbeveragecentertemperatures.Toavoidsuddenchangeof
temperaturewhilethepowerisoff,youshouldavoidopeningthedoor.Forlongerperiod
ofpowerfailure,dotakestepstoprotectyourbeverage.
524
295
30
850
820
10
10
30
30
554
30
524
554
Front View
Side View
Top View
315
code:
VIM201604/BVC/01
18
Irrespectiveofthecause,ifyounoticeeitherabnormaltemperatureorhumidity
levelsinsideyourbeveragecenter,bereassuredthatonlylongandfrequentexposure
totheseabnormalconditionscancauseadetrimentaleffectonyourbeverage.
TROUBLESHOOTINGGUIDE
Commonproblemsmayeasilybesolved,savingyouthecostofapossibleservicecall.
Pleasereadcarefullytheinstructionmanualandreverttotroubleshootingguidechart.
PROBLEM POSSIBLECAUSE
Beveragecenterdoesnotoperate. Notpluggedin.
Theapplianceisturnedoff.
The
circuit
breaker
tripped
or
the
fuse
is
broken.
Beveragecenterisnotcoldenough. Checkthetemperaturecontrolsetting.
Externalenvironmentmayrequireahighersetting.
Thedoorisopenedtoooften.
Thedoorisnotclosedcompletely.
The
door
gasket
does
not
seal
properly.
Turnsonandofffrequently. Theroomtemperatureishotterthannormal.
Alargeamountofcontentshasbeenaddedtothe
Beveragecenter.
Thedoorisopenedtoooften.
Thedoorisnotclosedcompletely.
Thetemperaturecontrolisnotsetcorrectly.
The
door
gasket
does
not
seal
properly.
Thelightdoesnotwork. Notpluggedin.
Thecircuitbreakertrippedorablownfuse.
Thelightisoutoforder.
The
light
button
is
“
OFF
”
.
Vibrations.
Check
to
assure
that
the
Beverage
Center
is
level.
TheBeveragecenterseemstomake
toomuchnoise.
Therattlingnoisemaycomefromtheflowofthe
refrigerant,whichisnormal.
Aseachcycleends,youmayheargurglingsounds
causedbytheflowofrefrigerantinyourBeverage
center.
Contractionandexpansionoftheinsidewallsmay
causepoppingandcracklingnoises.
TheBeverageCenterisnotlevel.
Thedoorwillnotcloseproperly. TheBeverageCenterisnotlevel.
Thedoorwasreversedandnotproperlyinstalled.
Thegasketisfaulty.(magnetorrubberisspoiled)
Theshelvesareoutofposition.
code: VIM201604/BVC/01
19
thesettemperature.
(0)
Unitswithnoheaterwillnotraiseitsinternaltemperatureiftheambienttemperaturewheretheunitislocatedislowerthanthesettemperature.
(1)
Subjecttochangesaccordinglytothevariousreferencesandmodelsmodifications.
(2)
Basedoncartonboxpackingdimensions/weight
Dimension: Actualappliancemeasurements,specificationsandratingsmayvaryslightlyduetotechnicalimprovementsandslightmanufacturingdifferences.
Whendimensionsarecriticalitisimportantthataneffectivecheckbemadeandtheaccompanyinginstructionsandinstallationmanualberead.
.
Technical
data
AL/S3/BK
V40BVC
（R600a）
V26BVC
（R600a）
V20BVC
(R600a)
AL/S3/BK
V40BVC
（R134a）
S3/BK
V20BVC
(R600a)
Models
Capacity
355
ml
140 74 54 140 53
Net
capacity
146L 81.2L 57L 146L 56L
Gas
charge
quantity
35g 30g 25g 70g 25g
Pre-set
temp
in
degrees
5 5 5 5 5
Adjustable
temp
in
degrees
2-10ºC 2-10ºC 2-10ºC 2-10ºC 2-10ºC
Power
Input
100W 85W 74W 140W 74W
Heater
(0)
-- -- -- -- --
Freestanding
or
Built-in
Built-in Built-in Built-in Built-in Built-in
N
º
of
shelf
:(1)
3 3 3 3 3
Ambienttempindegrees 5-35ºC 5-35ºC 5-35 ºC 5-35ºC 5-35 ºC
Net
dim
in
mm
WXDXH
595x572x820 380x572x820 300x592x810 595x572x820 295x561x820
Gross
dim
in
mm
WXDXH
(2)
655x665x875 415x625x845 335x640x840 655x665x875 340x630x860
Net
weight
44kg 34kg 28kg 44kg 28kg
Gross
weight
48kg 38kg 31kg 48kg 31kg
REFRIGERANT
R600a R600a R600a R134a R600a
code: VIM201604/BVC/01
20
Standardfeatures:
Compressoroperated:R600a
-Availableinratedvoltage/frequency(aspercountry'srequirements):
100V/50/60Hz,
220V/50/60Hz,115V/50Hz
-
Automatic
defrost
-
Humidi
t
y
:
65%
RH
+/-10%
RH
-
Black
outer
and
inner
finish
-
Internal
light
-
Adjustable
feet
x
4
-
Double
glass
door
with
3rd
acrylic
layer
-
Seamless
Stainless
Steel
door
frame
finish
for
“
S3
”
models
