Frigidaire FGEF4085TS gallery 40'' freestanding electric User Manual

All about the

Use & Care

of your

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Electric Range

808576301 Rev B (December 2016)

TABLE OF CONTENTS

Product Record and Registration . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . 9

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . 12

Before Setting Oven Controls . . . . . . . . . . . . . . . . 15

Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 33

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Product Record and Registration . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . . . 9

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . . . . 12

Before Setting Oven Controls . . . . . . . . . . . . . . . . . . 15

Oven Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Before You Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Thank you for choosing Frigidaire.

This Use and Care Guide is part of our commitment to

customer satisfaction and product quality throughout the

service life of your new appliance. We view your purchase

as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record

important product information.

Need Help?

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can

do to help us serve you better.

Read this Use & Care Manual

This manual contains instructions to help you use and

maintain your range properly.

If You Received a Damaged Range...

Immediately contact the dealer (or builder) that sold you the

range.

Save Time and Money

Check the section title “Before You Call”. This section helps

step you through some common problems that might occur.

If you do need service, help is only a phone call away. Call

Frigidaire Customer Services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our

ability to serve you. Register online at www.frigidaire.com

or by dropping your Product Registration Card in the mail.

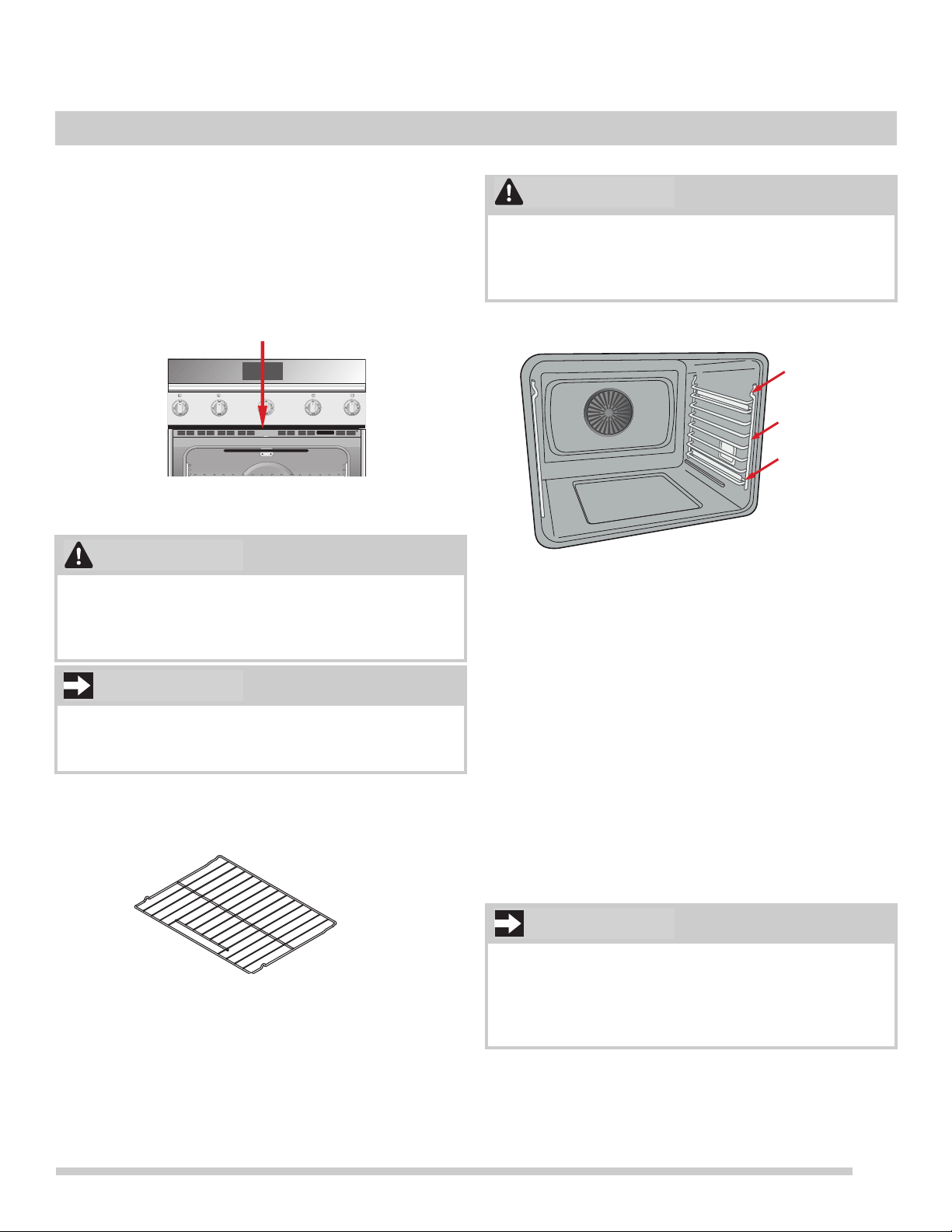

Serial Plate Location:

The serial plate is located on top of the range’s lower front

panel, and can be clearly viewed when door is open.

Record model & serial numbers here

Purchase Date

Frigidaire model number

Frigidaire serial plate number

Fig. 1 Model, serial number location

PRODUCT RECORD AND REGISTRATION

Questions?

For toll-free telephone support in the U.S. and Canada call

1-800-944-9044

For online support and Internet production information visit

www.frigidaire.com.

Read all instructions before using this appliance.

This manual contains important safety symbols

and instructions. Please pay attention to these

symbols and follow all instructions given.

Do not attempt to install or operate your appliance

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a WARNING or CAUTION statement

based on the risk type.

Warnings and important instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur.

Common sense, caution, and care must be

exercised with installing, maintaining, or operating

your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol

to avoid possible injury or death.

Indicates a potentially hazardous situation

which, if not avoided, may result in death or

serious injury.

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

Indicates installation, operation, maintenance,

or valuable information that is not hazard

related.

Indicates a short, informal reference-something

written down to assist the memory or for future

reference.

WARNING

CAUTION

IMPORTANT

NOTE

WARNING

Tip Over Hazard

Range

leveling leg

Anti-tip

bracket

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device has

been installed to floor or wall.

• Ensure the anti-tip device is re-engaged to floor

or wall when the range is moved.

• Do not operate the range without the anti-tip

device in place and engaged.

• Failure to follow these instructions can result in

death or serious burns to children and adults.

To check if the anti-tip bracket is installed properly, use

both arms to grasp the rear edge of the range back.

Carefully attept to tilt range forward. When properly

installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions

supplied with your range for proper installation.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR UNPACKING

AND INSTALLATION

• Remove all tape and packaging before using

the appliance. Destroy the carton and plastic

bags after unpacking the appliance. Never

allow children to play with packaging material.

Do not remove the wiring label and other liter-

ature attached to the range. Do not remove

model/serial number plate.

• Cold temperatures can damage the electronic

control. When using this appliance for the first

time, or when the appliance has not been

used for an extended period of time, be sure

the appliance has been in temperatures above

32ºF (0ºC) for at least 3 hours before turning

on the power to the appliance.

• Never modify or alter the construction of the

appliance by removing the leveling legs,

panels, wire covers, anti-tip brackets/screws,

or any other part of the appliance.

• Be sure to have an appropriate foam-type fire

extinguisher available, visible, and easily

accessible located near the appliance.

GROUNDING INSTRUCTIONS

Proper Installation—Be sure your appliance is

properly installed and grounded by a qualified

technician. In the United States, install in accor-

dance with the National Fuel Gas Code ANSI

Z223.1/NPFA No. 54, latest edition and National

Electrical Code NFPA No. 70 latest edition, and

local electrical code requirements. In Canada,

install in accordance with CAN/CGA B149.1 and

CAN/CGA B149.2 and CSA Standard C22.1,

Canadian Electrical code, Part 1-latest editions

and local electrical code requirements. Install only

per installation instructions provided in the litera-

ture package for this appliance.

For personal safety, this appliance must be

properly grounded. For maximum safety, the

power cord must be securely connected to an

electrical outlet or junction box that is the correct

voltage, is correctly polarized and properly

grounded, and protected by a circuit breaker in

accordance with local codes.

It is the personal responsibility of the consumer to

have the appropriate outlet or junction box with

the correct, properly grounded wall receptacle

installed by a qualified electrician. It is the respon-

sibility and obligation of the consumer to contact a

qualified installer to assure that the electrical

installation is adequate and is in conformance

with all local codes and ordinances.

This appliance is equipped with a 4-prong

grounding plug for your protection against shock

hazard and should be plugged directly into a

properly grounded receptacle. Do not cut or

remove the grounding prong from this plug.

See the installation instructions packaged with

this appliance for complete installation and

grounding instructions.

Read and follow the below instructions and

precautions for unpacking, installing, and

servicing your appliance:

Avoid fire hazard or electrical shock. Failure to

follow this warning may cause serious injury,

fire, or death.

Avoid fire hazard or electrical shock. Do not use

an adapter plug, use an extension cord, or

remove grounding prong from the power cord.

Failure to follow this warning may cause serious

injury, fire, or death.

IMPORTANT

WARNING

240V grounded

wall receptacle

Power supply

cord with 4-prong

grounding plug

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING THE

APPLIANCE

• Storage In or On Appliance—Flammable

materials should not be stored in an oven,

near surface elements, or in the warmer

drawer (if equipped). This includes paper,

plastic, and cloth items, such as cookbooks,

plastic ware, and towels, as well as

flammable liquids. Do not store explosives,

such as aerosol cans, on or near the range.

• Do not leave children alone - Children

should not be left alone or unattended in the

area where the appliance is in use. They

should never be allowed to sit or stand on

any part of the appliance, including the

storage drawer, lower broiler drawer, or

lower double oven.

• Do not store items of interest to children in

the cabinets above the range. Children

climbing on the range to reach items could

be seriously injured.

• Do not allow children to climb or play around

the appliance. The weight of a child on an

open oven door may cause the appliance to

tip, resulting in serious burns or other injury.

An open drawer when hot may cause burns.

• Do not store items of interest to children in

the cabinets above the range. Children

climbing on the range to reach items could

be seriously injured.

• Stepping, leaning, or sitting on the door or

drawers of this appliance can result in

serious injuries and also cause damage to

the appliance.

WARNING

• Never cover any slots, holes, or passages in

the oven bottom or cover an entire oven rack

with materials such as aluminum foil or after-

market oven liners. Aluminum foil linings

may trap heat, causing a fire hazard.

• Do not use oven or warmer drawer (if

equipped) for storage.

• Never use your appliance as a space heater

to heat or warm the room. Doing so may

result in carbon monoxide poisoning and

overheating of the appliance.

• When heating fat or grease, watch it closely.

Grease may catch fire if it becomes too hot.

• Do not use water or flour on grease fires.

Smother fire or flame or use dry chemical or

foam-type extinguisher. Cover the fire with a

pan lid or use baking soda.

• Use dry potholders. Moist or damp

potholders on hot surfaces may result in

burns from steam. Do not let potholders

touch hot cooking areas. Do not use towels

or other bulky cloths.

• Do not heat unopened food containers -

Build-up of pressure may cause container to

burst and result in injury.

• Wear proper apparel - Loose-fitting or

hanging garments should never be worn

while using the appliance. Do not let clothing

or other flammable materials contact hot

surfaces.

WARNING

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR

RADIANT COOKTOP

• Know which knob or key controls each surface

heating area. Place cookware with food on the

cooking area before turning it on. Turn the

cooking area off before removing the

cookware.

• Cookware handles should be turned inward

and not extend over adjacent surface

elements — To reduce the risk of burns,

ignition of flammable materials, and spillage

due to unintentional contact with the utensil,

the handle of the cookware should be posi-

tioned so that it is turned inward, and does not

extend over other cooking areas.

• Use proper pan size - This appliance is

equipped with one or more surface units of

different sizes. Select cookware with flat

bottoms that match the surface unit size.

Using the proper cookware on the cooking

area will improve efficiency.

• Glazed cooking utensils— Only certain types

of glass, glass/ceramic, ceramic, earthenware,

or other glazed utensils are suitable for

cooktop service without breaking due to the

sudden change in temperature. Check the

manufacturer’s recommendations for cooktop

use.

• Improper cookware may break due to sudden

changes in temperature. Check the cookware

manufacturer’s recommendations for cooktop

use.

• Never leave surface elements unattended.

Boil-overs may cause smoking and greasy

spills that may ignite. A pan that has boiled dry

could be damaged and may damage the

cooktop.

• Do not use a searing grill meant for use with a

broiler pan on the cooktop. The searing grill is

not designed for use on the cooktop. Doing so

may result in a fire.

• When you are flaming foods under a venti-

lating hood, turn on the fan.

IMPORTANT INSTRUCTIONS FOR GLASS AND

CERAMIC COOKTOPS

• Do Not Clean or Operate a Broken Cooktop. If

cooktop should break, cleaning solutions and

spillovers may penetrate the broken cooktop

and create a risk of electric shock. Contact a

qualified technician immediately.

• Clean cooktop glass with caution. If a wet

sponge or cloth is used to wipe spills on a hot

cooking area, be careful to avoid a steam

burn. Some cleaners can produce harmful

fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with sharp

objects.

• Do not touch surface elements or elements,

areas near these burners or elements,

interior surfaces of the oven, or the warmer

drawer (if equipped). Surface burners and

elements may be hot even though they

appear cool. Areas near surface burners and

elements may become hot enough to cause

burns. During and after use, do not touch, or

let clothing or other flammable materials

touch these areas until they are cool. These

areas may include the cooktop, surfaces

facing the cooktop, oven vent areas, oven

door, and oven window.

• Do not attempt to operate the appliance

during a power failure. If the power fails,

always turn off the appliance. If the

appliance is not turned off and the power

resumes, electric surface elements may

resume operation when power is restored.

Once the power resumes, reset the clock

and the oven function.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

• Protective liners—Do not use aluminum foil,

aftermarket oven liners, or any other materials

or devices to line oven bottom, oven racks, or

any other part of the appliance. Only use

aluminum as recommended for baking, such

as lining cookware or as a cover placed on

food. Any other use of protective liners or

aluminum foil may result in a risk of electric

shock or fire or a short circuit.

• Use care when opening oven door, lower oven

door, or warmer drawer (some models). Stand

to the side of the appliance when opening the

door of a hot oven. Let hot air or steam escape

before you remove or replace food in the

oven.

• Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or

heat-sensitive items on or near the oven vent.

These items can melt or ignite.

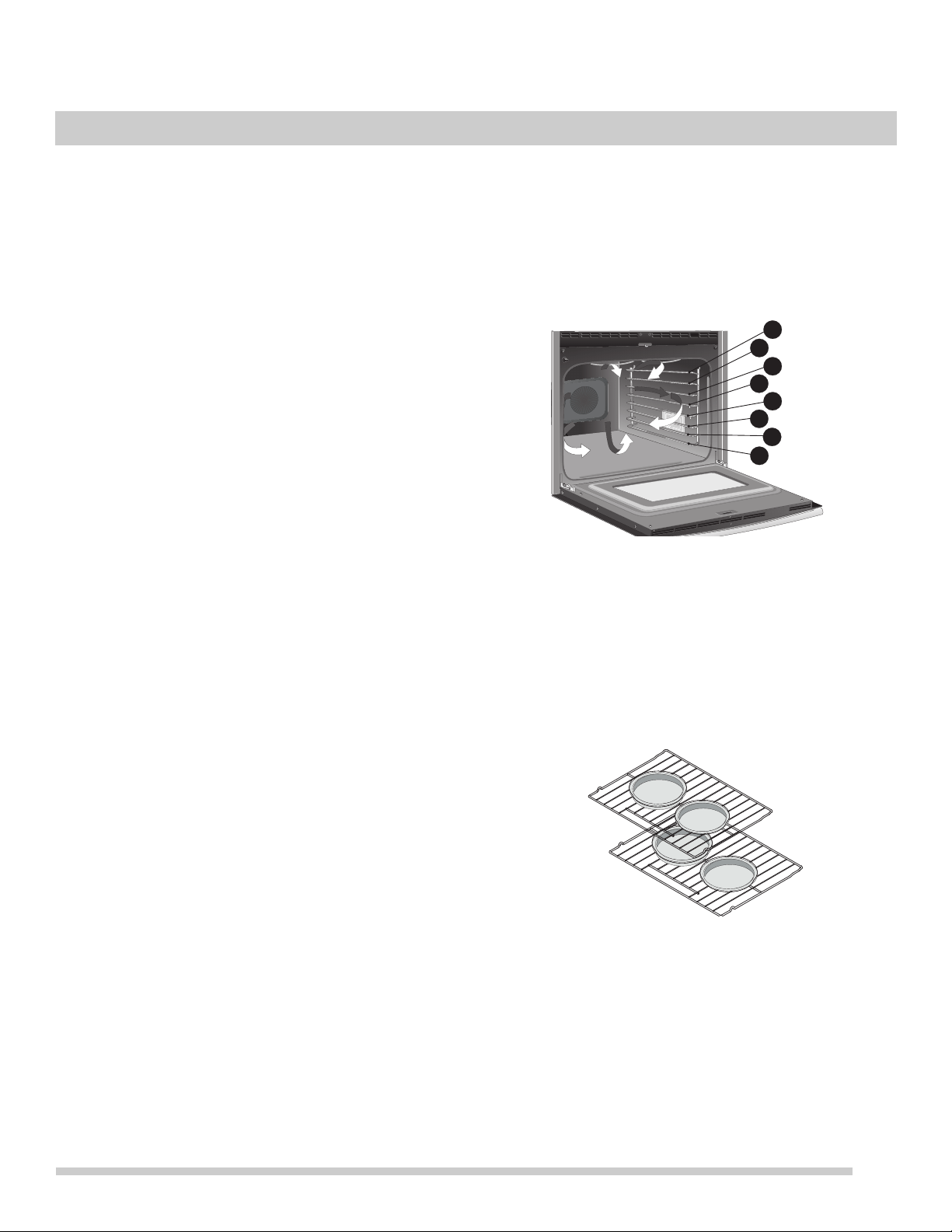

• Placement of oven racks - Always place oven

racks in desired location while oven is cool. If

rack must be moved while oven is hot, do not

let potholder contact hot burner or element in

oven. Use potholders and grasp the rack with

both hands to reposition. Remove all

cookware and utensils before moving the rack.

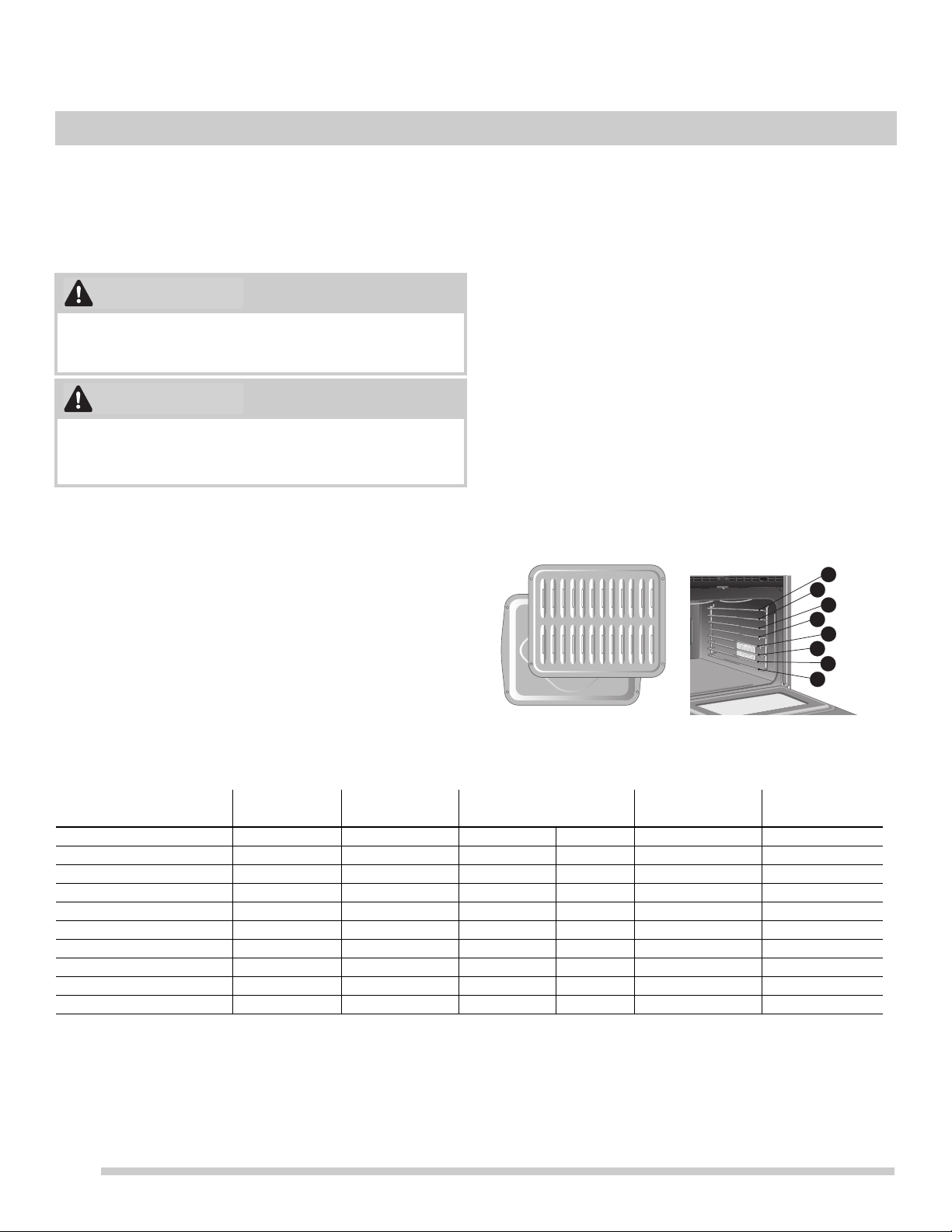

• Do not use a broiler pan without its insert.

Broiler pans and inserts allow dripping fat to

drain away from the high heat of the broiler.

Do not cover the broiler insert with aluminum

foil; exposed fat and grease could ignite.

• Do not cook food on the oven bottom. Always

cook in proper cookware and always use the

oven racks.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR APPLIANCE

• Clean the appliance regularly to keep all parts

free of grease that could catch fire. Do not

allow grease to accumulate. Greasy deposits

in the fan could catch fire.

• Always follow the manufacturer’s recom-

mended directions for use of kitchen cleaners

and aerosols. Be aware that excess residue

from cleaners and aerosols may ignite causing

damage and injury.

• Clean ventilating hoods frequently - Grease

should not be allowed to accumulate on the

hood or filter. Follow the manufacturer’s

instructions for cleaning vent hoods.

Before manually cleaning any part of the appli-

ance, be sure all controls are turned off and the

range is cool. Cleaning a hot oven can cause

burns.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR SELF

CLEANING OVENS

• Do not clean the oven door gasket. The door

gasket is essential for a good seal. Care

should be taken not to rub, damage, or move

the gasket.

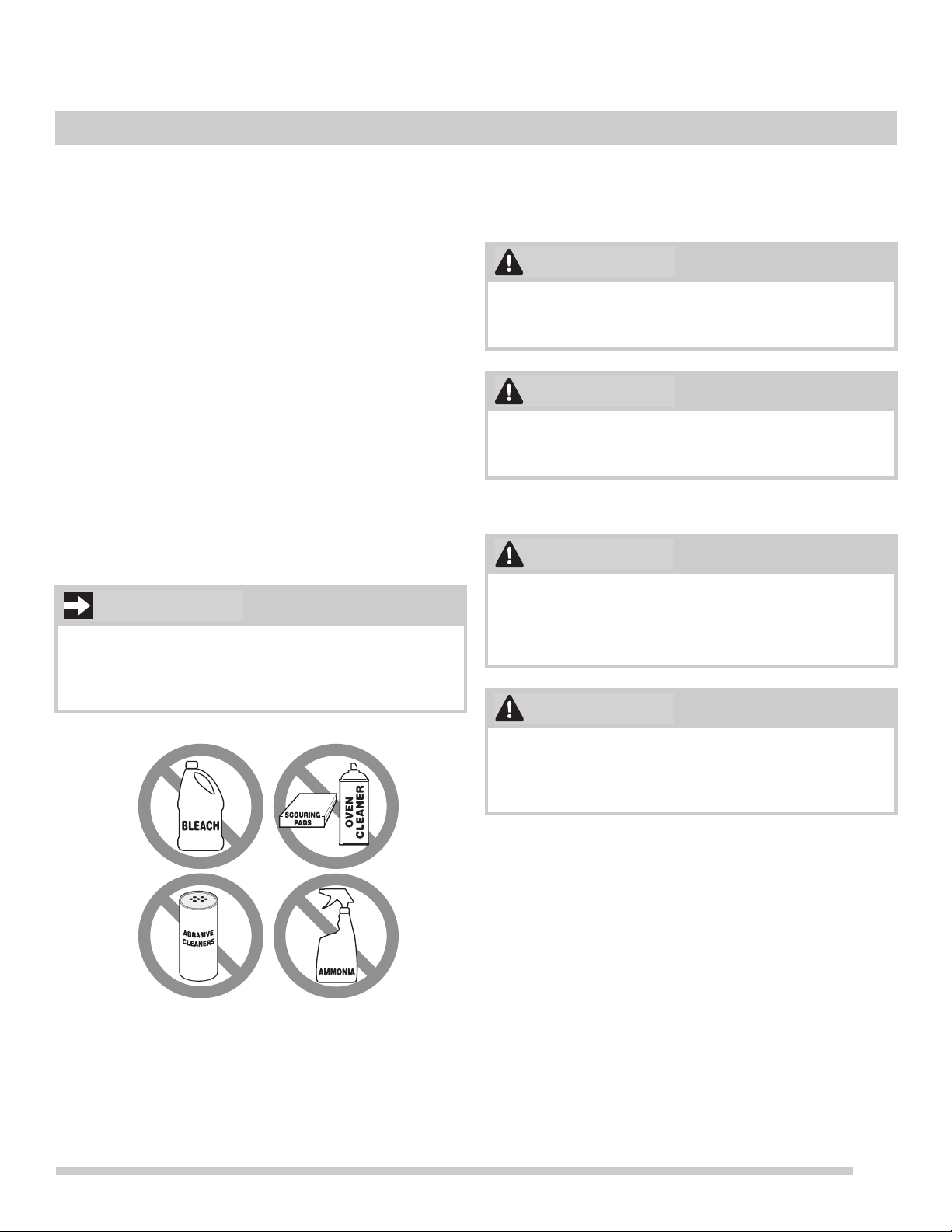

• Do not use oven cleaners. No commercial

oven cleaner or oven liner protective coating

of any kind should be used in or around any

part of the appliance.

• Use the self clean cycle to clean only the parts

listed in this manual.

• Before using self clean, remove the broiler

pan, any food, utensils, and cookware from

the oven, storage drawer or warming drawer

(if equipped). Remove oven racks unless

otherwise instructed.

• Some birds are extremely sensitive to the

fumes given off during the self clean cycle of

any oven. Move birds to another well-venti-

lated room.

IMPORTANT INSTRUCTIONS FOR SERVICE AND

MAINTENANCE

• Do not repair or replace any part of the

appliance unless specifically recommended in

the manuals. All other servicing should be

done only by a qualified technician. This

reduces the risk of personal injury and

damage to the appliance.

• Always contact your dealer, distributor, service

agent, or manufacturer about problems or

conditions you do not understand.

• Ask your dealer to recommend a qualified

technician and an authorized repair service.

Know how to disconnect the power to the

appliance at the circuit breaker or fuse box in

case of an emergencY.

• Remove the oven door from any unused oven

if it is to be stored or discarded.

• Do not touch a hot oven light bulb with a damp

cloth. Doing so could cause the bulb to break.

Handle halogen lights (if equipped) with paper

towels or soft gloves. Disconnect the

appliance or shut off the power to the

appliance before removing and replacing the

bulb.

• Important Safety Notice - The California Safe

Drinking Water and Toxic Enforcement Act

requires the governor of California to publish

a list of substances known to cause cancer,

birth defects, or other reproductive harms,

and requires businesses to warn customers

of potential exposures to such substances.

IMPORTANT

Using Proper Cookware

Check for flatness by rotating a ruler across the bottom of

the cookware (See

Figure 2). Cookware should have flat

bottoms that make good contact with the entire surface

heating element (See

Figure 3). For detailed information

about the ceramic cooktop, refer to “Cooktop Maintenance”

on page 35.

Cookware Material Types

The cookware material determines how evenly and quickly

heat is transferred from the surface element to the pan

bottom. The most popular materials available are:

• Aluminum - Excellent heat conductor. Some types of

food will cause it to darken (Anodized aluminum

cookware resists staining and pitting). If aluminum pans

slide across the ceramic cooktop, they may leave metal

marks which will resemble scratches. Remove these

marks immediately.

• Copper - Excellent heat conductor but discolors easily

(See Aluminum).

• Stainless - Slow heat conductor with uneven cooking

results. Is durable, easy to clean and resists staining.

• Cast Iron - A slow heat conductor however will retain

heat very well. Cooks evenly once cooking temperature

is reached. Not recommended for use on ceramic

cooktops.

• Porcelain-enamel on metal - Heating characteristics will

vary depending on base material. Porcelain-enamel

coating must be smooth to avoid scratching ceramic

cooktops.

• Glass - Slow heat conductor. Not recommended for

ceramic cooktop surfaces because it may scratch the

glass.

The size and type of cookware

used will influence the radiant

element power level setting

needed for best cooking results.

Be sure to follow the recommen

dations for using proper cook-

ware as illustrated in Figure 2 and

Figure 3.

Figure 2: Testing cookware

Figure 3: Proper cookware

• Flat bottom and straight

sides.

• Tight ﬁtting lids.

• Weight of handle does

not tilt pan. Pan is well

balanced

• Pan sizes match the

amount of food to be

prepared and the size

of the surface element.

• Made of material that

conducts heat well.

• Easy to clean.

• Always match pot

diameter to element

size.

• Curved and warped pans.

• Cookware larger than

cooking area marked on

cooktop by more than

one-half inch or 12mm.

• Heavy handle tilts pan.

• Pan is smaller than the

heating area marked on

cooktop.

Do not place empty aluminum, glass or porcelain-enamel

coated cookware on the ceramic cooktop! The melting

point of cookware made with these materials may be

reached quickly especially if left empty, and they may

bond to the ceramic cooktop. If the cookware melts it will

damage the cooktop. Be sure to follow all the cookware

manufacturer’s suggestions when using any type of

cookware on the ceramic cooktop.

IMPORTANT

BEFORE SETTING SURFACE CONTROLS

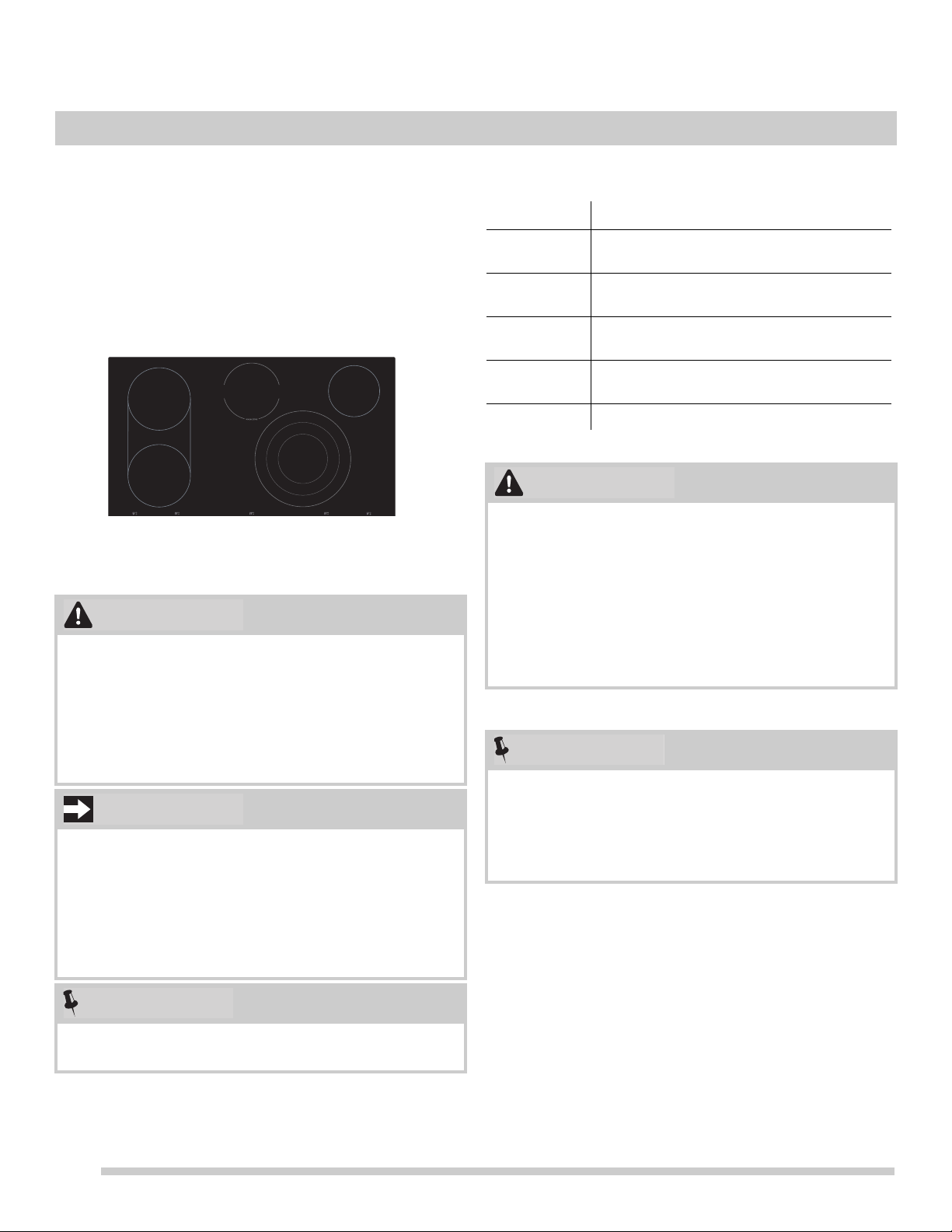

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located

below the surface of the glass. The design of the ceramic

cooktop outlines the area of the surface element under

neath. Be sure to match the pan size with the diameter of

the element outline on the cooktop and only flat-bottomed

cookware should be used.

The type and size of cookware, the number of surface

elements in use and their settings are all factors that will

affect the amount of heat that will spread to areas beyond

the surface elements. The areas surrounding the elements

may become hot enough to cause burns.

About the Radiant Surface Elements

The element temperature rises gradually and evenly. As the

temperature rises, the element will glow red. To maintain

the selected setting the element will cycle on and off. The

heating element retains enough heat to provide a uniform

and consistent heat during the off cycle.

For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat to

complete the cooking process.

Element On and Hot Surface Indicator Lights

When an element is turned on the ELEMENT ON indicator

light will glow. The HOT SURFACE indicator light will turn

on when the element is hot enough to cause burns and will

remain on until the surface has cooled to a safe tempera

ture after the element is turned off. The ELEMENT ON

indicator light will glow when one or more elements are

turned on. A quick glance at these indicator lights when

cooking is finished is an easy check to be sure all surface

elements are turned off.

• The cooktop should not be used as a cutting board or

work surface. Dropping heavy or hard objects on the

cooktop may crack it.

• Pans with rough bottoms may scratch the cooktop

surface. Placing food directly on the smoothtop

surface (without cooking utensil) is not recommended

as difficult cleaning will result and foods may smoke

and cause potential fire hazard.

• Always lift cookware before moving on ceramic glass

cooktop. Any cookware that has rough or dirty

bottoms can scratch the ceramic cooktop. Always

start with clean cookware.

Do not allow aluminum foil, or any material that can melt,

to make contact with the ceramic glass cooktop. If these

items melt on the cooktop, they will damage the ceramic

cooktop.

Radiant elements may be hot after they appear to have

cooled but the glass surface may still be hot and burns

may occur if the glass surface is touched before the

indicator light has turned off.

IMPORTANT

CAUTION

Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the

HI setting is normal and can occur if the cookware is too

small for the radiant element or if the cookware bottom is

not flat.

Be sure to read detailed instructions for ceramic glass

cooktop cleaning in the General Care & Cleaning section

and Before You Call checklist section of this Use and

Care Guide.

• The element on and hot surface indicator lights will

glow when the element is turned on and will continue

to glow after the control knob is turned to the OFF

position. It will glow until the heating surface area has

cooled sufficiently.

Figure 4: The Element On indicator glows when any

element is on. The Hot Surface indicator light is on as long

as the surface is hot enough to cause burns.

NOTE

Element On Hot Surface

BEFORE SETTING SURFACE CONTROLS

Home Canning

‘

Be sure to read and observe all the following points when

home canning with your appliance. Check with the USDA

(United States Department of Agriculture) Web site and be

sure to read all the information they have available as well

as follow their recommendations for home canning proce

dures.

Home Canning Do’s and Don’ts

• Use only quality flat bottom canners when home

canning.

• Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home

canning. Heat is spread more evenly when the bottom

surface is flat.

• Make sure the diameter of the canner does not exceed

1 inch beyond the surface element markings.

• It is recommended to use smaller diameter canners on

ceramic glass cooktops and to center canners on the

element.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat seating when first bringing the

water to a boil. Once boiling is achieved, reduce heat to

lowest possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully.

Check with your local Cooperative Agricultural

Extension Service or a manufacturer of glass jars for

the latest canning information.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high

heat for an extended amount of time.

• Alternate surface units between each batch to allow the

units and surrounding surfaces to cool down. Try to

avoid canning on the same element unit all day.

Canning can generate large amounts of steam. Use

extreme caution to prevent burns. Always raise the lid to

vent steam away from you. Safe canning requires that

harmful micro-organisms are destroyed and the jars are

sealed completely. When canning in a water bath canner,

a gentle but steady boil must be maintained continuously

for the required time.

CAUTION

Surface Control Settings

The size and type of cookware used, and the amount and

type of food being cooked will influence the surface element

power level setting needed for best cooking results. Once

an element is heating it will cycle on and off to maintain the

heat setting. The element on indicator light will glow once a

element is turned on.

Use Table 1 to determine the correct setting for the type of

food you are preparing.

Figure 5: Cooktop showing bridge element (L) and triple

element right front. Warmer zone middle (rear).

Radiant surface elements may appear to have cooled

after they have been turned off. The hot surface light will

turn on and will continue to glow until the glass cooktop

has cooled down to a moderate level.

The glass surface may still be hot and burns may occur if

the glass surface is touched before the hot surface

indicator light has turned off.

• Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking. A

glowing red surface heating area extending beyond

the bottom edge of the cookware indicates the

cookware is too small for the surface heating area.

• Never straddle cookware between two surfaces

unless designed for that purpose.

The size and type of cookware used will influence the

setting needed for best cooking results.

CAUTION

IMPORTANT

NOTE

Table 1: Recommended settings for surface elements

Setting Type of Cooking

HIGH (HI) Start most foods; bring water to a boil and pan

broiling.

MEDIUM

HIGH (8-10)

Continue a rapid boil; frying, deep fat frying

MEDIUM (6) Maintain a slow boil; thicken sauces and

gravies; steaming vegetables

MEDIUM LOW

(2-4)

Keep foods cooking; poaching and stewing

LOW (LO) Keep warm, melting and simmering

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

The surface control knobs do not have to be set exactly

on a particular spot. Use the graphics provided as a guide

and adjust the control knob as needed.

Each surface element provides a constant amount of heat

at each setting. Refer to

Table 1 for suggested settings.

CAUTION

NOTE

SETTING SURFACE CONTROLS

Single Radiant Element

The cooktop has three single radiant surface elements: the

left rear and left front elements, and the right rear element.

The left front element may also be used with the bridge

element. The triple element also has a single element

setting for smaller cookware.

To operate a single element:

1. Place correctly sized cookware on the surface element.

2. Push in and turn the surface control knob in either

direction to the desired setting (See

Figure 6). Start

most cooking operations on a higher setting and then

turn to a lower setting to finish cooking. Each surface

element provides a constant amount of heat at each

setting. A glowing red surface heating area extending

beyond the bottom edge of the cookware indicates the

cookware is too small for the surface heating area.

3. When cooking has completed, turn the surface control

knob to OFF before removing the cookware.

Triple Surface (expandable) Element (some

models)

The expandable element can accommodate 6 inch, 9 inch,

or 12 inch cookware. The triple element is especially useful

for canning or heating large amounts of water.

To operate the triple surface element:

1. Place correctly sized cookware on the triple surface

element.

2. Push in and turn the control knob to the element size

that best fits the cookware. (See

Figure 7).

3. Turn the knob to adjust the setting if needed. Start most

cooking operations on a higher setting and then turn to

a lower setting to finish cooking. Each surface element

provides a constant amount of heat at each setting. A

glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

4. When finished cooking, turn the control knob to OFF

before removing the cookware.

Figure 6: Control knob single surface element

Radiant surface elements may appear to have cooled

after they have been turned off. The hot surface indicator

light will turn on and will continue to glow until the glass

cooktop has cooled down to a moderate level. The glass

surface may still be hot and burns may occur if the glass

surface is touched before the indicator light has turned

off. The message may remain on even though the

controls are turned off.

CAUTION

Figure 7: Triple element control

Figure 8: Triple element options.

SETTING SURFACE CONTROLS

Warmer Zone

Use the feature to keep cooked foods hot such as vegeta-

bles, gravies, casseroles, soups, stews, breads, and

pastries at serving temperature.

Always start with hot food. Do not heat cold food on the

warmer zone. All food placed on the warmer zone should

be covered with a lid to maintain quality.

For best results, when warming pastries or breads, the

cover should have an opening to allow moisture to escape.

Do not use plastic wrap to cover food. Plastic may melt onto

the surface and be very difficult to clean.

To set the warmer zone control:

1. Turn the warmer zone control knob clockwise to the

desired heat setting. The warmer zone is designed to

keep foods at serving temperature.

2. When ready to serve, turn the warmer zone control

knob to the off position. The warmer zone will remain

hot until the hot surface indicator light turns off. The

warmer zone is on when the indicator light is on,

Bridge Control

On the left side of the cooktop there are two single elements

with a bridge element between them. When turned on, the

bridge control allows for a larger cooking area by cycling at

the same temperature as the left front element and can

accommodate specialized cookware.

To operate the bridge element:

1. Turn the control knob clockwise to activate the front

element and the bridge element.

2. To turn on the front element only, turn the control knob

counter-clockwise to the desired setting.

3. When the bridge element is active, it will maintain the

same heat setting as the left front element.

The warmer zone will not glow red when it is hot, but

becomes hot enough to cause burns. Avoid placing

hands on or near the warmer zone until the hot surface

indicator light is off. Always use potholders or oven mitts

when removing food from the warmer zone as cookware

and plates will be hot.

Figure 9: Warmer zone control knob

Food Poisoning Hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

CAUTION

WARNING

Figure 10: Bridge control

Use only cookware specifically designed for use with the

bridge element.

Heating with front and

bridge elements

Heating with front

element only

Heating with front, bridge and rear elements on

Areas that heat are shown darkened.

CAUTION

Oven Vent Location

When the oven is on, warm air is released through the vent.

This venting is necessary for proper air circulation in the

oven and good baking results. Do not block oven vent.

Never close off the openings with aluminium foil or any

other material. Steam or moisture may appear near the

oven vent. This is normal.

Type of oven racks

Flat handle racks may be used for most cooking needs

and may be placed in most oven rack positions.

Ladder Racks and Support

Important: When installing ladder racks be sure the hook

end is near the top of the oven cavity.

Removing, replacing, and arranging flat or offset

oven racks

To arrange - Always arrange the oven racks when the oven

is cool (prior to operating the oven).

To remove - For ease of removal, racks should not be

placed in adjacent rack positions. Pull the oven rack straight

forward until it reaches the stop position. Lift up front of

oven rack slightly and slide out.

To replace - Place the oven rack on the rack guides on

both sides of oven walls. Tilt the front of oven rack upward

slightly and slide the oven rack back into place. Be sure

oven racks are level before using.

Figure 11: Do not block oven vent location

Protective Liners — Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in

this manual. Improper installation of these liners may

result in risk of electric shock or fire.

Remove all oven racks and clean according to instruc-

tions provided in the Care & Cleaning section of this

manual. Never pick up hot oven racks or parts.

Figure 12: Oven rack types

oven vent

WARNING

IMPORTANT

at handle

oven rack

Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior and exterior, oven

racks, and cooktop will become very hot which can cause

burns.

Figure 13: Install ladder racks securely on ladder rack

supports

Do not line the oven walls, racks, bottom or any other

parts of the range with aluminum foil. Doing so will alter

heat distribution and may cause permanent damage to

the oven interior. During self clean the oven temperatures

will be hot enough to melt foil.

CAUTION

Ladder racks

Ladder rack

supports

Hook end

IMPORTANT

BEFORE SETTING OVEN CONTROLS

OVEN CONTROLS

1. Self Clean - Use to select 2, 3, or 4 hr Self-Clean cycle.

2. Add a Minute - Use to add one minute to the timer. This

works with the kitchen timer and does not affect any

cook time or start time functions.

3. Delay Start - Use with Bake, Convection Bake,

Convection Convert, and Self Clean functions to

program a delayed start time.

4. Bake Time - Use to set a specific amount of time

needed for cooking. Automatically cancels cooking

process at end of set time.

5. Set Clock - Use to set time of day.

6. Timer on/off - Use to set and cancel the timer.

7. Light - Use to turn internal oven light on and off.

8. Lock - Use to lock oven door and oven controls. Will not

affect operation of surface elements.

9. Probe - Use to cook meat and poultry to the perfect

internal temperature automatically.

10. Quick preheat - Use to quickly raise oven to preheat

temperature.

11. Keep Warm - Maintains low heat to keep food warm at

serving temperature.

12. Convect Convert - Use to select the convection

convert function.

13. Bake - Use to start a normal Bake function.

14. Convect - Use to toggle between convection bake,

convection roast, and convection broil.

15. Broil - Use to select Broil function.

16. Start - Use to start oven functions.

17. Off - Use to cancel any oven function previously

entered except clock and timer.

Minimum and maximum settings

All of the features listed have minimum and maximum time

and temperature settings that may be entered into the

control. An entry acceptance beep will sound each time a

key is touched. An entry error tone (three short beeps) will

sound if the entry of the temperature or time is below the

minimum allowable setting or above the maximum setting

for the cooking feature.

456

789

123

timerset

clock

delay

start

bake

time

add

a min

bake broilconvect

quick

preheat

convect

convert

probe

keep

warm

self

clean

10 11 12

14 15

16 17

Feature Min. Temp or Time Max. Temp or Time

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Quick Preheat 170°F (77°C) 550°F (288°C)

Convect Broil 400°F (205°C) 550°F (288°C)

Convect Roast 170°F (77°C) 550°F (288°C)

Convect Bake 170°F (77°C) 550°F (288°C)

Self Clean 2 Hours 4 Hours

Keep Warm 170°F (77°C) 3 Hours

Bake Time 1 Minute 5:59

Delay Time 12 Hr. 1:00 12:59

Delay Time 24 Hr. 0:00 23:59

Probe 140°F(60°C) 210°F(99°C)

Timer 1 minute 11 hrs. 59 mins.

Clock 12 Hr. 1:00 12:59

Clock 24 Hr. 0:00 23:59

OVEN CONTROLS

Setting the Clock

When the appliance is first powered up, 12:00 will flash in

the display (

Figure 14). The time of day must first be set

before operating the oven.

To set clock to 1:30:

1. Press set clock.

2. Enter 1 3 0 using numeric keypad.

3. Press start.

Note: The clock cannot be changed when a Bake Time,

Self Clean, Delay Start, or cooking feature is active.

Setting 12 Hour or 24 Hour display mode

The clock display mode allows you to select 12 hr or 24 hr

modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold set clock for 6 seconds.

2. Press self clean to toggle between 12 Hr day or 24 Hr

day display modes (

Figure 15).

3. Press start to accept the choice.

Setting Timer

The minute timer allows you to track your cooking times

without interfering with the cooking process. The timer may

be set from a minimum time of 1 minute to a maximum of 11

hours and 59 minutes.

To set timer for 5 minutes:

1. Press Timer ON/OFF.

2. Enter 5 using numeric keypad.

3. Press start to start the timer. When set time ends, END

will show in the display and the control will sound a

beep three times every 30 seconds until Timer ON/OFF

key is pressed.

To cancel the timer when active, press Timer ON/OFF

again.

Important note:

• The timer does not start or stop the cooking process. It

serves as an extra minute timer that will beep when the

set time has run out. The timer may be used alone or

while using any of the other oven functions.

• When timer is set for more than 1 hour it will display

hours and minutes until 1 hour remains. When less than

1 hour remains, the display counts down in minutes and

seconds. With less than 1 minute remaining, only

seconds will display.

• If the timer is active during a cooking process, the timer

will show in the display. To view the status of any other

active oven function, press the key of the cooking

function once and it will appear in the display for a few

seconds.

Add a Min

Use the add a min feature to set additional minutes to the

timer. Each press of the key will add 1 additional minute. If

add a min is pressed when the timer is not active, the timer

will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press add a min twice.

Figure 14: 12:00 in display before setting the clock

Figure 15: 12 Hr day and 24 Hr day settings

OVEN CONTROLS

Changing between continuous bake setting or 6 hour

energy saving

The oven control has a factory preset built-in 6 Hour Energy

Saving feature that will turn off the oven if the oven is left on

for more than 6 hours. The control may be programmed to

override this feature to bake continuously.

To change between continuous bake or 6 hour energy

saving feature:

1. Press and hold Timer ON/OFF for 6 seconds

2. Press self clean to toggle between 6 Hour OFF or Stay

On feature (

Figure 16).

3. Press start to accept choice.

Changing temperature display from Fahrenheit to

Celsius

The electronic oven control is set to display °F when

shipped from the factory. The display may be changed to

show either °F or ºC oven temperatures.

To change temperature display mode from °F to °C or

from °C to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press self clean

to toggle between Fahrenheit and Celsius temperature

display modes (

Figure 17).

3. Press start to accept the choice.

Important note:

The oven temperature display cannot be changed during

the cooking process or if a Delay Start has been set or Self

Clean is active.

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without

audible tones. The control may be programmed for silent

operation and later reset to operate with all the normal

audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press the self clean key to toggle between bEEP On or

bEEP OFF (

Figure 18).

3. Press start to accept the choice.

Setting Oven Lockout

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold the lock key for 3 seconds. The motor

driven door latch mechanism will begin locking the oven

door automatically. Do not open the oven door. Allow

about 15 seconds for the oven door to completely lock.

Once door is locked, the word DOOR with a lock icon

will appear in the display.

To cancel the oven lockout feature:

1. Press and hold the lock key for 3 seconds. The motor

door latch will begin unlocking the oven door automati

cally. Do not open the oven door. Allow about 15

seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer

displays, the oven door may be opened, and the oven

control keypad will be available for use.

Important note:

• To avoid damage to the oven door latching mechanism,

do not attempt to open or close the oven door whenever

the word DOOR with a lock icon is displayed.

• If a control key is pressed when oven lockout is active,

the control will triple beep indicating the key action is

not available when the oven lockout feature is active.

Figure 16: 6 hr energy saving (L) and continuous

setting (R)

Figure 17: Display showing Fahrenheit and Celsius

Figure 18: Display showing audible and silent

operation

OVEN CONTROLS

Operating Oven Lights

The interior oven lights will automatically turn on when the

oven door is opened. Oven lights will not operate during a

self clean cycle.

Press to turn the interior oven lights on and off

whenever the oven door is closed.

The interior oven lights are located on the rear wall of the

oven interior and are covered with a glass shield. The glass

shield protects the bulb from high temperatures and should

always be in place whenever the oven is in use.

To replace the interior oven light, see “Replacing the Oven

Lights” on page 37.

Quick Preheat

Quick Preheat is available for your convenience and can be

programmed for temperatures between 170F and 550F.

Follow the recipe or package directions for food preparation

time and temperature. When quick preheat is complete, a

reminder tone will sound and food should be placed in the

oven. During quick preheat function, the bake, broil and

convect elements will cycle on and off. Depending on your

preference for doneness and type of pan used, cooking

times may vary. Watch food closely.

Important:

• Always place in center of the oven on rack position 5

(

Figure 20) and place the food as shown in Figure 19.

• For best results when baking batter and dough-based

items such as cakes, cookies and pastries, use convec

tion bake function and place food in oven when the

reminder tone sounds.

• For crispy crust on pizza use Bake function and place

food in oven when reminder tone sounds.

To set the preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press quick preheat. 350 will appear in the display.

3. Press start.

4. 350 and PREHEAT will be displayed while the oven is

preheating.

5. Press off when baking is complete or to cancel the

preheat feature.

To change preheat temperature while oven is

preheating (ex: changing from 350°F to 425°F):

1. Press quick preheat. 350 will appear in the display.

2. Enter the new preheat temperature. Press 4 2 5.

3. Press start. 425 will show in the display.

4. When baking is complete, press off.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

CAUTION

Figure 19: Single rack baking pan position

Figure 20: Oven rack position (5)

at handle

oven rack

OVEN CONTROLS

Setting Bake

Use the bake feature whenever the recipe calls for baking

using normal temperatures. A reminder tone will sound indi

cating when the set bake temperature is reached and to

place the food in the oven. When the oven is preheating,

the convection fan will be on and will turn off once the set

temperature is reached. The oven will cycle on and off while

baking to maintain the set temperature and the bake

element icon in the display will reflect the cycling of the

bake element.

Bake may be set for any oven temperature between 170°F (77°C)

to 550°F (288°C).

Baking tips

• For pastries and breads, use the convection bake

function for best results when using multiple racks

(

“Convection Bake” on page 21).

• For layer cakes use the normal bake function.

• For best results when baking cakes or cookies using

two oven racks, place racks in positions 3 and 7

(

Figure 22) and place pans as shown in Figure 21.

• Allow at least 2 inches (5 cm) of space between

bakeware for proper air circulation.

• Dark or dull pans absorb more heat than shiny

bakeware, resulting in dark or overbrowning of foods. It

may be necessary to reduce the oven temperature or

cook time to prevent overbrowning of some foods. Dark

pans are recommended for pies. Shiny pans are recom

mended for cakes, cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Fully preheat the oven before cooking items like

cookies, biscuits, and breads.

• When using any single rack, use rack position 5 so that

the food is in the center of the oven.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cooking time.

To set Bake for oven temperature of 425°F:

1. Press bake.

2. Enter 4 2 5 using numeric keypad.

3. Press start.

4. To cancel bake at any time, press off.

Important note:

The oven will bake no longer than 6 hours. If you wish to

bake for a longer period, see

“Changing between contin-

uous bake setting or 6 hour energy saving” on page 18 for

detailed information.

Figure 21: Baking on multiple levels in BAKE.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

Figure 22: Oven rack positions

CAUTION

OVEN CONTROLS

Convection Bake

Convection functions use a fan to circulate oven heat

continuously around the oven. This improved heat distribu

tion allows for even cooking and browning results. Heated

air flows around the food from all sides. Breads and pastry

brown more evenly.

Convection bake may be set for any oven temperature

between 170°F (77°C) and 550°F (288°C).

Benefits of convection cooking include:

• Multiple rack baking.

Baking tips

• For pastries and breads, use the convection bake

function for best results when using multiple racks.

• Fully preheat the oven before cooking items like

cookies, biscuits, and breads.

• When using any single rack, use rack position 5 so that

the food is in the center of the oven.

• When using two oven racks, place in positions 2 and 7

(

Figure 23) and place bakeware as shown in Figure 24.

• When cooking with three oven racks, place racks on

positions 2, 5, and 8.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven

temperature and cook time to prevent overbrowning of

some foods. Shiny bakeware is recommended for

cakes, cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Use pans or cookware with low sides. This allows the

air to circulate around food evenly.

• Unless the recipe is written for convection cooking,

reduce oven temperature 25°F from recipe’s

recommended oven temperature. Follow the remainder

of the recipe’s instructions using the minimum

recommended cook time.

• Do not open oven door often. Opening the door will

reduce the temperature in the oven and may increase

cooking time.

To set Convection Bake with a default oven set temper-

ature of 350°F:

1. Press convect key once. Conv Bake and 350° will

appear in the display.

2. Press start.

To cancel convection bake at any time, press off.

Important notes:

• If the oven door is opened when convection bake is

active, the convection fan will stop rotating until the

oven door is closed.

• When using convection bake, cook time reductions may

vary depending on the amount and type of food being

cooked.

Figure 23: Air movement using convection

Figure 24: Baking on multiple levels in Convection Bake

OVEN CONTROLS

Setting Bake Time

Use bake time to set the amount of time needed for baking.

The oven will turn on immediately and stop automatically

after the set bake time ends.

To program oven to bake with oven default temperature

of 350°F and to shut-off after 30 minutes:

1. Press bake time.

2. Enter 3 0 using numeric keypad.

3. Press start to accept.

4. Press bake.

5. Press start.

When the programmed bake time ends:

End will appear in the display window, and the oven will

shut-off automatically (

Figure 25). The oven control will

beep three times every 30 seconds as a reminder until Off

is pressed.

Important note:

• The bake time feature may be set with bake, convection

bake, and convection roast. Bake time or delay start will

not operate with the broil function.

• The maximum time setting is 11 hours and 59 minutes

unless oven is set for continuous cooking.

To change the oven temperature or bake time after bak-

ing has started:

1. Press bake (for oven temperature) or bake time.

2. Press numeric keys to enter new temperature or bake

time.

3. Press start to accept change.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or

cleaning functions. Prior to setting a delay start, be sure the

time of day is set correctly.

To program oven for a delay start beginning at 5:30, to

shut-off automatically after 50 minutes and for baking

at 375°F:

1. Press bake time.

2. Enter 5 0 using numeric keypad.

3. Press start to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypad.

6. Press start to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypad.

9. Press start.

When the programmed bake time ends: End will appear

in the display window, and the oven will shut off automati

cally. The oven control will beep three times every 30

seconds as a reminder until the Off key is pressed.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for

24 Hr operation, See

“Setting 12 Hour or 24 Hour display

mode” on page 17 for more information. The Delay Start

feature may be used with Convection Bake, Convection

Roast, Convection Convert, Bake, Slow Cook, and Self

Clean functions.

Figure 25: Display showing end of cooking

Food Poisoning Hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

Always use pot holders or oven mitts when using the

oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

WARNING

CAUTION

OVEN CONTROLS

Setting Convection Convert

Pressing the Convection Convert key automatically

converts the cooking temperature entered for any standard

baking recipe to the lower temperature required for convec

tion baking.

Important: -

When Convection Convert is used with a timed Convection

Bake setting the control will display a CF message when

programmed and appear again as a reminder to check food

when the bake time is 75% complete (Figure 26). At this

time the oven control will sound one long beep at regular

intervals until the set bake time has finished.

To add Convection Convert to Convection Bake

function using default oven set temperature of 350°F:

1. Press Convect once. Convection bake is selected.

2. Press start. Press Convec Convert.

To cancel Convection Convert at any time, press off.

To program oven for Convection Convert with oven

default temperature of 350°F and to shut-off after 30

minutes:

1. Press Convect once. Convection Bake is selected.

2. Press start.

3. Press bake time.

4. Enter 3 0 using numeric keypad.

5. Press start.

6. Press Convec Convert.

7. To cancel Convec Convert at any time, press off.

Important note:

• Convection Convert may only be used with the Convec-

tion Bake function.

• The convection fan will begin rotating once Convection

Bake has been activated.

• If the oven door is opened when any convection

function is active, the convection fan will stop rotating

until the oven door is closed.

Setting Convection Broil

Use this mode for thicker cuts of meat, fish, and poultry. The

convection broiling gently browns the exterior and seals in

the juices. Convection broiling uses the broil element and a

fan to circulate the heat continuously within the oven.

The oven can be programmed for convection broiling at any

temperature between 400°F to 550°F.

Convection broiling tips:

• For optimum browning, preheat the broil element for 2

minutes. Always pull the rack out to the stop position

before turning or removing food.

• Always use a broiler pan and its grid when broiling. It

keeps grease away from the high heat of the broil

element.

• Do not use the broil pan without the insert. Do not cover

the broil pan insert with foil. The exposed grease could

catch fire. Broil one side until the food is browned; turn

and cook on the second side. Season and serve.

• Convection broiling is generally faster than conventional

broiling. Check for doneness at the minimum recom

mended time.

To set a convection broil temperature of 500°F:

1. Arrange oven racks first. Press convect. The display

will show 350 and convect and bake will flash.

2. Press convect two more times. 550 and convect and

broil will flash.

3. Press 5 0 0 using numeric keys. Press start.

4. 500, CONVECT, BROIL, and the fan icon will show in

the display.

5. Allow oven to preheat for 2 minutes then place food in

the oven.

Figure 26: Check Food reminder shown in display.

The preheat tone will not sound for this feature.

NOTE

OVEN CONTROLS

Setting Broil

Use the Broil function to cook meats that require direct

exposure to radiant heat for optimum browning results. The

Broil feature is factory preset to broil at 550°F. The Broil

function temperature may be set at any temperature

between 400°F (205°C) and 550°F (288°C).

Important notes:

• Broiling is direct heat cooking and will produce smoke. If

smoke is excessive, place food further away from the

broil element.

• Always arrange oven racks when the oven is cool.

• For best results use a broil pan with broil pan insert

designed to drain the fat from the food and help avoid

spatter and reduce smoking (

Figure 27). If a broiler pan

and insert are not supplied with this appliance, they may

be purchased from frigidaire.com.

• Always pull the oven rack out to the stop position before

turning or removing food.

To set Broil with the default broil oven temperature of

550°F:

1. Arrange the oven racks when cool. For optimum

browning results, preheat oven for 2 minutes before

adding food.

2. Position bakeware in oven. Press Broil.

Important: Broil with the door closed. If oven door is open

for more than one minute during Broil the control will beep.

If door is not closed it will turn off Broil element after another

30 seconds.

3. Press start. The lowest setting the oven control will

accept for Broil is 400°F. To adjust the Broil tempera

ture, press Broil again and then enter the desired

temperature using the number keys. Press Start to

accept change.

4. Broil on one side until food is browned; turn an broil

other side until done to your satisfaction. When finished

broiling, press off.

5. To cancel Broil at any time, press off.

Should an oven fire occur, close the oven door and turn

the oven off. If the fire continues, use a fire extinguisher.

Do not put water or flour on fire. Flour may be explosive.

Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

WARNING

CAUTION

Figure 27: Broiler pan/

insert

Figure 28: Rack positions

Food Rack Position Temperature Cook time (minutes)

1st side 2nd side

Internal

Temperature

Doneness

Steak 1” thick 8th 550°F (288°C) 5 5 140ºF (60ºC) Rare*

Steak 1” thick 7th or 8th 550°F (288°C) 8 6 145ºF (63ºC) Medium

Steak 1” thick 7th or 8th 550°F (288°C) 10 9 170°F (77ºC) Well

Pork Chops 3/4” thick 7th 550°F (288°C) 10 8 170°F (77ºC) Well

Chicken bone-in 5th or 6th 450°F (232°C) 22 12 170°F (77ºC) Well

Chicken boneless 5th or 6th 450°F (232°C) 10 8 170°F (77ºC) Well

Fish 7th 500°F (260°C) 15 n/a 170°F (77ºC) Well

Shrimp 7th 550°F (288°C) 7 n/a 170°F (77ºC) Well

Hamburger 1” thick 8th 550°F (288°C) 11 9 145ºF (63ºC) Medium

Hamburger 1” thick 7th 550°F (288°C) 12 10 170°F (77ºC) Well

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organ-

isms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended by the USDA is 145°F (63°C) for

medium rare fresh beef. For well done 170°F (77ºC). NOTE: Broiling is direct heat cooking and will produce some smoke. If smoke is excessive, place food further

away from element. Always watch foods carefully to prevent burning.

OVEN CONTROLS

Convection Roast

Convection roast combines a cook cycle with the convec-

tion fan and element to rapidly roast meats and poultry.

Heated air circulates around the meat from all sides, seal

ing in juices and flavors. Meats cooked with this feature are

crispy and brown on the outside while staying moist inside.

Convection Roasting tips:

• Preheating for convection roast will not be necessary

for most meats and poultry.

• Arrange oven racks so the food is on the lowest rack of

the oven.

• Since convection roast cooks faster, you can reduce

cook times as much as 25% from the recommended

time of your recipe (check the food at this time). Then if

needed, increase cook time until the desired doneness

is obtained.

• Carefully follow your recipe’s temperature and time

recommendations or refer to the convection roast

recommendations for additional information.

• Do not cover foods when dry roasting - covering will

prevent the meat from browning properly.

• When cooking meats use the broiler pan and insert. The

broiler pan will catch grease spills and the insert helps

prevent grease splatters.

To use convection roast at a temperature of 350°F

(177°C):

1. Place oven rack on the bottom or next to the bottom

oven rack position.

2. Place the meat on the broiler pan and insert. Make sure

the insert is securely seated on top of the broiler pan.

Do not use the broiler pan without the insert.

3. Place meat (fat side up) on insert

4. Place prepared food on oven rack and slide into oven.

5. Close the door.

6. Press the convect key twice. Roast will appear in the

display.

7. Press start.

8. When cooking is completed or to cancel convection

roast press off.

Do not use the broiler pan without the insert. Do not cover

the broil pan or insert with aluminum foil; the exposed

grease could ignite. Do not cover the broiler insert with

aluminum foil. Exposed fat and grease could ignite.

CAUTION

Table 2: Convection roasting temperature and time recommendations

Meat Weight Oven Temp Internal Temp Minutes per lb.

Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25

Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 180°F (82ºC) 8-10

Turkey whole** 16 to 20 lb 325°F (163ºC) 180°F (82ºC) 10-15

Turkey whole** 20 to 24 lb. 325°F (163ºC) 180°F (82ºC) 12-16

Chicken 3 to 4 lb. 350°F-375°F (177ºC-191ºC)* 180°F (82ºC) 12-16

Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40

Shoulder blade roast 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 20-30

Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25

Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means

some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temper-

ature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)** Stuffed turkey requires addi-

tional roasting time. Shield legs and breast with foil to prevent over browning and drying of the skin.

OVEN CONTROLS

Cooking with Meat Probe

Use the probe feature for best results when cooking foods

such as roasts, hams, or poultry.

For meats like poultry and roasts, using a probe to check

internal temperature is the safest method to ensure properly

cooked food.

The probe feature, when set correctly will signal an alert

when the internal food temperature reaches the desired set

target temperature.

When active, the probe displays the internal food tempera-

ture which is visible in the display during the cooking

process. This eliminates any guesswork or the need to

open the oven door to check the thermometer.

Proper placement of probe in food.

• Insert the probe so that the probe tip rests inside the

center of the thickest part of meat or food (See

Figure 30). For best results, do not allow the probe

temperature sensor to contact bone, fat, gristle, or the

cookware.

• For bone-in ham or lamb, insert the probe into the

center of lowest large muscle or joint.

• For meat loaf or casseroles, insert the probe into center

of food.

• When cooking fish, insert meat probe just above the gill.

• For whole poultry or turkey, fully insert the probe sensor

into the thickest part of the breast (See

Figure 31).

Do not use kitchen utensils to pull on the probe cable or

handles. Always insert and remove the probe using the

provided handles, as shown in

Figure 29, and always use

a pot holder to protect hands from possible burns.

Figure 29: Using the probe

Do not store the probe inside the oven. Use only the

original probe provided. Connecting any other probe or

device could result in damage to the oven control, elec

tronics, and the receptacle.

Before starting self clean, double check that the probe is

removed from the oven interior. Defrost frozen foods

completely before inserting the probe.

CAUTION

IMPORTANT

Figure 30: Probe in thickest area of food

Figure 31: Probe in thickest part of breast

Insert

probe tip

to center of

food

OVEN CONTROLS

To set probe:

1. Insert the probe into the food. Place prepared food on

the desired oven rack position and slide into the oven.

2. Plug the connector end of the probe all the way into the

probe receptacle while the oven is still cool. The recep

tacle is located on the upper left front oven cavity wall

(See

Figure 29).

3. When the probe is set, an acceptance tone will sound,

the probe icon will illuminate, and the actual probe

temperature appears in the display (See

Figure 32).

Close the oven door.

4. Press probe key once. Enter the desired target food

temperature using the numeric keys and set tempera

ture for food type. The minimum setting is 140ºF (60ºC);

the maximum is 210ºF (99ºC). Default is 170ºF (77ºC).

5. Press start to accept the target temperature.

6. Set for quick preheat, bake, convect bake, convect

roast, or convect convert, and if necessary adjust the

oven temperature accordingly.

7. The control will provide three beeps when the internal

target temperature is reached. The oven will automati

cally change to keep warm and the actual probe

temperature will remain in the display. Keep warm will

maintain the oven temperature at 170°F (77°C) for 3

hours unless otherwise cancelled.

To stop cooking at any time, press off.

Note: To change the target temperature while cooking,

press the probe key once. Use the numeric keys to change

the temperature. Press the start key to accept any change.

Figure 32: Probe set showing probe temperature

During cooking the internal food temperature will display

by default. To see the target temperature press the probe

key once. After 6 seconds the display will revert to the

internal food temperature.

To assure accuracy, do not remove the probe from the

food or receptacle until the desired internal temperature is

reached. If the probe is removed from the receptacle only,

the probe feature will cancel but the oven will continue to

cook. If the probe is removed from the food only, the

probe feature will remain active and may eventually

generate a probe too hot message.

NOTE

Table 3: USDA recommended minimum internal cooking

temperatures

Food Type Internal Temp.

Ground meat and meat mixtures

Beef, Pork, Veal, Lamb 160°F (71°C)

Turkey, Chicken 165°F (74°C)

Fresh beef, veal, lamb

Medium rare + 145°F (63°C)

Medium 160°F (71°C)

Well Done 170°F (77°C)

Poultry

Chicken and Turkey, whole 165°F (74°C)

Poultry Breasts, Roasts 165°F (74°C)

Poultry Thighs, Wings 165°F (74°C)

Duck and Goose 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Fresh Pork 160°F (71°C)

Ham

Fresh (raw) 160°F (71°C)

Pre-cooked (to reheat) 140°F (60°C

Eggs dishes 160°F (71°C)

Leftovers and Casseroles 165°F (74°C)

The U.S. Department of Agriculture states, “Rare fresh beef is popular, but

you should know that cooking it to only 140°F (60°C) means some

food poisoning organisms may survive.” (Source: Safe Food Book,

Your Kitchen Guide, USDA Rev. June 1985.)

Visit the USDA Food Safety and Inspection website at www.fsis.usda.gov

OVEN CONTROLS

To set how the oven will operate once the probe

reaches the target temperature:

The oven is preset to automatically stop cooking and start

the warm feature when probe sensor reaches the target

temperature. This may be set to continue cooking if desired.

Setting the options once the probe reaches the target

temperature must be done when the oven is inactive. The

probe is not required to be connected to the probe recep

tacle when setting this option.

To set the oven to continue cooking after reaching the

target temperature:

1. Press probe key and hold for 6 seconds.

2. Press self clean key and toggle until Continu:

appears, as shown in

Figure 33, then press start to

accept.

To set the oven to automatically stop cooking and start

warm once reaching target temperature:

1. Press probe key and hold for 6 seconds.

2. Press the self clean key and toggle until CAnCEL

appears, as shown in

Figure 34, then press start to

accept.

Probe too hot message:

When the message Prob... Too... Hot... flashes in the

display, the probe temperature has exceeded 250°F

(121°C). If the probe is not removed, this message may

continue until the sensor reaches 300°F (149°C) or higher,

and oven will automatically turn off. Be sure the probe

sensor is fully covered by the food.

Keep Warm

Keep Warm should only be used with foods that are already

at serving temperatures. Keep warm will keep cooked foods

warm and ready for serving for up to 3 hours after cooking

has finished. After 3 hours the oven will shut-off automati

cally. Keep Warm will keep the oven temperature at 170° F

(77°C).

To set Keep Warm:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Keep Warm: KEEP WARM will appear in the

display. (If no other keys are touched within 25 seconds

the request for Keep Warm will clear.)

3. Press start. Keep Warm will automatically turn on and

then turn off after 3 hours unless cancelled.

To turn Keep Warm off at any time, press off.

To add Keep Warm to turn ON after baking 45 minutes

with a set temperature of 425°F:

1. Press Bake Time.

2. Enter 4 5 using numeric keypad.

3. Press start.

4. Press Bake and enter 425 on numeric keypad.

5. Press start to accept.

6. Press Keep Warm. KEEP WARM will appear in the

display.

7. Press start. When the bake time is over, Keep Warm

will automatically turn ON. Keep Warm function will

automatically turn OFF after 3 hours unless canceled

sooner.

Note: Keep Warm may be set when finished cooking or

may be added to automatically turn on after cooking using

Bake Time. Delay Start may also be added.

Figure 33: Probe set to continue cooking

Figure 34: Probe set to cancel cooking

Food poisoning hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness. Foods that can easily spoil

such as milk, eggs, fish, meat or poultry, should be chilled

in the refrigerator first. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking

begins, and should be removed promptly when finished

cooking.

WARNING

OVEN CONTROLS

Setting the Sabbath Feature (for use on the Jewish

Sabbath and Holidays)

For further assistance, guidelines for

proper usage, and a complete list of

models with the Sabbath feature, please

visit the web at www.star-k.org.

This appliance provides special settings

for use when observing the Jewish Sab

bath/Holidays. Sabbath mode disables all audible tones or

visual display changes on the oven control. Bake heating is

the only cooking feature available while in the Sabbath

mode. Oven controls are locked during Sabbath mode.

You must first set the Bake feature and temperature(s)

needed for the oven, the Bake Time, and Delay Start

options (if needed). Any settings made prior to setting the

Sabbath mode will be visible in the displays. The Bake Time

option, if set prior to the Sabbath mode, will give one

audible alert at the end of Bake Time.

The Sabbath mode will override the factory preset 6 hour

energy saving mode, and the appliance will stay on until the

cooking features are cancelled. If any of the cooking fea

tures are cancelled when the appliance is in the Sabbath

mode, no audible or visual indicators will be available to

verify the cancellation.

If the oven interior lights are needed, be sure to activate

them prior to setting the Sabbath mode. Once the oven light

is turned on and the Sabbath mode is active, the oven light

will remain on until the Sabbath mode is turned off and the

oven lights are turned off. The oven door will not activate

the interior oven lights when the oven door is opened or

closed.

It is recommended that any oven temperature modification

made within an active Sabbath mode be followed with two

presses of the start key. This will insure the oven remains

on even if an attempt is made to set the oven temperature

outside of its temperature range. If the oven temperature is

set outside of the temperature range, the oven will default to

the nearest available temperature. Try to set the desired

oven temperature again.

To program oven to Bake with default oven temperature

of 350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close

oven door. Press Bake.

3. Press start.

4. Note: If a bake time or delay start are desired enter the

times at this point. See

“Setting Bake Time” and

“Setting Delay Start” on page 22 for detailed instruc-

tions.

5. Press and hold bake time and delay start simultane-

ously for about 3 seconds to set the Sabbath feature.

Once the feature is set, SAb will appear in the display

indicating the oven is properly set for the Sabbath

feature

Important note:

• Do not attempt to activate any other oven function

except Bake while the Sabbath feature is active. The

following keys will function correctly when the Sabbath

feature is active: 0-9 number keypad, Bake, start, and

off. All other keys should not be used once the Sabbath

feature is active.

• You may change the oven temperature once baking has

started. Press bake, use the numeric keypad to enter

the oven temperature change (170°F to 550F°), and

press start (for Jewish Holidays only).

• Remember that the oven control will no longer provide

audible tones or display any further changes when the

Sabbath feature is active.

• The oven will shut-off automatically after completing a

bake time, delay start, or keep warm and therefore may

only be used once during the Sabbath/Jewish Holidays.

• If a delay start time longer than 11 hours and 59

minutes is desired, set the oven control for the 24 hour

day display mode setting. See

“Setting 12 Hour or 24

Hour display mode” on page 17 for more information.

To turn the oven off and keep the Sabbath feature

active:

1. Press off.

Food poisoning hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness.

WARNING

OVEN CONTROLS

To turn off the Sabbath feature:

Press and hold both bake time and delay start simultane-

ously for at least 3 seconds to turn the Sabbath feature off.

The control will provide an acceptance tone, and SAb will

disappear from the display. The oven is no longer

programmed for the Sabbath feature.

What to do during a power failure or power interruption

after the Sabbath feature was activated:

Should you experience a power failure or interruption, the

oven will shut-off. When power is restored the oven will not

turn back on automatically. The oven will remember that it is

set for the Sabbath, and the oven display will show the

message SF for Sabbath failure.

The food may be safely removed from the oven while still in

the Sabbath feature, however the oven cannot be turned

back on until after the Sabbath/Holidays. After the Sabbath

observance turn off the Sabbath feature.

Press and hold both Bake Time and Delay Start keys for at

least 3 seconds simultaneously to turn the Sabbath feature

off. SF will disappear from the display, and the oven may be

used with all normal functions.

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven

control settings. Over time, users may have made changes

to these settings. The following options may have been

modified since the appliance was new:

• 12 or 24 hr display mode

• Meat Probe Continue Cooking /Cancel Cooking and

start Keep Warm

• Continuous bake or 6 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

To restore oven control to factory default settings:

1. Press and hold 7 on numeric keypad until acceptance tone

sounds (about 6 seconds).

2. Press start. The control has been reset with the default

settings.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to

ensure accurate baking temperatures. For the first few

uses, follow your recipe times and temperature recommen

dations carefully. If you think the oven is cooking too hot or

too cool for your recipe times, you may adjust the control so

the oven cooks hotter or cooler than the oven temperature

displayed.

Important: Do not use oven thermometers such as those

found in grocery stores to check the temperature settings

inside your oven. These oven thermometers may vary as

much as 20 to 40°F degrees from actual temperatures.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory cali

brated settings.

To increase or decrease the oven temperature by 20°F:

1. Press and hold Bake until the control produces an

audible tone (about 6 seconds). The factory offset

temperature of 0

(zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven by -20°F, press self clean to toggle

between + and -.

4. Press START to accept the choice.

Important note:

• Oven temperature adjustments will not change the Broil

or Self Clean function temperatures.

• The oven temperature adjustment may be made if your

oven control is set to display temperatures in °C

(Celsius). Minimum and maximum settings for Celsius

range from plus (+)19°C to minus (-) 19°C.

If you choose to restore any of the options to a factory

default setting using this method, all of the above user

settings will be restored to the factory default settings.

CAUTION

OVEN CONTROLS

Self Clean

Read before starting Self Clean. Be sure to read all follow-

ing caution and important statements before starting a self

clean cycle.

A self cleaning oven cleans itself with high temperatures

(well above normal cooking temperatures), which eliminate

soils completely or reduces them to a fine powdered ash

you can wipe away afterwards with a damp cloth. This

function can be programmed for 2, 3, or 4 hours.

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the

oven racks are not removed they may discolor.

• Remove all items from the oven and cooktop including

cookware, utensils, and any aluminum foil. Aluminum

foil will not withstand high temperatures from a self

clean cycle and will melt.

• Do not use oven cleaners or oven protective coatings in

or around any part of the oven interior.

• Clean any soil from the oven frame, the door liner

outside the oven door gasket, and the small area at the

front center of the oven bottom (

Figure 35). These

areas heat sufficiently to burn soil on. Clean using soap

and water prior to starting Self Clean.

• Remove any excessive spills. Any spills on the oven

bottom should be wiped up and removed before starting

a Self Clean cycle. To clean use hot, soapy water and a

cloth. Large spills can cause heavy smoke or fire when

subjected to high temperatures.

• Do not allow food spills with high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices, or pie

fillings) to remain on the surface as they may leave a

dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material

in the gasket is essential for a good seal. Care should

be taken not to rub, damage, or remove the oven door

gasket. Doing so could cause damage to the door

gasket and compromise the performance of the oven.

• The kitchen area should be well ventilated using an

open window, ventilation fan, or exhaust hood during

the first Self Clean cycle. This will help eliminate the

normal odors.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds

for the motorized door latch mechanism to completely

lock or unlock the oven door.

• When the clean time finishes, the oven door will remain

locked until the range has cooled sufficiently. In addition

to the clean time that was programmed, you must allow

about 1 additional hour for the oven to cool before you

will be able to open the oven door.

• Do not leave small children unattended near appli-

ance. During self clean cycle, the outside of the oven

can become very hot and cause burns if touched.

• Do not line the oven walls, racks, oven bottom, or any

part of the range with aluminum foil. This will cause

permanent damage to the oven interior and destroy

heat distribution, and will met to the oven interior.

• Do not force the oven door open. This will damage

the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends.

The oven may still be very hot and cause burns. To

avoid possible burns, stand to side of oven when

opening door to allow steam or hot air to escape.

• The health of some birds is extremely sensitive to

fumes given off during the self clean cycle of any

range. Move birds to a well ventilated room

• The oven bake and broil elements may appear to

have cooled after they have been turned off. These

elements may still be hot and burns may occur if

elements are touched before they have cooled.To

avoid possible burns, stand to side of oven when

opening door to allow steam or hot air to escape.

CAUTION

Figure 35: Areas to clean and to avoid

OVEN CONTROLS

Setting Self Clean

To set self clean:

1. Be sure the oven is empty and all oven racks are

removed. Remove all items from the oven. Be sure

oven door is completely closed.

2. Press Self Clean and the default 3 hour clean time will

appear in the display. You may accept the default 3 hour

clean time by going to step 3, or choose a different

clean time by continuing to press Self Clean to select 2

hours or 4 hours. Once you have the desired clean time

selected proceed to Step 3.

3. Press start to activate Self Clean.

2. As soon as Self Clean becomes active, a motor driven

lock mechanism will begin locking the oven door auto

matically. Do not attempt to open the oven door (allow

15 seconds for the lock mechanism to lock the oven).

Once the oven door has locked, CLEAN will appear in

the display indicating Self Clean has started.

When Self Clean is finished:

1. CLEAN message will turn off, and Hot will appear in

display window.

2. Once the oven has cooled down (about 1 hour) and Hot

is no longer displayed, the oven door may be opened.

3. When the oven interior has completely cooled, wipe

away any residue or powdered ash with a damp cloth or

paper towel.

Important: Do not force the oven door open when self-

clean is active. This can damage the automatic door-locking

system. Use caution when opening the door after self-clean

cycle is complete; the oven may still be very hot.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3

hours and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the

oven is empty, and all oven racks are removed. Be sure

oven door is completely closed.

2. Press Delay Start.

3. Using numeric keypad, enter 9 0 0.

4. Press start to accept

5. Press Self Clean.

6. Press start.

If it becomes necessary to stop Self Clean when active:

1. Press off.

2. If Self Clean has heated the oven to a high temperature,

allow enough time for the oven to cool.

3. Before restarting Self Clean, be sure to read important

notes below.

Important note:

• If your clock is set with the (default) 12 hr display mode,

the Delay Start for a Self Clean can only be

programmed to start up to 11 hours and 59 minutes

after the time showing in the display (be sure to set the

clock to current time before programming a delay start).

To set a Delay Start Self Clean to begin 12 or more

hours (maximum is 23 hours and 59 minutes) after the

time of setting, be sure to first set the control in the 24

Hr display mode.

• If Self Clean was active and then interrupted by a power

failure or cancelled before the oven was thoroughly

cleaned, it may be necessary to run another Self Clean

cycle.

• If the oven temperature was high enough when Self

Clean was interrupted the oven control may not allow

another Self Clean cycle to be set for up to 4 hours.

Do not force the oven door open when self-clean is

active. This can damage the automatic door-locking

system. Use caution when opening the door after self-

clean cycle is complete; the oven may still be very hot.

Use caution when opening the oven door after self

cleaning. The oven may still be very hot and can cause

burns. To avoid possible burns stand to the side of the

oven when opening the oven door to allow hot air or

steam to escape.

CAUTION

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any

heavy soiling as soon as possible. Regular cleaning will reduce the number of major cleaning later.

Surface Type Recommendation

Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted and plastic control knobs

Painted body parts

Painted decorative trims

Control panel

Control knobs

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Follow by rinsing the area with clean water; dry and polish with a

soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray

liquids directly on the oven control and display area.

Do not use large amounts of water on the control panel - excess water on the control

area may cause damage to the appliance. Do not use other liquid cleaners, abrasive

cleaners, scouring pads, or paper towels - they will damage the finish.

To remove control knobs, turn to the OFF position; grasp firmly and pull straight off

the shaft. To replace knobs after cleaning, line up the knob markings with the

matching markings on the control panel; then push the knobs into place. On the

single element knobs line up the OFF markings before replacing the knobs.

Stainless Steel Your oven finish may be made with stainless steel (some models). Clean the

stainless with warm soapy water using a clean sponge or cloth. Rinse with clean

water and dry with a soft clean cloth.

Do not use cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is

recommended to use mild dish soap and water or a 50/50 solution of water and

vinegar.

Porcelain enamel broiler pan and

insert (available by mail order)

Oven interior (Porcelain)

Door liner and body parts

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

solution of clear water and ammonia. If necessary, cover difficult spots with an

ammonia-soaked paper towel for 30 to 40 minutes.

Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring

pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may

become damaged during future heating.

Ceramic Cooktop For special care instructions see “Cooktop Maintenance” on page 34.

Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive

cleaner following manufacturer’s instructions. Rinse with clean water and dry.

Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door.

Rinse well. You may use a glass cleaner on the outside glass of the door. Do not

immerse the door in water. Do not spray or allow water or the glass cleaner to enter

the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive

cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. On self-clean models, the oven door gasket is

made of a woven material which is essential for a good seal. Care should be taken

not to rub, damage, or remove this gasket.

CARE AND CLEANING

Cooktop Maintenance

Consistent and proper cleaning is essential to maintaining

your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply a

ceramic cooktop cleaning cream (available in most

hardware, grocery and department stores) to the ceramic

surface. Buff with a non-abrasive cloth or sponge. This will

make cleaning easier when soiled from cooking. The

special cooktop cleaning cream leaves a protective finish

on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the

cooktop can cause metal markings on the cooktop surface.

These marks should be removed immediately after the

cooktop has cooled using the cooktop cleaning cream.

Metal marks can become permanent if not removed prior to

future use.

Cookware (cast iron, metal, ceramic or glass) with rough

bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop.

• Use cookware with dirt or dirt build up on bottom;

replace with clean cookware before using.

• Use your cooktop as a cutting board or work surface in

the kitchen.

• Cook foods directly on the cooktop surface without a

pan.

• Drop heavy or hard objects on the ceramic glass

cooktop, they may cause it to crack.

Cooktop Cleaning

For light to moderate soil:

Apply a few drops of cooktop cleaning cream directly to the

cooktop. Use a paper towel or use a non-abrasive cloth or

sponge to clean the entire cooktop surface. Make sure the

cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of cooktop cleaning cream directly to the

soiled area. Rub the soiled area using a non-abrasive

cleaning tool, applying pressure as needed. Do not use the

pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor

blade scraper, holding scraper at a 30 degree angle to the

surface. Remove loosened soils with cooktop cleaning

cream and buff surface clean.

Figure 36: Cooktop care

Do not use a cooktop cleaner on a hot cooktop. The

fumes can be hazardous to your health, and can chemi

cally damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the controls are

turned to OFF and the cooktop is cool. The glass surface

could be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Figure 37: Cooktop cleaning

WARNING

CAUTION

30°

CARE AND CLEANING

Cooktop Maintenance (cont’d)

Plastic or foods with a high sugar content need be removed

immediately if spilled or melted onto the ceramic cooktop

surface. Permanent damage (such as pitting of the cooktop

surface) may occur if not removed immediately. After

turning the surface elements off, use a razor blade scraper

or a metal spatula with a mitt and scrape the soil from the

hot surface (as illustrated). Allow the cooktop to cool, and

use the same method for heavy or burned on soils.

Do not use the following on the cooktop:

• Do not use abrasive cleaners and scouring pads, such

as metal and some nylon pads. They may scratch the

cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach,

ammonia or oven cleaners, as they may etch or discolor

the cooktop.

• Do not use dirty sponges, cloths or paper towels, as

they can leave soil or lint on the cooktop which can burn

and cause discoloration.

General Cleaning

Refer to “Cleaning Various Parts of Your Oven” on page 33

for more detailed information about cleaning specific parts

of the range.

Aluminum Foil and Utensils

• Aluminum foil - Use of aluminum foil on a hot cooktop

can damage the cooktop. Do not use thin aluminum

cooking utensils or allow aluminum foil to touch the

surface elements under any circumstances.

• Aluminum utensils - The melting point of aluminum is

much lower than that of other metals. Care must be

taken when aluminum pots or pans are used on the

cooktop. If aluminum pans are allowed to boil dry when

using the cooktop, not only will the utensil be damaged

or destroyed, but it may fuse to, break, or mark the

ceramic glass surface, permanently damaging the

cooktop surface.

Damage to the ceramic glass cooktop may occur if you

use an abrasive type cleaning pad. Only use cleaning

products that have been specifically designed for ceramic

glass cooktops.

Figure 38: Cleaning products to avoid

IMPORTANT

Before manually cleaning any part of the range, be sure

all controls are turned off and the range is cool. The range

may be hot and can cause burns.

Using ammonia to clean an oven is not recommended.

However, if ammonia is used it must be rinsed thoroughly

before operating the oven. Provide adequate ventilation.

Never cover any slots, holes, or passages in the oven

bottom or cover an entire oven rack with materials such

as aluminum foil. Aluminum foil linings may trap heat,

causing a fire hazard

Protective Liners — Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in

this manual. Improper installation of these liners may

result in risk of electric shock, or fire.

CAUTION

WARNING

CARE AND CLEANING

Removing and Replacing the Oven Door

To remove the oven door:

1. Open oven door completely, horizontal with floor.

2. Pull up the lock located on each hinge support toward

front of the oven until the lock stops. You may have to

apply a little upward pressure on the lock to pull it up

(

Figure 40 and Figure 41).

3. Grasp the door by the sides, and close the door until the

door frame makes contact with the unlocked hinges.

4. Pull the bottom of the door toward you while rotating the

top of the door toward the appliance to completely

disengage the hinge levers (

Figure 42).

To Replace Oven Door:

1. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (

Figure 42).

2. Hold the oven door at the same angle as the removal

position. Carefully insert the hinge levers into the oven

frame until you feel the hinge levers are seated into the

hinge notches. The hinge arms must be fully seated into

the hinge notches before the oven door can be fully

opened. (

Figure 42).

3. Fully open the oven door, horizontal with floor

(

Figure 39).

4. Push the door hinge locks up toward and into the oven

frame on both left and right oven door hinges to the

locked position (

Figure 40).

5. Close the oven door.

Special door care instructions - The door is heavy. For

safe, temporary storage, lay the door flat with the inside

of the door facing down.

Most oven doors contain glass that can break. Do not

close the oven door until all the oven racks are positioned

correctly in the cavity. Do not hit the glass with bakeware

or any other objects. Scratching, hitting, jarring, or

stressing the glass may weaken its structure, causing an

increased risk of breakage at a later time.

IMPORTANT

Figure 39: Door hinge location

Figure 40: Door hinge locked

Figure 41: Unlocking door hinge

Figure 42: Remove door position

Oven door

hinge

locations

Door frame ﬂush

with hinge lock

Hinge

notch

CARE AND CLEANING

Replacing the Oven Lights

Replacing the oven interior light bulb:

Your oven is equipped with interior oven lights that ramp up

gradually when the oven door is opened. The oven lights

can also be turned on when the door is closed by using the

oven light switch located on the control panel.

To remove and replace a light bulb:

Be sure the range is unplugged and all parts are cool before

replacing oven light. Wear a leather-faced glove for protec

tion against possible broken glass. Do not allow your fingers

to touch the new bulb when replacing. Use a clean soft cloth

or paper towel to cover the new bulb when installing.

1. Turn electrical power off at the main source or unplug

the appliance.

2. To remove the glass shield, pull the back side of the

shield toward the inside of the oven in a manner to lift it

up from the oven side. The glass shield should come

out easily by pushing a little toward front of the wall

oven (

Figure 43).

3. Replace the halogen appliance bulb.

4. Gently push the glass shield toward the oven wall until it

is firmly seated against the oven wall.

5. Reconnect electrical power to the appliance or turn

power back on.

Be sure the oven is unplugged and all parts are cool

before replacing oven light.

CAUTION

Figure 43: Light shield and bulb

Lift backside of

glass shield and

remove it.

Halogen

Light Bulb

BEFORE YOU CALL

Solutions to Common Baking Problems

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need

to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a

product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking Problems Causes Corrections

Cookies and biscuits

burn on the bottom.

• Cookies and biscuits put

into oven before the

preheating time is

completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature

before placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air

space (5.1 cm to 10.2 cm) on all sides when

placed in the oven.

• Use a medium weight baking sheet.

Cakes too dark on top

or bottom.

• Cakes put in oven before

preheating time is

completed.

• Rack position too high or too

low.

• Oven too hot.

• Allow oven to preheat to the selected temperature

before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/13°C lower than

recommended.

Cakes not done in

center.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Set oven temperature 25°F/13°C lower than

recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan to allow

for 2” to 4” (5.1 cm to 10.2 cm) of space on all

sides of pan.

Cakes not level. • Range not level.

• Pan too close to oven wall

or rack overcrowded.

• Pan warped.

• Oven light left on during

baking.

• Place a marked glass measuring cup filled with

water on the center of the oven rack. If the water

level is uneven, refer to the installation instruc

tions for leveling the range.

• Be sure to allow 2” to 4” (5.1 cm to 10.2 cm) of

clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Keep oven light off while baking.

Foods not done when

cooking time is over.

• Oven too cool.

•

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F/13°C higher than

suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except

the ones to be used for baking.

• Open oven door only after shortest recommended

baking time.

BEFORE YOU CALL

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided

with the problem listed:

Problem Solution

Poor baking results

Long preheat

• Many factors effect baking results. Use proper oven rack position. Center food in

the oven and space pans to allow air to circulate. Preheat oven to the set tempera

ture before placing food in the oven. Try adjusting the recipe's recommended

temperature or baking time. See

“Adjusting Oven Temperatures” on page 30 if you

feel the oven is too hot or cold.

• Your oven is larger than most conventional ovens and may take a few minutes

longer to reach optimal cooking temperatures. Make sure you follow the sugges

tions at “Quick Preheat” on page 19.

Appliance is not level • Be sure floor is level, strong and stable enough to adequately support range. If floor

is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven and place a level on the oven

rack. Adjust leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are

square and have sufficient room for appliance clearance.

Cannot move appliance easily.

Appliance must be accessible for

service.

• Cabinets not square or are built in too tight to allow clearance for appliance.

Contact builder or installer to make appliance accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted

over carpet.

Entire appliance does not work. • For models with a power cord, make sure power cord is plugged properly into

outlet. If electricity to home is working, check fuse box or breaker. Call your local

electric company for service outage information..

Surface element is too hot or not

hot enough.

• Incorrect surface control setting. Adjust power level setting.

Surface element does not heat or

does not heat evenly.

• Be sure the correct surface control knob is turned on for element needed.

• Lightweight or warped pans used. Use only flat, evenly balanced, medium or

heavyweight cookware. Flat pans heat better than warped pans. Cookware

materials and weight of the material affect heating. Heavy and medium-weight pans

heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

Oven portion does not operate. • The time of day is not set. The oven clock must first be set in order to operate the

oven. See

“Setting the Clock” on page 17.

• Be sure oven controls are set properly. See “Oven Control Functions” on page 14

and review instructions for the desired cooking function in this manual or see

“Entire appliance does not operate” in this checklist.

Oven light does not work. • Be sure the oven light is secure in the socket. See “Replacing the Oven Lights” on

page 37.

Flames inside oven or smoking

from oven vent.

• Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity.

Wipe up excessive spills before starting oven. If flames or excessive smoke are

present when using Broil, see

“” on page 25.

BEFORE YOU CALL

Oven racks discolored or do not

slide easily.

• Oven racks left in oven cavity during Clean. Always remove oven racks from oven

cavity before starting a clean cycle. Clean by using a mild abrasive cleaner

following manufacturer's instructions. Rinse with clean water, dry, and replace in

oven.

Oven smokes excessively when

broiling.

• Incorrect setting. Follow broiling instructions in Setting Oven Controls section.

• Meat too close to the broil element. Reposition broil rack to provide proper

clearance between the meat and element. Remove excess fat from meat. Cut

remaining fatty edges to prevent curling, but do not cut into lean.

• Grease build up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Grease or food splatters will cause excessive smoking.

Oven control panel sounds an

audible alarm and displays an

Error code.

• Oven control has detected a fault or error condition. Turn either oven mode or

temperature selector to the OFF position to clear the error code. Try Bake or Broil

function. If the Error code error repeats, turn OFF power to appliance, wait 5

minutes and then repower appliance. Set clock with correct time of day. Try Bake or

Broil function again. If fault recurs, turn oven mode and temperature selectors OFF

and call a servicer for assistance.

Soil not completely removed after

Clean

• Clean was interrupted. Review instructions in Clean section.

• Excessive spills on oven bottom. Clean before starting Clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door

gasket and the small area at the front center of the oven bottom. These areas are

not in the self-cleaning area, but get hot enough to burn on residue. Clean these

areas before starting the clean cycle. Burned-on residue can be cleaned with a stiff

nylon brush and water or a nylon scrubber. Be careful not to damage the oven

gasket.

Fan noise occurring after the oven

is turned off.

• Some models are equipped with a cooling fan that runs during the cooking process

to cool internal electronic components. It is normal for this fan to continue to run for

an extended period of time, even when the oven is off.

Convection fan does not rotate. • Oven door is open. Convection fan will turn off if oven door is opened when

Convection is active. Close oven door.

Clean does not work. • Oven control not set properly. Review instructions in Clean section.

Scratches or abrasions on cooktop

surface.

• Coarse particles such as salt or hardened soils between cooktop and utensils can

cause scratches. Be sure cooktop surface and bottoms of utensils are clean before

usage. Small scratches do not affect cooking and will become less visible with time.

• Cleaning materials not recommended for ceramic-glass cooktop have been used.

Apply a ceramic cooktop cleaning cream to the ceramic surface. Buff with a non-

abrasive cloth or sponge.

• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.

NOTES

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove

to be defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR

OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT

BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED

WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

If You Need

Service

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

USA

1.800.944.9044

Electrolux Home Products, Inc.

10200 David Taylor Drive

Charlotte, NC 28262

WARRANTY

Frigidaire FGEF4085TS gallery 40'' freestanding electric range

Product's Documents

User Manual

Specifications

Frigidaire FGEF4085TS Questions and Answers

Related Products

Frigidaire PLEF489CCD Gallery 40" Freestanding Electric Range

Frigidaire CFEF320GSA Electric Freestanding Range with 4.2 cu. ft. Oven Capacity

Frigidaire FFEF3015LSE Freestanding Electric Range

Frigidaire FFEF3018LBK Freestanding Electric Range

Frigidaire FEF366MXHCB Freestanding Electric Range

Frigidaire FFEF3016TBC freestanding electric range
