User Manual Bosch DWK068G60/02 Chimney Hood

Documents for Bosch DWK068G60/02

User Manual

For DWK068G60/02. Also, The document are for others Bosch models: DWK068G60, DWKO98G60

• [en] Instruction manual1
  • Extractor hood1
  • DWK068G60, DWK098G601
• Ú Table of contents[en] Instruction manual3
  • : Important safety information3
    • Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.3
    • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.3
    • This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...3
    • This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...3
    • Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.3
    • Keep children below the age of 8 years old at a safe distance from the appliance and power cable.3
    • Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.3
    • This appliance is not intended for operation with an external clock timer or a remote control.3
    • Danger of suffocation!3
      • Packaging material is dangerous to children. Never allow children to play with packaging material.3
    • Danger of death!3
      • Risk of poisoning from flue gases that are drawn back in.3
      • Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.3
      • Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...3
      • In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...4
        • ■ Adequate incoming air must therefore always be ensured.4
        • ■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.4
      • Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...4
      • In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.4
      • Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.4
    • Risk of fire!4
      • ■ Grease deposits in the grease filter may catch fire.4
      • Clean the grease filter at least every 2 months.4
      • Never operate the appliance without the grease filter.4
      • Risk of fire!4
        • ■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...4
      • Risk of fire!4
        • ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.4
      • Risk of fire!4
        • ■ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.4
      • Risk of fire!4
        • ■ Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...4
    • Risk of burns!4
      • The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.4
    • Risk of injury!4
      • ■ Components inside the appliance may have sharp edges. Wear protective gloves.4
      • Risk of injury!4
        • ■ Items placed on the appliance may fall down. Do not place any objects on the appliance.4
      • Risk of injury!4
        • ■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.4
    • Risk of electric shock!5
      • ■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.5
      • Risk of electric shock!5
        • ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...5
      • Risk of electric shock!5
        • ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.5
      • Causes of damage5
        • Caution!5
  • Environmental protection5
    • Environmentally-friendly disposal5
  • Operating modes5
    • Exhaust air mode5
      • Note5
    • Circulating-air mode5
      • Note5
  • Operating the appliance6
    • Note6
    • Control panel6
    • Setting the fan6
      • Note6
      • 1. Press the 1 button.6
        • 2. Press the 1, 2, 3 or 4/G button to set another fan level.6
    • Intensive setting6
      • 1. Press and hold the 4/G button while the ventilation system is switched on.6
        • 2. Press and hold the 4/G button or press the # button.6
        • Note6
    • Interval ventilation6
      • Note6
      • 1. Press the H button.6
        • 2. Press the H button or the # button.6
    • Fan run-on time6
      • Note6
        • 1. Select the fan level.6
        • 2. Press the y button.6
        • 3. Press the y button or the # button.6
    • Lighting6
      • 1. Press and hold the B button for 2 seconds.6
        • 2. Press the B button.6
    • Saturation display6
      • Resetting the saturation displays6
        • 1. Switch off the motor and the lighting.6
        • 2. Press and hold the H button.6
      • Switching over the display for circulating-air mode7
        • 1. Check whether the extractor hood is connected and switched off.7
        • 2. Press and hold the 3 button until the # button flashes twice.7
      • Switching over the display for circulating-air mode7
        • 1. Check whether the extractor hood is connected and switched off.7
        • 2. Press the 3 button until the # button flashes once.7
    • Cleaning protection7
      • Switching on7
      • Switching off7
  • Cleaning and maintenance7
    • : Risk of burns!7
    • : Risk of electric shock!7
    • : Risk of electric shock!7
    • : Risk of injury!7
    • Cleaning agents7

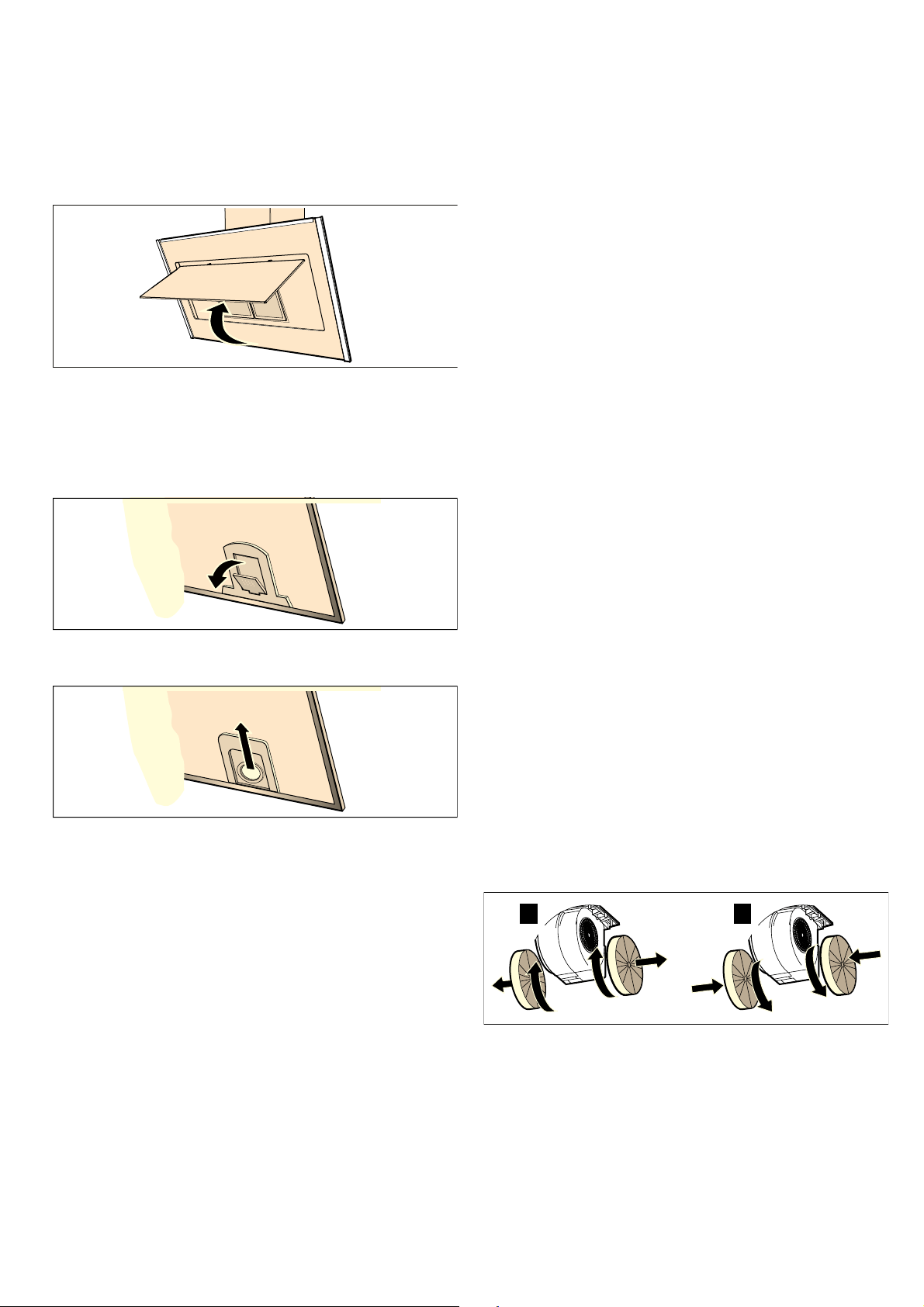

    • Removing metal grease filter8
      • 1. Fold the filter cover upwards.8
        • Notes8
          • 2. Remove the two metal grease filters under the filter cover.8
          • Fold the lock downwards, pull the metal filters forwards at the lock and take out the holder.8
        • Note8
          • 3. Remove the metal grease filters on the underside of the appliance.8
          • 4. Clean the metal grease filter.8
          • 5. After removing the filters, clean the inside of the appliance.8
          • 6. Clean the filter cover.8
    • Cleaning the metal mesh grease filters8
      • : Risk of fire!8
      • Notes8
      • In the dishwasher:8
      • Note8
      • By hand:8
      • Note8
    • Installing the metal mesh grease filter8
      • 1. Insert the 2 metal grease filters under the filter cover with the lock facing downwards.8
        • 2. Insert the metal grease filters on the underside of the appliance.8
        • 3. Close the filter cover.8
        • 4. Press and hold the H button for 2 seconds.8
    • Changing the activated charcoal filter (only in circulating-air mode)8
      • Notes8
        • 1. Remove the metal grease filters.8
        • 2. Turn the old activated charcoal filters and pull away from the holder. ¨8
        • 3. Push the new activated charcoal filters onto the holder and turn. ©8
        • 4. Install the metal grease filters.8
        • 5. Reset the saturation indicator; see section Saturation indicator.8
  • Trouble shooting9
    • : Risk of electric shock!9
    • Malfunction table9
  • After-sales service9
    • To book an engineer visit and product advice9
  • Accessories for circulated air mode9
