DVB is a registered trademark
of the DVB Project
32LB9D*
42LB9DF*
47LB9DF*
52LB9DF*
LCD TV MODELS
50PY3DF*
60PY3DF*
42PB4D*
50PB4D*
PLASMA TV MODELS
IIDD NNuummbbeerr::
4757: 32LB9D
4756: 42LB9DF
4755: 47LB9DF
4754: 52LB9DF
4709: 50PY3DF
4708: 60PY3DF
4836: 42PB4D
4837: 50PB4D
OONN LLYY::
42LB9DF
47LB9DF
52LB9DF
50PY3DF
60PY3DF
1
ACCESSORIES
AACCCCEESSSSOORRIIEESS
Ensure that the following accessories are included with your product. If an accessory is missing, please con-
tact the dealer where you purchased the product.
Owner’s Manual
Remote Control
OK
TVD/A
INPUT
DVD
SIMPLINK
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
PR
MARK
SUBTITLE
I/II
RATIO
TEXT
GUIDE
VCR
POWER
123
456
789
0
LIST
?
MODE
BRIGHT
MENU
MUTE
INPUT
FAV
SLEEP
PAGE
USB
INFO
i
1.5V
1.5V
Batteries
Cable Management
2- TV Bracket Bolts
2- TV Brackets,
2- Wall Brackets
Twist Holder

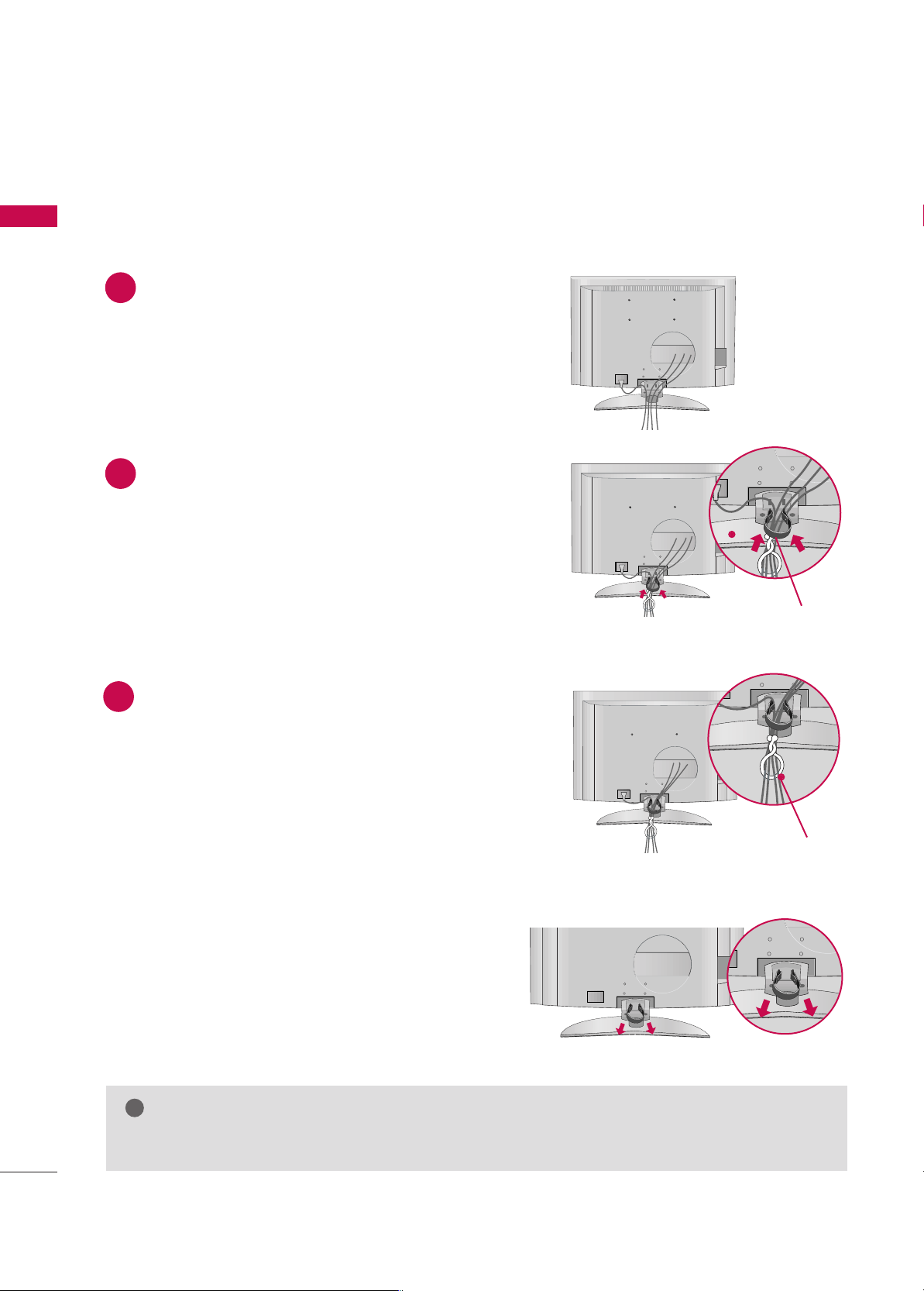

Arrange the wires with
the twist holder.
4-bolts for stand
assembly
Refer to p. 9
■
Carefully wipe stained spot on the exterior only with the polishing cloth for the product
exterior if there is stain or fingerprint on the surface of the exterior.
■
Do not wipe hard roughly when removing stain. Please be careful as excessive pressure may
cause a scratch or discoloration.
Polishing Cloth
Power Cord
Additional Cover
Refer to p. 16
FFoorr LLCCDD TTVV mmooddeellss
5500//6600PPYY33DDFF
**
oonnllyy
3 - Bolts
Refer to p. 16
2 - Rubber
Refer to p. 16
1-screw for stand
fixing
Refer to p. 10
This feature is not available for all models.
3322LLBB99DD
**
oonnllyy
6600PPYY33DDFF
**
oonnllyy
2- TV Bracket
Bolts
2- TV Brackets,
2- Wall Brackets
2-eye-bolts
2- Wall Brackets
5500PPYY33DDFF
**
oonnllyy
4422//5500PPBB44DD
**
oonnllyy
2- Wall Brackets
This feature is not available for all models.
This feature is not available for all models.
2-eye-bolts
This feature is not available
for all models.
CONTENTS
2
CONTENTS
i
ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
PREPARATION
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . 4
Back Panel Information . . . . . . . . . . . . . . . . . . . . 6
Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attaching the TV to a Desk . . . . . . . . . . . . . . . . 10
Swivel Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

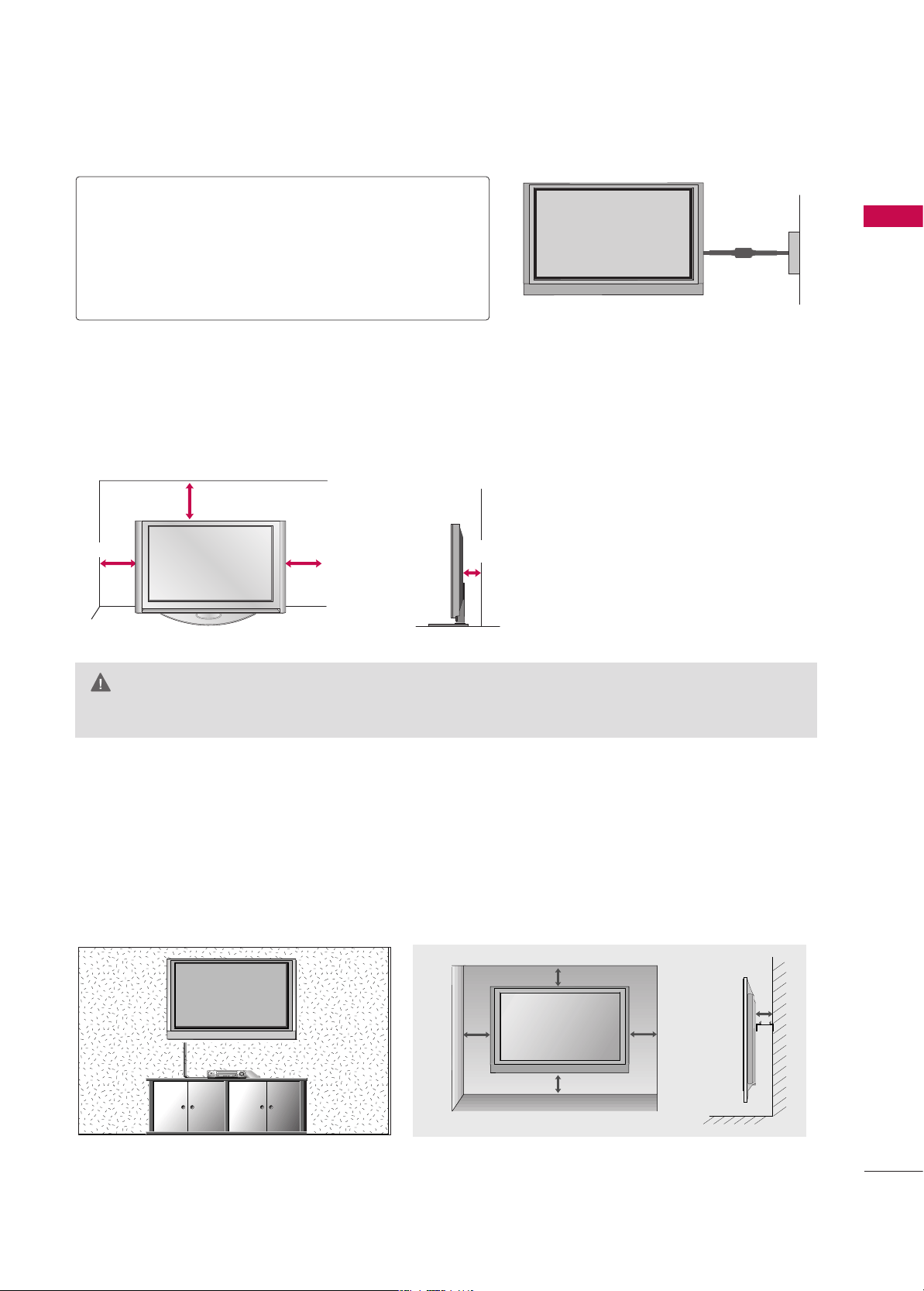

Attaching the TV to a Wall . . . . . . . . . . . . . . . . . 11
Back Cover for Wire Arrangement . . . . . . . . . . . 12

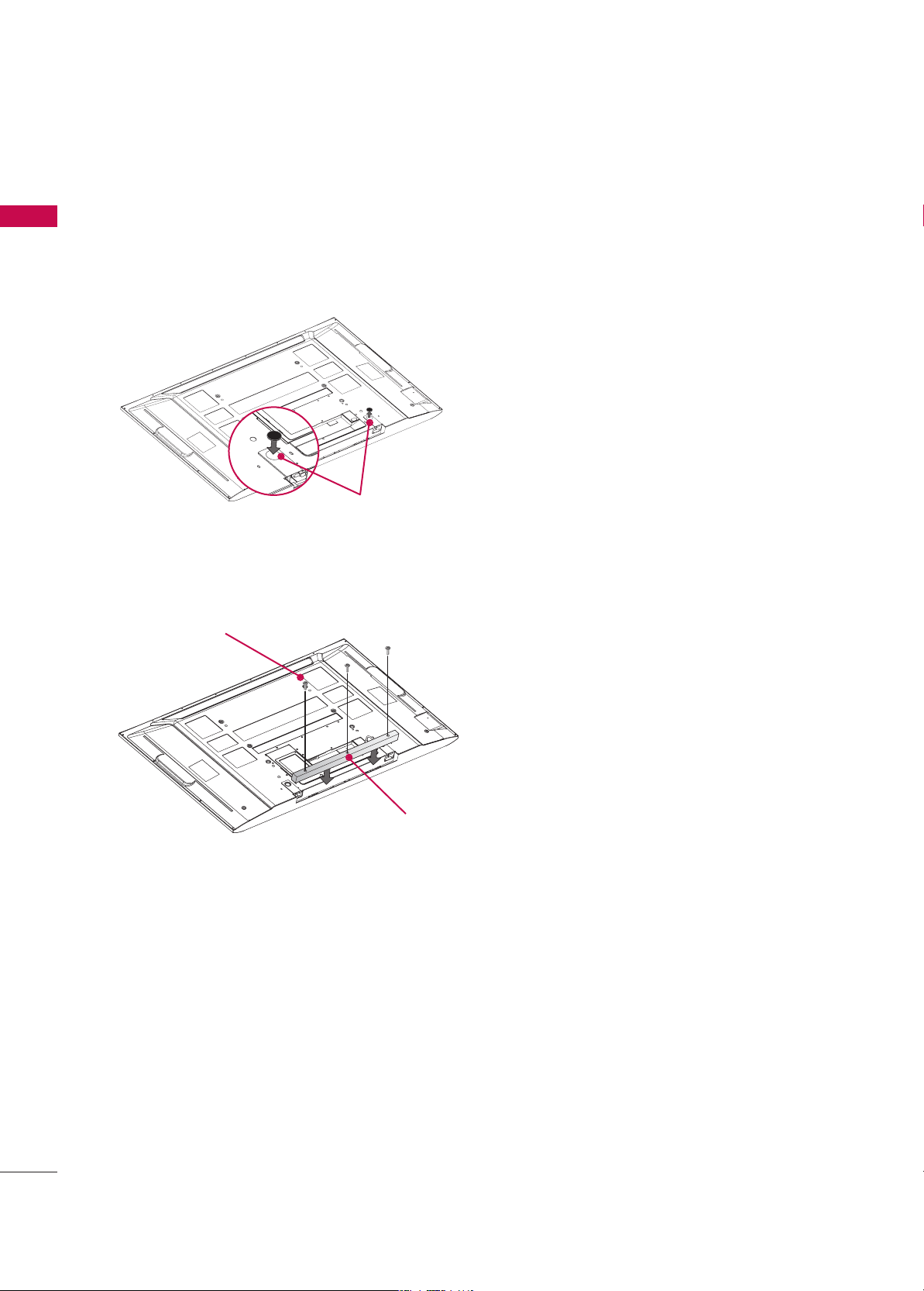

Desktop Pedestal Installation . . . . . . . . . . . . . . . 15
Wall Mount: Horizontal Installation . . . . . . . . . . 15
Not Using The Desk-type Stand . . . . . . . . . . . . 16
Antenna Connection . . . . . . . . . . . . . . . . . . . . . . 17
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DVD Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
VCR Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Other A/V Source Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PC Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
- Screen Setup for PC Mode . . . . . . . . . . . . . . . . . . . . . . . . . 29
USB In Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
AV Output Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Digital Audio Output Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
WATCHING TV / PROGRAMME CONTROL

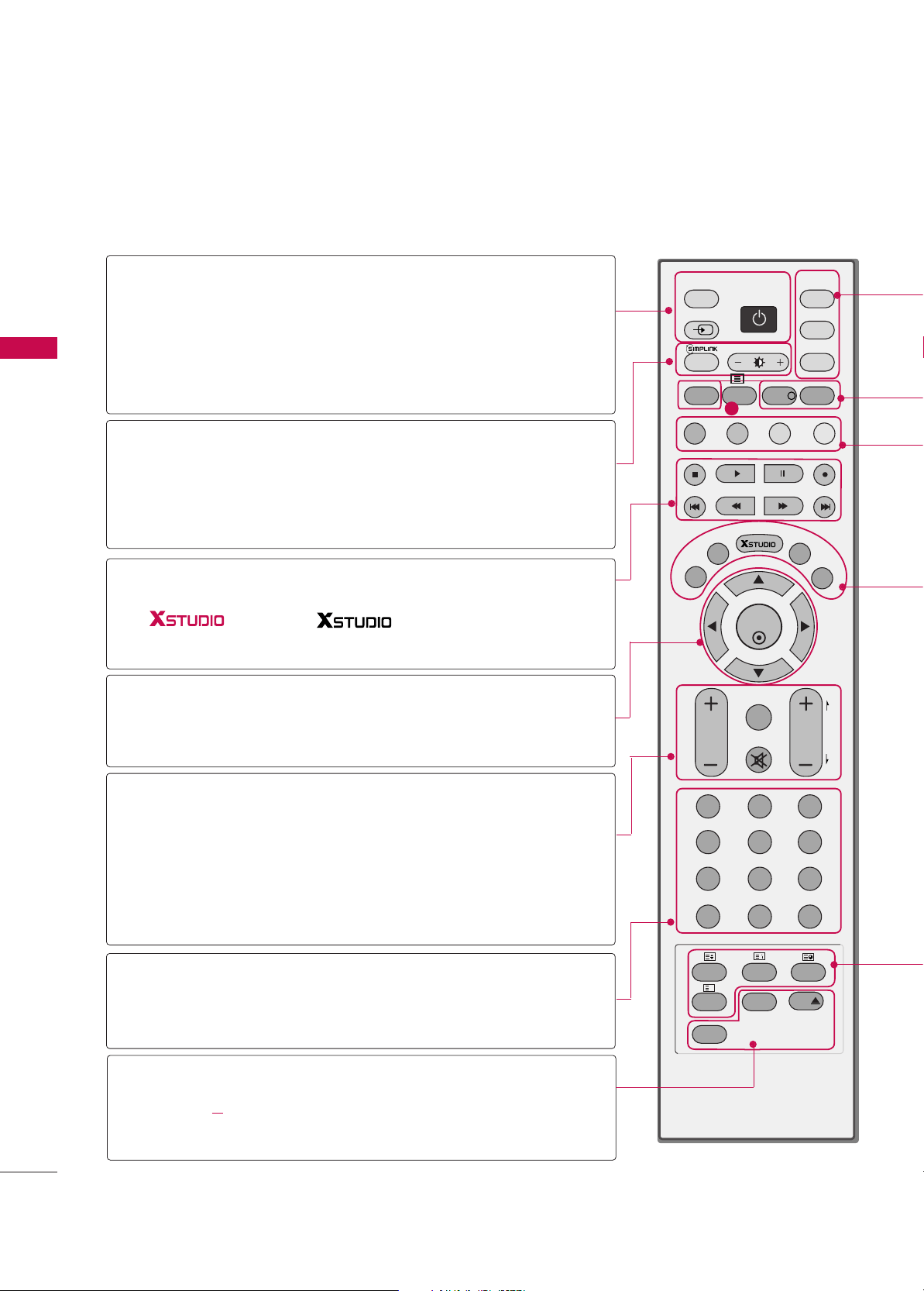

Remote Control Key Functions . . . . . . . . . . . . . .34

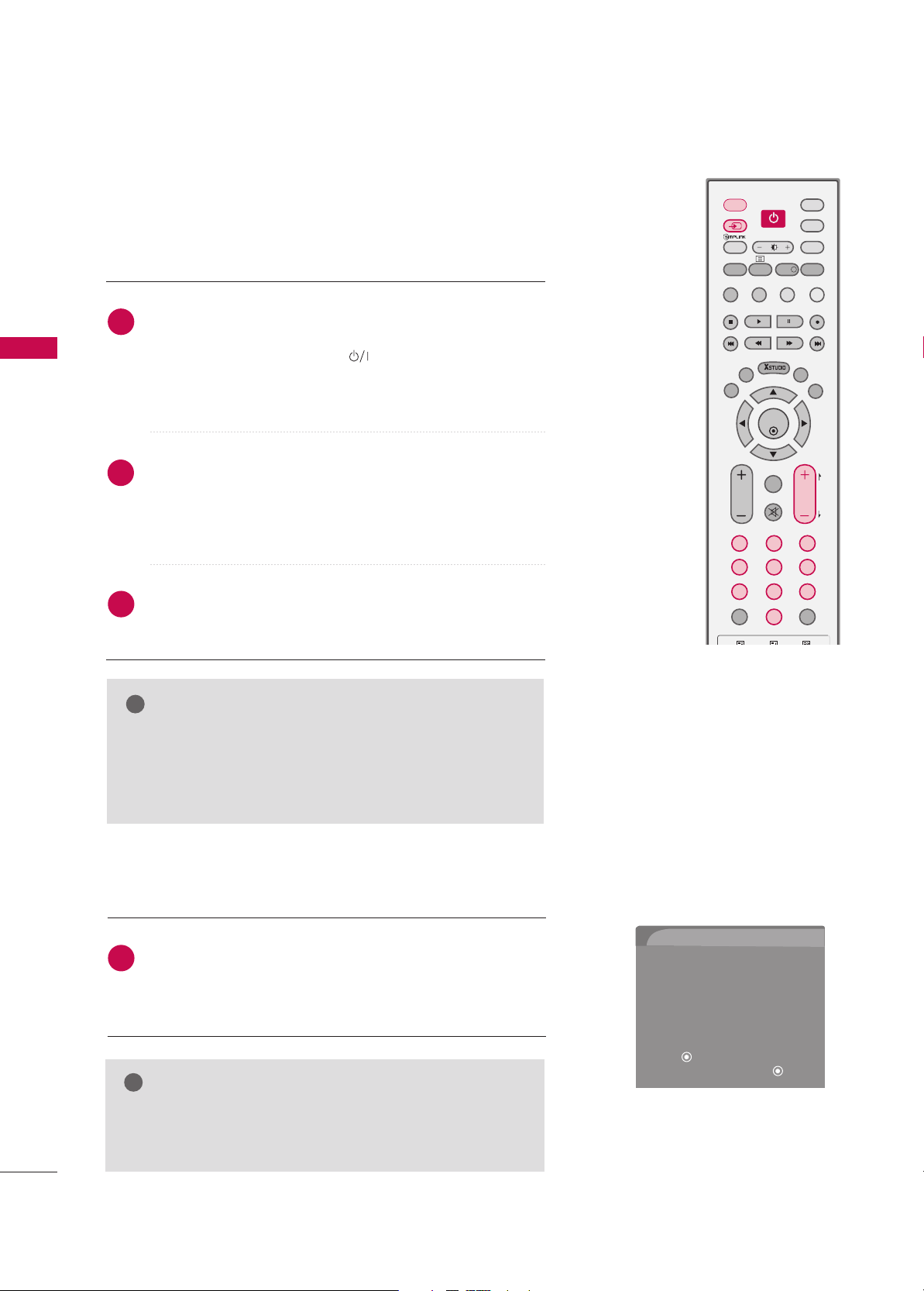

Turning on the TV . . . . . . . . . . . . . . . . . . . . . . . . 36
Initializing Setup . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programme Selection . . . . . . . . . . . . . . . . . . . . . 37
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . 37

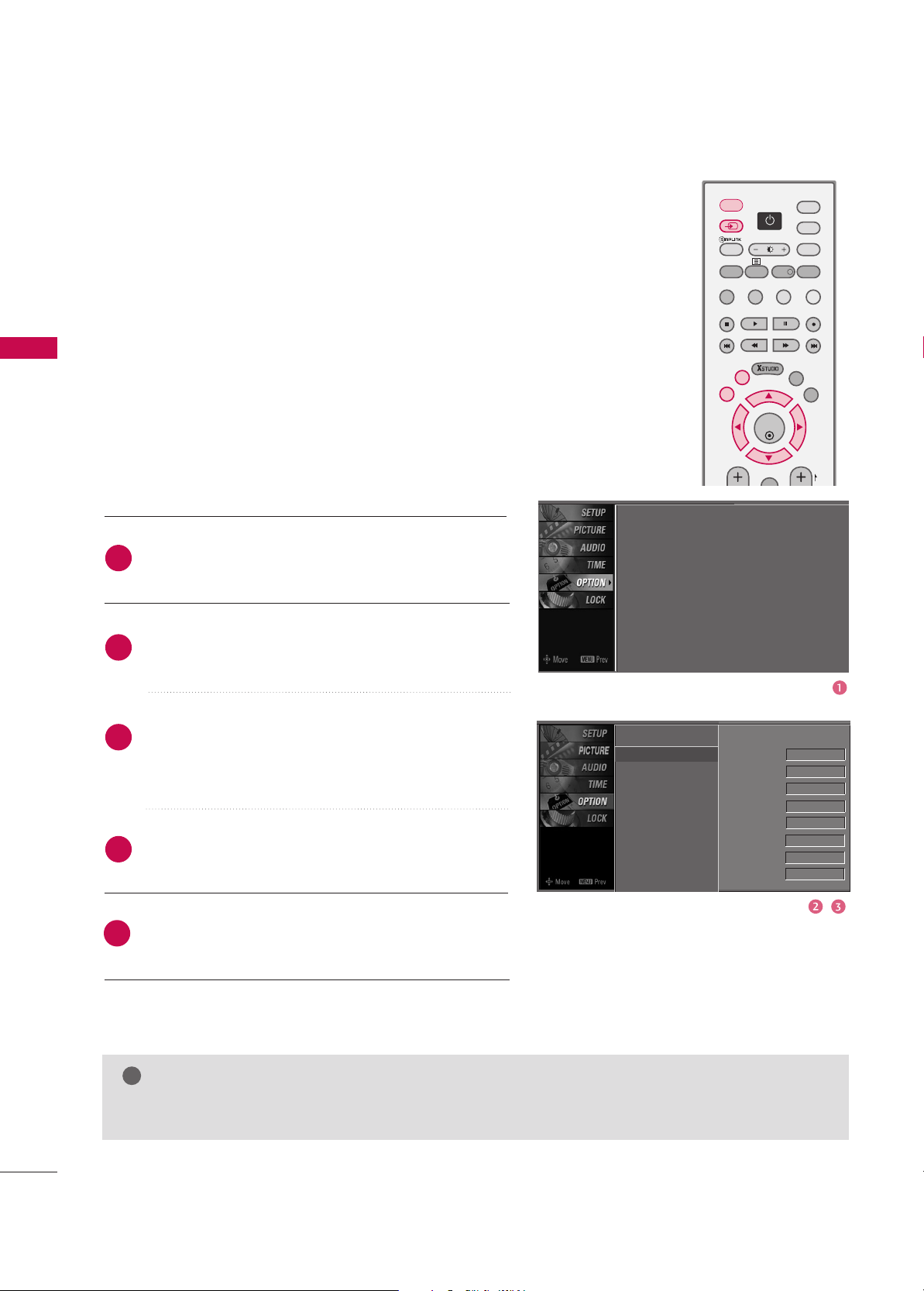

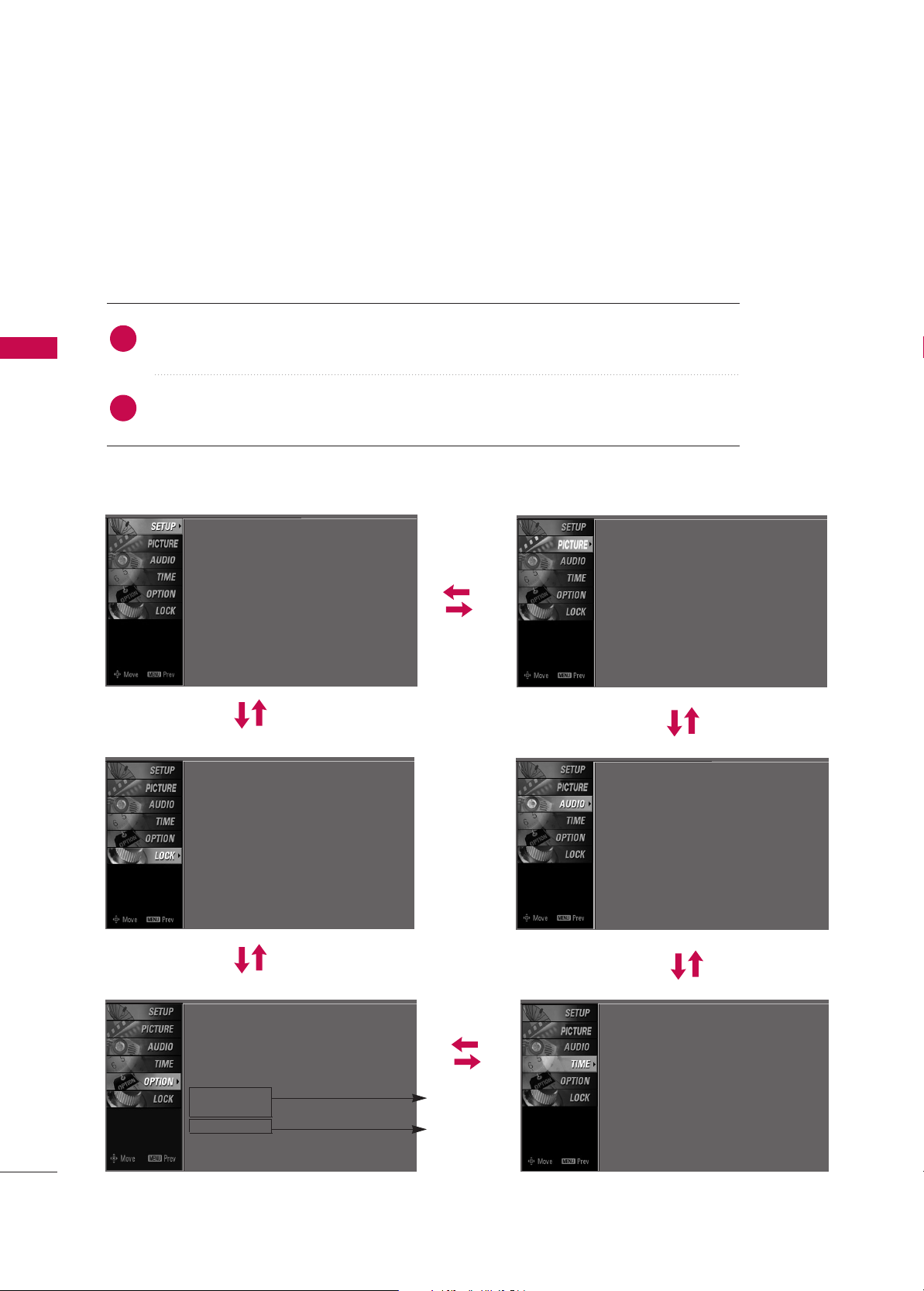

On-Screen Menus Selection and Adjustment . . 38
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Model Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Auto Programme Tuning . . . . . . . . . . . . . . . . . . .40
Manual Programme Tuning . . . . . . . . . . . . . . . . . 42
Fine Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Assigning a Station Name . . . . . . . . . . . . . . . . . 45
Programme Edit . . . . . . . . . . . . . . . . . . . . . . . . . .46
Input List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Calling Up the Channel List . . . . . . . . . . . . . . . . 49
Input Source Selection . . . . . . . . . . . . . . . . . . . . 50

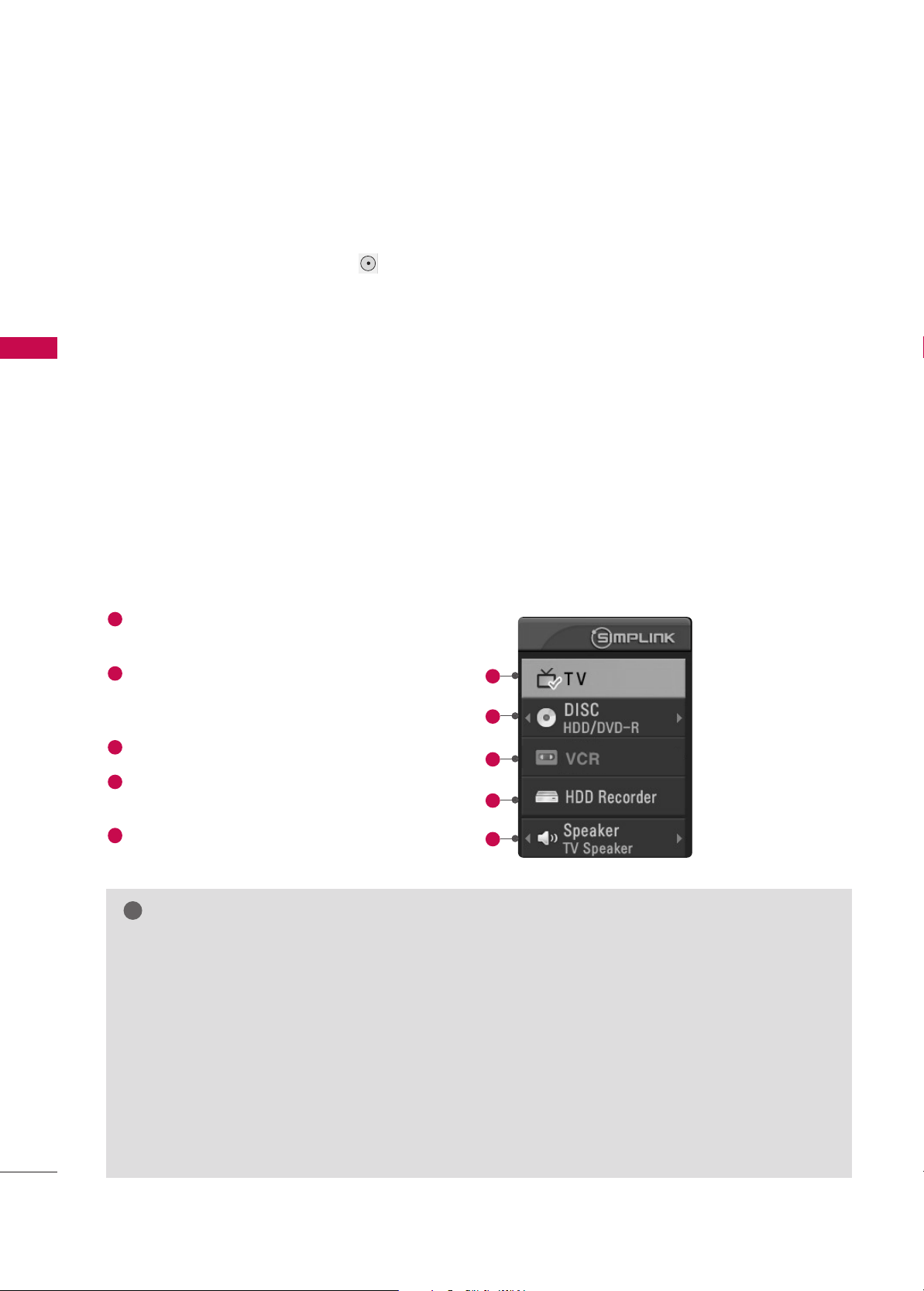

SIMPLINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Entry Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Photo List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Music List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

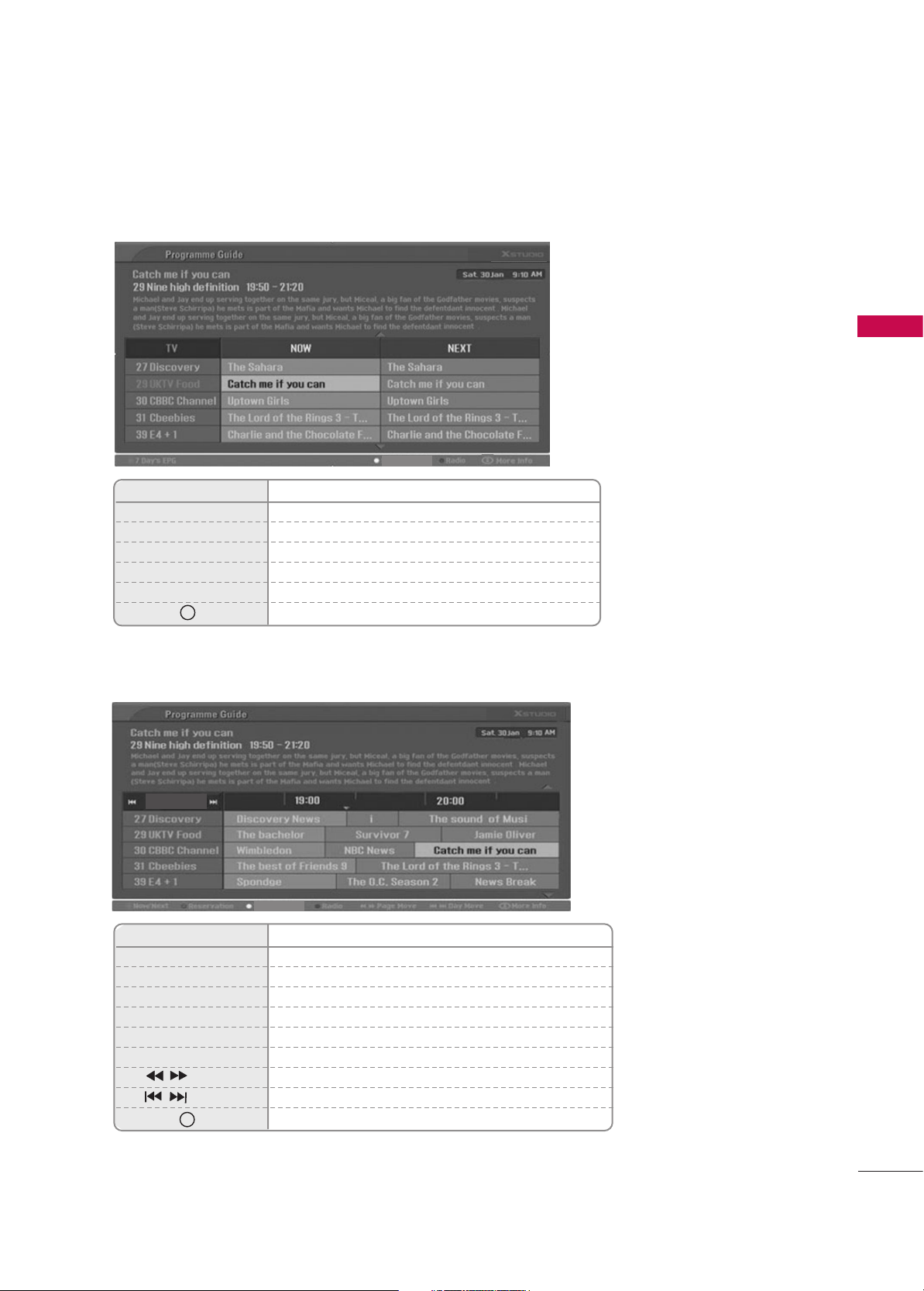

EPG(ELECTRONIC PROGRAMME GUIDE)
Switch on/off EPG . . . . . . . . . . . . . . . . . . . . . . . 62
Select a programme . . . . . . . . . . . . . . . . . . . . . . 62
Button Function in NOW/NEXT Guide Mode . 63
Button Function in 7 Days Guide Mode . . . . . . 63
Button Function in Extended Description Box . 64
Button Function in Reservation Setting Mode . 64
PICTURE CONTROL
Picture Size (Aspect Ratio) Control . . . . . . . . . .65
Preset Picture Settings
- Picture Mode - Preset . . . . . . . . . . . . . . . . 66
- Auto Colour Tone Control
(Warm/Medium/Cool) . . . . . . . . . . . . . . . .67
Manual Picture Adjustment
- Picture Mode - User Option . . . . . . . . . . . 68
- Colour Tone - User Option. . . . . . . . . . . . .69
Brightness Adjustment . . . . . . . . . . . . . . . . . . . . . . 70
XD - Picture Improvement Technology . . . . . . . . . . . 71
Advanced - Cinema . . . . . . . . . . . . . . . . . . . . . . . 72
Advanced - Black( Darkness) Level . . . . . . . . . . 73
Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Image Sticking Minimization(ISM) Method . . . . 75
Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Front Display(50/60PY3DF* only) . . . . . . . . . . 77
CONTENTS
3
After reading this manual, keep it handy for future reference.
SOUND & LANGUAGE CONTROL
Auto Volume Leveler ( Auto Volume) . . . . . . . . . 78
Preset Sound Settings- Sound Mode . . . . . . . . 79
Sound Setting Adjustment - User Mode . . . . . . . . 80
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
TV Speakers On/ Off Setup . . . . . . . . . . . . . . . . 83
I/II
- Stereo/Dual Reception . . . . . . . . . . . . . . . . . 84
- Speaker Sound Output Selection . . . . . . . . 84
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
TIME SETTING
Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Auto On/ Off Timer Setting . . . . . . . . . . . . . . . .88
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . .89
Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . 90
PARENTAL CONTROL / RATINGS
Set Password & Lock System . . . . . . . . . . . . . . . 91
Programme Blocking . . . . . . . . . . . . . . . . . . . . . . 93
Parental Guidance . . . . . . . . . . . . . . . . . . . . . . . . 94
External Input Blocking . . . . . . . . . . . . . . . . . . . . 95
TELETEXT
Switch On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Simple Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
TOP Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Fastext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Special Teletext Functions . . . . . . . . . . . . . . . . . 97
APPENDIX
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .98
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Product Specifications . . . . . . . . . . . . . . . . . . . 101
Programming the Remote Control . . . . . . . . . 104
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
External Control through RS-232C . . . . . . . . . 109
Open Source License . . . . . . . . . . . . . . . . . . . . . 115
PREPARATION
4
FRONT PANEL CONTROLS
PREPARATION
■
This is a simplified representation of the front panel. Image shown may be somewhat different from your TV.
■
If your product has a protection film attached, remove the film and then wipe the product with a polishing
cloth.
50/60PY3DF
**
PR
VOL
OK
MENU
INPUT
Remote Control Sensor
OK
OK
PR
PR
OK
PR
VOLUME
(
FF
,
GG
)
Buttons
PRO-
GRAMME
(
EE
,
DD
)
Buttons
OK
Button
MENU
Button
INPUT
Button
POWER
Button
Power Standby Indicator
• illuminates red in standby
mode.
• illuminates white when
the set is switched on.
Program Display
Touch Pad
PR
VOL
OK
MENU
INPUT
PREPARATION
5
42/50PB4D
**
CH
VOL
42/47/52LB9DF
**
, 32LB9D
**
PR
VOL
OK
MENU
INPUT
/I
CH
VOL
PROGRAMME
(
EE
,
DD
) Buttons
VOLUME
(
FF
,
GG
) Buttons
OK Button
MENU Button
INPUT Button
POWER Button
Remote Control
Sensor
Intelligent Eye
Adjusts picture
according to the
surrounding con-
ditions.
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is switched on.
PR
VOL
OK
MENU
INPUT
PROGRAMME
Buttons
VOLUME
Buttons
MENU
Button
OK
Button
INPUT
Button
POWER
Button
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates green when the set is switched on.
HDMI IN HDMI/DVI IN
1
2
2
1
VARIABLE AUDIO OUT
RGB IN
COMPONENT IN
AV IN 1 AV OUT
L/MONO
R
AUDIO
VIDEO
RS-232C IN
(CONTROL&SERVICE)
USB
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
PREPARATION
6
PREPARATION

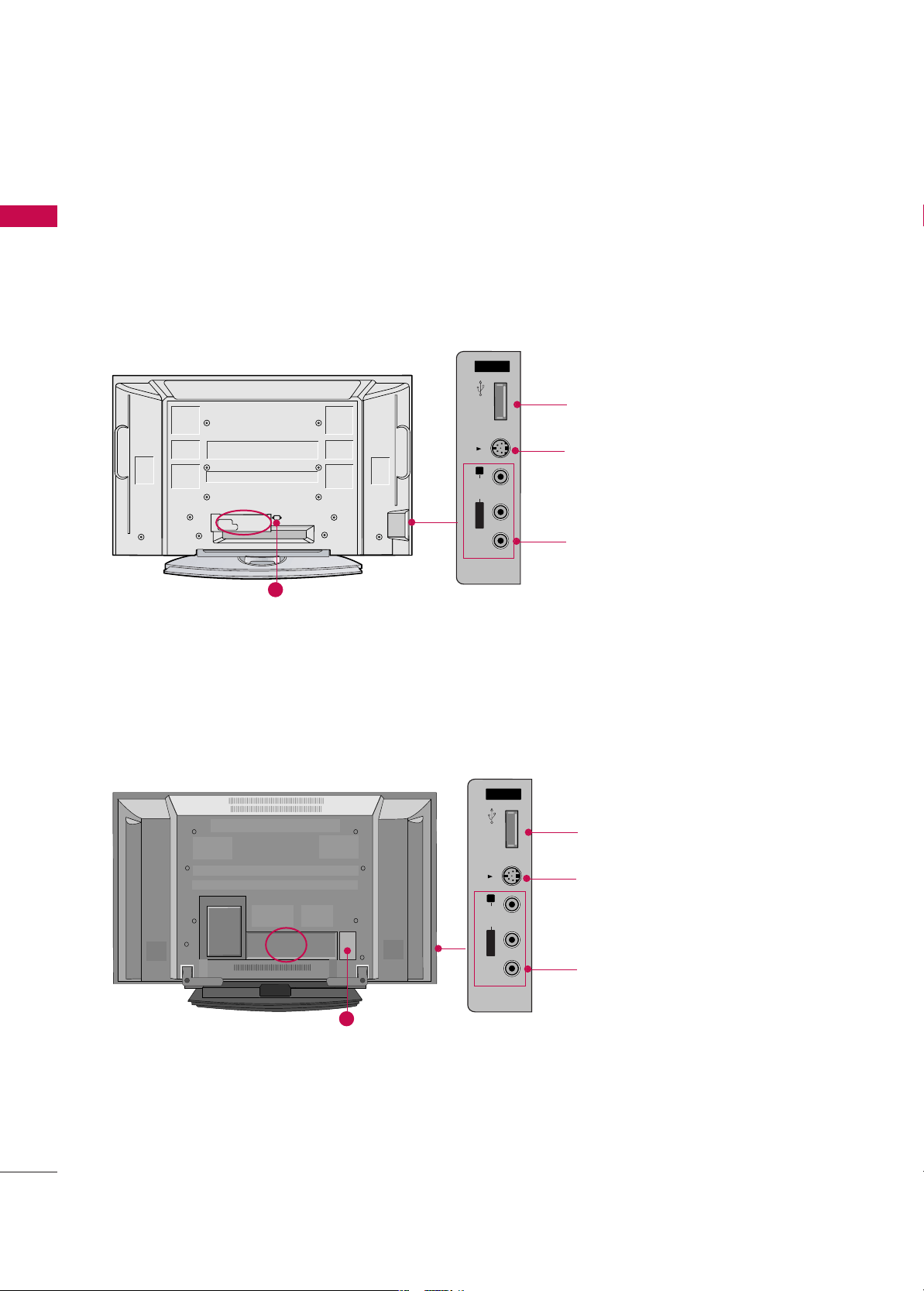

BACK PANEL INFORMATION
■
Image shown may be somewhat different from your TV.
50/60PY3DF
**
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB
AV IN 2
V IN 2
L/
L/
MONO
MONO
R
AUDIO
AUDIO
VIDEO
VIDEO
S-VIDEO
USB
USB
USB port
S-VIDEO Input
Connect S-Video out from an
S-VIDEO device.
AUDIO/VIDEO Input
Connect audio/video output from
an external device to these jacks.
42/50PB4D
**
Plasma TV Models
10
AV IN 2V IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEO
USB USB
USB port
S-VIDEO Input
Connect S-Video out from an
S-VIDEO device.
AUDIO/VIDEO Input
Connect audio/video output from
an external device to these jacks.
10
PREPARATION
7
HDMI/DVI IN
Connect a HDMI signal.
Or DVI(VIDEO) signal to the this port with a
HDMI to DVI cable.
RGB/AUDIO IN
Connect the output from a set top box or PC to
the appropriate input port.

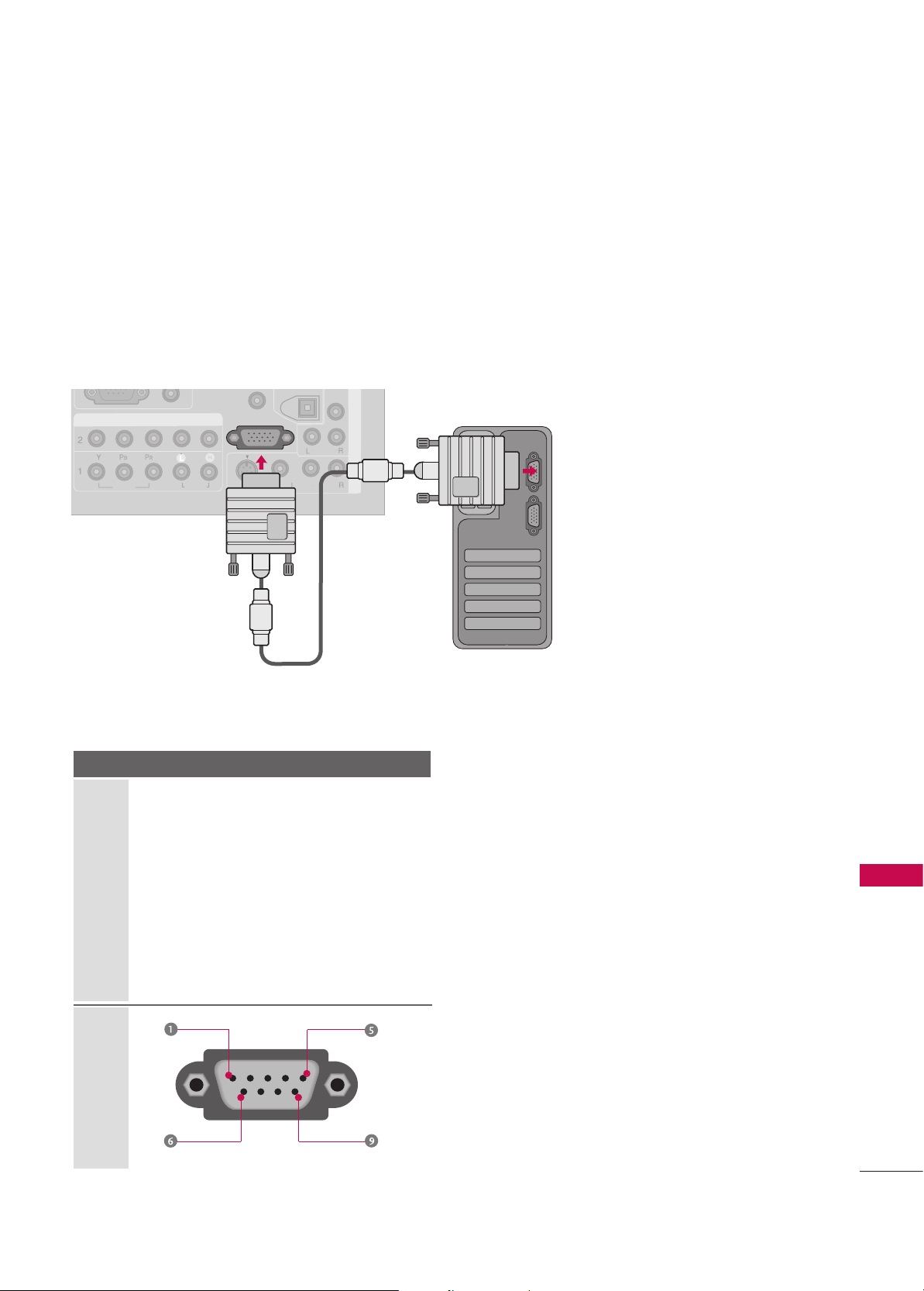

RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
Remote Control Port
Connect your wired remote control.
ANTENNA IN
Connect antenna signals to this jack.
DIGITAL AUDIO OUT
Connect digital audio from various types of
equipment. Note: In standby mode, these ports
do not work.
COMPONENT IN
Connect a component video/audio device to
these jacks.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AV OUT
Connect a second TV or monitor.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
7
8
9
10
2
3
4
5
HDMI/DVI INHDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
AV IN 1AV IN
1
VIDEOVIDEO
S-VID
EO
S-
VIDEO
AUDIOAUDIO
MONO
( )
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
AV
OUT
AV OUT
REMOTEREMOTE
CONTROL INCONTROL IN
DIGITAL AUDIO DIGITAL AUDIO
OUTOUT
OPTICALPTICAL
VIDEOVIDEO
AUDIO
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO
OUT
OPTICAL
VIDEO
ANTENNAANTENNA
ININ
3
1
2
4
7
8
3
5
6
9
PREPARATION
8
PREPARATION
■
Image shown may be somewhat different from your TV.
ANTENNAANTENNA
ININ
HDMI/DVI INHDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
AV
IN 1
AV
IN
1
VIDEOVIDEO
S-VIDEOS-VIDEO
AUDIOAUDIO
MONO
( )
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
AV
OUT
AV OUT
REMOTEREMOTE
CONTROL INCONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICALPTICAL
VIDEOVIDEO
S-VIDEO
AUDIO
3
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV
IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO
OUT
OPTICAL
VIDEO
1
2
4
7
8
3
5
6
9
USB Input
S-VIDEO Input
Connect S-Video out from
an S-VIDEO device.
AUDIO/VIDEO Input
Connect audio/video output
from an external device to
these jacks.
AV IN 2
L/
MONO
R
AUDIO
A
VIDEO
S-VIDEO
USB IN
42/47/52LB9DF
**
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
AV IN 2V IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
USB INUSB IN
32LB9D
**
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB IN
HDMI/DVI IN
Connect a HDMI signal.
Or DVI(VIDEO) signal to the this port with a
HDMI to DVI cable.
RGB/AUDIO IN
Connect the output from a set top box or PC to
the appropriate input port.
RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
Remote Control Port
Connect your wired remote control.
ANTENNA IN
Connect antenna signals to this jack.
DIGITAL AUDIO OUT
Connect digital audio from various types of
equipment. Note: In standby mode, these ports
do not work.
COMPONENT IN
Connect a component video/audio device to
these jacks.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AV OUT
Connect a second TV or monitor.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
7
8
9
10
2
3
4
5
LCD TV Models
10
PREPARATION
9
STAND INSTALLATION (
32LB9D
*
Only)
1
2
3
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Assemble the product stand with the product as
shown.
Install the 4 bolts securely, in the back of the
product in the holes provided.
PREPARATION
10
PREPARATION
ATTACHING THE TV TO A DESK (32LB9D
**
Only)
If you wish to attach the TV to a desk, it must be securely fastened to the desk using a metal screw (as shown
below).
Failure to securely attach the TV may result in the TV falling: which may cause damage to the TV and serious
personal injury.
1-screw
Stand
Desk
SWIVEL STAND
50/
60PY3DF
**
models
After installing the TV, you can adjust the the TV set manually to the left or right direction by 20 degrees to
suit your viewing position.
NOTE
GG
Before adjusting the angle, you must remove
the cable management and loosen (to the
left) the shaft bolt on the middle of stand’s
back. And when stand be level with TV, you
must close (to the right) the shaft bolt to
set the hole.
PREPARATION
11
ATTACHING THE TV TO A WALL
■
This Feature is not available for all models.
A
Set it up close to the wall so the product doesn’t fall over when it is pushed backwards.
A
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the
product doesn’t fall over when it is pulled in the forward direction. It will prevent the product from
falling forward and hurting people. It will also prevent the product from damage caused by fall. Please
make sure that children don’t climb on or hang from the product.
Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on
the wall. Match the height of the bracket that is mounted on the wall.
1
2
Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the
product. It is safer to tie the rope so it becomes horizontal between the wall and the product.
3
3
42/50PB4D
**
60PY3DF
**
42/47/52LB9DF
**
, 32LB9D
**
2
1
2
1
50PY3DF
**
2
1
2
1
PREPARATION
12
PREPARATION
Hold the CABLE MANAGEMENT with both hands and pull it as shown.
Connect the cables as necessary.
To connect additional equipment, see the External equipment Setup section.
1
2
Install the CABLE MANAGEMENT as shown.
3
CABLE MANAGEMENT
50/60PY3DF
**
45
°
BACK COVER FOR WIRE ARRANGEMENT
■
Here shown may be somewhat different from your TV.
PREPARATION
13
Connect the cables as necessary.
To connect an additional equipment, see the
EExxtteerrnnaall eeqquuiippmmeenntt SSeettuupp
section.
Reinstall the
CCAABBLLEE MMAANNAAGGEEMMEENNTT
as shown.
Hold the
CCAABBLLEE MMAANNAAGGEEMMEENNTT
with hands and push it as shown.
CABLE MANAGEMENT
42/50PB4D
**
1
2
3
PREPARATION
14
PREPARATION
Connect the cables as necessary.
To connect additional equipment, see the
EExxtteerrnnaall EEqquuiippmmeenntt SSeettuupp
section.
Install the
CCAABBLLEE MMAANNAAGGEEMMEENNTT
as shown.
(Insert it as pushing the loops on the both
sides of the cable management.)
(This Feature is not available for all models.)
Bundle the cables using the supplied twist hold-
er.
(This Feature is not available for all models.)
Hold the
CCAABBLLEE MMAANNAAGGEEMMEENNTT
with both hands
and pull it upward.
(Pull it out as holding the loops on the both sides of
the cable management.)
NOTE
!
GG
Do not hold the CABLE MANAGEMENT when moving the product.
- If the product is dropped, you may be injured or the product may be broken.
How to remove the cable management
1
2
3
TWIST HOLDER
CABLE MANAGEMENT
42/47/52LB9DF
**
, 32LB9D
**
PREPARATION
15
GG
Ensure adequate ventilation by following the clearance recommendations.
CAUTION
Power Supply
Short-circuit
Breaker
GROUNDING
Ensure that you connect the earth ground wire to prevent
possible electric shock. If grounding methods are not pos-
sible, have a qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting it to tele-
phone wires, lightening rods, or gas pipes.
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 4inches on all four sides from the wall.
4 inches
4 inches
4 inches
4 inches
WALL MOUNT: HORIZONTAL INSTALLATION
For proper ventilation, allow a clearance of 4" on each side and from the wall.
Detailed installation instructions are available from your dealer.
4 inches
4 inches
4 inches
4 inches
4 inches
PREPARATION
16
PREPARATION
NOT USING THE DESK-TYPE STAND(Only
50/60PY3DF
*
model)
When not using the desk-type stand, install the
supplied desk-type stand fixture protection rubber
caps as shown at the figure.
To prevent the foreign materials from entering the
desk-type stand fixture, fix the desk-type stand fix-
ture protection cover(additional cover) by using
the supplied bolts as shown at the figure.
ADDITIONAL COVER
BOLT
RUBBER
■
It is applied to when installing only the 60PY3DF
*
model as wall-type.
■
It is applied to when installing only the 50/60PY3DF
*
model as wall-type.
HDMI IN HDMI/DVI IN
1
2
2
1
VARIABLE AUDIO OUT
RGB IN
COMPONENT IN
AV IN 1 AV OUT
L/ MONO
R
AUDIO
VIDEO
RS-232C IN
(CONTROL&SERVICE)
USB
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
PREPARATION
17
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
ANTENNA CONNECTION
Wall Antenna Socket or Outdoor Antenna with-
out a Cable Box Connections. For optimum
picture quality, adjust antenna direction if
needed.
AV IN 2
L/ MONO
R
AUDIO
VIDEO
S-VIDEO
USB
AV IN 2
L/ MONO
R
AUDIO
VIDEO
USB IN
ANTENNA
IN
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
GG
The TV will let you know when the analogue, cable, and digital programme scans are complete.
NOTE
!
ANTENNA
IN
■
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■
If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
EXTERNAL EQUIPMENT SETUP
18
EXTERNAL EQUIPMENT SETUP
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
This part of EXTERNAL EQUIPMENT SETUP mainly use pictures for the
LCD TV
models.
HD RECEIVER SETUP
When connecting with a Component cables
Connect the video outputs
(
Y, PB, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks on
the set. Match the jack colours.
(Y = green, P
B = blue, and PR = red)
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the set.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
CCoommppoonneenntt 11
input source using the
IINNPPUUTT
button on the remote control.
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCoommppoonneenntt 22
input source.
2
1
Signal
480i
480p
576i
576p
720p
1080 i
1080 p
Component 1/2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HDMI/DVI 1, 2, 3
No
Yes
No
Yes
Yes
Yes
Yes
3
4
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
Y L RPB PR
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
1
2
EXTERNAL EQUIPMENT SETUP
19
When connecting with HDMI cable
Connect the digital set-top box to
HHDDMMII//DDVVII IINN11
,
22
or
33
jack on the set.
No separate audio connection is necessary.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source using the
IINNPPUUTT
button on the remote control.
2
1
GG
If the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
set to 1280x720p.
GG
If the digital set-top box player does not support Auto
HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the source device to 1920x1080i/1080p. (32LB9D*,
42/50PB4D*: 1280x720p)
NOTE
!
3
4
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO
(RGB/DVI)
DIGITAL
AUDIO
OUT
HDMI/DVI INHDMI/DVI IN
2
1
HDMI-DTV OUTPUT
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
3
1
EXTERNAL EQUIPMENT SETUP
20
EXTERNAL EQUIPMENT SETUP
When connecting HDMI to DVI cable
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
ANTENNA
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
A
V
IN
1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
A
V
OU
T
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
HDMI/DVI INHDMI/DVI IN
1
RGB INRGB IN
RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
L R
DVI-DTV OUTPUT
VIDEO
AUDIO
2
3
Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN11
,
22
or
33
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source with using the
IINNPPUUTT
button on the remote control.
2
1
1
2
3
4
EXTERNAL EQUIPMENT SETUP
21
When connecting Component cables
RGB IN
RGB (PC)
S
(C
DIGITAL
AUDIO
OUT
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
Y L RPB PR
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V
IN
1
VIDEO
AUDIO
( )
S-VIDEO
(DVI)
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video outputs (Y, P
B, PR) of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO11
jacks on the set.
Match the jack colours (Y = green, P
B = blue, and PR = red).
Connect the audio outputs of the DVD to the
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO11
jacks on the set.
Turn on the DVD player, insert a DVD.
Select
CCoommppoonneenntt 11
input source using the
IINNPPUUTT
button on the remote control.
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCoommppoonneenntt 22
input source.
Refer to the DVD player's manual for operating instruc-
tions.
2
1
1 2
3
4
5
DVD SETUP
EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
When connecting with an S-Video cable
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V
IN
1
A
V
IN
1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
(DVI)
L R
S-VIDEO
AUDIO
UO
1
2
Connect the S-VIDEO output of the DVD to the
SS--VVIIDDEEOO
input on the set.
Connect the audio outputs of the DVD to the
AAUUDDIIOO
input jacks on the set.
Turn on the DVD player, insert a DVD.
Select
AAVV11
input source using the
IINNPPUUTT
button on the
remote control.
If connected to
AAVV IINN 22
input, select
AAVV22
input
source.(Except 32LB9D*)
Refer to the DVD player's manual for operating instruc-
tions.
2
1
3
4
5
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENCOMPONENT IN
VIDEOVIDEO
AUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
A
(R
DIGITAL
AUDIO
OUT
HDMI/DVI INHDMI/DVI IN
2
1
HDMI-DVD OUTPUT
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V
IN
1
VIDEO
AUDIO
( )
S-VIDEO
(DVI)
3
1
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN11
,
22
or
33
jack on the set.
No separate audio connection is necessary.
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source using the
IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating instructions.
2
1
GG
If the DVD supports Auto HDMI function, the DVD output
resolution will be automatically set to 1280x720p.
GG
If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.
To get the best picture quality, adjust the output resolution of
the DVD to 1920x1080i/1080p. (32LB9D*, 42/50PB4D*:
1280x720p)
NOTE
!
3
4
EXTERNAL EQUIPMENT SETUP
23
VCR SETUP
When connecting with an antenna
■
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the
screen. This phenomenon is common to all manufacturers and in consequence the manufacturer’s warranty
does not cover the product bearing this phenomenon.
HDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO
(RGB/DVI)
AV IN
1
VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV
OUT
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
S-VIDEO
ANTENNAANTENNA
ININ
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1
VIDEO
AUDIO
( )
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1
VIDEO
AUDIO
( )
S-VIDEO
VIDEO
(DVI)
(DVI)
(DVI)
AUDIO
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the VCR to the
AANNTTEENNNNAA IINN
socket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
Set VCR output switch to 3 or 4 and then tune TV to the same programme number.
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
2
1
3
4
EXTERNAL EQUIPMENT SETUP
24
EXTERNAL EQUIPMENT SETUP
When connecting with an RCA cable
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
ANTENNA
IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1A
V IN
1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1
VIDEO
AUDIO
( )
S-VIDEO
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
(DVI)
(DVI)
(DVI)
AUDIO
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
VCR. Match the jack colours(Video = yellow, Audio Left =
white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
Select
AAVV11
input source using the
IINNPPUUTT
button on
the remote control.
If connected to
AAVV IINN22
, select
AAVV22
input source.
1
GG
If you have a mono VCR, connect the audio cable from the
VCR to the
AAUUDDIIOO LL((MMOONNOO))
jack of the set.
NOTE
!
1
3
2
GG
Do not connect to both Video
and S-Video at the same time. In
the event that you connect both
Video and the S-Video cables,
only the S-Video will work.
CAUTION
GG
The picture quality is improved: ; compared to normal
composite (RCA cable) input.
NOTE
!
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
ANTENNA
IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1
VIDEO
AUDIO
( )
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
OAUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN
1A
V IN
1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
L R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
(DVI)
(DVI)
(DVI)
AUDIO
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the
SS--VVIIDDEEOO
input on the set.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the set.
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
Select
AAVV11
input source using the
IINNPPUUTT
button on
the remote control.
If connected to
AAVV IINN 22
input, select
AAVV22
input
source.(Except 32LB9D*)
2
1
1
2
3
4
EXTERNAL EQUIPMENT SETUP
25
OTHER A/V SOURCE SETUP
Camcorder
Video Game Set
AV IN 2
L/
MONO
R
AUDIO
A
VIDEO
S-VIDEO
USB IN
L R
VIDEO
AV IN 2
L/
MONO
R
AUDIO
A
VIDEO
USB IN
L R
VIDEO
1
Camcorder
Video Game Set
32 inches
42/47/50/52/60 inches
1
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
external equipment. Match the jack colours
.
(
Video = yellow, Audio Left = white,
and Audio Right = red
)
Select
AAVV22
input source using the
IINNPPUUTT
button on the remote control.
If connected to
AAVV IINN11
input, select
AAVV11
input source.
Operate the corresponding external equipment.
1
2
3
EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV perceives 1024x768, 60Hz as DTV 720p based on the PC graphic card. If necessary, change the
screen scanning rate for the graphic card accordingly.
When connecting D-sub 15pin cable
GG
Check the image on your TV. There may be noise associ-
ated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC
output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the
VIDEO menu until the picture is clear. If the refresh rate of
the PC graphic card can not be changed, change the PC
graphic card or consult the manufacturer of the PC
graphic card.
NOTE
!
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
ANTEN
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
VIDEO
S-VIDEO
MON
(
RS-232C IN
(CONTROL & SERVICE)
REMOTE
CONTROL IN
DIGITADIGITAL
AUDIO AUDIO
OOUT
OPTICA
RGB INRGB IN
RGB (PC)
AUDIO
(RGB/DVI)
RGB OUTPUT
AUDIO
Connect the RGB output of the PC to the
RRGGBB
((
PPCC))
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
Turn on the PC and the set.
Select
RRGGBB--PPCC
input source in input option of Special
menu.
Once you select
RRGGBB--PPCC
in input option of Special
menu,
IINNPPUUTT
button is also available for this purpose.
2
1
1
2
4
3
5
EXTERNAL EQUIPMENT SETUP
27
When connecting HDMI to DVI cable
GG
If the PC has a DVI output and no HDMI output, a separate audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the PC graphics card's output resolution to 1920x1080, 60Hz. (42PB4D* :
1024x768p, 32LB9D*/50PB4D*: 1360x768p)
NOTE
!
ANTENNA
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
AV IN 1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
HDMI/DVI INHDMI/DVI IN
1
RGB INRGB IN
RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
L R
DVI-PC OUTPUT
VIDEO
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
AUDIO
2
3
Connect the DVI output of the PC to the
HHDDMMII//DDVVII IINN11
,
22
or
33
jack on the set.
(Use the HDMI to DVI cable)
Connect the PC audio output to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
Turn on the PC and the set.
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source using the
IINNPPUUTT
button on the remote control.
2
1
1
2
4
3
EXTERNAL EQUIPMENT SETUP
28
EXTERNAL EQUIPMENT SETUP
NOTES
!
Supported Display Specifications
(
RGB/HDMI-PC
)
Supported Display Specifications
(
HDMI-DTV
)
Supported Display Specifications
(
Component
)
Horizontal Vertical
Frequency
(
kHz
)
Frequency
(
Hz
)
15.625 50.00
31.25 50.00
15.75 60.00
15.73 59.94
31.47 59.94
31.50 60.00
45.00 60.00
44.96 59.94
37.50 50.00
33.75 60.00
33.72 59.94
28.125 50.00
26.97 23.976
27.00 24.00
33.716 29.97
33.750 30.00
56.25 50.00
67.43 59.94
67.50 60.00
Resolution
1280x720p
1920x1080i
720x480i
GG
Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in use.
GG
Avoid keeping a fixed image on the screen for a
long period of time. The fixed image may
become permanently imprinted on the screen.
GG
The synchronization input form for Horizontal
and Vertical frequencies is separate.
Horizontal Vertical
Frequency
(
kHz
)
Frequency
(
Hz
)
31.469 59.940
37.500 75.000
31.469 70.08
37.879 60.317
46.875 75.000
48.363 60.004
56.476 70.069
60.023 75.029
47.776 59.870
47.712 60.015
47.13 59.65
63.981 60.020
79.976 75.025
75.000 60.000
67.500 60.000
Resolution
720x400
1280x1024
640x480
800x600
1024x768
1280x768
1600x1200
1920x1080
1360x768
Horizontal Vertical
Frequency
(
kHz
)
Frequency
(
Hz
)
31.25 50.00
31.47 59.94
31.50 60.00
37.50 50.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
28.125 50.00
26.97 23.976
27.00 24.00
33.716 29.97
33.750 30.00
56.25 50.00
67.43 59.94
67.50 60.00
Resolution
720x480p
720x576p
1280x720p
1920x1080i
720x576i
Except 32LB9D*, 42PB4D*
1920x1080p
720x576p
720x480p
1920x1080p
1366x768
Except 50PB4D*
EXTERNAL EQUIPMENT SETUP
29

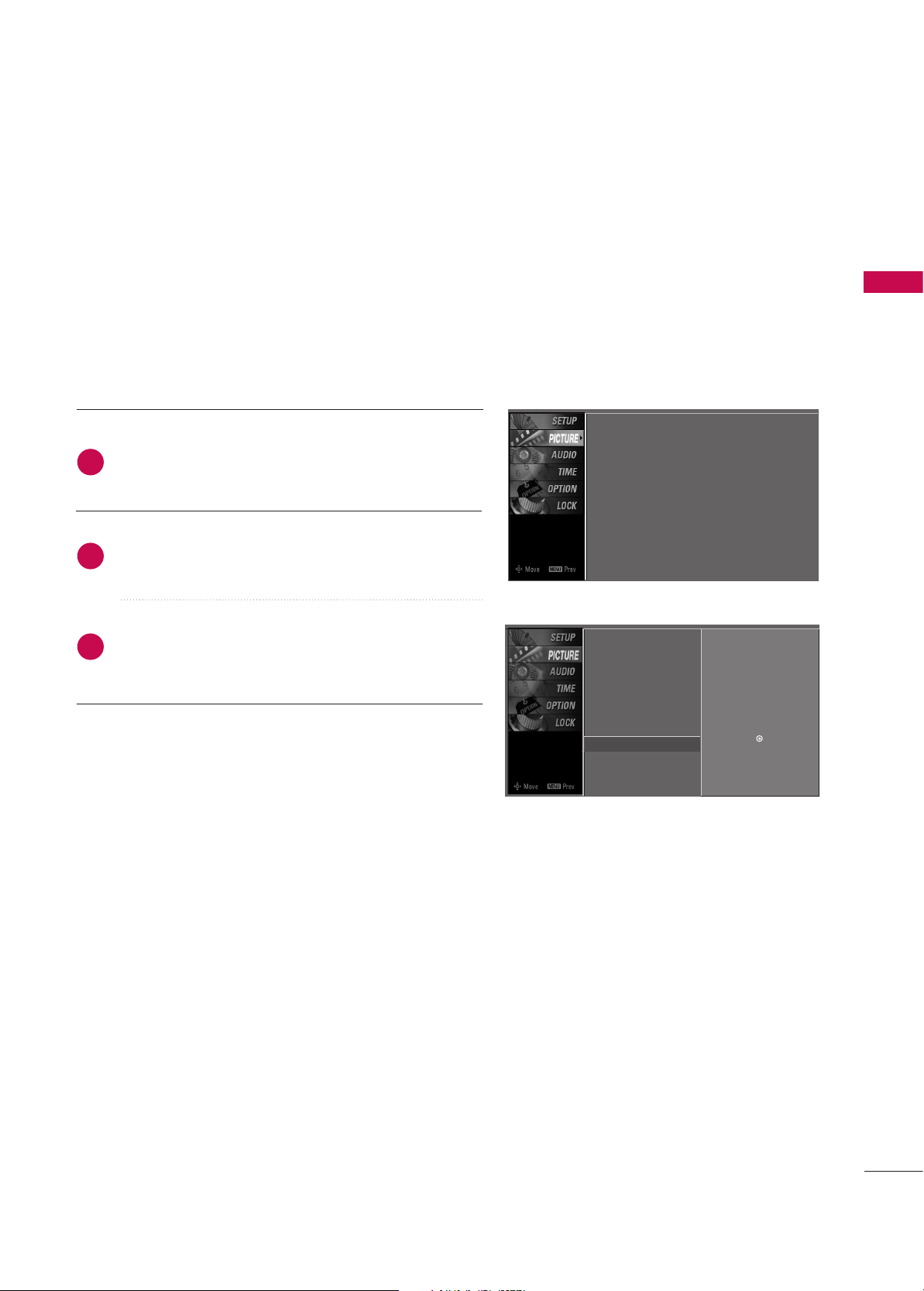

Screen Setup for PC mode
Overview
When the RGB input, of the set is connected to a PC Output, Select
RGB-PC with using the
IINNPPUUTT
button on the remote control.
When you change the resolution, select the proper resolution in
present input to see the best picture appearance.
Picture Mode
Colour Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
G
Selection (
G
or ) leads you to
the screen adjustment menu.
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSccrreeeenn
.
Press the
GG
button to enter the screen adjustment
menu.
2
3
1
EXTERNAL EQUIPMENT SETUP
30
EXTERNAL EQUIPMENT SETUP
Resolution
Position
GG
Clock
Phase
Reset
Move Prev
Resolution
Position
Clock
Phase
Reset
GG
Initialize Settings.
Yes
No
Prev
Select
OK
RReessoolluuttiioonn
XGA(1024, 1280, 1360, 1366)
isn’t distinguished because of
having the same H/V Sync Time.
This function is you to select the
Default Sync Time.
PPoossiittiioonn
This function is to adjust picture
to left/right and up/down as you
prefer.
CClloocckk
This function is to minimize any
vertical bars or stripes visible on
the screen background. And the
horizontal screen size will also
change.
PPhhaassee
This function allows you to
remove any horizontal noise and
clear or sharpen the image of char-
acters.
Use
DD
or
EE
button to select
RReessoolluuttiioonn
,
PPoossiittiioonn
,
CClloocckk
,
or
PPhhaassee
.
Press the
OOKK
button and then use
DD
or
EE
or
FF
or
GG
button to make appropriate adjustments.
■
The
PPhhaassee
adjustment range is
--1166
~
++1166
.
■
The
CClloocckk
adjustment range is
--3300
~
++3300
.
Press the
OOKK
button.
Adjustment for screen Resolution, Position, Clock, Phase, Reset
Use
DD
or
EE
button to select
RReesseett
.
Press the
OOKK
button and then use
FF
or
GG
button to
select
YYeess
.
Press the
OOKK
button.
Initializing
(
Reset to original factory values
)
2
3
1
2
3
1
To initialize the adjusted values.
This function allows you to return to the good picture reproduc-
tion programmed at the factory and cannot be change.
EXTERNAL EQUIPMENT SETUP
31
USB IN SETUP
AV IN 2V IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEO
USB INUSB IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB IN
1
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
AV IN 2V IN 2
L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
USB INUSB IN
1
32 inches
42/47/50/52/60 inches
Connect the USB device to the
UUSSBB IINN
jacks on the side of TV.
After connecting the
UUSSBB IINN
jacks, you use the function. (
GG
pp..5544
)
i
2
1
EXTERNAL EQUIPMENT SETUP
32
EXTERNAL EQUIPMENT SETUP
AV OUTPUT SETUP
The TV has a special signal output capability which allows you to hook up a second TV or monitor.
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AV IN 1
VIDEO
IDEO
AUDIO
MONO
( )
RS-232C IN
TROL & SERVICE)
REMOTE
ONTROL IN
DIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
AV OUTAV O
UT
VIDEO
L
R
S-VIDEO
VIDEO
(DVI)
AUDIO
Connect the second TV or monitor to the
TV’s
AAVV OOUUTT
jacks.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
GG
Only Digital, Analogue mode can be used for AV out.
GG
We recommend to use the AV OUT jacks for VCR recording.
NOTE
!
2
1
1
EXTERNAL EQUIPMENT SETUP
33
DIGITAL AUDIO OUTPUT SETUP
Send the TV’s audio to external audio equipment via the Digital Audio Output
(
Optical
)
port.
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
DIOAUDIO
RGB IN
RGB (PC)
AV IN 1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
VIDEO
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICALPTICAL
(DVI)
AUDIO
GG
When connecting with external audio equipments, such as
amplifiers or speakers, please turn the TV speakers off.
NOTE
!
GG
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the digi-
tal audio
(
optical
)
input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO
menu. See the external audio equipment instruction
manual for operation.
2
3
1
1
2
WATCHING TV/PROGRAMME CONTROL
34
WATCHING TV /PROGRAMME CONTROL
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
OK
TVD/A
INPUT
DVD
SIMPLINK
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
PR
MARK
SUBTITLE
I/II
RATIO
TEXT
GUIDE
VCR
POWER
123
456
789
0
LIST
?
MODE
BRIGHT
MENU
MUTE
INPUT
FAV
SLEEP
PAGE
USB
INFO
i
VCR/DVD
control buttons
1
D/A INPUT
(Digital TV /
Analogue TV)
INPUT
POWER
SIMPLINK
BRIGHT
mode control
buttons
OK
THUMBSTICK
(Up/Down/Left
Right)
VOLUME
UP/DOWN
Q.VIEW
MUTE
PROGRAMME
UP/DOWN
PAGE UP/DOWN
NUMBER button
LIST
FAV(FAVORITE)
I/II
USB
DD
SLEEP
Selects digital or analogue mode.
External input modes rotate in regular sequence: Digital,
Analogue, AV1-2, Component 1-2, RGB-PC, HDMI1,
HDMI2, HDMI3.
Switches the set between ON and STANDBY.
See a list of AV devices connected to TV.
When you toggle this button, the Simplink menu appears
at the screen
GG
p.51-52
Adjusts brightness on screen.
It returns to the default settings brightness by changing
mode source.
Control some video cassette recorders or DVD players
("RECORD" button is not available for DVD player).
Control the mode.
Accepts your selection or displays the current mode.
Adjusts menu settings.
Selects menu item.
Increase/decrease the sound level.
Returns to the previously viewed programme.
Switches the sound on or off.
Select a programme.
Move from one full set of screen information to the next
one.
Selects a programme. Selects numbered items in a menu.
Displays the programme table.
Displays the selected favorite programmes.
Selects the sound output or the audio mode.
Remove the USB device.
Sets the sleep timer.
WATCHING TV/PROGRAMME CONTROL
35
■
Open the battery compartment cover on the back
side and install the batteries matching correct
polarity
(
+with +,-with -
)
.
■
Install two 1.5V AA batteries. Don’t mix old or
used batteries with new ones.
■
Close cover.
■
Use a remote control up to 7 meters distance and
30 degree (left/right) within the receiving unit
scope.
■
Dispose of used batteries in a recycle bin to
preserve environment.
TVD/A
INPUT
DVD
SIMPLINK
EXIT
MARK
SUBTITLE
RATIO
TEXT
GUIDE
VCR
POWER
MODE
BRIGHT
MENU
INPUT
INFO
i
Installing Batteries
Remote control effective range
TV, VCR, DVD
RATIO
INFOoo
GUIDE
Coloured
Button
EXIT
MENU
SUBTITLE
MARK
TELETEXT
BUTTONS
1
i
TVD/A
INPUT
DVD
SIMPLINK
EXIT
MARK
SUBTITLE
RATIO
TEXT
GUIDE
VCR
POWER
MODE
BRIGHT
MENU
INPUT
INFO
i
OK
TVD/A
INPUT
DVD
SIMPLINK
EXIT
MARK
SUBTITLE
RATIO
TEXT
GUIDE
VCR
POWER
MODE
BRIGHT
MENU
INPUT
INFO
i
50/60PY3DF
**
42/50PB4D
**
42/47/52LB9DF
**
,
32LB9D
**
Select the remote operating mode: TV, VCR, DVD. Select other operating modes, for the
remote to operate external devices.
Selects your desired picture format.
Shows the present screen information.
Shows a programme schedule.
They are used as per the indications or functions displayed on the TV screen in the case of
Text displays (Teletext, EPG) and programme edit.
Returns to TV viewing from any menu.
Selects a menu.
Enter to the mode.
Recalls your preferred subtitle in digital mode.
Selects the wanted functions.
These buttons are used for teletext.
Text button is used to enable teletext services while other buttons are for teletext functions.
* For further details, see the ‘Teletext’ section.
WATCHING TV/PROGRAMME CONTROL
36
WATCHING TV/PROGRAMME CONTROL
INITIALIZING SETUP
If the OSD (On Screen Display) is displayed on the screen
as figure 1 after turning on the set, you can adjust the Auto
Programme tuning, Time Zone selection or Password set-
ting.
1
Welcome
Thank you for choosing LG.
The Following process guides you to complete
initial settings.
Before starting, be sure that the TV antenna
is connected.
Press OK( ) to continue.
Installation Guide
Next
Figure 1.
GG
It will automatically disappear after approx, 40 seconds
unless a button is pressed.
NOTE
!
If your TV will be turned on, you will be able to use its features.
NOTE
!
GG
If you intend to be away on vacation, disconnect the
power plug from the wall power outlet.
GG
When the TV is turned on, the indicator will blink
green(60PY3DF*: white) before the picture is seen.
Ensure the power cord is connected correctly.
When connected to power the TV switches to standby mode.
■
In standby mode, press the ,
IINNPPUUTT
,
PPRR
DD
or
EE
but-
ton on the TV or press the
PPOOWWEERR
,
IINNPPUUTT
,
DD//AA IINNPPUUTT
,
PPRR ++
or
--
,
NNuummbbeerr ((00
~
99))
button on the remote control.
Select the viewing source by using the
IINNPPUUTT
button on
the remote control.
■
This TV is programmed to remember which mode it was
last set to, even if you turn the TV off.
When finished using the TV, press the
PPOOWWEERR
button on
the remote control. The TV reverts to standby mode.
1
2
3
TURNING ON THE TV
OK
TV
DVD
EXIT
VOL
Q.VIEW
TEXT
GUIDE
VCR
123
456
789
0
D/A
INPUT
POWERPOWER
PR
BRIGHT
RATIO
MUTE
PAGE
INPUT
MODE
LIST
SUBTITLE
FAV
MENU
MARK
SIMPLINK
INFO
i
WATCHING TV/PROGRAMME CONTROL
37
Press the
PPRR ++
or
--
or
NNUUMMBBEERR
buttons to select a
programme number.
Automatically finds all programmes available through
antenna inputs, and stores them in memory on the pro-
gramme list.
1
VOLUME ADJUSTMENT
Press the
VVOOLL ++
or
--
button to adjust the volume.
If you want to switch the sound off, press the
MMUUTTEE
button.
You can cancel the Mute function by pressing the
MMUUTTEE
,
II//IIII
or
VVOOLL ++
or
--
button.
Adjust the volume to suit your personal preference.
1
2
3
PROGRAMME SELECTION
POWER
OK
TVD/A
INPUT
DVD
EXIT
SIZE
INDEX
TIME
REVEAL
Q.VIEW
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
RATIO
I/II
VOL
BRIGHT
MUTE
PAGE
PR
INPUT
MODE
LIST
SUBTITLE
FAV
MENU
MARK
SLEEP
SIMPLINK
USB
INFO
i
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
123
456
789
0
POWER
PR
?
I/II
MUTE
PAGE
LIST
FAV
SLEEP
USB
WATCHING TV/PROGRAMME CONTROL
38
WATCHING TV/PROGRAMME CONTROL
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Press the
MMEENNUU
button and then use
DD
or
EE
button to select each menu.
Press the
GG
button and then use
DD
or
EE
or
FF
or
GG
button to display the available menus.
Your TV's OSD
(
On Screen Display
)
may differ slightly from what is shown in this manual.
SETUP
TIME
Auto Tuning
Manual Tuning
Programme Edit
2
1
AUDIO
Picture Mode : Dynamic
Colour Temperature
XD
Advanced
Aspect Ratio : Auto
Picture Reset
Screen
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
Clock : -- --, ----, --: -- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
OPTION
LOCK
*Plasma TV
models only
*50/60PY3DF*
only
WATCHING TV/PROGRAMME CONTROL
39
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input label
SIMPLINK
Key Lock
Set ID
ISM Method
Low Power
Front Display
Factory Reset
G
Model Info
Off
On
Press the
MMEENNUU
button and then use
DD
or
EE
button to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button
to select
Factory Reset
.
Press the
GG
button and then use
DD
or
EE
button
to select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to normal TV viewing
or press
MMEENNUU
button to return to the previous
menu.
Use to quickly reset all the menu options to their original
factory preset values.
This function deletes all TV programmes.
To begin Factory Reset, input a 4-digit password in Lock
system. Be sure to remember this number!
If you forgot your password, press ‘
77
’, ‘
77
’, ‘
77
’, ‘
77
’ on the
remote control handset.
2
3
4
1
FACTORY RESET
Selection(ON) resets all
users settings.
WARNING: All channel ser-
vice and user settings will
be lost and return to initial
setting.
OK
EXIT
POWER
SUBTITLE
MARK
MENU
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input label
SIMPLINK
Key Lock
Set ID
ISM Method
Low Power
Front Display
Factory Reset
Model Info
G
MODEL : 42LB9DF-AD
S/W Ver. : 1.04.00
Press the
MMEENNUU
button and then use
DD
or
EE
button to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button
to select
Model Info
.
Press the
GG
button to display Model, Software
Version.
Press
EEXXIITT
button to return to normal TV viewing
or press
MMEENNUU
button to return to the previous
menu.
This function enables you to watch Model, Software
Version.
2
3
4
1
MODEL INFO
OK
EXIT
POWER
SUBTITLE
MARK
MENU
WATCHING TV/PROGRAMME CONTROL
40
WATCHING TV/PROGRAMME CONTROL
Auto Tuning
Manual Tuning
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
AUTO PROGRAMME TUNING
Press the
MMEENNUU
button and then
DD
or
EE
button to
select the
SSEETTUUPP
menu.
Press the
GG
button and then
DD
or
EE
button to select
AAuuttoo TTuunniinngg
.
Press the
GG
button to select
TToo SSttaarrtt
and then
press the
FF
or
GG
button to select
NNoo
.
Press the
OO KK
button.
A password is required to gain access to Auto programme or
Manual programme menu if the Lock system is turned on.
If you forgot your password, press ‘7’, ‘7’, ‘7’, ‘7’ on the remote
control.
In Australia, if no station name can be assigned to a station, the
programme number is assigned and stored as
----- followed by a
number see ‘Assigning a station name’ section to assign the sta-
tion name.
2
3
4
1
Auto Tuning
Manual Tuning
Programme Edit
To Start
G
Press (OK) to start.
VOL
Q.VIEW
123
456
POWER
OK
EXIT
MUTE
PAGE
SUBTITLE
MENU
MARK
PR
To Start
Option: Select TV/DTV(analogue
and digital), TV(analogue only) or
DTV(digital only) to search.
Press (OK) to start.
Option TV/DTV
Option: Select TV/DTV(analogue
and digital), TV(analogue only) or
DTV(digital only) to search.
Select
Move
All of programmes will be deleted.
continue?
NoYes
FG
WATCHING TV/PROGRAMME CONTROL
41
Auto Tuning
Manual Tuning
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
To Start
Press (OK) to start.
To Start
Option: Select TV/DTV(analogue
and digital), TV(analogue only) or
DTV(digital only) to search.
Press (OK) to start.
Option F TV
G
Option: Select TV/DTV(analogue
and digital), TV(analogue only) or
DTV(digital only) to search.
Select
Move
All of analogue programmes will
be deleted. continue?
NoYes
FG
Press the
EE
button and then
FF
or
GG
button to select
TTVV
(or DTV or TV/DTV) and then press the
OOKK
button.
Press the
FF
or
GG
button to select
YYeess..
Press the
OO KK
button to begin auto programming.
All of analogue programmes are deleted and all ana-
logue stations are stored.
To stop auto tuning, press the
OO KK
button.
When auto tuning is completed, the
PPrrooggrraammmmee
EEddiitt
menu appears on the screen. See the
‘Programme Edit’ section to edit the stored pro-
gramme.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
6
7
8
5
Auto Tuning
Manual Tuning
Programme Edit
To Start
Option: Select TV/DTV(analogue
and digital), TV(analogue only) or
DTV(digital only) to search.
Press (OK) to start.
Processing Auto Tuning...
V/UHF CH. 0 0%
No channel(s) found
Press (OK) to stop
the current scan and
start digital channel scan.
MENU Prev.
NOTE
!
GG
In Auto Tuning mode, schedule list is deleted.
WATCHING TV/PROGRAMME CONTROL
42
WATCHING TV/PROGRAMME CONTROL

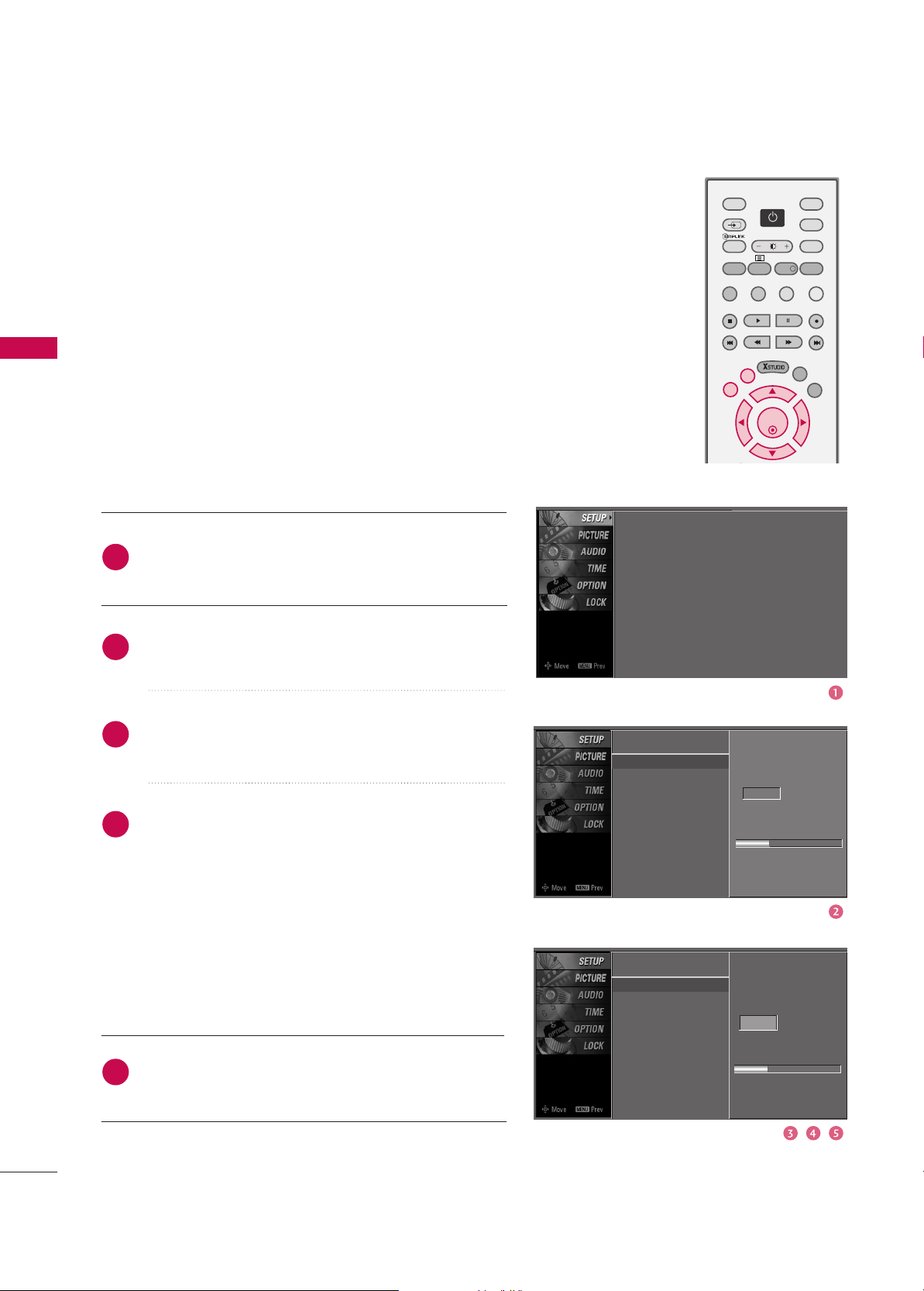

MANUAL PROGRAMME TUNING
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall TTuunniinngg
.
Press the
GG
button and then use
DD
or
EE
button to
select the programme number you want to add.
Press the
OO KK
button to store the programme. When
the programme number you want to add is already
added in programme list, the message
““AAllrreeaaddyy pprroo--
ggrraammmmeedd cchhaannnneell.. DDoo yyoouu wwaanntt ttoo uuppddaattee??””
will appear. If you want to keep on manual tuning,
select YES with using
FF
or
GG
button . Then, press the
OO KK
button. Otherwise select
NNOO
.
When the programme is stored, the Programme edit
menu appears on the screen. See the ‘Programme Edit’
section to edit the stored programme.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
2
1
4
3
5
In Digital Mode
Manual programme lets you manually add a programme to
your programme list.
Auto Tuning
Manual Tuning
G
Programme Edit
Select the digital channel for
manual scanning.
43
Signal Strength
Auto Tuning
Manual Tuning
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
Select the digital channel for
manual scanning.
7
Signal strength
DD
EE
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
INFO
i
WATCHING TV/PROGRAMME CONTROL
43
Auto Tuning
Manual Tuning
G
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
MANUAL PROGRAMME TUNING Continued
In Analogue Mode
Manual programme lets you manually tune and arrange the sta-
tions in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall TTuunniinngg
.
Press the
GG
button to select
BBaanndd
. Press the
FF
or
GG
button to select
VV//UUHHFF
or
CCaabbllee
as required.
Press the
EE
button to select
CChhaannnneell
. Press the
FF
or
GG
button to select the desired channel number.
Press the
EE
button to select
SSeeaarrcchh
. Press the
FF
or
GG
button to commence searching. If a station is found
the search will stop.
If this station is the one required, press the
DD
or
EE
button to select Storage. Select the desired pro-
gramme number with the
FF
or
GG
button.
Press the
OO KK
button to store it.
To store another station, repeat steps 3 to 7.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
2
1
4
5
6
7
8
3
9
Storage 0
Band V/UHF
Channel 0
Search
Fine
Name
- - - - -
Storage 0
Band
FF
V/UHF G
Channel 0
Search
Fine
Name
- - - - -
store
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
POWER
BRIGHT
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
INFO
i
WATCHING TV/PROGRAMME CONTROL
44
WATCHING TV/PROGRAMME CONTROL
Auto Tuning
Manual Tuning
G
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
FINE TUNING -
In Analogue Mode only
Normally fine tuning is only necessary if reception is poor.
The finely tuned programme will be indicated by a yellow
number during programme selection.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button
select
MMaannuuaall TTuunniinngg
.
Press the
GG
button and then
DD
or
EE
button to
select
FFiinnee
.
Press the
FF
or
GG
button to fine tune for the best
picture and sound.
Press the
OO KK
button to store.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
2
3
4
5
6
1
Storage 0
Band V/UHF
Channel 0
Search
Fine
Name
- - - - -
Auto Tuning
Manual Tuning
Programme Edit
store
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
INFO
i
Storage 0
Band V/UHF
Channel 1
Search
Fine
F
G
Name
- - - - -
WATCHING TV/PROGRAMME CONTROL
45
ASSIGNING A STATION NAME -
In Analogue Mode only
You can assign a station name with the characters to each
programme number.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall TTuunniinngg..
Press the
GG
button and then use
DD
or
EE
button to
select
NNaammee
.
Press the
FF
or
GG
button. You can use the numeric
00
to
99
, the alphabet
AA
to
ZZ ++
,
--
, and blank.
Press the
DD
or
EE
button to select the position and
make your choice of the second character, and so on.
Press the
OO KK
button to store.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
2
3
4
5
6
7
1
Auto Tuning
Manual Tuning
G
Programme Edit
Auto Tuning
Manual Tuning
Programme Edit
Storage 0
Band V/UHF
Channel 0
Search
Fine
Name
- - - - -
Auto Tuning
Manual Tuning
Programme Edit
Storage 0
Band V/UHF
Channel 1
Search
Fine
Name
F
- - - - - G
store
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
INFO
i
WATCHING TV/PROGRAMME CONTROL
46
WATCHING TV/PROGRAMME CONTROL
PROGRAMME EDIT
This function enables you to delete or skip the stored pro-
grammes. Also you can move some stations to other pro-
gramme numbers or copy blank station data into the
selected programme number.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
PPrrooggrraammmmee EEddiitt..
.
Press the
GG
button.
■
DDeelleettiinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be deleted with the
DD
or
EE
or
FF
or
GG
button.
b. Press the
RREEDD
button twice. The selected pro-
gramme is deleted, all the following programmes
are shifted up one position.
■
CCooppyyiinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be copied with the
DD
or
EE
or
FF
or
GG
button.
b. Press the
GGRREEEENN
button.
c. Move the programme to the desired programme
number with the
DD
or
EE
or
FF
or
GG
button.
d. Press the
GGRREEEENN
button again to copy the pro-
gramme. All the following programmes are shifted
down one position.
2
3
4
1
Auto Tuning
Manual Tuning
Programme Edit
G
Auto Tuning
Manual Tuning
Programme Edit
Selection (
G
or ) leads
you to the programme edit
screen.
POWER
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWER
BRIGHT
RATIO
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
OK
INFO
i
WATCHING TV/PROGRAMME CONTROL
47
■
MMoovviinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be moved with
DD
or
EE
or
FF
or
GG
button.
b. Press the
YYEELLLLOOWW
button.
c. Move the programme to the desired programme
number with the
DD
or
EE
or
FF
or
GG
button.
d. Press the
YYEELLLLOOWW
button again to release this
function.
■
SSkkiippppiinngg aa pprrooggrraammmmee nnuummbbeerr
a. Select a programme number to be skipped with
DD
or
EE
or
FF
or
GG
button.
b. Press the
BBLLUUEE
button. The skipped programme
number turns to blue.
c. Press the
BBLLUUEE
button again to release the
skipped programme.
When a programme number is skipped it means that
you will be unable to select it using the
PPRR++
or
--
but-
ton during normal TV viewing. If you want to select
the skipped programme, directly enter the pro-
gramme number with the NUMBER buttons or select
it in the programme edit or table menu.
■
SSeelleeccttiinngg FFaavvoouurriittee PPrrooggrraammmmee
a. Select your favourite programme number with
DD
or
EE
or
FF
or
GG
button and then press the
FFAAVV
but-
ton. It will automatically include the selected pro-
gramme into your favourite programmes list and a
heartmark will appear in front of that programme
number.
Repeatedly press the
FFAAVV
button to select stored
favourite programmes in normal TV viewing.
5
POWER
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
BRIGHT
RATIO
I/II
PR
MUTE
PAGE
INPUT
MODE
LIST
SUBTITLE
FAV
MARK
SLEEP
MENU
SIMPLINK
OK
USB
INFO
i
WATCHING TV/PROGRAMME CONTROL
48
WATCHING TV/PROGRAMME CONTROL
INPUT LIST
DDiiggiittaall
: Select it when watching the Digital TV.
AAnnaalloogguuee
: Select it when watching the Analog TV.
AAVV 11,, AAVV 22
: Select it when watching the VCR or external equipment.
CCoommppoonneenntt 11--22
: Select it when using the DVD or the Digital set-top box depend on connector.
RRGGBB--PPCC
: Select it when using PC depend on connector.
HHDDMMII,, HHDDMMII22,, HHDDMMII33
: Select it when using DVD, PC or Digital set-top box depend on connector.
Digital
Analogue
AV 1
AV 2
Component1
EE
Input List
AV2
Press the
IINNPPUUTT
button to display external device that is
connected to the unit, on screen.
Press the
OOKK
button to change the input to the active
external device. Use the
IINNPPUUTT
button to select the input
source.
DDiiggiittaall
AAnnaalloogguuee
If all external input sources are connected:
If any external input sources are not connected:
If there is any external input source connected:
(ex: When connected only to AV 2)
DDiiggiittaall AAnnaalloogguuee
AAVV11
DDiiggiittaall AAnnaalloogguuee AAVV22
AAVV22 CCoommppoonneenntt11
HHDDMMII22 HHDDMMII11 RRGGBB--PPCC CCoommppoonneenntt22
2
3
1
HHDDMMII33
TV
DVD
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
INFO
!
INPUT
MODE
SUBTITLE
MARK
SIMPLINK
OK
EXIT
MENU
D/A
INPUT
WATCHING TV/PROGRAMME CONTROL
49
CALLING UP THE CHANNEL LIST
You can check the programmes stored in the memory by
displaying the channel list.
Press the
DD
or
EE
button to changes current chan-
nel into previous or next channel.
Displaying Channel list
Selecting a programme in the channel list
Paging through a channel list
■
Press the
LLIISSTT
button to display the Channel List
menu.
The Channel list appears on the screen.
Select a programme with the
DD
or
EE
buttons.
The set switches to the chosen programme number.
1
2
1
NOTE
!
GG
You may find some gray programmes.
They have been set up to be skipped by auto tuning or in
the programme edit mode.
GG
Some programmes with the channel number shown in the
channel LIST indicate there is no station name assigned.
POWER
TVD/A
INPUT
DVD
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
BRIGHT
RATIO
I/II
PR
MUTE
PAGE
INPUT
MODE
LIST
SUBTITLE
FAV
MARK
SLEEP
SIMPLINK
OK
EXIT
MENU
USB
INFO
i
1
10
11
12
13
EE
Channel List
1
DIGITAL
ABC TV Sydney
WATCHING TV/PROGRAMME CONTROL
50
WATCHING TV/PROGRAMME CONTROL
Subtitle
Input Label
G
SIMPLINK
Key Lock
Set ID
ISM Method
Low Power
Front Display
Factory Reset
Model Info
AV1 PC
AV2 VCR
Component1 DVD
Component2 Set Top Box
RGB-PC VCR
HDMI1 Game
HDMI2 Satellite
HDMI3 Cable Box
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
INPUT SOURCE SELECTION
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
IInnppuutt LLaabbeell
.
Press the
GG
button and then use
DD
or
EE
to select
AV 1 , AV 2 , Component 1, Component 2, RGB-PC,
HDMI1/2/3.
Press the
GG
button and then use
FF
or
GG
to select
the label.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
Alternatively you can select the Digital, Analogue, AV1-2,
Component 1-2, RGB-PC, HDMI1/2/3 mode by pressing
the INPUT button.
Press the D/A INPUT button to select digital or analogue
mode.
2
3
4
1
POWER
TV
DVD
QVIEW
TEXT
GUIDE
VCR
POWER
RATIO
D/A
INPUT
EXIT
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
OK
INFO
i
5
NOTE
!
GG
If you select PC label in HDMI1/2/3 mode, the picture size will be adjusted to PC mode size.
WATCHING TV/PROGRAMME CONTROL
51

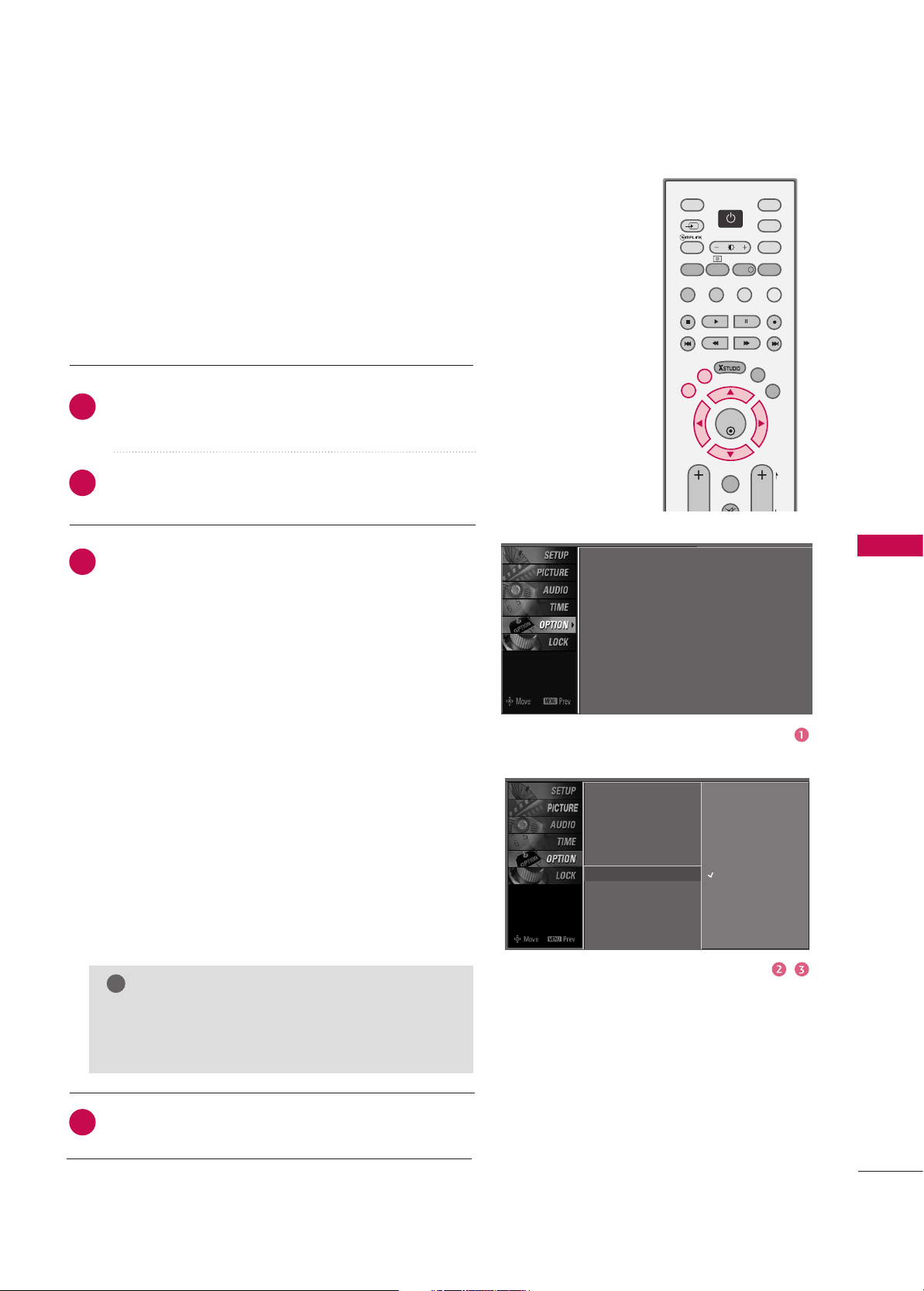

Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input label
SIMPLINK
G
Key Lock
Set ID
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Off
On
Press the
MMEENNUU
button and then use
DD
or
EE
button to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button
to select
SIMPLINK
.
Press the
GG
button and then use
DD
or
EE
button
to select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to normal TV viewing
or press
MMEENNUU
button to return to the previous
menu.
This operates only for the devices with the SIMPLINK
logo. Please check the SIMPLINK logo.
This allows you to control and play other AV devices
connected to the display through HDMI cable without
additional cables and settings.
If you do not want SIMPLINK menu, select “Off”.
2
3
4
1
POWER
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
BRIGHT
SIMPLINK
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MARK
MENU
INFO
i
WATCHING TV/PROGRAMME CONTROL
52
WATCHING TV/PROGRAMME CONTROL
NOTE
!
GG
Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the
SIMPLINK device with the HDMI cable.
GG
After connecting the HDMI terminal for the home theater with SIMPLINK function in the above method,
connect the VARIABLE AUDIO OUT terminal on the back of the TV to the VARIABLE AUDIO IN terminal
on the back of the SIMPLINK device with the VARIABLE AUDIO OUT cable.
GG
When operating the external device with SIMPLINK, press the TV button among the MODE button on the
remote controller.
GG
When you switch the Input source with the INPUT button on the remote controller, you can stop the
operation of device controlled by SIMPLINK.
GG
When you select or operate the media device with home theater function, the speaker automatically
switches to home theater speaker (HT speaker).
GG
When you execute ‘Photo List, Music List’ function during DVD playback included in home theater support-
ed the SIMPLINK stops and the applicable function is executed after switching the input to TV.
DDiisscc ppllaayybbaacckk
Control connected AV devices by pressing the
DD
or
EE
or
FF
or
GG
,
OO KK
buttons and buttons for play, stop, pause, fast
reverse, fast forward, chapter skip.(The button does not provide such functions)
DDiirreecctt PPllaayy
After connecting AV devices to TV, you can directly control the devices and play media without additional settings.
SSeelleecctt AAVV ddeevviiccee
Enables you to select one of AV devices connected to TV and play it.
PPoowweerr ooffff aallll ddeevviicceess
When you power off TV, all connected devices are turned off.
SSwwiittcchh aauuddiioo--oouutt
Offers an easy way to switch audio-out.
** AA ddeevviiccee,, wwhhiicchh iiss ccoonnnneecctteedd ttoo TTVV tthhrroouugghh HHDDMMII ccaabbllee bbuutt ddooeess nnoott ssuuppppoorrtt SSiimmpplliinnkk,, ddooeess nnoott pprroovviiddee tthhiiss ffuunnccttiioonn..
SIMPLINK Functions
TTVV vviieewwiinngg ::
Switch to the previous TV programme
regardless of the current mode.
DDIISSCC ppllaayybbaacckk ::
Select and play discs. When multiple
discs are available, the titles of the discs are conve-
niently displayed at the bottom of the screen.
VVCCRR ppllaayybbaacckk ::
Play and control the connected VCR.
HHDDDD RReeccoorrddiinnggss ppllaayybbaacckk ::
Play and control
recordings stored in HDD.
AAuuddiioo OOuutt ttoo HHoommee tthheeaattrree//AAuuddiioo OOuutt ttoo TTVV ::
Select Home theatre or TV speaker for Audio Out.
SIMPLINK Menu
Press the
DD
or
EE
or
FF
or
GG
button and then
OO KK
button to select the desired SIMPLINK source.
GG
Selected Device
GG
When no device is
connected (displayed
in gray)
GG
When a device is
connected (displayed
in bright colour)
1
2
3
4
5
1
2
3
4
5
WATCHING TV/PROGRAMME CONTROL
53
KEY LOCK
The TV can be set up so that it can only be used with the
remote control.
This feature can be used to prevent unauthorized viewing by
locking out the front panel controls.
This TV is programmed to remember which option it was last
set to even if you turn the TV off.
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
G
Set ID
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Off
On
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
KKeeyy LLoocckk
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
NOTE
!
GG
With the lock on, the display
‘‘KKeeyy LLoocckk’’
appears on the screen if any button on the front panel
is pressed while viewing the TV.
GG
The display
‘‘KKeeyy LLoocckk’’
will not appear on the screen if any button on the front panel is pressed
while displaying the menus.
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
X-STUDIO
54
i
POWER
SIZE
INDEX
TIME
REVEAL
0
?
I/II
LIST
FAV
SLEEP
USB
[X-STUDIO Menu]
When you connect a USB device or press the button, this screen is
displayed, automatically.
In USB device, you can not add a new folder or delete the existing folder.
i
ENTRY MODES
Press the
DD
or
EE
button to select the desired item.
Press the
OOKK
button to move to
PPhhoottoo LLiisstt
or
MMuussiicc LLiisstt
of
USB device.
Press the
UUSSBB
DD
button of remote control before removing the
USB device.
1
2
NOTE
!
3
Press the
UUSSBB
DD
button of remote control before removing the USB device.
Only a USB storage device is recognizable.
If the USB storage device is connected through a USB hub, the device is not recognizable.
A USB storage device using an automatic recognition program may not be recognized.
A USB storage device which uses its own driver may not be recognized.
In case of a card reader, up to four memory cards are concurrently recognizable.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage
device is working. When such device is suddenly separated or unplugged, the stored files or
the USB storage device may be damaged. To unplug the USB storage device, please press the
UUSSBB
DD
button on the remote control, and then unplug it safely.
Please do not connect the USB storage device which was artificially maneuvered on the PC.
The device may cause the product to malfunction or fail to be played. Never forget to use only
a USB storage device which has normal music files or image files.
Please use only a USB storage device which was formatted as a FAT or a NTFS file system pro-
vided with the Windows operating system. In case of a storage device formatted as a different
utility program which is not supported by Windows, it may not be recognized.
In case of a hard disk drive (HDD) formatted as NTFS, writing and deletion are not allowable.
Please connect power to a USB storage device which requires an external power supply. If not,
the device may not be recognized.
Please connect a USB storage device with cable is offered by USB maker. If connected with
cable is not offered by USB maker or an excessively long cable, the device may not be recog-
nized.
Some USB storage devices may not be supported or operated smoothly.
If the name of a folder or file is too long, it will not be displayed or recognized.
X-STUDIO
55
Screen Components
Current page/Total pages
Total number of marked
thumbnail photos
Corresponding buttons
on the remote control
Usable USB memory
It’s available to playback the photo file(*.jpeg/*.jpg) in the USB device.
The On Screen Display may be different from your set. Images are an
example to assist with the TV operation.
PHOTO LIST
i
X-STUDIO
56
i
Photo Selection and PopUp Menu
As shown, up to 15 thumbnail photos are listed per page.
Use the
PPRR ++
or
--
button to navigate in the thumbnail
photo page.
Use the
MMAARRKK
button to mark or unmark a photo. When
one or more photos are marked, you can view individual
photos or a slide show of the marked photos. If no photos
are marked, you can view all photos individually or all pho-
tos in the folder in a slide show.
1
2
Use
DD
or
EE
or
FF
or
GG
button to navigate the appropriate
thumbnail photos, then press the
OOKK
button to show the
PopUp menu.
Repeatedly, press
EEXXIITT
button to return to TV viewing or
press the button to return to the X-STUDIO menu.
i
VViieeww
: Display the selected item.
MMaarrkk AAllll
: Mark all photos on the screen.
DDeelleettee
: Delete the selected photo item.
CCaanncceell
: Close the pop-up menu.
3
4
i
i
X-STUDIO
57
Set up the menu in Full-Sized Screen
You can change the settings to display photos stored on a USB
device, on a full-sized screen.
Detailed operations are available on full-sized photo view screen.
Use the
PPRR ++
or
--
button to navigate the thumbnail photo
page.
1
2
Use
DD
or
EE
or
FF
or
GG
button to navigate the appropriate
thumbnail photos, then press the
OOKK
button to show the
PopUp menu.
Use
DD
or
EE
button to Move to the
VViieeww
menu, then press
the
OOKK
button.
The selected photo is displayed in full size.
3
The aspect ratio of a photo may change the size of
the photo displayed on the screen in full size.
4
SSlliiddee SShhooww
: When no picture is selected, all photos
in the current folder are displayed during slide show.
When selected, the selected photos are displayed
during slide show. To start slide show, press
OOKK
button on .
■
Set the time interval of the slide show in
OOppttiioonn
.
■
A slide show continues for a maximum of 4 hours.
After 4 hours, the slide show will end and go to TV
mode or external input mode.
BBGGMM
: Listen to music while viewing photos in full
size. To start BGM, press
OOKK
button on .
■
Set the BGM device and album in
OOppttiioonn
.
((RRoottaattee))
: Rotate photos.
■
Rotates the photo 90°, 18 0 °, 270°, 360° clock-
wise upon
OOKK
button on
((RRoottaattee))
.
DDeelleettee
: Delete photos. Use
FF
or
GG
button to select
DDeelleettee
and press
OOKK
button.
Home
i
i
X-STUDIO
58
i
5
OOppttiioonn
: Set values for
SSlliiddee SSppeeeedd
and
MMuussiicc
ffoollddeerr
. Use
FF
or
GG
button to select
OOppttiioonn
and
press
OOKK
button.
■
Use
FF
or
GG
button and
OOKK
button to set values.
Then go to and press
OOKK
to save the set-
tings.
■
You cannot change
MMuussiicc FFoollddeerr
while BGM is
playing.
HHiiddee
: Hide the menu on the full-sized screen. Use
FF
or
GG
button to select
HHiiddee
and press
OOKK
button.
■
To see the menu again on the full-sized screen,
press
OOKK
button to display.
Use
DD
or
EE
or
FF
or
GG
button to select the previous or
next photo.
Use
DD
or
EE
or
FF
or
GG
button to select and control the
menu on the full-sized screen.
Use
EEXXIITT
button to go back to the photo list from the full
sized screen.
Repeatedly, press
EEXXIITT
button to return to TV viewing or
press button to return to the X-STUDIO menu.
i
6
7
NOTE
!
If it is Progressive JPEG format, some photos may be not decoded.
OK
OK
X-STUDIO
59
MUSIC LIST
Purchased music files(*.MP3) may contain copyright restrictions.
Playback of these files may not be supported by this model.
Music file on your USB device can be played by this unit.
The On Screen Display may be different from your set. Images
are an example to assist with the TV operation.
Screen Components
Current page/Total pages
Total number of marked music
Current playing time/Total play-
ing time
Corresponding buttons
on the remote control
Usable USB memory
i
X-STUDIO
60
i
Use the
PPRR ++
or
--
button to navigate in the music titles
page.
Use
MMAARRKK
button to mark or unmark a music. When one or
more music files are marked, the marked music will be
played in sequence. For example, if you want to listen to
only one music repeatedly, just mark the music only and
play it. If no music is marked, all the music in the folder will
be played in sequence.
Music Selection and PopUp Menu
As shown , up to 8 music titles are listed per page.
Use
DD
or
EE
button to navigate the appropriate music, then
press the
OOKK
button to show up the pop-up menu.
PPllaayy
(During stop) : Play the selected music.
Once a music finishes playing, the next selected
one will be played. When there are no selected
music to play, the next one in the current folder will
be played. If you go to a different folder and press
the
OOKK
button, the current music in playback will
stop.
SSttoopp PPllaayy
(During playback) : Stop the playing music.
PPllaayy WWiitthh PPhhoottoo
: Start playing the selected music
and then move to the Photo List.
MMaarrkk AAllll
: Mark all music in the folder.
DDeelleettee
: Delete the selected music.
CCaanncceell
: Close the pop-up menu.
1
2
3
i
i
X-STUDIO
61
NOTE
!
When music is playing, is displayed in front of the music title.
A damaged or corrupted music does not play but displays 00:00 in playtime.
A music downloaded from a paid service with copyright protection does not start but dis-
plays inappropriate information in playtime.
If you press
OOKK
,
,
EEXXIITT
buttons, screen saver is stopped.
The
, , , ,
buttons on the remote control are also available in this mode.
i
i
i
i
i
i
Repeatedly, press
EEXXIITT
button to return to TV viewing or
press button to return to the X-STUDIO menu.
■
If you don't press any button for a while during the play-
ing, the play information box (as shown in the below) will
float as a screen saver.
■
The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to an
fixed image remaining on the screen for a extended period
of time.
i
4
EPG(ELECTRONIC PROGRAMME GUIDE)
62
EPG(ELECTRONIC PROGRAMME GUIDE)
-
In Digital Mode Only
This system has an Electronic Programme Guide (EPG) to help your naviga-
tion through all the possible viewing options.
The EPG supplies information such as programme listings, start and end times
for all available services. In addition, detailed information about the pro-
gramme is often available in the EPG (the availability and amount of these
programme details will vary, depending on the particular broadcaster).
This function can be used only when the EPG information is broadcasted by
broadcasting companies.
The EPG displays the programme description for next 7 days.
Switch on/off EPG
Select a programme
POWER
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
OK
INFO
i
Press the
GGUUIIDDEE
button to switch on EPG.
Press the
GGUUIIDDEE
or
EEXXIITT
button again to switch off EPG and return to TV viewing.
2
1
Press the
DD
or
EE
or
FF
or
GG
buttons to select desired programme, then press the
OO KK
button to display the selected programme.
1
X-STUDIO
63
Button Function in NOW/NEXT Guide Mode
Remote Control Buttons
Function
GREEN Change to 7Day’s EPG Guide
YELLOW Shows the Schedule list
BLUE Selects the Radio programmes
D
/
E
/
F
/
G
Select the Broadcasting Programme
EXIT Switch off EPG
INFO i The detail information on or off
Button Function in 7 Days Guide Mode
Remote Control Buttons
Function
GREEN Change to Now/Next Guide
RED Enter Timer Reservation/Cancel setting mode
YELLOW Shows the Schedule List
BLUE Selects the Radio programmes
D
/
E
/
F
/
G
Select the Broadcasting Programme
EXIT Switch off EPG
Selects the page
Selects the day
INFO i The detail information on or off
Schedule
Sat 30 Jan
Schedule
EPG(ELECTRONIC PROGRAMME GUIDE)
64
EPG(ELECTRONIC PROGRAMME GUIDE)
Remote Control Buttons
Function
YELLOW Change to Guide
PR +/ - Page Up/Down
Delete the selected item
Button Function in Reservation Setting Mode
Schedule List
Button Function in Extended Description Box
Remote Control Buttons
Function
Change to the selected programme
INFO i The detail information on or off
Programme
Digital
Start date
Start time
PICTURE CONTROL
65
PICTURE CONTROL
PICTURE SIZE(ASPECT RATIO)CONTROL
You can watch TV in various picture formats; Auto, 4:3, 16:9 (Wide), 14:9,
Zoom and 1:1 Pixel.
Auto
Selects the proper picture proportion to
match the source’s image.
(
4:3 4:3, 16:9
16:9
)
4:3
Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.
16:9
Adjust the picture horizontally, in a linear pro-
portion to fill the entire screen.
14:9
The screen size is, more enlarged at both
sides, to create a spectacular view.
You can move the 14:9 screen using
DD
or
EE
button. The adjustment range is -10 - +10.
Zoom
Choose Zoom when you want to view the
picture without any alteration. However, the
top and bottom portions of the picture will be
cropped.
You can move the Zoom screen using
DD
or
EE
button. The adjustment range is -16 - +16.
1:1 Pixel
Choose 1:1Pixel when you want to view the
picture of best quality without loss of original
picture in high resolution image.
(42/47/52LB9DF
*
, 50/60PY3DF
*
only)
NOTE
!
POWER
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
SIMPLINK
INPUT
MODE
SUBTITLE
MENU
MARK
INFO
i
Press the
RRAATTIIOO
button repeatedly to select the desired picture format.
■
You can also adjust
AAssppeecctt RRaattiioo
in the
PPIICCTTUURREE mmeennuu
.
1
GG
If a fixed image is displayed on the screen for a long time, it image may
become imprinted on the screen and remain visible.
This phenomenon is common to all manufacturers and in consequence the
manufacturer’s warranty does not cover the product bearing this phenomenon.
NOTE
!
GG
In HDMI/DVI-PC and RGB-PC mode, 4:3 and 16:9 is available.
GG
Auto: When your TV receives the wide screen signal, it will be automatically changed to the picture format
sent. (Not available in all countries)
GG
In HDMI/DVI(1080i or 1080p)mode, 1:1 Pixel is available.
PICTURE CONTROL
66
PICTURE CONTROL
PRESET PICTURE SETTINGS
IInntteelllliiggeenntt EEyyee
Adjusts picture according to the surrounding condi-
tions.
(LCD TV models only)
DDyynnaammiicc
Select this option to display with a sharp image.
SSttaannddaarrdd
The most general and natural screen display status.
MMiilldd
Select this option to display with a mild image.
UUsseerr 11//22
Select this option to use the user-defined setting.
Picture Mode -Preset
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
PPiiccttuurree MMooddee
.
Press the
GG
button and then use
DD
or
EE
button to
select
IInntteelllliiggeenntt EEyyee
(LCD TV models only),
DDyynnaammiicc
,
SSttaannddaarrdd
,
MMiilldd
,
UUsseerr11
, or
UUsseerr22
.
Press
EEXXIITT
button to return to normal TV viewing or
press
MMEENNUU
button to return to the previous menu.
• Picture Mode adjusts the TV for the best picture
appearance. Select the preset value in the
PPiiccttuurree
MMooddee
menu based on the programme category.
• Intelligent Eye
(LCD TV models only), Dynamic,
Standard and Mild are programmed for optimum
picture reproduction at the factory and cannot be
changed.
• When the Intelligent eye function is on, the most
suitable picture is automatically adjusted according
to the surrounding conditions.
(LCD TV models
only)
2
4
3
1
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
Picture Mode
G
Colour Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Intelligent Eye
Dynamic
Standard
Mild
User 1
User 2
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
NOTE
!
GG
In RGB-PC, HDMI-PC mode, to get the best picture quality, adjust the picture mode to Standard.
PICTURE CONTROL
67
Auto Colour Tone Control (Warm/Medium/Cool)
Choose one of three automatic colour adjustments. Set to
warm to enhance hotter colours such as red, or set to cool to
see less intense colours with more blue.
When selecting Picture Mode options (Dynamic, Standard and
Mild),
CCoolloouurr TTeemmppeerraattuurree
is automatically change.
When selecting Picture Mode options (User 1 and User 2), you
can choose the
CCoolloouurr TTeemmppeerraattuurree
.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCoolloouurr TTeemmppeerraattuurree
.
Press the
GG
button and then use
DD
or
EE
button to
select either
CCooooll,, MMeeddiiuumm,, WWaarrmm
or
UUsseerr
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Picture Mode
Colour Temperature
G
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Cool
Medium
Warm
User
2
3
4
1
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
68
PICTURE CONTROL
Picture Mode -User Option
MANUAL PICTURE ADJUSTMENT
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
PPiiccttuurree MMooddee
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr 11
or
UUsseerr 22
.
Press the
GG
button and then use
DD
or
EE
button to
select the desired picture option
((
CCoonnttrraasstt,,
BBrriigghhttnneessss,, CCoolloouurr,, SShhaarrppnneessss,, TTiinntt
or
BBaacckk LLiigghhtt
(LCD models only)
))
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
You can adjust picture Contrast, Brightness,Colour,
Sharpness, Tint and Back Light options to the levels you
prefer.
2
3
4
5
6
1
Contrast 85
EE
Picture Mode : User1
Colour Temperature
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
EE
User1
Contrast 85
G
Brightness 50
Colour 50
Sharpness 50
Tint 0
Back Light 50
R G
Press to confirm.
MENU
Picture Mode
Colour Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Intelligent Eye
Dynamic
Standard
Mild
User 1
G
User 2
Selection (
G
or ) leads you to
the detailed setting screen.
OK
EXIT
VOL
Q.VIEW
PR
POWER
MUTE
PAGE
SUBTITLE
MARK
MENU
PICTURE CONTROL
69
You can also adjust the detailed settings(Red, Green, Blue)
by selecting the
UUsseerr
menu.
This feature operate only if the picture mode set
UUsseerr 11
or
UUsseerr 22
.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCoolloouurr TTeemmppeerraattuurree
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
RReedd
,
GGrreeeenn
, or
BBlluuee
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
■
The adjustment range of
RReedd
,
GGrreeeenn
, or
BBlluuee
is -20~ +20.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Red 0
EE
Picture Mode
Colour Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Press to confirm.
MENU
Selection (
G
or ) leads you to
the detailed setting screen.
Cool
Medium
Warm
User
G
User
Red 0
G
Green 0
Blue 0
2
3
4
5
6
1
Colour Tone -User Option
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
EE
OK
EXIT
VOL
Q.VIEW
PR
POWER
MUTE
PAGE
SUBTITLE
MARK
MENU
PICTURE CONTROL
70
PICTURE CONTROL
BRIGHTNESS ADJUSTMENT
Press the button.
Adjust the desired screen brightness.
Adjust the brightness using this button on the remote control.
In Intelligent Eye mode, Brightness adjustment is not available.
2
1
1 2
POWER
POWER
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
INPUT
MODE
SIMPLINK
INFO
i
PICTURE CONTROL
71
XD - PICTURE IMPROVEMENT TECHNOLOGY
XD is LG Electronics unique picture improving technology to display a real HD
source through an digital signal processing algorithm.
When selecting Picture Mode options (Intelligent Eye, Dynamic, Standard
and Mild), XD is automatically change to Auto.
When selecting Picture Mode options (User 1 and User 2), you can choose
the Auto / Manual and when selecting Manual, you can adjust the XD
Contrast, XD colour and XD Noise.
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
XXDD
.
Press the
GG
button and then use
FF
or
GG
button to
select
AAuuttoo
or
MMaannuuaall
.
*
SSeelleeccttiinngg tthhee MMaannuuaall
1. Press the
EE
button and then use
DD
or
EE
button to
select
XXDD CCoonnttrraasstt,, XXDD CCoolloouurr
or
XXDD NNooiissee
.
■
XXDD CCoonnttrraasstt ::
Optimizing the contrast automatically
according to the brightness of the reflection.
■
XXDD CCoolloouurr ::
Adjusting the colours of the reflec-
tion automatically to reproduce as closely as
possible to the natural colours.
■
XXDD NNooiissee ::
Removing the noise up to the point where it
does not damage the original picture.
2. Use the
FF
or
GG
button to select
OO nn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Picture Mode
Colour Temperature
XD
G
Advanced
Aspect Ratio
Picture Reset
Screen
Manual
XD Contrast On
XD Colour On
XD Noise On
2
3
4
1
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
PICTURE CONTROL
72
PICTURE CONTROL
ADVANCED -CINEMA
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAddvvaanncceedd
.
Press the
GG
button and then use
DD
or
EE
button to
select
CCiinneemmaa
.
Press the
GG
button and then use
FF
or
GG
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Set up the TV for the best picture appearance for viewing
movies.
When you operate Cinema, the TV will adjust 24 fps video
from movies to 30 fps video for display (This function is
only available in TV(Analog, DTV), AV1, AV2, Component
480i, 576i mode.)
2
3
4
5
1
Picture Mode
Colour Temperature
XD
Advanced
G
Aspect Ratio
Picture Reset
Screen
Cinema Off
Black Level Low
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
73
ADVANCED-BLACK(DARKNESS) LEVEL
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAddvvaanncceedd
.
Press the
GG
button and then use
DD
or
EE
button to
select
BBllaacckk LLeevveell
.
Press the
GG
button and then use
FF
or
GG
button to
select
LLooww
, or
HHiigghh
.
■
LLooww
The reflection of the screen gets darker.
■
HHiigghh
The reflection of the screen gets brighter.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Adjusting the contrast and the brightness of the screen
using the black level of the screen.
This feature operates only in HDMI1, HDMI2, HDMI3 or
AV1, AV2 mode.
Picture Mode
Colour Temperature
XD
Advanced
G
Aspect Ratio
Picture Reset
Screen
Cinema Off
Black Level Low
2
3
4
5
1
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
74
PICTURE CONTROL
PICTURE RESET
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
PPiiccttuurree RReesseett
.
Press the
GG
button to reset the Picture menu options
to original values.
Use to quickly reset all the Picture menu options to their origi-
nal factory preset values.
Picture Mode
Colour Temperature
XD
Advanced
Aspect Ratio
Picture Reset
G
Screen
Selection (
G
or ) resets the
video configuration.
2
3
1
Picture Mode : User1
Colour Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
75
IMAGE STICKING MINIMIZATION(ISM) METHOD
(Only Plasma TV model)
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
IISSMM MMeetthhoodd
.
Press the
GG
button and then use
DD
or
EE
button to
select either
NNoorrmmaall
,
OOrrbbiitteerr,, IInnvveerrssiioonn
or
WWhhiittee wwaasshh
.
■
NNoorrmmaall
If image sticking is never a problem, ISM is not nec-
essary - set to Normal.
■
OOrrbbiitteerr
Orbiter may help prevent ghost images. However, it
is best not to allow any fixed image to remain on the
screen. To avoid a permanent image on the screen,
the image will move once per 2 minutes.
■
IInnvveerrssiioonn
Inversion will automatically invert the plasma display
panel color every 30 minutes.
■
WWhhiittee wwaasshh
White Wash removes permanent images from the
screen.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
A frozen still picture from a PC/video game displayed on
the screen for prolonged periods will result in a fixed ghost
image. Use our unique method to minimize any fixed image
on the screen.
NOTE
!
GG
An excessive permanent image may be impossible
to clear entirely with White Wash. To return to nor-
mal viewing, press any button.
2
3
4
1
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
Set ID
ISM Method
G
Low Power
Front Display
Factory Reset
Model Info
Normal
Orbiter
Inversion
White Wash
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
76
PICTURE CONTROL
LOW POWER
(Only Plasma TV model)
Low power reduces the plasma display power consumption.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
LLooww PPoowweerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
OO nn
or
OOffff
.
■
When you select
OO nn
, the screen darkens.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
Set ID
ISM Method
Low Power
G
Front Display
Factory Reset
Model Info
Off
On
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PICTURE CONTROL
77
FRONT DISPLAY
(50/60PY3DF* only)
Illuminates brightly when the set is turned on.
The LED displays current TV status.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
FFrroonntt DDiissppllaayy
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOffff,, DDaarrkk
or
BBrriigghhtt
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
Set ID
ISM Method
Low Power
Front Display
G
Factory Reset
Model Info
Off
Dark
Bright
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
SOUND & LANGUAGE CONTROL
78
SOUND & LANGUAGE CONTROL
AUTO VOLUME LEVELER
(
AUTO VOLUME
)
AVL automatically keeps on an equal volume level even if
you change programmes.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo VVoolluummee
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Sound Mode
Auto Volume
G
Balance
TV Speaker
Off
On
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
SOUND & LANGUAGE CONTROL
79
PRESET SOUND SETTINGS -SOUND MODE
Sound Mode lets you enjoy the best sound without any special
adjustment because the TV sets the appropriate sound options
based on the program content.
Standard, Music, Movie, Sports and User are preset for good
sound quality at the factory and are not adjustable.
Sound Mode
G
Auto Volume
Balance
TV Speaker
Standard
Music
Movie
Sports
User
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSoouunndd MMooddee
.
Press the
GG
button and then use
DD
or
EE
button to
select
SSttaannddaarrdd
,
MMuussiicc
,
MMoovviiee
,
SSppoorrttss
, or
UUsseerr
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
SOUND & LANGUAGE CONTROL
80
SOUND & LANGUAGE CONTROL
SOUND SETTING ADJUSTMENT-USER MODE
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSoouunndd MMooddee
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr
.
Press the
GG
button and then use
DD
or
EE
button to
select the desired sound option (
TTrreebbllee,, BBaassss ,,
or
FFrroonntt SSuurrrroouunndd
).
Adjust the sound to suit your taste and room situations.
2
3
4
1
Sound Mode
Auto Volume
Balance
TV Speaker
Selection (
G
or ) leads you to
the detailed setting screen.
Standard
Music
Movie
Sports
User
G
User
Treble 50
G
Bass 50
Front Surround Off
Press to confirm.
MENU
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
SOUND & LANGUAGE CONTROL
81
Press the
GG
button and then use or button to
make appropriate adjustments.
*
SSeelleeccttiinngg tthhee FFrroonntt SSuurrrroouunndd
Press the
GG
button and then use or button to
select
OOffff
or
SSRRSS
(
Sound Retrieval System)
TTrruuSSuurrrroouunndd
XXTT
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Front Surround SRS TruSurround
SSRRSS TTrruuSSuurrrroouunndd XXTT
Takes advantage of any multi-channel format without
needing to add extra speakers or equipment. Dialog
clarity, bass enrichment, and the addition of stereo
audio enhancement produces an immersive sound
experience from standard stereo material.
6
5
GG
is a trademark of SRS Labs, Inc.
GG
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
R
TruSurround XT
SOUND & LANGUAGE CONTROL
82
SOUND & LANGUAGE CONTROL
BALANCE
Adjust the left/right sound of speaker to suit your taste and
room situations.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
BBaallaannccee
.
Press the
GG
button and then use or button to
make appropriate adjustments.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
L R
Balance 0
Sound Mode
Auto Volume
Balance 0
TV Speaker
L R
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
SOUND & LANGUAGE CONTROL
83
TV SPEAKERS ON/OFF SETUP
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
TTVV SSppeeaakkeerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Turn the TV speakers off if using external audio equipment.
Feature turns the TV Speakers option On or Off.
2
3
4
1
Sound Mode
Auto Volume
Balance
TV Speaker
G
Off
On
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
SOUND & LANGUAGE CONTROL
84
SOUND & LANGUAGE CONTROL
I/II
■
Mono sound selection
If the stereo signal is weak in stereo reception, you can switch to
mono by pressing the
II//IIII
button twice. In mono reception, the
clarity of sound is improved. To switch back to stereo, press the
II//IIII
button twice again.
Broadcast On Screen Display
Mono MONO
Stereo MONO / STEREO
SPEAKER SOUND OUTPUT SELECTION
In AV 1-2, Component 1-2, RGB-PC, HDMI1/2/3 mode, you can
select output sound for the left and right loudspeakers.
Repeatedly press the
II//IIII
button to select the sound output.
L+R: Audio signal from audio L input is sent to the left loud
speaker and audio signal from audio R input is sent to the right
loud speaker.
L+L: Audio signal from audio L input is sent to left and right loud
speakers.
R+R: Audio signal from audio R input is sent to left and right loud
speakers.
NOTE
!
GG
In digital mode, if the OSD (On Screen Display) is
Displayed on the screen after press the
II//IIII
button, you
can selected the audio language and type(MPEG or
DOLBY DIGITAL).
GG
IN MPEG mode only, you can selected L or R audio sound.
STEREO/DUAL RECEPTION
-
In Analogue Mode only
POWER
OK
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
RATIO
I/II
BRIGHT
MUTE
PAGE
PR
INPUT
MODE
LIST
SUBTITLE
FAV
MENU
MARK
SLEEP
SIMPLINK
USB
INFO
i
SOUND & LANGUAGE CONTROL
85
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
Factory Reset
Model Info
Subtitle
G
Input Label
SIMPLINK
Key Lock
Set ID
Factory Reset
Model Info
Off
On
SUBTITLE -
In Digital Mode only
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSuubbttiittllee
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
You can select Subtitle on or off with the SUBTITLE button
in DTV mode.
POWER
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
GUIDE
VCR
POWER
BRIGHT
RATIO
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
OK
INFO
i
TEXT
CLOCK SETTING
The time is set automatically from a digital channel signal.
The digital channel signal includes information for the current
time provided by the broadcasting station.
Set the clock manually if the current time is set incorrectly by
the auto clock function.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CClloocckk
.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo
.
Press the
GG
button and then use
DD
or
EE
button to
select your viewing area Time Zone :
NNTT
,
TTAASS
,
WWAA
,
SSAA
,
QQLLDD
,
VVIICC
, or
NNSSWW//AACCTT
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
5
1
Clock
G
Off Time
On Time
Sleep Time
Auto Sleep
Time Zone TAS
Auto Clock Setting
Clock : -- --, ----, --:-- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Year - - - -
Date - - / - -
Time - - : - - - -
Auto
Clock
G
Off Time
On Time
Sleep Time
Auto Sleep
Year - - - -
Date - - / - -
Time - - : - - - -
Auto
Time Zone
TAS
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
TIME SETTING
86
TIME SETTING
TIME SETTING
87
If the current time setting is wrong, reset the clock manually.
2
3
4
1
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CClloocckk
.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall
.
Press the
GG
button and then use
FF
or
GG
button to
select either the year, date, or time option. Once
selected, use the
DD
or
EE
button to set the year, date,
and time options.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Manual Clock Setting
Clock : -- --, ----, --:-- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Clock
G
Off Time
On Time
Sleep Time
Auto Sleep
Year - - - -
Date - - / - -
Time - - : - - - -
Manual
5
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
TIME SETTING
88
TIME SETTING
AUTO ON/OFF TIMER SETTING
The timer function operates only if the current time has been set.
The Off-Time function overrides the On-Time function if they are
both set to the same time.
The TV must be in standby mode for the On-Time to work.
If you do not press any button within 2 hours after the TV turns on
with the On Time function, the TV will automatically revert to
standby mode.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn TTiimmee
or
OOffff TTiimmee
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
.
■
To cancel
OOnn TTiimmee
or
OOffff TTiimmee
function, select
OOffff
.
Press the
GG
button and then use
DD
or
EE
button to
set the hour.
Press the
GG
button and then use
DD
or
EE
button to
set the minutes.
OOnnllyy OOnn TTiimmee
Press the
GG
button and then use
DD
or
EE
button to
select the channel at turn-on.
Press the
GG
button and then use
DD
or
EE
button to
set the sound level at turn-on.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
5
6
7
1
Clock
Off Time
On Time
G
Sleep Time
Auto Sleep
Off
On
Time 6 : 30 AM
PR 7
Vol 17
Clock : -- --, ----, --:-- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
DIGITAL
TIME SETTING
89
SLEEP TIMER SETTING
Press the
SSLLEEEEPP
button repeatedly to select the number of minutes. First the
OOffff
option appears on the screen, followed by the following Sleep Time
options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
When the number of minutes you want is displayed on the screen, press the
OOKK
button. The timer begins to count down from the number of minutes
selected.
To check the remaining minutes before the TV turns off, press the
SSLLEEEEPP
button once.
To cancel the Sleep Time, press the
SSLLEEEEPP
button repeatedly to select
OOffff
.
When you switch the set off, the set cancels the preset sleep time.
■
You can also set up the Sleep Time in the TIME menu.
2
3
4
1
Clock
Off Time
On Time
Sleep Time
G
Auto Sleep
Off
10 min
20 min
30 min
60 min
90 min
120 min
180 min
240 min
Clock : -- --, ----, --:-- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
POWER
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
RATIO
I/II
BRIGHT
MUTE
PAGE
PR
INPUT
MODE
LIST
SUBTITLE
FAV
MENU
MARK
SLEEP
SIMPLINK
USB
INFO
i
OK
You don’t have to remember to switch the set off before you go
to sleep.
The sleep timer automatically switches the set to standby after
the preset time has elapsed.
5
TIME SETTING
90
TIME SETTING
AUTO SHUT-OFF SETTING
If set to on and there is no input signal, the TV turns off auto-
matically after 10 minutes.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo SSlleeeepp
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Clock
Off Time
On Time
Sleep Time
Auto Sleep
G
Off
On
TV will be automatically turned
off, in case of No Signal for 10
minutes.
Clock : -- --, ----, --:-- --
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
OK
TVD/A
INPUT
DVD
EXIT
VOL
Q.VIEW
PR
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
PAGE
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PARENTAL CONTROL / RATING
91
PARENTAL CONTROL / RATINGS
SET PASSWORD & LOCK SYSTEM
Set up blocking schemes to block specific channels, ratings, and
external viewing sources.
A password is required to gain access to this menu.
Press the
MMEENNUU
button and then use the
DD
or
EE
button to
select the
LLOOCCKK
menu. Then, press the
GG
button.
■
Enter the password as requested.
■
The TV is set up with the initial
password “0-0-0-0”.
Enter Password
1
Setting up your Password
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
After inputting the password, use the
DD
or
EE
button
to choose
SSeett PPaasssswwoorrdd
.
Press the
GG
button and then choose any 4 digits for
your new password and enter the them on the
NNeeww
.
As soon as the 4 digits are entered, reenter the same
4 digits on the
CCoonnffiirrmm
.
Then your changed password has been memorized.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Change the password by inputting a new password twice.
2
3
1
Lock System
Set Password
G
Block Programme
Parental Guidance
Input Block
New
Confirm
Set Password
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
NOTE
!
GG
If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’
on the remote control.
PARENTAL CONTROL / RATING
92
PARENTAL CONTROL /RATINGS
Lock System
After inputting the password, use the
DD
or
EE
button
to choose
LLoocckk SSyysstteemm
.
Press the
GG
button and then use the
DD
or
EE
to select
OOnn
or
OOffff..
■
When you select, the Lock System is enable.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Enables or disables the blocking scheme you set up previously.
2
3
1
Lock System
G
Set Password
Block Programme
Parental Guidance
Input Block
Off
On
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PARENTAL CONTROL / RATING
93

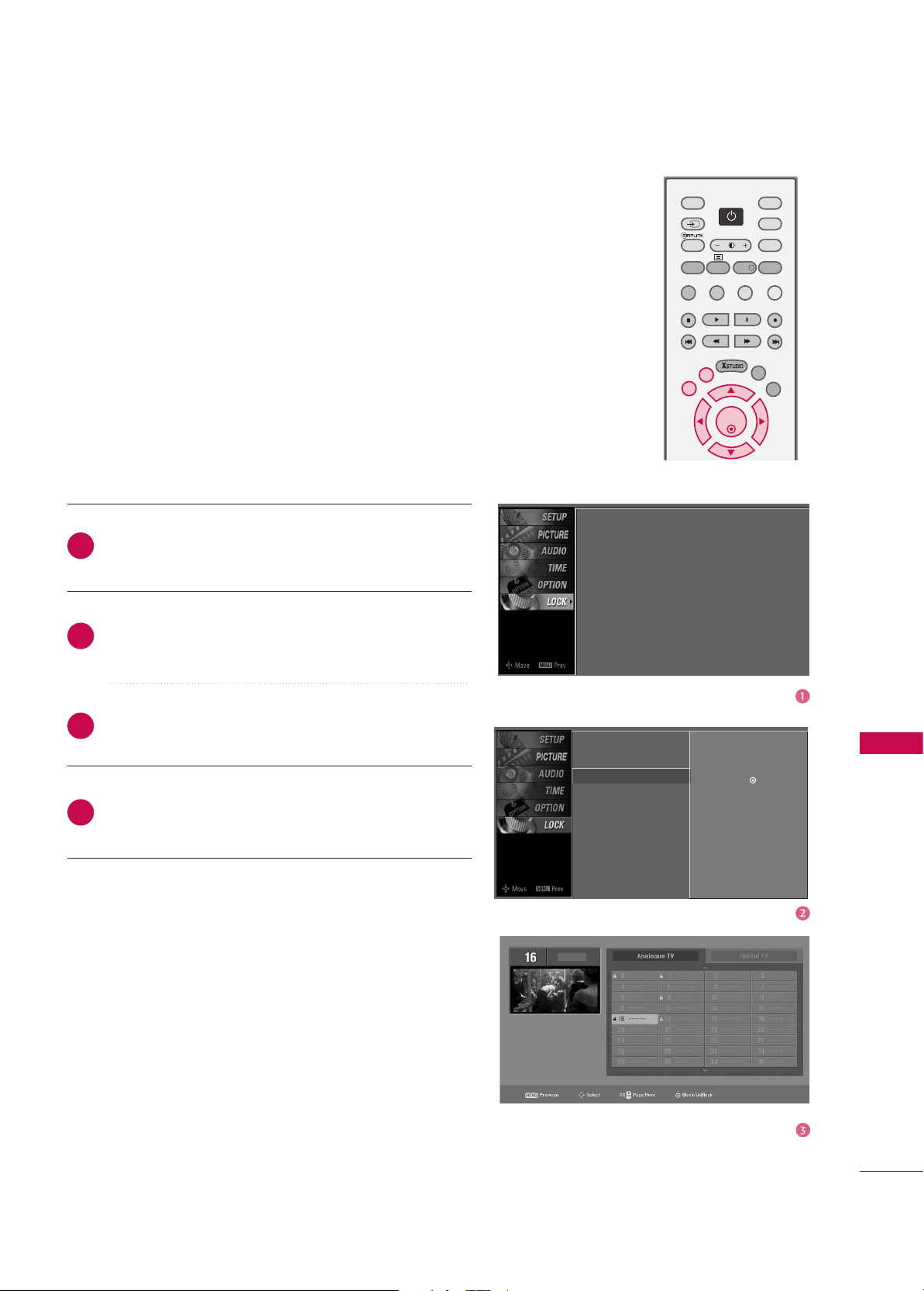

PROGRAMME BLOCKING
Blocks any programmes that you do not want to watch or
that you do not want your children to watch.
After inputting the password, use the
DD
or
EE
button
to choose
BBlloocckk PPrrooggrraammmmee
.
Press the
GG
button. You will now see a screen filled
with channel numbers and a preview picture.
Use
DD
or
EE
or
FF
or
GG
button to select a channel
and then use the
OOKK
button to block or unblock it.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Lock System
Set Password
Block Programme
G
Parental Guidance
Input Block
Selection (
G
or
) leads you to
the block programme screen.
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
INPUT
MODE
SUBTITLE
MENU
MARK
SIMPLINK
INFO
i
PARENTAL CONTROL / RATING
94
PARENTAL CONTROL /RATINGS
Lock System
Set Password
Block Programme
Parental Guidance
G
Input Block
Blocking off : permits
all programmes
G
PG
M
MA
AV
R
Blocking Off
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
PARENTAL GUIDANCE -
In Digital Mode only
Prevents children from watching certain children's TV pro-
grams, according to the ratings limit set.
After inputting the password, use the
DD
or
EE
button
to choose
PPaarreennttaall GGuuiiddaannccee
.
Press the
GG
button and then use the
DD
or
EE
to
select
GG
,
PP GG
,
MM
,
MM AA
,
AA VV
or
RR
.
■
G (General audiences)
■
PG (Parental guidance suggested)
■
M (Mature audiences)
■
MA (Mature adult audiences)
■
AV (Adult audiences)
■
R (Restricted)
■
Blocking Off (Permits all programmes)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
1
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
PARENTAL CONTROL / RATING
95
EXTERNAL INPUT BLOCKING
Enables you to select a source to block from the external
source devices you have hooked up.
After inputting the password, use the
DD
or
EE
button
to choose
IInnppuutt BBlloocckk
.
Press the
GG
button and then use the
DD
or
EE
to
select a source.
Press the
GG
button and then use the or to
select
OOnn
or
OOffff
on the each source.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
2
3
4
1
Lock System
Set Password
Block Programme
Parental Guidance
Input Block
G
AV1 On
AV2 On
Component1 Off
Component2 On
RGB-PC
Off
HDMI1 On
HDMI2 Off
HDMI3 Off
Lock System : Off
Set Password
Block Programme
Parental Guidance
Input Block
OK
TVD/A
INPUT
DVD
EXIT
TEXT
GUIDE
VCR
POWERPOWER
RATIO
BRIGHT
INPUT
MODE
SUBTITLE
MARK
MENU
SIMPLINK
INFO
i
Press the
TTEEXXTT
button to switch to teletext. The initial page or last page appears on the screen.
Two page numbers, TV station name, date and time are displayed on the screen headline. The first page num-
ber indicates your selection, while the second shows the current page displayed.
Press the
TTEEXXTT
or
EEXXIITT
button to switch off teletext.
* This feature is not available in all countries.
- Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weath-
er, television programmes, share prices and many other topics.
- The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext)
consists of a number of pages which are selected by directly entering the corresponding page number. TOP and
FASTEXT are more modern methods allowing quick and easy selection of teletext information.
AA BBlloocckk // ggrroouupp // ppaaggee sseelleeccttiioonn
With the
BBLLUUEE
button you can progress from block to block.
Use the
YYEELLLLOOWW
button to proceed to the next group with automatic overflow to the next block.
With the
GGRREEEENN
button you can proceed to the next existing page with automatic overflow to the next group.
Alternatively the
PPRR ++
button can be used.
The
RREEDD
button permits to return to previous selection. Alternatively the
PPRR--
button can be used.
AA DDiirreecctt ppaaggee sseelleeccttiioonn
Corresponding to the SIMPLE teletext mode, you can select a page by entering it as a three digit number using
the NUMBER buttons in TOP mode.
- The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field
denotes the next group and the blue field indicates the next block.
* This feature is not available in all countries.
* This feature is not available in all countries.
Switch On/Off
TOP Text
■
PPaaggee sseelleeccttiioonn
Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you
press a wrong number, you must complete the three digit number and then re-enter the correct page
number.
The
PPRR ++
or
--
button can be used to select the preceding or following page.
SIMPLE Text
1
1
2
3
4
2
TELETEXT
96
TELETEXT
TELETEXT
97
- The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corre-
sponding coloured button.
AA
PPaaggee sseelleeccttiioonn
1. Press the button to select the index page.
2. You can select the pages which are colour coded along the bottom line with the same coloured buttons.
3. Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number
with the NUMBER buttons in FASTEXT mode.
4. The
PPRR ++
or
--
button can be used to select the preceding or following page.
i
RREEVVEEAALL
Press this button to display concealed infor-
mation, such as solutions of riddles or puzzles.
Press this button again to remove the informa-
tion from the display.
SSIIZZEE
Selects double height text.
Press this button to enlarge the top half of the
page.
Press this button again to enlarge the bottom
half of the page.
Press this button again to return to the normal
display.
TTIIMMEE
When viewing a TV programme, press this
button to display the time at the top right
hand corner of the screen. Press this button
again to remove the display.
IINNDDEEXX
Select the each index page
?
FASTEXT
Special Teletext Functions
i
No picture & No sound
No or poor colour
or poor picture
Poor reception on
some channels
Lines or streaks
in pictures
Horizontal/vertical bars
or picture shaking
Picture appears slowly
after switching on
■
Check whether the product is turned on.
■
Try another channel. The problem may be with the broadcast.
■
Is the power cord inserted into wall power outlet?
■
Check your antenna direction and/or location.
■
Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
■
This is normal, the image is muted during the product startups process. Please
contact your service center, if the picture has not appeared after five minutes.
■
Adjust Colour in menu option.
■
Keep a sufficient distance between the product and the VCR.
■
Try another channel. The problem may be with the broadcast.
■
Are the video cables installed properly?
■
Activate any function to restore the brightness of the picture.
■
Check for local interference such as an electrical appliance or power tool.
■
Station or cable product experiencing problems, tune to another station.
■
Station signal is weak, reorient antenna to receive weaker station.
■
Check for sources of possible interference.
■
Check antenna (Change the direction of the antenna).
TROUBLESHOOTING
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
The remote control
doesn’t work
Power is suddenly
turned off
■
Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.
■
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
■
Ensure that the correct remote operating mode is set: TV, VCR etc.
■
Install new batteries.
■
Is the sleep timer set?
■
Check the power control settings. Power interrupted.
■
No broadcast on station tuned with Auto off activated.
TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
APPENDIX
98
APPENDIX
APPENDIX
99
TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))
■
Press the VOL or VOLUME button.
■
Sound muted? Press MUTE button.
■
Try another channel. The problem may be with the broadcast.
■
Are the audio cables installed properly?
■
Adjust Balance in menu option.
■
A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a fault with the
product.
Picture OK & No sound
Unusual sound from
inside
the product
No output from one
of the speakers
■
Adjust resolution, horizontal frequency, or vertical frequency.
■
Check the input source.
■
Work the Auto configure or adjust clock, phase, or H/V position. (Option)
■
Check the signal cable.
■
Reinstall the PC video card.
The signal is out of range
(Invalid format)
Screen colour is unstable
or single colour
Vertical bar or stripe on
background &
Horizontal Noise &
Incorrect position
APPENDIX
100
APPENDIX
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can
enjoy your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
■
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■
Please be sure not to use a wet cloth.
Extended Absence
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
CAUTION
2
1
APPENDIX
101
PRODUCT SPECIFICATIONS
■
The specifications shown above may be changed without prior notice for quality improvement.
PAL B/G, DVB-T
VHF 0-12, UHF 20-75, CATV 02-44, DTV 06-12, 27-69
75 Ω
32~104°F (0 ~ 40°C)
Less than 80%
-4~104°F(-20 ~ 60°C)
Less than 85%
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
Television System
Program Coverage
External Antenna Impedance
Environment condition
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
40.6x30.7x13.1 inches
1030.8x779.8x333.2 mm
40.6x27.3x3.5 inches
1030.8x693x88.5 mm
60.2 pounds / 27.3kg
51.6 pounds / 23.4kg
AC100-240V~ 50/60Hz 2.5A
4422LLBB99DDFF
**
42LB9DF-AD
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
31.7x24.4x11.2 inches
805.8x619.7x283.9 mm
31.7x21.8x3.1 inches
805.8x554.1x79.0 mm
32.6 pounds / 14.8kg
27.8 pounds / 12.6kg
AC100-240V~ 50/60Hz 1.5A
3322LLBB99DD
**
32LB9D-AD
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
45.3x33.8x15.0 inches
1150x858.7x380.1 mm
45.3x30.2x4.1 inches
1150x767.8x103.0 mm
83.3 pounds / 37.8kg
70.1 pounds / 31.8kg
AC100-240V~ 50/60Hz 3.0A
4477LLBB99DDFF
**
47LB9DF-AD
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
51.5x35.7x14.6 inches
1308.0x906.1x370.0 mm
51.5x33.3x3.5 inches
1308.0x845.0x89.5 mm
93.5 pounds / 42.4kg
83.1 pounds / 37.7kg
AC100-240V~ 50/60Hz 3.2A
5522LLBB99DDFF
**
52LB9DF-AD
APPENDIX
102
APPENDIX
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
Television System
External Antenna Impedance
Environment condition
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
6600PPYY33DDFF
**
60PY3DF-AA
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
5500PPYY33DDFF
**
50PY3DF-AA
PAL B/G, DVB-T
VHF 0-12, UHF 20-75, CATV 02-44, DTV 06-12, 27-69
75 Ω
32~104°F (0 ~ 40°C)
Less than 80%
-4~104°F(-20 ~ 60°C)
Less than 85%
53.5x35.0x14.6 inches
1360.0x887.0x370.0 mm
53.5x32.4x3.8 inches
1360.0x822.8x95.5 mm
126.8 pounds / 57.5kg
107.0 pounds / 48.5kg
AC100-240V~ 50/60Hz 3.2A
63.5x40.8x17.8 inches
1613.6x1036.8x452.0 mm
63.5x38.2x3.9 inches
1613.6x970.0x98.5 mm
178.6 pounds / 81.0kg
143.3 pounds / 65.0kg
AC100-240V~ 50/60Hz 6.5A
■
The specifications shown above may be changed without prior notice for quality improvement.
APPENDIX
103
■
The specifications shown above may be changed without prior notice for quality improvement.
PAL B/G, DVB-T
VHF 0-12, UHF 20-75, CATV 02-44, DTV 06-12, 27-69
75 Ω
32~104°F (0 ~ 40°C)
Less than 80%
-4~104°F(-20 ~ 60°C)
Less than 85%
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
Television System
Program Coverage
External Antenna Impedance
Environment condition
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
51.5x35.7x14.6 inches
1308x906.1x370 mm
51.5x33.3x3.5 inches
1308x845x88.9 mm
88.1 pounds / 40kg
82.2 pounds / 37.3kg
AC100-240V~ 50/60Hz 4.5A
5500PPBB44DD
**
50PB4D-AA
Dimensions
(Width x Height x Depth)
Weight
Power requirement
with stand
without stand
with stand
without stand
44.5x30.2x12.2 inches
1130x768.05x310.38 mm
44.5x28.1x3.3 inches
1130x715x85 mm
65.6 pounds / 29.74kg
58 pounds / 26.34kg
AC100-240V~ 50/60Hz 3.5A
4422PPBB44DD
**
42PB4D-AA
APPENDIX
104
APPENDIX
PROGRAMMING THE REMOTE CONTROL
Programming a code into a remote mode
To find out whether your remote control can operate each device without programming, turn on the device
(such as a VCR) and press the corresponding mode button on the remote.
After that, press the
PPOOWWEERR
button. If the device is turned off and it responds properly the remote control
need not be programmed. If not, the remote should be programmed to operate the device. The program-
ming procedures are explained below.
Press the
MMEENNUU
and
MMUUTTEE
button continuously at the same time for two seconds; the currently selected
device button is illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case,
you have to repeat from step 2.
Enter the appropriate code from the code table on the following pages. When pressing the button, the light
blinks at a time. If the device turned off, the programming is successful.
Press the
MMEENNUU
button to store the code. After blinking twice, this code is stored.
Test the remote control functions to see if the device responds properly. If not, steps 2-5.
The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-control-
lable devices of other manufacturers.
Note that the remote may not control all models of other brands.
2
3
4
5
1
APPENDIX
105
Remote control code
VCRs
Brand Codes Brand Codes Brand Codes
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
10 7 109 14 4 14 7
GO VIDEO 132 136
HARMAN KARDON 012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 10 6 114 12 3
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
012 031 033 067
MARANTZ 069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 10 2 134 13 9
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
13 3 140 14 5
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
14 5 14 7
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
10 5 10 7 109 112
113 115 12 0 1 2 2
12 5
SANSUI 022 043 048 135
SANYO 003 007 010 014
10 2 134
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
APPENDIX
106
APPENDIX
VCRs
Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
Brand Codes Brand Codes Brand Codes
DVD
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
APPENDIX
107
IR CODES
■
Configuration of frame
1st frame
Repeat frame
■
Lead code
■
Repeat code
■
BBiitt ddeessccrriippttiioonn
■
FFrraammee iinntteerrvvaall:: TTff
The waveform is transmitted as long as a key is depressed.
C0
C1
C2
C3
C4
C5
C6
C
7
D
0
D
1
D
2
D
3
D
4
D
5
D
6
D
7
L
ead
code
L
o
w
custo
m
code
Hi
g
h custom cod
e
D
ata
code
D
ata
code
Re
p
eat cod
e
Tf
4.
5
m
s
9
ms
2.2
5
ms
9
ms
0
.
55
ms
0
.
56
m
s
1
.
12 m
s
0
.
56
m
s
2
.
24 m
s
Tf
Tf
Tf=1
08
ms
@
455KH
z
Bit ”0” Bit ”1”
1. How to Connect
■
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes
■
Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
T1
T
c
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
APPENDIX
108
APPENDIX
Code
Function Note
(Hexa)
Code
Function Note
(Hexa)
50 D/A INPUT Remote control Button
0B INPUT Remote control Button
79 RATIO Remote control Button
0E SLEEP Remote control Button
10-19 Number Key 0-9 Remote control Button
1A Q.VIEW Remote control Button
09 MUTE Remote control Button
02 VOL + Remote control Button
03 VOL - Remote control Button
00 PR + Remote control Button
01 PR - Remote control Button
1E FAV Remote control Button
40
DD
Remote control Button
41
EE
Remote control Button
07
FF
Remote control Button
06
GG
Remote control Button
44 OK Remote control Button
43 MENU Remote control Button
5B EXIT Remote control Button
A9 GUIDE Remote control Button
7E SIMPLINK Remote control Button
39 SUBTITLE Remote control Button
08 POWER Remote control Button
7D MARK Remote control Button
i
64 SIZE Remote control Button
70 INDEX Remote control Button
26 TIME Remote control Button
2A REVEAL Remote control Button
20 TEXT Remote control Button
72 RED Remote control Button
71 GREEN Remote control Button
63 YELLOW Remote control Button
61 BLUE Remote control Button
53 LIST Remote control Button
0A
II//IIII
Remote control Button
AA INFO Remote control Button
E1 Remote control Button
E0 Remote control Button
B1 Remote control Button
B0 Remote control Button
BA Remote control Button
BD Remote control Button
B2 Remote control Button
8F Remote control Button
8E Remote control Button
B3 Remote control Button
CA USB
DD
Remote control Button
7C Remote control Button
APPENDIX
109
EXTERNAL CONTROL THROUGH RS-232C
RS-232C Setup
Connect the RS-232C (serial port) input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with the product.
PC
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
HDMI/DVI IN
COMPONENT IN
COMPONENT IN
VIDEO
VIDEO
AUDIO
AUDIO
RGB IN
RGB (PC)
A
V
IN
1
VIDEO
S-VIDEO
AUDIO
MONO
( )
AV
OUT
DIGITAL
AUDIO
OUT
RS-232C IN
RS-232C IN
(CONTROL & SERVICE)
(CONTROL & SERVICE)
VIDEO
(DVI)
AUDIO
APPENDIX
110
APPENDIX
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSeett IIDD
.
Press the
GG
button and then use
DD
or
EE
button to
adjust
SSeett IIDD
to choose the desired TV ID number.
The adjustment range of Set ID is 1~99.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping 1’.
pp..111122
Set ID
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
2
3
4
1
Subtitle : Off
Input Label
SIMPLINK : Off
Key Lock : Off
Set ID : 1
ISM Method
Low Power
Front Display
Factory Reset
Model Info
Subtitle
Input Label
SIMPLINK
Key Lock
Set ID
G
ISM Method
Low Power
Front Display
Factory Reset
Model Info
1
APPENDIX
111
Transmission / Receiving Protocol
TTrraannssmmiissssiioonn
[Command 1] : First command to control the set.
(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired TV ID
number in Setup menu. Adjustment range is 1~ 99.
When selecting Set ID ‘0’, every connected the TV
is controlled. Set ID is indicated as decimal
(
1
~
99
)
on menu and as Hexa decimal
(
0x0~ 0x63
)
on transmission/receiving protocol.
[DATA] : To transmit command data.
Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
OOKK AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this for-
mat when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data is
data write mode, it returns the data of the PC computer.
EErrrroorr AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this for-
mat when receiving abnormal data from non-viable functions
or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
[[CCoommmmaanndd11]][[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[DDaattaa]][[CCrr]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[OOKK]][[DDaattaa]][[xx]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[NNGG]][[DDaattaa]][[xx]]
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA
(Hexadecimal)
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA
(Hexadecimal)
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 8
03. Aspect Ratio k c See p.112
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Colour k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. Back Light m g See p.113
13. OSD Select k l 0 ~ 1
14. Remote Control/Key Lock k m 0 ~ 1
15. Treble k r 0 ~ 64
Command Reference List
16. Bass k s 0 ~ 64
17. Balance k t 0 ~ 64
18 .
Colour Temperature
k u 0 ~ 3
19. Red Adjustment k v 0 ~ C8
20. Green Adjustment k w 0 ~ C8
21. Blue Adjustment k $ 0 ~ C8
22. Channel Tuning m a See p.114
23. ISM Method j p 0 ~ 3
24. Low Power j q 0 ~ 1
25. Orbiter Time
jr1
~
FE
Setting
26. Orbiter Pixel
js
1
~
3
Setting
27. Send IR Code m c See p.114
28. Input Select x b See p.114
Plasma TV models only
APPENDIX
112
APPENDIX
0011.. PPoowweerr ((CCoommmmaanndd22::aa))
To control Power On/Off of the TV.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off Data 1 : Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
* Note: In this model, TV will send the Acknowledge
after power on processing completion.
There might be a time delay between command and
acknowledge.
0022.. IInnppuutt SSeelleecctt ((CCoommmmaanndd22::bb)) ((MMaaiinn PPiiccttuurree IInnppuutt))
To select input source for the TV.
Transmission [k][b][ ][Set ID][ ][Data][Cr]
Data 0: DTV Data 1: Analog
Data 2: AV1 Data 3: AV2
Data 4: Component 1 Data 5: Component 2
Data 6: RGB-PC Data 7: HDMI1
Data 8: HDMI2 Data 9: HDMI3
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
0033.. AAssppeecctt RRaattiioo ((CCoommmmaanndd22::cc))
To adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Picture menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Date 0: Auto 1: 4:3
2: 16:9
3: 14:9 (-10) ~ D: 14:9 (0) ~ 17: 14:9 (10)
18: Zoom (-16) ~ 28: Zoom (0) ~ 38: Zoom (16)
39: 1:1 Pixel(Full HD Only)
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In HDMI/DVI(1080i or 1080p)mode, 1:1 Pixel is avail-
able.
0044.. SSccrreeeenn MMuuttee ((CCoommmmaanndd22::dd))
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
Data 1 : Screen mute on (Picture off)
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
0055.. VVoolluummee MMuuttee ((CCoommmmaanndd22::ee))
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute on (Volume off)
Data 1 : Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
0066.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd22::ff))
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 1’ as shown below.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
0077.. CCoonnttrraasstt ((CCoommmmaanndd22::gg))
To adjust screen contrast.
You can also adjust contrast in the Picture menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
*Refer to ‘Real data mapping 1’ as shown below.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
0088.. BBrriigghhttnneessss ((CCoommmmaanndd22::hh))
To adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping 1’ as shown below.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
*Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
APPENDIX
113
0099.. CCoolloouurr ((CCoommmmaanndd22::ii))
To adjust the screen colour.
You can also adjust colour in the Picture menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
1100.. TTiinntt ((CCoommmmaanndd22::jj))
To adjust the screen tint.
You can also adjust tint in the Picture menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
1111.. SShhaarrppnneessss ((CCoommmmaanndd22::kk))
To adjust the screen sharpness.
You can also adjust sharpness in the Picture menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
1122.. BBaacckk lliigghhtt((CCoommmmaanndd:: mm gg)) ((LLCCDD oonnllyy))
To adjust screen back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:64
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
1133.. OOSSDD SSeelleecctt ((CCoommmmaanndd22::ll))
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 0: OSD off Data 1: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
1144.. RReemmoottee CCoonnttrrooll LLoocckk MMooddee ((CCoommmmaanndd22::mm))
To lock the remote control and the front panel controls
on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 0: Lock off Data 1: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the TV, use this mode. When main power is
on/off, remote control lock is released.
1155 TTrreebbllee ((CCoommmmaanndd22::rr))
To adjust treble.
You can also adjust treble in the Audio menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
1166.. BBaassss ((CCoommmmaanndd22::ss))
To adjust bass.
You can also adjust bass in the Audio menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
1177.. BBaallaannccee ((CCoommmmaanndd22::tt))
To adjust balance.
You can also adjust balance in the Audio menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping 1’. See page 112.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
1188.. CCoolloouurr TTeemmppeerraattuurree ((CCoommmmaanndd22::uu))
To adjust colour temperature.
You can also adjust colour temperature in the Picture
menu.
Transmission [k][u][ ][Set ID][ ][Data][Cr]
Data 0: Medium 1: Cool 2: Warm 3: User
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
1199.. RReedd aaddjjuussttmmeenntt((CCoommmmaanndd::vv))
To adjust red in colour temperature
Transmission [k][v][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2". See page 114.
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
*In User Mode, Colour Temperature is available.
APPENDIX
114
APPENDIX
2200..
GGrreeeenn AAddjjuussttmmeenntt((CCoommmmaanndd::ww))
To adjust green in colour temperature.
Transmission [k][w][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2" as shown below
Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]
2211.. BBlluuee aaddjjuussttmmeenntt((CCoommmmaanndd::$$))
To adjust blue in colour temperature.
Transmission [k][$][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2".
Acknowledgement [$][ ][Set ID][][OK/NG][Data][x]]
*In User Mode, Colour Temperature is abailabe.
*Real data mapping 2
0 : -20
5 : -19
A : -18
5F: -1
64: 0
69: +1
C3 : +19
C8 : +20
2222.. CChhaannnneell TTuunniinngg ((CCoommmmaanndd:: mm aa))
To tune channel to following programme number
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1]
[ ][Data2][Cr]
Data 0: High channel data
Data 1: Low channel data
Data 2: 00: Analogue TV
: 10: Digital TV
ex) Analogue TV : ma 0 00 01 00
* Channel Data Range:
Analogue TV: 0 ~ 63
Digital TV: 0 ~ 3E
2233.. IISSMM MMeetthhoodd ((CCoommmmaanndd22::pp))
To control the ISM method. You can also adjust ISM
method in OPTION menu.
This feature is not available for all models.
Transmission [ j ][p][ ][Set ID][ ][Data][Cr]
Data 0: Normal Data 1: Orbiter
Data 2: Inversion Data 3: White Wash
Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]
2244.. LLooww PPoowweerr ((CCoommmmaanndd22::qq))
To reduce the power consumption of the set. You can
also adjust Low power in OPTION menu.
This feature is not available for all models.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 0: low power off
1: low power on
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
2255.. OOrrbbiitteerr TTiimmee SSeettttiinngg ((CCoommmmaanndd22::rr))
To adjust orbiter operation time term.
This feature is not available for all models.
Transmission [ j ][r][ ][Set ID][ ][Data][Cr]
Data Min: 1~ Max: FE(*transmit by Hexadecimal code),
Unit: Second
*Refer to ‘Real data mapping1’. See page 112.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
2266.. OOrrbbiitteerr PPiixxeell SSeettttiinngg ((CCoommmmaanndd22::ss))
To adjust pixel number in orbiter function.
This feature is not available for all models.
Transmission [ j ][s][ ][Set ID][ ][Data][Cr]
Data Min: 1~ Max: 3
*Refer to ‘Real data mapping1’. See page 112.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
2277.. SSeenndd IIRR CCooddee ((CCoommmmaanndd:: mm cc))
To send IR remote key code
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code: Refer to page 105.
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
2288.. IInnppuutt SSeelleecctt((CCoommmmaanndd:: xx bb))
To select input source for TV.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00 : Digital Data 41 : Component2
Data 10 : Analogue Data 50 : RGB-PC
Data 20 : AV1 Data 90 : HDMI1
Data 21 : AV2 Data 91 : HDMI2
Data 40 : Component1 Data 92 : HDMI3
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
APPENDIX
115
OPEN SOURCE LICENSE
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your freedom to share and change free
software--to make sure the software is free for all its users. This General Public License applies to most of the Free
Software Foundation's software and to any other program whose authors commit to
using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License
instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to
make sure that you have the freedom to distribute copies of free software (and charge for
this service if you wish), that you receive source code or can get it if you want it, that you can change the software or
use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to sur-
render the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software,
or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show
them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no war-
ranty for this free software. If the software is modified by someone else and passed on, we
want its recipients to know that what they have is not the original, so that any problems introduced by others will not
reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors
of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we
have made it clear that any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it
may be distributed under the terms of this General Public License. The "Program", below, refers to any such program
or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that
is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into
another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is
addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running the Program is not restricted, and the output from the Program
is covered only if its contents constitute a work based on the Program (independent of having been made by running
the Program). Whether that is true depends on what the Program does.
APPENDIX
116
APPENDIX
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, pro-
vided that you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of
any warranty; and give any other recipients of the Program a copy of this License
along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you
also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any
change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this
License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copy-
right notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may
redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception:
if the Program itself is interactive but does not normally print such an announcement, your work based on the
Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on
the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable
form under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under
the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than
your cost of physically performing source distribution, a complete machine-readable copy of the corresponding
source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software
interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you received the program in object code or exe-
cutable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable
work, complete source code means all the source code for all modules it contains, plus any associated interface defini-
tion files, plus the scripts used to control compilation and installation of the executable. However, as a special excep-
tion, the source code distributed need not include anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs,
unless that component itself accompanies the executable.
APPENDIX
117
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though
third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or rights, from you under this License will
not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-
sion to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not ccept
this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate
your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a
license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You
may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible
for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-
ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-
isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it
and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-
tion is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system, which is implemented by public license practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to
time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems
or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which
applies to it and "any later version", you have the option of following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If the Program does not specify a version number of
this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,
write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals
of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software
generally.
APPENDIX
118
APPENDIX
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PRO-
GRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING
THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE
QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFEC-
TIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPY-
RIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PER-
MITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most
effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to
where the full notice is found.
<one line to give the program's name and a brief idea of what it does.>
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later
version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the
Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRAN-
TY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions;
type `show c' for details.
The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License.
Of course, the commands you use may be called something other than `show w' and `show c'; they could even be
mouse-clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer"
for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compil-
ers) written by James Hacker.
<signature of Ty Coon>, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a
subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is
what you want to do, use the GNU Lesser General Public License instead of this License.
APPENDIX
119
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301
USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not
allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically
libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest
you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in
any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are
designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you
wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of
it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to
surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the
library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the
rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code
with the library, you must provide complete object files to the recipients, so that they can relink them with the library
after making changes to the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which
gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the
library is modified by someone else and passed on, the recipients should know that what they have is not the original
version, so that the original author's reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a
company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder.
Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom
of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license,
the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary
General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free
programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legal-
ly speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits
such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more
lax criteria for linking other code with the library.
We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the
ordinary General Public License. It also provides other free software developers Less of an advantage over competing
non-free programs. These disadvantages are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library,
so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more
frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to
gain by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use
a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many
more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
APPENDIX
120
APPENDIX
Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a
program that is linked with the Library has the freedom and the wherewithal to run that program using a modified ver-
sion of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the differ-
ence between a "work based on the library" and a "work that uses the library". The former contains code derived from
the library, whereas the latter must be combined with the library in order to run.
GNU LESSER GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the
copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public
License (also called "this License"). Each licensee is addressed as "you".
A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with applica-
tion programs (which use some of those functions and data) to form executables.
The "Library", below, refers to any such software library or work which has been distributed under these terms. A
"work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work
containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into
another language. (Hereinafter, translation is included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete
source code means all the source code for all modules it contains, plus any associated interface definition files, plus
the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
The act of running a program using the Library is not restricted, and output from such a program is covered only if its
contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether
that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medi-
um, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and dis-
claimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distrib-
ute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection
in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library,
and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all
of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of
any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this
License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program
that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good
faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates,
and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of
the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function
must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Library, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-
less of who wrote it.
APPENDIX
121
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy
of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU
General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU
General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other
change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License
applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or exe-
cutable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete correspond-
ing machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent
access to copy the source code from the same place satisfies the requirement to distribute the source code, even
though third parties are not compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being
compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of
the Library, and therefore falls outside the scope of this License.
However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library
(because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore cov-
ered by this License. Section 6 states terms for distribution of such executables.
When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the
work may be a derivative work of the Library even though the source code is not.
Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library.
The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and
small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it
is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of
Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with
the Library itself.
6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library
to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that
the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modi-
fications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its
use are covered by this License. You must supply a copy of this License. If the work during execution displays copy-
right notices, you must include the copyright notice for the Library among them, as well as a reference directing the
user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including
whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work
is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object
code and/or source code, so that the user can modify the Library and then relink to produce a modified executable
containing the modified Library. (It is understood that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at
run time a copy of the library already present on the user's computer system, rather than copying library functions
into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as
long as the modified version is interface-compatible with the version that the work was made with.
APPENDIX
122
APPENDIX
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to
copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the Library" must include any data and utility programs
needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need
not include anything that is normally distributed (in either source or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies
the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normal-
ly accompany the operating system. Such a contradiction means you cannot use both them and the Library together in
an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with
other library facilities not covered by this License, and distribute such a combined library, provided that the separate
distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that
you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other
library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and
explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automati-
cally terminate your rights under this License. However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-
sion to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept
this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your
acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or
works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a
license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and condi-
tions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-
ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-
isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the
Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-
tion is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest
validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution
system which is implemented by public license practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Library under this License may add an explicit geographical dis-
tribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if written in the body of this License.
APPENDIX
123
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License
from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address
new problems or concerns.
Each version is given a distinguishing version number. If the Library specifies a version number of this License which
applies to it and "any later version", you have the option of following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If the Library does not specify a license version number,
you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompati-
ble with these, write to the author to ask for permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guid-
ed by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPY-
RIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMIT-
TED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU
OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it
free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms
(or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source
file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a
pointer to where the full notice is found.
<one line to give the library's name and a brief idea of what it does.>
Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General
Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option)
any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General
Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to
the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer"
for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by
James Random Hacker.
<signature of Ty Coon>, 1 April 1990
Ty Coon, President of Vice
APPENDIX
124
APPENDIX
MOZILLA PUBLIC LICENSE
Version 1.1
---------------
1. Definitions.
1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.
1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.
1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor,
and the Modifications made by that particular Contributor.
1.3. "Covered Code" means the Original Code or Modifications or the combination of the Original Code and
Modifications, in each case including portions thereof.
1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development com-
munity for the electronic transfer of data.
1.5. "Executable" means Covered Code in any form other than Source Code.
1.6. "Initial Developer" means the individual or entity identified as the Initial Developer in the Source Code notice
required by Exhibit A.
1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the
terms of this License.
1.8. "License" means this document.
1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the ini-
tial grant or subsequently acquired, any and all of the rights conveyed herein.
1.9. "Modifications" means any addition to or deletion from the substance or structure of either the Original Code or
any previous Modifications. When Covered Code is released as a series of files, a Modification is:
A. Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.
B. Any new file that contains any part of the Original Code or previous Modifications.
1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice
required by Exhibit A as Original Code, and which, at the time of its release under this License is not already
Covered Code governed by this License.
1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without limitation,
method, process, and apparatus claims, in any patent Licensable by grantor.
1.11. "Source Code" means the preferred form of the Covered Code for making modifications to it, including all
modules it contains, plus any associated interface definition files, scripts used to control compilation and installation
of an Executable, or source code differential comparisons against either the Original Code or another well known,
available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form,
provided the appropriate decompression or de-archiving software is widely available for no charge.
1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the
terms of, this License or a future version of this License issued under Section 6.1.
For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You.
For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or manage-
ment of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the out-
standing shares or beneficial ownership of such entity.
2. Source Code License.
2.1. The Initial Developer Grant.
The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intel-
lectual property claims:
(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use,
reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or
without Modifications, and/or as part of a Larger Work; and
APPENDIX
125
(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use,
practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes
Original Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the
Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the
Original Code or ii) the combination of the Original Code with other software or devices.
2.2. Contributor Grant.
Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free,
non-exclusive license
(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, repro-
duce, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or por-
tions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a
Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor
either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use,
sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions
thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or por-
tions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes
Commercial Use of the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has delet-
ed from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i)
third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor
with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims
infringed by Covered Code in the absence of Modifications made by that Contributor.
3. Distribution Obligations.
3.1. Application of License.
The Modifications which You create or to which You contribute are governed by the terms of this License, including
without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of
this License or a future version of this License released under Section 6.1, and You must include a copy of this
License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source
Code version that alters or restricts the applicable version of this License or the recipients' rights hereunder.
However, You may include an additional document offering the additional rights described in Section 3.5.
3.2. Availability of Source Code.
Any Modification which You create or to which You contribute must be made available in Source Code form under
the terms of this License either on the same media as an Executable version or via an accepted Electronic
Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via
Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially
became available, or at least six (6) months after a subsequent version of that particular Modification has been
made available to such recipients. You are responsible for ensuring that the Source Code version remains available
even if the
Electronic Distribution Mechanism is maintained by a third party.
3.3. Description of Modifications.
You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to
create that Covered Code and the date of any change. You must include a prominent statement that the Modification
is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the
Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in
which You describe the origin or ownership of the Covered Code.
3.4. Intellectual Property Matters
(a) Third Party Claims.
If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise
the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the
Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient
detail that a recipient will know whom to contact. If Contributor obtains such knowledge after the Modification is
made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies
Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or
newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has
been obtained.
APPENDIX
126
APPENDIX
(b) Contributor APIs.
If Contributor's Modifications include an application programming interface and Contributor has knowledge of
patent licenses which are reasonably necessary to implement that API, Contributor must also include this infor-
mation in the LEGAL file.
(c) Representations.
Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that
Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant
the rights conveyed by this License.
3.5. Required Notices.
You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a
particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant
directory) where a user would be likely to look for such a notice. If You created one or more Modification(s)
You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License
in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to
Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations
to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of
the Initial
Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liabil-
ity obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor
for any liability incurred by the Initial Developer or such Contributor as a result of warranty, support, indemnity or lia-
bility terms You offer.
3.6. Distribution of Executable Versions.
You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for
that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is avail-
able under the terms of this License, including a description of how and where You have fulfilled the obligations of
Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documenta-
tion or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the
Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms
different from this License, provided that You are in compliance with the terms of this License and that the license
for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from
the rights set forth in this
License. If You distribute the Executable version under a different license You must make it absolutely clear that any
terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You
hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial
Developer or such Contributor as a result of any such terms You offer.
3.7. Larger Works.
You may create a Larger Work by combining Covered Code with other code not governed by the terms of this
License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements
of this License are fulfilled for the Covered Code.
4. Inability to Comply Due to Statute or Regulation.
If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered
Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the max-
imum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in
the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to
the
extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary
skill to be able to understand it.
5. Application of this License.
This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related
Covered Code.
6. Versions of the License.
6.1. New Versions.
Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from
time to time. Each version will be given a distinguishing version number.
6.2. Effect of New Versions.
Once Covered Code has been published under a particular version of the License, You may always continue to use
it under the terms of that version. You may also choose to use such Covered Code under the terms of any subse-
quent version of the License published by Netscape. No one other than Netscape has the right to modify the terms
applicable to Covered Code created under this License.
APPENDIX
127
6.3. Derivative Works.
If You create or use a modified version of this License (which you may only do in order to apply it to code which is
not already Covered Code governed by this License), You must (a) rename Your license so that the phrases
"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in
your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your ver-
sion of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling
in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of
themselves be deemed to be modifications of this License.)
7. DISCLAIMER OF WARRANTY.
COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COV-
ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-INFRING-
ING. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU.
SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR
ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION.
THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY
COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.
8. TERMINATION.
8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms here-
in and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered
Code which are properly granted shall survive any termination of this License. Provisions which, by their nature,
must remain in effect beyond the termination of this License shall survive.
8.2. If You initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against
Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred
to as "Participant") alleging that:
(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted
by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant
terminate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay
Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such
Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If
within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by
the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or
2.2 automatically terminate at the expiration of the 60 day notice period specified above.
(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly
infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are
revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that
Participant.
8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version
directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the
initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant
under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.
8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distrib-
utors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall
survive termination.
9. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLI-
GENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR
ANY DISTRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY
PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER
INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER
FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH
PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILI-
TY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S
NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS
EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.
APPENDIX
128
APPENDIX
10. U.S. GOVERNMENT END USERS.
The Covered Code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of
"commercial computer software" and "commercial computer software documentation," as such terms are used in 48
C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June
1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.
11. MISCELLANEOUS.
This License represents the complete agreement concerning subject matter hereof. If any provision of this License
is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This
License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise),
excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity
chartered or registered to do business in the United States of America, any litigation relating to this License shall be
subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara
County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable
attorneys' fees and expenses. The application of the United Nations Convention on Contracts for the International Sale
of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed
against the drafter shall not apply to this License.
12. RESPONSIBILITY FOR CLAIMS.
As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, direct-
ly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and
Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to
constitute any admission of liability.
13. MULTIPLE-LICENSED CODE.
Initial Developer may designate portions of the Covered Code as "Multiple-Licensed". "Multiple-Licensed" means
that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the NPL or the alter-
native licenses, if any, specified by the Initial Developer in the file described in Exhibit A.
EXHIBIT A -Mozilla Public License.
``The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this
file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/
Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND,
either express or implied. See the License for the specific language governing rights and limitations under the License.
The Original Code is ______________________________________.
The Initial Developer of the Original Code is ________________________.
Portions created by ______________________ are Copyright (C) ______
_______________________. All Rights Reserved.
Contributor(s): ______________________________________.
Alternatively, the contents of this file may be used under the terms of the _____ license (the "[___] License"), in
which case the provisions of [______] License are applicable instead of those above. If you wish to allow use of your
version of this file only under the terms of the [____] License and not to allow others to use your version of this file
under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other
provisions required by the [___] License. If you do not delete the provisions above, a recipient may use your version of
this file under either the MPL or the [___] License."
[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the
Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for
Your Modifications.]
