Instruction manual for Dishwasher

Getting to know your appliance

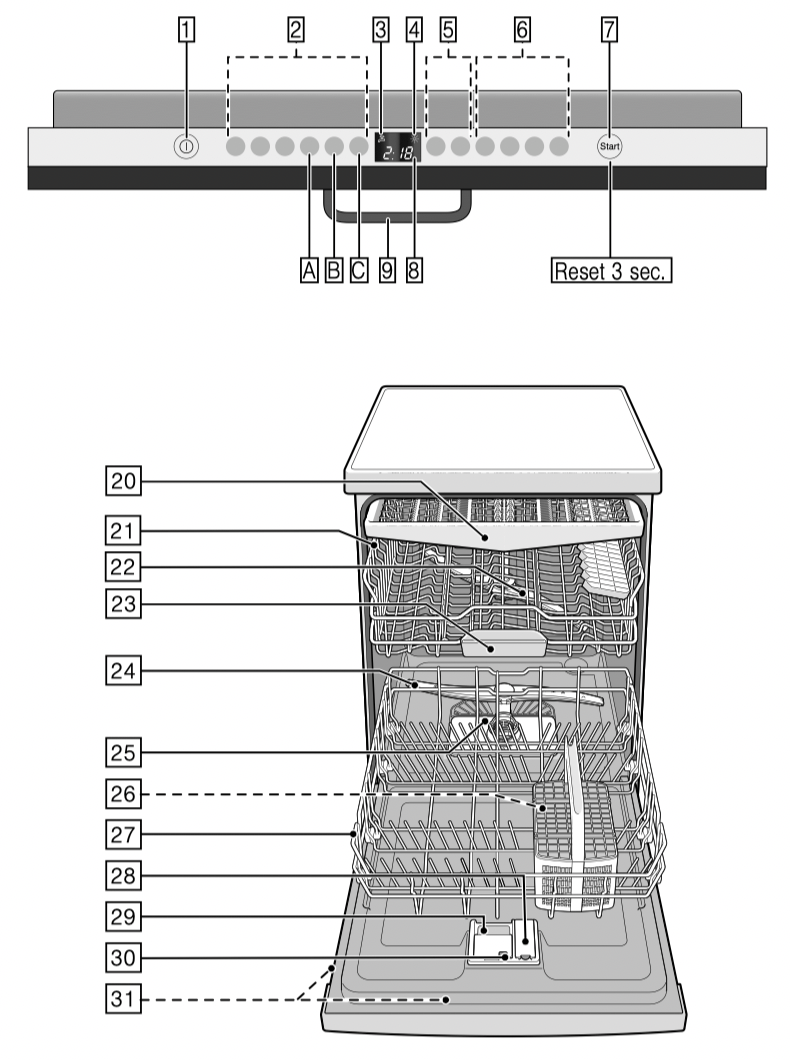

Diagrams of the control panel and the interior of the appliance can be found at the front of the manual. Individual positions are referred to in the text.

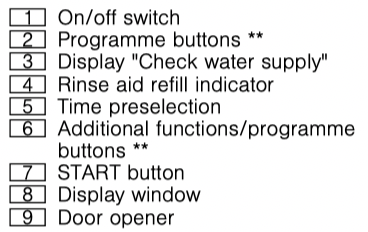

Control panel

See Fig. Page 2

* depending on the features of your dishwasher

** number depending on the features of your dishwasher

Appliance interior

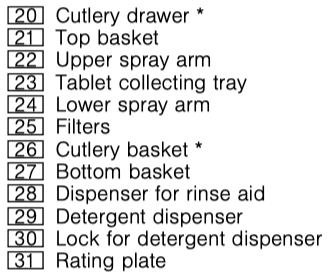

See Fig. Page 2

* depending on the features of your dishwasher

Overview of menu

The dishwasher has been preset with certain settings for your convenience.

The settings can be found in the individual chapters. You can change these factory settings.

Rinse aid

The rinse aid ensures stain-free dishes and clear glasses. Use only rinse aid for domestic dishwashers. As soon as the rinse aid refill indicator lights up in the control panel, there is still a rinse aid reserve of 1-2 rinse cycles. Top up the rinse aid.

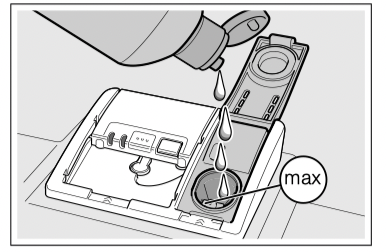

Top up the rinse aid as follows:

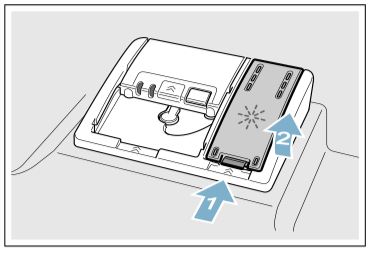

1. Open dispenser ; press lug on the lid (1) and lift (2).

2. Add rinse aid up to the max. mark.

3. Close the lid. The lid "clicks" into position.

4. Remove overflowed rinse aid with a cloth. This prevents excessive frothing during the next rinse cycle.

Setting amount of rinse aid

You can set the amount of rinse aid that should be added to a value between and . Setting the amount of rinse aid to be dispensed to will give you a very good drying result. The factory setting is .Do not change the amount of rinse aid unless there are streaks or water stains on the utensils. Set a lower level to avoid streaks. Set a higher level to avoid water stains.

Here’s how to set the amount of rinse aid:

1. Switch on ON/OFF switch .

2. Hold down the programme button and then repeatedly press the START button until ... appears in the display window.

3. Release both buttons.

4. Press the programme button repeatedly until the factory setting value appears in the display window .

5. Press the programme button. Each time the button is pressed, the set value increases by one level; when it reaches the value the display jumps back to (Off).

6. Press START button . The set value is saved.

Using detergent with a rinse aid component

In general, you can use detergent with a rinse aid component up to a water hardness level of 21 °dH (37 °fH, 26 °Clark, 3.7 mmol/L) without adding rinse aid. Above a water hardness value of 21 °dH, use additional rinse aid.

Switching off rinse aid refill indicator

If the rinse aid refill indicator bothers you (e.g. if you are using a combination detergent with a rinse aid component), you can switch off the rinse aid refill indicator.

Proceed as described under "Setting rinse aid quantity" and set the level to . The rinse aid refill indicator is switched off.

Utensils

Not suitable

■ Cutlery and utensils made of wood.

■ Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.

■ Plastic parts not resistant to heat.

■ Copper and tin utensils.

■ Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

■ Glass type and glass production process.

■ Chemical composition of the detergent.

■ Water temperature of the wash programme.

Recommendation:

■ Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.

■ Use a detergent which protects utensils.

■ Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

1. Remove large food remnants. It is not necessary to prerinse utensils under running water.

2. Place the utensils so that

– they are secure and cannot tip over.

– all utensils with their openings face down.

– parts with curves or indentations are at an angle, thereby allowing water to drain.

– does not obstruct rotation of the two spray arms and .

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Upper basket

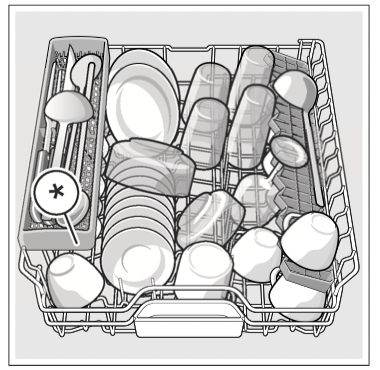

Arrange cups and glasses in the upper basket .

* depending on the features of your dishwasher

Note: Utensils must not be placed above the tablet collecting tray . These may block the lid of the detergent dispenser and prevent it from opening fully.

Lower basket

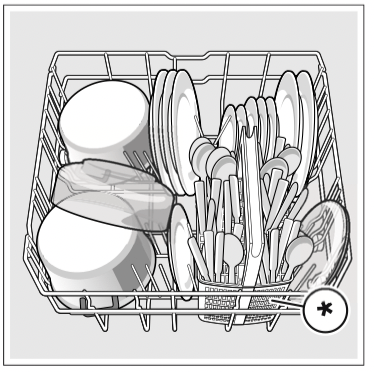

Arrange pots and plates in the lower basket .

* depending on the features of your dishwasher

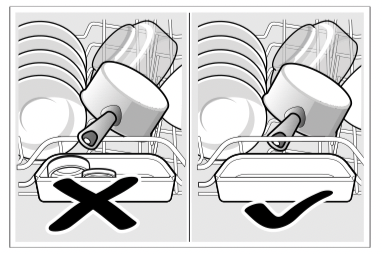

Tip: Heavily soiled utensils (pans) should be placed in the lower basket. The more powerful spray jet provides a better dishwashing result.

Tip: Other examples, such as the best way of loading your dishwasher, can be found on our homepage. These can be downloaded free of charge. The corresponding Internet address can be found on the back page of these instructions for use.

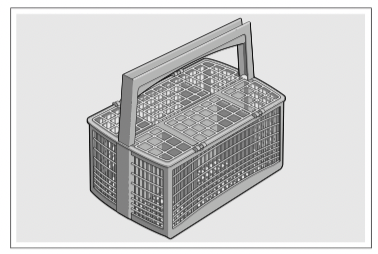

Cutlery basket *

Place cutlery, always unsorted with the tips face down, in the cutlery basket *.

To prevent injuries, place long, pointed implements and knives on the knife shelf *.

* depending on the features of your dishwasher

Cutlery drawer *

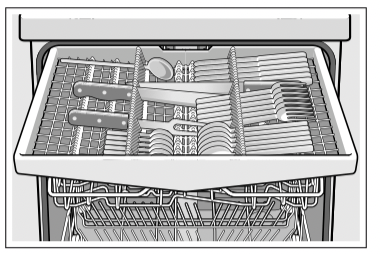

Arrange the cutlery in the cutlery drawer as illustrated. Separately arranged utensils are easier to remove after washing.

You can take out the cutlery drawer.

Depending on the features of your dishwasher, you can fold down the side shelves to provide more room for taller items of cutlery. The front rows of prongs can be folded down to provide room for wider handles.

* depending on the features of your dishwasher

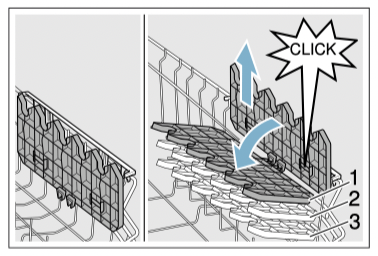

Etagere *

The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wooden spoons or serving cutlery. If you do not require the etagere, it can be folded up.

* Depending on the features of your dishwasher, you can adjust the etagere 3 times the height.

Adjust the height of the etagere as follows:

1. Position the etagere vertically and pull upwards.

2. Push etagere at a slight angle downwards to the required height (1, 2, or 3).

3. Engage etagere. Etagere “clicks” into position.

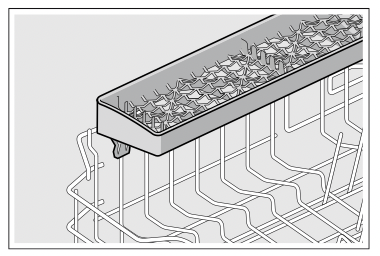

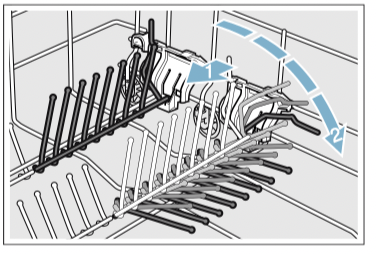

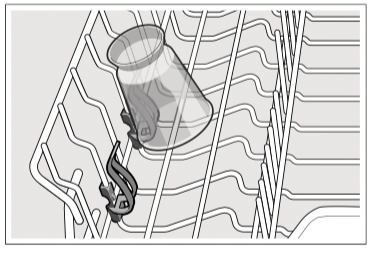

Folding spikes *

* Depending on the features of your dishwasher, the spikes can be folded down. This facilitates arrangement of pots, bowls and glasses.

Fold down the spikes as follows:

1. Press lever forwards (1).

2. Fold down spikes (2).

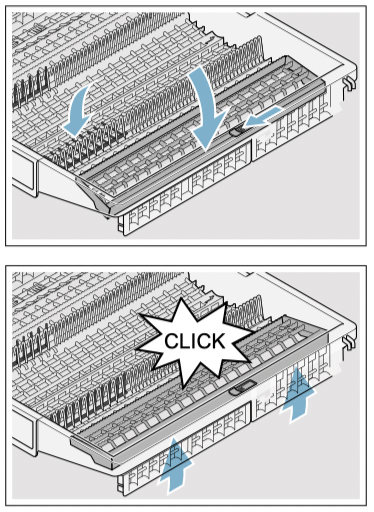

Small items holder *

* Depending on the features of your dishwasher, the upper basket is fitted with small items holders. The small items holders can be used to securely attach light plastic parts.

Knife rack *

* Depending on the features of your dishwasher, the upper basket is fitted with a knife shelf. Long knives and other utensils can be placed in the knife shelf.

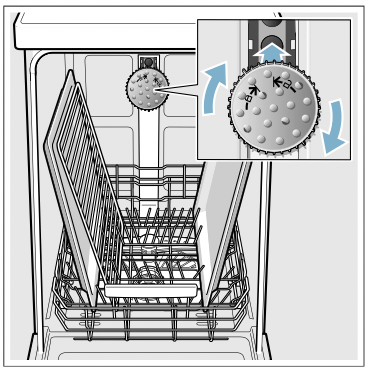

Baking sheet spray head *

* depending on the features of your dishwasher

Large trays or grilles as well as large plates (gourmet plates, pasta plates, dinner plates) can be cleaned with this spray head.

Insert the spray head as follows:

1. Remove upper basket .

2. Insert spray head as illustrated and turn to the right. Spray head is engaged.

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 2 baking sheets and 2 grilles).

Note: Ensure that the dishwasher is always operated with upper basket or baking tray spray head.

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Tip: Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

Note: When the programme ends, water droplets can still be seen inside the appliance. This does not affect the drying of the utensils.

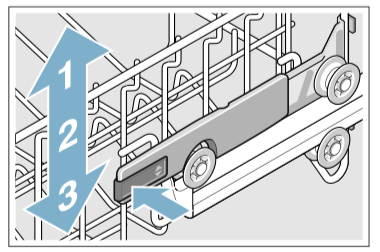

Adjusting the height of the basket *

* depending on the features of your dishwasher

If required, the height of the upper basket can be adjusted to create more space for taller utensils either in the upper or lower basket.

Appliance height 81.5 cm

Appliance height 86.5 cm

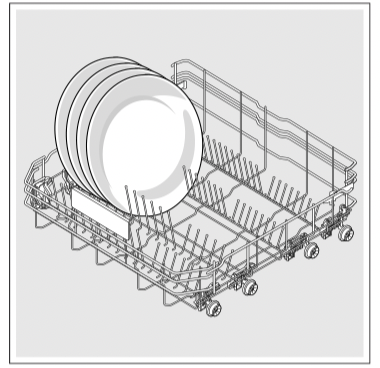

Arrange large plates up to a diameter of 31/34* cm in the lower basket as illustrated.

* depending on the features of your dishwasher

Upper basket with side levers

1. Pull out upper basket .

2. Hold the sides of the basket along the upper edge.

This prevents it from suddenly dropping.

3. To lower the upper basket; press in both levers on the left and right on the outside of the basket. The upper basket lowers.

4. To lift the upper basket; grip the sides of the upper basket along the upper edge and lift.

5. Ensure that both sides of the upper basket are at the same height.

6. Push in upper basket.

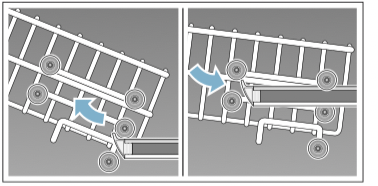

Upper basket with upper and lower pairs of rollers

1. Pull out upper basket .

2. Remove upper basket.

3. Re-attach upper basket to the upper (Setting 3) or lower (Setting 1) rollers.

4. Push in upper basket.

Detergent

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing-up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. To remove coloured stains (e.g. tea, ketchup), oxygen-based bleaching agents are generally used.

Note: To ensure a good washing result, always follow the instructions on the detergent packaging! If you have further questions, we recommend that you contact the detergent manufacturers’ helplines.

Warning

Risk of injury and damage due to non-observance of the safety instructions for detergent and rinse-aid products!

Always follow the safety instructions for detergent products and rinse-aid products.

Adding detergent

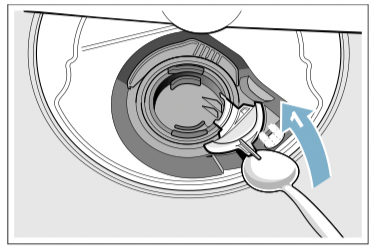

1. If the detergent dispenseris still closed, actuate locking bar to open it.

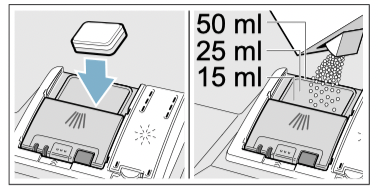

2. Pour detergent into the dry detergent dispenser only (insert tablet flat, not on its edge).

3. Dosage: see manufacturer’s instructions on the packaging. Use graduated detergent dispenser. Usually 20 ml–25 ml are adequate for normal soiling. If using tablets, one tablet is adequate.

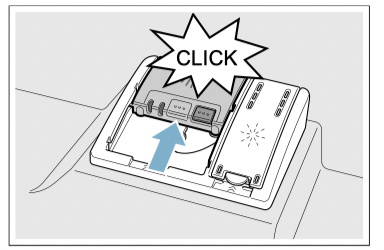

4. Close cover on the detergent dispenser. Cover “clicks” into position.

The detergent dispenser opens automatically at the optimum time depending on the programme. The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip: If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Notes

■ If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.

■ The Intensive programme (on some models) requires one tab only. When using washing powder, you can apply some of this cleaning agent to the inside of the appliance’s door.

■ If using detergents in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.

■ If you switch from combined detergents to solo detergents, ensure that the water softening system * and amount of rinse aid have been set to the correct value.

* depending on the features of your dishwasher

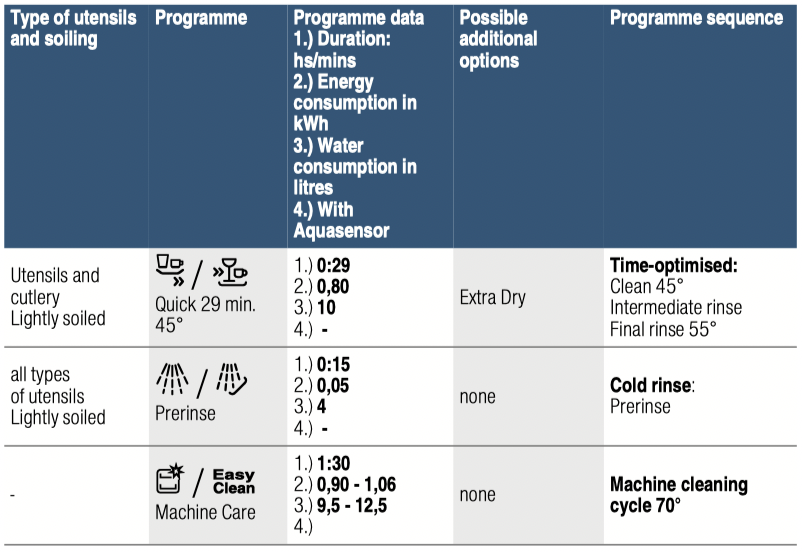

Overview of programmes

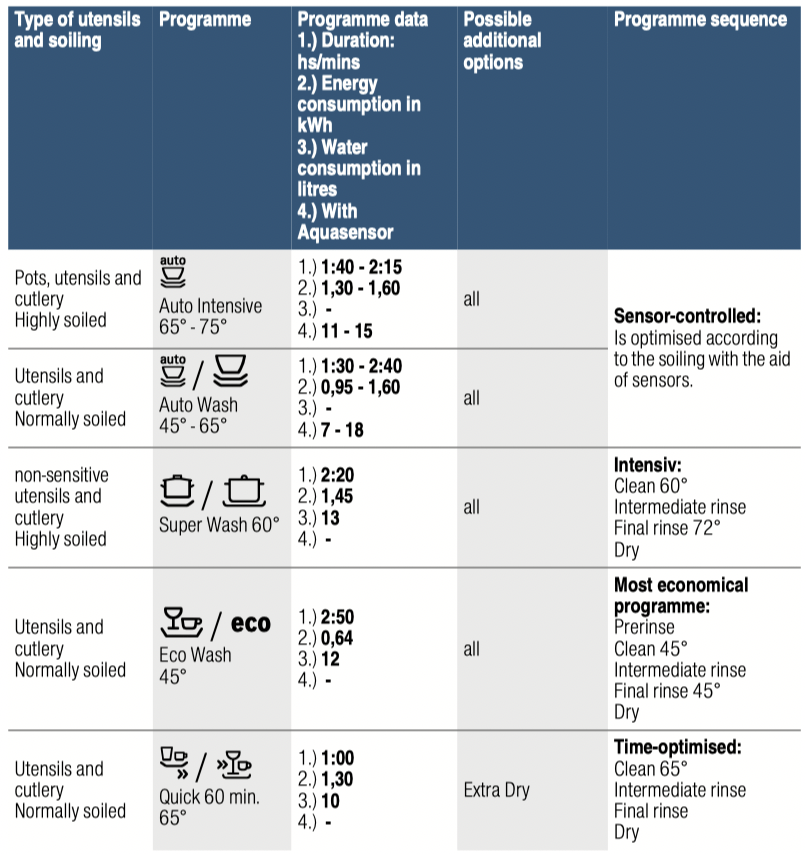

The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. The programme data has been measured in the laboratory according to AS/NSZ 2007.

Note: The consumption figures depend on the selected programme and additional functions. The programme duration will be different if the machine is short of rinse additive or the function is turned off.

Programme selection

You can select a suitable programme according to the type of utensils and type of soiling.

Information for test institutes

Test institutes can request the conditions for running comparison tests by sending an e-mail to dishwasher@test-appliances.

Quote the appliance number (E­Nr.) and the production date (FD) which you can find on the rating plate 9* on the appliance door.

Additional functions

* Depending on the features of your dishwasher, you can select different additional functions .

Speed Perfect *

This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. To obtain optimum cleaning and drying results at a reduced running time, water and energy consumption are increased.

Half load *

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to “half load”. This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

hygienePlus (HygienePlus) *

This function increases the temperatures and retains them for an extra long time to obtain a defined disinfection performance. Continuous use of this function increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.

intensiveZone *

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

Extra Dry *

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

Operating the appliance

AquaSensor *

* depending on the features of your dishwasher

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The AquaSensor is used according to the programme. If the AquaSensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Switching on the appliance

1. Turn tap fully on.

2. Switch on ON/OFF switch. The displays for the last programme and last additional function selected flash. These settings will be retained unless another programme key is pressed. The expected programme duration flashes on the digital display.

3. Press the START button . Programme sequence starts.

timeLight (optical display while a programme is running) *

* depending on the configuration of your specific dishwasher

While a programme is running, an optical display (additional programme information) is projected onto the floor at the bottom of the appliance door. If the base panel is pulled forwards or if the appliance is installed at eye-level flush with the furniture then this display will not be visible.

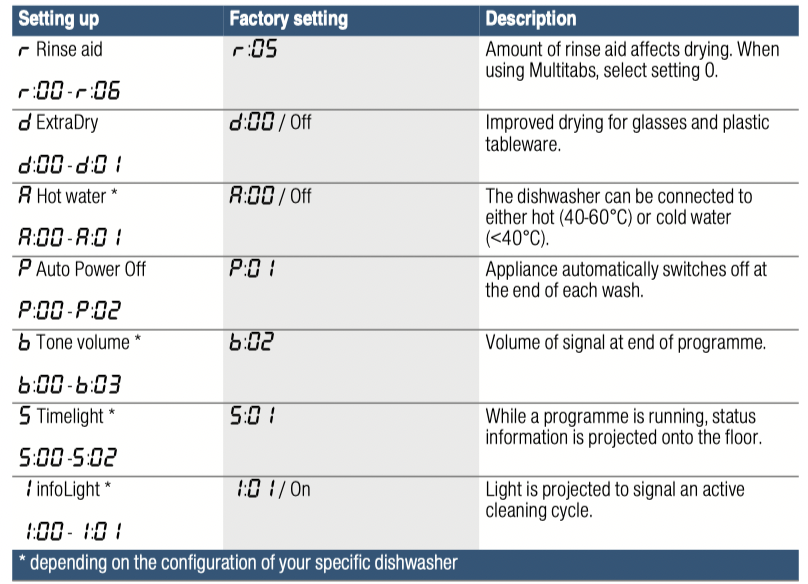

Possible settings of the optical display:

Possible settings of the optical display:

The display is switched off.

/ The display can show the programme, the timed delay, remaining time and end of the programme.

The setting is set up at the factory.

Here’s how to change the setting:

1. Switch on ON/OFF switch.

2. Hold down the programme button and then repeatedly press the START button until... appears in the display window .

3. Release both buttons. The illuminated display on the buttonflashes.

4. Press the programme button repeatedly until 5:0... appears in the display window. (for the optical display) together with the previously set value, for example .

5. Press the programme button repeatedly until the desired value, for example , appears in the display window.

6. Press START button . The set value is saved.

infoLight (optical display while a programme is running) *

* depending on the configuration of your specific dishwasher

While a programme is running, a light spot is projected onto the floor at the bottom of the dishwasher door. Do not open the dishwasher door until the light spot is no longer visible on the floor. If the door is not properly closed the light spot will flash.* If the appliance is installed at eye-level flush with the furniture, this display will not be visible.

Here’s how to change the setting:

1. Switch on ON/OFF switch .

2. Hold down the programme button and then repeatedly press the START button until .... appears in the display window.

3. Release both buttons. The LED of the button flashes and the display window lights up to show the value ...

4. Press the programme button repeatedly until the factory setting value appears in the display window.

5. Press the 3 button to switch the function on or off

6. Press START button . The set value is saved.

Remaining running time display

When the programme is selected, the remaining programme time is indicated in the display window .

*After the programme has started, the remaining running time is displayed on the floor (only for settings Timelight and ).

The running time is determined during the programme by the water temperature, the quantity of dishes as well as the degree of soiling and may vary (depending on the selected programme).

* depending on the features of your dishwasher

Time preselection *

* depending on the configuration of your specific dishwasher

You can delay the start of the programme in hourly steps by up to 24 hours.

Here’s how to set up the delay:

1. Switch on ON/OFF switch.

2. Press the timer programming button + repeatedly until appears in the display window.

3. Keep pressing the timer programming button - or + until the desired time is displayed.

4. Press START button . The delay timer has been activated.

5. To clear the specified delay, press the button - or + repeatedly until appears in the display window.

Until the programme has started, you can change your selection in any way you like.

Programme end

The programme has finished when the value appears in the display window . If a value has been set for the signal volume, then the end of the programme is also indicated by a buzzer.

Here’s how to change the signal volume:

1. Switch on ON/OFF switch .

2. Hold down the programme button and then repeatedly press the START button until ... appears in the display window.

3. Release both buttons. The LED of the button flashes and the display shows the factory setting ….

4. Press the programme buttonrepeatedly until the factory setting value appears in the display window .

5. Press the programme button . Each time the button is pressed the set value increases by one level; when it reaches the value the display jumps back to (off).

6. Press START button . The set value is saved.

* The end of the programme is displayed n the floor (only for the settings Timelight and ).

* depending on the features of your dishwasher

Auto Power Off (Automatic switch off after end of programme)

To save power you can set the dishwasher to switch off automatically from 1 minute to 120 minutes after the end of its programme. You can choose a setting from to.

Appliance does not switch off automatically.

Appliance switches off after 1 minute.

The appliance switches off after 120 minutes.

Here’s how to change the setting:

1. Switch on ON/OFF switch .

2. Hold down the programme button and then repeatedly press the START button until š:‹... appears in the display window.

3. Release both buttons. The LED of the button flashes and the digital display lights up to show the value ....

4. Press the programme button repeatedly until the value ... appears in the display window.

5. Press the programme button. Each time the button is pressed, the set value increases by one level; when it reaches the valuethe display jumps back to.

6. Press START button . The set value is saved.

Switching off the appliance

Shortly after the end of the programme:

1. Switch off ON/OFF switch .

2. Turn off water supply (does not apply to appliances with Aqua-Stop).

3. Remove the utensils when they have cooled down.

Note: When the programme ends, leave the appliance to cool down a while before opening it. This will prevent steam from escaping and causing long-term damage to your built-in furniture.

Interrupting the programme

Caution!

Expansion (overpressure) may cause the appliance door to jump open and/or water to escape! If the door was opened on an appliance which has a hot water connection or is heated, always leave the door ajar for several minutes and then close it.

1. Switch off ON/OFF switch . The LEDs go out. The programme is saved.

2. Switch on the ON/OFF switchagain to continue the programme.

Cleaning and maintenance

A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.

Overall status of the dishwasher

*The interior of your dishwasher is predominantly self-cleaning. In order to remove deposits, your dishwasher automatically changes the running of the programme (such as by increasing the cleaning temperature) at certain intervals. This will lead to higher consumption values when running this programme.

*Depending on the features of your dishwasher

If you should find deposits in the interior of the dishwasher in spite of this, remove these deposits as follows:

1. Fill the detergent dispenser with detergent.

2. Select the programme with the highest temperature.

3. Start the programme without dishes.

Warning Health hazard due to detergents containing chlorine!

Always use chlorine-free detergents.

Notes

■ Only clean the appliance with special detergents/appliance cleaners which are suitable for use with dishwashers.

■ Regularly wipe the door seals using a damp cloth and a little washing-up liquid. This will keep the door seal clean and hygienic.

■ Leave the door open slightly if the appliance will not be used for a while. This will prevent an unpleasant odour from developing.

■ Never clean the dishwasher using a steam cleaner. The manufacturer is not liable for any consequential damage.

■ Wipe the front of the dishwasher and the control panel regularly using a damp cloth and a little washing-up liquid.

■ Do not use sponges with a rough surface or abrasive detergents. These could scratch the surface.

■ For dishwashers with a stainless steel front, avoid using sponge cloths, or rinse these thoroughly several times before using them for the first time. This will prevent corrosion.

Machine Care

Machine Care used in combination with commercially available machine cleaning detergent is a suitable programme for cleaning your dishwasher. Deposits such as grease and limescale can cause your dishwasher to malfunction. In order to avoid such faults and to reduce the development of odours, we recommend cleaning the dishwasher at regular intervals.

* As soon as the Machine Care display lights up in the control panel, or you are advised to do so on the front display, run the Machine cleaning programme Machine Care without loading any tableware. After you have run the Machine Care the display in the control panel will go out.

If your dishwasher does not have a reminder function, follow the instructions for use on the machine cleaning detergents.

Notes

■ Remove any coarse soiling in the interior using a damp cloth.

■ Run the programme without dishes, and in combination with a machine cleaning detergent.

■ Use a special machine cleaning detergent, and not dishwasher detergent.

■ Observe the safety instructions and the instructions for use on the machine cleaning detergent packaging.

■ *After three rinse cycles, the display in the control panel will go out automatically, even if you have not run the Machine cleaning cycle programme.

* depending on the features of your dishwasher

Rinse aid

Fill the rinse aid as soon as the refill indicator lights up in the control panel.

Filters

The filters keep large foreign objects in the rinsing water away from the pump. hese foreign objects may occasionally block the filters.

The filter system consists of

■ a coarse filter

■ a flat fine filter

■ a microfilter

1. After each washing cycle check the filters for residue.

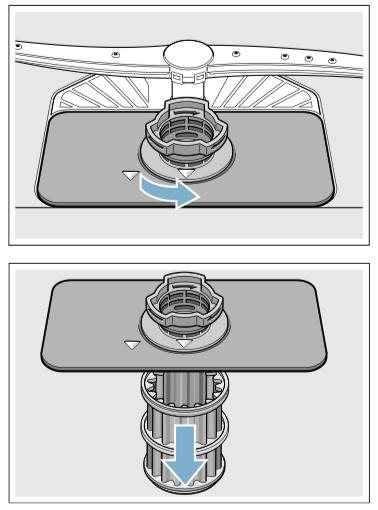

2. Unscrew filter cylinder as illustrated and take out filter system.

3. Remove any residue and clean filters under running water.

4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms and .

1. Check outlet nozzles on the spray arms for blockages.

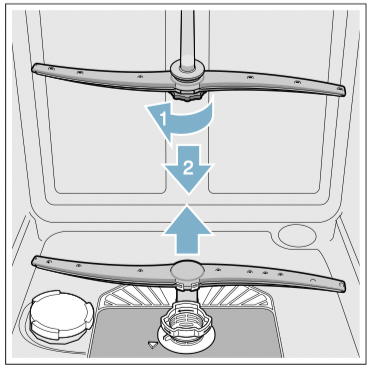

2. Unscrew the upper spray arm (1) and remove downwards (2).

3. Remove the lower spray arm upwards.

4. Clean spray arms under running water.

5. Re-engage or screw on spray arms.

Fault, what to do?

Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the appliance is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful information for rectifying them.

Note: If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset) "Operating the appliance" on page 24.

Warning

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk! Always have repairs carried out by technicians. If a component has to be replaced, always use original spare parts.

Waste water pump

Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning

Danger of cutting!

Sharp and pointed objects or glass fragments may block the waste water pump. Always carefully remove foreign objects.

Clean the waste water pump as follows:

1. Disconnect the dishwasher from the power supply.

2. Take out top basket and bottom basket .

3. Remove the filters .

4. Scoop out water, use a sponge if required.

5. Prise off the pump cover (as shown) using a spoon. Grip the pump cover by the crosspiece and lift diagonally inwards (1). Remove cover completely.

6. Check impeller wheel and remove any foreign objects.

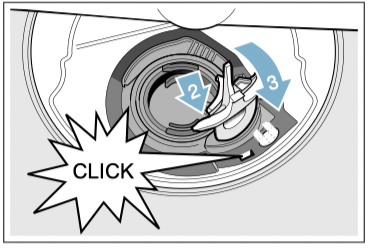

7. Place pump cover in the original position (2) and press down until it engages (3).

8. Install filters.

9. Re-insert baskets.

Fault table

See other models: SMU88TS02A SMU88TS04A SMI88TS02A SMV88TX02A SPS60M08AU
