Bosch SMI69T45EU/32 User Manual
User Manual Bosch SMI69T45EU/32 Integrated Stainless Steel Dishwasher
Documents for Bosch SMI69T45EU/32
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
User Manual
For SMI69T45EU/32.
Page 1/42
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Contents
Table of Contents
Search
Previous
Next
Bookmarks
XXXCPTDIIPNFDPNX
FMDPNF
3FHJTUFSZ
PVSOFX#PTDIOP
X
%JTIXBTIFS
FO
*OTUSVDUJPONBOVBM
SM…
SB…
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch SMI69T45EU/32:
( Safety instructions 4
1
7 Protection of the environment 8
1
* Getting to know your appliance 9
1
+ Water softening system/ Special salt 10
1
, Rinse aid 12
1
- Utensils 13
1
. Detergent 17
1
/ Overview of programmes 20
1
0 Additional options 21
1
1 Operating the appliance 22
1
2 Cleaning and maintenance 25
2
3 Fault, what to do? 27
2
4 Customer service 37
2
5 Installation and connection 37
2
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Children from 8 years of age or people whose physical, sensory or mental abilities or their lack of experience or knowledge prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible p...
2
Before you switch ON the appliance
2
Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.
2
Retain all documents for subsequent use or for the next owner.
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.
4
Childproof lock (door lock)Door lock *
4
The description of the childproof lock is at the back in the envelope.
4
* depending on model
4
Damage
4
Disposal
4
1. Make redundant appliances unusable to prevent subsequent accidents.
4
2. Dispose of the appliance in a n environmentally friendly manner.
4
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
5
Risk of scalding!
5
m Warning
5
Risks to children!
5
7 Protection of the environment
6
Protection of the environment
6
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.
6
Please dispose of the individual parts separated according to type.
6
Please ask your dealer or inquire at your local authority about current means of disposal.
6
Packaging
6
All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.
6
Please follow the safety instructions under “Delivery”.
6
Old appliances
6
Please follow the safety instructions under “Disposal of your appliance”.
6
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling o...
6
* Getting to know your appliance
7
Getting to know your appliance
7
Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.
7
Individual positions are referred to in the text.
7
Control panel
7
ON/OFF switch
7
Programme buttons **
7
Digital display
7
Display “Check water supply”
7
Salt refill indicator
7
Rinse aid refill indicator
7
Timer programming display
7
Timer programming
7
Additional options **
7
START button
7
Door opener
7
Display window
7
** Number depending on model
7
Appliance interior
7
Interior light *
7
Cutlery drawer
7
Top basket
7
Top spray arm
7
Tablet collecting tray
7
Bottom spray arm
7
Dispenser for special salt
7
Filters
7
Bottom basket
7
Dispenser for rinse aid
7
Detergent dispenser
7
Lock for detergent dispenser
7
Rating plate
7
* depending on model
7
Overview of menu
7
The settings can be found in the individual chapters.
7
Water Hardness •:‹‹ - •:‹ˆ
7
Intensive drying š:‹‹ - š:‹‚
7
Rinse aid §:‹‹ - §:‹‡
7
Hot water ‘:‹‹ - ‘:‹‚
7
End of programme buzzing sound ›:‹‹ - ›:‹„
7
Language p:‹‚ - p:ƒ„
7
Automatic disconnection ˜:‹‹ - ˜:‹ƒ
7
Onboard computer ’:‹‹ - ’:‹‚
7
Selecting language
8
The language in the display window )2 can be set from p:‹‚, to p:ƒ„. German p:‹‚ (Deutsch) is the factory setting.
8
Language
8
Setting
8
p:‹‚
8
p:‹ƒ
8
p:‹„
8
p:‹…
8
p:ܠ
8
p:‹‡
8
p:‹ˆ
8
p:‹‰
8
p:‹Š
8
p:‚‹
8
p:‚‚
8
p:‚ƒ
8
p:‚„
8
p:‚…
8
p:‚†
8
p:‚‡
8
p:‚ˆ
8
p:‚‰
8
p:‚Š
8
p:ƒ‹
8
p:ƒ‚
8
p:ƒƒ
8
p:ƒ„
8
To change the language:
8
1. Open the door.
8
2. Switch on ON/OFF switch (.
8
3. Hold down programme button # and press START button )" until the digital display 8 •:‹... is indicated.
8
4. Release both buttons.
8
5. Press programme button # until the factory set value p:‹‚ is indicated on the digital display 8.
8
6. Press programme button 3.
8
7. Press START button )".
8
8. Close the door.
8
+ Water softening system/Special salt
8
Water softening system/Special salt
8
To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.
8
Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.
8
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).
8
Setting
9
The amount of salt dispensed can be set from •:‹‹ to •:‹ˆ.
9
Salt is not required at the set value •:‹‹.
9
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
9
2. Set value can be found in the water hardness table.
9
3. Open the door.
9
4. Switch on ON/OFF switch (.
9
5. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
9
6. Release both buttons.
9
To change the setting:
9
1. Press programme button 3.
9
2. Press START button )".
9
3. Close the door.
9
Water hardness table
9

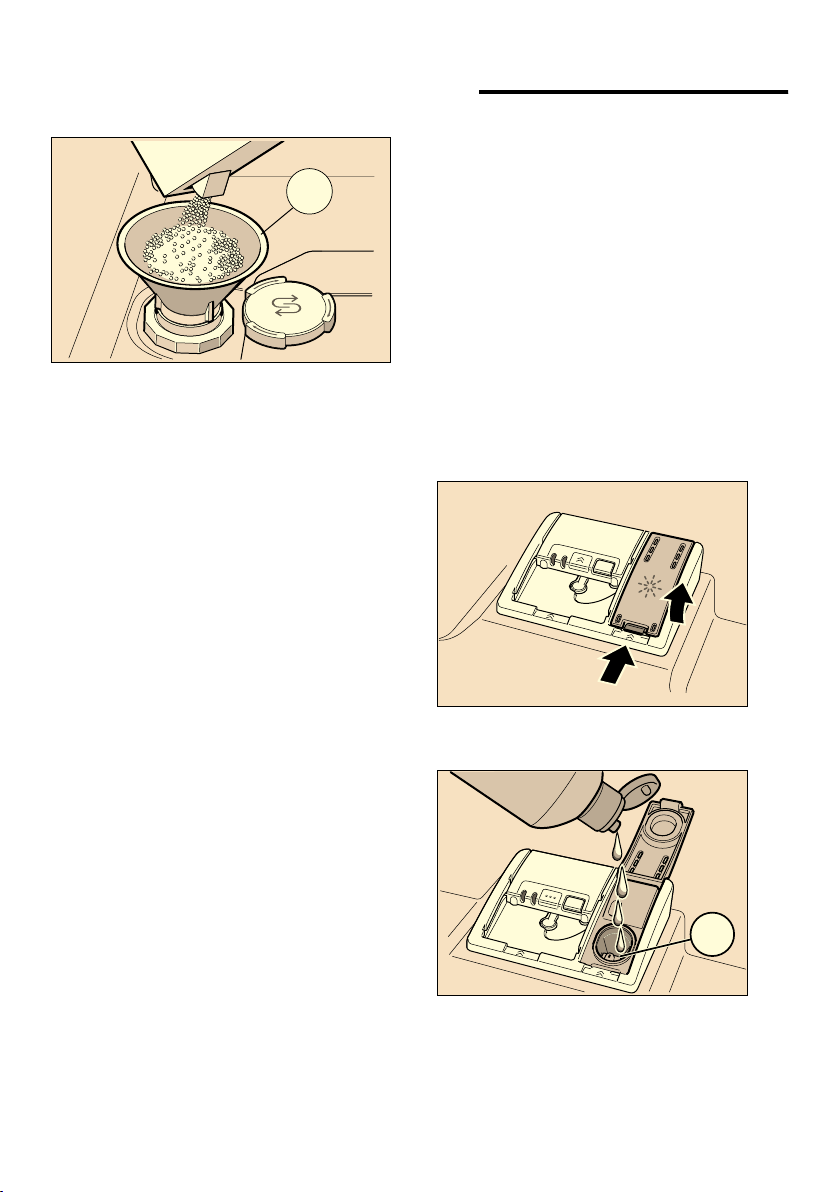

Using special salt
9
Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.
9
1. Open the screw-type cap of the compartment 1R.
9
2. Fill the tank with water (only required when switching on the appliance for the first time).
9
3. Then add dishwasher salt (not table salt or tablets).
9
As soon as the salt refill indicator H on the fascia is lit, top up the salt.
10
* depending on model
10
Using detergents with salt componentDetergents with salt component
10
If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/ l). If the water hardness is over 21° dH, special salt must be used.
10
Switching off salt refill indicator/water softening systemSwitching off water softening system
10
If the salt refill indicator H is impaired (e.g. when using combined detergents containing salt component), it can be switched off.
10
m Caution
10
, Rinse aid
10
Rinse aid
10
As soon as the rinse-aid refill indicator P is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid.
10
The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.
10
Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse aid must be used.
10
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
10
2. Carefully pour rinse aid up to the max. mark in the filler opening.
10
3. Close cover until it clicks shut.
11
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
11
Setting amount of rinse aid
11
The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹† to obtain very good drying results (§:‹† is already set in factory).
11
Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.
11
1. Open the door.
11
2. Switch on ON/OFF switch (.
11
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
11
4. Release both buttons.
11
5. Press programme button # until the factory set value §:‹† is indicated on the digital display 8.
11
To change the setting:
11
1. Press programme button 3.
11
2. Press START button )".
11
3. Close the door.
11
Switching off rinse aid refill indicator
11
If the rinse-aid refill indicator P is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.
11
The rinse aid refill indicator P is now switched off.
11
- Utensils
11
Utensils
11
Not suitable
11
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.
11
Glass and utensil damage
12
Causes:
12
Recommendation:
12

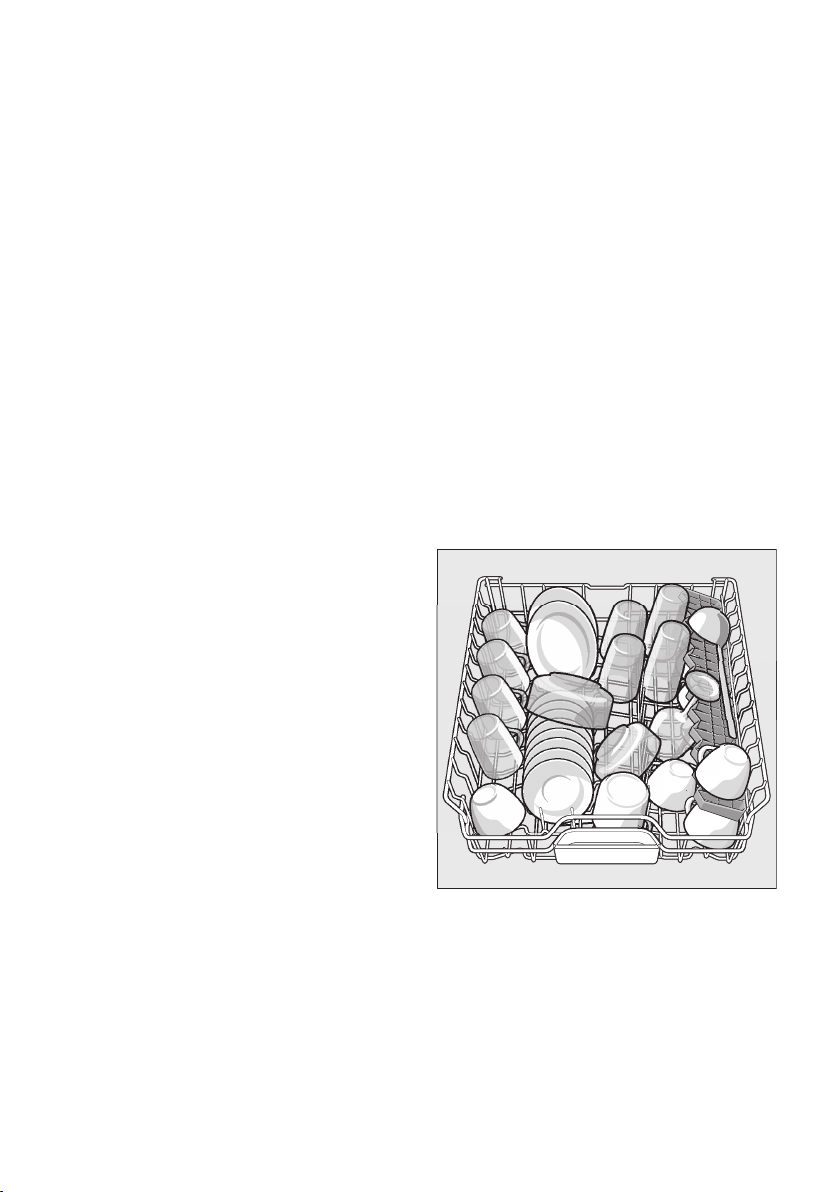

Loading the dishwasher
12
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
12
2. Place the utensils so that
12
Very small utensils should not be washed in the machine, as they may fall out of the baskets.
12
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.
12
Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.
12
Note
12
Cups and glasses
12
Top basket 12
12
Note
13
Pans
13
Bottom basket 1b
13
Tip
13
Tip
13

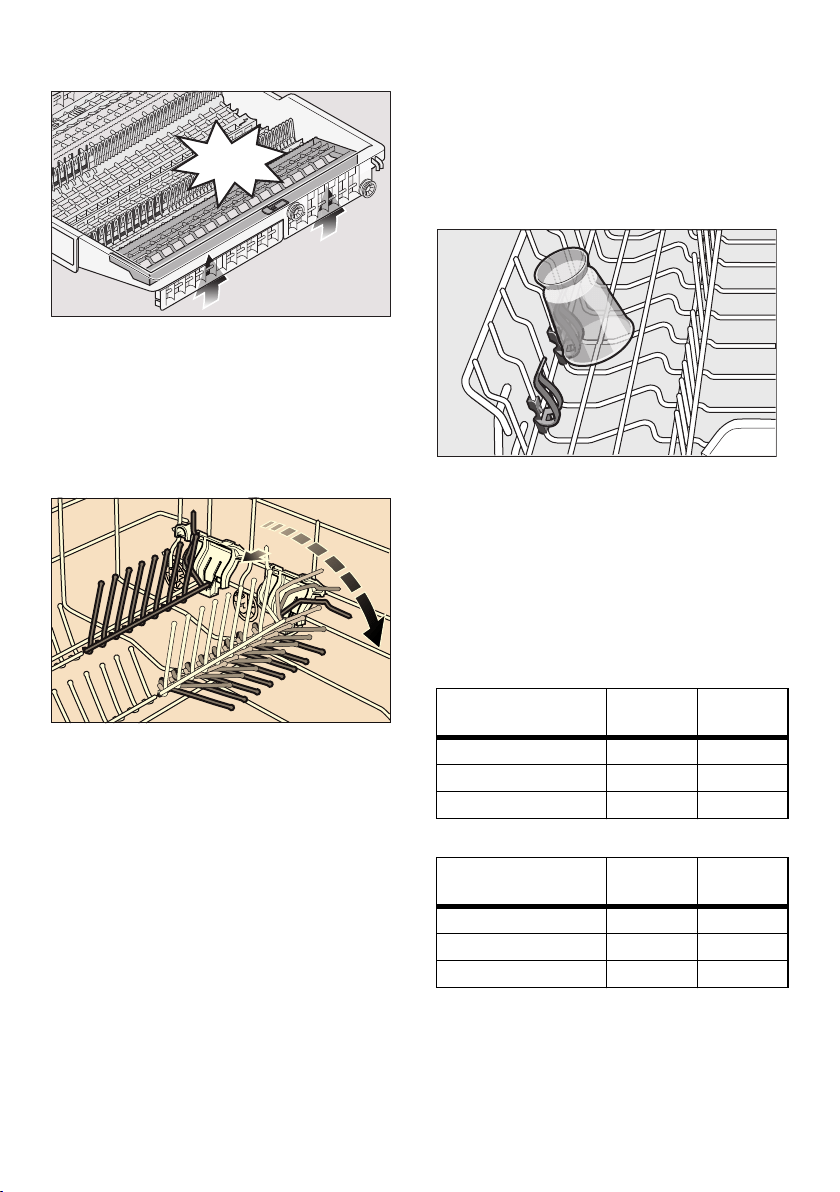

Cutlery drawer
13
Arrange the cutlery in the cutlery drawer 1* as illustrated. Separately arranged utensils are easier to remove after washing.
13
The drawer can be taken out.
13
Depending on the model, you can fold down the side shelves to provide more room for taller items of cutlery. The front rows of prongs can be folded down to provide room for wider handles.
13
Folding spikesFolding spikes *
14
* depending on model
14
The spikes can be folded down to improve arrangement of pans, bowls and glasses.
14
Small accessories holder *Small accessories holder
14
* depending on model
14
Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.
14

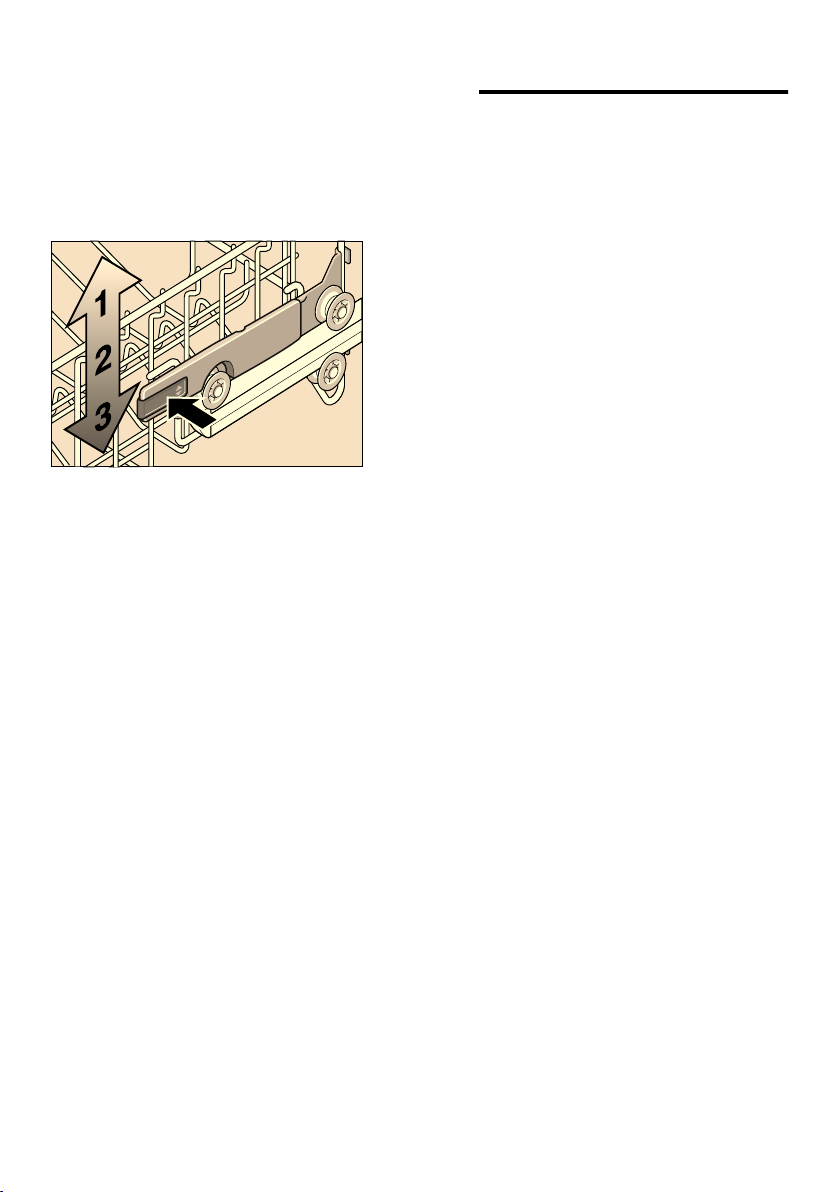

Adjusting the height of the basket
14
The height of the upper utensils basket 12 can be adjusted in 3 stages to create more space either in the upper or lower basket.
14
Appliance height 81.5 cm
14
16 cm
14
30 cm
14
18.5 cm
14
27.5 cm
14
21 cm
14
25 cm
14
Appliance height 86.5 cm
14
18 cm
14
33 cm
14
20.5 cm
14
30.5 cm
14
23 cm
14
28 cm
14
1. Pull out the top basket 12 out.
15
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
15
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
15
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
15
. Detergent
15
Detergent
15
You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately l...
15
Note
15
m Warning
15
Adding detergent
16
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
16
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
16
Tip
16
Combination detergent
17
Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5i...
17
As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.
17
m Warning
17
m Warning
17
Notes
17
/ Overview of programmes
18
Overview of programmes
18
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
18
Type of utensils
18
Type of soiling
18
Programme
18
Possible additional options
18
Programme sequence
18
Programme selection
18
You can select a suitable programme according to the type of utensils and degree of soiling.
18
Information for test institutes
19
Test institutes receive the information for comparability tests (e.g. according to EN60436).
19
These are the conditions for conducting the tests, however these are not the results or consumption values.
19
Request by e-mail to:
19
[email protected]
19
The product number (E no.) and the production number (FD) are required which you can find on the rating plate 92 on the appliance door.
19
0 Additional options
19
Additional options
19
* depending on model
19
Additional options can be set with the buttons h.
19
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
19
This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display 8. To obtain optimum cleaning results at a reduced running time, water and e...
19
Half load§ Half load *
19
If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to “half load”. This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.
19
· Hygiene *Hygiene
19
The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.
19
Ï Intensive zone *Intensive zone
19
Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.
19
¿ Extra drying *Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value •:‹…. Different influencing factors such as e.g. water temperature or line pressure may result...
20
Aqua sensorAqua sensor *
20
* depending on model
20
The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.
20
The Aqua sensor is used according to the programme. If the Aqua sensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drai...
20
Switching on the appliance
20
1. Turn on the tap fully.
20
2. Open the door.
20
3. Switch on ON/OFF switch (.
20
4. Press the START button )".
20
5. Close the door.
20
Note
20
Remaining running time display
20
When the programme is selected, the remaining running time of the programme is indicated on the digital display 8.
20
The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).
20
Onboard computer
21
You can switch the onboard computer (additional programme information) off or on. Proceed as follows:
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display 8.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ’:‹‹ is indicated on the digital display 8.
21
To change the setting:
21
1. By pressing the 3 button, you can switch the on board computer (additional programme information) off ’:‹‹ or on ’:‹‚.
21
2. Press START button )".
21
3. Close the door.
21
Timer programming
21
You can delay the start of the programme in 1 hour steps up to 24 hours.
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Press the button ` + until ‹‚ is flaching in the timer programming display X.
21
4. Press + or – button until the ` displayed time corresponds with your requirements.
21
5. Press START button )", timer programming is activated.
21
6. To delete timer programming `, press the + or – button until ‹‹ is indicated on the digital display X.
21
7. Close the door.
21
End of programme
21
The programme ends when the value ‹:‹‹ appears on the digital display 8 and Finished appears in the display window )2.
21
The end of the programme is also indicated by an acoustic signal. This function can be changed as follows:
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ›:‹ƒ is indicated on the digital display 8.
21
To change the setting,
21
1. Press programme button 3. Each time the button is pressed, the set value increases by one level; when the value of ›:‹„ has been reached, the display jumps back to ›:‹‹ (off).
21
2. Press START button )", the set value is saved.
21
3. Close the door.
21
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
22
* depending on model
22
To save energy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ends.
22
The setting can be selected from ˜:‹‹ to ˜:‹ƒ.
22
Appliance does not switch off automatically.
22
The interior light 1" comes on when the door is opened irrespective of whether the ON/OFF switch ( is switched on or off. When the door is closed the light is off. If the door is open for longer than 60 min., the light switches off automatically. The...
22
Appliance switches off after 1 min.
22
Appliance switches off after 120 min.
22
1. Open the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
22
4. Release both buttons.
22
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display 8.
22
To change the setting:
22
1. Press programme button 3.
22
2. Press START button )".
22
3. Close the door.
22
Switching off the appliance
22
Short time after the end of the programme:
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. Turn off the tap (not applicable if Aqua-Stop fitted).
22
4. Remove the utensils when they have cooled down.
22
Note
22
Interrupting the programme
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. To continue the programme, switch on the ON/OFF switch ( again.
23
4. Close the door.
23
Terminating the programmeTerminating the programme (Reset)
23
1. Open the door.
23
2. Press START button )" for approx. 3 sec.
23
3. Close the door.
23
4. Open the door.
23
5. Switch off ON/OFF switch (.
23
6. Close the door.
23
Changing the programme
23
When the START button )" has been pressed, the programme cannot be changed.
23
The only way a programme can be changed is by Cancel programme (Reset).
23
Intensive drying
23
The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)
23
1. Open the door.
23
2. Switch on ON/OFF switch (.
23
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
23
4. Release both buttons.
23
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display 8.
23
To change the setting,
23
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
23
2. Press START button )".
23
3. Close the door.
23
2 Cleaning and maintenance
23
Cleaning and maintenance
23
A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.
23
Overall condition of the machine
23
If you find such deposits:
23
Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers.
23
Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.
24
Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.
24
Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.
24
m Warning
24
Health hazard
24
Special salt and rinse aid
24
Filters
24
The filters 1Z keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.
24
The filter system consists of a coarse filter, a flat fine filter and a microfilter.
24
1. After each washing cycle check the filters for residue.
24
2. Unscrew filter cylinder as illustrated and take out filter system.
24
3. Remove any residue and clean filters under running water.
24
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
24
Spray arms
25
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: and 1J.
25
1. Check outlet nozzles on the spray arms for blockages.
25
2. Unscrew the upper spray arm 1:.
25
3. Remove the lower spray arm 1J upwards.
25
4. Clean spray arms under running water.
25
5. Re-engage or screw on spray arms.
25
3 Fault, what to do?
25
Fault, what to do?
25
Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful informa...
25
Note
25
m Warning
25
Waste water pump
26
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.
26
m Warning
26
Risk of cuts!
26
In this case:
26
1. First always disconnect the appliance from the power supply.
26
2. Take out top basket 12 and bottom basket 1b.
26
3. Remove the filters 1Z.
26
4. Scoop out water, use a sponge if required.
26

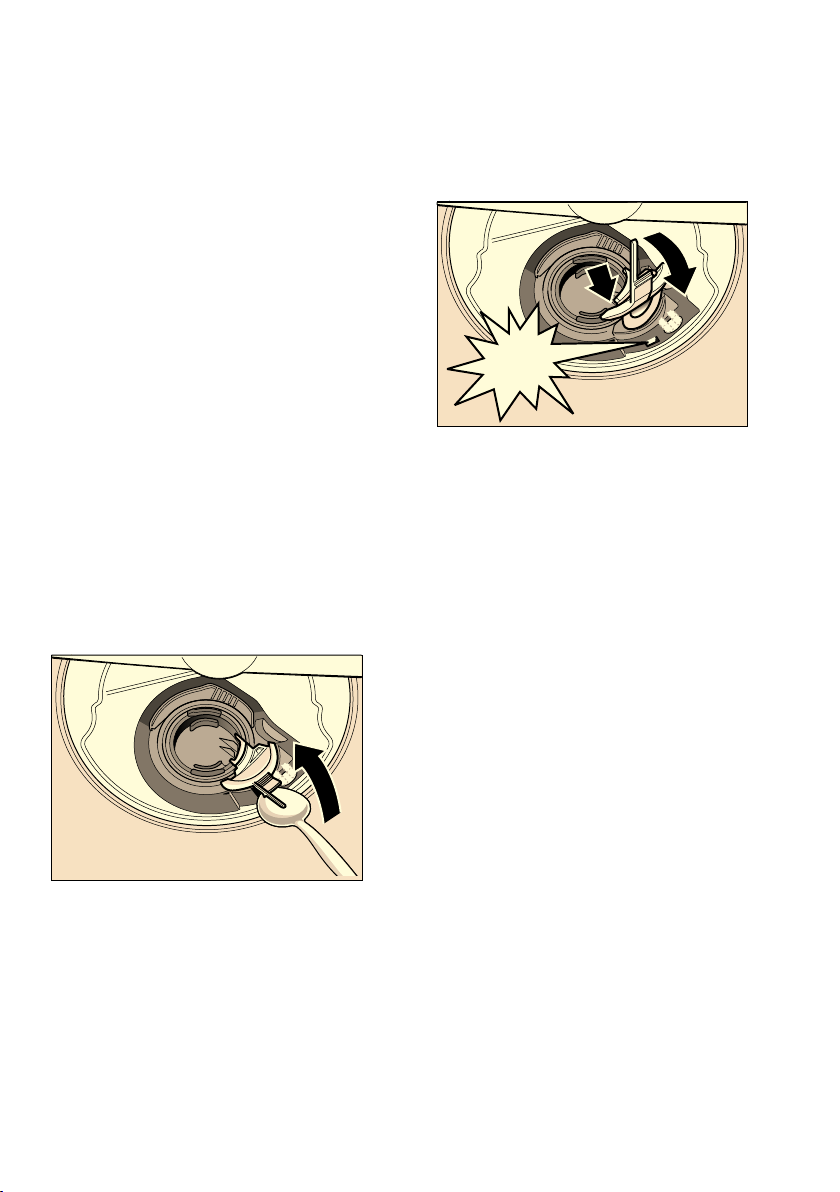

5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
26
6. Check impeller wheel and remove any foreign objects.
26
7. Place cover in the original position and press down until it engages (click).
26
8. Install filters.
26
9. Re-insert baskets.
26
Fault table
27
Fault
27
Cause
27
Remedial action
27
4 Customer service
35
Customer service
35
If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, even to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these...
35
Rely on the competence of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.
35
* depending on model
35
5 Installation and connection
35
Installation and connection
35
The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr...
35
Install the appliance in the correct sequence:
35
1. Checking appliance on delivery
35
2. Installing the appliance
35
3. Waste water connection
35
4. Drinking water connection
35
5. Electrical connection
35
Product package
35
If you have any complaints, contact the dealer where you purchased the appliance or our customer service.
35
* depending on model
35
Safety instructions
35
Please follow the safety instructions under “Installation”.
35
Delivery
36
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.
36
Technical specifications
36
Weight:
36
max. 60 kg
36
Voltage:
36
220–240 V, 50 Hz or 60 Hz
36
Connected load:
36
2.0–2.4 kW
36
Fuse:
36
10/16 A (UK 13A)
36
Power input:
36
switched off 0.50 W
36
not switched off 0.50 W
36
Water pressure:
36
at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
36
Inlet rate:
36
minimum 10 litres/minute
36
Water temperature:
36
cold water; hot water max. temperature 60 °C.
36
Capacity:
36
12–15 place settings (depending on model).
36
Installation
36
The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.
36
Waste-water connection
36
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
36
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
36
Drinking water connection
37
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
37
2. When replacing the appliance, always use a new water supply hose.
37
Water pressure:
37
At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
37
Inlet rate:
37
Minimum 10 litres/minute
37
Water temperature:
37
Cold water; hot water max. temperature 60 °C.
37
Warm water connection *Warm water connection
37
* depending on model
37
The dishwasher can be connected to cold or hot water up to max. 60 °C.
37
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.
37
This will save energy and time.
37
The hot water setting ‘:‹‚ allows you to adjust your appliance optimally to operation with hot water.
37
It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C.
37
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.
37
Setting hot water:
37
1. Open the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display 8.
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button )".
37
3. Close the door.
37
Electrical connection
37
Removing the appliance
38
Also observe the sequence of worksteps here.
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Empty the dishwasher and secure loose parts.
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Open the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button )".
38
6. Close the door.
38
7. Open door after approx. 4 minutes.
38
8. Press START button )" until ‹:‹‚ is indicated on the digital display.
38
9. Close the door.
38
10. Open door after approx. 1 minute.
38
11. Switch off ON/OFF switch (.
38
12. Turn off the tap, disconnect supply hose and drain water.
38
Transport appliance upright only.
38
(This prevents residual water from running into the machine control and damaging the programme sequence.)
38
Protection against frostProtection against frost (Emptying the appliance)
38
If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).
38
File type: PDF
File name: smi69t45eu-32.pdf
File size: 2.62 MB
File Language: English
Pages: 42
Author: Bosch
Published: 2020-01-17 00:00:00
Updated: 2023-06-02
Verified by
Kailyn Rutherford
on 2023-06-02
Download File
Specifications
Brand:
Bosch
Model: SMI69T45EU/32
Category:
Dishwashers
View in the file:
Full Specifications
See other models:
HBG632BS1/01
HGV745323Y/08
DRC97AQ50/02
SMA67MD06E/51
BCS111GB/01
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SGI33E35EU/37
Crosley CDBEH960TS/D
GE - General Electric HDA2100H45CC
GE - General Electric GSD2130C02WW
Bosch SMS69T02EU/22
Bosch SMI69T15GB
Bosch SMV53M80EU/52
Bosch SMS69T08EU/01
Bosch SHX45P05UC/64
Bosch SPE53U52UC
Bosch SMI88TS02A
Bosch SMS88TI01A
Bosch TKN68E75UC/03
Bosch SHX68TL5UC
Bosch WAT24261AU
Table of Contents
×
( Safety instructions 4
1
7 Protection of the environment 8
1
* Getting to know your appliance 9
1
+ Water softening system/ Special salt 10
1
, Rinse aid 12
1
- Utensils 13
1
. Detergent 17
1
/ Overview of programmes 20
1
0 Additional options 21
1
1 Operating the appliance 22
1
2 Cleaning and maintenance 25
2
3 Fault, what to do? 27
2
4 Customer service 37
2
5 Installation and connection 37
2
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Children from 8 years of age or people whose physical, sensory or mental abilities or their lack of experience or knowledge prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible p...
2
Before you switch ON the appliance
2
Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.
2
Retain all documents for subsequent use or for the next owner.
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.
4
Childproof lock (door lock)Door lock *
4
The description of the childproof lock is at the back in the envelope.
4
* depending on model
4
Damage
4
Disposal
4
1. Make redundant appliances unusable to prevent subsequent accidents.
4
2. Dispose of the appliance in a n environmentally friendly manner.
4
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
5
Risk of scalding!
5
m Warning
5
Risks to children!
5
7 Protection of the environment
6
Protection of the environment
6
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.
6
Please dispose of the individual parts separated according to type.
6
Please ask your dealer or inquire at your local authority about current means of disposal.
6
Packaging
6
All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.
6
Please follow the safety instructions under “Delivery”.
6
Old appliances
6
Please follow the safety instructions under “Disposal of your appliance”.
6
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling o...
6
* Getting to know your appliance
7
Getting to know your appliance
7
Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.
7
Individual positions are referred to in the text.
7
Control panel
7
ON/OFF switch
7
Programme buttons **
7
Digital display
7
Display “Check water supply”
7
Salt refill indicator
7
Rinse aid refill indicator
7
Timer programming display
7
Timer programming
7
Additional options **
7
START button
7
Door opener
7
Display window
7
** Number depending on model
7
Appliance interior
7
Interior light *
7
Cutlery drawer
7
Top basket
7
Top spray arm
7
Tablet collecting tray
7
Bottom spray arm
7
Dispenser for special salt
7
Filters
7
Bottom basket
7
Dispenser for rinse aid
7
Detergent dispenser
7
Lock for detergent dispenser
7
Rating plate
7
* depending on model
7
Overview of menu
7
The settings can be found in the individual chapters.
7
Water Hardness •:‹‹ - •:‹ˆ
7
Intensive drying š:‹‹ - š:‹‚
7
Rinse aid §:‹‹ - §:‹‡
7
Hot water ‘:‹‹ - ‘:‹‚
7
End of programme buzzing sound ›:‹‹ - ›:‹„
7
Language p:‹‚ - p:ƒ„
7
Automatic disconnection ˜:‹‹ - ˜:‹ƒ
7
Onboard computer ’:‹‹ - ’:‹‚
7
Selecting language
8
The language in the display window )2 can be set from p:‹‚, to p:ƒ„. German p:‹‚ (Deutsch) is the factory setting.
8
Language
8
Setting
8
p:‹‚
8
p:‹ƒ
8
p:‹„
8
p:‹…
8
p:ܠ
8
p:‹‡
8
p:‹ˆ
8
p:‹‰
8
p:‹Š
8
p:‚‹
8
p:‚‚
8
p:‚ƒ
8
p:‚„
8
p:‚…
8
p:‚†
8
p:‚‡
8
p:‚ˆ
8
p:‚‰
8
p:‚Š
8
p:ƒ‹
8
p:ƒ‚
8
p:ƒƒ
8
p:ƒ„
8
To change the language:
8
1. Open the door.
8
2. Switch on ON/OFF switch (.
8
3. Hold down programme button # and press START button )" until the digital display 8 •:‹... is indicated.
8
4. Release both buttons.
8
5. Press programme button # until the factory set value p:‹‚ is indicated on the digital display 8.
8
6. Press programme button 3.
8
7. Press START button )".
8
8. Close the door.
8
+ Water softening system/Special salt
8
Water softening system/Special salt
8
To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.
8
Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.
8
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).
8
Setting
9
The amount of salt dispensed can be set from •:‹‹ to •:‹ˆ.
9
Salt is not required at the set value •:‹‹.
9
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
9
2. Set value can be found in the water hardness table.
9
3. Open the door.
9
4. Switch on ON/OFF switch (.
9
5. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
9
6. Release both buttons.
9
To change the setting:
9
1. Press programme button 3.
9
2. Press START button )".
9
3. Close the door.
9
Water hardness table
9
Using special salt
9
Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.
9
1. Open the screw-type cap of the compartment 1R.
9
2. Fill the tank with water (only required when switching on the appliance for the first time).
9
3. Then add dishwasher salt (not table salt or tablets).
9
As soon as the salt refill indicator H on the fascia is lit, top up the salt.
10
* depending on model
10
Using detergents with salt componentDetergents with salt component
10
If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/ l). If the water hardness is over 21° dH, special salt must be used.
10
Switching off salt refill indicator/water softening systemSwitching off water softening system
10
If the salt refill indicator H is impaired (e.g. when using combined detergents containing salt component), it can be switched off.
10
m Caution
10
, Rinse aid
10
Rinse aid
10
As soon as the rinse-aid refill indicator P is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid.
10
The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.
10
Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse aid must be used.
10
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
10
2. Carefully pour rinse aid up to the max. mark in the filler opening.
10
3. Close cover until it clicks shut.
11
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
11
Setting amount of rinse aid
11
The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹† to obtain very good drying results (§:‹† is already set in factory).
11
Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.
11
1. Open the door.
11
2. Switch on ON/OFF switch (.
11
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
11
4. Release both buttons.
11
5. Press programme button # until the factory set value §:‹† is indicated on the digital display 8.
11
To change the setting:
11
1. Press programme button 3.
11
2. Press START button )".
11
3. Close the door.
11
Switching off rinse aid refill indicator
11
If the rinse-aid refill indicator P is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.
11
The rinse aid refill indicator P is now switched off.
11
- Utensils
11
Utensils
11
Not suitable
11
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.
11
Glass and utensil damage
12
Causes:
12
Recommendation:
12
Loading the dishwasher
12
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
12
2. Place the utensils so that
12
Very small utensils should not be washed in the machine, as they may fall out of the baskets.
12
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.
12
Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.
12
Note
12
Cups and glasses
12
Top basket 12
12
Note
13
Pans
13
Bottom basket 1b
13
Tip
13
Tip
13
Cutlery drawer
13
Arrange the cutlery in the cutlery drawer 1* as illustrated. Separately arranged utensils are easier to remove after washing.
13
The drawer can be taken out.
13
Depending on the model, you can fold down the side shelves to provide more room for taller items of cutlery. The front rows of prongs can be folded down to provide room for wider handles.
13
Folding spikesFolding spikes *
14
* depending on model
14
The spikes can be folded down to improve arrangement of pans, bowls and glasses.
14
Small accessories holder *Small accessories holder
14
* depending on model
14
Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.
14
Adjusting the height of the basket
14
The height of the upper utensils basket 12 can be adjusted in 3 stages to create more space either in the upper or lower basket.
14
Appliance height 81.5 cm
14
16 cm
14
30 cm
14
18.5 cm
14
27.5 cm
14
21 cm
14
25 cm
14
Appliance height 86.5 cm
14
18 cm
14
33 cm
14
20.5 cm
14
30.5 cm
14
23 cm
14
28 cm
14
1. Pull out the top basket 12 out.
15
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
15
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
15
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
15
. Detergent
15
Detergent
15
You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately l...
15
Note
15
m Warning
15
Adding detergent
16
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
16
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
16
Tip
16
Combination detergent
17
Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5i...
17
As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.
17
m Warning
17
m Warning
17
Notes
17
/ Overview of programmes
18
Overview of programmes
18
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
18
Type of utensils
18
Type of soiling
18
Programme
18
Possible additional options
18
Programme sequence
18
Programme selection
18
You can select a suitable programme according to the type of utensils and degree of soiling.
18
Information for test institutes
19
Test institutes receive the information for comparability tests (e.g. according to EN60436).
19
These are the conditions for conducting the tests, however these are not the results or consumption values.
19
Request by e-mail to:
19
[email protected]
19
The product number (E no.) and the production number (FD) are required which you can find on the rating plate 92 on the appliance door.
19
0 Additional options
19
Additional options
19
* depending on model
19
Additional options can be set with the buttons h.
19
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
19
This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display 8. To obtain optimum cleaning results at a reduced running time, water and e...
19
Half load§ Half load *
19
If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to “half load”. This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.
19
· Hygiene *Hygiene
19
The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.
19
Ï Intensive zone *Intensive zone
19
Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.
19
¿ Extra drying *Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value •:‹…. Different influencing factors such as e.g. water temperature or line pressure may result...
20
Aqua sensorAqua sensor *
20
* depending on model
20
The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.
20
The Aqua sensor is used according to the programme. If the Aqua sensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drai...
20
Switching on the appliance
20
1. Turn on the tap fully.
20
2. Open the door.
20
3. Switch on ON/OFF switch (.
20
4. Press the START button )".
20
5. Close the door.
20
Note
20
Remaining running time display
20
When the programme is selected, the remaining running time of the programme is indicated on the digital display 8.
20
The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).
20
Onboard computer
21
You can switch the onboard computer (additional programme information) off or on. Proceed as follows:
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display 8.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ’:‹‹ is indicated on the digital display 8.
21
To change the setting:
21
1. By pressing the 3 button, you can switch the on board computer (additional programme information) off ’:‹‹ or on ’:‹‚.
21
2. Press START button )".
21
3. Close the door.
21
Timer programming
21
You can delay the start of the programme in 1 hour steps up to 24 hours.
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Press the button ` + until ‹‚ is flaching in the timer programming display X.
21
4. Press + or – button until the ` displayed time corresponds with your requirements.
21
5. Press START button )", timer programming is activated.
21
6. To delete timer programming `, press the + or – button until ‹‹ is indicated on the digital display X.
21
7. Close the door.
21
End of programme
21
The programme ends when the value ‹:‹‹ appears on the digital display 8 and Finished appears in the display window )2.
21
The end of the programme is also indicated by an acoustic signal. This function can be changed as follows:
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ›:‹ƒ is indicated on the digital display 8.
21
To change the setting,
21
1. Press programme button 3. Each time the button is pressed, the set value increases by one level; when the value of ›:‹„ has been reached, the display jumps back to ›:‹‹ (off).
21
2. Press START button )", the set value is saved.
21
3. Close the door.
21
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
22
* depending on model
22
To save energy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ends.
22
The setting can be selected from ˜:‹‹ to ˜:‹ƒ.
22
Appliance does not switch off automatically.
22
The interior light 1" comes on when the door is opened irrespective of whether the ON/OFF switch ( is switched on or off. When the door is closed the light is off. If the door is open for longer than 60 min., the light switches off automatically. The...
22
Appliance switches off after 1 min.
22
Appliance switches off after 120 min.
22
1. Open the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
22
4. Release both buttons.
22
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display 8.
22
To change the setting:
22
1. Press programme button 3.
22
2. Press START button )".
22
3. Close the door.
22
Switching off the appliance
22
Short time after the end of the programme:
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. Turn off the tap (not applicable if Aqua-Stop fitted).
22
4. Remove the utensils when they have cooled down.
22
Note
22
Interrupting the programme
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. To continue the programme, switch on the ON/OFF switch ( again.
23
4. Close the door.
23
Terminating the programmeTerminating the programme (Reset)
23
1. Open the door.
23
2. Press START button )" for approx. 3 sec.
23
3. Close the door.
23
4. Open the door.
23
5. Switch off ON/OFF switch (.
23
6. Close the door.
23
Changing the programme
23
When the START button )" has been pressed, the programme cannot be changed.
23
The only way a programme can be changed is by Cancel programme (Reset).
23
Intensive drying
23
The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)
23
1. Open the door.
23
2. Switch on ON/OFF switch (.
23
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
23
4. Release both buttons.
23
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display 8.
23
To change the setting,
23
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
23
2. Press START button )".
23
3. Close the door.
23
2 Cleaning and maintenance
23
Cleaning and maintenance
23
A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.
23
Overall condition of the machine
23
If you find such deposits:
23
Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers.
23
Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.
24
Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.
24
Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.
24
m Warning
24
Health hazard
24
Special salt and rinse aid
24
Filters
24
The filters 1Z keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.
24
The filter system consists of a coarse filter, a flat fine filter and a microfilter.
24
1. After each washing cycle check the filters for residue.
24
2. Unscrew filter cylinder as illustrated and take out filter system.
24
3. Remove any residue and clean filters under running water.
24
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
24
Spray arms
25
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: and 1J.
25
1. Check outlet nozzles on the spray arms for blockages.
25
2. Unscrew the upper spray arm 1:.
25
3. Remove the lower spray arm 1J upwards.
25
4. Clean spray arms under running water.
25
5. Re-engage or screw on spray arms.
25
3 Fault, what to do?
25
Fault, what to do?
25
Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful informa...
25
Note
25
m Warning
25
Waste water pump
26
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.
26
m Warning
26
Risk of cuts!
26
In this case:
26
1. First always disconnect the appliance from the power supply.
26
2. Take out top basket 12 and bottom basket 1b.
26
3. Remove the filters 1Z.
26
4. Scoop out water, use a sponge if required.
26
5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
26
6. Check impeller wheel and remove any foreign objects.
26
7. Place cover in the original position and press down until it engages (click).
26
8. Install filters.
26
9. Re-insert baskets.
26
Fault table
27
Fault
27
Cause
27
Remedial action
27
4 Customer service
35
Customer service
35
If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, even to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these...
35
Rely on the competence of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.
35
* depending on model
35
5 Installation and connection
35
Installation and connection
35
The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr...
35
Install the appliance in the correct sequence:
35
1. Checking appliance on delivery
35
2. Installing the appliance
35
3. Waste water connection
35
4. Drinking water connection
35
5. Electrical connection
35
Product package
35
If you have any complaints, contact the dealer where you purchased the appliance or our customer service.
35
* depending on model
35
Safety instructions
35
Please follow the safety instructions under “Installation”.
35
Delivery
36
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.
36
Technical specifications
36
Weight:
36
max. 60 kg
36
Voltage:
36
220–240 V, 50 Hz or 60 Hz
36
Connected load:
36
2.0–2.4 kW
36
Fuse:
36
10/16 A (UK 13A)
36
Power input:
36
switched off 0.50 W
36
not switched off 0.50 W
36
Water pressure:
36
at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
36
Inlet rate:
36
minimum 10 litres/minute
36
Water temperature:
36
cold water; hot water max. temperature 60 °C.
36
Capacity:
36
12–15 place settings (depending on model).
36
Installation
36
The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.
36
Waste-water connection
36
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
36
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
36
Drinking water connection
37
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
37
2. When replacing the appliance, always use a new water supply hose.
37
Water pressure:
37
At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
37
Inlet rate:
37
Minimum 10 litres/minute
37
Water temperature:
37
Cold water; hot water max. temperature 60 °C.
37
Warm water connection *Warm water connection
37
* depending on model
37
The dishwasher can be connected to cold or hot water up to max. 60 °C.
37
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.
37
This will save energy and time.
37
The hot water setting ‘:‹‚ allows you to adjust your appliance optimally to operation with hot water.
37
It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C.
37
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.
37
Setting hot water:
37
1. Open the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display 8.
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button )".
37
3. Close the door.
37
Electrical connection
37
Removing the appliance
38
Also observe the sequence of worksteps here.
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Empty the dishwasher and secure loose parts.
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Open the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button )".
38
6. Close the door.
38
7. Open door after approx. 4 minutes.
38
8. Press START button )" until ‹:‹‚ is indicated on the digital display.
38
9. Close the door.
38
10. Open door after approx. 1 minute.
38
11. Switch off ON/OFF switch (.
38
12. Turn off the tap, disconnect supply hose and drain water.
38
Transport appliance upright only.
38
(This prevents residual water from running into the machine control and damaging the programme sequence.)
38
Protection against frostProtection against frost (Emptying the appliance)
38
If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).
38
Search:
×
Search
