BOTTOM FREEZER
REFRIGERATOR
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
P/No. MFL47277107
Models / Modèles / Modelos
CONGÉLATEUR
INFÉRIEUR
RÉFRIGÉRATEUR
Veuillez lire ce manuel en entier avant de mettre
en marche l’unité et conservez-le à portée de la
main pour le consulter à tout moment.
LFC23760**, LFD23860**
Owner’s Manual
Manuel d’utilisateur
2
TABLE OF CONTENTS
English Version 2
French Version 36
Warranty (Canada) 3 - 4
Safety Instructions 5 - 6
Grounding Requirements 6
Parts and Features 7
Refrigerator Installation 8 - 16
Unpacking your refrigerator
8
Installation 8
Base Grille 8
Removing, Reversing and Replacing
Your refrigerator doors
9 - 15
Pull out drawer 15
Leveling and door alignment 16
Using your refrigerator 17 - 25
Ensuring proper air circulation 17
Multi Flow
Door alarm
17
17
Setting the controls
18
Adjusting control settings 18
Food storage guide 19
Storing frozen food 19
Refrigerator Section 20
Refrigerator shelves 20
Chef Fresh 21
Crisper humidity control 21
Optibin Crisper 21
Crisper cover with lattice on inner surface 22
Design-A-Door 22
Dairy Bin 22
Egg Box 22
Water Dispenser 24
Freezer Section 23
Ice Bin 23
Wire Durabase 23
Tilting Door 23
Filter
24 - 25
Care and Cleaning 26 - 27
General cleaning tips 26
Outside 26
Inside walls 26
Door liner and gaskets 26
Plastic parts 26
Condenser coils 26
Light bulb replacement 26 - 27
Power interruptions 27
When you go on vacation 27
About the Custom Cube Ice Maker 28
Connecting the Water Line 29 - 31
Trouble shooting Guide 32 - 35
15
Cover Back 26
3
LG ELECTRONICS CANADA, INC.
GARANTIE LIMITÉE DU RÉFRIGÉRATEUR LG - Canada
GARANTIE: Si votre réfrigérateur LG (le « produit ») s'avère défectueux en raison d'un défaut de matériau ou de fabrication
lors d'une utilisation normale à domicile, pendant la période de garantie spécifiée ci-après, LG Canada réparera ou
remplacera à sa discrétion le produit sur réception de la preuve d'achat originale fournie par le détaillant. Cette garantie n'est
offerte qu'à l'acheteur original du produit chez un détaillant et ne s'applique qu'à un produit distribué au Canada par LG
Canada ou par un distributeur canadien autorisé. La garantie ne s'applique qu'aux produits situés et utilisés au Canada.
PÉRIODE DE GARANTIE : (Remarque : Si la date d'achat originale ne peut être vérifiée, la garantie débutera
soixante (60) jours suivant la date de fabrication.)
Réfrigérateur/congélateur Système scellé (compresseur, condensateur et évaporateur seulement)
Pièces et main-d'œuvre
(pièces internes fonctionnelles seulement)
Pièces seulement
(Les consommateurs devront payer pour la main-d’œuvre)
µ Les produits et pièces de remplacement sont garantis pour la portion restante de la période de garantie originale ou quatre-vingt-dix (90), selon la
période la plus longue.
µ Les produits et pièces de remplacement peuvent être neufs ou remanufacturés.
µ Le centre de service autorisé LG garantit les réparations pendant trente (30) jours.
Tous les coûts associés aux circonstances exclues ci-dessus seront assumés par le consommateur.
Pièces et main-d'œuvre
Un (1) an à compter de la date
d’achat original
Un (1) an à compter de la date
d’achat original
Sept (7) ans à compter de la date
d’achat original
LA RESPONSABILITÉ DE LG CANADA SE LIMITE À LA GARANTIE CI-DESSUS. SAUF TEL QU'IL EST EXPLICITEMENT
INDIQUÉ CI-DESSUS, LG CANADA NE FOURNIT AUCUNE AUTRE GARANTIE ET REJETTE TOUTES LES AUTRES
GARANTIES ET CONDITIONS EXPLICITES OU IMPLICITES À L'ÉGARD DU PRODUIT, CE QUI INCLUT, SANS TOUTEFOIS
S'Y LIMITER, TOUTE GARANTIE ET CONDITION IMPLICITE DE QUALITÉ MARCHANDE OU DE CONVENANCE À UN USAGE
PARTICULIER ET AUCUNE DÉCLARATION NE LIERA LG CANADA. LG CANADA N'AUTORISE PERSONNE À CRÉER NI À
ASSUMER AUCUNE AUTRE PROVISION POUR GARANTIES EN RELATION AVEC CE PRODUIT. SI UNE GARANTIE OU
CONDITION IMPLICITE EST REQUISE PAR LA LOI, SA PÉRIODE SE LIMITE À CELLE DE LA GARANTIE EXPLICITE
SUSMENTIONNÉE.
LG CANADA, LE FABRICANT ET LE DISTRIBUTEUR NE POURRONT ÊTRE TENUS RESPONSABLES D'AUCUN DOMMAGE
ACCESSOIRE, CONSÉCUTIF, SPÉCIAL, DIRECT OU INDIRECT, D'AUCUNE PERTE D'ACHALANDAGE OU DE PROFITS,
D'AUCUN DOMMAGE PUNITIF, EXEMPLAIRE OU AUTRE, DIRECTEMENT OU INDIRECTEMENT ATTRIBUABLE À TOUTE
VIOLATION CONTRACTUELLE, FONDAMENTALE OU AUTRE, OU À UNE ACTION, UNE OMISSION, UN DÉLIT OU TOUTE
AUTRE CHOSE.
La présente garantie vous confère des droits légaux spécifiques. Vous pourriez disposer d'autres droits, suivant les lois provinciales
applicables. Toute clause de la présente garantie qui invalide ou modifie une condition ou garantie implicite aux termes d'une loi
provinciale est dissociable si elle entre en conflit avec la loi provinciale, et ce, sans affecter les autres clauses de la garantie.
LA PRÉSENTE GARANTIE LIMITÉE NE COUVRE PAS CE QUI SUIT:
1. Un appel de service pour livrer, ramasser ou installer le produit; renseigner un client sur le fonctionnement du produit;
réparer ou remplacer des fusibles ou rectifier le câblage; ou corriger une réparation ou installation non autorisée.
2. La défaillance du produit durant une panne ou interruption de courant ou en raison d’un service électrique inadéquat.
3. Des dommages occasionnés par la fuite ou le bris de conduites d’eau, le gel de conduites d’eau, des tuyaux de drainage
restreints, une alimentation en eau inadéquate ou interrompue ou une alimentation en air inadéquate.
4. Des dommages attribuables à l’utilisation du produit dans une atmosphère corrosive ou contraire aux instructions
spécifiées dans le manuel d’utilisation de produit.
5. Des dommages au produit causés par un accident, des animaux nuisibles ou des vermines, la foudre, le vent, un incendie,
une inondation ou une catastrophe naturelle.
6. Les dommages attribuables à une mauvaise utilisation, une utilisation abusive ou à une installation, une réparation ou un
entretien inapproprié du produit. Les réparations inappropriées incluent l’utilisation de pièces ni aprouvées ni
recommandées par LG Canada.
7. La détérioration ou la défaillance du produit causée par une modification ou un changement non autorisé ou une
utilisation autre que celle prévue, ou résultant d’ une fuite d’eau occasionée par une mauvaise installation.
8. La détérioration ou la défaillance du produit causée par un courant ou un voltage électrique incorrect, une utilisation
commerciale ou industrielle, ou l’utilisation d’accessoires, d’éléments ou de produits nettoyants non approuvés par LG Canada.
9. Les dommages causés par le transport et la manipulation, notamment les égratignures, les bosses, les écaillures et / ou tout
autre dommage à la finition du produit, à moins que ces dommages ne soient attribuables à des défauts de matériaux
ou de fabrication et qu’ils ne soient signalés dans un délai d’une (1) semaine de la livraison.
10. Des dommages ou des pièces manquantes à tout produit exposé, déballé, soldé ou remis à neuf.
11. Des produits dont le numéro de série original a été retiré, modifié ou ne peut être facilement déterminé. Le modèle et le
numéro de série, ainsi que le reçu de vente original du détaillant, sont requis pour valider la garantie.
12. L’augmentation des coûts et de la consommation des services publics.
13. Le remplacement des ampoules électriques, des filtres et de toute pièce non durable.
14. Les réparations requises si le produit ne sert pas à une utilisation domestique normale et habituelle (y compris, sans
toutefois s’y limiter, une utilisation commerciale, dans un bureau ou un centre récréatif) ou est utilisé contrairement aux
instructions spécifiées dans le manuel d’utilisation du produit.
15. Les coûts associés à l’enlèvement du produit de votre résidence aux fins de réparation.
16. L’enlèvement et la réinstallation du produit, s’il est installé à un endroit inaccesible ou contrairement aux instructions
publiées, y compris dans le manuel d’utilisation et le manuel d’installation du produit.
17. Les accesoires du produit, tels que les balconnets, les tiroirs, les poignées, les tablettes, etc. Sont également exclues
les pièces non incluses initialement avec le produit.
Pour obtenir tous les détails sur la garantie et
accéder au service à la clientèle, téléphonez-
nous ou visitez notre site Web:
Composez le 1-888-542-2623 (24 h sur 24, 365 jours par année) et
Sélectionnez l’option de menu appropriée, ou visitez notre site Web au:
http://www.lg.ca
Écrivez vos renseignements de garantie ci-dessous:
Renseignements sur l’enregistrement du produit:
Modèle:
Numéro de série:
Date d’achat:
4
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty
period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is
valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized
Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty
(60) days from the date of manufacture).
Refrigerator/Freezer Sealed System (Compressor, Condenser, and Evaporator only)
Parts and Labor Parts only
(Consumer will be charged for labor)
Parts and Labor
(internal/functional parts only)
µ Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
µ
µ
LG Authorized Service Center warranties their repair work for thirty (30) days
Replacement products and parts may be new or remanufactured.
.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG
CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES
NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION
WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY
DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH,
FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.
This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable
provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where
it conflicts with provincial law without affecting the remainder of this warranty’s terms.
All costs associated with the above excluded circumstances shall be borne by the consumer.
One (1) year from the date of original
retail purchase
One (1) year from the date of original
retail purchase
Seven (7) years from the date of original
retail purchase
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and
select the appropriate option from the menu, or visit our website
at http://www.lg.ca
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of
fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or
inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product
owner’s manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use
of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting
from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories,
components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers,
along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in
offices or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions, including the Product owner’s and installation manuals.
17. Accessories to the Product such as door bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were
originally included with the Product.
5
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or
hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,
WARNING, CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
SAFETY MESSAGES
WARNING
To reduce the risk of fire, electric shock, or injury to persons
when using your product, basic safety precautions should
be followed, including the following:
NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the outlet.
Repair or replace immediately all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either the
plug or connector end.
When moving your refrigerator away from the wall, be careful not
to roll over or damage the power cord.
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
DO NOT allow children to climb, stand or hang on the refrigerator
doors or shelves in the refrigerator. They could damage the
refrigerator and seriously injure themselves.
Keep fingers out of “pinch point” areas; clearances between the
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be performed
by a qualified individual.
Before replacing a burned-out light bulb, unplug the refrigerator or
turn off power at the circuit breaker or fuse box in order to avoid
contact with a live wire filament. (A burned-out light bulb may
break when being replaced.)
NOTE: Setting either or both controls to the OFF position does not
remove power to the light circuit.
Read all instructions before using this appliance.
Use this appliance only for its intended purpose as described in
this use and care guide.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact with the
moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or hands
on the automatic icemaking mechanism while the refrigerator is
plugged in.
DO NOT refreeze frozen foods which have thawed completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below
40 °F (4 °C).”
“...Thawed ground meats, poultry, or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat.”
“Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods. The
eating quality of red meats is affected less than that of many
other foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.”
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
doors and cabinet are necessarily small. Be careful when you
open the doors when children are in the area.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
The refrigerator-freezer should be so positioned that the supply
plug is accessible for quick disconnection when accident happens.
Do not store bottles in the freezer compartment - they may break
when frozen, causing damage.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
You will be killed or seriously injured if you don’t follow instructions.
DANGER
WARNING
CAUTION
6
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Where a standard two-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
NOTE: Before performing any type of installation, cleaning,
or removing a light bulb, turn the control (Thermostat,
Refrigerator Control or Freezer Control, depending on the
model) to OFF and then disconnect the refrigerator from
the electrical source. When you are finished, reconnect the
refrigerator to the electrical source and reset the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of an
extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug and
outlet, and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance needed
for the back of the refrigerator.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
CFC DISPOSAL
GROUNDING REQUIREMENTS
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous...
even if they will sit for “just a few days”. If you are getting rid
of your old refrigerator, please follow the instructions at right
to help prevent accidents.
WARNING
POWER CORD REPLACEMENT
If the power cord is damaged, it must be replaced
by the manufacturer, by our service center or by
qualified personal by LG Electronics, to avoid some
risk.
DANGER: RISK OF CHILD ENTRAPMENT
Your old refrigerator
may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone.
This appliance contains fluid (refrigerant, lubricant), is made
of parts and materials which are reusable and / or recyclable.
All the important materials should be sent to the collection
center of waste material and can be reused after rework
(recycling).
If you are throwing away your old refrigerator,
the
r.
make sure
CFC refrigerant is removed for proper disposal by a
qualified service If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended the use
of a separate circuit serving only for this appliance, as well
as the use of a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension cord.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
Take off the doors.
Leave the shelves in place so that
children may not easily climb inside.
CAUTION
This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
For take back, please contact with the local agency.
7
Use this section to become more familiar with the parts and features.
NOTE:This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below.The locations of the features shown below may not match your model.
PARTS AND FEATURES
*On some models
A
L
Digital Sensor Control
Filter (Inside)*
Durabase
Divider
Egg Box*
Refrigerator Door Rack
Freezer Light
Pull out Drawer
B
C
D
F
E
G
H
I
J
K
M
N
O
P
Q
Ice Bin
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Chef Fresh / Snack Pan
Can Dispenser*
Temperature Control*
Shelves
Refrigerator Light
Custom cube Icemaker
Dairy Bin
*
A
B
C
G
H
I
J
E
F
K
D
L
M
N
O
P
Q
8
REFRIGERATOR INSTALLATION
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.
2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ( ) to
raise the unit, counterclockwise ( ) to lower it.
3. Install this appliance in an area where the temperature
is between 55 °F (13 °C) and 110 °F (43 °C). If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
NEXT
1. Clean your refrigerator throughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
WARNING:
Be careful when you work with hinge, base grille,
stopper, etc. You may be injured.
Do not put hands or metal sticks into air vents, base
grille, or bottom of refrigerator. You may be injured or
receive an electrical shock.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
Explosion Hazard
A proper distance from adjacent items
Please keep the refrigerator at a proper distance from other
things. Too small a distance from adjacent items may result
in lowered freezing capability and increased electricity
charge consumption.
2”
(5.08 cm)
BASE GRILLE INSTALLATION
To remove the base grille
To install or replace Base Grille:
1. Remove the 2 screws from the bottom front part of
refrigerator.
2. Place Base Grille into position and insert and tighten
screws.
1. Remove screws from Base Grille
and remove.
2. Reattach screws to the base of refrigerator.
REFRIGERATOR INSTALLATION
T O O L S Y O U M A Y N E E D
9
To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door handles.
NOTE: Handle appearance may vary from illustrations on this page.
”
Hex head socket wrench
Phillips screwdriver
Flat head screwdriver
Allen wrench
10 mm
1/4 in
3/8 in
1/4 in
3/32 in
Mounting
Fasteners
Allen Wrench
Set Screw
1.Removing Refrigerator Handle
• Loosen the set screws with the 3/32 ” Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4 ”
Allen wrench.
2.Removing Freezer Drawer Handle
• Loosen the set screws located on the lower
side of the handle with the 3/32 ” Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4”
Allen wrench.
HOW TO REMOVE REFRIGERATOR HANDLE
REFRIGERATOR INSTALLATION
10
HOW TO REMOVE REFRIGERATOR DOOR (models without water dispenser)
1.Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.
Figure A
333
Left Door
Loosen the cover screw (1).
Disconnect door switch wire (2).
Loosen hinge bolts (3).
Lift off the top hinge (4).
Place the door on a non-scratching surface with the inside up.
Right Door
When removing top hinge, be careful that the door does not fall forward.
Loosen the cover screw (1).
Disconnect door switch wire (2).
Loosen hinge bolts (3).
Lift off the top hinge (4).
Place the door on a non-scratching surface with the inside up.
Loosen ground screw (6).
Disconnect wire harness (5).
(3)
(1)
(4)
(1)
(2)
(3)
(4)
(5)
(2)
(6)
CAUTION:
11
REFRIGERATOR INSTALLATION
7
5
2.Replacing Refrigerator Door
Right Door
Lower the door onto the middle hinge pin (7).
Make sure the door is aligned with the cabinet.
Replace the top hinge (4) installing hinge
screws (3) to secure it.
Make sure the gasket on the door is flush
against the cabinet and is not folded.
Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
Install the ground screw (6).
Connect the door switch wire (2).
Tighten the cover screw (1).
Left Door
Lower the door into the middle hinge pin (5).
Make sure the door is aligned with the cabinet.
Replace the top hinge (4) installing hinge
screws (3) to secure it.
Make sure the gasket on the door is flush
against the cabinet and is not folded.
Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
Connect the door switch wire (2).
Tighten the cover screw (1).
NOTE: The previous image to use as reference.
Figure A
333
12
REMOVING AND REPLACING REFRIGERATOR DOORS (models with water dispenser)
1.Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.
REFRIGERATOR INSTALLATION
(6)
(1)
(7)
(1)
(2)
(6)
(7)
(4)
(2)
(8)
Left Door
Disconnect water supply tube by pushing back on the disconnect ring (3).
Loosen the screws and remove the cover on back side (see figure A).
Loosen the cover screw (1).
Disconnect door switch wire (2).
Pull out the tube (4).
CAUTION: If a tube end is deformed or worn out, cut the damaged portion away.
Disconnect wire harness (5).
Loosen screws (6) and lift off the top hinge (7).
Place the door on a non-scratching surface with the inside up.
CAUTION: When removing top hinge, be careful that the door does not fall forward.
Right Door
Loosen the cover screw (1).
Disconnect door switch wire (2).
Disconnect wire harness (4).
Remove the ground screw (8).
Loosen screws (6) and lift off the top hinge (7).
Place the door on a non-scratching surface with the inside up.
(5)
(4)
2.Replacing Refrigerator Door
Right Door
Lower the door onto the middle hinge pin (9). Make sure the door is aligned with the cabinet.
Replace the top hinge (7) installing hinge screws (6) to secure it.
Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while
securing hinge. Make sure the door is straight and the gap between the doors is even.
Install the ground screw (8) and connect the wire harness (4).
Connect the door switch wire (2).
Tighten the cover screw (1).
Left Door
Lower the door onto the middle hinge pin(8). Make sure the door is aligned with the cabinet.
Replace the top hinge (7) installing hinge screws (6) to secure it.
Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while
tightening. And make sure the door is straight and the gap between the doors is even.
Insert the water supply tube (4) into the connector tube until you see only one scale mark.
(Fully insert the tube over 5/8”(15mm)).
Connect the wire harness (5).
Connect the door switch wire (2).
Tighten the cover screw (1).
13
9
8
REFRIGERATOR INSTALLATION
Connecting tube color
Blue to Blue
White to White
•
•
14
REFRIGERATOR INSTALLATION
CAUTION: When you remove the drawer, do not hold
handle. If it comes off, it could cause personal injury.
CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.

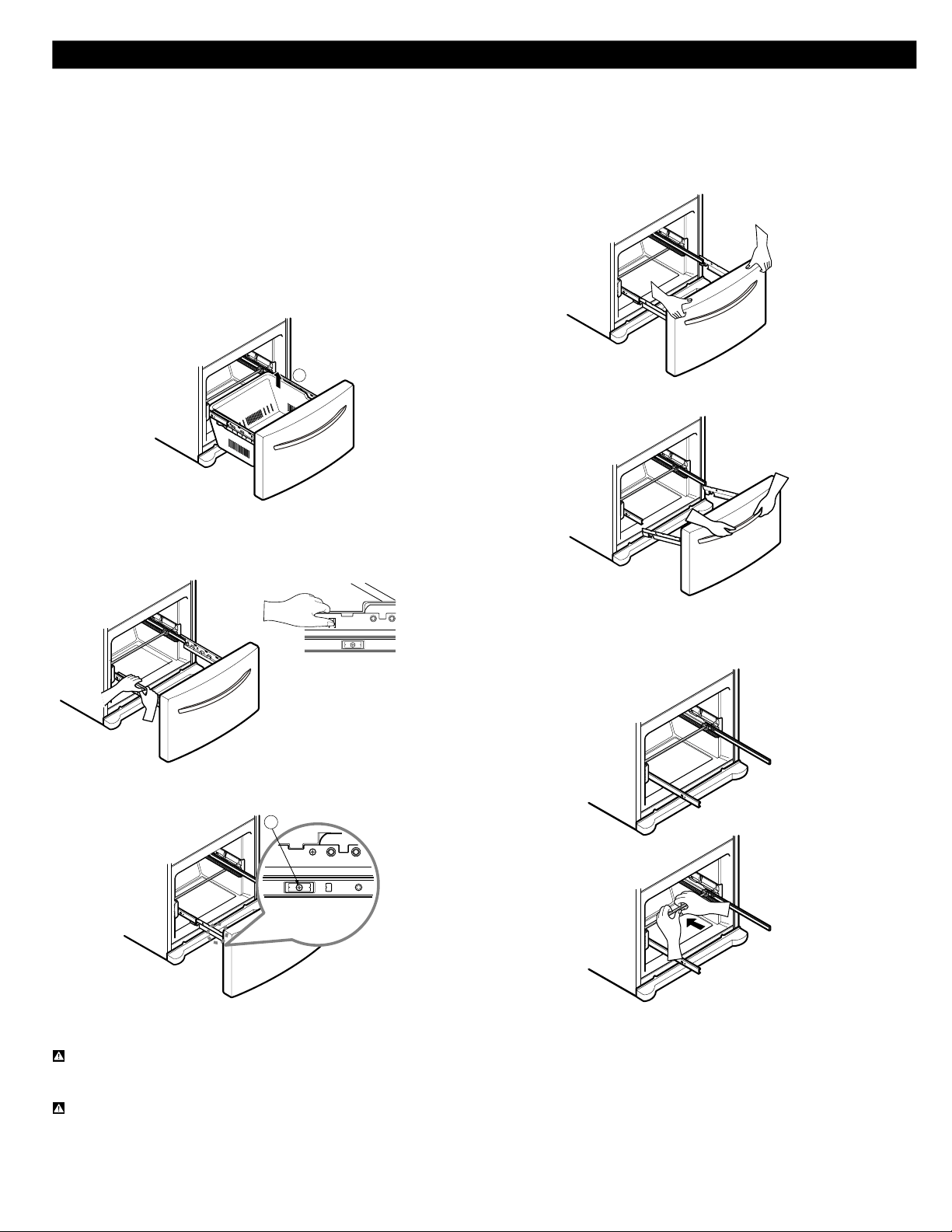

HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1.Removing Pull out Drawer
• Pull the drawer open to full lower extension. Remove the
lower basket (1) by lifting basket from rail system.
• Press both hangers with yours thumbs to lift it up.
• Separate the left and right rail cover.
• Remove the screws(2) of the rail on both sides.
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
• With both hands, hold the center of the bar and push it
in to let both rails fitted simultaneously.
1
2
15
HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
IMPORTANT: To avoid possible injuyr or product or property
damage, you will need two people to perform the following
instructions.
2.Installing Pull out Drawer
• With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
• Hook door supports (1) into rail tabes (2).
• Lower door into final position and tighten the screws (3).
• Make sure you have a right rail cover for each side.
• Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail cover.
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
WARNING: DO NOT step or sit down on Freezer Door.
3
Assembly hole
Right
Rail cover
Left
Rail cover
REFRIGERATOR INSTALLATION
1
2
4
16
LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator’ s tilt using the instructions below:
1. Plug the refrigerator’s power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Turn the leveling screw clockwise to raise that side of
the refrigerator or counterclockwise to lower it. It may
take several turns of the leveling screw to adjust the tilt
of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.

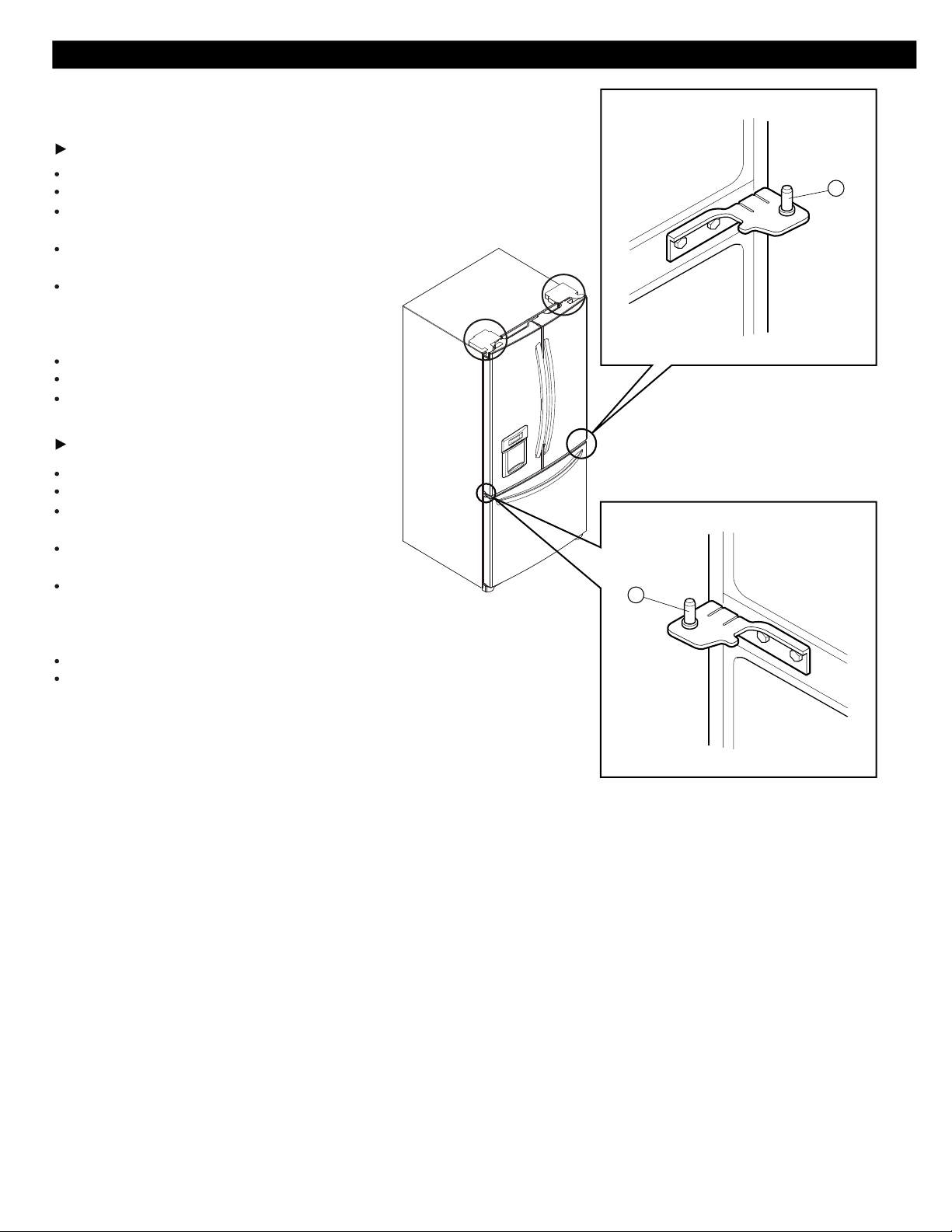

Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with unit.)
REFRIGERATOR INSTALLATION
17
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown in
the illustration below, air enters at top of freezer and
circulates down. From bottom of freezer, air is forced up to
top of refrigerator. Air enters refrigerator through top vent,
then circulates and exits at bottom, where it returns to
freezer.
MULTI-FLOW
Multi-Flow means powerful and effective cooling operation.
This is especially noticeable when new food is placed in the
refrigerator compartment.
If water or foreign substances enter the cool air vent while
cleaning, efficiency will be lowered. In addition, if gasket is
damaged, efficiency may be lowered because of escaping
cool air.
Do not block any of cool air vents with food packages. If
the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both sections,
sections, any odors formed in one section will transfer to the
other. You must thoroughly clean both sections to eliminate
odors. To prevent odor transfer and drying out of food, wrap
or cover foods tightly . (See the Food Storage Guide section
for details).
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate the
temperature in the freezer and refrigerator compartments.
Initially set the REFRIGERATOR CONTROL at 37 °F (3 °C)
and the FREEZER CONTROL at 0 °F (-18 °C). Leave it at
this setting for 24 hours (one day) to stabilize. Then adjust
the compartment temperature as desired.
Refrigerator control: 33 °
F to 46
°
F (0 ° C to 8 °C)
The lower the number setting, the colder the refrigerator
compartment will become.
Freezer control: -6 °F/ 8 °F (-21 °C to -13 °C)
When the setting is at a lower number, the freezer
compartment becomes colder.
Ice Plus:
Press the Ice Plus key and the LED will turn on. This
function will remain activated for 24 hours and intensify the
cooling speed of freezer and increase the amount of ice.
NOTE: If you want to change °F to °C, press and hold
COLDER key of freezer and COLDER key of refrigerator
over 3 sec at the same time. And if you want to change
°C
to °
F, hold them for 3 sec again.
REFRIGERATOR TEMP
COLDER WARMER 37 F IS RECOMMENDED
0 F IS RECOMMENDED
FREEZER TEMP
COLDER WARMER
(Models without water dispenser)
DOOR ALARM
With this feature you will listen an alarm when the freezer
or refrigerator door is not closed within 1 minute after it is
opened. These tones repeat every 30 seconds. The alarm
is cancelled when the freezer or the refrigerator is closed
correctly.
ICE PLUS
ICE PLUS
Identify your control Type
REFRIGERATOR INSTALLATION
18
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food
into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when milk
or juice is as cold as you like and when ice cream is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections.) The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the Freezer compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the freezer
temperature. If it is too warm or too cold, then adjust the
freezer control as well.
Use the settings listed in the chart below as a guide. Always
remember to wait at least 24 hours between adjustments.
RECOMMENDED
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR section
Turn
too warm
Door opened often
control to next
Large amount of food added
higher number,
Room temperature very warm
wait 24 hours,
Then re-check
FREEZER section too warm/ Turn FREEZER
ice not made fast enough control to next
Door opened often
higher number,
Large amount of food added
wait 24 hours,
Very cold room temperature Then re-check
(Can not cycle often enough)
Heavy ice usage
Air vents blocked by items
Move items out of
air stream
REFRIGERATOR section too
Turn
Cold
Controls not set correctly for
control to next
your conditions
lower number,
wait 24 hours,
then re-check
FREEZER section too cold Turn FREEZER
Controls not set correctly for
Control to next
your conditions
lower number,
wait 24 hours,
then re-check

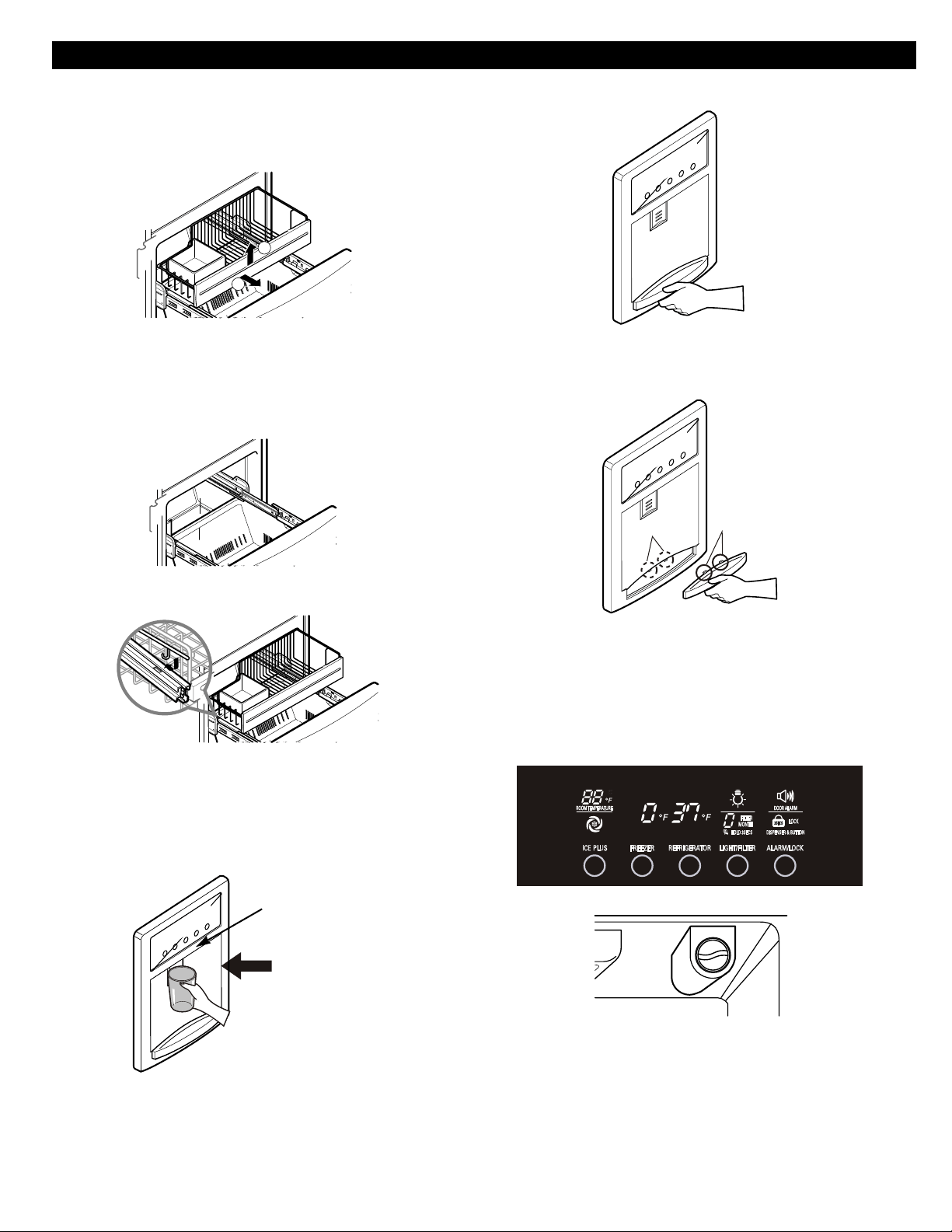

SETTING THE CONTROLS
• Your refrigerator has a control pad on the dispenser that
lets you regulate the temperature in the freezer and
refrigerator compartments.
• Initially set the REFRIGERATOR CONTROL at 37 °F (3 °C)
and the FREEZER CONTROL at 0 °F (–18 °C). Leave it at
this setting for 24 hours (one day) to stabilize. Then adjust
adjust the compartment temperature as desired.
• Refrigerator Temp Control: 33 °F to 46 °F (0 °C to 8 °C)
The lower the number setting, the colder the refrigerator
compartment will become.
• Freezer Temp Control: -6 °F to 8 °F (-21 °C to -13 °C)
When the setting is at a lower number, the freezer
compartment becomes colder. The refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
NOTE: If you want to change °F to °C or the reverse, press
and hold FREEZER key and REFRIGERATOR key
simultaneously for 5 seconds or more.
NOTE: Touch display once to activate, then touch again to
change the settings or activate a function. If 10 seconds
have passed since the display has been touched, it will be
necessary to touch “once” again to reactivate.
This is to prevent accidental display setting changes.
• Ice Plus: Press the ICE PLUS button and the LED will
turn on. This function will remain activated for 24 hours
and increase the cooling speed of the freezer and the
amount of ice produced.
• Dispenser Lock: Press and hold the LOCK button for 3
seconds to lock the dispenser When it is locked, the.
dispenser will not operate. To unlock, press and hold the
LOCK button for 3 seconds.
REFRIGERATOR
REFRIGERATOR
IMPORTANT: Wipe out moisture before using the display
button as operation of the button is based on touch sensing
method and becomes slow or other buttons may operate if
moisture is stuck to the surface of the button.
• Filter Reset: It displays in months the number of months
left to exchange the filter from the moment power is
connected to the refrigerator. If you have changed the
filter after 6 months of use, press and hold the FILTER
button 3 seconds or more and the filter display will be
initialized with a buzzing sound.
NOTE
: The average life of the filter is 6 months.
WARNING: If a door is open, the dispenser does not
*
REFRIGERATOR INSTALLATION
work.
• Display OFF Mode: To activate this mode press and hold
ICE PLUS and FREEZER key over 5 seconds until the
lights turn off. If the Display is touched or any door opens
the lights will turn on and after 20 seconds of inactivity the
lights will turn off automatically.
To exit Display OFF Mode press and hold ICE PLUS and
PLUS and FREEZER key over 5 seconds until the lights
tilt. Display Energy Save Mode does not affect the
temperature control settings of the unit.
(Models with water dispenser)
FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready
to use them. Sort and keep berries in their original
container in a crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in a
plastic bag or plastic container and store in the crisper.
Vegetables with skins (carrots, peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Chef fresh
Store most chef fresh in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cook book.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If you do, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting lids
Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
Non-permeable plastic wraps
Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
Bread wrappers
Non-polyethylene plastic containers
Containers without tight lids
Wax paper or wax-coated freezer wrap
Thin, semi-permeable wrap
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 lbs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
USING YOUR REFRIGERATOR
19
WARNING
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide
(CO )
2
. When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
Use fresh fish and shellfish the same day purchased.
IMPORTANT: Do not store bottles in the freezer
compartment - they may break when frozen,
causing damage.
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. These units are all glass
shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.

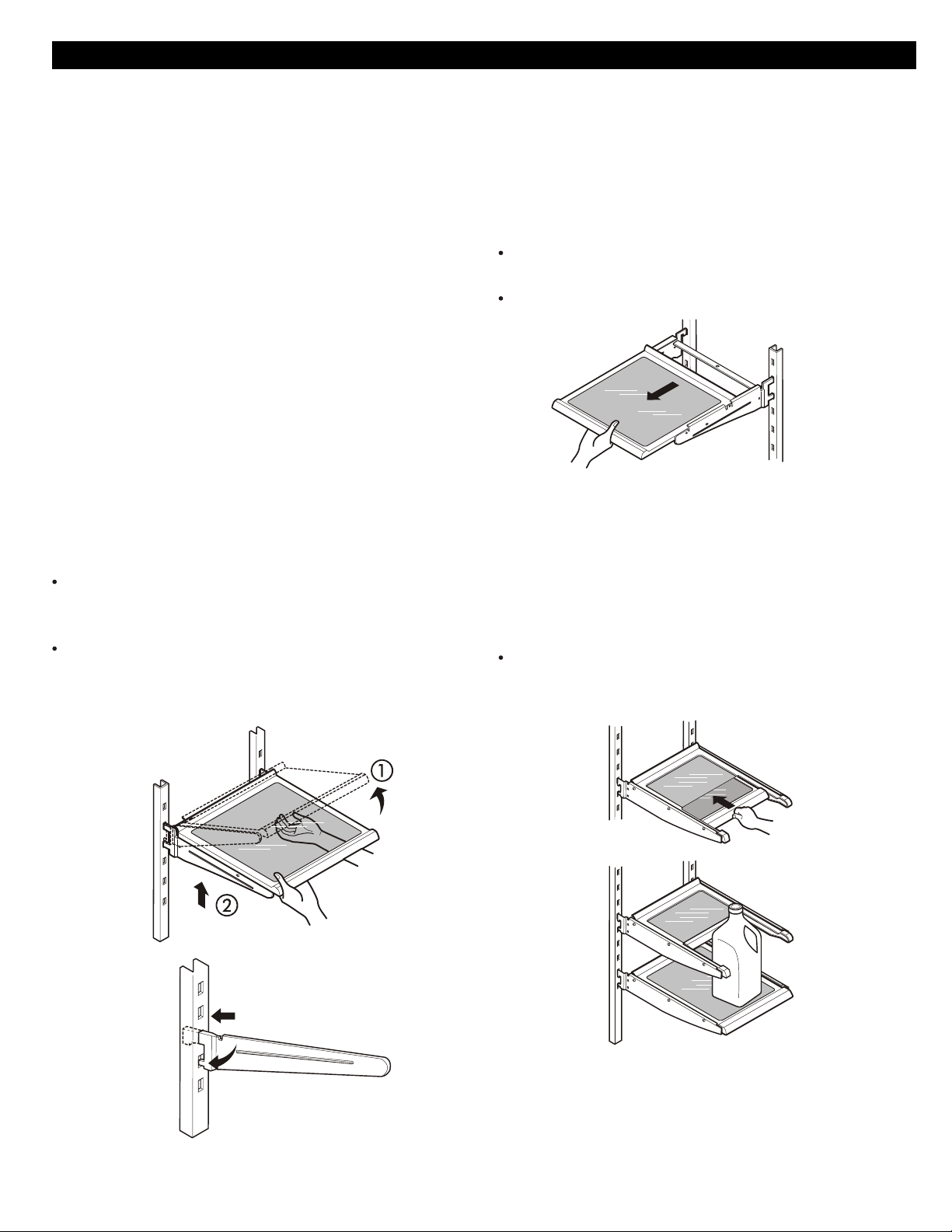

Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
To remove a shelf: Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
To replace a shelf: Tilt the front of the shelf up and guide
the shelf hooks into the slots at a desired height. Then
lower the front of the shelf so that the hooks drop into the
slots.
NOTE: Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf falling or
spilling food.
Sliding Out Shelves (optional on some models)
You can slide some glass shelves in and out of your
refrigerator as follows.
To slide the shelf out, carefully pull front of shelf
toward you.
To slide shelf in, push shelf in until it stops.
To remove a sliding shelf from its metal frame:
1. Pull the shelf out to the stop position.
2. Tilt the front of the shelf up and pull it past the stop
3. Lift up the shelf to remove.
Replace the shelf by reversing the above steps.
Convenience Shelves (optional on some models)
Folding Shelf: You can store taller items such as gallon
containers or bottles by simply sliding the shelf back.
20
REFRIGERATOR SECTION
USING YOUR REFRIGERATOR
position.
21
NOTE: DO NOT store lettuce or other leafy products in this
drawer.
COLD
Cauliflower
Cucumbers
Zucchinis
Apples
Corn
Oranges
Grapes
COLDER
Steaks
Hard cheeses
Cold cuts
Bacon
Hot dogs
WARNING: Fruits and vegetables may be damage
at the coldest setting.

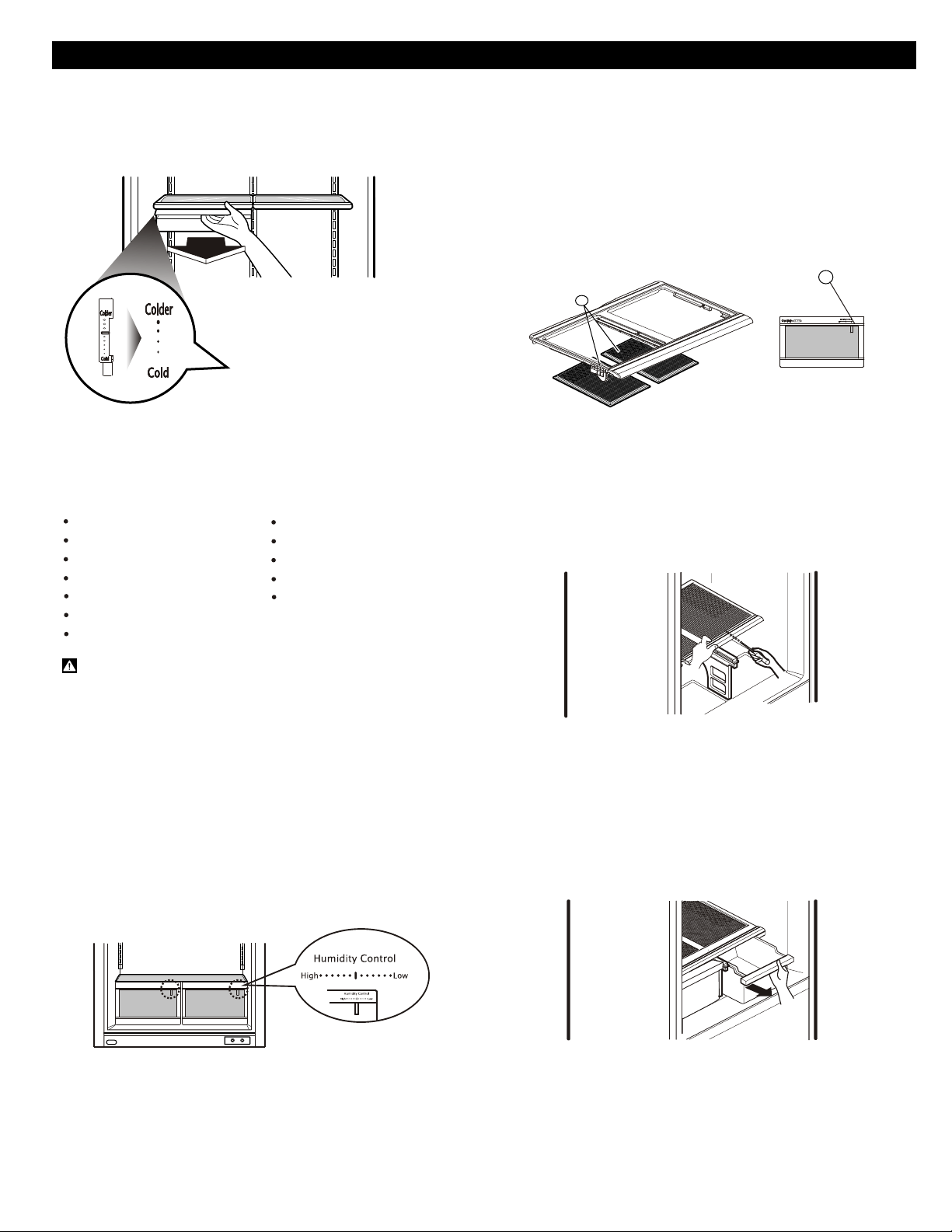

CHEF FRESH / SNACK PAN (on some models)
While holding the chef fresh with one hand, pull it forward
slightly. Lift slightly and pull it out.
On some models is applied an
independent temperature
control.
CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between
• “High”: Lets moist air out of the crisper for best storage of
fruits.
• “Low”: Keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
“High” and “Low”
(on some models)
OPTIBIN CRISPERS
The OptiBin Crispers provide fresher-tasting fruit and
vegetables by letting you easily control humidity inside the
crisper. The OptiBin Crispers include: 1) a humidity
control knob at the front of the crisper cover and 2) a
large lattice on the inner surface of the cover to hold
or release moisture.
1
2
To remove the glass:
1. Lift up the glass after inserting a screwdriver under the
crisper cover.
To remove the crisper:
1. Slide crisper straight out to the stop.
2. Lift the front of the crisper, then pull it out to remove.
3. Replace the crisper by sliding it back in fully past the
drawer stop.
2. Pull up and out.
USING YOUR REFRIGERATOR
22
CRISPER COVER WITH LATTICE ON INNER
SURFACE (on some models)
To remove the crisper cover:
1. Remove both crisper drawers.
2. While holding the crisper cover support (2), pull the
DESIGN-A-DOOR
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull
straight out.
USING YOUR REFRIGERATOR
cover up and out(1).
WARNING: Be careful when handing glass cover since
glass is not attached to cover.
To remove the lattice on inner surface:
1. Remove crisper cover(as illustrated above).
2. Hold the glass cover and overtum crisper cover.
3. For each lattice hold lattice and pull sides of the cover
outward to remove lattice.
To replace lattice on inner surface:
1. For each lattice insert middle tab in 1 (closed to glass
cover) and pull sides of the cover to insert lattice.
2. To replace the bin, slide it in above the desired support
button and push down until it stops.
WARNING: Somebody can be hurt if door bins are not
firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
CAUTION: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause injury.
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight
out.
2. To replace the dairy bin, slide it in above the desired
location and push down until it stops.
EGG BOX (on some models)
Store Egg Box on interior shelf, not on door shelf.
CAUTION: Do not use the egg box as an ice storage
bin in the freezer compartment. The egg box can easily
break if it freezes.
23
FREEZER SECTION
ICE BIN (on some models)
1. To separate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3.
To reinstall, pull out the drawer as much as possible and set
the ice bin in its correct position, and then push in the drawer.
DURABASE DIVIDER
The Durabase divider allows you to organize the Durabase
area into sections.
DRAWER
ICE BIN
USING YOUR REFRIGERATOR
DURABASE (on some models)
To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
1.
1
2
TILTING DOOR (on some models)
The tilting door provides easy access for stored foods.
How to use:
Tilt the door down and pull it out.
WARNING: Be careful when you open tilting door so that
you do not injure your foot!
WARNING:
To avoid hand injury,
device when drawer is open.
keep your hands away from tilting
WARNING: There is enough open space in it for
children to climb inside.
WARNING: To prevent accidental child and pet
entrapment or suffocation risk.
DO NOT allow them to play inside the drawer.
WATER DISPENSER
Push the dispenser pad with a glass until you hear a click
to get cold water.
Tray can be easily removed by pressing and pulling it.
Tilt up the front of tray slightly and snap the ribs into the
holes to replace the tray.
Push
Dispenser Switch
Holes
Ribs
24
1
2
To remove, lift basket up and pull out straight out.
GLIDE OUT DRAWER BASKET -
1.
2. To Install, pull both rails out to full extension.
Hook the basket supports into the rail tabs and push to
the back of compartment.
(on some models)
If you have changed the filter after 6 months of use, press
and hold the FILTER button 3 seconds or more and the
filter display will be initialized with a buzzing sound.
NOTE: The average life of the filter is 6 months.
FILTER (on some models)
The display shows (in months), the remaining time to
exchange the filter from the moment power is connected
to the refrigerator or 6 months after use of water
dispenser.
USING YOUR REFRIGERATOR
25
4. Replace with a new cartridge.
Take the new cartridge out of its packaging and remove
protective cover from the o-rings.
With cartridge knob in the vertical position, push the new
filter cartridge into the cover until it stops.
If you can´t turn the filter from side to side, it isn’
t fully
inserted. Push it in firmly and twist it into place. You will
hear it click into place.
Using its handle, twist the cartridge clockwise about 1/4
turn. You will hear when it clicks into place.
5. Turn the shut off valve on (house valve).*
NOTE: To purchase replacement water filter cartridges,
visit your local appliance dealer or part distributor. You can
also visit our website: www.lg.ca or 1-888-542-2623
(1-888-LG-CANADA).
It is recommended that you replace the filter when the
water filter indicator light turns on or your water dispenser
or ice maker decreases noticeably.
After changing the water filter cartridge, reset the water
filter status display and indicator light by pressing and
holding the BUTTON for 3 seconds.
3. Remove the old cartridge. Rotate the knob of the
How to change the old cartridge.
2. Dispense water from the system to empty the tubing
(approximately for 50 seconds).*
1. Turn the shutoff valve off (house valve).*
cartridge counter clockwise.
Pull out the cartridge.
*Steps 1,2,5 & 6 only for models with water dispenser.
NOTE: There will be water in the cartridge. Some spilling
may occur through the hole at rear bottom side of cover.
You may use a cup or something like that to prevent spilt
water drop into food.
When the cartridge is removed, it will click out of place.
USING YOUR REFRIGERATOR
6. Flush water out from the system until air gets
eliminated and water start to dispense (approximately
for60 seconds).*Flush 2.5 gallons (9.5 liters) of water
through filter
26
CARE AND CLEANING
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
Unplug refrigerator or disconnect power.
Remove all removable parts, such as shelves, crispers,
Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or auto
paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly with
a soft cloth.
INSIDE WALLS (allow freezer to warm up so
cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking sodium and warm water.
Mix 2 tablespoons baking sodium to 1 quart of water (26 g
sodium to 1 liter water). Be sure the baking sodium is
completely dissolved so does it not scratch the surfaces of
the refrigerator.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum plastic parts.
Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
WARNING
etc.
PLASTIC PARTS (covers and panels)
Do not use paper towels, window sprays, abrasive
cleansers, or flammable fluids. These can scratch or
damage the material.
CONDENSER COILS
Remove grille base.
Use a vacuum cleaner with an extended attachment to
clean condenser coils.
Vacuum coils when dusty or dirty. Coils may need to be
cleaned as often as every other month.
Replace grille base.
LIGHT BULB REPLACEMENT
To change the refrigerator light:
1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3.
Release the hooks on the front of the light shield
with the help of a flat screwdriver and pull the
shield down to remove it.
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
WARNING
COVER BACK
Clean the cover back at least
refrigerator working efficiently.
twice a year to keep your
COVER BACK
will make light bulbs to come back on.
NOTE:
The light bulbs wil turn off if door is left open for
seven continuous minutes. Shutting door for one second
NOTE:
Avoid door surface contact with chemical
products that contain Phosphate or Chlorine.
NOTE: Not all appliance bulbs will fit your refrigerator. Be
sure to replace the bulb with one of 40 watts and the
same size and shape.
27
OR
c)
If neither a food locker nor dry ice is available,
consume or can perishable food at once.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3.
Clean refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the
Setting the
Controls section.
3. Unplug the refrigerator.
4. Empty water from the defrost pan.
5. Clean, wipe and dry thoroughly.
6. Take out all removable parts, wrap them well and tape
them together so they do not shift and rattle during the
move.
7. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they do not
scrape the floor.
See the
Door Closing section.
8. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
4. Turn the bulb counter clockwise.
To change the freezer light:
1. Unplug refrigerator or disconnect power.
2. Reach behind light shield to remove bulb.
4. Plug in refrigerator or reconnect power.
POWER INTERRUPTIONS
If the electricity goes off, call the power company and ask
how long it will be off.
1. If the power will be out for 24 hours or less, keep
both refrigerator doors closed to help food stay
cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
OR
b)
Place 2 lbs of dry ice in the freezer for every cubic
foot of freezer space. This will keep the food frozen
for two to four days. While handling dry ice, wear
gloves to protect your hands from frostbite.
3. Replace bulb with a wattage indicated in
1111
the refrigerator section, as shown in picture .
1111
5. To assemble, first insert the hooks at the back and
then push up the light shield.
CARE AND CLEANING
OPERATION INSTRUCTIONS
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
The icemaker will produce eight cubes per cycle
approximately 100 - 130 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to
O (off).
When the refrigerator has been connected to the water
supply, set the power switch to I (on).
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button. (Normally caused by variations In water pressure.)
Every time you press the cube size button, the indicator
light go up. The higher position light is on, the larger
cubes will be. (1st step is the next after the 5th step.)
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
When the water supply will be shut off for several hours.
When the ice storage bin is removed for more than a
minute or two.
When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to
O (off).
NOTE:
Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
If the ambient temperature will drop below freezing, have
a qualified servicer drain the water supply system (on
some models) to prevent serious property damage due to
flooding from ruptured water lines or connections.
28
ABOUT THE AUTOMATIC ICEMAKER
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOTplace fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
NOTE: Automatic Ice Maker feature is included only in
certain models. Please check your product specification.
WARNING
Feeler Arm
Icemaker
Cube Size
Indicator Light
Cube Size
Select Button
Power Switch
29
CONNECTING THE WATERLINE
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the
O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
Copper Tubing
, 1/4” outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8 feet
[2.4 m] coiled into 3 turns of about 10 [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
Power drill
.
or adjustable
wrench
.
Straight- and Phillips-
blade screwdriver
Two 1/4” outer diameter
compression nuts and
2 ferrules (sleeves)
to
connect the copper tubing to
the shut off valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter
(available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can cut
off the flared fitting with a tube cutter and then use a
compression fitting.
Shut off valve to connect to
the cold water line
. The
Shut off valve should have a
water inlet with a minimum
inside diameter of 5/32” at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shut off valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
NOTE: Water line installation is needed when the
Automatic Icemaker and/or Water Dispenser features
are available on your product.
1/2”
Ÿ If a reverse osmosis water filtration system is connected
to your cold water supply, This water line installation is not
warranted by the refrigerator or icemaker manufacturer.
Follow next instructions carefully to minimize the risk of
expensive water damage.
Ÿ If a reverse osmosis water filtration system is connected
to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 PSI or
0.27 MPa to 0.41MPa (2.8 kg·f/cm² ~ 4.2 kg·f/cm², less than
2 ~ 3 seconds to fill a cup of 7 oz capacity [0.2 liters]).
If the water pressure from the reverse osmosis system is less
than 21 PSI or 0.14 MPa (1.5 kg·f/cm², more than 4 seconds
to fill a cup of 7 oz capacity [0.2 liters]).
Ÿ Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
Ÿ Allow the storage tank on the reverse osmosis system to
refill after heavy usage.
Ÿ If the issue about water pressure from reverse osmosis
remains, call a licensed, qualified plumber.
A cold water supply
.The water pressure must be
between 20 and 120 PSI or 0.137 and 0.82 MPa on
120 PSI or 0.275 and 0.82 MPa on models with a
water filter.
models without a water filter and between 40 and
30
CONNECTING THE WATER LINE
INSTALLATION INSTRUCTIONS
(CONTINUED)
4. FASTEN THE SHUT OFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not over tighten
or you may crush
the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10 diameter) to
allow the refrigerator to move out from the wall after
installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shut off valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Pipe Clamp
Washer
Inlet End
Pipe Clamp
Clamp Screw
Saddle-Type
Shutoff Valve
Packing
Nut
Outlet
Valve
Ferrule (sleeve)
Compression
Nut
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve
that is easily accessible. It is best
to connect into the side of a
vertical water pipe. When it is
necessary to connect into a
horizontal water pipe, make the
connection to the top or side,
rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4” hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4 hole may result in
reduced ice production or smaller cubes.
31
9. CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
If your refrigerator does not have a water filter,
we recommend installing one if your water supply
has sand or particles that could clog the screen of
the refrigerator’
s water valve. Install the filter in the
water line near the refrigerator.
Remove the plastic flexible cap from the refrigerator
connection.
Place the compression nut and ferrule (sleeve) on to
the end of the tubing.
Insert the end of the tubing into the connection as far
as possible. While holding the tubing, tighten the fitting.
Fasten the tubing into the tubing clamp attached to
the back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
10. TURN THE WATER ON AT THE
SHUT OFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12. START THE ICE MAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15 °F (-9 °C)
or below. It
will then begin operation automatically if the icemaker
power switch is in the
I (on) position.
CONNECTING THE WATER LINE
Refrigerator
Connection
Ferule
(sleeve)
Tubing
Clamp
1/4”
Compression
Nut
1/4”
Tubing
IMPORTANT: Do not use old, worn or used waterlines,
only use new for a better use and service.
Connect only to the supply of drinking water for your
safety and health.
32
TROUBLE SHOOTING GUIDE
REFRIGERATOR DOES NOT OPERATE
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
A household fuse has blown or circuit
Replace the fuse or reset the circuit breaker.
breaker tripped.
The refrigerator control is set to the OFF position. Refer to the Setting the Controls.
Refrigerator is in the defrost cycle.
Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE
The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.
the floor. See Installation Section.
LIGHTS DO NOT WORK
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug
the refrigerator. Gently remove the bulb and reinsert. Then
plug in refrigerator and reset the refrigerator control.
Light bulb has burned out.
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn’t make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and
you may hear a pulsating or high-pitched sound.
You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
Contraction and expansion of the inside walls may cause
a popping noise.
Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
You may hear air being forced over the condenser by the
condenser fan.
You may hear water running into the drain pan during the
defrost cycle.
Check if... Then...
Check if... Then...
Unplug the refrigerator prior to the replacement. Replace the
old bulb with a new 40 watts appliance bulb with same size
and shape on your local hardware store. (See Changing the
Light Bulb (s) section).
33
TROUBLE SHOOTING GUIDE
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an Modern refrigerators with more storage space require
older model. more operating time.
The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal
room temperatures, expect your motor to run about 40% to
80% of the time. Under warmer conditions, expect it to run
even more often.
The door is opened often or a large amount Adding food and opening the door warms the refrigerator.
of food has just been added. It is normal for the refrigerator to run longer in order to cool
the refrigerator back down. Adding a large amount of food
warms the refrigerator. See the Food Storage Guide Section.
In order to conserve energy, try to get everything
you need out of the refrigerator at once, keep food organized
so it is easy to find and close the door as soon as the food
is removed.
The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool
See the Adjusting control settings Section.
surrounding conditions.
The doors are not closed completely.
Push the doors firmly shut. If they will not shut all the way, see
Doors will not close completely below.
The condenser coils are dirty.
This prevents air transfer and makes the motor work harder.
Clean the condenser coils. Refer to the Care and Cleaning
section.
FROST OR ICE CRYSTALS ON FROZEN FOOD
The door is not closing properly. See Doors will not close completely above.
The door is opened often. When the door is opened, warm, humid air is allowed in
the freezer resulting in frost.
DOORS WILL NOT CLOSE COMPLETELY
The refrigerator is not level. See the Installation Section to level refrigerator.
Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover
, pans, shelves
or baskets are out of position. and baskets into their correct positions. See the Using Your
Refrigerator Section.
The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin
coat of paraffin wax on the gaskets after cleaning.
The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Door Closing and
Alignment Section.
The doors were removed during product installation Remove and replace the doors according to the Removing,
and not properly replaced. Reversing and Replacing Refrigerator Doors section
or call a qualified service technician.
the refrigerator control was set correctly completely.
The refrigerator control was not set correctly for the
Check if... Then...
Check if... Then...
34
TROUBLE SHOOTING GUIDE
ICE HAS OFF-TASTE OR ODOR
The icemaker was recently installed.
Discard first few batches of ice to avoid discolored or
off-flavored ice.
The ice has been stored for too long. Throw away old ice and make new supply.
The food has not been wrapped tightly in
Rewrap foods since odors may migrate to the ice if food
either compartment.
is not wrapped properly
.
The water supply contains minerals such as sulfur.
A filter may need to be installed to eliminate taste and
odor problems.
The interior of refrigerator needs cleaning.
See Care and Cleaning section.
Ice storage bin needs cleaning.
Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the
defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer to
evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section.
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
The freezer temperature is cold enough to produce ice.
Wait 24 hours after hook-up for ice production. See the Setting
the Controls Section.
Door left open. Check to see if something is holding the door open.
THE DOORS ARE DIFFICULT TO OPEN
The gaskets are dirty or sticky.
Clean gaskets and the surfaces that they touch. Rub a thin
coat of appliance polish or kitchen wax on the gaskets after
cleaning
The door is reopened within a short time after having
When you open the door, warmer air enters the refrigerator.
been opened.
As the warm air cools, it can create a vacuum. If the door is
hard to open, wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Smaller cube size level is selected. Select larger cube size using cube size selector.
Water shutoff valve connecting refrigerator to water
Call a plumber to clear the valve.
line may be clogged.
Check if... Then...
Check if... Then...
Check if... Then...
Check if... Then...
Check if... Then...
Check if... Then...
TROUBLE SHOOTING GUIDE
35
AUTOMATIC ICEMAKER DOES NOT WORK
Icemaker power switch in the O (off) position. Move the switch to the I (on) position.
Water supply turned off or not connected. See the Connecting the Water Line section.
Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.
Piled up cubes in the storage bin cause the icemaker Level cubes by hand or shake the bin occasionally.
to shut off.
Check if... Then...
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILD UP
The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and
from the freezer to the fresh food section and move all packages that block vents and restrict airflow. Refer
back again through air vents in the wall dividing to multi flow Section for the location of
the two sections.
air vents.
The doors are opened often. When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster the
humidity builds up, and the more warm air the refrigerator
must cool. In order to keep the refrigerator cool, try to get
everything you need out of the refrigerator at once, keep
food organized so it is easy to find and close the door as
soon as the food is removed.
The control is not set correctly for the surrounding Refer to the Setting the Controls Section.
conditions. Wait 24 hours for temperatures to stabilize or even out. If the
temperature is too cold or too warm, move the dial one number
at a time and allow a day for the temperature to stabilize.
A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours
to the refrigerator or freezer. for the refrigerator to return to normal temperature.
The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation. If
necessary, repackage food according to the guidelines in the
Food Storage Guide Section.
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
Check if... Then...
The doors are not closing completely. See Doors will not close completely.
Cover back is dirty and is blocking the refrigerator’s
air supply.
Clean cover back to allow air to come through.
See Cover Back in the Care and Cleaning section.
