en Installation and operating

instructions

TUMBLE DRYER

R8581X3ES

Loading ...

Summary of Contents for Neff R8581X3ES/01:

Your new tumble dryer2
Display rules2
Contentsen Installation and operating instructions3
- 8 Intended use 43
- ( Safety instructions 43
- 7 Environmental protection 123
- 5 Installation and connection 133
- Œ Draining the condensation water 163
- Y The main points in brief 193
- * Getting to know your appliance 203
- Z Laundry 233
- / Programmes and buttons 243
- 1 Operating the appliance 273
- M Signal setting 333
- > Noises 343
- D Cleaning 353
- 3 Faults and what to do about them 373
- J After-sales service 393
- [ Consumption values 403
- J Technical data 413
- 8 Intended use4
  - Intended use4
- ( Safety instructions4
2. Select any programme using the programme selector.15
3. Press the Start button.15
4. Wait for 5 minutes.15
- Note:15
5. Empty the condensate container again.15
6. Switch off the dryer.15
- Note:15
- Œ Draining the condensation water16
  - Draining the condensation water16
    - 1. Remove the accessories from the dryer drum.16
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.16
3. Disconnect the hose from the connecting piece and put it in the "parked" position.16
4. Take the drain hose from the accessories and secure it to the free connecting piece.16

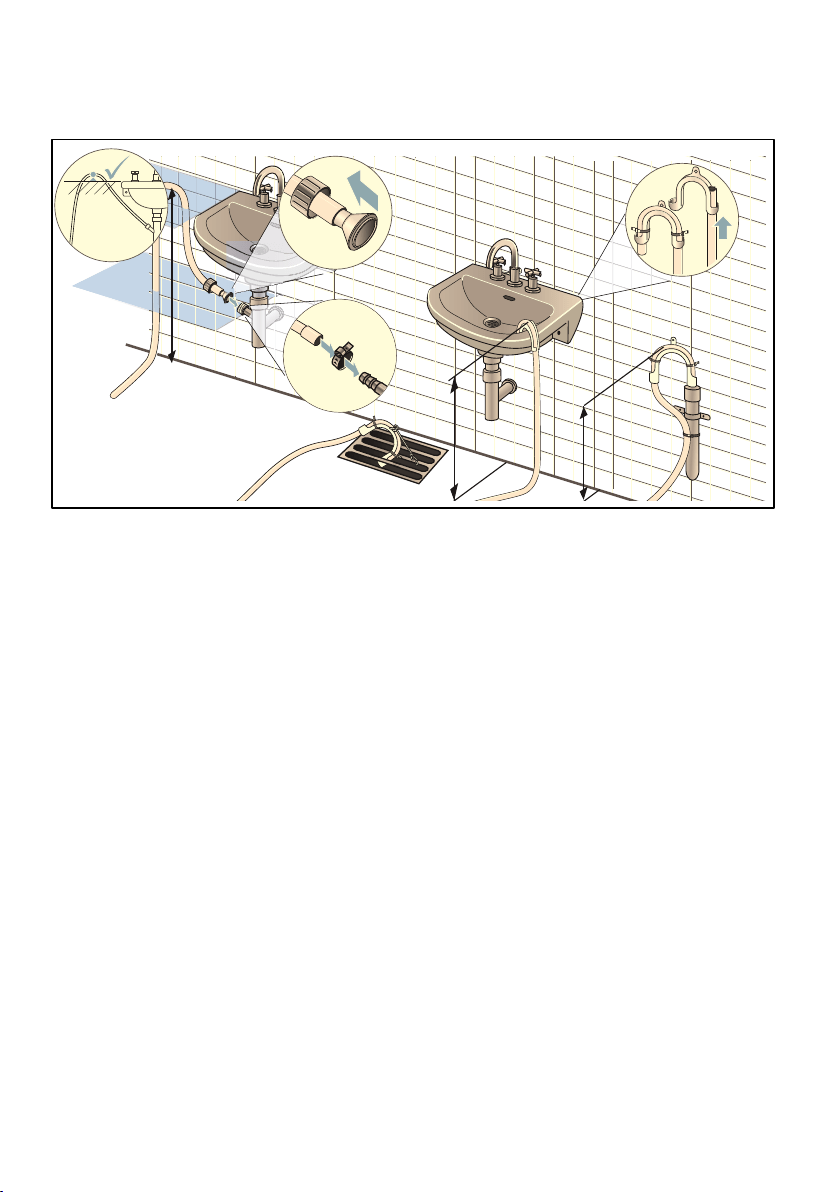

5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).17
- Caution!17
- Accumulated water can be drawn back into the dryer and may cause material damage.17
- Caution!17
- Material damage due to leaks or draining water.17

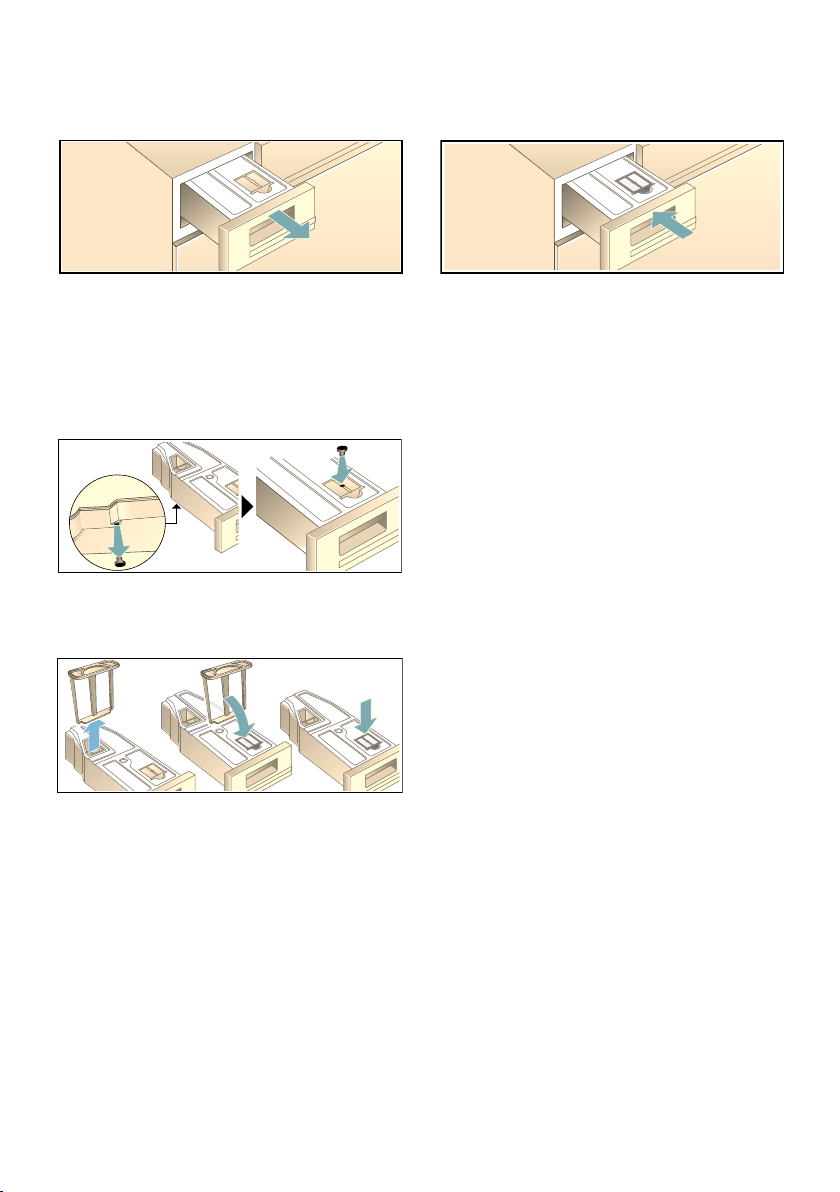

6. Pull out the condensation container fully.18
7. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.Turn the condensation container back over and insert the stopper into the recess in the top of the condensation container.18
8. Pull the filter out of the lock-in slot and place it into the recess in the top of the condensation container.18
9. Slide in the condensation container until it clicks into place.18
- Note:18
- Y The main points in brief19
  - The main points in brief19
- * Getting to know your appliance20
  - Getting to know your appliance20
- Dryer20
  - Control panel21
  - Display panel22
- Buttons in the display panel22
- Display panel22
  - Z Laundry23
- Do not tumble-dry the following fabrics:23
  - / Programmes and buttons24
  - 1 Operating the appliance27
    - Operating the appliance27
    - Loading laundry and switching on the dryer27
      - Note:27
        1. Place the laundry in the drum.27
2. Turn the programme selector to any programme to switch the dryer on.27
3. Close the dryer door.27
- Caution!27
- Possibility of material damage to the dryer or laundry.27
- The basket for woollens27
  - Note:27
    - Caution!27
    - Risk of material damage to the dryer and fabrics.27
- Drying with the basket for woollens28
  - 1. Insert the feet of the basket for woollens into the holes on the fluff filter.28
2. Lean the basket for woollens against the upper notch.28
3. Place the required fabric in the insert of the basket for woollens28
- Notes28
4. Place the insert or the sports shoes in the basket for woollens.29
- Caution!29
- Risk of material damage to the fabrics.29
5. Use the programme selector to select the programme for the basket for woollens or a time programme.29
6. Set the drying time.29
- Note:29
7. Start the programme.29
8. Remove the fabrics and switch off the dryer.29
- Setting a programme29
  - Note:29
    - 1. Select the required programme; detailed information on the programmes can be found from ~ Page 24 onwards.29
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.29
- Note:29
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 24 onwards.29
- Starting the programme29
  - Note:29
- Programme sequence30
  - Note:30
- Changing the programme or adding laundry30
  - 1. To pause the programme, open the dryer door or press the Start button.30
2. Add or remove laundry.30
3. Select another programme or an additional function, if required.30
4. Close the dryer door.30
5. Press the Start button.30
- Note:30
- Cancelling the programme30
  - Caution!30
  - Risk of fire. Laundry may catch fire.30
- Programme end30
- Removing laundry and switching off the dryer30
  - 1. Remove the laundry.30
2. Turn the programme selector to the "off" position.30
- Clean the fluff filter31
  - Note:31
    - 1. Open the dryer door and remove all fluff from the door.31
2. Pull out the two-part fluff filter.31
3. Remove the fluff from the recess in the fluff filter.31
- Note:31
4. Pull apart the two-part fluff filter.31
5. Open both filters and remove all the fluff.31
6. Rinse away the fluff under warm, running water.31
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.31
- Caution!31
- The dryer may be damaged.31
- Emptying the condensate container32
  - 1. Pull out the condensate container horizontally.32
2. Pour out the condensation water.32
- Caution!32
- Dirty condensation water may be harmful to your health and cause material damage.32
3. Push in the condensate container until you feel it lock back into place in the dryer.32
- Note:32
- M Signal setting33
  - Signal setting33
- Activating setting mode33
  - 1. Switch the dryer on.33
2. Select the "Cottons" programme in position 1 and wait for five seconds.33
- 1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.33
2. The spin speed is shown in the display.33
3. Press the "Ready in" time button or the drying time button to change the spin speed.33
4. Turn the programme selector clockwise to position 3.33
5. The volume of the audible signal at the end of the programme is shown in the display.33
6. Press the "Ready in" time button or the drying time button to change the volume.33
7. Turn the programme selector clockwise to position 4.33
8. The volume for the audible button signal is shown in the display.33
9. Press the "Ready in" time button or the drying time button to change the volume.33
- > Noises34
  - Noises34
  - Note:34
- D Cleaning35
2. Pour out the condensation water.36
3. Remove the filter.36
4. Clean the filter under warm, running water or in the dishwasher.36
5. Push in the filter until you feel it lock into place.36
- Caution!36
- The dryer may be contaminated with fluff and thus become damaged.36
6. Push in the condensate container until you feel it lock into place.36
- 3 Faults and what to do about them37
- J After-sales service39
  - After-sales service39
[ Consumption values40
- Consumption values40
- Consumption values table40
- Most efficient programme for cotton fabrics40
- The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.40
