Safety Instructions . . . . . .2–7
Operating Instructions
Convection Oven . . . . . . . . . .21–25
Roasting Guide . . . . . . . . . . . . . .24
Timed Convection Baking . . . . . .25
Griddle . . . . . . . . . . . . . . . . . . . . . . .8, 9
Restaurant-Quality Steak . . . . . . . .9
Lower Oven Drawer . . . . . . . . . .30
Range Lockout . . . . . . . . . . . . . . . . .27
Surface Units . . . . . . . . . . . . . .10–13
Thermostat . . . . . . . . . . . . . . . .29, 30
Upper Oven . . . . . . . . . . . . . . .14–32
Aluminum Foil . . . . . . . . . . . . . . .16
Baking or Roasting . . . . . . . . . .16
Broiling Guide . . . . . . . . . . . . . . .17
Clock and Timer . . . . . . . . . . . . .18
Oven Controls . . . . . . . . . . . . . . .14
Preheating . . . . . . . . . . . . . . . . . . .16
Probe . . . . . . . . . . . . . . . . . . . . . . . .20
Sabbath Feature . . . . . . . . . . . .28
Self-Cleaning . . . . . . . . . . . . .31, 32
Special Features . . . . . . . . .26, 27
Timed Baking and
Roasting Features . . . . . . . . . . .19
Care and Cleaning
Control Panel and Knobs . . . . .36
Glass Cooktop Surface . . . .38, 39
Griddle . . . . . . . . . . . . . . . . . . . . . . . .33
Lift-Off Oven Door . . . . . . . . . . . .34
Lower Oven Drawer . . . . . . . . . .35
Oven Air Vents . . . . . . . . . . . . . . . .36
Oven Heating Elements . . . . . . .34
Oven Light Replacement . . . . . .37
Oven Racks . . . . . . . . . . . . . . . . . . .37
Self-Cleaning . . . . . . . . . . . . . .31, 32
Stainless Steel Surfaces . . . . . . .33
Installation
Instructions
. . . . . . . . . . . .40–47
Anti-Tip Device . . . . . . . . . . . .40, 46
Dimensions and
Clearances . . . . . . . . . . . . . . . . . . . .41
Electrical Connections . . . . . .42–45
Level the Range . . . . . . . . . . . . . . .46
Location Guidelines . . . . . . . . . . .41
Safety Instructions . . . . . . . . . . . .40
Troubleshooting
Tips
. . . . . . . . . . . . . . . . . . . . . .48–50
Accessories . . . . . . . . . . . . . . . . . .53
Consumer Support
Consumer
Support . . . . . . . . . . . . . .Back Cover
Ownership Registration
for Customers in
Canada only . . . . . . . . . . . . .51, 52
Warranty for Customers
in Canada . . . . . . . . . . . . . . . . . . . . .55
Warranty for Customers
in the U.S.A. . . . . . . . . . . . . . . . . . . .54
Ran ges
183D6379P054 49-88040 05-09 JR
GEAppliances.com
Radiant Self-Cleaning Convection
Write the model and serial
numbers here:
Model # ____________________
Serial #______________________
You can find them on a label on the
front of the range behind the lower
oven drawer.
In Canada contact us at:
www.GEAppliances.ca
CS980
Owner’s Manual
& Installation
Instructions
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances known
to the state to cause cancer, birth defects or other
reproductive harm, and requires businesses to
warn customers of potential exposure to such
substances.
The fiberglass insulation in self-clean ovens gives
off a very small amount of carbon monoxide
during the cleaning cycle. Exposure can be
minimized by venting with an open window
or using a ventilation fan or hood.
When using electrical appliances, basic safety precautions should be followed, including the following:
■ Use this appliance only for its intended purpose
as described in this Owner’s Manual.
■ Be sure your appliance is properly installed
and grounded by a qualified technician in
accordance with the provided installation
instructions.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
■ Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse
or switching off the circuit breaker.
■ Do not leave children alone—children should
not be left alone or unattended in an area
where an appliance is in use. They should
never be allowed to sit or stand on any part
of the appliance.
■ Do not allow anyone to climb, stand or hang
on the oven door, drawer or cooktop. They
could damage the range and even tip it over,
causing severe personal injury.
■ Do not store flammable materials in an oven
or near the cooktop.
■
CAUTION:Items of interest to
children should not be stored in cabinets
above a range or on the backsplash of a
range—children climbing on the range to
reach items could be seriously injured.
SAFETY PRECAUTIONS
To reduce the risk of tipping the range, the range
must be secured by a properly installed anti-tip bracket.
See installation instructions shipped with the bracket for
complete details before attempting to install.
To check if the bracket is installed and engaged properly,
carefully tip the range forward. The bracket should stop
the range within 4 inches. If it does not, the bracket must be
reinstalled. If the range is pulled from the wall for any reason,
always repeat this procedure to verify the range is properly
secured by the anti-tip bracket.
For free-standing or slide-in ranges, never completely remove
the leveling legs or the range will not be secured to the anti-tip
device properly.
If you did not receive an anti-tip bracket with your purchase,
call 1.800.626.8774 to receive one at no cost (in Canada, call
1.800.561.3344). For installation instructions of the bracket,
visit GEAppliances.com (in Canada, GEAppliances.ca).
ANTI-TIP DEVICE
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
G
EAppliances.com
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry
to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against
foodborne illness.
■ Never wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored over the range.
Flammable material could be ignited if brought
in contact with hot surface units or heating
elements and may cause severe burns.
■ Use only dry pot holders—moist or damp pot
holders on hot surfaces may result in burns
from steam. Do not let pot holders touch hot
surface units or heating elements. Do not use
a towel or other bulky cloth.
■ For your safety, never use your appliance for
warming or heating the room.
■ Do not let cooking grease or other flammable
materials accumulate in or near the range.
■ Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface unit by
covering the pan completely with a well-fitting
lid, cookie sheet or flat tray. Use a multi-
purpose dry chemical or foam-type fire
extinguisher.
■ Flaming grease outside a pan can be put out
by covering it with baking soda or, if available,
by using a multi-purpose dry chemical or
foam-type fire extinguisher.
■ Flame in the upper oven or lower oven drawer
can be smothered completely by closing the
oven door or drawer and turning the oven off,
or by using a multi-purpose dry chemical or
foam-type fire extinguisher.
■ Be sure all packaging materials are
removed from the range before operating
it to prevent fire or smoke damage should
the packaging material ignite.
■ After prolonged use of a range, high floor
temperatures may result and many floor
coverings will not withstand this kind of use.
Never install the range over vinyl tile or
linoleum that cannot withstand such type
of use. Never install it directly over interior
kitchen carpeting.
■ Do not touch the surface units, the heating
elements or the interior surface of the oven.
These surfaces may be hot enough to burn
even though they are dark in color. During and
after use, do not touch, or let clothing or other
flammable materials contact, the surface
units, areas nearby the surface units or any
interior area of the oven; allow sufficient time
for cooling first.
■ Potentially hot surfaces include the cooktop,
areas facing the cooktop, oven vent opening,
surfaces near the opening, crevices around
the oven door and metal trim parts above
the door.
■ REMEMBER: The inside surface of the oven
may be hot when the door is opened.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■ Keep the hood and grease filters clean
to maintain good venting and to avoid
grease fires.
■ Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly. Air openings are located at the rear
of the cooktop, at the top and bottom of the
oven door, and at the bottom of the range
under the lower oven drawer.
■ Teach children not to play with the controls
or any other part of the range.
■ Always keep dish towels, dish cloths, pot
holders and other linens a safe distance from
your range.
■ Always keep wooden and plastic utensils and
canned food a safe distance from your range.
■ Always keep combustible wall coverings,
curtains or drapes a safe distance from
your range.
WARNING!
SAFETY PRECAUTIONS
3
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
4
Use proper pan size–select cookware having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also
improve efficiency.
■ Never leave the surface units unattended at
high heat settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
■ Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers are
suitable for cooktop service; others may
break because of the sudden change in
temperature.
■ To minimize the possibility of burns, ignition of
flammable materials and spillage, the handle
of a container should be turned toward the
center of the range without extending over
nearby surface units.
■ Always turn the surface units off before
removing cookware.
■ Do not flame foods on the cooktop. If you do
flame foods under the hood, turn the fan on.
■ Keep an eye on foods being fried at high
or medium high heat settings.
■ Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and over
the sides of the pan.
■ Use little fat for effective shallow or deep fat
frying. Filling the pan too full of fat can cause
spillovers when food is added.
■ If a combination of oils or fats will be used in
frying, stir together before heating, or as fats
melt slowly.
■ Always heat fat slowly, and watch as it heats.
■ Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
■ Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■ Do not leave any items on the cooktop. The hot
air from the vent may ignite flammable items
and will increase pressure in closed containers,
which may cause them to burst.
WARNING!
RADIANT SURFACE UNITS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
5
G
EAppliances.com
RADIANT SURFACE UNITS
■ Use care when touching the cooktop.
The glass surface of the cooktop will retain
heat after the controls have been turned off.
■ Avoid scratching the glass cooktop.
The cooktop can be scratched with items such
as sharp instruments, rings or other jewelry
and rivets on clothing.
■ Large scratches or impacts to glass
doors or cooktops can lead to broken
or shattered glass.
■ Do not operate the radiant surface units
if the glass is broken. Spillovers or cleaning
solution may penetrate a broken cooktop
and create a risk of electrical shock. Contact
a qualified technician immediately should
your glass cooktop become broken.
■ Never use the glass cooktop surface as
a cutting board.
■ Do not place or store items that can melt
or catch fire on the glass cooktop, even when
it is not being used.
■ Be careful when placing spoons or other
stirring utensils on the glass cooktop surface
when it is in use. They may become hot
and could cause burns.
■ Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a hot
surface unit, be careful to avoid steam burns.
Some cleaners can produce noxious fumes if
applied to a hot surface.
NOTE: We recommend that you avoid wiping
any surface unit areas until they have cooled
and the indicator light has gone off. Sugar spills
are the exception to this. Please see Cleaning
the glass cooktop section.
■ When the cooktop is cool, use only the
recommended cleaning cream to clean
the cooktop.
■ To avoid possible damage to the cooking
surface, do not apply cleaning cream
to the glass surface when it is hot.
■ After cleaning, use a dry cloth or paper towel
to remove all cleaning cream residue.
■ Read and follow all instructions and warnings
on the cleaning cream labels.
■ Do not lift the cooktop. Lifting the cooktop
can lead to damage and improper operation
of the range.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
■ The purpose of the warm setting of the lower
oven drawer is to hold hot cooked foods at
serving temperature. Always start with hot
food; cold food cannot be heated or cooked
using the warm setting of the lower oven
drawer.
■ Do not use the lower oven drawer to dry
newspapers. If overheated, they can catch
on fire.
■ Do not leave paper products, plastics, canned
food or combustible materials in the drawer.
■ Never leave jars or cans of fat drippings
in or near your lower oven drawer.
■ Do not warm food in the lower oven drawer
for more than two hours.
■ Do not touch the heating element or the
interior surface of the lower oven drawer.
These surfaces may be hot enough to burn.
REMEMBER: The inside surface of the lower
oven drawer may be hot when the drawer
is opened.
■ Use care when opening the lower oven
drawer. Open the drawer a crack and let
hot air or steam escape before removing
or replacing food. Hot air or steam which
escapes can cause burns to hands, face
and/or eyes.
■ Do not use aluminum foil to line the lower
oven drawer. Foil is an excellent heat insulator
and will trap heat beneath it. This will upset
the performance of the drawer and it could
damage the interior finish.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
WARNING!
LOWER OVEN DRAWER
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
6
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
7
G
EAppliances.com
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
■ Be sure to wipe up excess spillage before
self-cleaning operation.
■ Before self-cleaning the oven, remove
the racks, any broiler pan, grid and
other cookware.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
■ Do not clean the door gasket. The door gasket
is essential for a good seal. Care should be
taken not to rub, damage or move the gasket.
■ Clean only parts listed in this Owner’s Manual.
■ If the self-cleaning mode malfunctions, turn
the oven off and disconnect the power supply.
Have it serviced by a qualified technician.
■ Do not use oven cleaners. No commercial
oven cleaner or oven liner of any kind should
be used in or around any part of the oven.
Residue from oven cleaners will damage
the inside of the oven when the self-clean
cycle is used.
SELF-CLEANING UPPER OVEN
■ Do not use the oven for a storage area.
Items stored in the oven can ignite.
■ Keep the oven free from grease buildup.
■ Place the oven racks in the desired position
while the oven is cool. If racks must be
handled when hot, do not let pot holder
contact the heating elements.
■ Pulling out the rack to the stop-lock is a
convenience in lifting heavy foods. It is also
a precaution against burns from touching hot
surfaces of the door or oven walls. The lowest
position “R” is not designed to slide.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
■ Do not use your oven to dry newspapers.
If overheated, they can catch fire.
■ Do not leave paper products, cooking utensils
or food in the oven when not in use.
■ Keep the oven vent unobstructed.
■ Make sure any broiler pan is in place correctly
to reduce the possibility of grease fires.
■ If you should have a grease fire in a broiler
pan, press the CLEAR/OFF pad and keep
the oven door closed to contain fire until
it burns out.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
Stand away from the range when opening the door of a hot oven. The hot air and steam that escape
can cause burns to hands, face and eyes.
UPPER OVEN
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
8
Your nonstick coated griddle provides
an extra-large cooking surface for meats,
p
ancakes or other food usually prepared
in a frying pan or skillet.
NOTE: Your griddle will discolor over time
as it becomes seasoned with use.
How to Place the Griddle
Using the griddle.
CAUTION: Place and remove
the griddle only when the griddle is cool
and all surface units are turned OFF.
IMPORTANT: Always place and use your
griddle on the left surface units only.
NOTE: Do not clean the griddle
in the self-cleaning oven.
Using the Griddle
Most griddled foods require cooking
on a preheated surface. Preheat griddle
according to the guide below, then switch
to the desired cook setting.
To turn on the surface units for the entire
griddle, turn the knob clockwise.
To turn on the surface unit for the back
half of the griddle, turn the knob
counterclockwise.
CAUTION:The entire griddle
will still become hot.
IMPORTANT NOTES:
■ Avoid cooking extremely greasy foods and
be careful of grease spillover while cooking.
■ Never place or store any items on
the griddle, even when it is not in use.
The griddle can become heated when
using the surrounding surface units.
Preheat
Setting
Type of Food and Time Cook Setting
Warming 55
Tortillas 5 min.
Pancakes 83
5 min.
Hamburgers 53
5 min.
Fried Eggs 52
4 min.
Bacon None 6
Breakfast 84
Sausage Links 5 min.
Hot Sandwiches 83
(such as 3 min.
Grilled Cheese)
NOTE: Griddle settings may need to be adjusted
if griddle is used for an extended time.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
G
EAppliances.com
Restaurant-Quality Steak
Many fine restaurants will prepare steak by first searing it using cast iron and then continue to finish the steak
in the oven. Using the Lodge
®
cast-iron griddle that came with your range, you can do the very same thing
in the comfort of your own home! The chart and instructions below will guide you through this process.
Griddle Griddle Sear Each Probe
Meat Desired Control Preheat Side Oven Temp Internal
Thickness Doneness Setting Time (Hi Setting) (Bake) Temp Rest Time
Medium Well Hi 5 min. 3 min. 425° 165° 5 min.
Well Done Hi 5 min. 3 min. 425° 170° 5 min.
Medium Rare Hi 5 min. 3 min. 425° 145° 5 to 10 min.
Medium Hi 5 min. 3 min. 425° 160° 5 to 10 min.
Medium Well Hi 5 min. 3 min. 425° 165° 5 to 10 min.
Well Done Hi 5 min. 3 min. 425° 170° 5 to 10 min.
Rare Hi 5 min. 3 min. 425° 140° 8 to 10 min.
Medium Rare Hi 5 min. 3 min. 425° 145° 8 to 10 min.
Medium Hi 5 min. 3 min. 425° 160° 8 to 10 min.
Medium Well Hi 5 min. 3 min. 425° 165° 8 to 10 min.
† Most thinner steaks will not cook to any less than Medium Well.
‡ May be difficult to cook thicker steaks to Well Done.
3/4″ to 1
1
⁄4″
†
Thicker than 2″
‡
1
1
⁄2″ to 2″
Restaurant-Quality Steak, Easy as 1, 2, 3:
1. Bring steak to room temperature.
NOTE: Always use safe food practices when handling meat.
2. Season both sides to taste and coat with olive oil or similar.
3. Preheat the oven to BAKE at 425°, with the oven rack in center position “C.”
4. Place your Lodge
®
cast-iron griddle on the designated area of the cooktop, and then preheat
the griddle on the Hi setting for 5 minutes.
5. Sear steak on each side for 3 minutes. NOTE: There will be “smoke”; ensure there
is proper ventilation.
6. Remove your Lodge
®
cast-iron griddle from the cooktop and place directly in the oven
with the steak still on the griddle.
CAUTION:The griddle will be VERY HOT!
7. Insert the meat probe that came with your range into the center of the steak, making sure
that the tip of the probe is in the center of the steak.
8. Plug the probe into the outlet (located on the upper front side of the oven), slide the rack back
into the oven, and close the door.
9. Press PROBE on your control, enter the desired internal temp shown above, and press START.
10. Allow steak to finish cooking in the oven. The range control will beep and turn off when
the steak reaches the desired internal temperature.
NOTES:
■ After searing, your steak could possibly already be at the desired temperature, depending
on size, cut and desired doneness.
■ For thinner steaks it may not be possible to achieve a Rare or Medium Rare doneness.
11. Remove the steak from the oven, and let it rest on a baker’s rack (or equivalent)
for the specified time.
By first searing your meat with a very high heat, you are creating a browning reaction known as the Maillard
Reaction. This reaction unlocks the fuller, more intense flavor from the meat, which occurs when cooking meat
at a high heat.
9
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
10

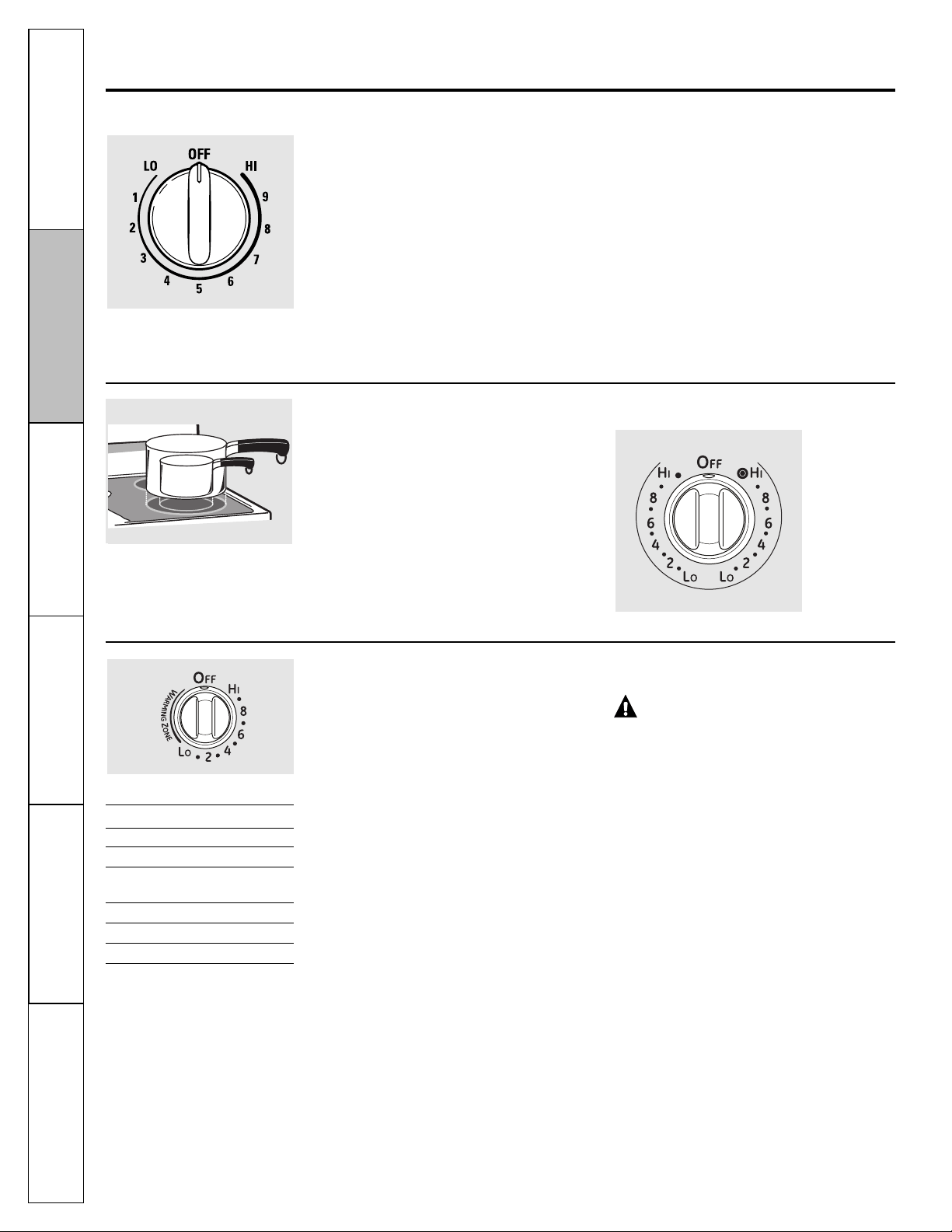

Using the surface units.
Throughout this manual, features and appearance may vary from your model.
How to Set
P
ush the knob in and turn in either direction
to the setting you want.
At both OFF and HI the control clicks into
position. You may hear slight clicking sounds
during cooking, indicating the control is
keeping the power level you set.
A
HOT COOKTOP indicator light will glow
when any radiant element is turned on, and
will remain on until the surface is cooled to
approximately 150°F.
Indicator light will:
■ come on when the unit is turned on
or hot to the touch.
■ stay on even after the unit is turned off.
■ glow until the unit is cooled to
approximately 150°F.
Be sure you turn the control knob to OFF
when you finish cooking.
Dual-Surface Unit Control Knob
The dual-surface unit has 2 cooking sizes to
select from so you can match the size of the
unit to the size of the cookware you are using.
To use the small surface unit, turn the control
knob counterclockwise to the small surface
unit settings.
To use the large surface unit, turn the control
knob clockwise to the large surface unit
settings.
Using the COOK-WARM Zone
The COOK-WARM ZONE, located in the back
center of the glass surface, will keep hot,
cooked food at serving temperature. Always
start with hot food. Do not use to heat cold
food. Placing uncooked or cold food on
the COOK-WARM ZONE could result
in food-borne illness.
Push and turn the control knob to any
desired setting.
For best results, all foods on the
COOK-WARM ZONEshould be covered
with a lid or aluminum foil. When warming
pastries or breads, the cover should be
vented to allow moisture to escape.
Always use pot holders or oven mitts when
removing food from the COOK-WARM ZONE,
as cookware and plates will be hot.
CAUTION: Do not warm food
on the COOK-WARM ZONE for more than two
hours.
NOTE: The surface cook-warm zone will not
glow red like the cooking elements.
A HOTsurface indicator light will glow when
the glass surface is hot and will remain on
until the surface is cool enough to touch.
Lower settings may not heat the glass
surface enough to cause the HOT surface
indicator light to come on.
A COOK-WARM ZONE indicator light will glow
when the unit is on.
■ Do not use plastic wrap to cover food.
Plastic may melt onto the surface
and be very difficult to clean.
■ Use only cookware recommended for
top-of-range cooking.
GGUUIIDDEE
SSEETTTTIINNGG FFOOOODD
(Low) Bread/Pastries
(Medium) Chocolate/Butter
(Medium) Sauces, Stews,
Cream Soups
(Medium) Vegetables
(High) Soups (liquid)
(High) Tea or Coffee
The Guide is for reference only
and the SETTING that you need
will depend on the amount and type
of food, the starting temperature
of the food and the length
of the holding time.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
11
G
EAppliances.com
Throughout this manual, features and appearance may vary from your model.
Home Canning Tips
Be sure the canner is centered over
the surface unit.
Make sure the canner is flat on the bottom.
To prevent burns from steam or heat,
use caution when canning.
Use recipes and procedures from
reputable sources. These are available from
manufacturers such as Ball
®
and Kerr
®
and
the Department of Agriculture Extension
Service.
Flat-bottomed canners are recommended.
Use of water bath canners with rippled
bottoms may extend the time required
to bring the water to a boil.
Use only flat-bottomed woks.
Wok Cooking
We recommend that you use only
a flat-bottomed wok. They are available
at your local retail store.
Do not use woks that have support rings.
Do not use round bottom woks. You could be
seriously burned if the wok tipped over.
Temperature Limiter
Every radiant surface unit has a temperature
limiter.
The temperature limiter protects the glass
cooktop from getting too hot.
The temperature limiter may cycle the units
off for a time if:
■ The pan boils dry.
■ The pan bottom is not flat.
■ The pan is off-center.
■ There is no pan on the unit.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Using the surface units.
The following information will help you choose cookware which will give good performance on glass cooktops.
Never cook directly on the glass.
Always use cookware.
About the radiant surface units…
The radiant cooktop features heating units
beneath a smooth glass surface.
NOTE: A slight odor is normal when a new
cooktop is used for the first time. It is caused
by the heating of new parts and insulating
materials and will disappear in a short time.
NOTE: On models with light-colored glass
cooktops, it is normal for the cooking zones to
change color when hot or cooling down. This
is temporary and will disappear as the glass
cools to room temperature.
The surface unit will cycle on and off to
maintain your selected control setting.
It is safe to place hot cookware on the glass
surface even when the cooktop is cool.
Even after the surface units are turned off,
the glass cooktop retains enough heat to
continue cooking. To avoid overcooking,
remove pans from the surface units when
the food is cooked. Avoid placing anything
on the surface unit until it has cooled
completely.
Do not slide cookware across the cooktop
because it can scratch the glass—the glass
is scratch-resistant, not scratchproof.
■ Water stains (mineral deposits) are
removable using the cleaning cream
or full-strength white vinegar.
■ Use of window cleaner may leave an
iridescent film on the cooktop. The cleaning
cream will remove this discoloration.
■ Don’t store heavy items above the cooktop.
If they drop onto the cooktop, they can
cause damage.
■ Do not use the surface as a cutting board.
Always place the pan in the center
of the surface unit you are cooking on.
12
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
Selecting types of cookware. GEAppliances.com
Stainless Steel:
recommended
Aluminum:
heavy weight recommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop, but can be removed if cleaned
immediately. Because of its low melting point,
thin weight aluminum should not be used.
Copper Bottom:
recommended
Copper may leave residues which can
appear as scratches. The residues can be
removed, as long as the cooktop is cleaned
immediately. However, do not let these pots
boil dry. Overheated metal can bond to glass
cooktops. An overheated copper-bottom pot
will leave a residue that will permanently
stain the cooktop if not removed
immediately.
Porcelain Enamel-Covered
Cast-Iron:
recommended
As long as the cookware is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended for cast-iron cookware
that is not completely covered with smooth
porcelain enamel, as it may scratch the
glass-ceramic cooktop.
NOTE: The Lodge
®
cast-iron griddle provided
with the range is specifically designed for use
with the radiant cooktop. Do not use any
other griddles on the radiant cooktop.
Glass-ceramic:
usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the surface.
Check pans for flat bottoms by using
a straight edge.
Pans with rounded, curved, ridged or
warped bottoms are not recommended.
13
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
14
Using the upper oven controls.
(Throughout this manual, features and appearance may vary from your model.)
BAKE Pad
Touch to select the bake function.
BROIL HI/LO Pad
Touch to select the broil function.
CONVECTION BAKE MULTI/1 RACK Pad
Touch to select baking with the convection
function.
CONVECTION ROAST Pad
Touch to select roasting with the convection
function.
START Pad
Must be touched to start any cooking or
cleaning function.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil
or self-cleaning mode, the times set for
the timer or automatic oven operations,
and if the range is locked.
SELF-CLEAN Pad
Touch to select self-cleaning function.
See the Using the self-cleaning oven section.
If “F–” and a number or letter flash in the display
and the oven control signals, this indicates a
function error code. Touch the CLEAR/OFF pad. Allow
the oven to cool for one hour. Put the oven back into
operation. If the function error code repeats, disconnect
the power to the oven and call for service.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there
has been a power outage.
OVEN LIGHT Pad
Touch to turn the oven light on or off.
DELAY START Pad
Use along with COOKING TIME or SELF
CLEAN pads to set the oven to start and
stop automatically at a time you set.
COOKING TIME Pad
Touch and then touch the number pads to set
the amount of time you want your food to
cook. The oven will shut off when the cooking
time has run out.
CLEAR/OFF Pad
Touch to cancel ALL upper oven operations
except the clock, timer and Range Lockout.
CLOCK Pad
Touch before setting the clock.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal food
temperature, the start time and length of
operation for timed baking and self-cleaning.
KITCHEN TIMER ON/OFF Pad
Touch to select the timer feature.
PROBE Pad
Touch when using the probe to cook food.
RANGE LOCKOUT Pad
Touch the RANGE LOCKOUT pad and then
touch the START pad to lock/unlock the surface
units, oven burners and control panel so they
cannot/can be activated.
Oven Control, Clock, Timer and Features
Features and appearance may vary.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
15
To avoid possible burns, place the racks in the desired position before you turn the oven on.
Before you begin…
The racks have stop-locks, so that when
placed correctly on the supports, they will
stop before coming completely out and
will not tilt.
When placing and removing cookware,
pull the rack out to the bump on the rack
support.
To remove a rack, pull it toward you,
tilt the front end up and pull it out.
To replace, place the end of the rack
(stop-locks) on the support, tilt up the front
and push the rack in.
NOTE: The rack is not designed to slide out
at the special low rack (R) position.
Upper Oven Vent
Your oven is vented through ducts at the rear
of the range. Do not block these ducts when
cooking in the oven—it is important that
the flow of hot air from the oven and fresh
air to the oven burner be uninterrupted.
Avoid touching the vent openings or nearby
surfaces during oven or broiler operation—
they may become hot.
■ Handles of pots and pans on the cooktop
may become hot if left too close to the vent.
■ Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■ Do not leave any items on the cooktop. The
hot air from the vent may ignite flammable
items and will increase pressure in closed
containers, which may cause them to burst.
■ Metal items will become very hot if they are
left on the cooktop, and could cause burns.
Using the upper oven. G
EAppliances.com
The oven has 5 rack positions.
It also has a special low rack position (R)
for extra large items, such as a large
turkey.
Plastic items on the cooktop may melt
if left too close to the vent.
Vent appearance and location vary.
Upper Oven Light
Touch the OVEN LIGHT pad to turn the light
on or off.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
16
How to Set the Upper Oven for Baking or Roasting
Touch the BAKE pad.
Touch the number pads to set
the desired temperature.
Touch the START pad.
The word ON and 100° will be displayed.
As the oven heats up, the display will show the
changing temperature. When the oven reaches
the temperature you set, a tone will sound.
To change the oven temperature during BAKE
cycle, press the BAKE pad and then the
number pads to get the new temperature.
Check food for doneness at minimum
time on recipe. Cook longer if necessary.
Touch the CLEAR/OFF pad when
cooking is complete.
Type of Food Rack Position
Frozen pies (on cookie sheet) C
Angel food cake A
Bundt or pound cakes C
Biscuits, muffins, brownies, B or C
c
ookies, cupcakes,
layer cakes, pies
Casseroles B or C
Turkey R or A
Roasting A or B
The oven has a special low rack (R)
position just above the oven bottom.
Use it when extra cooking space is
needed, for example, when cooking
a large turkey. The rack is not designed
to slide out at this position.
Using the upper oven.
Aluminum Foil
Do not use aluminum foil on the bottom
of the oven.
Do not use aluminum foil to catch spillovers
when using the CircuWave fan. The foil
will be sucked toward the convection fan.
Never entirely cover a rack with aluminum
foil. This will disturb the heat circulation and
result in poor baking.
A smaller sheet of foil may be used to catch a
spillover by placing it on a lower rack several
inches below the food.
Oven Moisture
As your oven heats up, the temperature
change of the air in the oven may cause
water droplets to form on the door glass.
These droplets are harmless and will
evaporate as the oven continues to heat up.
Preheating and Pan Placement
Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary
when convection baking and for good
results when baking cakes, cookies,
pastry and breads.
Baking results will be better if foods are
centered in the oven as much as possible.
Pans should not touch each other or the
walls of the oven.
For best results when baking four cake layers
at a time, use racks B and D. Place the lower
pans at the back of the rack and the upper
pans at the front of the rack as shown so that
one pan is not directly above another leaving
approximately 1-1/2" between pans and
from the front, back and sides of the walls.
Type of Food Rack Position
Pies – On cookie sheet C
Angel food cake A
Bundt or pound cakes B
Biscuits, muffins, brownies, C
cookies, cupcakes,
layer cakes, pies
Casseroles C
Roasting – Small cuts of meat A or B
Roasting – Turkey and large
cuts of meat R or A
4-Layer cakes B & D
When baking on a single rack, use
the rack position from the chart for your
type of food. Baking results will be
better if baking pans are centered in
the oven as much as possible.
When baking four cake layers at a time,
use racks B and D. Place the lower pans
at the back of the rack and the upper pans
to the front of the rack shown so that one
pan is not directly above another.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
17
G
EAppliances.com
How to Set the Upper Oven for Broiling—Close the oven door
Place the meat or fish on a broiler grid
in a broiler pan.
Follow suggested rack positions in
t
he Broiling Guide.
The oven door must be closed during
broiling.
Touch the BROIL HI/LO pad once for
HI Broil.
To change to LO Broil, touch
the BROIL HI/LO pad again.
Touch the START pad.
N
OTE: The display will always automatically
remind you to close the door.
When broiling is finished, touch
the CLEAR/OFF pad.
Serve the food immediately, and leave
the pan outside the oven to cool during
the meal for easiest cleaning.
Use LO Broil to cook foods such as poultry
or thick cuts of meat thoroughly without
over-browning them.
The size, weight, thickness,
starting temperature and your
preference of doneness will affect
broiling times. This guide is based
on meats at refrigerator
temperature.
†The U.S. Department of Agriculture
says “Rare beef is popular, but you
should know that cooking it to only
140°F means some food poisoning
organisms may survive.” (Source:
Safe Food Book, Your Kitchen
Guide, USDA Rev. June 1985.)
Quantity and/ Rack First Side Second Side
Food or Thickness Position Time (min.) Time (min.) Comments
Ground Beef 1 lb. (4 patties) C 13 8 Space evenly.
1
⁄2″ to
3
⁄4″ thick
4 lbs. (16 patties) C 15 11
Beef Steaks
Rare†
3
⁄4″ to 1″ thick E6 4Steaks less than
3
⁄4″ thick
Medium 1 to 1
1
⁄2 lbs. D8 6are difficult to cook rare.
Well Done D 10 8 Slash fat.
Rare† 1
1
⁄2″ thick C 10 8
Medium 2 to 2
1
⁄2 lbs. C 15 10–12
Well Done D 20 20
Chicken 1 whole cut up B 25 25 Brush each side with
2 to 2
1
⁄2 lbs., melted butter.
split lengthwise Broil skin-side-down first.
Breast B 25 15
Bakery Product
Bread (toast) 2 to 4 slices D3 1Space evenly. Place English
English Muffin 2 (split) E 3–4 muffins cut-side-up and
brush with butter if desired.
Lobster Tails 2–4 B 18–20 Do not Cut through back of shell.
turn Spread open. Brush with
over. melted butter before
broiling and after half
of broiling time.
Fish Fillets 1 lb. (
1
⁄4″ to
1
⁄2″ thick) D5 5Handle and turn very
carefully. Brush with
lemon butter before
and during cooking,
if desired.
Salmon
Steaks 2 (1″ thick) D 10 5 Turn carefully. Do not
Fillets 2 (
1
⁄2″ to
3
⁄4″ thick) D 10 turn skin side down.
Ham Slices
1
⁄2″ thick C6 6
(precooked) 1″ thick C8 8
Pork Chops 2 (
1
⁄2″ thick) C 10 10 Slash fat.
Well Done 2 (1″ thick) about 1 lb. C 15 15
Broiling Guide
Close the door. Always broil with
the door closed.
NNOOTTEE::
Broil will not work if the
temperature probe is plugged in.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
If a flashing time is in the display, you have
experienced a power failure. Reset the clock.
To reset the clock, touch the CLOCK pad.
Enter the correct time of day by touching
the appropriate number pads. Touch the
START pad.
18
Make sure the clock is set to the correct
time of day.
The timer is a minute timer only.
The CLEAR/OFF pad does not affect
the timer.
Not all features are on all models.
To Set the Clock
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of day
cannot be changed during a timed baking
or self-cleaning cycle.
Touch the CLOCK pad.
Touch the number pads.
Touch the number pads the same way you
read them. For example, to set 12:34, touch
the number pads 1, 2, 3 and 4 in that order.
If number pads are not touched within
one minute after you touch the CLOCK pad,
the display reverts to the original setting.
If this happens, touch the CLOCK pad
and reenter the time of day.
Touch the START pad until the time
of day shows in the display. This enters
the time and starts the clock.
To check the time of day when the display
is showing other information, simply touch
the CLOCK pad. The time of day shows until
another pad is touched.
To Set the Timer
The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.
Touch the KITCHEN TIMER ON/OFF pad.
Touch the number pads until the
amount of time you want shows in
the display. The maximum number
of minutes that can be entered is 60.
To set additional time, you will need
to set it by hours and minutes.
For example, to enter 1 hour and
30 minutes, touch 1, 3 and 0 in
that order.
If you make a mistake, press the KITCHEN
TIMER ON/OFF pad and begin again.
Touch the START pad. After pressing
the START pad, SET disappears; this tells
you the time is counting down, although
the display does not change until one
minute has passed.
When the timer reaches :00, the control
will beep 3 times followed by one beep
every 6 seconds until the KITCHEN
TIMER ON/OFF pad is touched.
The 6-second tone can be canceled by
following the steps in the Special features
of your upper oven control section under
Tones at the End of a Timed Cycle.
Using the clock and timer.
To Reset the Timer
If the display is still showing the time
remaining, you may change it by touching
the KITCHEN TIMER ON/OFF pad; then touch
the number pads until the time you want
appears in the display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the KITCHEN TIMER ON/OFF pad
and then touching the number pads to enter
the new time you want.
To Cancel the Timer
Touch the KITCHEN TIMER ON/OFF pad twice.
Power Outage
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
19
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
m
ore than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The upper oven will turn on immediately and
cook for a selected length of time. At the end
of the cooking time, the oven will turn off
automatically.
Touch the BAKE pad.
Using the number pads, enter
the desired temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length
of the cooking time.
Using the number pads, enter
the desired baking time. The oven
temperature and the cooking time
that you entered will be displayed.
Touch the START pad.
The word ON and 100° will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. When the oven
reaches the temperature you set, 3 beeps
will sound.
At the end of timed baking, the oven will turn
off. The end of cycle tone will sound.
Touch the CLEAR/OFF pad to clear
the display.
How to Set a Delayed Start and Automatic Stop
You can set the upper oven control
to delay-start the oven, cook for a specific
length of time and then turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Using the number pads, enter
the desired temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length
of the cooking time.
Using the number pads, enter
the desired baking time.
Touch the DELAY START pad.
Using the number pads, enter the time
of day you want the oven to turn on
and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking and do not touch the
START pad after entering the baking
temperature.
If you would like to check the times
you have set, touch the DELAY START pad
to check the start time you have set or touch
the COOKING TIME pad to check the length
of cooking time you have set.
The oven will turn on automatically.
The word ON and 100° will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. The oven will cook
for the programmed cooking time and shut
off automatically.
At the end of timed baking, the oven will
turn off. The end of cycle tone will sound.
Touch the CLEAR/OFF pad to clear
the display.
Using the timed baking and
roasting features (upper oven only).
GEAppliances.com
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
20
Use of probes other than the one provided with
this product may result in damage to the probe.
Use the handles of the probe and plug when
i
nserting and removing them from the food
and outlet.
■ To avoid damaging your probe, do not use
tongs to pull on the cable when removing it.
■ To avoid breaking the probe, make sure food
is completely defrosted before inserting.
■ To prevent possible burns, do not unplug
the probe from the outlet until the oven
has cooled.
■ Never leave your probe inside the oven
during a self-cleaning cycle.
■ Do not store the probe in the oven.
The temperature probe has a skewer-like
probe at one end and a plug at the other
end that goes into the outlet in the oven.
Plug
Probe
Cable
Handles
F
or many foods, especially roasts and poultry, internal food temperature is the best test for doneness.
The temperature probe takes the guesswork out of roasting by cooking foods to the exact doneness you want.
After preparing the meat and placing
it on a trivet or on a broiler pan grid,
follow these directions for proper probe
placement.
Insert the probe completely into the meat.
It should not touch the bone, fat or gristle.
For roasts with no bone, insert the probe into
the meatiest part of the roast. For bone-in
ham or lamb, insert the probe into the center
of the lowest large muscle.
Insert the probe into the center of dishes
such as meat loaf or casseroles.
Insert the probe into the meatiest part of the
inner thigh from below and parallel to the leg
of a whole turkey.
Using the probe.
How to Set the Upper Oven For Roasting When Using the Probe
Insert the probe into the food.
Plug the probe into the outlet
in the oven. Make sure it’s pushed
all the way in. Close the oven door.
Touch the PROBE pad.
Touch the number pads
to set the desired internal food
or meat temperature.
Touch the BAKE pad.
Touch the number pads to set
the desired oven temperature.
Touch the START pad.
The display will flash if the probe is inserted
into the outlet and you have not set a probe
temperature and touched the START pad.
After the internal temperature of the food
reaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have set,
the probe and the oven turn off and the
oven control signals. To stop the signal,
touch the CLEAR/OFF pad. Use hot pads
to remove the probe from the food.
Do not use tongs to pull on it—they
might damage it.
To change the oven temperature during
the Roast cycle, touch the BAKE pad and
then the number pads to set the new
temperature.
■ If the probe is removed from the food
before the final temperature is reached,
a tone will sound and the display will flash
until the probe is removed from the oven.
■ You can use the timer even though you
cannot use timed oven operations while
using the probe.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
21
Using the convection oven. GEAppliances.com
The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time
w
hile using convection cooking.
T
o help you understand the difference
between convection bake and roast and
traditional bake and roast, here are some
general guidelines.
Convection Bake
■ Preheat the oven. See Preheating and Pan
Placement in the Using the upper oven
section.
■ Ideal for foods cooked on multiple racks.
■ Good for large quantities of baked foods.
■ Good results with cookies, biscuits,
brownies, cupcakes, cream puffs,
sweet rolls, angel food cake and bread.
The convection fan circulates the heated
air evenly over and around the food.
Convection Roast
■ Good for large tender cuts of meat,
uncovered.
The convection fan circulates the heated air
evenly over and around the food. Meat and
poultry are browned on all sides as if they
were cooked on a rotisserie. Heated air will
be circulated over, under and around the
food being roasted. The heated air seals in
juices quickly for a moist and tender product
while, at the same time, creating a rich
golden brown exterior.
R
oasts or poultry should be cooked on rack
position (A).
When you are convection roasting, it is
i
mportant that you use a broiler pan and grid
for best convection roasting results. The pan
is used to catch grease spills and the grid is
used to prevent grease spatters.
■ Place the rack in rack position (A).
In a convection oven, a fan circulates
hot air over, under and around the food.
This circulating hot air is evenly
distributed throughout the oven cavity.
As a result, foods are evenly cooked
and browned—often in less time than
with regular heat.
NNOOTTEE::
To maximize cooking evenness,
the fan is designed to rotate in both
directions with a pause in between.
This is normal.
Cookware for Convection Cooking
Before using your convection oven, check
to see if your cookware leaves room for air
circulation in the oven. If you are baking with
several pans, leave space between them.
Also, be sure the pans do not touch each
other or the walls of the oven.
Paper and Plastic
Heat-resistant paper and plastic containers
that are recommended for use in regular
ovens can be used in convection ovens.
Plastic cookware that is heat-resistant to
temperatures of 400°F can also be used,
when oven is below 400°F.
Metal and Glass
Any type of cookware will work in your
convection oven. However, metal pans heat
the fastest and are recommended for
convection baking.
■ Darkened or matte-finished pans will bake
faster than shiny pans.
■ Glass or ceramic pans cook more slowly.
When baking cookies, you will get the best
results if you use a flat cookie sheet instead
of a pan with low sides.
For recipes like oven-baked chicken, use a
pan with low sides. Hot air cannot circulate
well around food in a pan with high sides.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
22
When convection baking with only
1 rack, follow the rack positions
recommended in the Using the
Oven section.
Using the convection oven.
Multi-Rack Baking
Because heated air is circulated evenly
throughout the oven, foods can be baked
with excellent results using multiple racks.
Multi-rack baking may increase cook times
slightly for some foods but the overall result
is time saved. Cookies, muffins, biscuits,
and other quick breads give very good
results with multi-rack baking.
To cook food on more than one rack in
convection bake, use CONVECTION BAKE
MULTI.
When baking larger foods on 3 racks,
place one rack in the 2nd (A) position,
one on the 4th (C) position and the third rack
in the 6th (E) position.
When baking cookies, place the racks
in the 3rd (B), 4th (C) and 5th (D) positions.
How to Set the Upper Oven for Convection Baking or Roasting
Touch the CONVECTION BAKE MULTI/
1 RACK pad once for multi-rack
convection baking. This mode is used
f
or cooking food items on more than
one rack (i.e., 2, 3 or more racks) at the
same time in convection bake. See the
Multi-Rack Baking section for more
information. Touch the CONVECTION
BAKE MULTI/1 RACK pad twice for one
rack convection baking. This mode is
used for cooking food items on only
one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set
the desired oven temperature.
Remember to adjust baking
temperature accordingly.
See the Adapting Recipes section.
Touch the START pad.
To change the oven temperature, touch
the CONVECTION BAKE or CONVECTION
ROAST pad and then the number pads
t
o set the new temperature.
When the oven starts to heat the changing
temperature, starting at 100°F, will be
displayed. When the oven reaches the
temperature you set, 3 beeps will sound.
Touch the CLEAR/OFF pad when finished.
NOTE: You will hear a fan while cooking with
convection. The fan will stop when the door
is opened but the heat will not turn off.
The fan will not start until the preheat
temperature is reached.
In convection bake modes, for maximum
cooking evenness, the fan is designed to rotate
in both directions, with a pause in between.
This is normal.
NOTE: When convection baking, the oven
temperature will be 25˚F (14˚C) lower than
the set temperature. See Auto Recipe™
Conversion in the Special Features section
for more information. When convection
roasting, oven temperature will not auto
convert.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
23
G
EAppliances.com
How to Set the Upper Oven for Convection Roasting when Using the Probe
The display will flash PROBE and the oven
c
ontrol will signal if the probe is inserted into
the outlet, and you have not set a probe
temperature and touched the START pad.
Place the rack in the rack position (A).
Insert the probe completely into the food.
Plug the probe into the outlet
in the oven. Make sure it is pushed
all the way in. Close the oven door.
Touch the CONVECTION ROAST pad.
Touch the number pads to set
the desired oven temperature.
Touch the PROBE pad.
Touch the number pads to set
the desired internal food temperature.
To change the oven temperature during
the Convection Roast cycle, touch the
CONVECTION ROAST pad and then touch
the number pads to set the new desired
temperature.
Touch the START pad.
When the oven starts to heat, the word
LO will be in the display.
After the internal temperature of the food
r
eaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have set,
the probe and the oven turn off and the
oven control signals. To stop the signal,
touch the CLEAR/OFF pad. Use hot
pads to remove the probe from the
food. Do not use tongs to pull on it—
they might damage it.
CAUTION: To prevent possible
burns, do not unplug the probe from the
oven outlet until the oven has cooled.
Do not store the probe in the oven.
NOTE:
■ If the probe is removed from the food
before the final temperature is reached,
a tone will sound and the display will flash
until the probe is removed from the oven.
■ You will hear a fan while cooking with
this feature. The fan will stop when
the door is opened but the heat will
not turn off.
■ You can use the timer even though you
cannot use timed oven operations while
using the probe.
For best results when roasting large
turkeys and roasts, we recommend
using the probe included in the
convection oven.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Convection Roasting Guide
Meats Minutes/Lb. Oven Temp.
Internal Temp.
Beef Rib (3 to 5 lbs.) Rare† 20–24 325
˚
F
140
˚
F
Medium 24–28 325
˚
F
160
˚
F
Well 28–32
325
˚
F 170
˚
F
Boneless Rib, Top Sirloin
Rare† 20–24 325
˚
F
140
˚
F
Medium 24–28 325
˚
F
160
˚
F
Well 28–32 325
˚
F 170
˚
F
Beef Tenderloin Rare† 10–14 325
˚
F 140
˚
F
Medium 14–18 325
˚
F 160
˚
F
Pot Roast (2
1
/2 to 3 lbs.) chuck, rump
35–45 300
˚
F 170
˚
F
Pork Bone-in (3 to 5 lbs.) 23–27 325
˚
F 170
˚
F
Boneless (3 to 5 lbs.) 23–27 325
˚
F 170
˚
F
Pork Chops (
1
/2" to 1" thick) 2 chops 30–35 total 325
˚
F 170
˚
F
4 chops 35–40 total 325
˚
F 170
˚
F
6 chops 40–45 total 325
˚
F 170
˚
F
Ham Canned (3 lbs. fully cooked) 14–18 325
˚
F 140
˚
F
Butt (5 lbs. fully cooked) 14–18 325
˚
F 140
˚
F
Shank (5 lbs. fully cooked) 14–18 325
˚
F 140
˚
F
Lamb Bone-in (3 to 5 lbs.) Medium 17–20 325
˚
F 160
˚
F
Well 20–24 325
˚
F 170
˚
F
Boneless (3 to 5 lbs.) Medium 17–20 325
˚
F 160
˚
F
Well 20–24 325
˚
F 170
˚
F
Seafood Fish, whole (3 to 5 lbs.) 30–40 total 400
˚
F
Lobster Tails (6 to 8 oz. each) 20–25 total 350
˚
F
Poultry Whole Chicken (2
1
/2 to 3
1
/2 lbs.) 24–26 350
˚
F 180
˚
–185
˚
F
Cornish Hens Unstuffed (1 to 1
1
/2 lbs.) 50–55 total 350
˚
F 180
˚
–185
˚
F
Cornish Hens Stuffed (1 to 1
1
/2 lbs.) 55–60 total 350
˚
F
180
˚
–185
˚
F
Duckling (4 to 5 lbs.) 24–26 325
˚
F 180
˚
–185
˚
F
Turkey, whole*
Unstuffed (10 to 16 lbs.) 8–11 325
˚
F
180
˚
–185
˚
F
Unstuffed (18 to 24 lbs.) 7–10 325
˚
F 180
˚
–185
˚
F
Turkey Breast (4 to 6 lbs.) 16–19 325
˚
F 170
˚
F
*
S
t
u
ffed
b
irds
gene
ra
lly
req
u
ire
3
0
–4
5
minu
t
es
a
d
dit
ional
roast
ing
t
im
e
.
Shiel
d
leg
s
a
nd
b
reast
w
it
h
foil
t
o
prevent
overb
row
ning
a
n
d
d
ry
ing
of
skin.
†The U.S. Department of Agriculture says "Rare beef is popular, but you should know that cooking it to only 140
˚
F
means some food poisoning organisms may survive." (Source: Safe Food Book. Your Kitchen Guide. USDA Rev.
June 1985.)
Using the convection oven.
24
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
25
You will hear a fan while cooking with this feature. The fan will stop when the door is opened but the heat
will not turn off.
NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to
sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria.
Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The upper oven will turn on immediately and
cook for a selected length of time. At the end
of the cooking time, the oven will turn off
automatically.
Touch the CONVECTION BAKE MULTI/
1 RACK pad once for multi-rack
convection baking. This mode is used for
cooking food items on more than one
rack (i.e., 2, 3 or more racks) at the same
time in convection bake. See the Multi-
Rack Baking section for more information.
Touch the CONVECTION BAKE MULTI/
1 RACK pad twice for one rack convection
baking. This mode is used for cooking food
items on only one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set
the desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length
of the cooking time.
Touch the number pads to set
the desired length of cooking time.
The minimum cooking time you
can set is 1 minute.
The oven temperature that you set and
the cooking time that you entered will be
in the display.
Touch the START pad.
The display shows the oven temperature
that you set and the cooking time
countdown. The display starts changing
once the temperature reaches 100°F.
At the end of timed convection bake
the oven will turn off. The end of cycle
tone will sound. Touch the CLEAR/OFF
pad to clear the display if necessary.
Remove the food from the oven.
Remember, foods that are left
in the oven continue cooking
after the controls are off.
How to Set a Delayed Start and Automatic Stop
You can set the upper oven control
to delay-start the oven, cook for a specific
length of time and then turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the CONVECTION BAKE
MULTI/1 RACK pad once for multi-rack
convection baking. This mode is used
for cooking food items on more than
one rack (i.e., 2, 3 or more racks)
at the same time in convection bake.
See the Multi-Rack Baking section
for more information. Touch the
CONVECTION BAKE MULTI/1 RACK pad
twice for one rack convection baking.
This mode is used for cooking food items
on only one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set
the desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you
may need to add additional time to the length
of the cooking time.
Touch the number pads to set
the desired cooking time.
Touch the DELAY START pad.
Touch the number pads to set the time
of day you want the oven to turn on
and start cooking.
If you would like to check the times you have
set, touch the DELAY START pad to check
the start time you have set or touch the
COOKING TIME pad to check the length
of cooking time you have set.
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking and do not touch the START
pad after entering the baking temperature.
When the oven turns on at the time of
day you have set, the display will show
the changing temperature (starting at 100°F)
and the cooking time countdown.
At the end of timed convection bake the oven
will turn off. The end of cycle tone will sound.
Touch the CLEAR/OFF pad to clear
the display if necessary. When baking
is finished, remove the food from
the oven. Remember, even though
the oven shuts off automatically,
foods continue cooking after
the controls are off.
Using the timed convection
baking features (upper oven only).
GEAppliances.com
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
26
Y
our new touch pad control has additional features that you may choose to use. The following are the features
and how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain
in the control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure.
12 Hour Shut-Off
With this feature, should you forget and leave
the oven on, the control will automatically turn
off the oven after 12 hours during baking
functions or after 3 hours during a broil function.
If you wish to turn OFF this feature,
follow the steps below.
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the DELAY START pad.
The display will show 12 shdn (12 hour
shut-off). Touch the DELAY START pad
again and the display will show no shdn
(no shut-off).
Touch the START pad to activate
the no shut-off and leave the control
set in this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change
this to use the Celsius selections.
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the BROIL HI/LO pad. The display
will show F (Fahrenheit).
Touch the BROIL HI/LO pad again.
The display will show C (Celsius).
Touch the START pad.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds
until the CLEAR/OFF pad is touched. This
continual 6-second beep may be canceled.
To cancel the 6-second beep:
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the KITCHEN TIMER ON/OFF
pad. The display shows CON BEEP
(continual beep). Touch the KITCHEN
TIMER ON/OFF pad again. The display
shows BEEP. (This cancels the one beep
every 6 seconds.)
Touch the START pad.
Special features of your upper oven control.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
27
GEAppliances.com
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12-hour clock.
If you would prefer to have a 24-hour military
time clock or black out the clock display,
follow the steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the CLOCK pad once.
The display will show 12 hr.
If this is the choice you want,
touch the START pad.
Touch the CLOCK pad again to change
to the 24-hour military time clock. The display
will show 24 hr. If this is the choice you want,
touch the START pad.
Touch the CLOCK pad again to black out
the clock display. The display will show OFF.
If this is the choice you want, touch
the START pad.
NOTE: If the clock is in the black-out mode, you
will not be able to use the Delay Start function.
Your control will allow you to lock out
the surface units, oven burners and control
panel so they cannot be activated.
To lock/unlock the controls:
Turn all surface units off.
Touch the RANGE LOCKOUT pad
and then the START pad.
To unlock the control, touch the RANGE
LOCKOUT pad and then the START pad.
When this feature is on and the touch
pads are touched, the control will beep
and the display will show LOC.
■ The control lock-out mode affects all
controls. No controls will work when
this feature is activated.
■ The adjustment will be retained in memory
after a power failure.
Range Lockout
Auto Recipe
™
Conversion
You can use your favorite recipes in the
convection oven.
When using CONVECTION BAKE, the oven
will automatically convert the oven
temperature from regular baking to
Convection Bake temperatures.
The display will show the actual converted
(reduced) temperature. For example, if you
enter a regular recipe temperature of 350˚F
(177˚C) and touch the START pad, the display
will show CON and the converted
temperature of 325˚F (163˚C).
NOTE: This feature only converts cooking
temperatures, not cooking times. When
convection roasting, the oven temperature
will not auto convert.
To turn off this feature:
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the CONVECTION BAKE MULTI/
1 RACK pad. The display will show
CON ON. Touch the CONVECTION BAKE
MULTI/1 RACK pad again. The display
will show CON OFF.
Touch the START pad.
To turn on this feature, repeat steps 1–3
above but touch the START pad when
CON ON is in the display.
■ Use pan size recommended in the recipe.
■ Some package instructions for frozen
casseroles, main dishes or baked goods
have been developed using commercial
convection ovens. For best results in
this oven, preheat the oven and use
the temperature for regular baking
on the package.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
When the display shows ⊃ the oven is
set in Sabbath. When the display show
⊃ the oven is baking/roasting.
⊃
28
Using the Sabbath Feature.(on some models)
(Designed for use on the Jewish Sabbath and Holidays)
The Sabbath feature can be used for baking/roasting in the upper oven only. It cannot be used for convection,
broiling, self-cleaning, or Delay Start cooking.
NOTE: The oven light comes on automatically when the door is opened and goes off when the door is closed.
The bulb may be removed. See the Oven Light Replacement section.
When the display shows ⊃ the oven is
set in Sabbath. When the display shows
⊃ the oven is baking/roasting.
⊃
How to Set for Regular Baking/Roasting
Make sure the clock shows the correct time of day
and the oven is off.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until
the display shows SF.
Tap the DELAY START pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear
in the display.
Touch the BAKE pad. No signal will be given.
Using the number pads, enter the desired
temperature between 170° and 550°.
No signal or temperature will be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute, ⊃
will appear in the display indicating that the
oven is
baking/roasting.
If ⊃ doesn’t appear
in the display, start again at Step 4.
To adjust the oven temperature, touch
the BAKE pad, enter the new temperature using
the number pads, and touch the START pad.
NOTE:The CLEAR/OFFand COOKING TIME pads
are active during the Sabbath feature.
⊃
⊃
How to Exit the Sabbath Feature
Touch the CLEAR/OFF pad.
If the oven is cooking, wait for a random
delay period of approximately 30 seconds
to 1 minute, until only ⊃ is in the display.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until
the display shows SF.
Tap the DELAY START pad until 12 shdn
or no shdn appears in the display.
12 shdn indicates that the oven will
automatically turn off after 12 hours.
no shdn indicates that the oven will not
automatically turn off.
Touch the START pad.
NOTE:If a power outage occurred while the oven
was in Sabbath, the oven will automatically turn
off and stay off even when the power returns.
The oven control must be reset.
How to Set for Timed Baking/Roasting—Immediate Start and Automatic Stop
Make sure the clock shows the correct time of day
and the oven is off.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until
the display shows SF.
Tap the DELAY START pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear
in the display.
Touch the COOKING TIME pad.
Touch the number pads to set the desired
length of cooking time between 1 minute and
9 hours and 99 minutes. The cooking time
that you entered will be displayed.
Touch the START pad.
Touch the BAKE pad. No signal will be given.
Using the number pads, enter the desired
temperature. No signal or temperature will
be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute, ⊃
will appear in the display indicating that the
oven is
baking/roasting.
If ⊃ doesn’t appear
in the display, start again at Step 7.
To adjust the oven temperature, touch
the BAKE pad, enter the new temperature using
the number pads, and touch the START pad.
When cooking is finished, the display will change
from ⊃ to ⊃ and 0:00 will appear, indicating that
the oven has turned OFF but is still set in Sabbath.
Remove the cooked food.
⊃
⊃
⊃
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
29
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few
w
eeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust
the thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your
oven. These thermometers may vary 20–40 degrees.
NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will
be retained in memory after a power failure.
To Adjust the Thermostat
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the BAKE pad. A two digit number
shows in the display.
Touch BAKE once to decrease (-)
the oven temperature, or twice to
increase (+).
The oven temperature can be adjusted
up as much as 35°F or down as much
as 35°F. Touch the number pads the
same way you read them. For example,
to change the oven temperature 15°F,
touch 1 and 5.
When you have made the adjustment,
touch the START pad to go back to
the time of day display. Use your
oven as you would normally.
NOTE: The thermostat adjustment for Baking
will also affect Convection Baking or
Convection Roasting.
Most recipes for baking have been developed using high-fat products such as butter or margarine (80% fat).
If you decrease the fat, the recipe may not give the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads.
The lower the fat content of a spread product, the more noticeable these differences become.
Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low-fat spreads,
on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture
and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads
containing at least 70% vegetable oil.
Adjust the upper oven thermostat—Do it yourself! GEAppliances.com
The type of margarine will affect baking performance!
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
30
Using the lower oven drawer.
To Use the Lower Oven Drawer
Push in and turn the lower oven drawer
knob to any desired setting.
Allow the lower oven drawer to preheat.
■ The ON signal light is located on the upper
right side of the knob and glows when the
knob is in the ON position. It remains ON
until the knob is moved to the OFF position.
■ The “Heating” signal light is located below
the ON signal light and glows when the
heating elements are active. Preheat is
complete after the “Heating” signal has
turned off for the first time with each use.
NOTES:
■
Always use the included drawer rack when
using the Lower Oven Drawer.
■ The lower oven drawer cannot be used
during a self-clean cycle of the upper oven.
■ Do not put food, foil or cookware directly
on the bottom of the lower oven drawer.
Always use the included drawer rack.
■ If foods require a cover, use only foil or lids
able to withstand baking temperatures.
Do not use plastic.
■ Maximum height of foods that can be
placed in the lower oven drawer is 4″.
■ Do not put liquid or water in the lower oven
drawer.
■ Never place plastics, paper, canned foods
or combustible material in the lower oven
drawer.
The lower oven drawer may be used to bake foods using the same times and temperatures as a standard oven.
F
oods ideal for baking in the lower oven drawer include pizza, frozen foods, casseroles, biscuits, rolls and many
desserts.
Push in and turn the lower oven drawer
knob to any desired setting.
The lower oven drawer uses less energy than the upper oven.
Allow the following approximate times for preheating:
Desired Lower Preheat
Oven Temperature Time
WARM 10 minutes
350°F 20 minutes
425°F 30 minutes
Back of Lower Oven Knob
(Appearance may vary.)
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks
to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the
thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees.
NOTE: This adjustment will not affect the broiling temperatures.
Adjust the lower oven thermostat—Do it yourself!
Pull the OVEN CONTROL knob off
the range and look at the back side.
To make an adjustment, loosen
(approximately one turn), but do not
completely remove, the two screws
on the back of the knob.
With the back of the knob facing you,
hold the outer edge of the knob with one
hand and turn the front of the knob with
the other hand.
To raise the oven temperature, move the
top screw toward the right. You’ll hear a
click for each notch you move the knob.
To lower the temperature, move the top
screw toward the left.
Each click will change the oven temperature
approximately 10°F. (Range is ± 60°F. from
the arrow.) We suggest that you make the
adjustment one click from the original setting
and check oven performance before making
any additional adjustments.
After the adjustment is made, retighten
screws so they are snug, but be careful
not to overtighten.
Reinstall knob on range and check
performance.
T
O
M
A
K
E
O
V
E
N
C
O
O
L
E
R
T
U
R
N
D
I
S
K
A
P
P
R
O
X
.
1
0
˚
F
P
E
R
N
O
T
C
H
T
O
M
A
K
E
O
V
E
N
H
O
T
T
E
R
T
U
R
N
D
I
S
K
T
O
A
D
J
U
S
T
O
V
E
N
T
E
M
P
E
R
A
T
U
R
E
L
O
O
S
E
N
S
C
R
E
W
S
A
N
D
R
O
T
A
T
E
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
31
The oven door must be closed and all controls set correctly for the cycle to work properly.
Before a Clean Cycle
For the first self-clean cycle, we recommend
venting your kitchen with an open window
o
r using a ventilation fan or hood.
Remove the racks, any broiler pan,
broiler grid, probe, all cookware and
any aluminum foil from the oven.
The oven racks can be self-cleaned,
but they will darken, lose their luster
and become hard to slide.
Soil on the front frame of the range and
outside the gasket on the door will need
to be cleaned by hand. Clean these areas
with hot water, soap-filled scouring pads or
cleansers such as Soft Scrub
®
. Rinse well
with clean water and dry.
Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
w
ithstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the oven
bottom.
Make sure the oven light bulb cover is
in place and the oven light is off.
IMPORTANT: The health of some birds is
extremely sensitive to the fumes given off
during the self-cleaning cycle of any range.
Move birds to another well-ventilated room.
NOTE: Use caution when opening the upper
oven after the self-clean cycle has ended.
The oven may still be hot.
Using the self-cleaning upper oven. G
EAppliances.com
Wipe up heavy soil on the oven bottom.
How to Set the Upper Oven for Cleaning
Turn off all surface burners.
NOTE: The surface burners will not
function during the self-clean cycle.
Touch the SELF CLEAN pad.
Using the number pads, enter the
desired clean time, if a time other than
4 hours is needed.
Clean cycle time is normally 4 hours. You can
change the clean time to any time between
3 hours and 5 hours, depending on how dirty
your oven is.
Touch the START pad.
NOTE: The surface units should be
turned off during the self-clean cycle.
The door and control will lock automatically.
The display will show the clean time
remaining. It will not be possible to open
the oven door until the temperature drops
below the lock temperature and the LOCKED
DOOR light goes off.
The oven shuts off automatically when
the clean cycle is complete.
When the LOCKED DOOR light is off,
the door will unlock automatically.
■ The words LOCK DOOR will flash and
the oven control will signal if you set
the clean cycle and forget to close
the oven door.
■ To stop a clean cycle, touch the
CLEAR/OFF pad. When the LOCKED DOOR
light goes off indicating the oven has
cooled below the locking temperature,
you may open the door.
■ Do not use the lower oven drawer during
a self-clean cycle.
■ The words ERR and TURN SURFACE
BURNERS OFF will flash and the control
will signal if you set the clean cycle and
forget to turn the surface burners off.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
32
The oven door must be closed and all controls set correctly for the cycle to work properly.
After a Clean Cycle
You may notice some white ash
in the oven. Wipe it up with a damp
cloth after the oven cools.
If white spots remain, remove them
with a soap-filled scouring pad and rinse
thoroughly with a vinegar and water mixture.
These deposits are usually a salt residue
that cannot be removed by the clean cycle.
If the oven is not clean after one clean cycle,
repeat the cycle.
■ You cannot set the oven for cooking until
the oven is cool enough for the door to
unlock.
■ While the oven is self-cleaning, you can
touch the CLOCK pad to display the time
of day. To return to the clean countdown,
touch the COOKING TIME pad.
■ If the racks become hard to slide, apply
a small amount of vegetable oil or cooking
oil to a paper towel and wipe the edges
of the oven racks with the paper towel.
Using the self-cleaning upper oven.
How to Delay the Start of Cleaning
Make sure the clock shows the correct time
o
f day.
T
ouch the RANGE LOCKOUT pad
and then the START pad to turn it off.
See the Range Lockout section.
NOTE: The surface units must be turned
off prior to the self-clean start time.
Touch the SELF CLEAN pad.
Using the number pads, enter
the desired clean time.
Touch the DELAY START pad.
The earliest start time you can
set will appear in the display.
Using the number pads, enter the time
of day you want the clean cycle
to start.
Touch the START pad.
The door locks automatically. The display will
s
how the start time. It will not be possible to
open the oven door until the temperature
drops below the lock temperature and
the LOCKED DOOR light goes off.
The oven shuts off automatically when
the clean cycle is complete.
When the LOCKED DOOR light is off,
the door will unlock automatically.
■ The words LOCK DOOR will flash and the
oven control will signal if you set the clean
cycle and forget to close the oven door.
■ To stop a clean cycle, touch the
CLEAR/OFF pad. When the LOCKED DOOR
light goes off indicating the oven has
cooled below the locking temperature,
you may open the door.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
33
Care and cleaning of the range. G
EAppliances.com
Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.
WARNING: If your range is removed for cleaning, servicing or any reason,
be sure the anti-tip device is reengaged properly when the range is replaced. Failure
to take this precaution could result in tipping of the range and cause injury.
Lodge
®
Cast Iron Griddle
Rinse with hot water (do not use soap),
and dry thoroughly.
Before cooking, prepare the surface
with cooking spray or vegetable oil.
After cooking, clean the griddle with
a stiff brush and hot water. Using soap
is not recommended, and harsh
detergents should never be used.
Towel dry immediately and apply a light
coat of cooking spray or vegetable oil
while the griddle is still warm.
Store in a cool, dry place.
Do not wash in a dishwasher.
Griddle Precautions:
■ If something has spilled under the griddle,
it should be cleaned up as soon as possible
to prevent “baked on” food soil. See
the Cleaning the glass cooktop section.
■ Do not allow grease to accumulate
under the griddle as it can be a fire hazard.
Clean under the griddle as soon as it is cool.
See the Cleaning the glass cooktop section.
■ Do not place your griddle in the microwave
oven.
■ Always turn off all surface units before
removing the griddle. Use caution when
handling a hot griddle.
Stainless Steel Surfaces
Protecting
Stainless steel has a reputation for
withstanding tough abuse for years. This is a
key reason why it is so popular with the food
service industry.
However, stainless steel appliances can
have surface imperfections, discolorations
or blemishes that consumers with a critical
eye notice and find unattractive in the home.
These discolorations or blemishes can be
caused by something as simple as leaving
fingerprint smudges on the stainless steel
surface overnight.
For stainless steel appliances where
blemishes are prone to show on the surface,
we recommend APPLYING A COAT OF CERAMA
BRYTE
®
Stainless Steel Cleaning Polish &
Conditioner (purchased separately—follow
instructions).
This will help you to maintain the brightness and
appearance of your stainless steel appliance.
Cleaning
Do not use a steel wool pad; it will scratch
the surface.
■ In order to avoid any discolorations and/or
grease stains, we recommend cleaning
and removing any spills, spots and grease
from the range after use.
■ It is important to use a soft cloth or paper
towel every time the range is cleaned to
avoid any scratches.
Read carefully the instructions on the back
of the Brightener (included with your range)
for better results.
Cleaning Instructions:
Wash using warm, soapy water:
Wet soft cloth or paper towel
(avoid using excessive water).
Wipe the surface in the direction
of the grain (following the steel lines).
Rinse and wring out a soft cloth or paper
towel and dry the range.
Apply a degreaser that does not contain
sodium hydroxide or Stainless Steel
Cleaner (follow instructions).
Apply Cerama Bryte
®
Stainless Steel
Brightener (follow instructions).
Repeat steps 2–4 as many times as needed.
Follow these instructions for any Stainless
Steel surface on your range.
DO NOT USE the following products for
cleaning the Cooktop or Stainless Steel parts:
• Caustic Lye (Sodium Hydroxide) or cleaners
containing this chemical
• Hard or Steel Wool Pads
• Abrasive Materials or Chemicals
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer nearest you, please call
our toll-free number:
National Parts Center 800.626.2002 (U.S.)
800.661.1616 (Canada)
GEAppliances.com (U.S.)
www.GEAppliances.ca (Canada)
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Oven Heating Elements
Do not clean the bake element or the broil
element. Any soil will burn off when
the elements are heated.
To clean the oven floor, gently lift the bake
element. Clean with warm, soapy water.
Lift-Off Oven Door
The oven door is removable, but it is heavy.
You may need help removing and replacing
the door.
Do not lift the door by the handle. Make sure
t
he oven is completely cool.
To remove the door, open it a few inches
to the special stop position that will hold the
door open. Grasp firmly on each side and lift
the door straight up and off the hinges.
NOTE: Be careful not to place hands between
the hinge and the oven door frame as the
hinge could snap back and pinch fingers.
To replace the door, make sure the hinges
are in the special stop position. Position the
slots in the bottom of the door squarely over
the hinges. Then lower the door slowly and
evenly over both hinges at the same time.
If the hinges snap back against the oven
frame, pull them back out.
To clean the inside of the door:
■ Do not allow excess water to run into
any holes or slots in the door .
■ Because the area inside the gasket is
cleaned during the self-clean cycle, you do
not need to clean this by hand. Any soap
left on the liner causes additional stains
when the oven is heated.
■ The area outside the gasket can
be cleaned with a soap-filled plastic
scouring pad.
Do not allow food spills with a high sugar
o
r acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain
on the surface. They may cause a dull spot
even after cleaning.
To clean the outside of the door:
■ Use soap and water to thoroughly clean
the top, sides and front of the oven door.
Rinse well. You may also use a glass
cleaner to clean the glass on the outside
of the door.
■ Spillage of marinades, fruit juices, tomato
sauces and basting materials containing
acids may cause discoloration and should
be wiped up immediately. When the
surface is cool, clean and rinse.
■ Do not use oven cleaners, cleansing
powders or harsh abrasives on the outside
of the door.
Lift the door straight up and off
the hinges.
The gasket is designed with a gap
at the bottom to allow for proper
air circulation.
Do not rub or clean the door gasket—
it has an extremely low resistance
to abrasion.
If you notice the gasket becoming worn,
frayed or damaged in any way or if it
has become displaced on the door,
you should have it replaced.
Care and cleaning of the range.
34
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
35
G
EAppliances.com
Removable Lower Oven Drawer
Most cleaning can be done with the drawer
in place. However, the drawer may be
removed if further cleaning is needed. Use
soap and warm water to thoroughly clean.
To remove the drawer:
Pull the drawer straight out until
it stops.
Press the tabs on both sides in, while
pulling the drawer forward and free.
To replace the drawer:
Place the left drawer rail around
t
he inner left rail guide and slide
it in slightly to hook it.
Place the right drawer rail around
the inner right rail guide and slide
it in slightly to hook it.
Slide the drawer all the way in.
NOTE: Before performing any adjustments,
c
leaning or service, disconnect the range
electrical power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker. Make sure
the drawer heating element is cool.
Removable Lower Oven Drawer Pan
NOTE: Allow lower oven drawer to cool
before removing pan.
NOTE: Wipe spills promptly after each use.
■ Never place, use or self-clean the lower
oven drawer pan in the upper oven.
■ Lower oven drawer has a removable pan
for easy cleaning. Clean with hot, soapy
water and a sponge or dish towel. Dry
with a clean cloth. An oven cleaner, such
as Easy-Off
®
, may also be used. Be sure to
follow the directions on the oven cleaner.
Replace the pan in the lower oven drawer.
NOTE: Before performing any adjustments,
cleaning or service, disconnect the range
electrical power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker. Make sure
the drawer heating element is cool.
To clean the outside glass finish, use a glass
cleaner. Rinse and polish with a dry cloth.
Glass Window
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Oven Control Panel
Lock out the touch pads before cleaning.
See the Range Lockout information
in the Special features of your upper
oven control section in this manual.
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
Remove heavier soil with warm, soapy water.
Do not use abrasives of any kind.
Unlock the touch pads after cleaning.
Oven Air Vents
Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
p
roperly.
A
ir openings are located at the rear of
the cooktop, at the top and bottom of the
oven door, and at the bottom of the range,
under the lower oven drawer.
Control Panel and Knobs
It’s a good idea to wipe the control panel
after each use of the oven. Clean with
mild soap and water or vinegar and water,
rinse with clean water and polish dry with
a soft cloth.
Do not use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven
cleaners on the control panel—they will
damage the finish. A 50/50 solution of
vinegar and hot water works well.
The control knobs may be removed for easier
cleaning.
Make sure the knobs are in the OFF positions
and pull them straight off the stems for
cleaning.
The knobs can be washed with soap and
water. Make sure the insides of the knobs
are dry before replacing.
NOTES:
■ Do not wash the knobs in an automatic
dishwasher.
■ Do not use any chemical or abrasive
substances to clean the knobs—they could
be permanently damaged.
Replace the knobs in the OFF position
to ensure proper placement.
Metal parts can be cleaned with soap
and water. Do not use steel wool, abrasives,
ammonia, acids or commercial oven cleaners.
Dry with a soft cloth.
NOTE: The lower oven drawer control knob
is not interchangeable with the surface unit
knobs. Be sure to reinstall the lower oven
drawer knob to the original location. The lower
oven drawer knob may be identified by the
increasing numbers from “WM” to “450.”
Vent appearance and location vary.
Surface unit knob
36
Care and cleaning of the range.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
37
G
EAppliances.com
Oven Light Replacement
CAUTION: Before replacing
your oven light bulb, disconnect the electrical
power to the range at the main fuse or circuit
breaker panel. Be sure to let the light cover
and bulb cool completely.
The oven light bulb is covered with a
removable glass cover that is held in place
with a bail-shaped wire. Remove the oven
door, if desired, to reach cover easily.
To remove:
Hold a hand under the cover so it
doesn’t fall when released. With fingers
of the same hand, firmly push back the
wire cover holder. Lift off the cover.
Do not remove any screws to remove
the cover.
Do not touch hot bulb with a wet cloth.
Replace bulb with a 40-watt household
appliance bulb.
To replace cover:
Place it into the groove of the light
receptacle. Pull the wire forward to
the center of the cover until it snaps into
place. When in place, the wire holds the
cover firmly. Be certain the wire is in the
depression in the center of the cover.
Connect electrical power to the range.
Oven Racks and Drawer Racks
Clean the racks with an abrasive cleanser.
The oven racks may be cleaned in the
self-cleaning oven. However, the racks
will darken in color, lose their luster and
b
ecome hard to slide if cleaned during
the self-cleaning cycle.
To make the racks slide more easily, apply
a small amount of vegetable oil or cooking
oil to a paper towel and wipe the edges
o
f the oven racks with the paper towel.
Wire cover holder.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
38
Cleaning the glass cooktop.
Allow the cooktop to cool.
Use a single-edge razor blade scraper
at approximately a 45° angle against
the glass surface and scrape the soil.
It will be necessary to apply pressure
to the razor scraper in order to
remove the residue.
After scraping with the razor scraper,
spread a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner on the entire
burned residue area. Use the CERAMA
BRYTE
®
Cleaning Pad to remove any
remaining residue.
For additional protection, after all
residue has been removed, polish
the entire surface with CERAMA
BRYTE
®
Ceramic Cooktop Cleaner
and a paper towel.
Burned-On Residue
CAUTION: DAMAGE to your
glass surface may occur if you use scrub
pads other than those recommended.
Allow the cooktop to cool.
Spread a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner on the entire
burned residue area.
Using the included CERAMA BRYTE
®
Cleaning Pad for Ceramic Cooktops, rub
the residue area, applying pressure as
needed.
If any residue remains, repeat
the steps listed above as needed.
For additional protection, after all
residue has been removed, polish
the entire surface with CERAMA
BRYTE
®
Ceramic Cooktop Cleaner
and a paper towel.
The CERAMA BRYTE
®
Ceramic Cooktop
Scraper and all recommended supplies
are available through our Parts Center.
See instructions under “To Order Parts”
section on next page.
NNOOTTEE::
Do not use a dull or nicked
blade.
Heavy, Burned-On Residue
Use a CERAMA BRYTE
®
Cleaning Pad
for Ceramic Cooktops.
Normal Daily Use Cleaning
ONLY use CERAMA BRYTE
®
Ceramic Cooktop
Cleaner on the glass cooktop. Other creams
may not be as effective.
To maintain and protect the surface of your
glass cooktop, follow these steps:
Before using the cooktop for the first
time, clean it with CERAMA BRYTE
®
Ceramic Cooktop Cleaner. This helps
protect the top and makes cleanup
easier.
Daily use of CERAMA BRYTE
®
Ceramic
Cooktop Cleaner will help keep
the cooktop looking new.
Shake the cleaning cream well. Apply
a few drops of CERAMA BRYTE
®
Ceramic
Cooktop Cleaner directly to the cooktop.
Use a paper towel or CERAMA BRYTE
®
Cleaning Pad for Ceramic Cooktops
to clean the entire cooktop surface.
Use a dry cloth or paper towel
to remove all cleaning residue.
No need to rinse.
NOTE: It is very important that you DO NOT
heat the cooktop until it has been cleaned
thoroughly.
CClleeaann yyoouurr ccooookkttoopp aafftteerr
eeaacchh ssppiillll.. UUssee CCEERRAAMMAA
BBRRYYTTEE
®®
CCeerraammiicc CCooookkttoopp
CClleeaanneerr..
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
39
To order CERAMA BRYTE
®
Ceramic Cooktop
Cleaner and the cooktop scraper, please
call our toll-free number:
National Parts Center . . . . 800.626.2002
CERAMA BRYTE
®
Ceramic
Cooktop Cleaner . . . . . . . . .# WX10X300
CERAMA BRYTE
®
Ceramic
Cooktop Scraper . . . . . . . . .# WX10X0302
Kit . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027
(Kit includes cream and cooktop scraper)
CERAMA BRYTE
®
Cleaning Pads for
Ceramic Cooktops . . . . . . .# WX10X350
Turn off all surface units.
Remove hot pans.
Wearing an oven mitt:
a. Use a single-edge razor blade
scraper (CERAMA BRYTE
®
Ceramic
Cooktop Scraper) to move the spill
to a cool area on the cooktop.
b. Remove the spill with
paper towels.
Any remaining spillover should be left
until the surface of the cooktop has
cooled.
Don’t use the surface units again until
all of the residue has been completely
removed.
NOTE: If pitting or indentation in the glass
surface has already occurred, the cooktop
glass will have to be replaced. In this case,
service will be necessary.
Damage from Sugary Spills and Melted Plastic
OOuurr tteessttiinngg sshhoowwss tthhaatt
iiff yyoouu aarree ccooookkiinngg hhiigghh
ssuuggaarr mmiixxttuurreess ssuucchh aass
jjeellllyy oorr ffuuddggee aanndd hhaavvee
aa ssppiilllloovveerr,, iitt ccaann ccaauussee
ppeerrmmaanneenntt ddaammaaggee ttoo
tthhee ggllaassss ssuurrffaaccee uunnlleessss
tthhee ssppiilllloovveerr iiss iimmmmeeddiiaatteellyy
rreemmoovveedd..
B
e careful not to slide pots and pans
across your cooktop. It will leave
metal markings on the cooktop
surface.
These marks are removable using
the CERAMA BRYTE
®
Ceramic Cooktop
Cleaner with the CERAMA BRYTE
®
Cleaning Pad for Ceramic Cooktops.
I
f pots with a thin overlay of
aluminum or copper are allowed to
boil dry, the overlay may leave black
discoloration on the cooktop. This
should be removed immediately
before heating again or the
discoloration may be permanent.
CAUTION: Carefully check
the bottom of pans for roughness that
would scratch the cooktop.
Metal Marks and Scratches
To Order Parts
Glass surface—potential for permanent damage.
To clean the cooktop seal around the
edges of the glass, lay a wet cloth on it
for a few minutes, then wipe clean with
nonabrasive cleaners.
Cooktop Seal
G
EAppliances.com
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
WARNING!
ANTI-TIP DEVICE
To reduce the risk of tipping the range, the range must
be secured by a properly installed anti-tip bracket. See
installation instructions shipped with the bracket for
complete details before attempting to install.
To check if the bracket is installed and engaged properly,
carefully tip the range forward. The bracket should stop
the range within 4 inches. If it does not, the bracket must
be reinstalled. If the range is pulled from the wall for any
reason, always repeat this procedure to verify the range
is properly secured by the anti-tip bracket.
For free-standing or slide-in ranges, never completely
remove the leveling legs or the range will not be secured
to the anti-tip device properly.
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no cost
(in Canada, call 1.800.561.3344). For installation
instructions of the bracket, visit GEAppliances.com
(in Canada, GEAppliances.ca).
40
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
Installation
Free-Standing
Instructions
Electric Ranges
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•
IMPORTANT — Save these instructions
for local inspector’s use.
•
IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – 1 to 3 hours
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
WARNING — This appliance must be
properly grounded.
FOR YOUR SAFETY:
Be sure your appliance is properly installed
and grounded by a qualified technician.
Make sure the cabinets and wall coverings around
the range can withstand the temperatures (up to 200°F)
generated by the range.
FOR YOUR SAFETY:
WARNING — Before beginning the
installation, switch power off at service panel and lock
the service disconnecting means to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
All rough-in and spacing dimensions must be met for
safe use of your range. Electricity to the range can be
disconnected at the outlet without moving the range
if the outlet is in the preferred location (remove lower
drawer).
To reduce the risk of burns or fire when reaching over
hot surface elements, cabinet storage space above
the cooktop should be avoided. If cabinet storage
space is to be provided above the cooktop, the risk can
be reduced by installing a range hood that sticks out
at least 5″ beyond the front of the cabinets. Cabinets
installed above a cooktop must be no deeper than 13″.
PARTS INCLUDED
41
Installation Instructions
PREPARE TO INSTALL THE RANGE
TOOLS YOU WILL NEED
MATERIALS YOU MAY NEED
Anchor SleevesLag BoltsTin Snips
((FFoorr AAnnttii--TTiipp BBrraacckkeett MMoouunntteedd oonn CCoonnccrreettee FFlloooorrss OOnnllyy))
3-Wire Cord
4‘ Long
4-Wire Cord
4‘ Long
OORR
((UULL--AApppprroovveedd 4400 AAMMPP))
Adjustable Wrench
Level
1/4″ Nut Driver
Phillips Screwdriver
Drill with 1/8″ Bit
Pencil
Safety Glasses
Tape Measure
Pliers
Flat-Blade Screwdriver
Anti-Tip Bracket Kit
REMOVE SHIPPING MATERIALS
Remove packaging materials. Failure to
remove packaging materials could result
in damage to the appliance.
1
PREPARE THE OPENING
Allow 1
1
⁄2″ spacing from the range to adjacent
vertical walls above the cooktop surface.
Allow 30″ minimum clearance between the
surface units and the bottom of unprotected
wood or metal top cabinet, and 15″ minimum
between the countertop and adjacent cabinet
bottom.
EXCEPTION: Installation of a listed microwave
oven or cooking appliance over the cooktop
shall conform to the installation instructions
packed with that appliance.
If cabinet storage is installed, reduce the risk by
installing a range hood that projects horizontally
a min. of 5″ beyond the bottom of the cabinets.
Make sure the wall covering, countertops and
cabinets around the range can withstand heat
generated by the range, oven or cooktop up
to 200°F.
Flooring under the range
Your range, like many other household items,
is heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting.
When moving the range on this type of flooring,
it should be installed on a 1/4″ thick sheet
of plywood (or similar material) as follows:
When the floor covering ends at the front
of the range, the area that the range will rest
on should be built up with plywood to the same
level or higher than the floor covering. This will
allow the range to be moved for cleaning or
servicing.
2
Cord
Wall
Floor
7″
5″
C of range
L
Outlet
box
Hood
Wall
Not less than
the width of
the range
5″ Min.
30″
Min.
15″
Min.
1
1
⁄2″
Min.
Locate the outlet box within
either shaded area.
2
1
⁄4″
7
1
⁄2″
7
1
⁄2″
3
1
⁄2″
Install the
outlet box
on either
side of the C
L
Squeeze Connector
((FFoorr CCoonndduuiitt
IInnssttaallllaattiioonnss OOnnllyy))
42
Installation Instructions
ELECTRICAL CONNECTIONS
ALL NEW CONSTRUCTIONS,
MOBILE HOMES AND
INSTALLATIONS WHERE LOCAL
CODES DO NOT ALLOW
GROUNDING THROUGH
NEUTRAL
Use only a 3-conductor or a 4-conductor UL-listed
range cord. These cords may be provided with ring
terminals on wire and a strain relief device.
A range cord rated at 40 amps with 125/250
minimum volt range is required. A 50-amp range
cord is not recommended but if used, it should
be marked for use with nominal 1
3
⁄8″ diameter
connection openings. Care should be taken
to center the cable and strain relief within
the knockout hole to keep the edge from
damaging the cable.
• Because range terminals are not accessible
after range is in position, flexible service conduit
or cord must be used.
NOTE: If conduit is being used, go to Step 3D and
then to Step 6 or 7.
• On some models, a filter capacitor may be
connected between the black and white leads
on the junction block.
ELECTRICAL REQUIREMENTS
CAUTION: For personal safety, do
not use an extension cord with this appliance.
Remove house fuse or open circuit breaker before
beginning installation.
This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual properly grounded branch circuit,
protected by a circuit breaker or fuse having
amperage as specified on the rating plate. The
rating plate is located behind the oven drawer
on the oven frame.
We recommend you have the electrical wiring
and hookup of your range connected by a qualified
electrician. After installation, have the electrician
show you where your main range disconnect
is located.
Check with your local utilities for electrical codes
which apply in your area. Failure to wire your oven
according to governing codes could result in a
hazardous condition. If there are no local codes,
your range must be wired and fused to meet
the requirements of the National Electrical Code,
ANSI/NFPA No. 70—Latest Edition. You can get
a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric
range.
When installing an electric range in new
construction, follow Steps 3 and 5 for 4-wire
connection.
You must use a 3-wire, single-phase A.C. 208Y/120
Volt or 240/120 Volt, 60 Hertz electrical system. If
you connect to aluminum wiring, properly installed
connectors approved for use with aluminum wiring
must be used.
If the electrical service provided does not meet
the above specifications, have a licensed electrician
install an approved outlet.
Location of model
rating plate
43
Installation Instructions
POWER CORD AND STRAIN RELIEF
INSTALLATION
Remove the wire cover (on the lower back
of the range) by removing two (2) screws
using a 1/4″ nut driver.
Do not discard these screws.
Remove the knockout ring (1
3
⁄8″) located
on bracket directly below the terminal block.
To remove the knockout, use a pair of pliers
to bend the knockout ring away from
the bracket and twist until ring is removed.
B
3
A
For power cord installations only
(see the next step if using conduit), assemble
the strain relief in the hole. Insert the power
cord through the strain relief and tighten.
Allow enough slack to easily attach the cord
terminals to the terminal block. If tabs are
present at the end of the winged strain relief,
they can be removed for better fit.
NOTE: Do not install the power cord
without a strain relief. The strain relief
bracket should be installed before
reinstalling the rear range wiring cover.
Skip to Step 4 or 5.
For conduit installations only, purchase a
squeeze connector matching the diameter of
your conduit and assemble it in the hole. Insert
the conduit through the squeeze connector and
tighten. Allow enough slack to easily attach the
wires to the terminal block.
NOTE: Do not install the conduit without a
squeeze connector. The squeeze connector
should be installed before reinstalling the rear
range wiring cover.
Skip to Step 6 or 7.
D
C
Wire cover
2 screws to
remove wire
cover
Knockout ring
in bracket
Knockout ring
removed
Power cord
Strain relief
Terminal block
Bracket
Retaining tab
Back of range
Terminal block
(appearance may vary)
Squeeze
connector
Terminal
block
Conduit
Bracket
ELECTRICAL CONNECTIONS (CONT.)
44
Installation Instructions
4-WIRE POWER CORD INSTALLATION
WARNING:
The neutral wire
of the supply circuit must be connected
to the neutral terminal located in the lower
center of the terminal block. The power leads
must be connected to the lower left and the
lower right terminals of the terminal block.
The 4th grounding lead must be connected
to the frame of the range with the ground
plate and the ground screw.
Remove the 3 lower terminal screws from
the terminal block. Remove the ground screw
and ground plate and retain them.
Cut and discard the ground strap.
DO NOT DISCARD ANY SCREWS.
Insert the one ground screw into the power cord
ground wire terminal ring, through the ground
plate and into the frame of the range.
Insert the 3 terminal screws (removed earlier)
through each power cord terminal ring and into
the lower terminals of the terminal block. Be certain
that the center wire (white/neutral) is connected
to the center lower position of the terminal block.
Tighten screws securely into the terminal block.
Skip to Step 8 and proceed with the installation.
D
E
C
B
A
5
3-WIRE POWER CORD INSTALLATION
WARNING:
The neutral or ground
wire of the power cord must be connected
to the neutral terminal located in the center
of the terminal block. The power leads must
be connected to the lower left and the lower
right terminals of the terminal block.
Remove the 3 lower terminal screws from
the terminal block. Insert the 3 terminal screws
through each power cord terminal ring and
into the lower terminals of the terminal block.
Be certain that the center wire (white/neutral)
is connected to the center lower position of
the terminal block. Tighten screws securely
into the terminal block.
DO NOT remove the ground strap
connection.
Skip to Step 8 and proceed with
the installation.
B
4
A
Terminal block
(appearance
may vary)
Neutral
terminal
BBeeffoorree
AAfftteerr
Terminal
block
Terminal
block
Neutral
terminal
Neutral
terminal
Ground strap
Ground plate
(grounding to
range)
Ground
screw
Power cord
Ground plate
Ground strap
or
Ground
strap
45
Installation Instructions
3-WIRE CONDUIT INSTALLATION
Loosen the 3 lower terminal screws from
the terminal block. Insert the center bare wire
(white/neutral) tip through the bottom center
terminal block opening. On certain models,
the wire will need to be inserted through
the ground strap opening and then into the
bottom center block opening. Insert the two side
bare wire tips into the lower left and the lower
right terminal block openings. Tighten the screws
until the wire is firmly secure (approximately
20 inch-lbs.).
NOTE: ALUMINUM WIRING:
Aluminum building wire may be used but it
must be rated for the correct amperage and
voltage to make connection. Connect wires
according to this Step 6 or Step 7 depending
on number of wires.
Wire used, location and enclosure of splices,
etc., must conform to good wiring practices
and local codes.
Skip to Step 8 and proceed with
the installation.
A
B
6
4-WIRE CONDUIT INSTALLATION
Loosen the three lower terminal screws from
the terminal block. Remove the ground screw
and ground plate and retain them. Cut and
discard the ground strap. DO NOT DISCARD
ANY SCREWS.
Insert the ground bare wire tip between the range
frame and the ground plate (removed earlier) and
secure it in place with the ground screw (removed
earlier). Insert the bare wire (white/neutral) tip
through the bottom center of the terminal block
opening. Insert the two side bare wire tips into
the lower left and the lower right terminal block
openings. Tighten the screws until the wire is firmly
secure (approximately 20 inch-lbs.).
Wire used, location and enclosure of splices,
etc., must conform to good wiring practices
and local codes.
Proceed to Step 8.
C
B
A
7
BBeeffoorree
Terminal
block
Ground strap
AAfftteerr
Terminal
block
Ground plate
(grounding to
range)
Bracket
Neutral
terminal
Wire tips
Wire tips
Terminal
block
Conduit
Bracket
Ground
screw
Ground strap
or
46
Installation Instructions
INSTALL THE RANGE
ANTI-TIP DEVICE INSTALLATION
An Anti-Tip bracket is supplied with instructions
for installation in a variety of locations. The
instructions include all necessary information
to complete the installation. Read the Safety
Instructions and the instructions that fit your
situation before beginning installation.
WARNING:
• Range must be secured with an approved Anti-Tip
device.
• Unless properly installed, the range could be tipped
by you or a child standing, sitting or leaning on an
open door.
• After installing the Anti-Tip device, verify that it is
in place by carefully attempting to tilt the range
forward.
• This range has been designed to meet all recognized
industry tip standards for all normal conditions.
• The use of this device does not preclude tipping
of the range when not properly installed.
• If the Anti-Tip device supplied with the range does
not fit this application, use the universal Anti-Tip
device WB02K10254.
9
REPLACE THE WIRE COVER
Replace the wire cover on the range back by
sliding its right edge under the retaining tab and
replacing the two screws removed earlier. Make
sure that no wires are pinched between the cover
and the range back.
8
LEVEL THE RANGE
Install the oven racks in the oven and position
the range where it will be installed.
Check for levelness by
placing a spirit level or a
cup, partially filled with
water, on one of the oven
racks. If using a spirit level,
take two readings—with the
level placed diagonally first
in one direction and then the other.
The rear leveling legs must be adjusted prior
to moving the range into position. They can
be adjusted from the bottom at the back
of the range.
Use an open-end or adjustable wrench to
adjust the leveling legs until the range is level.
Replace the drawer or panel.
After the range is level, slide the range away
from the wall so that the Anti-Tip device can be
installed.
F
E
D
C
B
A
10
Spirit level
Wire
cover
2 screws to
replace wire
c
over
R
etaining
tab
Back of range
Adjust from
the bottom back
of range (warming
drawer models)
Back of range
Leg
leveler
Lower
range
Raise
range
Screw must enter
wood or concrete
Attachment to Wall or Floor
Wall Sill Plate
Screw must enter wood
Bracket
Installation Instructions
FINAL INSTALLATION CHECKLIST
• Check to make sure the circuit breaker is closed
(RESET) or the circuit fuses are replaced.
• Be sure power is in service to the building.
• Note (on some models): If the clock flashes
“bAd” and then “LinE” with a loud tone, the
neutral connection to the range is not wired
correctly. Check the terminal block connections
and/or house wiring to correct.
• Check to be sure that all packing materials
and tape have been removed. This will include
tape on metal panel under control knobs
(if applicable), adhesive tape, wire ties, cardboard
and protective plastic. Failure to remove these
materials could result in damage to the appliance
once the appliance has been turned on and
surfaces have heated.
• Check to make sure that the rear leveling leg
is fully inserted into the Anti-Tip bracket and
that the bracket is securely installed.
11
OPERATION CHECKLIST
• Turn on one of the surface units to observe that
the element glows within 60 seconds. Turn the
unit off when glow is detected. If the glow is not
detected within the time limit, recheck the range
wiring connections. If change is required, retest
again. If no change is required, have building
wiring checked for proper connections and
voltage.
• Check to make sure the Clock (on models so
equipped) display is energized. If a series of
horizontal red lines appear in the display,
disconnect power immediately. Recheck the
range wiring connections. If change is made
to connections, retest again. If no change is
required, have building wiring checked for proper
connections and voltage. It is recommended that
the clock be changed if the red lines appear.
• Be sure all range controls are in the OFF position
before leaving the range.
12
47
48
Troubleshooting tips.
Problem Possible Causes What To Do
S
urface units will not Improper cookware • Use pans which are flat and match the diameter
maintain a rolling boil being used. of the surface unit selected.
or cooking is not
fast enough
Surface units do not Cooktop controls • Check to see the correct control is set for the surface
work properly improperly set. unit you are using.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
Scratches (may appear Incorrect cleaning • Scratches are not removable. Tiny scratches will become
as cracks) on cooktop methods being used. less visible in time as a result of cleaning.
glass surface
Cookware with rough bottoms • To avoid scratches, use the recommended cleaning
being used or coarse particles procedures. Make sure bottoms of cookware are clean
(salt or sand) were between before use, and use cookware with smooth bottoms.
the cookware and the surface
of the cooktop.
Cookware has been slid
across the cooktop surface.
Areas of discoloration Food spillovers not cleaned • See the Cleaning the glass cooktop section.
on the cooktop before next use.
Hot surface on a model • This is normal. The surface may appear discolored
with a light colored glass when it is hot. This is temporary and will disappear
cooktop. as the glass cools.
Plastic melted to Hot cooktop came into • See the Glass surface—potential for permanent damage
the surface contact with plastic placed section in the Cleaning the glass cooktop section.
on the hot cooktop.
Pitting (or indentation) Hot sugar mixture spilled • Call a qualified technician for replacement.
of the cooktop on the cooktop.
Frequent cycling Improper cookware • Use only flat cookware to minimize cycling.
off and on of being used.
surface units
Control signals after You forgot to enter • Press the BAKE pad and desired temperature
entering cooking time a bake temperature or the SELF CLEAN pad and desired clean time.
or delay start or cleaning time.
Food does not bake Oven controls improperly set. • See the Using the upper oven section.
or roast properly
Rack position is incorrect • See the Using the upper oven section.
or the rack is not level.
Incorrect cookware or • See the Using the upper oven section.
cookware of improper
size being used.
Oven thermostat needs • See the Adjust the oven thermostat—Do it yourself!
adjustment. section.
“Close Door” scrolls The display will always • This is a normal reminder to close the door when
in the display when automatically remind you to broiling.
BROIL is set close the door.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
49
G
EAppliances.com
Problem Possible Causes What To Do
Food does not Oven controls improperly set. • Make sure you touch the BROIL HI/LO pad.
broil properly
O
ven door not closed. • See the Using the upper oven section.
i
n the upper oven
Improper rack position • See the Broiling Guide.
being used.
Food being cooked in • For best results, use a pan designed for broiling.
a hot pan. Make sure it is cool.
Cookware not suited • For best results, use a pan designed for broiling.
for broiling.
Oven bottom not securely • See the Installation Instructions.
seated in position.
Upper oven temperature Oven thermostat • See the Adjust the oven thermostat—Do it yourself!
too hot or too cold needs adjustment. section.
Clock and timer Plug on range is not completely • Make sure electrical plug is plugged into a live,
do not work inserted in the electrical outlet. properly grounded outlet.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
Oven controls improperly set. • See the Using the clock and timer section.
Upper oven light Light bulb is loose or defective. • Tighten or replace the bulb.
does not work
Plug on range is not completely • Make sure electrical plug is plugged into a live,
inserted in the electrical outlet. properly grounded outlet.
Upper oven will not The oven temperature is too • Allow the range to cool to room temperature and
self-clean high to set a self-clean operation. reset the controls.
Oven controls improperly set. • See the Using the self-cleaning upper oven section.
“Crackling” or This is the sound of the • This is normal.
“popping” sound metal heating and cooling
during both the cooking
and cleaning functions.
Excessive smoking Excessive soil. • Touch the CLEAR/OFF pad. Open the windows to
rid the room of smoke. Wait until the LOCKED DOOR
light goes off. Wipe up the excess soil and reset
the clean cycle.
Oven door will not open Oven too hot. • Allow the oven to cool below locking temperature.
after a clean cycle
Oven not clean after Oven controls not properly set. • See the Using the self-cleaning upper oven section.
a clean cycle
Oven was heavily soiled. • Clean up heavy spillovers before starting the clean cycle.
Heavily soiled ovens may need to self-clean again or
for a longer period of time.
“LOCK DOOR” flashes The self-clean cycle has been • Close the oven door.
in the display selected but the door is not
closed.
LOCKED DOOR light The oven door is locked • Touch the CLEAR/OFF pad. Allow the oven to cool.
is on when you want because the temperature
to cook inside the oven has not
dropped below the
locking temperature.
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Problem Possible Causes What To Do
“F—” and a number or You have a function error code. • Touch the CLEAR/OFF pad. Allow the oven to cool for
letter flash in the display one hour. Put the oven back into operation.
If the function code repeats. • Disconnect all power to the range for 5 minutes
and then reconnect power. If the function error code
repeats, call for service.
“Probe” appears in This is reminding you to enter • Enter a probe temperature.
the display a probe temperature after
plugging in the probe.
Display goes blank A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
The clock is in the • See the Special features of your upper oven control section.
black-out mode.
Display flashes Power failure. • Reset the clock.
Unable to get the Oven control pads were • The BAKE and BROIL HI/LO pads must be touched at
display to show “SF” not pressed properly. the same time and held for 3 seconds.
Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset
clock flashes it by touching the CLEAR/OFF pad, setting the clock
and resetting any cooking function.
“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a
odor emitting from and will disappear in time. minimum of 3 hours. See the Using the self-cleaning
the vent upper oven section.
Strong odor An odor from the insulation • This is temporary.
around the inside of the oven
is normal for the first few times
the oven is used.
LOC appears in The Range Lockout feature • Be sure the surface unit controls are turned OFF.
the display is activated. Turn this feature off to use the range.
See the Range Lockout section.
Fan noise The convection fan may turn • This is normal. To maximize cooking evenness,
on and off automatically. the fan is designed to operate in both directions
with a pause in between.
Convection fan Preheat temperature • Fan will start automatically once the preheat
not working not reached. temperature is reached.
Drawer does not slide The drawer is out of alignment. • Fully extend the drawer and push it all the way in.
smoothly or drags See the Care and cleaning of the range section.
Drawer is overloaded or load • Reduce weight. Redistribute drawer contents.
is unbalanced.
Lower oven drawer A fuse in your home may be • Replace the fuse or reset the circuit breaker.
will not work blown or the circuit breaker
tripped.
The upper oven is self-cleaning. • Wait for the self-clean cycle to finish and the oven
to cool.
Controls improperly set. • See the Lower oven drawer section.
Excessive condensation Liquid in drawer. • Remove liquid.
in the drawer
Uncovered foods. • Cover food with lid or aluminum foil.
Temperature setting too high. • Reduce temperature setting.
Food dries out in the Moisture escaping. • Cover food with lid or aluminum foil.
lower oven drawer
Oven drawer not fully closed. • Push drawer in until latch engages.
50
Troubleshooting tips.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
51
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
(FOR CANADIAN CONSUMERS ONLY)
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :
52
53
Accessories. GEAppliances.com
Looking For Something More?
You can find these accessories and many more at GEAppliances.com (U.S.) or
www.GEAppliances.ca (Canada), or call 800.626.2002 (U.S.) or 800.661.1616 (Canada)
(during normal business hours). Have your model number ready.
Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?
NOW AVAILABLE for your range:
GE’s innovative, self-cleanable porcelain-coated oven racks!
• Heavy Duty
• Durable
• Able to be cleaned in a self-cleaning oven
Visit GEAppliances.com (U.S.) or www.GEAppliances.ca (Canada)
for more information.
F
R
O
N
T
R
E
A
R
S
U
R
F
A
C
E
U
N
I
T
F
R
O
N
T
R
E
A
R
R
E
A
R
O
V
E
N
Oven Racks Broiler Pan
Oven Elements
Light Bulbs Knobs
Cleaner
Cleaning Pads Scraper
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
54
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■ Damage to the glass cooktop caused by hardened
spills of sugary materials or melted plastic that
are not cleaned according to the directions in
the Owner’s Manual.
■ Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service
location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
For The Period Of: GE Will Replace:
One Year Any part of the range which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and in-home service
original purchase to replace the defective part.
Five Years A replacement glass cooktop if it should: crack due to thermal shock; discolor; crack at the
From the date of the rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off.
original purchase
A replacement radiant surface unit if it should burn out.
During this limited additional four-year warranty, you will be responsible for any labor or
in-home service.
GE Electric Range Warranty.(For customers in the United States)
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule
service, visit us on-line at GEAppliances.com, or call
800.GE.CARES (800.432.2737). Please have serial number
and model number available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law.
Operating
Instructions
Safety InstructionsCare and Cleaning
Installation
Instructions
Troubleshooting
Tips
Consumer Support
55
All warranty service provided by our Factory Service Centres
or an authorized Customer Care
®
technician. To schedule
service, visit us on-line at www.GEAppliances.ca, or call
1.800.561.3344. Please have serial number and model
number available when calling for service.
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■ Damage to the glass cooktop caused by hardened
spills of sugary materials or melted plastic that
are not cleaned according to the directions in
the Owner’s Manual.
■ Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
What Mabe Will Not Cover:
For The Period Of: Mabe Will Replace:
One Year Any part of the range which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labor and in-home service
original purchase to replace the defective part.
Five Years A replacement glass cooktop if it should: crack due to thermal shock; discolor; crack at the
From the date of the rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off.
original purchase
A replacement radiant surface unit if it should burn out.
During this limited additional four-year warranty, you will be responsible for any labor or
in-home service.
GE Electric Range Warranty.(For customers in Canada)
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
u
nder the warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada
for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed
reasonable by Mabe to provide.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from province to province. To know what your legal rights are in your province, consult your local or
provincial consumer affairs office.
Warrantor: Mabe Canada Inc.,
Burlington, Ontario
Operating
Instructions
Care and Cleaning
Installation
Instructions
Troubleshooting
Tips
Safety Instructions
Consumer Support
Consumer Support.
GE Appliances Website
I
n the U.S.:
GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day
o
f the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even
schedule service on-line. In Canada: www.GEAppliances.ca
Schedule Service In the U.S.: GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
In Canada, call 1.800.561.3344
Real Life Design Studio In the U.S.: GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all
ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and
impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities,
check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties In the U.S.: GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still
in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home
Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories In the U.S.: GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be
referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.
Contact Us In the U.S.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including
your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance In the U.S.: GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail
in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
Printed in Mexico
This book is printed on recycled paper.
