Owner 's Manual for Upright Vacuum

VACUUM ASSEMBLY

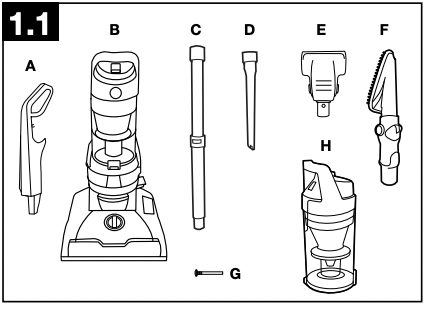

CARTON CONTENTS

A. Handle*

B. Vacuum Base

C. Telescoping Wand

D. Crevice Tool

E. Pet Turbo Tool

F. Pet Articulating Tool

G. (1) Large Screw

H. Dirt Cup

*Varies per model.

Remove all parts from carton and identify each item shown.

Make sure all parts are located before disposing of packing materials.

ATTACH HANDLE

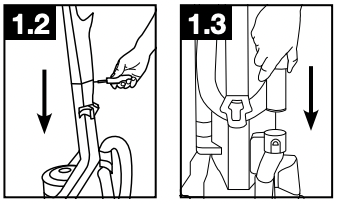

1.2 Insert handle section into vacuum base. Push down firmly. Using a Phillips screwdriver, fasten (1) large screw behind handle into vacuum base.

1.3 Wrap hose around top of hose guide located on the handle. Insert the hose into hose tube until you hear a click.

POSITION TOOLS

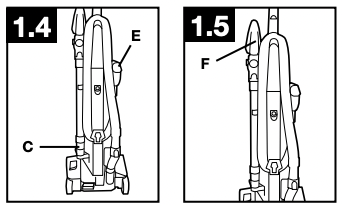

1.4 Place Crevice Tool into the bottom of the Telescoping Wand and slide onto the unit on left back side (C) of vacuum and place Pet Turbo Tool on right back side (E) of vacuum as shown.

1.5 Place Pet Articulating Tool (F) on top of wand.

ATTACH DIRT CUP

1.6 Place bottom of dirt cup into vacuum body first. Pivot cup into vacuum. Dirt cup is secure when you hear a click.

HOW TO USE

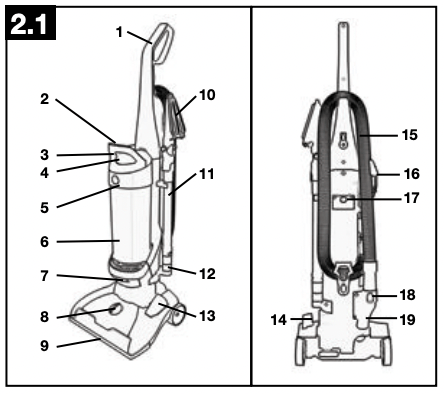

VACUUM DESCRIPTION

  1. Handle
  2. Dirt Cup Release Button
  3. Carry Handle
  4. System Check Indicator
  5. Rinsable Filter Access
  6. Dirt Cup
  7. Filter made with HEPA media
  8. Height Adjustment
  9. Furniture Guard
  10. Pet Articulating Tool
  11. Telescoping Wand
  12. Crevice Tool (inside wand)
  13. Brushroll ON/OFF Pedal
  14. Handle Release Pedal
  15. Hose
  16. Pet Turbo Tool
  17. ON/OFF Switch
  18. Hose Release Button
  19. Hose Connecting Tube
  20. Cord Clips
  21. Cord

ON-OFF SWITCH

2.2 Plug cord into electrical outlet.

To turn vacuum ON (I=0N), push ON/OFF switch (A) to ON position.

To turn vacuum OFF (O=OFF), push switch to OFF position.

CARPET HEIGHT ADJUSTMENT*

*Number of height settings vary per model.

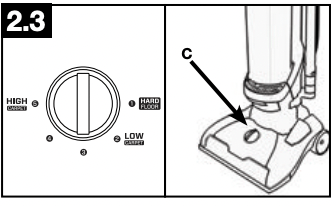

2.3 To adjust height setting, PUSH DOWN and TURN knob (C) to desired height setting.

For maximum cleaning performance, the following carpet height settings are recommended:

  • Hard floor setting: for use on hard floors only.
  • Low through High settings: Adjust depending on carpet type.
  • For high pile carpet, use high carpet setting to ease pushing effort.

IMPORTANT If the vacuum is difficult to push, push down and turn knob to the next higher setting.

SUCTION ONLY MODE/ BRUSHROLL SHUT-OFF

for bare floors and very high pile carpet

2.4 For optimal cleaning performance on bare floors and carpet with pile deeper than 1”, brushroll should be turned off.

The vacuum is shipped with the brushroll in the ON position. To turn brushroll OFF for Suction Only Mode, step on pedal (A).

IMPORTANT Pedal (A) is inactive when the cleaner is in the upright position.

CAUTION Brushroll should be in off position for cleaning of high pile carpet deeper than 1”.

CAUTION Not to be used for grooming a pet.

TOOLS

Tools allow for cleaning surfaces above the floor and for reaching hard to clean areas.

The vacuum is ready for tool use when handle is in upright position.

IMPORTANT Brushroll continues to turn while product is turned on and handle is in upright position, unless vacuum is in “Suction Only” mode. To avoid damage to carpet, rugs and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs, or carpeted stairs during tool use.

SELECT PROPER TOOL

A. Telescoping Wand is used to give extra length to your hose. Use it with any of the above tools.

B. Crevice Tool may be used in tight spaces, corners and along edges in such places as dresser drawers, upholstered furniture, stairs and baseboards.

C. Pet Turbo Tool may be used for upholstered furniture, draperies, mattresses, clothing, and carpeted stairs.

D. Use Pet Articulating Tool to clean upholstered furniture, draperies, mattresses, clothing, carpeted stairs, light fixtures, and fans with 5 cleaning positions.

REMOVING HOSE

3.2 To remove hose for tool use, press the hose release button and pull hose end out.

To lock back into place, push hose into hose tube until you hear a click.

CAUTION ! Not to be used for grooming a pet.

ATTACH WAND AND TOOLS

CAUTION ! Unplug before connecting Turbo Tool.

3.3 To attach tool or wand to 3.3 hose, push firmly into place.

STAIR CLEANING

3.4 Use the Hose and Pet Turbo Tool (Tool varies per model) for stair cleaning.)

CAUTION ! Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage. When using tools, always ensure handle is in the upright position.

CORD STORAGE

3.5 Wrap cord around hooks for convenient storage. Attach the plug end to the cord.

HOW TO CLEAN TOOLS

To clean Hose and Pet Turbo Tool, wipe with a damp cloth. DO NOT submerge in water. Other cleaning tools may be washed in warm water with a detergent. Rinse and air dry 24 hours before using.

MAINTENANCE

Any other servicing should be done by an authorized service representative.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

Familiarize yourself with these home maintenance tasks as proper use and care of your vacuum will ensure continued cleaning effectiveness.

4.1 The System Check Indicator located at (A), alerts you to possible system performance issues.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
If System Check Indicator is red:

1. Rinsable filter and/or filter made with HEPA media is dirty.

2. Dirt cup is full and/or clogged.

3. Cyclone filter assembly is clogged.

1. Clean rinsable filter and/or filter made with HEPA media - reference pg. 9 and 10

2. Empty dirt cup - reference pg. 9

3. Clean cyclone filter assembly per pg. 10.

NOTICE

A Thermal Protector has been designed into your cleaner to protect it from overheating. When the thermal protector activates the cleaner will stop running.

If this happens proceed as follows:

  1. Turn cleaner OFF and unplug it from the electrical outlet.
  2. Empty dirt cup.
  3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic filter, rinsable filter, and HEPA filter. Clear obstructions if present.
  4. When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

DIRT CUP: When to Empty

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

Very fine materials, such as face powder or cornstarch, may seal the filter and cause a reduction in performance. When using the vacuum for this type of dust, empty the cup and clean the filters often.

4.2 To maintain optimal performance, empty the dirt cup before the dirt cup reaches the max line (B). Place the vacuum in the upright position before removing the dirt cup.

How to Empty

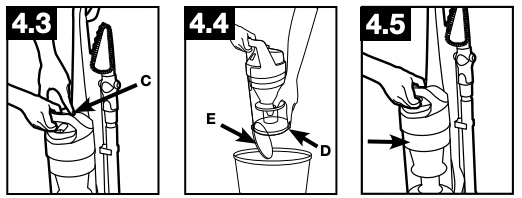

4.3 Press dirt cup release button (C) and pivot cup out.

4.4 Hold dirt cup over trash receptacle, push dirt cup door release lever (D) to open dirt cup door (E). Close dirt cup door (E). Press firmly to secure.

4.5 Place bottom of dirt cup into vacuum body first. Pivot dirt cup into vacuum body and press firmly until it locks into place.

FILTERS: When to Clean

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

To maintain optimal performance, filters should be cleaned at least every two months under normal use.

Rinsable Filter: How to Clean

Remove dirt cup as described in Fig. 4.3.

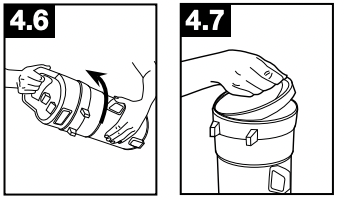

4.6 Twist the dirt cup handle counterclockwise to open and remove lid.

4.7 Pull tab to remove rinsable filter. Rinse with water for two minutes or until water runs clear. Then squeeze out excess water. Allow 24 hours for filter to dry completely. Replace filter, tab side out.

4.8 Replace dirt cup lid and twist clockwise until locked in position. Replace dirt cup as described in Fig 4.5.

IMPORTANT Allow filter to dry completely before replacing. Dry filter on edge so air circulates on both sides of filter. This may take up to 24 hours.

Cyclonic Filter Assembly: How to Clean

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place. Do not use vacuum without dirt cup or filters in place.

Remove dirt cup and twist the dirt cup handle counterclockwise to open and remove lid as described in 4.6.

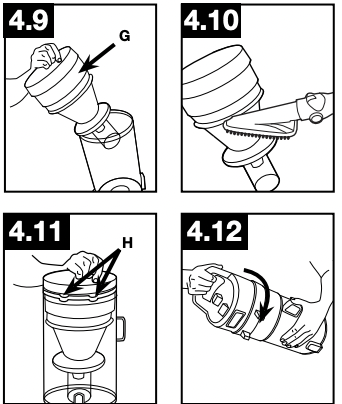

4.9 Pull filter assembly (G) out of dirt cup and remove.

4.10 Dirt and debris can be cleaned from the filter assembly with the Pet Articulating Brush.

4.11 Place the filter assembly on the dirt cup. Line up tabs (H) on lid with dirt cup body.

4.12 Replace dirt cup lid and twist clockwise until locked in position. Replace dirt cup as described in Fig 4.5.

Filter Made With HEPA Media: How to Clean

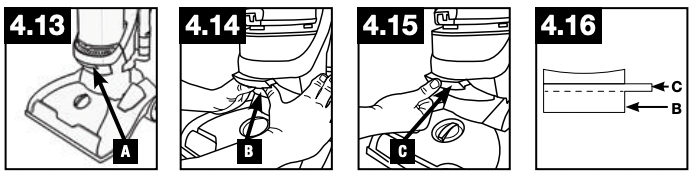

4.13 With fingers under filter door lip, pull filter frame (A) out and away from vacuum body. Hold filter over a trash receptacle and tap out dirt and debris.

4.14 Bottom filter (B) must be pushed back into place first.

4.15 Then push the upper handle in (C) until it clicks.

4.16 Filter diagram: (B) bottom filter. (C) upper handle.

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

IMPORTANT DO NOT RINSE OR WASH THE FILTER MADE WITH HEPA MEDIA.

BRUSHROLL: How to Clean

CAUTION ! To reduce the risk of injury from moving parts - Unplug before servicing.

Brushroll - Bottom plate with screws

Place handle in the low position and turn the cleaner over so the bottom side is up.

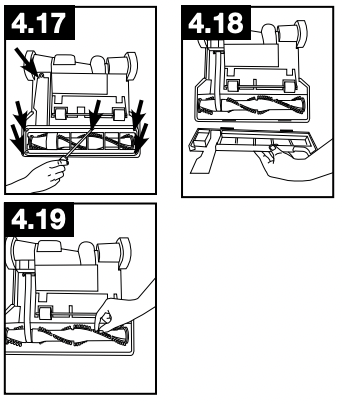

4.17 Remove the 6 screws as shown with a Phillips screwdriver.

4.18 Pivot off bottom plate.

4.19 Remove any debris and/or hair from brushroll. Replace the bottom plate aligning the screw holes and install the 6 screws as shown.

BELT

CAUTION ! To reduce the risk of injury from moving parts - Unplug before servicing.

The belt is located under the bottom plate of the vacuum and should be checked from time to time to be sure it is in good condition.

When To Replace

Replace belt if it is damaged, cut or broken. Refer to directions below.

How To Replace - Bottom plate with screws

Place handle in the low position and turn the cleaner over so the bottom side is up.

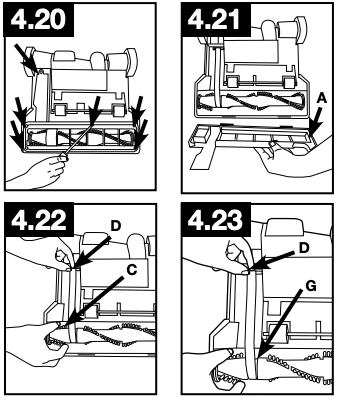

4.20 Remove the 6 screws as shown with a Phillips screwdriver.

4.21 Lift off bottom plate (A).

4.22 Remove used belt from brushroll (C) then from motor shaft (metal rod) (D) and discard.

4.23 With lettering on outside of belt, slide new belt over motor shaft (metal rod) (D). Then slip around area of brushroll without bristles (G).

4.24 With belt in place, pull and slide brushroll into nozzle making sure that the brushroll end caps are in the correct orientation. Place the bottom plate aligning the screw holes and re-install the 6 screws.

HOSE

WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing.

How to Clean

4.25 To remove hose for tool use, press the hose release button (A) and pull hose end out. Clear away debris or obstructions from hose. Do not use sharp objects to clean out hose as they can cause damage. To lock back into place, push hose into hose tube until you hear a click.

PET TURBO TOOL: How to Clean

(Tool varies per model)

CAUTION ! To reduce the risk of injury from moving parts - Unplug vacuum before servicing.

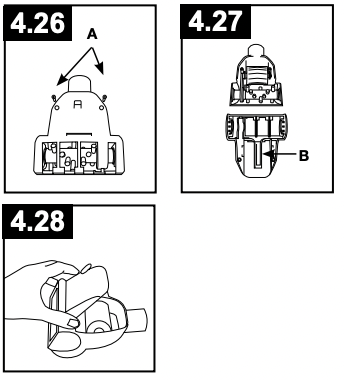

4.26 Clean the Pet Turbo Tool by removing the two screws (A), located on the bottom cover, with a Phillips head screwdriver.

4.27 Remove the bottom cover (B). Clean out any debris or hair from the brushroll and turbine fan.

4.28 Replace the bottom cover, insert and tighten the (2) screws.

LUBRICATION

The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.

TROUBLESHOOTING

Any other servicing should be done by an authorized service representative.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

WARNING ! To reduce risk of personal injury - Unplug before cleaning or servicing.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Vacuum won’t run

1. Power cord not firmly plugged into outlet.

2. Blown fuse or tripped breaker.

3. Thermal Protector activated.

1. Plug unit in firmly.

2. Check fuse or breaker in home. Replace fuse/reset breaker in home

3. Unplug and allow vacuum to cool for 30min. (This willl reset the thermal protector)

System Check Indicator has turned red or Vacuum won’t pick up or Low suction

1.Rinsable Filter and/ or Filter made with HEPA media is dirty.

2. Dirt cup full and/ or clogged.

3. Broken or worn belt.

4. Brushroll and/ or Hose clogged.

5. Carpet height setting is incorrect.

1. Clean Rinsable Filter and or Filter made with HEPA media - Pg. 9 and 10.

2. Empty dirt cup - Pg. 9.

3. Replace belt - Pg.12

4. Check Hose - Pg. 13. Check Brushroll - Pg. 11.

5. Set Carpet Height Adjustment to appropriate setting for carpet being cleaned - Pg.6.

Dust escaping from vacuum

1. Dirt cup full.

2. Dirt cup not installed correctly.

3. Hose not installed correctly

4. Rinsable and/ or Filter made with HEPA media not installed completely

1. Empty dirt cup - Pg. 9.

2. Review Dirt Cup removal & replacement - Pg. 9.

3. Review Hose installation - Pg. 7.

4. Review Filter Removal and Cleaning - Pg. 9 and 10.

Vacuum is difficult to push or won’t move forward 1. Carpet height setting is incorrect. 1. Set Carpet Height Adjustment knob to appropriate setting for carpet being cleaned - Pg. 6.
Pet Turbo Tool brushroll won’t turn

1. Too much pressure being applied to tool.

2. Blockage.

3. Low vacuum suction.

1. Continue using tool applying light pressure.

2. Remove blockage - Pg. 11

3. Check items under “Vacuum won’t pick or Low suction.”

Smoky/burning smell detected

1. Belt broken or stretched.

2. Brushroll is clogged.

1. Replace brushroll belt - Pg. 12

2. Clear/ remove debris from brushroll - Pg. 11.
