MFL69702024
Se
ars Brands Management Corporation
Hoff man Estates, IL 60179 U.S.A.
www.kenmore.com
Use & Care Guide
Models: 796.6143*, 796.7143*
Kenmore Elite
Dryer
* = color number
®
2
TABLE OF CONTENTS
PRODUCT RECORD
In the space below, record the date of purchase, model,
and serial number of your product. You will fi nd the
model and serial number printed on an identifi cation
plate located inside the dryer door. Have these items of
information available whenever you contact Sears
concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for future
reference.
IMPORTANT SAFETY INSTRUCTIONS ....................3-7
GROUNDING REQUIREMENTS ................................... 4
FEATURES AND BENEFITS
Key Parts and Components ........................................7
Accessories .................................................................. 7
Two-Way Reversible Door .......................................... 7
INSTALLATION INSTRUCTIONS
Key Dimensions and Specifi cations ..........................8
Location Requirements ................................................8
Choose the Proper Location ................................8
Clearances ....................................................................8
Gas Dryers .............................................................10-11
Gas Requirements .................................................10
Electrical Requirements .........................................10
Connecting the Gas Supply ................................11
Electric Dryers ...................................................... 12-13
Electrical Requirements ....................................... 12
Connecting Electric Dryers ................................. 13
Venting the Dryer .................................................14-15
Connecting the Inlet Hose .........................................16
Leveling the Dryer .....................................................17

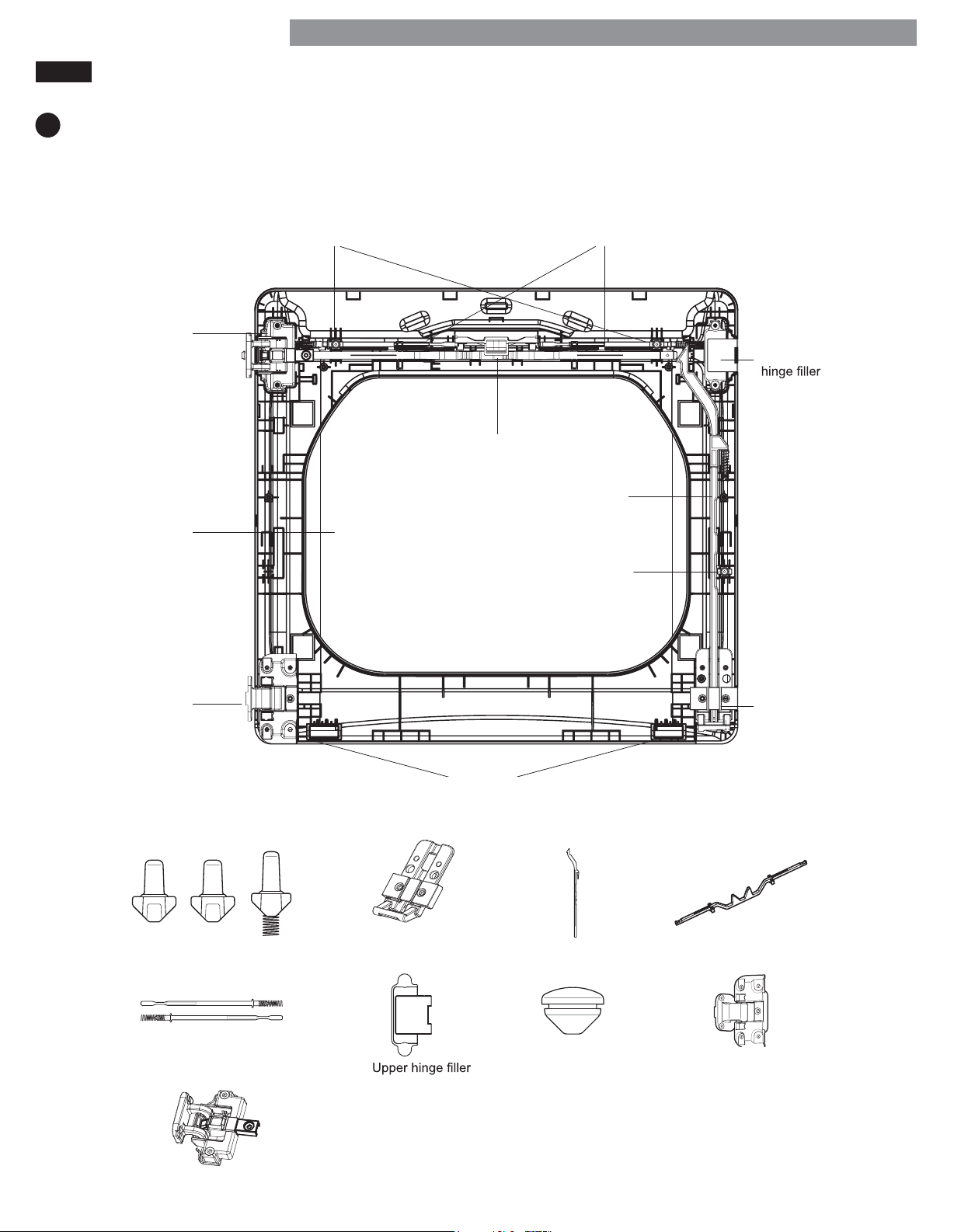

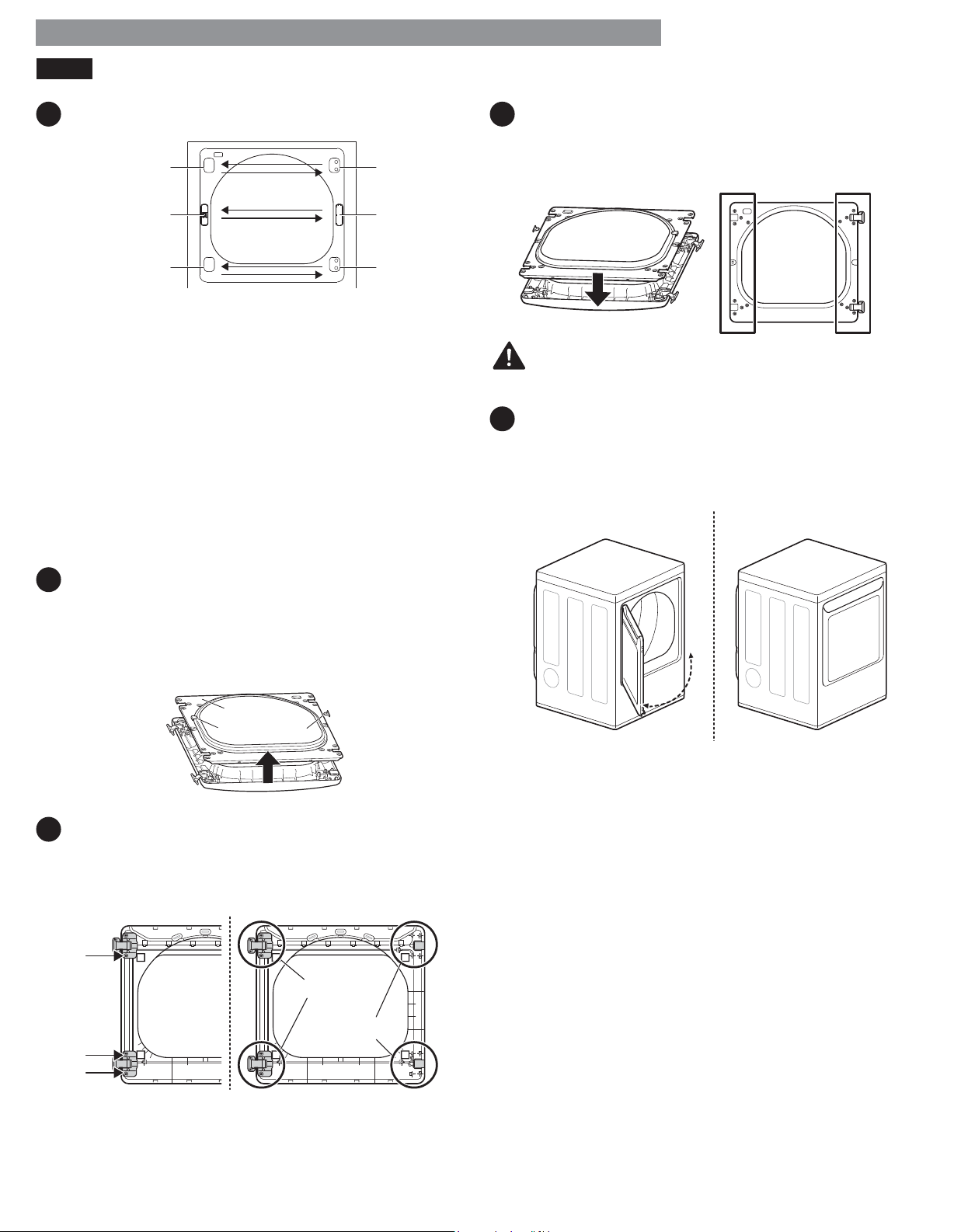

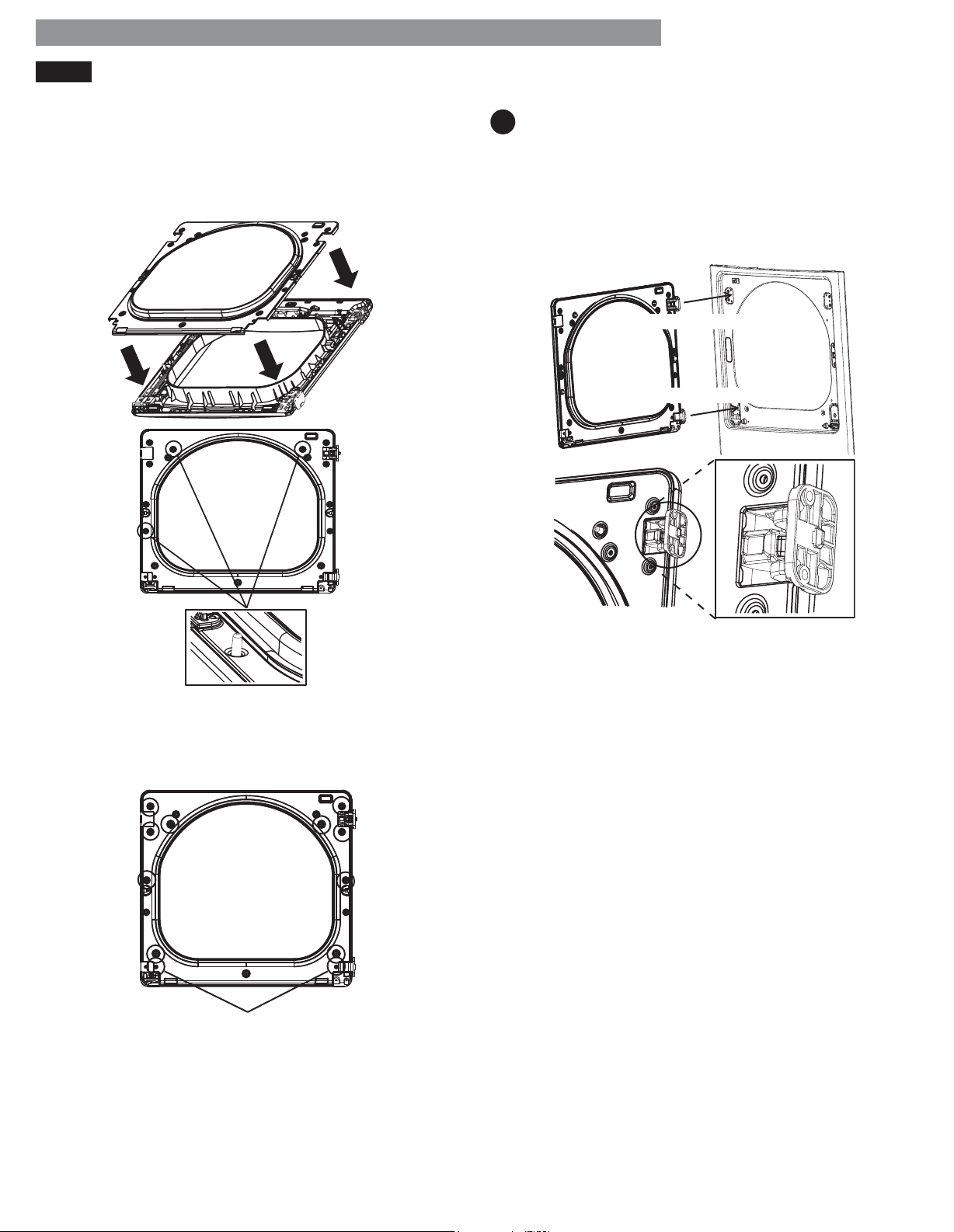

Reversing the Door Swing ..................................17-24
Final Installation Check ............................................25

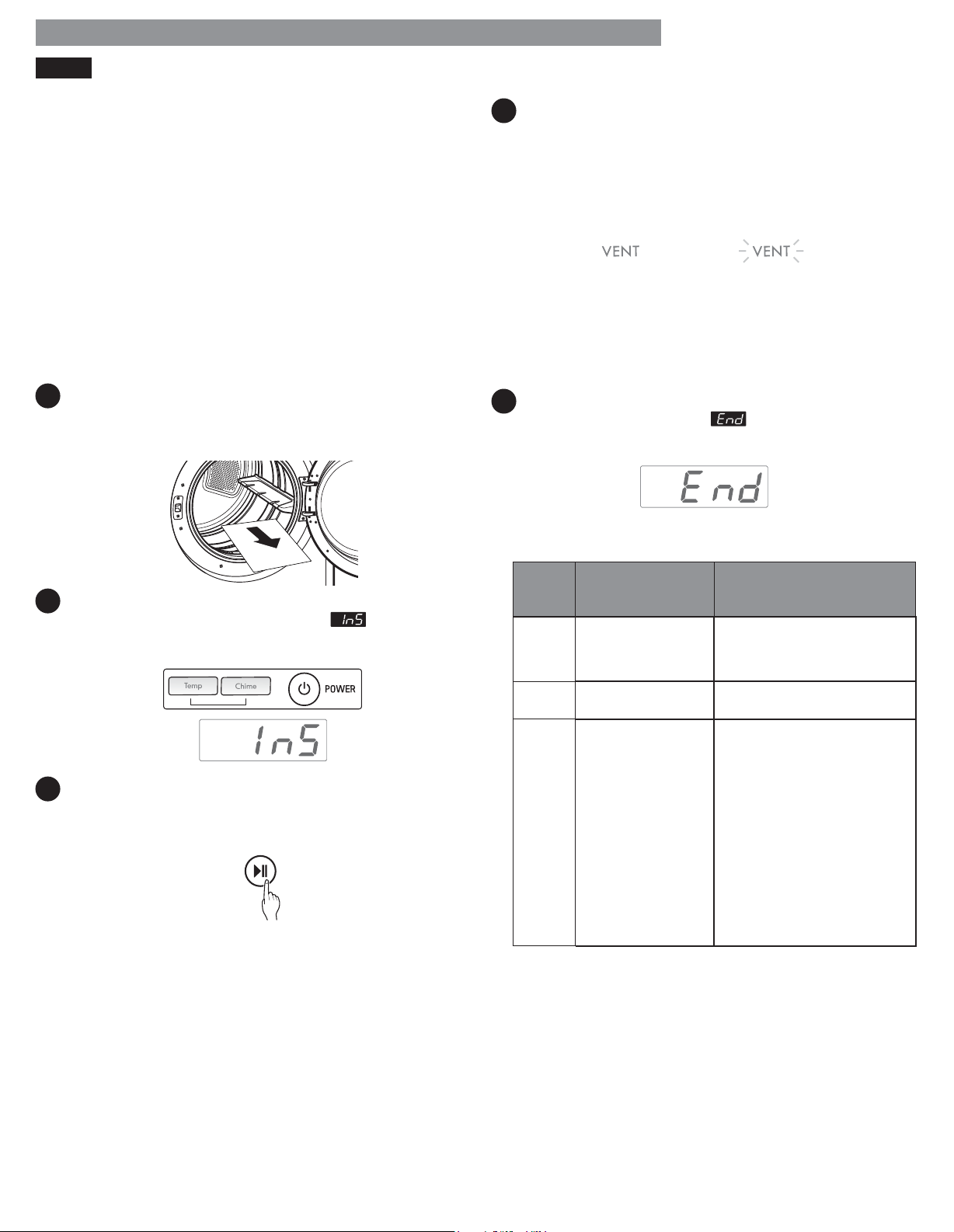

Installation Test (Duct Check) .................................. 26
Restricted or Blocked Airfl ow .................................. 27
HOW TO USE

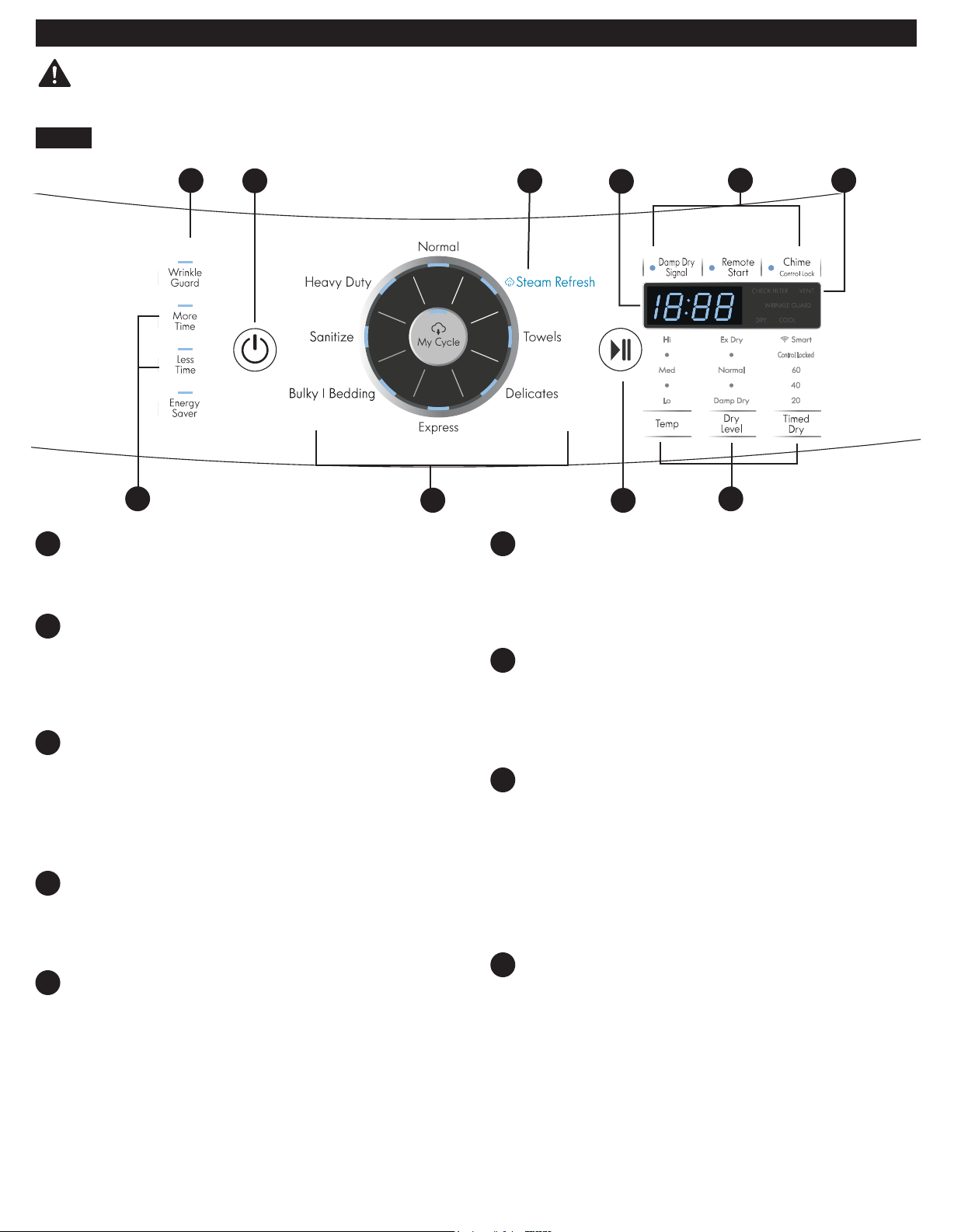

Control Panel Features ............................................ 28
Time and Status Display ......................................... 29
Operating the Dryer ................................................ 30
Using the Two-Way Reversible Door ....................... 31
Cycle Guide .........................................................32-33
Sorting Loads ............................................................ 34
Loading the Dryer .................................................... 34
Cycle Modifi er Buttons .............................................35
Cycle Options and Special Features ......................36
Smart Features ...........................................................36
Steam Features ...........................................................38
USER MAINTENANCE INSTRUCTIONS
Regular Cleaning ......................................................39
Cleaning the Exterior ......................................... 39
Cleaning the Interior .......................................... 39
Cleaning Around and Under the Dryer ...........39
Cleaning the Lint Filter .......................................39
Maintaining the Exhaust System .............................40
DIAGNOSTICS ................................................................41
TROUBLESHOOTING GUIDE
Before Calling for Service ................................42-44
WARRANTY ...................................................................45
SERVICE .......................................................... Back Cover
3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING: For your safety, the information in this manual must be followed to minimize the risk
of fi re, explosion, or electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING:
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what can happen if the instructions are not followed.
CAUTION:
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
SAVE THESE INSTRUCTIONS
WARNING
FIRE HAZARD
Failure to follow safety hazards exactly could result in serious injury, death or property damage.
• Do not install a booster fan in the exhaust duct.
• Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety hazards exactly could result in serious injury, death or property damage.
• Do not store or use gasoline or other fl ammable vapors and liquids in the vicinity of this appliance or any other
appliance.
• Installation and service must be performed by a qualifi ed installer, service agency, or the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
1. Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phones in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighbor’s phone. Carefully follow the gas supplier’s instructions
.
5. If you cannot reach your gas supplier, call the fi re department.
• Do not install a clothes dryer with fl exible plastic venting materials. If a fl exible metal (foil type) duct is
installed, it must be of a specifi c type identifi ed by the appliance manufacturer as suitable for use with clothes
dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airfl ow and increase the risk of fi re.
4
IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed, as
described in this manual.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch
fi re.
• Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other fl ammable or explosive
substances, as they give off vapors that could ignite
or explode.
• Do not reach into the dryer if the drum or any other part
is moving.
• Do not repair or replace any part of the dryer or
attempt any servicing unless specifi cally recommended
in this Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric
shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualifi ed electrician or service person if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance. If it will not fi t the outlet, have a proper
outlet installed by a qualifi ed electrician. This appliance must be connected to a grounded metal, permanent
wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance. Electrical shock can result if the dryer is not properly
grounded.
• Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
• Do not use heat to dry articles containing foam rubber
or similarly textured rubber-like materials.
• Keep the area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
• The interior of the dryer and exhaust vent should be
cleaned periodically by qualifi ed service personnel.
• Do not install or store the dryer where it will be exposed
to the weather.
• Always check the inside of the dryer for
foreign objects.
• Clean the lint fi lter before or after each load.
• Do not store plastic, paper, or clothing that may burn or
melt on top of the dryer during operation.
• Gas appliances can cause minor exposure to four
potentially harmful substances, namely benzene, carbon
monoxide, formaldehyde, and soot, caused primarily
by the incomplete combustion of natural gas or LP
fuels. Properly adjusted dryers will minimize incomplete
combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the
outdoors.
BASIC SAFETY PRECAUTIONS
WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using this appliance,
follow basic precautions, including the following:
5
• Properly ground dryer to conform with all governing
codes and ordinances. Follow details in the installation
instructions. Electrical shock can result if the dryer is not
properly grounded.
• Before use, the dryer must be properly installed as
described in this manual. Electrical shock can result if the
dryer is not properly grounded.
• Install and store the dryer where it will not be exposed
to temperatures below freezing or exposed to
the weather.
• All repairs and servicing must be performed by an
authorized service technician unless specifi cally
recommended in this Owner’s Guide. Use only
authorized factory parts. Failure to follow this warning
can cause serious injury, fi re, electrical shock, or death.
• To reduce the risk of electrical shock, do not install the
dryer in humid spaces. Failure to follow this warning can
cause serious injury, fi re, electrical shock, or death.
• Connect to a properly rated, protected, and sized power
circuit to avoid electrical overload. Improper power
circuits can melt, creating risk of electrical shock and/or
fi re hazard.
• Gas dryers MUST be exhausted to the outside. Failure
to follow these instructions can result in fi re or death.
• The dryer exhaust system must be exhausted to the
outside of the dwelling. If the dryer is not exhausted
outdoors, some fi ne lint and large amounts of
moisture will be expelled into the laundry area. An
accumulation of lint in any area of the home can
create a health and fi re hazard.

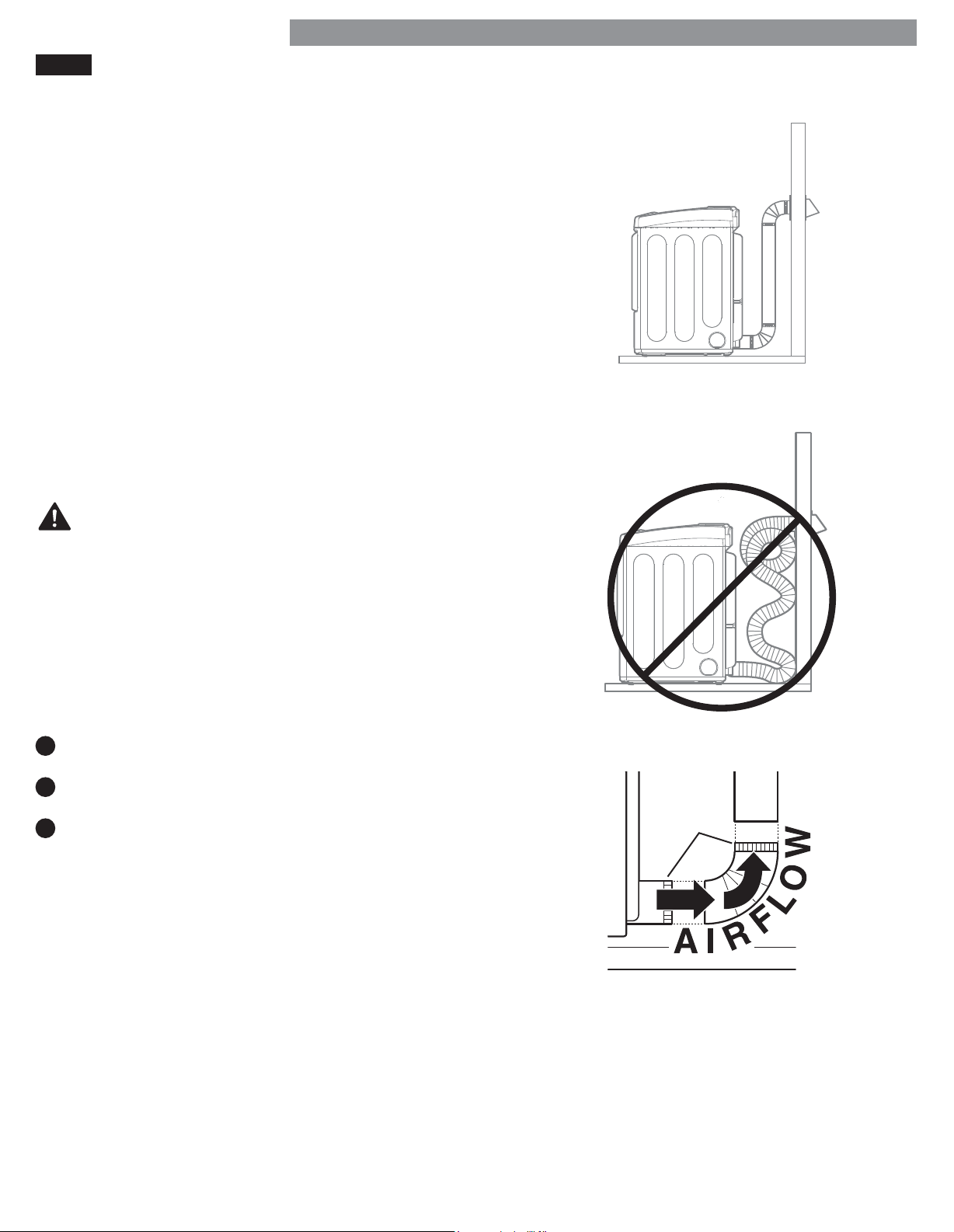

• Use only rigid metal or fl exible metal 4 inch diameter
duct inside the dryer cabinet or for exhausting to the
outside. Use of plastic or other combustible ductwork
can cause a fi re. Punctured ductwork can cause a fi re
if it collapses or becomes otherwise restricted in use or
during installation.
• Ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The end
cap should have hinged dampers to prevent backdraft
when the dryer is not in use. Failure to follow these
instructions can result in fi re or death.
• Remove all packing items and dispose of all shipping
materials properly. Failure to do so can result in death,
fi re, explosion, burns, or death.
• Place dryer at least 18 inches above the fl oor for a
garage installation. Failure to do so can result in fi re,
explosion, burns, or death.
• Keep all packaging from children. Packaging material
can be dangerous for children. There is a risk of
suff ocation.
• Do not install near items that produce heat or open
fl ame such as stoves or cooking ovens. Failure to follow
this warning can cause product deformation, smoke and
fi re.
• Do not place candles, smoking materials, or other
fl ammables on top of the product. Dripping wax, smoke,
or fi re can result.
• Remove all protective vinyl fi lm from the product. Failure
to do so can cause product damage, smoke or fi re.

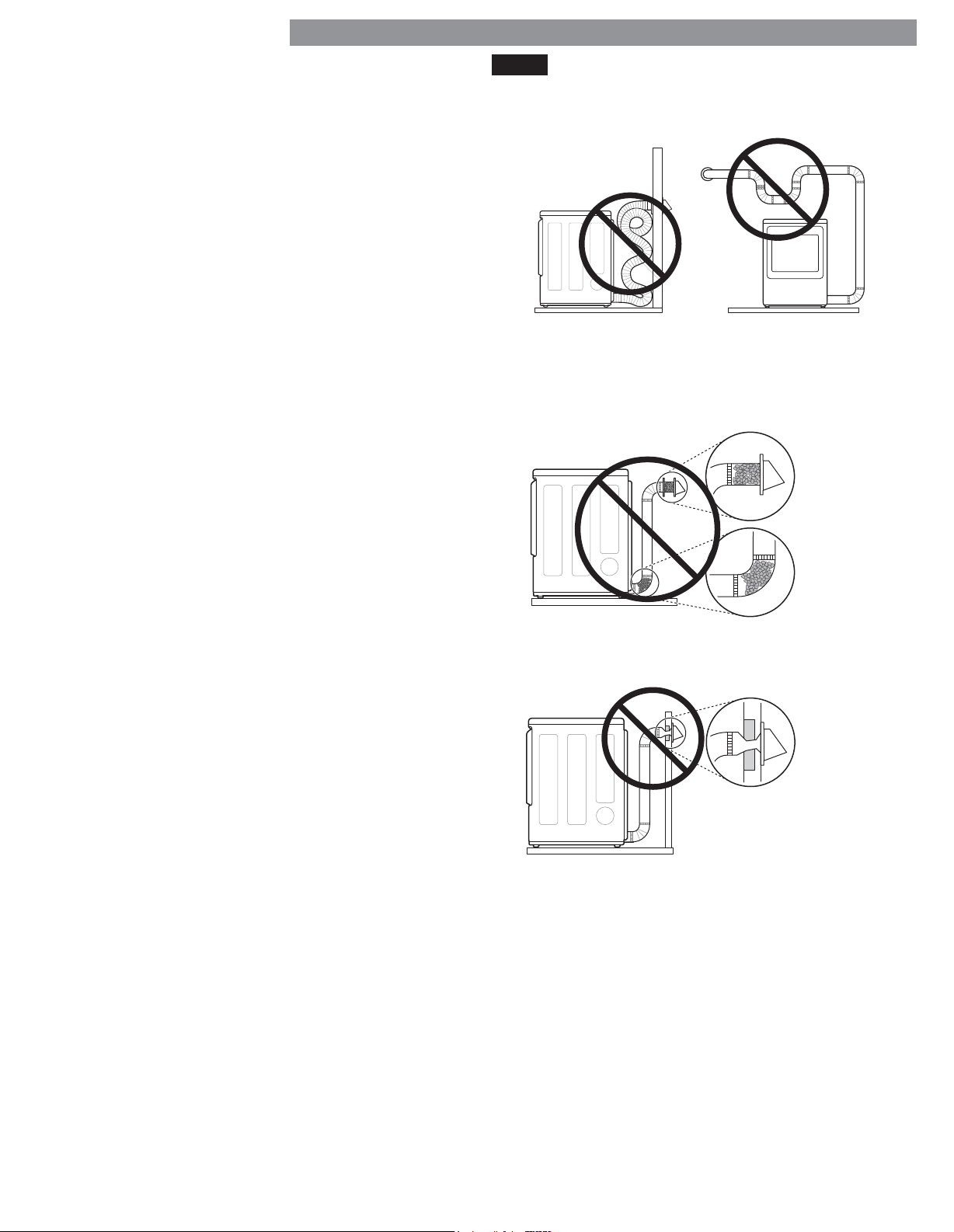

• The exhaust duct must be 4 inches (10.2 cm) in
diameter with no obstructions. The exhaust duct should
be kept as short as possible. Make sure to clean any
old ducts before installing your new dryer. Failure to
follow these instructions can result in fi re or death.
• Rigid or semi rigid metal ducting is recommended
for use between the dryer and the wall. In special
installations when it is impossible to make a connection
with the above recommendations, a UL listed fl exible
metal transition duct may be used between the dryer
and wall connection only. The use of this ducting will
aff ect drying time. Failure to follow these instructions
can result in fi re or death.
• DO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the effi ciency of the exhaust system. Secure all
joints with duct tape. For complete details, follow the
Installation Instructions. Failure to follow these instructions
can result in fi re or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
Exhaust/Ducting:
WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using this appliance,
follow basic precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
6
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
• Do not, under any circumstances, cut or remove the
ground prong from the power cord. To prevent personal
injury or damage to the dryer, the electrical power cord
must be plugged into a properly
grounded outlet.
• For personal safety, this dryer must be properly
grounded. Failure to do so can result in electrical shock
or injury.
• Refer to the installation instructions in this manual for
specifi c electrical requirements for your model. Failure
to follow these instructions can create an electrical shock
hazard and/or a fi re hazard.
• This dryer must be plugged into a properly grounded
outlet. Electrical shock can result if the dryer is not
properly grounded. Have the wall outlet and circuit
checked by a qualifi ed electrician to make sure the
outlet is properly grounded. Failure to follow these
instructions can create an electrical shock hazard
and/or a fi re hazard.
• The dryer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house wiring
circuits which could cause a fi re hazard from overheated
wires.
• Never unplug your dryer by pulling on the power cord.
Always grip the plug fi rmly and pull straight out from
the outlet. The power cord can be damaged, resulting in
a risk of fi re and electrical shock.
• Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. The power cord can
melt, creating electrical shock and/or fi re hazard.
• When installing or moving the dryer, be careful not
to pinch, crush, or damage the power cord. This will
prevent injury and prevent damage to the dryer from
fi re and electrical shock.
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using this appliance,
follow basic precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
7
FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
EASY-TO-USE CONTROL PANEL
Select the desired dry cycle, add cycle options or
adjust settings with the touch of a button.
TIME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status and
estimated time remaining.
CYCLE MODIFIERS
Adjust the cycle defaults such as temperature and dry
level with the touch of a button.
NOTE: Not all settings are available for all cycles.
CHECK VENT
(Duct Blockage Sensing System)
The CHECK VENT (Duct blockage sensing system)
detects and alerts you to blockages in the exhaust
system that reduce airfl ow from the dryer.
Maintaining clean exhaust system ducts improves
operating effi ciency and helps minimize service calls,
saving you money.
LARGE CAPACITY STEEL DRUM WITH DRUM LIGHT
The ultra-large, oxidation-resistant, coated steel drum
off ers superior durability. The light comes on when the
door is opened.
EASY-ACCESS REVERSIBLE DOOR
The wide-opening, see-through glass door provides
easy access for loading and unloading. Door swing
can be reversed to adjust for installation location.
FRONT-MOUNT LINT FILTER
The front-mount lint fi lter allows for easy access and
cleaning between loads.
LEVELING FEET
Four leveling feet (two in front, and two in back)
adjust to improve dryer stability on uneven fl oors.
There are several important components that are
referenced in this manual.
A
B
C
D
E
F
G
H
Rear of Dryer
Terminal
block
access panel
(Electric
models)
Gas
connection
location
(Gas models)
Power cord
location
(Gas
models)
Exhaust
duct
outlet
Water Inlet
Valve
ACCESSORIES
H
G
A D B
E
F
C
Included Accessories
Optional Accessories
(sold separately)
Hoses and Y connector*
Kit No. 26-59029
Side vent kit*
Kit No. 26-49670
Drying rack**
Part No. 3750EL0001C
Safety tether kit
* at Sears.com
** at SearsPartsDirect.com
Required Accessories
(sold separately)
The two-way reversible door feature allows you to open the dryer
door from the top, hamper-style, when loading the dryer to help guide
clothes into the drum and prevent them from falling onto the floor.
When unloading the dryer or loading bulkier items, use the swing door
for easy access to the drum.
hamper door
swing door
release
Two-Way Reversible Door
8
INSTALLATION INSTRUCTIONS
KEY DIMENSIONS AND SPECIFICATIONS
CHOOSE THE PROPER LOCATION
• A location that allows for proper exhaust installation.
A gas dryer must be exhausted to the outdoors. See
Venting the Dryer.
• A grounded electrical outlet located within 2 ft. (61
cm) of either side of the dryer. See Connecting Electric
Dryers.
• A sturdy floor to support the total dryer weight of 200
lbs (90.7 kg). The combined weight of a companion
appliance should also be considered.
• No other fuel-burning appliance can be installed in the
same closet as a dryer.
• Store and install the dryer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions.
• Choose a location with a solid, level floor with a
maximum slope of 1 inch (2.5 cm) under the entire
dryer. If the slope is greater than 1 inch (2.5 cm), install
the Extended Dryer Feet Kit. Clothes may not tumble
properly, and automatic sensor cycles may not operate
correctly if the dryer is not level.
• If the dryer is being installed in a garage, place the
dryer at least 18 inches (45.7cm) above the floor. If
using a pedestal, you will need 18 inches (46 cm) to the
bottom of the dryer.
• To reduce the risk of electric shock, do not install the
dryer in damp or wet locations.
Description Dryer Steam Dryer (Gas and Electric)
Electrical Requirements Refer to the rating label
Gas Requirements* NG: 4–10.5 inches WC
Gas Requirements* LP: 8–13 inches WC
Dimensions 27 in. (W) X 29 ½ in. (D) X 40 3/16 in. (H), 50
¼
in. (D with door open)
)nepo rood htiw D( mc 5.721 ,)H( mc 201 X )D( mc 57 X )W( mc 6.86
Net Weight Electric : 127.9 lb. (58 kg) Gas : 131 .2 lb. (59.5 kg)
Drying Capacity IEC 7.3 cu.ft. (22.5 lb/10.2 kg)
*Gas Models Only
Do not operate your dryer at temperatures below 45°F
(7°C). At lower temperatures, the dryer might not shut off
at the end of an automatic cycle. This can result in longer
drying times. The dryer must not be installed or stored
in an area where it will be exposed to water and/or
weather. Check code requirements. Some codes limit, or
do not permit, installation of the dryer in garages, closets,
mobile homes or sleeping quarters. Contact your local
building inspector.
NOTE: Installing the dryer in a humid space, or installing
or storing the dryer where it will be exposed to the
weather or freezing temperatures, may result in rust
or other damage that is not covered by the product
warranty.
IMPORTANT: If you are installing your dryer in a
manufactured or mobile home, please refer to the
Special Electrical Requirements for Mobile or
Manufactured Homes section.
LOCATION REQUIREMENTS
IMPORTANT: Read all installation instructions completely before installing and operating your dryer.
It is important that you review this entire manual before installing and using your dryer. It contains detailed instructions
concerning electrical connections, gas connections and exhaust requirements.
CLEARANCES
• Most installations require a minimum 5 ½ inch (14 cm)
clearance behind the dryer for the exhaust ducting.
• Allow minimum clearances of at least 1 inch (2.5 cm) on
the sides and back to minimize vibration and noise.
• Allowing additional clearance for installation and
servicing is recommended.
• Be sure to allow for wall, door, or floor moldings that
may increase the required clearances.
• Allow at least 21 inches (53.3 cm) in front of the dryer to
open the door.
9
Additional instructions for closet installations:
The closet door must allow for suffi cient airfl ow. Refer
to the diagram above for minimum vent opening
requirements. A louvered door is also acceptable.
Closet Door Vent Requirements
(7.6 cm)
(7.6 cm)
(2.54 cm) (2.54 cm)(68.6 cm)
14
"
max.*
(35.6
cm)
21
1
/
4
"
(54 cm)
29
1
/
2
"
(75 cm)
50
1
/
4
"
(127.5 cm)
5"**
(12.7 cm)
40
3
/
16
"
(102 cm)
CLEARANCES (continued)
Recommended installation spacing for cabinet installation:
For cabinet installation with a door, minimum ventilation
openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting,
2-inch (5.1 cm) clearance is allowed.
29 ½"
(75 cm)
7"* (17.8 cm)
7"* (17.8 cm)
5"*
(12.7 cm)
1"*
(2.5 cm)
(68.6 cm)
1"
(2.54 cm)
1"
(2.54 cm)
27
"
INSTALLATION INSTRUCTIONS
10
GAS DRYERS
GAS REQUIREMENTS (GAS MODELS ONlY)
• Gas supply requirements: As shipped from the factory,
this dryer is confi gured for use with natural gas (NG).
It can be converted for use with propane (LP) gas. Gas
pressure must not exceed 8 inches water column for
(NG), or 13 inches water column for (LP).
• A qualifi ed service or gas company technician must
connect the dryer to the gas service. Failure to follow
these instructions can result in fi re, explosion, or death.
• Isolate the dryer from the gas supply system by closing
its individual manual shutoff valve during any pressure
testing of the gas supply. Failure to do so can result in
fi re, explosion, or death.
• Supply line requirements: Your laundry room must
have a rigid gas supply line to your dryer. In the United
States, an individual manual shutoff valve MUST be
installed within at least 6 ft. (1.8 m) of the dryer, in
accordance with the National Fuel Gas Code ANSI
Z223.1 or Canadian gas installation code CSA B149.1. A
⅛ inch NPT pipe plug must be installed. Failure to do
so can result in fi re, explosion, or death.
• If using a rigid pipe, the rigid pipe should be ½ inch
IPS. If acceptable under local codes and ordinances
and when acceptable to your gas supplier, ⅜ inch
approved tubing may be used where lengths are less
than 20 ft. (6.1 m). Larger tubing should be used for
lengths in excess of 20 ft. (6.1 m). Failure to do so can
result in fi re, explosion, or death.
• Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord. Failure to
follow this warning can result in fi re, explosion, or death.
• For personal safety, this dryer must be properly
grounded. Failure to follow this warning can result in fi re,
explosion, or death.
• The power cord of this dryer is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appliance.
Failure to follow this warning can result in fi re, explosion,
or death.
• This dryer must be plugged into a 120-VAC, 60-Hz.
grounded outlet protected by a 15-ampere fuse or
circuit breaker. Failure to follow this warning can result
in fi re, explosion, or death.
• Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can result in fi re, explosion,
or death.
• Connect the dryer to the type of gas shown on the
nameplate. Failure to do so can result in fi re, explosion,
or death.
• To prevent contamination of the gas valve, purge the
gas supply of air and sediment before connecting
the gas supply to the dryer. Before tightening the
connection between the gas supply and the dryer,
purge remaining air until the odor of gas is detected.
Failure to do so can result in fi re, explosion, or death.
• DO NOT use an open fl ame to inspect for gas leaks.
Use a noncorrosive leak detection fl uid. Failure to do so
can result in fi re, explosion, or death.
• Use only a new AGA- or CSA-certifi ed gas supply line
with fl exible stainless steel connectors. Failure to do so
can result in fi re, explosion, or death.
• Securely tighten all gas connections. Failure to do so
can result in fi re, explosion, or death.
• Use Tefl on tape or a pipe-joint compound that is
insoluble in propane (LP) gas on all pipe threads.
Failure to do so can result in fi re, explosion,
or death.
• DO NOT attempt any disassembly of the dryer;
disassembly requires the attention and tools of an
authorized and qualifi ed service technician or company.
Failure to follow this warning can result in fi re, explosion,
or death.
3-prong
grounding
plug
3-prong
grounding
type wall
receptacle
Ensure proper
ground exists
before use.
ELECTRICAL REQUIREMENTS (GAS MODELS ONLY)
WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using this appliance,
follow basic precautions, including the following:
INSTALLATION INSTRUCTIONS
11
• Installation and service must be performed by a
qualifi ed installer, service agency, or the gas supplier.
Failure to do so can result in fi re, explosion, or death.
• Use only a new stainless steel fl exible connector and a
new AGA-certifi ed connector. Failure to do so can result
in fi re, explosion, or death.
• A gas shutoff valve must be installed within 6 ft.
(1.8 m) of the dryer. Failure to do so can result in fi re,
explosion, or death.
• The dryer is confi gured for natural gas when shipped
from the factory. Make sure that the dryer is equipped
with the correct burner nozzle for the type of gas being
used (natural gas or propane gas). Failure to do so can
result in fi re, explosion, or death.
CONNECTING THE GAS SUPPLY
NOTE: This dryer is confi gured from the factory set for
natural gas (NG). If dryer is to be used with propane (LP)
gas, it must be converted by a qualifi ed
service technician.
1
Make sure that the gas supply to the laundry room is
turned OFF and the dryer is unplugged. Confi rm that
the type of gas available in your laundry room is
appropriate for the dryer.
2
Remove the shipping cap from the gas fi tting at the
back of the dryer. Be careful not to damage the
threads of the gas connector when removing the
shipping cap.
3
Connect the dryer to your laundry room’s gas supply
using a new fl exible stainless steel connector with a
⅜-inch NPT fi tting.
NOTE: DO NOT use old connectors.
4
Securely tighten all connections between the dryer and
your laundry room’s gas supply.
5
Turn on your laundry room’s gas supply.
6
Check all pipe connections (both internal and external)
for gas leaks with a noncorrosive leak-detection fl uid.
7
Proceed to Venting the Dryer (refer to pages 14-15).
High-Altitude Installations
The BTU rating of this dryer is AGA-certifi ed for
elevations below 10,000 feet.
If your gas dryer is being installed at an elevation
above 10,000 feet, it must be derated by a qualifi ed
technician or gas supplier.
• If necessary, the correct nozzle (for the LP nozzle kit,
order part number 17025) should be installed by a
qualifi ed technician and the change should be noted on
the dryer. Failure to do so can result in fi re, explosion, or
death.
• All connections must be in accordance with local codes
and regulations. Failure to do so can result in fi re,
explosion, or death.
• Gas dryers MUST exhaust to the outdoors. Failure to do
so can result in fi re, explosion, or death.
GAS DRYERS (continued)
3/8" NPT Gas
Connection
Gas Supply
6KXWRç9DOYH
$*$&6$&HUWLoHG
Stainless Steel
Flexible Connector
1/8" NPT Pipe Plug
WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using this appliance,
follow basic precautions, including the following:
INSTALLATION INSTRUCTIONS
12
ELECTRIC DRYERS
ELECTRICAL REQUIREMENTS
WARNING: To help prevent fi re, electrical
shock, serious injury, or death, the wiring and
grounding must conform to the latest edition of
the National Electrical Code, ANSI/NFPA 70 and
all applicable local regulations. Please contact a
qualifi ed electrician to check your home’s wiring
and fuses to ensure that your home has adequate
electrical power to operate the dryer.
• Any installation in a manufactured or mobile home must
comply with the Manufactured Home Construction and
Safety Standards Title 24 CFR, Part 32-80 or Standard
CAN/CSA0Z240 MH and local codes and ordinances.
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996. Failure to do so can
result in fi re, explosion, or death.
• A gas dryer must be permanently attached to the fl oor.
• To reduce the risk of combustion and fi re, the dryer must
be vented to the outside.
• DO NOT vent the dryer under a manufactured home or
mobile home.
• Electric dryers may be vented to the outside using the
back, left, right, or bottom panel.
• Gas dryers may be vented to the outside using the back,
left, or bottom panel. Gas dryers may not be vented
to the outside using the right side panel because of the
burner housing.
• The dryer exhaust duct must be affi xed securely to the
manufactured or mobile home structure, and the exhaust
duct must be made of a material that will resist fi re and
combustion. It is recommended that you use a rigid or
fl exible metal duct.
• DO NOT connect the dryer exhaust duct to any other
duct, vent, chimney, or other exhaust duct.
• Make sure the dryer has adequate access to outside fresh
air to ensure proper operation. The opening for outside
fresh air must be at least 25 in
2
(163 cm
2
).
• It is important that the clearance of the duct from any
combustible construction be at least 2 inches (5 cm), and
when venting the dryer to the outdoors, the dryer can be
installed with a clearance of 1 inch (2.5 cm) at the sides
and back of the dryer.
• Please be aware that venting materials are not supplied
with the dryer. You should obtain the venting materials
necessary for proper installation.
• This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment grounding terminal or
lead on the dryer. Failure to do so can result in fi re,
explosion, or death.
• The dryer has its own terminal block that must be
connected to a separate 240 VAC, 60-Hertz, single
phase circuit, fused at 30 amperes (the circuit must be
fused on both sides of the line). ELECTRICAL SERVICE
FOR THE DRYER SHOULD BE OF THE MAXIMUM
RATE VOLTAGE LISTED ON THE NAMEPLATE. DO
NOT CONNECT DRYER TO 110-, 115-, OR 120-VOLT
CIRCUIT. Failure to follow these instructions can result in
fi re, explosion, or death.
• If branch circuit to dryer is 15 ft. (4.5 m) or less in
length, use UL (Underwriters Laboratories) listed No.-
10 AWG wire (copper wire only), or as required by
local codes. If over 15 ft. (4.50 m), use UL-listed No.-8
AWG wire (copper wire only), or as required by local
codes. Allow suffi cient slack in wiring so dryer can
be moved from its normal location when necessary.
Failure to do so can result in fi re, explosion, or death.
• The power cord (pigtail) connection between wall
receptacle and dryer terminal block IS NOT supplied
with the dryer. Type of pigtail and gauge of wire must
conform to local codes and with instructions on the
following pages. Failure to follow these instructions can
result in fi re, explosion, or death
• A 4-wire connection is required for all new
construction after January 1, 1996. A 4-wire connection
must be used where local codes do not permit
grounding through the neutral wire. Failure to do so
can result in fi re, explosion, or death.
Special Electrical Requirements for Mobile
or Manufactured Homes
Electrical Requirements for Electric Models Only
WARNING: To reduce the risk of fi re,
electric shock, or injury to persons when using this
appliance,
follow basic precautions, including the
following:
WARNING: To reduce the risk of fi re,
electric shock, or injury to persons when using this
appliance,
follow basic precautions, including the
following:
INSTALLATION INSTRUCTIONS
13
ELECTRIC DRYERS (continued)

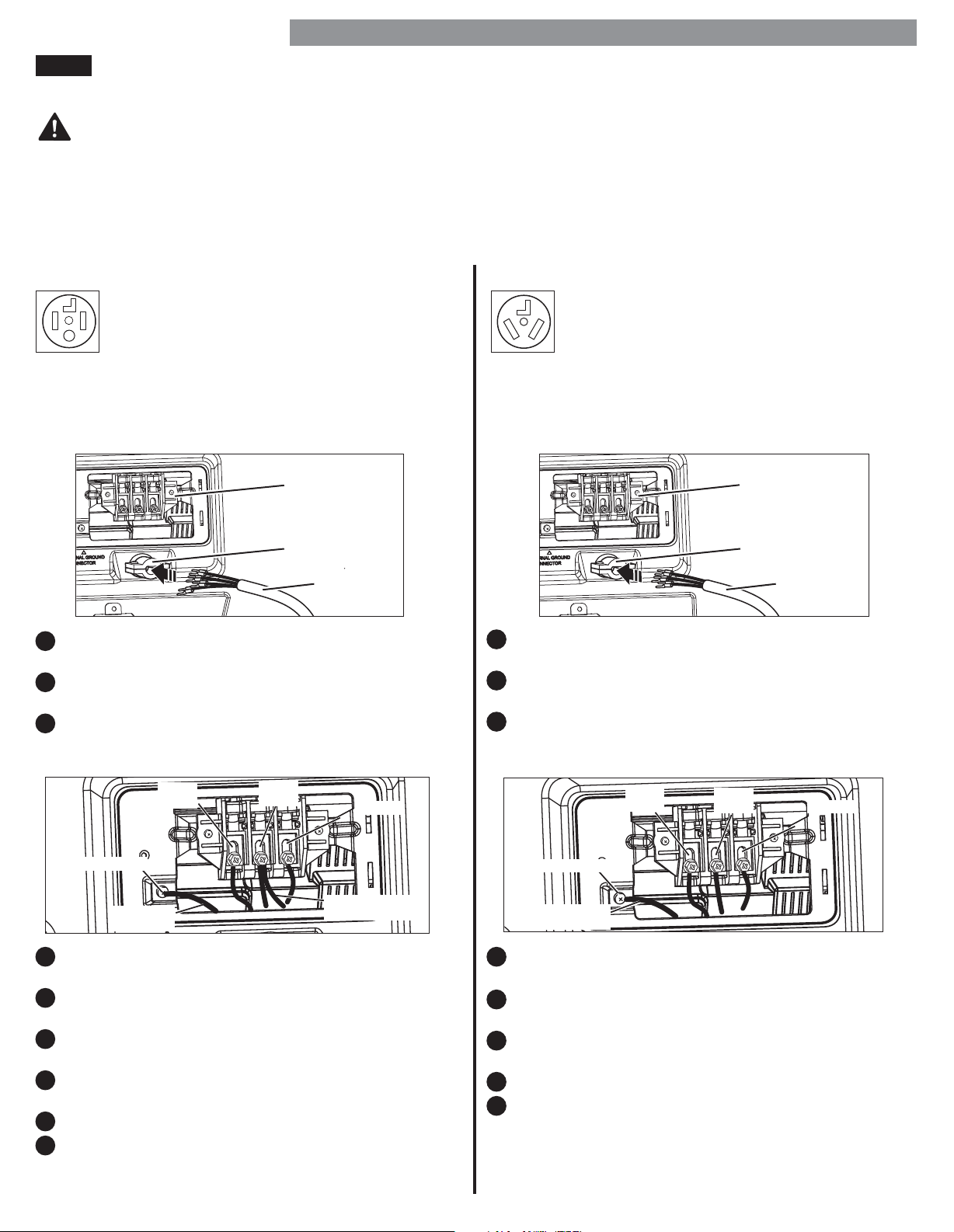

CONNECTING ELECTRIC DRYERS
Connect the power cord to the terminal block. Each
colored wire should be connected to the terminal block
screw with the same color wire around it. For example,
connect the black power cord wire to the terminal block
screw with the black wire around it. Failure to follow
these instructions may result in a short or overload.
Four-Wire Power Cord
• A 4-wire connection is required for all mobile
and manufactured home installations, as well
as all new construction after January 1, 1996.
• A UL-listed strain relief is required.
• Use a 30-amp, 240-volt, 4-wire, UL-listed power cord
with #10 AWG-minimum copper conductor and closed
loop or forked terminals with upturned ends.
1
Remove the terminal block access cover on the upper
back of the dryer.
2
Install a UL-listed strain relief into the power cord
through-hole.
3
Thread a 30-amp, 240-volt, 4-wire, UL-listed power
cord with #10 AWG-minimum copper conductor
through the strain relief.
4
Transfer the dryer’s ground wire from behind the green
ground screw to the center screw of the terminal block.
5
Attach the two hot leads of the power cord to the outer
terminal block screws.
6
Attach the white neutral wire to the center screw of the
terminal block.
7
Attach the power cord ground wire to the green ground
screw.
8
TIGHTEN ALL SCREWS SECURELY.
9
Reinstall the terminal block access cover.
4
Attach the two hot leads (black and red) of the power
cord to the outer terminal block screws.
5
Attach the neutral (white) wire to the center terminal
block screw.
6
Connect the external ground (if required by local
codes) to the green ground screw.
7
TIGHTEN ALL SCREWS SECURELY.
8
Reinstall the terminal block access cover.
Grounding through the neutral conductor is prohibited
for: (1) new branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and (4) areas where
local codes prohibit grounding through the neutral
conductor.
Three-Wire Power Cord
• A 3-wire connection is NOT permitted on
new construction after January 1, 1996.
• A UL-listed strain relief is required.
• Use a 30-amp, 240-volt, 3-wire, UL-listed power cord
with #10 AWG-minimum copper conductor and closed
loop or forked terminals with upturned ends.
1
Remove the terminal block access cover on the upper
back of the dryer.
2
Install a UL-listed strain relief into the power cord
through-hole.
3
Thread a 30-amp, 240-volt, 3-wire, UL-listed power
cord with #10 AWG-minimum copper conductor
through the strain relief.
WARNING:
UL-Listed
Strain Relief
UL-Listed 4-Wire
Power Cord
Terminal
Block
UL-Listed
Strain Relief
UL-Listed 3-Wire
Power Cord
Terminal
Block
Power Cord
Ground Wire
White wire moved
from ground screw
Ground Screw
Hot (Red)
Neutral
(White)
Hot
(Black)
White wire from
dryer harness
Ground Screw
Hot (Red)
Neutral
(White)
Hot
(Black)
INSTALLATION INSTRUCTIONS
14
VENTING THE DRYER
CHECK YOUR EXHAUST SYSTEM FOR PROBLEMS
IMPORTANT!
The most common cause of dryer problems is poor exhaust venting. Before installing your new dryer, check the items
listed below to make sure you get the best possible performance. This can save you time and money by reducing cycle
times and increasing energy effi ciency.
• DIRTY OR DAMAGED EXHAUST DUCTS. Lint builds up in exhaust ducts over time. This decreases the airfl ow and
makes the dryer work harder. Visually inspect your ducts from both ends and have them cleaned if they have not been
cleaned recently.
• WRONG VENT MATERIAL. Check your vent to make sure it is rigid or semi-rigid metal ducting. If your venting is
plastic or fl exible foil, have it replaced before using the dryer.
• RESTRICTED OR DAMAGED VENT HOOD. Check your vent hood outside. It must be clean and free of lint buildup.
Check the damper and make sure it opens fully and easily.
• EXCESSIVELY LONG VENT. Measure the length of your exhaust system and count the elbows. Use the chart below to
see if your duct is too long. If it is too long, have the duct routed to another location that is within the
venting guidelines.
• DO NOT USE PLASTIC OR FOIL VENTING. The transition duct from your dryer to the wall must be rigid or
semi-rigid metal ducting. If your old transition duct is plastic or foil, REPLACE IT with semi-rigid metal ducting.
Using the DUCT LENGTH CHART (below)
1
Find your vent hood type in the chart below.
2
Select the row that matches the number of elbows in your dryer duct run.
3
Look to the right of the elbow number for the maximum duct length for your installation. Longer duct length will result
in reduced drying performance, longer dry times and increased energy consumption. Extremely long ducts can even
shorten the life of the dryer.
DO NOT exceed the maximum length for the vent hood type and number of elbows used.
DUCT LENGTH CHART
NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. Using more than four 90° elbows is not recommended.
Recommended
Only for Short-Run Installations
4"
(10.2 cm )
4"
(10.2 cm )
(6.35 cm )
Number of 90°
Elbows
Vent Hood Type
Maximum length of 4" (10.2 cm )
diameter rigid metal duct
65 feet (19.8 m)
55 feet (16.8 m)
47 feet (13.7 m)
36 feet (11.0 m)
28 feet (8.5 m)
55 feet (16.8 m)
47 feet (13.7 m)
41 feet (12.5 m)
30 feet (9.1 m)
22 feet (6.7 m)
0
1
2
3
4
0
1
2
3
4
2 ½"
INSTALLATION INSTRUCTIONS
15
VENTING THE DRYER (continued)
Routing and Connecting Ductwork
Follow the guidelines below to maximize dryer
performance and reduce lint buildup and condensation in
the ductwork.
NOTE: Transition duct and fi ttings are NOT included and
must be purchased separately.
• Use 4 inch (102mm) diameter rigid or semi-rigid
metal duct.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must point
away from the dryer.
• Use duct tape on all joints. Never use screws.
• Insulate ducts that runs through unheated areas in order
to reduce condensation and lint buildup on
duct surfaces.
• The total length of semi-rigid metal transition duct
should not exceed 8 ft. (2.4 m).
IMPORTANT: Failure to exhaust the dryer, per the
guidelines included within these instructions, may
result in unsatisfactory dryer performance. All venting
and ductwork beyond the exterior of the dryer is the
responsibility of the consumer. Product failure, as a result
of improper venting, is not covered by the manufacturer’s
warranty.
Connecting the Dryer Vent
1
Verify all ducts and elbows are clean and free from
any blockages.
2
Measure duct length. DO NOT exceed the maximum
length listed in the Duct Length Chart.
3
Connect dryer exhaust to existing duct.
• Only use duct tape or clamps.
• DO NOT use screws to secure ductwork.
• Use rigid or semi-rigid metal ducts.
• DO NOT use plastic or thin metal foil tubing
for ductwork.
• The male end of each elbow must always point in the
direction of the airfl ow.
NOTE: Be careful when moving the dryer into its
fi nal location. Do NOT crush the duct. Make sure the
connections do not come loose.
WARNING: Failure to follow these
guidelines will result in poor performance and product
failure, and may result in fi re or death.
Male
Ends
Correct Venting
Incorrect Venting
INSTALLATION INSTRUCTIONS
16
CONNECTING THE INLET HOSE
The dryer must be connected to the cold water tap using
the new water supply hose. Do not use old hoses.
NOTE:
• Water supply pressure must be between 20psi and
120psi (138–827 kPa).
• Do not strip or cross-thread when connecting inlet hose
to the valve.
• If the water supply pressure is more than 120psi
(827kPa), a pressure reducing valve should be installed.
• Periodically check the condition of the hose and replace
the hose if necessary.
• Replace inlet hoses after 5 years of use to reduce the
risk of hose failure.
• Record hose installation or replacement dates on the
hoses for future reference.
1
Check the rubber seals in the inlet hose. Two rubber
seals are supplied with the inlet hose. They are used for
preventing water leaks. Make sure the connection to
the cold water tap is tight.
Hose
connector
Y connector
Rubber
seal
2
Check the installation type.
Long
hose
WITH WASHER WITHOUT WASHER
Short
hose
Y connector
Connect all water supply hoses tightly by hand and
then tighten another 2/3 turn with pliers.
WITH WASHER: When connecting the dryer to the
same faucet as a washer.
a. Shut off the cold water tap and remove the washer
hose.
b. Connect the short hose to the Y-connector.
c. Connect the other end of the short hose to the cold
water faucet.
d. Connect the long dryer hose to one side of the Y-connector
and connect the washer hose to the other side.
WITHOUT WASHER: If the dryer does not share the
cold water tap with a washer.
a. Connect the straight end of the long hose to the cold
water faucet.
NOTE:
• Before connecting the water line to the dryer, fl ush
several gallons of water through the hose into
a drain or bucket. This will help prevent foreign
particles such as sand and scale from clogging the
dryer inlet valve.
• Do not overtighten. Damage to the coupling can
result.
3
Connect the hose to the dryer.
Connect the water supply hose to the dryer inlet valve
tightly by hand and then tighten another 2/3 turn
with pliers. Make sure that there are no kinks in the
hoses and that they are not crushed.
4
Turn on the cold water faucet.
5
Check for leaks at the Y-connector (if used) and all
hoses.
NOTE:
• If any leaks are found, shut off the water faucet,
remove the hose and check the condition of the hose
washer.
INSTALLATION INSTRUCTIONS
17
LEVELING THE DRYER
To ensure that the dryer provides optimal drying
performance, it must be level. To minimize vibration,
noise, and unwanted movement, the fl oor must be a level,
solid surface.
NOTE: Adjust the leveling feet only as far as necessary
to level the dryer. Extending the leveling feet more than
necessary can cause the dryer to vibrate.
WARNING:
• To reduce the risk of injury to persons, adhere
to all industry recommended safety procedures
including the use of long sleeved gloves and
safety glasses. Failure to follow this warning can
cause serious injury or death.
• The appliances are heavy. Two or more people
are required when installing the dryer. Failure to
follow this warning can cause serious injury or
death.
1
Position the dryer in the fi nal location. Place a level
across the top of the dryer.
Level
Levelin
g
Feet
All four leveling feet must rest solidly on the fl oor.
Gently push on the top corners of the dryer to make
sure that the dryer does not rock from corner to corner.
2
Use a wrench to turn the leveling feet. Turn the leveling
foot clockwise to raise the dryer or counterclockwise
to lower the dryer. Using a level, adjust the feet until
the dryer is level from side to side and front to back.
Make sure all four feet are in fi rm contact with the
fl oor.
NOTE: If you are installing the dryer on the optional
pedestal, the dryer leveling feet should be fully retracted.
Use the leveling feet on the pedestal to level the dryer.
REVERSING THE DOOR SWING
WARNING:
THE DRYER DOOR IS VERY LARGE AND HEAVY.
Failure to follow the instructions below can result
in damage to the dryer, property damage or
personal injury.
• To avoid damage to the dryer or the door, support
the door with a stool or box that fits under the
door, or have an assistant support the weight of
the door.
• Avoid dropping the door to avoid damage to the
door or the floor.
• Unplug the dryer or turn off power at the main
circuit breaker before beginning door reversal.
Tools Required
Phillips or large flat-blade screwdriver (for hinge
screws)
Small flat blade screwdriver
(for lifting out parts)
Door Reversal Instructions
NOTE: The instructions here are for changing the door
swing from a right to a left side hinge. If the door has
been reversed, and it is necessary to change it back,
use care when following these instructions. Some of the
illustrations and the left/right references will be reversed,
and you will need to read the instructions carefully.
Swing Door
1
Open the door from the side so that the hinge screws
are accessible.
WARNING:
Be sure to support the weight of the door before
removing the hinge screws.
2
Remove the 4 hinge screws.
While supporting the door, remove the 4 hinge screws,
2 from each hinge. Set the door aside face down on a
protected surface to prevent damage to the door or
the work surface.
Two large
screws
Two small
screws
INSTALLATION INSTRUCTIONS
18
3
Reverse the components on the cabinet.
a. Use a Phillips screwdriver to remove the 2 screws and
the latch mechanism on the front panel of the cabinet.
b. Remove the latch hole cover by gently prying it up
with a flat-blade screwdriver, being careful not to
scratch the paint. Install the latch hole cover on
the opposite side, where the latch mechanism was
removed. Install the latch mechanism in the position
from which you removed the latch hole cover, using
the two screws removed in step a.
c. Remove the hinge cover by gently prying it up with a
flat-blade screwdriver, being careful not to scratch
the paint. Rotate the hinge cover 180 degrees and
install it on the opposite side, where the upper hinge
was attached.
4
Remove the inner door frame.
With the door on a protected surface, remove the 16
screws around the sides of the door and lift off the
inner door frame using a flat blade screwdriver.
Remove the latch hook and blank and install them on
the opposite side.
5
Reverse hinges and cover caps.
Remove the 4 screws securing the hinges to the door
frame. Remove the 2 plastic cover caps. Reinstall the
hinges and cover caps on the opposite sides from
which they were removed.
hinge
hinge
cover
hinge
cover
latch
mechanism
latch
hole
cover
hinge
frame
Blank Latch hook
Inner door
Cover cap
Hinge
assembly
6
Remount the inner door frame.
With the hinges and cover caps in the new locations,
remount the inner door frame onto the outer door
frame with the screws removed in step 4.
WARNING:
Be sure to support the weight of the door before
installing the hinge screws.
7
Reinstall the door.
While supporting the door, install the 4 hinge screws
removed in step 2. Test the swing of the door to make
sure the hinges and latch are properly aligned and
that the door opens, closes, and latches properly.
Door
Swing
REVERSING THE DOOR SWING (continued)
INSTALLATION INSTRUCTIONS
19
REVERSING THE DOOR SWING (continued)
b. Lift the door slightly to disengage the hinge support
and remove the door from the cabinet.
3
Reverse the components on the cabinet.
a. Use a Phillips screwdriver to remove the 2 screws and
the latch mechanism on the front panel of the cabinet.
b. Remove the latch hole cover by gently prying it up
with a flat-blade screwdriver, being careful not to
scratch the paint. Install the latch hole cover on
the opposite side, where the latch mechanism was
removed. Install the latch mechanism in the position
from which you removed the latch hole cover, using
the two screws removed in step a.
c. Remove the hinge cover by gently prying it up with a
flat-blade screwdriver, being careful not to scratch
the paint. Rotate the hinge cover 180 degrees and
install it on the opposite side, where the upper hinge
was attached.
d. Reverse the hinge and the hinge bracket at the
bottom of the cabinet. Remove the 2 screws from
the hinge bracket at bottom right and remove the
hinge bracket. Remove the lower of the 2 screws
behind the hinge bracket. Do NOT remove the
upper screw behind the hinge bracket. Set the parts
aside.
Upper
hinge
Hinge
cover
Hinge
latch
mechanism
Latch
hole
cover
Hinge
bracket
Two-Way Door (on some models)
Before You Begin
NOTE:
The door reversal procedure for the two-way door is far
more complex than for a conventional dryer door. It is
recommended that you read through these instructions
in their entirety before beginning the process, in order to
gauge whether you prefer to have the procedure done by
a professional installer or service person.
The instructions here are for changing the door swing
from a right to a left side hinge. If the door has been
reversed, and it is necessary to change it back, use care
when following these instructions. Some of the illustrations
and the left/right references will be reversed, and you will
need to read the instructions carefully.
Tools Required
Phillips or large flat-blade screwdriver (for hinge
screws)
Small flat blade screwdriver
(for lifting out parts)
WARNING:
THE DRYER DOOR IS VERY LARGE AND HEAVY.
Failure to follow the instructions below can result
in damage to the dryer, property damage or
personal injury.
• To avoid damage to the dryer or the door, support
the door with a stool or box that fits under the
door, or have an assistant support the weight of
the door.
• Avoid dropping the door to avoid damage to the
door or the floor.
• Unplug the dryer or turn off power at the main
circuit breaker before beginning door reversal.
Instructions
1
Open the door from the side so that the hinge screws
are accessible.
WARNING:
Be sure to support the weight of the door before
removing the hinge screws.
2
Remove the door from the cabinet.
a. While supporting the door, remove the 4 hinge
screws.
screws
Two large
screws
Two small
INSTALLATION INSTRUCTIONS
20
NOTE:
Do NOT remove any of the 8 screws on the face
of the cabinet (marked with
below). Doing so
could result in damage to the dryer and the need
for a service call to repair the dryer.
e. Remove the 3 screws on the hinge at bottom left.
Remove the hinge and reinstall it on the right side.
The top screw occupies the hole where you removed
the screw behind the hinge bracket in step d.
f. Install the hinge bracket removed in step d on the
bottom left side, first installing 1 screw behind the
hinge bracket.
On the Door:
CAUTION:
The edges of the door cover may be sharp. Wear
gloves when handling to avoid injury.
4
Lift off the door cover.
With the door laid inside facing up on a protected
surface, remove the 12 screws on the inside of the
door. Carefully lift off the door cover with the help of
a small flat-blade screwdriver inserted in the upper
corner (circled below).
hinge
cover
hinge
bracket
latch hole
cover
latch
mechanism
hinge
Cabinet Reversal complete
Hole
plug
Twelve screws
Side
Interlock
button
5
Switch the door strike and the blank cover.
Remove the 2 screws on the door cover that secure the
door strike.
Switch the door strike and the blank cover, installing
them on the opposite sides from which they were
removed.
It may be difficult to insert the 2 screws in the door
strike on the opposite side. Use a cordless screwdriver
if necessary.
Gently pry out the hole plug on the side of the door
cover and install it in the hole on the opposite side.
Set the door cover aside.
screw
Long
Short
screws
Blank cover Door strike
Pull
Raise
Remove blank cover
Hole
plug
REVERSING THE DOOR SWING (continued)
INSTALLATION INSTRUCTIONS
21
6
Reverse the components inside the door.
You will now be removing and reversing various components inside the door. See below for a detailed diagram and
identification of the inner structure and parts of the door. (The diagram shows the "before view" of the door, with
the default set-up for a right side hinge swing. After following these instructions, the door should be a mirror image
of the illustration.)
Upper
Side lock rod
Side Interlock button
Lower
hinge
bracket
Bumpers
Inner lock rodsTop interlock buttons
Upper
Top lock rod
hinge
assembly
Glass
Lower
hinge
assembly
Interlock buttons
Upper hinge assembly
Inner lock rods
Lower hinge bracket Top lock rod
Lower hinge assembly
Side lock rod
Hole plug
REVERSING THE DOOR SWING (continued)
INSTALLATION INSTRUCTIONS
22
7
Lift out the gray interlock button in the side of the
door.
Make sure to remove the spring with the interlock
button and to keep the two together. Set the interlock
button aside. Do not confuse this with the interlock
buttons from the top of the outer door.
8
Remove the side lock rod.
Remove the side lock rod from the lower hinge bracket
by lifting the top end of the rod and sliding it toward
the top of the door. The spring should remain attached
to the lock rod. Set the lock rod aside.
9
Reverse the upper hinge assembly and hinge filler.
a. Remove the screw connecting the upper hinge
assembly to the top lock rod and set it aside.
b. Lift out the upper hinge filler (on the right) and set
it aside.
Spring
c. Lift out the upper hinge assembly (on the left).
d. Slide the upper lock rod to the right. Rotate the
upper hinge assembly 180 degrees, and install it
over the lock rod on the right, where you removed
the upper hinge filler. Press firmly to fully seat the
hinge assembly.
e. Rotate the hinge filler 180 degrees and install it on
the upper left side of the door.
f. Insert and tighten the screw connecting the upper
hinge assembly to the top lock rod, removed in
step a.
Assemble screw
REVERSING THE DOOR SWING (continued)
INSTALLATION INSTRUCTIONS
23
10
Reverse the lower hinge bracket and hinge
assembly.
a. Remove 1 screw from the lower hinge bracket (on
the right) and lift it out. Remove 2 screws from the
lower hinge assembly (on the left) and lift it out.
b. Rotate the lower hinge assembly 180 degrees
and install it on the right side using the 2 screws
removed in step a.
c. Mount the lower hinge bracket on the lower left
with the screw removed in step a.
11
Install the side lock rod.
a. Flip the side lock rod over and insert the lower
end into the left hinge bracket.
b. Lower the rod into the guides on the door while
compressing the spring inside the recess.
NOTE:
• Make sure the top of the side lock rod is beside
the top lock rod and the two do not overlap each
other. If they are not aligned properly, the door
will not operate properly.
• Make sure the spring stays on the side lock rod.
12
Reinstall the side interlock button.
Install the side interlock button on the opposite side
from which it was removed.
NOTE:
M
ake sure the spring is on the interlock button and is
centered in the compartment.
13
Reinstall the door cover.
a. Clean the class on the door and door cover, if
necessary.
b. Make sure the 3 gray interlock buttons are
properly installed and that the top and side lock
rods intersect properly.
REVERSING THE DOOR SWING (continued)
INSTALLATION INSTRUCTIONS
24
c. Carefully lower the door cover into place, aligning
the holes in the cover with the 3 interlock buttons
and the bumpers on the bottom edge. You may
need to force fit the door cover.
d. Once the door cover is in place, secure it with the 12
screws removed in step 4.
NOTE:
M
ake sure the 3 interlock buttons are aligned with the
holes in the door cover.
NOTE:
10 similar screws are inserted in the top and sides of
the door cover. The 2 different screws are inserted in
the bottom edge.
Two different screws
14
Reassemble the door on the cabinet.
While supporting the door, insert the hinge support
into the slot in the door and slide the door down
slightly to seat it. Install the 4 hinge screws
removed in step 2. Test the swing of the door to
check the alignment of the hinges and latch. Make
sure the door opens, closes, and latches properly in
both directions.
If the door is damaged, or if the door does not work after
reassembly, contact the call center at 1-800-469-4663.
REVERSING THE DOOR SWING (continued)
Two large screws
Two small screws
INSTALLATION INSTRUCTIONS
25
FINAL INSTALLATION CHECK
Once you have completed the installation of the dryer
and it is in its fi nal location, confi rm proper operation
with the following steps and tests.
1
Is gas turned on? (Gas models only)
2
Is dryer plugged in? Dryer should always be plugged
into the proper outlet.
Gas dryer should use a 120-
VAC, 60-Hz. grounded 3-prong
Electric dryer should use a
4-wire connection which
is required for all mobile
and manufactured home
installations, as well as all
new construction after
January 1, 1996.
-- OR --
A 3-wire connection.
NOTE: A 3-wire connection
is NOT permitted on new
construction after
January 1, 1996.
3
Is the dryer transition duct connected? Make sure the
transition duct behind the dryer is properly connected
and is not crushed or damaged.
4
Is the dryer level? Once the dryer is in its fi nal location,
recheck the dryer to be sure it is level. Make sure it is
level front to back and side to side, and that all four
leveling feet rest fi rmly on the fl oor.
5
Is the dryer heating normally? Perform the following
dryer heating test.
Testing Dryer Heating
GAS MODELS
Close the dryer door, press the POWER button to turn the
dryer on, and start the dryer on a heat setting. When the
dryer starts, the igniter should ignite the main burner.
NOTE: If all air is not purged from the gas line, the gas
igniter may turn off before the main burner ignites. If this
happens, the igniter will reattempt gas ignition until all
the air is purged from the gas line.
ELECTRIC MODELS
Close the dryer door, press the POWER button to turn
the dryer on, and start the dryer on a heat setting. The
exhaust air should be warm after the dryer has been
operating for 3 minutes.
Checking Airfl ow
Eff ective dryer operation requires proper airfl ow. The
adequacy of the airfl ow can be measured by evaluating
the static pressure. Static pressure in the exhaust duct can
be measured with a manometer, placed on the exhaust
duct approximately 2 ft. (60.9 cm) from the dryer. Static
pressure in the exhaust duct should not exceed 0.6 inches
(1.5 cm). The dryer should be checked while the dryer is
running with no load.
Checking Levelness
Once the dryer is in its fi nal location, recheck the dryer to
be sure it is level. Make sure it is level front to back and
side to side, and that all four leveling feet are fi rmly on
the fl oor.
Checking Venting
The vent duct should be checked for lint buildup and
cleaned at least once per year. If any noticeable
reduction in drying performance occurs, check the duct
for obstructions and blockages.
INSTALLATION INSTRUCTIONS
26
INSTALLATION TEST (DUCT CHECK)
Once you have completed the installation of the dryer,
use this test to make sure the condition of the exhaust
system is adequate for proper operation of the dryer.
This test should be performed to alert you to any serious
problems in the exhaust system of your home.
The dryer features Vent, an innovative sensing system that auto-
matically detects blockages and restrictions in dryer ductwork.
Keeping ductwork clean of lint buildup and free of restrictions
allows clothes to dry faster and reduces energy use.
NOTE: The dryer should be cool before starting this test. If the
dryer was warmed up during installation, run the Air Dry cycle
for a few minutes to reduce the interior temperature.
To activate the installation test:
1
Remove the literature and any other contents from inside
the dryer, then close the dryer door.
Do not load anything in the drum for this test, as it may
aff ect the accuracy of the results.
2
Press the Power button, then immediately press and hold
both the Temp and Chime buttons until appears in
the display.
3
Press the START/PAUSE button.
The dryer will start the test, which lasts about 2 minutes.
The heat is turned on and the temperatures in the drum are
measured.
4
Check the display for results.
During the test cycle, monitor the VENT LED on the control
panel. If the LED does not blink by the time the cycle ends,
the exhaust system is adequate. If the exhaust system is
severely restricted, the VENT LED blinks. Have the exhaust
system checked immediately, as dryer performance will be
poor.
Not blinking:
OK
Blinking:
RESTRICTED
Other problems may also be shown with error codes. Refer
to the table below for error code details and solutions.
5
End of cycle.
At the end of the test cycle, appears in the display.
The test cycle ends and the dryer shuts off automatically
after a short delay.
Check any error codes in the chart below before
calling for service.
Error
Code
Possible Causes Solutions
tE1
or
tE2
Temperature
sensor failure
Turn off dryer and call for
service.
HS
Humidity sensor
failure
Turn off dryer and call for
service.
PS
or PF
or nP
• Electric dryer
power cord is
not connected
correctly, or
house power
supply is
incorrect.
• House fuse is
blown, circuit
breaker has
tripped, or
power outage
has occurred.
• Check power supply or
connection of power
cord to terminal block.
Refer to the Connecting
Electric Dryers section of
this guide for complete
instructions.
• Reset circuit breaker
or replace fuse. Do not
increase fuse capacity.
If problem is a circuit
overload, have it
corrected by a qualifi ed
electrician.
INSTALLATION INSTRUCTIONS
27
RESTRICTED OR BLOCKED AIRFLOW
Check the duct condition.
If the VENT LED is blinking, check the exhaust system
for restrictions and damage. Repair or replace the
exhaust system as needed.
NOTE: When the dryer is fi rst installed, this test
should be performed to alert you to any existing
problems with the exhaust ducts in your home.
However, since the test performed during normal
operation provides more accurate information on
the condition of the exhaust duct than does the
installation test, the results of the two tests may not be
the same.
Do not interrupt the test cycle, as this could result in
inaccurate results.
Even if the LED is not blinking during the test cycle,
some restrictions may still be present in the exhaust
system. Refer to the Venting the Dryer section of
this guide for complete exhaust system and venting
requirements.
Avoid long runs or runs with multiple elbows or bends.
Excess or crushed
transition duct
Check for blockages and lint buildup.
Too many elbows or
exhaust too long
Lint
blockage
buildup or
Make sure the ductwork is not crushed or restricted.
Crushed
or
damaged
exhaust
INSTALLATION INSTRUCTIONS
28
HOW TO USE
A
POWER (ON/OFF) BUTTON
Press to turn the dryer ON. Press again to turn the dryer
OFF. Pressing the POWER button during a cycle will
cancel that cycle and any settings will be lost.
B
CYCLE BUTTONS
Press the CYCLE buttons to select the desired cycle. The
standard presets for the selected cycle will be shown in
the display. On MANUAL DRY cycles, these settings can
be adjusted using the cycle setting buttons any time
before starting the cycle.
C
START/PAUSE BUTTON
Press this button to START the selected cycle. If the
dryer is running, use this button to PAUSE the cycle
without losing the current settings.
NOTE: If the dryer has been stopped for more than
60 minutes, the dryer will turn off automatically and
all settings will be lost.
D
OPTION BUTTONS
These buttons allow you to select cycle options. Some
of the option buttons have secondary functions. The
controls can be locked or unlocked by pressing and
holding the CHIME button for three seconds.
E
CYCLE MODIFIER BUTTONS
Use these buttons to adjust the settings for the
selected cycle. The settings light up above the buttons
to show the current selection. The default temperature
setting cannot be changed in AUTO DRY cycles.
AUTO DRY cycles are modifi ed using the Dry Level
button.
NOTE: To protect your fabrics, not all settings are
allowed in all cycles.
F
TIME AND STATUS DISPLAY
The display shows the estimated time remaining for
auto cycles and actual time for timed cycles. The
status of the cycle is also displayed. The CHECK
VENT indicator will illuminate if there is a serious
restriction in the exhaust system.
G
MORE TIME/LESS TIME BUTTONS
Use these buttons with the TIMED DRY and other
MANUAL DRY cycles to adjust the drying time. Press
the MORE TIME button to increase the selected
manual cycle time by one minute; press LESS TIME to
decrease the cycle time by one minute.
H
VENT INDICATOR
(DUCT BLOCKAGE SENSING SYSTEM)
The VENT duct blockage sensing system detects and
alerts you to blockages in the ductwork that reduce
exhaust fl ow from the dryer. This light does not
indicate any problems with your dryer. If this light
blinks, it indicates that your home’s exhaust system
has a serious restriction, which is not covered by your
dryer’s warranty. There are services available for
cleaning/maintaining the external venting.
I
STEAM REFRESH CYCLE
The STEAM REFRESH cycle uses the power of steam
to quickly reduce wrinkles and odor in fabrics. It also
refreshes wrinkled clothes that have been stored for
an extended period of time, and it can make heavily
wrinkled clothes easier to iron. STEAM REFRESH can
also be used to help reduce odors in fabrics.
WARNING: To reduce the risk of fi re, electric shock, or injury to persons, read this entire
manual, including the Important Safety Instructions, before operating this dryer.
CONTROL PANEL FEATURES
A
D
D
C
G
H
B
E
F
I
29
TIME AND STATUS DISPLAY
The Time and Status Display shows the cycle time, cycle
progress, and vent status. When the dryer is turned on,
the display will illuminate.
A
TIME DISPLAY
When a cycle is selected, the display will indicate
the default time for that cycle including selected
options or adjustments. In AUTO DRY cycles, the time
remaining will be estimated and may change during
the cycle, depending on the condition of the load. In
TIMED DRY, the time displayed will be the actual time
remaining.
B
CHECK FILTER LIGHT
The CHECK FILTER light will blink before each load,
as a reminder to check the lint fi lter. Always clean the
lint fi lter before every cycle.
C
CYCLE STATUS INDICATORS
This portion of the display shows which stage of the
drying cycle is currently under way (DRY
or COOL).
D
REMOTE START
Control the dryer remotely from a smartphone using
Remote Start. See page 37 in this guide and the
Quick Start Guide shipped with your dryer for more
information.
A
C
D
B
HOW TO USE
30
OPERATING THE DRYER
Lint
Filter
1
CLEAN THE LINT FILTER
If the lint fi lter has not already been cleaned, lift out the fi lter
and remove the lint from the last load. This will help ensure the
fastest and most effi cient drying performance.
2
LOAD THE DRYER
Load the dryer with the wet laundry from the washer. If the
load is extra large, you may need to divide it into smaller
loads for proper performance and fabric care.
3
TURN ON THE DRYER
Press the POWER button to turn ON the dryer. The cycle LEDs
will illuminate and a chime will sound.
4
SELECT A CYCLE
Press the desired cycle button to select a cycle. The standard
presets for the selected cycle will be shown in the display. On
MANUAL DRY cycles, these settings can be adjusted using the
cycle setting buttons any time before starting the cycle.
NOTE: Not all options or modifi ers are available on all
cycles. Refer to the cycle guide page for default settings and
allowable options. A diff erent chime will sound and the LED
will not illuminate if the selection is not allowed.
5
BEGIN CYCLE
Press the START/PAUSE button to begin the cycle. The cycle
can be paused at any time by opening the door or by pressing
the START/PAUSE button. If the cycle is not restarted within 60
minutes of being paused, the dryer will shut off and the settings
will be lost.
6
END OF CYCLE
When the cycle is fi nished, the chime will sound. Immediately
remove your clothing from the dryer to reduce wrinkling. If
WRINKLE GUARD is selected, the dryer will tumble briefl y
every few minutes to help prevent wrinkles from setting in the
clothes.
INSTALLATION INSTRUCTIONSHOW TO USE
31
HOW TO USE
Swing Door
Use the swing door when unloading, or when loading
bulkier items, for easy access to the drum.
To open the swing door, insert your fingers into the handle
recess on the top of the door on the side opposite the
hinge and pull the door open.
WARNING:
Make sure the hamper door release is completely closed
before using the swing door.
Hamper Door
Use the hamper door when loading. It acts as a chute,
to help guide items into the drum and help prevent items
from falling onto the floor. It also comes in handy when
unloading a few small items, helping prevent the rest of
the laundry from being pulled onto the floor.
To open the hamper door, press the release in the middle
of the handle recess on the top of the door and pull the
door forward.
WARNING:
Make sure the swing door latch is completely closed
before pressing the hamper door release.
USING THE TWO-WAY REVERSIBLE DOOR
WARNING:
Do not press the two interlock buttons when the
Do not press the two interlock buttons when the
door is open. The door could fall off and cause
door is open. The door could fall off and cause
serious injury.
serious injury.
Do not place heavy items on or lean against the
Do not place heavy items on or lean against the
top of the door when it is open.
top of the door when it is open.
Do not attempt to pull the hamper door open
Do not attempt to pull the hamper door open
more than 40 degrees.
more than 40 degrees.
The dryer could tip forward, causing injury or
The dryer could tip forward, causing injury or
damage.
damage.
WARNING:
Take care when opening and closing the door.
Take care when opening and closing the door.
If the door drops forward unexpectedly, fingers
If the door drops forward unexpectedly, fingers
and hands can get caught in the door handle and
and hands can get caught in the door handle and
injured.
injured.
Interlock
Hamper door
Hamper door latch
Swing door
32
The cycle guide below shows the available options and recommended fabric types for AUTO DRY cycles.
*NOTE: The default time and actual time will vary depending on the size of the load and moisture content.
NOTE: To protect your garments, not every dry level, or option is available with every cycle. Temperature settings
cannot be changed. A diff erent chime will sound and the LED will not illuminate or the selection will not change if
the selection is not allowed.
CYCLE GUIDE
Modifi snoitpOsre
Type Cycle Fabric Type Temperature Dry Level
Time in
Min.
More
Time/
Less
Time
Wrinkle
Guard
Damp
Dry
Signal
Energy
Saver
STEAM
CYCLE
Steam
Refresh
TM
Comforter, shirts
trousers (except
especially delicate
fabrics)
High Off 16
AUTO DRY
Normal
Work clothes,
corduroys, etc.
Medium
Normal
Elec: 57
Gas: 63
Adjustable
Heavy Duty
Jeans, heavyweight
items
High
Normal
54
Adjustable
Sanitize
Do not use this cycle
with delicate fabrics
High Extra Dry 70
Bulky/Bedding
Comforters, pillows,
shirts
Medium
Normal
55
Adjustable
Delicates
Lingerie, sheets,
blouses
Med. Low
Normal
28
Adjustable
Towels
Towels, heavy
cottons, denims
Med. High
Normal
Normal
55
Adjustable
Small Load
(Default for
My Cycle)
Only normal &
cotton/towel fabric
type (Max 3 lb)
High 30
Adjustable
= available option
= default setting
CERTIFIED BY NSF
NSF International (formerly the National Sanitation Foundation), certifies that the SANITIZE cycle reduces 99.9% of
bacteria on laundry, and none of the bacteria will carry over onto the next laundry load.
• The default settings for the SANITIZE cycle are HIGH temperature and EXTRA DRY. These default settings cannot
be changed.
• Do NOT use this cycle with delicate items or fabrics.
Auto Dry Cycles
AUTO DRY cycles utilize a sensor that detects moisture levels in the clothes and adjusts the drying time as needed to
ensure superior results. The dryer automatically sets the dry level and temperature at the recommended setting for each
cycle. The estimated time remaining will be shown in the display.
SANITIZE CYCLE
The SANITIZE cycle is designed to remove certain bacteria in your clothing. When this cycle is selected, the temperature
is set to HIGH and the dry level is set to EXTRA DRY. These default settings cannot be changed.
NOTE: Do NOT use this cycle with delicate items or fabrics.
INSTALLATION INSTRUCTIONSHOW TO USE
33
Timed Dry Cycles
Use Timed Dry cycles to select a specifi c amount of drying time and the drying temperature. When a TIMED DRY
cycle is selected, the display shows the actual time remaining in your cycle.
You can change the actual time for the cycle by pressing MORE TIME or LESS TIME. Press and hold the MORE TIME
or LESS TIME buttons to rapidly change the time.
Modifi snoitpOsre
Type Cycle Fabric Type Temperature Dry Level
Time in
Min.
More
Time/
Less
Time
Wrinkle
Guard
Damp
Dry
Signal
Energy
Saver
TIMED DRY
Express
For small loads with
short drying times
High
Off
25
Adjustable Adjustable
For loads that require
a speci fic dry time.
High
Off
40
Adjustable Adjustable
The cycle guide below shows the available options and recommended fabric types for TIMED DRY cycles.
= available option
= default setting
HOW TO USE
34
Fabric Care Labels
Most articles of clothing feature fabric care labels that
include instructions for proper care.
Group Similar Items
For best results, sort clothes into loads that can be dried
with the same drying cycle.
Diff erent fabrics have diff erent care requirements, and
some fabrics will dry more quickly than others. For best
fabric care results, always dry fabrics with similar care
requirements together.
SORTING LOADS
LOADING THE DRYER
WARNING: To reduce the risk of fi re, electric shock, or injury to persons, read this entire manual,
including the Important Safety Instructions, before operating this dryer.
To reduce the risk of fi re,
electric shock, or injury to persons when using this
appliance, follow basic precautions, including the
following:
• Check all pockets to make sure that they are empty.
Items such as clips, pens, coins, and keys can damage
both your dryer and your clothes. Flammable objects
such as lighters or matches could ignite, causing a fi re.
Failure to do so can result in fi re, explosion, or death.
• Never dry clothes that have been exposed to oil,
gasoline, or other fl ammable substances. Washing
clothes will not completely remove oil residues. Failure
to obey this warning can result in fi re, explosion,
or death.
Loading Tips
• Combine large and small items in the same load.
• Damp clothes will expand as they dry. Do not overload
the dryer; clothes require room to tumble and dry
properly.
• Close zippers, hooks, and drawstrings to prevent these
items from snagging or tangling on other clothes.
CHECK THE LINT FILTER BEFORE EVERY LOAD
Every time the dryer is turned on, the CHECK FILTER light
will blink as a reminder to make sure the fi lter is clean.
Always make sure the lint fi lter is clean before starting a
new load; a clogged lint fi lter will increase drying times.
To clean, pull the lint fi lter straight up and roll any lint off
the fi lter with your fi ngers. Do not rinse or wash the fi lter
to remove lint. Push the lint fi lter fi rmly back into place.
Always ensure the lint fi lter is properly installed before
running the dryer. Running the dryer with a loose or
missing lint fi lter may damage the dryer and articles in
the dryer.
Lint
Filter
WARNING:
Tumble
dry
Heat
setting
Dry
Normal
Permanent Press/
wrinkle resistant
Gentle/
delicate
Do not
tumble dry
Do not dry
(used with do
not wash)
High
Medium Low
No heat/air
INSTALLATION INSTRUCTIONSHOW TO USE
35
Each cycle has default settings that are selected
automatically. You may also customize these settings using
the cycle modifi er buttons.
AUTO DRY cycles are designed to properly care for
specifi c fabrics and loads. As a result, not all settings are
available for each cycle selection.
TIMED DRY cycles have default settings, but you may also
customize the temperature setting and add options.
Settings are not limited in most timed dry cycles. Use care
when setting options and modifi ers for these cycles to
prevent damage to your clothing.
NOTE: To protect your garments, not every dry level,
temperature, or option is available with every cycle. See
the Cycle Guide for details.
CYCLE MODIFIER BUTTONS
A
DRY LEVEL
Sets the level of dryness for the selected AUTO DRY
cycle. Press the DRY LEVEL button repeatedly to
scroll through available settings. Use this button to
adjust the dryness of the articles in the load to your
preference.
• This option is not available with TIMED DRY cycles.
• The dryer will automatically adjust the cycle time.
• Selecting EXTRA DRY will increase the cycle time and
dry level, while DAMP DRY will decrease the cycle
time and dry level.
Use the DAMP DRY setting for items that you wish to
iron or hang for fi nal drying.
B
TEMP
Adjusts the temperature setting from LOW to HIGH.
This allows precise care of your fabrics and garments.
Press the TEMP button repeatedly to scroll through
available settings. Temperature settings are not
adjustable in AUTO DRY cycles.
C
TIMED DRY
Allows you to manually select from 20 to 60 minutes
of dry time in 20-minute increments. Use the MORE
TIME/LESS TIME buttons to increase or decrease the
selected drying time in 1-minute increments. Press and
hold the MORE TIME or LESS TIME buttons to rapidly
change the time. Use this for small loads or to remove
wrinkles.
A
B
C
HOW TO USE
36
CYCLE OPTIONS AND SPECIAL
FEATURES
Your dryer features several additional cycle options and
special features to meet your individual needs.
MORE TIME
Use the MORE TIME/LESS TIME buttons to
increase or decrease the selected drying time
in 1-minute increments. Press and hold the
MORE TIME or LESS TIME buttons to rapidly change the
time.
LESS TIME
Use the MORE TIME/LESS TIME buttons to
increase or decrease the selected drying time in
1-minute increments. Press and hold the MORE
TIME or LESS TIME buttons to rapidly change the time.
DAMP DRY SIGNAL
If you press the DAMP DRY SIGNAL button,
the dryer will emit a chime when the load is
approximately 80% dry. This allows you to remove
faster-drying lightweight items or items that you want to
iron or hang dry.
WRINKLE GUARD
Selecting this option will tumble the clothes
after the cycle ends for a few seconds every
few minutes without heat. This option is active
for 180 minutes after the end of the cycle, or until the
door is opened. This helps prevent wrinkles if the clothes
are not removed immediately after the cycle has fi nished.
CHIME
The CHIME button adjusts the volume of the
chime or turns it off . Press the button repeatedly
until the desired sound level is reached.
CONTROL LOCK
Use this option to disable the controls. All
controls will be disabled except for the
POWER button. Once set, the CONTROL LOCK must be
turned off before the controls can be used. After the dryer
has shut off , the POWER button will allow the dryer to be
turned on, but the controls will remain locked. When the
option is set, the CONTROL LOCKED text appears in the
display.
Press and hold the CHIME button for three seconds to
activate or deactivate the CONTROL LOCK.
ENERGY SAVER
This option helps to reduce the energy
consumption of the Normal cycle, depending on
the size of the load. The drying time will change
when you select the Energy Saver option.
NOTE: T
he ENERGY SAVER option is turned on by default
on the Normal cycle. If you want a faster drying time,
turn off the ENERGY SAVER option on the Normal cycle.
GETTING CONNECTED
You need the following devices and applications to use
the Remote Start and other smart features on your dryer.
Required Devices: A wireless router, Kenmore Elite Smart
Dryer, and a mobile device.
Required Application: Kenmore Smart App.
IMPORTANT: You must download the Kenmore Smart
app to your mobile device, connect your Kenmore Smart
appliance to the internet, and register the appliance to
your account in order to use the Remote Start function.
Connecting the Dryer to the Internet
Refer to the Quick Start Guide that came with your smart
appliance for detailed instructions on creating a Kenmore
account and setting up the appliance for connected
operation from your mobile device. For additional
assistance, visit http://www.kenmore.com/smart
.
REMOTE START
Use a mobile device to control your appliance
remotely.
NOTE: You must fi rst close the door and connect to a
gateway to use this function. The Wi-Fi LED should be
illuminated.
To use Remote Start:
1
Select a cycle and options.
2
Press the REMOTE START button. The Remote Start LED
will turn on.
3
Start the dryer from the application on your mobile
device. (For more information, see the booklet shipped
with your dryer.) If you do not start the dryer remotely,
the dryer will wait to start the cycle until the START
button is pressed.
SMART FEATURES
INSTALLATION INSTRUCTIONSHOW TO USE
Using the STEAM REFRESH cycle
The STEAM REFRESH cycle uses the power of steam
to quickly reduce wrinkles and odor in fabrics. It also
refreshes wrinkled clothes that have been stored for
an extended period of time, and it can make heavily
wrinkled clothes easier to iron. STEAM REFRESH can also
be used to help reduce odors in fabrics. Use this feature
with small loads (1 - 4 items).
STEAM FEATURES
37
HOW TO USE
MY CYCLE
Use the My Cycle feature in the Kenmore Smart app to select and download an additional cycle to your dryer.
The default My Cycle on the dryer is SMALL LOAD.
Cycle Fabric or Load Type Temperature Dry Level
Wrinkle
Guard
Damp Dry
Signal
Energy
Saver
Small Load (default) Only normal & cotton/towel fabric type
(Max 3 lb)
High Normal
Super Dry To thoroughly dry cotton clothes High Ex Dry
Denim NAmuideMsnaeJ
Kids' Clothes High temperature to sanitize kids' clothes High Normal
Ultra Delicate Low heat to gently dry delicate items Low Normal
Gym Clothes Gym clothes, cotton sportswear NA NA
Blankets Completely dries bulky blankets Medium Ex Dry
Blanket Refresh 20 minute timed dry cycle to warm up
blankets
Low NA
Rainy Day Dries off clothes made damp by rain or
snow
High Normal
Lingerie lamroNwoLeiregniL
Socks 35 minute timed dry cycle to dry 20 pairs
of socks
High NA
Overnight Dry Energy effi cient cycle to dry a small load
overnight
High Normal
Bedding/Curtains yrD xEmuideMsniatruc ,gniddeB
Kids' Gym Clothes Children's cotton sportswear NA NA
Khaki/Jeans Jeans, color fading material Medium NA
Casual Permanent press, synthetic items Med. Low Normal
Workout Wear NAANraew tuokroW
Touch Up For removing light wrinkles Med. High NA
Air Dry For items that require heat-free drying such
as plastics or rubber
NA NA
Deodorization Reduces odors in clothes that do not
require washing
High NA
= available option
38
FCC NOTICE
(for transmitter module contained in this product)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment to an outlet on a circuit
diff erent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifi cations in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user's authority
to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated with
a minimum distance of 20 cm (7.8 inches) between
the antenna and your body. Users must follow the
specific operating instructions for satisfying RF exposure
compliance.
WIRELESS MODULE SPECIFICATIONS
Model 2AHU4-KMTD17
Frequency
Range
2412–2462 MHz
Maximum
Output
Power
IEEE 802.11b: 18 .26 dBm
IEEE 802.11g: 20.10 dBm
IEEE 802.11n: 20.27 dBm
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code that is contained in this product
under LGPL and other open source licenses, visit
http://kenmore.com/opensource. In addition to the source
code, all referred license terms, warranty disclaimers, and
copyright notices are available for download.
INSTALLATION INSTRUCTIONSHOW TO USE
39
USER MAINTENANCE INSTRUCTIONS
REGULAR CLEANING
WARNING: To reduce the risk of fi re, electric shock, or injury to persons, read this entire manual,
including the Important Safety Instructions, before operating this dryer.
• Unplug the dryer or turn the power off before cleaning to avoid the risk of electric shock. Failure to follow this
warning can cause serious injury, fi re, electrical shock, or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the dryer. They will damage the fi nish.
Cleaning the Exterior
Proper care of your dryer can extend its life. The outside
of the machine can be cleaned with warm water and a
mild, nonabrasive household detergent. Immediately wipe
off any spills with a soft, damp cloth.
IMPORTANT: Do not use cleaning alcohols, solvents, or
similar products.
NEVER use steel wool or abrasive cleansers because they
can damage the surface.
Cleaning the Interior
Wipe around the door opening and seal with a soft,
damp cloth to prevent lint and dust buildup that could
damage the door seal.
Clean the window with a soft cloth dampened with warm
water and a mild, nonabrasive household detergent, then
wipe dry.
NEVER use steel wool or abrasive cleansers; they can
scratch or damage the surface.
Cleaning Around and Under the Dryer
Vacuum lint and dust from around the dryer and
underneath it regularly.
Cleaning the Lint Filter
Lint
Filter
ALWAYS make sure the lint fi lter is clean before every
cycle. The CHECK FILTER light on the control panel will
blink before every cycle to remind you.
NOTE: NEVER operate the dryer without the lint fi lter.
To remove lint between cycles:
Open the dryer door.
Pull the lint fi lter straight up.
Roll any lint off the fi lter with your fi ngers.
Periodic thorough cleaning:
Some fabric softeners can build up on the lint fi lter over
time. This buildup can restrict the airfl ow through the fi lter
reducing dryer effi ciency and lengthening drying times.
After removing lint, if the fi lter looks dark or dirty when
held up to the light, follow these steps to clean:
Use hot soapy water and a stiff brush to clean the fi lter.
Make sure the fi lter is completely dry before
reinstalling it and using the dryer.
NOTE: NEVER operate the dryer with a wet lint fi lter.
Maintaining Ductwork
Vent ductwork should be checked for lint build up once per
month and cleaned at least once per year. If any noticeable
reduction in airfl ow or drying performance occurs, immediately
check the ductwork for obstruction and blockages. Contact a
qualifi ed technician or service provider.
1
2
3
1
2
40
• DIRTY OR DAMAGED EXHAUST DUCTS
• WRONG VENT MATERIAL
• RESTRICTED OR DAMAGED VENT HOOD
• EXCESSIVELY LONG VENT
• THE USE OF PLASTIC OR FOIL VENTING
Maintaining the Exhaust System
Vent ducts should be checked for lint buildup and
cleaned at least once per year. If any noticeable
reduction in drying performance occurs, check the ducts
for obstructions and blockages.
If the VENT indicator illuminates, the exhaust system
should be checked immediately for damage or
obstructions. The VENT indicator signals a serious
reduction in exhaust airfl ow which will greatly reduce
energy effi ciency and increase drying times. Damaged
or restricted exhaust systems are not covered by the
dryer warranty. Damage to the dryer that is caused by
damaged, restricted, or otherwise inadequate exhaust
systems is not covered by the dryer warranty.
VENT Indicator
The VENT warning system is designed to help you avoid
the reduced performance caused by restrictions in the
household exhaust system. The VENT indicator illuminates
to alert you when problems in the system occur, so you
can have them repaired.
While you should always check and maintain your
exhaust system regularly, the VENT warning system will
detect and alert you if serious problems develop in your
home’s exhaust system. This includes exhaust systems that
are unsatisfactory for any reason including a blockage
in the venting, crushed/kinked venting, or venting which
exceeds the maximum recommended length requirement
as described in the installation section.
NOTE: The total length includes the length from the back
of the dryer to the outside vent hood, PLUS a factor for
every 90° elbow in the exhaust system. For example, if
the distance from the back of the dryer to the vent hood
is 30 feet, and there are four elbows in the system, then
it exceeds the 28 foot maximum length allowed for those
conditions.
The VENT indicator on the control panel will alert you
that the exhaust system is not moving enough air from the
dryer to the outside. This lack of airfl ow will lead to long
dry times, poor drying and possibly dryer failure.
As a reminder, external dryer venting is considered part
of your home and is not covered by the product warranty
or protection agreements. There are services available for
cleaning/maintaining the external venting.
MAINTAINING THE EXHAUST SYSTEM
VENT Operation
The VENT system uses components already in the dryer.
By monitoring these components over the course of
several cycles, the control is able to determine how much
restriction there is in the exhaust system. If it detects a
high level of restriction, it will turn on the VENT light
to alert you to the condition. The dryer will continue to
operate after the light comes on, but you should have the
exhaust system cleaned or repaired immediately to avoid
longer dry times and higher energy consumption.
IMPORTANT: In order for a dryer to properly and
effi ciently dry your clothes, it is extremely important that
the exhaust system is as short and clean as possible. It
MUST be less than the maximum installation requirements
as outlined in the installation section. It is also very
important that you make sure that when the dryer is
installed, the exhaust system is clean and clear of any
restrictions and is not kinked or crushed.
Failure to meet these guidelines will result in long dry
times, increased energy consumption and possibly even
clothing damage or dryer failure. When exhaust system
restrictions become extreme, the VENT light will blink to
alert you to the condition so you can have the exhaust
system cleaned or repaired.
To prevent false alarms and for increased reliability,
the dryer will monitor the exhaust condition for
several loads. If multiple, consecutive cycles exceed
the restriction limits, the control will blink the VENT
indicator.
A blinking VENT indicator means the external venting
should be checked for potential restrictions as soon
as possible.
The VENT indicator will remain active (blinking) until
the restriction is resolved AND the control has verifi ed
the improved airfl ow for
several cycles.
After the exhaust is cleaned or repaired, it will take
several cycles for the VENT indicator to reset and
turn off the light.
NOTE: The VENT indicator is designed to measure
performance over several consecutive cycles before
activating or deactivating, to avoid false alarms. A
very large load, such as a large comforter, could cause
the VENT system to sense that the exhaust system is
restricted, but this would not cause the light to blink.
However, if several large loads were to run back to back,
the VENT indicator could be activated.
1
2
3
4
The most common cause of dryer problems is poor exhaust venting. Poor exhaust venting may result from the
following conditions:
USER MAINTENANCE INSTRUCTIONS
41
DIAGNOSTICS
HOLD the mouthpiece of your phone over the POWER button, when instructed to do so by
the call center, no more than one inch from (but not touching) the machine.
NOTE: Do not press any other buttons or turn the cycle selector knob.
PUSH and hold the TEMP button while continuing to hold your phone to the
POWER button.
LISTEN for two beeps. After you hear the two beeps, release the TEMP button. Keep the
phone in place until the tone transmission has fi nished. The display will count down the time.
Once the countdown is over and the tones have stopped, resume your conversation with
the technician, who will then be able to assist you in using the information transmitted for
analysis.
Should you experience any problems with your dryer, it
has the capability of transmitting data via your telephone
to the Diagnostics Team. This gives you the capability
of speaking directly to our specially trained technicians.
The technician records the data transmitted from your
machine and uses it to analyze the issue, providing a fast
and eff ective diagnosis.
If you experience problems with your dryer, call
1-844-553-6667
. Only use the Diagnostics feature
when instructed to do so by the Diagnostics Team. The
transmission sounds that you will hear are normal and
sound similar to a fax machine.
Diagnostics cannot be activated unless your dryer is
turned on by pressing the POWER button. If your dryer
is unable to turn on, then troubleshooting must be done
without using Diagnostics.
NOTE:
• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be
asked to try again.
• Pressing the POWER button during the transmission will shut off Diagnostics.
USING DIAGNOSTICS
First, call 1-844-553-6667. If the number of the phone you are using is on fi le and is asociated with your dryer, you will
be quickly relayed to a Diagnostics Team agent. Follow the technician’s instructions and perform the following steps
only when requested to by the Diagnostics Team agent.
1 in.
(2.5 cm)
42
BEFORE CALLING FOR SERVICE
TROUBLESHOOTING GUIDE
Problem Possible Cause Solutions
*VENT indicator is
blinking
* This warning light is
not a dryer failure and is
not covered by the dryer
warranty. Contact a duct
cleaning service to set
up an appointment to
have your exhaust system
cleaned and inspected.
Exhaust system is too long or has
too many turns/restrictions.
Partial blockage of the ductwork
due to lint buildup or other
foreign object.
The appliance has detected a
restriction in the external dryer
venting.
Install a shorter or straighter duct run. See the
Installation Instructions for details.
Ductwork should be checked/cleaned immediately.
Dryer can be used in this condition, but drying times
will be longer and energy consumption will increase.
See the VENT INDICATOR and VENT OPERATION
sections for details regarding this function.
The VENT indicator
remains active (blinking)
after clearing the
restriction in the venting.
After clearing the restriction, the
VENT system requires multiple,
consecutive cycles to determine
that the performance value
has improved before the VENT
indicator is reset.
If the VENT indicator remains active for more than
fi ve cycles after the restriction has been cleared, call
for service.
Dryer will not turn on Power cord is not properly
plugged in.
House fuse is blown, circuit
breaker has tripped, or power
outage has occurred.
Make sure that the plug is securely plugged into a
grounded outlet matching the dryer’s rating plate.
Reset circuit breaker or replace fuse. Do not increase
fuse capacity. If the problem is a circuit overload,
have it corrected by a qualifi ed electrician.
Dryer does not heat House fuse is blown, circuit
breaker has tripped, or power
outage has occurred.
Gas supply or service is turned off
(gas models only).
Reset circuit breaker or replace fuse. Do not increase
fuse capacity. If the problem is a circuit overload,
have it corrected by a qualifi ed electrician.
NOTE: Due to the design of electric dryers, it is possible
for a circuit problem to allow an electric dryer to run
without heat.
Confi rm that the house gas shutoff and the dryer gas
shutoff valves are both fully open. Even if gas is not
supplied to the dryer, it will run and no error codes will
display. Verify that other gas appliances in the home
are working normally.
Greasy or dirty spots on
clothes
Clean and dirty clothes are being
dried together.
Clothes were not properly cleaned
or rinsed before being placed in
the dryer.
Only use your dryer to dry clean items. Soil from dirty
clothes can transfer to the clean clothes in the same or
later loads.
Stains on dried clothes could be stains that weren’t
removed during the washing process. Make sure
that clothes are being completely cleaned or rinsed
according to the instructions for your washer and
detergent. Some diffi cult soils may require pre-
treating prior to washing.
Drying time is not consis-
tent
Heat settings, load size, or
dampness of clothing is not
consistent.
The drying time for a load will vary depending on
the type of heat used (electric, natural gas, or LP
gas), the size of the load, the type of fabrics, the
wetness of the clothes, and the condition of the
exhaust duct and lint fi lter. Even an unbalanced load
in the washer can cause poor spinning, resulting in
wetter clothes which will take longer to dry.
43
BEFORE CALLING FOR SERVICE (continued)
Problem Possible Cause Solutions
Clothes take too long to dry Exhaust ducts are blocked, dirty, or
duct run is too long.
Load is not properly sorted.
Large load of heavy fabrics.
Dryer controls are not set properly.
Lint fi lter needs to be cleaned.
House fuse is blown, circuit breaker
has tripped, or power outage has
occurred.
Dryer is overloaded.
Dryer is under loaded.
Confi rm that the exhaust duct is properly
confi gured and free of debris, lint, and
obstructions. Make sure that outside wall
dampers can open properly and are not
blocked, jammed, or damaged.
Separate heavy items from lightweight items.
Larger and heavier items take longer to dry.
Light items in a load with heavy items can fool
the sensor because the light items dry faster.
Heavy fabrics take longer to dry because they
tend to retain more moisture. To help reduce and
maintain more consistent drying times for large
and heavy fabrics, separate these items into
smaller loads of a consistent size.
Use the appropriate control settings for the type
of load you are drying. Some loads may require
an adjustment of the DRY LEVEL setting for
proper drying.
Remove the lint from the fi lter before every load.
With the lint removed, hold the fi lter up to a
light to see if it is dirty or clogged. If it looks
dirty, follow the cleaning instructions on. With
some loads that produce high amounts of lint,
such as new bath towels, it may be necessary to
pause the cycle and clean the fi lter during the
cycle.
Reset circuit breaker or replace fuse. Do not
increase fuse capacity. If the problem is a
circuit overload, have it corrected by a qualifi ed
electrician.
NOTE: Due to the design of electric dryers, it is
possible for a circuit problem to allow an electric
dryer to run without heat.
Divide extra large loads into smaller loads for
better drying performance and effi ciency.
If you are drying a very small load, add a few
extra items to ensure proper tumbling action.
If the load is very small and you are using
AUTO DRY cycles, the electronic control cannot
properly sense the dryness of the load and may
shut off too soon. Use TIMED DRY or add some
extra wet clothes to the load.
Clothes are wrinkled Clothes dried too long (over dried).
Clothes left in dryer too long after
cycle ends.
Over drying a load of laundry can lead to
wrinkled clothes. Try a shorter drying time or
LESS DRY setting and remove items while they
still retain a slight amount of moisture.
Use the WRINKLE GUARD option. This feature
will tumble the clothes briefl y every few minutes
for up to 180 minutes to help prevent wrinkling.
Clothes are shrinking Garment care instructions are not
being followed.
To avoid shrinking your clothes, always consult
and follow fabric care instructions. Some fabrics
will naturally shrink when washed. Other fabrics
can be washed but will shrink when dried in a
dryer. Use a low or no heat setting.
TROUBLESHOOTING GUIDE
44
BEFORE CALLING FOR SERVICE (continued)
Problem Possible Cause Solutions
Error code: tE1 or
tE2
Temperature sensor failure. Turn off the dryer and call for service.
Display shows error
code: PS (electric
dryers only)
Power cord is connected
incorrectly.
White (N) and red (L2) wires on power cord. Check power
cord connections for neutral connection on the center termi-
nal. 240 volts applied to the control, so it will protect itself.
Lint on clothes
Lint fi lter not cleaned properly.
Laundry not sorted properly.
Excess static in clothes.
Dryer is overloaded.
Tissue, paper, etc., left in
pockets.
Remove the lint from the fi lter before every load. With the
lint removed, hold the fi lter up to a light to see if it is dirty
or clogged. If it looks dirty, follow the cleaning instructions.
With some loads that produce high amounts of lint, it may be
necessary to clean the fi lter during the cycle.
Some fabrics are lint producers (i.e., a fuzzy white cotton
towel) and should be dried separately from clothes that are lint
trappers (i.e., a pair of black linen pants).
Use a fabric softener to reduce static electricity. Be sure to follow
the manufacturer’s instructions. Over drying a load of laundry
can cause a buildup of static electricity. Adjust settings and use a
shorter drying time, or use AUTO DRY cycles.
Divide extra large loads into smaller loads for drying.
Check pockets thoroughly before washing and drying clothes.
Excess static in
clothes after drying
Fabric softener is not used or
used incorrectly.
Clothes dried too long (over
dried).
Drying synthetics, permanent
press, or synthetic blends.
Use a fabric softener or the STATIC SHIELD option, if
equipped, to reduce static electricity. Be sure to follow the
manufacturer’s instructions.
Over drying a load of laundry can cause a buildup of static
electricity. Adjust settings and use a shorter drying time, or use
AUTO DRY cycles. Select a LESS DRY setting on AUTO DRY
cycles, if necessary.
These fabrics are naturally more prone to static buildup. Try
using fabric softener, or use LESS DRY and/or shorter TIMED
DRY time settings.
Steam Features Not
Working
Garments are still wrinkled at
the end of the STEAM REFRESH
cycle.
Water drips down the door
during steam cycles.
Odors are not completely
removed at the end of the
STEAM REFRESH cycle.
Load only one to fi ve garments (or a single bulky item). Do
not mix fabric types. STEAM REFRESH is most eff ective on
70/30 cotton/polyblends. Do not use on 100% cotton items.
Steam is invisible. However, under some conditions, the
condensed fog may be seen, or condensation will form on the
inside of the door glass and may be seen dripping down the
glass.
Some odors are diffi cult to remove. Fabrics containing certain
diffi cult odors or very strong odors may not refresh well and
should be washed or dry cleaned instead.
TROUBLESHOOTING GUIDE
45
Kenmore Elite Limited Warranty
WITH PROOF OF SALE the following warranty coverage applies when this appliance is correctly installed,
operated and maintained according to all supplied instructions.
One Year on Appliance
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or
workmanship. A defective appliance will receive free repair. If the appliance cannot be repaired it will be
replaced free of charge.
Lifetime on Dryer Drum and Baffl es
FOR AS LONG AS IT IS USED from the date of sale, a free replacement will be supplied for a defective
dryer drum, including baffl es.* If the defect appears within the fi rst year, a new drum or baffl es will be
installed at no charge. If the defect appears after the fi rst year, a new drum or baffl es will be supplied
but not installed at no charge. This Lifetime warranty covers only the dryer drum and baffl es, and does not
apply to any other related component or mechanism. You are responsible for the labor cost of drum or
baffl es installation after the fi rst year from the date of sale. *Defects must be verifi ed by a Sears authorized
service technician.
For warranty coverage details to obtain free repair or replacement, visit the web page:
www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sale date in the United States if this appliance is ever used
for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to fi lters, belts, bags or
screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance
installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to
repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems
resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized
service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly
operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident,
alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of
detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with
the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifi cations made to this
appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined
to have the appropriate certifi cation logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fi tness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental
or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental
or consequential damages, or limitation on the duration of implied warranties of merchantability or fi tness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoff man Estates, IL 60179
WARRANTY
Kenmore ®
Customer Care Hotline
To schedule in-home repair service
or order replacement parts
Para pedir servicio de reparación
a domicilio, y ordenar piezas
1-844-553-6667
www. kenmore. com
®
