iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

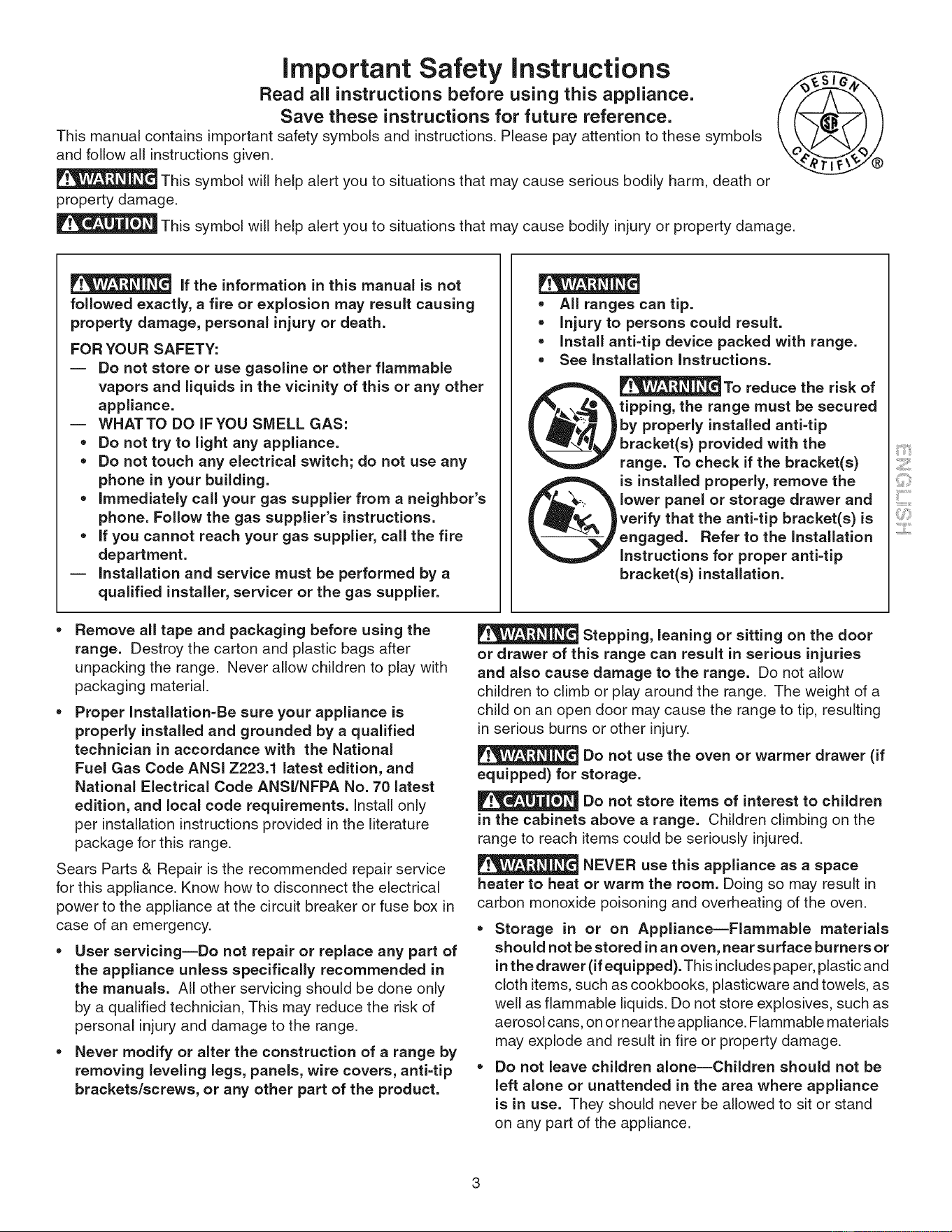

If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.

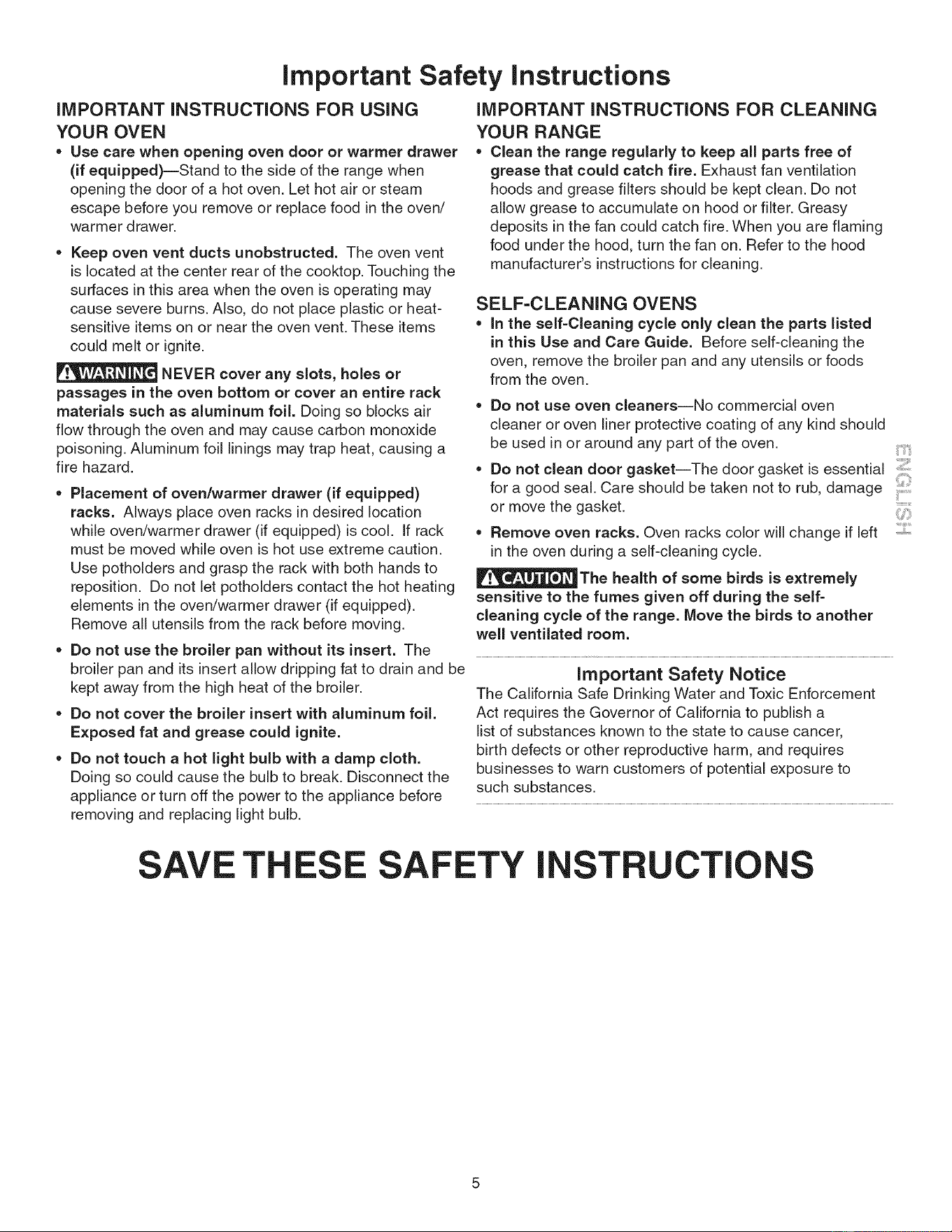

FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
-- WHAT TO DO IFYOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
Appliances Installed in the state
of Massachusetts:
This Appliance can only be installed
in the state of Massachusetts by a
Massachusetts licensed plumber or
gasfitter.
This appliance must be installed with a
three (3) foot / 36 in. long flexible gas
connector.
A"T" handle type manual gas valve
must be installed in the gas supply line
to this appliance.
IMPORTANT: Cabinet and
countertop width should match
the cutout width.
Locate Cabinet Doors
1" (2.5 cm) Min.
Cutout Opening.
" Min.
(61 cm Min.)

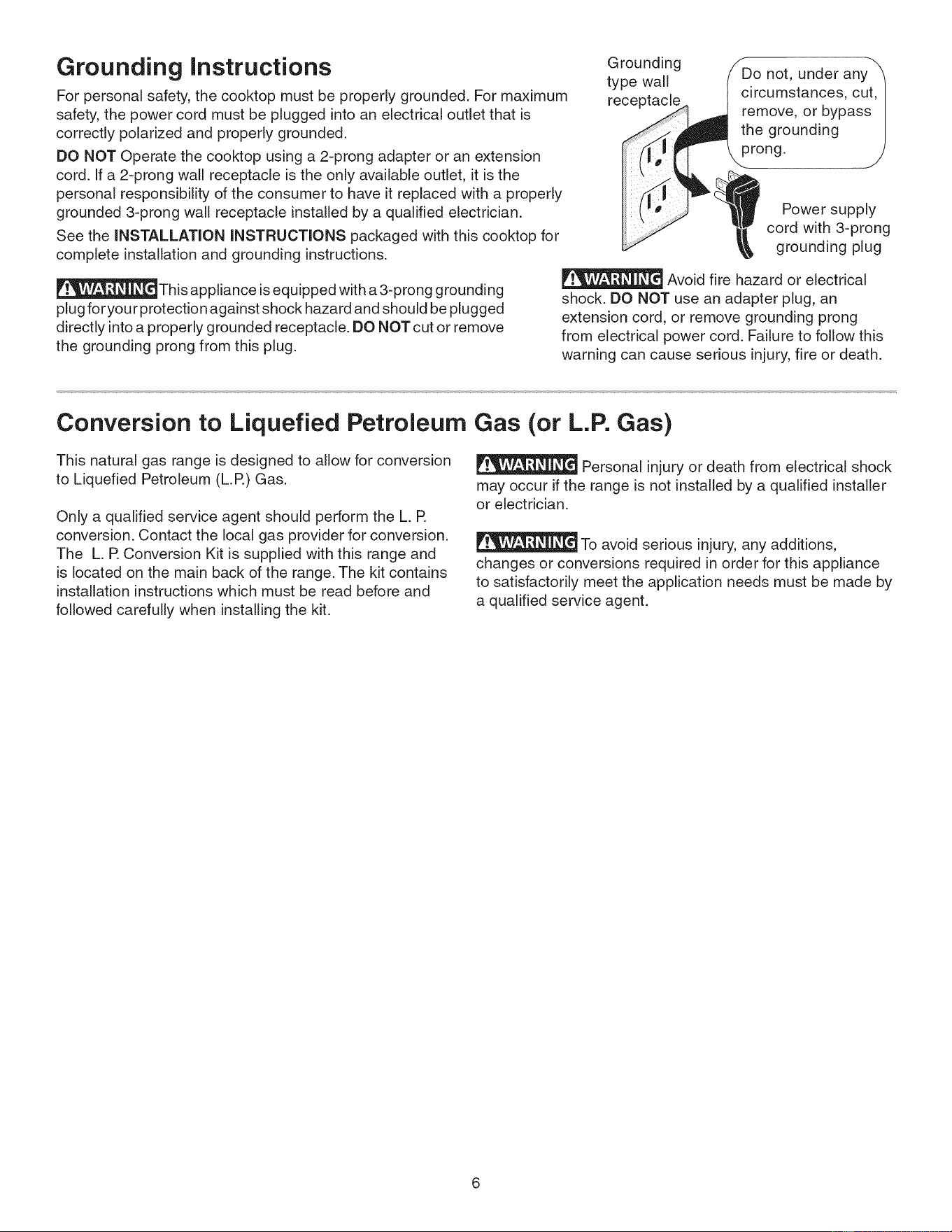

Grounded Junction Box or Wall Outlet Should Be Located 8" to 17" (20.3 cm
to 43.2 cm) From Right Cabinet and 2" to 4" (5.1 cm to 10.2 cm) From Floor.
Do not install the unit in the cabinet before reading next page.
35 7/8" (91.1cm) - 31 5/16" 28 5/16" (71.9cm)
36 5/8" (93cm) (79.5cm)
30_+1/16" (76.2_+0.15cm)
NOTE: Wiring diagram for these appliances are enclosed in this booklet.
Printed in United States
21 3/4" (55.2cm) Min.
22 1/8" (56.2cm) Max
24" (61cm) Min. with
backguard
36 5/8" (93cm) Max.
35 7/8" (91.1cm)
P/N 318201681 (0906) Rev. A

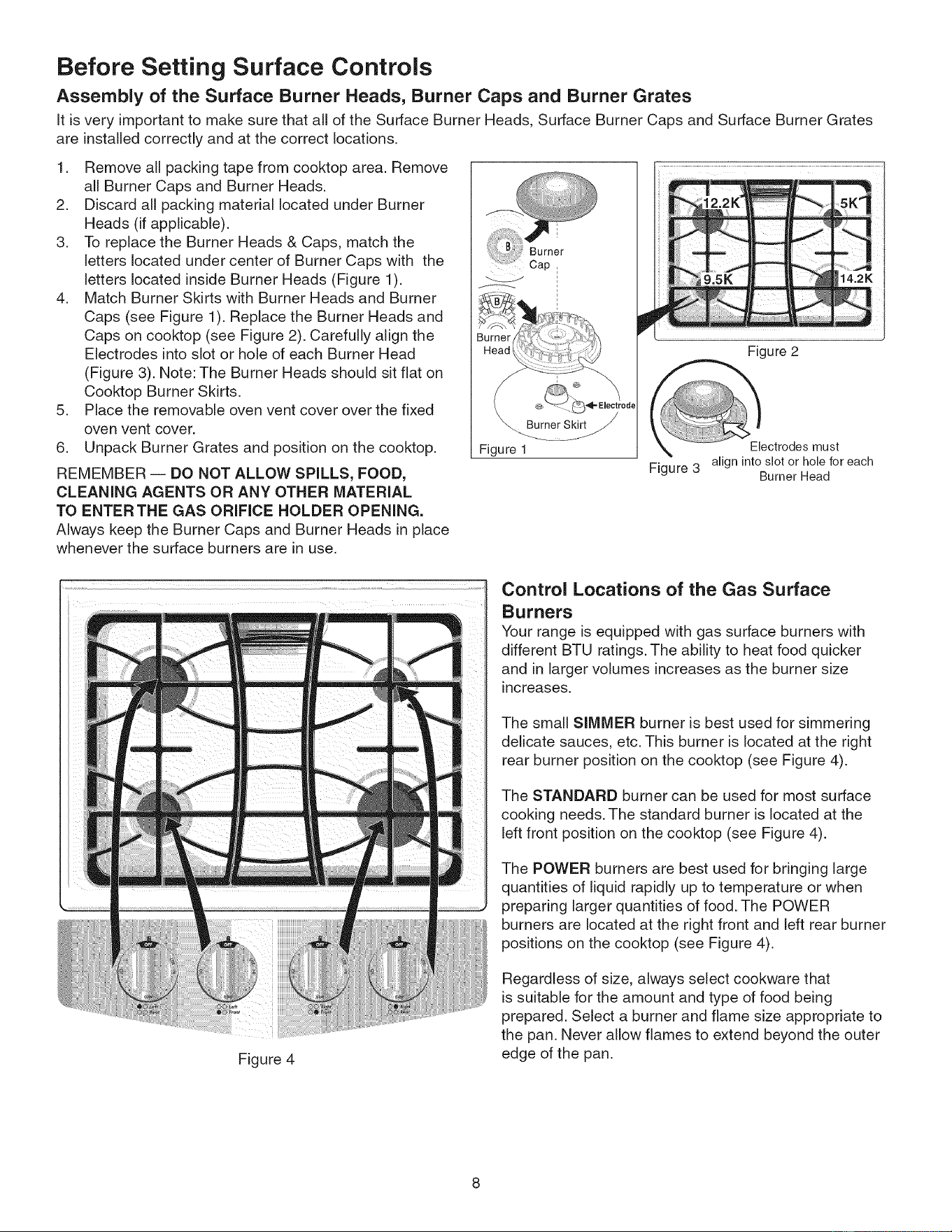

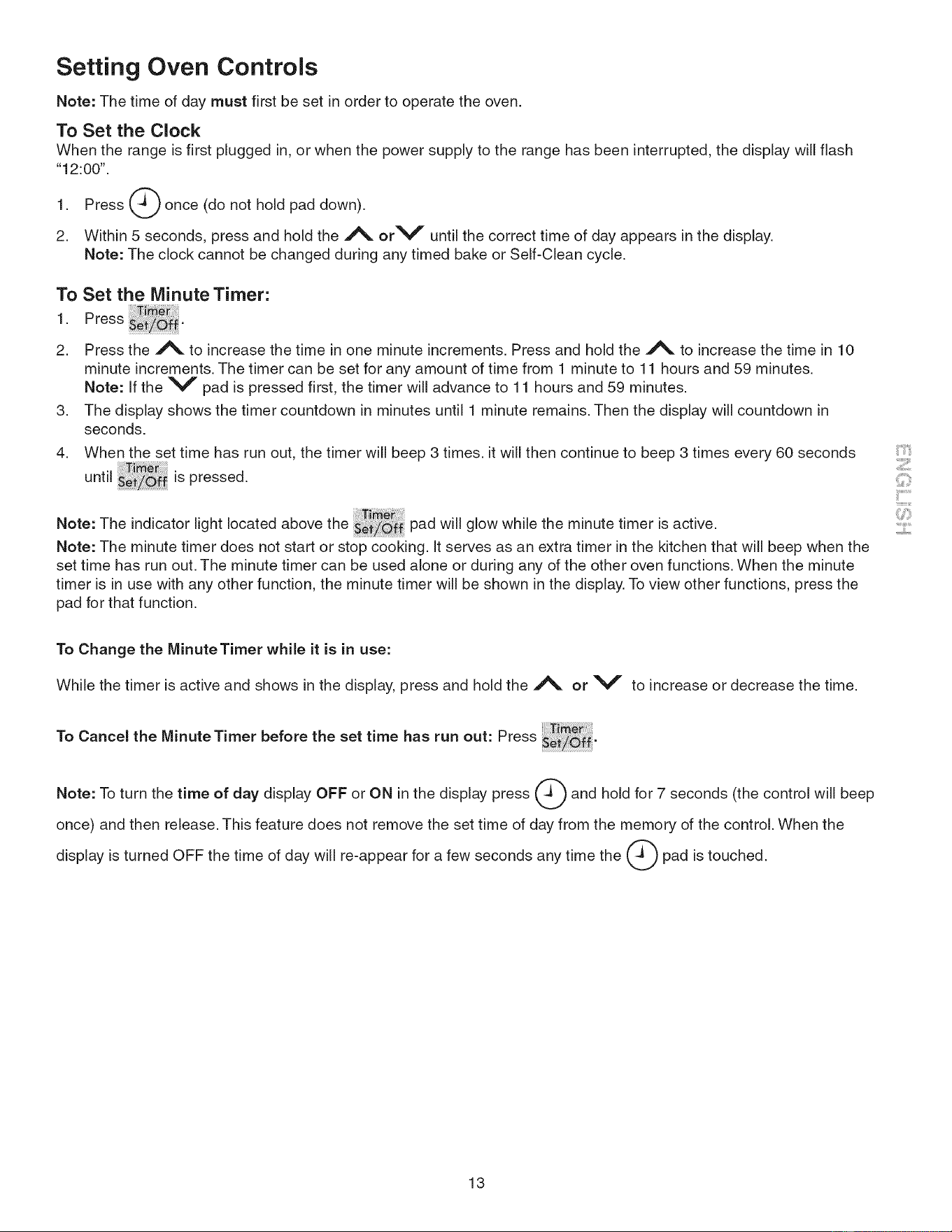

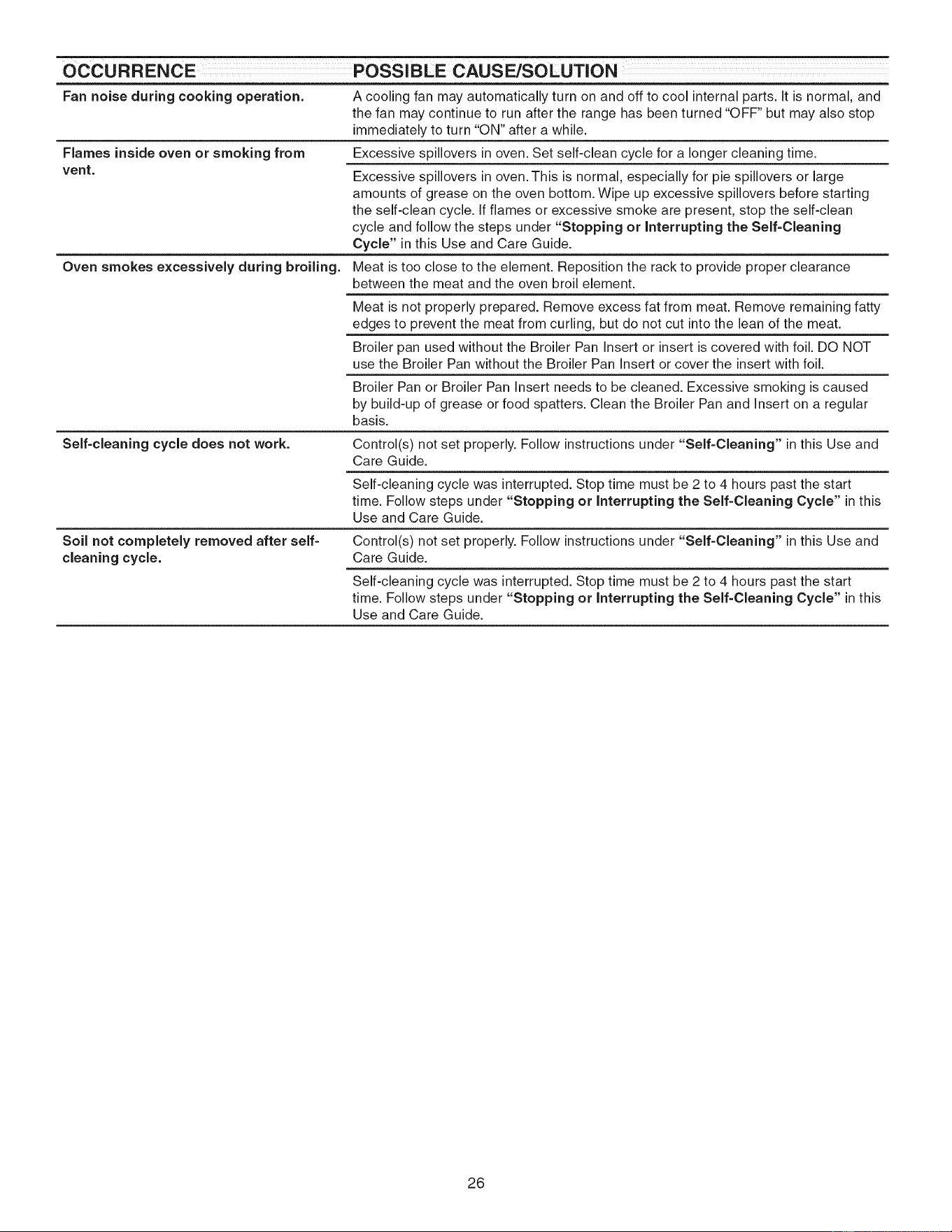

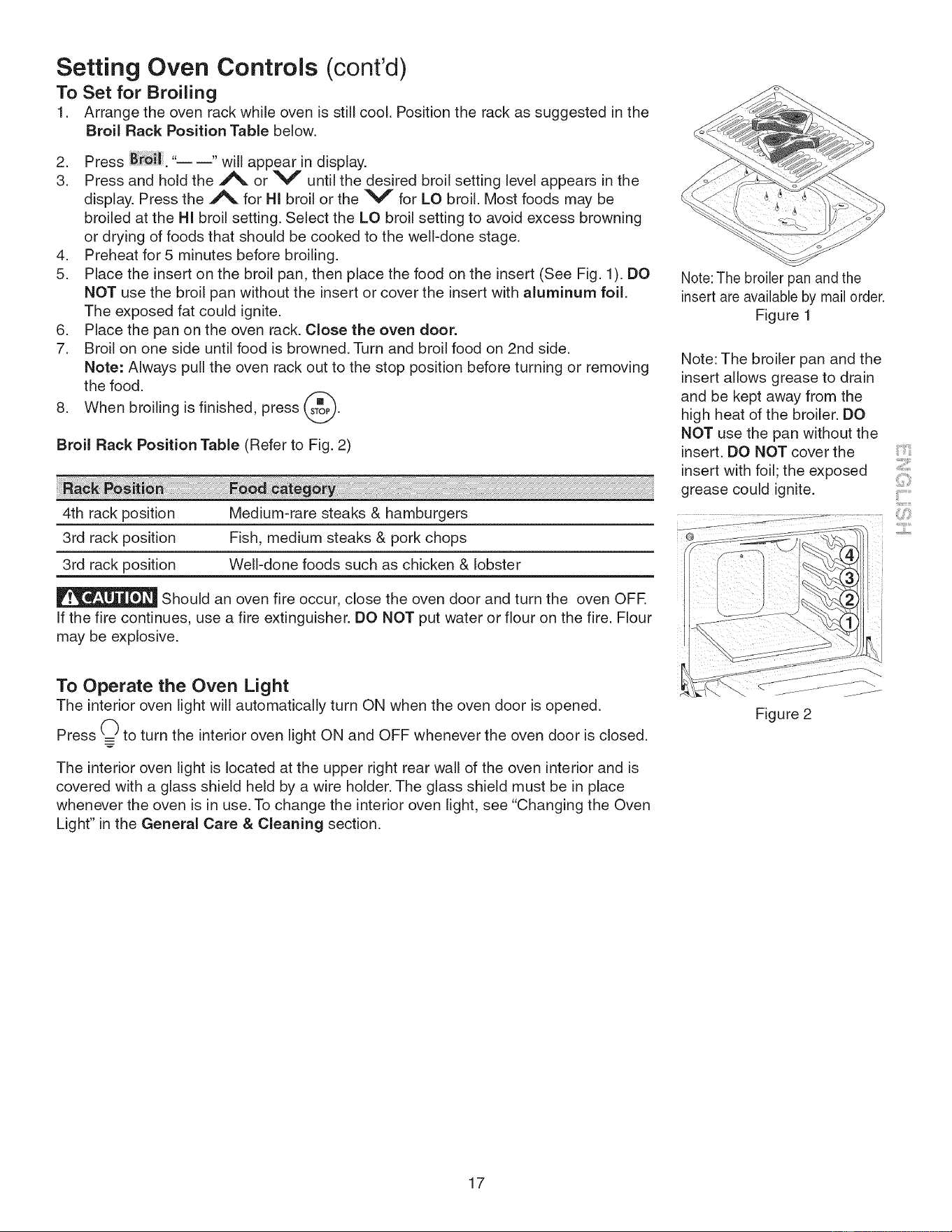

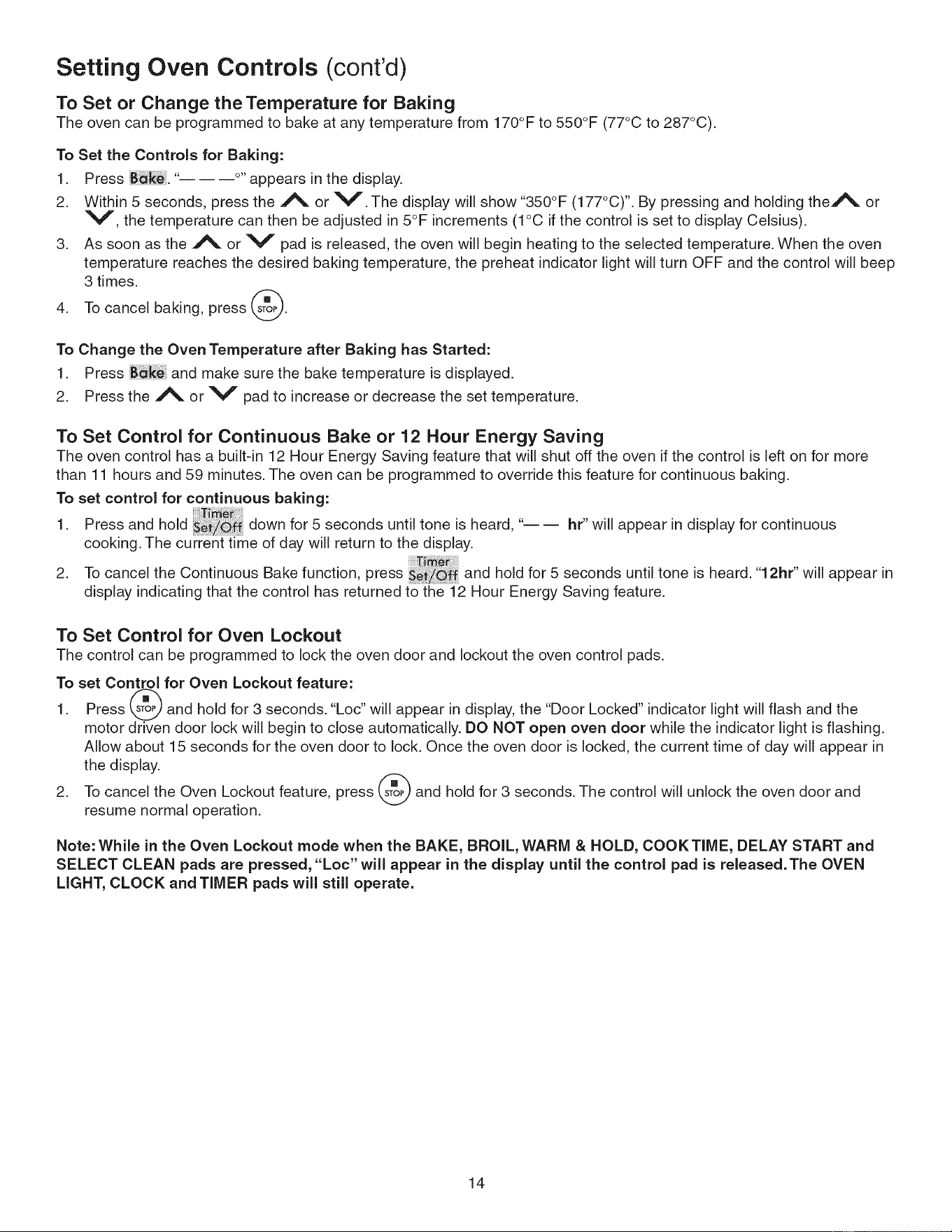

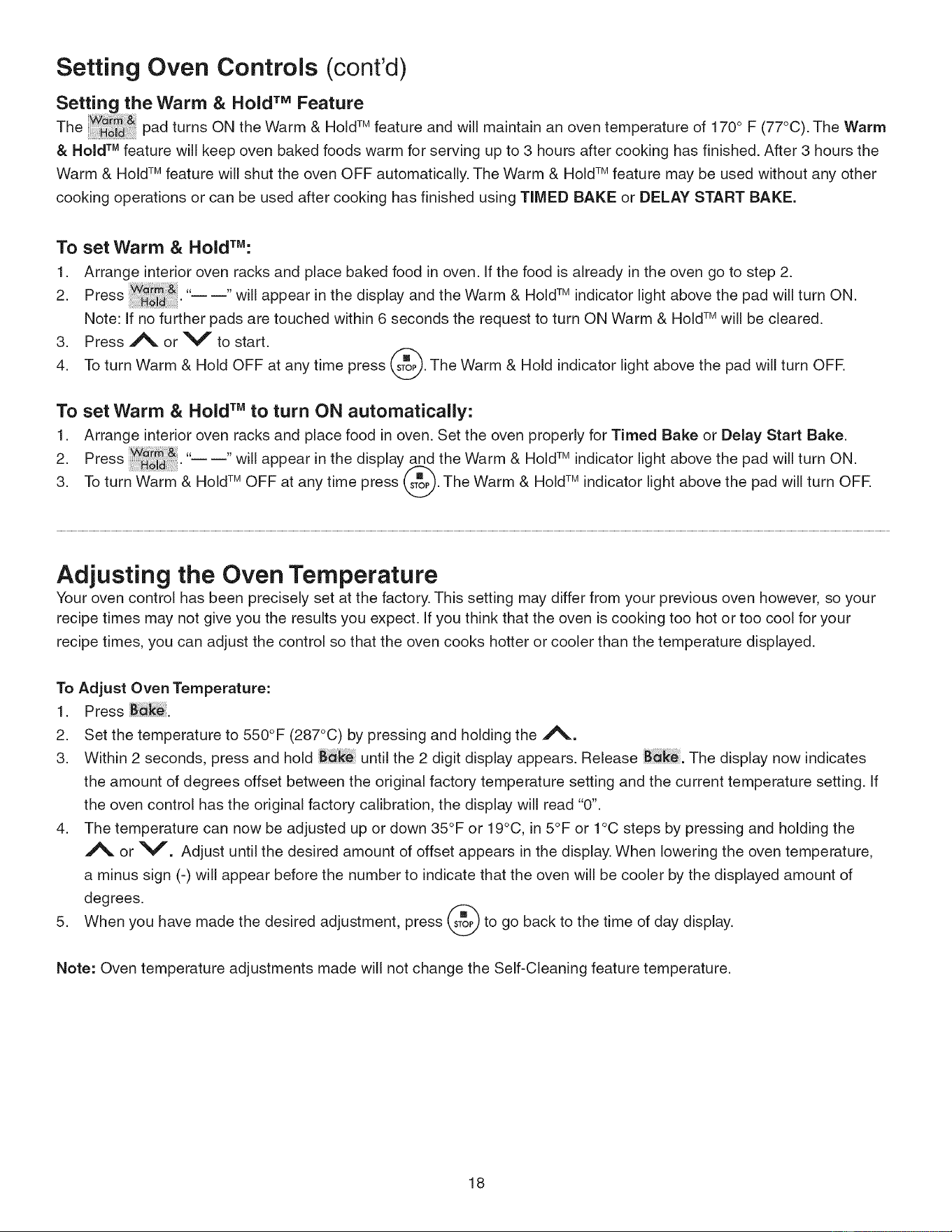

English - pages 1-11
Espahol - p_iginas 12-22
Wiring Diagrams - pages 23-24
