English
OPERATING INSTRUCTIONS
For user
• To use this unit correctly and safely, be sure to read these operating
instructions before use.
SPLIT-TYPE AIR CONDITIONERS
INDOOR UNIT
MSY-GN25VF MSY-GN35VF MSY-GN42VF
JG79Y270H02_Cover.indd 1 2017/04/27 8:38:48
En-1
● OPERATING INSTRUCTIONS ●
• Since rotating parts and parts which could cause an electric shock are used
in this product, be sure to read these “Safety Precautions” before use.
• Since the cautionary items shown here are important for safety, be sure to
observe them.
• After reading this manual, keep it together with the installation manual in a
handy place for easy reference.
• Be sure to receive a guarantee card from your dealer and check that the
purchased date and shop name, etc. are entered correctly.
Marks and their meanings
WARNING :
Incorrect handling could cause serious hazard, such as
death, serious injury, etc. with a high probability.
CAUTION :
Incorrect handling could cause serious hazard depending
on the conditions.
Meanings of symbols used in this manual
: Be sure not to do.
: Be sure to follow the instruction.
: Never insert your fi nger or stick, etc.
:
Never step onto the indoor/outdoor unit and do not put anything on them.
: Danger of electric shock. Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut off the power.
: Risk of fi re
SAFETY PRECAUTIONS
CONTENTS
■ SAFETY PRECAUTIONS 1

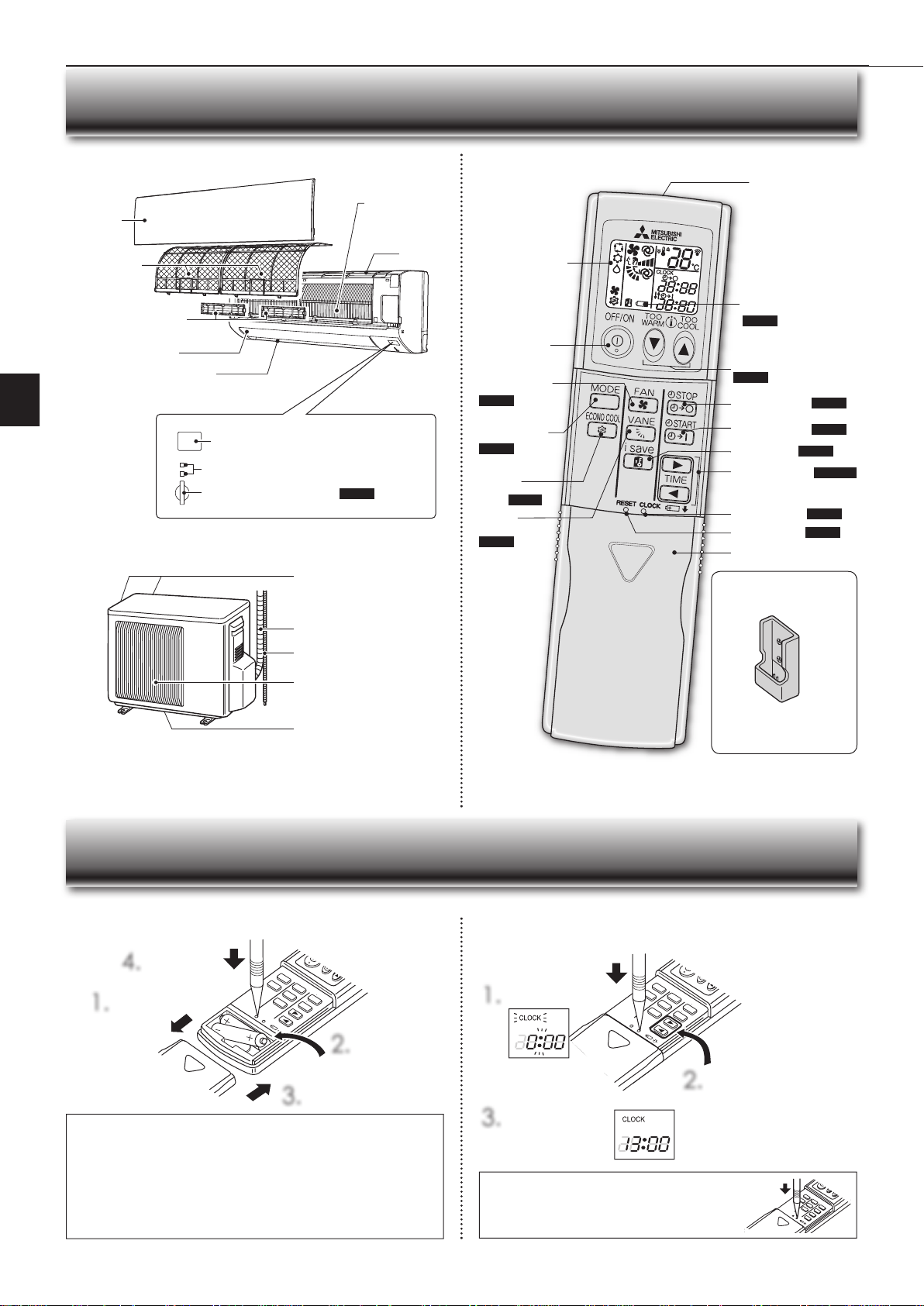

■ NAME OF EACH PART 3
■ PREPARATION BEFORE OPERATION 3

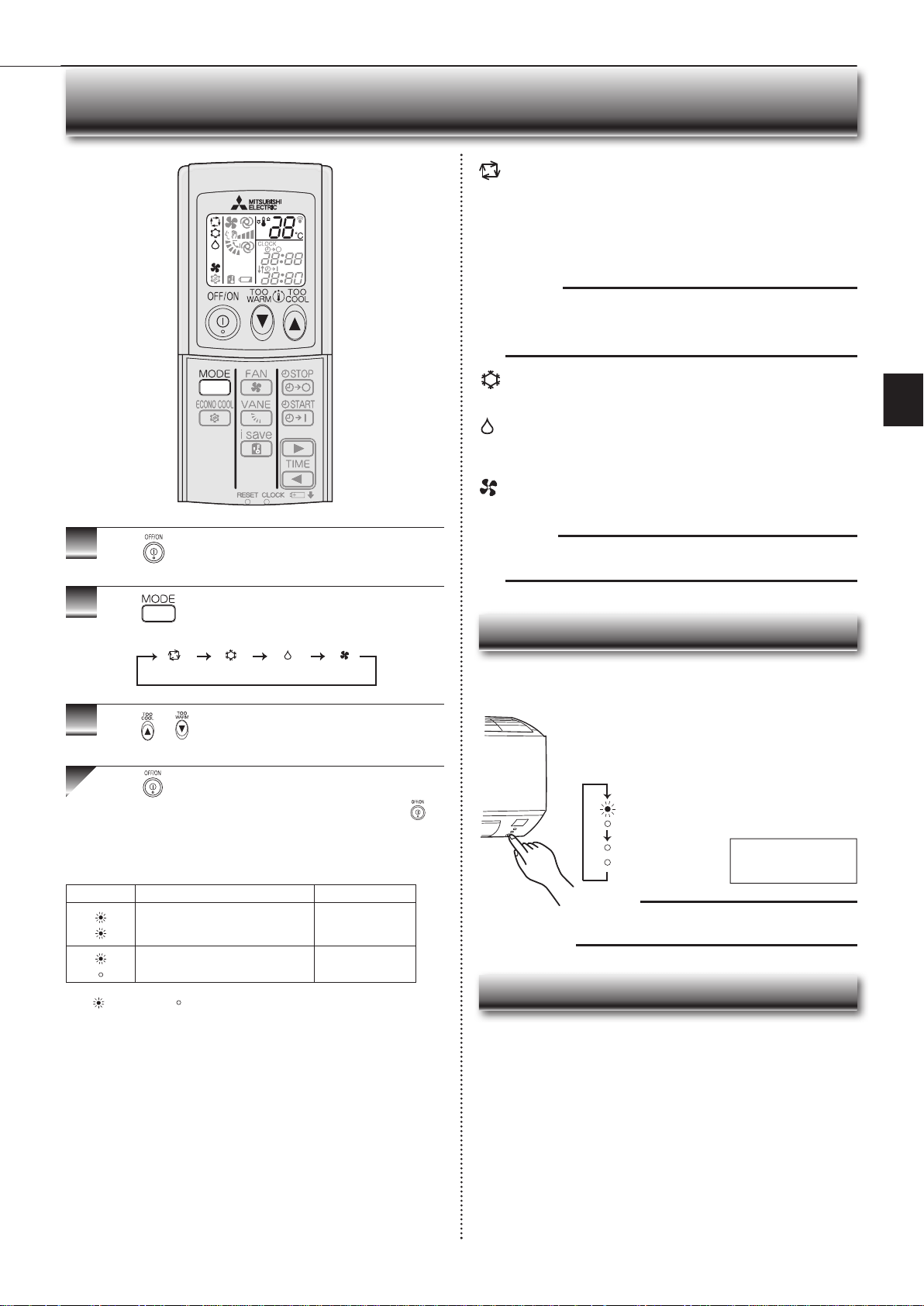

■ SELECTING OPERATION MODES 4

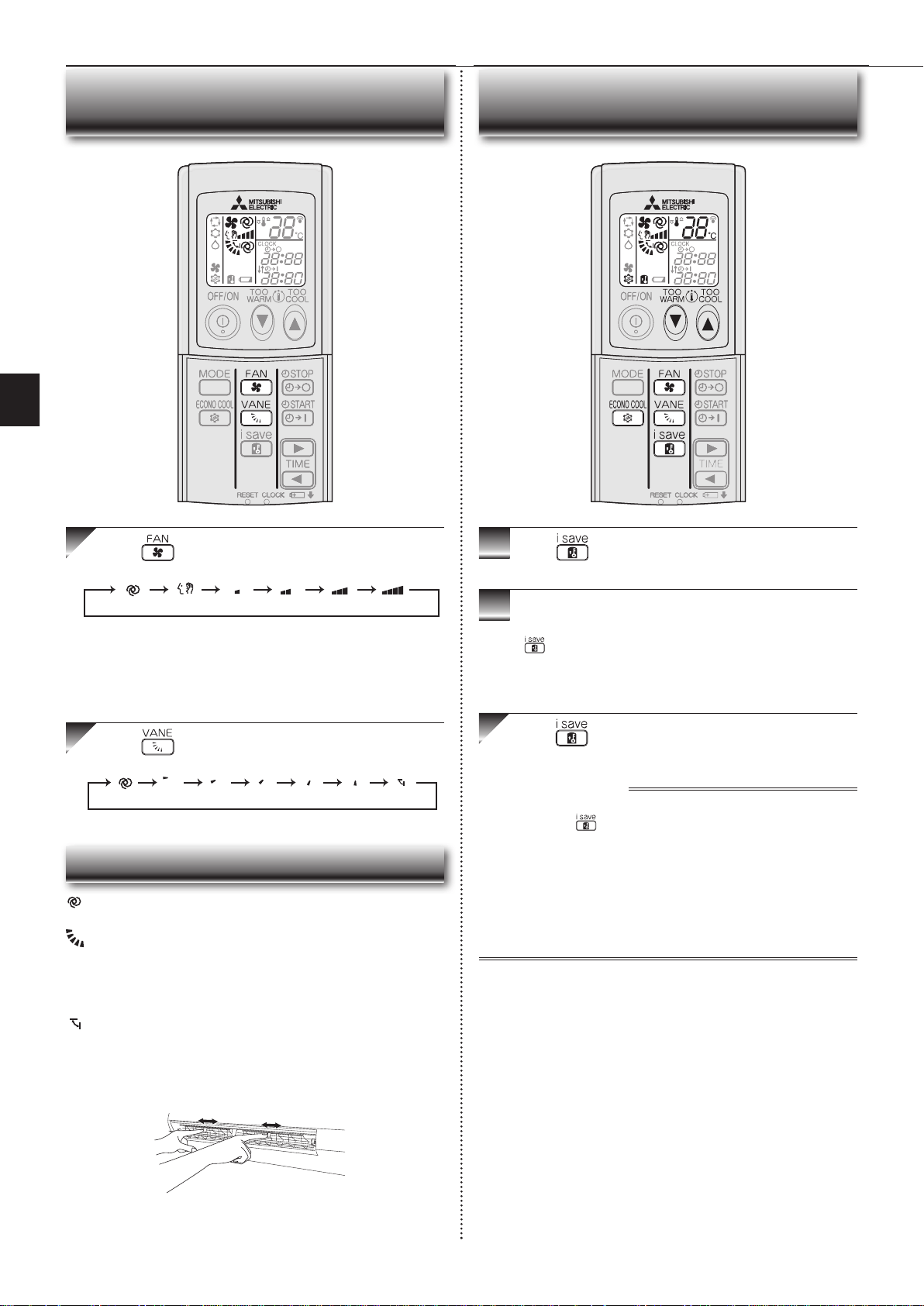

■ FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT 5
■ I-SAVE OPERATION 5

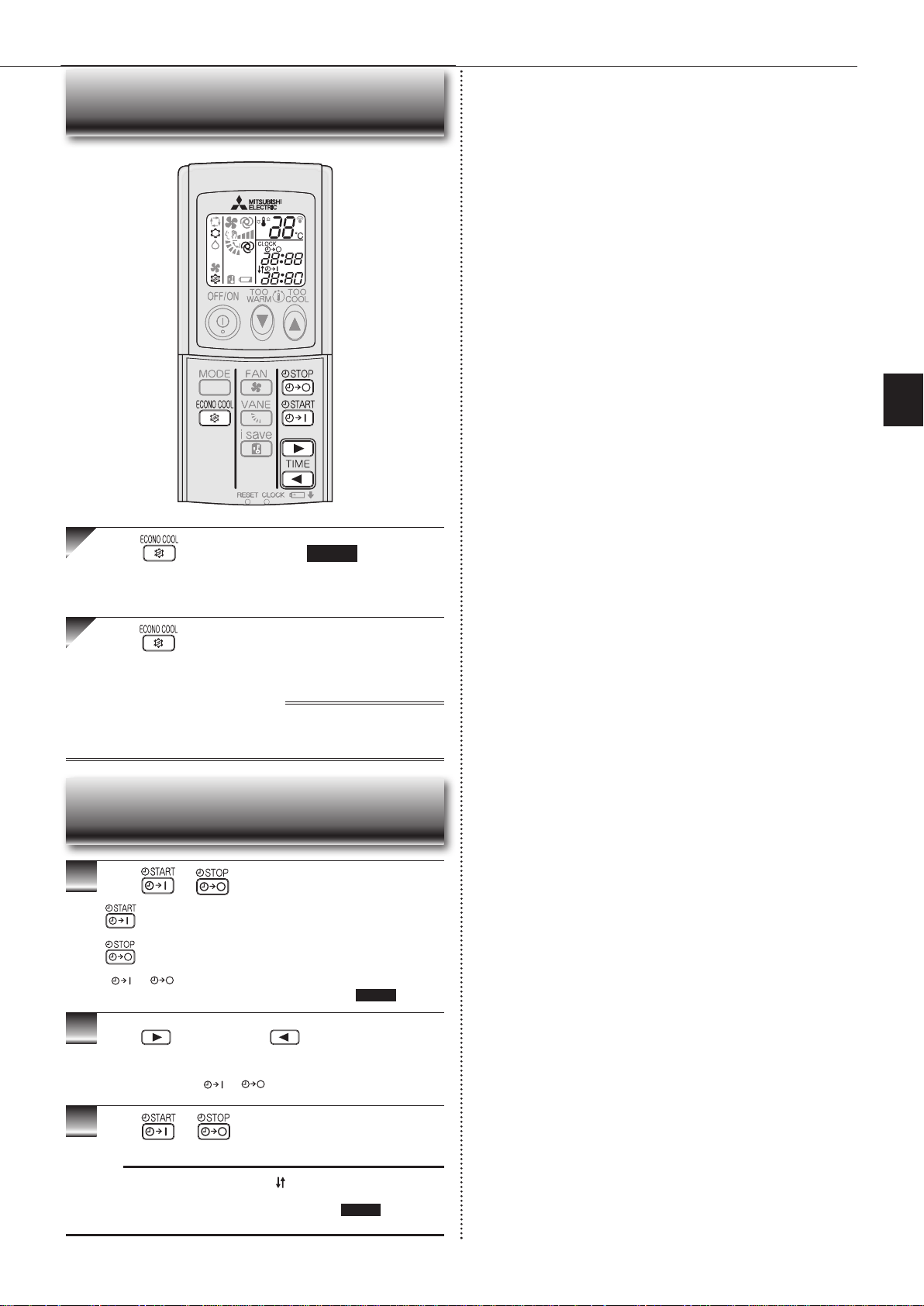

■ ECONO COOL OPERATION 6
■ TIMER OPERATION (ON/OFF TIMER) 6

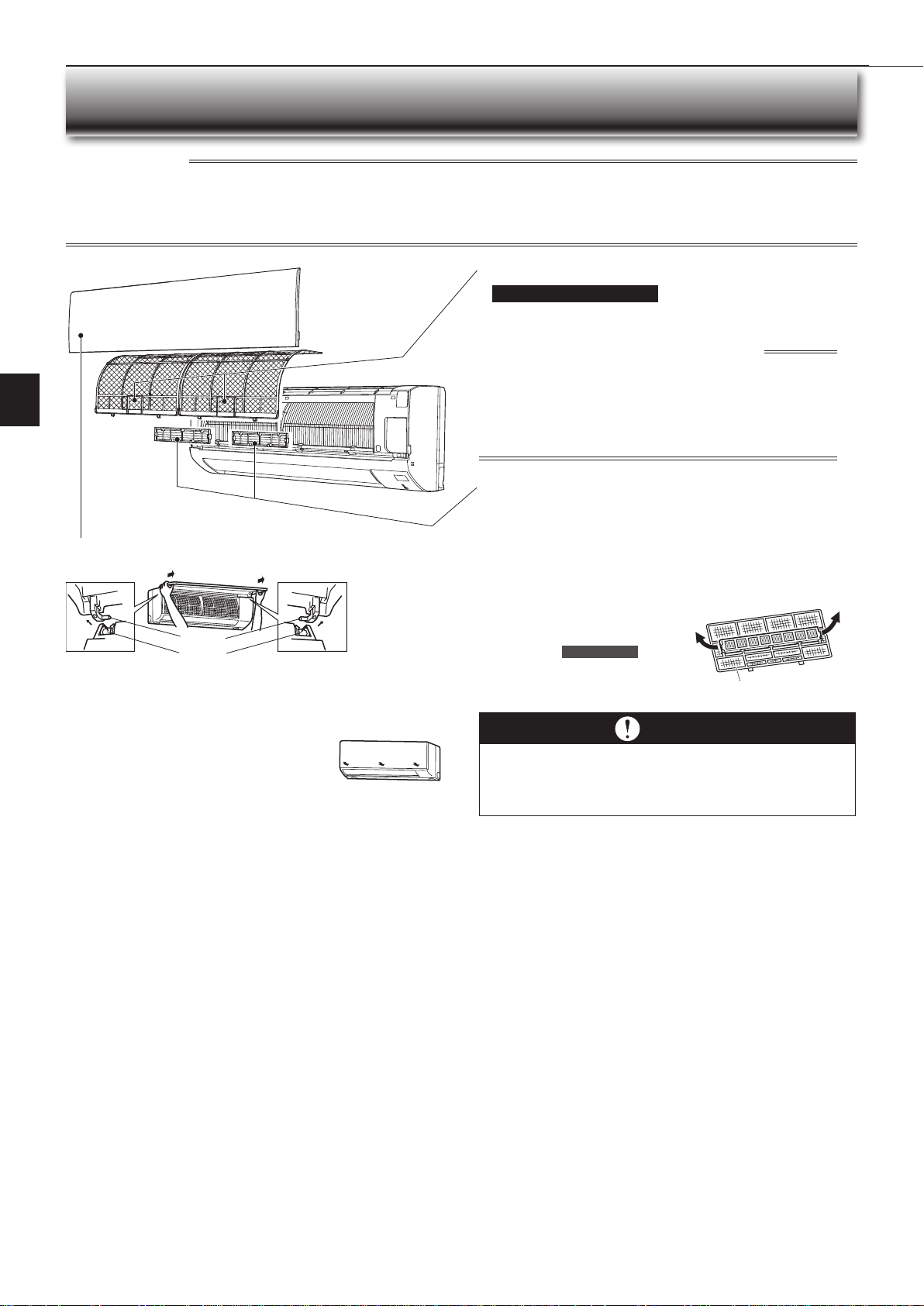

■ CLEANING 7
■ WHEN YOU THINK THAT TROUBLE HAS OCCURRED 8
■ WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME 9

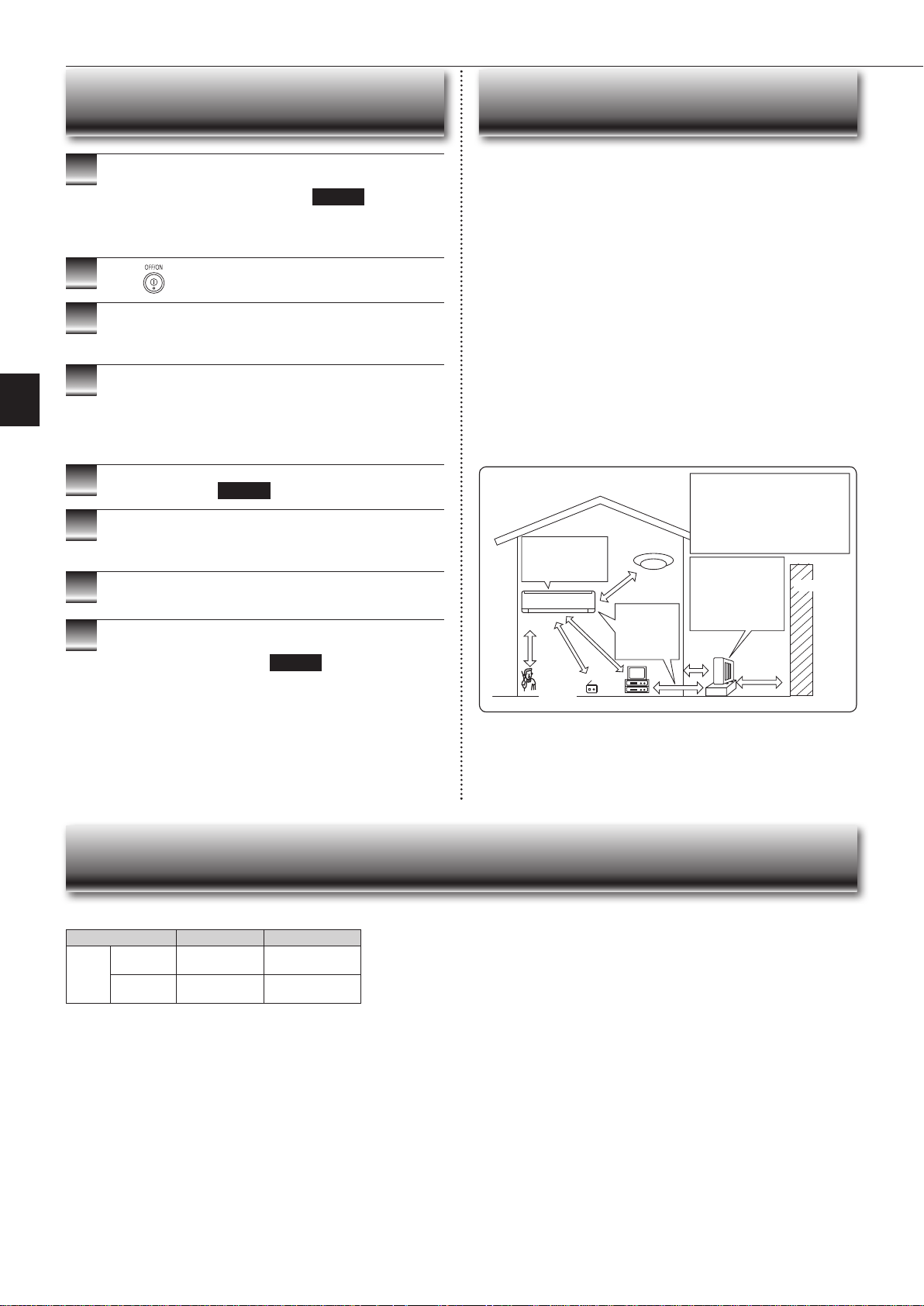

■ INSTALLATION PLACE AND ELECTRICAL WORK 9
■ SPECIFICATIONS 9
WARNING
Do not connect the power cord to an intermediate point, use
an extension cord, or connect multiple devices to a single
AC outlet.
• This may cause overheating, fi re, or electric shock.
Make sure the power plug is free of dirt and insert it se-
curely into the outlet.
• A dirty plug may cause fi re or electric shock.
Do not bundle, pull, damage, or modify the power cord, and
do not apply heat or place heavy objects on it.
• This may cause fi re or electric shock.
Do not turn the breaker OFF/ON or disconnect/connect the
power plug during operation.
• This may create sparks, which can cause fi re.
• After the indoor unit is switched OFF with the remote con-
troller, make sure to turn the breaker OFF or disconnect the
power plug.
Do not expose your body directly to cool air for a prolonged
length of time.
• This could be detrimental to your health.
The unit should not be installed, relocated, disassembled,
altered, or repaired by the user.
• An improperly handled air conditioner may cause fi re, electric
shock, injury, or water leakage, etc. Consult your dealer.
• If the power supply cord is damaged, it must be replaced
by the manufacturer or its service agent in order to avoid a
hazard.
When installing, relocating, or servicing the unit, make sure
that no substance other than the specifi ed refrigerant (R32)
enters the refrigerant circuit.
• Any presence of foreign substance such as air can cause
abnormal pressure rise and may result in explosion or injury.
• The use of any refrigerant other than that specifi ed for the
system will cause mechanical failure, system malfunction,
or unit breakdown. In the worst case, this could lead to a
serious impediment to securing product safety.
This appliance is not intended for use by persons (includ-
ing children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Do not insert your fi nger, a stick, or other objects into the
air inlet or outlet.
• This may cause injury, since the fan inside rotates at high
speeds during operation.
In case of an abnormal condition (such as a burning smell),
stop the air conditioner and disconnect the power plug or
turn the breaker OFF.
• A continued operation in the abnormal state may cause a
malfunction, fi re, or electric shock. In this case, consult your
dealer.
WARNING
(Risk of fi re)
This unit uses a fl ammable refrigerant.
If refrigerant leaks and comes in contact with fi re or heating part, it will create harmful gas and there is risk of fi re.
Read the OPERATING INSTRUCTIONS carefully before operation.
Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.
Meanings of symbols displayed on indoor unit and/or outdoor unit
JG79Y270H02_en.indd 1 2017/04/28 13:32:57
En-2
SAFETY PRECAUTIONS
CAUTION
Do not touch the air inlet or the aluminum fi ns of the indoor/
outdoor unit.
• This may cause injury.
Do not use insecticides or fl ammable sprays on the unit.
• This may cause a fi re or deformation of the unit.
Do not expose pets or houseplants to direct airfl ow.
• This may cause injury to the pets or plants.
Do not place other electric appliances or furniture under the
indoor/outdoor unit.
• Water may drip down from the unit, which may cause damage
or malfunction.
Do not leave the unit on a damaged installation stand.
• The unit may fall and cause injury.
Do not step on an unstable bench to operate or clean the unit.
• This may cause injury if you fall down.
Do not pull the power cord.
• This may cause a portion of the core wire to break, which may
cause overheating or fi re.
Do not charge or disassemble the batteries, and do not
throw them into a fi re.
•
This may cause the batteries to leak, or cause a fi re or explosion
.
Do not operate the unit for more than 4 hours at high humidity
(80% RH or more) and/or with windows or outside door left open.
• This may cause the water condensation in the air conditioner,
which may drip down, wetting or damaging the furniture.
• The water condensation in the air conditioner may contribute
to growth of fungi, such as mold.
Do not use the unit for special purposes, such as storing
food, raising animals, growing plants, or preserving preci-
sion devices or art objects.
• This may cause deterioration of quality, or harm to animals
and plants.
Do not expose combustion appliances to direct airfl ow.
• This may cause incomplete combustion.
Never put batteries in your mouth for any reason to avoid
accidental ingestion.
• Battery ingestion may cause choking and/or poisoning.
Before cleaning the unit, switch it OFF and disconnect the
power plug or turn the breaker OFF.
• This may cause injury, since the fan inside rotates at high
speeds during operation.
When the unit will be unused for a long time, disconnect the
power plug or turn the breaker OFF.
•
The unit may accumulate dirt, which may cause overheating or fi re.
WARNING
Consult your dealer for installing the air conditioner.
• It should not be installed by the user since installation requires
specialized knowledge and skills. An improperly installed air
conditioner may cause water leakage, fi re, or electric shock.
Provide a dedicated power supply for the air conditioner.
• A non-dedicated power supply may cause overheating or fi re.
Do not install the unit where fl ammable gas could leak.
• If gas leaks and accumulates around the outdoor unit, it may
cause an explosion.
Earth the unit correctly.
• Do not connect the earth wire to a gas pipe, water pipe, light-
ning rod, or a telephone earth wire. Improper earthing may
cause electric shock.
CAUTION
Install an earth leakage breaker depending on the installation
location of the air conditioner (such as highly humid areas).
• If an earth leakage breaker is not installed, it may cause electric
shock.
Ensure that the drain water is properly drained.
• If the drain passage is improper, water may drip down from
the indoor/outdoor unit, wetting and damaging the furniture.
In case of an abnormal condition
Immediately stop operating the air conditioner and consult your dealer.
Replace all batteries of the remote controller with new ones
of the same type.
• Using an old battery together with a new one may cause
overheating, leakage, or explosion.
If the battery fl uid comes in contact with your skin or clothes,
wash them thoroughly with clean water.
• If the battery fl uid comes in contact with your eyes, wash them
thoroughly with clean water and immediately seek medical
attention.
Ensure that the area is well-ventilated when the unit is oper-
ated together with a combustion appliance.
• Inadequate ventilation may cause oxygen starvation.
Turn the breaker OFF when you hear thunder and there is a
possibility of a lightning strike.
• The unit may be damaged if lightning strikes.
After the air conditioner is used for several seasons, perform
inspection and maintenance in addition to normal cleaning.
• Dirt or dust in the unit may create an unpleasant odor, con-
tribute to growth of fungi, such as mold, or clog the drain pas-
sage, and cause water to leak from the indoor unit. Consult
your dealer for inspection and maintenance, which require
specialized knowledge and skills.
Do not operate switches with wet hands.
• This may cause electric shock.
Do not clean the air conditioner with water or place an object
that contains water, such as a fl ower vase, on it.
• This may cause fi re or electric shock.
Do not step on or place any object on the outdoor unit.
• This may cause injury if you or the object falls down.
For installation
IMPORTANT
Dirty fi lters cause condensation in the air conditioner which will con-
tribute to the growth of fungi such as mold. It is therefore recommended
to clean air fi lters every 2 weeks.
WARNING
When the air conditioner does not cool or heat, there is a
possibility of refrigerant leakage. If any refrigerant leak-
age is found, stop operations and ventilate the room well
and consult your dealer immediately. If a repair involves
recharging the unit with refrigerant, ask the service techni-
cian for details.
• The refrigerant used in the air conditioner is not harmful.
Normally, it does not leak. However, if refrigerant leaks and
comes in contact with fi re or heating part of such a fan heater,
kerosene heater, or cooking stove, it will create harmful gas
and there is risk of fi re.
The user should never attempt to wash the inside of the
indoor unit. Should the inside of the unit require cleaning,
contact your dealer.
• Unsuitable detergent may cause damage to plastic material
inside the unit, which may result in water leakage. Should
detergent come in contact with electrical parts or the motor,
it will result in a malfunction, smoke, or fi re.
• The appliance shall be stored in a room without continuously
operating ignition sources (for example: open fl ames, an
operating gas appliance or an operating electric heater).
• Be aware that refrigerants may not contain an odour.
• Do not use means to accelerate the defrosting process or
to clean the appliance, other than those recommended by
the manufacturer.
• Do not pierce or burn.
The unit must be installed in rooms which exceed the fl oor
space specifi ed below.
• GN35: 1.7 m²
• GN42: 1.7 m²
JG79Y270H02_en.indd 2 2017/04/28 13:32:57
En-3
● OPERATING INSTRUCTIONS ●
• Press CLOCK gently using a thin instrument.
RESET
CLOCK
RESET
CLOCK
• Make sure the polarity of the batteries is correct.
•
Do not use manganese batteries and leaking batteries. The remote controller could
malfunction.
• Do not use rechargeable batteries.
•
The battery replacement indicator lights up when the battery is running low. In about
7 days after the indicator starts lights up, the remote controller stops working.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with expired
shelf lives last shorter.
• Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate correctly.
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
Installing the remote controller batteries Setting current time
NAME OF EACH PART
PREPARATION BEFORE OPERATION
1.
Press CLOCK.
3.
Press CLOCK again.
2.
Press the TIME buttons to set
the time.
Each press increases/de-
creases the time by 1 minute
(10 minutes when pressed
longer).
Remote controller
1.
Remove the front lid.
2.
Insert the negative
pole of AAA alkaline
batteries fi rst
.
3.
Install the front lid.
4.
Press RESET.
Remote controller
holder
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard
from the indoor unit
when the signal is
received.
Operation display
section
OFF/ON
(stop/operate)
button
Temperature buttons
Page 4
Battery replacement
indicator
Page 3
Operation
select button
Page 4
ECONO
COOL
button
Page 6
FAN speed
control button
Page 5
Off-timer button Page 6
On-timer button Page 6
VANE
control button
Page 5
TIME set buttons Page 3, 6
Increase time
Decrease time
CLOCK button Page 3
RESET button Page 3
Lid
Slide down to open
•
Install the remote controller
holder in a place where the
signal can be received by
the indoor unit.
Only use the remote controller provided with the unit.
Do not use other remote controllers.
If two or more indoor units are installed in proximity to one another, an indoor
unit that is not intended to be operated may respond to the remote controller.
i-save button Page 5
Indoor unit
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Outdoor unit
Outdoor units may be different in appearance.
Operation indicator lamp
Remote control receiving section
Air cleaning fi lter
(Anti-Allergy Enzyme
fi lter, option)
Air inlet
Air fi lter
(Nano platinum
fi lter)
Front panel
Air outlet
Heat exchanger
Emergency operation switch Page 4
Horizontal vane
JG79Y270H02_en.indd 3 2017/04/28 13:32:59
En-4
I FEEL mode
The unit selects the operation mode according to the room temperature
when I FEEL is selected. When the room temperature is higher than 25°C,
COOL is selected (set temperature: 24°C). When the room temperature is
lower than 25°C, DRY is selected. However, when operation is stopped and
then started within 2 hours, the mode which has been selected previously
is operated.
Note:
During COOL operation, the set temperature may not be changed when
the room temperature is more than 2°C higher than the set temperature.
In this case, please wait until the room temperature drops to within 2°C of
the set temperature.
COOL mode
Enjoy cool air at your desired temperature.
DRY mode
Dehumidify your room. The room may be cooled slightly.
Temperature cannot be set during DRY mode.
FAN mode
Circulate the air in your room.
Note:
After COOL/DRY mode operation, it is recommended to operate in the
FAN mode to dry inside the indoor unit.
Emergency operation
When the remote controller cannot be used...
Emergency operation can be activated by pressing the emergency operation
switch (E.O.SW) on the indoor unit.
Each time the E.O.SW is pressed, the operation changes
in the following order:
1
Press
to start the operation.
2
Press to select operation mode. Each press
changes mode in the following order:
3
Press or to set the temperature.
Each press raises or lowers the temperature by 1°C.
Press to stop the operation.
• The same setting is selected the next time by simply pressing
.
Auto restart function
If a power failure occurs or the main power is turned off during operation, “Auto
restart function” automatically starts operation in the same mode as the one set
with the remote controller just before the shutoff of the main power. When timer is
set, timer setting is cancelled and the unit starts operation when power is resumed.
If you do not want to use this function, please consult the service repre-
sentative because the setting of the unit needs to be changed.
SELECTING OPERATION MODES
Set temperature : 24°C
Fan speed : Medium
Horizontal vane : Auto
(I FEEL) (COOL) (DRY) (FAN)
Emergency COOL
Stop
Note:
The fi rst 30 minutes of operation is test run. Temperature
control does not work, and fan speed is set to High.
Operation indicator lamp
The operation indicator lamp shows the operation state of the unit.
Indication Operation state Room temperature
The unit is operating to reach the set
temperature
About 2°C or more
away from set tem-
perature
The room temperature is approach-
ing the set temperature
About 1 to 2°C from
set temperature
Lit Not lit
Operation indicator lamp
JG79Y270H02_en.indd 4 2017/04/28 13:33:00
En-5
● OPERATING INSTRUCTIONS ●
FAN SPEED AND
AIRFLOW DIRECTION ADJUSTMENT
I-SAVE OPERATION
Press to select fan speed. Each press changes
fan speed in the following order:
• Two short beeps are heard from the indoor unit when set to AUTO.
• Use higher fan speed to cool the room more powerfully. It is recom-
mended to lower the fan speed once the room is cool.
• Use lower fan speed for quiet operation.
• Use lower fan speed to further lower the outlet temperature and hu-
midity.
Press to select airfl ow direction. Each press
changes airfl ow direction in the following order:
• Two short beeps are heard from the indoor unit when set to AUTO.
Airflow direction
(AUTO) .........The vane is set to the most effi cient airfl ow direction. :horizontal
position.
(Manual) .......For efficient air conditioning, select the upper position for
COOL/DRY, and the lower position for FAN. If the lower posi-
tion is selected during COOL/DRY, the vane automatically
moves to the upward position after 0.5 to 1 hour to prevent
any condensation from dripping.
(Swing) .........The vane moves up and down intermittently.
■ To change the horizontal airfl ow direction.
Move the vertical vane manually before starting operation.
1
Press during COOL or ECONO COOL mode to
select i-save mode.
2
Set the temperature, fan speed, and airfl ow direction.
• The same setting is selected from the next time by simply pressing
.
• One group of setting can be saved.
• Select the appropriate temperature, fan speed, and airflow direction
according to your room.
Press again to cancel i-save operation.
• i-save operation also is canceled when the MODE button is pressed.
i-save operation
A simplified set back function enables to recall the preferred (preset) setting with
a single push of the
button. Press the button again and you can go back to
the previous setting in an instance.
Example of use:
1. Low energy mode
Set the temperature 2°C to 3°C warmer in COOL. This setting is suitable for
unoccupied room, and while you are sleeping.
2. Saving frequently used settings
Save your preferred setting for COOL/ECONO COOL. This enables you to
select your preferred setting with a single push of the button.
(AUTO) (Quiet) (Low) (Med.) (High) (Super High)
(AUTO) (1) (2) (3) (4) (5) (SWING)
JG79Y270H02_en.indd 5 2017/04/28 13:33:01
En-6
ECONO COOL OPERATION
Press during COOL mode page 4 to start
ECONO COOL operation.
The unit performs swing operation vertically in various cycle according to the
temperature of the unit. Set temperature is set 2°C higher automatically.
Press again to cancel ECONO COOL operation.
• ECONO COOL operation also is canceled when the VANE button is
pressed.
What is “ECONO COOL”?
Swing air fl ow (change of air fl ow) makes you feel cooler than constant air fl ow. So,
even though the set temperature is automatically set 2°C higher, it is possible to
perform cooling operation with keeping comfort. As a result, energy can be saved.
1
Press or during operation to set the timer.
(ON timer) : The unit turns ON at the set time.
(OFF timer) : The unit turns OFF at the set time.
* or blinks.
* Make sure that the current time is set correctly. Page 3
2
Press (Increase) and (Decrease) to set the
time of timer.
Each press increases or decreases the set time by 10 minutes.
• Set the timer while
or is blinking.
3
Press or again to cancel timer.
Note:
• ON and OFF timers can be set together. mark indicates the order of timer
operations.
• If power failure occurs while ON/OFF timer is set, see page 4 “Auto restart
function”.
TIMER OPERATION (ON/OFF TIMER)
JG79Y270H02_en.indd 6 2017/04/28 13:33:03
En-7
● OPERATING INSTRUCTIONS ●
Instructions:
CLEANING
• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
• Use only diluted mild detergents.
• Do not expose parts to direct sunlight, heat, or fi re to dry.
• Do not use water hotter than 50°C.
• Do not use a scrubbing brush, a hard sponge, or the like.
• Do not soak or rinse the horizontal vane.
• Do not apply excessive force on the fan as it may cause cracks or breakage.
Air cleaning fi lter
(Anti-Allergy Enzyme Filter, option)
Back side of air fi lter
Every 3 months:
• Remove dirt by a vacuum cleaner.
When dirt cannot be removed by vacuum cleaning:
• Soak the fi lter and its frame in lukewarm water before rinsing it.
• After washing, dry it well in shade. Install all tabs of the air fi lter.
Every year:
• Replace it with a new air cleaning fi lter
for best performance.
• Parts Number MAC-408FT-E
Important
• Clean the fi lters regularly for best performance and to re-
duce power consumption.
• Dirty fi lters cause condensation in the air conditioner which
will contribute to the growth of fungi such as mold. It is
therefore recommended to clean air fi lters every 2 weeks.
Pull to remove from the air fi lter
1. Lift the front panel until a “click” is heard.
2. Hold the hinges and pull to remove as shown in the illustration above.
• Wipe with a soft dry cloth or rinse it with water.
• Do not soak it in water for more than two hours.
• Dry it well in shade.
3. Install the front panel by following the removal proce-
dure in reverse. Close the front panel securely and
press the positions indicated by the arrows.
Front panel
Hole
Hinge
Air fi lter (Nano platinum fi lter)
• Clean every 2 weeks
• Remove dirt by a vacuum cleaner, or rinse with water.
• After washing with water, dry it well in shade.
What is “Nano platinum fi lter” ?
Nano platinum is a ceramic particle that includes a platinum nanoparticle.
The particles are incorporated into the fi lter material, which results in pro-
viding semi-permanent antibacterial and deodorizing characteristics for the
fi lter. Nano platinum surpasses the catechin (a biofl avonoid that is found
in green tea) in performance. Nano platinum fi lter uses this compound not
only to improve air quality but also to eliminate bacteria and viruses. This air
fi lter has a semi-permanent lasting effect even after washing it with water.
JG79Y270H02_en.indd 7 2017/04/28 13:33:04
En-8
Even if these items are checked, when the unit does not recover from the
trouble, stop using the air conditioner and consult your dealer.
Symptom Explanation & Check points
Indoor Unit
The unit cannot be operated.
• Is the breaker turned on?
• Is the power supply plug connected?
• Is the ON timer set? Page 6
The horizontal vane does not
move.
• Are the horizontal vane and the vertical vane
installed correctly?
• Is the fan guard deformed?
The unit cannot be operated
for about 3 minutes when
restarted.
• This protects the unit according to instruc-
tions from the microprocessor. Please
wait.
Mist is discharged from the air
outlet of the indoor unit.
• The cool air from the unit rapidly cools mois-
ture in the air inside the room, and it turns
into mist.
The swing operation of the
HORIZONTAL VANE is
suspended for a while, then
restarted.
• This is for the swing operation of the HORI-
ZONTAL VANE to be performed normally.
The air fl ow direction changes
during operation.
The direction of the horizontal
vane cannot be adjusted with
the remote controller.
• When the unit is operated in COOL or DRY
mode, if the operation continues with air
blowing down for 0.5 to 1 hour, the direction
of the air fl ow is automatically set to upward
position to prevent water from condensing
and dripping.
The unit starts operation by
itself when the main power
is turned on, though it isn’t
operated with the remote
controller.
• These models are equipped with an auto re-
start function. When the main power is turned
off without stopping the unit with the remote
controller and is turned on again, the unit
starts operation automatically in the same
mode as the one set with the remote control-
ler just before the shutoff of the main power.
Refer to “Auto restart function”. Page 4
The indoor unit discolors over
time.
• Although plastic turns yellow due to the infl u-
ence of some factors such as ultraviolet light
and temperature, this has no effect on the
product functions.
Outdoor Unit
The fan of the outdoor unit
does not rotate even though
the compressor is running.
Even if the fan starts to rotate,
it stops soon.
• When the outside temperature is low dur-
ing cooling operation, the fan operates
intermittently to maintain suffi cient cooling
capacity.
Water leaks from the outdoor
unit.
• During COOL and DRY operations, pipe or
pipe connecting sections are cooled and this
causes water to condense.
Remote controller
The display on the remote
controller does not appear or
it is dim. The indoor unit does
not respond to the remote
control signal.
• Are the batteries exhausted? Page 3
• Is the polarity (+, -) of the batteries correct?
Page 3
• Are any buttons on the remote controller of
other electric appliances being pressed?
Symptom Explanation & Check points
Does not cool
The room cannot be cooled
suffi ciently.
• Is the temperature setting appropriate?
Page 4
• Is the fan setting appropriate? Please
change fan speed to High or Super High.
Page 5
• Are the fi lters clean? Page 7
• Is the fan or heat exchanger of the indoor unit
clean? Page 7
• Are there any obstacles blocking the air inlet
or outlet of the indoor or outdoor unit?
• Is a window or door open?
• When a ventilation fan or a gas cooker is
used in a room, the cooling load increases,
resulting in an insuffi cient cooling effect.
• When the outside temperature is high, the
cooling effect may not be suffi cient.
• It may take a certain time to reach the setting
temperature or may not reach that depending
on the size of the room, the ambient tempera-
ture, and the like.
Airfl ow
The air from the indoor unit
smells strange.
• Are the fi lters clean? Page 7
• Is the fan or heat exchanger of the indoor unit
clean? Page 7
• The unit may suck in an odor adhering to the
wall, carpet, furniture, cloth, etc. and blow it
out with the air.
Sound
Cracking sound is heard. • This sound is generated by the expansion/
contraction of the front panel, etc. due to
change in temperature.
“Burbling” sound is heard. • This sound is heard when the outside air is
absorbed from the drain hose by turning on
the range hood or the ventilation fan, making
water fl owing in the drain hose to spout out.
This sound is also heard when the outside air
blows into the drain hose in case the outside
wind is strong.
Mechanical sound is heard
from the indoor unit.
• This is the switching sound in turning on/off
the fan or the compressor.
The sound of water fl owing
is heard.
• This is the sound of refrigerant or condensed
water fl owing in the unit.
Hissing sound is sometimes
heard.
• This is the sound when the fl ow of refrigerant
inside the unit is switched.
In the following cases, stop using the air conditioner and consult your dealer.
• When water leaks or drips from the indoor unit.
• When the upper operation indicator lamp blinks. Except for when the lamp of
a multi unit blinks while the unit is on standby.
• When the breaker trips frequently.
• The remote control signal is not received in a room where an electronic ON/
OFF type fl uorescent lamp (inverter-type fl uorescent lamp, etc.) is used.
• Operation of the air conditioner interferes with radio or TV reception. An ampli-
fi er may be required for the affected device.
• When an abnormal sound is heard.
• When any refrigerant leakage is found.
WHEN YOU THINK THAT TROUBLE HAS OCCURRED
JG79Y270H02_en.indd 8 2017/04/28 13:33:04
En-9
● OPERATING INSTRUCTIONS ●
Inverter-type
fl uorescent
lamp
Installation place
Avoid installing the air conditioner in the following places.
• Where there is much machine oil.
• Salty places such as the seaside.
• Where sulfi de gas is generated such as hot spring, sewage, waste water.
• Where oil is splashed or where the area is fi lled with oily smoke (such as cook-
ing areas and factories, in which the properties of plastic could be changed
and damaged).
• Where there is high-frequency or wireless equipment.
• Where the air from the outdoor unit air outlet is blocked.
• Where the operation sound or air from the outdoor unit bothers the house next
door.
• The mounting height of indoor unit 1.8 m to 2.3 m is recommended. If it is
impossible, please consult your dealer.
• Do not operate the air conditioner during interior construction and fi nishing
work, or while waxing the fl oor. Before operating the air conditioner, ventilate
the room well after such work is performed. Otherwise, it may cause volatile
elements to adhere inside the air conditioner, resulting in water leakage or
scattering of dew.
Electrical work
• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.
If you have any questions, consult your dealer.
INSTALLATION PLACE AND
ELECTRICAL WORK
SPECIFICATIONS
1
Operate by COOL mode with the highest temperature
set or FAN mode for 3 to 4 hours. Page 4
• This dries the inside of the unit.
• Moisture in the air conditioner contributes to growth of fungi, such as
mold.
2
Press
to stop the operation.
3
Turn off the breaker and/or disconnect the power sup-
ply plug.
4
Remove all batteries from the remote controller.
When using the air conditioner again:
1
Clean the air fi lter. Page 7
2
Check that the air inlet and outlet of the indoor and
outdoor units are not blocked.
3
Check that the earth is connected correctly.
4
Refer to the “PREPARATION BEFORE OPERATION”,
and follow the instructions. Page 3
WHEN THE AIR CONDITIONER IS NOT
GOING TO BE USED FOR A LONG TIME
To prevent the effects
of a fl uorescent lamp,
keep as far apart as
possible.
wall, etc.
Keep a space
to prevent
the picture
distortion or
the noise.
1 m
or
more
Radio
100 mm or
more
TV
Cordless
phone or
Portable
phone
3 m or more
1 m or
more
The installation location of the outdoor
unit should be at least 3 m away from
the antennas for TV sets, radios, etc. In
areas where the reception is weak, pro-
vide greater space between the outdoor
unit and the antenna of the affected
device if operation of the air conditioner
interferes with radio or TV reception.
For the optimum ef-
fi ciency and to extend
the life time of using,
the outdoor unit
should be installed in
a well-ventilated dry
place.
200 mm or
more
Indoor Outdoor
Cooling
Upper limit
32°C DB
23°C WB
46°C DB
—
Lower limit
21°C DB
15°C WB
21°C DB
—
Guaranteed operating range
DB : Dry Bulb
WB : Wet Bulb
JG79Y270H02_en.indd 9 2017/04/28 13:33:04
JG79Y270H02_Cover.indd 4 2017/04/27 8:39:34
HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
JG79Y270H02
JG79Y270H02_Cover.indd 2 2017/04/27 8:38:48
