DX540
OWNER’S MANUAL
LG DLP PROJECTOR
LG DLP PROJECTOR
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the bottom of the set and
quote this information to your dealer when you
require service.
Model number :
Serial number :
DLP PROJECTOR
DLP PROJECTOR
Warning
This is a class A product. In a domestic environment this product may cause radio interference, in
which case the user may be required to take adequate measures.
Contents
3
Contents
Safety Instructions....................................4
Names of parts
Main Body .......................................................7
Connecting Part ..............................................7
Control Panel ..................................................8
Remote Control...............................................9
Installing Batteries...........................................9
Projector Status Indicators..............................10
Accessories.....................................................11
Optional Extras ...............................................11
Installing and Composition
Installation Instructions ...................................12
Basic Operation of the Projector.....................13
Using Kensington Security System.................14
Turning on the Projector .................................15
Turning off the Projector .................................15
Focus and Position of the Screen Image........16
Selecting source mode ...................................16
Connection
Connecting to a Desktop PC ..........................17
Connecting to a Notebook PC ........................17
Connecting to a Video Source ........................17
Connecting to a DVD ......................................18
Connecting to a D-TV Set-Top Box ................18
Function
Video Menu Options
Adjusting Video ...............................................19
APC (Auto Picture Control).............................19
Color Temperature Control..............................20
Smart Picture Function ...................................20
Gamma curve shift Function...........................20
Brilliant color
TM
Function ................................21
White peaking Function ..................................21
Black level Function ........................................21
Expert color Function ......................................22
Reset...............................................................22
Special Menu Options
Selecting Language ........................................23
Using ARC Function........................................23
Overscan Function..........................................23
Flip horizontal Function...................................24
Flip vertical Function .......................................24
Sleep time Function ........................................24
Auto sleep Function ........................................25
Presentation timer Function ............................25
Using Keystone Function ................................26
Using Blank Function ......................................26
Selecting Blank image color ...........................26
Lamp mode Function ......................................27
Checking lamp time ........................................27
Using Still Function .........................................27
Screen Menu Options
Auto configure Function ..................................28
Using Phase Function.....................................28
Using Clock Function ......................................28
Using Horizontal Function...............................29
Using Vertical Function ...................................29
RS-232C
External Control Device Setup........................30
Information

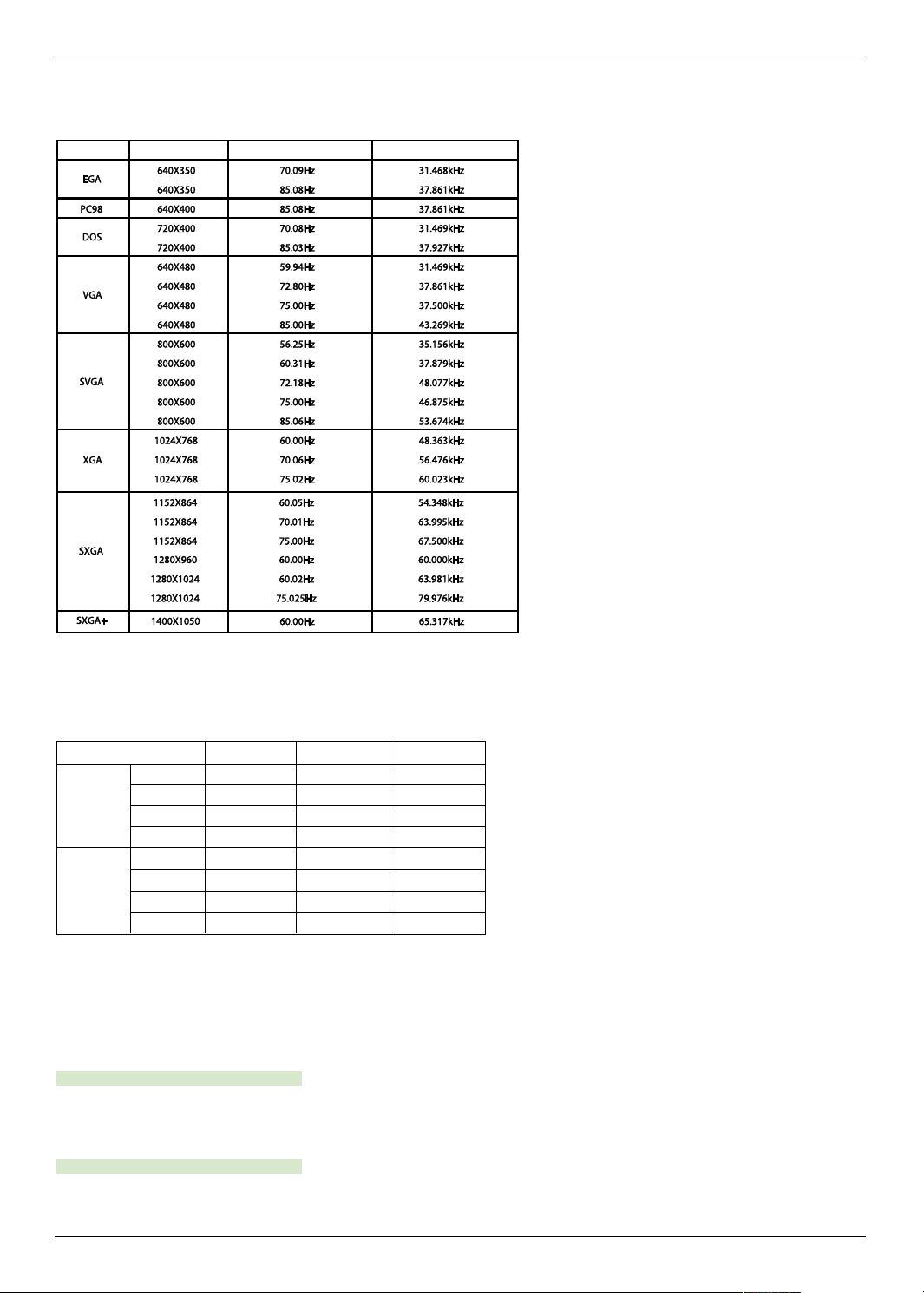

Supported Monitor Display..............................35
Maintenance....................................................35
Replacing the Lamp ........................................36
How to fix the lens cap to the projector ..........38
Specifications ..................................................39
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
Safety Instructions
4
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
➟ Safety Instructions are given in two forms as detailed below.
WARNING : The violation of this instruction may cause serious injuries and even death.
NOTES : The violation of this instruction may cause light injuries or damage to the projector.
➟
After reading this manual, keep it in the place that the user always can contact easily.
Indoor Installation WARNING
Do not place the Projector in direct
sunlight or near heat sources such
as radiators, fires and stove etc.
This may cause a fire hazard !
Do not place inflammable materi-
als beside the projector
This may cause a fire hazard !
Do not allow children to hang on
the installed projector.
It may cause the projector to fall, caus-
ing injury or death.
Outdoor Installation WARNING
Do not use the projector in a damp place such as a bathroom where it is likely to get wet.
This may cause a fire or an electric shock hazard !
Power WARNING
Indoor Installation NOTES
Disconnect from the mains and
remove all connections before
moving.
Do not place the projector close
to sources of steam or oil such
as a humidifier.
This may create a fire hazard or an
electric shock hazard !
Do not place the projector where
it might be exposed to dust.
This may cause a fire hazard or
damage to the unit!
Earth wire should be connected.
If the earth wire is not connected, there is a
possible danger of electric shock caused by
the current leakage.
If grounding methods are not possible, a
separate circuit breaker should be installed
by a qualified electrician.
Do not connect ground to telephone wires,
lightning rods or gas pipe.
The mains plug should be inserted
fully into the power outlet to avoid a
fire hazard !
This may cause a fire hazard or damage
the unit.
Do not place heavy objects on
the power cord.
This may cause a fire or an electric
shock hazard !
Do not block the vents of the pro-
jector or restrict air-flow in any way.
This would cause the internal tempera-
ture to increase and could cause a fire
hazard or damage to the unit!
Do not place the projector directly on a carpet, rug or place where
ventilation is restricted.
This would cause its internal temperature to increase and might create a fire
hazard or damage the unit.
When installing the projector on a
table, be careful not to place it
near the edge.
This may cause the projector to fall
causing serious injury to a child or
adult and serious damage to the
projector.
Only use a suitable stand.
Only use the projector on a level
and stable surface.
It may fall and cause injury and/or
damage to the unit.
Ensure good ventilation around the
projector. The distance between
the projector and the wall should
be more than 30cm/12 inches.
An excessive increase in its internal
temperature may cause a fire hazard or
damage to the unit!
Safety Instructions
5
Using WARNING
Do not place anything containing
liquid on top of the projector such
as flowerpot, cup, cosmetics or
candle.
This may cause a fire hazard or
damage to the unit!
In case of impact shock or damage
to the projector switch it off and
unplug it from the mains outlet and
contact your service center.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not allow any objects to fall
into the projector.
This may cause an electric shock
hazard or damage to the unit!
If water is spilt into the projector
unplug it from the mains supply
outlet immediately and consult
your Service Agent.
This may cause an electric shock
hazard or damage to the unit!
Dispose of used batteries care-
fully and safely.
In the case of a battery being
swallowed by a child please consult a
doctor immediately.
In the event that an image does
not appear on the screen please
switch it off and unplug it from
the mains supply and contact
your Service Agent.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not remove any covers
(except lens cover). High risk of
Electric Shock!
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is,a single outlet circuit which
powers only that appliance and has no additional outlets or branch circuits.Check the specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets,loose or damaged wall outlets, extension cords,
frayed power cords,or damaged or cracked wire insulation are dangerous.Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance,and if its appearance indi-
cates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized service personnel.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Don’t look directly onto the lens
when the projector is in use. Eye
damage may occur!
Do not touch metal parts during or
soon after operation since the
vents and lamp cover will remain
very hot!
Power WARNING
Do not use too many plugs on the Mains multi-outlet.
It may result in overheating of the outlet and causes a fire hazard !
Power NOTES
Never touch the power plug with
a wet hand
This may cause an electric shock
hazard !
Hold the plug firmly when unplug-
ging. If you pull the cord, it may
be damaged.
This may cause a fire hazard !
Prevent dust collecting on the
power plug pins or outlet.
This may cause a fire hazard !
Do not plug when the power cord
or the plug is damaged or any
part of the power outlet is loose.
This may cause a fire or an electric
shock hazard or damage to the unit!
Ensure the power cord does not
come into contact with sharp or
hot objects such as a heater.
This may cause a fire or an electric
shock hazard or damage to the unit!
Place the projector where people
will not trip or tread on the power
lead.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet.
(Do not use the power plug for switch.)
It may cause mechanical failure or could cause an electric shock.
Safety Instructions
6
Using NOTES
Do not place heavy objects on
top of projector.
This may cause mechanical failure or
personal injury!
Take care not to impact the lens
particularly when moving the
projector.
Do not touch the lens of the pro-
jector. It is delicate and easily
damaged.
Others NOTES
Be sure to unplug if the projector
is not to be used for a long peri-
od.
Accumulated dust may cause a fire
hazard or damage to the unit!
Refer lamp servicing to qualified
service personnel.
Do not mix new batteries with old
batteries.
This may cause the batteries to over-
heat and leak.
Cleaning NOTES
Contact the Service
Center once a year to
clean the internal
parts of the projector.
Accumulated dust can
cause mechanical failure.
When cleaning the plastic parts such as projector case, unplug the power and
wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet
cloth. Especially, never use cleanser (glass cleaner), automobile or industrial
shiner, abrasive or wax, benzene, alcohol etc., which can damage the
product. Use an air spray or soft cloth that is moist with a neutral detergent
and water for removing dust or stains on the projection lens.
It can cause fire, electric shock or product damage (deformation, corrosion and damage).
Do not use any sharp tools on the projector as this will damage the casing.
Cleaning WARNING
Do not use water while cleaning
the projector
This may cause damage to the
projector or an electric shock hazard.
In the unlikely event of smoke or
a strange smell from the projector,
switch it off , unplug it from the
wall outlet and contact your
dealer or service centre.
This may cause a fire or an electric
shock hazard or damage to the unit!
Use an air spray or soft cloth that
is moist with a neutral detergent
and water for removing dust or
stains on the projection lens.
Others WARNING
Do not attempt to service the projector yourself. Contact your dealer or service centre.
This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty !
Only use the specified type of battery.
This could cause damage to the remote control.
Never touch the wall outlet when
there is leakage of gas, open the
windows and ventilate.
It can cause a fire or a burn by a
spark.
Do not drop the projector or allow
impact shock.
This may cause mechanical failure or
personal injury !
Don’t look at laser beam directly
as it can cause eye damage!
Using WARNING
Always open the lens door or remove the lens cap when the projector lamp is on.
Names of parts
7
Names of parts
Main Body
Connecting Part
Front remote control sensor
Power button
Foot adjusting button
Rear remote
control sensor
Control panel
*
The projector is manufactured using high-precision technology. You may, however, see on the Projector
screen tiny black points and/or bright points (red, blue, or green). This can be a normal result of the
manufacturing process and does not always indicate a malfunction.
Focus ring
Zoom ring
RS-232C
S-Video
USB(SVC Only)
DVI-D IN
RGB IN
Video
AC IN
Kensington Security
System Connector
(Refer to page 14)
RGB OUT
Names of parts
8
Control Panel
AUTO
SOURCE
POWER
MENU
KEYSTONE
OK
KEYSTONE
POWER Button
Turn ON/OFF the projector.
/ , KEYSTONE+/- Button
Press
/ buttons to enter into the KEYSTONE function and adjust it.
MENU Button
Selects or closes menus.
AUTO Button
It automatically corrects the
position and the shaking of the
image at the RGB mode.
/ Button
Adjusts functions of menus.
SOURCE Button
Switches to RGB(Component), DVI,
Video, S-Video mode.
A OK Button
Checks present mode and
saves the change of functions.
Names of parts
9
Remote Control
Installing Batteries
POWER
MENU
SOURCE
AUTO
BLANK ARC
STILL
OK
KEYSTONE
KEYSTONE
LASER
TIMER
POWER Button
SOURCE Button
KEYSTONE+/-, D / E Button
A OK Button
ARC Button (Refer to p.23)
STILL Button (Refer to p.27)
AUTO Button (Refer to p.28)
BLANK Button (Refer to p.26)
F / GButton
• Open the battery compartment cover on the back of the remote control.
• Insert the specified type of batteries with correct polarity, match “+” with “+”, and
match “-” with “-”.
• Install two 1.5V AAA batteries. Don’t mix used batteries with new batteries.
MENU Button
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Laser Button
* Produces a bright red laser pointer on the
screen for the purpose of indication.
(Don’t look at laser beam directly as it
can cause eye damage!)
TIMER Button (Refer to p.25)
Names of parts
10
* Lamp indicator, operation indicator and temperature indicator at the top of the projector show the user the operating status
of the projector.
Lamp Indicator
Temperature Indicator
Operation Indicator
Projector Status Indicators
Operation Indicator
Lamp Indicator
Temperature Indicator
Red
Green(flashing)
Green
Orange(flashing)
Off
Orange
Red
Red(flashing)
Green(flashing)
Orange
Red
Red (flashing)
Standby.
Lamp is starting up.
Unit is in operation (Lamp is turned on)
Projector lamp is cooling (10 sec.)
Power off.
Standby-This mode cools the projector naturally for 4
minutes after it is turned off.
Projector lamp is reaching the end of its life and needs
to be replaced with a new lamp.
The projector is experiencing an error. Retry Power On
again later. If lamp indicator is red (flashing) again, con-
tact the service center.
The lamp cover is open.
A high temperature state has been detected. Turn the
Projector off.
The Projector has turned off due to excessive heat.
Power has turned off due to problem with the internal
cooling fan. Contact your service center.
Names of parts
11
Accessories
Optional Extras
POWER
MENU
SOURCE
AUTO
BLANK ARC
STILL
OK
KEYSTONE
KEYSTONE
LASER
TIMER
* Contact your dealer to purchase these items.
* When applying a ceiling installer, use only the ceiling installer for projector.
* Contact your service personnel for replacing of lamp.
Remote Control
Power Cord
Video Cable
Owner’s manual
Computer Cable
SCART to RCA jack
Lamp
S-Video Cable
Projection Screen
1.5V
1.5V
2 Batteries
Ceiling installer for projector
DVI-D Cable Component Cable
CD Owner’s manual
Lens cap and Strap
RS-232C Cable
RCA to D-Sub Adapter
Installing and Composition
12
Installing and Composition
Provide proper ventilation for this projector.
●
The projector is equipped with ventilation holes(intake)
on the bottom and ventilation holes(exhaust) on the front.
Do not block or place anything near these holes, or inter-
nal heat build-up may occur, causing picture degradation
or damage to the projector.
Place this projector in adequate temperature and humidity conditions.
●
Install this projector only in a location where adequate temperature and humidity is available. (refer p.39)
● Do not place the projector on a carpet, rug or other
similar surface. It may prevent a adequate ventila-
tion of the projector bottom. This product should be
mounted to a wall or ceiling only.
*
Don’t place the projector in the following conditions. It may cause malfunction or product damage.
● Never push projector or spill any kind of liquid into the
projector.
● Leave an adequate distance(30cm/12 inches or
more) around the projector.
Don’t place the projector where it can be covered with dust.
●
This may cause overheating of the projector.
Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire
hazard.
The projector is manufactured using high-precision technology. You may, however, see tiny black points
and/or bright points (red, blue, or green) that continuously appear on the projector Screen. This is a nor-
mal result of the manufacturing process and does not indicate a malfunction.
To display DTV programs, it is necessary to purchase a DTV receiver (Set-top Box) and connect it to the
projector.
Installation Instructions
Installing and Composition
13
1.Place the projector on a sturdy and horizontal surface with the PC or AV source.
2.Place the projector with the desired distance from the screen. The distance between the projector and the screen
determines the actual size of the image.
3.Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right angle, the
screen image will be crooked. If this is so then the keystone adjustment may correct this (Refer to page 26.).
4.Connect the cables of the projector to a wall power socket and other connected sources.
projection distance based on the picture format
Projection distance (D)
Projection off-set ratio:100%
100mm
Projection distance (D)
Basic Operation of the Projector
* The longest/shortest distance
show status when adjusted by
the zoom function.
Screen
Screen height (X)
X/2
X/2
Y/2
Y/2
Screen
Screen Width (Y)
4 : 3 Scale
Projection Distance
Diagonal Size
(inch)
Diagonal Size
(mm)
Horizontal Size
(mm)
Vertical Size
(mm)
Wide Distance
(mm)
Tele Distance
(mm)
Installing and Composition
14
●
The projector has a ‘Kensington’ Security System Connector on the side panel. Connect the ‘Kensington’
Security System cable as below.
●
For the detailed installation and use of the Kensington Security System, refer to the user’s guide attached
to the Kensington Security System set.
And for further information, contact http://www.kensington.com, the internet homepage of the
Kensington company that deals with expensive electronic equipment such as notebook PCs or projec-
tors.
●
Kensington Security System is an optional item.
Using Kensington Security System
Installing and Composition
15
* Do not disconnect the power cord during the suction/discharge fan in operation. If the power cord is disconnected during the
suction/ discharge fan in operation, it may takes longer to activate the lamp after turning on the power and the lifespan of the
lamp may be shortened.
Turning on the Projector
Turning off the Projector
1. Connect power cord correctly.
2. Remove the lens cap. If it is left on, it could become deformed due to the heat produced by
the projection lamp.
3. Press the POWER button on the remote control or top cover.
(Green operation indicator flashes if lamp is in start-up cycle.)
●
An image will appear after the operation indicator light turns (Green).
●
Select the source mode with the SOURCE button.
1.Press the POWER button on the top cover or remote control.
2.Press the POWER button on the top cover or remote control again to turn off the power.
3.If the operation indicator LED is orange and blinking, do not disconnect(10 sec.) the supply until
the operation indicator LED is lit constantly (orange).
● If the operation indicator LED is orange and blinking, the power button on the top cover or on the remote control will not
operate.
● This projector features the Quick Power On/Off function that allows a user to turn it on and off quickly.
Power off?
Please press Power key again.
* What is the Quick Power On/Off function?
The projector enters into Standby mode without waiting it is cooled.
If Standby mode continues for a certain amount of time, the projector can operate without cooling when it is turned on.
Installing and Composition
16
1. While pressing the foot adjusting button, raise or lower the projector to place the screen image in the proper position.
2. Release the button to lock the foot in its new position.
3. Turn the foot at the back left or right to make a fine tune of the length of the projector.
After raising the front foot, do not press down on the projector.
When an image appears on the screen, check if it is in focus and fits well to the screen.
● To adjust the focus of the image, rotate the focus ring which is the outer ring on the lens.
● To adjust the size of the image, rotate the zoom ring which is the inner ring on the lens.
Focus ring
Zoom ring
Focus and Position of the Screen Image
Selecting source mode
1. Press the SOURCE button.
2. Each press of the F, G button changes the display as below.
RGB
F
G
Select OK
To raise or lower the image on the screen, extend or retract the foot at the bottom of the projector
by pushing foot adjusting button as below.
RGB DVI
VideoComponent S-Video
Connection
17
Connection
Connecting to a Desktop PC
* You can connect the projector to a computer of VGA, SVGA, XGA and SXGA output.
* Refer to page 35 for the supported monitor displays of the projector.
< How to connect >
Connect computer cable to RGB IN of the projector.
Connecting to a Notebook PC
< How to connect >
Connect computer cable to RGB IN of the projector.
* If you set your computer to output the signal to both the
display of your computer and the external projector, the
picture of the external projector may not appear properly.
In such cases, set the output mode of your computer to
output the signal only to the external projector. For
details, refer to the operating instructions supplied with
your computer.
Connecting to a Video Source
< How to connect 1 >
a. Connect the Video input jacks of the projector to the output
jacks of the A/V source with Video cable.
< How to connect 2 >
b. Connect the S-Video input jack of the projector to the
S-Video output jack of an A/V source with an S-Video cable.
* You can get better picture quality when connecting
S-Video source to the projector.
S VIDEO
(R) AUDIO (L) VIDEO
OUT
IN
* You can connect a VTR, a camcorder or any other compatible video image source to the projector.
<VCR>
Connection
18
Connecting to a DVD
< How to connect >
a. Connect the DVD Component cable to the RCA to D-Sub
Adapter and then connect the RCA to D-Sub Adapter to
RGB IN of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, PB=blue, PR
=red)
b. Only when the DVD device has the DVI-D terminal, the DVI
mode can be set.
PR
PB
Y
(R) AUDIO (L)
* The output jacks (Y, PB, PR) of the DVD might be labeled as Y, Pb, Pr / Y, B-Y, R-Y / Y, Cb, Cr according to the equipment.
<DVD>
Component cable
DVI-D Cable
Connecting to a D-TV Set-Top Box
< How to connect an RGB source >
a. Connect Computer cable to RGB IN of the projector.
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
< How to connect a DVI source >
a. Connect the DVI terminal of the projector to the DVI output
terminal of the D-TV Set-Top Box via DVI-D cable.
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
(R) AUDIO (L)
DTV OUTPUT
DVI OUTPUT
PR
PB
Y
HDMI OUTPUT
* To receive D-TV programmes, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between projector and D-TV Set-Top Box.
<D-TV Set-Top Box>
Component cable
< How to connect a Component source >
a. Connect the D-TV Set-Top Box Component cable to the
RCA to D-Sub Adapter and then connect the RCA to D-
Sub Adapter to RGB IN of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, P
B=blue, PR=red)
(R) AUDIO (L)
DTV OUTPUT
DVI OUTPUT
PR
PB
Y
HDMI OUTPUT
Signal
480i
480p
720p
1080i
576i
576p
Component
O
O
O
O
O
O
RGB/DTV
X
O
O
O
X
O
HDMI/DVI
X
O
O
O
X
O
<D-TV Set-Top Box>
<D-TV Set-Top Box>
Computer Cable
RCA to D-Sub adapter
RCA to D-Sub adapter
Function
19
Function
Video Menu Options
* In this manual, the OSD(On Screen Display) may be different from your Projector’s because it is just an example to
help with the Projector operation.
* This operating guide explains operation of RGB(PC) mode mainly.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the
D , E button to select a video item you want to adjust.
3. Press the F, G button to adjust the screen condition as you want.
< RGB mode >
< Video mode >
●
Each adjustment of menu options will not affect other inputs.
As required, re-adjust menu options for the input sources.
●
To restore the original image condition after changing it, press A OK button
after selecting [Reset] item.
●
When receiving an NTSC signal, the picture item Tint is displayed and can
be adjusted.(60Hz only)
●
To exit the menu display, repeatedly, press the MENU button.
Adjusting Video
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select APC item.
3. Press the
F, G button to adjust the screen condition as you want.
APC (Auto Picture Control)
* Use APC to set the projector for the best picture appearance.
* This function will not work at the DVI mode.
●
Each press of the F, G button changes the screen as shown below.
●
To exit the menu display, repeatedly press the MENU button.
Clear
Soft User
APC
Contrast 80
Brightness 50
Color 50
Sharpness 50
Tint 0
FG
Clear
APC
Contrast 80
Brightness 50
Color 50
Sharpness 50
Tint 0
FG
Clear
Contrast 50
Brightness 50
Color R 50
Color G 50
Color B 50
Reset
MENU Exit Move OK
FG
MENU Exit Move OK
FG
MENU Prev. Move Select
D
E
FG
Function
20
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Color temp. item.
3. Press the
F, G button to make desired adjustments.
Color Temperature Control
●
Each press of the F, G button changes the screen as shown below.
●
To exit the menu display, repeatedly press the MENU button.
Medium Warm Natural
- To initialize values (reset to default settings), select the Medium option.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Smart picture item.
3. Press the
F, G button to adjust the screen condition as required.
Smart picture Function
●
Each press of the F, G button changes the screen as shown below.
●
To exit the menu display, repeatedly press the MENU button.
Normal Sports Presentation
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move Select
D
E
FG
Game Film
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Gamma curve shift item.
3. Press the
AOK button.
4. When the window below appears, press D , E button to move between the
items and the F, G buttons to adjust the screen as you want.
●
Gamma curve shift Red, Green, Blue can be adjusted between -20 and 20.
●
To exit the menu display, repeatedly press the MENU button.
Gamma curve shift Function
Gamma curve shift Red 0
Gamma curve shift Green 0
Gamma curve shift Blue 0
Reset
Prev. Move Adjust
D
E
FG
- This function shifts the gamma curves for Red, Green and Blue individually to
adjust brightness.
FG
High
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move Select
D
E
FG
FG
High
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move OK
D
E
FG
High
Press OK Key
Cool
Function
21
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select White peaking item.
3. Press the
F, G button to adjust the screen condition as you want.
●
The default value may change depending on input mode.
●
White peaking can be adjusted from 0 to 10.
●
Adjust to higher setting to achieve brighter picture. Adjust to lower setting for
darker picture.
●
To exit the menu display, repeatedly press the MENU button.
White peaking Function
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Brilliant color
TM
item.
3. Press the
F, G button to select On or Off.
●
To exit the menu display, repeatedly press the MENU button.
* What is the
Brilliant color
TM
function?
This function increases the entire brightness of the screen or decreases it a little to
make the rich grayscale color.
Brilliant color
TM
Function
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Black level item.
3. Press the
F, G button to select Low or High.
●
This function works in the following mode : HDMI(YCbCr)
●
To exit the menu display, repeatedly press the MENU button.
* What is the Black level function?
When you watch the movie, this function adjusts the set to the best picture
appearance. Adjusting the contrast and the brightness of the screen using the
black level of the screen.
Black level Function
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move Select
D
E
FG
FG
High
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move Select
D
E
FG
FG
High
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move Select
D
E
FG
FG
High
Function
22
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Expert Color item.
3. Press the
AOK button.
4. When the window below appears, press
D , E button to move between the
items and the F, G buttons to adjust the screen as you want.
●
Red, Green, Blue, Cyan, Magenta and Yellow Gain can be adjusted
between 0 and 100.
●
Saturation-Red, Green, Blue, Cyan, Magenta and Yellow can be
adjusted between 0 and 100.
●
Hue-Red, Green, Blue, Cyan, Magenta and Yellow can be adjusted
between -50 and 50.
●
To exit the menu display, repeatedly press the MENU button.
Expert color Function
Red Gain 50
Green Gain 50
Blue Gain 50
Cyan Gain 50
Mgt Gain 50
Yellow Gain 50
Saturation-Red 50
Saturation-Green 50
Saturation-Blue 50
Saturation-Cyan 50
Saturation-Mgt 50
Saturation-Yellow 50
Hue-Red 0
Hue-Green 0
Hue-Blue 0
Hue-Cyan 0
Hue-Mgt 0
Hue-Yellow 0
Reset
●
To return to the factory default settings, select [Reset] with D , E buttons and press A OK button.
Reset
- This function allows a user to adjust the Gain, Saturation and Hue for Red,
Green, Blue, Cyan, Magenta and Yellow individually.
Color temp.
Smart picture
Gamma curve shift
Brilliant color
TM
White peaking 10
Black level
Expert Color
Reset
FG
Medium
FG
Normal
FG
On
MENU Prev. Move OK
D
E
FG
High
Press OK Key
Prev. Move Adjust
D
E
FG
Function
23
Special Menu Options
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Language item.
3. Press the
F, G button to select the language you want to use.
●
On-Screen-Display (OSD) is displayed in the selected language.
●
To exit the menu display, repeatedly press the MENU button.
Selecting Language
1. Press the ARC button.
Each press of the button changes the display as below.
Using ARC Function
You can also use this function by using the MENU button.
16:9
4 : 3
4:3
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
MENU Prev. Move Select
D
E
FG
16:9
FG
Off
FG
Off
FG
Off
FG
Off
Overscan Function
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Overscan item.
3. Press the
F, G buttons.
●
The Overscan function can be adjusted only in RGB-DTV, HDMI-DTV and
Component modes.
●
The Overscan function can be adjusted between Off and 10%.
●
To exit the menu display, repeatedly press the MENU button.
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
MENU Prev. Move Select
D
E
FG
FG
Off
FG
Off
FG
Off
FG
Off
Function
24
Flip horizontal Function
* This function reverses the projected image horizontally.
Use this function when rear projecting an image.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Flip horizontal item.
3. Press the
AOK button to see reversed image.
●
Each time you press the AOK button, the image will be reversed.
●
To exit the menu display, repeatedly press the MENU button.
Flip vertical Function
* This function reverses the projected image vertically.
* When you hang the projector upside down from the ceiling ,
you will need to reverse the image vertically and horizontally.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Flip vertical item.
3. Press the
AOK button to see reversed image.
●
Each time you press the AOK button, the image will be reversed.
●
To exit the menu display, repeatedly press the MENU button.
* The sleep timer turns the projector off at the preset time.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Sleep time item.
3. Press the
F, G button to select the desired preset time.
●
To exit the menu display, repeatedly, press the MENU button.
Sleep time Function
Language
ARC
Overscan
Flip horizontal To flip
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
FG
Off
FG
Off
FG
Off
FG
Off
Language
ARC
Overscan
Flip horizontal
Flip vertical To flip
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
FG
Off
FG
Off
FG
Off
FG
Off
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
MENU Prev. Move Select
D
E
FG
FG
Off
FG
Off
FG
Off
FG
Off
MENU Prev. Move OK
D
E
MENU Prev. Move OK
D
E
Off 10 Min 20 Min 30 Min 60 Min
240 Min
180 Min 120 Min 90 Min
Function
25
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Auto sleep item.
3. Press the
F, G button to select the desired preset time.
●
To exit the menu display, repeatedly, press the MENU button.
Auto sleep Function
Presentation timer Function
* This function turns the projector off automatically after the preset time is passed
when there is no signal.
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
MENU Prev. Move Select
D
E
FG
FG
Off
FG
Off
FG
Off
FG
Off
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto sleep
Set ID
Presentation timer
FG
English
FG
4 : 3
FG
1
FG
Off
FG
Off
FG
Off
FG
Off
MENU Prev. Move OK
D
E
Off 10 Min 20 Min 30 Min 60 Min
240 Min
180 Min 120 Min 90 Min
Time alarm
Time Keeper
FG
Off
FG
Off
MENU Exit Move Select
D
E
FG
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Presentation timer item.
3. When window below appears, select
Time alarm or Time keeper item.
4. Press the
F, G button to select the desired preset time.
5. The timer starts to operate if you select specific time.
●
Time alarm function : If you select a specific time, it is displayed in minute
units. After 1 minute, the remaining time is displayed at the bottom right of the
screen, and then disappears after 5 seconds. When the remaining time is dis-
played, other OSD windows are closed. When the set time is reached. ‘0
minute’ flickers 10 times at 1 second intervals, and then disappear.
●
Time keeper function : If you select a specific time, it continues to be dis-
played in minute(‘) and second(“) units. Even though other OSD windows
appear, the remaining time is displayed again after the windows are closed.
When the set time is reached,0’00” flickers 10 times at 1 second intervals, and
then disappears.
6. If the set time disappears because of the use of other menus, press the Timer
button on a remote control to display the set time again.
●
The Time alarm function and the Time keeper function cannot be used at
the same time.
●
The Time alarm function can be set from 5 to 60 minutes at 5 minute inter-
vals (Off, 5, 10, 15, 20, .........., 55, 60 minutes).
●
The Time keeper function can be set from 1 to 10 minutes at 1 minute inter-
vals, and from 10 to 60 minutes at 5 minute intervals (Off, 1, 2, 3, 4, ..., 8, 9,
10, 15, 20, 25, .........., 55, 60 minutes).
●
Press the MENU button to exit the menu screen.
Function
26
Special Menu Options
1. Press the KEYSTONE + or KEYSTONE - button.
2. Press the KEYSTONE + or KEYSTONE - button to adjust the screen
condition as you want.
●
Keystone can be adjusted from -20 to 20.
●
You can also access this function via the MENU button.
Using Keystone Function
* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can’t get the best angle of projection.
1. Press the BLANK button.
●
The screen turns off to a background color.
●
You can choose the background color.
(Refer to ‘Selecting blank image color’)
2. Press any button to cancel the blank function.
●
To temporarily turn off the lamp, press BLANK on the remote control. Do not block the projection lens with any
objects when the projector is under operation as this could cause the objects to become heated and deformed
or even cause a fire.
Using Blank Function
* This function may be effective if you need to get the attention of the audience during presentations, meetings or briefings.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Blank image item.
3. Press the
F, G button to select the color you want to use.
●
Background color will be altered to the selected Blank function color.
●
To exit the menu display, repeatedly press the MENU button.
Selecting Blank image color
Keystone 0
Keystone 0
Blank Image
Lamp mode
Lamp time 11 Hr
FG
Logo
FG
High Bright
MENU Prev. Move Select
D
E
FG
Function
27
1. Press the MENU button and then use F, G button to select the menu.
2. Press the D , E button to select Lamp mode item.
3. Press the
F, G button to select High Bright or Economic.
●
To exit the menu display, repeatedly press the MENU button.
1. Press the MENU button and then use F, G button to select the menu.
2. The used lamp time is displayed.
●
When projector lamp is reaching the end of its life, the lamp indicator will turn
red.
●
The lamp warning LED illuminates red continuously in the case of excessive
lamp time.
●
To exit the menu display, repeatedly, press the MENU button.
Lamp mode Function
Checking lamp time
1. Press the STILL button.
* You can freeze the input image.
2. To exit STILL, press any button .
* The STILL function will release automatically after approximately 10 minutes.
Using Still Function
<Moving Image>
<Still Image>
Keystone 0
Blank Image
Lamp mode
Lamp time 11 Hr
FG
Logo
FG
High Bright
MENU Prev. Move Select
D
E
FG
Keystone 0
Blank Image
Lamp mode
Lamp time 11 Hr
FG
Logo
FG
High Bright
MENU Exit Move OK
FG
Function
28
1. Press the AUTO button of the remote controller.
●
Image positioning and synchronization are automatically adjusted.
2. If any more manual adjustment is needed according to the various PC
mode inputs even after the auto-correction, execute Phase, Clock,
Horizontal
and Vertical function in menu. In certain circumstances,
you can’t get the best picture quality by only using auto-correction.
Auto configure Function
* This function assures you of getting the best video quality by automatically adjusting the horizontal size and synchronization
of the image.
* Auto Tracking function works in RGB PC input only.
Auto configure
You can also use this function by using the MENU button. (Only in RGB mode)
For best results, perform this function while displaying a still image.
Screen Menu Options
1. Press the MENU button and then use F, G button to select
the menu.
2. Press the D , E button to select Phase item.
3. Press the
F, G button to make desired adjustments.
●
Phase adjustment range is 0 ~63.
●
The variable range can be different depends on input resolutions.
●
To exit the menu display, repeatedly press the MENU button.
1. Press the MENU button and then use F, G button to select
the menu.
2. Press the D , E button to select Clock item.
3. Press the
F, G button to make desired adjustments.
●
Clock adjustment range is -20 ~ 20.
●
The variable range can be different depends on input resolutions.
●
To exit the menu display, repeatedly press the MENU button.
Using Clock Function
Using Phase Function
Auto configure
Phase 8
Clock 0
Horizontal 0
Vertical 0
MENU Store Move Adjust
D
E
FG
Auto configure
Phase 8
Clock 0
Horizontal 0
Vertical 0
MENU Store Move Adjust
D
E
FG
Function
29
1. Press the MENU button and then use F, G button to select
the menu.
2. Press the D , E button to select Horizontal item.
3. Press the
F, G button to make desired adjustments.
●
Horizontal adjustment range is -25 ~ 25.
●
The variable range can be different depends on input resolutions.
●
To exit the menu display, repeatedly press the MENU button.
1. Press the MENU button and then use F, G button to select
the menu.
2. Press the D , E button to select Vertical item.
3. Press the
F, G button to make desired adjustments.
●
Vertical adjustment range is -25 ~ 25.
●
The variable range can be different depends on input resolutions.
●
To exit the menu display, repeatedly press the MENU button.
Using Vertical Function
Using Horizontal Function
Auto configure
Phase 8
Clock 0
Horizontal 0
Vertical 0
MENU Store Move Adjust
D
E
FG
Auto configure
Phase 8
Clock 0
Horizontal 0
Vertical 0
MENU Store Move Adjust
D
E
FG
RS-232C
30
External Control Device Setup
SET ID
How to connect external control equipment
*
Connect the RS-232C input jack to an external control device (such as a computer) and control the Projector’s
functions externally.
1. Press the MENU button and then use F, G button to select the menu.
2. Press the AOK button and then use D , E button to select Set ID item.
3. Press the
F, G button to select your desired number.
Press the
AOK button to save the selected number.
●
The adjustment range of Set ID is 1~99.
●
Only the projector with the specified ID number will operate from the remote control.
●
To exit the menu display, repeatedly press the MENU button.
• Connect the serial port of the PC to the RS-232C jack on the projector back panel.
• RS-232C cable is not supplied with the projector.
2
3
4
5
6
7
8
External
Device
RXD
TXD
DTR
GND
DSR
RTS
CTS
RXD
96
15
TXD
DTR
GND
DSR
RTS
CTS
Projector
* 1, 9 Pin No Connection
<Fig.1, RS-232 Interface Cable>
2
3
4
5
6
7
8
• Use the RS232C cable to control the projector externally (Refer to Fig.1).
Communication Parameter Setup
• Baud Rate : 9600 bps(UART)
• Data Length : 8 bit
• Parity : none
• Stop bit : 1 bit
• Flow Control : none
• Communication code : ASCII code
Language
ARC
Overscan
Flip horizontal
Flip vertical
Sleep time
Auto off
Set ID
Presentation time
FG
English
FG
4 : 3
FG
1
MENU Prev. Move Select
D
E
FG
FG
10%
FG
Off
FG
Off
FG
Off
RS-232C
31
Command Reference List
* Refer to the detailed information for data with [*] mark.
❑ Communication Protocol
Command1 Command2
Data
(Hexadecimal)
01. Power k a 0 ~ 1
02. Input Select k b *
03. Aspect Ratio k c 1 ~ 2
04. Screen Mute k d 0 ~ 1
05. Contrast k g 0 ~ 64
06. Brightness k h 0 ~ 64
07. Color k i 0 ~ 64
08. Tint k j 0 ~ 64
09. Sharpness k k 0 ~ 64
10. OSD Select k l 0 ~ 1
11. Remote Control Lock / Key Lock k m 0 ~ 1
12. Color Temperature k u 0 ~ 3
13. Red ADC gain adjustment j w 0 ~ 64
14. Green ADC gain adjustment j y 0 ~ 64
15. Blue ADC gain adjustment j z 0 ~ 64
16. Low Power j q 0 ~ 1
17. Auto configuration j u 1
18. Input Select x b *
19. Key m c Key code
* Real data mapping 1
* Real data mapping 2
RS-232C
32
External control device setup
01. Power (Command:ka)
➜ To control Power On/Off of the Projector.
T
ransmission
Data 0 : Power Off
1 : Power On
[k] [a] [ ] [Set ID] [ ] [Data] [Cr]
[k] [a] [ ] [Set ID] [ ] [FF] [Cr]
[a] [ ] [Set ID] [ ] [OK] [Data] [x]
[a] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
Ack
Data 0 : Power Off
1 : Power On
➜ To show Power On/Off status.
T
ransmission
Data 0 : Power Off
1 : Power On
* In like manner, if other functions transmit ‘0xFF’ data based
on this format, Acknowledgement data feed back presents
status about each function.
02. Input Select
(Command:kb)
➜ To select input source for the Set.
T
ransmission
Data 2 : Video 3 : S-Video 4 : Component
7 : RGB 9 : DVI
Data 2 : Video 3 : S-Video 4 : Component
7 : RGB 9 : DVI
[k] [b] [ ] [Set ID] [ ] [Data] [Cr]
[b] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
03. Aspect Ratio
(Command:kc)
➜ To adjust the screen format.
T
ransmission
Data 1 : 4:3
2 : 16:9
Data 1 : 4:3
2 : 16:9
[k] [c] [ ] [Set ID] [ ] [Data] [Cr]
[c] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
1. Transmission
*
[Command 1] : First command to control the set.(k, j, x, ASCII code, 1 Character)
*
[Command 2] : Second command to control the set..(ASCII code, 1 Character)
*
[Set ID] : You can adjust the set ID to choose desired projector ID number in special menu. See previous page.
Adjustment range is 1 ~ 99. When selecting Set ID ‘0’, every connected projector set is controlled.
Refer to ‘Real data mapping 1’.
*
[DATA] : To transmit command data. Transmit 2 character when organized ASCII code.
* Transmit ‘FF’ data to read status of command.
*
[Cr] : Carriage Return
ASCII code ‘0x0D’
*
[ ] : ASCII code character correspond to “Space Bar” which is in order to classify command, set ID and Data.
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* The Projector transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.
[Command2] [ ] [Set ID] [ ] [OK] [Data] [x]
[Command2] [ ] [Set ID] [ ] [NG] [Data] [x]
3. Error Acknowledgement
2. OK Acknowledgement
* The Projector transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable
functions or communication errors.
Data : [1] : illegal code(This command is not supported.)
[2] : not support function(This function doesn’t work.)
[3] : wait more time(Try again a few minute later.)
RS-232C
33
04. Screen Mute
(Command:kd)
➜ To select screen mute on/off.
T
ransmission
Data 0 : Screen Mute Off (Picture On)
1 : Screen Mute On (Picture Off)
Data 0 : Screen Mute Off (Picture On)
1 : Screen Mute On (Picture Off)
[k] [d] [ ] [Set ID] [ ] [Data] [Cr]
[d] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
07. Color (Command:ki)
➜ To adjust the screen color.
T
ransmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[k] [ i ] [ ] [Set ID] [ ] [Data] [Cr]
[ i ] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
08. Tint (Command:kj)
➜ To adjust the screen tint.
T
ransmission
Data Red : 0 ~ Green : 64
*
Refer to ‘Real data mapping2’.
Data Red : 0 ~ Green : 64
[k] [ j ] [ ] [Set ID] [ ] [Data] [Cr]
[ j ] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
09. Sharpness (Command:kk)
➜ To adjust the screen sharpness.
T
ransmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[k] [k] [ ] [Set ID] [ ] [Data] [Cr]
[k] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
10. OSD Select
(Command:kl)
➜ To select OSD On/Off.
T
ransmission
Data 0 : OSD Select Mode Off
1 : OSD Select Mode On
Data 0 : OSD Select Mode Off
1 : OSD Select Mode On
[k] [ l ] [ ] [Set ID] [ ] [Data] [Cr]
[ l ] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
11. Remote Control Lock/Key Lock
(Command:km)
➜ To lock the front panel controls on the
projector and remote control.
T
ransmission
Data 0 : Lock Off
1 : Lock On
Data 0 : Lock Off
1 : Lock On
[k] [m] [ ] [Set ID] [ ] [Data] [Cr]
[m] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
* If you're not using the remote control, use this mode.
When main power is On/Off, external control lock is released.
12. Color Temperature (ACC) (Command:ku)
➜ Adjust the color temperature.
T
ransmission
Data 0 : Medium 1 : Cool 2:Warm 3 : Natural
Data 0 : Medium 1 : Cool 2:Warm 3 : Natural
[k] [u] [ ] [Set ID] [ ] [Data] [Cr]
[u] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
05. Contrast (Command:kg)
➜ To adjust screen contrast.
Transmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[k] [g] [ ] [Set ID] [ ] [Data] [Cr]
[g] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
06. Brightness (Command:kh)
➜ To adjust screen brightness.
T
ransmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[k] [h] [ ] [Set ID] [ ] [Data] [Cr]
[h] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
RS-232C
34
15. Blue ADC gain Adjustment (Color B)
(Command:jz)
➜ Adjust the Blue gain of ADC part.(RGB)
T
ransmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[ j ] [z] [ ] [Set ID] [ ] [Data] [Cr]
[z] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
16. Low Power
(Command:jq)
➜ To reduce the power consumption of the projector.
T
ransmission
Data 0 : Low Power Off
1 : Low Power On
Data 0 : Low Power Off
1 : Low Power On
[ j ] [q] [ ] [Set ID] [ ] [Data] [Cr]
[q] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
17. Auto Configure
(Command:ju)
➜ To adjust picture position and minimize image shaking
automatically. It works only in RGB mode.
T
ransmission
Data 1 : To set
Data 1 : To set
[ j ] [u] [ ] [Set ID] [ ] [Data] [Cr]
[u] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
18. Input Select
(Command:xb)
➜ To select input source for the Set.
T
ransmission
Data 20 : Video 30 : S-Video 40 : Component
60 : RGB 80 : DVI
Data 20 : Video 30 : S-Video 40 : Component
60 : RGB 80 : DVI
[x] [b] [ ] [Set ID] [ ] [Data] [Cr]
[b] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
External control device setup
19. Key
(Command:mc)
➜ To send Key code of IR romote control.
T
ransmission
Data Key code
Key code
[m] [c] [ ] [Set ID] [ ] [Data] [Cr]
[b] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
Power AD
Menu 43
Source EF
Keystone
+/D
A4
Keystone
-/ E
A5
G
02
F
03
Auto 92
A
OK 44
Blank 84
ARC 79
Still BC
13. Red ADC gain Adjustment (Color R)
(Command:jw)
➜ Adjust the Red gain of ADC part.(RGB)
Transmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[ j ] [w] [ ] [Set ID] [ ] [Data] [Cr]
[w] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
14. Green ADC gain Adjustment (Color G)
(Command:jy)
➜ Adjust the Green gain of ADC part.(RGB)
T
ransmission
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
Data Min : 0 ~ Max : 64
[ j ] [y] [ ] [Set ID] [ ] [Data] [Cr]
[y] [ ] [Set ID] [ ] [OK] [Data] [x]
Ack
Information
35
Supported Monitor Display
Component-*1 RGB(DTV)-*2 HDMI(DTV)-*3Signal
<DVD/DTV Input>
* Cable type
1- RCA to D-Sub Adapter
2- Computer Cable
3- DVI-D Cable
NTSC(60Hz)
480i
480p
720p
1080i
PAL(50Hz)
576i
576p
720p
1080i
O
O
O
O
O
O
O
O
X
O
O
O
X
O
O
O
X
O
O
O
X
O
O
O
* The following table lists the display formats supported by the projector.
* If the projector does not support the input signal, “Out of Range” message appears on the screen.
* The projector supports DDC1/2B type as Plug & Play function. (Auto recognition of PC monitor)
* The Synchronization input form for horizontal and vertical frequencies are Separate.
* According to PC, the optimum vertical frequency may not be displayed up to the optimum frequency of set in ‘Registration information (Display registration informa-
tion)’. (ex, The optimum vertical frequency may be displayed up to 85Hz or under in the resolution of 640X480 or 800X600.)
Maintenance
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface of it. Wipe the lens surface gently with an air spray or a soft, dry lint-free cloth.
To remove dirt or stains on the lens, moisten a soft cloth with water and a neutral detergent and wipe the lens surface gently.
Cleaning the Projector Case
To clean the projector case, first unplug the power cable. To remove dirt or dust, wipe the casing with a soft, dry, lint-free cloth. To remove stubborn dirt or stains,
moisten a soft cloth with water and a neutral detergent and then wipe the casing.
Do not use alcohol, benzene, thinners or other chemical detergents as these can cause the casing to be warped or discolored.
* The projector needs little maintenance. You should keep the lens clean because any dirt or stains may appear on the screen. If any parts need to be replaced,
contact your dealer. When cleaning any part of the projector, always turn the power off and unplug the projector first.
Sources Format Vertical Freq.(Hz) Horizontal Freq.(kHz)
Information
36
Replacing the Lamp
Lamp Replacement
Be careful when replacing lamp
The change interval of lamp may depend on the use environment of Projector. You
can see the used lamp time in the CHECKING LAMP TIME section of the Menu
(page.27). You must replace the lamp when:
● The projected image gets darker or starts to deteriorate.
● The lamp indicator is red.
● The message “Replace the lamp” appears on the screen when turning the
projector on.
- Press the POWER button on the control panel or remote control to turn off power.
- If the operation indicator LED is orange and blinking, do not disconnect the main supply until the operation indicator LED
is lit up constantly (orange).
- Allow the lamp to cool for 1 hour before replacing it.
- Replace only with the same type lamp from an LG Electronics Service Center. Using another manufacturers lamp may
cause damage to the Projector and lamp.
- Pull out the lamp only when replacing the lamp.
- Keep the lamp unit out of reach of children. Keep the Lamp away from heat sources such as radiators, stoves etc.
- To reduce the risk of fire do not expose the lamp to liquids or foreign materials.
- Do not place the lamp near any heat source.
- Make sure the new lamp is securely tightened with screws. If not, the image may be dark or there could be an increased
risk of fire.
- Never touch the lamp unit glass otherwise image quality may be compromised or lamp life maybe reduced.
To obtain a replacement Lamp unit
Lamp model number is on page 39. Check the lamp model and then purchase it from an LG Electronics Service Center.
Using another manufacturers lamp may cause damage to the projector.
Lamp unit disposal
Dispose of the used lamp by returning it to the LG Electronics Service Center.
<Front panel of the Projector>
Lamp indicators
Information
37
1
Turn off the projector and unplug the power cable.
Carefully place on a cushioned surface.
(Allow the lamp to cool for 1 hour before
removing the used lamp from the projector.)
2
Unscrew the screw from the lamp cover using a
screwdriver.
Lamp case screw
3
After lifting the lamp cover off, remove the two
retaining screws on the lamp case with a screw-
driver.
4
Lift the lamp up from the projector.
5
Pull out the handle slowly and remove the lamp
case.
6
Insert the new lamp gently into the correct position.
Make sure it is inserted correctly.
7
Tighten the screws you removed in step 3.
(Make sure they are fixed firmly.)
8
Close the lamp cover and install the screws from
step 2 to install the cover.
(If the lamp cover is not installed correctly the unit will not
power on.)
Replacing the Lamp
Screws
Using another manufacturers lamp may cause damage to the projector or lamp.
Make sure the lamp cover is securely fastened. If the lamp cover is not installed correctly the unit will not power on.
If this fault persists contact an LG Authorized Service Center.
Knob
Information
38
How to fix the lens cap to the projector
How to fix the lens cap
1
Prepare the lens cap and the strap supplied as
accessories.
2
Insert the non-knot end of the strap into the hole at
the bottom of the lens section of the projector.
3
Fix the strap at the hole of the projector into the
hole of the lens cap, and then pass the lens cap
through the strap lasso.
4
They are completely assembled as shown at
the below figure.
Regarding the projector lamp control
● Don’t turn off the projector at least in 5 minutes after activating it.
- The frequent On/Off changes may cause the lamp function to deteriorate.
● Don’t pull out the power cord while activating the projector and the cooling fan.
- It may cause the lamp life-span to shorten and get damaged.
● The life-span of projector may considerably depend on the use environment and treatment conditions.
● The projector uses the high pressure mercury lamp so that the serious caution is essential. The shock or abuse while using
may cause lamp to blow off with explosion.
● When you continue to use the projector after an interval of lamp replacement, the lamp may be blown off with explosion.
● The following treatment should be done, in case of lamp blow-off.
- Pull off the power cord immediately.
- Let some fresh air in immediately (Ventilation).
- Check the product condition at the nearer service center and replace it with new lamp, if necessary.
- Don’t try to disassemble the product without the authorized technician.
WARNING
Information
39
Specifications
Operating Condition Projector Lamp
MODEL
Resolution
Horizontal / Vertical Ratio
DLP panel size
Screen size
(Projection distance)
Projection off-set ratio
Remote control distance
Zoom ratio
Video compatibility
Power
Height(mm/inches)
Breadth(mm/inches)
Length(mm/inches)
1024(Horizontal) x 768(Vertical)pixel
4:3(horizontal:vertical)
DX540 (DX540-JD)
Temperature
In operation : 32~95°F(0°C~35°C)
In storage and transit : -4~140°F(-20°C~60°C)
Humidity
In operation : 0~ 75% relative humidity by dry hygrometer
Not in operation : 0 ~ 85% relative humidity by dry hygrometer
Lamp model
AJ-LDX5
Lamp power consumption
300W
0.7 inches
Wide : 1.26 ~ 9.63m(40 ~ 300 inches)
Tele : 1.50 ~ 11.47m(40 ~ 300 inches)
100%
12m
1:1.2
NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
AC 100 - 240V~50/60Hz, 3.7A-1.5A
114/4.5
346/13.6
263/10.4
DX540
OWNER’S MANUAL
LG DLP PROJECTOR
LG DLP PROJECTOR
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the bottom of the set and
quote this information to your dealer when you
require service.
Model number :
Serial number :
