Refrigeration Range
Westinghouse is thrilled to welcome
Julia Morris as our brand ambassador.
Julia is an Australian icon who is really clever, really talented
and has great style and substance. Like Westinghouse, Julia is a
straight-talker; genuine, honest and warm.
As a busy mum, Julia relies on Westinghouse to ensure her kitchen
is organised and armed with functions that make sure she is
always a superstar - at home and in her professional life.
2 3
If the kitchen is the heart of the home,
then Westinghouse has been a central part
of it for over 60 years. We love helping
Australian families with products that are
not only simple to use but also make life
easier. For us, it’s not about fancy features
or the latest fads, it’s about creating
practical yet innovative products that the
whole family can use and enjoy every day.
Our new fridge range is packed with useful
features that are as flexible as you need
them to be. FlexSpace™ makes the most
of the interior by maximising storage,
flexibility and access, so even the biggest
grocery shop fits in with ease. There’s the
convenience of FlexStor™, which allows
you to easily change the fridge door
configuration to suit your needs. You can
also keep your family healthy and hydrated
with quick access to chilled, filtered water
from the in-door water dispenser. Add in
clever features like SpillSafe™ shelves and
FamilySafe™ lockable storage, and you
have a range that more than meets your
family’s needs.
10French doors
28Top mounts
18Bottom mounts
42Verticals and
Pigeon pairs
48Dimensions
28mm
W
H2 H1
H
36Side by sides
Model shown: WBE4500WA compact bottom mount fridge.
4 5
A fridge is a vital part of every home, but
with so many to choose from it can be
dicult to know which one is right for your
family. So, to help you find your perfect
fridge, we’ve put together some helpful
guidelines and questions to consider.
Type/style
• Think about the style of your kitchen. Would
white, stainless steel or pacific silver suit
your space?
• Do you have limited space but still want all the
benefits of a large fridge in a smaller model?
• Do you like the aesthetics of a side-by-side
model and the idea of an ice and
water dispenser?
• Do you tend to have a lot of frozen food or do
you need more fresh food and drinks storage?
Dimensions
• Does the fridge need to fit into an existing
space? Make sure you measure your kitchen
cavity and doorways before choosing a fridge.
• Remember that fridges need a few
centimetres of air space around them to
keep them running at their best.
Capacity
• As a general rule a family of two needs
around 300L of food storage space. For each
additional family member add around 60L.
• Remember your family may grow in the future,
so when in doubt, go for a larger size. Larger
fridges tend to have more features and are
more ecient.
Flexible interiors
• Are storage space and flexible interiors
important to you?
• Do you like to entertain or regularly need to
fit a lot of food and drinks into your fridge?
Our new FlexSpace range maximises
storage, flexibility and access making it
perfect for families.
Choose the right fridge
with Westinghouse
Value
• Consider which features are most useful
to you. Your family’s needs may change,
so a fridge that can adapt with you is a
great option.
• Ongoing running costs can eat into your
family budget so check the energy rating
system (the more stars and the lower kWh
per year the better).
Easy cleaning
• Food can be messy! So you’ll benefit from
SpillSafe™ shelves, easy-to-remove parts and
fingerprint-resistant surfaces.
Functions & controls
• Manual controls are quick and easy to use
• Electronic controls oer a wider range of
clever functions including quick chill, door
alarms, quick freeze and holiday mode.
Security & reliability
• A fridge or freezer is a considerable
investment so make sure you buy a quality
brand you can trust.
• For extra peace-of-mind ensure that the
company you choose can provide advice,
service and support for your fridge well
beyond the shop floor.
R600a Refrigerant
• Westinghouse is committed to caring for
the environment. That’s why all of our
refrigerators* have started converting over
to use the less harmful R600a refrigerant. So
now your family refrigerator can quietly play
its own part in reducing your household’s
impact on the environment.
*All models except WHE7670SA use R600a refrigerant.
Model shown: WBE5304SA large bottom mount fridge.
6 7
Whether you’ve got a growing
family, a busy lifestyle or both,
you can always do with more
space in your fridge. That’s why
Westinghouse created FlexSpace™.
Designed to maximise storage,
flexibility and provide easy
access to all your items through
the flexible interior, it’s the really
clever solution to meet your
ever-changing needs.
FlexSpace™ features the clever
FlexStor™ door, allowing you
to easily slide or lift the door
bins to suit your needs while
the FamilySafe™ lockable
compartment keeps those special
items away from prying fingers.
The sealed FlexFresh™ crisper has
a movable divider to help give you
extra space when you need it.
Perfect for existing cavities, the
FlexSpace™ range has more space
inside than ever before, while the
fridge width stays the same.
Now that’s clever!
FlexSpace
™
Introducing
8 9
Filtered ice and water dispenser
Keep your family hydrated (and happy!)
with fresh filtered water and crushed or
cubed ice. The dispenser provides all you
need at the touch of a button, so they’ll
never go thirsty again.
*WHE7670SA only
Wide open fridge space
You can never have too much space. The French
door design ensures you can store party platters
with ease, plus stock up on all your family favourites
and fresh groceries. Having everything at eye level
means you can easily check your fridge contents
at a glance when you’re busy.
Easy glide drawers
Designed with your comfort in mind, the
easy glide crisper bins open eortlessly and
provide easy access even when they’re full.
Door Alarm
You’ll never forget to close the fridge
door again! The handy door alarm sounds
after two minutes and helps prevent food
spoiling and bacteria growth.
Fingerprint-resistant real stainless steel
Life can be messy, but with Westinghouse’s
fingerprint-resistant real stainless steel, you
won’t have to worry. A quick wipe with a
damp cloth should be all you need to keep
your fridge looking its sleek and stylish best.
Electronic Controls
Keep your food in peak condition and organise
your temperature at the touch of a button.
Designed for convenience, the separate
temperature controls allow you to adjust your
fridge or freezer to suit your needs.
If you’ve got a big family and plenty of
mouths to feed, you need the kind of fridge
that can cater to the masses and more.
Designed to maximise space, convenience
and style, the sleek range of Westinghouse
French door fridges have enough capacity
and all the features you need for a busy
family lifestyle.
Whether you’re hosting a party, entertaining
the extended family or simply whipping
up the evening meal, the flexible French
Large french door
door design has plenty of open space for
platters, chilled drinks, snacks and fresh
groceries. Plus, when you can see all the
fridge’s contents at a glance, you’ll quickly
and easily find exactly what you need.
Your family will love the convenience of the
Ice and Water dispenser with its never-
ending supply of fresh filtered water and
crushed or cubed ice. You’ll love how easy
it is to keep the fingerprint-resistant, real
stainless steel looking like new.
Model shown: WHE7670SA large french door fridge.
10 11
Large
french door
Features
†
Model WHE7670SA
gross capacity (litres) 762
food compartment gross capacity (litres) 512
freezer compartment gross capacity (litres) 250
dimensions
(and recommended clearances)
refer to page 49
mark-resistant stainless steel door finish
P
filtered ice and water dispenser
(cubed & crushed ice)
P
energy star rating 2.5
energy consumption (kWh/year) 670
contemporary curved line door design
P
hidden hinges
P
frost-free
electronic temperature controls
P
quick chill function
P
quick freeze function
P
separate temperature controls
for fridge & freezer
P
fridge features
interior lighting LED
crispers 2
separated humidity controlled crispers
P
standard door bins 5
deep bottle bins 2
full width deli compartment
P
egg tray
P
Freezer features
large freezer storage drawer
P
easy glide (telescopic) freezer drawer
P
twist ice and serve
ice cube storage bin
† Refer to the product information on the back page of this brochure.
Model shown: WHE7670SA large french door fridge.
1312

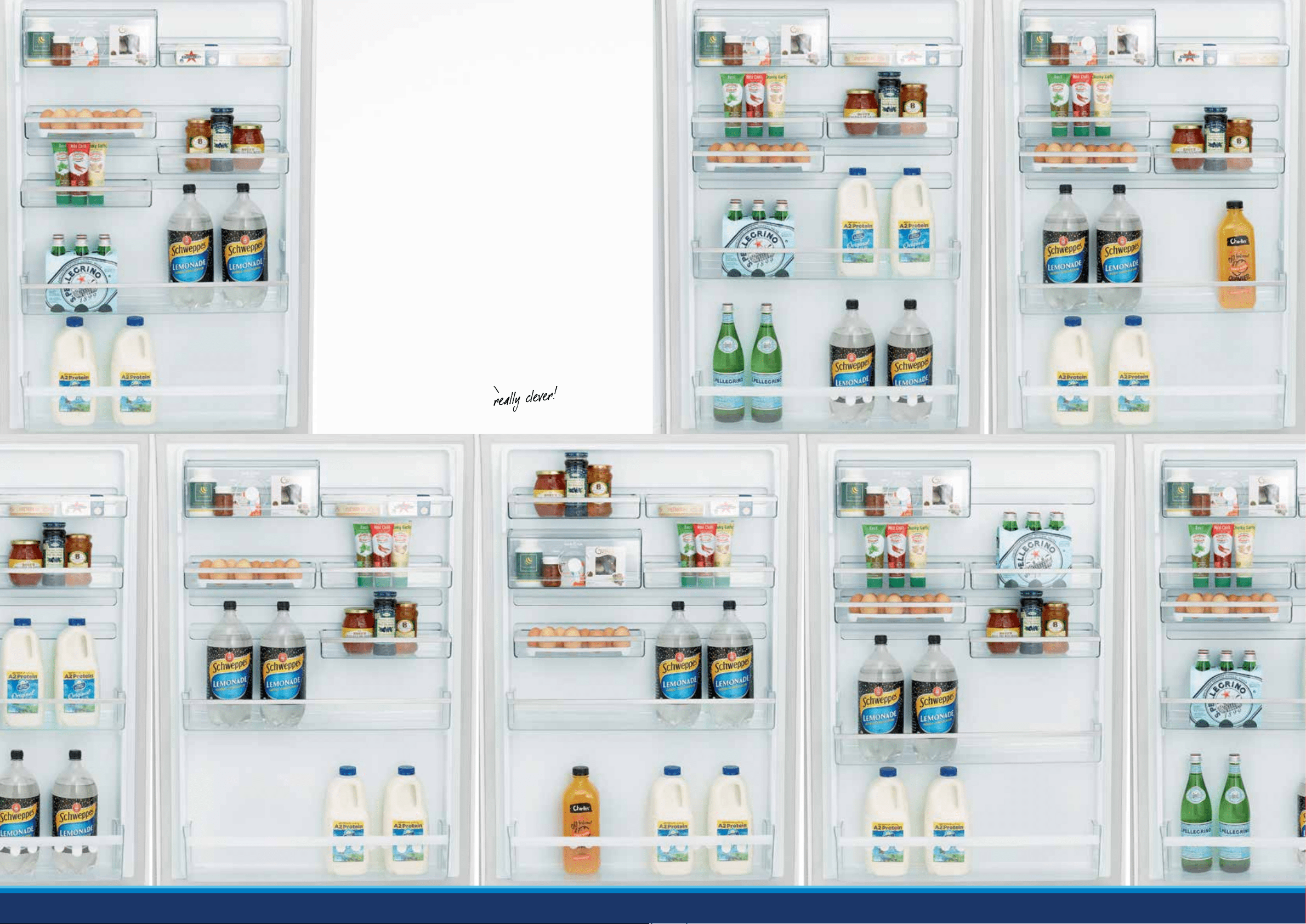

Adjustable storage solutions
with FlexStor™
Adjust the height and position of
the door bins with FlexStor™.
Get organised with the
FlexFresh™ Crisper
The sealed FlexFresh™ Crisper provides
great flexibility with an adjustable divider
for all the space you need.
Stands out & fits in
Stunning contemporary curved
design that at 790mm fits most
existing 800mm cavities.
FamilySafe™ lockable storage
Keep items such as medicine away from
wandering fingers with FamilySafe™
lockable storage.
SpillSafe™ glass shelves
SpillSafe™ shelves can contain spills of up
to one litre while the easy-clean interior
helps keep your fridge fresh and hygienic.
Introducing the compact French Door with FlexSpace™
- a stylish fridge packed with features to meet your
ever-changing needs. The extra spacious French
Door design delivers a wider capacity fridge with
FlexSpace™, which is perfect for party platters or
a huge weekly shop.
Plus, when you need to rearrange the storage in the
door, FlexStor™ provides practical storage solutions for
both small or awkward items. It also features a practical
self-closing freezer drawer.
Available in white or fingerprint-resistant real stainless
steel, this fridge will fit into most existing fridge spaces.
Compact french door
More brightness with
LED Lighting
LED lighting at the back and top of
your fridge ensures everything is easy
to see and easy to find at a glance.
Model shown: WHE5200SA compact french door fridge.
14 15
Compact
french door
Features
†
Model WHE5200SA WHE5200WA
gross capacity (litres) 524 524
food compartment gross capacity (litres) 358 358
freezer compartment gross capacity (litres) 166 166
dimensions (and recommended clearances)
refer to page 49 refer to page 49
door finish Stainless steel White
energy star rating new 3 3
energy consumption (kWhr/yr)
478 478
contemporary curved line door design
P P
frost-free
P P
electronic temperature controls
P P
quick freeze function
P P
door alarm fridge fridge
separate temperature controls for
fridge & freezer
P P
fridge features
adjustable SpillSafe™ glass shelves 3 3
full width humidity controlled crisper with divider
P P
FamilySafe™ lockable compartment 1 1
bottle rack
P
full width door bins 4 4
deep bottle bin 2 2
shallow bin 2 2
bottle fingers
P P
feature lighting blue LED blue LED
main light LED LED
freezer features
ice cube storage bin 1 1
twist ice and serve 2 trays 2 trays
self close freezer drawer/door
P P
large freezer storage drawer
P P
delicates/frozen pastry tray
P P
freezer basket runner system telescopic telescopic
† Refer to the product information on the back page of this brochure.
Model shown: WHE5200WA compact french door fridge.
1716
Adjustable storage solutions
with FlexStor™
Adjust the height and position
of the door bins with FlexStor™.
Get organised with the
FlexFresh™ Crisper
The sealed FlexFresh™ Crisper provides
great flexibility with an adjustable
divider for all the space you need.
Electronic controls
Organising your fridge couldn’t be easier!
The electronic controls allow you to adjust
the temperature or set the quick freeze
function with the touch of a button.
FamilySafe™ lockable storage
Keep items such as medicine away
from wondering fingers with
FamilySafe™ lockable storage.
More brightness with
LED Lighting
LED lighting at the back and top of
your fridge ensures everything is easy
to see and easy to find at a glance.
SpillSafe™ glass shelves
SpillSafe™ shelves can contain spills
of up to one litre while the easy-clean
interior helps keep your fridge fresh
and hygienic.
Designed for the ultimate in convenience,
the Westinghouse FlexSpace™ range of
bottom mount fridges oers lots of extra
space for growing families. You’ll enjoy a
wide fridge capacity and countless storage
solutions, while the clever FlexStor™ feature
provides adjustable storage on the fridge
door so you can change the configuration
when you need to.
The easy-to-clean FlexFresh™ Crisper has
a handy divider that gives you extra space
Large bottom mount

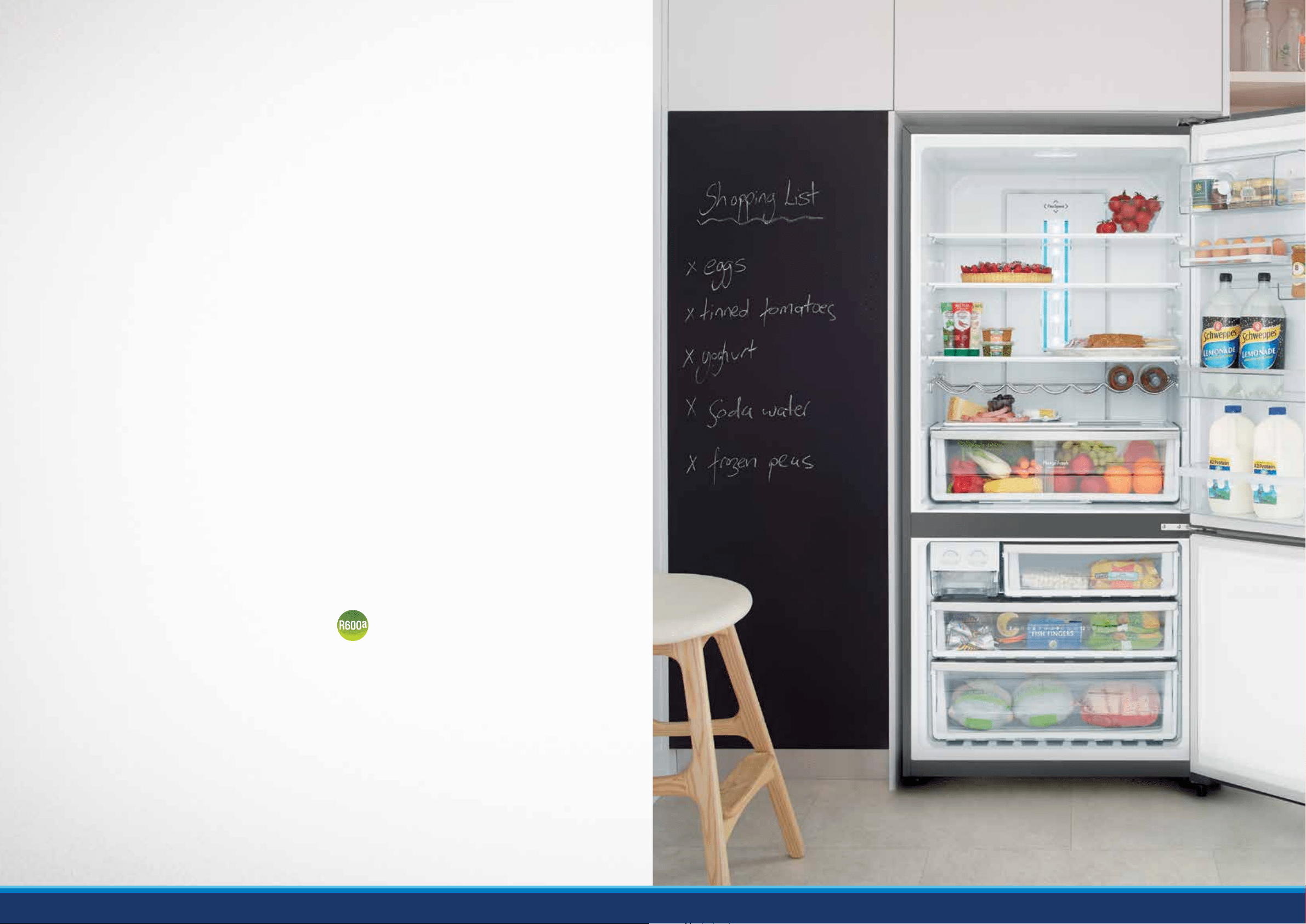

Model shown: WBE5304SA large bottom mount fridge.
when you need it. The clever seal provides
an ideal environment for your fruit and
vegetables, ensuring less wastage.
Telescopic freezer bins give the whole
family quick and easy access without the
eort, even when they’re full.
The bottom mount range oers stylish
yet practical options including white or
fingerprint-resistant, real stainless steel
finishes, and an integrated or bar handle.
18 19
Bottom mount
- large
Features
†
Model WBE4504SA WBE4514SA WBE4500WA WBE4500SA WBE5304SA WBE5314SA WBE5300WA WBE5300SA
gross capacity (litres) 455 455 455 455 529 529 529 529
food compartment gross capacity (litres) 295 295 295 295 344 344 344 344
freezer compartment gross capacity (litres) 160 160 160 160 185 185 185 185
door finish Stainless steel stainless steel White stainless steel Stainless steel stainless steel white White
energy star rating new 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5
energy consumption (kWhr/yr) 388 388 388 388 421 421 421 421
contemporary curved line door design rounded rounded rounded rounded rounded rounded rounded rounded
frost-free
P P P P P P P P
electronic temperature controls
P P P P P P P P
quick freeze function
P P P P P P P P
door alarm fridge fridge fridge fridge fridge fridge fridge fridge
separate temperature controls for fridge & freezer
P P P P P P P P
fridge features
adjustable spillsafe™ glass shelves
P P P P P P P P
full width humidity controlled crisper with divider
P P P P
half width door bins 3 3 3 3 3 3 3 3
shallow bin 1 1 1 1 1 1 1 1
deep bottle bins 1 1 1 1 1 1 1 1
FamilySafe™ lockable compartment
P P P P P P P P
bottle rack
P P P P
feature lighting blue LED blue LED blue LED blue LED blue LED blue LED blue LED blue LED
main light LED LED LED LED LED LED LED LED
freezer features
ice cube storage bin
P P P P P P P P
twist ice and serve 2 trays 2 trays 2 trays 2 trays 2 trays 2 trays 2 trays 2 trays
large freezer storage drawer
P P P P P P P P
delicates/frozen pastry tray
P P P P P P P P
freezer basket runner system telescopic telescopic telescopic telescopic telescopic telescopic telescopic telescopic
other features
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
hidden hinges
P P P P P P P P
adjustable front rollers
P P P P P P P P
rear rollers
P P P P P P P P
† Refer to the product information on the back page of this brochure.
2120
Adjustable storage
solutions with FlexStor™
Adjust the height and position of
the door bins with FlexStor™.
Easy clean vibrant silver doors
The easy clean silver doors ensure all
Westinghouse fridges maintain that sleek clean
look. In fact, a damp cloth should be all you
need to remove fingerprint marks from any
Westinghouse silver door.
Multi-flow
The multi-flow air delivery system maintains
an even temperature throughout – keeping
your food fresher for longer.
Humidity controlled crisper
The full width, humidity controlled crisper
oers the perfect environment for preserving
fruit and vegetables, as well as having a
removable crisper front for easy cleaning.
Easy clean glass shelves
The adjustable and durable glass shelves
can be wiped clean with ease.
Twist ice and serve
Twist ice and serve is an easy way
to dispense ice.
Compact bottom mount
New
image to
come
Model shown: WBB3700WF compact bottom mount fridge.
When kitchen space is at a premium, the
Westinghouse compact bottom mount
fridge is the ideal solution.
With all the features of our larger models, this
ergonomically designed fridge has all of our
big ideas in a smaller package. With the clever
FlexStor™ adjustable storage, you’ll enjoy the
convenience of being able to easily change
the configuration whatever your needs.
Available in white or vibrant silver, the fridge
also features a stylish integrated handle and
easy clean interiors.
22 23
Model shown: WBB3700PF compact bottom mount fridge.
Bottom mount
- compact
Features
†
Model WBB3700PF/WF WBB3400PF/WF
gross capacity (litres) 370 340
food compartment gross capacity (litres) 267 237
freezer compartment gross capacity
(litres)
102 102
dimensions
(and recommended clearances)
refer to page 50 refer to page 50
door finish vibrant silver/classic white vibrant silver/classic white
energy star rating 3.5 3.5
energy consumption (kWh/year) 344 331
frost-free
P P
multi-flow air delivery system
P P
separate temperature controls
for fridge & freezer
P P
fridge door alarm
P P
fridge features
adjustable glass shelves 3 3
full-width humidity controlled crisper bin
P P
dairy compartment
P P
full-width bottle bins 1 1
1/3 door bins 2 2
2/3 door bins 2 2
egg tray
P P
interior fridge light LED LED
freezer features
twist ice server/storage bin
P P
freezer basket (half-width) 1 1
freezer basket (full-width) 2 2
other features
R600a refrigerant
P P
hidden hinges
P P
door opening reversible
1
reversible
1
rear rollers
P P
levelling legs
P P
integration kit available
P P
1
For those wanting a left hand opening door for models WBB3700 or WBB3400, please order reversing kit ACC096.
† Refer to the product information on the back page of this brochure.
2524
FlexStor
™
As your family changes and grows, you
need a fridge that can adapt with you.
With the clever FlexStor™ system, you’ll
enjoy the convenience of being able to
easily change the configuration of your
fridge, whatever your needs.
Whether you’re planning a family gathering
or unpacking a big weekly shop, simply
slide or lift to adjust the height and position
of the door bins to suit your requirements.
With endless storage solutions and the
ability to fit in those large and small items,
you can arrange your fridge so that
everything is easy to find.
26 27
Adjustable storage solutions
with FlexStor™
Adjust the height and position of
the door bins with FlexStor™.
Get organised with the
FlexFresh™ Crisper
The sealed FlexFresh™ Crisper provides
great flexibility with an adjustable
divider for all the space you need.
Twist ice and serve
Twist ice and serve is an easy way to dispense
ice, along with a convenient removable ice
bucket and scoop to make serving simple.
FamilySafe™ lockable storage
Keep items such as medicine
away from wondering fingers with
FamilySafe™ lockable storage.
Keep it organised
Keep you deli items organised with the
practical chiller compartment.
SpillSafe™ glass shelves
SpillSafe™ shelves can contain spills
of up to one litre while the easy-clean
interior helps keep your fridge fresh
and hygienic.
Loaded with a great range of features, our large
top mount fridges are always popular - and it’s
easy to see why. With the freezer up high, the
whole family has easy access to fresh food, while
the ever-changing needs are met thanks to the
extra spacious design of the FlexSpace™ range.
FlexStor™ also allows you to adjust the height
and position of the door bins so you’ll always
be able to fit in whatever you need. They also
come loaded with great features including the
adjustable FlexFresh™ crisper, SpillSafe™ glass
shelves and a twist ice and serve dispenser.
Large top mount
Model shown: WTB5400SA large top mount fridge.
28 29
Large
top mount
Features
†
Model WTB4600SA WTB4600WA WTB4604SA WTB5400SA WTB5400WA WTB5404SA
gross capacity (litres) 462 462 462 537 537 537
food compartment gross capacity (litres) 342 342 342 396 396 396
freezer compartment gross capacity (litres) 120 120 120 141 141 141
door finish Stainless steel White Stainless steel Stainless steel White Stainless steel
energy star rating new 3.5 3.5 3.5 3.5 3.5 3.5
energy consumption (kWhr/yr) 385 385 385 418 418 418
contemporary curved line door design
P P P P P P
frost-free
P P P P P P
electronic temperature controls
P P P P P P
quick chill alarm
P P P P P P
door alarm fridge fridge fridge fridge fridge fridge
separate temperature controls for fridge & freezer
P P P P P P
Fridge features
adjustable spillsafe™ glass shelves 2 2 2 2 2 2
full width humidity controlled crisper with divider
P P P P P P
half width door bins 4 4 4 4 4 4
shallow bin 1 1 1 1 1 1
deep bottle bins 1 1 1 1 1 1
bottle fingers
P P P P P P
hanging deli compartment
P P P P P P
Family Safe lockable compartment
P P P P P P
feature lighting blue LED blue LED blue LED blue LED blue LED blue LED
main light LED LED LED LED LED LED
Freezer features
ice cube storage bin
P P P P P P
twist ice and serve 2 2 2 2 2 2
spillsafe™ glass shelf 1 1 1 1 1 1
full-width door bin with divider 1 1 1 1 1 1
Other features
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
hidden hinges
P P P P P P
adjustable front rollers
P P P P P P
rear rollers
P P P P P P
† Refer to the product information on the back page of this brochure.
3130
Adjustable storage solutions
with FlexStor™
Adjust the height and position of
the door bins with FlexStor™.
Easy clean vibrant silver doors
The easy clean silver doors ensure all
Westinghouse fridges maintain that sleek clean
look. In fact, a damp cloth should be all you
need to remove fingerprint marks from any
Westinghouse silver door fridge or freezer.
Easy clean glass shelves
The adjustable and durable glass shelves can
be wiped clean with ease. Selected models
also come with a glass shelf in the freezer.
Chiller compartment
The chiller compartment allows you
to store perishable food for longer.
Humidity controlled crisper
The full width, humidity controlled
crisper oers the perfect environment
for preserving fruit and vegetables,
as well as having a removable crisper
front for easy cleaning.
Twist ice and serve
Twist ice and serve is an easy
way to dispense ice.
While our compact top mounts may be smaller on
the outside, they are definitely big on the inside.
With all the capacity and great features of our larger
models, this ergonomically designed fridge has been
designed without compromise.
The clever FlexStor™ door oers amazing
convenience and allows you to change your fridge
configuration to suit your needs. What’s more, easy
clean glass shelves, an integrated door handle and
fingerprint resistant doors make cleaning a breeze.
Compact top mount
Model shown: WTB2800WF compact top mount fridge.
32 33
Top mount
- compact
Features
†
Model WME3600SF WTB3700PF/WF WTB3400PF/WF WTB2800PF/WF WTB2500PF/WF WTB2300PF/WF WTM2000WC WTM1800WC
gross capacity (litres) 360 370 340 280 250 230 200 180
food compartment gross capacity (litres) 215 278 248 198 168 153 144 127
flexible middle compartment gross capacity (litres) 59
freezer compartment gross capacity (litres) 89 91 91 78 78 78 59 54
dimensions (and recommended clearances) refer to page 51 refer to page 51 refer to page 51 refer to page 51 refer to page 51 refer to page 51 refer to page 51 refer to page 51
door finish stainless steel
vibrant silver/
classic white
vibrant silver/
classic white
vibrant silver/
classic white
vibrant silver/
classic white
vibrant silver/
classic white
classic white classic white
energy star rating 2.5 3.5 3.5 3.5 3.5 3.5 2 2
energy consumption (kWh/year) 449 340 328 296 282 276 360 341
frost-free
P P P P P P P P
multi-flow air delivery system
P P P P P P
separate temperature controls for fridge & freezer
P P P P P P P P
fridge door alarm
P P P P P P
fingerprint-resistant surface
P
fridge features
adjustable glass shelves 2 3 3 2 2 2
adjustable wire shelves 3 3
full-width chiller compartment
P P P P P P
bottle caddy
P P
full-width humidity controlled crisper bin
P P P P P P
crisper bin
P P
dairy compartment
P P
full-width door bins 2 2 2 2 2 2 3 3
half-width door bins 2 2
1/3 door bins 2 2 2 3 3 3
2/3 door bins 2 2 2
interior fridge light LED
P P P P P P P
freezer features
easy clean glass shelves
P P P
wire/plastic shelves
P P P
1/– 1/–
twist ice server/storage bin
P P P P P P
ice cube trays/storage bin 2/P 2/P
full-width door bins 2 2 2 2 2 2 1 1
other features
R600a refrigerant
P P P P P P P P
hidden hinges
P P P P P P P P
door opening right hand reversible
1
reversible
1
reversible
1
reversible
1
reversible
1
reversible
2
reversible
2
rear rollers
P P P P P
levelling legs
P P P
integration kit available
P P P P P
1 For those wanting a left hand opening door for models WTB2300, WTB2500, WTB2800, WTB3400 or WTB3700, please order reversing kit ACC096.
2 No additional parts required to reverse the doors for models WTM200WC & WTM1800WC.
† Refer to the product information on the back page of this brochure.
3534
Filtered ice & water dispenser
Available on selected models, our new ice and
water dispenser delivers fresh, filtered water
and crushed or cubed ice instantly. And to
make things easier, the innovative combi-lever
lets you do it all using just one hand.
Adjustable interiors with
SpillSafe™ glass shelves
With over 20 dierent shelving and door bin
positions, you can easily fit the smallest deli
items to the biggest party platters. SpillSafe™
glass shelves improve visibility and isolate leaks
– preventing up to 1 litre of spills from dripping
down to the shelves below.
Easy-fill dispenser for water bottles
With Aqua Direct, you can fill up water
bottles of all shapes and sizes – even those
with a narrow neck. It’s our new splash-free
water dispensing system that is so simple to
use, even the kids can do it.
Compact ice maker
Growing families always need more space.
Cleverly designed to create additional storage
space, the compact ice maker and removable
ice storage bin provide great flexibility and
convenience. The ice storage bin is also ideal
for filling eskies.
Fingerprint-resistant real stainless steel
Life can be messy, but with Westinghouse’s
fingerprint-resistant real stainless steel, you
won’t have to worry. A quick wipe with a
damp cloth should be all you need to keep
your fridge looking its sleek and stylish best.
Like having a full freezer and fridge in one unit?
The 700 litre side by side provides you with the
maximum fresh food and freezer storage in one
fridge – with a wider fresh food section. It is truly
the fridge big enough for any family.
For those with big families but limited space,
the compact side by side is the perfect solution.
Combining a full-length freezer on the left and a
full-length fridge on the right, these models have
been specifically designed to fit into the popular
600mm deep and 900mm wide fridge cavity –
so you don’t have to renovate your kitchen.
Side by sides
Model shown: WSE6970SF large side by side fridge.
Easy glide drawers &
specialised compartments
Easy glide freezer bins and fridge crispers* give
easy access without the eort – even when
they’re full. Humidity controlled crispers keep
fruit and vegetables fresh, while deli drawers help
isolate odours. Handy FamilySafe™ drawers put
special items safely out of reach. *Selected models only
36 37
Side by sides
- large
Features
†
Model WSE6970SF/WF WSE7000SF/WF
gross capacity (litres) 690 700
food compartment gross capacity (litres) 450 450
freezer compartment gross capacity
(litres)
240 250
dimensions (and recommended
clearances)
refer to page 48 refer to page 48
door finish stainless steel/classic white stainless steel/classic white
filtered ice and water dispenser
P
(cubed & crushed ice)
P
frost-free
P P
separate temperature controls for
fridge and freezer
P P
fingerprint-resistant surface
P P
aqua direct
P
electronic controls
door alarm
P P
drinks chill timer
P P
quick freeze function
P P
holiday energy eciency mode
P P
fridge features
easy glide crispers with humidity control 2 2
adjustable spillsafe™ glass shelves 3 3
repositional deli compartment
P P
dairy compartment
P P
bottle bin/with bottle fingers 4/2 4/2
interior fridge light
P P
freezer features
removable ice bin
P P
easy glide freezer bins 2 2
adjustable spillsafe™ slide-out
glass shelves
2 3
adjustable freezer door bins – clear 3 5
twist ice and serve 3
interior freezer light
P P
other features
australian made
P P
adjustable front rollers
P P
rear rollers
P P
energy star rating 2 2.5
energy consumption (kWh/year) 699 637
† Refer to the product information on the back page of this brochure.
Healthy, continuous
fresh water
Enjoy the convenience of endless refreshment
with quick access to chilled, filtered water
from the slimline in-door water dispenser.
So simple, even the kids can help themselves.
Model shown: WSE6970SF large side by side fridge.
38 39
Side by sides
- compact
Features
†
Model WSE6070SF/WF WSE6100SF/WF
gross capacity (litres) 600 610
food compartment gross capacity (litres) 360 357
freezer compartment gross capacity
(litres)
240 249
dimensions (and recommended
clearances)
refer to page 48 refer to page 48
door finish stainless steel/classic white stainless steel/classic white
filtered ice and water dispenser 80 80
(cubed & crushed ice)
P
frost-free
P P
fingerprint-resistant surface
P P
aqua direct
P
electronic controls
door alarm
P P
drinks chill timer
P P
quick freeze function
P P
holiday energy eciency mode
P P
fridge features
blue feature lighting
P
storesafe™ drawer with child latch
P P
adjustable spillsafe™ slide-out glass shelves
3 3
bottle rack
P P
repositional deli compartment
P P
humidity controlled crisper bins
2 2
dairy compartment
P P
bottle bin/with bottle fingers 4/2 4/2
egg tray
P P
interior fridge light
P P
freezer features
removable ice bin
P P
adjustable spillsafe™ slide-out glass shelves
3 4
freezer basket with clear fascia 2 2
adjustable freezer door bins – clear 3 5
twist ice and serve 3
interior freezer light
P P
other features
australian made
P P
adjustable front rollers
P P
rear rollers
P P
energy star rating 2 2.5
energy consumption (kWh/year) 660 605
† Refer to the product information on the back page of this brochure.

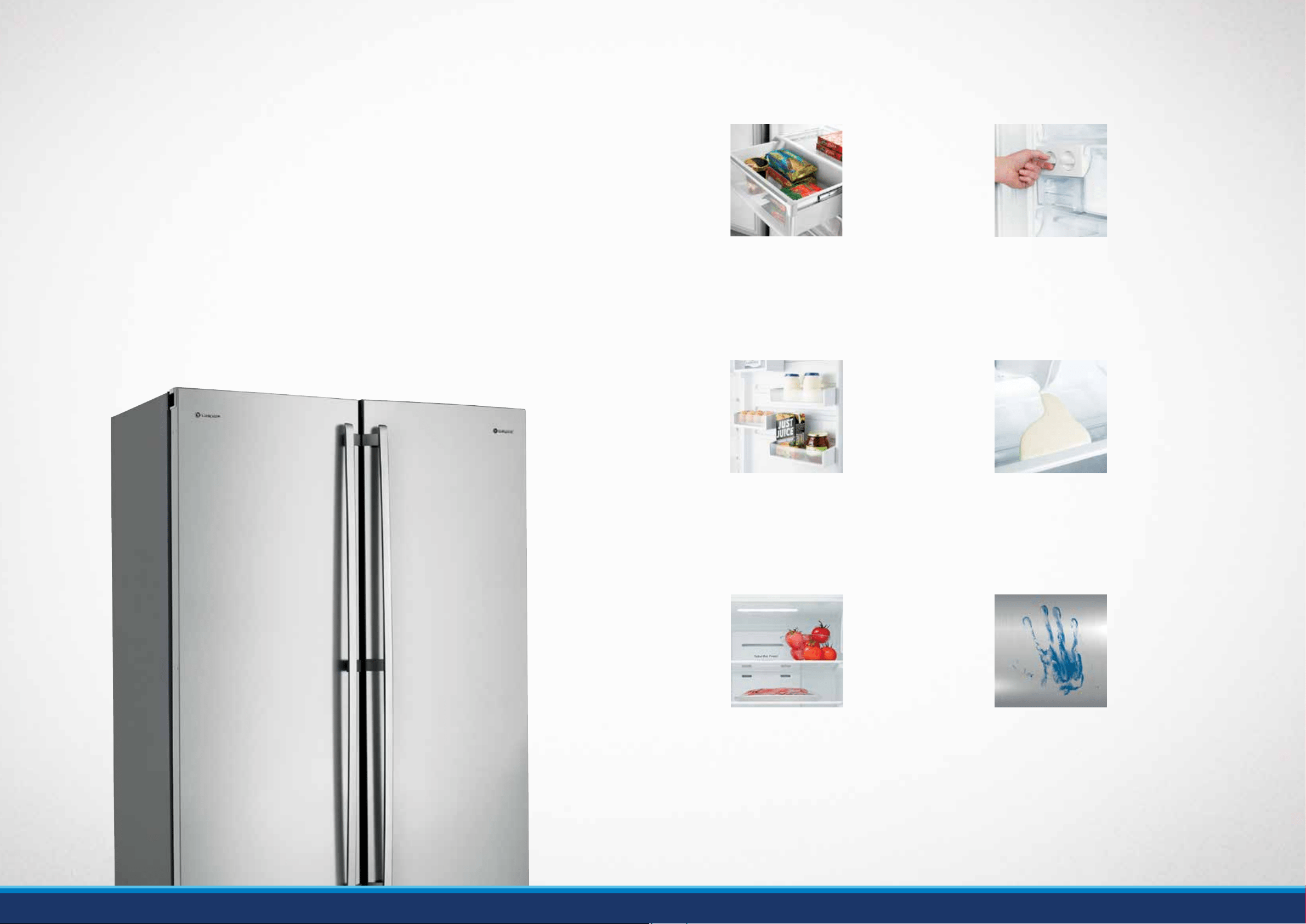

Model shown: WSE6970SF large side by side fridge.
4140
Easy glide crispers and freezer bins*
Telescopic freezer bins and fridge crispers
give the whole family quick and easy access
without the eort – even when they’re full.
*Selected models only
Adjustable storage
solutions with FlexStor™
Adjust the height and position
of the door bins with FlexStor™.
(Selected models only)
Twist ice and serve
Twist ice and serve is an easy
way to dispense ice.
SpillSafe™ glass shelves
SpillSafe™ glass shelves improve visibility
and isolate leaks – preventing up to one
litre of spills from dripping down to the
shelves below.
More brightness with LED Lighting
LED lighting at the back and top of your
fridge ensures everything is easy to see
and easy to find at a glance.
(Selected models only)
Westinghouse’s vertical fridges and freezers
can be combined in one space to give you
a pigeon pair. This provides you with the
maximum fresh food and freezer storage
in one unit – truly the big fridge for the big
family. Or they can be placed in separate
places to give you best utilisation of space in
your kitchen/home. Best of all, their interior
is as flexible as their exterior.
Verticals and Pigeon pairs
Models shown: WRB3504SA & WFB2804SA combination.
Fingerprint-resistant real stainless steel
Life can be messy, but with Westinghouse’s
fingerprint-resistant real stainless steel, you
won’t have to worry. A quick wipe with a
damp cloth should be all you need to keep
your fridge looking its sleek and stylish best.
42 43
Single door
fridges
Features
†
Model shown: WHE5260SA.
Vertical
freezers
Features
†
Model
WFM3600SB/WB
WFB2804SA/WA
WFM1800WD WFM1810WC
gross capacity (litres) 360 280 180 180
door finish
stainless steel/
classic white
stainless steel/
classic white
classic white classic white
dimensions (and
recommended
clearances)
refer to page 48 refer to page 48 refer to page 48 refer to page 48
door opening
left or right hand
available
reversible reversible reversible
frost-free
P P P
separate
temperature control
P P P P
multi-flow
air delivery system
P P
freezer features
twist ice and serve/trays P/2 2/- – /1 – /1
ice cube storage bin
P P P P
adjustable glass shelves 3
full-width freezer baskets 3 6 5 4
freezer light
P P
other features
R600a refrigerant
P P P P
adjustable front rollers
P
adjustable front
levelling leg
P P P
rear rollers
P P
integration kit available
P
energy star rating 1.5 3.0 3.0 3.0
energy consumption
(kWh/year)
569 352 274 282
† Refer to the product information on the back page of this brochure.
Model WRM4300SB/WB WRB3504SA/WA WRM2400WD
gross capacity (litres) 430 355 240
door finish stainless steel / classic white stainless steel / classic white classic white
dimensions (and
recommended clearances)
refer to page 48 refer to page 48 refer to page 48
door opening left or right hand available reversible reversible
frost-free
P P
separate temperature control
P P P
control functions quick chill function
chill stream® air curtain
P
multi-flow air delivery system
P P
fridge features
adjustable deli compartment
P
bottle caddy
P
full-width crisper bins
P P
adjustable spillsafe™
glass shelves
P P
full width crisper bin
P P P
humidity controlled
crisper bin
P
dairy compartment with lid
P P P
adjustable full width
bottle bins
2 2 3
bottle fingers 2
egg tray
P P P
interior fridge light
P
LED
P
other features
R600a refrigerant
P P P
adjustable front rollers
P
adjustable front levelling leg
P P
rear rollers
P P
integration kit available
P
energy star rating 1.5 3.0 2.5
energy consumption
(kWh/year)
380 237 237
† Refer to the product information on the back page of this brochure.
44 45
Seamless integration
The Westinghouse Integrated Refrigeration
Kit oers a simple and precise solution
for a seamless kitchen. The specialised
Westinghouse hinges also allow the fridge
door to open to a wide 120˚, making it easier
to access food as well as clean and remove
How does it work?
The kit is designed to fit a wide variety of Top
and Bottom Mount Westinghouse Fridges and
Vertical Freezers. It utilises a sliding system
which fixes the outer door of the fridge to the
kitchen cabinet.
Models that can be used with Integration Kit IK007 and IK008
IK007 IK008
Top Mount Top Mount Single Door Top Mount Bottom Mount
WTB3700 WBB3400 WRM4300 WTB5400 WBE5300
WTB3400 WBB3700 WFM3600 WTB4600 WBE4500
WTB2800
WTB2500
WTB2300
When the cabinet door is opened, the
connecting rail opens the fridge in one
smooth and simple motion.
For all applicable models please refer to
the product feature table below.
shelves. In order to prevent unnecessary
running around and hidden costs, our
unique kit comes complete with all parts
to complete the installation, including
the hinges.
Model shown: WBE5300 bottom mount fridge with integration kit IK008.
46 47
50mm
30mm
30mm
W
H2 H1H
18mm
Recommended
airspace
D1
D2
D
W1
W
90
o
X Y
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
Large side by sides†
Compact side by sides†
WSE6070SF, WSE6070WF, WSE6100SF, WSE6100PF, WSE6100WF
Model
Max door
height
(H)
Cabinet
height
(H1)
Total
height
(H2)
Door
width
(W)
Cabinet
width
(W1)
Total
depth
(D)
Cabinet
depth
(D1)
Depth
door open
(D2)
WRM4300SB, WRM4300WB 1714 1702 1720 703 690 647 550 1299
WRB3504SA, WRB3504WA 1746 1746 1746 595 595 700 560 1028
WRM2400WD 1374 1393 1543 550 550 555 490 1077
WFM3600SB, WFM3600WB 1714 1702 1720 703 690 647 550 1299
WFB2804SA, WFB2804WA 1746 1746 1746 595 595 700 600 1028
WFM1800WD 1374 1393 1453 550 550 555 490 1077
WFM1810WC 1374 1393 1453 550 550 555 490 1077
† Refer to the product information on the back page of this brochure. ≠For those single door models with telescopic extension slide-out bins or crispers situated
with the door opening against the wall, clearance requirement increases from 350mm to 450mm.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to westinghouse.com.au
Large and compact french doors†
WHE5200SA, WHE5200WA
WHE5200SA, WHE5200WAWHE5200SA, WHE5200WA
WHE7670SA
WHE7670SA
Minimum recommended Airspaces
These are the recommended minimum clearances.
Minimum recommended Airspaces
These are the recommended minimum clearances.
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
WHE7670SA,
WHE5200SA,
WHE5200WA,
WHE6200SA
Please note:
If gap (Y) is not minimum of
100mm, then gap (X) increases
from 50mm to 90mm min.
WHE5260SA-D
Please note:
If gap (Y) is not minimum of
100mm, then gap (Z) increases
from 10mm to 45mm min.
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
WHE5200SA,
WHE5200WA
Please note:
If 5mm side clearance,
the fridge cabinet must
sit at least 5mm proud
of kitchen cabinetry for
doors to open.
A 5mm side clearance
requires 50mm rear
clearance.
Please note:
Doors are designed
to sit proud of
cabinetry (not flush).
50mm
30mm
30mm
W
H2 H1H
18mm
Recommended
airspace
D1
D2
D
W1
W
90
o
X Y
If gap (Y) is not
minimum of
100mm, then gap
(X) increases from
50 to 90mm.
When positioned in a
corner area, clearance
of at least 350mm on
the fridge side and
250mm on the freezer
side will allow the
doors to open enough
to enable the removal
of the bins and glass
shelves.
Front face of
bench aligned to
front corner edge
of cabinet.
10mm
5mm
5mm
1000m
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
10mm
898mm
10mm
5mm
5mm
COMPACT SIDE BY
SIDES
LARGE SIDE BY SIDES
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
1753mm
1761mm
1736mm
25mm
10mm
Please note:
Doors are designed
to sit proud of
cabinetry (not flush).
When positioned in a
corner area, clearance of
at least 300mm on the
fridge side and 250mm on
the freezer side will allow
the doors to open enough
to enable the removal of
the bins and glass shelves.
Front face of
bench aligned to
front corner edge
of cabinet.
50mm
30mm
30mm
W
H2 H1H
18mm
Recommended
airspace
D1
D2
D
W1
W
90
o
X Y
Please note:
Doors are designed to
sit proud of cabinetry
(not flush).
When positioned in a
corner area, clearance of
at least 350mm on the
fridge side will allow the
doors to open enough
to enable the removal
of the crisper bins and
shelves
≠
.
Front face of
bench aligned to
front corner edge
of cabinet.
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
Front face of
bench aligned
to front corner
edge of cabinet.
When positioned
in a corner area,
clearance of at
least 300mm
on the hinge
side will allow
the doors to
open enough
to enable the
removal of bins
and shelves.
WHE7670SA,
WHE6200SA
Please note:
If 5mm side clearance,
the fridge cabinet must
sit at least 20mm proud
of kitchen cabinetry for
doors to open.
A 20mm side clearance
requires 50mm rear
clearance and 50-90mm
clearance above.
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
Verticals and pigeon pairs†
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
Front face of
bench aligned
to front corner
edge of cabinet.
When positioned
in a corner area,
clearance of at
least 350mm
on the hinge
side will allow
the doors to
open enough
to enable the
removal of bins
and shelves.
WHE7670SA, WHE6200SA
Model
Max door
height
(H)
Cabinet
height
(H1)
Total
height
(H2)
Door
width
(W)
Cabinet
width
Total
depth
Cabinet
depth
Depth
door open
WHE5200SA, WHE5200WA 1725 1705 1725 796 790 759.5 641 1054.5
WHE7670SA 1776 1745 1778 910 907 913 759 1377
†
Refer to the product information on the back page of this brochure
WSE6970SF, WSE6970WF, WSE7000SF, WSE7000WF
28mm
W
33mm
W
50mm
5mm
5mm
Minimum
recommended
airspace
50mm
20mm
20mm
Minimum
recommended
airspace
X
Z
Y
612
1050
790
767
90°
612
1450
790
767
90°
600
TBC
905
742
90°
759
1377
907
913
90°
300mm300mm
350mm350mm
H2 H1
H
H2 H1
H
W
H2
H
4948
300mm
50mm
Recommended
airspace
CABINET
DOOR
30mm
30mm
X
Y
W
H2H
15mm
H1
D1
D2
W1
W
D
90
o
X
Z Y
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
W
H2H H1
18mm
11mm
W
H H2 H1
W
H2H H1
18mm
350mm
W
H2H
D1
D2
W1
W
D
90
o
X
Z Y
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
W
H2H H1
18mm
11mm
W
H H2 H1
W
H2H H1
18mm
350mm
W
H2H
Model
Max door
height
(H)
Cabinet
height
(H1)
Total
height
(H2)
Door
width
(W)
Cabinet
width
(W1)
Total
depth
(D)
Cabinet
depth
(D1)
Depth
door open
(D2)
WBE5300SA, WBE5300WA 1725 1705 1725 796 790 727 641 1457
WBE5304SA, WBE5314SA 1725 1705 1725 796 790 759.5 641 1457
WBE4500SA, WBE4500WA 1725 1705 1725 699 693 727 641 1360
WBE4504SA, WBE4514SA 1725 1705 1725 699 693 759.5 641 1360
WBB3700PF, WBB3700WF 1756 1741 1756 598 595 661 586 1199
WBB3400PF, WBB3400WF 1646 1631 1646 598 595 661 586 1199
† Refer to the product information on the back page of this brochure.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to westinghouse.com.au
Compact bottom mounts†
WBB3700PF, WBB3700WF, WBB3400PF, WBB3400WF
Minimum recommended airspaces
These are the recommended minimum clearances.
Minimum recommended airspaces
These are the recommended minimum clearances.
300mm
50mm
Recommended
airspace
CABINET
DOOR
30mm
30mm
X
Y
W
H2H
15mm
H1
When positioned in a
corner, the clearance
must be at least 300mm
on the hinge side to
allow the door to open
smoothly so that bins
and shelves can be
removed easily. For easy
removal of Crisper it is
recommended to remove
bottle door bin first if
minimum clearance in the
corner on hinge side is
less than 350mm.
300mm
50mm
Recommended
airspace
CABINET
DOOR
30mm
30mm
X
Y
W
H2H
15mm
H1
If gap (Y) is not minimum of
100mm, then gap (X) increase
from 50mm to 90mm min.
D1
D2
W1
W
D
90
o
X
Z Y
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
W
H2H H1
18mm
11mm
W
H H2 H1
W
H2H H1
18mm
350mm
W
H2H
If gap (Y) is not
minimum 100mm, then
gap (X) increases from
50mm to 90mm min.
D1
D2
W1
W
D
90
o
X
Z Y
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
W
H2H H1
18mm
11mm
W
H H2 H1
W
H2H H1
18mm
350mm
W
H2H
Please note:
Doors are
designed to
sit proud of
cabinetry (not
flush).
When positioned in a
corner area, clearance of
at least 350mm on the
hinge side will allow the
doors to open enough to
enable the removal of the
crisper bins and shelves.
This required clearance
inceases to 550mm
for those models with
telescopic extension slide-
out bins.
D1
D2
W1
W
D
90
o
X
Z Y
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
W
H2H H1
18mm
11mm
W
H H2 H1
W
H2H H1
18mm
350mm
W
H2H
550mm for telescopic drawer models
Front face of
bench aligned
to front corner
edge of cabinet.
300mm
50mm
Recommended
airspace
CABINET
DOOR
30mm
30mm
X
Y
W
H2H
15mm
H1
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H H2 H1
S
15mm
W
H H2 H1
550mm for telescopic drawer models
WTE & WTM models
When positioned in a
corner area, clearance
(S) of at least 350mm
on the hinge side
will allow the doors
to open enough to
enable the removal
of the crisper bins
and shelves. This
required clearance
inceases to 550mm
for those models with
telescopic extension
slide-out bins.
WTB models
When positioned in a
corner, the clearance
(S) must be at least
300mm on the hinge
side to allow the door
to open smoothly so
that bins and shelves
can be removed easily.
Front face of bench
aligned to front corner
edge of cabinet.
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H H2 H1
S
15mm
W
H H2 H1
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H
H2 H1
S
15mm
W
H
H2 H1
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H H2 H1
S
15mm
W
H H2 H1
Model
Max door
height
(H)
Cabinet
height
(H1)
Total
height
(H2)
Door
width
(W)
Cabinet
width
(W1)
Total
depth
(D)
Cabinet
depth
(D1)
Depth
door open
(D2)
WTB4600SA, WTB4600WA 1725 1705 1725 699 693 727 641 1360
WTB4604SA 1725 1705 1725 699 693 759.5 641 1360
WTB5400SA, WTB5400WA 1725 1705 1725 796 790 727 641 1457
WTB5404SA 1725 1705 1725 796 790 759.5 641 1457
WTM1800WC 1400 1400 1400 494 490 580 490 1029
WTM2000WC 1476 1472 1476 524 520 595 500 1070
WTB2300PF, WTB2300WF 1440 1425 1440 540 540 615 540 1108
WTB2500PF, WTB2500WF 1505 1490 1505 540 540 615 540 1108
WTB2800PF, WTB2800WF 1605 1590 1605 540 540 615 540 1108
WTB3400PF, WTB3400WF 1645 1630 1645 598 595 650 575 1199
WTB3700PF, WTB3700WF 1755 1740 1755 598 595 650 575 1199
† Refer to the product information on the back page of this brochure.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to westinghouse.com.au
Large top mounts†
WTB4600SA, WTB4600WA, WTB4604SA,
WTB5400SA, WTB5400WA, WTB5404SA
Compact top mounts†
WTB3700PF, WTB3700WF,
WTB3400PF, WTB3400WF,
WTB2800PF, WTB2800WF,
WTB2500PF, WTB2500WF,
WTB2300PF, WTB2300WF,
WTM2000WC, WTM1800WC
Minimum recommended airspaces
These are the recommended minimum clearances.
WME3600SF
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H H2 H1
S
15mm
W
H H2 H1
If gap (Y) is not
minimum of
100mm, then gap
(X) increase from
50mm to
90mm min.
D1
D2
W1
W
D
90
o
X
Y
COMPACT TOP
LARGE TOP MOUNTS
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
W
H2H H1
18mm
W
H H2 H1
S
15mm
W
H H2 H1
Please note:
Doors are designed to
sit proud of cabinetry
(not flush).
Large bottom mounts†
WBE5304SA, WBE5314SA, WBE5300WA, WBE5300SA,
WBE4504SA, WBE4514SA, WBE4500SA, WBE4500WA
5150
Warranty
Electrolux Home Products Pty Ltd warrants that for domestic application, the Westinghouse Fridges featured in this brochure are free from defects in
materials and workmanship for a period of 24 months from the date of first purchase, subject to the conditions set out in the warranty card accompanying
the product when purchased and the Australian Consumer Law. They are not suitable for applications where special health and industry requirements
and regulations apply. An additional 36 month warranty is also provided for domestic applications only to cover replacement of parts only for the sealed
refrigeration system.
†
Product information
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy
of continuous product development, product specifications may change without notice. Prospective purchasers should therefore check with
their retailer to ensure this publication correctly describes the products that are being oered for sale. All information supplied is to be used
for general reference purposes only and is on the understanding that Electrolux Home Products Pty Ltd will not be liable for any loss, liability or
damage of whatever kind arising as a result of reliance on such information. Colours of products illustrated are as close as printing limitations
allow. Electrolux will at all times comply with its obligations pursuant to law including Competition and Consumer Act 2010, Australian Consumer
Law and Regulations.
Chill stream
®
is a registered trademark of Aktiebolaget Electrolux.
FlexSpace™, FlexStor™, FamilySafe™, FlexFresh™, Aqua Direct™, Spillsafe™ and Storesafe™ are used by Electrolux Home Products Pty Ltd.
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved.
© 2015 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 WFRIDGE_Nov15_WEB
For more information on all Westinghouse appliances, or for
dimension and installation information, call into your retailer,
phone or email our customer care team or visit our website:
phone: 1300 363 640
fax: 1800 350 067
email: customercare@electrolux.com.au
web: westinghouse.com.au
We invite you to follow Westinghouse appliances
and get involved in the conversation.
Top service
Electrolux Top Service encompasses the after sales service
including Delivery, Home Service and Spare Parts.
Spare Parts and Accessories:
Westinghouse oers an extensive range of genuine spare parts and accessories to purchase
across our entire range of products. With purchasing options to suit your shopping style, you
can be sure we are always thinking of you. To view and purchase genuine spare parts and
accessories online visit shop.westinghouse.com.au
To discuss and purchase genuine spare parts and accessories with one of our friendly sta call
1300 363 640. To find your nearest Electrolux spare parts retailer call 13 13 50.
