1
O-555/O-777
Commercial Air Purifier
2
OWNER’S MANUAL
Please read all of the information provided in this owner’s
manual before operating your new Enerzen commercial air
purifier.
3
CAUTION
RISK OF ELECTRICAL
SHOCK DO NOT OPEN
ATTENTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVCE PERSONNEL.
This “bolt of lightning” indicates that uninsulated material
within your unit may cause an electrical shock. For the
safety of everyone, do not remove the product covering.
4
Read ALL instructions carefully before using this product.
Model: O-555/O-777
Rated Voltage: USA/Japan AC 100-120V/50-60Hz
Power Consumption: 60 W
Ceramic Plate Size(1plate): 90X50MM
Air Volume: Max 100 CFM(2.8 M
3
/min)
Sound Level(DB): 35 Db
Product size(mm): W178xH148xD205MM
Weight: 2.24Kgs(4.9Lbs)
5
Operating the Commercial Purifier
(Front View)
Timer Control Knob Turn clockwise to set the
timer for timed operation up
to two hours.
Indicator Light Illuminates when the unit is in
operation.
6
(Back View)
Fuse Holder Houses removable fuse.
(Spare fuse included, 1 amp, 0.79
inch in length)
Power Cord 100~120 Volt grounded cord
7
The Enerzen Commercial Ozone Generator and Air Purifier is
designed to remove odors in unoccupied spaces. The unit has a
timer that will enable it to run for a maximum duration of 2 hours.
The timer will then shut the unit off. You should allow 40-60
minutes before returning to the treated area. We recommend an
initial treatment time of 15-30 minutes to see if that is sufficient to
remove odors followed by longer treatment times if necessary.
To operate the Air Purifier:
Close off the desired area to be treated.
Remove all occupants, plants, and pets.
Position the unit as close as possible to the odor source.
In such environments as motels that have individual heating
and cooling systems, turn the fan on and set on re-circulate.
Set timer to desired time and leave the room.
Allow 40-60 minutes before re-entering the treated space.
Return to space & ventilation area.
8
When the air purifier no longer produces enough ozone to be
effective, the ozone plate should be replaced.

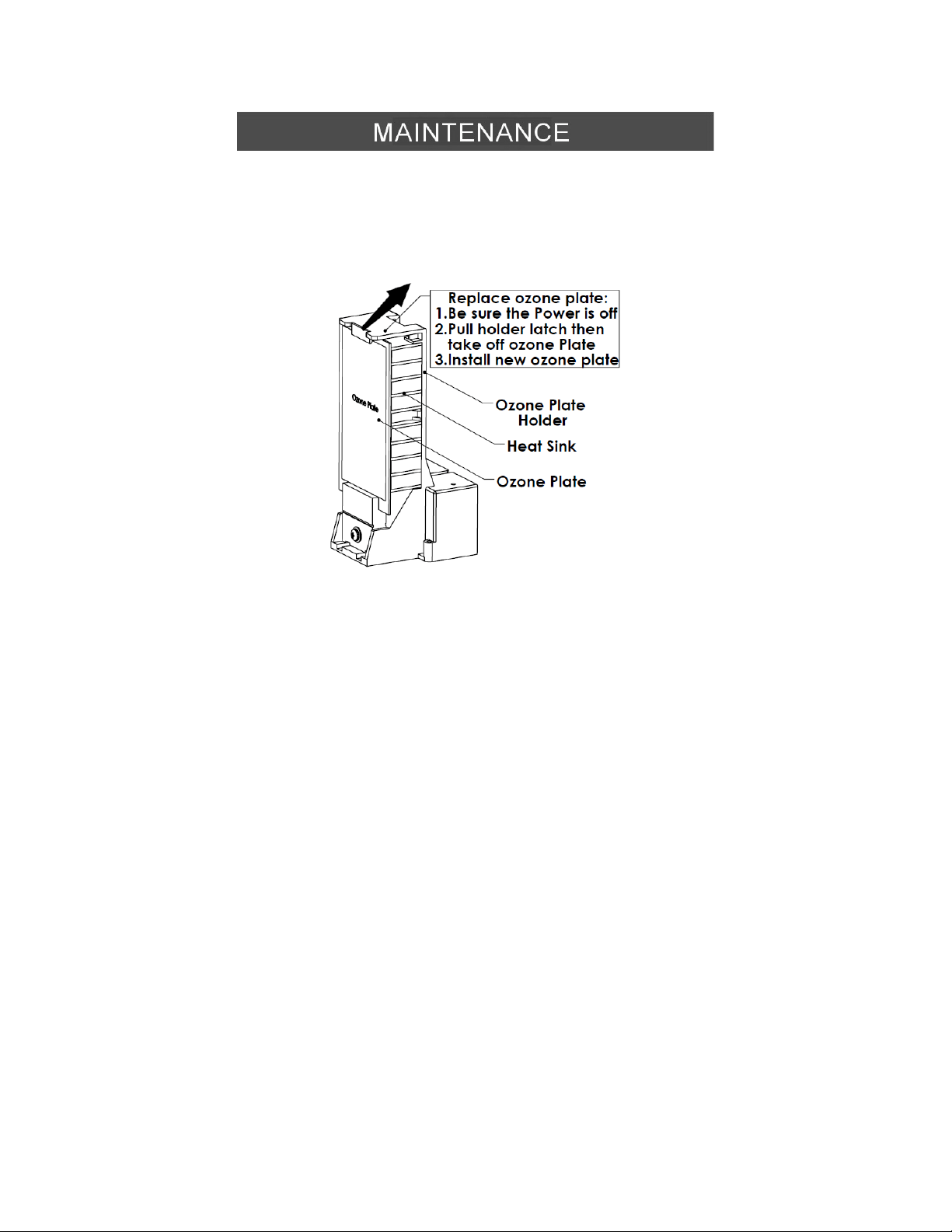

How to replace a plate:
1) Turn the unit off and unplug from outlet.
2) Use a screw driver to unfasten cover screw and remove
cover.
3) Pull ceramic plate out of ozone generator module.
4) Install ceramic plate as shown in left figure (be careful not to
drop the plate).
9
If you suspect a problem with your unit check the following:
1) Unit is plugged in properly.
2) It’s important that the air purifier be properly grounded to
avoid potential shock.

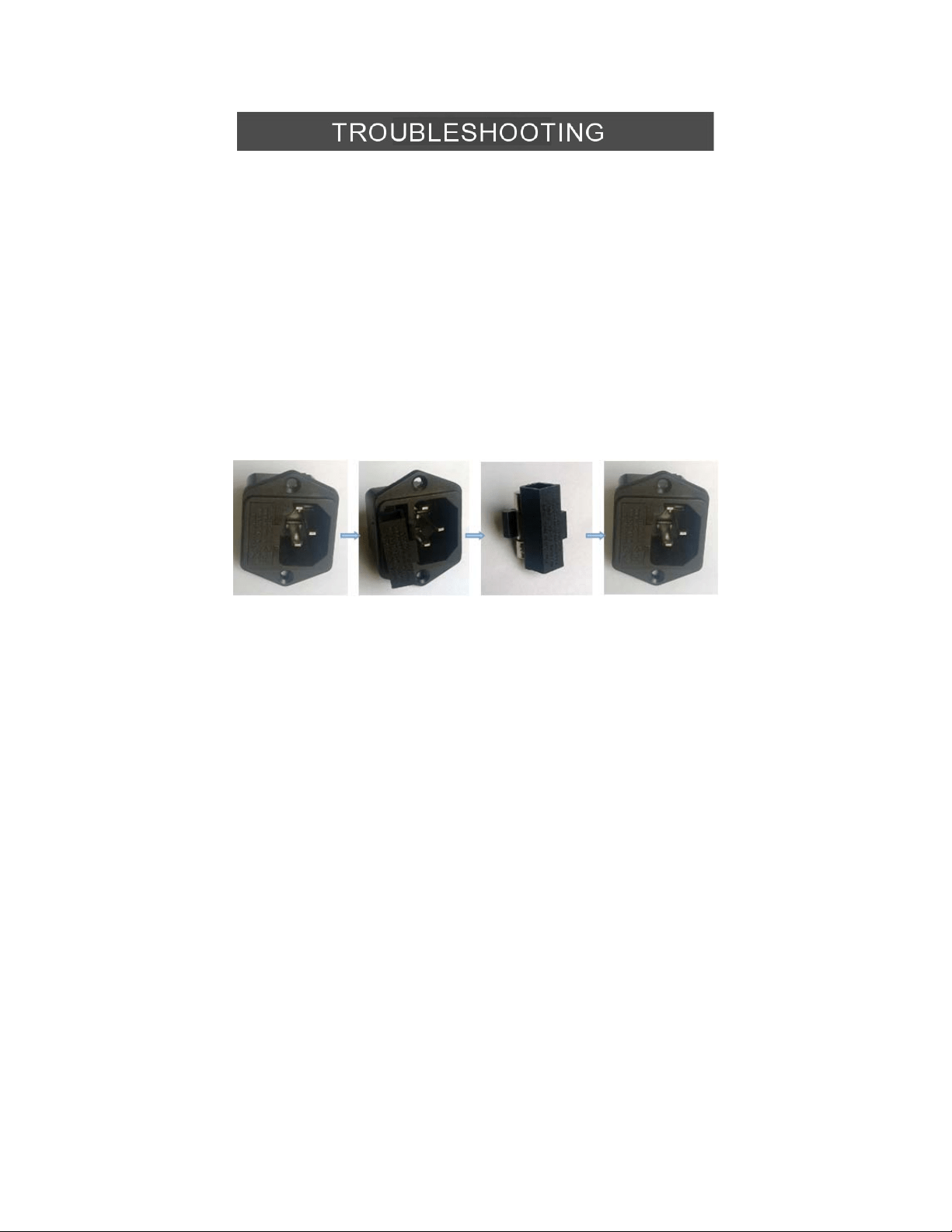

3) Fuse is installed properly and in good condition. To replace
fuse, pull out the plastic fuse holder, remove old fuse and
insert new fuse. Replacement fuse must be 1 amp (0.79
inch). Refer to picture as follows:
10
Warranty Information
OION Technologies, LLC (collectively “OION”) warrants from the date of
purchase, this product will be free from defects in material and workmanship.
Please refer to your retailer’s product sales page for the duration of the
warranty period. OION, at its option, will repair or replace this product or any
component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or
component. If the product is no longer available, replacement may be made
with a similar product of equal or greater value. This is your exclusive
warranty. Do NOT attempt to repair or adjust any electrical or mechanical
functions on this product. Doing so will void this warranty. This warranty is
valid for the original retail purchaser from the date of initial retail purchase and
is not transferable. Proof of purchase is required to obtain warranty
performance. This warranty does not cover normal wear of parts or damage
resulting from any of the following: negligent use or misuse of the product, use
on improper voltage or current, use contrary to the operation instructions,
disassembly, repair or alteration by anyone other than an OION authorized
service technician or OION service center. Additionally, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.
OION shall not be liable for any incidental or consequential damages caused
by breach of any express, implied or statutory warranty or condition. Except to
the extent prohibited by applicable law, any implied warranty or condition of
merchantability or fitness for a particular purpose is limited in duration to the
duration of the above warranty. OION disclaims all other warranties,
conditions or representations, express, implied, statutory or otherwise. OION
shall not be liable for any damages of any kind resulting from the purchase,
use or misuse of, or inability to use the product including incidental, special,
consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser
by any other party. Some provinces, states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above limitation or exclusion may
not apply to you. This warranty gives you specific legal rights, and you may
also have other rights that vary from province to province, state to state or
jurisdiction to jurisdiction. To obtain warranty service, please contact us at
[email protected] and a service center address will be provided to
you.
