CD-C607H/611H

– 1 –

CD-C607H

CD-C611H

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

SHARP CORPORATION

No. S5928CDC607H/

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ............................................................................................................ 2

IMPORTANT SERVICE NOTES (FOR U.K. ONLY ) ......................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 6

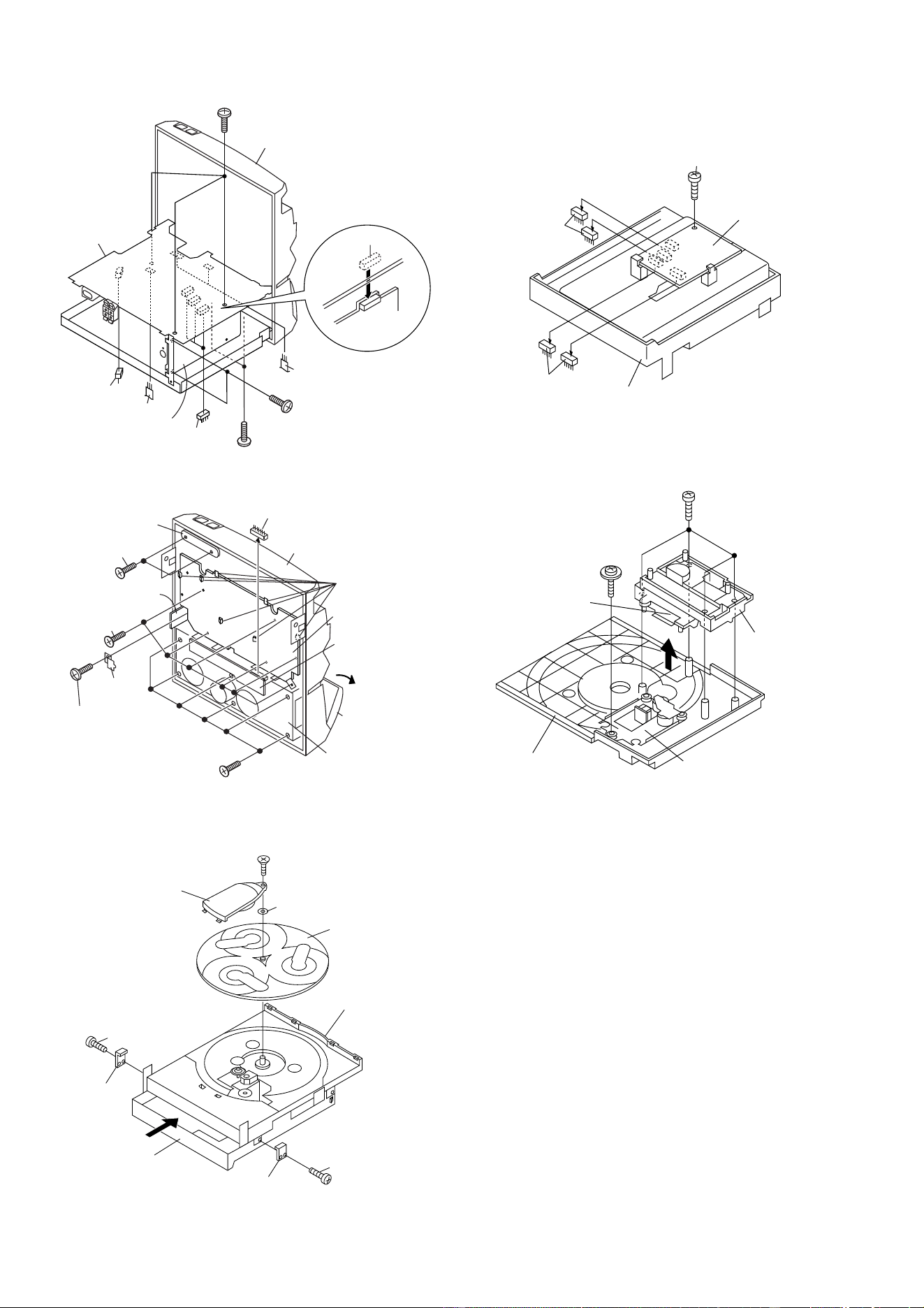

DISASSEMBLY .................................................................................................................................................................. 7

REMOVING AND REINSTALLING THE MAIN PARTS ..................................................................................................... 9

ADJUSTMENT ................................................................................................................................................................. 10

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 16

TYPE OF TRANSISTER AND LED ................................................................................................................................. 16

BLOCK DIAGRAM ........................................................................................................................................................... 17

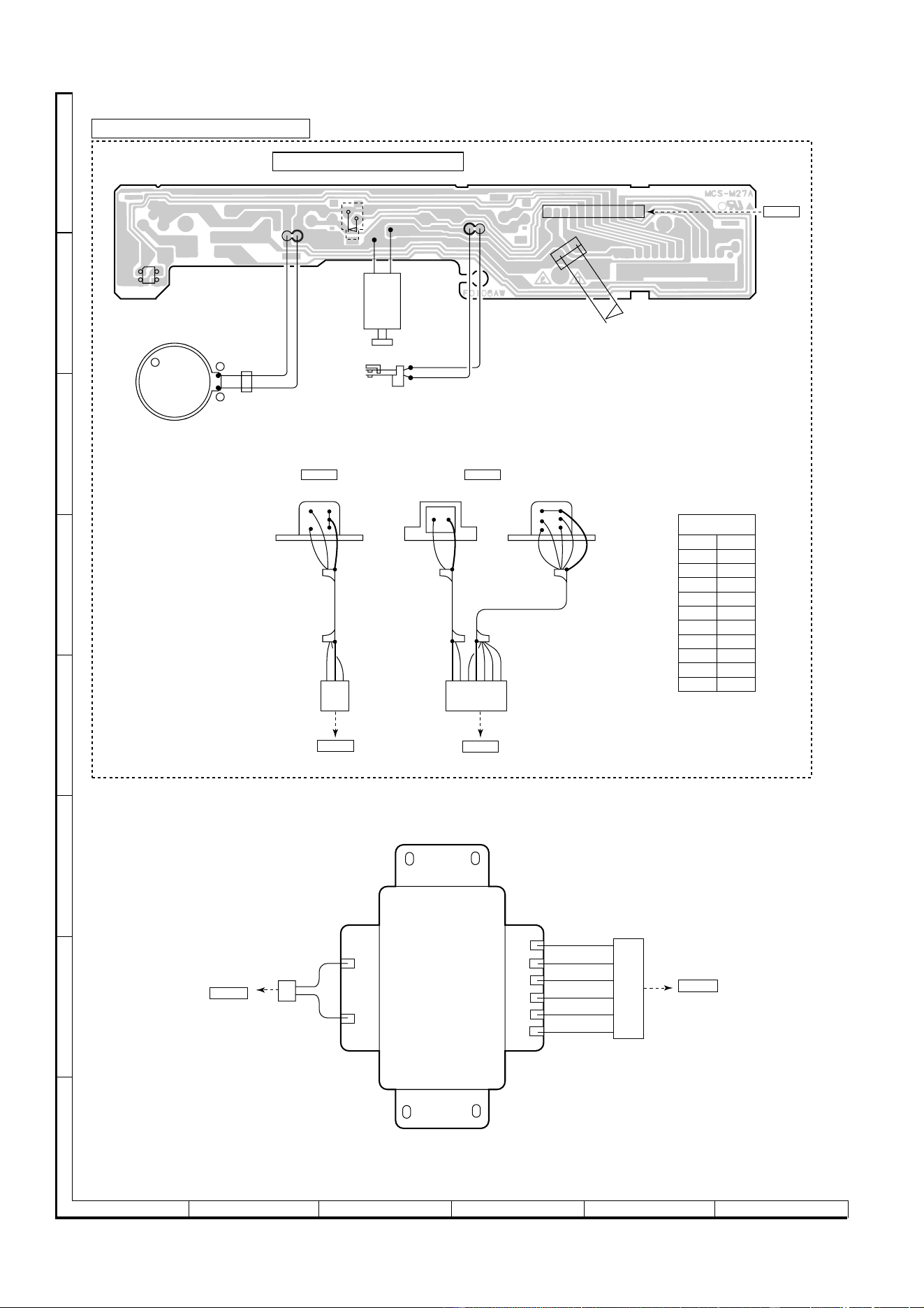

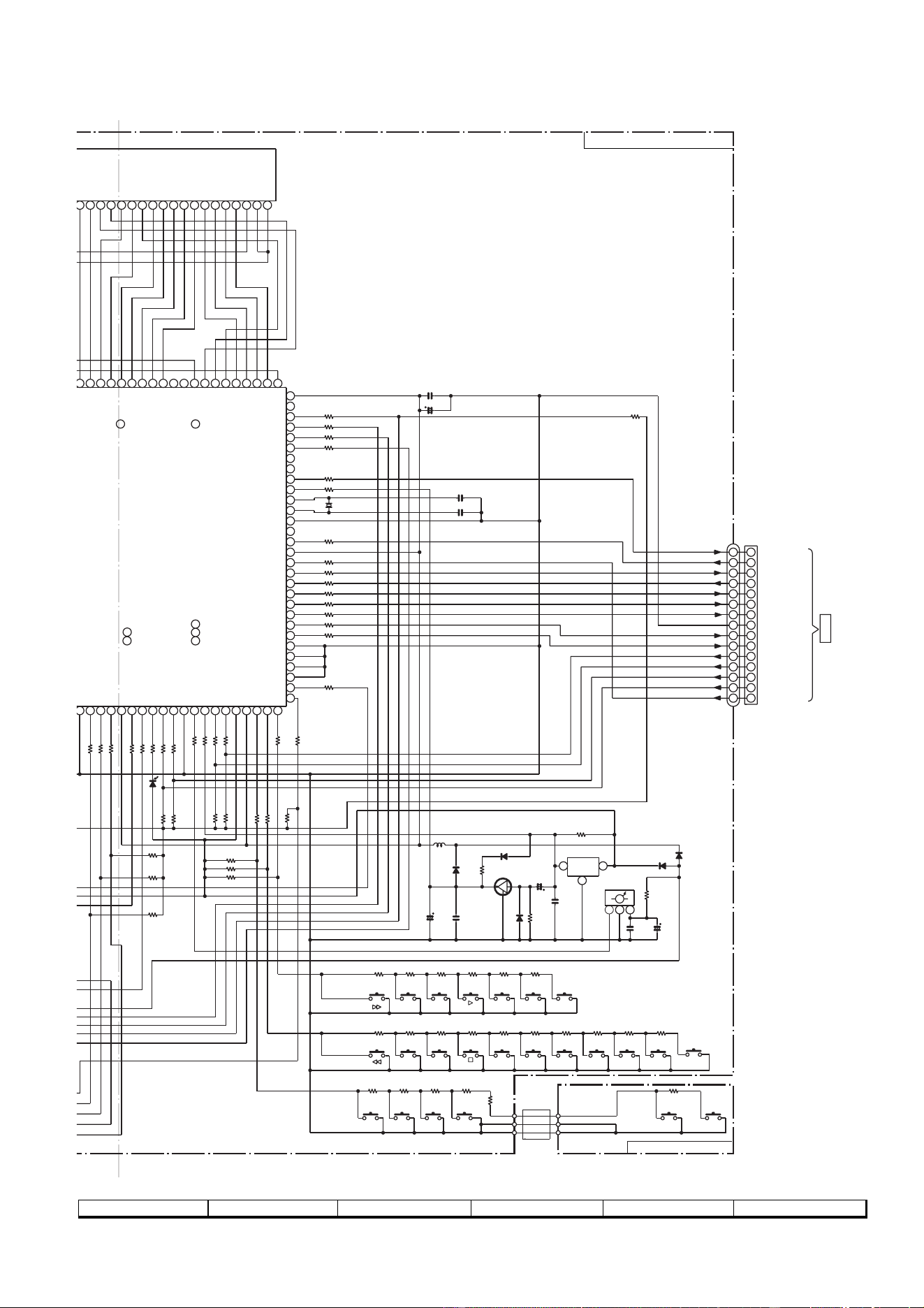

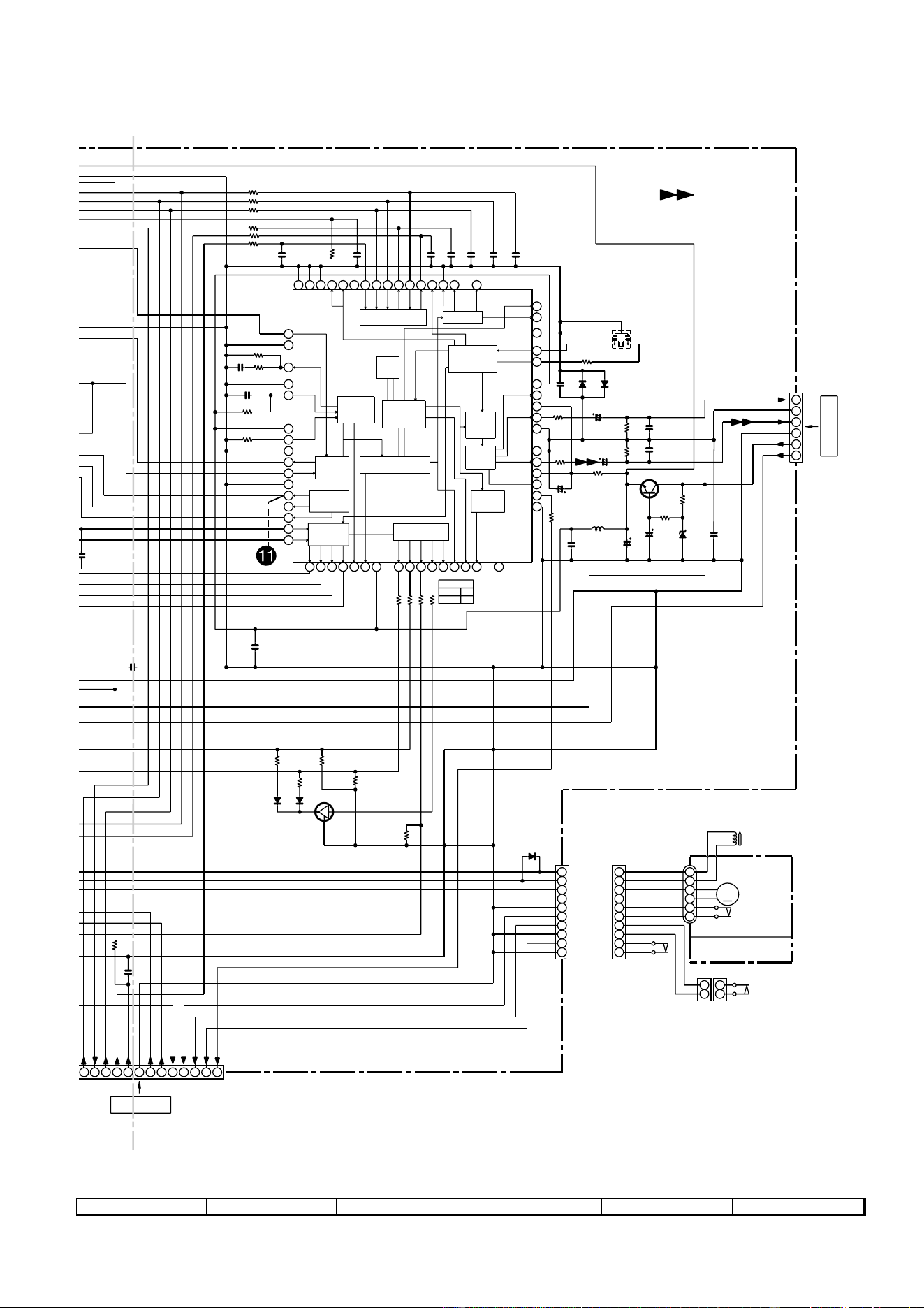

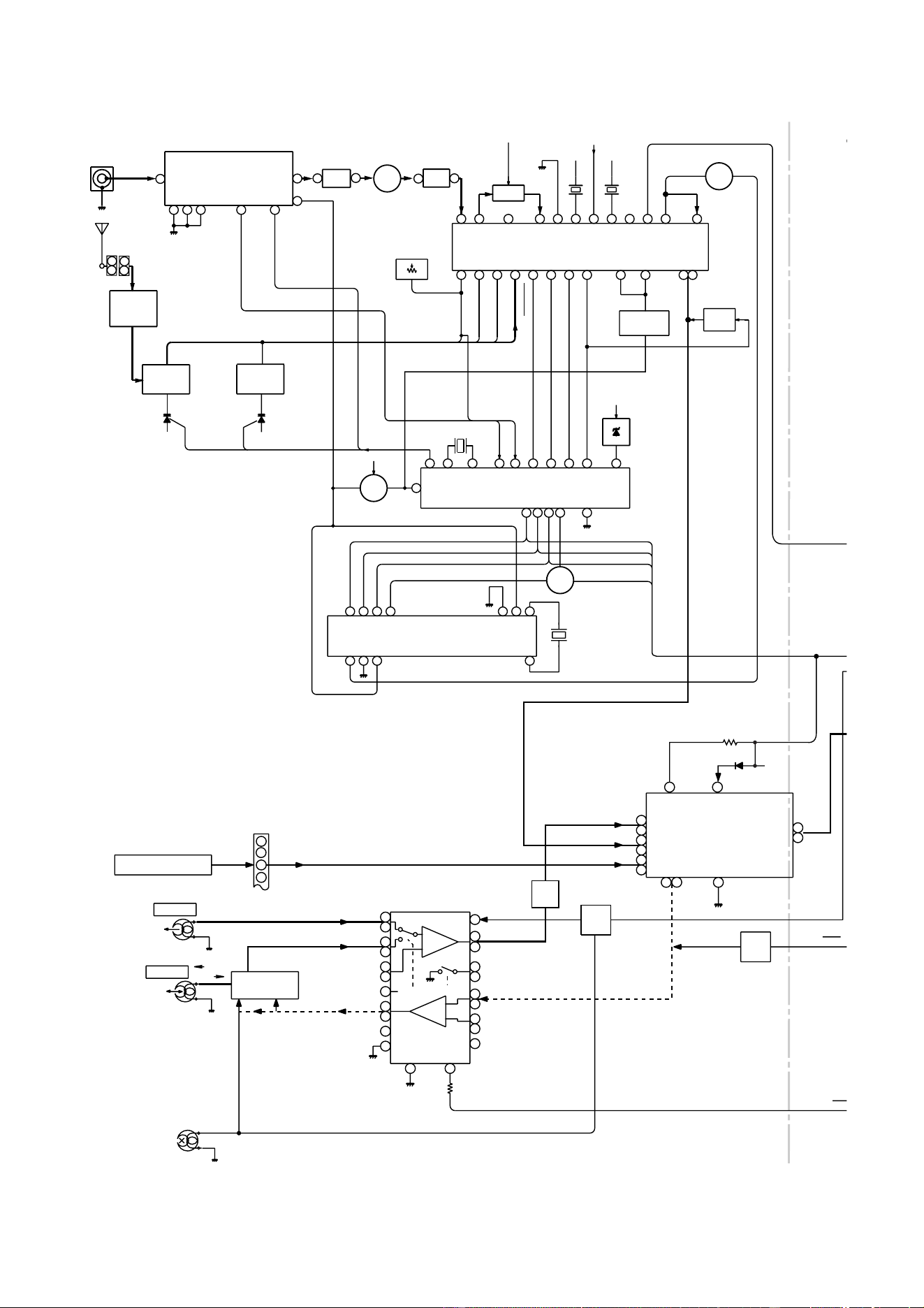

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 22

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 35

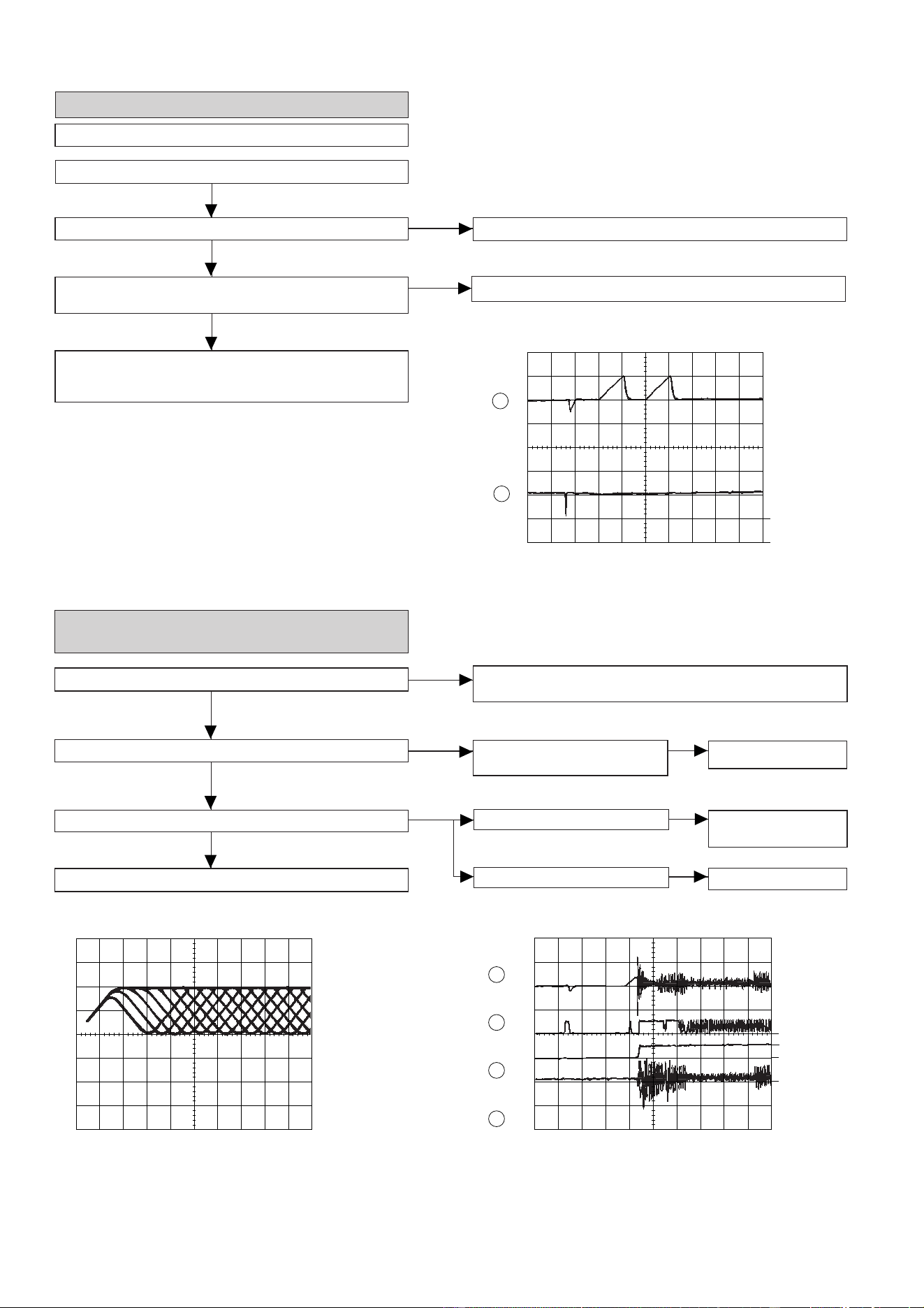

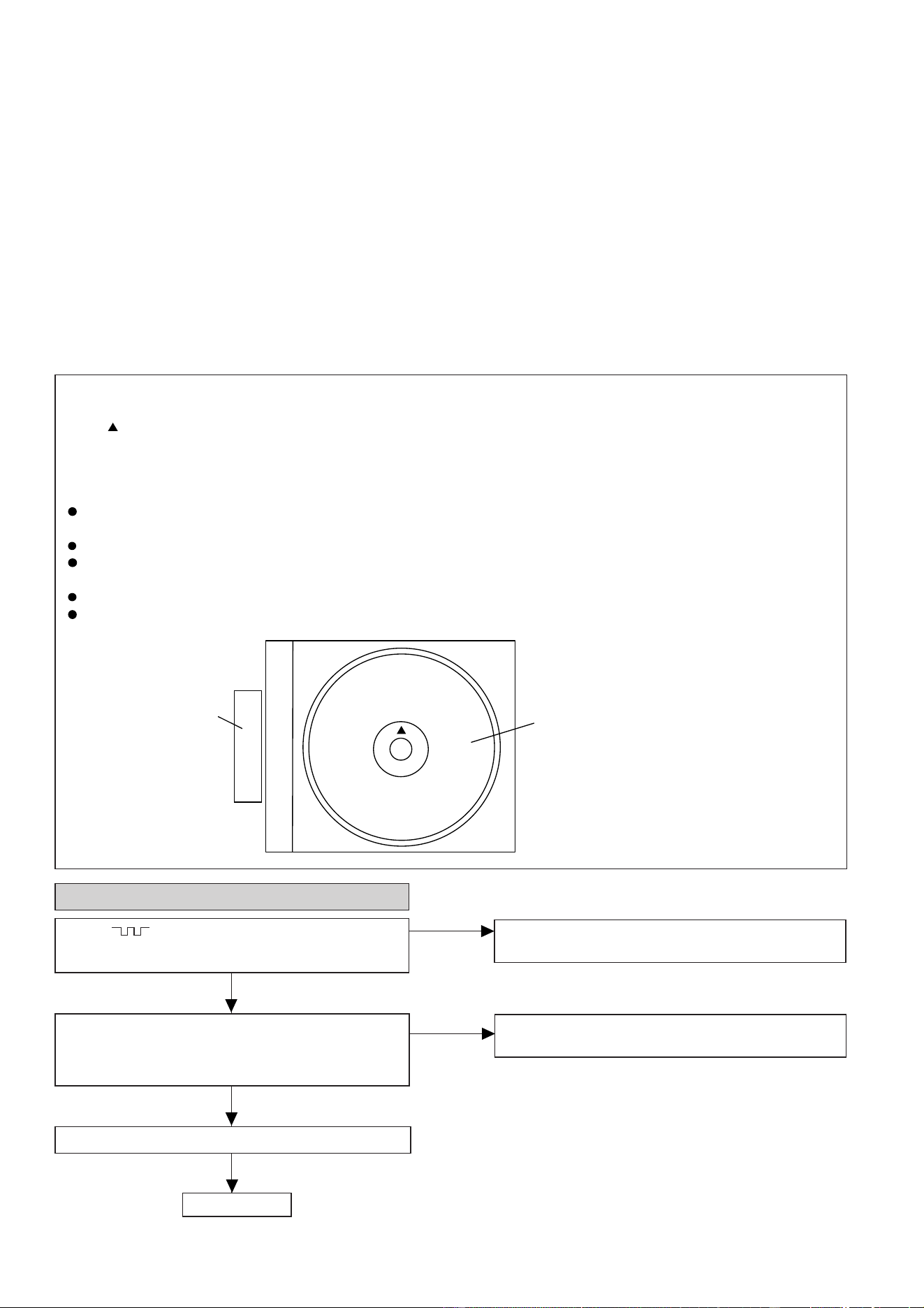

TROUBLESHOOTING ..................................................................................................................................................... 36

FUNCTION TABLE OF IC................................................................................................................................................ 40

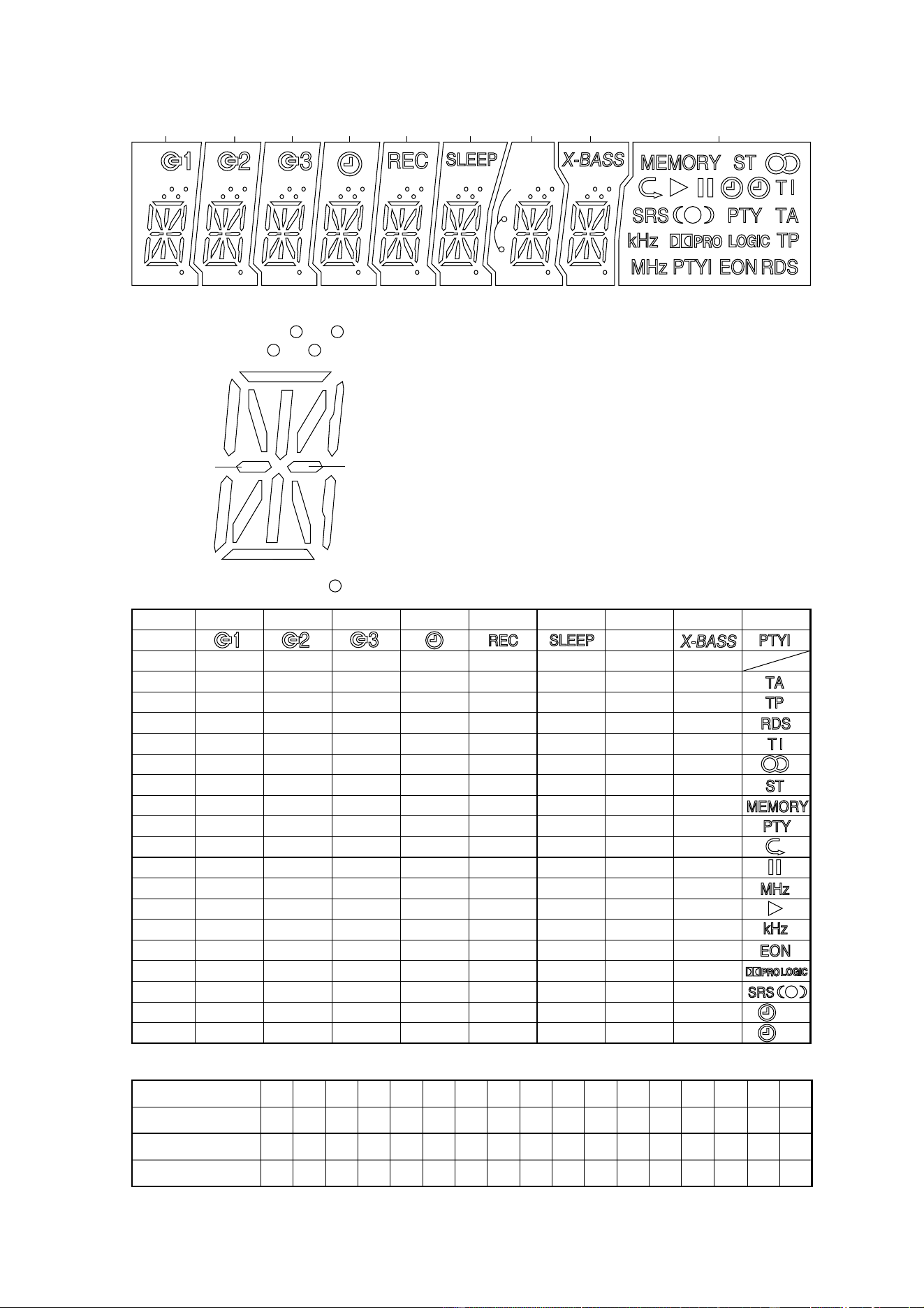

FL SEGMENT ...................................................................................................................................................................45

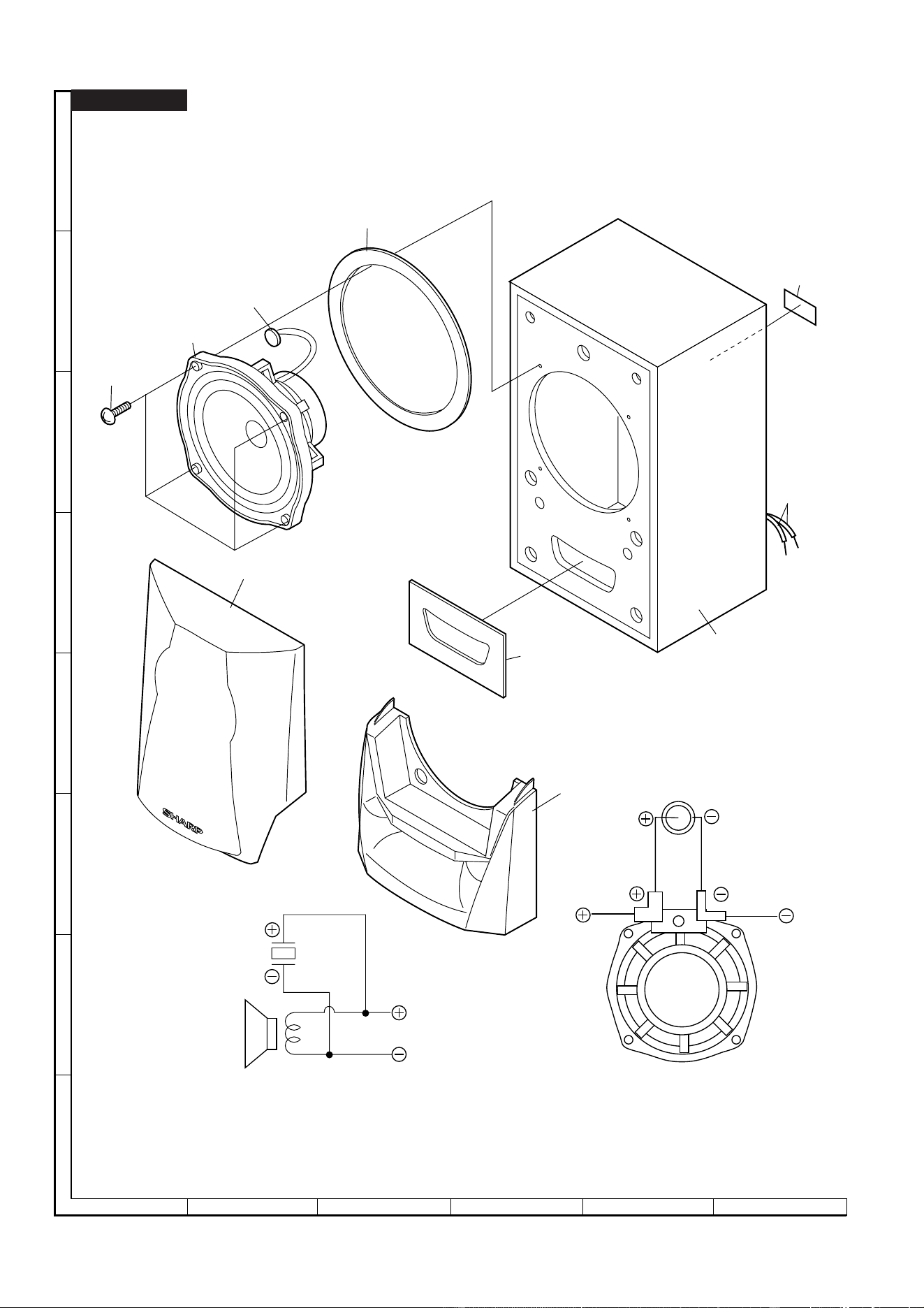

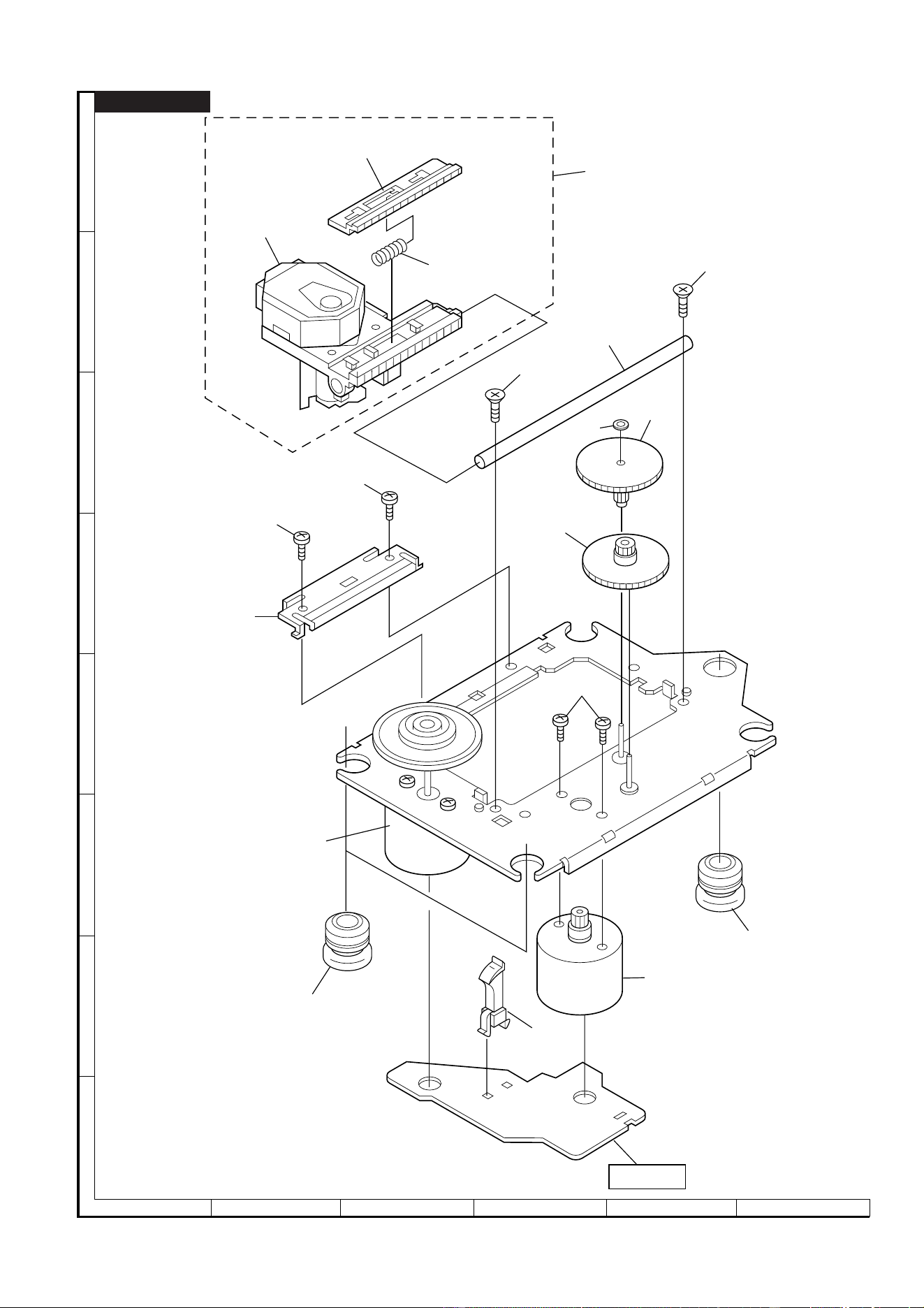

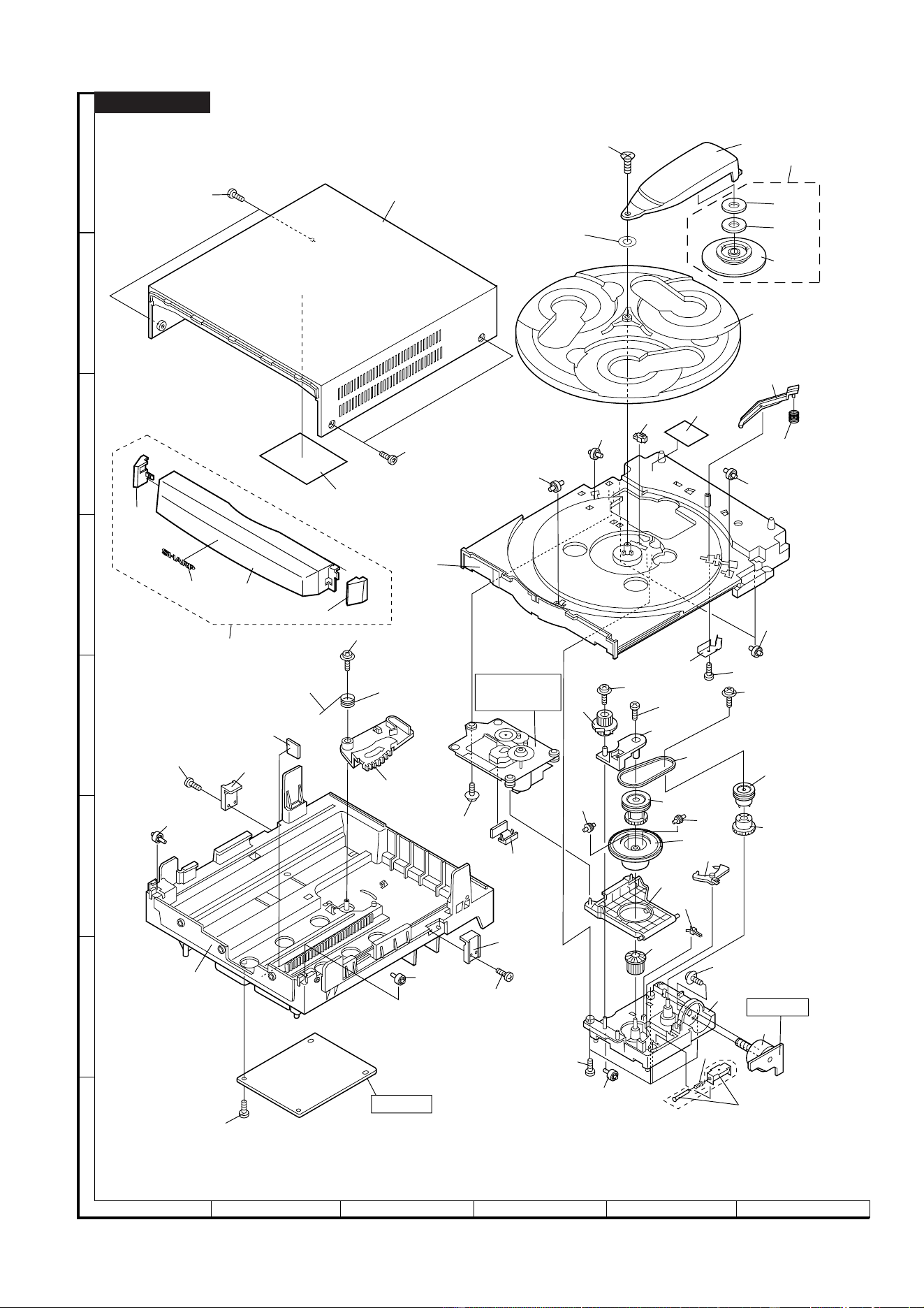

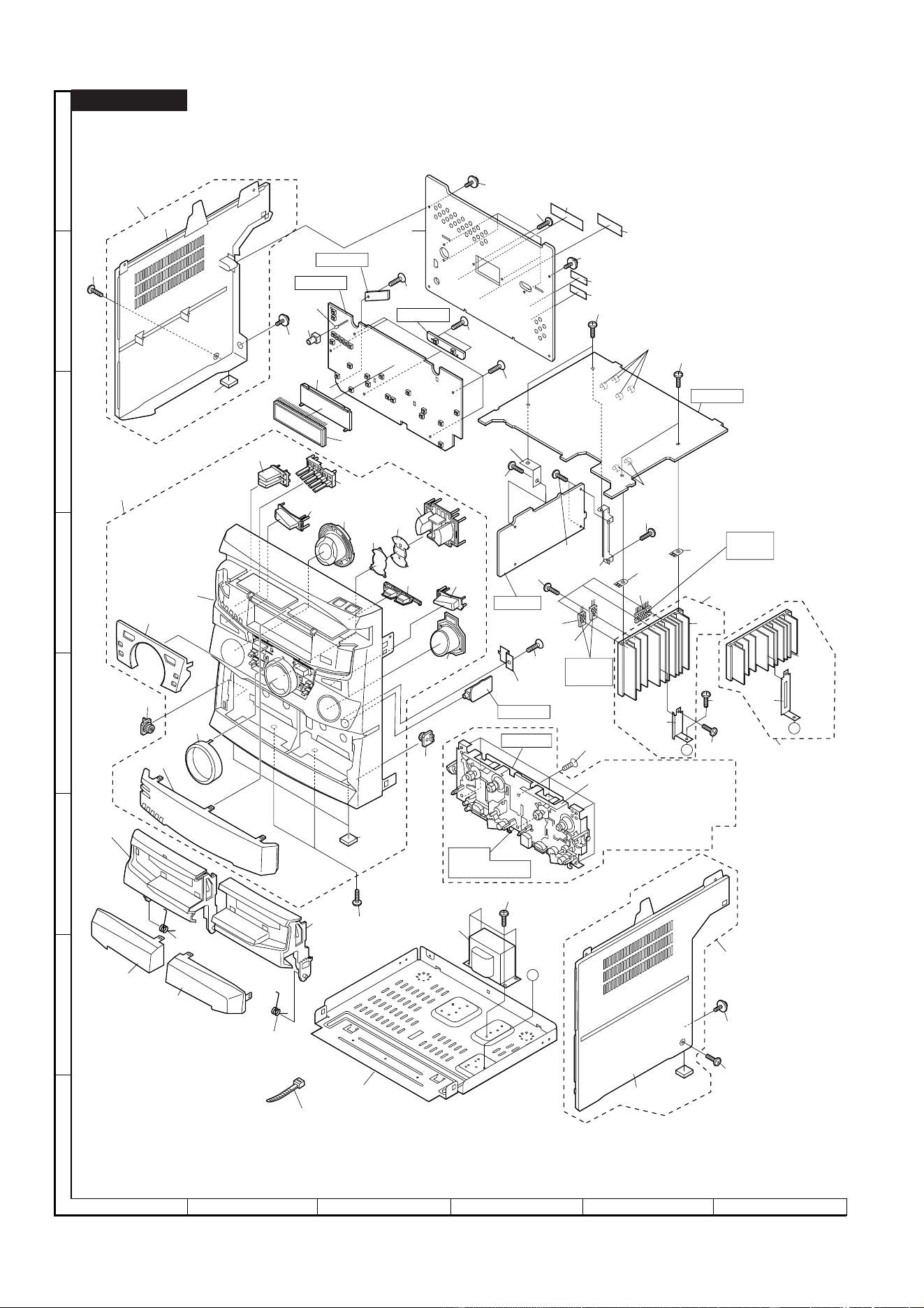

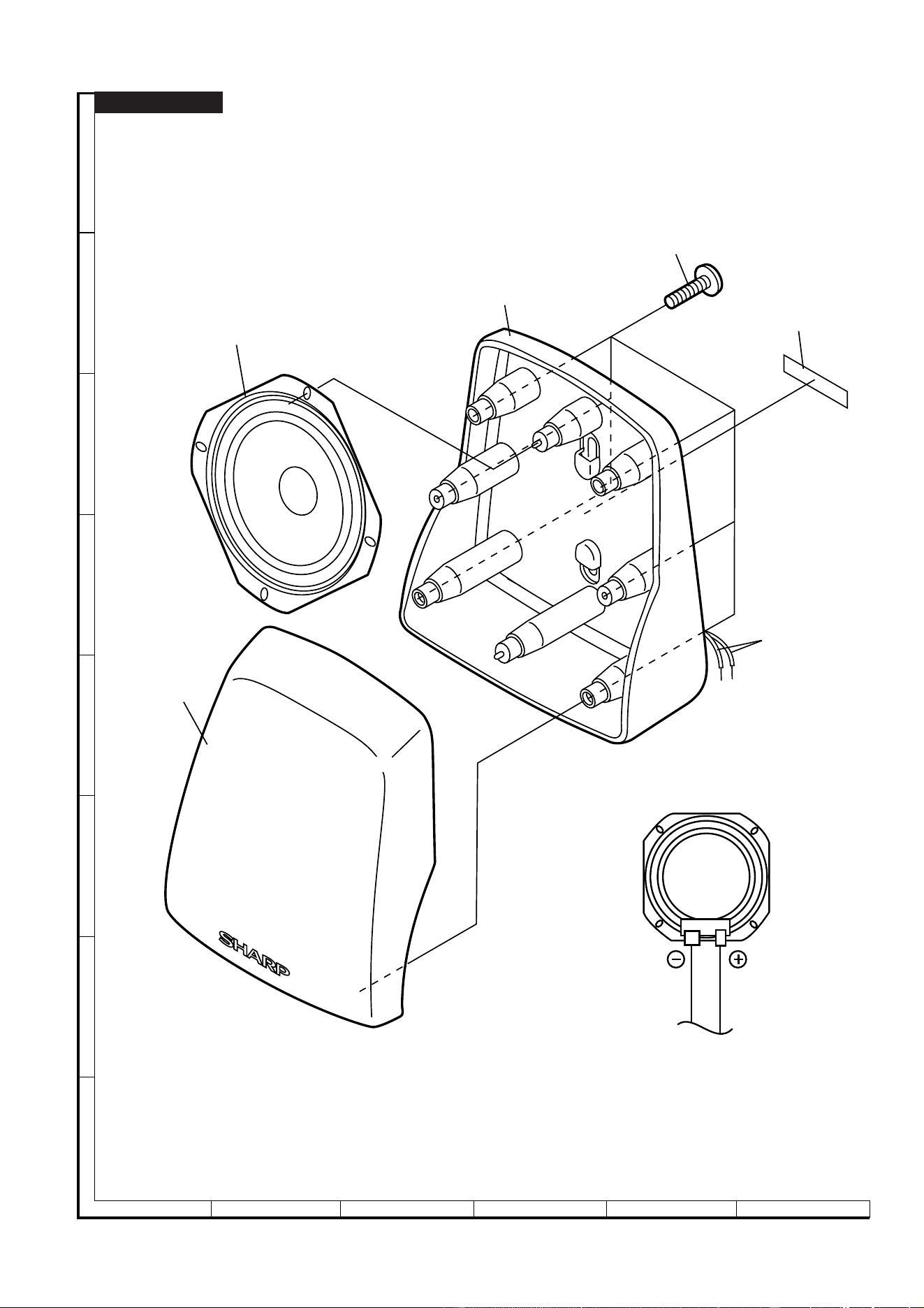

PARTS GUIDE/EXPLODED VIEW

PACKING METHOD(FOR U.K. ONLY )

Illustration: CD-C611H

CD-C611H mini component system consisting of

CD-C611H (Main unit), CP-C611H (Front speaker)

and GBOXS0028AWM1 (Surround speaker).

CD-C607H mini component system consisting of

CD-C607H (Main unit), CP-C607H (Front speaker).

• Note for users in U.K.

Recording and playback of any material may require consent

which SHARP is unable to give. Please refer particularly to the

provisions of Copyright Act 1956, the Dramatic and Musical

Prefomers Protection Act 1956, the Preformers Protection Acts

1963 and 1972 and to any subsequent statutory enactments and

orders.

SECTION

CD-C607H

CD-C611H

Surround Speaker None Used

DIFFERENCE BETWEEN

CD-C607H AND CD-C611H

Illustration: CD-C607H

CD-C607H/611H

– 2 –

Precaution to be taken when replacing and servicing the

Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output

for this model is specified to be lower than Class I Requirements.

However, the following precautions must be observed during

servicing to protect your eyes against exposure to the Laser

beam.

(1) When the cabinet has been removed, the power is turned

on without a compact disc, and the Pickup is on a position

outer than the lead-in position, the Laser will light for several

seconds to detect a disc. Do not look into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit and

replacement service parts have already been adjusted prior

to shipping.

(3) No adjustment to the Laser Power should be attempted

when replacing or servicing the Pickup.

(4) Under no circumstances look directly into the Pickup Lens

at any time.

(5) CAUTION - Use of controls or adjustments, or performance

of procedures other than those specified herein may result

in hazardous radiation exposure.

IMPORTANT SERVICE NOTES (FOR U.K. ONLY)

Before returning the unit to the customer after completion of a

repair or adjustment it is necessary for the following withstand

voltage test to be applied to ensure the unit is safe for the

customer to use.

Setting of Withstanding Voltage Tester and set.

Set name set value

Withstanding Voltage Tester

Test voltage 4,240 VPEAK

3,000 VRMS

Set time 6 secs

Set current(Cutoff current) 4 mA

Unit

Judgment

OK: The “GOOD” lamp lights.

NG: The “NG” lamp lights and the buzzor sounds.

SHORT-CIRCUIT

AC POWER

SUPPLY CORD

CONNECT THE PROBE

TO GND TERMINAL

OF PHONO TERMINAL

PROBE

UNIT

WITHSTANDING

VOLTAGE TESTER

OUT

OF CHASSIS

SCREW

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO

BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA

EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I

STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.

ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.

STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT

INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE

INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN

TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA

ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT

ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN

ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG

LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR

LASERKLASS 1.

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CHASSIS

SCREW

SAFETY PRECAUTION FOR SERVICE MANUAL

(For U.K.) (Except For U.K.)

Illustration: CD-C611H

CD-C607H/611H

– 3 –

CP-C611H

Specifications for this model are subject to change without prior

notice.

CD-C607H/611H

GBOXS0028AWM1

(CD-C611H ONLY)

CP-C607H

SPECIFICATIONS

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

● General (CD-C611H)

Power source: AC 230 V, 50 Hz

Power consumption: 47 W

Dimensions: Width; 270 mm (10-5/8")

Height; 300 mm (11-13/16")

Depth; 353 mm (13-7/8")

Weight: 5.5 kg (12.1 lbs.)

● Amplifier section (CD-C611H)

Output power: PMPO; 120 W (total)

MPO; 60 W (30 W + 30 W)

(DIN 45 324)

RMS; 40 W (20 W + 20 W)

(DIN 45 324)

RMS; 28 W (14 W + 14 W)

(DIN 45 500)

Output terminals: Front speakers; 5.4 ohms

Surround speakers; 16 ohms

Headphones; 16-50 ohms

(recommended; 32 ohms)

● Compact disc player section

Type: 3-disc multi-play compact

disc player

Signal readout: Non-contact, 3-beam semi-

conductor laser pickup

D/A converter: 1-bit D/A converter

Frequency

response: 20 - 20,000 Hz

Dynamic range: 90 dB (1 kHz)

● General (CD-C607H)

Power source: AC 230 V, 50 Hz

Power consumption: 40 W

Dimensions: Width; 270 mm (10-5/8")

Height; 300 mm (11-13/16")

Depth; 353 mm (13-7/8")

Weight: 5.4 kg (11.9 lbs.)

● Amplifier section (CD-C607H)

Output power: PMPO; 60 W (total)

MPO; 33 W (16.5 W + 16.5 W)

(DIN 45 324)

RMS; 20 W (10 W + 10 W)

(DIN 45 324)

RMS; 16 W (8 W + 8 W)

(DIN 45 500)

Output terminals: Front speakers; 8 ohms

Headphones; 16-50 ohms

(recommended; 32 ohms)

● Front speaker section

Type: 2-way type [130 mm (5-1/4") woofer

and super tweeter]

Maximum input power: 30 W

Rated input power: 15 W

Impedance: 5.4 ohms

Dimensions: Width; 180 mm (7-1/8")

Height; 300 mm (11-13/16")

Depth; 215 mm (8-7/16")

Weight: 2.0 kg (4.4 lbs.)/each

● Surround speaker section

Type: 80 mm (3-1/4") full-range speaker

Maximum input power: 10 W

Rated input power: 5 W

Impedance: 16 ohms

Dimensions: Width; 150 mm (6")

Height; 150 mm (6")

Depth; 78 mm (3")

Weight: 0.5 kg (1.0 lbs.)/each

● Front speaker section

Type: 2-way type [100 mm (4") woofer

and super tweeter]

Maximum input power: 20 W

Rated input power: 10 W

Impedance: 8 ohms

Dimensions: Width; 180 mm (7-1/8")

Height; 300 mm (11-13/16")

Depth; 215 mm (8-7/16")

Weight: 2.0 kg (4.4 lbs.)/each

● Tuner section

Frequency range: FM; 87.5-108 MHz

AM; 522 - 1,620 kHz

● Cassette deck section

Type: Compact cassette tape

Frequency response: 50-14,000 Hz (Normal tape)

Motor: DC motor with electronic governor × 1

Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Bias and erasure

system: AC

Tape speed: 4.76 cm/sec. (1-7/8 ips.)

Wow and flutter: 0.2 % (DIN 45 511, playback)

Heads: TAPE-1: Playback × 1

TAPE-2: Record/playback × 1

Erase × 1

CD-C607H/611H

– 4 –

NAMES OF PARTS

■ Front panel

11.

Disc Tray

12.

Disc Skip Button

13.

Open/Close Button

14.

(CD) Disc Number Indicators

15.

(TAPE 2) Record Indicator

16.

Sleep Indicator

17.

Extra Bass Indicator

18.

(CD/TUNER) Memory Indicator

19.

Timer Play Indicator

10.

FM Stereo Mode Indicator

11.

Timer Record Indicator

12.

(CD) Play Indicator

13.

(CD) Repeat Indicator

14.

(CD) Pause Indicator

15.

Programme Type Indicator

16.

FM Stereo Indicator

17.

Traffic Information Indicator

18.

Traffic Announcement Indicator

19.

Traffic Programme Indicator

20.

Dynamic PTY Indicator

21.

EON Indicator

22.

RDS Indicator

23.

Timer Set Indicator

24.

(TUNER) Display Mode Selector Button

25.

(TUNER) Station Selector Button

26.

(CD) Track Down/Review Button

(TUNER) Preset Down Button

(TAPE 2) Rewind Button

27.

(CD) Track Up/Cue Button

(TUNER) Preset Up Button

(TAPE 2) Fast Forward Button

28.

Timer/Sleep Button

29.

Clock Button

30.

(TUNER) EON Button

31.

(TUNER) Programme Type/Traffic Information

Search Button

32.

(TUNER) ASPM Button

33.

On/Stand-by Button

34.

Extra Bass/Demo Mode Button

35.

Function Selector Buttons

36.

(TAPE 2) Record Pause Button

37.

Memory/Set Button

38.

(CD/TAPE) Stop Button

39.

(TAPE) Play Button

(CD) Play/Repeat Button

40.

Tuning and Time Up/Down Buttons

41.

Volume Up/Down Buttons

42.

Headphone Socket

43.

(TAPE 1) Cassette Compartment

44.

(TAPE 2) Cassette Compartment

21 22

CD-C607H/611H

Illustration: CD-C611H

CD-C607H/611H

– 5 –

CD-C607H/611H

■ Rear panel

11.

AC Power Input Socket

12.

Front Speaker Terminals

13.

Surround Speaker Terminals (CD-C611H ONLY)

14.

FM 75 Ohms Aerial Socket

15.

AM Loop Aerial Input Socket

■ Front speaker

11.

Super Tweeter

12.

Woofer

13.

Bass Reflex Ducts

14.

Speaker Wire

■ Surround speaker

15.

Full-Range Speaker

16.

Speaker Wire

■ Remote control

11.

Remote Control Transmitter LED

● CD control section

12.

Disc Number Select Buttons

13.

Memory Button

14.

Pause Button

15.

Clear Button

16.

Track Down/Review Button

17.

Track Up/Cue Button

18.

Disc Skip Button

19.

Play/Repeat Button

10.

Stop Button

11.

Random Button

● Tuner control section

12.

Preset Up/Down Buttons

● Tape control section

13.

(TAPE 1) Play Button

14.

(TAPE 2) Record Pause Button

15.

(TAPE 1/2) Stop Button

16.

(TAPE 2) Play Button

17.

(TAPE 2) Rewind Button

18.

(TAPE 2) Fast Forward Button

● Common section

19.

Function Selector Buttons

20.

On/Stand-by Button

21.

Extra Bass Button

22.

Volume Up/Down Buttons

GBOXS0028AWM1

(CD-C611H ONLY)

13 14 1617 18

CD-C607H/611H

CP-C607H/611H

Illustration: CD-C611H

CD-C607H/611H

– 6 –

OPERATION MANUAL

TUNING/

TIME

( )

MEMORY/

SET

CLOCK

ON/

STAND-BY

SETTING THE CLOCK

1 Press the ON/STAND-BY button to enter the stand-by mode.

2 Press the CLOCK button.

3 Within 5 seconds, press the MEMORY/SET button.

4 Press the TUNING/TIME ( or ) button to select the time

display mode.

"0:00" → The 24-hour display will appear.

(0:00 - 23:59)

"AM 12:00" → The 12-hour display will appear.

(AM or PM 12:00 - 11:59)

"AM 0:00" → The 12-hour display will appear.

(AM or PM 0:00 - 11:59)

●Note that this can only be set when the unit is first installed

or it has been reset.

5 Press the MEMORY/SET button.

6 Press the TUNING/TIME ( or ) button to adjust the hour.

● Press the TUNING/TIME ( or ) button once to advance

the time by 1 hour. Hold it down to advance continuously.

● When the 12-hour display is selected, "AM" will change auto-

matically to "PM".

7 Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the

minutes.

● Press the TUNING/TIME ( or ) button once to advance

the time by 1 minute. Hold it down to change the time in 5

minute intervals.

● The hour setting will not advance even if minutes advance from

"59" to "00".

9 Press the MEMORY/SET button.

● The clock starts operating from "0" seconds.

(Seconds are not displayed.)

To see the time display:

Press the CLOCK button.

● The time display will appear for about 5 seconds.

Note:

● The clock display will flash on and off at the push of the CLOCK

button when the AC power supply is restored after a power

failure occurs or after the AC power lead is disconnected.

If this happens, follow the procedure below to change the clock

time.

To change the clock time:

①Press the CLOCK button.

②Within 5 seconds, press the MEMORY/SET button.

③Perform steps 6 - 9 above.

To change the time display mode:

①Perform steps 1 - 2 in the section "RESETTING THE MICRO-

COMPUTER".

②Perform steps 1 - 9 above.

(Main unit operation)

In this example, the clock is set for the

24-hour (0:00) system.

AM 0:00AM 12:000:00

1,2

RESETTING THE MICROCOMPUTER

Reset the microcomputer under the following conditions:

● To erase all of the stored memory contents (clock and timer

settings, and tuner and CD presets).

● If the display is not correct.

● If the operation is not correct.

Press the ON/STAND-BY button to enter the stand-by mode.

Whilst pressing down the button and the

button, hold down the ON/STAND-BY button for at least 1

second.

Caution:

● The operation explained above will erase all data stored in

memory including clock and timer settings, and tuner and CD

presets.

PREPARATION FOR USE

■Remote control

Notes concerning use:

● Replace the batteries if the operating distance is reduced or if

the operation becomes erratic.

● Periodically clean the transmitter LED on the remote control

and the sensor on the main unit with a soft cloth.

● Exposing the sensor on the main unit to strong light may in-

terfere with operation. Change the lighting or the direction of

the unit.

● Keep the remote control away from moisture, excessive heat,

shock, and vibrations.

0.2 m - 6 m

(8" - 20')

CD-C607H/611H

– 7 –

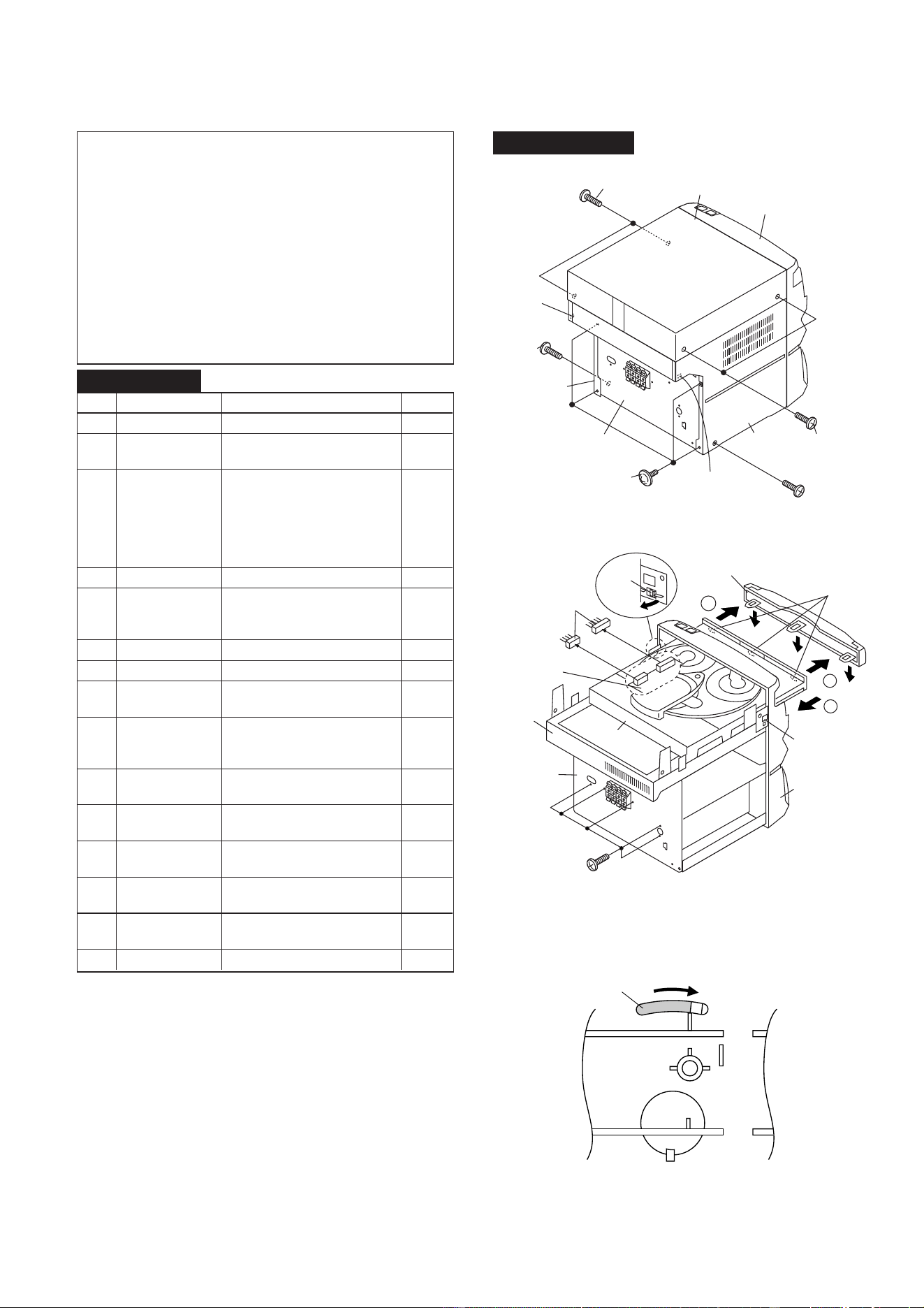

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 7-2

Figure 7-1

CD-C607H/611H

Figure 7-3

CD-C607H/611H

1 Top Cabinet 1. Screw ..................... (A1) x4 7-1

2 Side Panel 1. Screw ..................... (B1) x6 7-1

(Left/Right) 2. Hook ....................... (B2) x2

3 CD Play Unit/ 1. Turn on the power supply, 7-2

CD Player Unit open the disc tray, take out

the CD tray cover, and close.

(Note 1)

2. Hook ...................... (C1) x5

3. Socket ................... (C2) x2

4 Back Board 1. Screw .................... (D1) x5

7-2

5 Main PWB 1. Screw ..................... (E1) x3 8-1

2. Socket .................... (E2) x5

3. Flat wire .................. (E3) x3

6 Tuner PWB 1. Screw ..................... (F1) x2 8-1

7 Front Panel 1. Screw .................... (G1) x2 8-1

8 Headphones 1. Screw .................... (H1) x1 8-2

PWB 2. Guide ......................(H2) x1

9 Display PWB/ 1. Screw ..................... (J1) x8 8-2

Switch PWB 2. Hook ....................... (J2) x7

3. Socket .................... (J3) x1

10 Tape Mechanism 1. Open the cassette holder 8-2

2. Screw ..................... (K1) x6

11 Turntable 1. Screw ..................... (L1) x1 8-3

2. Guide ...................... (L2) x1

12 Disc Tray 1. Screw .................... (M1) x2 8-3

2. Guide ..................... (M2) x2

13 CD Servo PWB 1. Screw .................... (N1) x1 8-4

(Note 2) 2. Socket ................... (N2) x4

14 CD Changer 1. Screw ..................... (P1) x4 8-5

Mechanism

15 CD Mechanism

Screw ..................... (Q1) x1 8-5

REMOVAL

PROCEDURE

STEP

FIGURE

Top Cabinet

Front Panel

(A1)x2

ø3 x12mm

(A1)x2

ø3x12mm

(B2)x1

Side Panel

(Left)

Side Panel

(Right)

(B1)x1

ø3x10mm

(B1)x1

ø3x10mm

(B1)x4

ø3x12mm

Back Board

CD Tray Cover

CD Player

Unit

(C1) x3

(D1) x5

ø3x8mm

(C1) x1

(C2) x2

Pull

(C1) x1

CD Servo

PWB

Disc Tray

Front Panel

LOCK

LEVER

Note 1:

How to open the change manually.

1. Then, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom in this state.

After that, push forward the CD player base. (Fig. 7-3)

Note 2:

1. After disconnecting the optical pickup connector, wrap the

front end of connector in conductive aluminum foil to

prevent damage to the optical pickup by static electricity.

CD-C607H/611H

– 8 –

Figure 8-3

Be careful when installing the CD changer mechanism.

Install the CD changer mechanism on the CD player base after

the shift lever has been set in the highest position.

Figure 8-5

Figure 8-2

Figure 8-1

Figure 8-4

Main PWB

Main

PWB

Tuner PWB

(E2)x1

(E3)x2

Front Panel

(E2)x3

(E3)x1

(E2)x1

(E1)x3

ø3x8mm

(F1)x2

ø3x8mm

(G1)x2

ø3x8mm

Front Panel

(J2)x7

Display PWB

Switch

PWB

Open

Cassette

Holder

Tape Mechanism

(K1)x6

ø3x10mm

(J3)x1

(J1)x2

ø3x10mm

(J1)x6

ø3x10mm

(H1)x1

ø3x10mm

(H2)x1

ø3x10mm

Headphones

PWB

Tape Mechanism

PWB

(M1) x1

ø3x10mm

(M1) x1

ø3x10mm

(L1) x1

ø3x10mm

Turntable

Disc Tray

(L2) x1

(M2) x1

CD Player Unit

Washer

(N1) x1

ø3x10mm

(N2) x2

CD Player Unit

CD Servo PWB

(P1) x4

ø3x12mm

(Q1) x1

ø2.6x10mm

CD Changer

Mechanism

CD Mechanism

Shift Lever

CD Player Base

CD-C607H/611H

– 9 –

How to remove the turntable up/loading/down

motor (See Fig. 9-3)

1. Remove the screws (A1) x 2 pcs., to remove the turntable

up/down/loading motor.

How to remove the pickup (See Fig. 9-4)

1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)

x 1 pc.

2. Remove the stop washer (B3) x 1 pc., to remove the gear

(B4) x 1 pc.

3. Remove the pickup.

Figure 9-4

REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION

Perform steps 1, 2, 3, and 8 ~12 of the disassembly method

to remove the CD mechanism.

Figure 9-3

Note:

After disconnecting the optical pickup connector, wrap the

front end of connector in conductive aluminum foil to prevent

damage to the optical pickup by static electricity.

Figure 9-2

Figure 9-1

CP-C607H/611H

STEP REMOVAL

PROCEDURE

FIGURE

1 Speaker 1. Net .......................... (A1) x1 9-1

2. Duct Panel .............. (A2) x1

3. Screw ...................... (A3) x4 9-2

(A1) x2

ø2.6x5mm

Turntable/Up/

Loading/Down Motor

Motor

PWB

(B1) x2

ø2.6x6mm

Shaft

(B2) x1

Stop Washer

(B3)x1

Gear

(B4) x1

CD Mechanism

Pickup

(A3)x4

ø3x8mm

Woofer

Super Tweeter

Speaker Box

(A1)x1

Net Frame

Drive should be pried

away From Speaker Box.

Driver

Direction of handle

Speaker Box

(A2)x1

Duct Panel

CD-C607H/611H

– 10 –

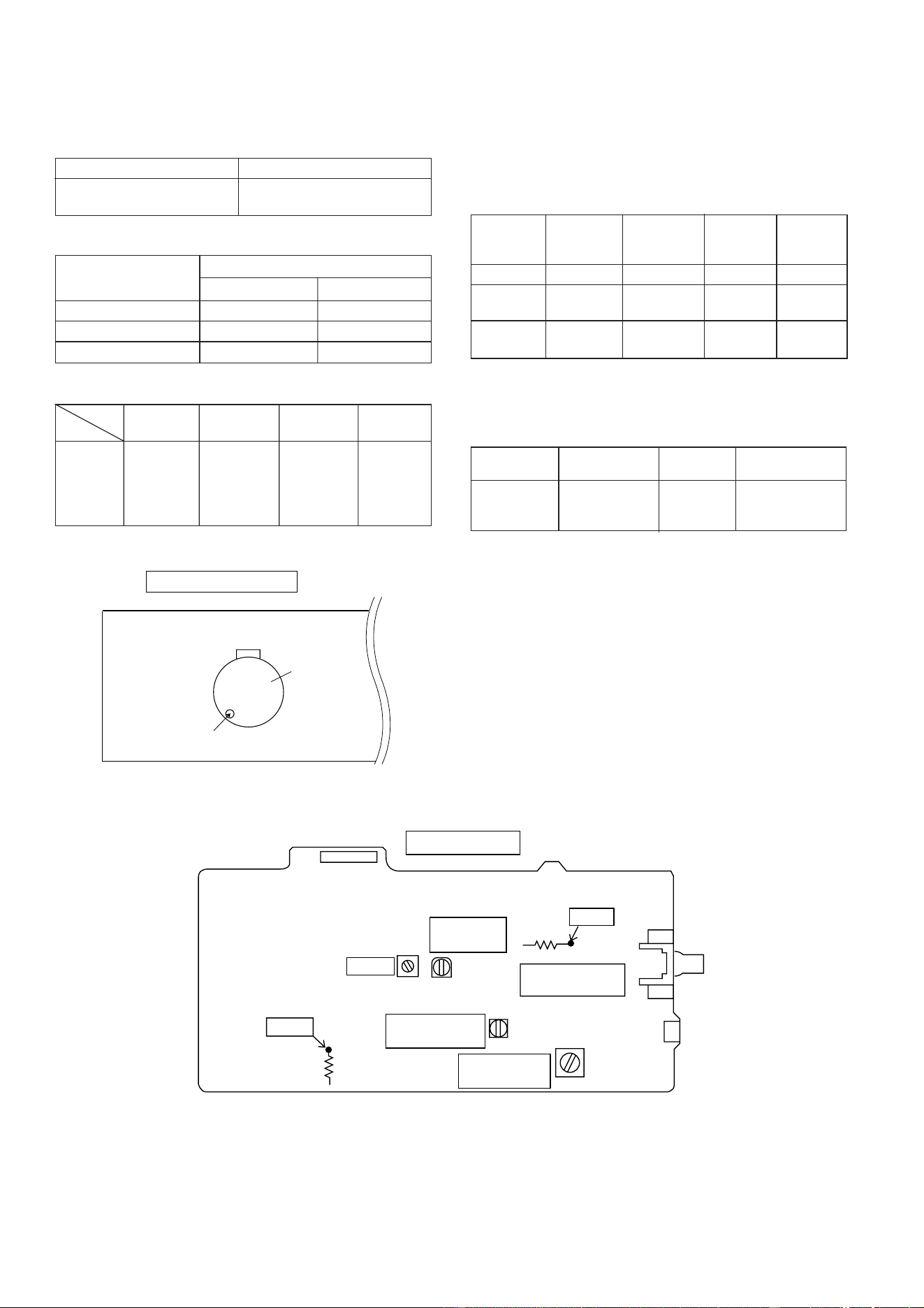

MECHANISM SECTION

• Driving Force Check

Torque Meter

Specified Value

Play: TW-2412 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 60 g. cm 30 to 60 g.cm

Fast forward: TW-2231 — 60 to 120 g.cm

Rewind: TW-2231 — 60 to 120 g.cm

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± Speaker

speed Resistor in 30 Hz terminal

motor(MM1) (Load

resistance:

8 ohms)

ADJUSTMENT

Specified Value

Tape 1

• Tape Speed

Figure 10-1 ADJUSTMENT POINTS

TAPE MECHANISM

MM 1

Motor

Variable Resistor in motor

Figure 10-2 ADJUSTMENT POINTS

TUNER SECTION

fL: Low-range frequency

fH: High-renge frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

Test Stage

Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

IF 450 kHz 1,620 kHz T351 *1

AM Band — 522 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM 990 kHz 990 kHz (fL): T302 *1

Tracking

*1. Input: Antenna, Output: TP302

*2. Input: Antenna, Output: TP301

• FM

Notes:

1: Description of the "FM IF Adjustment" is not carried on this

Manual. It is because the IF coil in the FM front end section

has been best adjusted in the factory so that its further

adjustment is not needed at the field. When replacing the

FM front end assembly, no adjustment is needed either.

2: The parts in the FM front end section are prepared in a

complete unit, so you can't obtain each part individually

Adjusting

Parts

Instrument

Connection

Frequency

Display

Frequency

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev., FM modulated

98.00 MHz 98.00 MHz VR351 Input: Antenna

(25 dBµV) Output: Speaker

Terminal

TP302

R357

T351

VR351

FM MUTE

LEVEL

R336

TP301

FE301

T306

T302

SO301

FM ANTENNA

TERMINAL

CNP301

AM LOOP

ANTENNA

TERMINAL

TUNER PWB

CNP303

AM IF

AM BAND

COVERAGE fL

TRACKING fL

CD-C607H/611H

– 11 –

TEST MODE

Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary

to readjust it.

Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.

CD SECTION

Figure 11-1

Note:

Only in STOP state it is possible to slide the pickup with the (

) or ( ) key.

VOL. --- Last memory

BAL. --- CENTER

R.GEQ. --- FLAT

X-BAS --- OFF

Canceling method - POWER OFF

• Setting the test mode

Any one of test mode can be set by pressing several keys as follows.

<REC. PAUSE> + <DISC. SKIP> + <POWER> TEST: CD operation test

• TEST mode

Function — CD test mode

Setting of TEST mode

Indication of CD TST mode (Fig. 11-1)

OPEN/CLOSE operation is manual operation.

The pickup can be moved by using the (

) or ( ) key.

LASER ON

<PLAY> key input

Press <STOP> key.

Stop

TOC. IL is performed, and the ordinary PLAY is performed.

If the following key is pressed during PLAY, it is possible

to specify directly any Track No.

<Disc Number 1> key: Track 4

<Disc Number 2> key: Track 9

<Disc Number 3> key: Track 15

Tracking on the spot.

SERVO OFF PLAY

Tracking on the spot.

SERVO ON PLAY

STOP

IL is not performed.

<STOP>

1 2 3

Figure 11-2

Figure 11-3

Figure 11-4

• Automatic adjustment item

1. Focus offset (Fig. 11-2)

2. Tracking offset (Fig. 11-3)

3. E/F balance (tracking error balance) (Fig. 11-4)

4. RF level AGC function (HF level: constant)

5. RF level automatic follow-up of the tracking gain

This automatic adjustment is performed each time a disc is

changed. Therefore, each disc is played back using the

optimal settings.

0.1s

0.50 V

IC1 20 FE

0.1s

0.50 V

IC1 7 TE

FOCUS

OFF-SET

ADJUST

TRACKING

OFF-SET

ADJUST

10ms

0.50 V

IC1 20 FE

10ms

0.50 V

IC1 7 TE

Enlarged

View

TRACKING

OFF-SET

ADJUST

200 ms

1V/diV

IC 1 15

200 ms

1V/diV

IC 1 7

TRACKING/

ERROR

BARANCE

ADJUST

CD ERROR CODE DESCRIPTION

When a malfunction occurs during CD operation, an error

code will be displayed to identify the function in CD operation

which failed.

Error State Code

0001 Cannot detect pickup-IN SW

0101 Tray close operation error

0105 Tray close operation error

0201 Tray open operation error

0203 Tray open operation error

0304 Disc skip operation error

0305 Disc skip operation error

0307 Disc skip operation error

CD-C607H/611H

– 12 –

RDS (Radio Data System) OPERATION

RDS is a broadcasting service which a growing number of FM stations are now providing. It allows these FM stations to

send additional signals along with their regular programme signals. For example, the stations send their station names, and

information about what type of programme they broadcast, such as sports or music, etc.

When tuned to an FM station which provide the RDS service, the RDS will appear, the station frequency (and then the

station name if sent) is displayed.

The TP (Traffic Programme) will appear on the display when the received broadcast carries traffic announcements, and the

TA (Traffic Announcement) will appear whilst a traffic announcement is being received.

EON will appear whilst the EON (Enhanced Other Networks information) data is being broadcast.

The PTYI (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is being received.

Note:

When the TP and TA appear at the same time, an announcement is being made.

When only the TA appears, an announcement is not being made.

■

Information Provided by RDS

With the CD-C611H, you can display three types of RDS service.

To show them in the display, press the DISPLAY MODE button.

Each time you press the DISPLAY MODE button, the display will

change to show the following information.

PS (Programme Service):

Station names commonly

known will be displayed.

"NO PS" appears if no signal

is being received.

PTY (Programme Type): Programme type will be dis-

played.

"NO PTY" appears if no sig-

nal is being received.

RT (Radio Text): Radio text will be displayed.

"NO RT" appears if no signal

is being received.

Station Frequency: Station frequencies.

DISPLAY

MODE

(Continued)

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement)

With the CD-C611H, you can search for and receive the following PTY, TP and TA signals.

NEWS:

Short accounts of facts, events and

publicly expressed views, reportage

and actuality.

AFFAIRS:

Topical programme expanding or en-

larging upon the news, generally in dif-

ferent presentation style or concept,

including debate, or analysis.

INFO:

Programmes whose purpose is to im-

part advice in the widest sense.

SPORT:

Programme concerned with any aspect

of sport.

EDUCATE:

Programme intended primarily to edu-

cate, of which the formal element is

fundamental.

DRAMA:

All radio plays and serials.

CULTURE:

Programmes concerned with any as-

pect of national or regional culture, in-

cluding language, theatre, etc.

SCIENCE:

Programmes about the natural scien-

ces and technology.

VARIED:

Used for mainly speech-based pro-

grammes usually of light-entertainment

nature, not covered by other ca-

tegories. Examples include: quizzes.

panel games, personality interviews.

POP M:

Commercial music, which would gener-

ally be considered to be of current

popular appeal, often featuring in cur-

rent or recent record sales charts.

ROCK M:

Contemporary modern music, usually

written and performed by young musi-

cians.

EASY M:

Current contemporary music con-

sidered to be "easy-listening", as op-

posed to Pop, Rock or Classical, or one

of the specialized music styles, Jazz,

Folk or Country. Music in this category

is often but not always, vocal, and

usually of short duration.

LIGHT M:

Classical Musical for general, rather

than specialist appreciation. Examples

of music in this category are instrumen-

tal music, and vocal or choral works.

CLASSICS:

Performances of major orchestral

works, symphonies, chamber music

etc., and including Grand Opera.

OTHER M:

Musical styles not fitting into any of the

other categories. Particularly used for

specialist music of which Rhythm &

Blues and Reggae are examples.

WEATHER:

Weather reports and forecasts and Me-

teorological information.

FINANCE:

Stock Market reports, commerce, trading etc.

CHILDREN:

For programmes targeted at a young audience,

primarily for entertainment and interest, rather

than where the objective is to educate.

SOCIAL:

Programmes about people and things that in-

fluence them individually or in groups. Includes:

sociology, history, geography, psychology and

society.

RELIGION:

Any aspect of beliefs and faiths, involving a God

or Gods, the nature of existence and ethics.

PHONE IN:

Involving members of the public expressing their

views either by phone or at a public forum.

TRAVEL:

Features and programmes concerned with travel

to near and far destinations, package tours and

travel ideas and opportunities. Not for use for

Announcements about problems, delays, or

roadworks affecting immediate travel where

TP/TA should be used.

LEISURE:

Programmes concerned with recreational acti-

vities in which the listener might participate.

Examples include, Gardening, Fishing. Antique

collecting, Cooking, Food & Wine etc.

JAZZ:

Polyphonic, syncopated music characterised by

improvisation.

COUNTRY:

Songs which originate from, or continue the mu-

sical tradition of the American Southern States.

Characterised by a straightforward melody and

narrative story line.

NATION M:

Current Popular Music of the Nation or Region

in that country's language, as opposed to Inter-

national `Pop' which is usually US or UK inspired

and in English.

OLDIES:

Music from the so-called "golden age" of popular

music.

FOLK M:

Music which has its roots in the musical culture

of a particular nation, usually played on acoustic

instruments. The narrative or story may be

based on historical events or people.

DOCUMENT:

Programme concerned with factual matters,

presented in an investigative style.

TEST:

Broadcast when testing emergency broadcast

equipment or receivers.

ALARM !:

Emergency announcement made under excep-

tional circumstances to give warning of events

causing danger of a general nature.

NONE:

No programme type (receive only).

TP:

Broadcasts which carry traffic announcements.

TA:

Traffic announcements are being broadcast at

present.

Note:

● When the unit is in the EON stand-by mode and a programme

is selected, the unit will display "TI" instead of "TA".

CD-C607H/611H

– 13 –

ASPM, summary operation

Hold down the ASPM button for 3 more second.

“ASPM” blinks in the display.

Preset CH memory full over?

No operate. After displayed “END”. Return to

previous station.

SD (TUNE) DET out OK?

If count 1st OK?

If count 2nd OK?

RDS signal or not? PI—identify

Comparing PI cord same or not?

between current receiving PI and

before PI which is already memorized

by ASPM on this time.

Comparing freg. same or not?

between current receiving frequency

and (already) previously memorized

frequency.

Memorized to the lowest

vacant preset channel.

Preset CH memory become full over?

Begin to ASPM SCAN from the next

CH-SPAN again.

Repeat and continue with same format

ASPM operation untill 108 MHz.

After reached 108 MHz, displayed the

TTL quantity of memorized stations.

And return to the previous receiving

freq. automatically.

Displayed the TTL quantity of memo-

rized stations by ASPM operation on

this time. And return to the previous

receiving freq. automatically.

Ye s

Effect

Pass

No effect

Pass

No effect

Pass

No effect

Pass

No effect

Ye s

Compare the field strength of current

receiving signal. Is receiving signal

stronger than signal which has same PI

cord and is already memorized to

preset memory ahead of this receiving

time?

Ye s

No effect

Comparing freg. same or not?

Between current receiving frequency

and (already) previously memorized

frequency.

Ye s

Memorized to the lowest

vacant preset channel.

Ye s

No effect

Begin to scan start 87.50 → 108.00 MHz

CD-C607H/611H

– 14 –

4. No adjust type (None adjusting circuit.)

5. Added EON button.

6. Need to change RDS logo due to add EON feature.

7. Added EON—TI, EON—PTY function.

3. Summary of CD-C3H RDS—EON operation

EON—PTY: Select and set the desired “PTY” → stand-by → switch to ON(other network) Station at the

start of desired PTY automatically → stay and listen to PTY of ON station → switch back to TN(This net)

station automatically at the end of PTY(ON) i.e. after changing to another PTY(except AF M FAIRS) or

cancelling to receive PTY of ON station midway.

EON—TI: Select and set the “TI” → stand-by → switch to ON station at the start of traffic announcement automati

cally → stay and listen to TA of ON station → switch back to TN station autmatically at the end of TA(ON).

ie after TA(ON) is over or cancelled to receive TA of ON station midway.

When switching TN → ON station.

In case of exist 2 more stations having the desired(specified) “PTY” or “TI”, the receiver will select and switch to ON station

comparing field strength at the same time. But when the frequency of ON station exists in the preset-memory, then reciver

switches straight to that ON station(CH), without comparing field strength so can make a quick switching from TN—ON sta

tion. Preset memory takes priority of switching TN—ON station.

therefore ASPM is usefull not only for PTY search but also for rapid EON switching. Anyway CD-C607H/611H EON is basi-

cally stand-by and receiving method, along with the Guidelines for EON implementation.

• ASPM SCAN: 87.50MHz → 108.00 MHz.

• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.

ASPM

Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same

PI code.

Same PI code — freq: different

(AF’S)

PS: same

PTY: same

Each PI has AF’S list by individually.

Exa: P1 has f1, f2, f3 (same PTY).

P2 has f4, f5 (same PTY).

[For example] Pickup and memorized to preset CH.

f 1

f 2 f 3

P 1 (PI cord)

PS 1 (Station Name)

f 5 f 4

P 2

PS 2

f 6

f 7 f 8

P 3

PS 3

f 9 f 10

f 11 f 12 f13

P 4

PS 4

Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.

• If tentative - ASPM operation is repeated intententionally, never memorized (over write) at the same frequecy.

1st time ASPM → strongest stations of each pi are memorized.

ASPM is not only very usefull for PTY search, but also EON operation.

2nd time ASPM → 2nd strong stations of each pi are memorized and so on.

PTY search function is equal to FM band search function as a result.

1. Introduction of RDS for CD-C607H/611H

CD-C607H/611H RDS function is equal to adding EON feature to the current CD-C75H RDS.

EON feature is EON—PTY and EON—TI.

Although PTY and TI indicators are separated, PTY contains TI in the PTY items (software) like current PTY search items.

NEWS, AFFAIRS, INFO, ALARM, TI (TTL 17 kinds)

EON—PTY EON—TI

Can select and stand-by Can select and stand-by

EON—PTY and EON—TI are basically stand-by → receive the desired program of ON station.

2. The difference point from current CD-C75H RDS. (CD-C75H — CD-C607H/611H)

1. PTY item: added TA.TTL 18 kind.

2. Each “TP”, “TA” ind. light up or go out individually.

“TA” ind. doesn’t light up on current model, CD-C75H due to none EON—TI.

3. Added 3 indicators(in FL) due to adding EON feature.

EON: Lights up only during receiving EON data (14A).

TI: During EON-TI stand-by → Light up

During receiving ON station. → blink.

PTY: During EON-PTY stanb-by → Light up

During receiving ON station. → blink.

---

↑

CD-C607H/611H

– 15 –

EON summary notice for reference

1. EON-TI/PTY EON stand-by can be set, only when EON ind. lights up.

While EON ind. goes out (NO EON STATION), EON stand-by can't be set.

If the EON button is pressed, then “NO EON” is indication the display.

2. EON-TI/PTY Even if switch back ON→TN station continue to keep EON stand-by.

3. EON-TI Don’t switch TN→ON during TN broadcast TA. (same item)

4. EON-TI/PTY

EON can be cancelled during receiving ON station by pressing EON button if necessary and

switch back ON

→

TN.

5. EON-TI/PTY EON stand-by is perfectly cancelled (cleared) by pressing EON button 2 times during stand-by or

powerOFF or Tun Up/Down or change band or recall pre-set CH.

6. EON-TI/PTY After setting EON stand-by, stand-by items can be confirmed by pressing EON button one time.

7. EON-TI/PTY EON button function: • EON setting

• Confirm stand-by items

• Cancel (ON→TN)

• EON clear cancel (2 times)

8. EON-TI/PTY After setting EON-TI and EON-PTY stand-by, if when EON data is not transmitted, EON ind goes out

and EON stand-by is automatically cancelled display “NO EON”.

9. EON-TI EON-TI stand-by can't be set. When TP=0,TA=0(TN) even if EON ind. lights up and the EON button is

pressed then “NO TI” is indication the display.

10. EON-PTY Don’t switch TN→ON during TN broadcast same specified PTY. (same item of PTY)

11. EON-TI/PTY Switch TN→ON→ TN station one cycle.

Never switch TN→ON1→ON2→ Other net to other net station.

12. EON-TI/PTY After switch TN→ON station. When ON station is NO RDS, NO signal, TA=OFF or different PTY items.

The receiver switch back ON→TN displaying “NO READY”.

13. During receive ON station. when ON station become to be NO RDS, NO signal, TA=ON to OFF or

different PTY item, The receiver switch back ON→TN.

14. EON-TI/PTY Switch TN→ON in case of 2 more stations exist, comparing field strength and switch to the strongest

station, if these signals are same strength, switch to the first previous station.

If same frequency as AF'Sexists in the preset memory, then switch TN→ON (preset memory station)

straight.

In case of exist 2 more preset memories of AF’S,then switch to the preset CH which taken in EON DATA

first, also in this case no concern to field strength.

15. Even if switch TN→ON preset memory straight, that ON station is very weak signal, then search another

AF'S (ON) station comparing field strength and switch to the strongest station as a result. Of all atations

of AF'S are very weak or no good condition, then, switch back ON→TN automatically display "NO

READY".

16. EON-TI/PTY No linkage volume, power ON/OFF, and switch function.

Traffic Programme code

(TP)

Traffic Announcement code

(TA)

Applications

OFF OFF This programme does not carry traffic announcements nor does

it refer, via EON, to a programme that does.

OFF ON This programmecarries EON information about another

programme which gives traffic information.

ON OFF This programme carries traffic announcements but none are

being broadcast at present and may also carry EON information

about other traffic announcements.

ON ON A traffic announcement is being broadcast on this programme at

present.

CD-C607H/611H

– 16 –

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression “capacitance/withstand

voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

Figure 16 TYPES OF TRANSISTOR AND LED

SW1 OPEN/CLOSE ON—OFF

SW2 MECHA UP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 ON/STAND-BY ON—OFF

SW702 DISPLAY MODE ON—OFF

SW703 CLOCK ON—OFF

SW704 TIMER/SLEEP ON—OFF

SW706 DISK SKIP ON—OFF

SW707 OPEN/CLOSE ON—OFF

SW710 FAST FORWARD ON—OFF

SW711 REC PAUSE ON—OFF

SW712 MEMORY/SET ON—OFF

SW713 STOP ON—OFF

SW714 TUNER (BAND) ON—OFF

SW715 TAPE ON—OFF

REF. NO DESCRIPTION POSITION POSITION

SW716 CD ON—OFF

SW717 PTY.TI SEARCH ON—OFF

SW718 EON ON—OFF

SW719 ASPM ON—OFF

SW720 STATION ON—OFF

SW722 REWIND ON—OFF

SW723 TUNING UP ON—OFF

SW724 TUNING DOWN ON—OFF

SW725 PLAY ON—OFF

SW726 VOLUME DOWN ON—OFF

SW727 VOLUME UP ON—OFF

SW728 X-BASS/DEMO ON—OFF

SWM3 FOOI PROOF ON—OFF

SWM4 F.A.S. ON—OFF

SWM5 CAM ON—OFF

REF. NO DESCRIPTION

SVC348S

2SC2389 SE

2SC380 O

KRC102 M

KRC104 M

KRC107 M

KTA1266 GR

KTA1271 Y

KTA1273 Y

KTC3199 GR

KTC3203 Y

FRONT

VIEW

E C B

(S)(G)(D)

(1) (2) (3)

2SA1318

FRONT

VIEW

B C E

(D)(G)(S)

(3) (2) (1)

1 2 3

SLI342UCJ1

VIEW

FRONT

CD-C607H/611H

– 17 –

Figure 17 BLOCK DIAGRAM (1/3)

18244020

16 26

3839284142 37 36

PU-IN SW

16.93MHz

XIN

LD0

FIN2

JP–

CV+

SLC

SL1

FIN1

SPO

SLD

SL–

SL+

DRF

DAT

VCC1

+5V

SW4

PICKUP IN

FOCUS COIL

TRACKING COIL

SPINDLE

MOTOR

SLED

MOTOR

PICKUP UNIT

IC2

LC78622N

SERVO/SIGNAL

CONTROL

+B1

IC3

M63001FP

FOCUS/

TRACKING/

SPIN/SLIED

DRIVER

IC1

LA9241M

SERVO AMP.

/RES. /CQCK. COIN

SQOUT. RWC. WRQ

CL, DAT, CE

Q51

SL+. SL–. DRF

GND (D)

MECHA UP

GND (D)

DISK NO.

OPEN CLOSE

GND (D)

M–

M+

CNP10

+5V

+B1

24 25

32 40 43 44

Q52

+4.3V

+7V

VOLTAGE

REGULATOR

TO MAIN PWB

(TO IC401)

XOUT

EFMO

EFMIN

CLV+

JP–

CONT2

CONT1

LCHO

LVDD

LVSS

RCHO

ISET

VDD

LVDD

RVDD

XVDD

SW1

OPEN CLOSE

SW2

MECHA UP

SW3

DISC NUMBER

TURNTABLE

UP/DOWN

MOTOR

SOLM2

SOLENOID

TO DISPLAY

PWB

CNS10

+B5

CNP11

RVSS

CONT4

SWITCHING

REGULATOR

LASER DRIVER

VVDD

CONT3

–

SOL–

SOL+

R-CH

L-CH

CD-C607H/611H

– 18 –

Figure 18 BLOCK DIAGRAM (2/3)

VSSD

VDDD

XIN

XOUT

VSSA

VDDA

MPX

XT21

4.332MHz

ICT21

LC72720

RDS DECORDER

X351

456kHz

FM IF

CF351

+B4

VOLTAGE

REGURATER

+5V

QT21

AMP.

FM +B

T306

T302

L341

CF302

CF301

FE301

FM FRONT END

Q360

Q354

Q353

Q361

SWITCHING

MPX

FM/AM

OUT

IF IN

IC303

LA1832

FM IF DET./FM MPX./AF IF

IF OUT

MONO/ST

AM RF IN

FM AFC

AM OSC IN

OSC

OUT

VR351

FM MUTE LEVEL

REG INOUT VCC

VSM

FM IF IN

12 3 4589

17 19

18 16

FM IF

AMP

Q301

FM IF

X352

4.5MHz

STEREO

IC302

LC72131

PLL CONTROLLER

INAM

FM IN

FMOSC

T351

AM IF

GND

OSC

F OUT

FM IF

BALUN

AM OSC

VOLTAGE

REGULATOR

AM ANT

AM RF

AM LOOP

ANTENNA

TUNER MUTE

MUTING

SO301

FM/ANTENNA

TERMINAL

67 3 4

3 6

1213

1116

2220

23 22

20 15 14

Q371

+B4

1 3

R.D.S.

SIGNAL

BUFFER

PLL DATA

BUFFER

SWITCHING

H/N

T1/T2

R-CH

L-CH

R-CH

P.B

REC

TAPE 2

TAPE 1

L NF

L(T1)

R(T1)

L(T2)

R(T2)

R NF

POP REDUCE

L REC

R REC

REC

P.B.

REC

NOR/

CRO2

T1/T2

RIPPLE

L NF

R NF

PLAYBACK

HEAD

RECORD/

PLAYBACK HEAD

SWITCHING

Q501~Q509

AC BIAS

IC501

AN7345K

PLAYBACK AND RECORD

/PLAYBACK AMP.

ERASE

HEAD

+B4

CNS401

FROM CD PWB

CNP11

FOOL PR

SOLEN

11 10

IC401

M62439SP

AUDIO PROCESSOR

TUNER

TAPE

T1/T2

REC

SWITCHING

Q512

Q513

15 19

Q514

Q515

Q510

Q511

TAPE MUTING

SPARE

L-CH

R-CH

CD-C607H/611H

– 19 –

Figure 19 BLOCK DIAGRAM (3/3)

Q704

IC903

KIA7812P

IC902

KIA7806P

IC901

AN78L05

SO901

SPEAKER

TERMINALS

FRONT

SPEAKER

SURROUND

SPEAKER

F902

T1.6A L 250V

F901

T3.15A L 250V

F903

T500mA L

250V

(CD-C611H ONLY)

SOLENID

DRIVER

MOTOR

DRIVER

FL SEGMENT DRIVER

Q902

VOLTAGE

REGULATOR

RL 901(RELAY)

DRIVER

L901

LINE

FILTER

SWM3

FOOL PROOF

SWM4

F.A.S

SOLM1

SOLENOID

SWM5

CAM

1 2

32 33

IC701

IX0283AW

SYSTEM MICROCOMPUTER

XL701

4.19MHz

+B5

KEY

SW701~SW704,

SW706, SW707,

SW710~SW720,

SW722~SW728

+B5

TO CD

SECTION

CNP12

MM1

TAPE MOTOR

JK601

HEADPHONES

T.F

PT901

POWER

TRANSFORMER

RL901

RELAY

AC POWER

SUPPLY CORD

AC 230V 50Hz

PT902

BACK-UP

TRANSFORMER

IC904

AN78L05

Q902

+B6

+B7

UNSWITCH

T1/T2

REC

D910,D911

D914,D915

D912,D913

D916,D917

+B7

RX701

Q705

L-OUT

IC601

LA4451

POWER AMP.

R-OUT

Q401

Q402

+B1

+B4

+B5

+12V

+7V CD+B

+12V(MOTOR)

+5V

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

CONSTANT

VOLTAGE

REGULATOR

CONSTANT

VOLTAGE

REGULATOR

Q703

Q702

1011129 654317

212223

3331

7869

100

PHM1

RUN PALS

SENSOR

D921~D924

8980

9992

LED701

1843

SO901

AC SOCKET

RESET

REMOTE

SENSOR

FL701

FL DISPLAY

+5V

L-CH

R-CH

MUTING

CD-C607H/611H

– 20 –

Figure 20 SCHEMATIC DIAGRAM (1/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

MIC

Q703

KTA1271 Y

MOTOR DRIVER

R794

D704

DS1SS133

D703

DS1SS133

R781 10K

D702

DS1SS133

D701

DS1SS133

FL701

FL DISPLAY

Q705

KRC107 M

FL SEGMENT DRIVER

R723

100K

C721

1/50

C702

1/50

R747

R724 10K

R709

R712

R713

R715

C706

1/50

R736

R734

R733

R732

R731

R730

D716

DS1SS133

R759

10K

LED722

SLI342UCJ1

1.8K

2.2K

R735

R720 10K

R75

10K

R75

10K

R726 10K

R714

10K

R701

R703

C705

47/25

Q702

KTA1273 Y

MOTOR DRIVER

R760

10K

1312

4 3 2 1

R758

1.2K

CNS702

CNPM1

BI702

–25.42V

SP DET

TIMER

DISTOUT

KEY JOG A

KEY JOG B

MOTOR

P14

P22/DIST4

P21/DIST3

P15/DIST2

P16/DIST1

P13

P20

P11

P10

P12

P19

P18

P17

POWER

P12

P10

P11

P14

P20

P13

P16

P15

DISTO

GND

+12V

T2 RUN

FPA

T1 RUN

SOLENOID

CAM SW

REC/PL

CAM SW

T1FAS

FPA

MOTOR

+12V

T2 RUN

SOLENOID

U/D SW

VLOAD

SPN_P

HI-CUT

S MUTE

T_T1T2

T-BIAS

FPA

T1FAS

CAM SW

VDD

T_MOT

T_SOL

TIMER LED

PHM1

RUN PALS

SENSOR

MM1

TAPE MOTOR

1 3

CNPM2

SWM4

F.A.S

SOLM1

SOLENOID

SWM5

CAM

FWM2

TAPE MECHANISM

PWB-E

SWM3

FOOL PROOF

AC PL

SW+5V

UN_SW+5V

TUN_SM

S_MUTE

M_GND

M_+12V

D_GND

SPN_P

–VP

VF2

VF1

FW702

AC_RLY_CONT

POWER

REC/PLAY

T_BIAS

T_T1 T2

CLK

FW701

TO MAIN PWB

P23 12-E

TO MAIN PWB

P23 12-F

3.63V

5.21V

11.86V

4.8V

4.75V

–25.4V

–25.3V

5.3V

12V

CD-C607H/611H

– 21 –

Figure 21 SCHEMATIC DIAGRAM (2/10)

8 9 10 11 12

BI701

IC701

IX0283AW

SYSTEM

MICROCOMPUTER

SW717

RD19

68K

C717

0.1/50

D721

DS1SS133

FL701

DISPLAY

R727

C710

220/10

R711

4.7K

R751

3.3K

R750

10K

R749

10K

R748

10K

R747

10K

R771

R775

R770

R769

XL701

C707

15P

R737

R736

C708

18P

R768

R767

R766

R765

R764

R763

R762

R734

R733

R732

R731

R730

R772

R778

R777

R776

R743

R742

R744

LED722

SLI342UCJ1

R795

47K

Q704

KRC102 M

RESET

C713

0.022

D718

DS1SS133

R797

100K

C712

3.3/50

IC704

KIA7042AP

3 1

C714

0.022

RX701

D720

DS1SS133

R798

100

D719

DS1SS133

C715

47/25

L702

100µH

D717

DS1SS133

C711

0.01

R745

1.8K

2.2K

10K

R735

C709

0.022

R780

10K

R757

R756

R755

R753

10K

R754

10K

R752

10K

R741

R740

R739

R738

SW718

RD18

22K

RD17

12K

RD10

820

SW711

RD12

1.5K

SW712

RD14

5.6K

RD22

1.2K

RD24

1.8K

RD25

2.2K

SW726

SW701

RD02

1.2K

SW703

RD03

1.5K

SW702

RD01

820

RD04

1.8K

SW704

SW719 SW714

RD13

1.8K

SW713

RD15

3.9K

RD11

1.2K

SW716 SW720

RD16

6.8K

SW715 SW710

SW725

RD23

1.5K

SW727

RD21

820

SW722

RD26

3.3K

SW724 SW728 SW723

100

41 40 39

FW703

1 1

2 2

3 3

SW707

RD05

10K

RD06

6.8K

SW706

1 2 3

CNS701

5V BACK UP

P DET

TIMER

ISTOUT

AVREF

EY JOG A

EY JOG B

22/DIST4

21/DIST3

15/DIST2

16/DIST1

P12

P19

P18

P17

OWER

SPARE

TUN SM

P17

P18

P19

P12

ISTO

ASPM

REC/PLAY

X-BASS/

DEMO

VOLUME

DOWN

TUNING

DOWN

TUNING

EON CD

TAPE

MEMORY/

SET

REC

PAUSE

CLOCK

U/D SW

LOAD

PN_P

HI-CUT

MUTE

_T1T2

-BIAS

FPA

T1FAS

CAM SW

VDD

T_MOT

T_SOL

TIMER LED

DNO SW

VSS

REMOCON

SYS STOP

O/C SW

PUIN SW

T2 RUN

AVSS

SLD–

SLD+

FRF(DRF)

SQOUT

PCCL

VPP

CLK

CD DSP RES

CD DSP WRQ

CD DSP RWC

CD DSP COIN

CD DSP CQCK

RESET

AVDD

VDD

PCCL

CQ CK(DSP)

CO IN(DSP)

SQ OUT(DSP)

SLD+

RES(DSP)

WRQ(DSP)

RWC(DSP)

DISC NO

OPEN/CLOSE

D_GND

PUIN SW

SLD–

UP/DOWN

DRF(ASP)

AC PLY-CON

KEYIN2

KEYIN1

KEYIN3

VDD

DISK

SKIP

OPEN

/CLOSE

SWITCH PWB-A4

ON/

STAND-BY

DISPLAY

MODE

TIMER/

SLEEP

TUNER

(BAND)

STOP

FAST

FORWARD

REWIND

PLAY

PTY.TI

STATION

REMOTE

SENSOR

RESET

CNP12

TO CD PWB

P29 7-H

10K

4.19MHz

DISPLAY PWB-A2

0.7V

4.62V

0.32V

2.11V

2.3V

4.81V

1.7V

3.63V

5.5V

5.21V

11.86V

CD-C607H/611H

– 22 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

Figure 22 SCHEMATIC DIAGRAM (3/10)

Q510

KTC3199 GR

C513

3.3/50

R430

270

R429

270

C414

0.022(ML)

R561

22K

IC401

M62439SP

R427

47K

IC501

AN7345K

C515

47/25

L502

2.2mH

C514

47/25

L501

2.2mH

R408

10K

R515

C507

0.001

Q507

KTC3199 GR

R512

47K

R513

4.7K

R510

4.7K

R501

10K

R538

22K

R542

R518

C512

330P

C523

0.022

C525

3.3/50

C527

0.001

R508

10K

Q508

KRC104 M

Q509

KRC104 M

SWITCHING

R502

10K

R540

6.8K

C521

1/50

R527

3.9K

C519

560P

C517

0.033

R537

22K

R536

68K

C526

0.001

R539

6.8K

R533

33K

R522

C518

560P

R531

5.6K

R514

C510

330P

C508

100/16

C524

47/16

R516

150

R528

R529

5.6K

R519

5.6K

ZD401

DZ2.4BSB

R420 1.5K

C416 0.

C415 0.

R422 1.5K

R421 1.5K

R423

10K

R419

10K

C417

4.7P

R418

3.9K

C413

10/50

C412

0.068

C411(ML)

0.033

R416 1.5K

R415 1.5K

R414

1.5K

C407

4.7/50

C406

4.7/50

C410

0.33

R413

2.2K

R404

10K

R410

3.3K

C404

10/50

R412

330

Q401

KTC3199 GR

MUTING

C401

0.001

R509

10K

R504

2.2K

R505

3.3K

R506

3.3K

R507

2.2K

R503

10K

C505

0.047

Q501

KTA1266 GR

SWITCHING

Q503

2SC2389 SE

Q502

2SC2389 SE

SWITCHING

Q504

2SC2389 SE

Q505

2SC2389 SE

SWITCHING

C501

0.001

C502

0.001

C504

180P

C503

180P

CNP502

CNP501

C522

3.3/50

Q511

KTC3199 GR

R530

5.6K

R535

220K

R521

220K

R520

5.6K

R523

C516

0.033

R524

100K

R526

3.9K

C520

1/50

C511

330P

R517

C509

330P

Q506

KTC3199 GR

SWITCHING

R511

47K

C506

0.001

R532

5.6K

R525

100K

R534

33K

R405

2.2K

Q402

KTC3199 GR

MUTING

R406

2.2K

C402

0.001

R409

10K

R403

10K

C405

10/50

R411

3.3K

R407

22K

C403

22/25

R417

560

R401

330

R402

330

R_IN

L_IN

A_+12V

CD_+B

5.7V

5.2V

5.8V

06V

0.8V

0.6V

0.8V

4.4V

0.6V0V0V

4.5V

5.1V

4.61V

9.6V

8.86V

3.94V

2.68V

0V0V

M_GND

A_GND

CD_GND

Q510,Q511:

TAPE MUTING

SPARE

(1/2W)

TO POWER SECTION

P24 1-D

–

Hich=T1

112K

TAPE1_R

TAPE1_L

A_GND

M_GND

ERASE

TAPE2_R2

TAPE2_R1

TAPE2_L1

TAPE2_L2

0.7V

ERASE

HEAD

RECORD/PLAYBACK HEAD

TAPE2

PLAYBACK HEAD

R-CH

L-CH

R-CH

L-CH

CNS102

CNS101

+12V

+7V

CD_GND

L-CH

A_GND

R-CH

3 2

TAPE1

CNS401

CNP11

TO CD SERVO PWB

P29 12-C

BI401

AUDIO

PROCESSOR

4.4V

SWITCHING

0.7V

1.3V

0.8V

SWITCHING

CD-C607H/611H

– 23 –

Figure 23 SCHEMATIC DIAGRAM (4/10)

8 9 10 11 12

C551

0.027

C550

0.027

R559

1.8K

R558

1.8K

C425

470P

C419 4.7/50

ZD402

DZ2.4BSB

R428

47K

C538

470P

IC501

N7345K

R550

82K

R543

82K

Q513

KTC3199 GR

SWITCHING

R549

10K

R545

R538

22K

R542

560

C535

1/50

C525

3.3/50

C527

0.001

R546

10K

C537

220/10

R547

10K

C531

0.068

C533

0.0033

R548

10K

R540

6.8K

C536

22/16

C532

0.0033

R537

22K

C534

1/50

R536

68K

R541

560

C526

0.001

R539

6.8K

C528

22/16

C524

47/16

R424

560

C422

10/50

C424

0.33

1.5K

C416 0.068

C415 0.033(ML)

1.5K

R423

10K

C417

4.7P

R426

2.2K

C418 4.7/50

R425

330

C423

0.022

C541

47/16

L503

330µH

R557

Q516

KTC3203 Y

BIAS OSC

Q515

KRC104 M

SWITCHING

C540

0.027

(ML)

R555

47K

R556

4.7K

C539

0.0039(PP)

R553

100K

R554

47K

Q514

KTA1266 GR

SWITCHING

R552

150

R551

220

Q512

KTC3199 GR

SWITCHING

3.3/50

C530

0.068

R544

C529

22/16

REC_L

REC_R

4.8V

8.2V

4.1V

0.6V

TUN SM

TO POWER SECTION

P24 1-G

TUN_R

TUN_L

A_+12V

CLK

A_GND

D_GND

Vcc

GND

ALC

RIPPLE

Nor/

CrO2

–

Hich=CHROME

56K

0.7V

11.7V

11.6V

AC_RLY_CONT

POWER

UN_SW_+5V

–VP

M_+12V

VF2

VF1

–15V

D_GND

SW +5

M_+12V

M_GND

UN_SW_+5V

TUN_SM

D_GND

S_MUTE

VF2

–VP

VF1

CNS303

FM SIGNAL

CD SIGNAL

PLAYBACK SIGNAL

RECORD SIGNAL

CNP303

TO TUNER PWB

P27 9-H

CLK

REC/PLAY

T_BIAS

T_T1T2

POWER

AC_RLY_CONT

FW701

TO DISPLAY PWB

P20 1-E

TO DISPLAY PWB

P20 1-C

FW702

IC501:PLAYBACK AND

RECORD/PLAYBACK AMP.

4.1V

0.8V

CD-C607H/611H

– 24 –

Figure 24 SCHEMATIC DIAGRAM (5/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

D910, 911,

914, 915:

CD-C607H : RL203F

CD-C611H : 1N5402M

R910

2.2

R911

2.2

C640

120P

C639

120P

D929

1N4004S

D928

1N4004S

D927

1N4004S

D926

1N4004S

C621

47/50

IC601

LA4451

POWER AMP.

1234

1011121314

C611

220P

C610

0.001

C606

0.001

R611

270

R609

4.7

C617

0.047

R610

270

R608

4.7

C618

0.047

C622

0.047

R612

3.3

C626

0.047

0.0

3.3

C638

47/50

L60

C615

10/50

C616

0.022

C602

0.0015

R601 33K

C601 0.0015

R602

33K

R603

220

C605

100/50

C607 220/50

C604

1/50

R606

R605

C603

1/50

R604 10K

R607

220

C608

100/50

C609

47/50

C614

1000/25

C613

1000/25

C612

47/50

C911

3300/25

Q902

KRC107 M

RL901(RELAY)DRIVER

C901

47/25

C907

47/16

C908

0.1(ML)

C910

0.1(ML)

C906

0.022(ML)

R901

10K

IC903

KIA7812P

C902

0.047

(ML)

D902

DS1SS133

IC901

AN78L05

IC901:CONSTANT VOLTAGE

REGULATOR

3 1

C904

0.047(ML)

D901

DS1SS133

R902

220(1/2W)

C913

1000/25

D905

1N4004S

D906

1N4004S

C914

100/25

ZD9

MTZJ

R903

12K

R904

220(1

C915

100/35

D903

DS1SS133

D904

DS1SS133

IC902

KIA7806P

C903

47/16

C905

0.022(ML)

C909

0.1(ML)

C912

2200/50

D918

DS1SS133

D919

DS1SS133

C925

1000/6.3

C926

10/16

6.2V

12V

22V

5.5

6.2V

34.2V

34.

1.3V

7.96V

1.2V

F903

T 500mA L 250V

L_IN

A_GND

R_IN

A_+12V

M_GND

CD_+B

CD GND

SW+5V

–15V

M_+12V

VF1

–VP

VF2

UN_SW_+5V

D_GND

POWER

AC_RLY_CONT

18V

17.8V

31.7V

34.6V

1.2V

33.5V

2.2V

1.2V

31.6V

–

FM SIGNAL

TO MAIN SECTION

P22 1-D

VOLTAGE REGULATOR

TO MAIN SECTION

P23 12-G

–B

POWER PWB-A2

(CD-C611H ONLY

)

0.29µ

CD-C607H/611H

– 25 –

Figure 25 SCHEMATIC DIAGRAM (6/10)

8 9 10 11 12

910, 911,

914, 915:

D-C607H : RL203F

D-C611H : 1N5402M

C621

47/50

SO601

270

C622

0.047

R612

3.3

C626

0.047

C624

0.022

C628

0.022

R614

3.3

C635

0.0033

C632

0.001

C633

0.001

C629

0.022

C625

0.022

R615

3.3

C623

0.047

C627

0.047

R613

3.3

C638

47/50

L603

L602

R902

220(1/2W)

004S

C914

00/25

D907

1N4004S

D908

1N4004S

D909

1N4004S

C919

100/50

C920

100/50

Q901

KTA1266 GR

VOLTAGE

REGULATOR

R906

3.3K

R905

100

ZD901

DZ6.2BSA

C918

47/50

ZD902

DZ300BSB

C917

47/50

C916

47/50

R903

12K

R904

220(1/2W)

C915

100/35

C923

0.047

D914

D913

1N4004S

D910

C922

0.1(ML)

D912

1N4004S

D917

1N4004S

D915

D916

1N4004S

D911

C924

0.047(ML)

C921

0.1

(ML)

D918

1SS133

D919

DS1SS133

R908

220

C925

1000/6.3

C926

10/16

D920

DS1SS133

IC904

AN78L05

C927

470/25

C928

0.047

(ML)

D921

D921~D924:1N4004S

D923

D924

D922

PT902

BACK-UP TRANSFORMER

–28.4V

–38V

–29.1V

5.5V

6.2V

24V

11.3V

17.3V

22V

34.4V

0.6V

5.6V

CNP902

CNS902

PT901

POWER TRANSFORMER

C929

0.0047

S0901

AC SOCKET

RL901

RELAY

D925

DS1SS133

CNS901

C631

0.022

C630

0.022

CONSTANT VOLTAGE

REGULATOR

L901

LINE FILTER

AC POWER

SUPPLY CORD

230V 50Hz

CNP901

(ML)

F901

F902

T1.6A L 250V

T3.15A L 250V

SP-L-CH

SP-SURROUND-R-CH-GND

SP-SURROUND-L-CH-GND

SP-SURROUND-L-CH

SP-SURROUND-R-CH

SO601

SPEAKER

TERMINALS

SP-R-CH

–

SP-L-CH

SP-R-CH

FW601

C636

220P

C637

220P

JK601

HEADPHONES

L601

2.2mH

R616

330

R617

330

HEADPHONES PWB-A3

When Servicing, pay attention

as the area enclosed by this

( ) is directly

connected with AC main voltage.

(CD-C611H ONLY)

0.29µH

CD-C607H/611H

– 26 –

Figure 26 SCHEMATIC DIAGRAM (7/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

C350 0.022

C352 10/16

R351

5.6K

C351 0.022

R347

6.8K

R346

330

R375

FE301

FM FRONT END

VR351

10K(B)

C36

1/50

R35

2.7K

C365 0.022

C366 0.001

C364 10/16

C363 0.022

C343

33P

C361 0.022

C362

3.3/50

R358

8.2K

L353

1mH

C334

27P

(UJ)

R323

68K

C323

0.022

IC303

LA1832

FM IF DET./

FM MPX./AM IF

T302

C331

0.047

C332

0.022

VD301

SVC348S

C380

10/16

C387

0.022

C392

0.001

R382

150

C337

0.022

C384

0.001

C394

47/16

C397

0.022

C301

0.001

D304

DS1SS133

D303

DS1SS133

D302

DS1SS133

D301

DS1SS133

C338

0.001

L341

C341

0.022

L342

2.2mH

C344 33P

R369

R348

680

R349

Q301

2SC380 O

FM IF AMP

R336

10K

C335

560P

R374 1K

R372 1K

R373 1K

C381

12P(CH)

C382

15P(CH)

C393

1/50

R378

L351

100µH

IC302

LC72131

PLL CONTROLL

CF302

C321 100/16

R301 330

T351

CF352

R352

R344 470

R345 4.7K

C347 0.022

C346 0.022

CF301

C345 0.022

SO301

FM ANTENNA

TERMINAL

75 ohms

R381

10K

R380

1.5K

C353

0.022

C354 0 022

C385

0.01

X352

4.5MHz

R379

2.2K

TUN_MUTE

ST IND

MO/ST

B01

F OUT

IF OUT

VCC

GND

ANT

VSS

AOUT

AIN

VDD

AM IN

X IN

IF IN

REG

AM IF IN

GND

FM/AM OUT

VSM

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

CNP301

4 3 2 1

R377

AM LOOP

ANTENNA

BALUN

C330

15P

(CH)

T306

AM OSC.

AM ANT.

FM MUTE

LEVEL

C342

0.022

AM IF

TUNER PWB-F

FM SIGNAL

AM SIGNAL

18192021222324

X OUT

FM IN

10 11

121314151617

1819

CD-C607H/611H

– 27 –

Figure 27 SCHEMATIC DIAGRAM (8/10)

8 9 10 11 12

CNS303

TO MAIN PWB

P23 12-D

C369

27P

RT48

390

R356

C368

1/50

R357

470K

C374

0.015

C367

1/50

R350

2.7K

C373

0.015

R361

1.2K

C371

1/50

C375

3.3/50

R392

390

R391

390

R383

5.6K

R365

10K

R366

10K

R368

33K

R367

ZDT21

DZ5.1BSB

CT43

10/16

D353

DS1SS133

R364

47K

CT36

0.022

R370

R371

Q371

KTA1266 GR

PLL DATA BUFFER

D352

DS1SS133

R384

5.6K

R360

4.7K

R387

22K

ZD352

DZ3.9BSB

R376

D351

DS1SS133

C391

47/16

R385

5.6K

Q360

KTA1266 GR

VOLTAGE

REGULATOR

Q361

KRC107 M

SWITCHING

R359

1.8K

CT27

22P

(CH)

RT35

220K

RT36

220K

RT37

220K

R355

3.3K

C357

2.2/50

C358

1/50

C386

330P

R378

82K

L352

100µH

R354

3.9K

C356

0.001

RT49

390

R363

47K

XT21

4.332MHz

CT26

22P

(CH)

R398

1.2K

OLLER

RT26

RT30 1K

RT29 1K

RT28 1K

LT22

2.2µH

CT28

47/10

CT29

0.022

RT21

100K

CT24

0.022

R393

C395

0.022

C396

100/10

ZD351

DZ5.1BSB

R395

47K

C372

1/50

R362

1.2K

C399

0.022

C398

100/10

C353

0.022

CF351

C354 0.022

C370

1/50

C355

22P

ICT21

LC72720

RDS DECORDER

CT23

10/16

R353

270

Q354

KTC3199 GR

MUTING

Q353

KTC3199 GR

TUN SM

D GND

CLK

TP TP

VDDA

XIN

VDDD

MO/ST

ST IND

A+12V

A GND

TUN_L

TUN_R

SYR

VSSD

XOUT

CIN

MPXIN

VSSA

FLOUT

VREF

IF IN

STEREO

FM DET

VCC

IF OUT

PHASE

(FM/AM)

PHASE

L-CH OUT

R-CH OUT

MPX IN

10 11 12

4 3 2 1

LT21

2.2µH

CT21

47/10

CT22

0.022

CT25

560P

QT21

KTC3199 GR

AMP.

RT32

10K

RT33

56K

RT34

56K

CT37

0.022

R377

47K

L354

LOW PASS

FILTER

X351

456KHz

MPX VCO

TP302

CNP303

RDS-ID

SYNC

131415

181920

21222324

1011 12

13141517 16

Q360

MUTING

R.D.S. SIGNAL BUFFER

CD-C607H/611H

– 28 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

Figure 28 SCHEMATIC DIAGRAM (9/10)

• The numbers 1 to 12 are waveform numbers shown in page 35.

1SS133

C76

0.022

C77

100/16

C57

0.001

C20

47/16

C82

100/16

C55

100/16

R56

22K

C36

100/16

IC3

M63001FP

FOCUS/TRACKING/SPIN

/SLIDE DRIVER

C37

0.022

R47

10K

C25

27P

R39

C15

0.01

R41

47K

R43

56K

R44

33K

R42

47K

C17

0.001

R30

6.8K

1/50

R11

6.8K

0.033

R10

2.2K

0.033

C54

0.001

100K

C16

0.0047

R27

39K

R25

1.5K

R23

10K

R24

47K

R17

33K

C29

4.7/50

C28

0.1

C14

0.01

0.1/50

C35

1/50

2SA1318

R18

15K

C11

0.1

IC1

LA9241M

SERVO AMP.

C13

330P

R26

82K

R37

82K

C19

1/50

R33

1.2K

R32

10K

C32

0.01

C31

220/6.3

C30

0.1/50

C27

0.001

C24

2.2P

R40

5.6K

C26

0.033

R31

1.2K

C18

0.47/50

R16

3.3K

R15

12K

C10

180P

0.068

0.1/50

R12

100

0.047

R13

R14

27K

C12

0.1

47/16

0.01

R46

560

R38

470

C23

0.0027

R45

4.7K

C22

220P

C34

0.33/50

C33

0.47/50

(SPN)VCC2

VCC4

FO–

FO+

TR+

TR–

ACTUATOR

FO+

FO–

TR–

TR+

2200P

LD_M+

LD_M–

VCC3

M–

M+

SOL+

SOL–

SP–

SP+

SPO

SOL–

SOLD

MUTE

Vref

STANDBY

VCC1

SLD

SL–

SL+

GND

TR+

TR–

FO–

FO+

FO (GAIN)

GND

FO–

FO+

TR+

TR–

TP1

TBC

JPCLO

SLOF

FSC

FE1

FOSTA

FSC

EFBAL

REF

CV–REF

CV+

JP–

JP+

VREF

2FREQ

LASER

8/12CM

FSTA

S.Q.R

FOSTA

TOSTA

LATOH

FSTA

SLOF

DRF

HFL

DEF

VCC

THD

THDL

TGL1

VCR

FE1

REF

–

REF

DGND

SLI

FIN2

FIN1

TE–

TESI

SCI

REF

TD–

GEN

FD–

FA–

FE–

AGND

SPI

SPG

SP–

SPO

SLEO

SLD

SL–

SL+

REF

SLC

RFSM

JP–

JP+

TGL

TOFF

TES

HFL

SLOF

CV–

CV+

63 62

54 53

3 3

CNP1

CNP2

4 3 2 1

CNP12

CNP3

CNS1A

CNS1B

LASER DRIVER

FROM DISPL

CNS70

RWC(DSP)

D_GND

RES(DSP)

WRQ(DSP)

DRF (ASP)

SLD+

SLD–

CQ CK(DSP)

CO IN(DSP)

SQ OUT(DSP)

SW4

PICKUP IN

SPIN

SLIDE

PU-IN

–

CNS3B

CNS3A

SPINDLE

MOTOR

SLID

MOTOR

CNS2A

CNS2B

1/16

15K

RFS–

R36

220K

R35

220K

R34

C21

0.0033

R20

R19

R21

1.5K

R22

820

FO–

FO+

TR+

TR–

CD_GND

CD_PUIN

SL_–

SL_+

SP–

SP+

CD MOTOR

PWB-C

PICKUP UNIT

VCC1

LDS

LDO

BHI

LF2

PHI

REF1

FSS

VCC2

DRF

DEF

CLK

DAT

–

R28 10K

R29 56K

CNP3A

GND

1.8V

3.8V

CD-C607H/611H

– 29 –

Figure 29 SCHEMATIC DIAGRAM (10/10)

8 9 10 11 12

R84

2.2K

IC2

LC78622N

R55

100

C57

0.001

D82

1SS133

C83

0.022

R80

820

R81

820

Q51

KRC102 M

D92

1SS133

D93

1SS133

R83

390

R82

390

C56

0.022

R91

D91

1SS133

Q52

KTC3203 Y

C52

100/16

R64

R66

220

ZD61

MTZJ5.6B

C51

100/16

C50

0.022

L61

0.82µH

C37

0.022

R47

10K

C46

100P

(CH)

R51

3.3M

R88

1.2K

R93

220

D81

1SS133

C45

100P(CH)

C44

100P(CH)

R89

1.2K

R90

220

R50

680

C39

0.047

C40

0.047

R52

27K

R60

R57

R58

R61

R59

C38

0.01

R63

R62

C49

100P(CH)

C48

100P

C43

330/6.3

R74

100K

R73

100K

C73

220P

C74

220P

R53

1.2K

C22

220P

C47

100P(CH)

C75

0.001

C72

10/50

R71

2.7K

R72

2.7K

CD_RCH

A_GND

16.93MHz

+5V

TEST5

/CS

TA1

SOL+

SOL–

M+

M–

GND(D)

OPEN CLOSE

DISC NO.

GND(D)

MECHA UP

GND(D)

2KX8

RAM

1BIT

DAC

SERVO

COMMAND

TES

HLF

V/P

CLV-

CLV+

TEST2

EFMIN

EFMO

VSS

VVDD

ISET

VVSS

PDO

DEF1

TOFF

TGL

JP+

JP_

PCK

FSEQ

VDD

CONT1

CONT2

CONT3

CONT4

CONT5

EMPH

C2F

CLV

DIGITAL

SERVO

EXTERNAL

OUTPUT

SYNC-DETECT

EFM DEMODULATE

SLICE

LEVEL

CONTROL

VCO

CLOCK

OSC

CONTROL

ERROR

COERECT

FLAG

CONTROL

DIGITAL

OUT

TEST3

DOUT

4FS

DIGITAL

FILTER

TEST1

TEST4

MUTEL(NC)

LVDD

LCHO

LVSS

RVSS

RCHO

RVDD

XVDD

XOUT

XIN

XVSS

SUB-CODE

µ-COM

INTERFACE

TEST11

SBCK

SFSY

FSX

WRQ

RWC

SQOUT

COIN

/CQCK

/RES

16M

X-TAL

GENERATOR

54 53

CNP10

1 1

2 2

–

13 12

4 3

CNP11

+12V

D-GND

+7V

L-CH

A_GND

R-CH

TO MAIN PWB

P22 1-A

CNS401

C71

10/50

VOLTAGE

REGULATOR

PIN27

LOW

HIGH

TRY SPEED

SOLM2

SOLENOID

TURNTABLE

UP/DOWN/

MOTOR

SW1

OPEN CLOSE

SW2

MECHA

SW3

DISC

NUMBER

CNS5

CNS10

2 3

SWITCHING

REGULATOR

FROM DISPLAY PWB

CNS701

PCCL

OPEN/CLOS

UP/DOWN

DISC NO.

D_GND

RES(DSP)

DRF (ASP)

SLD+

SLD–

PUIN SW

CQ CK(DSP)

IN(DSP)

SQ OUT(DSP)

SERVO/SIGNAL

CONTROL

CD_LCH

R65

CD_D_NO

M–

M+

CD SERVO PWB-B

CD SIGNAL

TRAY MOTOR

PWB-D

SBSY

EFLG

MUTER

PCCL

BIM5

CD-C607H/611H

– 30 –

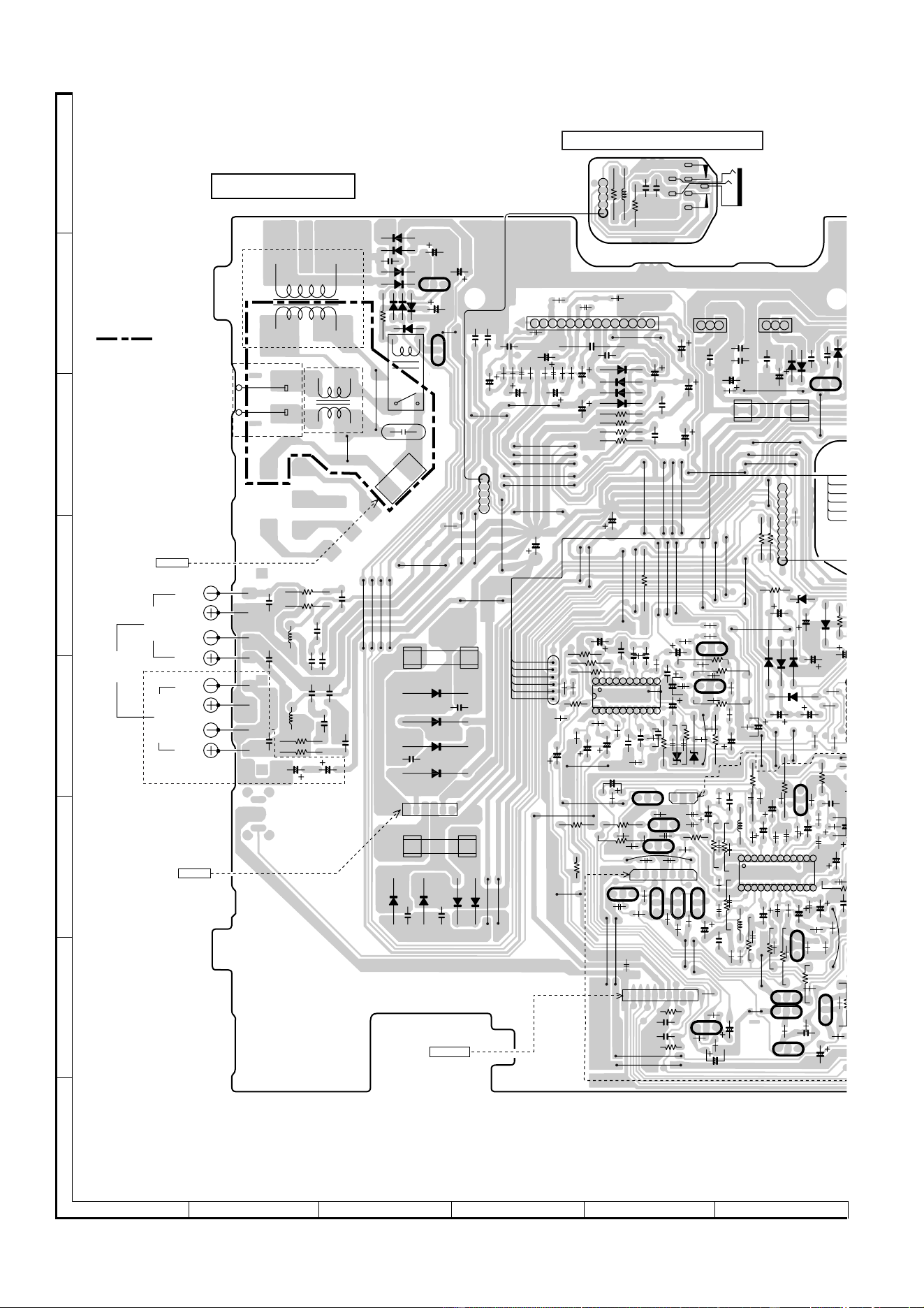

Figure 30 WIRING SIDE OF P.W.BOARD (1/5)

23456

IC501

IC401

C914

C924

D916

D913

C923

D917

D912

Q502

Q503

Q505

R522

C516

C514

CNS303

R558

C550

C551

R559

Q511

C524

C522

L501

R531

C520

R561

Q504

Q512

R543

R546

Q509

Q508

Q501

C505

C541

Q516

C528

C534

C536

R502

Q513

C529

R550

R532

C525

C521

L502

C517

C515

R515

R523

R518

Q506

Q507

CNP502

R513

R510

Q510

CNP501

C513

R528

R519

CNP902

D911

C638

C621

R615

C625

C627

C635

L603

C629

C623

C624

C622

C628

C633

L602

D914

D915

D910

C921

C922

BI401

R422

R414

R415

R416

C406

C411

C412

C410

C419

C407

C418

C415

C416

C424

R424

D906

D909

D908

D905

C920

C403

C405

R417

ZD401

R423

ZD402

C422

C413

C414

C404

Q401

R402

R405

Q402

R406

FW701

C915

C636

C637

R617

L601

B C E

E C B

3 2 1

B C E

E C B

B C E

3 2 1

B C E

B C E E

1 2 3 4 5 6 7

R906

R905

D907

ZD901

R903

C919

C916

FW702

R902

R904

R911

C911

FW601

C912

CNP901

C626

R612

R614

C632

SO901

C929

C603

C604

C605

C607

C608

C615

C611

C606

C616

R611

R609

R610

R608

D928

D926

D929

D927

C609

C618

C617

C613

C614

C612

C910

C907

FW601

R616

IC901

D904

D903

C903

C905

C908

C909

C904

D901

IC902

IC903

C928

D922

D921

D923

D924

R908

D925

D919

D920

D918

C925

C631

C630

C927

1 3 2

C926

IC904

Q902

IC601

C906

R613

F901

T3.15A L 250V

F902

T1.6A L 250V

F903

T500mA L 250V

123 1

1 3 2

456789

1011121314

1 2 3 4 5 6 7 8 9

20191817 16151413 12

L901

1 2 3 4 5 6 7 8 9

101112

242322212019181716151413

RL901

R535

R553

R509

R503

R508

R529

R530

R524

R526

C518

R536

R533

R537

R541

R544

C532

R539

C526

C53

R547

C509

C511

R514

R506

R507

R504

R501

R505

C503

C425

R548

R407

R534

C519

R538

R542

R545

C533

R540

C523

C527

R527

R525

C501

C502

R517

C506

R511

C507

C504

R512

R520

R521

C510

C512

R430

R429

R427

R428

R420

R421

R426

R425

C423

C417

R419

R418

R412

R413

R410

R408

C402

C401

R403

R411

R409

R404

R401

C640

R604

C639

R603

R605

R601

R602

R607

R606

C602

C601

R901

C610

HEADPHONES PWB-A3

SO901

AC SOCKET

AC 230 50Hz

FROM POWER

TRANSFORMER

CNS901

R-CH

L-CH

R-CH

L-CH

FRONT

SPEAKERS

5.4 OHMS MIN.

TO TUNER PWB

CNP303

SURROUND

SPEAKERS

SO601

SPEAKER

TERMINALS

MAIN PWB-A1

JK601

HEADPHONES

PT902

POWER TRANSFORMER

1 2 3 4 5 6 7 8 9 10

When Servicing pay,

attention as the area

enclosed by this

( ) is directly

connected with AC main

voltage.

(CD-C611H ONLY)

FROM POWER

TRANSFORMER

CNS902

1 2 3 4 5 6

P34 2-G

P34 5-G

P32 5-F

CD-C607H/611H

– 31 –

Figure 31 WIRING SIDE OF P.W.BOARD (2/5)

8 9 10 11 12

C505

C541

Q516

R552

C539

R554

L503

C540

Q514

Q515

C530

C534

RD14

SW716

RD15

SW715

SW701

ON/STAND-BY

LED722

RD17

RD16

C705

RD19

RD18

RD01

RD02

SW717

PTY.TI SEARCH

SW718

EON

SW719

ASPM

SW702

DISPLAY

MODE

RD03

RD04

SW703

CLOCK

SW704

SW720

STATION

R711

IC704

D717

C713

C711

C717

D720

D719

D718

R797

R709

R781

R720

R724

L702

D721

C712

R795

Q704

Q703

D716

Q702

R760

R758

RD11

SW712

MEMORY/

SET

RD10

RD12

SW714

TUNER

(BAND)

BI702

C537

C536

R551

C535

C508

R549

R502

C531

905

FW701

C913

C915

ZD902

C917

FW701

R752

R751

R755

R742

RD13

R747

R748

R749

R750

SW713

STOP

SW725

PLAY

R740

R733

R737

R732

R731

R754

R780

SW710

FAST

FORWARD

R768

D702

D701

R794

R726

FL701

C709

SW722

REWIND

C702

C706

C721

C710

Q705

XL701

FW702

D703

D704

RD23

Q901

B C E

R906

R905

C918

D907

C916

R910

IC901

C909

C904

C902

D901

D902

RD22

SW724

TUNING

DOWN

SW723

TUNING UP

RD24

RD21

RD05

BI701

FW703

SW728

X-BASS

DEMO

R798

C715

RX701

SW727

VOLUME

RD26

RD25

SW726

VOLUME

DOWN

SW707

OPEN/

SW706

DISK SKIP

FW703

C901

SW711

REC PAUSE

TAPE

TIMER/

SLEEP

1 3 2

3 2 1

1 3

112

413

R557

R555

R556

R553

R509

R503

R537

R541

R544

C532

C538

R547

R759

R712

R734

R735

R736

R738

R741

R743

R739

R762

R713

R715

R714

R703

R701

R730

R744

R753

R516

R548

R542

R545

C533

R766

R767

R769

R770

R764

R765

R763

R727

R745

R757

R756

R771

R772

R775

R776

R777

R778

IC701

R723

C708

C707

RD06

C714

100

SWITCH PWB-A4

DISPLAY PWB-A2

FROM TAPE

MECHANISM

CNS101

FROM TAPE

MECHANISM

P34 4-E

CNS102

CNS702

TO TAPE

MECHANISM

PWB

CNPM1

15 14 13 12 11 10

987654321

CNS701

CNP12

TO CD SERVO PWB

P33 11-G

CNS401

TO CD SERVO PWB

CNP11

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

P34 6-A

P34 3-E

P33 10-G

CD-C607H/611H

– 32 –

23456

Figure 32 WIRING SIDE OF P.W.BOARD (3/5)

C338

C323

C346

R369

R346

R347

R348

C347

C345

R301

R345

R380

R379

R381

C397

R344

C341

C330

C337

C332

C392

C334

R323

C343

R358

C363

C361

C344

C350

C351

R351

C366

R352

C399

R353

C342

C354

C356

C353

R364

R363

R362

R365

R361

R366

CT37

R356

R355

R359

CT25

CT24

CT22

CT29

RT28

RT30

R370

R367

C355

C395

R384

R385

R383

R387

C384

R376

C385

C386

R360

R371

R372

R374

R373

C301

C382

C387

C381

R378

123

C374

CNP303

IC302

D303

D304

D302

D301

CNP301

T302

VD301

R336

C362

L353

C367

R350

L354

T351

C369

C368

R357

Q354

C372

C371

C373

CT43

ZDT21

CT36

RT34

RT33

RT32

CT21

LT21

CT23

CT26

C375

QT21

X351

RT35

RT36

RT37

CT27

XT21

LT22

RT48

RT49

ICT21

RT21

ZD351

C396

R392

R391

Q361

C391

R395

L352

C370

Q371

R377

R398

Q360

ZD352

L351

C393

C380

C394

X352

R382

D352

D351

RT29

RT26

CT28

C364

C365

IC303

FE301

C321

R349

L342

L341

Q301

C331

T306

C335

VR351

C352

C398

CF352

R354

C358

C357

R393

D353

R368

Q353

CF351

CF302

CF301

E C B

TO MAIN PWB

CNS303

AM LOOP

ANTENNA

SO301

FM ANTENNA

TERMINAL

75 Ohms

TUNER PWB-F

FM MUTE

LEVEL

BCE

R375

B C E

P30 4-G

CD-C607H/611H

– 33 –

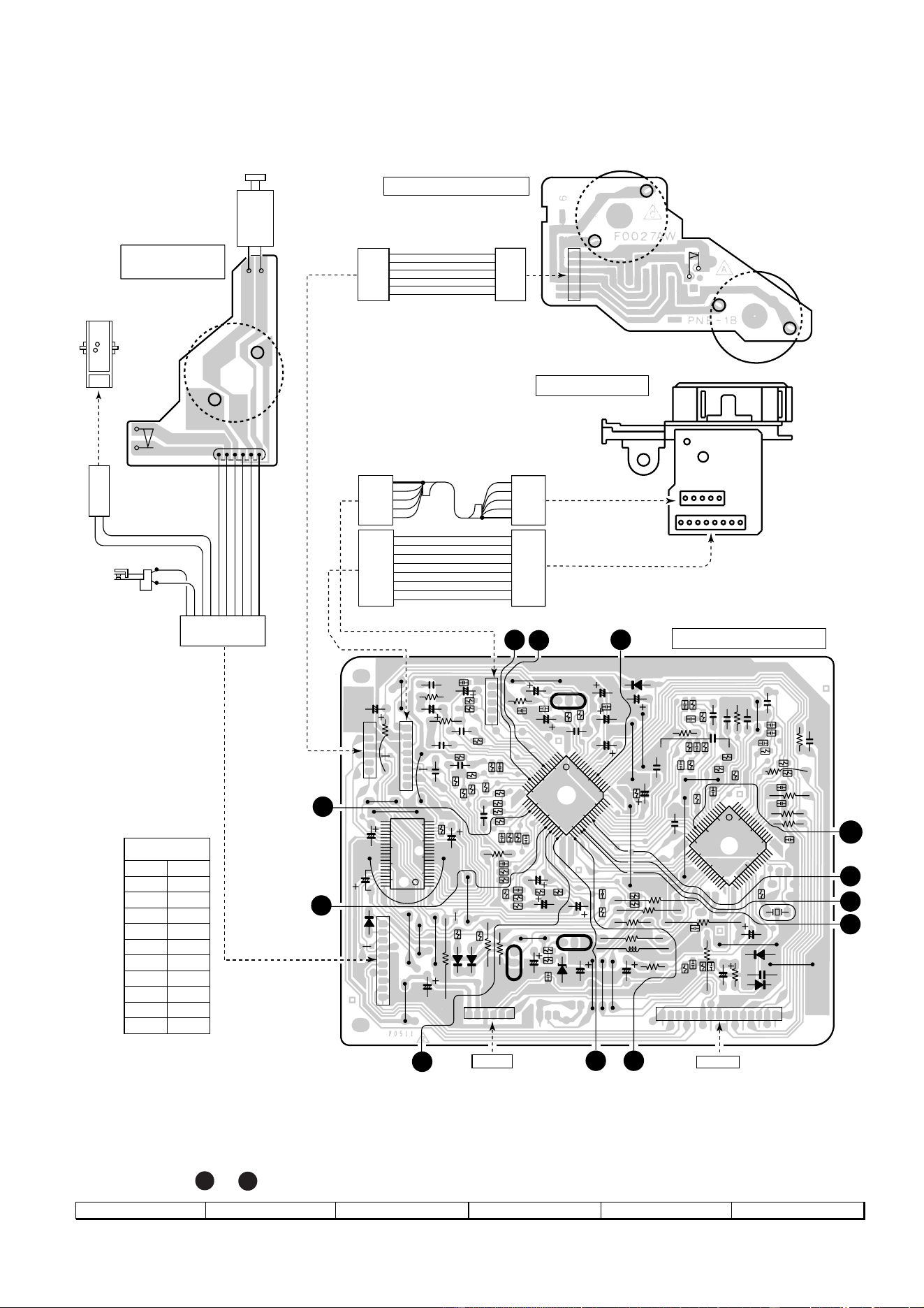

Figure 33 WIRING SIDE OF P.W.BOARD (4/5)

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 35.

IC1

IC3

R56

R82

R83

R64

R66

R33

R28

R27

C16

R29

C17

R30

R31

C14

R25

R26

C13

C75

C21

R34

C50

R73

C73

R74

C74

R93

R36

R35

IC2

C44

R58

R59

C49

C45

C38

C47

R60

C46

C27

R41

R42

R40

R53

R38

C25

C23

R50

R52

C56

R44

C24

R43

R45

C32

R46

C15

C54

R10

R15

C10

R24

R17

R23

R18

R20

R21

R22

R16

R14

R13

R32

SPINDLE MOTOR

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNS5

CNS10

10987654321

SW2

MECHA UP

SW1

OPEN/CLOSE

CNS1B

CNS1A

CNS2BCNS2A

CNS3BCNS3A

PICKUP UNIT

CD MOTOR PWB-C

SOLM2

SOLENOID

CD SERVO PWB-B

CNS701

FROM DISPLAY PWB

P31 11-A

CNS401

FROM MAIN PWB

P31 7-C

PICKUP IN

CNP3A

SW4

SLED MOTOR

TURNTABLE UP/

DOWN/LOADING

MOTOR

SW3

DISC NUMBER

BIM5

TRAY MOTOR

PWB-D

CNP11

CNP10

C82

D91

R84

D92

D93

R80

R81

Q51

C77

C52

ZD61

C20

C18

C51

C71

R71

R90

R88

R89

R91

L61

C19

Q52

R65

C72

CNP12

123456789101112131415

C43

D82

C83

D81

R72

R55

R61

R62

R57

R63

C37

R47

C26

C40

R51

C39

R39

C57

C22

C28

C29

C34

C33

C12

E C B

B C E

R19

2122

C11

C55

R11

C76

CNP2

CNP3

R37

C36

C35

R12

CNP1

C31

C48

C30

7 6

CD-C607H/611H

– 34 –

Figure 34 WIRING SIDE OF P.W.BOARD (5/5)

23456

TAPE 1

PLAYBACK HEAD(220-6)

TAPE 2

ERASE HEAD(220-7)

RECORD/PLAYBACK HEAD(220-6)

BL PK

CNS102

CNS101

7654321213

CNP502

TO MAIN PWB

P31 8-G

TO MAIN PWB

P31 8-E

CNP501

TO MAIN PWB

CNP901

CNS901

TO MAIN PWB

CNP902

CNS902

PT901

POWER TRANSFOMER

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNPM1

CNPM2

FWM1

FWM2

SWM3

SWM4

F. A. S

(220-9)

FOOL PROOF(220-8)

123456789101112

PHM1

CNS702

FROM

DISPLAY

PWB

SOLM1

TAPE MOTOR(220-1)

SOLENOID

MM1

SWM5

CAM

(220-10)

TAPE MECHANISM PWB-E

P31 8-F

TAPE MECHANISM ASSEMBLY

P30 1-D

P30 2-F

CD-C607H/611H

– 35 –

WAVEFORMS OF CD CIRCUIT

REVIEW

0.5ms

1.00 V

IC1 41 HF

0.5ms

5.0 V

IC1 37 HFL

0.5ms

5.0 V

IC1 36 TES

CUE

50ms

10.0 V

IC1 33 JP+

50ms

10.0 V

IC1 32 JP-

50ms

0.50 V

IC1 14 JP

50ms

1.00 V

IC1 7 TE

0.5ms

10.0 V

IC1 33 JP+

0.5ms

10.0 V

IC1 32 JP-

0.5ms

0.50 V

IC1 14 JP

0.5ms

1.00 V

IC1 7 TE

REVIEW

50ms

10.0 V

IC1 33 JP+

50ms

10.0 V

IC1 32 JP-

50ms

0.50 V

IC1 14 JP

50ms

1.00 V

IC1 7 TE

0.5ms

10.0 V

IC1 33 JP+

0.5ms

10.0 V

IC1 32 JP-

0.5ms

0.50 V

IC1 14 JP

0.5ms

1.00 V

IC1 7 TE

PLAY

NORMAL DISC

TN0=01

20ms

1.00 V

IC1 27 SPO

20ms

2.00 V

IC2 12 CLV+

PLAY TCD-712 (140mm)

TN0=01

50ms

1.00 V

IC1 27 SPO

50ms

2.00 V

IC2 12 CLV+

PLAY TCD-712

100mV

IC1 29 SLD

0.5s

100mV

IC1 29 SLD

5ms

0.50 V

IC1 20 FE

5ms

5.0 V

IC1 54 DRF

STOP PLAY

FOCUS SERCH

CUE

0.5ms

1.00 V

IC1 41 HF

0.5ms

5.0 V

IC1 37 HFL

0.5ms

5.0 V

IC1 36 TES

CD-C607H/611H

– 36 –

TROUBLESHOOTING

• When the turntable fails to stop.

Is from 5 V till 2.5V down pulse (approx. 300 ms)

Check the SW2 and the wiring from the IC701 pin 42 to the

SW2.

input into the IC701 pin 42 when the turntable is rotating?

2.5V

Yes

Check IC2 pin26 Q51 and the periphery.

Check the MECHA UP switch and the wiring from the IC701

pin 42 to the MECHA UP switch.

Is there following voltage input on the IC701 pin 42 in the

specific state?

When the CD mechanism is moved up: 0V

In other states: 4.3V

Yes

IC701 defective.

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the troubleshooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a

cleaning disc designed for CD optical pickup lenses.

HOW TO USE

1. Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the brush on the CD cleaner disc which has

the mark next to it.

2. Place the CD cleaner disc onto the CD disc tray with the brush side down, then press the play button.

3. You will hear music for about 20 seconds and the CD player will automatically stop. If it continues to turn, press the stop

button.

CAUTION

The CD lens cleaner should be effective for 30~50 operations, however if the brushes become worn out earller then please

replace the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the event of this happening then drink and /

or rinse with clean water and seek medical advice.

The CD cleaner disc must not be used on car CD players or on computer CD ROM drives.

Cleaner Liquid

Cleaning Disc

PARTS CODE: UDSKA0004AFZZ

Yes

CD-C607H/611H

– 37 –

• When the CD tray fails to open or close.

Is there following voltage input in specific state of IC701 pin 37?

Open state: 0V

Close state: 0V

Intermediate state between open state and close state: 4.3V

Is H output to IC2 pin 24 or 25 for 7 seconds when the OPEN/

CLOSE button is pressed? IC3 is defective. Replace it.

Is 4V output between IC3 pins 38 and 39 during operation

stated above?

Check the loading motor (M3) and the loading mechanism.

Yes

IC2 defective.

Check the periphery of IC3.

IC3 defective.

Check the OPEN/CLOSE switch and the wiring from the

IC701 pin 37 to the OPEN/CLOSE switch.

Check the wiring of the IC2 pins 24 and 25, IC3 pins 38 and 39.

• The CD function will not work.

The CD operating buttons don't work.

Check the CD, DSP, power supply, and 16.93 MHz clock, and

reset terminal.

Check the waveform of SCK, SO (DATA) and SI (COMM).

Yes

See if the pick-up is in the PICKUP IN switch position.

If the items mentioned above are OK, check the main

microcomputer IC701.

Yes

Is there following voltage input on the IC701 pin 42 in the

specific state?

In other states: 4.3V

When the CD mechanism is moved up: 0V

• When turntable fails to move.

Check the MECHA UP switch and the wiring from the IC701

pin 42 to the MECHA UP switch.

Is 4V output from the Q51 emitter during operation stated

above?

Yes

Check the wiring of IC2 pin 27 and Q51 pin 2.

Is L output from the IC2 pin 27 during SEC when the disc skip

switch is pressed?

Yes

Check turntable motor and turntable mechanism.

Check Q51 and the periphery.

IC2 defective.

CD-C607H/611H

– 38 –

• Playback can only be performed when a disc is

loaded.

Is HF waveform normal (see the Fig. 38-2, Fig. 38-3)?

Check the tracking system.

Is the Focus servo active? (Can you hear it working?)

Check the laser diode driver.

Check the area around IC1(16) - (21) (focus servo circuit).

Yes

Does the DRF signal change from "L" to "H"?

Yes

If the disc is not turning, the DRF

should not change to "H".

Level is abnormal.

Yes

Waveform is unstable.

Check the spin system.

Yes

Check the periphery

of IC1 pins 41 and 42.

Check the spin system.

Figure 38-3

Figure 38-2

0.5s

1.00 V

IC1 16 FD

0.5s

10.0 V

IC2 12 CLV+

0.5s

10.0 V

IC1 54 DRF

0.5s

2.00 V

IC1 7 TE

Waveform in

case of normal

playback

Yes

• The CD operating keys work.

Check the Focus - HF system.

Playback can be performed without a disc.

Focus search OK

Does the pick-up move up and down twice?

Does the output waveform of IC1(16)(FD) match that shown in

Fig. 38-1?

Check the IC1(50)(CLK) line, 4MHz.

Check the microcomputer data on pins (51)(CL), (52)(DAT)

and (53)CE.

Check the area around IC3-CNP2.

Yes

Figure 38-1

0.5s

0.50 V

IC1 16 FD

0.5s

0.50 V

IC1 7 TE

Focus search is

performed two

times when play

operation is done

without disc.

∝

1.0V/DIV

0.5 sec/DIV(DC)

(When playing

back the disc)

CD-C607H/611H

– 39 –

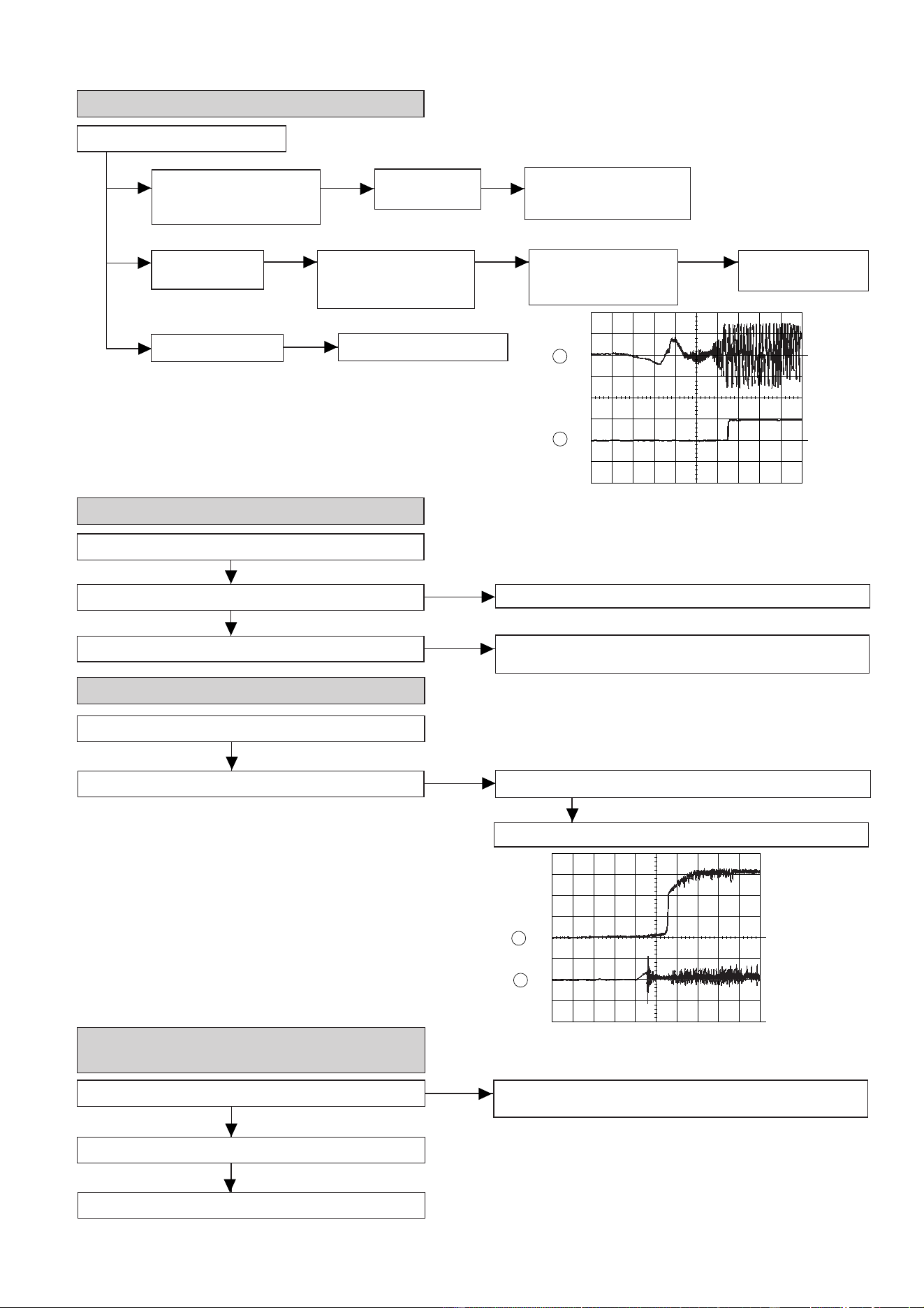

• Checking the spin system.

Yes

Play operation is performed without disc.

The turntable rotates a little.

The turntable fails to rotate or rotates at high speed.

Yes

The spin driver circuit is normal.

Check the periphery of IC1 pins 23 to 27, pin 39, and pin 40, IC2

pin 12 and pin 13, IC3 to CNP3.Yes

• Checking the VCO-PLL system

Figure 39-2

Play operation is performed when disc exits.

Yes

Although HF waveform is normal, TOC data cannot be read.

Yes

Check PDO waveform (Fig. 39-2).

Abnormal

Check the IC1 pins 43 and 44, IC2 pins 3, 5, 7, 10, and 11.

• Although HF waveform is normal and the time

indication is normal, no sound is emitted.

Check IC2 pin 48 (EFLG).

Check IC2 pins 37, 40.

Check IC401 and POWER AMP. IC601.

Abnomal

Yes

Usually, the number of pulses of flawless disc is 100 pulses/sec

or less.

0.5s

1.00 V

IC2 3 PDO

0.5s

1.00 V

IC1 16 FD

As VCO frequency

is locked at 4.32 MHz,

voltage of PDO rises and

stabilizes.

Stop --> Play

• Check the tracking system.

Check waveform of IC1 pin 7 (TE).

Play is possible in

TEST mode.

The unit will be initialized

in Normal mode,but it will

not playback..

Check the periphery

of IC 1 pin 14.

Normal jump is impeded,

and the program top

cannot be reached.

Check the periphery of IC 1

pin 8 to pin 15, and IC 5 to

CNP2.

The waveform shown in Fig.

39-1 appears, and no-disc

state appears soon.

Tracking servo is

inoperative.

Yes Yes

Yes

Data cannot be read.

Check the VCO-PLL system.

Yes

Figure 39-1

5ms

1.00 V

IC1 7 TE

5 ms

5.0 V

IC1 54 DRF

CD-C607H/611H

– 40 –

IC1 VHiLA9241M/-1: Servo Amp. (LA9241M) (1/2)

1 FIN2 Connection pin for photodiode of pickup.

RF signal is generated through addition with FIN pin, and FE signal is generated through subtraction.

2 FIN1 Connection pin for photodiode of pickup.

3 E Connection pin for photodiode of pickup. TE signal is generated through subtraction with F pin.

4 F Connection pin for photodiode of pickup.

5 TB Pin for input of DC component of TE signal.

6 TE- Pin to connect gain setting resistor of TE signal to TE signal.

7 TE TE signal output pin.

8 TESI TES (Track error sense) comparator input pin. TE signal is band-passed and input.

9 SCI Input pin for shock detection.

10 TH Pin to set time constant of tracking gain.

11* N.C. No connect.

12 TD- Pin to compose tracking phase compensation constant between TD and VR pins.

13 TD Pin to set tracking phase compensation.

14 JP Pin to set amplitude of tracking jump signal (kick pulse).

15 TO Tracking control signal output pin.

16 FD Focusing control signal output pin.

17 FD- Pin to compose focusing phase compensation constant between FD and FA pins.

18 FA Pin to compose focusing phase compensation constant between FD-/FA-pins.

19 FA- Pin to compose focusing phase compensation constant between FA and FE pins.

20 FE Output pin of FE signal.

21 FE- Pin to connect gain setting resistor of FE signal across TE pin.

22 AGND GND for analog signal.

23 SP Single end output for CV+ and CV- pin input.

24 SPI Spindle amplifier input.

25 SPG Pin to connect gain setting resistor in the 12cm mode of spindle.

26 SP- Pin to connect spindle phase compensation constant together with SPD pin.

27 SPO Spindle control signal output pin.

28 SLEO Pin to connect thread phase compensation constant.

29 SLD Thread control signal output pin.

30 SL- Input pin of thread feed signal from microcomputer.

31 SL+ Input pin of thread feed signal from microcomputer.

32 JP- Input pin of tracking jump signal from DSP.

33 JP+ Input pin of tracking jump signal from DSP.

34 TGL Input pin of tracking gain control signal from DSP. TGL = Gain low at "H"

35 TOFF Input pin of tracking off control signal from DSP. TOFF = Off at "H"

36 TES Output pin of TES signal to DSP.

37 HFL (HIGH FREQUENCY LEVEL) is used to judge whether main beam is positioned on the bit or on the mirror.

38 SLOF Thread servo off control input pin.

39 CV- Pin to input CLV error signal from DSP.

40 CV+ Pin to input CLV error signal from DSP.

41 RFSM RF output pin.

42 RFS- Pin to set gain of RF and set 3T compensation constant together with RFSM pin.

43 SLC (SLICE LEVEL CONTROL) is the output pin to control of the level of the data slice with RF waveform DSP.

44 SLI Input pin to control the level of data slice with DSP.

45 DGND GND pin in the digital system.

46 FSC Output pin for focus search smoothening capacitor.

47 TBC (Tracking Balance Control) Pin to set EF balance variable range.

48* NC No connect.

Pin No. Port Name Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

FUNCTION TABLE OF IC

CD-C607H/611H

– 41 –

IC1 VHiLA9241M/-1: Servo Amp. (LA9241M) (2/2)

Pin No.

Port Name

Function

49 DEF Defect detection output pin of disc.

50 CLK Reference clock input pin. 4.23MHz of DSP is input.

51 CL Microcomputer command clock input pin.

52 DAT Microcomputer command data input pin.

53 CE Microcomputer command chip enable input pin.

54 DRF (DETECT RF) RF level detection output.

55 FSS (Focus Serch Select) Pin to switch focus search mode. (± search/+ search for reference voltage)

56 VCC2 VCC pin for servo system and digital system.

57 REF1 Pin to connect pass control for reference voltage.

58 VR Reference voltage output pin.

59 LF2 Pin to set defect detection time constant of disc.

60 PHI Pin to connect capacitor for peak hold of RF signal.

61 BHI Pin to connect capacitor for bottom hold of RF signal.

62 LDO APC circuit output pin.

63 LDS APC circuit output pin.

64 VCC1 RF system VCC pin.

Figure 41 BLOCK DIAGRAM OF IC

IC3 VHiM63001FP-1: Focus/Tracking/Spin/Slide Driver (M63001FP)

IC401 VHiM62439SP-1: Audio Processor

(M62439SP)

IN2–

IN1A–

IN1B–

OUT1–

OUT1+

OUT2–

OUT2+

OUT3+

OUT3–

IN3–

VCC1

STANDBY

VREF

MUTE

GND

VCC3

OUT4+

OUT4–

IN4–

VCC2

IN5+

IN5–

IN6+

IN6–

VCC4

OUT6–

OUT6+

OUT5–

OUT5+

FO(GAIN)

FO+

FO–

TR+

TR–

SL–

SL+

SLD

VCC1

STANDBY

Vref

MUTE

LD_M+

LD_M–

VCC4

M–

M+

SOL–

SOL+

VCC3

SP+

SP–

SPO

(SPN)VCC2

SOLD

SOL–

M63001FP

M62439SP

REC OUT1

INA1

INB1

INC1

IND1

TONE1

TONEL1

OUT1

GND

Vcc

REC OUT2

INA2

INB2

INC2

IND2

TONE2

TONEL2

OUT2

Vss

CONT

(NC)

Pin No. Terminal Name Function

1 IN2- CH2 inverted input.

2 IN1A- CH1 inverted input.

3 IN1B- CH1 output offset control.

4 OUT1- CH1 inverted output.

5 OUT1+ CH1 non-inverted output.

6 OUT2- CH2 inverted output.

7 OUT2+ CH2 non-inverted output.

8-14 GND GND

15 OUT3+ CH3 non-inverted output.

16 OUT3- CH3 inverted output.

17 IN3- CH3 inverted input.

18 VCC1 Power supply 1 (CH1, CH2, CH3)

19 STANDBY STANDBY signal input.

20 VRFE CH1-CH4 Reference voltage input.

21 MUTE Mute signal input (CH6).

22 IN5- CH5 inverted input.

23 IN5+ CH5 non-inverted input.

24 VCC2 Power supply 2 (CH4).

25 IN4- CH4 inverted input.

26 OUT4- CH4 inverted output.

27 OUT4+ CH4 non-inverted output.

28 VCC3 Power supply 3 (CH5).

29-35 GND GND

36 OUT5+ CH5 non-inverted output.

37 OUT5- CH5 inverted output.

38 OUT6+ CH6 non-inverted output.

39 OUT6- CH6 inverted output.

40 VCC4 Power supply 4 (CH6).

41 IN6- CH6 inverted input.

42 IN6+ CH6 non-inverted input.

CD-C607H/611H

– 42 –

1 DEF1 Input Input terminal of defect detection signal (DEF). (Connected to OV when not used.)

2 TA1 Input For PLL Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

3 PDO Output For PLL Output terminal of phase comparison for external VCO control.

4 VVSS — For PLL Ground terminal for integrated VCO. Surely connected to 0V.

5 ISET Input For PLL Resistance connection terminal for current adjustment of PDO output.

6 VVDD — For PLL Power terminal for integrated VCO.

7 FR Input For PLL VCO frequency range adjustment.

8 VSS — Ground terminal of digital system. Surely connected to 0V.

9 EFMO Output For slice level control EFM signal output terminal.

10 EFMIN Input For slice level control EFM signal input terminal.

11 TEST2 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

12 CLV+ Outout Output for disc motor control. 3 values can be output with the commands.

13 CLV- Output Output for disc motor control. 3 values can be output with the commands.

14 V/P Output Monitor output terminal for automatic switch of rough servo/phase control.

"H" for rough servo, and "L" for phase servo.

15 HLF Intput Input terminal of track detection signal. Schmit input.

16 TES Input Input terminal of tracking error signal. Schmit input.

17 TOFF Output Tracking OFF output terminal.

18 TGL Output Output terminal for switch of tracking gain "L" increases the gain.

19 JP+ Output Output for track jump control. 3 values can be output with the commands.

20 JP- Output Output for track jump control. 3 values can be output with the commands.

21* PCK (NC) Output Clock monitor terminal for EFM data replay. 4,3218MHz as the phase clock.

22* FSEQ (NC) Output Output terminal synchronous signal detection. "H" is output when synchronous signal detected

by EFM signal matches synchronous signal internally generated.

23 VDD — Power terminal of digital system.

24 CONT1 Input/Output General purpose input/output terminal 1

25 CONT2 Input/Output General purpose input/output terminal 2

26 CONT3 Input/Output General purpose input/output terminal 3

27 CONT4 Input/Output General purpose input/output terminal 4

28* CONT5 Input/Output General purpose input/output terminal 5

29* EMPH (NC) Output Difference monitor terminal At "H", deemphasis disk is being replayed.

30* C2F (NC) Output C2 flag output terminal.

31* DOUT (NC) Output Output terminal of digital OUTPUT. (EIAJ format)

32* TEST3 (NC) Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

33 TEST4 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

34 PCCL Input CD general-use port control signal.

35* MUTEL (NC) Output L channel 1 bit DAC Mute output terminal for L channel.

36 LVDD — L channel 1 bit DAC Power terminal for L channel.

37 LCHO Output L channel 1 bit DAC L channel output terminal.

38 LVSS — L channel 1 bit DAC Ground terminal for L channel. Surely connected to 0V.

39 RVSS — R channel 1 bit DAC Ground terminal for R channel. Surely connected to 0V.

40 RCHO Output R channel 1 bit DAC R channel output terminal.

41 RVDD — R channel 1 bit DAC Power terminal for R channel.

42* MUTER (NC) Output R channel 1 bit DAC Mute output terminal for R channel.

43 XVDD — Power terminal for quartz oscillation.

44 XOUT Output Ground terminal of 16.9344 MHz quartz oscillator.

45 XIN Input Ground terminal of 16.9344 MHz quartz oscillator.

46 XVSS — Ground terminal for quartz oscillation. Surely connected to 0V.

47* SBSY (NC) Output Output terminal of synchronous signal of subcode block.

48* EFLG (NC) Output Correction monitor terminal of C1, C2, single and double.

49* PW (NC) Output Output terminal of subcodes P, A, R, S, T, U and W.

IC2 VHiLC78622N-1: Servo/Signal Control (LC78622N) (1/2)

Pin No.

Function

Terminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Controlled with serial data command

from microcomputer.

When not used, set it as the input terminal and

open it by connecting to 0V, or set it as the output

terminal and open it.

CD-C607H/611H

– 43 –

IC701 RH-iX0283AWZZ:System Microcomputer (IX0283AW) (1/2)

1 VDD VDD — (+) POWER SUPPLY

2* P37 ENA Output DOLBY PROLOGIC ENABLE TERMINAL

3 P36 DO Input DATA INPUT

4 P35 DI Output DATA OUTPUT

5 P34 CE Output CE OUTPUT

6 P33 CLK Output CLOCK OUTPUT

7*,8* P32, P31 LCK1, LCK2 Output

9 P30 CD DSP RWC Output CD DSP READ WRITE CONTROL

10 RESET RESET Input RESET

11 X2 X2 Output CLOCK

12 X1 X1 Input CLOCK

13 Vpp VPP — POWER SUPPLY TERMINAL

14* XT2 XT2 — OPEN

15 P04 WRQ Input CD DSP WRITE REQUEST

16 VDD VDD — (+) POWER SUPPLY

17 P27 PCCL Output CD DSP PCCL

18 P26 COIN Outout CD DSP COMAND

19 P25

SQOUT

Input CD DSP CODE Q OUT

20 P24 CQCK Output CD DSP CLOCK

21 P23 CD DSP RES Output CD DSP RESET

22 P22 FRF (DRF) Input CD RF LEVEL DETECTION

23 P21 SLD+ Output CD SLIDE MOTOR +

24 P20 SLD- Output CD SLIDE MOTOR -

25 AVss AVSS — ANALOG GROUND

26 ANI7 SPEANA3 Input SPEANA DATA INPUT 16 KHz

27 ANI6 SPEANA2 Input SPEANA DATA INPUT 1 KHz

28 ANI5 SPEANA1 Input SPEANA DATA INPUT 63 Hz

29 ANI4 TUN SM Input TUNER SIGNAL METER INPUT

30 ANI3 T2 RUN Input TAPE2 RUN PULSE INPUT

Port Name

Terminal Name

Pin No.

Input/Output

Function

IC2 VHiLC78622N-1: Servo/Signal Control (LC78622N) (2/2)

Function

Terminal Name Input/Output

50* SFSY (NC) Output Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.

51 SBCK Input Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)

52* FSX (NC) Output Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.

53 WRQ Output Output terminal to stand by output of subcode Q.

54 RWC Input Input terminal of read/write. Schmit input.

55 SQOUT Output Output terminal of subcode Q.

56 COIN Input Command input terminal from microcomputer.

57 /CQCK Input Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input.

58 /RES Input Reset input terminal of LC78622. When turning on power, set it at "L".

59* TEST11 (NC) Output Output terminal for test. Used in the open state ("L" output as ordinary).

60* 16M (NC) Output Output terminal of 16.9344Hz.

61 4M Output Output terminal of 4.2336MHz.

62 TEST5 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

63 /CS Input Chip selection input terminal. Pull-down resistor is integrated.

Connected to 0when not controlled.

64 TEST1 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

Pin No.

Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-C607H/611H

– 44 –

IC701 RH-iX0283AWZZ:System Microcomputer (IX0283AW) (2/2)

31-33 ANI2-ANI0 KEYIN3-KEYIN1 Input KEY INPUT

34 AVDD AVDD — A/D VDD

35 AVREF AVREF — A/D REF VOLTAGE

36 P03 PUIN SW Input CD PUIN SWITCH

37 P02 O/C SW Input CD OPEN/CLOSE SWITCH

38 INTP1 SYS STOP Input SYSTEM STOP INPUT

39 INTP0 REMOCON Input REMOCON INPUT

40 Vss VSS — GROUND VOLTAGE

41 P74 DNO SW Input CD DISC NO. SWITCH

42 P73 U/D SW Input CD UP/DOWN SWITCH

43 P72 TIMER LED Output TIMER LED CONTROL

44 P71 T_SOL Output TAPE SOLENOID CONTROL

45 P70 T_MOT Output TAPE MOTOR CONTROL

46 VDD VDD — (+) POWER SUPPLY

47 P127 CAM SW Input TAPE CAM SWITCH

48 P126 TIFAS Input TAPE1 FULL AUTOSTOP PULSE INPUT

49 P125 FPA Input TAPE2 A-SIDE FULL PROOF

50 P124 H/P Input HEADPHONE INPUT

51 P123 AC RLY_CONT Output AC RELAY CONTROL

52 P122 REC/PLAY Output TAPE REC/PLAY CHANGE

53 P121 T_BIAS Output TAPE Record bias control

54 P120 T_T1T2 Output TAPE T1/T2 CHANGE

55 P117 DISTO Input DISTINATION INPUT

56 P116 KEY JOG A Input KEY JOG INPUT A

57 P115 KEY JOG B Input KEY JOG INPUT B

58 P114 S MUTE Output SYSTEM MUTE

59* P113 C MUTE Output CENTER MUTE

60* P112 SR MUTE Output SURROUND MUTE

61* P111 HI-CUT Output HI-CUT OUTPUT

62 P110 POWER Output POWER OUTPUT

63* P107 SPRLY Output SPEAKER OUTPUT RELAY CONTROL

64 P106 SP_DET Input SPEAKER OUTPUT DETECTION

65 P105 SPN_P Input TUNER SPAN CHANGE

66 P104 DISTOUT Output DISTINATION OUTPUT

67 P103/FIP32 DIAS4/P22 Input DISTINATION INPUT

68 P102/FIP31 DIAS3/P21 Input DISTINATION INPUT

69 P101/FIP30 DIAS2/P15 Output FL DISPLAY SEGMENT DRIVER

70 P100/FIP29 DIAS1/P16 Output FL DISPLAY SEGMENT DRIVER

71-78 FIP28-FIP21 P18/P13-P11/P7 Output FL DISPLAY SEGMENT DRIVER

79 VLOAD VLOAD — FL DRIVER (–) POWER SUPP, –30V

80-89

P1-P5/P12/17-P19

P1-P5/P12/P17-P19 Output FL DISPLAY SEGMENT DRIVER

90*,91* NC NC — OPEN TERMINAL

92-100 G1-G9 G1-G9 Output FL DISPLAY SEGMENT DRIVER

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-C607H/611H

– 45 –

FL701 VVKSVA9MS13-1 : FL Display

Figure 45 FL SEGMENT

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

Pin No.

CONNECTION

Pin No.

CONNECTION

P12

P19

P18

P17

P15

P16

P13

P20

P14

P11

P10

PIN CONNECTION

2G 3G 4G 5G 6G 7G 8G 9G1G

( 1G~8G )

col

(L)

(R)

CD-C607H/611H

– 46 –

— M E M O —

CD-C607H/611H

– 47 –

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

MODEL

CD-C607H

CD-C611H

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

CD-C607H mini component system consisting of

CD-C607H (Main unit), CP-C607H (Front speaker).

CD-C611H mini component system consisting of

CD-C611H (Main unit), CP-C611H (Front speaker)

and GBOXS0028AWM1 (Surround speaker).

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

– 1 –

INTEGRATED CIRCUITS

IC1 VHILA9241M/-1 J AS Servo Amp.,LA9241M

IC2 VHILC78622N-1 J AY Servo/Signal Control,LC78622N

IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Slide

Driver,M63001FP

IC302 VHILC72131/-1 J AP PLL Controller,LC72131

IC303 VHILA1832//-1 J AR FM IF DET./FM MPX./AM IF,

LA1832

IC401 VHIM62439SP-1 J AG Audio Processor,M62439SP

IC501 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC601 VHILA4451//-1 J AN Power Amp.,LA4451

IC701 RH-IX0283AWZZ J System Microcomputer,

IX0283AW

IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP

IC901 VHIAN78L05/-1 J AE Constant Voltage Regulator,

AN78L05

IC902 VHIKIA7806P-1 J AG Voltage Regulator,KIA7806P

IC903 VHIKIA7812P-1 J AE Voltage Regulator,KIA7812P

IC904 VHIAN78L05/-1 J AE Constant Voltage Regulator,

AN78L05

ICT21 VHILC72720/-1 J AW RDS Decorder,LC72720

TRANSISTORS

Q1 VS2SA1318//-1 J AC Silicon,PNP,2SA1318

Q51 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q52 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O

Q353,354 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q361 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q371 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q401,402 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q501 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q502~505 VS2SC2389SE-1 J AD Silicon,NPN,2SC2389 SE

Q506,507 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q508,509 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q510~513 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q514 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q515 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q516 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q702 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q703 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q704 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q705 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q901 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q902 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

QT21 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

DIODES

D1 VHD1SS133//-1 J AA Silicon,1SS133

D81,82 VHD1SS133//-1 J AA Silicon,1SS133

D91~93 VHD1SS133//-1 J AA Silicon,1SS133

D301~304 VHDDS1SS133-1 J AB Silicon,DS1SS133

D351~353 VHDDS1SS133-1 J AB Silicon,DS1SS133

D701~704 VHDDS1SS133-1 J AB Silicon,DS1SS133

D716~721 VHDDS1SS133-1 J AB Silicon,DS1SS133

D901~904 VHDDS1SS133-1 J AB Silicon,DS1SS133

D905~909 VHD1N4004S/-1 J AB Silicon,1N4004S

D910,911 VHDRL203F//-1 J AE Silicon,RL203F [CD-C607H]

D910,911 VHD1N5402M/-1 J AE Silicon,1N5402M [CD-C611H]

D912,913 VHD1N4004S/-1 J AB Silicon,1N4004S

D914,915 VHDRL203F//-1 J AE Silicon,RL203F [CD-C607H]

D914,915 VHD1N5402M/-1 J AE Silicon,1N5402M [CD-C611H]

D916,917 VHD1N4004S/-1 J AB Silicon,1N4004S

D918~920 VHDDS1SS133-1 J AB Silicon,DS1SS133

D921~924 VHD1N4004S/-1 J AB Silicon,1N4004S

D925 VHDDS1SS133-1 J AB Silicon,DS1SS133

D926~929 VHD1N4004S/-1 J AB Silicon,1N4004S

LED722 VHPSLI342UCJ1 J AC LED,Red,SLI342UCJ1

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

ZD61 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD352 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

ZD401,402 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

ZD901 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA

ZD902 VHEDZ300BSB-1 J AB Zener,30V,DZ300BSB

ZDT21 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

FILTERS

CF301,302 RFILF0072AFZZ J AG FM IF

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

! PT901 RTRNP0256AWZZ J BB Power [CD-C611H]

! PT901 RTRNP0272AWZZ J BA Power [CD-C607H]

! PT902 RTRNP0239AWZZ J AP Buck-UP

T302 RCILA1064AFZZ J AD AM Tracking

T306 RCILB1074AFZZ J AC AM OSC.

T351 RCILI0011AWZZ J AD AM IF

COILS

L61 VP-XHR82K0000 J AC 0.82 µH,Choke

L341 RBLN-0001AWZZ J AD Balun

L342 VP-DH2R2K0000 J AB 2.2 mH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L353 VP-DH102K0000 J AB 1 mH,Choke

L354 RFILL0001AWZZ J AE Low Pass Filter

L501,502 VP-DH2R2K0000 J AB 2.2 mH,Peaking

L503 VP-MK331K0000 J AB 330 µH,Choke

L601 VP-DH2R2K0000 J AB 2.2 mH,Peaking

L602,603 RCILZ0137AFZZ J AA 0.29 µH

L702 VP-DH101K0000 J AB 100 µH,Choke

LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0026AWZZ J AC 10 kohm (B),Semi-VR

[FM Mute level]

VIBRATORS

X1 92LCRSTL1746AT J AH Crystal,16.93 MHz

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

XL701 RCRSP0003AWZZ J AH Crystal,4.19MHz

XT21 RCRSP0010AWZZ J AH Crystal,4.332MHz

CAPACITORS

C1 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C2 VCKYTV1HB103K J AA 0.01 µF,50V

C3 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C4 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C5,6 VCTYPA1CX333K J AA 0.033 µF,16V

C7 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C8 VCTYPA1CX683K J AA 0.068 µF,16V

C9 VCTYPA1CX473K J AA 0.047 µF,16V

C10 VCCSTV1HL181J J AA 180 pF,50V

C11,12 VCTYPA1CX104K J AB 0.1 µF,16V

C13 VCKYTV1HB331K J AA 330 pF,50V

C14,15 VCKYTV1HB103K J AA 0.01 µF,50V

C16 VCKYTV1HB472K J AA 0.0047 µF,50V

C17 VCKYTV1HB102K J AA 0.001 µF,50V

C18 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic

C19 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C20 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C21 VCKYTV1HB332K J AA 0.0033 µF,50V

C22 VCCSPA1HL221J J AA 220 pF,50V

C23 VCKYTV1HB272K J AA 0.0027 µF,50V

C24 VCCSTV1HL2R2C J AB 2.2 pF,50V

C25 VCCSTV1HL270J J AA 27 pF,50V

C26 VCTYPA1CX333K J AA 0.033 µF,16V

C27 VCKYTV1HB102K J AA 0.001 µF,50V

C28 VCTYPA1CX104K J AB 0.1 µF,16V

C29 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C30 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C31 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic

C32 VCKYTV1HB103K J AA 0.01 µF,50V

C33 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic

C34 VCEAZA1HW334M J AB 0.33 µF,50V,Electrolytic

C35 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C36 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C37 VCKZPA1HF223Z J AA 0.022 µF,50V

CD-C607H/611H

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

C38 VCKYTV1HB103K J AA 0.01 µF,50V

C39,40 VCTYPA1CX473K J AA 0.047 µF,16V

C43 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic

C44~47 VCCCTV1HH101J J AA 100 pF (CH),50V

C48 VCCSPA1HL101J J AA 100 pF,50V

C49 VCCCTV1HH101J J AA 100 pF (CH),50V

C50 VCKYTV1EF223Z J AA 0.022 µF,25V

C51,52 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C54 VCKYTV1HB102K J AA 0.001 µF,50V

C55 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C56 VCKYTV1EF223Z J AA 0.022 µF,25V

C57 VCKYBT1HB102K J AA 0.001 µF,50V

C71,72 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C73,74 VCKYTV1HB221K J AA 220 pF,50V

C75 VCKYTV1HB102K J AA 0.001 µF,50V

C76 VCKZPA1HF223Z J AA 0.022 µF,50V

C77 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C82 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C83 VCTYBT1EF223Z J AA 0.022 µF,25V

C301 VCKYMN1HB102K J AA 0.001 µF,50V

C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C330 VCCCMN1HH150J J AA 15 pF (CH),50V

C331 VCKZPA1HF473Z J AA 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C335 VCCSPA1HL561J J AA 560 pF,50V

C337 VCTYMN1EF223Z J AA 0.022 µF,25V

C338 VCKYMN1HB102K J AA 0.001 µF,50V

C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V

C343,344 VCCSMN1HL330J J AA 33 pF,50V

C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C365 VCTYPA1CX223K J AA 0.022 µF,16V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 VCCSBT1HL270J J AA 27 pF,50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX153K J AA 0.015 µF,16V

C375 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103K J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C401,402 VCKYMN1HB102K J AA 0.001 µF,50V

C403 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C404,405 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C406,407 VCEAEA1HW475M J AB 4.7 µF,50V,Electrolytic

C410 VCFYHA1HA334J J AC 0.33 µF,50V,Thin Film

C411 VCQYKA1HM333K J AB 0.033 µF,50V,Mylar

C412 VCQYKA1HM683J J AB 0.068 µF,50V,Thin Film

C413 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C414 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar

C415 VCQYKA1HM333K J AB 0.033 µF,50V,Mylar

C416 VCQYKA1HM683J J AB 0.068 µF,50V,Thin Film

C417 VCCSMN1HL4R7C J AA 4.7 pF,50V

C418,419 VCEAEA1HW475M J AB 4.7 µF,50V,Electrolytic

C422 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C423 VCTYMN1EF223Z J AA 0.022 µF,25V

C424 VCFYHA1HA334J J AC 0.33 µF,50V,Thin Film

C425 VCKYMN1HB471K J AA 470 pF,50V

C501,502 VCKYMN1HB102K J AA 0.001 µF,50V

C503,504 VCKYMN1HB181K J AA 180 pF,50V

C505 VCKZPA1HF473Z J AA 0.047 µF,50V

C506,507 VCKYMN1HB102K J AA 0.001 µF,50V

C508 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C509~512 VCKYMN1HB331K J AA 330 pF,50V

C513 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C514,515 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C516,517 VCTYPA1EX333K J AA 0.033 µF,25V

C518,519 VCKYMN1HB561K J AA 560 pF,50V

C520,521 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C522 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C523 VCTYMN1EF223Z J AA 0.022 µF,25V

C524 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C525 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C526,527 VCKYMN1HB102K J AA 0.001 µF,50V

C528,529 VCEAEA1CW226M J AB 22 µF,16V,Electrolytic

C530,531 VCTYPA1CX683K J AA 0.068 µF,16V

C532,533 VCTYMN1CX332K J AA 0.0033 µF,16V

C534,535 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C536 VCEAEA1CW226M J AB 22 µF,16V,Electrolytic

C537 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C538 VCKYMN1HB471K J AA 470 pF,50V

C539 VCQPKA2AA392J J AB 0.0039 µF,100V,Polypropylene

C540 VCQYKA1HM273K J AB 0.027 µF,50V,Mylar

C541 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C550,551 VCTYPA1CX273K J AA 0.027 µF,16V

C601,602 VCTYMN1CX152K J AA 0.0015 µF,16V

C603,604 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C605 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C606 VCKYBT1HB102K J AA 0.001 µF,50V

C607 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic

C608 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C609 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C610 VCKYMN1HB102K J AA 0.001 µF,50V

C611 VCKYPA1HB221K J AA 220 pF,50V

C612 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C613,614 VCEAZV1EW108M J AE 1000 µF,25V,Electrolytic

C615 VCEAZA1HW226M J AB 10 µF,50V,Electrolytic

C616 VCKYPA1HF223Z J AB 0.022 µF,50V

C617,618 VCKYPA1HF473Z J AB 0.047 µF,50V

C621 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

[CD-C611H Only]

C622,623 VCKYPA1HF473Z J AB 0.047 µF,50V

C624,625 VCKYPA1HF223Z J AB 0.022 µF,50V

C626,627 VCKYPA1HF473Z J AB 0.047 µF,50V

C628~631 VCKYPA1HF223Z J AB 0.022 µF,50V

C632,633 VCKYPA1HB102K J AA 0.001 µF,50V

C635 VCTYPA1EX332M J AB 0.0033 µF,25V [CD-C611H Only]

C636,637 VCKYPA1HB221K J AA 220 pF,50V

C638 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

[CD-C611H Only]

C639,640 VCKYMN1HB121K J AA 120 pF,50V

C702 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C705 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C706 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C707 VCCSMN1HL150J J AA 15 pF,50V

C708 VCCSMN1HL180J J AA 18 pF,50V

C709 VCKZPA1HF223Z J AA 0.022 µF,50V

C710 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C711 VCKYPA1HB103K J AA 0.01,50V

C712 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic

C713 VCKZPA1HF223Z J AA 0.022 µF,50V

C714 VCTYMN1EF223Z J AA 0.022 µF,25V

C715 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C717 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C721 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C901 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C902 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C903 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C904 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C905,906 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar

C907 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C908~910 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C911 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic

C912 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C913 VCEAZV1EW108M J AE 1000 µF,25V,Electrolytic

C914 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C915 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic

C916~918 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C919,920 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

C921,922 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C923,924 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C925 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C926 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C927 VCEAZA1EW477M J AD 470 µF,25V,Electrolytic

C928 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

! C929 RC-KZ001LAWZZ J AB 0.0047 µF,250V

CT21 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

CT22 VCTYMN1EF223Z J AA 0.022 µF,25V

CT23 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

CT24 VCTYMN1EF223Z J AA 0.022 µF,25V

CT25 VCKYMN1HB561K J AA 560 pF,50V

CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V

CT28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

CT29 VCTYMN1EF223Z J AA 0.022 µF,25V

CT36 VCKZPA1HF223Z J AA 0.022 µF,50V

CT37 VCTYMN1EF223Z J AA 0.022 µF,25V

CT43 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green

R1 VRS-TV2AB220J J AA 22 ohms,1/10W

R2 VRD-ST2CD102J J AA 1 kohm,1/6W

R8 VRS-TV2AB153J J AA 15 kohms,1/10W

R9 VRS-TV2AB104J J AA 100 kohm,1/10W

R10 VRS-TV2AB222J J AA 2.2 kohms,1/10W

R11 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R12 VRD-ST2CD101J J AA 100 ohm,1/6W

R13 VRS-TV2AB102J J AA 1 kohm,1/10W

R14 VRS-TV2AB273J J AA 27 kohms,1/10W

R15 VRS-TV2AB123J J AA 12 kohms,1/10W

R16 VRS-TV2AB332J J AA 3.3 kohms,1/10W

R17 VRS-TV2AB333J J AA 33 kohms,1/10W

R18 VRS-TV2AB153J J AA 15 kohms,1/10W

R19 VRD-ST2CD102J J AA 1 kohm,1/6W

R20 VRS-TV2AB102J J AA 1 kohm,1/10W

R21 VRS-TV2AB152J J AA 1.5 kohms,1/10W

R22 VRS-TV2AB821J J AA 820 ohms,1/10W

R23 VRS-TV2AB103J J AA 10 kohm,1/10W

R24 VRS-TV2AB473J J AA 47 kohms,1/10W

R25 VRS-TV2AB152J J AA 1.5 kohms,1/10W

R26 VRS-TV2AB823J J AA 82 kohms,1/10W

R27 VRS-TV2AB393J J AA 39 kohms,1/10W

R28 VRS-TV2AB103J J AA 10 kohm,1/10W

R29 VRS-TV2AB563J J AA 56 kohms,1/10W

R30 VRS-TV2AB682J J AA 6.8 kohms,1/10W

R31 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R32 VRS-TV2AB103J J AA 10 kohm,1/10W

R33 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R34 VRS-TV2AB102J J AA 1 kohm,1/10W

R35,36 VRS-TV2AB224J J AA 220 kohms,1/10W

R37 VRD-ST2CD823J J AA 82 kohms,1/6W

R38 VRS-TV2AB471J J AA 470 ohms,1/10W

R39 VRD-ST2CD102J J AA 1 kohm,1/6W

R40 VRS-TV2AB562J J AA 5.6 kohms,1/10W

R41,42 VRS-TV2AB473J J AA 47 kohms,1/10W

R43 VRS-TV2AB563J J AA 56 kohms,1/10W

R44 VRS-TV2AB333J J AA 33 kohms,1/10W

R45 VRS-TV2AB472J J AA 4.7 kohms,1/10W

R46 VRS-TV2AB561J J AA 560 ohms,1/10W

R47 VRD-ST2CD103J J AA 10 kohm,1/6W

R50 VRS-TV2AB681J J AA 680 ohms,1/10W

R51 VRD-ST2CD335J J AA 3.3 Mohms,1/6W

R52 VRS-TV2AB273J J AA 27 kohms,1/10W

R53 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R55 VRD-ST2CD101J J AA 100 ohm,1/6W

R56 VRS-TV2AB223J J AA 22 kohms,1/10W

R57 VRD-ST2CD102J J AA 1 kohm,1/6W

R58~60 VRS-TV2AB102J J AA 1 kohm,1/10W

R61~63 VRD-ST2CD102J J AA 1 kohm,1/6W

R64 VRS-TV2AB220J J AA 22 ohms,1/10W

R65 VRD-ST2CD102J J AA 1 kohm,1/6W

R66 VRS-TV2AB221J J AA 220 ohms,1/10W

R71,72 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R73,74 VRS-TV2AB104J J AA 100 kohm,1/10W

R80,81 VRD-ST2CD821J J AA 820 ohms,1/6W

R82,83 VRS-TV2AB391J J AA 390 ohms,1/10W

R84 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R88,89 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R90 VRD-ST2CD221J J AA 220 ohms,1/6W

R91 VRD-ST2CD102J J AA 1 kohm,1/6W

R93 VRS-TV2AB221J J AA 220 ohms,1/10W

R301 VRD-MN2BD331J J AA 330 ohms,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R336 VRD-ST2CD103J J AA 10 kohm,1/6W

R344 VRD-MN2BD471J J AA 470 ohms,1/8W

R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R346 VRD-MN2BD331J J AA 330 ohms,1/8W

R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R348 VRD-MN2BD681J J AA 680 ohms,1/8W

R349 VRD-ST2CD330J J AA 33 ohms,1/6W

R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R354 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R361,362 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R363,364 VRD-MN2BD473J J AA 47 kohms,1/8W

R365,366 VRD-MN2BD103J J AA 10 kohm,1/8W

R367 VRD-MN2BD102J J AA 1 kohm,1/8W

R368 VRD-ST2CD333J J AA 33 kohms,1/6W

R369 VRD-MN2BD150J J AA 15 ohms,1/8W

R370~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R375 VRD-ST2EE680J J AA 68 ohms,1/4W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-ST2CD473J J AA 47 kohms,1/6W

R378 VRD-MN2BD823J J AA 82 kohms,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383~385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R387 VRD-MN2BD223J J AA 22 kohms,1/8W

R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W

R393 VRD-ST2CD102J J AA 1 kohm,1/6W

R395 VRD-ST2CD473J J AA 47 kohms,1/6W

R398 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R401 VRD-MN2BD331J J AA 330 ohms,1/8W

R402 VRD-ST2CD331J J AA 330 ohms,1/6W

R403,404 VRD-MN2BD103J J AA 10 kohm,1/8W

R405,406 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R407 VRD-MN2BD223J J AA 22 kohms,1/8W

R408,409 VRD-MN2BD103J J AA 10 kohm,1/8W

R410,411 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R412 VRD-MN2BD331J J AA 330 ohms,1/8W

R413 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R414~416 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R417 VRD-RT2HD561J J AA 560 ohms,1/2W

R418 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R419 VRD-MN2BD103J J AA 10 kohm,1/8W

R420,421 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R422 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R423 VRD-ST2CD103J J AA 10 kohms,1/6W

R424 VRD-RT2HD561J J AA 560 ohms,1/2W

R425 VRD-MN2BD331J J AA 330 ohms,1/8W

R426 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R427,428 VRD-MN2BD473J J AA 47 kohms,1/8W

R429,430 VRD-MN2BD271J J AA 270 ohms,1/8W

R501 VRD-MN2BD103J J AA 10 kohm,1/8W

R502 VRD-ST2CD103J J AA 10 kohm,1/6W

R503 VRD-MN2BD103J J AA 10 kohm,1/8W

R504 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R505,506 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R507 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R508,509 VRD-MN2BD103J J AA 10 kohm,1/8W

R510 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R511,512 VRD-MN2BD473J J AA 47 kohms,1/8W

R513 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R514 VRD-MN2BD102J J AA 1 kohm,1/8W

R515 VRD-ST2CD102J J AA 1 kohm,1/6W

R516 VRD-MN2BD151J J AA 150 ohms,1/8W

R517 VRD-MN2BD102J J AA 1 kohm,1/8W

R518 VRD-ST2CD102J J AA 1 kohm,1/6W

R519 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R520 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R521 VRD-MN2BD224J J AA 220 kohms,1/8W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

R522,523 VRD-ST2CD560J J AA 56 ohms,1/6W

R524,525 VRD-MN2BD104J J AA 100 kohm,1/8W

R526,527 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R528 VRD-ST2CD102J J AA 1 kohm,1/6W

R529,530 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R531,532 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R533,534 VRD-MN2BD333J J AA 33 kohms,1/8W

R535 VRD-MN2BD224J J AA 220 kohms,1/8W

R536 VRD-MN2BD683J J AA 68 kohms,1/8W

R537,538 VRD-MN2BD223J J AA 22 kohms,1/8W

R539,540 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R541,542 VRD-MN2BD561J J AA 560 ohms,1/8W

R543 VRD-ST2CD823J J AA 82 kohms,1/6W

R544,545 VRD-MN2BD560J J AA 56 ohms,1/8W

R546 VRD-ST2CD103J J AA 10 kohm,1/6W

R547,548 VRD-MN2BD103J J AA 10 kohm,1/8W

R549 VRD-ST2CD103J J AA 10 kohm,1/6W

R550 VRD-ST2CD823J J AA 82 kohms,1/6W

R551 VRD-ST2EE221J J AA 220 ohms,1/4W

R552 VRD-RT2HD151J J AA 150 ohms,1/2W

R553 VRD-MN2BD104J J AA 100 kohm,1/8W

R554 VRD-ST2CD473J J AA 47 kohms,1/6W

R555 VRD-MN2BD473J J AA 47 kohms,1/8W

R556 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R557 VRD-MN2BD120J J AA 12 ohms,1/8W

R558,559 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R561 VRD-ST2CD223J J AA 22 kohms,1/6W

R601,602 VRD-MN2BD333J J AA 33 kohms,1/8W

R603 VRD-MN2BD221J J AA 220 ohms,1/8W

R604 VRD-MN2BD103J J AA 10 kohm,1/8W

R605,606 VRD-MN2BD102J J AA 1 kohm,1/8W

R607 VRD-MN2BD221J J AA 220 ohms,1/8W

R608,609 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R610,611 VRD-RT2HD271J J AA 270 ohms,1/2W

R612~615 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W

R616,617 VRD-RT2HD331J J AA 330 ohms,1/2W

R701 VRD-MN2BD102J J AA 1 kohm,1/8W

R703 VRD-MN2BD102J J AA 1 kohm,1/8W

R709 VRD-ST2CD102J J AA 1 kohm,1/6W

R711 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R712~715 VRD-MN2BD102J J AA 1 kohm,1/8W

R720 VRD-ST2CD103J J AA 10 kohm,1/6W

R723 VRD-MN2BD104J J AA 100 kohm,1/8W

R724 VRD-ST2CD103J J AA 10 kohm,1/6W

R726 VRD-ST2CD103J J AA 10 kohm,1/6W

R727 VRD-MN2BD102J J AA 1 kohm,1/8W

R730 VRD-MN2BD102J J AA 1 kohm,1/8W

R731,732 VRD-ST2CD102J J AA 1 kohm,1/6W

R733 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R734 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R735 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R736 VRD-MN2BD102J J AA 1 kohm,1/8W

R737 VRD-ST2CD102J J AA 1 kohm,1/6W

R738 VRD-MN2BD102J J AA 1 kohm,1/8W

R739 VRD-MN2BD103J J AA 10 kohm,1/8W

R740 VRD-ST2CD102J J AA 1 kohm,1/6W

R741 VRD-MN2BD102J J AA 1 kohm,1/8W

R742 VRD-ST2CD102J J AA 1 kohm,1/6W

R743~745 VRD-MN2BD102J J AA 1 kohm,1/8W

R747~750 VRD-ST2CD103J J AA 10 kohm,1/6W

R751 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R752 VRD-ST2CD103J J AA 10 kohm,1/6W

R753 VRD-MN2BD103J J AA 10 kohm,1/8W

R754,755 VRD-ST2CD103J J AA 10 kohm,1/6W

R756,757 VRD-MN2BD103J J AA 10 kohm,1/8W

R758 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R759 VRD-MN2BD103J J AA 10 kohm,1/8W

R760 VRD-ST2CD103J J AA 10 kohm,1/6W

R762~767 VRD-MN2BD102J J AA 1 kohm,1/8W

R768 VRD-ST2CD102J J AA 1 kohms,1/6W

R769~772 VRD-MN2BD102J J AA 1 kohm,1/8W

R775~778 VRD-MN2BD102J J AA 1 kohm,1/8W

R780,781 VRD-ST2CD103J J AA 10 kohm,1/6W

R794 VRD-ST2CD103J J AA 10 kohm,1/6W

R795 VRD-ST2CD473J J AA 47 kohms,1/6W

R797 VRD-ST2CD104J J AA 100 kohm,1/6W

R798 VRD-ST2CD101J J AA 100 ohm,1/6W

R901 VRD-MN2BD103J J AA 10 kohm,1/8W

R902 VRD-RT2HD221J J AA 220 ohms,1/2W

R903 VRD-ST2CD123J J AA 12 kohms,1/6W

R904 VRD-RT2HD221J J AA 220 ohms,1/2W

R905 VRD-ST2CD101J J AA 100 ohm,1/6W

R906 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R908 VRD-ST2CD221J J AA 220 ohms,1/6W

R910,911 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W

RD01 VRD-ST2CD821J J AA 820 ohms,1/6W

RD02 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD03 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD04 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD05 VRD-ST2CD103J J AA 10 kohm,1/6W

RD06 VRD-MN2BD682J J AA 6.8 kohms,1/8W

RD10 VRD-ST2CD821J J AA 820 ohms,1/6W

RD11 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD12 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD13 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD14 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD15 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD16 VRD-ST2CD682J J AA 6.8 kohms,1/6W

RD17 VRD-ST2CD123J J AA 12 kohms,1/6W

RD18 VRD-ST2CD223J J AA 22 kohms,1/6W

RD19 VRD-ST2CD683J J AA 68 kohms,1/6W

RD21 VRD-ST2CD821J J AA 820 ohms,1/6W

RD22 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD23 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD24 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD25 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD26 VRD-ST2CD332J J AA 3.3 kohms,1/6W

RT21 VRD-ST2CD104J J AA 100 kohm,1/6W

RT26 VRD-ST2CD102J J AA 1 kohm,1/6W

RT28 VRD-MN2BD102J J AA 1 kohm,1/8W

RT29 VRD-ST2CD102J J AA 1 kohm,1/6W

RT30 VRD-MN2BD102J J AA 1 kohm,1/8W

RT32 VRD-ST2CD103J J AA 10 kohm,1/6W

RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W

RT35~37 VRD-ST2CD224J J AA 220 kohms,1/6W

RT48,49 VRD-ST2EE391J J AA 390 ohms,1/4W

OTHER CIRCUITRY PARTS

BI401/CNS401 QCNWN1380AWZZ J AF Connector Ass’y,6/6Pin

BI701/CNS701 QCNWN1381AWZZ J AL Connector Ass’y,15/15Pin

BI702/CNS702 QCNWN0907AWZZ J AC Connector Ass’y,8/12Pin

BIM5/CNS10/CNS5

QCNWN1184AWZZ J AL Connector Ass’y,6/10/2Pin

CNP1 92LCONE5P53253 J AB Plug,5Pin

CNP2 QCNCM705HAFZZ J AB Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP10 QCNCM705KAWZZ J AC Plug,10Pin

CNP11 QCNCM704FAWZZ J AC Plug,6Pin

CNP12 QCNCM704QAWZZ J AG Plug,15Pin

CNP301 92LCONE-2P5268 J AB Plug,2Pin

CNP303 QCNCW010KAWZZ J AD Plug,10Pin

CNP501 92LCONE3P5267X J AB Plug,3Pin

CNP502 92LCONE7P5267X J AC Plug,7Pin

CNP901 QCNCM036BAWZZ J AC Plug,2Pin

CNP902 QCNCM035FAWZZ J AC Plug,6Pin

CNPM1 QCNCM932MAFZZ J AE Plug,12Pin

CNPM2 QCNCM030BAWZZ J AB Pin Header,2Pin

CNS1A/B QCNWN1181AWZZ J AK Connector Ass’y,5/5Pin

CNS2A/B QCNWN1182AWZZ J AH Connector Ass’y,8/8Pin

CNS3A/B QCNWN1183AWZZ J AG Connector Ass’y,6/6Pin

CNS101 QCNWN0895AWZZ J AE Connector Ass’y,3Pin

CNS102 QCNWN0896AWZZ J AG Connector Ass’y,8Pin

CNS303 QCNCM010KAWZZ J AC Plug,10Pin

! F901 92LFUSET312E J AD Fuse,T3.15A L 250V

! F902 92LFUSE-T162-E J AD Fuse,T1.6A L 250V

! F903 92LFUSE-T501E J AD Fuse,T500mA L 250V

FE301 RTUNS0012AWZZ J AV FM Front End

FL701 VVKSVA9MS13-1 J AZ FL Display

FW601 QCNWN1249AWZZ J AE Flat Wire,5Pin

FW701 QCNWN1457AWZZ J AD Flat Wire,9Pin

FW702 QCNWN1476AWZZ J AE Flat Wire,11Pin

FW703 QCNWN0713AWZZ J AF Flat Wire,3Pin

FWM1 QCNWN1274AWZZ J AC Flat Wire,2Pin

FWM2 QCNWN0338AWZZ J AD Flat Wire,2Pin

JK601 QJAKM0004AWZZ J AK Jack,Headphones

! L901 RCILZ0008AWZZ J AH Line Filter

M1 92LMTR1854CASY J AS Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 92LMTR3022AS1 J AU Motor with Worm

[Turntable Up/Down/Loading]

MM1(220-1) RMOTV0006AWM1 J AR Motor with Pulley [Tape]

PHM1 VHPI31535CD-1 J AG Phote Interrupter

! RL901 RRLYD0011AWZZ J AE Relay

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

SO301 QTANC0101AWZZ J AF Terminal,FM Antenna

SO601 QTANA0412AWZZ J AF Terminal,Speaker [CD-C607H]

SO601 QTANA0801AWZZ J AK Terminal,Speaker [CD-C611H]

! SO901 QSOCA0204AWZZ J AF Socket,AC Input

SOLM1 RPLU-0002AWZZ J AH Solenoid Ass’y

SOLM2 RPLU-0002AWZZ J AH Solenoid Ass’y

SW1 QSW-P0004AWZZ J AE Switch,Push Type [Open/Close]

SW2 QSW-F0001AWZZ J AD Switch,Leaf/Skeleton Type

[Mecha Up]

SW3 QSW-P0005AWZZ J AD Switch,Push Type [Disc Number]

SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

SW701 92LSWICH-1401A J AC Switch,Key Type [On/Stand-by]

SW702 92LSWICH-1401A J AC Switch,Key Type [Display Mode]

SW703 92LSWICH-1401A J AC Switch,Key Type [Clock]

SW704 92LSWICH-1401A J AC Switch,Key Type [Timer/Sleep]

SW706 92LSWICH-1401A J AC Switch,Key Type [Disk Skip]

SW707 92LSWICH-1401A J AC Switch,Key Type [Open/Close]

SW710 92LSWICH-1401A J AC Switch,Key Type [Fast Forward]

SW711 92LSWICH-1401A J AC Switch,Key Type [Rec Pause]

SW712 92LSWICH-1401A J AC Switch,Key Type [Memory/Set]

SW713 92LSWICH-1401A J AC Switch,Key Type [Stop]

SW714 92LSWICH-1401A J AC Switch,Key Type [Tuner (BAND)]

SW715 92LSWICH-1401A J AC Switch,Key Type [Tape]

SW716 92LSWICH-1401A J AC Switch,Key Type [CD]

SW717 92LSWICH-1401A J AC Switch,Key Type

[PTY.TI Search]

SW718 92LSWICH-1401A J AC Switch,Key Type [EON]

SW719 92LSWICH-1401A J AC Switch,Key Type [ASPM]

SW720 92LSWICH-1401A J AC Switch,Key Type [Station]

SW722 92LSWICH-1401A J AC Switch,Key Type [Rewind]

SW723 92LSWICH-1401A J AC Switch,Key Type [Tuning Up]

SW724 92LSWICH-1401A J AC Switch,Key Type [Tuning Down]

SW725 92LSWICH-1401A J AC Switch,Key Type [Play]

SW726 92LSWICH-1401A J AC Switch,Key Type [Volume Down]

SW727 92LSWICH-1401A J AC Switch,Key Type [Volume Up]

SW728 92LSWICH-1401A J AC Switch,Key Type

[X-BASS/DEMO]

SWM3(220-8) 92LM-SW1676A J AC Switch,Leaf Type [Fool Proof]

SWM4(220-9) QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

SWM5(220-10) 92LM-SW1658A J AB Switch,Leaf Type [CAM]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0002AWFW J AE Shaft,Guide

305 92LMCUSN1524A J AD Cushion

! 306 92LHPC1MASY J BG Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERH0010AWZZ J AB Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm

M1 92LMTR1854CASY J AS Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

CABINET PARTS

201 92LCAB3045AS1 J AY Front Panel Ass’y [CD-C611H]

201 92LCAB3048AS1 J AY Front,Panel Ass’y [CD-C607H]

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 HDECQ0481AWSA J AH Panel,Display [CD-C611H]

201- 2 HDECQ0487AWSA J AG Panel,Display [CD-C607H]

201- 3 HDECQ0460AWSA J AH Panel,Operation

201- 4 HDECQ0461AWSA J AC Ring,Operation

201- 5 HDECQ0462AWSA J AC Cap,Operation Center

201- 6 HDECQ0469AWSA J AE Panel,Center Cap

201- 7 JKNBZ0603AWSA J AG Button,Stop/Play/Repeat

201- 8 JKNBZ0604AWSA J AF Button,Function Selector

201- 9 JKNBZ0605AWSA J AF Button,Volume Up/Down

201-10 JKNBZ0629AWSA J AE Button,Power/Stand-by

201-11 JKNBZ0607AWSA J AE Button,X-BASS/Demo

201-12 JKNBZ0608AWSA J AC Button,Timer/Sleep/Clock

201-13 JKNBZ0610AWSA J AM Button,Disc Skip/Open/Close

201-14 PCUSG0022AWZZ J AB Cushion,Leg

201-15 JKNBZ0609AWSA J AE Button,RDS

202 92LCAB3041BS1 J AM Side Panel Ass’y,Left

202- 1 ———— — Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB3041CS1 J AM Side Panel Ass’y,Right

203- 1 ———— — Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg

204 92LCOV3022AS1 J AM CD Tray Cover Ass’y

204- 1 ———— — Cover,CD Tray

(Not Replacement Item)

204- 2 GCOVA1224AWSA J AE Cover,CD Tray Panel,Left

204- 3 GCOVA1225AWSA J AE Cover,CD Tray Panel,Right

204- 4 92LBADGE1671A J AC Badge,SHARP

205 GITAR0476AWSA J

Back Board [CD-C611H For U.K.]

205 GITAR0477AWSA J AH Back Board

[CD-C611H For Europe]

205 GITAR0478AWSA J Back Board [CD-C611H Except

for U.K./Europe]

205 GITAR0489AWSA J

Back Board [CD-C607H For U.K.]

205 GITAR0490AWSA J AH Back Board

[CD-C607H For Europe]

205 GITAR0491AWSA J Back Board [CD-C607H Except

for U.K./Europe]

206 GDORF0072AWSA J AK Cassette Holder,Tape 1

207 GDORF0073AWSA J AK Cassette Holder,Tape 2

208 HDECQ0463AWSA J AE Panel,Cassette Holder,Tape 1

209 HDECQ0464AWSA J AE Panel,Cassette Holder,Tape 2

210 LANGK0170AWFW J AC Bracket,Headphone Support

211 LANGT0051AWFW J AF Bracket,Heat Sink [CD-C611H]

212 LCHSM0087AWSA J AQ Main Chassis

213 LHLDZ1087AWSA1 J AC Holder,FL Display

214 MLIFP0003AWZZ J AE Damper,Cassette Holder

215 MSPRD0092AWFJ J AB

Spring,Cassette Holder Up,Tape 1

216 MSPRD0093AWFJ J AB

Spring,Cassette Holder Up,Tape 2

218 PRDAR0113AWFW J AV Heat Sink [CD-C611H]

219 PRDAR0118AWFW J AT Heat Sink [CD-C607H]

221 LANGT0052AWSA J Bracket,Heat Sink [CD-C607H]

220 92LMECHA2823A J BL Tape Mechanism Ass’y

220- 1(MM1) RMOTV0006AWM1 J AR Motor with Pulley [Tape]

220- 2 NBLTK0011AWZZ J AC Belt,Main [Tape 1]

220- 3 NBLTK0012AWZZ J AB Belt,Main [Tape 2]

220- 4 NBLTK0030AWZZ J AC Belt,Sub

220- 5 NROLY0002AWZZ J AF Pinch Roller

220- 6 92LMRPH1746A J AM Head,Record/Playback

[Tape 1/Tape 2]

220- 7 RHEDA0001AWZZ J AG Head,Erase [Tape 2]

220- 8(SWM3) 92LM-SW1676A J AC Switch,Leaf Type [Fool Proof]

220- 9(SWM4) QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

220-10(SWM5) 92LM-SW1658A J AB Switch,Leaf Type [CAM]

222 92LN-BAND1318A J AA Nylon Band,80mm

223 GCAB-1044AWSA J AM CD Player Base

224 GCAB-1052AWSA J AP Top Cabinet

225 LANGF0032AWZZ J AC Support,Turntable Lock Lever

226 LCHSZ0010AWZZ J AM Chassis,Loading

227 LCHSZ0011AWZZ J AG Chassis,CD Mechanism

228 92LHOLD3022AS1 J AB Stabilizer Ass’y

228- 1 ———— — Stabilizer

(Not Replacement Item)

228- 2 PMAGF0001AWZZ J AF Magnet,Stabilizer

228- 3 92LSUPT1749D J AA Support,Stabilizer Magnet

229 LHLDZ1140AWZZ J AB Guide

230 LHLDZ1141AWZZ J AB Support,Pitch

231 LHLDZ1204AWSA J AD Support,Stabilizer

232 MLEVP0066AWZZ J AE Lever,Shift

233 MLEVP0067AWZZ J AC Lever,Lock

234 MLEVP0068AWZZ J AB Lever,Change

235 MLEVP0070AWZZ J AB Lever,Turntable Lock

236 MSPRC0020AWFJ J AB Spring,Turntable Lock Lever

237 MSPRC0024AWFW J AB Spring,Solenoid

238 MSPRD0044AWFJ J AB Spring,Lock Lever

239 NBLTK0033AWZZ J AC Belt,Drive

240 NGERH0064AWZZ J AD Gear,Cam

241 NGERH0065AWZZ J AB Gear,Turntable

242 NGERK0003AWZZ J AC Gear,Drive

243 NGERK0004AWZZ J AB Gear,Bevel

244 NGERK0005AWZZ J AB Gear,Loading

245 NGERW0006AWZZ J AC Gear,Worm Wheel

246 NPLYD0002AWZZ J AC Pulley

247 NROLP0009AWZZ J AB Roller

248 NTNT-0018AWSA J AK Turntable

249 PCOVZ1013AWZZ J AB Cover,Wire

! 251 QLUGP0001AWZZ J AC Lug

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

252 PCUSG0022AWZZ J AB Cushion

253 LHLDZ1230AWZZ J AC Holder,LED

254 LANGT0054AWFW J AE Bracket,Tuner PWB

255 LANGT0049AWFW J AK Bracket,PWB Support

256 92LCAUT1706B J AA Label,CD Laser Caution Mark

257 92LCAUT1706A1 J AC Label,CD Laser Caution

258 TLABS0027AWZZ J AB Label,B-Mark

259 TLABS0102AWZZ J AB Label,Gost Rostest

260 92LLABL372C J AB Label,Specifications

261 TLABB0001AWZZ J AB Label,Japan

! 264 QFSHD0001AWZZ J AB Holder,Fuse

602 XBPSD26P05JSO J AB Screw,ø2.6×5mm

603 XEBSD26P12000 J AA Screw,ø2.6×12mm

604 XEBSD30P10000 J AA Screw,ø3×10mm

605 XEBSD30P12000 J AA Screw,ø3×12mm

606 XEBSF30P12000 J AA Screw,ø3×12mm

607 XESSD30P10000 J AA Screw,ø3×10mm

608 XJBSD30P08000 J AA Screw,ø3×8mm

609 XJBSD30P10000 J AA Screw,ø3×10mm

610 XJBSF30P08000 J AA Screw,ø3×8mm

611 XJSSF30P10000 J AA Screw,ø3×10mm

612 XWHJZ62-09510 J AB Washer,ø6.2×ø10×0.9mm

614 LX-EZ0005AWFD J AA Screw,Special

615 LX-JZ0002AWFD J AA Screw,ø3×10mm

618 LX-TZ0019AFZZ J AB Screw,Special

619 XHBSD40P08000 J AA Screw,ø4×8mm

620 XJBSF30P10000 J AA Screw,ø3×10mm

621 LX-JZ0003AWFF J AA Screw,ø3×12mm

622 XHBSF30P08000 J AA Screw,ø3×8mm

ACCESSORIES/PACKING PARTS

1 SPAKC0788AWZZ J AR Packing Case

[CD-C611H Except for U.K.]

1 SPAKC0789AWZZ J AR Packing Case

[CD-C611H For U.K.]

1 SPAKC0794AWZZ J AP Packing Case

[CD-C607H Except for U.K.]

1 SPAKC0795AWZZ J AP Packing Case

[CD-C607H For U.K].

2 SPAKA0225AWZZ J Packing Add.,Left/Right

3 SPAKP0013AWZZ1 J AC Polyethylene Bag,Unit

4 92LBAG1460C1 J AB Polyethylene Bag,Accessories

5 92LBAG1770A J AB Polyethylene Bag,AC

Power

Supply

Cord [For U.K. Only]

6 QACCB0008AW00 J AW

AC Power Supply Cord [For U.K.]

6 QACCE0011AW00 J AM AC Power Supply Cord

[Except for U.K.]

7 TGAN-3170UMZZ J AE Resistration Card [For U.K. Only]

8 TINSE0251AWZZ J AE Operation Manual

[CD-C611H For U.K.]

8 TINSE0263AWZZ J Operation Manual

[CD-C607H For U.K.]

8 TINSZ0423AWZZ J AR Operation Manual

[CD-C611H For Europe]

8 TINSZ0424AWZZ J Operation Manual [CD-C611H

Except for U.K./Europe]

8 TINSZ0445AWZZ J AR Operation Manual

[CD-C607H For Europe]

8 TINSZ0446AWZZ J Operation Manual [CD-C607H

Except for U.K./Europe]

10 92LF-ANT1535A J AF FM Antenna

11 QANTL0008AWZZ J AH AM Loop Antenna

12 RRMCG0180AWSA J AR Remote Control

GFTAB1022AWSA J Battery Lid,Remote Control

13 TLABZ0571AWZZ J AC Label,Feature,Unit,Tape 1

[CD-C607H]

13 TLABZ0573AWZZ J AC Label,Feature,Unit,Tape 1

[CD-C611H]

14 TLABZ0546AWZZ J AB Label,Feature,Unit,Tape 2

[CD-C611H]

14 TLABZ0572AWZZ J AC Label,Feature,Unit,Tape 2

[CD-C607H]

15 TLABZ0604AWZZ J AB Label,Energy [Except for U.K.]

16 TLABZ0605AWZZ J AB Label,Saving Energy

17 SPAKZ0507AWZZ J AB Sheet,Protection

18 TLABE0282AWZZ J AB Label,Bar Code [CD-C611H]

18 TLABE0284AWZZ J AB Label,Bar Code [CD-C607H]

19 TLABG0004AWZZ J Label,Set Life [For Russia Only]

20 TLABG0005AWZZ J AB Sheet,INF [For Russia Only]

21 TLABS0213AWZZ J AB Sheet,Gost Info

[CD-C611H For Russia]

21 TLABS0219AWZZ J AB Sheet,Gost Info

[CD-C607H For Russia]

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~5 92LPWB3045MANS J — Main/Display/Headphones/

Switch/Support(Combined

Ass’y) [CD-C611H For U.K.

Only]

PWB-A1~5 92LPWB3048MANS J — Main/Display/Headphones/

Switch/Support (Combined

Ass’y) [CD-C607H For U.K.

Only]

PWB-B 92LPWB3072CDUS J — CD Servo[For U.K. Only]

PWB-C QPWBF0027AWZZ J AD CD Motor (PWB Only)

[For U.K. Only]

PWB-D QPWBF0341AWZZ J AB Tray Motor (PWB Only)

[For U.K. Only]

PWB-E QPWBF0106AWZZ J AF Tape Mechanism (PWB Only)

[For U.K. Only]

PWB-F 92LPWB3072TUNS J — Tuner [For U.K. Only]

– 6 –

CP-C607H

SPEAKER BOX PARTS(FRONT SPEAKER)

701 92L20100611H10 J AS Net Frame Ass’y

702 92L10002607H10 J BB Speaker Box Ass’y

703 92L3121C607H10 J AG Cord,Speaker

704 92L411B84012AB J Screw,ø4×12mm

705 92L6000C607H00 J Label,Specifications

706 92L20300611H10 J AP Panel,Duct

707 92L44010213900 J AC Port Cushion

SP1,2 VSP0010PBY38A J AU Speaker,Woofer

SP3,4 92L34820100610 J AG Speaker,Super Tweeter

PACKING PARTS

22 92L70032000710 J AE Polyethylene Bag,Speaker

23 92L720BC611H00 J Packing Add.,Bottom

24 92L720TC611H00 J Packing Add.,Top

CP-C611H

SPEAKER BOX PARTS(FRONT SPEAKERS)

701 92L20100611H10 J AS Net Frame Ass’y

702 92L10002611H10 J BB Speaker Box Ass’y

703 92L3121C611H10 J Cord,Speaker

704 92L411B84012AB J Screw,ø4×12mm

705 92L6000C611H00 J AC Label,Specifications

706 92L20300611H10 J AP Panel,Duct

707 92L44010213900 J AC Port Cushion

708 92L44210112300 J AB Cushion (Woofer)

SP1,2 VSP0013PB386A J AY Speaker,Woofer

SP3,4 92L34820100610 J Speaker,Super Tweeter

PACKING PARTS

22 92L70032000710 J AE Polyethylene Bag,Speaker

23 92L720BC611H00 J Packing Add.,Bottom

24 92L720TC611H00 J Packing Add.,Top

GBOXS0028AWM1

SPEAKER BOX PARTS(SURROUND SPEAKERS)

901 92LSRCBC022RS J Bottom Cabinet

902 92LSRCNF002RS J Net Frame Ass’y

903 92LSRCPL010RS J Label,Part No.

904 92LSRCSC004RS J AK Cord,Speaker

905 92LSRCSW005RS J AB Screw,ø3×12mm

SP1,2 VSP0080PBP2WA J AN Speaker,Woofer

(CD-C611H ONLY)

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C607H/611H

PACKING PARTS

25 92LSRCBP010RS J AG Packing Add.,Bottom

26 92LSRCPE006RS J AB Polyethylene Bag,Speaker

27 92LSRCTP009RS J AG Packing Add.,Top

– 7 –

CD-C607H/611H

Figure 8 CD MECHANISM EXPLODED VIEW

23456

– 8 –

CD-C607H/611H

306-1

701

304

701

302

301

702

303

703x2

305x2

SW4

305

PWB-C

306-2

306-3

306

704

CD-C607H/611H

Figure 9 CABINET EXPLODED VIEW (1/2)

23456

– 9 –

CD-C607H/611H

PWB-A2

PWB-A3

Silicon

grease

FL701

202

PWB-E

PWB-A4

PWB-A1

607x5

622x2

220(220-1, 220-2, 220-3,

220-4, 220-5, 220-6,

220-7, 220-8(SWM3),

220-9(SWM4),

220-10(SWM5))

Silicon

grease

202-1

202-2

620

621

607x2

213

205

621

610x5

609x4

607

210

251

IC601

IC903

IC902

607x6

214

619x4

PT901

212

222

203-1

203-2

203

620

621

608x2

207

206

215

208

209

216

201-2

201-1

201-4

201-8

201-3

201-12

201-10

201

201-7

201-6

201-5

201-13

201-11

201-9

201-14

TAPE

MECHANISM

608

211

PWB-F

201-15

608x2

610

218

253

LED701

608

608x2

264x4

264x2

255

254

261

258

259

260

607

PWB-A5

221

219

(CD-C607H)

(CD-C611H)

Note: Only the unit and consumale parts are supplied as aprts supply for the Tape mechanism.

CD-C607H/611H

Figure 10 CABINET EXPLODED VIEW (2/2)

23456

– 10 –

CD-C607H/611H

MECHANISM

256

604

247

238

615

233

226

247

604

229

605x4

247

237

SOLM2

PWB-D

602x2

SW2

234

244

232

240

242

230

603

618

241

239

618

246

245

247x2

247

SW3

223

611

231

248

606x2

224

204

243

227

614

249

236

235

228-1

228-2

228-3

228

608

225

252

229

PWB-B

604

204-2

204-1

204-3

204-4

612

257

CD-C607H/611H

Figure 11 SPEAKER EXPLODED VIEW (1/2)

23456

– 11 –

CP-C607H/611H

SP1 (L-CH)

SP2 (R-CH)

704x4

705

702

707

SUPER

TWEETER

SP3 (L-CH)

SP4 (R-CH)

WOOFER

SP1 (L-CH)

SP2 (R-CH)

701

706

703

SUPER

TWEETER

SP3 (L-CH)

SP4 (R-CH)

WOOFER

SP1 (L-CH)

SP2 (R-CH)

SP3 (L-CH)

SP4 (R-CH)

708

CD-C607H/611H

Figure 12 SURROUND SPEAKER EXPLODED VIEW (2/2)

23456

– 12 –

GBOXS0028AWM1

902

SP1 (L-CH)

SP2 (R-CH)

SP1 (L-CH)

SP2 (R-CH)

901

905x6

903

904

(CD-C611H Only)

CD-C607H/611H

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any from or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

A9905-2794NS•HA•M

SG • SK • RUS • E-Europe

SHARP CORPORATION

Communication Systems Group

Quality & Reliability Control Center

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

PACKING METHOD (FOR U.K. ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

– 13 –

1 Packing Case(CD-C611H) SPAKC0789AWZZ

1 Packing Case(CD-C607H) SPAKC0795AWZZ

2 Packing Add., Left/Right SPAKA0225AWZZ

3 Polyethylene Bag, Unit SPAKP0013AWZZ1

4 Polyethylene Bag, Accessories 92LBAG1460C1

5 Polyethylene Bag, AC Power Supply Cord 92LBAG1770A

6 AC Power Supply Cord QACCB0008AW00

7 Resistration Card TGAN-3170UMZZ

8 Operation Manual(CD-C611H) TiNSE0251AWZZ

8 Operation Manual(CD-C607H) TiNSE0263AWZZ

10 FM Antenna 92LF-ANT1535A

11 AM Loop Antenna QANTL0008AWZZ

12 Remote Control RRMCG0180AWSA

13 Label, Feature, Unit, Tape1(CD-C607H) TLABZ0571AWZZ

13 Label, Feature, Unit, Tape1(CD-C611H) TLABZ0573AWZZ

14 Label, Feature, Unit, Tape2(CD-C611H) TLABZ0546AWZZ

14 Label, Feature, Unit, Tape2(CD-C607H) TLABZ0572AWZZ

16 Label, Saving Energy TLABZ0605AWZZ

17 Sheet, Protection SPAKZ0507AWZZ

18 Label, Bar Code(CD-C611H) TLABE0282AWZZ

18 Label, Bar Code(CD-C607H) TLABE0284AWZZ

GBOXS0028AWM1

CD-C607H/611H

CP-C607H/611H

22 Polyethylene Bag, Speaker 92L70032000710

23 Packing Add., Bottom 92L720BC611H00

24 Packing Add., Top 92L720TC611H00

25 Packing Add., Bottom 92LSRCBP010RS

26 Polyethylene Bag, Speaker 92LSRCPE006RS

27 Packing Add., Top 92LSRCTP009RS

(CD-C611H Only)

UNIT

Surround Speaker(L/R)

Front Speaker(L/R)

CP-C607H/C611H

Bottom

FRONT OF SIDE

SPEAKERS

BOTTOM SIDE

TOP

FRONT

BACK

GBOXS0028AWM1

4,5,6,7,8,10,11,12,

(CD-C611H Only)

(CD-C611H )

FRONT OF SIDE

SPEAKERS

TOP

FRONT

BACK

4,5,6,7,8,10,11,12,

(CD-C607H )

Sharp CD-C611H Mini Component System

Product's Documents

Service Manual

Specifications

Sharp CD-C611H Questions and Answers

Related Products

Sharp CD-PC3500 Mini Component System

Sharp CD-MPS66 Mini Component System

Sharp CD-ES99 Mini Component System

Sharp CD-DH950P Mini Component System

Sharp XL-HP505 Mini Component System

Sharp CD-DK890N MINI COMPONENT SYSTEM
