TABLE OF CONTENTS

Product Record and Registration . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . 8

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . 12

Before Setting Oven Controls . . . . . . . . . . . . . . . . 20

Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 45

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Need Help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . .2

Product Record and Registration . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . 3

Before Setting Surface Controls . . . . . . . . . . . . . . . . . . 8

Setting Surface Controls . . . . . . . . . . . . . . . . . . . . . . . 12

Before Setting Oven Controls . . . . . . . . . . . . . . . . . . . 20

Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Warmer Drawer (some models) . . . . . . . . . . . . . . . .39

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Oven Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Need Help?

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can

do to help us serve you better.

Read this Use & Care Manual

This manual contains instructions to help you use and

maintain your oven properly.

If You Received a Damaged Oven...

Immediately contact the dealer (or builder) that sold you the

oven.

Save Time and Money

Check “Solutions to Common Problems:” on page 52. This

section helps step you through some common problems

that might occur.

If you do need service, help is only a phone call away. Call

Frigidaire customer services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our

ability to serve you. You can register online at http://

www.frigidaire.com or by dropping your product registra

tion card in the mail.

Record model and serial numbers here

Purchase Date: _______________________________

Frigidaire model number: _______________________

Frigidaire serial number: ________________________

Serial Plate Location

PRODUCT RECORD AND REGISTRATION

Questions?

For toll-free telephone support in the U.S. and Canada call

1-800-944-9044

For online support and Internet production information visit

http://www.frigidaire.com.

Thank you for choosing Frigidaire.

This Use & Care manual is part of our commitment to

customer satisfaction and product quality throughout the

service life of your new appliance. We view your purchase

as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record

important product information.

CAUTIONS AND WARNINGS

Read all instructions before using this appliance.

This manual contains important safety symbols and

instructions. Please pay attention to these symbols

and follow all instructions given.

Do not attempt to install or operate your appliance

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a WARNING or CAUTION statement

based on the risk type.

DEFINITIONS

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all

safety message that follow this symbol to avoid

possible injury or death.

Indicates a potentially hazardous situation which, if

not avoided, may result in death or serious injury.

Indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate injury.

Indicates installation, operation, maintenance, or

valuable information that is not hazard related.

Indicates a short, informal reference-something

written down to assist the memory or for future refer

ence.

Save these instructions for future use.

WARNING

CAUTION

IMPORTANT

NOTE

Storage In or On Appliance—Flammable materials

should not be stored in an oven, near surface

burners, or in the warmer drawer (if equipped). This

includes paper, plastic, and cloth items, such as

cookbooks, plastic ware, and towels, as well as

flammable liquids. Do not store explosives, such as

aerosol cans, on or near the range.

WARNING

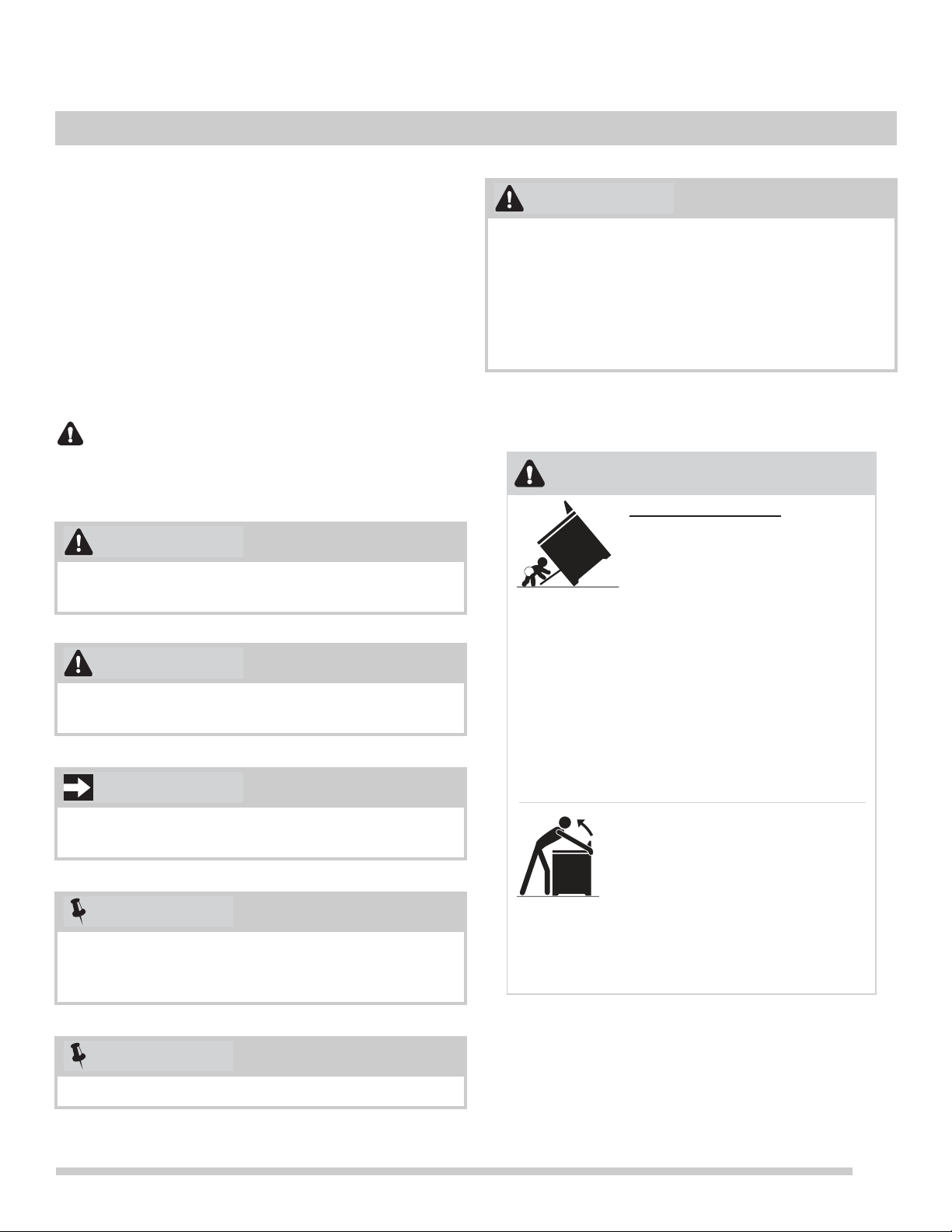

Tip Over Hazard

A child or adult can tip the •

range and be killed.

Verify the bracket is engaged •

with countertop or that the

anti-tip device has been

installed to the walls of the cabinet, the wall,

or the floor as per the installation instructions.

Ensure the anti-tip device is re-engaged with •

the countertop, the walls of the cabinet, the

wall, or the floor as per the installation

instructions when the range is moved.

Do not operate the range without the anti-tip •

device in place and engaged.

Failure to follow these instructions can result in •

death or serious burns to children and adults.

To check if the anti-tip bracket

is installed properly, use both

arms and grasp the rear edge of

range back. Carefully attempt to

tilt range forward. When properly

installed, the range should not tilt

forward.

Refer to the anti-tip bracket installation

instructions supplied with your range for

proper installation.

IMPORTANT SAFETY INSTRUCTIONS

• Do Not Leave Children Alone - Children should

not be left alone or unattended in the area where

appliance is in use. They should never be

allowed to sit or stand on any part of the appli

ance, including the storage drawer, lower broiler

drawer, warmer drawer, or lower double oven.

• Stepping, leaning, or sitting on the door or

drawers of this appliance can result in serious

injuries and also cause damage to the appliance.

Do not allow children to climb or play around the

appliance. The weights of a child on an open

over door may cause the appliance to tip,

resulting in serious burns or other injury. An open

drawer when hot may cause burns.

• Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with

materials, such as aluminum foil. Aluminum foil

linings may trap heat, causing a fire hazard.

Important Safety Notice - The California Safe

Drinking Water and Toxic Enforcement Act requires

the governor of California to publish a list of

substances known to cause cancer, birth defects, or

other reproductive harms, and requires businesses

to warn customers of potential exposures to such

substances.

Cold temperatures can damage the electronic

control. When using this appliance for the first time,

or when the appliance has not been used for an

extended period of time, be sure the appliance has

been in temperatures above 32ºF (0ºC) for at least 3

hours before turning on the power to the appliance.

Do not attempt to operate the appliance during a

power failure. If the power fails, always turn off the

unit. If the unit is not turned off and the power

resumes, the appliance will not operate and an error

message will be displayed. Once the power

resumes, reset the clock and the oven function.

WARNING

IMPORTANT

• When heating fat or grease, watch it closely.

Grease may catch fire if it becomes too hot.

• Do not use water or flour on grease fires.

Smother fire or flame or use dry chemical or

foam-type extinguisher. Cover the fire with a pan

lid or use baking soda.

• Use dry potholders. Moist or damp potholders on

hot surfaces may result in burns from steam. Do

not let potholders touch hot cooking areas. Do

not use towels or other bulky cloths.

• Do Not Heat Unopened Food Containers - Build-

up of pressure may cause container to burst and

result in injury.

• Wear Proper Apparel - Loose-fitting or hanging

garments should never be worn while using the

appliance. Do not let clothing or other flammable

materials contact hot surfaces.

• Do not touch surface heating units or surface

cooking elements, areas near these units or

elements, interior surface of the oven, or the

warmer drawer (if equipped). Surface heating

areas and oven heating elements may be hot

even though they appear cool. Areas near

surface cooking units may become hot enough

to cause burns. During and after use, do not

touch, or let clothing or other flammable

materials touch these areas until they are cool.

These areas may include the cooktop, surfaces

facing the cooktop, oven vent areas, oven door,

and oven window.

• Do not store items of interest to children in the

cabinets above a range. Children climbing on the

range to reach items could be seriously injured.

Do not use oven or warmer drawer (if equipped) for

storage. Never use your appliance as a space

heater to heat or warm the room.

CAUTION

WARNING

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR

COOKTOP

• Know which knob or key controls each surface

heating area. Place cookware with food on the

cooking area before turning it on. Turn the cooking

area off before removing the cookware.

• Use proper pan size. This appliance is equipped

with one or more surface units of different sizes.

Select cookware with flat bottoms that match the

surface unit heating element. The use of under

sized cookware may expose a portion of the

heating element to direct contact and may result in

the ignition of clothing or other items. Using the

proper cookware on the cooking zone will improve

efficiency.

• To reduce the risk of burns, ignition of flammable

materials, and spills due to unintentional contact

with the utensil, the utensil handles should be

turned inward and not extend over other cooking

areas.

• Never leave surface elements unattended. Boil-

overs may cause smoking and greasy spills may

ignite. A pan that has boiled dry could be damaged

and may damage the cooktop.

• Improper cookware may break due to sudden

changes in temperature. Check the cookware

manufacturer’s recommendations for cooktop use.

• When you are flaming foods under a ventilating

hood, turn on the fan.

• Glazed Cooking Utensils—Only certain types of

glass, glass/ceramic, ceramic, earthenware, or

other glazed utensils are suitable for cooktop

service without breaking due to the sudden change

in temperature. Check the manufacturer’s recom

mendations for cooktop use.

• Do Not Use Decorative Surface Burner Covers. If

an element is accidentally turned on, the decora

tive cover will become hot and possibly melt.

Burns will occur if the hot covers are touched.

Damage may also be done to the cooktop.

• Do not use Searing grill on the cooktop. The

Searing grill is not designed for use on the

cooktop. Doing so may result in a fire.

Read and follow the below instructions and precau-

tions for unpacking, installing, and servicing your

appliance:

• Remove all tape and packaging before using the

appliance. Destroy the carton and plastic bags

after unpacking the appliance. Never allow

children to play with packaging material. Do not

remove the wiring label and other literature

attached to the range. Do not remove model/

serial number plate.

• Proper Installation—Be sure your appliance is

properly installed and grounded by a qualified

technician in accordance with the National Elec

trical Code ANSI/NFPA No. 70 latest edition and

local electrical code requirements. In Canada,

install in accordance with CSA Standard C22.1,

Canadian Electrical code, Part 1-latest edition,

and local electrical code requirements. Install

only per installation instructions provided in the

literature package for this range.

• User Servicing—Do not repair or replace any

part of the appliance unless specifically recom

mended in the manuals. All other servicing

should be done only by a qualified technician.

This reduces the risk of personal injury and

damage to the oven.

• Ask your dealer to recommend a qualified techni-

cian and an authorized repair service. Know how

to disconnect the power to the appliance at the

circuit breaker or fuse box in case of an emer

gency.

• Never modify or alter the construction of an oven

by removing the leveling legs, panels, wire

covers, anti-tip brackets/screws, or any other

part of the oven.

• Remove the oven door from any unused oven if

it is to be stored or discarded.

• Be sure to have an appropriate foam-type fire

extinguisher available, visible, and easily acces

sible located near the appliance.

IMPORTANT

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

• Use care when opening oven door, lower oven

door, or warmer drawer (some models). Stand to

the side of the appliance when opening the door of

a hot range. Let hot air or steam escape before

you remove or replace food in the oven.

• Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or heat-

sensitive items on or near the oven vent. These

items can melt or ignite.

• Placement of Oven Racks - Always place oven

racks in desired location while oven is cool. If rack

must be moved while oven in hot, do not let

potholder contact hot heating element in oven. Use

potholders and grasp the rack with both hands to

reposition. Do not let potholders contact the hot

heating elements in the oven. Remove all

cookware and utensils before moving the rack.

• Do not use a broiler pan without its insert. Broiler

pans and inserts allow dripping fat to drain away

from the high heat of the broiler. Do not cover the

broiler insert with aluminum foil; exposed fat and

grease could ignite.

• Protective Liners—Do not use aluminum foil to line

oven bottom or any other part of the appliance.

Only use aluminum as recommended for baking if

used as a cover placed on the food. Any other use

of protective liners or aluminum foil may result in a

risk of electric shock or fire or a short circuit.

• Do not cook food on the oven bottom. Always cook

in proper cookware and always use the over racks.

FOR GLASS COOKTOP ONLY

• Do Not Clean or Operate a Broken Cooktop. If cooktop

should break, cleaning solutions and spillovers may

penetrate the broken cooktop and create a risk of

electric shock. Contact a qualified technician immedi

ately.

• Clean Cooktop Glass with Caution. If a wet sponge or

cloth is used to wipe spills on a hot cooking area, be

careful to avoid a steam burn. Some cleaners can

produce harmful fumes if applied to a hot surface.

• Avoid Scratching the cooktop glass with sharp objects.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR OVEN

• Clean the range regularly to keep all parts free of

grease that could catch fire. Pay particular

attention to the area around each surface element.

Do not allow grease to accumulate. Greasy

deposits in the fan could catch fire. Follow the

manufacturer’s instructions for cleaning hoods.

• Always follow the manufacturer’s recommended

directions for use of kitchen cleaners and aerosols.

Be aware that excess residue from cleaners and

aerosols may ignite causing damage and injury.

• Clean ventilating hoods frequently. Grease should

not be allowed to accumulate on the hood or filter.

Follow the manufacturer’s instructions for cleaning

hoods.

• Do not touch a hot oven light bulb with a damp

cloth. Doing so could cause the bulb to break.

Disconnect the appliance or shut off the power to

the appliance before removing and replacing the

bulb.

SELF-CLEANING OVENS

• Clean only the parts listed in this manual. Before

using self-clean, remove the broiler pan, any food,

utensils, and cookware from the oven.

• Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any kind

should be used in or around any part of the

appliance.

• Do not clean the oven door gasket. The door

gasket is essential for a good seal. Care should be

taken not to rub, damage, or move the gasket.

• Some birds are extremely sensitive to the fumes

given off during the self-clean cycle of any oven.

Move birds to another well-ventilated room.

• Remove oven racks. Oven racks color will change

if left in the oven during a self-cleaning cycle.

Before manually cleaning any part of the appliance,

be sure all controls are turned off and the range is

cool. Cleaning a hot oven can cause burns.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

For personal safety, this appliance must be properly

grounded.

For models factory-equipped with a power cord:

For maximum safety, the power cord must be plugged

into an electrical outlet that is the correct voltage, is

correctly polarized, and is properly grounded in accor

dance with local codes.

For ovens to be wired into a junction box:

It is the personal responsibility of the consumer to

have the appropriate outlet with the correct, properly

grounded wall receptacle installed by a qualified elec

trician. See the installation instructions packaged with

this appliance for complete installation and grounding

instructions.

See the installation instructions packaged with this

appliance for complete installation and grounding

instructions.

Do not use an adapter plug or an extension cord, or

remove grounding prong from the power cord.

Failure to follow this warning may cause serious

injury, fire, or death.

Avoid fire hazard or electrical shock. Do not use an

adapter plug or an extension cord, or remove

grounding prong from the power cord. Failure to

follow this warning may cause serious injury, fire, or

death.

WARNING

Using Proper Cookware

Check for flatness by rotating a ruler across the bottom of

the cookware (See

Figure 1). Cookware should have flat

bottoms that make good contact with the entire surface

heating element (See

Figure 2). For detailed information

about the ceramic cooktop, refer to the“Cooktop Mainte-

nance” on page 47.

Cookware Material Types

The cookware material determines how evenly and quickly

heat is transferred from the surface element to the pan

bottom. The most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food

will cause it to darken (Anodized aluminum cookware

resists staining and pitting). If aluminum pans slide across

the ceramic cooktop, they may leave metal marks which will

resemble scratches. Remove these marks immediately.

Copper - Excellent heat conductor but discolors easily (See

Aluminum).

Stainless - Slow heat conductor with uneven cooking

results. Is durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat

very well. Cooks evenly once cooking temperature is

reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal - Heating characteristics will

vary depending on base material. Porcelain-enamel coating

must be smooth to avoid scratching ceramic cooktops.

Glass - Slow heat conductor. Not recommended for ceramic

cooktop surfaces because it may scratch the glass.

The size and type of

cookware used will influ-

ence the radiant element

power level setting

needed for best cooking

results. Be sure to follow

the recommendations for

using proper cookware

as illustrated in

Figure 1

and Figure 2.

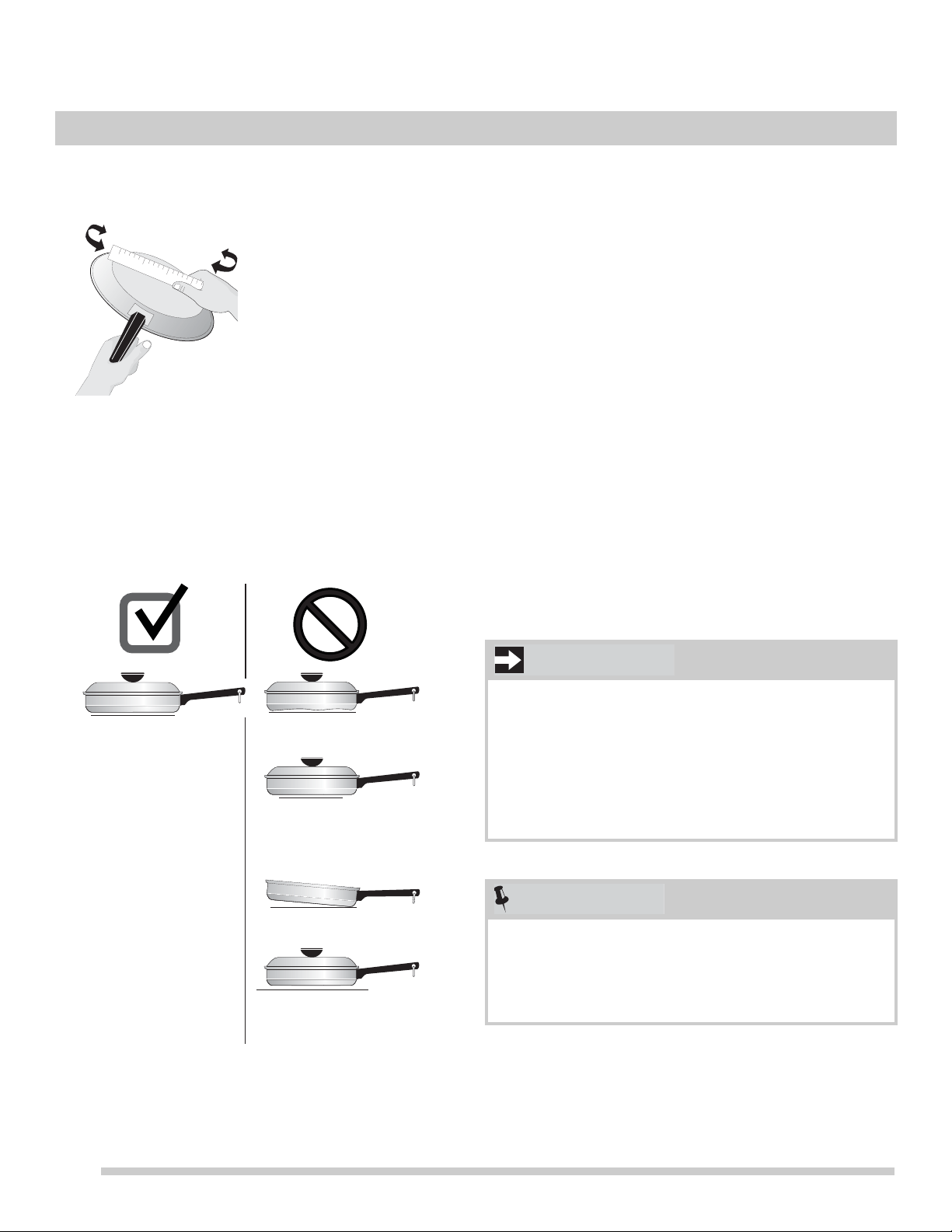

Figure 1: Testing cookware

Figure 2: Proper cookware placement

• Flat bottom and straight

sides.

• Tight ﬁtting lids.

• Weight of handle does

not tilt pan. Pan is well

balanced

• Pan sizes match the

amount of food to be

prepared and the size

of the surface element.

• Made of material that

conducts heat well.

• Easy to clean.

• Always match pot

diameter to element

size.

• Curved and warped pans.

• Cookware larger than

cooking area marked on

cooktop by more than

one-half inch or 12mm.

• Heavy handle tilts pan.

• Pan is smaller than the

heating area marked on

cooktop.

Do not place empty aluminum, glass or porcelain-enamel

coated cookware on the ceramic cooktop! The melting

point of cookware made with these materials may be

reached quickly especially if left empty, and they may

bond to the ceramic cooktop. If the cookware melts it will

damage the cooktop! Be sure to follow all the cookware

manufacturer’s suggestions when using any type of

cookware on the ceramic cooktop.

Due to the high intensity of heat generated by the surface

elements, the glass surface will turn green when the

element is turned off. This phenomenon is normal and the

glass will come back to its original white color after it has

completely cooled down. (White glass cooktops only).

IMPORTANT

NOTE

BEFORE SETTING SURFACE CONTROLS

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located

below the surface of the glass. The design of the ceramic

cooktop outlines the area of the surface element under

neath. Be sure to match the pan size with the diameter of

the element outline on the cooktop and only flat-bottomed

cookware should be used.

The type and size of cookware, the number of surface

elements in use and their settings are all factors that will

affect the amount of heat that will spread to areas beyond

the surface elements. The areas surrounding the elements

may become hot enough to cause burns.

About the Radiant Surface Elements

The element temperature rises gradually and evenly. As the

temperature rises, the element will glow red. To maintain

the selected setting the element will cycle on and off. The

heating element retains enough heat to provide a uniform

and consistent heat during the off cycle.

For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat to

complete the cooking process.

Element ON & hot surface indicator lights

Your appliance is equipped with two different types of

radiant surface control indicator lights that will glow on the

backguard- the Element On indicator light and the hot

surface indicator lights.

The element ON indicator lights are located on the control

panel between the two radiant element control knob and will

glow when a surface element is turned ON.

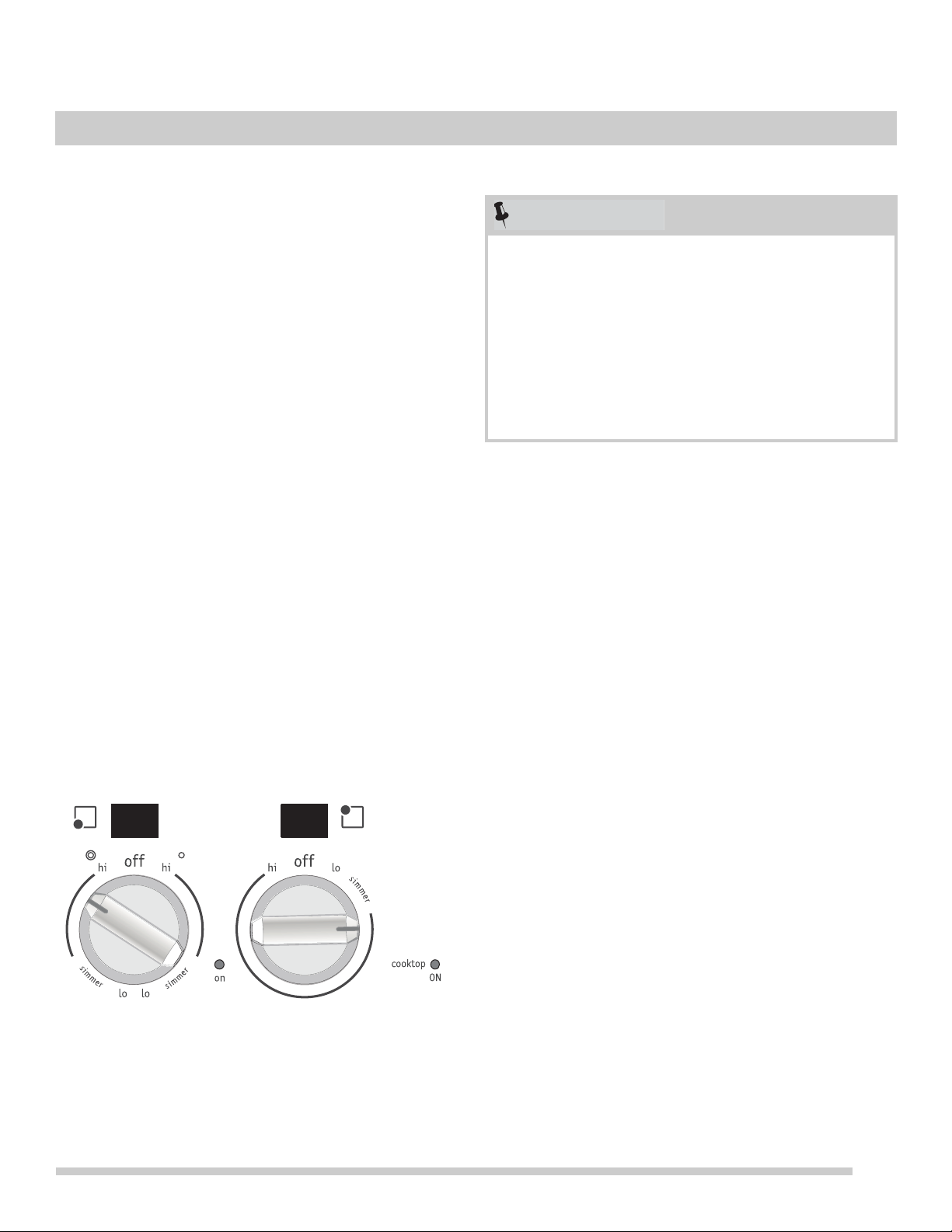

Figure 3: Element ON indicator light locations

Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the

HI setting is normal and can occur if the cookware is too

small for the radiant element or if the cookware bottom is

not flat.

Be sure to read detailed instructions for ceramic glass

cooktop cleaning in the General Care & Cleaning section

and Before You Call checklist section of this Use and

Care Guide.

NOTE

BEFORE SETTING SURFACE CONTROLS

The electronic surface element control (ESEC)

(some models)

The Electronic Surface Element Control (ESEC) feature

includes digital display windows. The ESEC feature

provides a numeric digital setting for the radiant surface

element positions on the cooktop. These settings work the

same way as normal knob setting indicators work except

the settings are displayed in digital windows.

The available ESEC display settings

The ESEC control provides various heat levels from Hi

(

Figure 4) to Lo (Figure 5) and OFF (Figure 4). The settings

between 3.0 and 9.5 increase or decrease in increments of

.5 (1/2). The settings between 1.2 and 3.0 are Simmer

settings which decrease or increase in increments of.2 (1/5)

to Lo (

Figure 5; lowest Simmer setting) for more precise

settings at lower heat levels. Use the Recommended

Surface Setting Chart to determine the correct setting for

the kind of food you are preparing.

ESEC hot element indicator message (HE)

After using any of the single or dual radiant element

positions the cooktop will become very hot. Even after

turning the control knob to OFF, the cooktop will remain hot

for some time. The ESEC control monitors the temperature

of the cooktop and displays the message "HE" (hot

element) warning when the cooktop is still too hot to touch

(See

Figure 6). If the HE message appears in the window,

the control can still be turned on again for use.

ESEC power failure indicator (00)

When the range is first plugged in or when the power supply

to the range has been interrupted, the ESEC control will

display the message "00". After a few seconds the "00"

message will disappear from the display.

ESEC Lockout Feature (- -)

The ESEC feature will not operate during a Self-Clean cycle

or when the Lockout feature is active. Whenever the

Lockout feature is active, "- -" will appear in any ESEC

digital display windows to show that all surface elements

can not be activated (See

Figure 7).

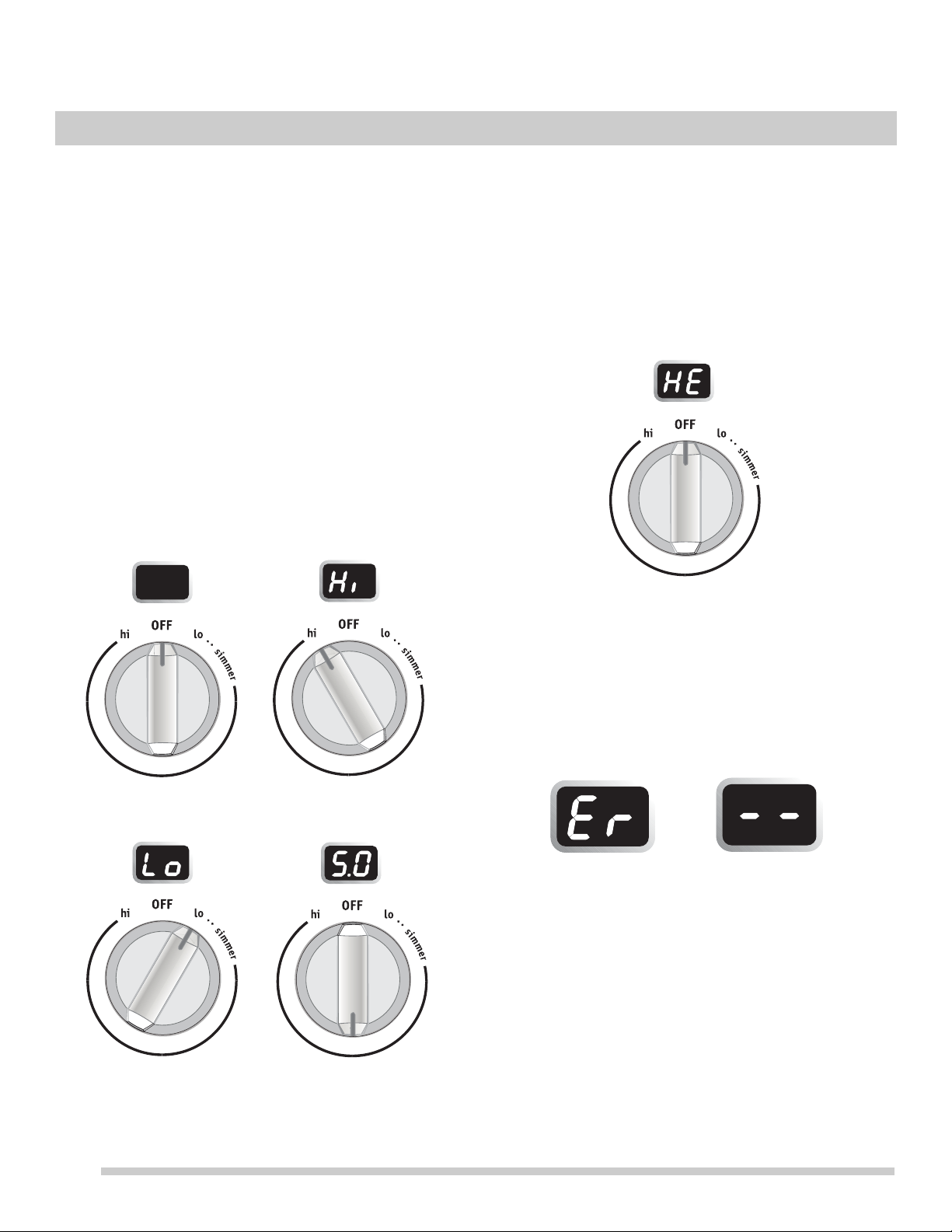

Figure 4: OFF position (L) and Hi position (R)

Figure 5: Lo position (L) and 5.0 position (R)

Figure 6: Hot element indicator message

Figure 7: Er indicator message (L) and ESEC lockout

feature (R)

BEFORE SETTING SURFACE CONTROLS

ESEC error indicator message (Er)

An error message will be displayed (glowing "Er") at power

up (or after a power failure) if ANY of the surface control

knobs were left in the ON positions (See

Figure 7). If a

power failure should occur, be sure to set all of the surface

control knobs to the OFF position. This will reset the surface

controls.

Once the surface controls have been set to the OFF posi-

tions, the surface controls should return to normal opera-

tion. If the surface controls do not function and the "Er"

message remains in any display after following these proce

dures, contact your authorized servicer for assistance.

Cooktop Sabbath Day Feature and (Sb) Message

The ESEC will display the Sb messages whenever the

Sabbath Day feature is active. When activated, the Sabbath

Day feature works for both the oven and cooktop together.

Once the Sabbath Day feature is active, changes to the

heat levels for the cooktop elements will not show in the

displays. The cooktop will react slower to heat level

changes. To set the Sabbath Day feature, refer to

“Setting

the Sabbath Feature (For use on the Jewish Sabbath and

Holidays)” on page 38.

Home Canning

‘

Be sure to read and observe all the following points when

home canning with your appliance. Check with the USDA

(United States Department of Agriculture) Web site and be

sure to read all the information they have available as well

as follow their recommendations for home canning proce

dures.

• Use only quality flat bottom canners when home

canning. Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home

canning. Heat is spread more evenly when the bottom

surface is flat.

• Make sure the diameter of the canner does not exceed

1 inch beyond the surface element markings or burner.

It is recommended to use smaller diameter canners on

electric coil and ceramic glass cooktops and to center

canners on the burner grates.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat seating when first bringing the

water to a boil. Once boiling is achieved, reduce heat to

lowest possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully.

Check with your local Cooperative Agricultural

Extension Service or a manufacturer of glass jars for

the latest canning information.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high

heat for an extended amount of time.

• Alternate surface units between each batch to allow the

units and surrounding surfaces to cool down. Try to

avoid canning on the same burner unit all day.

Canning can generate large amounts of steam. Use

extreme caution to prevent burns. Always raise the lid to

vent steam away from you. Safe canning requires that

harmful micro-organisms are destroyed and the jars are

sealed completely. When canning in a water bath canner,

a gentle but steady boil must be maintained continuously

for the required time.

CAUTION

Surface cooking settings

The size and type of utensil used, and the amount and type

of food being cooked will influence the surface element

power level setting needed for best cooking results.

Use Ta b le 1 to determine the correct setting for the type of

food you are preparing.

The size and type of cookware used will influence the

setting needed for best cooking results.

Table 1: Recommended settings for surface elements

Setting Type of Cooking

HIGH (HI) Start most foods; bring water to a boil and

pan broiling.

MEDIUM

HIGH (8-10)

Continue a rapid boil; frying, deep fat

frying

MEDIUM (6) Maintain a slow boil; thicken sauces and

gravies; steaming vegetables

Medium

LOW (2-4)

Keep foods cooking; poaching and

stewing

LOW (LO) Keep warm, melting and simmering

Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the

HI setting is normal and can occur if the cookware is too

small for the radiant element or if the cookware bottom is

not flat.

For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat

to complete the cooking process.

NOTE

Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking.

A glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

The size and type of utensil used, and the amount and

type of food being cooked will influence the settings

needed for best cooking results.

The surface control knobs do not have to be set exactly

on a particular spot. Use the graphics provided as a guide

and adjust the control knob as needed. Each surface

element provides a constant amount of heat at each

setting. Refer to

Table 1 for suggested power level

settings.

IMPORTANT

NOTE

SETTING SURFACE CONTROLS

Single radiant surface elements (all models)

The cooktop has 2 or 3 SINGLE radiant surface elements:

the left rear position, the right rear position. The left rear

element may also be used with the Bridge element.

To Operate the Single Radiant Surface Elements:

1. Place correctly sized cookware on the radiant surface

element.

2. Push in and turn the surface control knob in either

direction to the desired setting (See

Table 8). Start most

cooking operations on a higher setting and then turn to

a lower setting to finish cooking. Each surface element

provides a constant amount of heat at each setting. A

glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

3. When cooking has completed, turn the surface control

knob to OFF before removing the cookware.

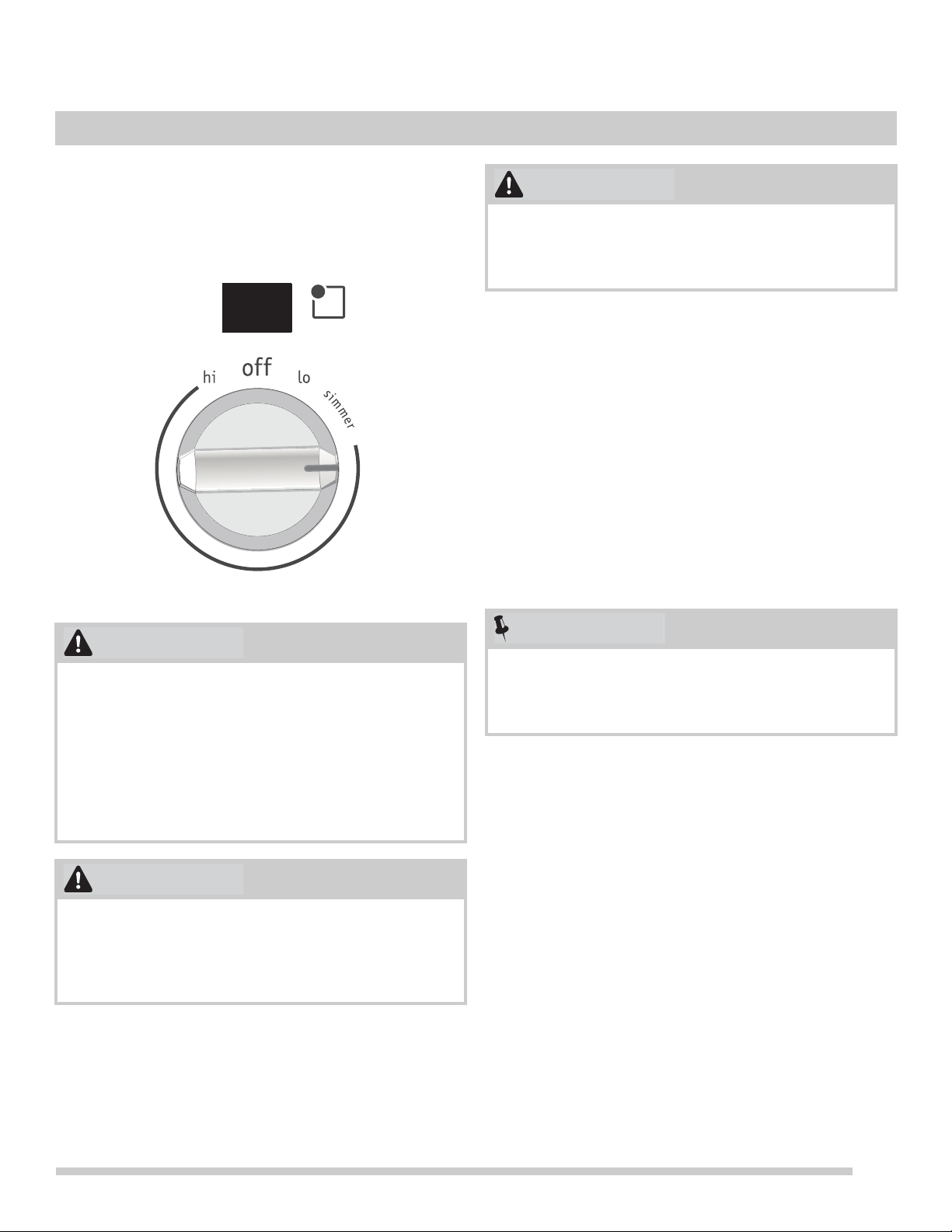

Figure 8: Control knob shown is typical only

Radiant surface elements may appear to have cooled

after they have been turned off. HE (Hot Element)

message (Models B & C) or the hot surface indicator light

(Model A) will turn on and will continue to glow until the

glass cooktop has cooled down to a moderate level. The

glass surface may still be hot and burns may occur if the

glass surface is touched before the indicator light has

turned OFF. The message may remain on even though

the controls are turned OFF.

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

CAUTION

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

The surface "Element On" indicator lights will glow when

one or more elements are turned on. A quick glance at

these indicator lights when cooking is finished is an easy

check to be sure all surface elements are turned off.

CAUTION

NOTE

SETTING SURFACE CONTROLS

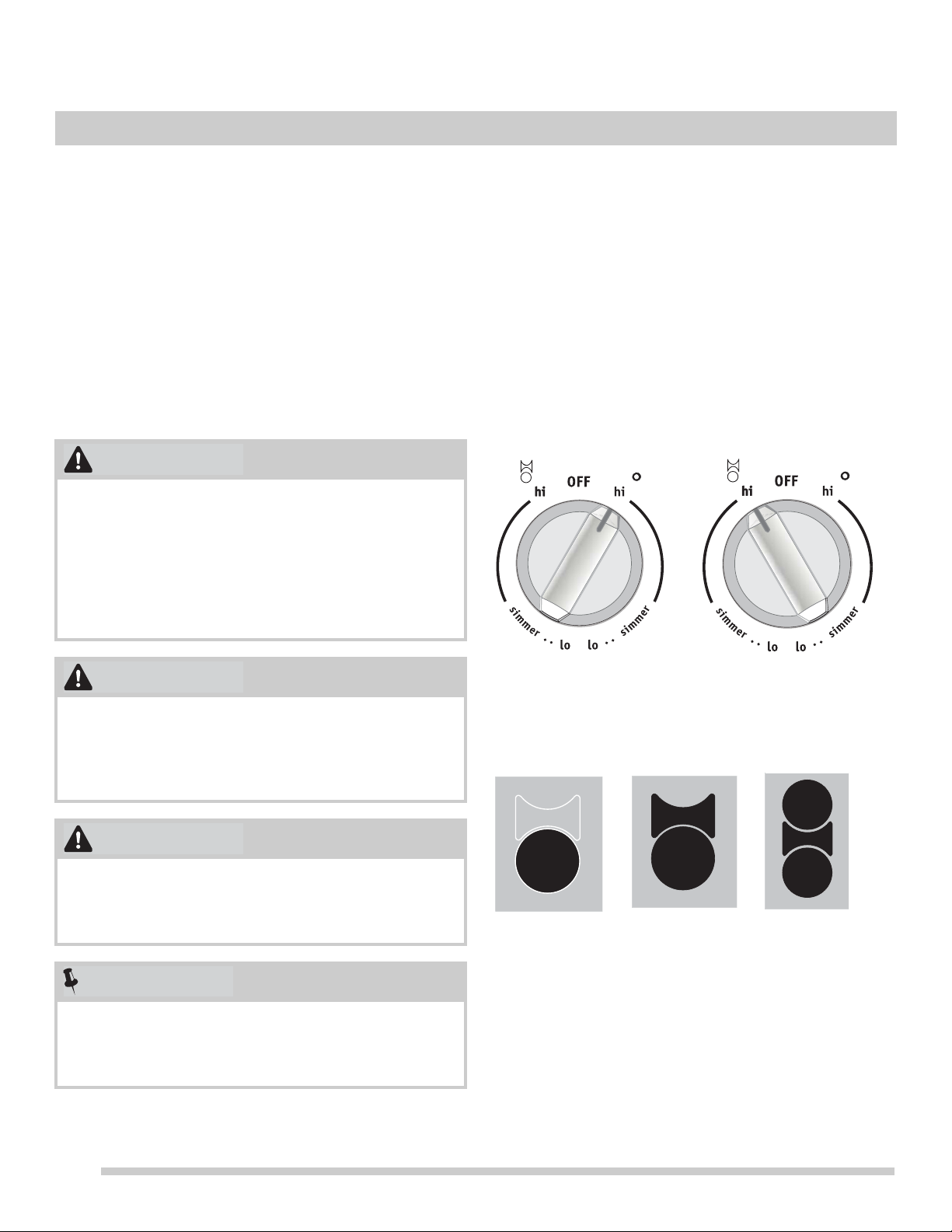

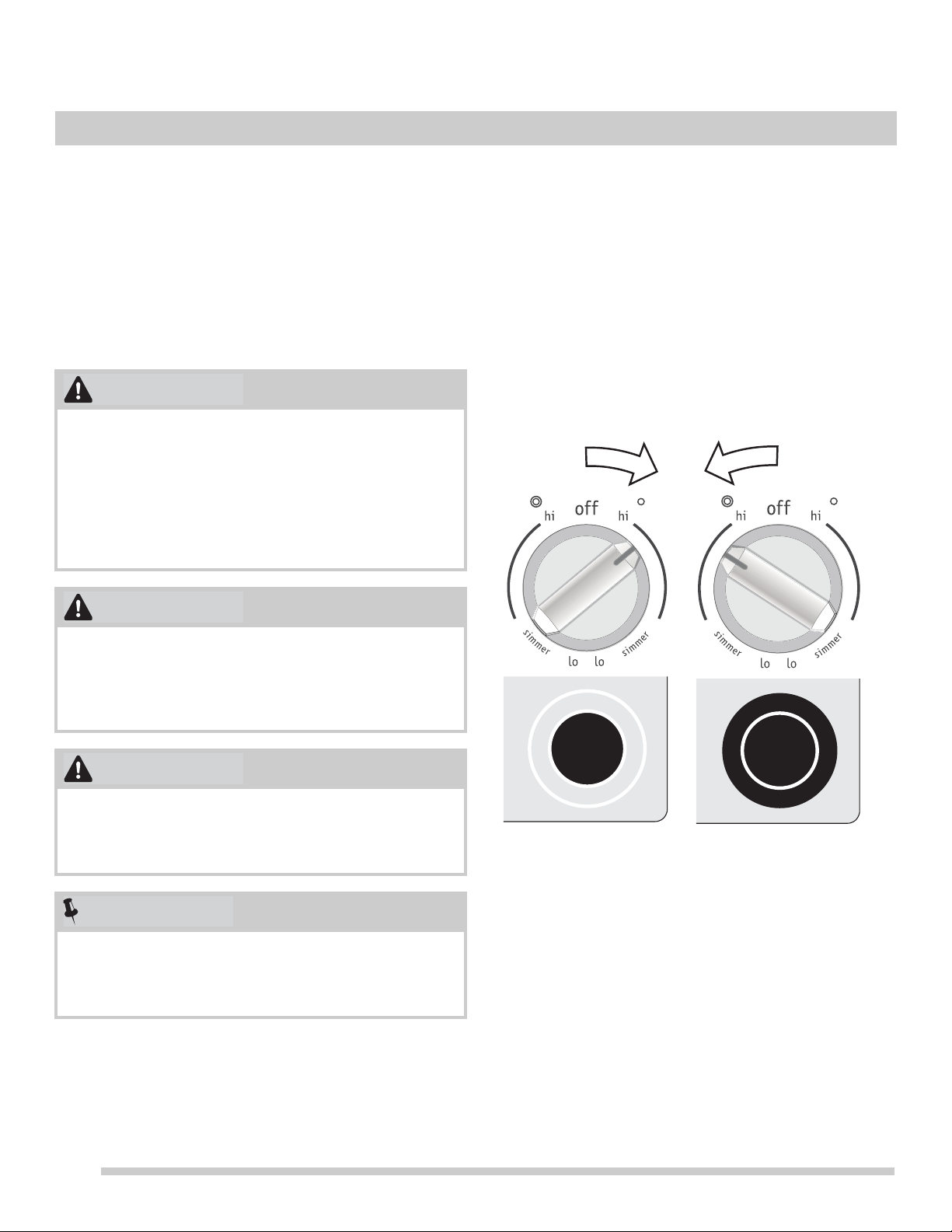

Dual Surface Radiant Element (all models)

The cooktop is equipped with 1 or 2 dual radiant surface

elements located at the left front and the right front or the

right rear position. Symbols around the knob are used to

indicate which coil of the dual radiant element will heat. The

symbol with the center circle blackened indicates that only

the inner coil will heat (See

Figure 9). The symbol with both

coils blackened indicates that both inner and outer coils will

heat (See

Figure 9). You may switch from either coil setting

at any time during cooking.

To Operate the Dual Surface Element:

1. Place correctly sized cookware on the dual surface

element.

2. Push in and turn the control knob to the inner coil

symbol for smaller cookware or to inner and outer coil

symbol for larger cookware (See

Figure 9). Turn the

knob to adjust the setting if needed. Start most cooking

operations on a higher setting and then turn to a lower

setting to finish cooking. Each surface element provides

a constant amount of heat at each setting. A glowing

red surface heating area extending beyond the bottom

edge of the cookware indicates the cookware is too

small for the surface heating area.

3. When cooking has completed, turn the surface control

knob to OFF before removing the cookware.

Radiant surface elements may appear to have cooled

after they have been turned off. HE (Hot Element)

message or the hot surface indicator light will turn on and

will continue to glow until the glass cooktop has cooled

down to a moderate level. The glass surface may still be

hot and burns may occur if the glass surface is touched

before the indicator light has turned off. The message

may remain on even though the controls are turned off.

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

The surface "Element On" indicator lights will glow when

one or more elements are turned on. A quick glance at

these indicator lights when cooking is finished is an easy

check to be sure all surface elements are turned off.

CAUTION

NOTE

Figure 9: Inner coil operation (L) and inner/outer coil

operation (R)

SETTING SURFACE CONTROLS

Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the

HI setting is normal and can occur if the cookware is too

small for the radiant element or if the cookware bottom is

not flat.

For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat

to complete the cooking process.

Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking.

A glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

The surface control knobs do not have to be set exactly

on a particular spot. Use the graphics provided as a guide

and adjust the control knob as needed. Each surface

element provides a constant amount of heat at each

setting. Refer to

Table 1 for suggested power level

settings.

NOTE

SETTING SURFACE CONTROLS

Triple Surface Radiant Element (some models)

Some cooktops are equipped with a triple radiant surface

element. Symbols around the knob indicate which element

will heat. The symbol with the center circle blackened

indicates that only the inner coil will heat. The symbol with

two elements blackened indicates that both elements will

heat. The symbol with three elements blackened indicates

that all three elements will heat (See

Figure 10.) You may

switch from either setting at any time during cooking.

To Operate the Triple Surface Element:

1. Place correctly sized cookware on the triple surface

element.

2. Push in and turn the control knob to the inner element

symbol for smaller cookware or to inner and outer

element symbol for larger cookware (See

Figure 11).

Turn the knob to adjust the setting if needed. Start most

cooking operations on a higher setting and then turn to

a lower setting to finish cooking. Each surface element

provides a constant amount of heat at each setting. A

glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

3. To activate and use the triple element, push in and turn

the knob to the left for the outer element symbol for

larger cookware. Push the Triple Zone switch to the ON

position (See

Figure 11).

4. When cooking has completed, push the Triple Zone

switch to the OFF position and turn the surface control

knob to OFF before removing the cookware.

Figure 10: Single (L), double (M), and Triple (R)

Radiant surface elements may appear to have cooled

after they have been turned off. HE (Hot Element)

message or the hot surface indicator light will turn on and

will continue to glow until the glass cooktop has cooled

down to a moderate level. The glass surface may still be

hot and burns may occur if the glass surface is touched

before the indicator light has turned off. The message

may remain on even though the controls are turned off.

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

Heating with

inner (small)

element only

Heating 2 of 3

portions

Heating with all

3 portions

Areas that heat are shown darkened.

CAUTION

The surface "Element On" indicator lights will glow when

one or more elements are turned on. A quick glance at

these indicator lights when cooking is finished is an easy

check to be sure all surface elements are turned off.

Figure 11: Triple radiant element

NOTE

SETTING SURFACE CONTROLS

Radiant elements have a limiter that allows the element to

cycle on and off, even at the HI setting. This helps to

prevent damage to the ceramic smooth top. Cycling at the

HI setting is normal and can occur if the cookware is too

small for the radiant element or if the cookware bottom is

not flat.

For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat

to complete the cooking process.

Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking.

A glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is

too small for the surface heating area.

The surface control knobs do not have to be set exactly

on a particular spot. Use the graphics provided as a guide

and adjust the control knob as needed. Each surface

element provides a constant amount of heat at each

setting. Refer to

Table 1 for suggested power level

settings.

NOTE

SETTING SURFACE CONTROLS

Bridge surface radiant element (some models)

The cooktop of your appliance is equipped with a "BRIDGE"

surface element located at the left front and middle posi

tions. The Bridge can be used when cooking with rectan-

gular (like a griddle) or oval shaped cookware. The element

will maintain an even temperature setting across both

portions of the Bridge. If needed for normal cookware, the

Bridge element can work like a single element without the

Bridge (See

Figure 13). The circle symbol indicates that

only the front potion will heat (SeeFigure 13). The bridge

symbol indicates that both front and middle portions will

heat (See

Figure 13). You may switch from either coil

setting at any time during cooking.

To Operate the Bridge Radiant Element:

1. Place correctly sized cookware on the dual surface

element.

2. Push in and turn the control knob as shown in Figure 12

to heat the front portion of the Bridge element for

normal shaped cookware or for larger or rectangular

shaped cookware. Turn the knob to adjust the setting if

needed. Start most cooking operations on a higher

setting and then turn to a lower setting to finish cooking.

Each surface element provides a constant amount of

heat at each setting. A glowing red surface heating area

extending beyond the bottom edge of the cookware

indicates the cookware is too small. Please note that

not all cookware will fit the Bridge element correctly.

3. When cooking has completed, turn the surface control

knob to OFF before removing the cookware.

The BRIDGE element may also be used in combination

with the left rear single element (See

Figure 13). When

using with the bridge, both controls should be set at the

same level. Because these elements have two different

controls, one element can be used to cook while the other

element may be used to keep food warm.

Radiant surface elements may appear to have cooled

after they have been turned off. HE (Hot Element)

message will turn on and will continue to glow until the

glass cooktop has cooled down to a moderate level. The

glass surface may still be hot and burns may occur if the

glass surface is touched before the indicator light has

turned OFF. The message may remain on even though

the controls are turned OFF.

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

The surface "Element On" indicator lights will glow when

one or more elements are turned on. A quick glance at

these indicator lights when cooking is finished is an easy

check to be sure all surface elements are turned off.

CAUTION

NOTE

Figure 12: Front portion control knob (L) and control

knob for rectangular shaped cookware (R)

Figure 13: Front portion only (L), front & middle

portions (M), and front & Middle plus left rear (R)

SETTING SURFACE CONTROLS

Keep warm zone (some models)

The purpose of the keep warm zone is to keep hot cooked

foods at serving temperature. Use the keep warm feature to

keep cooked foods hot such as: vegetables, gravies, casse

roles, soups, stews, breads, pastries and oven-safe dinner

plates.

Always start with hot food. It is not recommended to heat

cold food on the keep warm zone. All food placed on the

keep warm zone should be covered with a lid to maintain

quality.

For best results, when warming pastries or breads, the

cover should have an opening to allow moisture to escape.

Do not use plastic wrap to cover food. Plastic may melt onto

the surface and be very difficult to clean. Use only plates,

utensils and cookware recommended for oven and cooktop

use on the keep warm zone.

To Set the keep warm zone control:

1. Place cookware on the warmer zone.

2. Press the on●off key for the warm zone control

position. The keep warm indicator light will turn on.

3. Press the temp key until desired temperature setting is

displayed.

4. When it is time to serve the food, press the on●off key

once to turn the keep warm zone off. The keep warm

zone indicator light will turn off.

Keep warm zone temperature selection

Refer to Table 2 for recommended heating levels. If a partic-

ular food is not listed, start with the medium level, and

adjust as needed. Most foods can be kept at serving

temperatures by using the medium level.

The keep warm zone will not glow red when it is hot, but

becomes hot enough to cause burns. Avoid placing

hands on or near the keep warm zone until the keep

warm zone hot surface indicator light is OFF. Always use

potholders or oven mitts when removing food from the

keep warm zone as cookware and plates will be hot.

Do not place plastic items such as salt and pepper

shakers, spoon holders or plastic wrappings on top of the

range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements.

Do not allow aluminum foil, empty glass/porcelain

cookware or any material that can melt to make contact

with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

Always use potholders or oven mitts when removing food

from the warmer zone as cookware and plates will be hot.

CAUTION

If no further pads are touched within 25 seconds the

request to power the keep warm zone on will clear. Also,

The controls and indicator light are located on the control

panel.

Table 2: Warm zone recommended food settings

Food Item Heating Level

Breads/Pastries lo (Low)

Casseroles lo (Low)

Dinner plates with food lo (Low)

Eggs lo (Low)

Gravies lo (Low)

Meats med (Medium)

Sauces med (Medium)

Soups (cream) med (Medium)

Stews med (Medium)

Vegetables med (Medium)

Fried foods hi (High)

Hot beverages hi (High)

Soups (liquid) hi (High)

NOTE

Oven vent location

The oven is vented as shown below. When the oven is on,

warm air is released through the vent. This venting is

necessary for proper air circulation in the oven and good

baking results. Do not block oven vent. Never close off the

openings with aluminium foil or any other material. Steam or

moisture may appear near the oven vent. This is normal.

Removing, replacing, and arranging flat or offset

oven racks

To arrange - Always arrange the oven racks when the oven

is cool (prior to operating the oven).

To remove - Pull the oven rack straight forward until it

reaches the stop position. Lift up front of oven rack slightly

and slide out.

To replace - Place the oven rack on the rack guides on both

sides of oven walls. Tilt the front of oven rack upward

slightly and slide the oven rack back into place. Be sure

oven racks are level before using.

Type of oven racks

Oven Rack Descriptions

• The Flat Oven Handle Rack has a handle to facilitate

the sliding of the rack when large amount of foods

weigh on it.

• The Flat Oven Half Rack has a removable insert that

can provide extra space for larger food items. The right

half rack portion may still be used for other food items

like a casserole dish. To remove the insert, squeeze on

the left front insert side of the rack and tilt out clockwise.

To reinstall, insert rear hooks at back of insert and lay

insert down. Make sure both insert front hooks snap into

rack.

• The Offset Oven Rack is used to maximize cooking

space. The offset rack can be used in the lower rack

position to roast large cuts of meat and poultry.

Air circulation in the oven

For best air circulation when baking, allow a space of 2

inches (5 cm) around the cookware for proper air circula

tion. Be sure pans and cookware do not touch each other,

the oven door, sides, or back of the oven cavity.

Hot air must be able to circulate around cookware for even

heat to reach the food.

Figure 14: Do not block oven vent location

Always use pot holders or oven mitts when using the

oven. When cooking, the oven interior and exterior, oven

racks, and cooktop will become very hot which can cause

burns.

Protective Liners — Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in

this manual. Improper installation of these liners may

result in risk of electric shock or fire.

set

clock

keepwarm

drawer

on·o

123

456

789

bake broil convect

cancelstart

pizza

chicken

nuggets

add

amin

delay

start

bake

time

powerplus

preheat

keep

warm

self

clean

convect

convert

low

med

favorite

CAUTION

WARNING

Figure 15: Oven rack types

at

oven rack

at handle

oven rack

oset

oven rack

half

oven rack

Effortless

oven rack

Flat half oven rack - Closed position

BEFORE SETTING OVEN CONTROLS

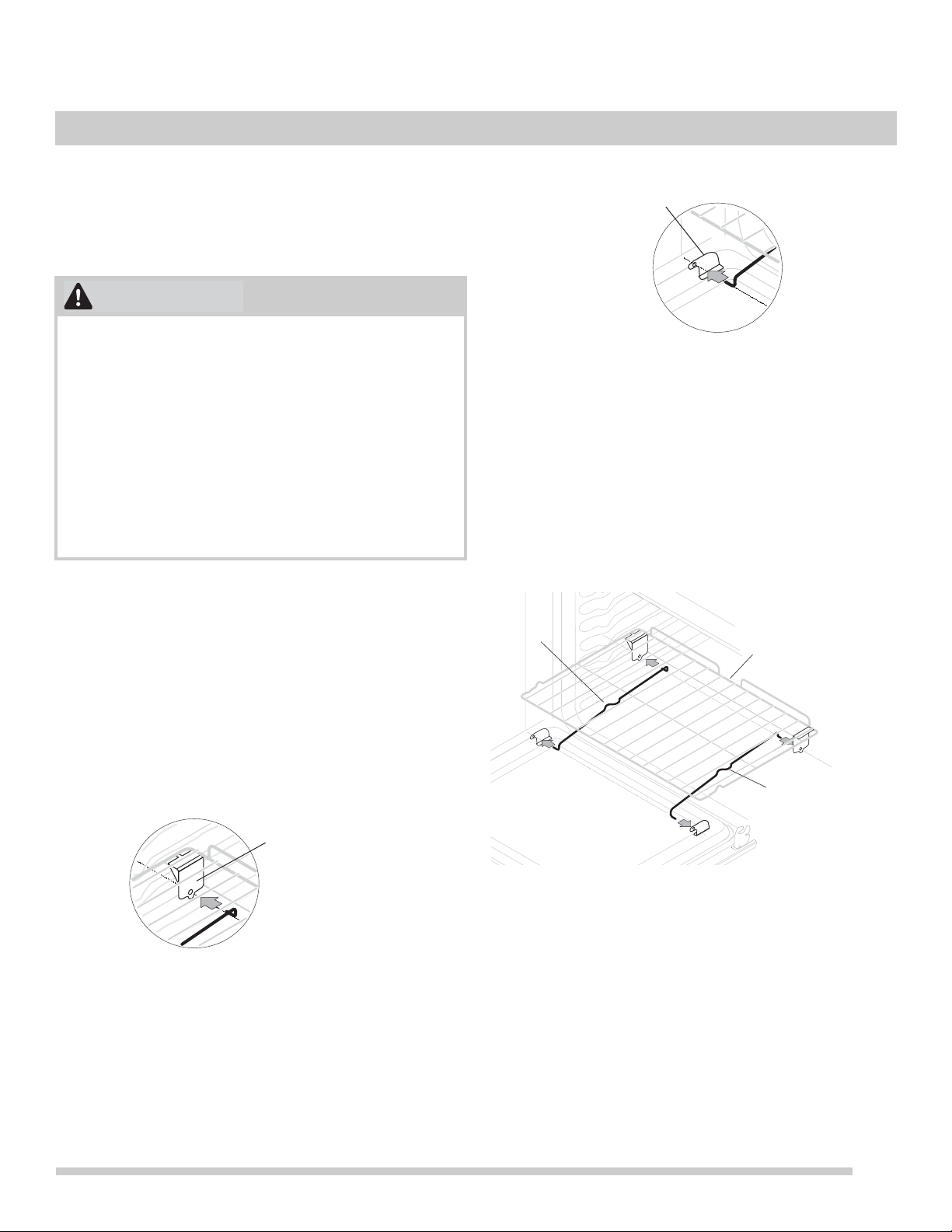

Effortless™ Oven Rack system

Some models are equipped with a special oven rack

system that automatically extends the oven rack to assist in

access to your food items. This rack extends when the oven

door is opened or closed.

To assemble the Effortless™ Oven Rack system:

1. Locate all required parts. You will need the supplied

oven rack (Effortless™ Oven Rack is a flat rack with a

special dark coating on the left and right rack sides) and

the two supplied chrome connector arms.

2. Open the oven door. Be sure the oven is completely

cool before proceeding.

3. Place the oven rack in positions 2, 3, or 4 only. Be sure

the rack connector brackets are at the rear of the range

and pointing towards oven bottom (See

Figure 16).

4. Assemble one connector arm at a time. With the oven

door open and the oven rack in place, install one end of

the connector arm to the hole in the door connector

bracket (

Figure 17) and the other end in the hole in the

rack connector bracket (Figure 18). The oven rack may

need to be adjusted in or out in the rack position to

match the length of the connector arm.

5. While holding the connector arm in place, twist the

connector arm so the ends of the connector arm point

upwards (

Figure 19). The connector arm should now be

locked into position.

6. Repeat steps 4 and 5 for the other connector arm.

7. Once both connector arms are properly in place, be

sure to test the oven rack operation by gently closing

the oven door. The oven rack should move in and out of

the oven freely when the door is opened or closed.

Remove all oven racks and accessories before starting a

self-clean cycle. If the oven racks are left in the oven

during the self-clean cycle, the gliding ability of the Effort

less™ Oven Rack system will be damaged, and oven

racks will loose their shiny finish and may turn blue.

Remove all oven racks and clean according to instruc

tions provided in the Care & Cleaning section of this

manual.

Make sure the oven and oven racks are completely cool

before attempting to assemble or disassemble the Effort

less™ Oven Rack system. Never pick up hot oven racks

or parts.

Figure 16: Bracket must be at rear of the range

CAUTION

rack connector

bracket

Figure 17: Connector arm/door connection

Figure 18: Assembly of the Effortless™ oven rack

door connector

bracket

oven

rack

connector

arm

open oven

door

connector

arm

BEFORE SETTING OVEN CONTROLS

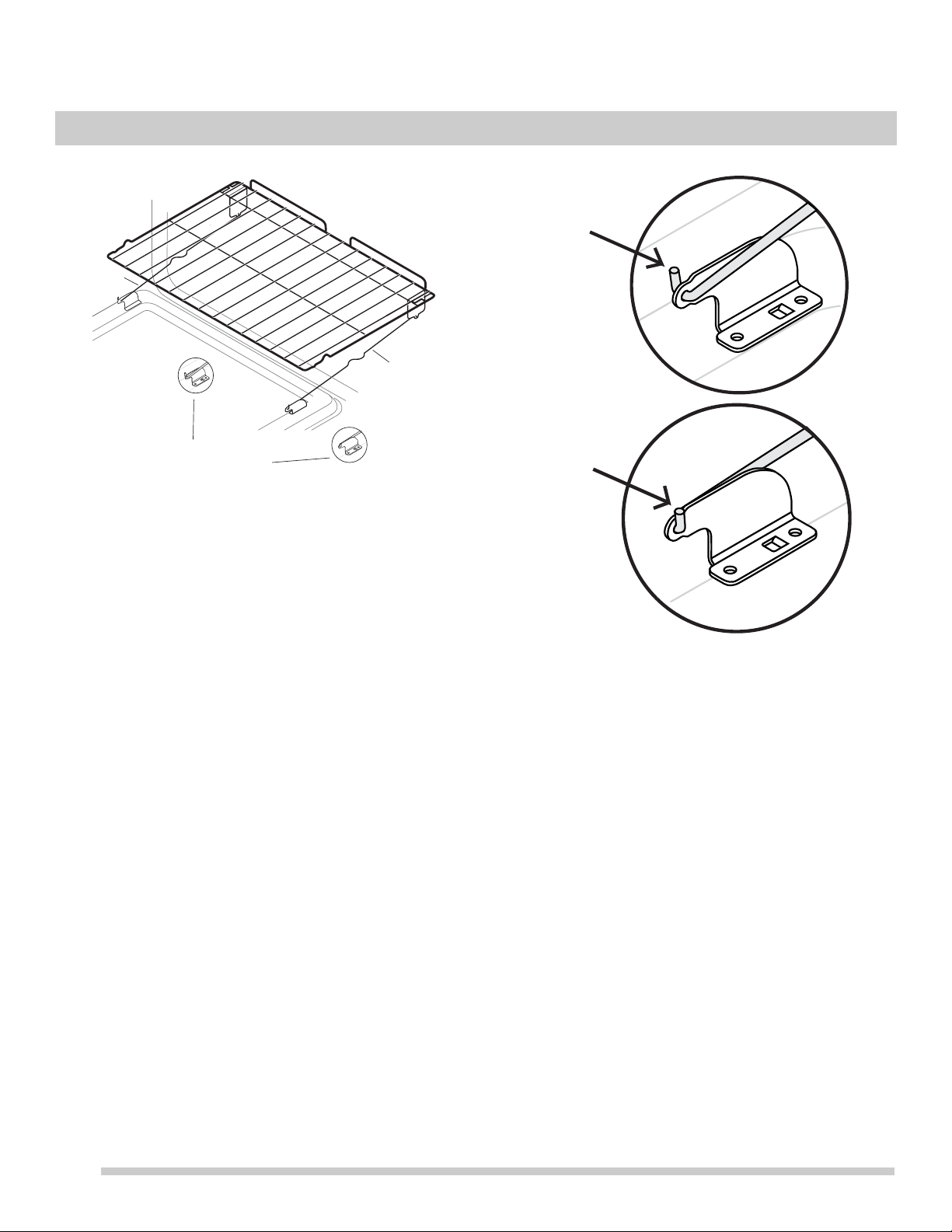

Figure 19: Effortless™ oven rack after assembly

connector

arm

connector

arm

left and right

door connector

brackets

with connector arm ends

shown in locked position

(pointing upwards)

Figure 20: Left & right brackets, pointing up

End should

point up, as

explained

in Step 5

End should

point up, as

explained

in Step 5

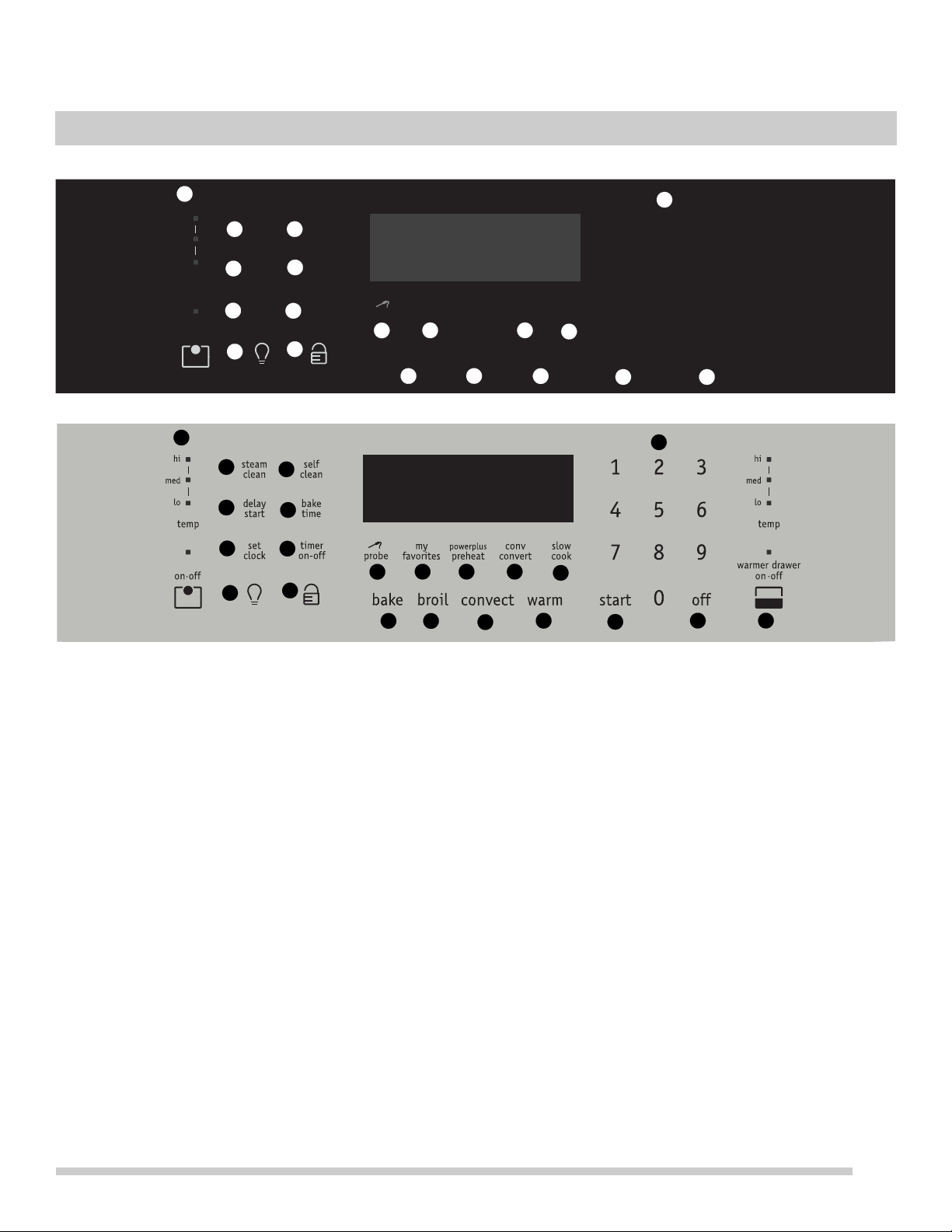

Gallery Model (above) Professional Model (below)

Oven Controls Features

To get the best use of your oven, take some time to become

familiar with the various features and functions of you oven

model. Detailed instructions on using each oven feature

and function of the controls can be found in this section of

the owner’s manual.

1. Steam Clean — Use for steam clean function.

2. Delay Start — Use to program a delayed time bake or

delayed self-cleaning cycle start time.

3. Set Clock — Use along with the numeric keypad to set

the time of day.

4. Oven Light — Use to turn the oven light on and off.

5. Self Clean — Use to select self-clean function.

6. Bake Time — Use to enter the length of baking time.

7. Timer on-off — Use to set or cancel the timer. Timer

does not start or stop the cooking process.

8. Oven Lockout — Use to lock the oven door and the

control panel.

9. Bake — Use to select the bake cooking feature.

10. Broil — Use to select broil cooking feature.

11. Convect — Use to select between convection bake,

convection roast, and convection broil (some models).

12. Warm — Use to keep food and dishes warm.

13. Probe — Use to monitor internal temperature of food

for required doneness.

14. Quick Preheat (Gallery Mode)/Powerplus Preheat

(Professional Model) — Use to raise oven to preheat

temperature.

15. Convect Convert — Use to convert regular recipe

temperature to convection recipe temperature.

16. Slow Cook (some models) — Use for cooking foods

requiring long cooking times with lower temperatures.

17. My Favorites (some models) — Use to program and

save favorite recipes settings.

18. Start — Use for starting all cooking features.

19. Numeric Keypad — Use to enter temps and times.

20. Off — Use to turn off any oven function entered except

time of day and minute timer.

21. Warmer Drawer— Keeps cooked food at warm temps.

22. Warm Zone— Keeps hot cooked food at serving temps.

bake broil

convect

delay

start

set

clock

timer

on-o

bake

time

steam

clean

self

clean

keep

warm

conv

convert

prob

quick

preheat

start o

456

789

123

temp

o n·o

med

9 1011

14 15

9 10

14 15

20 21

OVEN CONTROLS

Setting the Clock

The set clock control is used to set the clock. The clock may

be set for 12 or 24 hours display operation. The clock is

preset at the factory for 12 hour display. When the oven is

first plugged in, or when the power supply to the oven has

been interrupted, the timer in the display will flash.

To set the clock (example below for 1:30):

1. Press set clock. CLO will appear in the display.

2. Press 1 3 0 on the keypad to set the time of day to 1:30.

CLO will stay in the display.

3. Press start. CLO will disappear and the clock will start.

Setting 12 or 24 Hour Time of Day Display

1. Press and hold set clock for 6 seconds. CLO will

appear in the display.

2. Continue holding the key until 12Hr dAY or 24Hr dAY

appears in the display and the control beeps once.

3. Press self clean to switch between the 12 and 24 hour

time of day display. The display will show either 12Hr

dAY or 24Hr dAY.

4. Press start to accept the change or press off to reject

the change.

5. Reset the correct time as described in this section. If the

24 hour time of day mode was chosen, the clock will

display time from 0:00 through 23:59 hours.

Table 3: Minimum and maximum control settings

Feature Mode Minimum Temp. /Time Maximum Temp. /Time

Preheat 170°F (77°C) 550°F (288°C)

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Convection Bake 170°F (77°C) 550°F (288°C)

Convection Roast 170°F (77°C) 550°F (288°C)

Convection Broil 400°F (205°C) 550°F (288°C)

Slow Cook Lo 225°F (108°C) Hi 275°F (135°C)

Meat Probe Lo 140°F (60°C) Hi 210°F (99°C)

Timer 12 Hr. Mode

24 Hr. Mode

0:01 Min.

0:01 Min

11:59 Hr./Min.

Clock Time 12 Hr. Mode

24 Hr. Mode

1:00 Hr./Min.

0:00 Min

12:59 Hr./Min.

23:59 Hr./Min.

Delay Start 12 Hr. Mode

24 Hr. Mode

1:00 Hr./Min.

0:00 Min

12:59 Hr./Min.

23:59 Hr./Min

Bake Time 12 Hr. Mode

24 Hr. Mode

0:01 Min

5:59 Hr./Min.

Self Clean Time 2 hours 4 hours

The features listed show the minimum and maximum time or temperature settings allowable.

OVEN CONTROLS

Setting Continuous Bake or 6 Hour Energy Saving

The timer on-off and self clean keys control the continuos

bake or 6 hour energy saving features. The oven control

has a factory preset 6 Hour Energy Saving feature that

shuts off the oven if the oven control is left on for more than

6 hours. The oven can be programmed to override this

feature for Continuous Baking.

To set the control for continuous bake or 6 hour energy

saving:

1. Press and hold timer on-off for 6 seconds. After 6

seconds 6Hr OFF or StAY On will appear in the display

and the control will beep once.

2. Press self clean to switch between the 6 hour energy

saving and continuous bake features.

3. Press start to accept the change (display will return to

time of day) or press off to reject the change.

6Hr OFF indicates the control is set for the 6 hour energy

saving mode. StAY On indicates the control is set for the

continuous bake feature.

Temperature Display (Fahrenheit/Celsius)

The broil and self clean keys control the Fahrenheit (°F) or

Celsius (°C) temperature display modes. The oven control

can be programmed to display temperatures in °F or °C.

The oven is preset at the factory to display in °F.

To change display from °F to °C or °C to °F

1. To tell if the display is set for °F or °C, press broil and

hold for 6 seconds. 550° will appear, broil will flash in

the display, and a beep will sound. If F appears, the

display is set to show temperatures in °F. If C appears,

the display is set to show temperatures in °C.

2. Press self clean to switch between °F or °C display

modes. The display will show either F or C.

3. Press start to accept the change or press off to reject

the change.

Setting Control for Silent Operation

Delay start and self clean keys control the silent control

operation feature. The silent control operation feature

allows the oven control to be operated without sounds or

beeps whenever necessary. If desired the control can be

programmed for silent operation and later returned to

operating with all the normal sounds and beeps.

To change control from normal sound operation to

silent control operation:

1. To set oven for normal or silent operation, press and

hold delay start. -- -- will appear and DELAY will flash

in the display. After 6 seconds bEEP On or bEEP OFF

will appear in the display.

2. Press self clean to switch between normal sound

operation and silent operation mode. The display will

show either bEEP On or bEEP OFF. If bEEP On

appears, the control will operate with normal sounds

and beeps. If bEEP OFF appears, the control is in the

silent operation mode.

3. Press start to accept the change or press off to reject

the change.

Setting the Timer

The timer on-off key controls the minute timer and serves

as an extra timer and can be used during any of the other

oven control functions.

To set the minute timer:

1. Press timer on-off. -- -- will appear and timer will flash

in the display. Press the number keys to set the desired

time.

2. Press start. The time will begin to count down and

Timer will stay in the display. When the time expires,

End and Timer will show in the display. The clock will

beep three times every 30 seconds until timer on-off is

pressed.

3. To cancel the minute timer before the set time expires,

press timer on-off.

The control will always beep at the end of a minute timer

and will beep when a set temperature has been reached,

even if the control is set to silent operation.

If start is not pressed, the timer will return to the time of

day after 25 seconds.The timer does not start or stop the

cooking process.

NOTE

OVEN CONTROLS

Setting Oven Lockout Feature

The key controls the oven lockout. When active, this

feature automatically locks the oven door, preventing the

oven from being turned on. It does not affect the clock,

timer, or the interior oven lights. When the Oven Lockout

key is activated, it also locks the cooktop. Dashes will

appear on the ESEC displays.

To activate the oven lockout feature:

1. Press and hold for 3 seconds.

2. After 3 seconds, door Loc will appear, a tone will

sound, and the word DOOR and the

icon will flash.

3. Once locked, DOOR and the lock icon will stop flashing

and remain visible with the Loc.

To reactivate normal oven operation:

1. Press and hold for 3 seconds.

2. After 3 seconds, door Loc will appear, a tone will

sound, and the word DOOR and the lock icon will flash

in the display until the oven door has completely

unlocked.

3. The oven is now fully operational.

Oven Light

The oven is equipped with two oven lights. The oven lights

will turn on automatically when the oven door is opened.

The oven light may be turned on when the door is closed by

using the oven light key on the control panel.

To toggle the oven lights on and off:

1. Press .

2. The interior oven lights are covered with a glass shield.

The glass shield must be in place whenever the oven is

in use. To change the interior oven lights, see

“Replacing the oven light” on page 50.

Setting Preheat

The powerplus preheat/quick preheat feature is used

when a recipe calls for preheating the oven. When the

preheat stage ends, a tone will sound indicating when to

place the food in the oven. Preheat can be programmed for

temperatures between 170°F to 550°F and is not necessary

when roasting or cooking casseroles.

For batter and dough-based goods such as cakes, pastries,

and breads, use the regular bake or convection function for

best results.

To set the preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press powerplus preheat/quick preheat. 350 will

appear in the display. Press start.

3. 350 and PREHEAT will be displayed while the oven is

preheating.

4. Press off when baking is complete or to cancel the

preheat feature.

To change preheat temperature while oven is

preheating (ex: changing from 350°F to 425°F):

1. Press powerplus preheat/quick preheat. 350 will

appear in the display.

2. Enter the new preheat temperature. Press 4 2 5.

3. Press start. 425 will show in the display.

4. When baking is complete, press off.

The oven light will not operate during the self clean

function.

NOTE

• A beep will sound once the oven temperature reaches

425°F.

• Once the oven reaches the set temperature, the

control beeps, the word PREHEAT disappears from

the display, and the convection fan stops rotating. The

bake feature will display the set oven temperature

and will continue cooking at the set bake tempera

ture.

• When preheated, place food in the oven. During

preheat, the convection fan is active during the first

rise in temperature to allow oven to reach its target

temperature faster.The bake, broil, and convection

elements will also cycle for a better heat distribution.

NOTE

OVEN CONTROLS

Setting Bake

Bake controls normal baking. If a rapid preheating is

preferred, refer to

“Setting Preheat” on page 26. The oven

can be programmed to bake at any temperature from 170°F

to 550°F.

To set the bake temperature to 375°F:

1. Arrange interior oven racks.

2. Press bake. 350 will appear in the display.

3. Press 3 7 5.

4. Press start. The actual temperature will be displayed. A

beep will sound once the oven temperature reaches

375°F, and the display will show 375°.

5. When preheated, place food in oven.

To change the bake temperature (example: changing

from 375°F to 425°F):

1. After the oven has already been set to bake at 375°F

and the oven temperature needs to be changed to

425°F, press bake and 375 will appear in the display.

2. Press 4 2 5.

3. Press start.

Baking Tips

For best bake results:

• Fully preheat the oven before baking items like cookies,

cakes, biscuits, and breads.

• When using any single rack, position the rack so that

the food is in the center of the oven.

• For best results when baking cakes using two oven

racks, place racks in positions 2 and 4 (See

Figure 21).

• When baking using two oven racks, position cookware

as shown in

Figure 22. Allow at least 2 inches (5 cm) of

space between cookware for proper air circulation.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven temper

ature and cook time to prevent overbrowning of some

foods. Dark bakeware is recommended for pies. Shiny

bakeware is recommended for cakes, cookies, and

muffins.

• For batter and dough-based baked goods such as

cakes, pastries, and breads, use the convection

function for best results.

Pressing Off at any time will stop the feature.

NOTE

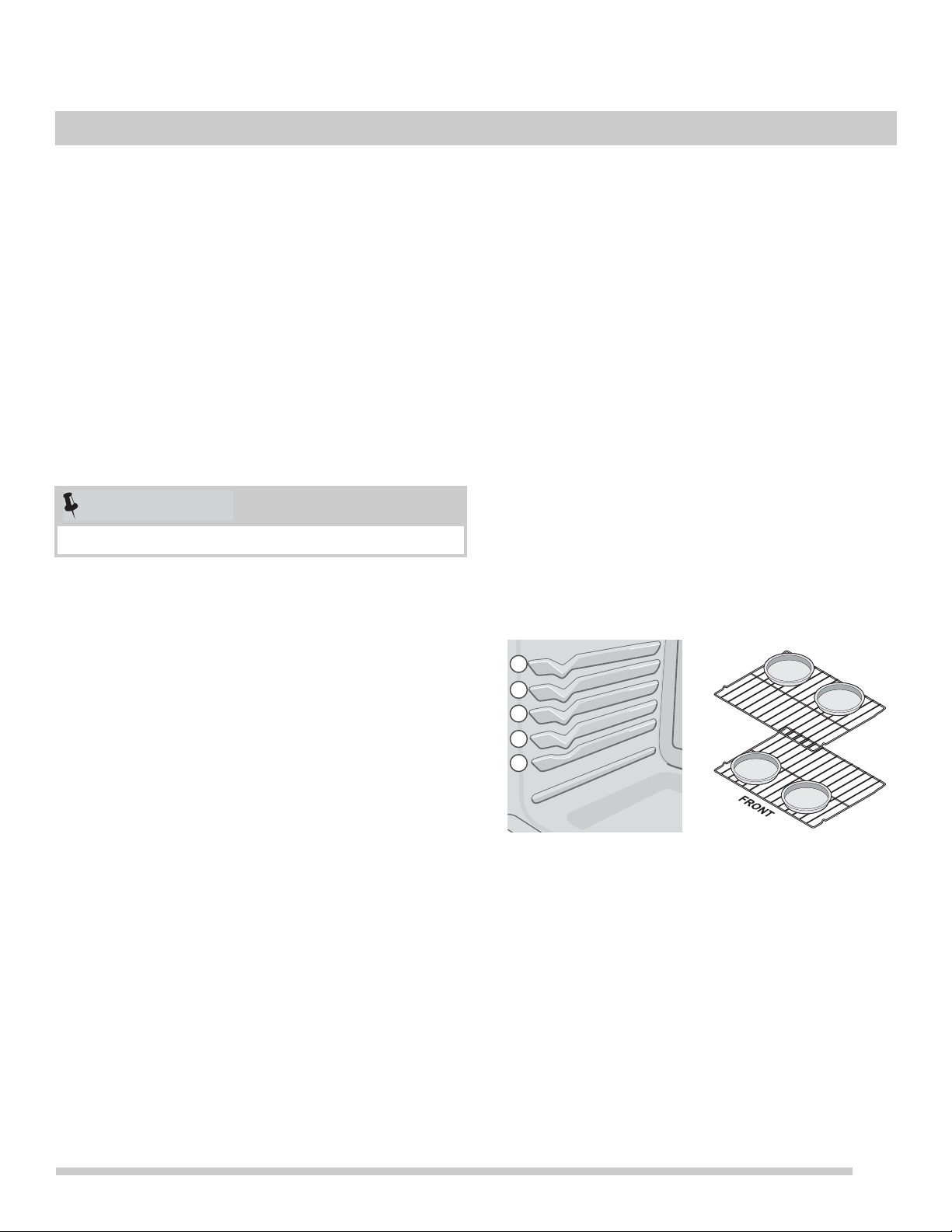

Figure 21: Rack positions Figure 22: Pan spacing

OVEN CONTROLS

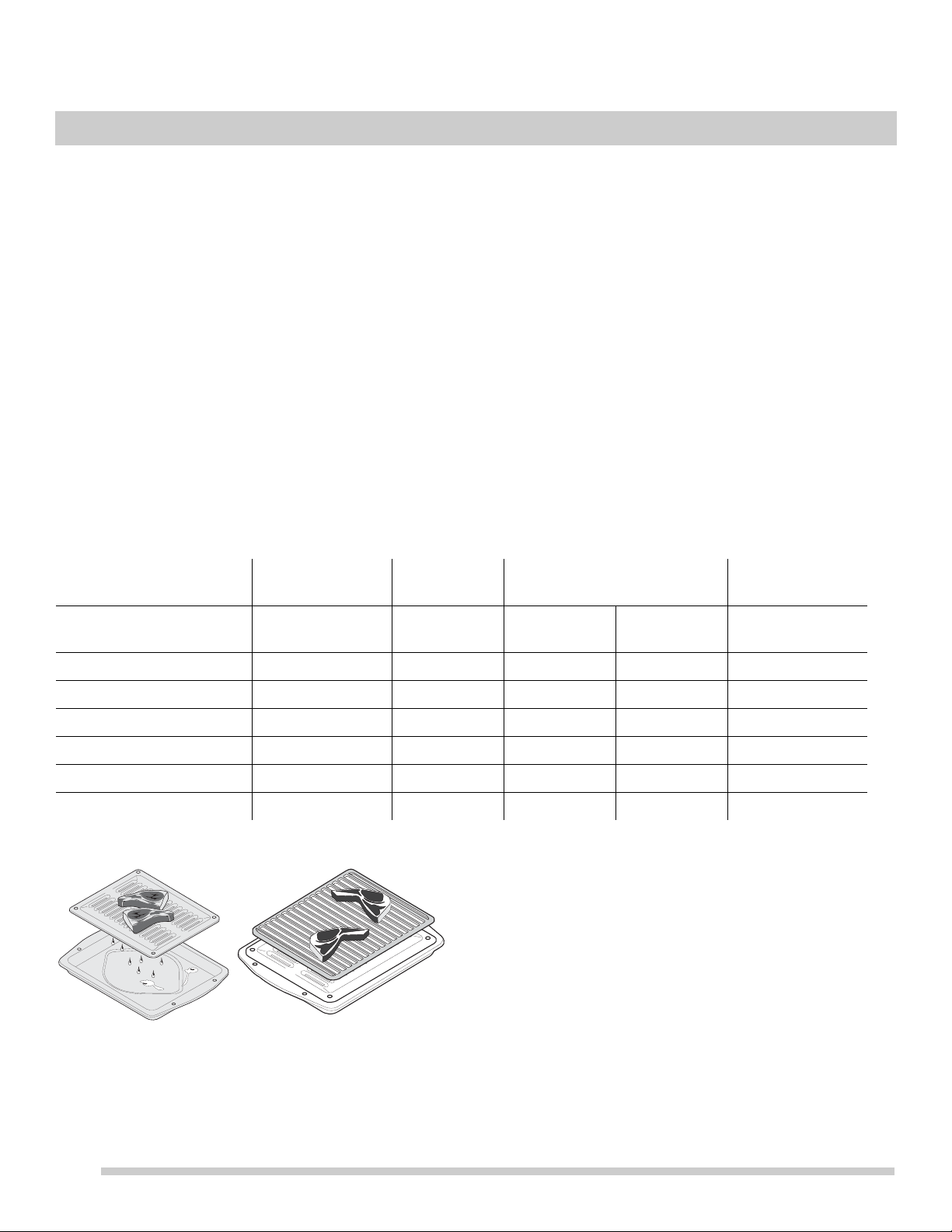

Setting Broil

This mode is best for meats, fish, and poultry up to 1” thick.

Broiling cooks tender cuts of meat by direct heat. The broil

key controls the broil feature. An optional searing grill,

broiler pan, and insert may be purchased at frigidaire.com.

The broil pan and broil pan insert used together allow

grease to drain away from the high heat of the oven broiler.

The oven can be programmed to broil at any temperature

from 400°F to 550°F with a default temperature of 550°F.

To set a broil of 500°F:

1. Place the broiler pan insert on the broiler pan and place

the food on the broiler pan insert. Do not use the broiler

pan without the insert.The exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan

on the rack. Center the broiler pan directly under the

broiler element. Preheat for 5 minutes before broiling.

3. Press broil. 550 will appear in the display.

4. Press 5 0 0. If a lower broil temperature is desired

(minimum broil temperature setting is 400°F), press the

desired temperature before continuing to Step 5.

5. Press start. The oven will begin to broil. 500° will

appear in the display.

6. Broil on one side until food is browned; turn and cook on

the second side. Season and serve. Always pull the

rack out to the stop position before turning or removing

food.

7. To stop broiling, press off.

Broiling tips:

• For optimum browning, preheat the broil element for 5

minutes. Broil one side until the food is browned; turn

and cook on the second side. Season and serve.

• If using a searing grill (available by mail order), preheat

oven 5 to 10 minutes before grilling.

Table 4: Broiling recommendations

Food item Rack Position Temperature

Cook time

1st side 2nd side Doneness

Steak 1” thick 3rd or 4th

3rd or 4th

550°F

6:00

7:00

4:00

5:00

Rare

Medium

Pork Chops 3/4” thick 3rd or 4th 550°F 8:00 6:00 Well

Chicken - Bone In 3rd 450°F 20:00 10:00 Well

Chicken - Boneless 3rd or 4th 450°F 8:00 6:00 Well

Fish 3rd 500°F 13:00 - Well

Shrimp 3rd 550°F 5:00 - Well

Hamburger 1” thick 3rd or 4th 550°F 9:00 7:00 Medium

Figure 23: Broil accessories

Searing

Grill

Broiler

Pan

Broiler Pan

& Insert

Broiler

Insert

OVEN CONTROLS

Convection Cooking

Convection cooking uses the three elements and a fan to

circulate the heat evenly and continuously within the oven

(See

Figure 24).

Benefits of convection cooking:

• Multiple rack baking.

• Some foods cook faster, saving time and energy.

• No special pans or bakeware needed.

• Food cooks more evenly.

Setting Convection Bake

This mode of cooking enables you to obtain the best results

when baking with multiple pans and racks. The oven can be

programmed for convection baking at any temperature

between 170°F to 550°F with a default temperature of

350°F.

To set the oven for convection bake and temperature to

375°F:

1. Arrange interior oven racks.

2. Press convect. Convect and bake will flash and 350

will appear in the display. If a convection bake of 350°F

is needed, press start.

3. Press 3 7 5. Convect and bake will keep flashing, and

375° will appear in the display.

4. Press start. The actual oven temperature and the fan

icon will be displayed. A beep will sound once the oven

temperature reaches 375°F, and the display will show

375°, CONVECT, BAKE, and the fan icon.

5. Place food in oven.

Convection baking tips:

• Fully preheat the oven before baking items like cookies,

cakes, biscuits, and breads.

• If your recipe cooking temperature has already been

converted for convection baking, there is no need to

reduce your oven temperature. If not, you can easily

reduce using the Convection Convert feature. Please

see

“Setting Convection Convert” on page 30 for further

instruction on temperature conversion.

• When using any single rack, position the rack so that

the food is in the center of the oven.

• For best results when baking cakes using two oven

racks, place racks in positions 2 and 4 (See

Figure 25).

• When baking using two oven racks, position cookware

as shown in

Figure 26. Allow at least 2 inches (5 cm) of

space between cookware for proper air circulation.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven temper

ature and cook time to prevent overbrowning of some

foods. Dark bakeware is recommended for pies. Shiny

bakeware is recommended for cakes, cookies, and

muffins.

• Most baked goods (except cakes) should be baked on

pans with no sides or low sides to allow air to circulate

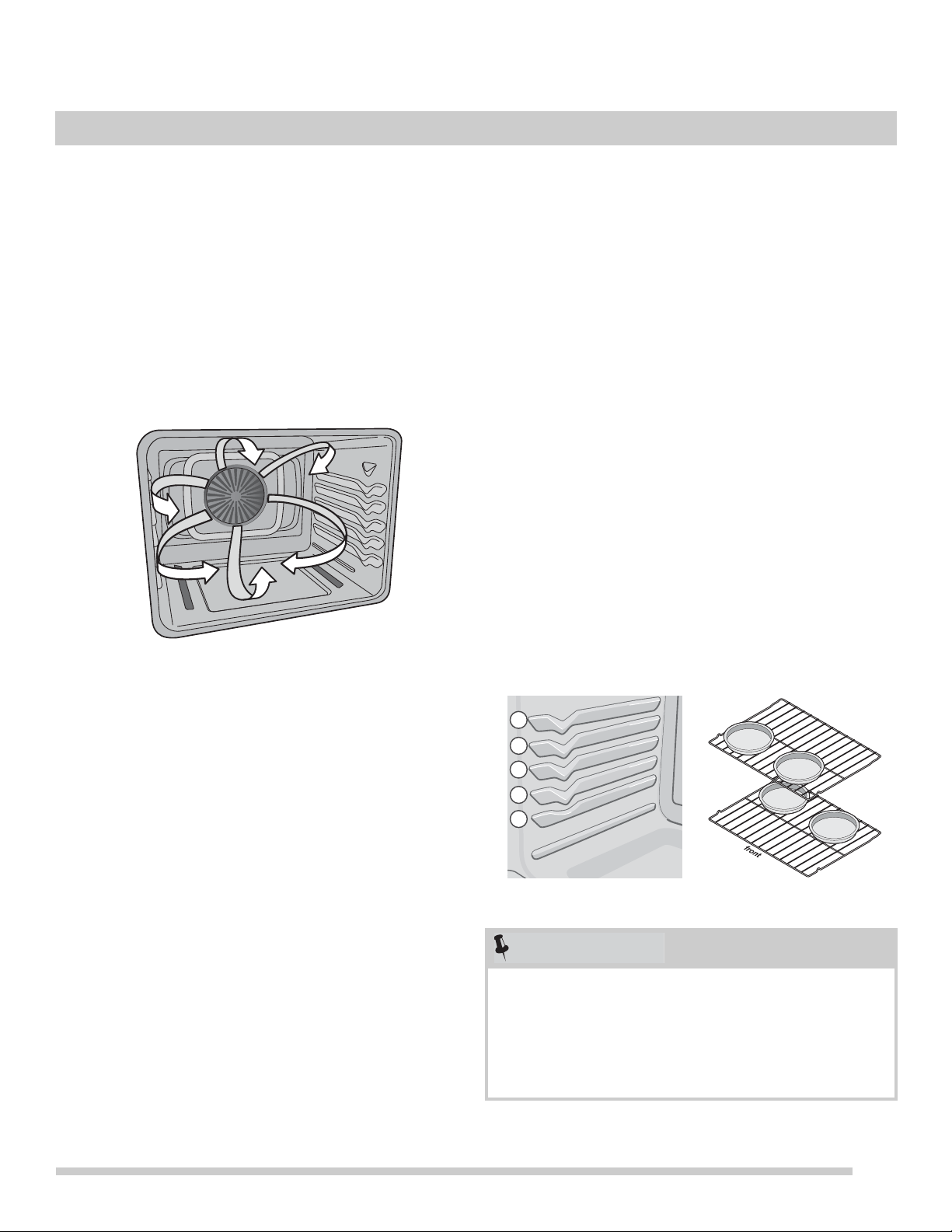

Figure 24: Air circulation in convection function

Figure 25: Rack positions Figure 26: Pan spacing

The convection fan will start as soon as the oven is set for

convection bake. The display will show an icon of rotating

fan within a square, indicating the convection fan is oper

ating. The bake, broil, and convection elements will also

cycle for a better heat distribution.

Pressing off will stop the feature at any time.

NOTE

OVEN CONTROLS

Setting Convection Convert

Convection convert automatically converts a standard

baking recipe for convection baking. When set properly, this

feature is designed to display the actual converted

(reduced) temperature in the display. Convection convert

may only be used with a convection bake cooking mode. It

can be used with a delay start and bake time. For delay

start instructions, see

“Setting Delay Start” on page 32. For

bake time instructions, see “Setting Bake Time” on page 32.

If convection conversion is used with the bake time and

delay start features, CF (check food) will be displayed when

75% of the bake time complete. At this time the oven

control will sound three long beeps at regular intervals until

baking time is finished. The control will display End and

continue to beep at regular intervals until off is pressed.

To set the oven for convection bake with a standard

baking recipe temperature of 400°F:

1. Arrange interior oven racks.

2. Press convect. Convect and bake will flash and 350

will appear in the display.

3. Pres 4 0 0. Convect and bake will keep flashing and

400° will appear in the display.

4. Press start.

5. Set bake time or delay start if needed. For delay start

instructions, see

“Setting Delay Start” on page 32. For

bake time instructions, see “Setting Bake Time” on

page 32.

6. Press convect convert, and the oven will start heating.

The temperature displayed will be 25°F lower than what

it used to be. The actual oven temperature and the fan

icon will be displayed. A beep will sound once the oven

temperature reaches 375°F, and the display will show

375°, CONVECT, BAKE, and the fan icon.

7. Place food in the oven.

Setting Convection Broil

Use this mode for thicker cuts of meat, fish, and poultry. The

convection broiling gently browns the exterior and seals in

the juices. Convection broiling uses the broil element and a

fan to circulate the oven’s heat evenly and continuously

within the oven. The oven can be programmed for convec

tion and normal broiling at any temperature between 400°F

to 550°F with a default temperature of 550°F (See

Table 4).

To set a convection broil temperature of 500°F:

1. Arrange oven racks first. Press convect; 350 will be

displayed, and convect and bake will flash.

2. Press convect two more times; 550 will be displayed

and convect and broil will flash.

3. Press 5 0 0.

4. Press start.

5. 500, CONVECT, BROIL, and the fan icon will be

displayed.

6. After 5 minutes of preheat, place food in the oven.

Convection broiling tips:

• For optimum browning, preheat the broil element for 5

minutes. Always pull the rack out to the stop position

before turning or removing food.

• Always use a broiler pan and its insert when broiling

(available by mail order). It keeps grease away from the

high heat of the broil element.

• Do not use the broil pan without the insert. Do not cover

the broil pan insert with foil. The exposed grease could

catch fire. If using a searing grill (available by mail

order), preheat the grill for 5 to 10 minutes before

placing your meat. Broil one side until the food is

browned; turn and cook on the second side. Season

and serve.

• Convection broiling is generally faster than conventional

broiling. Check for doneness at the minimum recom

mended time.

When using a bake time under 20 minutes, the convec-

tion convert will not beep and display the CF message.

Pressing off will stop the feature at any time.

Bake, broil, and convection elements will cycle for better

heat distribution and faster and more even cooking.

NOTE

The preheat tone will not sound for this feature.

NOTE

OVEN CONTROLS

Setting Convection Roast

This mode is best for cooking tender cuts of beef, lamb,

pork, and poultry. Use this mode when cooking speed is

desired. Convection roasting gently browns the exterior and

seals in the juices. Convection roasting uses the bake

element, convection element, broil element, and fan to

circulate the heat evenly and continuously within the oven.

The oven can be programmed for convection roasting at

any temperature between 170°F to 550°F with a default

temperature of 350°F.

To set a convection roast temperature of 375°F:

1. Arrange oven racks and place food in the oven.

2. Press convect; 350 will be displayed; Convect and

bake will flash.

3. Press convect again. 350 will be displayed, and

convect and roast will flash.

4. Enter the desired roasting temperature using the

number keys, i.e.: 3 7 5.

5. Press start; The actual oven temperature will be

displayed. Convect, roast, and the fan icon will be

displayed. The bake, broil, and convection elements will

also cycle for a better heat distribution.

Convection roasting tips:

• Use a broiler pan and insert, as well as a roasting rack

(available by mail order). The broiler pan will catch

grease drippings, and the grid will help prevent spatters.

The roasting rack will hold the meat.

• It’s not recommended to roast chicken on a roasting

rack. Use a deep pan instead.

• Place an oven rack on rack position 1 (offset rack).

• No preheat is needed in convection roast.

• Make sure the roasting rack is securely seated on the

grid in the broiler pan. Do not use the broiler pan without

the insert or cover the insert with aluminum foil.

• Pull the rack out to the stop position before removing

food. Position food (fat side up) on the roasting rack.

Should an oven fire occur, close oven door and turn off

the oven. If the fire continues, throw baking soda on the

fire or use a fire extinguisher. Do not put water or flour on

the fire. Flour may be explosive, and water can cause a

grease fire to spread and cause personal injury.

WARNING

Some models have a dual convection fan, which could

reduce overall cooking times.

NOTE

OVEN CONTROLS

Setting Bake Time

Use bake time when setting the oven to cook for a specific

length of time and shut off automatically when the time is

complete.

When cooking time ends, the oven will shut off and will

beep. This feature can be used with bake, convection bake,

convection roast, and slow cook modes.

To program the oven to begin baking immediately and

to shut off automatically (example: Bake at 350°F for 30

minutes):

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in then

oven.

3. Press bake. 350 will appear in the display.

4. Press start. The actual oven temperature will appear in

the display.

5. Press bake time. -- -- will appear in the display.

6. Enter the desired baking time by pressing 3 0.

7. Press start. Once the timed bake feature has started,

the current time of day will appear in the display.

Press off when baking has finished or at any time to cancel

the bake time feature. A bake time of 0 minute can also be

entered to cancel the bake time feature and keep the oven

in its current cooking mode. When the timed bake finishes:

1. End and the time of day will show in display. The oven

will shut off automatically.

2. The control will beep three times. The control will

continue to beep three times every 30 seconds until off

is pressed.

Setting Delay Start

Bake, convect, bake time, and delay start keys control

the delayed start feature. The automatic timer of delayed

start will turn the oven on and off at the time you select in

advance.

To program the oven for a delayed start time with the

bake function. (example: baking at 375°F for 30

minutes, starting at 5:30):

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack and place the food in the

oven.

3. Press bake. 350 will appear in the display.

4. Enter the desired temperature, i.e.: press 3 7 5.

5. Press start. The actual oven temperature will appear in

the display.

6. Press bake time and enter 3 0 using numeric keys.

7. Press start.

8. Press delay start.

9. Enter the desired start time; pressing 5 3 0.

10. Press start.

When a delayed baking function starts, the set oven

temperature will appear. Delay, bake, and the current time

of day will appear in the display. When the desired start time

is reached, the actual oven temperature appears in display

and delay disappears. Oven starts to bake at the previously

selected temperature

Baking time can be set for any amount of time between 1

minute to 5 hrs and 59 minutes. The time remaining can

be shown in the timer section of the display by pressing

bake time at any moment of the cooking.

Once bake time has started baking, a beep will sound

when the oven temperature reaches the set temperature.

NOTE

Food Poisoning Hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness. Foods that can easily spoil

such as milk, eggs, fish, meat, or poultry should be chilled

in the refrigerator first. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking

begins and should be removed promptly when finished

cooking.

CAUTION

OVEN CONTROLS

Setting Warm

Warm is best for keeping oven baked foods warm for

serving after cooking has finished. The warm key turns on

the warm feature, will maintain an oven temperature of

170°F (77°C), and will keep oven baked foods warm for

serving up to 3 hours after cooking.

After 3 hours, the warm feature will shut the oven off. The

warm feature may be used without any other cooking oper

ations or can be set to turn on automatically after a bake

time or delay start.

Warm tips:

• Always start with hot food. Do not use the warm feature

to heat cold food.

• Food in heat-safe glass and glass ceramic containers

may need higher temperature settings compared to

food in regular containers.

• Avoid repeated openings of the oven, it will allow hot air

to escape and the food to cool.

• Aluminum foil may be used to cover food to increase

moisture content.

To set warm:

1. Arrange interior oven racks and place food in oven.

2. Press warm. “HLd” will appear in the display.

3. Press start. If start is not touched within 25 seconds

the request to turn on the warm feature will be

canceled.

4. To turn off the warm feature at any time, press off.

To set warm to turn on automatically:

1. Arrange interior oven racks and place food in oven. Set

the oven properly for bake time or delay start. For delay

start instructions, see

“Setting Delay Start” on page 32.

For bake time instructions, see “Setting Bake Time” on

page 32.

2. Press warm. If no key is touched within 25 seconds, the

request to turn on the warm feature will be cancelled.

3. Press start. HLd will disappear and the temperature will

be displayed. The warm mode is set to turn on automat

ically after timed bake has finished.

4. To turn the warm feature off at any time, press off.

Setting My Favorites Recipe (some models)

The my favorites key allows the user to save a recipe to be

recalled at any time. The recipe may be for any baking

temperature between 170°F (77°C) and 550°F (288°C).

Once saved, the user needs only to select the my favorites

key, and the baking function will start automatically with the

pre-programmed recipe. The oven can recall a cooking

sequences from its internal memory, which is easily acces

sible from a one touch key. This function can be used with

bake, convection bake, convection roast, and preheat.

To save a favorite (example: 450°F bake for 30

minutes):

1. Press bake. The default temperature will appear in the

display.

2. Enter temperature needed, i.e.: 4 5 0. Press start.

3. Press bake time.

4. Enter time needed, i.e.: 3 0. Press start.

5. Press and hold for 3 seconds my favorites key. The ♥

icon will be shown to confirm your setting has been

saved.

6. The bake recipe will start. If you do not need it at this

time, press off.

To recall a favorite:

1. Press my favorites.

2. Press start.

To overwrite a favorite:

To overwrite my favorites, simply start a new cooking

sequence and save it as shown in example above. The new

my favorites settings will overwrite the old ones.

To delete a favorite:

Press my favorites for 3 seconds to delete while the oven

is not in operation and no cooking mode has been set. The

heart icon will turn off, indicating that the recipe has been

deleted.

Recalling a my favorites recipe can only be done when

the oven is not in operation.

NOTE

OVEN CONTROLS

Cooking with Meat Probe

Use the probe feature for best results when cooking foods

such as roasts, hams or poultry.

For meats like poultry and roasts, using a probe to check

internal temperature is the safest method to ensure properly

cooked food.

The probe feature, when set correctly, will signal an alert

when the internal food temperature reaches the desired set

target temperature.

When active, the probe displays the internal food tempera-

ture which is visible in the display during the cooking

process. This eliminates any guesswork or the need to

open the oven door to check the thermometer.

Proper placement of probe in food.

• Insert the probe so that the probe tip rests inside the

center of the thickest part of meat or food (See

Figure 28). For best results, do not allow the probe

temperature sensor to contact bone, fat, gristle, or the

cookware.

• For bone-in ham or lamb, insert the probe into the

center of lowest large muscle or joint.

• For meat loaf or casseroles, insert the probe into center

of food.

• When cooking fish, insert meat probe just above the gill.

• For whole poultry or turkey, fully insert the probe sensor

into the thickest part of inner thigh, just below the leg

(See

Figure 29).

Do not use kitchen utensils to pull on the probe cable or

handles. Always insert and remove the probe using the

provided handles, as shown in

Figure 27, and always use

a pot holder to protect hands from possible burns.

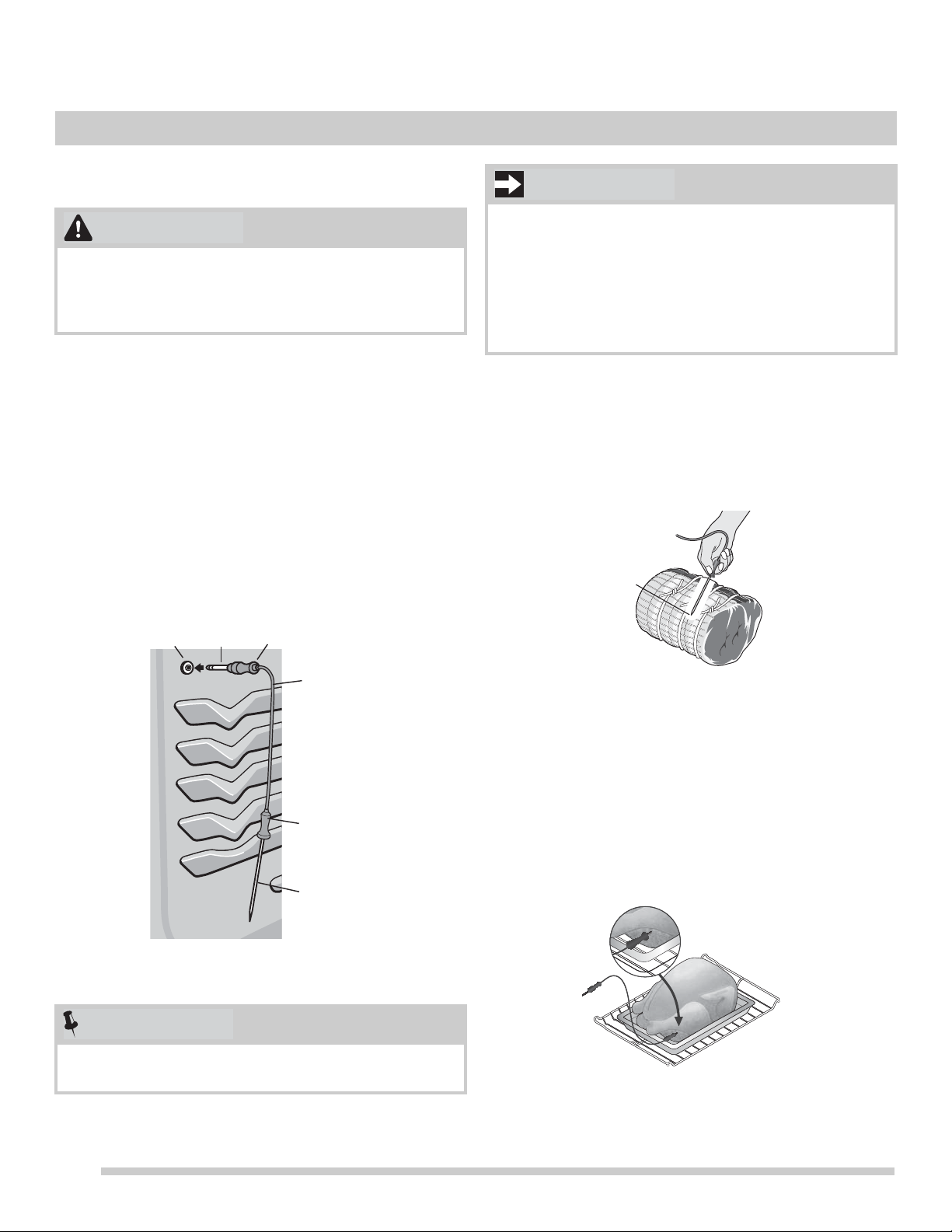

Figure 27: Using the probe

On some models, the meat probe receptacle may be

located in the top of the oven cavity, toward the front.

CAUTION

handle

probe

cable

probe

sensor

handle

receptacle

probe

connector

NOTE

• Do not store the probe inside the oven. Use only the

original probe provided. Connecting any other probe

or device could result in damage to the oven control,

electronics, and the receptacle.

• Before starting self clean, double check that the probe

is removed from the oven interior. Defrost frozen

foods completely before inserting the probe.

Figure 28: Probe in thickest area of food

Figure 29: Probe in thickest part of thigh

IMPORTANT

Insert

probe tip

to center of

food

OVEN CONTROLS

To set probe:

1. Insert the probe into the food. Place prepared food on

the desired oven rack position and slide into the oven.

2. Plug the connector end of the probe all the way into the

probe receptacle while the oven is still cool. The recep

tacle is located on the upper left front oven cavity wall

(See

Figure 27).

3. When the probe is set, an acceptance tone will sound,

the probe icon will illuminate, and the actual probe

temperature appears in the display (See

Figure 30).

Close the oven door

4. Press probe key once. Enter the desired target food

temperature using the numeric keys, and set tempera

ture for food type. The minimum setting is 140ºF (60ºC);

the maximum is 210ºF (99ºC). Default is 170ºF (77ºC).

5. Press start to accept the target temperature.

6. Set for quick preheat, bake, convect bake, convect

roast, or convect convert, and if necessary adjust the

oven temperature accordingly.

7. The control will provide three beeps when the internal

target temperature is reached. The oven will automati

cally change to a warm setting (HLd), and the actual

probe temperature will alternate in the display. Warm

will maintain the oven temperature at 170°F (77°C) for 3

hours unless otherwise cancelled.

To stop cooking at any time, press off.

To set how the oven will operate once the probe

reaches the target temperature:

The oven is preset to automatically stop cooking and start

the warm feature when probe sensor reaches the target

temperature. This may be set to continue cooking if desired.

Setting the options once the probe reaches the target

temperature must be done when the oven is inactive. The

probe is not required to be connected to the probe recep

tacle when setting this option.

To set the oven to continue cooking after reaching the

target temperature:

1. Press probe key and hold for 6 seconds.

2. Press self clean key and toggle until Continu:

appears, as shown in

Figure 31, then press start to

accept.

To set the oven to automatically stop cooking and start

warm once reaching target temperature:

1. Press probe key and hold for 6 seconds.

2. Press the self clean key and toggle until CAnCEL

appears, as shown in

Figure 32, then press start to

Probe too hot message:

When the message Prob... Too... Hot... flashes in the

display, the probe temperature has exceeded 250°F

(121°C). If the probe is not removed, this message may

continue until the sensor reaches 300°F (149°C) or higher,

and oven will automatically turn off. Be sure the probe

sensor is fully covered by the food.

Figure 30: Probe set showing probe temperature

Figure 31: Probe set to continue cooking

Figure 32: Probe set to cancel cooking

During cooking the internal food temperature will display

by default. To see the target temperature press the probe

key once. After 6 seconds the display will revert to the

internal food temperature. To assure accuracy, do not

remove the probe from the food or receptacle until the

desired internal temperature is reached.

If the probe is removed from the receptacle only, the

probe feature will cancel but the oven will continue to

cook. If the probe is removed from the food only, the

probe feature will remain active and may eventually

generate a probe too hot message.

To change the target temperature while cooking, press

the probe key once. Use the numeric keys to change the

temperature. Press the start key to accept any change.

NOTE

OVEN CONTROLS

Setting Slow Cook (some models)

The slow cook feature is best for cooking at lower tempera-

tures for longer periods of time and works best for beef (ribs

and brisket), pork roasts, and poultry dishes.

Slow cook has two settings: Lo 225°F (108°C) and Hi 275°F

(135°C). Both settings can be used with the following

options:

• Bake time

• Bake time with delay start

Slow cook tips:

• Slow cooking meats may result in the outside of the

meat turning dark; this is normal.

• Completely thaw all frozen foods before cooking

• When using a single oven rack, place in oven rack so

food is centered in oven.

• Position multiple racks to accommodate size of cooking

utensils when cooking multiple food items.

• Add any cream or cheese sauces during the last hour of

cooking.

• Do not frequently open the oven door or leave the oven

door open when checking food items. The more heat

that is lost, the longer the food will need to cook.

• Cover foods to keep them moist or use a loose or

vented cover to allow foods to turn crisp or brown.

• Roasts may be left uncovered so browning can occur.

Cook times will vary depending on the weight, fat

content, bone, and the shape of the roast.

• Preheating the oven is not necessary.

To set slow cook:

1. Position oven racks and cookware in oven. Close the

oven door.

2. Press slow cook (some models). HI will appear in the

oven display indicating the default setting is for high

heat. If a low setting is needed, press slow cook again

to select the LO setting and release.

3. Press start.

4. To stop cooking at any time, press off.

5. Slow cook can be changed between Hi and Lo settings

by pressing slow cook to toggle between the two

settings. Press start to activate the new setting.

Table 5: USDA recommended minimum internal

cooking temperatures

Food Type Internal Temp.

Ground meat and meat mixtures

Beef, Pork, Veal, Lamb 160°F (71°C)

Turkey, Chicken 165°F (74°C)

Fresh beef, veal, lamb

Medium rare + 145°F (63°C)

Medium 160°F (71°C)

Well Done 170°F (77°C)

Poultry

Chicken and Turkey, whole 165°F (74°C)

Poultry Breasts, Roasts 165°F (74°C)

Poultry Thighs, Wings 165°F (74°C)

Duck and Goose 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Fresh Pork 160°F (71°C)

Ham

Fresh (raw) 160°F (71°C)

Pre-cooked (to reheat) 140°F (60°C

Eggs and egg dishes

Eggs Cook until yolk and

white are firm

Eggs dishes 160°F (71°C)

Leftovers and Casseroles 165°F (74°C)

The U.S. Department of Agriculture states, “Rare fresh beef is pop-

ular, but you should know that cooking it to only 140°F

(60°C) means some food poisoning organisms may sur

vive.” (Source: Safe Food Book, Your Kitchen Guide,

USDA Rev. June 1985.)

Visit the USDA Food Safety and Inspection website at

www.fsis.usda.gov

OVEN CONTROLS

Restoring Factory Default Setting

Your appliance is programmed with default control settings.

Over time, users may make changes to these settings. The

following options have settings that can be modified and

may have been changed since the appliance was new:

• 12 or 24 hour display mode

• Continuous bake or 6 hour energy savings mode

• Silent or audible control

• Oven temperature display (°F or °C)

• Oven temperature adjustments (offsets)

• Stored recipes

• Cancel/continue cooking with meat probe option.

To restore oven control to factory default settings:

1. When the oven is in idle and no cooking function is in

operation, press and hold the 7 key until the acceptance

tone sounds (about 6 seconds)

2. Press start. The control is now reset to default settings.

Adjusting Oven Temperature

The temperature in the oven is pre-set at the factory. When

first using the oven, be sure to follow recipe times and

temperatures. If you think the oven is cooking too hot or too

cool for the temperature you select, you can adjust the

actual oven temperature to be more or less than what is

displayed. Before adjusting, test a recipe by using a

temperature setting higher or lower than the recommended

temperature. The baking results should help you to decide

how much of an adjustment is needed.

To adjust the oven temperature higher:

1. Press bake for 6 seconds. UPO 0 will appear in the

display.

2. To increase the temperature, use the number keys to

enter the desired change. For example, for 30°F, press

3 0. The temperature may be increased as much as

35°F (19°C).

3. Press start to accept the temperature change and the

display will return to the time of day. Press off to reject

the change if necessary.

To adjust the oven temperature lower:

1. Press bake for 6 seconds. UPO 0 will appear in the

display.

2. To decrease the temperature, use the number keys to

enter the desired change (Example -30°F) 3 0. Then,

press self clean. The temperature may be decreased

as much as 35°F (19°C).

3. Press start to accept the temperature change and the

display will return to the time of day. Press off to reject

the change if necessary.

If you choose to restore factory default settings, all of the

above user preferences will be restored to their original

settings (factory default). The oven temperature offset will

reset, and any stored recipes will be cleared.

NOTE

The oven temperature adjustments made with this feature

will not change the self clean cycle temperature or the

broil temperature.

The oven temperature adjustments are permanent and

will stay in the unit memory unless you manually change

it again or if all the controls are reset. Even a power

outage will not reset these changes. Follow the same

procedure again if you wish to change it to a different

setting or use the

“Restoring Factory Default Setting”

instructions on this page to restore settings to their

defaults.

NOTE

OVEN CONTROLS

Setting the Sabbath Feature (For use on the Jewish

Sabbath and Holidays)

The bake time and start keys are

used to set the Sabbath feature.

For further assistance, guidelines for

proper usage, and a complete list of

models with the Sabbath feature,

please visit the web at http:\\www.star-

k.org.

The Sabbath feature may only be used with the bake

function. Once the oven is properly set using bake with the

Sabbath feature active, the oven will remain on until

cancelled. The Sabbath feature overrides the factory preset

12 hour energy saving feature.

If the oven light is needed during the Sabbath, press Oven

light before activating the Sabbath feature. Once the oven

light is turned on and the Sabbath feature is active, the

oven light will remain on until the Sabbath feature is turned

off. If the oven light needs to be off, be sure to turn the oven

light off before activating the Sabbath feature.

To program the oven to begin baking immediately and

activate the Sabbath feature (example: baking at

350°F):

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven. Press bake. 350° appears in

the display. Press start. The actual oven temperature

appears in the display.

3. If you desire to set the oven control for a bake time or

delayed bake time, do so at this time. If not, skip this

step and continue to Step 5. For delay start instructions,

see

“Setting Delay Start” on page 32. For bake time

instructions, see “Setting Bake Time” on page 32.

Remember the oven will turn off after using bake time or

delay start and may only be used once during the

Sabbath/Jewish holidays. The maximum bake time is 5

hours and 59 minutes.

4. The oven will turn on and begin heating.

5. Press and hold both the bake time and delay start

keys for at least 3 seconds. SAb will appear in the

display. Once SAb appears in the display, the oven

control will no longer beep or display any further

changes, and the oven is properly set for the Sabbath

feature.

6. The oven may be turned off at any time by first pressing

off (this will turn the oven off only).

7. To turn off the Sabbath feature, press and hold both the

bake time and delay start keys for at least 3 seconds.

SAb will disappear from the display.

Cooktop Sabbath Day Feature and (Sb) Message

The ESEC will display the Sb messages whenever the

Sabbath Day feature is active. When activated, the Sabbath

Day feature works for both the oven and cooktop together.

Once the Sabbath Day feature is active, changes to the

heat levels for the cooktop elements will not show in the

displays. The cooktop will react slower to heat level

changes.

Power failure while using Sabbath feature:

Should you experience a power failure or interruption, the

oven will shut off. When power is returned, SF (Sabbath

Failure) will be displayed, and the oven will not turn back on

automatically. If your food was nearly fully cooked, you may

allow the trapped heat in the oven to finish the cooking

process. Otherwise, you should remove the food when the

power failure occurs because you may only start the oven

once during the Sabbath/Jewish holidays.

After the Sabbath observance turn off the Sabbath feature.

Press and hold both the bake time and delay start keys for

at least 3 seconds. SAb will disappear from the display, and

the oven may be used with all normal functions.

It is advised to not activate any cooking function other

than bake while the Sabbath feature is active.

IMPORTANT

• You may change the oven temperature once baking

has started by pressing bake and the numeric keys

for the new temperature. For example, to change

from 350°F to 425°F, press 4 2 5. Then, press start

twice.

• Only the following controls will function after setting

the Sabbath feature: numeric keypad, bake, start, and

off. All other features will not function once the

Sabbath feature is properly activated.

• The display will not show temperature changes or

sound any audible tones when the oven is set with the

Sabbath feature

NOTE

OVEN CONTROLS

Warmer Drawer (some models)

Warm & Ready™ Drawer

The purpose of the warmer drawer is to keep hot cooked

foods at serving temperatures. Examples are vegetables,

gravies, meats, casseroles, biscuits, rolls, and pastries. It is

not recommended to heat cold food in the warmer drawer;

always start with hot food.

The warmer drawer may also be used to warm dinner

plates. All food placed in the warmer drawer should be

covered with a lid or aluminum foil to maintain quality.

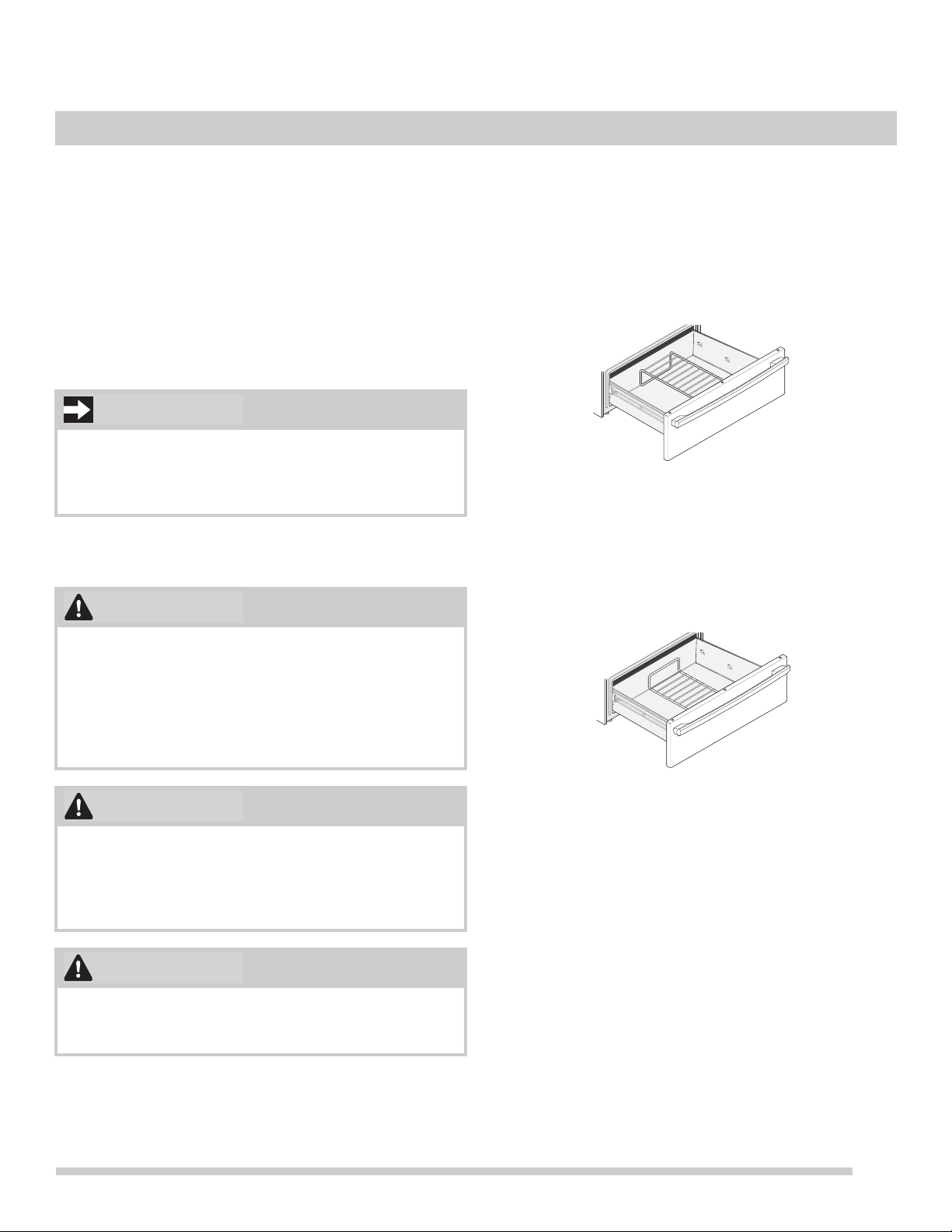

Arranging Warmer Drawer Rack Positions

The keep warmer drawer rack may be used in two ways:

• In the upright position (Figure 33) to allow low profile

food items to be placed both under and on top of the

rack (for example, rolls or biscuits on top of the rack and

a casserole dish underneath).

In the downward position (Figure 34) to allow for light

weight food items and empty cookware (for example, rolls,

pastries, and dinner plates) on the rack.

Warmer Drawer Indicator Light

The control and indicator lights for the keep warm drawer

features are located on the control panel. The temperatures

are approximate, and are designated by HI (high), MED

(medium) and LO (low).

Do not use plastic wrap to cover food. Plastic may melt

onto the drawer and be very difficult to clean up. Use only

utensils and cookware recommended by the manufac

turer for use in the keep warm drawer.

Storage In or On Appliance—Flammable materials should

not be stored in an oven, near surface units or in the

storage drawer, warmer drawer or lower oven. This

includes paper, plastic, and cloth items, such as cook

books, plastic ware, and towels, as well as flammable

liquids. Do not store explosives, such as aerosol cans, on

or near the range.

Do Not Leave Children Alone - Children should not be left

alone or unattended in the area where appliance is in

use. They should never be allowed to sit or stand on any

part of the appliance, including the storage drawer, lower

broiler drawer, warmer drawer, or lower double oven.

Always use potholders or oven mitts when removing food

from the warmer drawer as cookware and plates will be

hot and you can be burned.

IMPORTANT

WARNING

CAUTION

Figure 33: Upright position

Figure 34: Downward position

OVEN CONTROLS

Setting Warmer Drawer (Professional Model)

1. Touch the on●off key at the warmer drawer control

position. The warmer drawer indicator light will turn on.

2. Press the temp key until the desired temperature

setting is displayed.

3. When the food is ready for removal, touch the on●off

key once to turn the warmer drawer off. The warmer

drawer indicator light will turn off.

Keep warm drawer temperature selection

Recommended keep warm drawer settings are shown in

Table 6. If a particular food is not listed, start with the MED

setting. If more crispness is desired, remove the lid or

aluminum foil from the food. Most foods can be kept at

serving temperatures on the MED setting. When a combi

nation of foods are to be kept warm (for instance, meat with

2 vegetables and rolls), use the HI setting. To avoid heat

loss, do not open the keep warm drawer while in use.

Food Poisoning Hazard. Do not let food sit for more than

one hour before or after cooking. Doing so can result in

food poisoning or sickness. Foods that can easily spoil

such as milk, eggs, fish, meat, or poultry should be chilled

in the refrigerator first. Even when chilled, they should not

stand in the oven for more than 1 hour before cooking

begins and should be removed promptly when finished

cooking.

Always use potholders or oven mitts when removing food

from the warmer drawer as cookware and plates will be

hot and you can be burned.

If no further keys are touched within 25 seconds, the

request to power the warmer drawer on will clear.

For best results, preheat the warmer drawer before

adding the food. An empty drawer will preheat in approxi

mately 15 minutes.

WARNING

CAUTION

NOTE

• Always start with hot food when using the warmer

drawer. Do not heat cold food in the warmer drawer.

• Self Clean can not be set when the warmer drawer is

active. The warmer drawer is inoperable during the

self-clean cycle.

• The warmer drawer is equipped with a catch that may

require extra force to open and close the drawer.

Table 6: Warmer drawer recommended food settings

Food Type Setting

Bacon, Hamburger Patties HI

Poultry, Pork Chops HI

Fried Foods, Pizza HI

Gravies, Casseroles MED

Vegetables, Eggs MED

Roasts (Beef, Pork, Lamb) MED

Biscuits MED

Rolls, hard MED

Rolls (soft) LO

Empty Dinner Plates LO

IMPORTANT

OVEN CONTROLS

Removing and Replacing the Warmer Drawer

To remove the warmer drawer:

1. Open the drawer to the fully opened position.

2. Locate the latches on both sides of the keep warm

drawer.

3. Pull up on the left glide latch and push down on the right

glide latch.

4. Pull the drawer away from the appliance.

To replace keep warm drawer:

1. Align the glide latches on both sides of the drawer with

the slots on the drawer.

2. Push the drawer back into the appliance.

Electrical shock hazard can occur and result in serious

injury or death. Disconnect appliance from electric power

before cleaning and servicing the warmer drawer.

Turn the keep warm drawer control knob to OFF before

removing the drawer. DO NOT touch the keep warm

drawer element. The element may still be hot enough to

cause burns, even if it is dark in color.

WARNING

Figure 35: Removal procedures

Left Glide

Pull up latch

with nger

Right Glide

Push down latch

with nger

OVEN CONTROLS

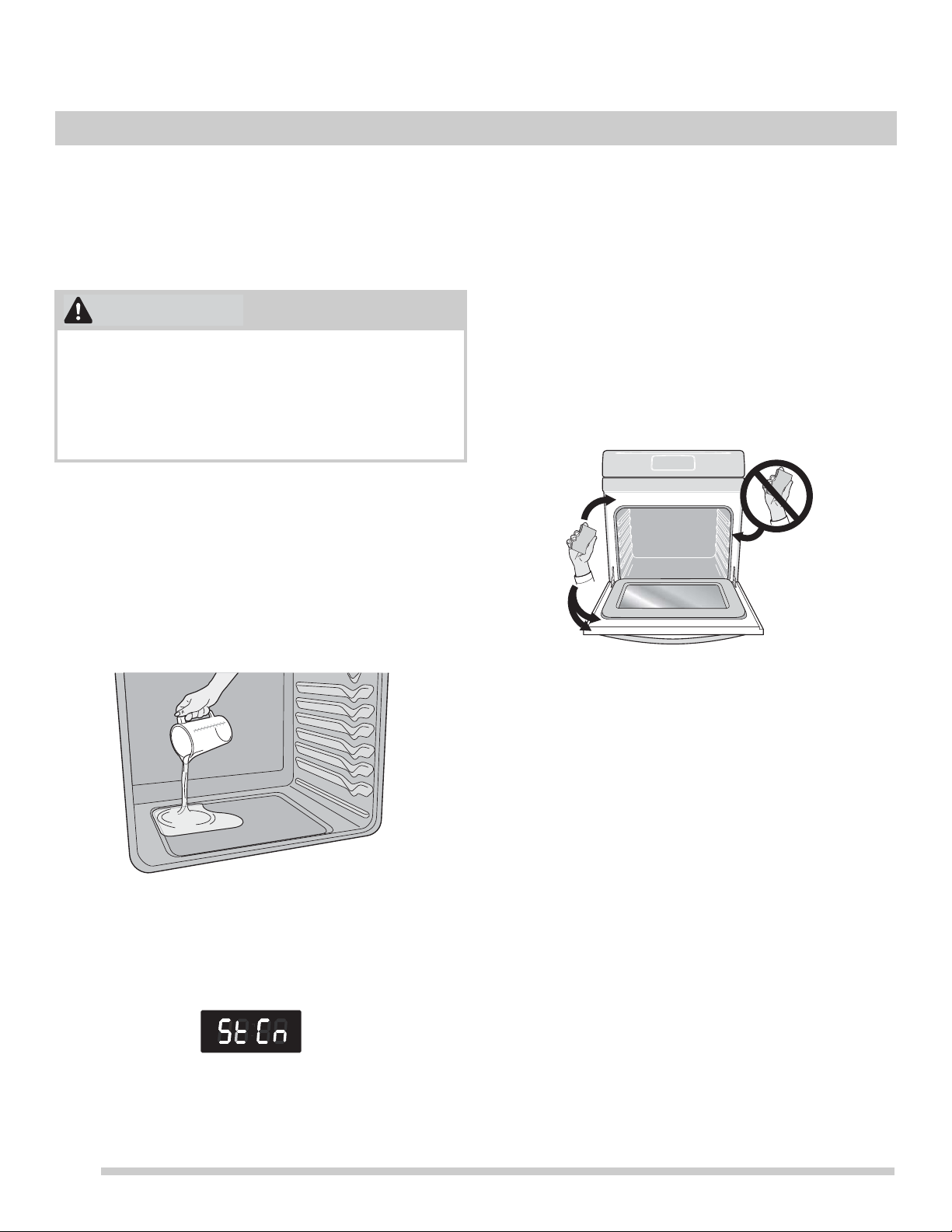

Steam Clean

The steam clean feature offers a chemical-free and time-

saving method to assist in the routine cleaning of your oven.

Steam clean may be used before manually cleaning the

oven to help loosen soils on the oven bottom.

To set a steam clean cycle:

1. Oven should be at room temperature. If the oven tem-

perature is above the room temperature, steam clean

will not start. Be sure the oven is cool. Remove all racks

and oven accessories.

2. Scrape or wipe loose debris from the oven bottom.

3. Pour 8 oz (235 ml) distilled or filtered water onto the

oven bottom (See

Figure 36). Close the oven door.

4. Press steam clean. StCn will show in the display (See

Figure 37).

5. Press start.

6. Steam clean is a 20 minute cycle. Time remaining is

shown in the display.

7. An alert will sound at the end of the cycle, and the End

message will show in the display. Press off to return to

the clock.

8. When the steam clean cycle is complete, stand to the

side of the oven out of the way of escaping vapor when

opening the oven door. The cycle includes a cool-down

period, so you may immediately use a soft cloth or

sponge to remove any remaining water.

9. Wipe oven cavity and bottom. Do not clean oven door

gasket (See

Figure 38).

For best results, clean oven immediately after the cycle is

complete. Steam clean works best for soils on the oven

bottom. Removal of especially stubborn or baked-on soils

may require a manual cleaning.

Some condensation or water vapor may appear close to the

oven vent. This is normal. The oven gasket may become

damp; do not wipe dry. Open door to broil position and allow

to air dry.

Local water sources often contain minerals (hard water)

and will leave deposits on the oven cavity. If this occurs,

wipe cavity with vinegar or lemon juice. Use distilled or

filtered water.

If the door is opened during the steam clean cycle, a beep

will sound and d-0 will show in the display. Close the oven

door. Keep oven door closed during steam clean cycle.

Steam clean cannot be programmed with a delay start. If

steam clean results are not satisfactory, run a self clean.

See

“Self-Cleaning Operation” on page 43.

Do not add ammonia, oven cleaners, or any other

household cleaners or chemicals to the water used in the

steam clean cycle.

Before manually cleaning any part of the oven, be sure all

controls are turned off and the oven is cool. The oven

may be hot and can cause burns.

Figure 36: Add 8 ounces of distilled water

Figure 37: Steam clean selected

CAUTION

Figure 38: Clean around the oven door gasket

OVEN CONTROLS

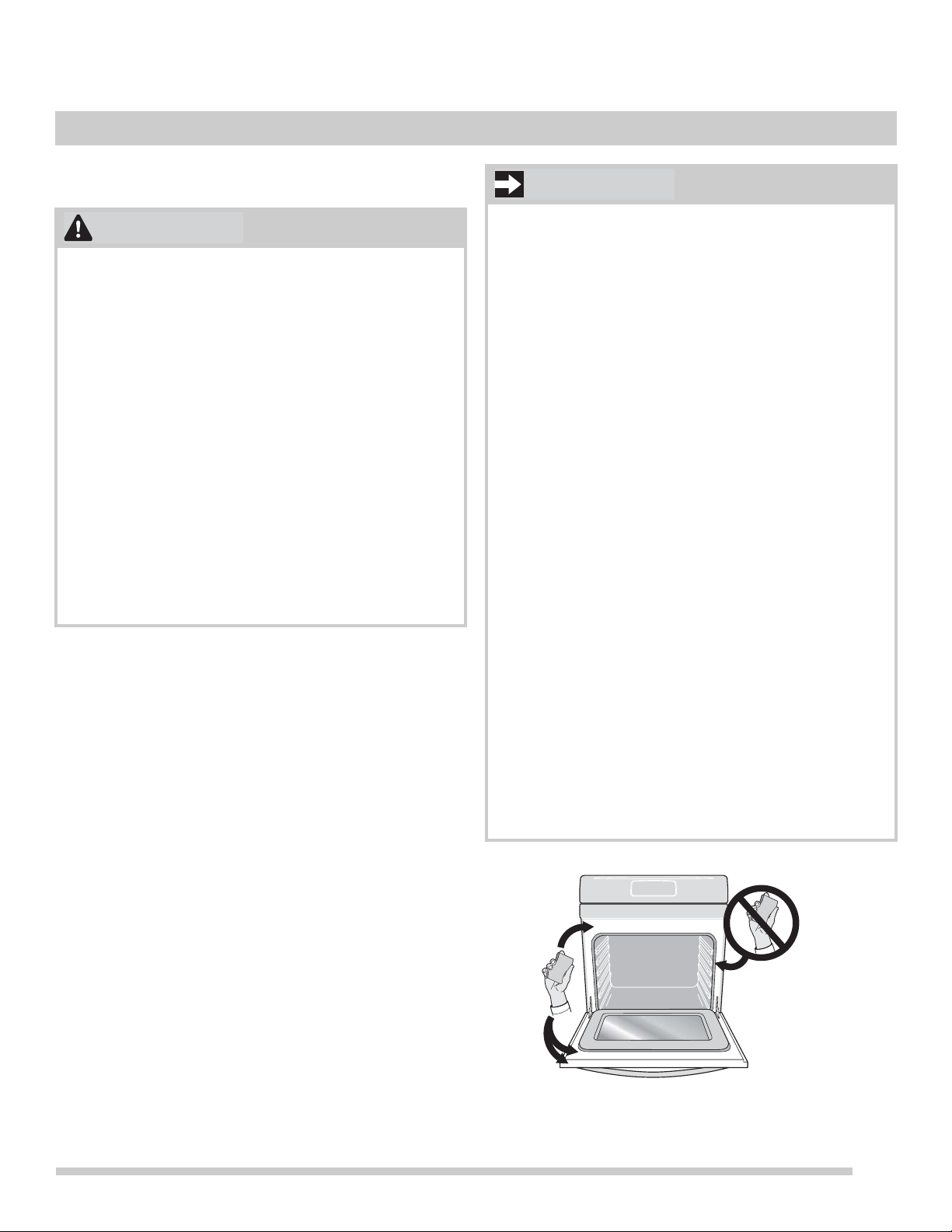

Self-Cleaning Operation

A self-cleaning oven cleans itself with high temperatures

(well above normal cooking temperatures) which eliminate

soils completely or reduces them to a fine powdered ash

you can wipe away with a damp cloth

What to expect during self-cleaning

While in self-clean mode, the oven heats to temperatures

much higher than those used in normal cooking. Sounds of

metal expansion and contraction are normal.

Odors are normal as the food soil is being removed. Smoke

may appear through the oven vent.

If heavy spills are not wiped up before cleaning, they may

flame and cause more smoke and odor than usual. This is

normal and safe and should not cause alarm. If available,

use an exhaust fan during the self-cleaning cycle.

• Do not line the oven walls, racks, bottom, or any other

part of the oven with aluminum foil. Doing so will block

heat distribution, produce poor baking results, and

cause permanent damage to the oven interior

(aluminum foil will melt to the interior surface of the

oven).

• The health of some birds is extremely sensitive to the

fumes given off during the self-cleaning cycle of any

oven. Move birds to another well-ventilated room.

• During the self-cleaning cycle, the outside of the oven

can become very hot to the touch. Do not leave small

children unattended near the appliance.

• Do not force the oven door open. This can damage

the automatic door locking system.

• Use caution when opening the door after the self-

cleaning cycle is completed. The oven may still be

very hot. Stand to the side of the oven door when

opening the door to allow hot air or steam to escape.

CAUTION

Adhere to the following cleaning precautions:

• Do not use oven cleaners or protective coatings in or

around any part of the oven interior. Do not clean the

oven door gasket. Take care not to rub, damage, or

remove the gasket or use any cleaning substances on

the oven door gasket (See

Figure 39). Doing so could

cause damage and reduce the efficiency of the oven’s

performance.

• Clean any soil from the oven frame, door liner outside

the oven door gasket, and the small area at the front

center of the oven bottom with soap and water (See

Figure 39). These areas heat sufficiently to burn soil

on.

• Remove any excessive spills from the oven cavity

before starting the self-cleaning cycle. To clean, use

hot, soapy water and a cloth. Large spills can cause

heavy smoke or fire when subjected to high tempera

tures. Do not allow food spills with a high sugar or

acid content (such as milk, tomatoes, sauerkraut, fruit

juices, or pie filling) to remain on the surface as they

may leave a dull spot even after cleaning.

• Do not use aluminum foil or liners in the oven. These

items are not made to withstand the very high temper

atures of a self-clean cycle and will melt.

• Remove all oven racks and accessories. If oven racks

are not removed before a self-clean, they will lose

their special coating and will no longer slide in and out

of the oven cavity effortlessly.

• Oven racks accidentally left in the oven during self

clean may be wiped down after cooling with a high-

temperature cooking oil to lubricate them.

Figure 39: Clean around the oven door gasket

IMPORTANT

OVEN CONTROLS

Setting Self-Clean Cycle Duration

The self clean key controls the self-cleaning feature. If you

are planning to use the oven directly after a self-clean cycle

remember to allow time for the oven to cool down and the

oven door to unlock. This normally takes about one hour. A

3 hour self-clean cycle will actually take about 4 hours to

complete.

It is recommended to use a 2 hour self-clean cycle for light

soils, a 3 hour cycle for average soils, and a 4 hour cycle for

heavy soils.

To set the controls for a 3 hour self-cleaning cycle to

start immediately and shut off automatically:

1. Be sure the clock is set with the correct time of day and

the oven door is closed.

2. Press self clean. CLn and 3:00 HR will show in the

display. The control will automatically clean for a 3 hour

period (default self-cleaning cycle time). If a 2 or 4 hour

clean time is desired, press self clean multiple times to

toggle between 2, 3, or 4 hours.

3. Press start. door Loc will appear, a beep will sound,

and the word DOOR and the

icon will flash; CLn will

remain on in the display.

4. As soon as the control is set, the motor driven oven

door lock will begin to close automatically. Once the

door is locked, the DOOR indicator light and

icon

will stop flashing and remain on, and the oven icon will

appear in the display. Allow about 15 seconds for the

oven door to lock completely.

When the self-clean cycle is completed:

1. HOT will appear in the display. The time of day, the

word DOOR, and the

icon will remain in the display.

2. Once the oven has cooled for approximately 1 hour,

door OPn will appear, and the word DOOR and the lock

icon will flash until the door unlocks. The door can be

opened, and the display will show the time of day.

To stop or Interrupt a self-cleaning cycle:

If it becomes necessary to stop or interrupt a self-cleaning

cycle due to excessive smoke or fire in the oven:

1. Press off.

2. The oven door can only be opened after the oven has

cooled down for about 1 HOUR. door OPn will appear,

and the word DOOR and the

icon will flash until the

door is unlocked. The oven door can then be opened,

and the timer will revert back to the time of day.

The self clean and delay start keys control the delayed

self-clean operation. The automatic timer will turn the oven

on and off at the time you select in advance.

To set the control for the self-cleaning cycle to start at a

delayed time and shut off automatically (example: 3

hour self-clean cycle to start at 4:30):

1. Be sure the clock is set with the correct time of day and

the oven door is closed.

2. Press self clean. CLn and 3:00 HR will show in the

display. The control will automatically clean for a 3 hour

period. If a 2 or 4 hour clean time is desired, press self

clean multiple times to toggle between 2, 3, or 4 hours.

3. Press start. door Loc will appear, a beep will sound,

and the word DOOR and the

lock icon will flash. The

letters CLn will remain on in the display.

4. As soon as the control is set, the motor driven oven

door lock will begin to close automatically. Once the

door has been locked, the word DOOR and the

lock

icon indicator light will quit flashing and remain on.

5. Press delay start. Enter the desired start time using the

number keys 4 3 0.

6. Press start. DELAY, DOOR, and the icons will

remain on.

7. The control will start the self-cleaning at the set start

time for the period of time previously selected. At that

time, the icon DELAY will go out; CLn and oven icon

will appear in the display.

When the self-clean cycle is completed:

1. HOT will appear in the display. The time of day, the

word DOOR, and the lock icon will remain in the display.

2. When oven cools approximately 1 HOUR, door OPn

will appear, and the word DOOR and the

icon will

flash until the door is unlocked. The oven door can then

be opened, and the timer will revert back to the time of

day.

Cleaning Various Parts of Your Range

Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any

heavy soiling as soon as possible. Regular cleaning will reduce the difficulty and time of major cleaning later.

Surface Type Recommendation

Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted and plastic control knobs

Painted body parts

Painted decorative trims

Using a soft cloth and clean with mild dish detergent and water or a 50/50 solution of

vinegar and water. Follow by rinsing the area with clean water; dry and polish with a

soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray

liquids directly on the oven control and display area. Do not use large amounts of

water on the control panel - excess water on the control area may cause damage to

the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or

paper towels - they will damage the finish. To remove control knobs, turn to the OFF

position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,

line up the flat sides of both the knob and the shaft; then push the knob into place.

Stainless Steel Your oven finish may be made with stainless steel (some models). Clean the

stainless with warm soapy water using a clean sponge or cloth. Rinse with clean

water and dry with a soft clean cloth. Do not use any store bought cleaners like

stainless steel cleaners or any other types of cleaners containing any abrasive, chlo

rides, chlorine or ammonia. It is recommended to use mild dish soap and water or a

50/50 solution of water and vinegar.

Porcelain enamel broiler pan and

insert (available by mail order)

Door liner and body parts

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

solution of clear water and ammonia. If necessary, cover difficult spots with an

ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a

damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a

clean cloth. Remove all cleaners or the porcelain may become damaged during

future heating.

Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive

cleaner following manufacturer’s instructions. Rinse with clean water and dry.

Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door.

Rinse well. You may use a glass cleaner on the outside glass of the door. Do not

immerse the door in water. Do not spray or allow water or the glass cleaner to enter

the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive

cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. On self-clean models, the oven door gasket is

made of a woven material which is essential for a good seal. Care should be taken

not to rub, damage, or remove this gasket.

Oven interior For oven interior remove excessive spillovers from oven cavity bottom before starting

Self Clean. Clean any soils from oven frame and door liner outside the oven door

gasket. For important cleaning precautions, refer to

“Self-Cleaning Operation” on

page 43.

CARE AND CLEANING

Control panel

Control keypad membrane

Decorative trim (some models)

Before cleaning the control panel, turn all controls off, activate oven lockout (on some

models), and if needed remove any knobs from panel. Do not use abrasive cleaners

on any of these materials; they can scratch. Clean using hot, soapy water and a cloth

or sponge. Be sure to squeeze excess water from cloth or sponge before wiping

control panel, especially when wiping around the controls area. Excess water in or

around the controls may cause damage to the appliance. When rinsing, use clean

water and a cloth or sponge and be sure to squeeze excess water from cloth or

sponge before wiping the control panel.

CARE AND CLEANING

Cooktop Maintenance

Consistent and proper cleaning is essential to maintaining

your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the

recommended CookTop® Cleaning Creme to the ceramic

surface (on the web visit www.sears.com for replacement

cooktop cleaner, item number 40079). Buff with a non-

abrasive cloth or sponge. This will make cleaning easier

when soiled from cooking. The special cooktop cleaning

cream leaves a protective finish on the glass to help prevent

scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the

cooktop can cause metal markings on the cooktop surface.

These marks should be removed immediately after the

cooktop has cooled using the cooktop cleaning cream.

Metal marks can become permanent if not removed prior to

future use.

Cookware (cast iron, metal, ceramic or glass) with rough

bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop.

• Use cookware with dirt or dirt build up on bottom;

replace with clean cookware before using.

• Use your cooktop as a cutting board or work surface in

the kitchen.

• Cook foods directly on the cooktop surface without a

pan.

• Drop heavy or hard objects on the ceramic glass

cooktop, they may cause it to crack.

Cooktop Cleaning

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to

the cooktop. Use a paper towel or use a non-abrasive cloth

or sponge to clean the entire cooktop surface. Make sure

the cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to

the soiled area. Rub the soiled area using a non-abrasive

cleaning tool, applying pressure as needed. Do not use the

pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor

blade scraper, holding scraper at a 30 degree angle to the

surface. Remove loosened soils with cooktop cleaning

cream and buff surface clean.

Figure 40: Cooktop care

Do not use a cooktop cleaner on a hot cooktop. The

fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the controls are

turned to OFF and the cooktop is cool. The glass surface

could be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

Figure 41: Cooktop cleaning

WARNING

CAUTION

30°

CARE AND CLEANING

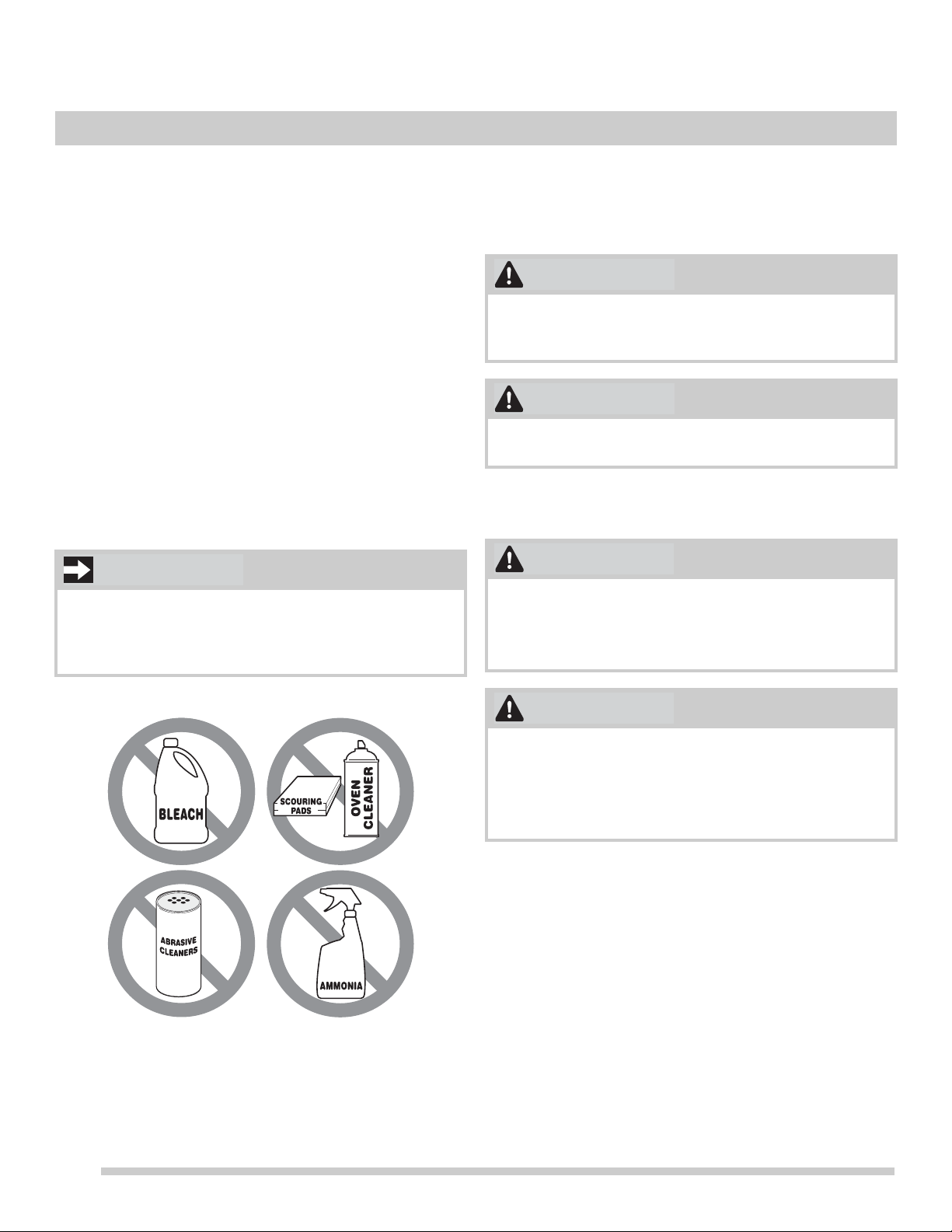

Plastic or foods with a high sugar content need be removed

immediately if spilled or melted onto the ceramic cooktop

surface. Permanent damage (such as pitting of the cooktop

surface) may occur if not removed immediately. After

turning the surface elements off, use a razor blade scraper

or a metal spatula with a mitt and scrape the soil from the

hot surface (as illustrated). Allow the cooktop to cool, and

use the same method for heavy or burned on soils.

Do not use the following on the cooktop:

• Do not use abrasive cleaners and scouring pads, such

as metal and some nylon pads. They may scratch the

cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach,

ammonia or oven cleaners, as they may etch or discolor

the cooktop.

• Do not use dirty sponges, cloths or paper towels, as

they can leave soil or lint on the cooktop which can burn

and cause discoloration.

General Cleaning

Refer to “Cleaning Various Parts of Your Range” on

page 45 for more detailed information about cleaning

specific parts of the range.

Aluminum foil and utensils

• Aluminum foil - Use of aluminum foil on a hot cooktop

can damage the cooktop. Do not use thin aluminum

cooking utensils or allow aluminum foil to touch the

surface elements under any circumstances.

• Aluminum utensils - The melting point of aluminum is

much lower than that of other metals. Care must be

taken when aluminum pots or pans are used on the

cooktop. If aluminum pans are allowed to boil dry when

using the cooktop, not only will the utensil be damaged

or destroyed, but it may fuse to, break, or mark the

ceramic glass surface, permanently damaging the

cooktop surface.

Damage to the ceramic glass cooktop may occur if you

use an abrasive type cleaning pad. Only use cleaning

products that have been specifically designed for ceramic

glass cooktops.

Figure 42: Cleaning products to avoid

IMPORTANT

Before manually cleaning any part of the range, be sure

all controls are turned off and the range is cool. The range

may be hot and can cause burns.

Ammonia must be rinsed before operating the oven.

Provide adequate ventilation.

Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with

materials such as aluminum foil. Aluminum foil

linings may trap heat, causing a fire hazard.

Protective Liners — Do not use aluminum foil to line

the oven bottom. Only use aluminum foil as recom

mended in this manual. Improper installation of

these liners may result in risk of electric shock, or

fire.

CAUTION

WARNING

CARE AND CLEANING

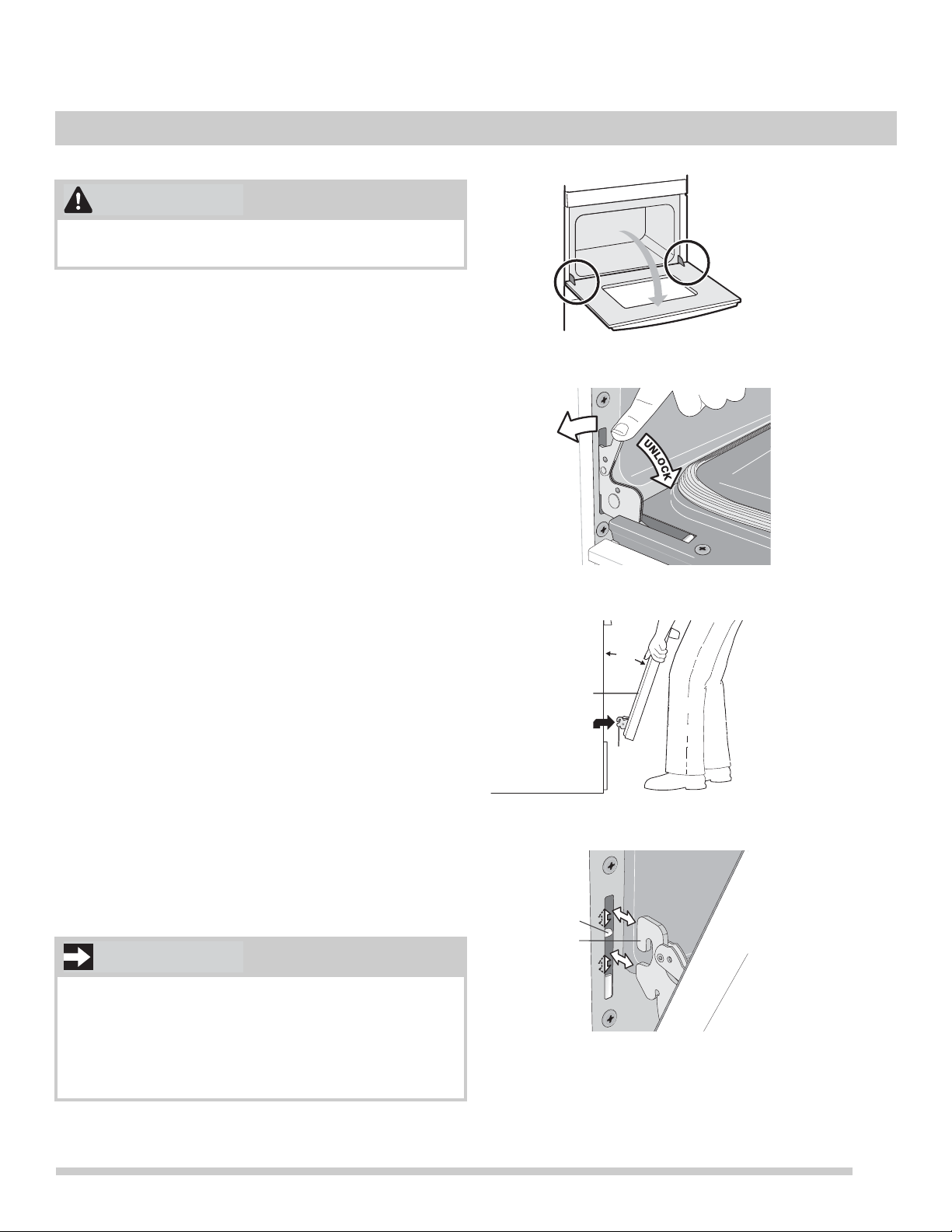

Removing and Replacing the Oven Door

To remove oven door:

1. Open oven door completely, horizontal with floor (See

Figure 43).

2. Pull the door hinge locks on both left and right door

hinges down from the oven frame completely towards

the oven door (See

Figure 44). A tool such as a small

flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (See

Figure 45).

4. Close the door to approximately 10 degrees from the

door frame (See

Figure 45).

5. Lift the oven door hinge arms over the roller pins

located on each side of the oven frame (See

Figure 46).

To replace oven door:

1. Firmly grasp both sides of oven door along the door

sides. Do not use the oven door handle (See

Figure 45).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller

pins located on each side of the oven door frame (See

Figure 45 and Figure 46). The hook of the hinge arms

must be fully seated onto the roller pins.

3. Fully open the oven door, horizontal with floor (See

Figure 43).

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges to the

locked position (See

Figure 44).

5. Close the oven door.

The door is heavy. For safe, temporary storage, lay the

door flat with the inside of the door facing down.

Special door care instructions - Most oven doors contain

glass that can break. Do not close the oven door until all

the oven racks are fully in place. Do not hit the glass with

pots, pans, or any other object. Scratching, hitting, jarring,

or stressing the glass may weaken its structure causing

an increased risk of breakage at a later time.

CAUTION

IMPORTANT

Figure 43: Door hinge location

Figure 44: Door hinge locks

Figure 45: Holding door for removal

Figure 46: Replacement and location of hinge arm and

roller pin

Oven door

hinge

locations

about

10°

hinge

oven

door

roller

hinge

arm

CARE AND CLEANING

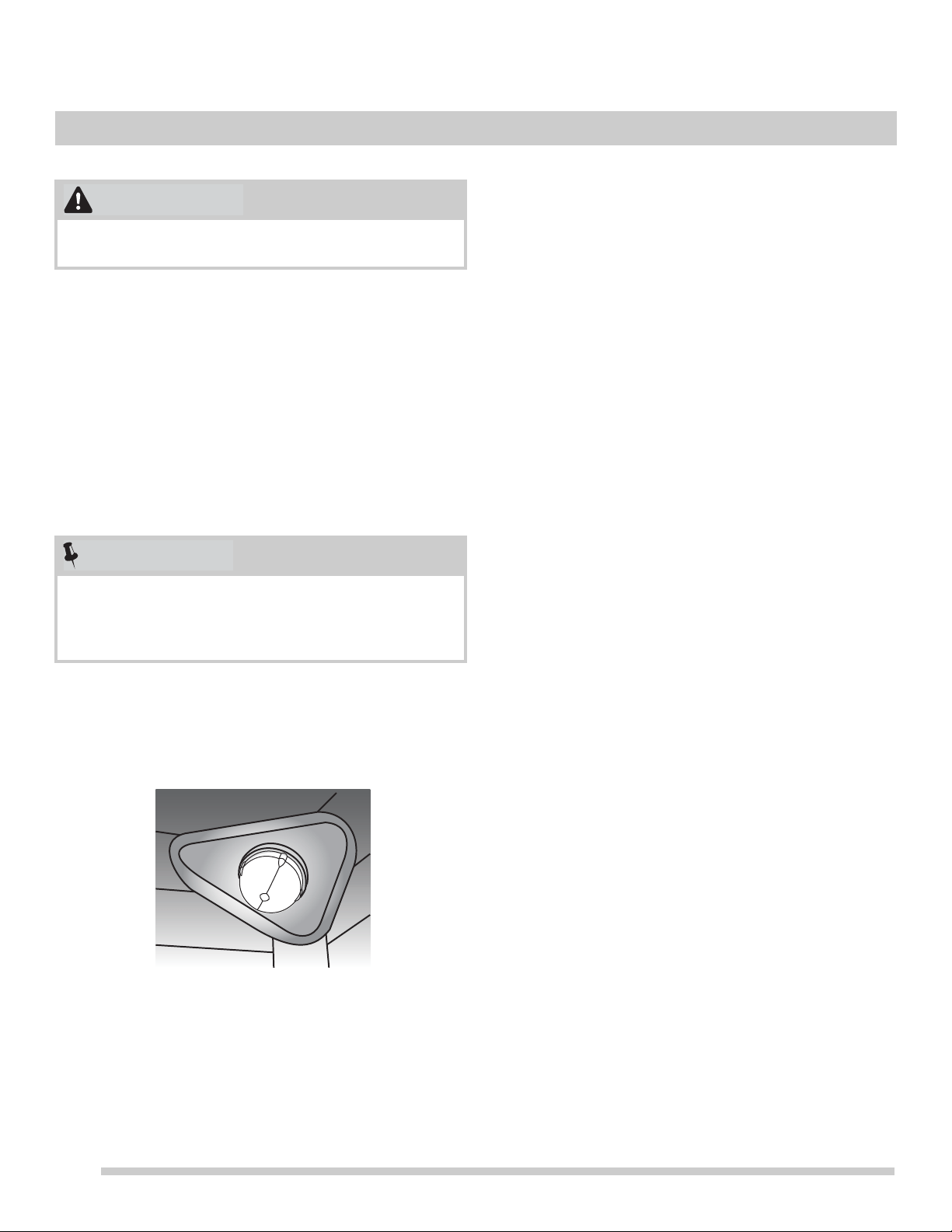

Replacing the oven light

The interior oven lights are located at the rear of the oven

cavity and are covered with a glass shield. The glass shield

must be in place whenever the oven is in use (See

Figure 47).

Replacing the oven interior light bulb:

1. Turn electrical power off at the main source or unplug

the appliance.

2. Remove interior oven light shield by pulling the light

straight out. Do not twist or turn.

3. Replace bulb with a new T-4 type Halogen 25 watt

appliance bulb.

4. Replace glass oven light shield.

5. Turn power back on again at the main source (or plug

the appliance back in).

6. Be sure to reset the time of day on the clock.

Be sure the oven is unplugged and all parts are cool

before replacing oven light.

Do not allow your fingers to touch the new bulb when

replacing. This will shorten the life of the bulb. Use a

paper towel or cotton glove while handling the new bulb

when installing.

Figure 47: Wall oven Halogen light

CAUTION

NOTE

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, et cetera. There is no

need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appli-

ance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn

on the bottom.

• Cookies and biscuits put

into oven before preheating

time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature before

placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air space

(5.1 cm o 10.2 cm) on all sides when placed in the

oven.

• Use a medium weight baking sheet.

Cakes too dark on top or

bottom

• Cakes put in oven before

preheating time is

completed.

• Rack position too high or

too low, and oven too hot.

• Allow oven to preheat to the selected temperature

before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (13°C) lower than recom-

mended.

Cakes not done in center • Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Glass cookware slow heat

conductor.

• Set oven temperature 25°F (13°C) lower than recom-

mended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1

cm to 10.2 cm (2” to 4”) of space on all sides of pan.

• Reduce temperature and increase cook time or use

shiny bakeware.

Cakes not level. • Oven not level.

• Pan too close to oven wall

or rack overcrowded.

• Pan warped.

• Place a marked glass measuring cup filled with water

on the center of the oven rack. If the water level is

uneven, refer to the installation instructions for leveling

the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of

clearance on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

Foods not done when

cooking time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F (13°C) higher than

suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the

ones to be used for baking. Open oven door only after

shortest recommended baking time.

• Make sure to allow 2” to 4” of clearance between all

pans and racks, allowing for even air flow.

BEFORE YOU CALL

Solutions to Common Problems:

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided

with the problem listed:

Problem Solution

Poor baking results. Many factors effect baking results. Use proper oven rack position. Center food in the

oven and space pans to allow air to circulate. Preheat oven to the set temperature

before placing food in the oven. Try adjusting the recipe's recommended temperature

or baking time. See

“Adjusting Oven Temperature” on page 37 if you feel the oven is

too hot or cold.

If your oven is cooking poorly or the Self Clean is performing badly, perform the

following check: Broil, Press the Up button, and “HI” should appear on the display.

Place your hand near the handle on the oven door. Between the door and the control

panel, you should feel a rush of air on your hand. If so, your unit is functioning

properly, and you have had a power failure in your home. If no air stream is present,

call a service technician to replace your cooling fan.

Oven light does not work. Be sure the oven light is secure in the socket. See “Replacing the oven light” on

page 50.

Flames inside oven or smoking

from oven vent.

Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity.

Wipe up excessive spills before starting oven. If flames or excessive smoke are

present when using broil, see

“Setting Broil” on page 28.

Self clean does not work. Oven control not set properly. See “Self-Cleaning Operation” on page 43.

Oven racks discolored or do not

slide easily.

Oven racks left in oven cavity during self clean. Remove oven racks from oven cavity

before starting a self-clean cycle. Clean by using a mild abrasive cleaner following

manufacturer's instructions. Rinse with clean water, dry, and replace in oven.

Oven smokes excessively when

broiling.

Incorrect setting. Follow the “Setting Broil” instructions on page 28.

Meat too close to the broil element. Reposition broil rack to provide proper clearance

between the meat and broil element. Remove excess fat from meat. Cut remaining

fatty edges to prevent curling, but do not cut into lean.

Grease build up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Grease or food splatters will cause excessive smoking.

Oven control panel beeps and

displays any F or E code error.

Oven control has detected a fault or error condition. Press the off key to clear the

error code. Try bake or broil function. If the F or E code error repeats, turn off the

power to appliance, wait 5 minutes, and then repower appliance. Set clock with

correct time of day. Try bake or broil function again. If fault recurs, press the off key to

clear.

Areas of discoloration with

metallic sheen on cooktop

surface.

Mineral deposits from water and food. Remove using the recommended CookTop®

Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replace

ment cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or sponge

BEFORE YOU CALL

Soil not completely removed after

self clean.

Self clean was interrupted. Review instructions on “Self-Cleaning Operation” on

page 43. Excessive spills on oven bottom. Clean before starting self clean. Failure to

clean soil from the oven frame, the door liner outside the oven door gasket, and the

small area at the front center of the oven bottom. These areas are not in the self-

cleaning area, but get hot enough to burn on residue. Clean these areas before

starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon

brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

If your oven is cooking poorly or the Self Clean is performing badly, perform the

following check: Boil, Press the Up button, and “HI” should appear on the display.

Place your hand near the handle on the oven door. Between the door and the control

panel, you should feel a rush of air on your hand. If so, your unit is functioning

properly, and you have had a power failure in your home. If no air stream is present,

call a service technician to replace your cooling fan.

Convection fan does not rotate. Oven door is open. Convection fan will turn off if oven door is opened when convec-

tion is active. Close oven door.

Surface element is too hot or not

hot enough.

Incorrect surface control setting. Adjust power level setting.

Surface element does not heat or

does not heat evenly.

Be sure the correct surface control knob is turned on for element needed.

Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavy-

weight cookware. Flat pans heat better than warped pans. Cookware materials and

weight of the material affect heating. Heavy and medium-weight pans heat evenly.

Because lightweight pans heat unevenly, foods may burn easily.

Scratches or abrasions on

cooktop surface.

Coarse particles such as salt or hardened soils between cooktop and utensils can

cause scratches. Be sure cooktop surface and bottoms of utensils are clean before

usage. Small scratches do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used.

Apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the

web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff

with a non-abrasive cloth or sponge. For more information see

“Cooktop Mainte-

nance” on page 47.

Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.

Metal marks on the cooktop. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils

on cooktop surface. Apply the recommended CookTop® Cleaning Creme to the

ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner,

item number 40079). Buff with a non-abrasive cloth or sponge. For more information,

see

“Cooktop Maintenance” on page 47.

Brown streaks or specks on

cooktop surface.

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. For more

information see

“Cooktop Maintenance” on page 47.

Appliance is not level. Be sure floor is level, strong, and stable enough to adequately support range.

If floor is sagging or sloping, contact a carpenter to correct the situation.

Poor installation. Place oven rack in center of oven. Place a level on the oven rack.

Adjust leveling legs at base of appliance until the rack is level.

Kitchen cabinet alignment may make range appear not level. Be sure cabinets are

square and have sufficient room for appliance clearance.

BEFORE YOU CALL

Cannot move appliance easily.

Appliance must be accessible for

service.

Cabinets not square or are built in too tightly. Contact builder or installer to make

appliance accessible.

Carpet interferes with appliance. Provide sufficient space so appliance can be lifted

over carpet.

Entire appliance does not

operate.

Make sure power cord is plugged properly into outlet.

Electrical power outage. Check house lights to be sure. Call your local electric

company for service outage information.

Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See back

cover).

Fan noise during cooking

operation.

A cooling fan may automatically turn on and off to cool internal parts. It is normal, and

the fan may continue to run even after oven is turned off.

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove

to be defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR

OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT

BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED

WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

If You Need

Service

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

USA

1.800.944.9044

Electrolux Home Products, Inc.

10200 David Taylor Drive

Charlotte, NC 28262

WARRANTY

Frigidaire FGES3065PB gallery 30'' slide-in electric range

Product's Documents

User Manual

Specifications

Frigidaire FGES3065PB Questions and Answers

Related Products

Frigidaire PGLEF388CS4 Gallery 30'' Slide-In Electric Range

Frigidaire PGLEF388CS5 Gallery 30'' Slide-In Electric Range

Frigidaire FGES3065KWF Gallery 30'' Slide-In Electric Range

Frigidaire CGES3065KF4 Gallery 30'' Slide-In Electric Range

Frigidaire FGES3045KBE Gallery 30" Slide-In Electric Range

Frigidaire FGES3065PFN Gallery 30" Slide-In Electric Range
