Overview
The RDINSCOS MT93 is a digital, pin-type moisture meter designed to measure moisture content in various building materials. It features a rechargeable battery, a color LCD display, and multiple measurement modes.
Features
Physical Components
- LCD Display: Color screen for showing moisture readings, mode, and battery status.
- Pin Probes: Two high-stiffness metal pins for penetrating materials to detect moisture up to 19mm (3/4 inch) deep.
- Control Buttons: Includes a HOLD button and mode selection buttons.
- USB-C Charging Port: For recharging the internal battery.
Functional Features
- Four Measurement Modes: Selectable modes for different material types (e.g., softwood, hardwood, masonry).
- Hold Function: Press the HOLD button to freeze the current reading on the display.
- Audible Alarm: Sounds an alert when moisture levels exceed a preset threshold.
- Auto Power Off: Device turns off automatically after five minutes of inactivity to conserve battery.
- Rechargeable Battery: Includes a lithium polymer battery, eliminating the need for disposable batteries.
Use Guide
Initial Setup
- Fully charge the device using the provided USB-C cable before first use.
- Power on the device.
- Select the appropriate measurement mode for your material (e.g., Softwood, Hardwood).
Taking a Measurement
- Ensure the material surface is clean and smooth for best results.

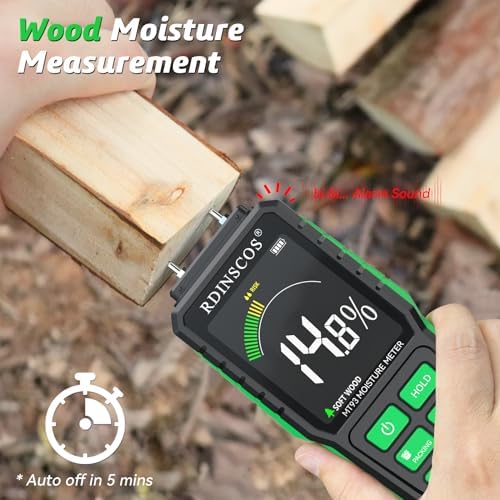

- Firmly press the two metal pin probes into the material you wish to test. Insert them fully to their base.
- Wait for the reading on the LCD display to stabilize.
- To record a reading, press the HOLD button. The display will freeze the current value.
- Remove the pins from the material.
Note: The percentage readings are relative reference values. For wood, accuracy is within ±2%. Do not use this device on metal surfaces.
Mode Selection
- Use the mode button to cycle through the available settings.

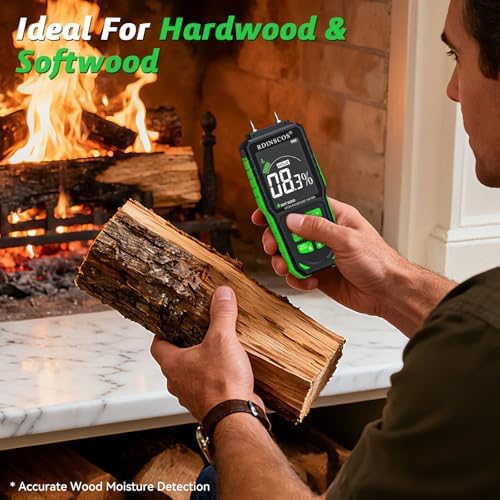

- For low-density materials, select the Softwood mode.
- For high-density materials, select the Hardwood mode.
- Refer to the device's quick-start guide for specific mode recommendations for masonry, drywall, etc.
Charging and Battery
Connect the USB-C cable to the port on the device to recharge. The battery is included and is rechargeable. The device will automatically shut off after 5 minutes of non-use to save power.
Technical Specifications
- Model Number: MT93
- Measurement Depth: Up to 19mm (3/4 inch)
- Power Source: Rechargeable Lithium Polymer Battery (included)
- Charging Port: USB-C
- Display: Color LCD
- Included Components: Moisture meter, user manual, storage bag, USB-C cable.
- Dimensions: 10 x 4 x 3 cm
- Weight: 249 g
Safety & Warnings
- Do not use the meter on live electrical circuits or wet surfaces where there is a risk of electric shock.
- The pin probes are sharp. Handle with care to avoid injury.
- This device is not a toy. Keep it out of reach of children.
- Do not disassemble the device.
- Use only the provided cable or a standard USB-C cable for charging.
Care and Maintenance
- Wipe the device with a dry, soft cloth. Do not use chemicals or abrasives.
- Keep the pin probes clean and dry. Gently remove any material residue after use.
- Store the device in the provided storage bag when not in use.
- For long-term storage, ensure the device is partially charged.
