Asko T410HD.W - 10kg Heat Pump Dryer

User Manual

For T410HD.W.

PDF File Manual, 44 pages, Read Online | Download pdf file

T410HD.W photo
background
INSTRUCTIONS FOR USE
TD85.13XX
Carefully read the instructions for use before using the dryer.
Tumble dryer
T410HD.W.AU
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...

Other documents for Asko T410HD.W

The following documents are available:
User Manual Other Documents
  • Asko T410HD.W 10kg Heat Pump Dryer Specifications Sheet - (English) Download
Photos

Specifications

User Manual - Transcript

  • Page 1: INSTRUCTIONS FOR USE TD8513XX Carefully read the instructions for use before using the dryer Tumble dryer T410HDWAU
  • Page 2 - English - : Safety precautions 3 Dryer description 7 Before using the appliance for the fi rst time 8 Installation and connection 9 Advices before drying 16 Drying process step by step 1 7 18 System settings 26 Cleaning and maintenance 29 Errors what to do 35 Servicing 39 Program table 41 Disposal 42 Quick guide 43 The following symbols are used throughout the manual and they have the following meanings Information advice tip or recommendation Warning danger of hot surface Warning general danger Warning danger of fire Warning danger of electric shock Original instructions See Quick guide on the last page Dear Customer We thank you for purchasing this quality ASKO product We hope it meets all your expectations Scandinavian design combines pure lines everyday functionality and high quality These are the key characteristics of all our products and the reason why they are highly appreciated across the globe We kindly recommend you to read these instructions before using the appliance for the fi rst time The instruction manual also includes information on how you can help protect the environment TABLE OF CONTENTS
  • Page 3 - English - : GENERAL Please read the instruction manual and save it for future reference Please do not use the tumble dryer if you have not read and understood these instructions or use fi rst Failure to observe the instructions for use or inappropriate use of the tumble dryer may result in damage to the laundry or appliance or injury to the user Instructions for use are available on our website at wwwaskocom Your dryer is intended solely for household use Before connecting the dryer to the power mains please read carefully the instructions for use that describe the dryer and its correct and safe use The instructions apply to several appliance types or models thus settings or equipment may be described herein which is not available in your dryer Leave any repairs and similar tasks on the dryer to an expert Unprofessional repair may result in an accident or major malfunction After installation the dryer should stand still for two hours before it is connected to the power mains At least two persons are required to install the tumble dryer on top of a washing machine The dryer shall not be connected to the power mains using an extension cord Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or hair dryer If the power cord is damaged it has to be replaced by the manufacturer an authorized service technician or a similarly qualifi ed person in order to avoid any hazards The appliance shall not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by a utility After the drying process unplug the dryer power cord from the power outlet In case of incorrect appliance connection incorrect use or servicing by an unauthorized person the user shall bear the cost of any damage Air in the dryer environment should not contain dust particles The air where the dryer is installed should be thoroughly ventilated to prevent reverse fl ow of gases released from the gas appliances with open fi re eg fi replaces Do not evacuate the air from the dryer through channels used for appliances or devices that use natural gas or other fuels for their operation only applies to the evacuation dryer SAFETY PRECAUTIONS
  • Page 4 - English - : Do not dry unwashed laundry in the dryer Laundry stained with oil acetone alcohol oil derivatives stain removers turpentine wax and wax removers should be washed in a washing machine with hot water and detergent before it is dried in the dryer Clothing that includes latex rubber parts shower and bathing caps and laundry or covers with rubber foam shall not be dried in the dryer Use laundry conditioners or similar products in compliance with manufacturers instructions Do not place the dryer behind lockable or sliding door or door with a hinge on the opposite side of the dryer door hinge Install the dryer in such way that the door can always be freely opened Never block the air vents Do not place the dryer on a carpet with long fi bres as this may impede air circulation The air in the room where the dryer is installed may not contain dust particles Make sure the fi bres do not accumulate around the dryer Remove all objects such as lighters and matches from the pockets After installation wait for 24 hours before using the appliance If the dryer has to be laid down on one of the sides during transport or servicing place it with its left side viewing from the appliance front downwards only applies to dryers with a heat pump The appliance shall not be in contact with a wall or adjacent furniture If the dryer is connected to an air exhaust system already used for another appliance a nonreturn valve must be installed Reverse fl ow into the dryer could damage the appliance and the nonreturn valve prevents such reverse fl ow only applies to evacuation dryer A fl oat will switch off the appliance if the condensed water pipe is clogged or if there is a risk of overfl owing of the condensed water accumulated in the condensed water tank only applies to condenser dryers and dryers with a heat pump If you wish to move the dryer or store it in a nonheated room during winter it is essential that you fi rst empty the condensed water tank only applies to the condenser dryers and dryers with a heat pump Maximum drying capacity in kg for the Cotton program is indicated on the rating plate
  • Page 5 - English - : SAFETY Only use the dryer to dry laundry that was washed with water Do not dry any laundry that was washed or cleaned with fl ammable cleaners or substances such as gasoline trichloroethylene etc as this may result in an explosion If you have cleaned your clothes with industrial cleaners or chemical substances do not dry them in the dryer If the air exhaust hose is connected to an opening in the wall infl ux of cool air may be prevented by installing a ventilation grille only applies to evacuation dryer The air exhaust hose shall not be connected to an active chimney used to evacuate smoke or waste gases into a shaft intended for ventilating rooms with combustion equipment or into a chimney used by third parties If smoke or waste gases return to the room where the dryer is installed there is a danger of poisoning only applies to evacuation dryer The dryer is protected with an automatic switchoff system in case of overheating The system switches off the heater if the temperature is too high only applies to evacuation and condenser dryer If the net fi lter is clogged the automatic heater switchoff device can be triggered See chapter quotCLEANING AND MAINTENANCEquot only applies to evacuation and condenser dryer WARNING The back of the dryer may get very hot during operation Wait for the dryer to cool down completely before touching its back side Observe the instructions in the chapter quotINSTALLATION AND CONNECTIONquot Never stop a drying cycle or do not open the door before the end of the program If you do so for any reason be careful when taking the laundry from the drum as it can still be very hot and there is a risk of burning Quickly remove the laundry from the drum and spread it to allow it to cool down as quickly as possible CHILD SAFETY Do not allow the children to play with the dryer Prevent your children and pets to enter the dryer drum Before closing the dryer door and running the program make sure there is nothing except laundry in the drum eg if a child climbed into the dryer drum and closed the door from the inside Activate the child lock See chapter quotSYSTEM SETTINGSquot section Child Lock
  • Page 6 - English - : Do not let children younger than three years to come near the dryer unless they are under constant supervision The dryer is made in compliance with all relevant safety standards This dryer may be used by children aged 8 years and above and by persons with reduced physical sensory or mental capabilities or lack of experience and knowledge but only if they are supervised during the use of the appliance if they have been provided relevant instructions regarding safe use of the dryer and if they understand the hazards of inappropriate use Make sure children do not play with the appliance Make sure the children do not clean the dryer or perform any maintenance tasks without supervision SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

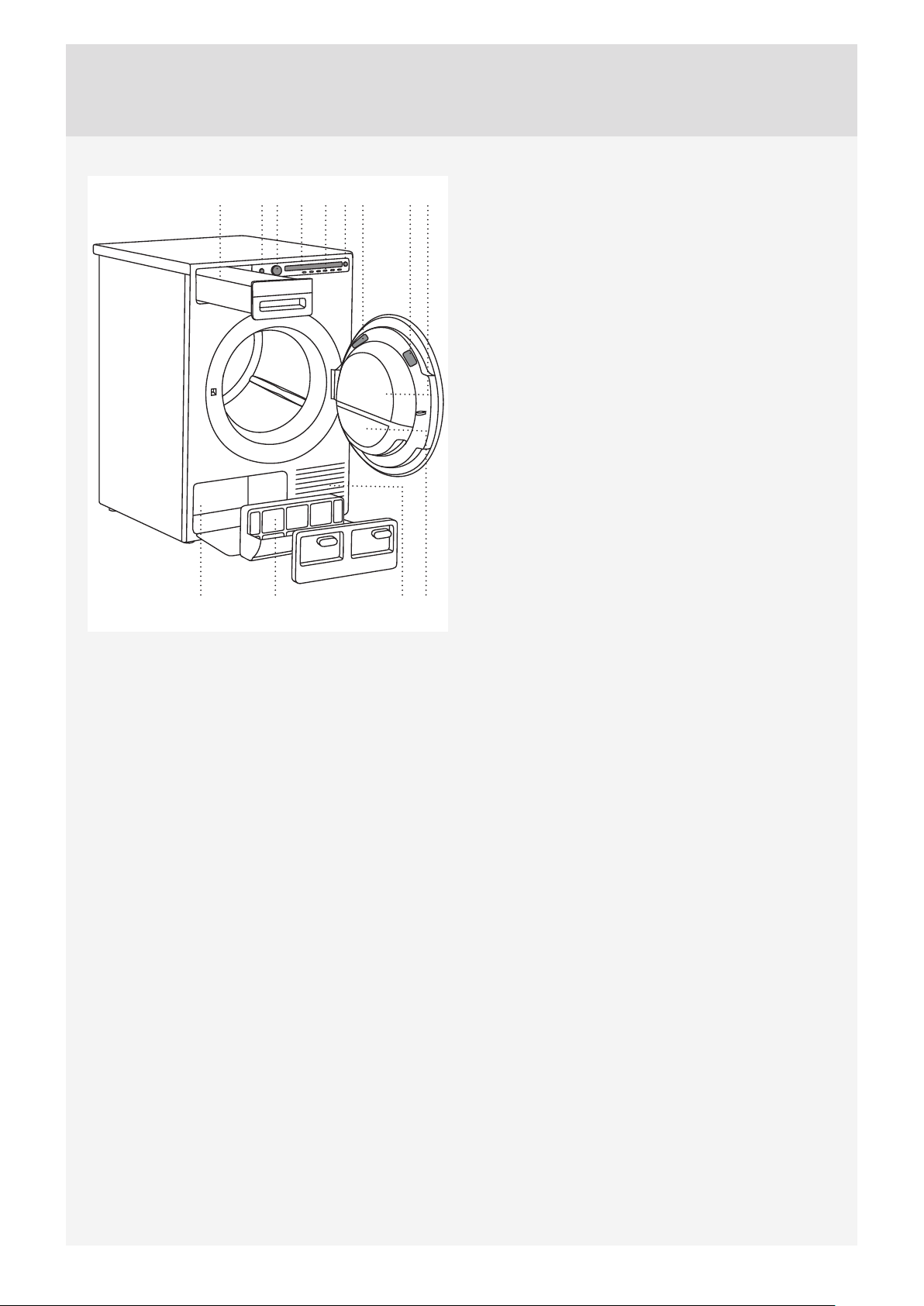

  • Page 7 - English - : DRYER DESCRIPTION 1 Main switch ONOFF 2 Program selector knob 3 Display unit 4 Program selector buttons 5 Button startpause 6 Rating plate with information about the dryer on the inside of the drying machine door 7 QR and AUID code on the inside of the drying machine door 8 Dryer door 9 Door net fi lter 10 Condensate tank depending on the model 11 Heat pump 12 Heat pump fi lter 13 Air vents 110 62345 7 12 13
  • Page 8 - English - : PACKAGING Remove all packaging Please sort the materials in compliance with local recommendations see chapter quotDISPOSALquot CLEANING Disconnect the dryer from the power mains and open the door towards you Clean the dryer drum with a damp cloth and a mild detergent No program can be started while the door is open CHOOSING THE LANGUAGE When the dryer is connected see chapter quotINSTALLATION AND CONNECTIONquot and switched on for the fi rst time choose the preferred language 1 Press the button 2 or the program selector knob to scroll the list of languages Confi rm your selection by pressing the OK button 2 Press the quotFinalisequot Finalize button to confi rm your selection For further drying process see chapter quotDRYING PROCESS STEP BY STEP 17quot When you run the dryer for the fi rst time or if the dryer has been out of use for a long time slight hitting noise may appear This is normal and it will disappear after a few drying cycles BEFORE USING THE APPLIANCE FOR THE FIRST TIME

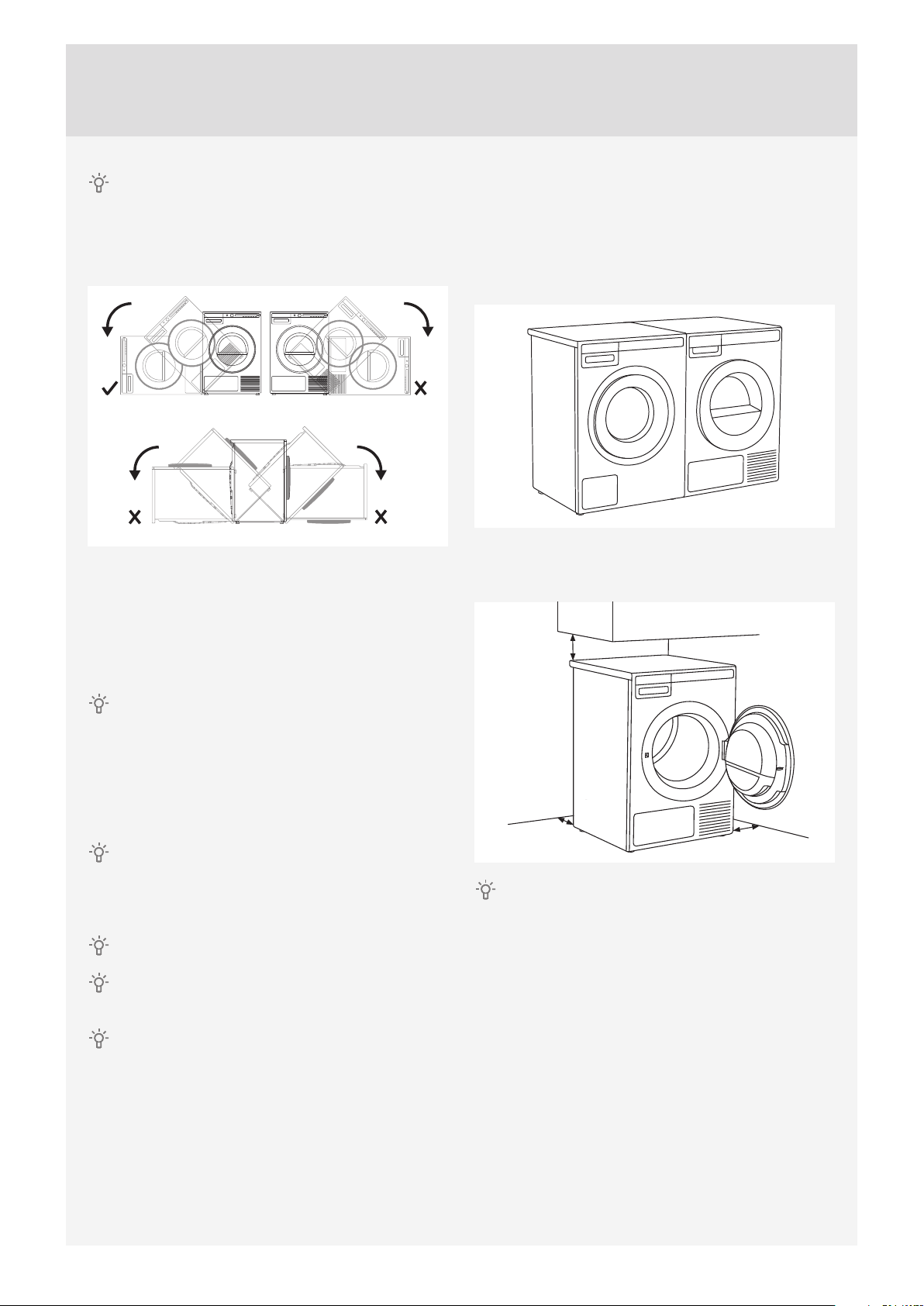

  • Page 9 - English - : INSTALLATION AND CONNECTION After installation wait for 24 hours without moving the appliance before using it for the fi rst time If the dryer has to be laid down on one of the sides during transport or servicing place it with its left side viewing from the appliance front downwards 90 90 90 90 DRYER PLACEMENT The dryer can be either free standing or installed on top of a washing machine The dryer emits heat Therefore do not place it in a very small room as the drying process may be longer due to limited amount of ambient air Do not place the dryer in a room where temperature can drop below 0 C as the machine may not operate correctly at such low temperatures or freeze with damages as consequences For optimum dryer operation install it in a room with adequate ventilation and a temperature between 10 C and 25 C Do not place the dryer behind lockable or sliding door or door with a hinge on the opposite side of the dryer door hinge Install the dryer in such way that the door can always be freely opened Never block the air vents At least two persons are required to install the tumble dryer on top of a washing machine Do not place the dryer on a carpet with long fi bres as this may impede air circulation Freestanding appliance The dryer may be placed adjacent to a washing machine To prevent the dryer from sliding around use a non slip support or pad or attached vacuum feet see below Clearance around the dryer for optimum operation 50 mm 100 mm 100 mm The appliance shall not be in contact with a wall or adjacent furniture For optimum operation of the drying machine it is recommended to consider the deviation from the wall as shown in picture
  • Page 10 - English - : Opening the door of the dryer top view 1189 mm 480 mm 176 Stacking on top of a washing machine To stack the dryer on top of a washing machine use the extra vacuum feet and the tipping guard AB supplied in the cardboard box in the dryer drum Tipping guard part B is designed to fi t on ASKO washing machines and it may be hard or impossible to mount on appliances of other brands If the washing machine and dryer are not of matching dimensions or if you have installed a hidden helper between the two appliances then binding plates are available as optional accessories at the service center available only for HH acessory Hidden Helpers and TD75 stacked on top of WM80 or WM85 not intended for any other combinations A B All ASKO washing machines will bear the weight of the dryer Washing machine on which you wish to install the dryer must be able to bear the weight of the dryer see washing machines rating plate or technical information
  • Page 11 - English - : How to stack a dryer onto the washing machine ASKO There is a cardboard box in the dryer drum containing the vacuum feet and the tipping guard A B The tipping guard consists of two metal parts A B Use two screws to attach the A part to the back of the dryer Undo the screw on the back side of the washing machine Use the screw to attach the tipping guard B part to the back of the washing machine Level the washing machine so that it is stable 1 Level the washing machine in longitudinal and traverse direction by rotating the adjustable feet using a No 32 spanner The feet allow levelling by 1 cm 2 After adjusting the height of the feet fi rmly tighten the jam nuts counter nuts using a spanner No 17 by turning them towards the bottom of the washing machine 3 Tighten the jam nuts counter nuts 5 mm Set the dryer feet 1 Tighten the front two feet all the way in 2 Undo the back feet by 35 turns or 5 mm then fasten the jam nuts towards the bottom of the appliance Place the dryer onto the washing machine 1 Lift the front part of the dryer by 5 to 10 cm 2 Attach the vacuum feet onto the front feet of the dryer 3 Push the dryer into the tipping guard so that the B part is inserted into the A part and release it See fi gure on previous page Make sure the tipping guard is quotlockedquot

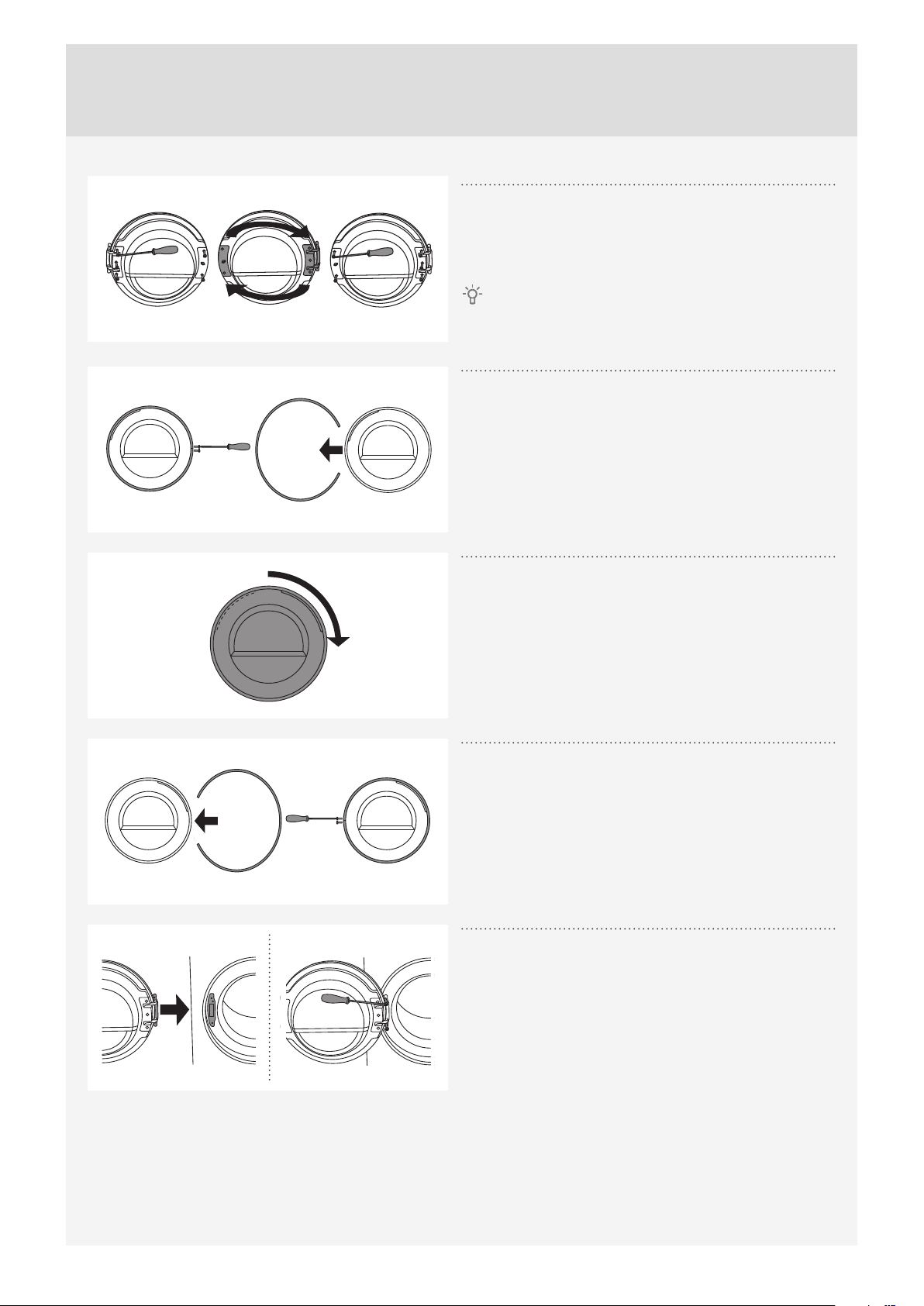

  • Page 12 - English - : CHANGING THE DOOR OPENING DIRECTION To change the direction of door opening proceed as follows Open the door fully Undo the screws and remove the door Use a screwdriver to remove the door lock cover and undo the screw on the door lock Push the door lock upwards and remove it Move it to the other side and push it downwards Fasten the screw on the door lock Replace the door lock cover
  • Page 13 - English - : Undo the door hinge assembly left and the door latch assembly right switch their positions and replace the screws door hinge assembly to the right hand side door latch assembly to the lefthand side Use a screwdriver to remove the plastic part more easily Undo the door ring and remove it temporarily Rotate the door glass cover by 90so that the sign indicating the opening of the door is on the other side Rotate the door ring by 180 install it onto the door and fasten it with screws Replace the door on the door hinge and fasten the screws
  • Page 14 - English - : DRAINING THE CONDENSATE The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank Condensate tank has to be emptied regularly see chapter quotCLEANING AND MAINTENANCEquot To simplifi ed and avoid emptying and interruption of the drying cycle due to full condensate tank run the condensate discharge tube located at the back of the appliance directly into a drain A Remove the small short hose from the attachment A max 1000 mm max 300 mm max 300 mm B C D Connect the supplied drain hose to the same attachment A Run the condensate drain hose into a drain Tie the hose onto a tap B so that it cannot slip during use The drain hose can also be fed into the washbasin siphon C or directly into the fl oor drain D Then the water is pumped directly into a washbasin a siphon or a fl oor drain Do not pull the drain hose and make sure it is not under tension clamped or bent If you decide to run the condensate drain hose into a drain siphon or washbasin make sure the hose is securely fastened This will prevent any water spillage that could result in unexpected damage Always use hoses that are attached to the appliance If the dryer is connected to an air exhaust system already used for another appliance a nonreturn valve must be installed Return fl ow into the dryer could damage the appliance and the nonreturn valve prevents such fl ow
  • Page 15 - English - : CONNECTING TO THE POWER MAINS After installation the dryer should stand still for two hours before it is connected to the power mains Connect the appliance to an earthed power outlet After installation the wall outlet should be freely accessible The outlet should be fi tted with an earth contact in compliance with the relevant regulations Connection upon delivery TYPE TDXXXXXXX ArtNo XXXXXXXX SerNo XXXXXXXX MODEL XXXXXXX XXXX W XXA IPX4 X kg XXX V XX Hz Refrigerant X XXXX Volume XXXX Information about your dryer is indicated on the rating type plate Use the type A diff erential current protection switch The dryer shall not be connected to the power mains using an extension cord Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or hair dryer Any repair and maintenance pertaining to safety or performance should be done by trained experts
  • Page 16 - English - : This chapter includes several advices on how to prepare the laundry from drying LAUNDRY SORTING Sort the laundry according to type fabric thickness For the most even drying make sure the laundry is made of a similar material CLOTHING 1 Close the buttons zips and hookandloop fasteners so that they do not damage the fabric 2 Turn the pockets inside out 3 Place very sensitive clothes in a specialpurpose laundry washing bag The special purpose laundry bag is available as an optional accessory in general stores Laundry to be dried in the dryer should be spun at a minimum of 1000 rpm Higher spinning speeds will save energy and cut drying time If you decide to dry only one large item we recommend drying it separately from smaller items of laundry ADVICES BEFORE DRYING LAUNDRY SYMBOLS Observe the laundry symbols Textile maintenance symbols Washing Normal Delicate Max washing temperature 90 C Max washing temperature 60 C Max washing temperature 40 C Max washing temperature 30 C Hand wash only Do not wash Bleaching c1 Bleaching in cool water Bleaching not allowed Dry cleaning A Dry cleaning with all agents P Perchloroethylene R11 R113 petroleum F Dry cleaning in kerosene pure alcohol and R113 Dry cleaning not allowed Ironing Ironing with a hot iron with a maximum temperature of 200 C Ironing with a hot iron with a maximum temperature of 150C Ironing with a warm iron with a maximum temperature of 110C Ironing not allowed Natural drying Drying on a flat surface Drying without prior spinning Drying on a clothes line or a hanger Tumble drying Drying at high temperatures Drying at low temperatures Tumble drying not allowed
  • Page 17 - English - : MATERIALS FABRICS SUITABLE FOR DRYING IN A TUMBLE DRYER Material is suitable for tumble drying Clothes dried in a tumble dryer will be softer and lighter than airdried clothes The dryer does not cause any considerable wear of the fabric The lint collected in the lint fi lter consists of dust and fabric fragments collected during the use of the laundry MATERIALS FABRICS THAT MAY NOT BE DRIED IN A TUMBLE DRYER This symbol means that the material is not suitable for drying in a tumble dryer Never tumble dry the following clothing that was chemically cleaned or dry cleaned at home foam glass fi bres

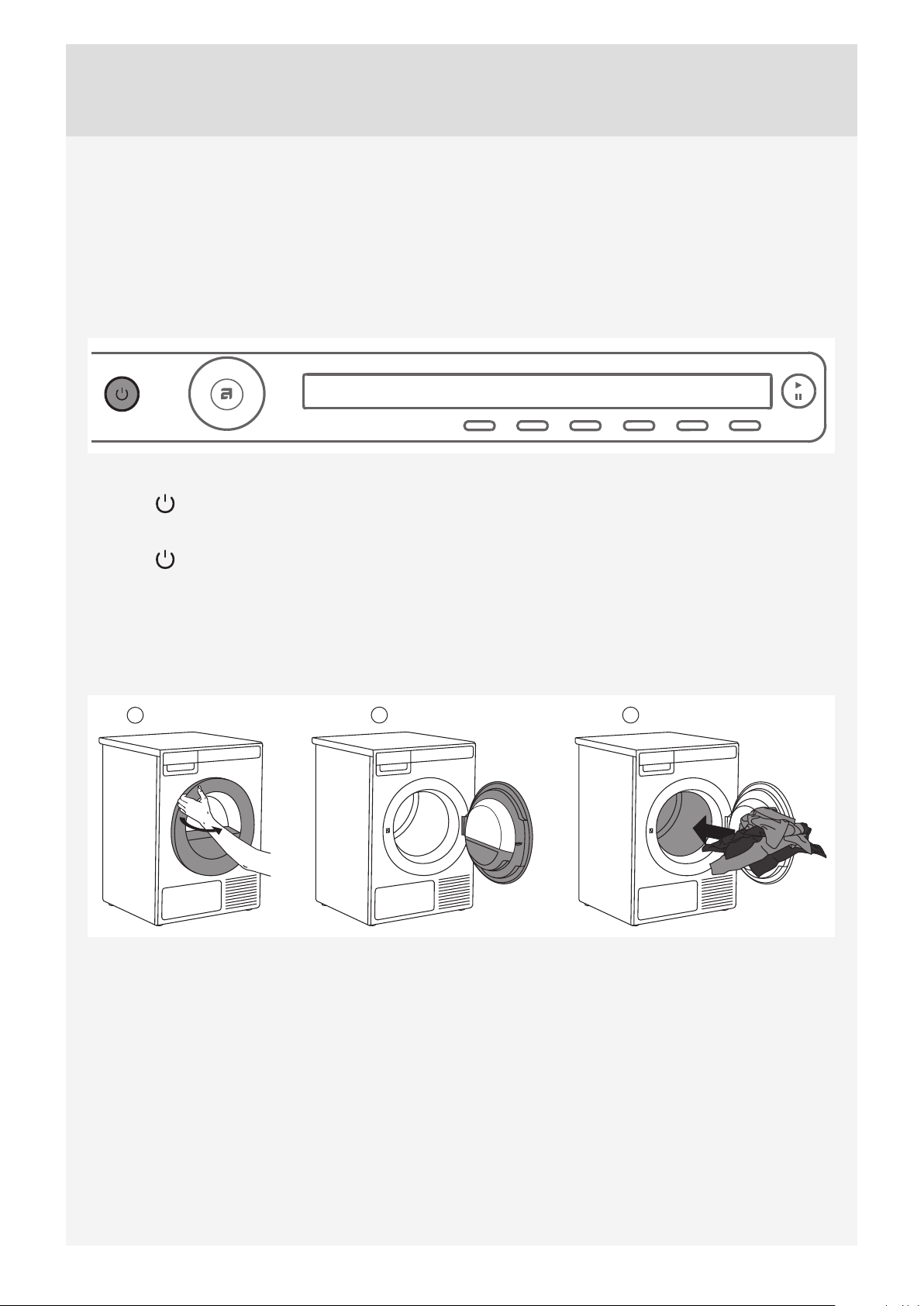

  • Page 18 - English - : DRYING PROCESS STEP BY STEP 1 7 STEP 1 SORT THE FABRICS See chapter quotADVICES BEFORE DRYINGquot STEP 2 TURN ON THE MAIN SWITCH Turning on Press the onoff button Turning off Press the onoff button STEP 3 OPEN THE DRYER DOOR AND INSERT THE LAUNDRY Open the dryer door towards you 2 3 Place the laundry into the empty dryer drum Make sure there arent any other objects among the laundry such a detergent ball Such objects could melt and cause damage to the dryer or your laundry Do not overload the drum See program table and observe your nominal load as indicated on the rating plate If the dryer drum is overloaded the laundry will be more wrinkled and perhaps unevenly dried
  • Page 19 - English - : STEP 4 CHOOSE THE DRYING PROGRAM Choose the program by rotating the program selector knob in either direction The program selector knob can be used when arrows appear on the display Select the program based on the type and remaining moisture of the laundry you wish to dry Anticipated program duration is indicated on the display Extra program settings can also be selected for each program See STEP 5 Choose between the following programs Program Max kg Description 1 AUTO EXTRA DRY Automatic intensive drying 10 Use this program for thicker multilayered nonsensitive cotton laundry After drying it will be completely dry and ready to be stored in the cupboard 2 AUTO DRY 10 Use this program for thicker nonsensitive cotton laundry After drying it will be completely dry and ready to be stored in the cupboard 3 AUTO NORMAL DRY 10 Use this program for thicker nonsensitive cotton laundry of approximately the same thickness After drying it will be dry or slightly moist 4 AUTO IRON DRY 10 Use this program for nonsensitive cotton laundry After drying it will be ready for ironing 5 AUTO JEANS 4 This program is suitable for drying jeans and clothes with extra thick seams 6 AUTO SYNTHETICS 35 Use this program for sensitive laundry made of a mixture of synthetic and cotton fibres After drying the laundry will be slightly moist 7 AUTO TERRY 5 This program is suitable for large and small items made of thick terry such as towels and bathrobes 8 AUTO DOWN 15 Use this program to dry textiles stuffed or padded with down pillows duvets jackets etc Dry large items separately and use the extra dry function or the time program if necessary 9 BEDDING 5 Use this program for larger items When the program is complete they will be completely dry Adjusted drum rotation prevents the laundry from tangling 10 SILK AND WOOL 2 This short program is intended for softening or fluffing of clothes made of wool and silk which have to be dried thoroughly according to manufacturer s instructions
  • Page 20 - English - : Program Max kg Description 11 SHIRTS 2 Use this program to dry shirts and blouses Adjusted drum rotation prevents the laundry from creasing 12 QUICK PRO 2 Use this program for nonsensitive laundry washed with a quick program 13 TIME PROGRAM 4 Use this program for nonsensitive laundry that is still slightly moist and has to be thoroughly dried In the time program remaining moisture is not detected automatically If the laundry is still damp after the program is complete repeat the program if it is too dry and therefore creased and rough to touch the drying time you selected was too long Program duration can be adjusted from 30 minutes to 4 hours in 15minute steps 14 AIRING 2 This program does not use a heater Use it to refresh your clothes Program duration can be adjusted from 15 minutes to 4 hours in 15minute steps 15 SYSTEM SETTINGS Use the program selector knob to select System Settings Confirm the selection by pressing the ENTER button 2 Then use the program selector knob to scroll the list of settings The following can be selected The following options are available Child Lock Language language selection Programs set of programs Display display unit contrast amp logotype Sounds Reset See chapter quotSYSTEM SETTINGSquot Max kg dry load If your laundry is not dried to the desired dryness level use extra program settings or use a more suitable program
  • Page 21 - English - : STEP 5 CHOOSING THE PROGRAM SETTINGS Using the program settings the drying programs can be further adjusted to your wishes Some program settings may not be available for your selected program Selected program settings will remain stored after the end of the drying cycle and may be changed subsequently except for delayed start which is not stored after the drying is complete Choose the program settings before pressing the START button When the drying program is in progress program settings cannot be changed Press and hold the button under a program setting to display the information INFO about it Following are the program settings that may be selected using the buttons 1 to 6 1 Dryness level extra dry By pressing the button 1 you can choose between extra dryness levels Each time the button is pressed the fi nal level of laundry dryness and drying time will change 2 Anticrease This function pertains to what happens after the drying cycle By pressing the button 2 you can choose the duration of the anticrease program from 0 hours to 4 hours in 1hour steps 3 Load By pressing the button 3 you can choose between loads of the dryer Full load Small load Partial load Choosing of real load aff ect on provided shown starting drying time 4 Acoustic signal Buzzer Press the button 4 to turn the buzzer indicating the end of the drying process on ON or off OFF 1 Dryness level extra dry 2 Anticrease 3 Load 4 Acoustic signal Buzzer 5 Time timed drying 6 Delay Start
  • Page 22 - English - : 5 Timed drying First use the program selector knob to select the Timed Dry program Press the button 5 to select a drying time from 30 minutes to 4 hours in 15minute steps Time OK 215 Use the button 6 OK to confi rm the selected drying time Press the Start Pause button to start the drying process 6 Delay Start Press the button 6 to choose the delayed start when you wish the drying program to start after a certain period of time Auto express dry 600OK Press the button 6 for to appear Use the program selector knob or the button 6 to set the delay from 30 minutes hour to 6 hours in 30minute steps and then from 6 hours to 24 hours in 1hour steps Press the button 5 OK to confi rm the selected Delay Start time Press the Start button to start When the countdown reaches zero the selected drying program will start automatically Delayed start paused 0350 To cancel the delay and start the drying process immediately press the button 5 To change the Delay Start time press the StartPause button and hold it for 3 seconds Select a new Delay Start time After selecting the new Delay Start time press the StartPause button again Delayed start cannot be set for the favourite programs If you do not take any action for 5 minutes the display will switch to standby mode Press the ONOFF button to reactivate it The countdown to the start of the drying cycle will be displayed If the dryer is in the standby mode the display will switch on 1 minute before the start of the drying cycle After the countdown drying time will be indicated on the display unit
  • Page 23 - English - : STEP 6 CLOSE THE DOOR AND START THE DRYING PROCESS Close the dryer door and press the StartPause button Start pressed briefl y startresume Pause pressed briefl y drying temporarily suspended Cancel press and hold the button for 3 seconds Starting 220 Remaining time Depending on the selected program and load anticipated drying time will be displayed in hours and minutes Actual drying time will depend on the selected program load type of laundry spinning rate etc Actual drying time may be longer or shorter than initially displayed Drying 219 Pausing stopping or changing the program Paused To pause a program briefl y press the StartPause button To resume the program press the Start Pause button again Door is open The drying program may also be paused by opening the dryer door Press start to resume Drying cycle To resume the programme simply close the door and press the StartPause button Preparing for program canceling Cooling down To stop and cancel the washing program press the StartPause button and hold it for 3 seconds Program canceled Garments can still be hot The selected program will be stopped and the cooling stage will begin Cooling time depends on the selected program Only after the cooling is complete can you use the program selector knob to select a new program and press the StartPause button The fi nal drying cycle includes a cooling down stage without heater operation It makes sure the laundry is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touch hot clothes A drying program can be paused using the ONOFF button The dryer will switch off After the dryer is switched on press the Start button to resume the program
  • Page 24 - English - : STEP 7 END OF PROGRAM Cycle completed succsessfully new Start After the end of the drying program the display will indicate that the drying has been fi nished quotCycle completed successfullyquot Cycle completed succsessfully Anti creasing If you have selected the quotanticreasequot option the dryer will continue to operate after the end of the drying cycle for the amount of time specifi ed upon selection of this program setting Cycle completed succsessfully fav Add new Start After the drying cycle you have the possibility to save the program as a favorite program see quotFavourite programsquot Open the door towards you and remove the laundry from the dryer OKClean door filter Clean the net fi lter in the door see chapter quotCLEANING AND MAINTENANCEquot Make sure the dryer drum is empty then close the door 5 minutes after the end of the program or last activation the display will switch off to standby mode in order to save power The display will light up again if you press the ONOFF button or open the dryer door After each drying cycle clean the net fi lter in the door and empty the condensate tank See chapter CLEANING AND MAINTENANCE A clogged net fi lter and heat pump fi lter may result in activation of the automatic overheating switchoff device Clean the fi lter wait for the machine to cool down and try running it again If the dryer still fails to start call a service technician After the drying process unplug the dryer power cord from the power outlet
  • Page 25 - English - : Favourite programs Cycle completed succsessfully fav Add new Start After the end of the drying program you can use the button 6 to store the program including all extra settings as your favourite program Make your list of four own favourite programs Up to 4 favourite programs can be stored 1 Favourite Confirm BackFav list position Choose the favourite program position number using the button 2 the most recently used program including all settings will be off ered To store a program confi rm with the button 4 Changing a favourite program If you wish to store a program after the end of the drying cycle but there is no more room for another favourite program only 4 favourite program slots are available then one of the existing stored favourite programs can be substituted with a new one 1 Favourite Confirm BackFav list position Use the button 2 to scroll through the list of Favourite programs Press the button 4 to confi rm the program to be replaced 1 Fav Bedding will be replaced Yes No Confi rm the replacement by pressing the button 5 If you do not take any action for 5 minutes the display will switch to standby mode To activate the display press the ONOFF button or open the dryer door

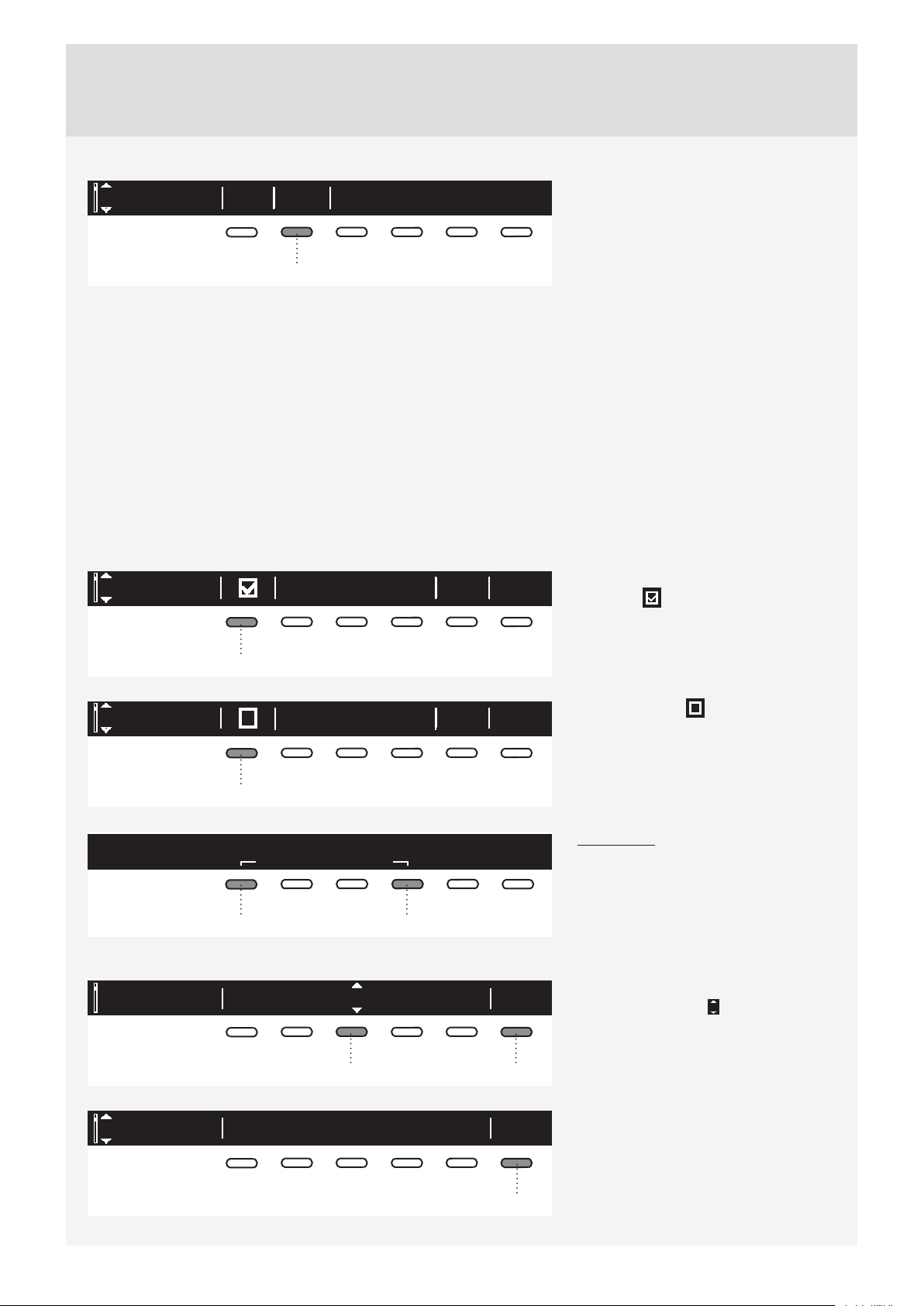

  • Page 26 - English - : SYSTEM SETTINGS Enter System settings In the main menu use the program selector knob to select System Settings Confi rm the selection by pressing the button 2 Then use the program selector knob to scroll the list of settings that can be changed Child Lock Language Programs Display unit contrast and logotype Sounds Reset Use the button 6 BACK to return to System Settings or to the main menu Press the INFO key to display brief information about the setting CHILD LOCK Child lock BackInfo Child lock can be activated by pressing the button 1 This will prevent children from switching on the machine Child lock BackInfo Press the button 1 to deactivate the child lock When the child lock is activated no other function can be selected Child lock Hold for to deactivate Locks user interface to any interactions 3 sec To temporarily for 3 minutes switch off the child lock press the 1 and 4 buttons simultaneously and keep them pressed for 3 seconds LANGUAGE Russian Language OK You can choose between 25 languages Press the button 3 for to appear Use the program selector knob or the button 3 to scroll the list of languages Use the button 6 OK to confi rm the selected language Russian Language Back Use the button 6 to return to System Settings
  • Page 27 - English - : PROGRAMS The main menu includes the entire set of programs that you can choose using the program selector knob This setting allows only displaying the selected program in the main menu Sports wearPrograms BackInfo 13 6 Press the button 1 for to appear Use the program selector knob or the button 1 to select a program Use the button 3 to set whether this program is to be displayed or not On Off Use the button 6 to return to System Settings DISPLAY UNIT Contrast Logotype Back Display Set the contrast and logo display 1 2 BackContrast BackLogotype Use the buttons 1 to 5 to set the contrast Use the button 1 to toggle logo display on or off If you will choose on the logotype will toggle on display when the washing machine will be turned on Use the button 6 to return to System Settings SOUNDS Choose whether audible signals are switched on or off InfoMidSounds Back Use the button 1 to switch acoustic signal on or off Use the button 4 to choose between the following settings low mid and high As you scroll through the options a sample audible signal will be sounded Use the button 6 to return to System Settings
  • Page 28 - English - : RESET This means that all settings will return to the default settings and your own settings will be deleted Reset BackInfoYes Confi rm the selection by pressing the button 3 YES Press the button 6 to return to System Settings SOUNDS In the initial stage of drying or during drying the compressor and the pump may cause noise which however does not aff ect the dryer operation Humming sound this is the sound of the compressor unit The level of noise depends on the program and the drying stage Whirring sound from time to time the compressor unit is ventilated Pumping sound the pump is pumping the condensate into the condensate tank Clicking sound clicking noise is caused by automatic cleaning of the heat exchanger compressor Rustling water sound can be heard during automatic cleaning Rattling sound can be heard during drying if laundry has any hard parts buttons zippers etc
  • Page 29 - English - : CLEANING AND MAINTENANCE Before cleaning make sure to switch off the appliance and disconnect it from the power mains unplug the power cord from the outlet CLEANING THE DOOR NET FILTER IN THE DOOR Open the fi lter housing Pull out the net fi lter Gently scrape the fi lter to remove the lint lining fi bres and threads Reinstall the net fi lter Close the fi lter housing Make sure the net fi lter is correctly inserted into the fi lter housing Clean the door net filter after each drying cycle Never operate without a door net filter or if the door net filter is damaged
  • Page 30 - English - : EMPTYING THE CONDENSATE TANK After each drying cycle empty the condensate tank If the condensate tank is overfl owing the drying program will be paused automatically A warning will appear on the display unit that the condensate tank has to be emptied Disregard this warning if you fed the condensate discharge hose into a drain siphon or a sink Pull out the condensate tank from the dryer then turn it upside down over a washbasin sink or any suitably sized vessel Discharge the water through the condensate drain opening To make draining the tank easier pull out the nozzle at the condensate drain Replace the condensate tank into the dryer housing Water from the condensate tank is not drinkable If thoroughly fi ltered it can be used for ironing Never add chemicals or fragrances into the condensate tank Condensate tank does not require draining if the drain hose is connected directly to a washbasin or a bathroom fl oor drain see chapter INSTALLATION AND CONNECTIONDraining the condensate Before moving the dryer or before storing it in a nonheated room during the winter the condensate tank has to be emptied
  • Page 31 - English - : CLEANING THE HEAT PUMP FILTER During cleaning some water may be spilled It is therefore recommended to place an absorbent cloth on the fl oor Open the outer cover Hold the levers on the inside cover and rotate them upwards Remove the inside cover Use the handle to pull out the heat pump fi lter Pull the foam part of the heat pump fi lter from the housing Wash it under running water and dry it before replacing it in the fi lter housing Filter could be clean in the washing machine rinse program with low spin speed Dry it before replacing it in the fi lter housing Clean the foam fi lter at least after every 10 drying cycles or if necessary
  • Page 32 - English - : Use a soft dry cloth to also clean the heat pump fi lter housing and net Lower part of the hosing contains a strainer which shall be cleaned thoroughly Clean the heat pump fi lter housing and net after every 10 drying cycles or if necessary With automatic heat pump net fi lter cleaning only available in some models a few drops of water may drip on the fl oor after the fi lter is removed therefore lay a cloth on the fl oor Clean the heat pump cooling fi ns with a vacuum cleaner with a brush attached This should be done very gently to prevent damaging the very thin cooling fi ns Heat pump cooling fi ns should be cleaned occasionally or if it necessary Reinstall the heat pump fi lter into the housing Reinstall the inside cover and rotate the levers downwards Close the outer cover The heat pump fi lter has to be correctly placed into its slot Otherwise the heat exchanger installed inside the dryer may be clogged
  • Page 33 - English - : ADDITIONAL INFORMATION REGARDING CLEANING If you have inadvertently removed the entire net fi lter housing in the dryer door reinstall it in the same position Opening on the lower side of the door should occasionally be cleaned with a vacuum cleaner If necessary clean the fi lter housing and door gasket as well
  • Page 34 - English - : CLEANING THE APPLIANCE EXTERIOR Wipe the dryer exterior using a soft damp cotton cloth and mild detergent Do not use any cleaning agents that could damage the dryer please observe the recommendations and warnings provided by the manufacturers of the cleaning agents Wipe all parts of the dryer with a soft cloth until dry Keep the area around the dryer clean and cool Dust heat and humidity will extend the drying time Always disconnect the dryer from the power mains before cleaning
  • Page 35 - English - : ERRORS WHAT TO DO Disturbances from the environment eg the power grid may result in various error reports see Troubleshooting table In such case Switch off the appliance wait for 1 minute switch the appliance back on and repeat the drying program If the error persists call an authorized service center You will be able to solve most of the problems in dryer operation by yourself see troubleshooting table below Repairs may only be carried out by an adequately trained person Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty In such cases the costs of repair shall be charged to the user The warranty does not cover the errors or failures resulting from disturbances from the environment lightning strike power grid failures natural disasters etc Problemerror Cause What to do The machine will not start The main switch is not switched on Check whether the main switch is on There is no voltage in the power outlet Check the fuse Check if the power cord plug is correctly inserted into the power outlet There is voltage in the outlet but the drum does not spin The dryer does not work Program was not started in accordance with the instructions Reread the instructions for use again Door might be open Check if the door is closed properly Condensate tank is full only applies to condenser dryers and dryers with a heat pump Empty the condensate tank see chapter quotCLEANING AND MAINTENANCEquot only applies to condenser dryers and dryers with a heat pump Delayed start might be activated To cancel the Delayed Start option press 5 the Skip button The machine stops operating completely during a program The door net filter may be clogged As a result the temperature in the dryer rises which in turn causes overheating and the dryer switches off Clean the door net filter see chapter quotCLEANING AND MAINTENANCEquot Wait for the machine to cool down and try running it again If the dryer still fails to start call service centre
  • Page 36 - English - : Problemerror Cause What to do Laundry not dried or drying takes too long Filters are not clean Clean the filters see chapter quotCLEANING AND MAINTENANCEquot Dryer is placed in a closed room room that is too cold or room that is too small and the air overheats as a result Make sure there is adequate supply of fresh air to the dryer for example open the door andor window Check if the temperature in the room where the dryer is installed is too high or too low Laundry was not sufficiently wrung or spun If the load is still wet after completed drying cycle an appropriate drying program should be run again after cleaning filters Amount of laundry dried in the appliance is too large or insufficient Use a suitable program or extra functions Laundry such as bedding gets tangled Close the buttons or zippers on the laundry before drying Select a suitable program eg the bedding program After the drying process loosen the laundry and select an additional drying program eg timed drying program Unevenly dried laundry Laundry of varying types and thickness and excessive amount of laundry Make sure you have sorted the laundry by type and thickness whether you have added a suitable amount of laundry to the drum and whether you have selected a suitable program A slight hitting noise appears If the dryer is out of use for a long period of time the same points of loadbearing elements or components are under stress for a long time causing temporary deformation The noise will subside without any intervention The door opens during drying Excessive load on the door too much laundry in the drum Reduce the amount of laundry
  • Page 37 - English - : FAILURE DISPLAY In case of a failure while a program is in progress the relevant Error X is indicated on the display unit Info EXITError 3 Press and hold the INFO button to display the error description Press the 6 EXIT button to return to Main Menu Switch off the dryer and turn it back on Errors indicated on the display unit depending on the model may include the following Problem error Error indication on the display What to do ERROR0 EO Please contact Service E0 Please call service centre Control unit failure Call service centre ERROR1 E1 Thermistor fault Please contact Service E1 Thermistor error Please call service centre Temperature sensor failure Call service centre ERROR3 E3 Pump failure Please contact Service E3 Pump error Please call service centre Failure on the pump for pumping the condensate into the condensate tank Call service centre ERROR4 E4 Please clean filters or contact Service E4 Please clean the filters or call service centre Control unit failure Clean the filters See chapter quotCLEANING AND MAINTENANCEquot or call service centre ERROR5 E5 Max program time E5 Max program time Call service centre
  • Page 38 - English - : INFORMATION before during and after the program depending on the model Error indication on the display What to do EN Steam tank is empty Please fill water Fill the steam tank with distilled water or condensate Pour the water through the steam tank filter located in the condensate tank housing See chapter quotBEFORE USING THE APPLIANCE FOR THE FIRST TIMEquot EN Steam tank full Stop adding condensate or distilled water EN Please close the door before pressing start Close the dryer door before starting or resuming the program EN Option not available at this phase of cycle This option is not available Select an option that is still available EN Cycle was interrupted by power failure Please resume Press the StartPause button to restart or resume the program EN Please empty the tank before resuming a cycle See chapter quotCLEANING AND MAINTENANCEquot EN Clean door filter See chapter quotCLEANING AND MAINTENANCEquot EN Clean the condenser unit See chapter quotCLEANING AND MAINTENANCEquot EN Please empty the water tank and clean door filter See chapter quotCLEANING AND MAINTENANCEquot EN Child lock is on Press buttons for 3 sec to unlock See chapter quotSYSTEM SETTINGSquot
  • Page 39 - English - : SERVICING BEFORE CALLING A SERVICE TECHNICIAN See the chapters quotTROUBLESHOOTING and quotCLEANING AND MAINTENANCEquot and see if you can resolve the problem yourself When you contact a service centre please state the model 1 type 2 and serial number 3 of your dryer Model type and serial number are indicated on the rating type plate located on the interior side of the dryer door QR and AUID code are located on the inside of the drying machine door as well In case of a failure only use approved spare parts by authorized manufacturers Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty In such cases the costs of repair shall be charged to the user 1 2 3 TYPE TDXXXXXXX ArtNo XXXXXXXX SerNo XXXXXXXX MODEL XXXXXXX XXXX W XXA IPX4 X kg XXX V XX Hz Refrigerant X XXXX Volume XXXX
  • Page 40 - English - : STANDARD TESTS For the standard test the machines condensed water hose must be connected to a drain Australia Drying performance ASNZS 244211996 Auto normal dry 10 kg cotton temperature Normal Energy declaration ASNZS 244222000 Auto normal dry 10 kg cotton temperature Normal Test method for noise measurement IEC 60 70426 TECHNICAL INFORMATION Height 850 mm Width 595 mm Depth 755 mm Weight net 60 kg Drum volume 145 l Maximum drying load See rating plate Speed 5055 rpm Rated power See rating plate Drum material Stainless steel Housing material Hotdip galvanized and powder coated sheet metal or stainless steel sheet This product contains fluorinated greenhouse gases Type of refrigerant R134a Quantity of refrigerant 034 kg Total GWP 1430 CO equivalent 0486 t Hermetically sealed
  • Page 41 - English - : PROGRAM TABLE The following table lists the power consumption and duration for several programs The table shows the eff ect on drying parameters at varying spinning speeds during the washing cycle Actual consumption can vary depending on the room temperature humidity load changes in power supply and selected options The following requirements apply to the consumption values specifi ed below Inlet air temperature room temperature Inlet air humidity 5060 Drying temperature Normal Program Amount Spinning speed rpm Residual humidity approximately Power consumption approximately kWh Program duration approximately hmin Auto normal dry 1000 60 200 335 1400 50 125 240 1400 50 110 220 Auto iron dry 1000 60 145 300 1400 50 110 210 1400 50 100 200 Auto synthetics 1000 40 062 100 Full load Partial load Small load
  • Page 42 - English - : Disposal recycling of packaging Our product packaging is made of environmentally friendly materials that can be recycled disposed of or destroyed without any hazard to the environment To this end packaging materials are labelled appropriately The symbol on the product or its packaging indicates that the product should not be treated as normal household waste The product should be taken to an authorized collection centre for waste electric and electronic equipment processing When disposing of an appliance at the end of its useful life remove all power cords and destroy the door latch and switch to prevent the door from locking or latching child safety Correct disposal of the product will help prevent any negative eff ects on the environment and health of people which could occur in case of incorrect product removal For detailed information on removal and processing of the product please contact the relevant authority in charge of waste management your waste disposal service or the store where you bought the product DISPOSAL
  • Page 43 - English - : QUICK GUIDE SORT THE FABRICS Sort the fabric by type and by how heavily soiled the laundry is Observe the drying symbols on the laundry labels Close the zippers hookandloop fasteners and buttons SWITCH ON THE MAIN ONOFF SWITCH ONOFF OPEN THE DRYER DOOR AND INSERT THE LAUNDRY Before doing so make sure the drum is empty CHOOSE THE DRYING PROGRAM Turn the program selector knob to the desired drying program CLOSE THE DRYER DOOR AND PRESS THE START BUTTON Anticipated drying time in hours and minutes will be indicated on the display CHOOSE THE PROGRAM SETTINGS Choose the settings by pressing the relevant buttons END OF PROGRAM Open the door and remove the laundry from the dryer Clean the filters See chapter quotCLEANING AND MAINTENANCE Close the door Switch off the main onoff switch Remove the plug from the power outlet We reserve the right to modifi cations
  • Page 44: en 0218 TD8513 SPHP AUNZ wwwaskocom
