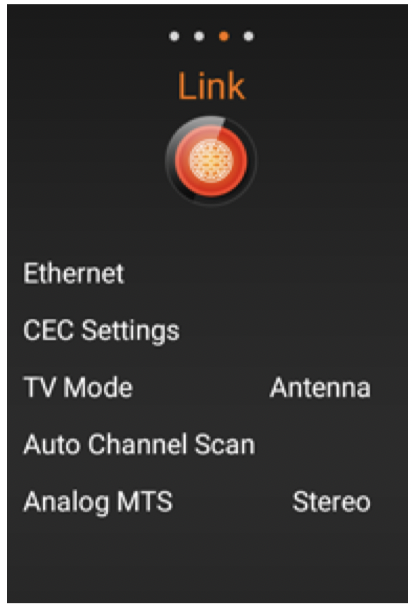

• Using LINK Operation
• Appendix
• Troubleshooting

Operator’s Manual for TV

Part Names

TV

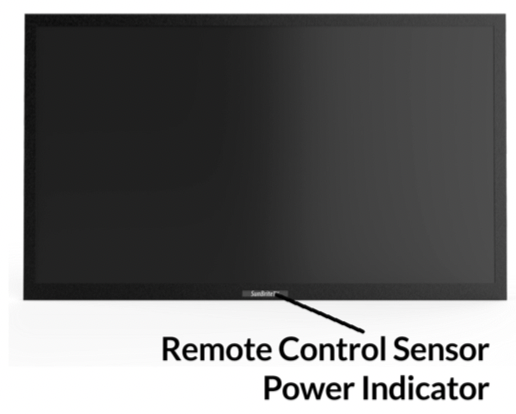

(Front)

(Side)

Caution

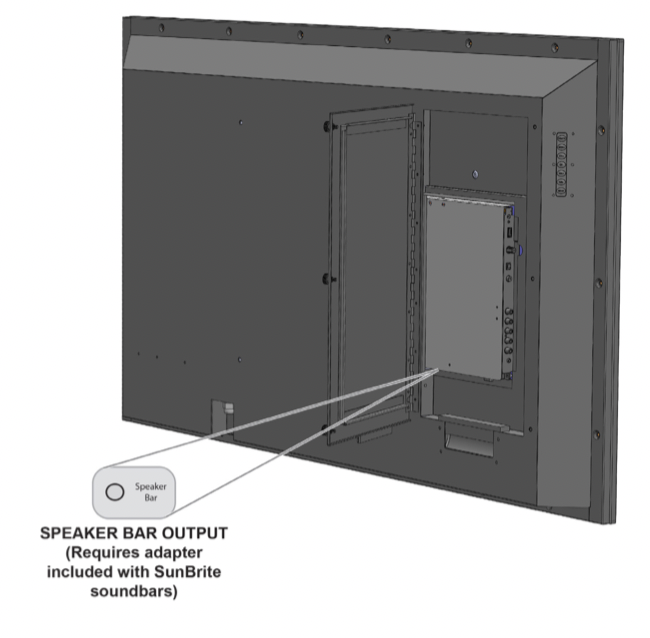

When using the ethernet port for IP control, connect the cable to the network switch before connecting to the SunBriteTV ethernet port.

SPEAKER BAR OUTPUT.

• See page 9 for details on the Input Select function.

• ARC See page 41 for details on the Audio Return Channel.

• See page 43 for optional speaker bar connection.

Note: The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.

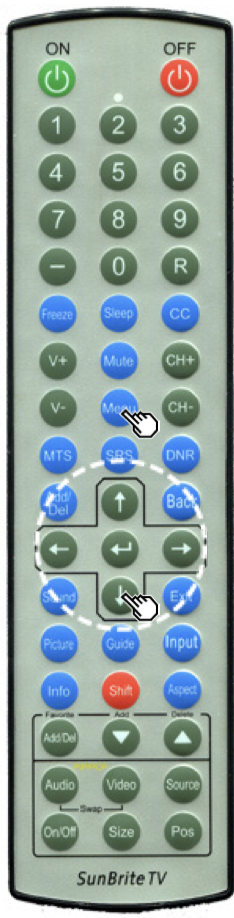

Remote Control Unit

Note: SunBrite TVs use the Sony TV IR codeset. When programming a universal remote or control system try Sony IR codes if SunBrite TV codes are not listed.

1 POWER ON: Switch the TV power on.

2 POWER OFF: Switch the TV power off.

3 0–9: Set the channel.

4 - (Dash): Set a digital channel.

5 FREEZE: Freeze not supported on Veranda 2 series 6 VOL+/-: Set the volume.

7 ENTER: Select a desired item on the screen. 8 SOUND: Change sound preset modes.

9 PICTURE: Change picture settings preset modes.

10 INFO: Display the channel or source information.

11 CC: Display captions from a closed-caption source. 12 SLEEP: Set the sleep timer.

13 EXIT: Turn off the menu screen.

14 ASPECT: Select the screen aspect.

Note: When using the remote control unit, point it at the TV.

Note: SunBrite TVs use the Sony TV IR codeset. When programming a universal remote or control system try Sony IR codes if SunBrite TV codes are not listed.

15 RETURN: Return to the previous channel. 16 MUTE: Mute the sound.

17 CH+/- : Select the channel.

18 MENU: Display the menu screen.

19 MTS: Selects the MTS/SAP or the audio mode during multichannel audio broadcasts.(Antenna/Cable only)

20 BACK: Return to the previous menu screen. 21 INPUT: Select a TV input source.

22 SHIFT: Press and hold this button then press buttons 0-9 to directly select TV input

Displaying an External Equipment Image

To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV.

1. Press INPUT.

The INPUT list screen displays.

2. Press / to select the input source.

An image from the selected source automatically displays.

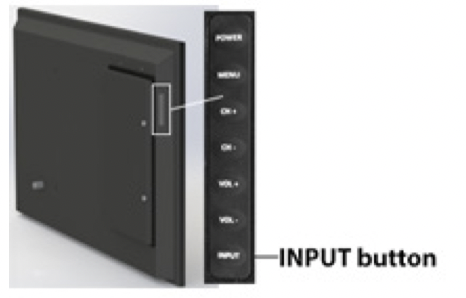

You can also select the input source by pressing INPUT. Each time INPUT is pressed, the input source toggles.

TV > HDMI1 > HDMI2 > HDMI3 > MMP(USB) > PC > VIDEO > COMPONENT > TV

Note: Video and Component will only display when a source signal is applied to the input

Watching TV

INITIAL INSTALLATION

Perform the following steps before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit.

2. Connect the antenna cable to the TV.

3. Plug in the AC cord to the AC outlet.

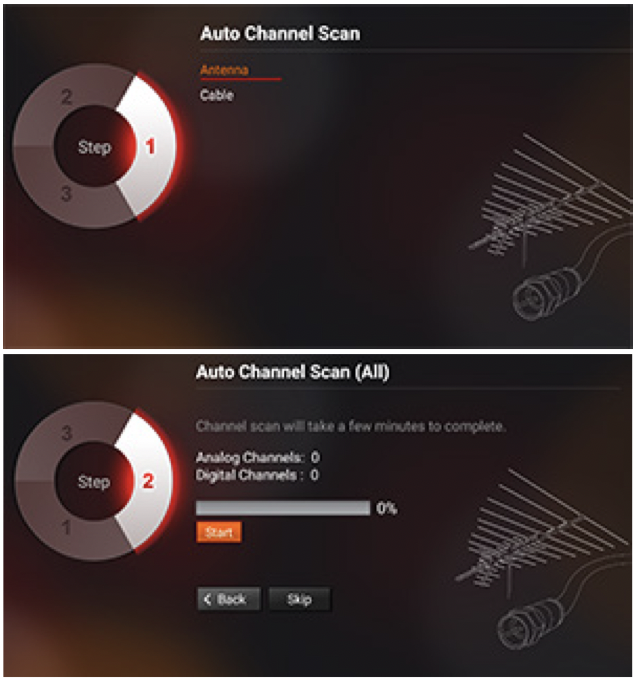

Select Antenna or Cable

1. Press to select and then press ENTER.

2. Select Start if you will be using Antenna or Cable input, otherwise select Skip.

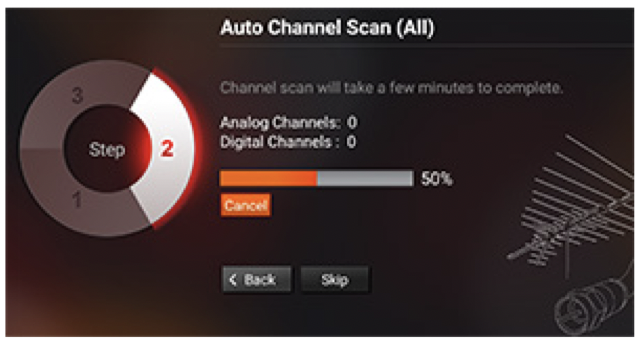

3. The tuner will scan for available channels and store them into memory. This process can take from 3-10 minutes.

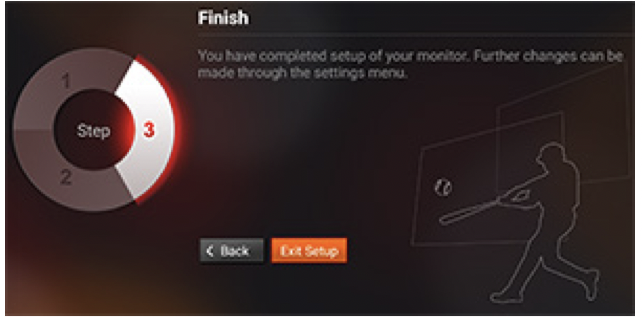

4. When the scan process is complete, select exit setup.

Direct Button Operation

CHANGING CHANNELS

You can change channels in several ways.

Method 1

Using CH +/- on the remote control unit or on the TV.

Method 2

Using remote control buttons 0-9, - (Dash).

Examples:

To select a 1 or 2-digit channel number (e. g., Channel 5):

To select a 3-digit channel number (e. g., Channel 115):

To select a 4-digit channel number (e. g., Channel 22.1):

Method 3

Selecting the program from the Channel list.

1. Press INPUT on the remote control unit. The INPUT list displays.

2. Press to select AIR or CABLE. The Channel list displays.

3. Press to select the desired channel, and then press ENTER.

Note:

• When selecting a 1-digit channel number, it is not necessary to press 0 before the number.

• When you enter 0-9 only, channel selection will be made if there is no operation within a few seconds.

• If you push "0" by itself, nothing will happen.

• Complete the above steps within a few seconds.

• When you enter 0-9 and - (Dash), channel selection will be made if there is no operation within a few seconds

CHANGING VOLUME

You can change the volume by pressing VOL+/- on the TV or on the remote control unit.

To increase the volume, press VOL +.

To decrease the volume, press VOL -.

MUTE

Mutes the current sound output.

Press MUTE.

will be displayed on the screen, and the sound is silenced.

CHANNEL RETURN

• Press R (Ch Return) to switch to the previously tuned channel.

• Press R (Ch Return) again to switch back to the currently tuned channel.

• Note: R (Ch Return) will not work if no channel has been changed after the TV is turned on

AUDIO

MTS/SAP stereo mode

The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

• Stereo broadcasts: View programs like live sporting events, shows and concerts in dynamic stereo sound.

• SAP broadcasts: Receive TV broadcasts in either MAIN or SAP sound.

• MAIN sound: The normal program soundtrack (either in mono or stereo).

• SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.)

If stereo sound is difficult to hear:

• Obtain a clearer sound by manually switching to fixed mono-sound mode. You can change MTS as shown below to match the television broadcast signal. Press AUDIO to toggle between audio modes.

Examples: when receiving MTS and SAP

Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track.

Press ENTER to toggle between audio modes.

Example: when receiving Digital broadcasting

Note: MTS only operates while in TV mode

SLEEP TIMER

Allows you to set a time when the TV automatically switches to standby. Press SLEEP.

• The remaining time displays when the sleep timer has been set.

• Each time you press SLEEP, the remaining time switches as shown below.

• Highlight the desired selection and press enter

SOUND MODE

Sound MODE gives you several audio setting options to choose from to best match the surrounding environment of the TV, which can vary due to factors like listening enviroment, type of program watched or the type of device connected.

Press SOUND. Sound menu OSD displays.

• Press Sound again or use the up and down arrow keys to highlight the desired selection

• Press enter to select the desired sound mode

PICTURE MODE

Picture mode gives you several viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like ambient light, type of program watched or the type of device connected.

Press Picture button. Current picture mode displays.

Standard: For a highly defined image in a normal lighting.

Movie: For a movie.

Vivid: For a clear-cut image emphasizing high contrast, useful for sports viewing.

Game: Gaming.

User: Custom user profile settings. PC: For PC

CLOSED CAPTIONS AND DIGITAL CLOSED CAPTIONS

Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider.

Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more flexible system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed captions. Please look for the to ensure that captions will be shown.

In the Closed Caption system, there can be more than one caption service provided. Each is identified by its own number. The "CC1" and "CC2" services display subtitles of TV programs superimposed over the program’s picture.

In the Closed Caption system, the "Text1" or "Text2" services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed.

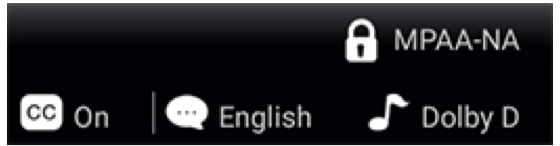

1. Press CC.

• This will present the Closed Caption information display.

2. Press CC while the Closed Caption information is still on the screen.

• Press repeatedly until you select the desired closed caption service.

• Depending on the number of caption services in the signal being received, you will see information such as 1/2 or 1/4 displayed.

1/2 means "the first of two services".

Example:

If a program has three services (Digital CC(ENG), CC1 and Text1), the closed caption display will toggle in this sequence:

Examples:

In a case where there are two closed caption services provided (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses.

A closed caption service appears in parentheses because the service you selected is not available and a different service is displayed on your screen. 1/1(CC1) is displayed instead of 1/2/ENG.

Note:

• When the program contains no closed caption, -- displays in the closed caption information.

• If the language code, e.g. ENG, is not found on Digital TV programs, -- will be shown.

• Four kinds of closed caption service (CC1, CC2, Text1, Text2) are potentially available, but a broadcast may contain none or only some of these services at the discretion of the program provider.

• When a web page is displayed, Closed Captions are not available.

• You can have the same settings by choosing Change CC on the menu items.

ASPECT MODE

You can select the screen size.

1. Press ASPECT.

• The Aspect Mode menu displays.

• The menu lists the Aspect Mode options selectable for the type of video signal currently being received.

2. Press ASPECT or GKProjA_a/GKProjA_b while the View Mode menu is displayed to select a desired item on the menu.

• You can sequentially select an Aspect Mode that has its own aspect ratio.

FOR HD PROGRAMS

Note: When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please change view mode to correct this.

For 4:3 programs

Example: Screen size images

For USB-Video and images

Example: Screen size images

For PC

Example: Screen Size Images

Note: Connect the PC before making adjustments. See the Setup Guide. Selectable screen size may vary with input signal type

On-Screen Display Menu

Introduction

1. User Menu Option Title

• This indicates the item currently selected.

• Press ENTER to go to the adjustment screen for this item.

2. Hightlighted Menu Option

• This indicates the currently selected item.

3. Item displayed in white

• This indicates that the item can be selected.

4. Item displayed in gray

• This indicates that the item cannot be selected.

• There are various reasons why the items cannot be selected, but the main reasons are as follows:

— Nothing is connected to the selected input terminal.

— The function is not compatible with the current input signal.

— When this conflicts with other functions, you must change the settings for the other functions.

About Menu Items

• Some menu items may not be displayed depending on the selected input source.

Note:

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

• The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of the items on the screen.

ON-SCREEN DISPLAY MENU OPERATION

1. Press MENU to display the MENU screen.

2. Pressto select the desired menu.

Press to select a specific adjustment item, and then press ENTER.

• Additional related adjustment items may be displayed. Press to select the desired item.

3. Press MENU to Exit

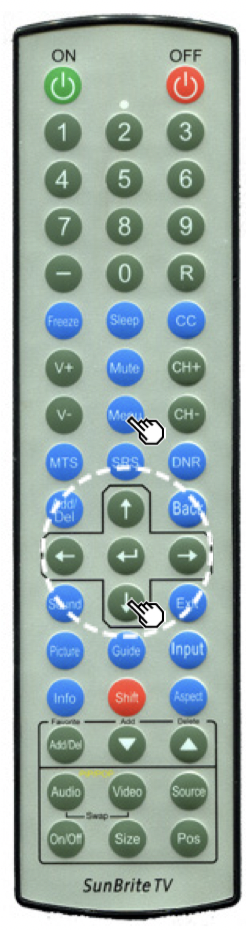

MENU OPERATION BUTTONS

Using the Remote Control

Use the following buttons on the remote control to operate the menu.

MENU: Press to open or close the menu screen.

: Press to select a desired item on the screen or adjust a selected item. ENTER: Press to go to the next step or complete the setting.

BACK: Press to return to the previous step.

Using the Control Panel Of The Tv

You can also operate the menu with the control panel of the TV.

Button operations on the control panel correspond to the ones on the remote control as shown below.

MENU: MENU on the remote control.

INPUT: ENTER on the remote control.

CH +/- : Cursor on the remote control.

VOL+/-: Cursor on the remote control.

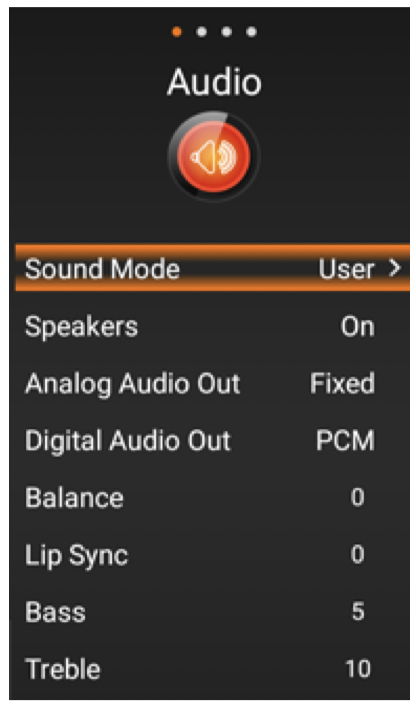

Audio

AUDIO

Note: For operating the on-screen display menu. See pages 24-26.

Sound Mode

Enter to select various sound mode presets

Movie/Music/Sport/User

Speakers

Turn the TV internal speakers on or off

Analog Audio Out

Set the output of the 3.5mm Analog Audio output. Fixed/Variable

Digital Audio Out

Set the output mode of the TosLink digital audio (Off/Dolby Digital/PCM) Balance Set the balance to the Left and Right speaker, default is 0 left and right equal output.

Lip Sync

Set this to adjust the audio delay related to video

Note: Bass and Treble adjustments available in User Audio preset only.

Bass

Adjust the low end audio frequency output (-12/+12) default 0

Treble

Adjust the high end audio frequency output (-12/+12) default 0

On-Screen DIsplay Menu


Note: For operating the on-screen display menu. See pages 24-26.

Picture Mode

Select Picture Mode Preset Settings (Standard/Movie/Vivid/Game/User/ PC)

Aspect

Select the aspect mode used when displaying various content (Normal/ Wide/Zoom/Stretch)

Color Temperature

Select the color temperature of the white areas in the video content (Natural/Warm/Computer/Cool)

Backlight

Set the backlight brightness (0-20)

Advanced Picture

Select this option to adjust various picture quality settings

ADVANCED PICTURE

Note: For operating the on-screen display menu. See pages 24-26.

Contrast

Adjust the picture contrast

Brightness

Adjust the picture brightness

Color

Adjust the color saturation of the picture

Tint

Adjust the tint of the picture

Sharpness

Adjust the sharpness of the picture, useful when source is high resolution PC or graphics

Motion Enhancer

Adjust the sharpness of the picture displaying high motion video content

Color Enhancement

Adjust the enhancement of overall picture color

Dynamic Contrast

Contrast is adjusted automatically based on content (Off/Low/Medium/ High)

Noise Reduction

Feature to remove digital artifacts contained in some video content (Off/ Low/Medium/High)

Local Dimming

Backlight is dimmed in zones based on content (Off/Low/Medium/High)

Low Latency

Select On to reduce video delay when gaming.

Gamma Adjustment

Adjust the correction to the light and dark areas of the picture (Default 2.2) (Range from 1.8 to 2.4)

Film Mode

When film content is detected, picture will be optimized. For best picture, set to Auto

LINK

Note: For operating the on-screen display menu. See pages 24-26.

Ethernet

Select to change the ethernet network type from DHCP(Dynamic) or Static

CEC Settings

Select to change Link CEC Control settings

HDMI (Mode)

Select 2.0 for EDID 2.0 full 4k, Select 1.4 for legacy EDID 1.4 4k/30 support Available only when HDMI input is selected

TV Mode

Select to change the tuner mode type (Antenna/Cable)

Auto Channel Scan

Select to scan and learn channels from the cable or antenna signal input.

Analog MTS

Select the default multichannel television sound used during a cable or antenna broadcast, Stereo, SAP or Mono. (default Stereo)

SYSTEM

Note: For operating the on-screen display menu. See pages 24-26.

Sleep Timer

Set the time for auto turn off of the TV (30/60/90/120/180 minutes)

Same function as remote sleep button.

Parental Controls

Available only when TV(Tuner) input is selected.

Default password is 0000 Select parental controls on TV channels based on the contents rating.

Closed Caption

Available only when TV(Tuner) input is selected.

Select options for displaying closed caption text on the content.

Quick Start

Enable allows the TV to start faster when the power on button is pressed. TV will use more power in this mode.

Must be enabled to fully enable IP control.

User Manual

Select this option to display the manual you are currently reading.

System Information

Displays detailed TV information, see page 4-21 for more details

Reset All Settings

Restore all TV settings to factory default

Note: For operating the on-screen display menu. See pages 24-26.

Model Name

SunBriteTV model number of your outdoor TV

Revision

Current firmware version

Input Source

Current source input selected

Video Timing

TBD

Content Frequency

Input source frame rate, 60(hz) is typical

Network Type

Ethernet - wired network connection to the rear RJ45 jack

IP Address

IPV4 network address assigned to the TV

Gateway

IPV4 network address of the local network gateway

Prefix Length

Number of bits in the subnet (24=255.255.255.0)

Pref. DNS

Preferred network name server

Alt. DNS

Alternate network name server

RJ45 MAC

Hardware address of the TV network adapter

Using LINK Operation

CONTROLLING HDMI EQUIPMENT USING LINK CEC OPERATION

What’s LINK Operation?

• Using the HDMI CEC (Consumer Electronics Control) protocol, with LINK Operation you can interactively operate compatible system equipment (Blu-ray disc equipment, AV amplifier, DVD).

• To access this function: System Operation > Initial Setup > Input Settings > Link Setup > Link Operation.

Note:

• For connecting the TV to LINK-compatible equipment, use commercially available cables.

• Point the remote control toward the TV, not to connected HDMI equipment.

• Video noise may occur depending on the type of HDMI cable used. Make sure to use an HDMI-certified cable.

• Up to 3 pieces of HDMI recording equipment and one AV amplifier can be connected using this system.

• These operations affect the HDMI equipment selected as the current input source. If the equipment does not operate, turn on the equipment and select the appropriate input source using INPUT.

• The LINK feature may not operate properly when an HDMI splitter or AV selector unit is used. These devices may cause interruptions to the image and/or sound.

Connected LINK-compatible devices can be operated without changing the settings of the remote control unit.

Control the Link-Compatible Audio System

Set the volume of LINK-compatible audio system.

Note:

• The steps in "LINK Setup" on page 41 need to be completed beforehand.

• Refer to this operation manual and the operation manual of the LINK device to be used with this TV.

LINK Setup

Make the settings to use LINK Operation. Set the settings with "Menu" > "Link" > "CEC Settings".

CEC Function

Select CEC Function to disable the LINK function even when a LINK-compatible HDMI device is connected to the TV. This function prevents the device from turning on or off unexpectedly due to a CEC command from the source device.

System Audio Control(ARC)

This function allows you to listen to the TV audio via audio equipment without using an optical fiber cable, which conventionally is required.

Requirements for using an ARC-compatible AV amplifier:

• ARC-compatible AV amplifier connected to the ARC-compatible HDMI terminal. (HDMI 2) (Refer to the operation manual of the ARC-compatible equipment for details.)

• Use of an ARC-compatible cable. Note:

• If the TV audio cannot be output from the AV amplifier even after making the necessary settings, connect the TV to the AV amplifier with an optical fiber cable and select "Off".

Auto Power On

If this is enabled and the source device has CEC enabled the TV will automatically turn on and plays back the content from the HDMI source.

Auto Power Off

If this is enabled and the source device has CEC enabled the TV will automatically turn on and plays back the content from the HDMI source.

Appendix

TV STAND

• Before detaching (or attaching) the stand, make sure to turn off the TV and unplug the AC cord.

1. Unfasten the four screws used to secure the stand in place.

Example:

2. Attach the stand to the TV.

If necessary secure the stand to the table surface before attaching to the TV. Secure the stand to the TV using all 4 screws as shown.

Note:

• Be sure to always carry the TV by two people holding it with two hands.

OPTIONAL SPEAKER BAR

The optional speaker bar and required adapter cable is not included in the purchase of a SunBrite TV. These accessories are available at SunBriteTV.com, local dealer or reseller. Before detaching (or attaching) the speaker, make sure to turn off the TV and unplug the AC cord.

1. Mount the speaker bar to the bottom of the Veranda Outdoor TV.

2. Attach the 4 conductor Din adapter to the speaker bar connector and then plug the 3.5mm plug inside the cable bay into the speaker bar output.

MOUNTING THE TV ON THE WALL

Standard dimensions for wall mount kits are shown below. Visit www.SunBriteTV.com for information on all available mounts.

55"

• The mounting means should be strong enough to bear the weight of the display.

• The wall mounting bracket should have UL or related approval

Cautions Regarding use in High and Low Temperature Environments

When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the front panel to malfunction.

Storage temperature: -24°F to +140°F (-31°C to +60°C)

CARING FOR THE LCD PANEL:

1. To clean the LCD Panel, turn the TV off and gently wipe the surface of the display panel with a water damp microfiber, cotton or flannel cloth. (Do not use tissues, rags, sponges or paper towels which may damage the screen or leave behind lint).

2. If the LCD panel is very dirty, mix equal parts of isopropyl alcohol and distilled water in a clean spray bottle, and spray the mixture onto a microfiber, cotton or flannel cloth (do not spray the solution directly on the panel) and gently wipe the panel clean.

3. Keep the TV covered with the optional SunBriteTV Outdoor Dust Cover when not in use.

• The fitted dust cover is designed to protect the LCD panel from harmful UV rays from direct sunlight, and keeps wind-blown objects from scratching the surface of the panel.

• To order a Dust Cover, contact your Authorized SunBrite dealer, SunBrite Customer Care at 866.357.8688, or visit sunbritetv.

Troubleshooting

TROUBLESHOOTING

Cautions Regarding Use In High And Low Temperature Environments

• When the unit is used in a low temperature space, the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the front panel to malfunction.

• Storage temperature: -4°F to +140°F (-20°C to +60°C)

TROUBLESHOOTING - ERROR MESSAGE
