www.lg.com
25UM55
25UB55
29UM55
29UB55
IPS LED Monitor (LED Monitor) Model List
Please read this manual carefully before operating
your set and retain it for future reference.
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
2
ENG
ENGLISH
Contents
CONTENTS
32 CUSTOMIZING SETTINGS

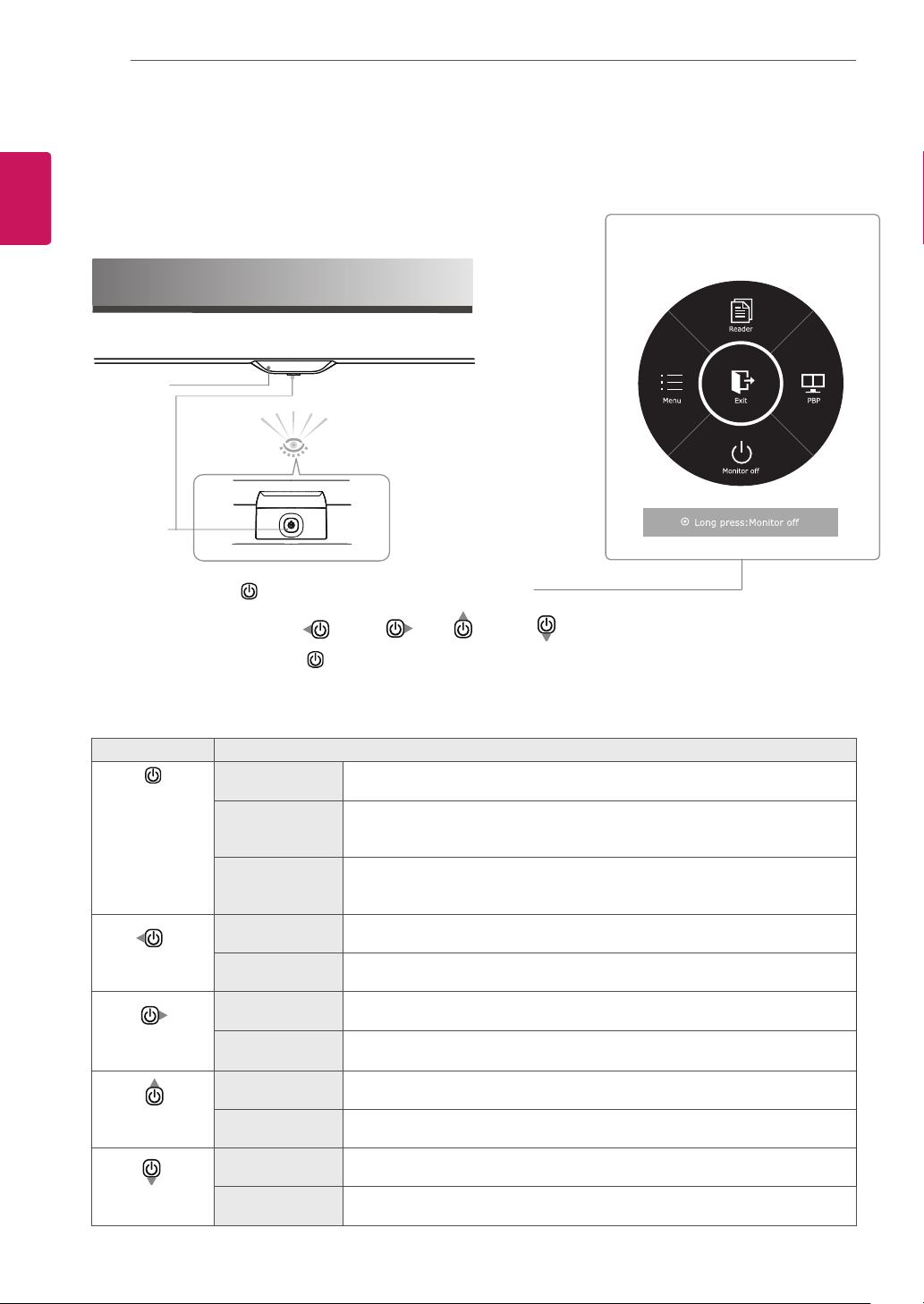

32 Activating the Main Menu
33 Customizing settings
33 - Menu Settings
33 - -Easy control
34 - -Function

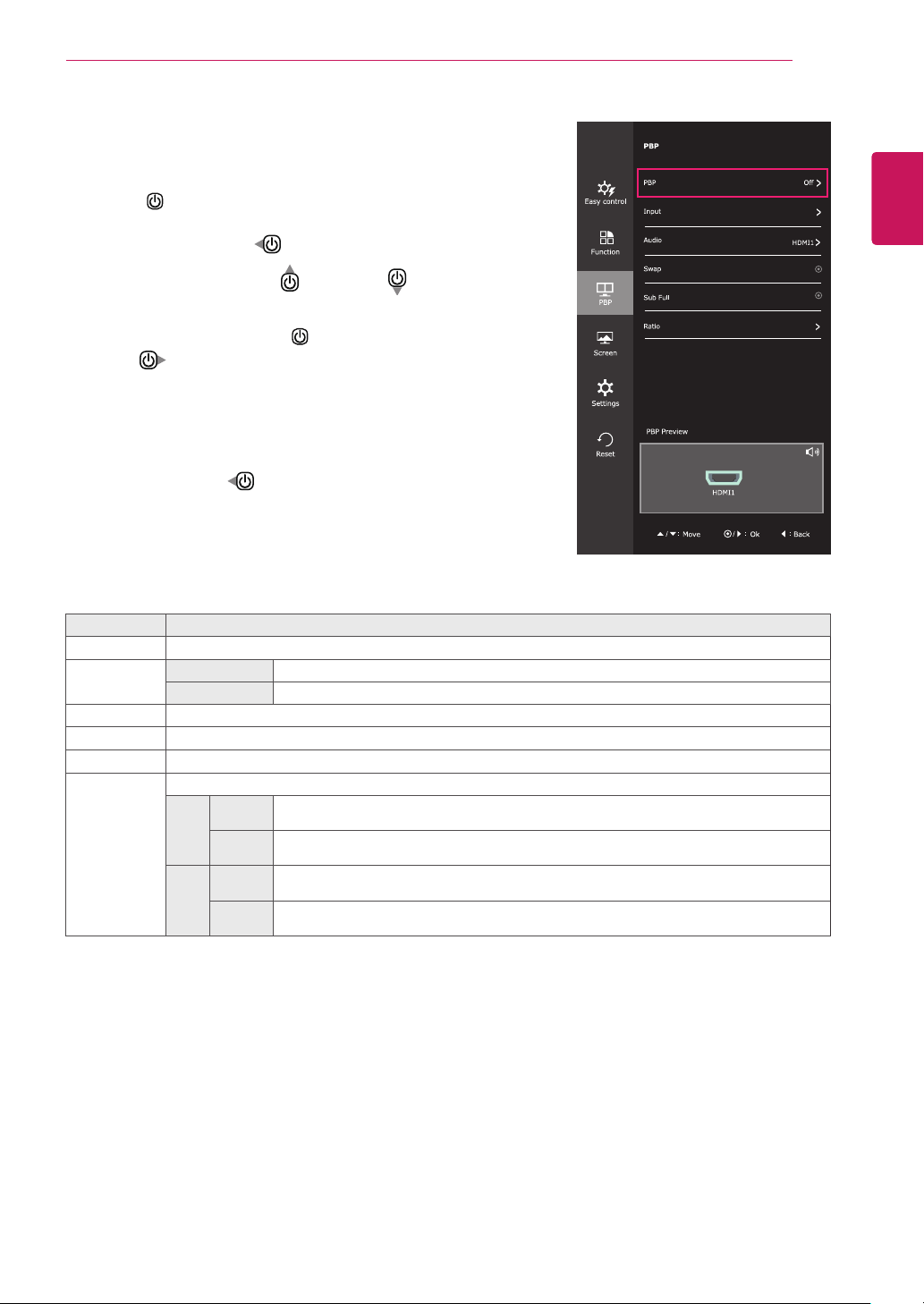

35 - -PBP
36 - -Screen
37 - -Settings
38 - -Reset
39 - Reader Settings
40 TROUBLESHOOTING
42 SPECIFICATIONS
42 25UM55
43 25UB55
44 29UM55
45 29UB55
46 Factory support mode
(Preset Mode, DVI-D/HDMI/PC
DisplayPort)
46 HDMI Timing (Video)
46 Power Indicator
47 PROPER POSTURE
47 Proper Posture for Using the Monitor
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Components
5 Component and Button Description
9 Moving and Lifting the Monitor
10 Installing the Monitor
10 - Assembling the stand base
13 - Using the cable holder
14 - Detaching the stand base
17 - Detaching the stand body
18 - Installing onto a table
19 - Adjusting the stand height
20 - Adjusting the angle
22 - Pivot feature
23 - Using the Kensington lock
23 - Installing the wall mount plate

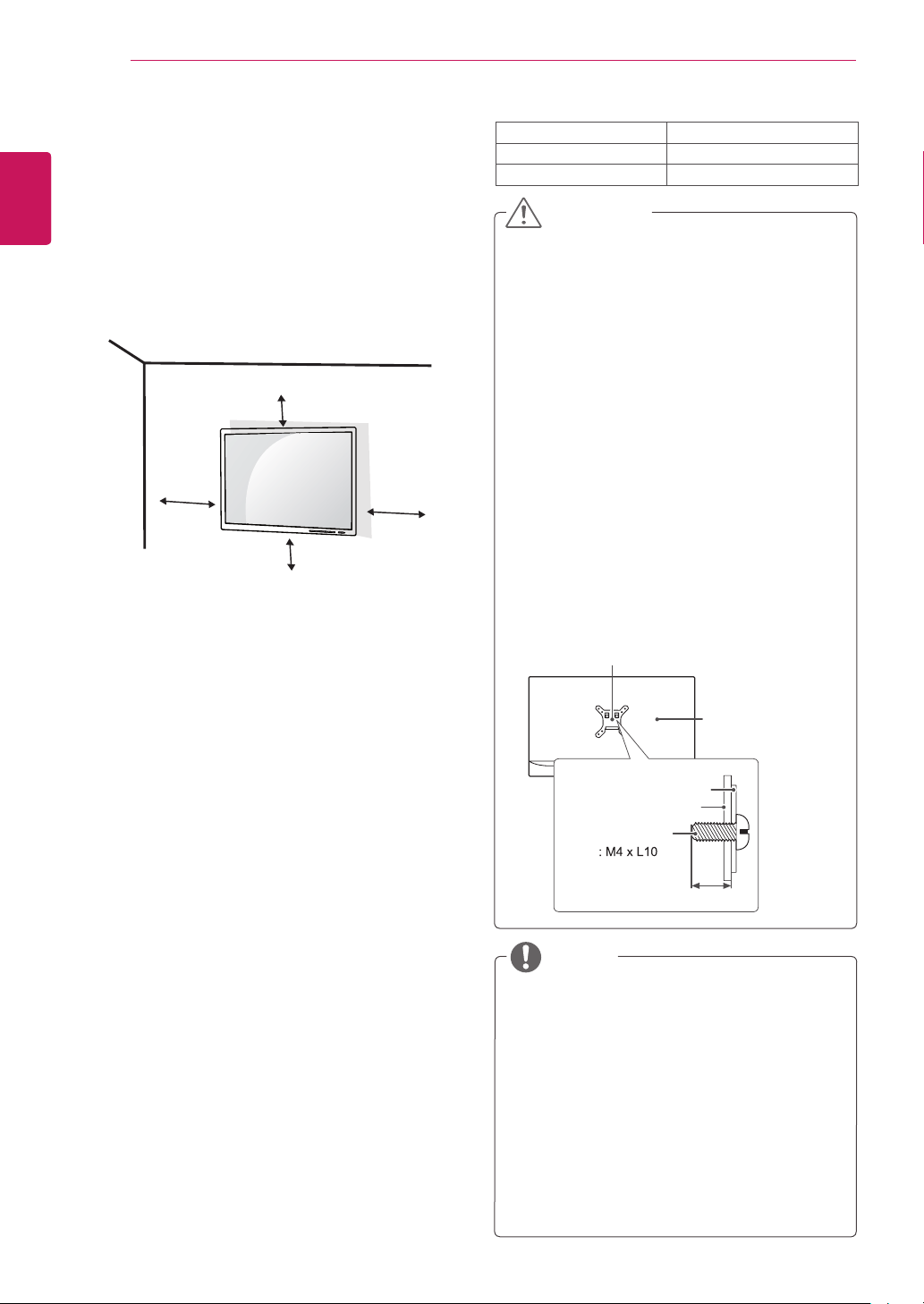

24 - Installing to a wall
25 USING THE MONITOR
25 Connecting to a PC
25 - DVI connection

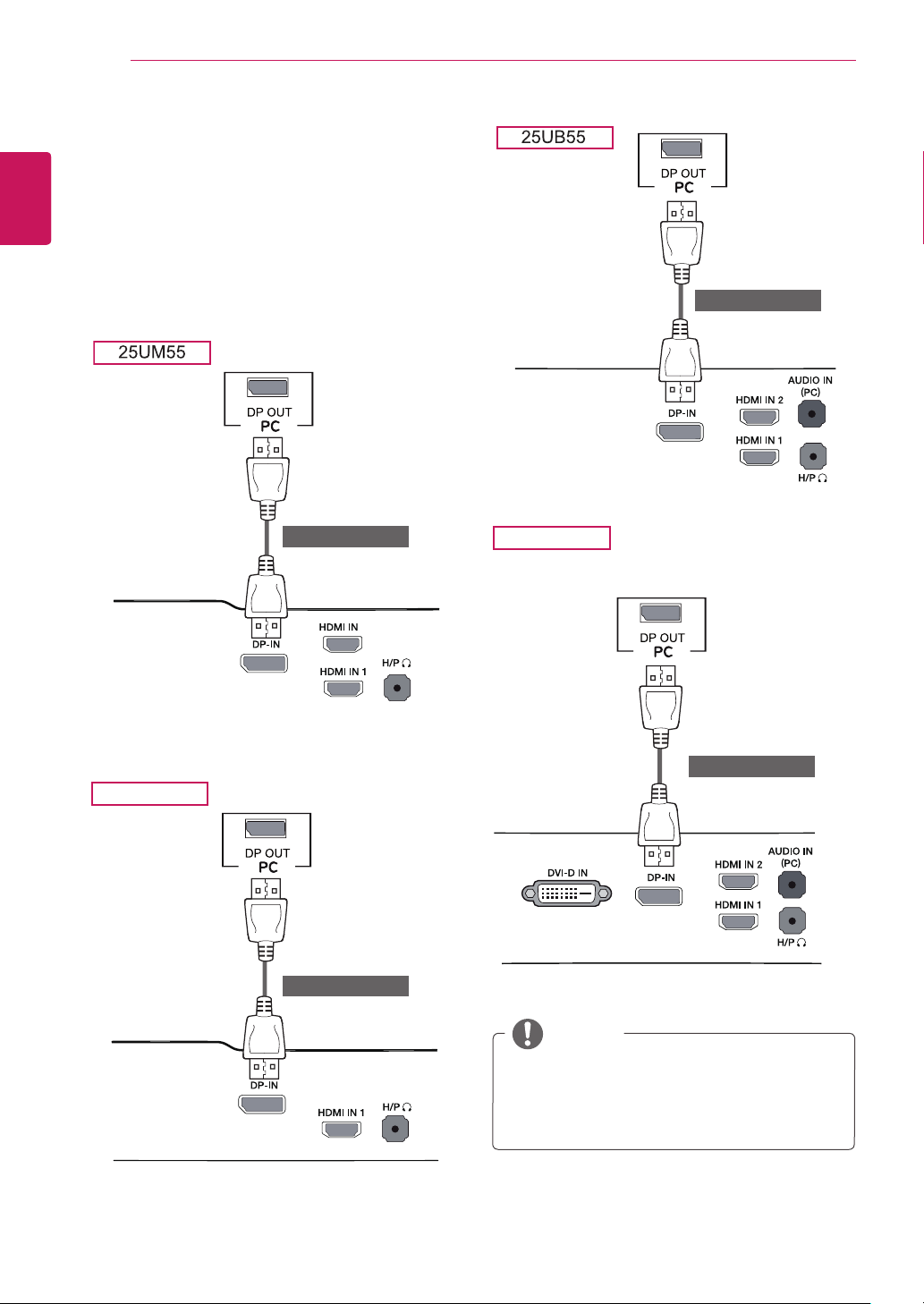

26 - DisplayPort connection

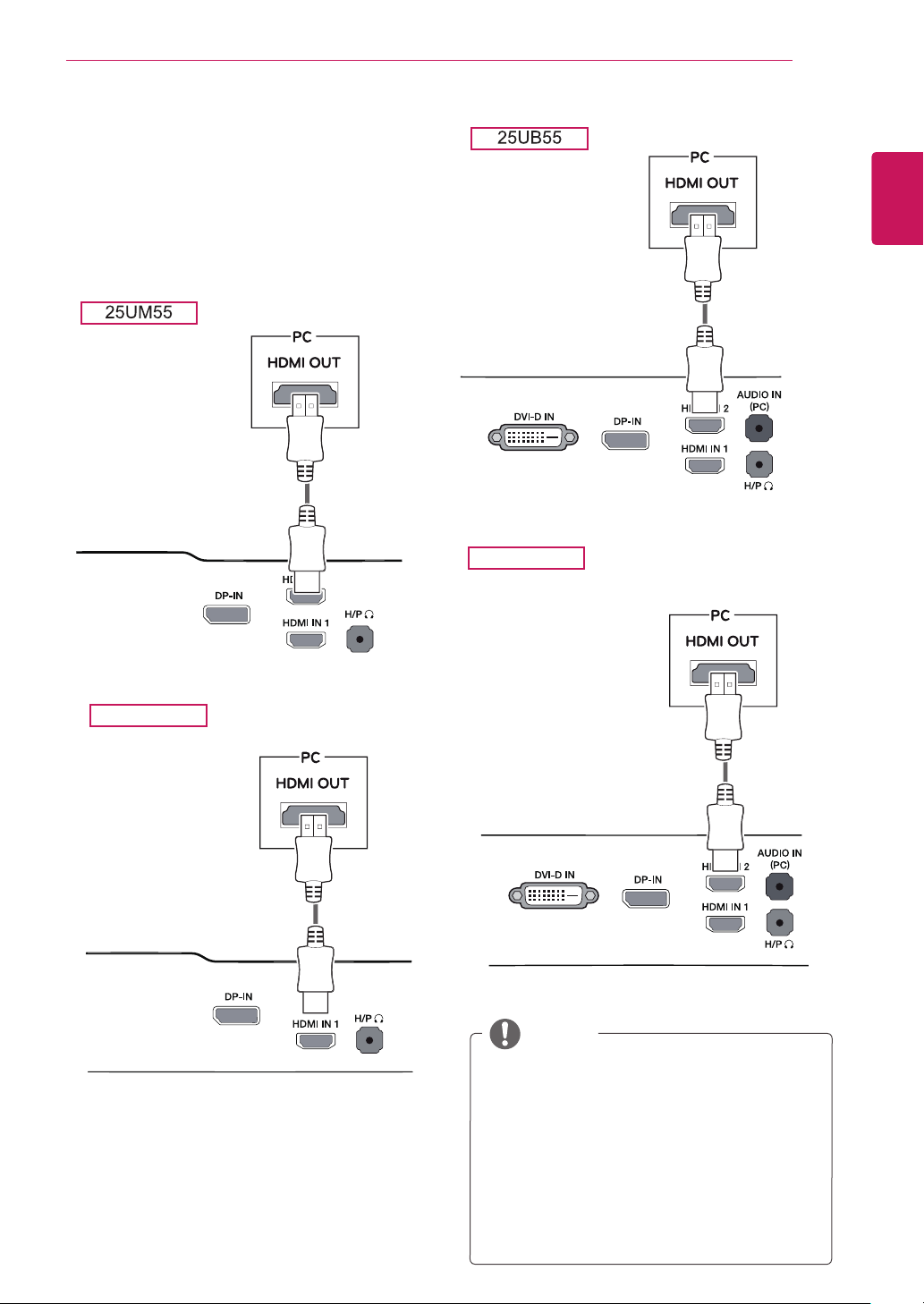

27 - HDMI connection
28 Connecting to AV Devices
28 - HDMI connection
29 Connecting to External Devices
29 - Headphone port connection

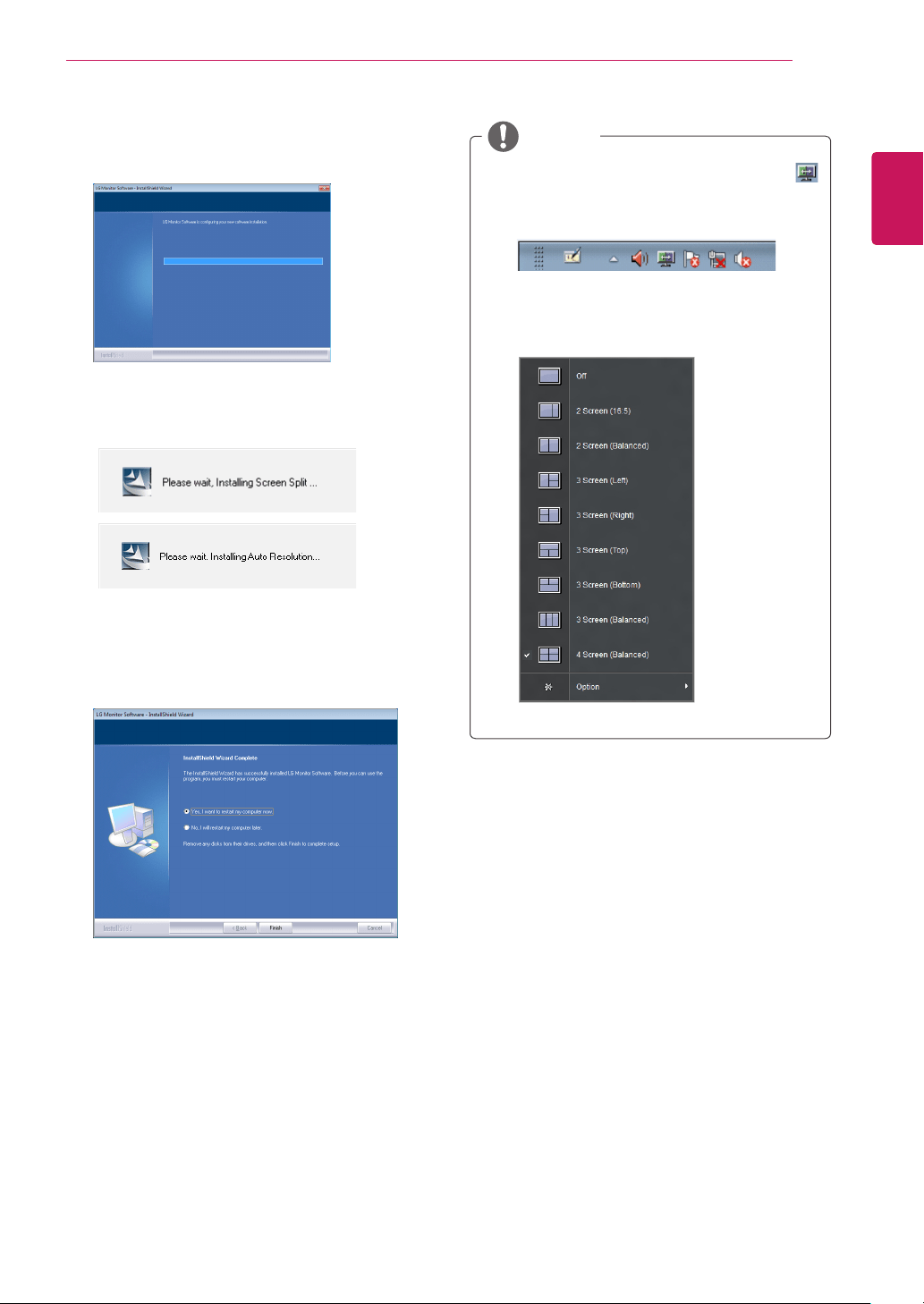

30 INSTALLING LG MONITOR
SOFTWARE
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-
ministrator, Inc.
VESA, VESA logo, DisplayPort Compliance Logo and DisplayPort
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet
the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.
y
The DisplayPort cable may not be available in some areas.
CAUTION
NOTE
User Manual/Card
OPTIONAL ACCESSORIES
y
The DisplayPort cable may not
be available in some areas.
DisplayPort Cable
Stand Base
Stand Base
Stand Body
Screw Cover
Screws
HDMI Cable
One Screw
Cable Holder
29UB5525UB55
Stand Base
Stand Body
Screw Cover
Screws
( Depending on the country )
( Depending on
the country )
Power Cord
AC-DC Adapter
AC-DC Adapter
or
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Component and Button Description
Power Indicator
y
On: power is on
y
Off: power is off
Ports
(Power Button)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

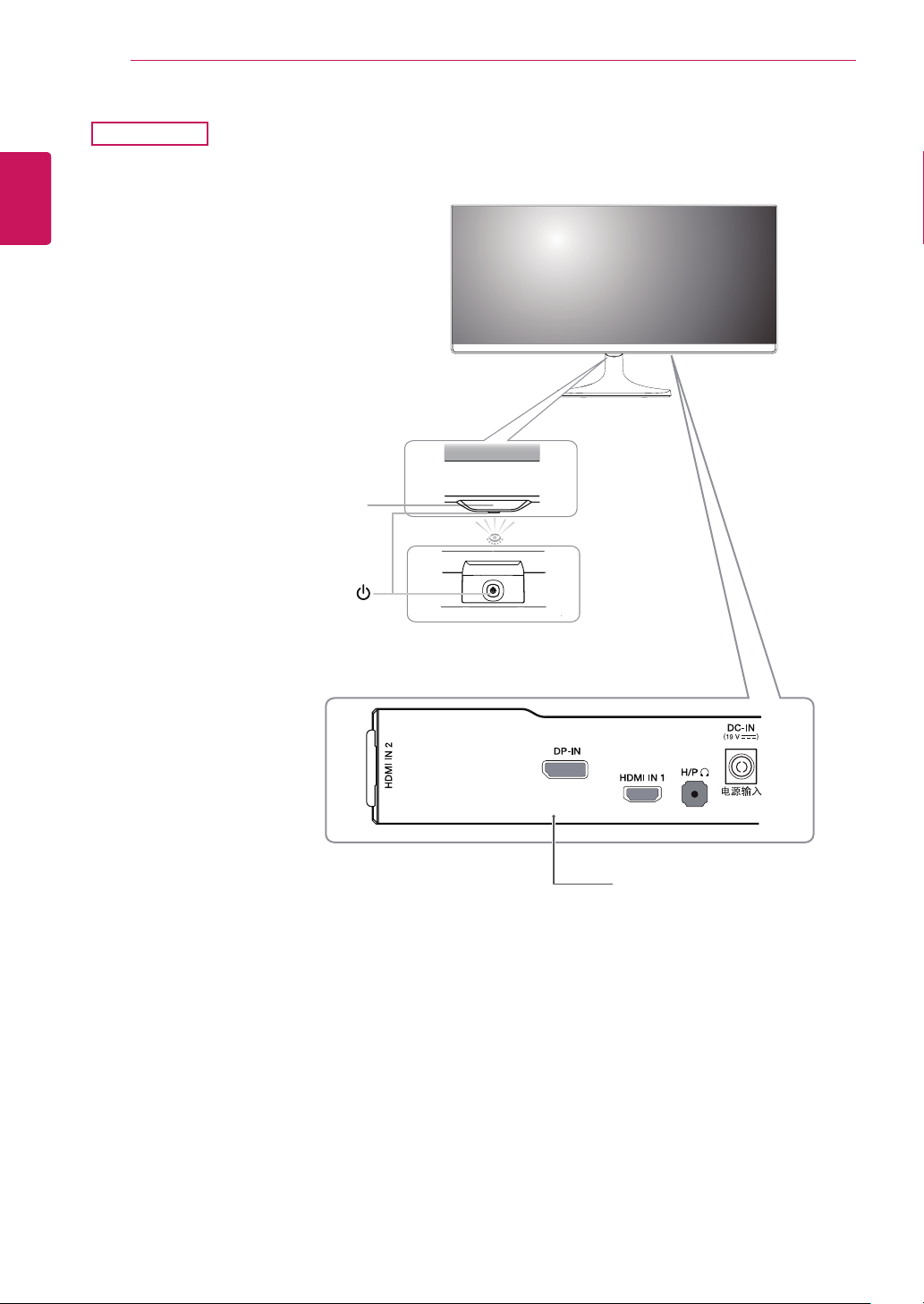

29UM55
Power Indicator
y
On: power is on
y
Off: power is off
Ports
(Power Button)
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
5 5
Power Indicator
y
On: power is on
y
Off: power is off
Ports
(Power Button)
Ports
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
29UB55
Power Indicator
y
On: power is on
y
Off: power is off
Ports
(Power Button)
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

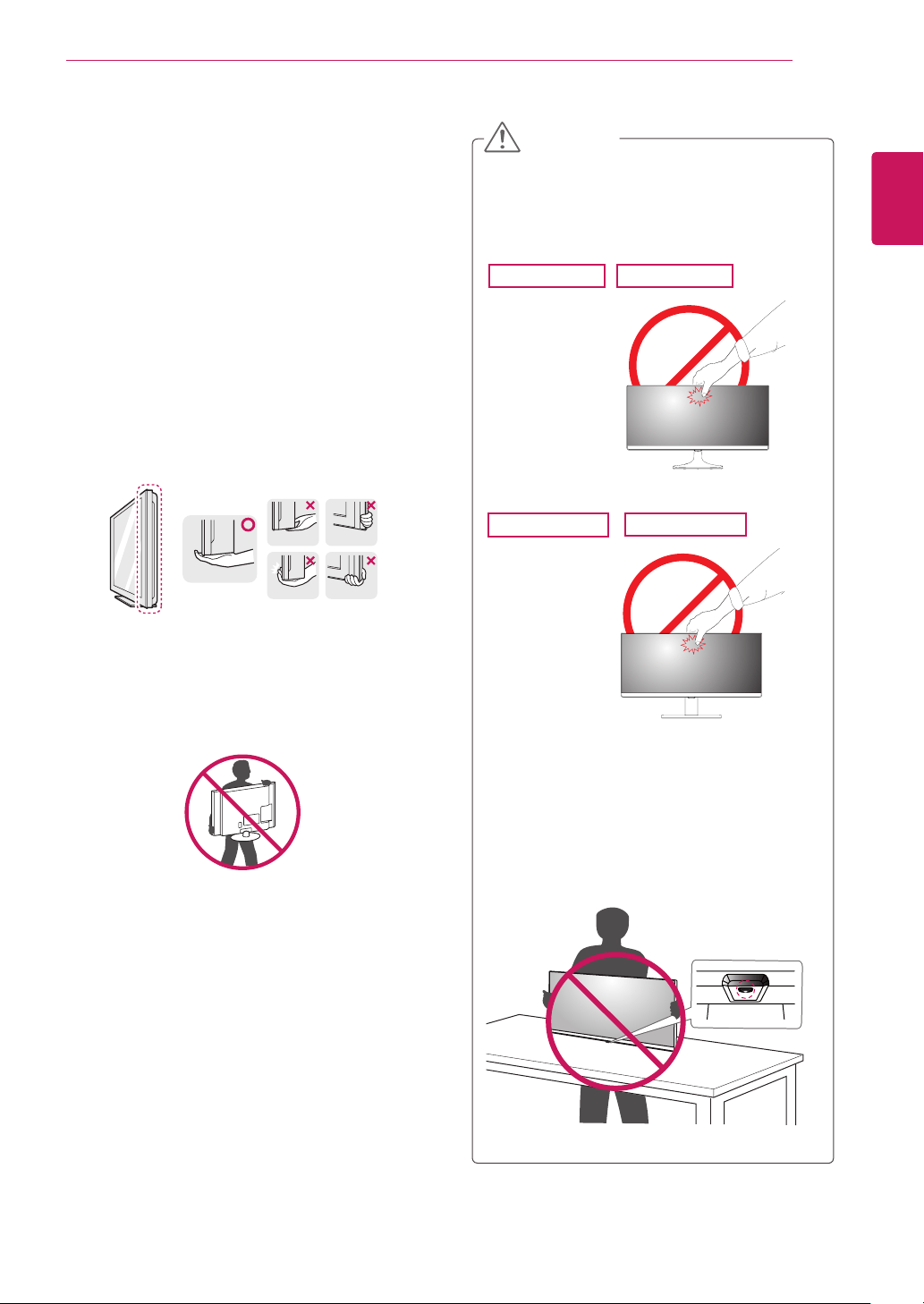

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
29UM5525UM55
25UB55
29UB55
y
If you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor

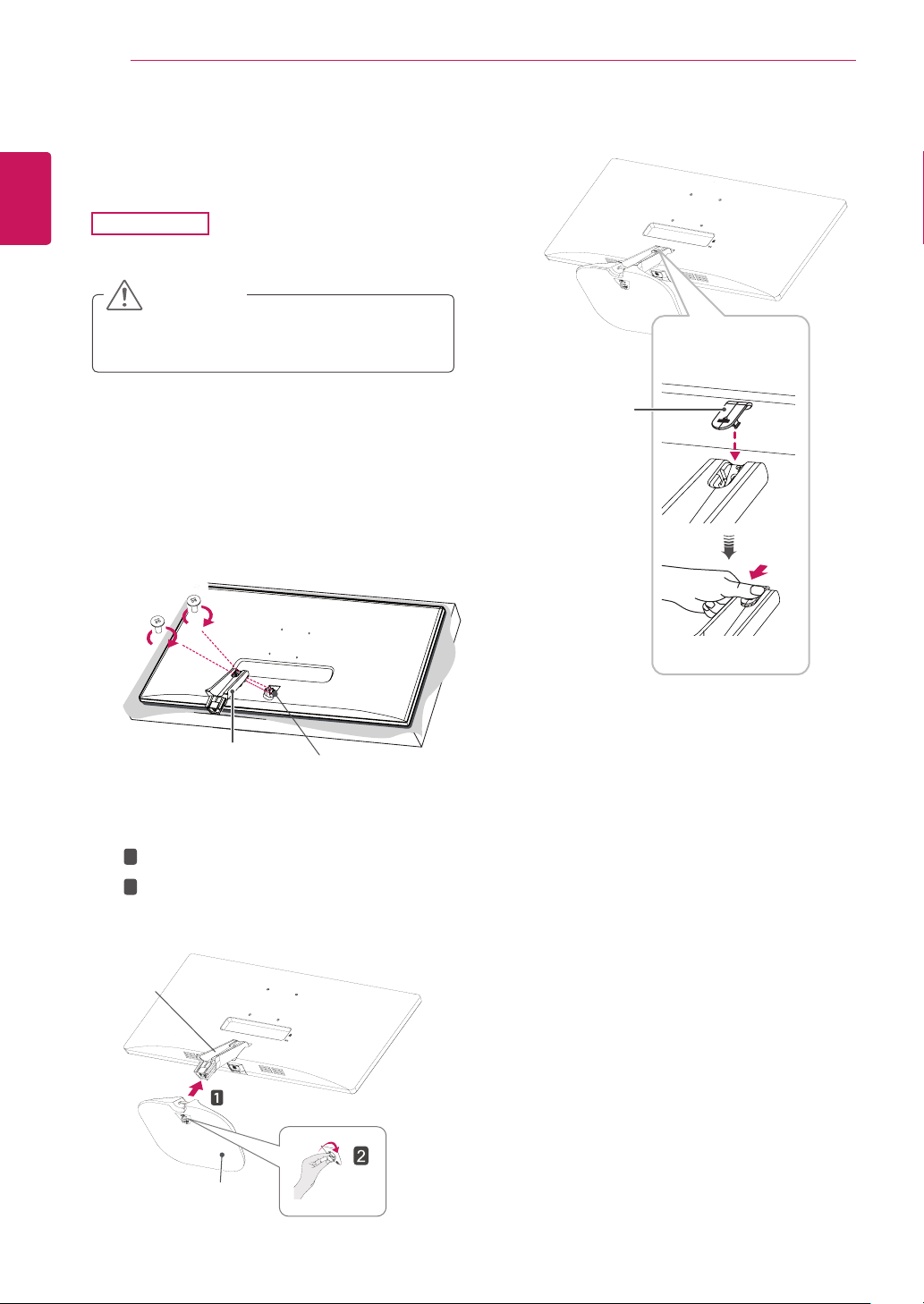

Assembling the stand base
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Check the direction of the stand body
(front, back) and then mount the stand body
onto the stand hinge.
Tighten two screws into the back of the stand
body .
1
Place the screen face down.
25UM55
3
4
Attach the screw cover.
Stand Body
Stand Body
Stand Base
Stand Hinge
Attach the
Stand Base
to
Stand Body
.
Tighten the screw to the right.
1
2
Screws
Screw Cover
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Check the direction of the stand body
(front, back) and then mount the stand body
onto the stand hinge.
Tighten two screws into the back of the stand
body .
1
Place the screen face down.
29UM55
Applying excessive force when tightening
the screws may cause damage to the moni-
tor. Damage caused in this way will not be
covered by the product warranty.
CAUTION
3
4
Attach the screw cover.
It may hurt your foot off the stand, so be
careful.
CAUTION
Stand Body
Stand Body
Stand Base
Stand Hinge
Attach the
Stand Base
to
Stand Body
.
Tighten the screw to the right.
1
2
Screws
Screw Cover
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
25UB55
Stand Base
Stand Body
3
Using a coin, turn the screw clockwise to se-
cure
the
stand base.
2
Check the
position (at the front and rear)
of
the stand body,
then
mount the
stand base
on
the
stand body
as shown in the figure.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
29UB55
Stand Base
Stand Body
3
Using a coin, turn the screw clockwise to se-
cure
the
stand base.
2
Check the
position (at the front and rear)
of
the stand body,
then
mount the
stand base
on
the
stand body
as shown in the figure.
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
25UB55

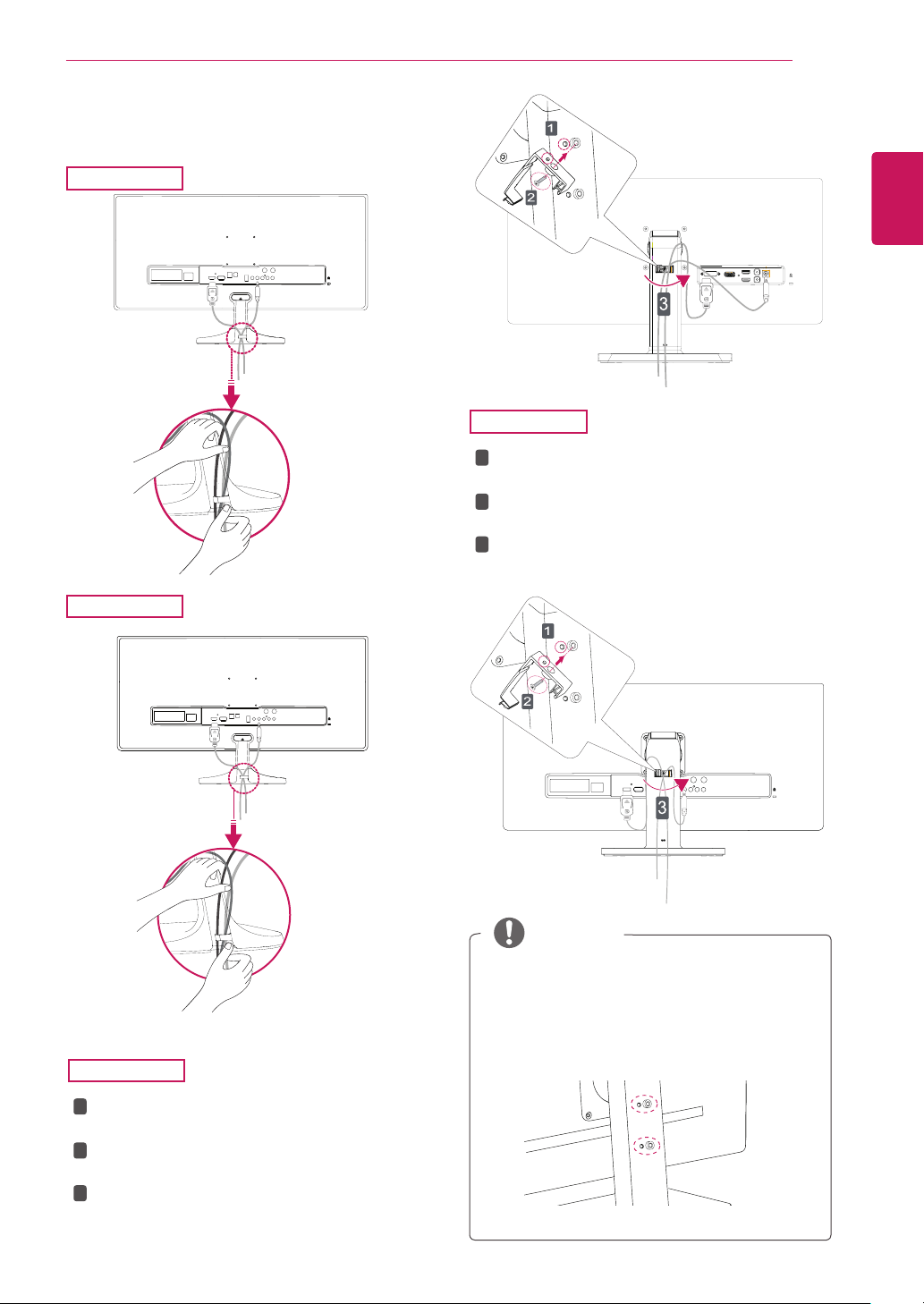

Using the cable holder
25UM55
Fix the Knob (Cable holder) to the
Hole(Stand Body).
1
2
3
Use one screw to fix the Cable Holder and
monitor set.
Close the Cable holder.
29UB55
29UM55
Fix the Knob (Cable holder) to the
Hole(Stand Body).
1
2
3
Use one screw to fix the Cable Holder and
monitor set.
Close the Cable holder.
y
The holes are used for wall mount bracket.
y
Varies depending upon your country or
model.
NOTE
ENG
ENGLISH
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand base
2
Remove the screw cover.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
25UM55
3
Remove the two screws on the back of stand
body
.
As shown in the illustration, disconnect the
stand body from the stand hinge.
Screw cover
Stand Body
Stand Base
Turn the screw to the left.
Pull out the
Stand Base
.
4
1
2
Screws
Stand Body
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
2
Remove the screw cover.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
y
Illustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
y
Do not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result
in personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. Applying force or
pressure may damage the monitor screen.
Instead, hold the stand body or the plastic
frame of the product.
CAUTION
1
Place the screen face down.
29UM55
3
Remove the two screws on the back of stand
body
.
As shown in the illustration, disconnect the
stand body from the stand hinge.
Stand Hinge
Screw cover
Stand Body
Stand Body
Stand Base
Turn the screw to the left.
Pull out the
Stand Base
.
4
1
2
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
25UB55
2
Turn the screw to the left using a coin.
Detach the
stand base
.
1
2
Stand Base
Stand Body
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
29UB55
y
The components in the illustrations may dif-
fer from the actual product.
y
Do not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
y
To avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
CAUTION
2
Turn the screw to the left using a coin.
Detach the
stand base
.
1
2
Stand Base
Stand Body
17
ENG
ENGLISH
ASSEMBLING AND PREPARING
29UB55
1
Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2
Using a screwdriver, remove the four screws
and detach the stand from the monitor.
25UB55
Detaching the stand body
1
Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2
Using a screwdriver, remove the four screws
and detach the stand from the monitor.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing onto a table
1
Lift the monitor and place it on the table in an
upright position.
Place at least
100 mm
away from the wall to
ensure sufficient ventilation.
2
Connect the adapter to the monitor, then plug
the power cord into the power outlet.
25UM55
25UB55
29UM55
29UB55
29UM55
29UB55
or
or
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
19
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Once the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
2
Remove the
tape attached to the bottom
back of the stand body and then pull out the
locking pin while pressing the head down-
ward.
3
The height can be adjusted up to
120.0 mm
.
y
Do not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
1
Stand the monitor assembled with the stand
base in an upright position
29UB55
130.0 mm
25UB55
29UB55
25UB55
120.0 mm
3
Press the (Power) button on the bottom of
the monitor to turn it on.
y
Unplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
29UM55
29UB55
or
or
The height can be adjusted up to
130.0 mm
.
20
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards
for a comfortable viewing experience.
29UM55
29UB55
02 5-
Front Side
Rear Side
Front Side
Rear Side
02 5-
-
Front Side
Rear Side
-
Front Side
Rear Side
21
ENG
ENGLISH
ASSEMBLING AND PREPARING

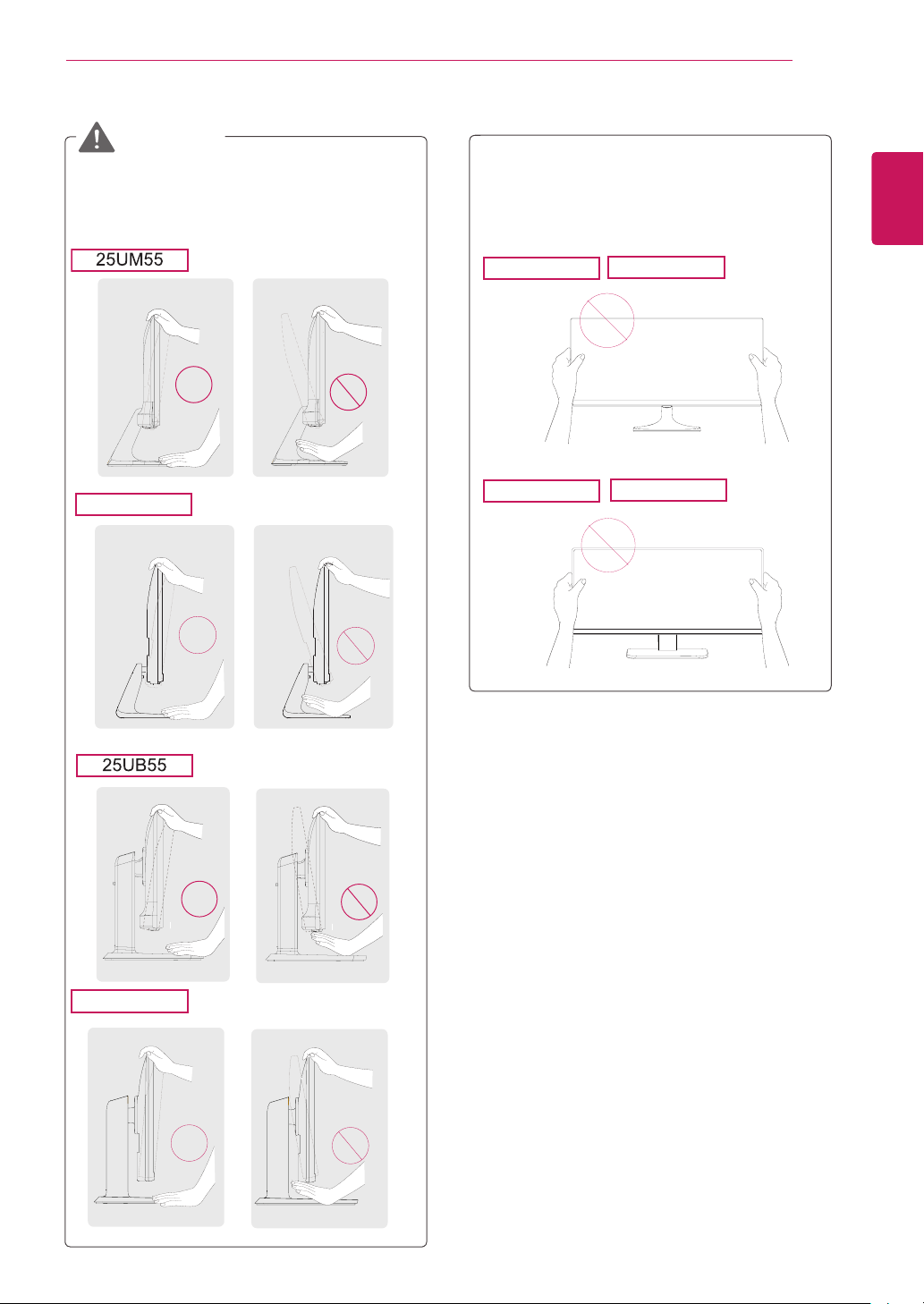

y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
WARNING
29UB55
29UM55
02 5-
02 5-
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
02 5-
29UM55
25UB55
02 5-
25UM55
29UB55
22
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
WARNING
Pivot feature
The pivot feature allows the monitor to rotate 90
clockwise.
25UB55
1
Raise the monitor up to the maximum height.
2
Adjust the angle of the monitor in the direction
of the arrow as shown in the figure.
3
Rotate the monitor clockwise as shown in the
figure.
4
Complete the installation by rotating the
monitor 90° as shown below.
y
Take care when rotating the monitor if the
cable is connected.
WARNING
y
An image displayed on the monitor's screen
does not rotate according to the screen
orientation.
NOTE
Head
Stand
23
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the wall mount plate
This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the wall mount plate onto the monitor
and align it with the screw holes.
3
Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
NOTE
y
Use of the Kensington lock is optional.
The accessories can be purchased at
your local electronics store.
NOTE
Using the Kensington lock
The Kensington security system connector is locat-
ed at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the Kensington security system cable
between the Monitor set and a table.
25UM55
25UB55
Wall Mount Plate
29UM55
29UB55
24
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Installing to a wall
Install the monitor at least 100 mm away from the
wall and leave about 100 mm of space at each
side of the monitor to ensure sufficient ventilation.
Detailed installation instructions can be obtained
from your local retail store. Please refer to the
manual to install and set up a tilting wall mounting
bracket.
y
Unplug the power cord before moving or in-
stalling the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Please use
the genuine LG wall mounting bracket. For
more information, contact your local retail
store or a qualified installer.
y
Applying excessive force when fastening
screws may cause damage to the moni-
tor. Damage caused in this way will not be
covered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA standard. Dam-
age caused by the use or misuse of inap-
propriate components will not be covered
by the product warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws specified by the VESA stan-
dard.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. The
accessories can be purchased at your local
retail store.
y
The length of the screw may differ for each
wall mounting bracket. Ensure the correct
length screw is used.
y
For more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
NOTE
Wall Mount (A x B)
75 x 75
Stand Screw
M4 x 10 mm
Required Screws
4
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max.8mm
100 mm
100 mm
100 mm
100 mm
25
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
DVI connection
Transmits digital video signals to the monitor. Con-
nect the monitor using the DVI cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
To hear the sound in DVI input mode, connect the
PC's AUDIO OUT port to the monitor's AUDIO IN
(PC) port using the audio cable that came with the
product.
y
Connect the input signal cable and
turn in the direction of the arrow.
To prevent disconnection secure
the cable tightly.
y
Do not press on the screen for a
prolonged period of time. This may cause
image distortion.
y
Do not display a still image on the screen
for a prolonged period of time. This may
cause image retention. If possible, use the
screen saver.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y
The monitor may flicker when turned on in an
area of low temperature. This is normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
25UB55
(sold separately)
(sold separately)
29UB55
26
ENG
ENGLISH
USING THE MONITOR
y
There may be no video or audio output de-
pending on the DP version of the PC.
y
The DisplayPort cable may not be available
in some areas.
DisplayPort connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the DisplayPort cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
NOTE
29UM55
29UB55
(sold separately)
(sold separately)
2
2
(sold separately)
(sold separately)
27
ENG
ENGLISH
USING THE MONITOR
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
NOTE
29UB55
29UM55
27
2
27
2
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
28
ENG
ENGLISH
USING THE MONITOR
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
29UM55
29UB55
2
2
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
29
ENG
ENGLISH
USING THE MONITOR
Connecting to External Devices
Headphone port connection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
29UM55
y
Depending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
NOTE
y
For an angle plug earphone, it is difficult
connect it with a peripheral device, so use a
straight type.
NOTE
Angle Type Straight Type
(sold separately)
29UB55
(sold separately)
(sold separately)
(sold separately)
30
ENG
ENGLISH
INSTALLING LG Monitor Software
INSTALLING LG MONITOR SOFTWARE
1
Set the default Web browser to Internet Explorer.
Insert the the owner's manual CD included in the product package into your PC's CD driver and install the
LG Monitor Software.
2
Click the "LG Monitor Software" on the CD's
main screen. When the file download window
appears, click the Run button. (The file down-
load window may vary depending on the oper-
ating system and the Internet Explorer version,
but the installation procedures are same.)
y
Service Pack 1 or higher is required for
Windows 7.
3
Follow the instructions to proceed with the
installation.
4
Check "I accept the terms of the agreement" on
the License Agreement screen and then click
the [Next] button.
y
Screen Split: This program automatically
splits the program window as desired.
This program not supported Windows XP.
y
Auto Resolution: This is a program that
automatically changes the resolution to the
optimal settings when connecting the monitor
to the PC in PBP mode.
This program is not supported in Clone
Mode.
Extended Mode is not supported when
using a single display.
This program not supported Windows XP &
Vista.
5
Select the program that you want to install.
NOTE
CAUTION
31
ENG
ENGLISH
INSTALLING LG Monitor Software
6
The LG Monitor Software installation starts as
shown below.
7
The program you selected on the Select
Features page will install automatically.
8
When the installation is complete, restart your
system.
NOTE
If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom of
the PC screen.
Right-click the Screen Split icon and select a
layout you want.
32
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Activating the Main Menu
Button Description
Press the power
button center.
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Close the navigation OSD.
(Long pressMonitor off, This turn off method can work in any condition. Even
though OSD Off.)
Power Indicator When the monitor is in operating mode, the power indicator will turn on. (powered
on).
When the monitor is in Sleep Mode, the power indicator will blinking.
Jog the power
button left.
If the menu is
disabled
Adjusts the volume level of the monitor.
If the menu is
enabled
Enter to Menu OSD.In no sync mode, enter Input change OSD.
Jog the power
button right.
If the menu is
disabled
Adjusts the volume level of the monitor.
If the menu is
enabled
Enter to PBP OSD.
Jog the power
button up.
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Enter to Reader OSD .
Jog the power
button down.
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Turn the Minitor off.
Navigation OSD
1
Press the Power( ) button, the navigation OSD appear.
2
Jog the Power button left (
), right (
), up (
), down (
) to adjust the options.
3
Press and hold the Power( ) button to exit the OSD menu.
Power Indicator
Power buttons
33
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Customizing settings
Menu Settings
-Easy control
1
To view the navigation OSD, press the Power button center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Press Power button center ( ) or Jog Power button right (
)
to select
Easy control
.
4
Set the options follow up the instruction appear on right bottom of
the screen.
5
To return to the upper menu or set other menu items, Jog the
Power left(
).
Menu > Easy control Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
Jog Power button down (
) in the Volume menu will enable/disable the
Mute function.
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
Cinema 1
Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9 including the black box area
at the bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.
NOTE
y
The display may look the same for Wide, Original and 1:1 options at the recommended resolution
(2560 x 1080).
y
The ratio is disabled in the interlaced signal.
34
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.

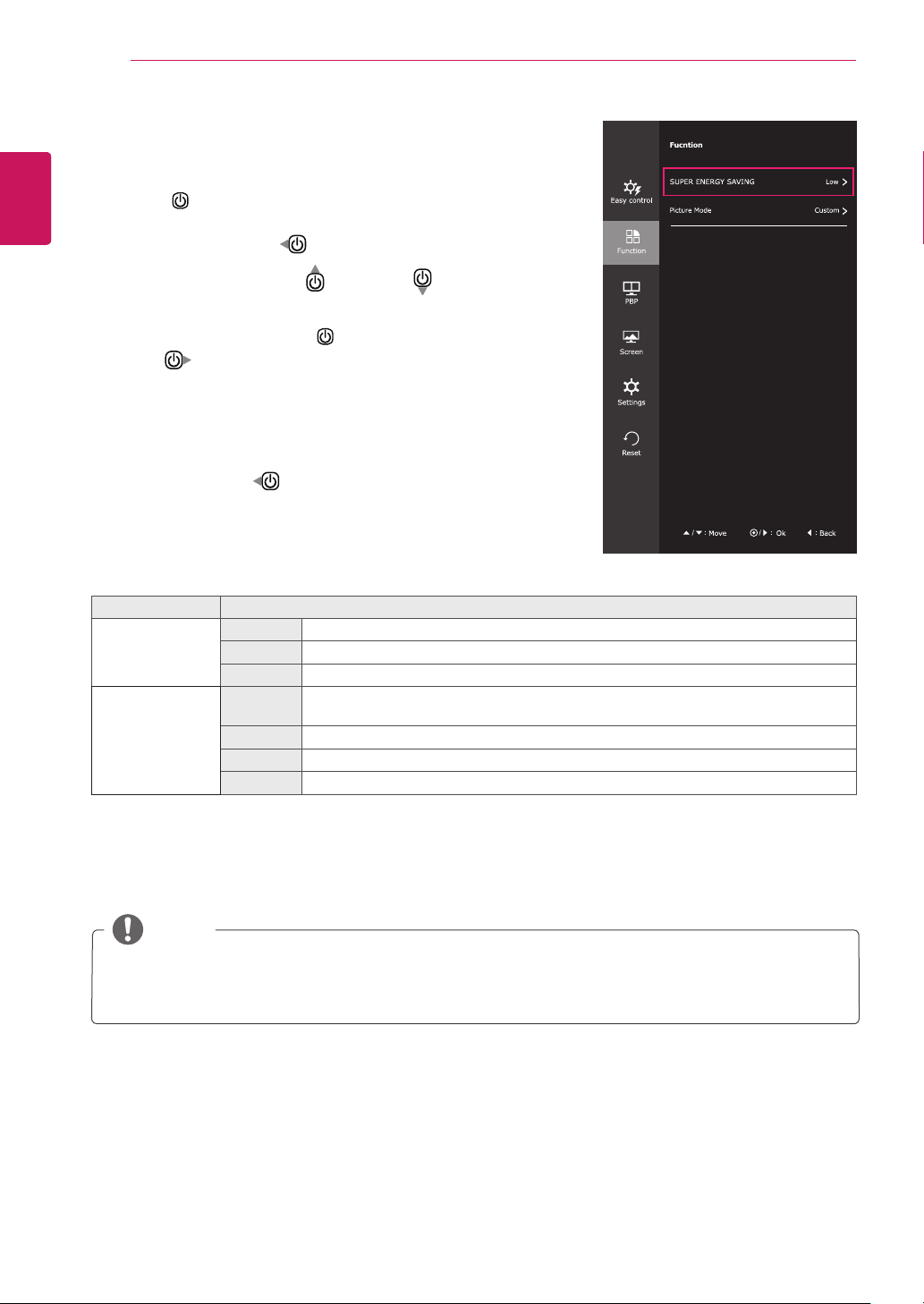

-Function
1
To view the navigation OSD, press the Power button
center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Jog the power button up(
) or down(
) to go
to
Function
.
4
Press Power button center ( ) or Jog Power button
right (
) to select
Function
.
5
Set the options follow up the instruction appear on
right bottom of the screen.
6
To return to the upper menu or set other menu items,
Jog the Power left(
).
Menu > Func. Description
SUPER ENERGY
SAVING
High
Saves energy by using the high-efficiency SUPER ENERGY SAVING function.
Low
Saves energy by using the low-efficiency SUPER ENERGY SAVING function.
Off
Disables the SUPER ENERGY SAVING function.
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-
justed.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Game Optimizes the screen for gameplay.
* SUPER ENERGY SAVING: Conserve energy by using luminance compensation algorithm.
y
The display may look the same for Wide, Original options at the recommended resolution (2560 x
1080).
y
The ratio is disabled in the interlaced signal.
NOTE
35
ENG
ENGLISH
CUSTOMIZING SETTINGS
-PBP
1
To view the navigation OSD, press the Power button
center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Jog the power button up(
) or down(
) to go
to
PBP
.
4
Press Power button center ( ) or Jog Power button
right (
) to select
PBP
.
5
Set the options follow up the instruction appear on
right bottom of the screen.
6
To return to the upper menu or set other menu items,
Jog the Power left(
).
Menu > PBP Description
PBP Displays the screens of two input modes on one monitor.
Input Main Displays the video in wide-screen, regardless of the video signal input.
Sub Displays a video according to the input video signal aspect ratio.
Audio Changes the audio output in PBP mode.
Swap Toggles between the main screen and sub screen in PBP mode.
Sub Full Converts the sub screen of PBP mode to the wide screen.
Ratio Adjusts the aspect ratio of the main screen or sub screen.
Main Wide
Displays the video to fit the Main screen, regardless of the video signal input.
Original
Displays the video in the input video signal aspect ratio on the Main screen.
Sub Wide
Displays the video to fit the Sub screen, regardless of the video signal input.
Original
Displays the video in the input video signal aspect ratio on the Sub screen.
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
-Screen
1
To view the navigation OSD, press the Power button
center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Jog the power button up(
) or down(
) to go
to
Screen
.
4
Press Power button center ( ) or Jog Power button
right (
) to select
Screen
.
5
Set the options follow up the instruction appear on
right bottom of the screen.
6
To return to the upper menu or set other menu items,
Jog the Power left(
).
Menu > Screen Description
Picture Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset:
as a reference for a video signal, this is the darkest color the monitor can
display.
High
The picture of the screen gets brighter.
Low
The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a nor-
mal environment, it is recommended that you use Normal. For a fast-moving picture, it is
recommended that you use High.
Setting to High may cause image sticking.
High
Sets the response time to High.
Middle
Sets the response time to Middle.
Low
Sets the response time to Low.
Off
Sets the response time to Off.
Color Gamma Custom gamma setting: When using the gamma 0, gamma 1, and gamma 2 monitor set-
tings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Custom
Red
Green
Blue
You can customize the picture color using Red, Green, and Blue colors.
Selects the factory default picture color.
Warm:
Sets the screen color to a reddish tone.
Medium:
Sets the screen color between a red and blue tone.
Cool:
Sets the screen color to a bluish tone.
Six Color Meets the user requirements for colors through adjusting the color and saturation of the
six colors(
Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_
Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yel-
low_Hue, Yellow_Saturation
) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the value, less satu-
rated and bright the colors become. The higher the value, the more saturated and dark the
colors become.
Reset Returns the color settings to the default settings.
37
ENG
ENGLISH
CUSTOMIZING SETTINGS
-Settings
1
To view the navigation OSD, press the Power button center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Jog the power button up(
) or down(
) to go to
Settings
.
4
Press Power button center ( ) or Jog Power button right (
)
to select
Settings
.
5
Set the options follow up the instruction appear on right bottom of
the screen.
6
To return to the upper menu or set other menu items, Jog the
Power left(
).
Each option is described below.
Menu > Settings Description
Main Audio Main audio have three options.HDMI1, HDMI2, DisplayPort. (25UM55/29UM55)
Main audio have four options.HDMI1, HDMI2, DisplayPort, Audio-In. (25UB55/29UB55)
Language Sets the menu screen to the desired language.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast,
Volume, Input, and Settings are disabled.
Off Key input is enabled.
38
ENG
ENGLISH
CUSTOMIZING SETTINGS
-Reset
1
To view the navigation OSD, press the Power button
center ( ) .
2
Jog Power button left (
) to go to
Menu
OSD .
3
Jog the power button up(
) or down(
) to go
to
Reset
.
4
Press Power button center ( ) or Jog Power button
right (
) to select
Reset
.
5
Set the options follow up the instruction appear on
right bottom of the screen.
6
To return to the upper menu or set other menu items,
Jog the Power left(
).
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
39
ENG
ENGLISH
CUSTOMIZING SETTINGS
Reader Settings
1
To view the navigation OSD, press the Power button center ( ) .
2
Jog Power button up (
) to go to
Reader
OSD.
3
Set the options follow up the instruction appear on bottom of the
screen.
Reader Mode
Description
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off It is a mode that reader mode is off.
Each option is described below.
40
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged in to the power outlet.
Is the power indicator on?
y
Check the power cable connection and press the power button.
Is the power indicator displaying ?
y
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
y
If the monitor is in Sleep Mode, move the mouse or press any key on
the keyboard to switch the display on.
y
Check if the computer is turned on.
Is the "OUT OF RANGE" message
displayed?
y
This occurs when signals transferred from the PC (video card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the "Product Specification" section of this manual to set the appropri-
ate frequency.
Is the "CHECK SIGNAL CONNEC-
TION" message is displayed?
y
This is displayed when the signal cable between the PC and the moni-
tor is missing or disconnected. Check the cable and reconnect.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y
Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
y
Vertical Frequency:
In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
y
Horizontal Frequency:
The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second can be calculated by dividing one by the hori-
zontal cycle. This is called horizontal frequency and is represented by kHz.
NOTE
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz, the screen
may be flickering. Change the resolution to the recommended
resolution 1080P.
41
ENG
ENGLISH
TROUBLESHOOTING
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in
Control Panel > Display > Settings
.
y
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
y
The configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
y
Some video cards may not support the 2560x1080 resolution.
If the resolution cannot be displayed, contact the manufacturer of your video card.
NOTE
The display color is abnormal.
Does the display appear discolored
(16 color)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
Does the display color appear un-
stable or in monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
42
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2286 mm x 0.2286 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DP/HDMI :56Hz~75Hz
Synchronization Separate Sync.
Input Connector HDMI IN1, HDMI IN2 , DisplayPort, H/P
Power Voltage 19 V
1.6 A
Power consumption (Typ.)
On mode: 24 W (ENERGY STAR
®
standard)
*
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
AC/DC adaptor ADS-40SG-19-3 19032G type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPG-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPBR-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPI-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPCU-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or LCAP21A type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-A type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-E type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-I type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-B type, LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
1.7 A
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 609 mm x 383 mm x 188 mm
Without Stand 609 mm x 287 mm x 55 mm
Weight (Without
Packaging)
4.0 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR
®
test standard.
* ENERGY STAR
®
is a US registered mark of the United States Environmental Protection Agency.
25UM55
43
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2286 mm x 0.2286 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI/DP/HDMI: 56Hz to 75Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2 , DisplayPort, Audio In(PC), H/P
Power Voltage 19 V
1.6 A
Power consumption (Typ.)
On mode: 24 W (ENERGY STAR
®
standard)
*
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
AC/DC adaptor ADS-40SG-19-3 19032G type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPG-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPBR-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPI-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or ADS-40FSG-19 19032GPCU-1 type, SHENZHEN HONOR ELECTRONIC CO.,LTD production
Or LCAP21A type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-A type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-E type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-I type, LIEN CHANG ELECTRONIC ENTERPRISE production
Or LCAP26A-B type, LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
1.7 A
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
Speaker Wattage 3 W + 3 W
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 609 mm x 357 mm x 239 mm
Without Stand 609 mm x 287 mm x 55 mm
Weight (Without
Packaging)
4.9 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR
®
test standard.
* ENERGY STAR
®
is a US registered mark of the United States Environmental Protection Agency.
25UB55
44
ENG
ENGLISH
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2628 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DP:50 Hz to 75 Hz HDMI: 25 Hz to 60 Hz
Synchronization Separate Sync.
Input Connector HDMI IN1, HDMI IN2 , DisplayPort, H/P
Power Voltage 19 V
2.0 A
Power consumption (Typ.)
On mode: 31 W (ENERGY STAR
®
standard)
*
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
AC/DC adaptor ADS-45SN-19-3 19040G type, SHENZHEN HONOR ELECTRONIC CO.,LTD produc-
tion
Or LCAP21B type, LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
2.1 A
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 70.3 cm x 41.4 cm x 21.3 cm
Without Stand 70.3 cm x 32.8 cm x 6.4 cm
Weight (Without
Packaging)
5.2 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR
®
test standard.
* ENERGY STAR
®
is a US registered mark of the United States Environmental Protection Agency.
29UM55
SPECIFICATIONS
45
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2628 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI/DP:50 Hz to 75 Hz HDMI: 25 Hz to 60 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2 , DisplayPort, Audio In(PC), H/P
Power Voltage 19 V
2.0 A
Power consumption (Typ.)
On mode: 31.9 W Typ. (Outgoing condition) *
Sleep Mode ≤ 0.5 W **
Off Mode ≤ 0.5 W
AC/DC adaptor ADS-45SN-19-3 19040G type, SHENZHEN HONOR ELECTRONIC CO.,LTD produc-
tion
Or LCAP21B type, LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
2.1 A
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
Speaker Wattage 5 W + 5 W
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 70.3 cm x 37.7 cm x 25.9 cm
Without Stand 70.3 cm x 32.8 cm x 4.3 cm
Weight (Without
Packaging)
6.3 kg
The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern , Maximum
resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes)
29UB55
46
ENG
ENGLISH
SPECIFICATIONS
Factory support mode
(Preset Mode, DVI-D/HDMI/PC DisplayPort)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.290 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
HDMI Timing (Video)
Preset Mode
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Remarks
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080P 56.25 50
1080P 67.50 60
Power Indicator
Mode LED Color
On Mode
Light On
Sleep Mode
Blinking
Off Mode Off
47
ENG
ENGLISH
PROPER POSTURE
PROPER POSTURE

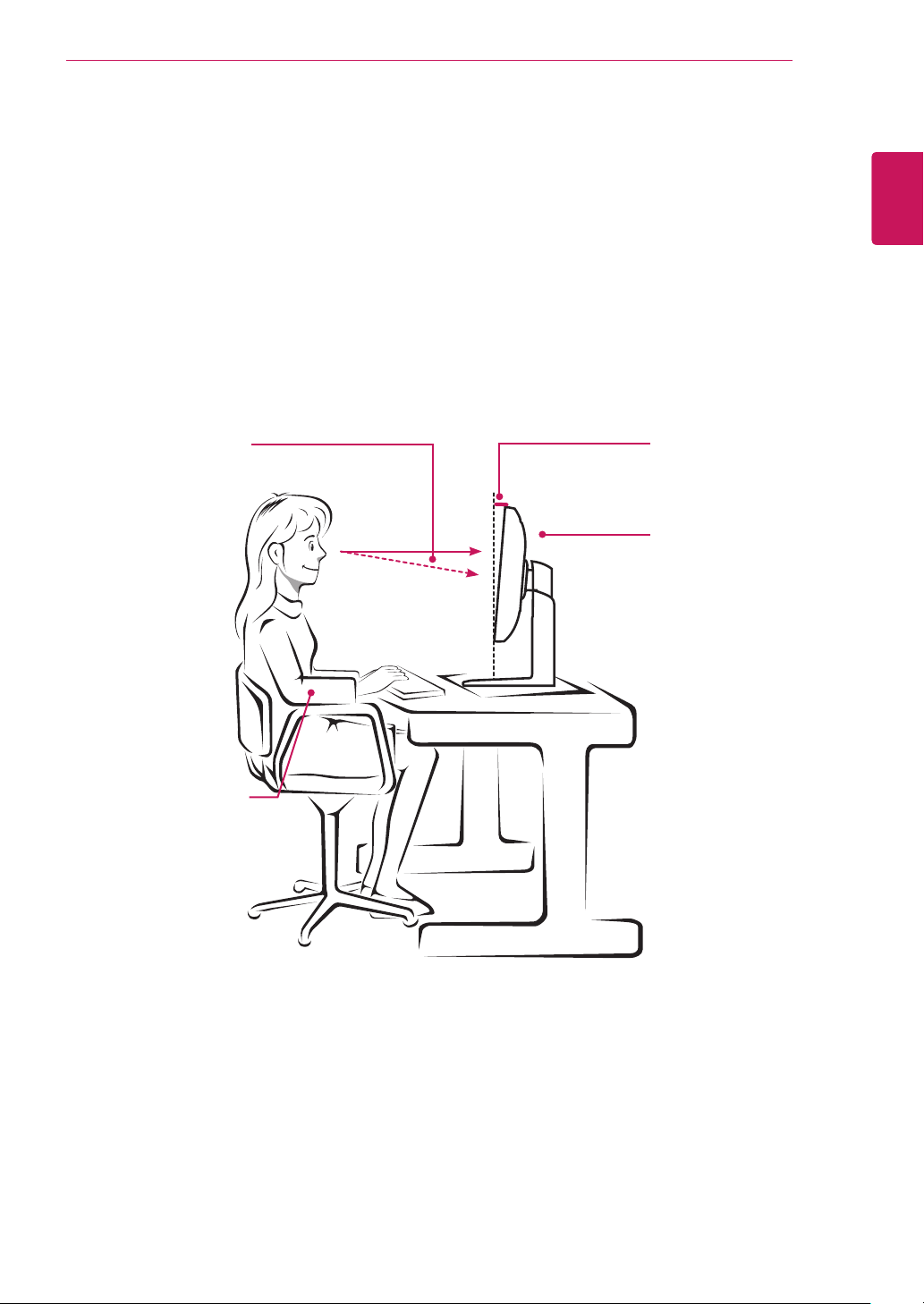

Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably view at a slight downward angle from your natural eye level.
y
Take a break for approximately ten minutes every hour to reduce any fatigue caused by long-time
usage.
y
The stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle to obtain the best view of the screen.
You should be looking
slightly down at the screen.
Place your hands gently on
the keyboard, keeping your
arms bent at the elbows and
extended horizontally in front
of you.
Adjust the angle
So that there is no reflection
or glare from the screen.
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of the
SET. Record it below should you ever need
service.
MODEL
SERIAL
