YACHT-MASTER
OYSTER PERPETUAL
WEARING THE WATCH
FOR THE FIRST TIME
Before being worn for the first time, or if it has
stopped, a Rolex watch must be wound manually
in order to function correctly and precisely.
Towind the watch manually, unscrew the winding
crown completely, then turn it several times
clockwise. (Turning in the other direction has
noeffect.) A minimum of 25turns is required for
adequate partial winding. The watch will then
bewound automatically as long as it is worn on
the wrist. Carefully screw the crown back down
against the case to ensure waterproofness.
The green seal accompanying your
Rolex watch is a symbol of its status
as a Superlative Chronometer. This
exclusive designation attests that it
has successfully undergone a series of
specific final controls by Rolex in its own
laboratories in addition to the official
COSC certification of its movement.
This unique testing of its chronometric
precision, waterproofness, self-winding
and reliability pushes back the
boundaries of performance and makes
Rolex a benchmark for excellence
in mechanical watches. For further
information, please visit rolex.com.
THE HEART OF THE YACHT-MASTER MODEL
OYSTER PERPETUAL YACHT-MASTER 4-5
USING YOUR WATCH
OVERVIEW 6-7
SETTING THE WATCH 8-11
EASYLINK COMFORT EXTENSION LINK 12-13
OYSTERLOCK CLASP WITH ROLEX GLIDELOCK FINE-ADJUSTMENT SYSTEM 14-15
ROLEX SERVICE
CARING FOR YOUR ROLEX 16-17
AFTER-SALES SERVICE 18-19
WORLDWIDE SERVICE NETWORK 20
ROLEX.COM
21
5
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
OYSTER PERPETUAL
YACHT-MASTER
Elegant, sporty, and distinguished, the
Oyster Perpetual Yacht-Master symbolizes
the privileged ties between Rolex and
the world of sailing. Its bidirectional
rotatable 60-minute graduated bezel
enables the wearer to easily calculate
elapsed time on the water. Its qualities
make the watch an ideal instrument
for yachting enthusiasts.
Its dial offers exceptional legibility thanks
tothe Chromalight hour markers and
hands filled with a luminescent material
emitting a long-lasting blueglow.
Its case, guaranteed waterproof to a depth
of 100 metres (330 feet), is a paragon
of robustness and reliability. The
Triplock winding crown, with a triple
waterproofness system, is protected
bya crown guard that is an integral
part ofthe middle case. The sapphire
crystal, with a Cyclops lens at 3 o’clock,
is virtually scratchproof.
The Oyster Perpetual Yacht-Master is
equipped with a self-winding mechanical
movement, entirely manufactured
byRolex.
6
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE

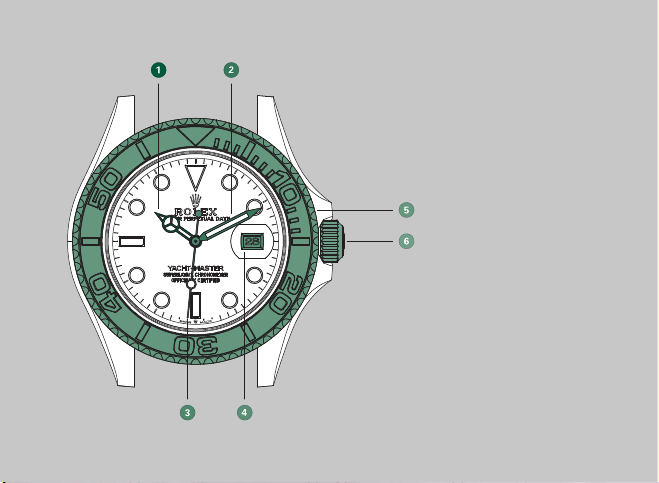

OVERVIEW
Hour hand
Minute hand
Seconds hand
Date window
60-minute graduated bidirectional
rotatable bezel
Triplock winding crown with
triple waterproofness system
8
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
SETTING THE WATCH
Screwed-down position (position 0)
The crown is completely screwed down
against the case. When the crown
is in this position, the Oyster Perpetual
Yacht-Master is guaranteed waterproof
to a depth of 100 metres (330 feet).
Manual winding (position 1)
The crown is unscrewed. To wind
the
watch manually, turn the crown
clockwise; turning in the other direction
has no effect.
When setting the watch
for the first time or after the watch
has stopped, complete a minimum
of 25turns for partial winding.

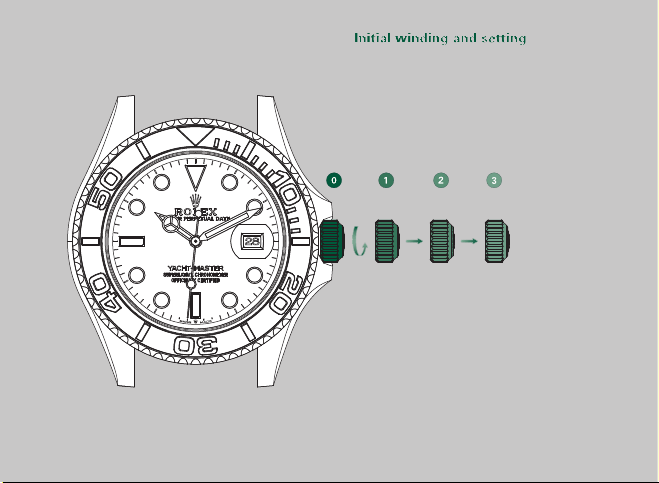

Initial winding and setting
Initial winding and setting
A.
Wind the watch manually (see page 8).
B. Set the time by turning the hands
clockwise and noting the date
change at midnight (see pages 10-11).
C. Set the date (see pages 10-11).
Unscrew and then pull out
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
10
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
Setting the date (position 2)
The crown is unscrewed and pulled out
to the first notch.
To set the date, turn the winding
crown clockwise or counterclockwise
depending on the model. Turning
in the other direction has no effect or
will manually wind the watch.
During this operation, the watch
continues to function.
Setting the time (position 3)
The crown is unscrewed and pulled out
to the second notch. The seconds hand
is
stopped, allowing you to set the time
to the precise second. To set the hour
and
minute, turn the crown in either
direction. To avoid confusion between
a.m. and p.m. hours, move the hour
hand to 12 o’clock. If the date changes,
it ismidnight.
Unscrew and then pull out
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
12
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
EASYLINK COMFORT
EXTENSION LINK
To ensure optimal comfort when wearing
your watch in any circumstances, Rolex
created the Easylink comfort extension
link, which is available on some models.
Its exclusive design, which was patented,
allows the length of the bracelet to
be adjusted by approximately 5 mm,
without the use of tools.

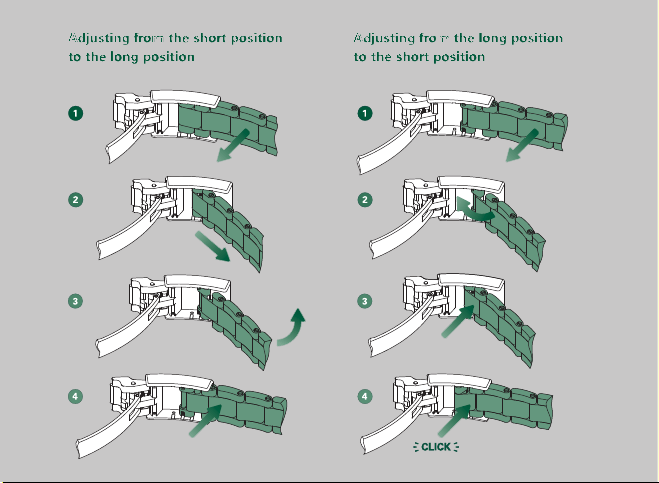

Adjusting from the short position
Adjusting from the short position
to the long position
to the long position
Adjusting from the long position
Adjusting from the long position
to the short position
to the short position
14
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
OYSTERLOCK CLASP WITH ROLEX
GLIDELOCK FINE-ADJUSTMENT SYSTEM
Available on some models, the
Rolex Glidelock system enables the
bracelet length to be adjusted in
approximately 2.5 mm increments
up to around 15 mm.

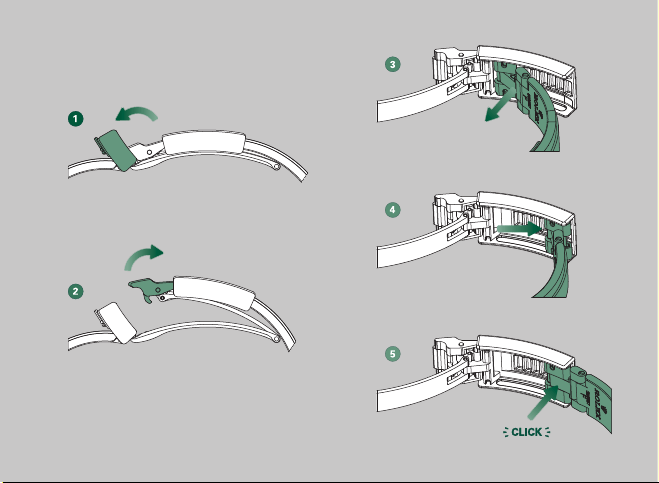

Adjusting the bracelet
Open the safety catch
Open the clasp
Pull on the bracelet to release it
from the notch in the rack
Adjust the position of the bracelet
to the desired length
Lock down the bracelet
16
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
CARING FOR
YOUR ROLEX
Thanks to Rolex expertise, your watch
will require very little day-to-day care.
You can help preserve its lustre by
cleaning it occasionally with a microfibre
cloth. You can also wash the case and
bracelet from time to time using soapy
water and a soft brush. After wearing
your watch in the sea, it is important to
rinse it with fresh water to remove any
salt and sand deposits.
17
Before cleaning your watch, always
ensure that the crown is screwed down
properly against the case to guarantee
waterproofness.
18
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
AFTER-SALES
SERVICE
Rolex watch servicing ensures that
your timepiece will continue to
perform optimally and meet Rolex’s
stringent requirements in terms of
precision, reliability and waterproofness
throughout its life.
The timekeeping accuracy of your watch
is largely dependent on high-performance
lubricants specially developed by Rolex
to minimize friction and prevent wear
of components. To guarantee continued
accuracy and waterproofness, Rolex
recommends that you periodically return
your watch to an Official Rolex Retailer or
Service Centre for professional servicing.
When your watch is serviced by a Rolex
watchmaker, the watch is completely
dismantled and all of its components
are cleaned. Each individual component
is closely examined and those that
nolonger meet Rolex’s functional and
aesthetic specifications are replaced
with genuine Rolex parts.
The movement is carefully lubricated
then tested to guarantee its timing
accuracy; the case and the metal bracelet
are meticulously refinished to restore
19
their lustre. Your Rolex then undergoes
a series of rigorous technical tests and
checks to guarantee its waterproofness,
power reserve and precision.
After a complete Rolex service, your
watch is covered by a service guarantee.
20
THE HEART OF THE
YACHT-MASTER MODEL
USING
YOUR WATCH
ROLEX
SERVICE
WORLDWIDE SERVICE
NETWORK
The network of Official Rolex Retailers
and Service Centres covers more than
100 countries around the world and
draws on the expertise of highly skilled
watchmakers, carefully selected and
trained by Rolex.
Official Rolex Retailers can advise you on
all the technical aspects of your watch’s
functions. Whether your bracelet needs
sizing or it is time for a complete service,
highly qualified Rolex watchmakers are
on hand worldwide to meet all of your
service needs.
For a list of Official Rolex Retailers and
Service Centres, please visit rolex.com.
21
ROLEX.COM
We invite you to visit rolex.com,
a privileged place to learn more about
the functions of your Rolex watch
and about the quality, know-how and
fundamental values of the brand.
Welcome to the world of Rolex.
Rolex reserves the right to modify the models illustrated in this publication at any time.
