Search
Home
Bookmarks
Brands
Articles
About us
Home
Bosch
Bosch SPS53E18GB User Manual
User Manual Bosch SPS53E18GB Dishwasher
Documents for Bosch SPS53E18GB
The following documents are available:
User Manual - (English)
Read Online
|
Download pdf
User Manual
For SPS53E18GB.
Page 1/42
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Contents
Table of Contents
Search
Previous
Next
Bookmarks
XXXCPTDIIPNFDPNX
FMDPNF
3FHJTUFSZ
PVSOFX#PTDIOP
X
%JTIXBTIFS
FO
*OTUSVDUJPONBOVBM
SP...
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch SPS53E18GB:
( Safety instructions 4
1
7 Protection of the environment 10
1
* Getting to know your appliance 10
1
+ Water softening system/ Special salt 11
1
, Rinse aid 13
1
- Utensils 14
1
. Detergent 18
1
/ Overview of programmes 20
1
0 Additional options 21
1
1 Operating the appliance 22
1
2 Cleaning and maintenance 24
2
3 Fault, what to do? 26
2
4 Customer service 36
2
5 Installation and connection 36
2
8 Intended use
2
Intended use
2
■ This appliance is intended for use in the home and domestic environments.
2
■ Use the dishwasher only in the home and only for its designated purpose: for washing domestic dishes.
2
■ This appliance is intended for use up to a maximum altitude of 4000 metres above sea level.
2
( Safety instructions
2
Safety instructions
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
3
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
3
Before you switch ON the appliance
3
Please read the instructions for use and installation carefully. They contain important information on how to install, use and maintain the appliance.
3
Retain all documents for later use or for the subsequent owner.
3
You can download the instructions for use from our website free of charge. The relevant Internet address can be found overleaf on these instructions for use.
3
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
■ Following installation, ensure that the back of the dishwasher is not freely accessible (protection against contact due to hot surface).
3
■ Install and connect the appliance according to the installation and assembly instructions.
3
■ Prior to installation, disconnect the dishwasher from the power supply.
3
■ Ensure that the protective conductor system of the domestic supply has been correctly installed.
4
■ The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 92.
4
■ If the power cord of this appliance is damaged, it must be replaced with a particular power cord.
4
■ If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
4
■ If the dishwasher is installed below or above other domestic appliances, follow the information for installation in combination with a dishwasher in the installation instructions for the particular appliances.
4
■ Also follow the installation instructions for the dishwasher to ensure that all appliances are operated safely.
4
■ If there is no information or if the installation instructions do not include the appropriate information, contact the manufacturer of these appliances to ensure that the dishwasher can be installed above or below these appliances.
4
■ If you cannot obtain any information from the manufacturer, you must not install the dishwasher above or below these appliances.
4
■ If you install a microwave oven above the dishwasher, the microwave oven may be damaged.
4
■ Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.
4
■ Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a hob.
4
■ After installing the appliance, ensure that the plug is easily accessible.
5
■ Some models:
5
In daily use
5
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.
5
Childproof lock (door lock)Door lock *
5
The description of the childproof lock is at the back in the envelope.
5
* depending on model
5
Childproof lock (button lock)Button lock
5
You can secure your appliance from being unintentionally the programme terminated (e.g. improper operation by children).
5
Activating the button lock:
5
1. Start the required programme.
5
2. Hold down the button + for approx. 4 sec. until this ’– is indicated on the digital display.
5
If any button is pressed while the programme is running, this ’– is indicated on the digital display. It is not possible to end (Reset) the programme.
5
Deactivating the button lock:
5
■ Hold down the button + for approx. 4 sec. until the display ’– goes out.
5
When the programme ends (‹:‹‹ on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whenever a programme is restarted, the button lock must be reactivated.
5
Damage
6
■ The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.
6
■ If the appliance is damaged, especially the fascia (cracks, holes, broken buttons), or the door function is impaired, stop operating the appliance. Pull out mains plug or switch off fuse. Turn off tap, call customer service.
6
Disposal
6
1. Make redundant appliances unusable to prevent subsequent accidents.
6
2. Dispose of the appliance in a n environmentally friendly manner.
6
m Warning
6
Risk of injury!
6
m Warning
7
Risk of explosion!
7
m Warning
7
Risk of scalding!
7
m Warning
7
Risks to children!
7
7 Protection of the environment
8
Protection of the environment
8
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.
8
Please dispose of the individual parts separated according to type.
8
Please ask your dealer or inquire at your local authority about current means of disposal.
8
Packaging
8
All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.
8
Please follow the safety instructions under “Delivery”.
8
Old appliances
8
Please follow the safety instructions under “Disposal of your appliance”.
8
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling o...
8
* Getting to know your appliance
8
Getting to know your appliance
8
Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.
8
Individual positions are referred to in the text.
8

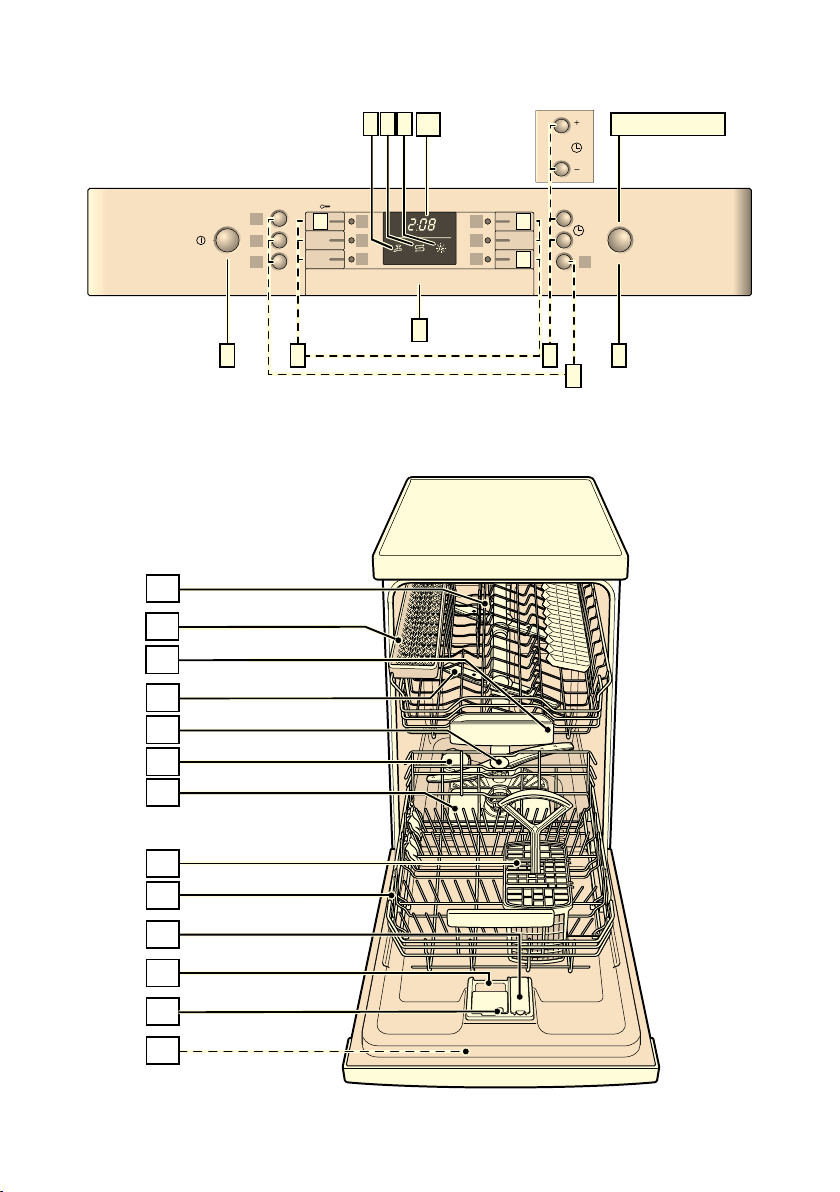

Control panel
8
ON/OFF switch
8
Programme buttons **
8
Door opener
8
Timer programming *
8
Additional options **
8
START button
8
Display “Check water supply”
8
Salt refill indicator
8
Rinse aid refill indicator
8
Digital display
8
* depending on model
8
** Number depending on model
8
Appliance interior
8
Top basket
8
Knife shelf *
8
Tablet collecting tray
8
Upper spray arms
8
Bottom spray arm
8
Dispenser for special salt
8
Filters
8
Cutlery basket
8
Bottom basket
8
Dispenser for rinse aid
8
Detergent dispenser
8
Lock for detergent dispenser
8
Rating plate
8
* depending on model
8
Overview of menu
9
The settings can be found in the individual chapters.
9
Water Hardness •:‹‹ - •:‹ˆ
9
Intensive drying š:‹‹ - š:‹‚
9
Rinse aid §:‹‹ - §:‹‡
9
Hot water ‘:‹‹ - ‘:‹‚*
9
Automatic disconnection ˜:‹‹ - ˜:‹ƒ
9
* depending on model
9
+ Water softening system/Special salt
9
Water softening system/Special salt
9
To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.
9
Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.
9
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).
9
Setting
9
The amount of salt dispensed can be set from •:‹‹ to •:‹ˆ.
9
Salt is not required at the set value •:‹‹.
9
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
9
2. Set value can be found in the water hardness table.
9
3. Close the door.
9
4. Switch on ON/OFF switch (.
9
5. Hold down programme button # and press START button P until •:‹.... is indicated on the digital display.
9
6. Release both buttons.
9
To change the setting:
9
1. Press programme button 3.
9
2. Press START button P.
9
Water hardness table
10
Using special salt
10
Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.
10
1. Open the screw-type cap of the compartment 1J.
10
2. Fill the tank with water (only required when switching on the appliance for the first time).
10
3. Then add dishwasher salt (not table salt or tablets).
10
As soon as the salt refill indicator ` on the fascia is lit, top up the salt.
10
* depending on model
10
Using detergents with salt componentDetergents with salt component
10
If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/ l). If the water hardness is over 21° dH, special salt must be used.
10
Switching off salt refill indicator/water softening systemSwitching off water softening system
10
If the salt refill indicator ` is impaired (e.g. when using combined detergents containing salt component), it can be switched off.
10
■ Proceed as described under “Adjusting the water softening system” and set the value to •:‹‹.
10
m Caution
10
, Rinse aid
11
Rinse aid
11
As soon as the rinse-aid refill indicator h is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid.
11
The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.
11
Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse aid must be used.
11

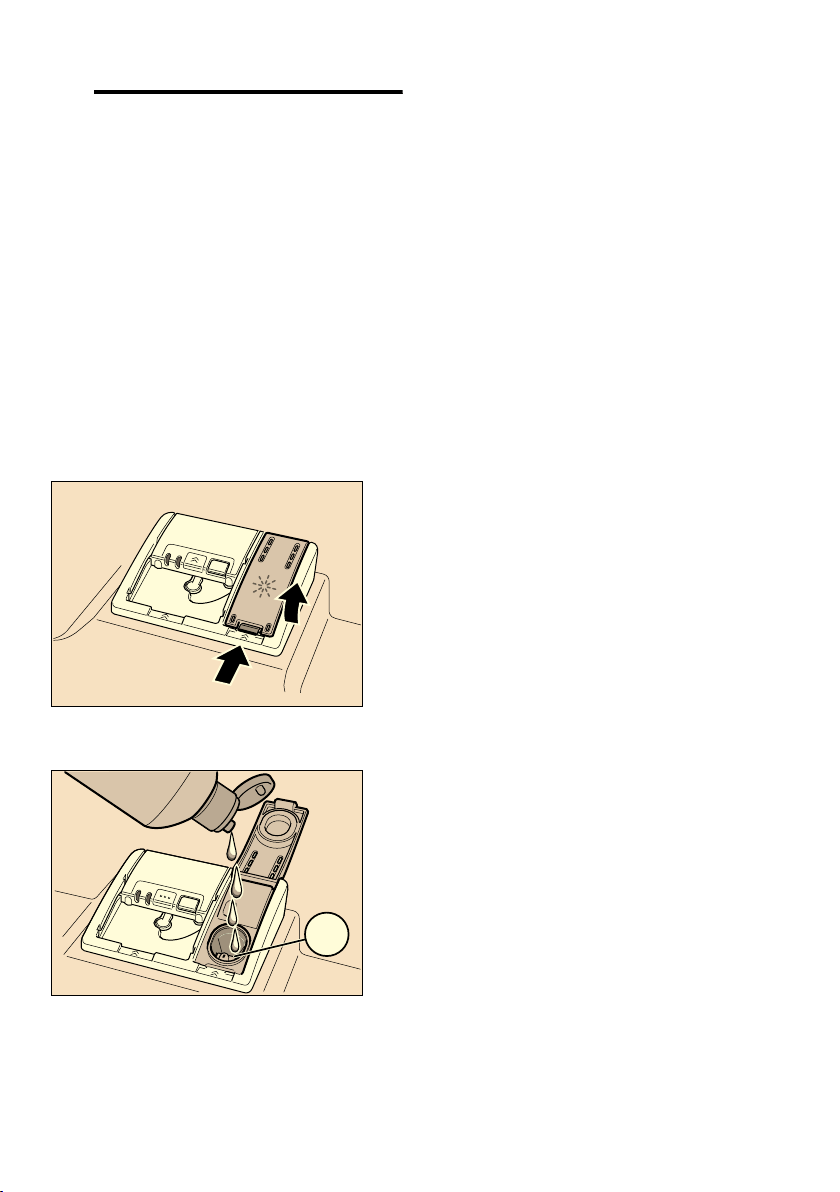

1. Open the dispenser 1j by pressing and lifting the plate on the cover.
11
2. Carefully pour rinse aid up to the max. mark in the filler opening.
11
3. Close cover until it clicks shut.
11
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
11
Setting amount of rinse aid
11
The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹… to obtain very good drying results (§:‹… is already set in factory).
11
Do not change the amount of rinse aid unless streaks (select lower setting) or water stains (select higher setting) are left on the utensils.
11
1. Close the door.
11
2. Switch on ON/OFF switch (.
11
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
11
4. Release both buttons.
11
5. Press programme button # until the factory set value §:‹… is indicated on the digital display )".
11
To change the setting:
11
1. Press programme button 3.
11
2. Press START button P.
11
Switching off rinse aid refill indicator
12
If the rinse-aid refill indicator h is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.
12
■ Proceed as described under “Setting amount of rinse aid” and set the value to §:‹‹.
12
The rinse aid refill indicator h is now switched off.
12
- Utensils
12
Utensils
12
Not suitable
12
■ Cutlery and utensils made of wood.
12
■ Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
12
■ Plastic parts not resistant to heat.
12
■ Copper and tin utensils.
12
■ Utensils which are soiled with ash, wax, lubricating grease or ink.
12
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.
12
Glass and utensil damage
12
Causes:
12
■ Glass type and glass production process.
12
■ Chemical composition of the detergent.
12
■ Water temperature of the wash programme.
12
Recommendation:
12
■ Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
12
■ Use a detergent which protects utensils.
12
■ Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.
12

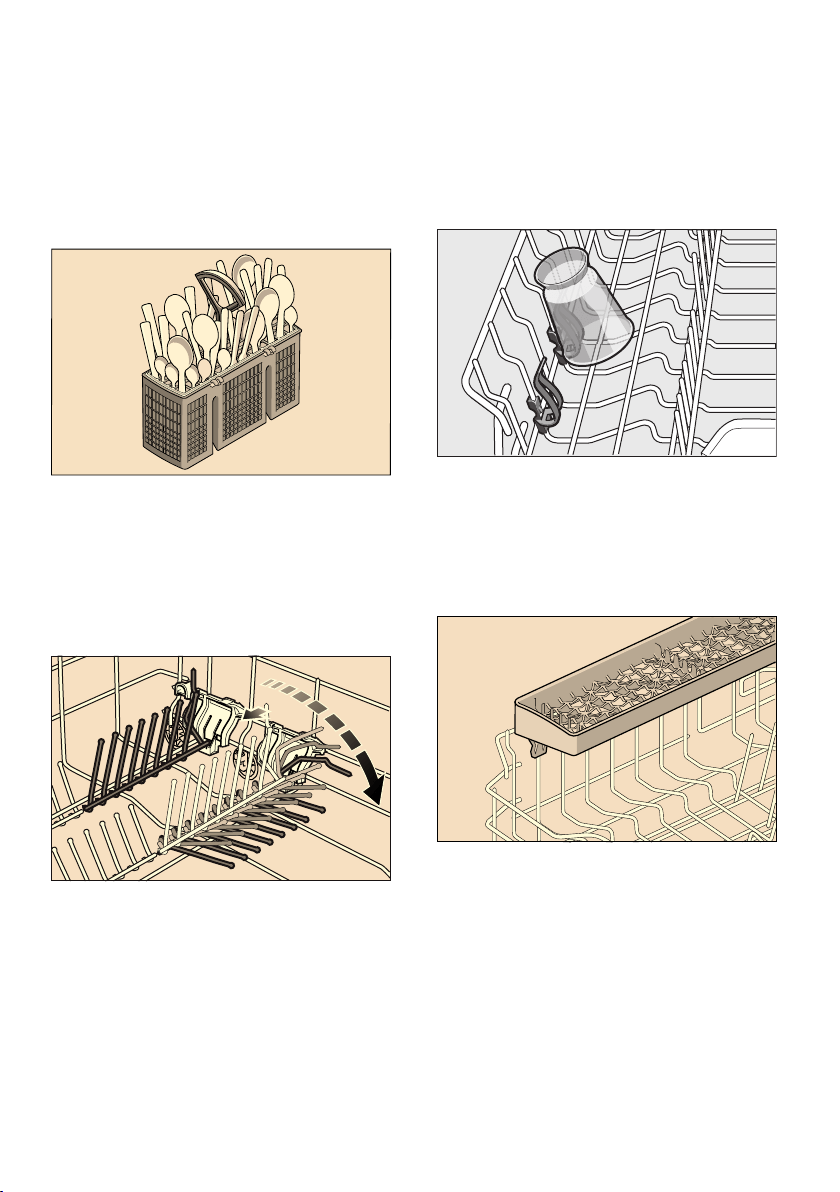

Loading the dishwasher
12
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
12
2. Place the utensils so that
12
Very small utensils should not be washed in the machine, as they may fall out of the baskets.
12
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.
12
Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.
12
Note
12
Cups and glasses
13
Top basket 1"
13
Note
13
Pans
13
Bottom basket 1b
13
Tip
13
Tip
13
Cutlery basket
14
You should always place cutlery unsorted with the points downwards.
14
To prevent injuries, place long, pointed implements and knives on the knife shelf.
14
Folding spikesFolding spikes *
14
* depending on model
14
The spikes can be folded down to improve arrangement of pans, bowls and glasses.
14
Small accessories holder *Small accessories holder
14
* depending on model
14
Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.
14
Knife shelf *Knife shelf
14
* depending on model
14
Long knives and other utensils can be arranged horizontally.
14
Adjusting the height of the basketAdjusting the height of the basket *
15
* depending on model
15
If required, the height of the upper utensils basket 1" can be adjusted to provide more space for tall utensils either in the upper or lower basket.
15
Appliance height 81.5 cm
15
22 cm
15
30 cm
15
24 cm
15
28 cm
15
27 cm
15
25 cm
15
Select one of the two following procedures according to the design of the top basket for your appliance model:
15
Top basket with side levers
15

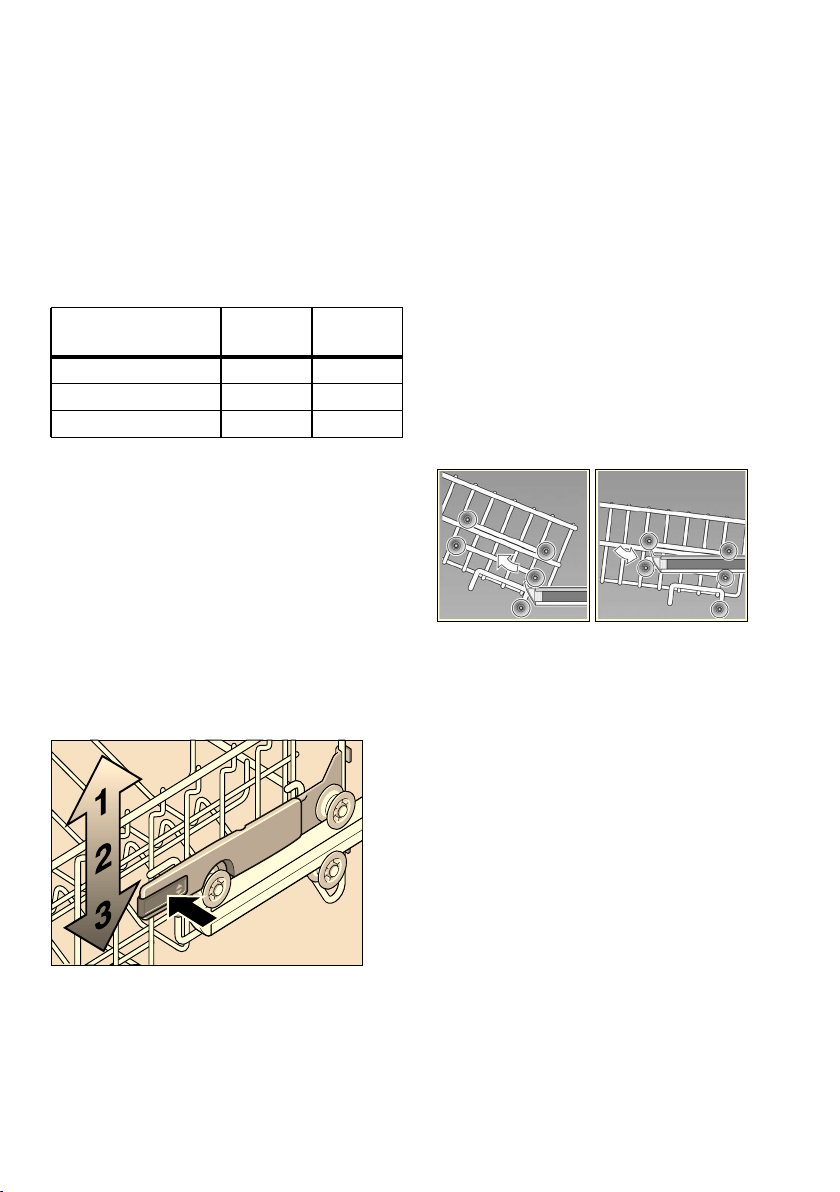

1. Pull out the top basket 1" out.
15
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
15
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
15
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
15
Top basket with upper and lower roller pairs
15
1. Pull out the top basket 1" out.
15
2. Remove the upper basket and re- attach it to the upper (stage 3) or lower (stage 1) rollers.
15
. Detergent
16
Detergent
16
You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately l...
16
Note
16
m Warning
16
Adding detergent
16
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
16
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
16
Tip
17
Combination detergent
17
Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5i...
17
As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.
17
m Warning
17
m Warning
17
Notes
17
/ Overview of programmes
18
Overview of programmes
18
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
18
Type of utensils
18
Type of soiling
18
Programme
18
Possible additional options
18
Programme sequence
18
Programme selection
19
You can select a suitable programme according to the type of utensils and degree of soiling.
19
Information for test institutes
19
Test institutes receive the information for comparability tests (e.g. according to EN60436).
19
These are the conditions for conducting the tests, however these are not the results or consumption values.
19
Request by e-mail to:
19
[email protected]
19
The product number (E no.) and the production number (FD) are required which you can find on the rating plate 92 on the appliance door.
19
0 Additional options
19
Additional options
19
* depending on model
19
Additional options can be set with the buttons H.
19
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
19
This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display )". To obtain optimum cleaning results at a reduced running time, water and ...
19
Half load§ Half load *
19
If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to “half load”. This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.
19
· Hygiene *Hygiene
19
The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.
19
Ï Intensive zone *Intensive zone
19
Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.
19
¿ Extra drying *Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value •:‹…. Different influencing factors such as e.g. water temperature or line pressure may result...
20
Aqua sensorAqua sensor *
20
* depending on model
20
The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.
20
The Aqua sensor is used according to the programme. If the Aqua sensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drai...
20
Switching on the appliance
20
1. Turn on the tap fully.
20
2. Switch on ON/OFF switch (.
20
3. Press the START button P.
20
Note
20
Remaining running time display
20
When the programme is selected, the remaining running time of the programme is indicated on the digital display )".
20
The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).
20
Timer programmingTimer programming *
20
* depending on model
20
You can delay the start of the programme in 1-hour steps up to 24 hours.
20
1. Close the door.
20
2. Switch on ON/OFF switch (.
20
3. Press button @ + until the digital display )" jumps to œ:‹‚.
20
4. Press @ + or – button until the displayed time corresponds with your requirements.
20
5. Press START button P, timer programming is activated.
21
6. To delete timer programming, press the @ + or – button until )" œ:‹‹ is indicated on the digital display.
21
End of programme
21
The programme has ended when the value ‹:‹‹ is indicated on the numerical display )".
21
Switching off automatically after the end of the programme *Switching off automatically after the end of the programme
21
* depending on model
21
To save energy, the dishwasher is switched off 1 minute after the programme ends (factory setting).
21
Automatic disconnection can be adjusted from ˜:‹‹ to ˜:‹ƒ.
21
Appliance does not switch off automatically
21
Off after 1 min
21
Off after 120 min
21
1. Close the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ˜:‹‚ is indicated on the digital display )".
21
To change the setting:
21
1. Press programme button 3.
21
2. Press START button P.
21
Switching off the appliance
21
Short time after the end of the programme:
21
1. Switch off ON/OFF switch (.
21
2. Turn off the tap (not applicable if Aqua-Stop fitted).
21
3. Remove the utensils when they have cooled down.
21
Note
21
Interrupting the programme
21
1. Switch off ON/OFF switch (.
21
2. To continue the programme, switch on the ON/OFF switch ( again.
21
Terminating the programmeTerminating the programme (Reset)
22
1. Press START button P for approx. 3 sec.
22
2. The programme sequence lasts approx. 1 min. On the digital display )" is indicated ‹:‹‹.
22
3. Switch off ON/OFF switch (.
22
Changing the programme
22
When the START button P has been pressed, the programme cannot be changed.
22
The only way a programme can be changed is by Cancel programme (Reset).
22
Intensive drying
22
The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)
22
1. Close the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button P until the digital display )" •:‹... is indicated.
22
4. Release both buttons.
22
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display )".
22
To change the setting,
22
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
22
2. Press START button P.
22
2 Cleaning and maintenance
22
Cleaning and maintenance
22
A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.
22
Overall condition of the machine
22
■ Check spray arm for grease and limescale deposits.
22
If you find such deposits:
22
■ Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.
22
Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers.
22
■ To extend the life of your appliance, clean the appliance regularly with a special dishwasher detergent.
22
■ To ensure that the door seal always remains clean and hygienic, regularly clean it with a damp cloth and a little washing-up liquid.
22
■ If the appliance is switched off for a prolonged period, leave the door ajar to prevent the formation of an unpleasant odour.
22
Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.
23
Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.
23
Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.
23
m Warning
23
Health hazard
23
Special salt and rinse aid
23
■ Check the refill indicators ` and h. If required, refill salt and/or rinse aid.
23
Filters
23
The filters 1R keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.
23
The filter system consists of a coarse filter, a flat fine filter and a microfilter.
23
1. After each washing cycle check the filters for residue.
23

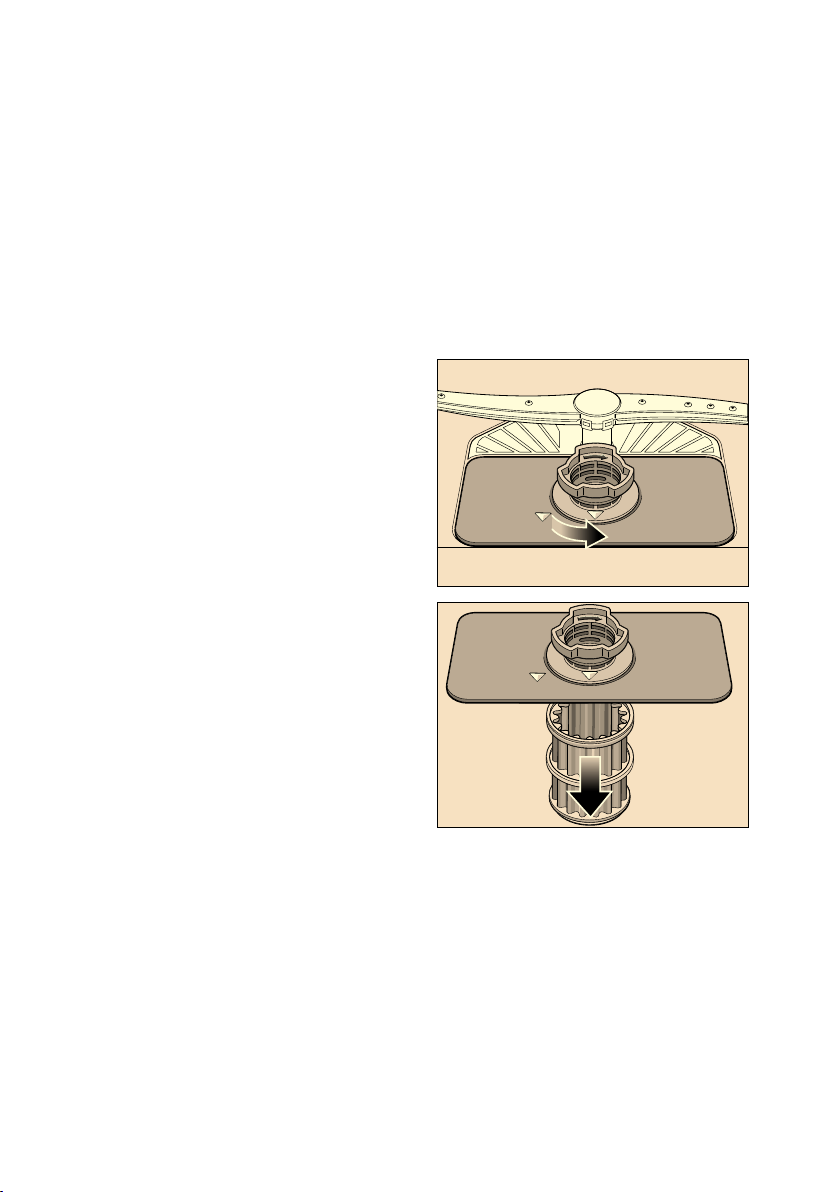

2. Unscrew filter cylinder as illustrated and take out filter system.
23
3. Remove any residue and clean filters under running water.
23
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
23
Spray arms
24
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: and 1B.
24
1. Check outlet nozzles on the spray arms for blockages.
24
2. Unscrew the upper spray arms 1: (1/4 revolution).
24
3. Remove the lower spray arm 1B upwards.
24
4. Clean spray arms under running water.
24
5. Re-engage or screw on spray arms.
24
3 Fault, what to do?
24
Fault, what to do?
24
Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful informa...
24
Note
24
m Warning
24
Waste water pump
25
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.
25
m Warning
25
Risk of cuts!
25
In this case:
25
1. First always disconnect the appliance from the power supply.
25
2. Take out top basket 1" and bottom basket 1b.
25
3. Remove the filters 1R.
25
4. Scoop out water, use a sponge if required.
25

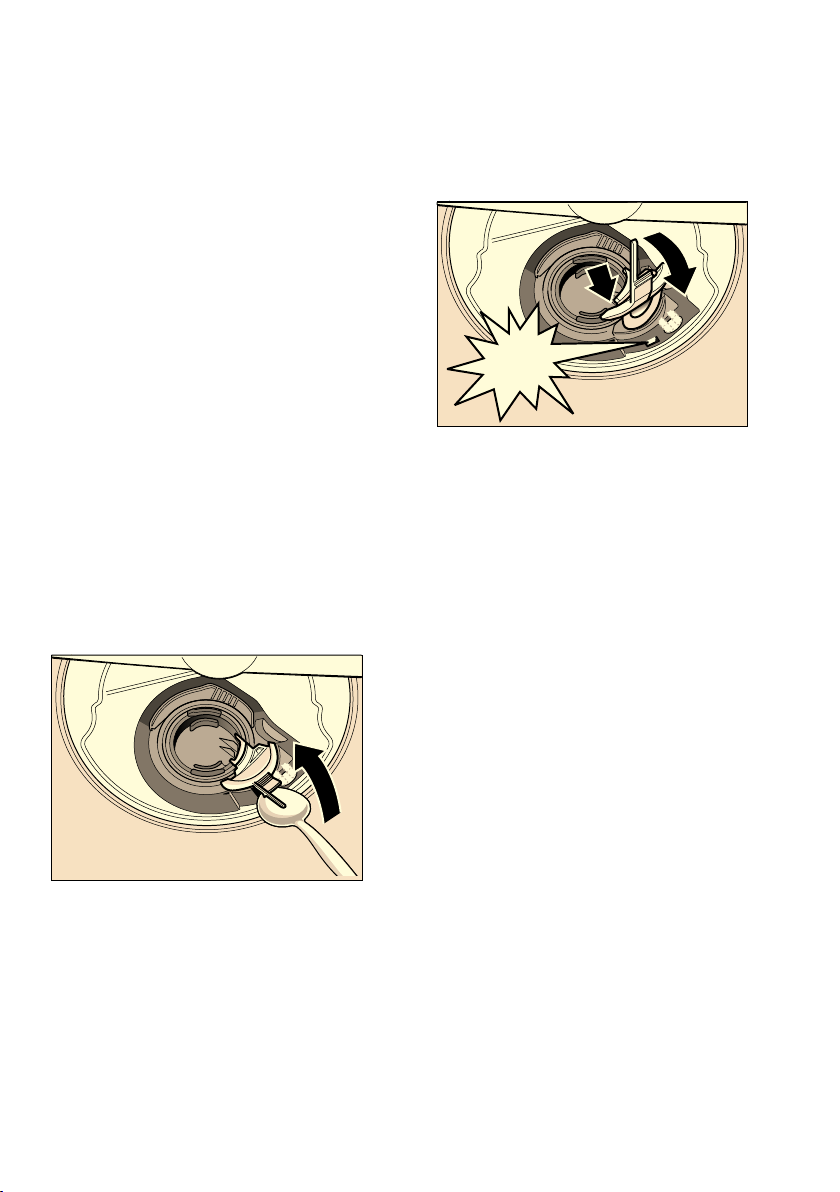

5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
25
6. Check impeller wheel and remove any foreign objects.
25
7. Place cover in the original position and press down until it engages (click).
25
8. Install filters.
25
9. Re-insert baskets.
25
Fault table
26
Fault
26
Cause
26
Remedial action
26
4 Customer service
34
Customer service
34
If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, even to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these...
34
Rely on the competence of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.
34
* depending on model
34
5 Installation and connection
34
Installation and connection
34
The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr...
34
Install the appliance in the correct sequence:
34
1. Checking appliance on delivery
34
2. Installing the appliance
34
3. Waste water connection
34
4. Drinking water connection
34
5. Electrical connection
34
Product package
34
If you have any complaints, contact the dealer where you purchased the appliance or our customer service.
34
■ Dishwasher
34
■ Instructions for use
34
■ Installation instructions
34
■ Warranty*
34
■ Installation materials
34
■ Steam guard plate*
34
■ Rubber apron*
34
■ Power cord
34
* depending on model
34
Safety instructions
34
Please follow the safety instructions under “Installation”.
34
Delivery
35
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.
35
Technical specifications
35
Weight:
35
max. 45 kg
35
Voltage:
35
220–240 V, 50 Hz or 60 Hz
35
Connected load:
35
2.0–2.4 kW
35
Fuse:
35
10/16 A (UK 13A)
35
Power input:
35
off mode (Po)* 0.10 W
35
left on mode (Pl)* 0.10 W
35
*according to regulations (EU) nos. 1016/2010 and 1059/2010
35
Additional functions and settings may increase the power input.
35
Water pressure:
35
at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
35
Inlet rate:
35
minimum 10 litres/minute
35
Water temperature:
35
cold water; hot water max. temperature 60 °C.
35
Capacity:
35
9–10 place settings (depending on model).
35
Installation
35
The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.
35
■ A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to ...
35
■ The appliance can easily be installed in a fitted kitchen between wooden and plastic walls.
35
Waste-water connection
35
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
35
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
35
Drinking water connection
36
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
36
2. When replacing the appliance, always use a new water supply hose.
36
Water pressure:
36
At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
36
Inlet rate:
36
Minimum 10 litres/minute
36
Water temperature:
36
Cold water preferred; hot water max. temperature 60 °C.
36
Warm water connection *Warm water connection
36
* depending on model
36
The dishwasher can be connected to cold or hot water up to max. 60 °C.
36
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.
36
This will save energy and time.
36
The hot water setting ‘:‹‚ allows you to adjust your appliance optimally to operation with hot water.
36
It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C.
36
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.
36
Setting hot water:
37
1. Close the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display )".
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button P.
37
Electrical connection
37
■ Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing 92.
37
■ The socket must be near the appliance and freely accessible following installation.
37
■ The connection may be modified by technicians only.
37
■ A power cord extension may be purchased from customer service only.
37
■ Use only a residual current operated circuit-breaker which features the symbol ‚. Only this extension guarantees compliance with the currently valid regulations.
37
■ The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected.
37
Removing the appliance
38
Also observe the sequence of worksteps here.
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Empty the dishwasher and secure loose parts.
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Close the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button P.
38
6. After approx. 4 minutes press the START button P until ‹:‹‚ is indicated on the digital display.
38
7. Switch off ON/OFF switch (.
38
8. Turn off the tap, disconnect supply hose and drain water.
38
Transport appliance upright only.
38
(This prevents residual water from running into the machine control and damaging the programme sequence.)
38
Protection against frostProtection against frost (Emptying the appliance)
38
If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).
38
File type: PDF
File name: Bosch SPS53E18GB Dishwasher.pdf
File size: 1.95 MB
File Language: English
Pages: 42
Author: Bosch
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: SPS53E18GB
Category:
Dishwashers
View in the file:
Full Specifications
See other models:
SPS46IW00G
SPS46II00G
SPS66TW00G
SMS25AW01G
SMS25AW00G
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SPI4HKS53E
Bosch SPU4HKS53E
Bosch SPS40E32GB
Bosch SPV50C20GB
Bosch SPV50C10GB
Bosch SPV40C40GB
Bosch SPV40C30GB
Bosch SPV40C20GB
Bosch SPV6ZMX23E
Bosch SPS4HKW53E
Bosch SPV4HKX53E
Bosch SPS6EMW23E
Bosch SPS25FW03E
Bosch SPS25FI03E
Bosch SPS25CI03E
Table of Contents
×
( Safety instructions 4
1
7 Protection of the environment 10
1
* Getting to know your appliance 10
1
+ Water softening system/ Special salt 11
1
, Rinse aid 13
1
- Utensils 14
1
. Detergent 18
1
/ Overview of programmes 20
1
0 Additional options 21
1
1 Operating the appliance 22
1
2 Cleaning and maintenance 24
2
3 Fault, what to do? 26
2
4 Customer service 36
2
5 Installation and connection 36
2
8 Intended use
2
Intended use
2
■ This appliance is intended for use in the home and domestic environments.
2
■ Use the dishwasher only in the home and only for its designated purpose: for washing domestic dishes.
2
■ This appliance is intended for use up to a maximum altitude of 4000 metres above sea level.
2
( Safety instructions
2
Safety instructions
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
3
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
3
Before you switch ON the appliance
3
Please read the instructions for use and installation carefully. They contain important information on how to install, use and maintain the appliance.
3
Retain all documents for later use or for the subsequent owner.
3
You can download the instructions for use from our website free of charge. The relevant Internet address can be found overleaf on these instructions for use.
3
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
■ Following installation, ensure that the back of the dishwasher is not freely accessible (protection against contact due to hot surface).
3
■ Install and connect the appliance according to the installation and assembly instructions.
3
■ Prior to installation, disconnect the dishwasher from the power supply.
3
■ Ensure that the protective conductor system of the domestic supply has been correctly installed.
4
■ The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 92.
4
■ If the power cord of this appliance is damaged, it must be replaced with a particular power cord.
4
■ If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
4
■ If the dishwasher is installed below or above other domestic appliances, follow the information for installation in combination with a dishwasher in the installation instructions for the particular appliances.
4
■ Also follow the installation instructions for the dishwasher to ensure that all appliances are operated safely.
4
■ If there is no information or if the installation instructions do not include the appropriate information, contact the manufacturer of these appliances to ensure that the dishwasher can be installed above or below these appliances.
4
■ If you cannot obtain any information from the manufacturer, you must not install the dishwasher above or below these appliances.
4
■ If you install a microwave oven above the dishwasher, the microwave oven may be damaged.
4
■ Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.
4
■ Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a hob.
4
■ After installing the appliance, ensure that the plug is easily accessible.
5
■ Some models:
5
In daily use
5
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.
5
Childproof lock (door lock)Door lock *
5
The description of the childproof lock is at the back in the envelope.
5
* depending on model
5
Childproof lock (button lock)Button lock
5
You can secure your appliance from being unintentionally the programme terminated (e.g. improper operation by children).
5
Activating the button lock:
5
1. Start the required programme.
5
2. Hold down the button + for approx. 4 sec. until this ’– is indicated on the digital display.
5
If any button is pressed while the programme is running, this ’– is indicated on the digital display. It is not possible to end (Reset) the programme.
5
Deactivating the button lock:
5
■ Hold down the button + for approx. 4 sec. until the display ’– goes out.
5
When the programme ends (‹:‹‹ on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whenever a programme is restarted, the button lock must be reactivated.
5
Damage
6
■ The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.
6
■ If the appliance is damaged, especially the fascia (cracks, holes, broken buttons), or the door function is impaired, stop operating the appliance. Pull out mains plug or switch off fuse. Turn off tap, call customer service.
6
Disposal
6
1. Make redundant appliances unusable to prevent subsequent accidents.
6
2. Dispose of the appliance in a n environmentally friendly manner.
6
m Warning
6
Risk of injury!
6
m Warning
7
Risk of explosion!
7
m Warning
7
Risk of scalding!
7
m Warning
7
Risks to children!
7
7 Protection of the environment
8
Protection of the environment
8
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.
8
Please dispose of the individual parts separated according to type.
8
Please ask your dealer or inquire at your local authority about current means of disposal.
8
Packaging
8
All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.
8
Please follow the safety instructions under “Delivery”.
8
Old appliances
8
Please follow the safety instructions under “Disposal of your appliance”.
8
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling o...
8
* Getting to know your appliance
8
Getting to know your appliance
8
Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.
8
Individual positions are referred to in the text.
8
Control panel
8
ON/OFF switch
8
Programme buttons **
8
Door opener
8
Timer programming *
8
Additional options **
8
START button
8
Display “Check water supply”
8
Salt refill indicator
8
Rinse aid refill indicator
8
Digital display
8
* depending on model
8
** Number depending on model
8
Appliance interior
8
Top basket
8
Knife shelf *
8
Tablet collecting tray
8
Upper spray arms
8
Bottom spray arm
8
Dispenser for special salt
8
Filters
8
Cutlery basket
8
Bottom basket
8
Dispenser for rinse aid
8
Detergent dispenser
8
Lock for detergent dispenser
8
Rating plate
8
* depending on model
8
Overview of menu
9
The settings can be found in the individual chapters.
9
Water Hardness •:‹‹ - •:‹ˆ
9
Intensive drying š:‹‹ - š:‹‚
9
Rinse aid §:‹‹ - §:‹‡
9
Hot water ‘:‹‹ - ‘:‹‚*
9
Automatic disconnection ˜:‹‹ - ˜:‹ƒ
9
* depending on model
9
+ Water softening system/Special salt
9
Water softening system/Special salt
9
To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.
9
Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.
9
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).
9
Setting
9
The amount of salt dispensed can be set from •:‹‹ to •:‹ˆ.
9
Salt is not required at the set value •:‹‹.
9
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
9
2. Set value can be found in the water hardness table.
9
3. Close the door.
9
4. Switch on ON/OFF switch (.
9
5. Hold down programme button # and press START button P until •:‹.... is indicated on the digital display.
9
6. Release both buttons.
9
To change the setting:
9
1. Press programme button 3.
9
2. Press START button P.
9
Water hardness table
10
Using special salt
10
Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.
10
1. Open the screw-type cap of the compartment 1J.
10
2. Fill the tank with water (only required when switching on the appliance for the first time).
10
3. Then add dishwasher salt (not table salt or tablets).
10
As soon as the salt refill indicator ` on the fascia is lit, top up the salt.
10
* depending on model
10
Using detergents with salt componentDetergents with salt component
10
If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/ l). If the water hardness is over 21° dH, special salt must be used.
10
Switching off salt refill indicator/water softening systemSwitching off water softening system
10
If the salt refill indicator ` is impaired (e.g. when using combined detergents containing salt component), it can be switched off.
10
■ Proceed as described under “Adjusting the water softening system” and set the value to •:‹‹.
10
m Caution
10
, Rinse aid
11
Rinse aid
11
As soon as the rinse-aid refill indicator h is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid.
11
The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.
11
Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse aid must be used.
11
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
11
2. Carefully pour rinse aid up to the max. mark in the filler opening.
11
3. Close cover until it clicks shut.
11
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
11
Setting amount of rinse aid
11
The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹… to obtain very good drying results (§:‹… is already set in factory).
11
Do not change the amount of rinse aid unless streaks (select lower setting) or water stains (select higher setting) are left on the utensils.
11
1. Close the door.
11
2. Switch on ON/OFF switch (.
11
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
11
4. Release both buttons.
11
5. Press programme button # until the factory set value §:‹… is indicated on the digital display )".
11
To change the setting:
11
1. Press programme button 3.
11
2. Press START button P.
11
Switching off rinse aid refill indicator
12
If the rinse-aid refill indicator h is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.
12
■ Proceed as described under “Setting amount of rinse aid” and set the value to §:‹‹.
12
The rinse aid refill indicator h is now switched off.
12
- Utensils
12
Utensils
12
Not suitable
12
■ Cutlery and utensils made of wood.
12
■ Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
12
■ Plastic parts not resistant to heat.
12
■ Copper and tin utensils.
12
■ Utensils which are soiled with ash, wax, lubricating grease or ink.
12
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.
12
Glass and utensil damage
12
Causes:
12
■ Glass type and glass production process.
12
■ Chemical composition of the detergent.
12
■ Water temperature of the wash programme.
12
Recommendation:
12
■ Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
12
■ Use a detergent which protects utensils.
12
■ Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.
12
Loading the dishwasher
12
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
12
2. Place the utensils so that
12
Very small utensils should not be washed in the machine, as they may fall out of the baskets.
12
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.
12
Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.
12
Note
12
Cups and glasses
13
Top basket 1"
13
Note
13
Pans
13
Bottom basket 1b
13
Tip
13
Tip
13
Cutlery basket
14
You should always place cutlery unsorted with the points downwards.
14
To prevent injuries, place long, pointed implements and knives on the knife shelf.
14
Folding spikesFolding spikes *
14
* depending on model
14
The spikes can be folded down to improve arrangement of pans, bowls and glasses.
14
Small accessories holder *Small accessories holder
14
* depending on model
14
Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.
14
Knife shelf *Knife shelf
14
* depending on model
14
Long knives and other utensils can be arranged horizontally.
14
Adjusting the height of the basketAdjusting the height of the basket *
15
* depending on model
15
If required, the height of the upper utensils basket 1" can be adjusted to provide more space for tall utensils either in the upper or lower basket.
15
Appliance height 81.5 cm
15
22 cm
15
30 cm
15
24 cm
15
28 cm
15
27 cm
15
25 cm
15
Select one of the two following procedures according to the design of the top basket for your appliance model:
15
Top basket with side levers
15
1. Pull out the top basket 1" out.
15
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
15
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
15
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
15
Top basket with upper and lower roller pairs
15
1. Pull out the top basket 1" out.
15
2. Remove the upper basket and re- attach it to the upper (stage 3) or lower (stage 1) rollers.
15
. Detergent
16
Detergent
16
You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately l...
16
Note
16
m Warning
16
Adding detergent
16
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
16
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
16
Tip
17
Combination detergent
17
Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5i...
17
As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.
17
m Warning
17
m Warning
17
Notes
17
/ Overview of programmes
18
Overview of programmes
18
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
18
Type of utensils
18
Type of soiling
18
Programme
18
Possible additional options
18
Programme sequence
18
Programme selection
19
You can select a suitable programme according to the type of utensils and degree of soiling.
19
Information for test institutes
19
Test institutes receive the information for comparability tests (e.g. according to EN60436).
19
These are the conditions for conducting the tests, however these are not the results or consumption values.
19
Request by e-mail to:
19
[email protected]
19
The product number (E no.) and the production number (FD) are required which you can find on the rating plate 92 on the appliance door.
19
0 Additional options
19
Additional options
19
* depending on model
19
Additional options can be set with the buttons H.
19
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
19
This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display )". To obtain optimum cleaning results at a reduced running time, water and ...
19
Half load§ Half load *
19
If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to “half load”. This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.
19
· Hygiene *Hygiene
19
The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.
19
Ï Intensive zone *Intensive zone
19
Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.
19
¿ Extra drying *Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value •:‹…. Different influencing factors such as e.g. water temperature or line pressure may result...
20
Aqua sensorAqua sensor *
20
* depending on model
20
The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.
20
The Aqua sensor is used according to the programme. If the Aqua sensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drai...
20
Switching on the appliance
20
1. Turn on the tap fully.
20
2. Switch on ON/OFF switch (.
20
3. Press the START button P.
20
Note
20
Remaining running time display
20
When the programme is selected, the remaining running time of the programme is indicated on the digital display )".
20
The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).
20
Timer programmingTimer programming *
20
* depending on model
20
You can delay the start of the programme in 1-hour steps up to 24 hours.
20
1. Close the door.
20
2. Switch on ON/OFF switch (.
20
3. Press button @ + until the digital display )" jumps to œ:‹‚.
20
4. Press @ + or – button until the displayed time corresponds with your requirements.
20
5. Press START button P, timer programming is activated.
21
6. To delete timer programming, press the @ + or – button until )" œ:‹‹ is indicated on the digital display.
21
End of programme
21
The programme has ended when the value ‹:‹‹ is indicated on the numerical display )".
21
Switching off automatically after the end of the programme *Switching off automatically after the end of the programme
21
* depending on model
21
To save energy, the dishwasher is switched off 1 minute after the programme ends (factory setting).
21
Automatic disconnection can be adjusted from ˜:‹‹ to ˜:‹ƒ.
21
Appliance does not switch off automatically
21
Off after 1 min
21
Off after 120 min
21
1. Close the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
21
4. Release both buttons.
21
5. Press programme button # until the factory set value ˜:‹‚ is indicated on the digital display )".
21
To change the setting:
21
1. Press programme button 3.
21
2. Press START button P.
21
Switching off the appliance
21
Short time after the end of the programme:
21
1. Switch off ON/OFF switch (.
21
2. Turn off the tap (not applicable if Aqua-Stop fitted).
21
3. Remove the utensils when they have cooled down.
21
Note
21
Interrupting the programme
21
1. Switch off ON/OFF switch (.
21
2. To continue the programme, switch on the ON/OFF switch ( again.
21
Terminating the programmeTerminating the programme (Reset)
22
1. Press START button P for approx. 3 sec.
22
2. The programme sequence lasts approx. 1 min. On the digital display )" is indicated ‹:‹‹.
22
3. Switch off ON/OFF switch (.
22
Changing the programme
22
When the START button P has been pressed, the programme cannot be changed.
22
The only way a programme can be changed is by Cancel programme (Reset).
22
Intensive drying
22
The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)
22
1. Close the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button P until the digital display )" •:‹... is indicated.
22
4. Release both buttons.
22
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display )".
22
To change the setting,
22
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
22
2. Press START button P.
22
2 Cleaning and maintenance
22
Cleaning and maintenance
22
A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.
22
Overall condition of the machine
22
■ Check spray arm for grease and limescale deposits.
22
If you find such deposits:
22
■ Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.
22
Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers.
22
■ To extend the life of your appliance, clean the appliance regularly with a special dishwasher detergent.
22
■ To ensure that the door seal always remains clean and hygienic, regularly clean it with a damp cloth and a little washing-up liquid.
22
■ If the appliance is switched off for a prolonged period, leave the door ajar to prevent the formation of an unpleasant odour.
22
Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.
23
Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.
23
Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.
23
m Warning
23
Health hazard
23
Special salt and rinse aid
23
■ Check the refill indicators ` and h. If required, refill salt and/or rinse aid.
23
Filters
23
The filters 1R keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.
23
The filter system consists of a coarse filter, a flat fine filter and a microfilter.
23
1. After each washing cycle check the filters for residue.
23
2. Unscrew filter cylinder as illustrated and take out filter system.
23
3. Remove any residue and clean filters under running water.
23
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
23
Spray arms
24
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: and 1B.
24
1. Check outlet nozzles on the spray arms for blockages.
24
2. Unscrew the upper spray arms 1: (1/4 revolution).
24
3. Remove the lower spray arm 1B upwards.
24
4. Clean spray arms under running water.
24
5. Re-engage or screw on spray arms.
24
3 Fault, what to do?
24
Fault, what to do?
24
Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful informa...
24
Note
24
m Warning
24
Waste water pump
25
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.
25
m Warning
25
Risk of cuts!
25
In this case:
25
1. First always disconnect the appliance from the power supply.
25
2. Take out top basket 1" and bottom basket 1b.
25
3. Remove the filters 1R.
25
4. Scoop out water, use a sponge if required.
25
5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
25
6. Check impeller wheel and remove any foreign objects.
25
7. Place cover in the original position and press down until it engages (click).
25
8. Install filters.
25
9. Re-insert baskets.
25
Fault table
26
Fault
26
Cause
26
Remedial action
26
4 Customer service
34
Customer service
34
If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, even to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these...
34
Rely on the competence of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.
34
* depending on model
34
5 Installation and connection
34
Installation and connection
34
The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr...
34
Install the appliance in the correct sequence:
34
1. Checking appliance on delivery
34
2. Installing the appliance
34
3. Waste water connection
34
4. Drinking water connection
34
5. Electrical connection
34
Product package
34
If you have any complaints, contact the dealer where you purchased the appliance or our customer service.
34
■ Dishwasher
34
■ Instructions for use
34
■ Installation instructions
34
■ Warranty*
34
■ Installation materials
34
■ Steam guard plate*
34
■ Rubber apron*
34
■ Power cord
34
* depending on model
34
Safety instructions
34
Please follow the safety instructions under “Installation”.
34
Delivery
35
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.
35
Technical specifications
35
Weight:
35
max. 45 kg
35
Voltage:
35
220–240 V, 50 Hz or 60 Hz
35
Connected load:
35
2.0–2.4 kW
35
Fuse:
35
10/16 A (UK 13A)
35
Power input:
35
off mode (Po)* 0.10 W
35
left on mode (Pl)* 0.10 W
35
*according to regulations (EU) nos. 1016/2010 and 1059/2010
35
Additional functions and settings may increase the power input.
35
Water pressure:
35
at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
35
Inlet rate:
35
minimum 10 litres/minute
35
Water temperature:
35
cold water; hot water max. temperature 60 °C.
35
Capacity:
35
9–10 place settings (depending on model).
35
Installation
35
The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.
35
■ A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to ...
35
■ The appliance can easily be installed in a fitted kitchen between wooden and plastic walls.
35
Waste-water connection
35
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
35
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
35
Drinking water connection
36
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
36
2. When replacing the appliance, always use a new water supply hose.
36
Water pressure:
36
At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.
36
Inlet rate:
36
Minimum 10 litres/minute
36
Water temperature:
36
Cold water preferred; hot water max. temperature 60 °C.
36
Warm water connection *Warm water connection
36
* depending on model
36
The dishwasher can be connected to cold or hot water up to max. 60 °C.
36
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.
36
This will save energy and time.
36
The hot water setting ‘:‹‚ allows you to adjust your appliance optimally to operation with hot water.
36
It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C.
36
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.
36
Setting hot water:
37
1. Close the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button P until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display )".
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button P.
37
Electrical connection
37
■ Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing 92.
37
■ The socket must be near the appliance and freely accessible following installation.
37
■ The connection may be modified by technicians only.
37
■ A power cord extension may be purchased from customer service only.
37
■ Use only a residual current operated circuit-breaker which features the symbol ‚. Only this extension guarantees compliance with the currently valid regulations.
37
■ The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected.
37
Removing the appliance
38
Also observe the sequence of worksteps here.
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Empty the dishwasher and secure loose parts.
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Close the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button P.
38
6. After approx. 4 minutes press the START button P until ‹:‹‚ is indicated on the digital display.
38
7. Switch off ON/OFF switch (.
38
8. Turn off the tap, disconnect supply hose and drain water.
38
Transport appliance upright only.
38
(This prevents residual water from running into the machine control and damaging the programme sequence.)
38
Protection against frostProtection against frost (Emptying the appliance)
38
If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).
38
Search:
×
Search
