• Page 1: Dishwasher DBI663 SOPERATING INSTRUCTIONS EN

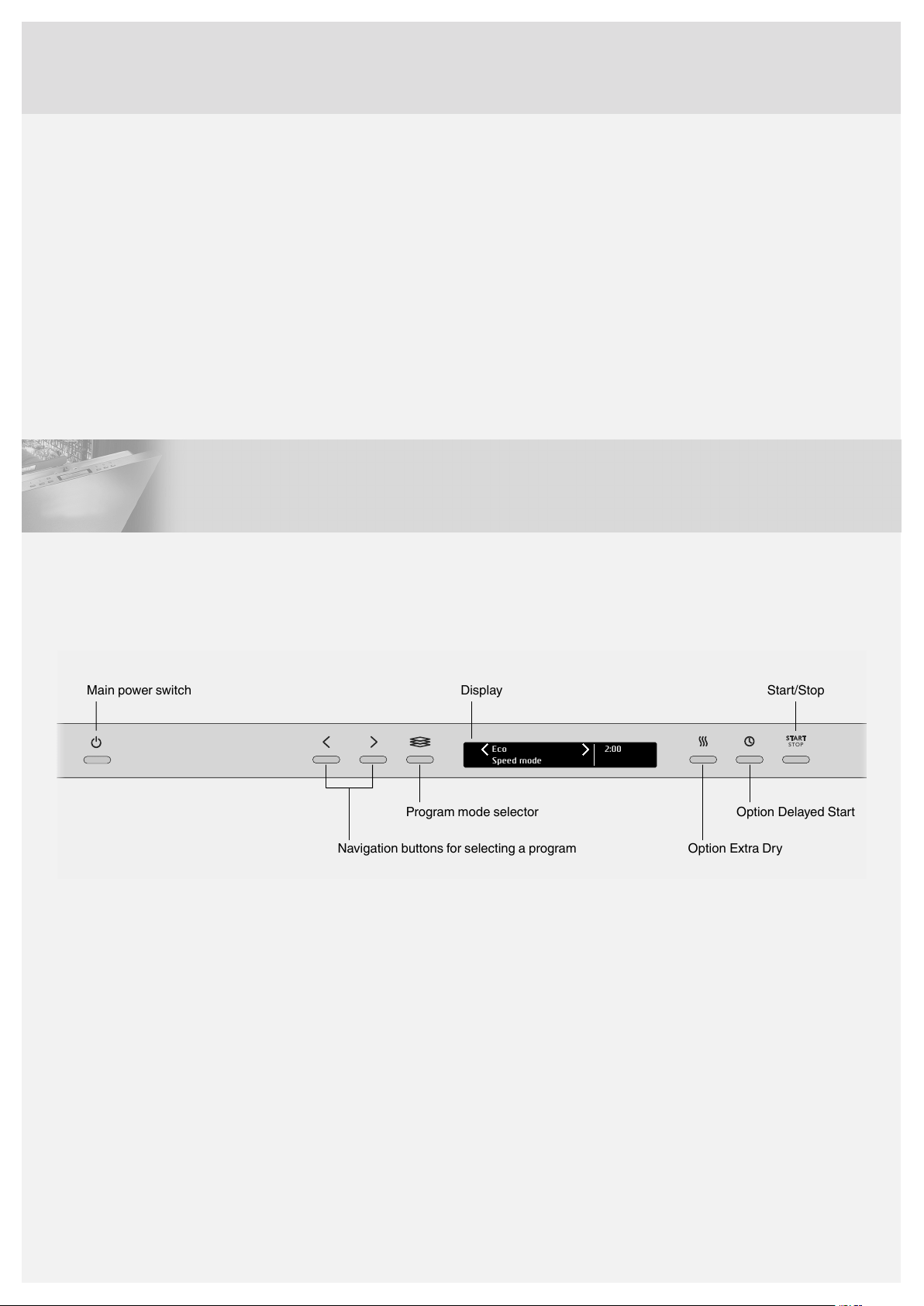

• Page 2 - English - : Contents 2Your dishwasher 3Important safety instructions 4Before washing for the first time 5Loading the dishwasher 8Using the dishwasher 12Settings 14Care and maintenance instructions 16Troubleshooting 19Technical information 20Installation instructions 24Service 26Notes 28Quick start guide Your dishwasher Open the door and press the main power switch quotWelcome to your new ASKO This is a first time set upquot is shown on the display the first time the dishwasher is switched on It is important that you choose the right settings to ensure good dishwashing results See page 4 Eco Speed mode 200 START STOP Display StartStop Program mode selector Navigation buttons for selecting a program Option Delayed Start Option Extra Dry Main power switch
• Page 3 - English - : Important safety instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING When using your dishwasher follow basic precautions including the following Read all instructions before using the dishwasher Use the dishwasher only for its intended function Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children When loading items to be washed locate sharp items so that they are not likely to damage the door seal and load sharp knives with the handles up to reduce the risk of cuttype injuries Do not wash plastic items unless they are marked dishwasher safe or the equivalent For plastic items not so marked check the manufacturers recommendations Do not operate the dishwasher unless all enclosure panels are properly in place Do not tamper with controls Do not abuse sit on or stand on the door or dish rack of the dishwasher To reduce the risk of injury do not allow children to play in or on a dishwasher Under certain conditions hydrogen gas may be produced in a hot water system that has not been used for two weeks or more HYDROGEN GAS IS EXPLOSIVE If the hot water system has not been used for two weeks before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes This will release any accumulated hydrogen gas As the gas is flammable do not smoke or use an open flame during this time Remove the door to the washing compartment when removing an old dishwasher from service or discarding it Read the grounding instructions in the installation instructions General Do not run the dishwasher while you are out of the home Do not store or use combustible materials gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance Disconnect electrical power to dishwasher before servicing Repairs should be done by a qualified technician WARNING PROPOSITION 65 FOR CALIFORNIA RESIDENTS Cancer and Reproductive Harm wwwP65Warningscagov Child safety Always keep small children away from the machine when it is open There may be some detergent residue left inside the machine Always close the door and start the dishwasher as soon as you put in the detergent If dishwasher detergent gets in someones eyes rinse them with plenty of water for at least 15 minutes Should a child swallow dishwasher detergent or rinse aid give plenty to drink immediately ie one or two glasses of milk or water Do not try to induce vomiting Seek medical advice immediately Call the National Capital Poison Center at 18002221222 WARNING Dishwasher detergents and rinse aids are corrosive so always keep them out of reach of children Activate child lock Kid Safe You can activate the child lock button lock to prevent children from starting the dishwasher See the chapter Settings Installation See the chapter Installation instructions Winter storageTransport Store the dishwasher above freezing and avoid long transport distances in very cold weather Transport the dishwasher upright or laying on its back Overflow guard function The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level If the overflow protection is triggered turn off the water supply and call the Customer Care Center Packing material The packaging protects the product during transport The packaging material is recyclable Separate the different packaging materials to help reduce raw material use and waste Your dealer can take the packaging for recycling or direct you to the nearest recycling center The packaging is comprised of Corrugated cardboard made from up to 100 recycled material Expanded polystyrene EPS with no added chlorine or fluorine Supports made from untreated wood Protective plastic made from polyethylene PE Disposal The dishwasher is manufactured and labeled for recycling When the machine has reached the end of its service life and is to be disposed of it should immediately be made unusable Pull out the power cable and cut it as short as possible Contact your municipality for information about where and how your dishwasher can be recycled correctly
• Page 4 - English - : Before washing for the first time 1 Checking water hardness Contact the local water utility to check the water hardness in your area This is important to determine how much detergent and rinse aid to use In general more rinse aid and detergent are needed for hard water 2 Basic settings Open the door and press the main power switch quotWelcome to your new ASKO This is a first time set upquot is shown on the display It is important that you choose the right settings to ensure good dishwashing results Confirm setting Select setting Main power switch Settings Language1 Select the language to be shown on the display Rinse aid 0123453 Use rinse aid to improve wash and dry times Also use rinse aid to achieve clear and spotless results Select rinse aid dosage The rinse aid dispenser can be adjusted between 0 Off and 5 High dosage Preselected at factory 5 Add rinse aid Press to open 1 Open the rinse aid compartment lid 2 Carefully top up with rinse aid to the level marked max 3 Wipe up any spilled rinse aid around the compartment 4 Close the lid firmly To change the chosen setting see the chapter Settings
• Page 5 - English - : Loading the dishwasher Greener dishwashing Do not rinse under running water Simply scrape off large food particles before loading the dishwasher Choose a green detergent Read the environmental declaration on the packaging Run programs only with a full load Wait until the dishwasher is fully loaded before running a program this way you save energy Use the Rinse and hold program to rinse the dishes if there are any unpleasant odors while you wait for the dishwasher to become fully loaded Run programs at a lower temperature If the dishes are only lightly soiled you can select a program with a low temperature Select ECO wash This program is the most effective in terms of energy consumption Select Green mode The dishwasher has different program modes To save energy and water use Green mode Available with Normal wash Sanitation wash Open the door a little once the program has finished Better drying results are achieved if you open the door a little once the program has ended If the dishwasher is builtin the surrounding furnishings must be resistant to any condensation from the dishwasher Connect to cold water Connect the dishwasher to the cold water supply if the building is heated using oil electricity or gas Connection to hot water supply Connect the dishwasher to the hot water supply max 160 F 70 C if the building is heated using an energyefficient means such as district heating solar power or geothermal power Choosing a hot water connection cuts dishwashing times and reduces the dishwashers energy consumption NOTE Do not exceed the permitted water supply temperature Certain materials used in some cookware cannot withstand strong heat Fragile dishes Some cookware is not dishwasher safe This can be for several reasons Some materials cannot withstand high temperatures others can be damaged by dishwasher detergent Use caution with for example handmade items fragile decoration crystalglassware silver copper tin aluminum wood and plastic Look for the quotDishwasher safequot marking Fragile decoration Porcelain with decoration on top of the glazing the items feel rough should not be washed in a dishwasher CrystalGlass Wash fragile items made of crystalglass such as crystal glass from Orrefors using the gentle dishwashing program Crystal glass Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash Use rinse aid to improve wash and dry times Also use rinse aid to achieve clear and spotless results Handpainted glassware as well as antique and very fragile items should not be washed in a dishwasher Silver Silver and stainless steel items should not come into contact as the silver can become discolored Aluminum Aluminum can lose its shine if washed in a dishwasher However good quality aluminum pans can be washed in a dishwasher even if some of the shine will be lost Cutlery with glued handles Some types of glue are not dishwasher safe In such cases the handles may loosen Points to consider All dirty surfaces should face in and down Dishes should not be placed in or on each other Angle dishes with hollows such as cups so that the rinse water will run off This is also important for plastic items Place the upper basket in its highest position when dishwashing very large plates Make sure small items cannot fall through the dishwasher basket place them in the top cutlery tray NOTE Check that the spray arms can rotate freely
• Page 6 - English - : The baskets The dishwasher includes a top cutlery tray an upper basket and a lower basket with a cutlery basket The basket appearance may differ depending on the configuration Top cutlery tray The top cutlery tray accommodates cutlery ladles whisks and other utensils Raising the top cutlery tray 1 Pull out the top cutlery tray 2 Pull the two locking handles forward on each side to raise the top cutlery tray Lowering the top cutlery tray 1 Pull out the top cutlery tray 2 Slide the two locking handles down and back to lower the top cutlery tray Upper basket Place glasses cups bowls side plates and saucers in the upper basket Place all soiled surfaces down Place wine glasses on the wine glass shelf Place knives in the knife stand on the right Lower basket Place plates side plates serving dishes pots and cutlery in the cutlery basket in the lower basket Place pots and pans in the rear right of the lower basket to best utilize dishwashing performance from the rear spray nozzle WideSpray which is intended for these types of dishes Foldable tines Lower the foldable tines when washing large pots Release the foldable tines by pressing the catch inward before adjusting their position Washing large plates Move adjustable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 9 34quot 25 cm Cutlery basket Place cutlery with the handles facing down except for knives and spread them out as much as possible Ensure that spoons do not stack inside each other The cutlery basket is best placed in the middle at the front of the lower basket to best utilize dishwashing performance from the unique spray nozzle Power Zone Cutlery which is intended for the cutlery basket WARNING Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets
• Page 7 - English - : Folddown section for small items The cutlery basket has a folddown section in the middle for small items or small shafts such as electric whisk attachments Typical load Recommended for daily regular or typical use Upper basket Lower basket

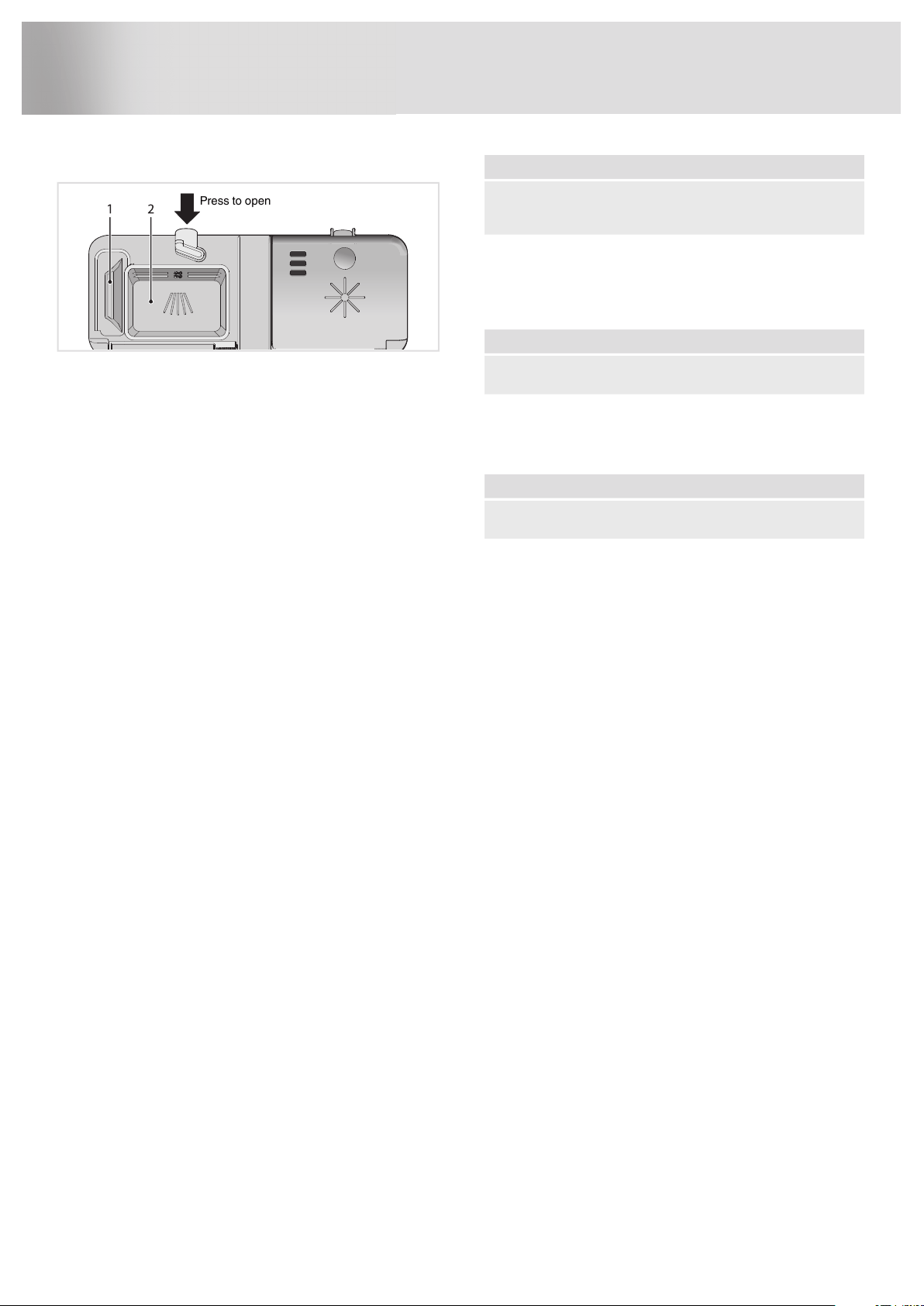

• Page 8 - English - : Using the dishwasher Add detergent Press to open 1 Prewash detergent compartment 2 Main wash detergent compartment Detergent is added according to water hardness Follow the instructions on the detergent packaging Too much detergent can result in less effective dishwashing and also entails greater environmental impact The detergent compartment must be dry when adding detergent There is one compartment for the prewash and one for the main wash If powder or liquid dishwasher detergent is used add a small amount of the detergent to the prewash compartment Contact the detergent manufacturer if you have questions about the detergent NOTE Use only dishwasher detergent Liquid handwashing detergent must not be used as the foam that forms prevents the dishwasher from operating effectively Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid There is a risk that the detergent will not be released properly if the lid is tight and cannot open correctly NOTE Dishwasher tablets are not recommended for short programs less than 75 minutes Use powder or liquid dishwasher detergent instead Allinone detergent There are many types of allinone detergents on the market Read through the directions for these products carefully NOTE Optimal washing and drying results are achieved by using normal dishwasher detergent together with separately dispensed rinse aid

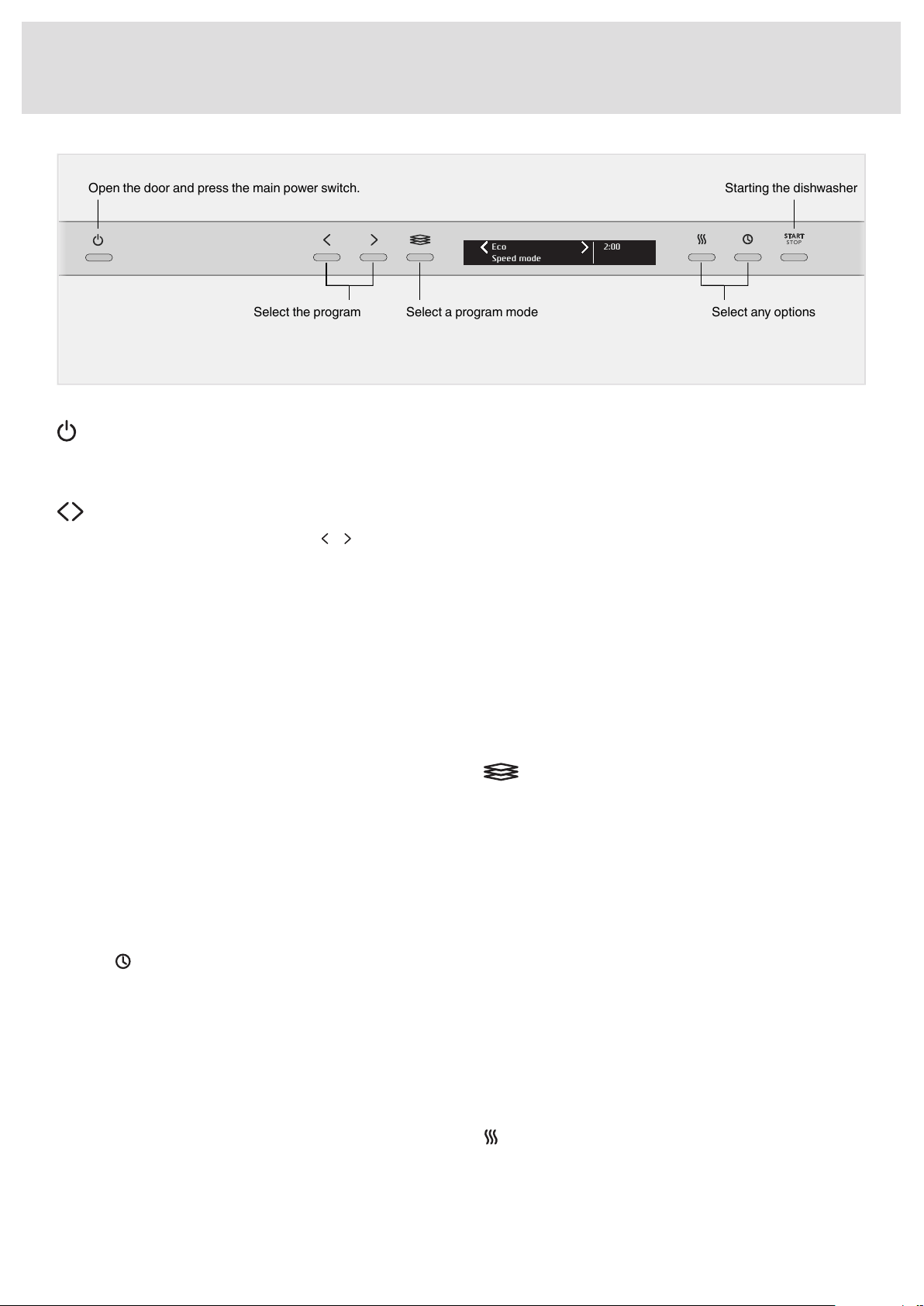

• Page 9 - English - : Eco Speed mode 200 START STOP Select a program mode Select any options Open the door and press the main power switch Select the program Starting the dishwasher The main power switch Open the door and press the main power switch Also turn on the water supply valve if it is turned off Select a program To select a program press the Navigation button or until the desired program is shown on the display Select a program to suit the type of dishes and how dirty they are Normal wash This program is recommended for daily regular or typical use to completely wash a full load of normally soiled dishes such as plates serving dishes cups and glasses ECO wash This program is the most effective in terms of energy consumption You can read more about greener dishwashing in the chapter Loading the dishwasher Sanitation wash An effective program for daily use with slightly dried leftovers This program is not intended for burnt food such as on oven dishes Time program The program adapts to the specified running time or finish time With this program it is important to choose a time suited to how dirty the dishes are Lightly soiled dishes015045 Normally soiled dishes100130 Heavily soiled dishes200230 Press the option button to set the desired program time Rinse and hold Use to rinse dishes while you wait for the dishwasher to become fully loaded Plastic wash A program intended for washing plastic items that are dishwasher safe This program has an extra long drying cycle Porcelain and glasses can also be washed Hygiene wash This program is recommended for baby bottles and cutting boards when additional sanitation is required The temperature is high in the main wash and in the final rinse Crystal glass A gentle dishwashing program with a low temperature for washing fragile items made of crystalglass such as crystal glass from Orrefors Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash See also Fragile dishes in the chapter Loading the dishwasher Porcelain that has just been used without dried leftovers can also be washed using this program Selfcleaning Selfcleaning program for sanitizing the dishwasher tub spray arms and spray pipes This program should be run with no dishes in the machine using regular dishwasher detergent or citric acid Special dishwasher cleaners are also available in stores For the removal of limescale deposits see The dishwasher tub in the chapter Care and maintenance instructions Upper half You can use this program if you only have cups and glasses that need washing in the upper basket Lightly soiled dishes can also be placed in the lower basket Lower half You can use this program when you only want to wash plates and cutlery in the lower basket Lightly soiled dishes can also be placed in the upper basket Select a program mode To select a program mode press the program mode selector until the desired mode is shown on the display The available program modes vary between programs Green mode The dishwasher uses less energy and water The program time is extended Speed mode The program time is shortened but the dishwasher uses more energy Night mode Lower noise level during the dishwashing program The program time is extended Intensive mode Heat Boost Improves the dishwashing results but the dishwasher uses more energy and water The program time is extended Select an Option To select an option press the option button until the desired option is shown on the display The available options vary between programs Extra Dry Heated drying option A higher temperature in the final rinse and a longer drying cycle improve the drying results if you activate this option Energy consumption is slightly increased The Extra Dry option is preselected for some programs You can deactivate this option to save time and energy
• Page 10 - English - : Delayed Start When you select Delayed Start the dishwasher will start 124 hours after you have pressed the button StartStop and closed the door 1 Press the button once to activate Delayed Start Press the button several times or hold it in to set the desired number of hours 2 Press StartStop and close the door The timer counts down and the dishwasher starts after the selected delay If you want to cancel the Delayed Start option open the door then press and hold StartStop for three seconds START STOP Starting the dishwasher Press StartStop until the display shows quotProgram started close door in 4 secquot This indicates that the dishwasher is ready to start Close the door properly within four seconds otherwise the dishwasher will not start If the dishwasher is not started or the door is not closed within 2 minutes of the last button press the machine switches off Time remaining Once you have chosen a program program mode and options the time the program took when last used is displayed Stopping or changing a program If you want to change the program after starting the dishwasher open the door then press and hold StartStop for three seconds Add more detergent if the lid of the detergent dispenser has opened Then choose a new program press StartStop and close the door within four seconds If you want to load more dishes Open the door The dishwasher stops automatically Add the dishes Press StartStop and close the door within four seconds WARNING If the door is open quotProgram pausedquot is shown on the display If you want the dishwashing program to continue press StartStop and close the door immediately If you want to cancel the dishwashing program press and hold StartStop for three seconds If the dishwasher is turned off due to a power failure If the program was not finished the interrupted program resumes when power is restored NOTE During drying the program is interrupted if the power is cut or the door is open for more than 2 minutes Once the program has finished The end of the program is indicated by one short signal from the buzzer The chapter Settings describes how to change this function The dishwasher switches off automatically after the program ends To minimize the risk of leaks we recommend that you turn off the water supply valve if away from home for an extended period of time How to get the best drying results Fully load the dishwasher Angle dishes with hollows such as cups so that the rinse water will run off This is also important for plastic items Top up with rinse aid or increase the rinse aid dosage level Activate the Extra Dry option Activate the High temperature setting See the chapter Settings Open the door a little once the program has finished Allow the dishes to cool before unloading the dishwasher Unloading the dishwasher Hot porcelain is more fragile Leave the dishes to cool in the dishwasher before unloading them Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket
• Page 11 - English - : Program chart Consumption values 1 Final rinseNumber of rinses Main washPrewashesProgram mode Option Detergent compartment ml Program Water cons gallon Hot water 3 Cold water 2 Energy approx kWh Dishwashing time approx hrsmin Energy approx kWh Dishwashing time approx hrsmin 320521010230 55 C 131 F2 53 C 127 F225 Normal wash 4 370721010235 50 C 120 F2 60 C 140 F225ECO wash 400714013210 65 C 150 F2 65 C 150 F225Sanitation wash 29 5004120152300516015230 lt65 C lt150 F23 lt65 C lt150 F0225Time program 08001007001007 C F1Rinse and hold 320723012300 68 C 155 F2 55 C 130 F125Plastic wash 260910014130 70 C 160 F2 70 C 160 F25Hygiene wash 240512008150 50 C 120 F2 45 C 115 F20Crystal glass 320715511225 60 C 140 F2 65 C 150 F120Upper half 320715511225 60 C 140 F2 65 C 150 F120Lower half 1 Consumption values vary depending on the temperature of the incoming water room temperature load size selected additional functions and more 2 Connection to cold water approx 50 F 10 C A cold water supply is recommended 3 Connection to hot water approx 120 F 50 C 4 The energy label performance figures are based on this program This program is recommended for daily regular or typical use to completely wash a full load of normally soiled dishes such as plates serving dishes cups and glasses
• Page 12 - English - : Settings Open the dishwashers Settings menu To open the dishwashers Settings menu press the Navigation button or until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwashers Settings menu select Exit and confirm your selection with the mode selector START STOP 1 Language English Mode selector to confirm current setting Settings Current setting Navigation buttons for choosing setting OptionsSettings You can choose the language used for the displayEnglish USSvenskaDanskNorskSuomi NederlandsFrançaisDeutschItaliano Русский EspañolPortuguêsSloven EestiLatviešuLietuvi ų HrvatskiPolish 简体中文 繁體中文 日本語 Language1 Programs can be shown or hidden in the menu Choose between On and Off Normal wash OnOff ECO wash OnOff Sanitation wash OnOff Time program OnOff Rinse and hold OnOff Plastic wash OnOff Hygiene wash OnOff Crystal glass OnOff Selfcleaning OnOff Lower half OnOff Upper half OnOff Select programs2 ECO wash cannot be hidden in the menu You can activate the child lock button lock to prevent children from starting the dishwasher OnOffChild lock3 To temporarily deactivate and activate the child lock press and hold the left Navigation button and the option button Delayed Start for 3 seconds For adjusting the contrast of the displayContrast top display1234Display settings4 Setting to hide the logo shown on the displayLogo in top display OnOff This sound is used to confirm each button press0123Feedback sound5 The buzzer indicates when a dishwashing program has ended0123Buzzer volume6 Error messages are always indicated by a loud buzzer Setting for rinse aid dosage The rinse aid dispenser can be adjusted between 0 Off and 5 High dosage 012345Rinse aid7 Increase the rinse aid dosage If the dishes have water marks Reduce the rinse aid dosage If the dishes have a sticky whiteblue film If the dishes are streaked Heavy foaming If you have very soft water the rinse aid can be diluted 5050 with water
• Page 13 - English - : OptionsSettings Super rinse adds two extra rinsesOnOffSuper rinse8 Activated in the following programs Normal wash ECO wash Sanitation wash Plastic wash Lower half Upper half Activate the setting High temperature to improve the dishwashing results Energy consumption is slightly increased OnOffHigh temperature9 Activated in the following programs Normal wash To exit the dishwashers Settings menu select Exit and confirm your selection with the mode selector Exit
• Page 14 - English - : Care and maintenance instructions Add rinse aid When the rinse aid needs topping up the above symbol lights on the display Press to open 1 Open the rinse aid compartment lid 2 Carefully top up with rinse aid to the level marked max 3 Wipe up any spilled rinse aid around the compartment 4 Close the lid firmly After topping up it may take a while before the symbol goes out Coarse filter The coarse filter traps larger food particles which cannot get past the drain pump Empty the coarse filter when necessary Coarse filter 1 Lift the coarse filter by the handle 2 Empty the coarse filter Remember to reinstall it Fine filter Debris that collects on the fine filter is automatically rinsed away during each wash Clean the fine filter when necessary Fine filter 1 Turn the handle counterclockwise 2 Lift the filter straight up using the handle Remove the coarse filter to clean the fine filter 3 Reinstall in reverse order Check that the edges seal properly when reinstalling the fine filter 4 Lock the filter in place by turning the handle clockwise to the stop position The handle should point straight out from the dishwasher NOTE Dishwashing results may be affected if the filters are incorrectly fitted Note that the dishwasher must not be used without the filters in place NOTE Check that the colored stop on the right in the bottom drain is in place Spray arms Holes and bearings can become blocked Remove debris using a needle or similar item The spray arms have holes on the bottom Spray arms can be removed for cleaning Remember to fit them firmly back into place afterward Top spray arm Remove the upper basket then release the top spray arm See section Upper spray arm Pull out the top cutlery tray Push the top spray arm up and turn the spray arm bearings counterclockwise to remove the spray arm Upper spray arm The upper basket must be removed before the upper spray arm can be released Extend the upper basket then rotate each basket catch runner outward see illustration Remove the basket Pull the upper spray arm straight up to release Lower spray arm Pull the lower spray arm straight up to release it
• Page 15 - English - : The door and the door seal Regularly clean the sides of the door and the door seal Use a slightly damp cloth with a little cleaner if necessary Display panel Keep the buttons clean and free from grease Wipe them clean with a dry or slightly damp cloth Never use cleaners they can scratch the surface Use the main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally The dishwasher tub The dishwasher tub is made of stainless steel and is kept clean through normal use Limescale deposits If you have hard water limescale deposits may build up in the dishwasher If this happens run the Selfcleaning program with two tablespoons of citric acid in the detergent compartment with no dishes in the machine Special dishwasher cleaners are also available in stores Never use antifreeze Draino CLR or other chemical cleaners Unblocking the drain pump If the dishwasher still contains water after the program has finished something may be blocking the drain pump Such items are easily removed 1 Turn off the machine using the main power switch and unplug it from the power outlet 2 Remove the coarse filter and the fine filter 3 Scoop out the water from the dishwasher tub 4 In order to inspect the drain pump remove the colored stop on the right in the bottom drain 5 Turn the pump wheel located behind the drain pump stop by hand Carefully remove any items 6 Reinstall the drain pump stop along with the fine and coarse filters 7 Plug the machine in again If the dishwasher still does not start and a whirring sound is heard the overflow protection has been triggered Shut off the water Unplug the unit from the power outlet Call the Customer Care Center Drain pump stop NOTE Do not forget to reinstall the drain pump stop
• Page 16 - English - : Troubleshooting ActionType of fault on the display Clear the drain pump See the chapter Care and maintenance instructions If the problem persists call the Customer Care Center Overfilling water 1F10 See Water remains in the dishwasher above the filters in the table Problem below If the problem persists call the Customer Care Center Water outlet faultF11 Check that the water supply valve is on If the problem persists call the Customer Care CenterWater inlet faultF12 The water pressure should be 42140 psi Turn off the water supply valve and call the Customer Care CenterInlet valve leakageF40 Clean the coarse and fine filters If the problem persists call the Customer Care CenterWater level faultF52 Turn off the water supply valve and call the Customer Care CenterOverfilling water 2F54 Call the Customer Care CenterCirc pump faultF56 Press any button to clear the error message ActionPossible causesProblem Wait a moment then try againYou have pressed the buttons too soon after opening the door The buttons do not react when pressed See the chapter SettingsChild lock button lock activated Open the door The buttons only react to use when the door is open The door is closed Clean with a dry or slightly damp clothThe buttons are dirty Check that the baskets are correctly positioned horizontally The baskets are not correctly positionedCannot close door Check that the dishes are not blocking the baskets from sliding properly into place Press and hold StartStop until the display shows quotProgram started close door in 4 secquot The StartStop start button has been pressed for too short a time The dishwasher does not start Close the door within four seconds otherwise the dishwasher will not start The door is not closed properly or was not closed immediately after pressing the StartStop button If you want the dishwashing program to continue press StartStop and close the door within four seconds You have opened the dishwasher to add more dishes while a program is in progress CheckA fusecircuit breaker has been tripped CheckThe plug is not plugged into the power outlet CheckThe water supply valve is turned off CheckOverflowleaks Turn off the water supply valve Pull out the plug and call the Customer Care Center A whirring sound the drain pump is heard from the dishwasher and does not stop when the main power switch is turned off Press and hold StartStop for three seconds if you want to cancel the Delayed Start option Check that the Delayed Start option has not been selected
• Page 17 - English - : ActionPossible causesProblem Check that the dishes are not blocking the spray arms The spray arms do not rotateThe dishes are not clean Clean the spray arms See the chapter Care and maintenance instructions Spray arm holes or bearings blocked Choose a longer programUnsuitable dishwashing program Dose according to water hardness Far too much or far too little detergent can result in poor dishwashing results Incorrect detergent dosage Avoid large packagesDetergent is too old Detergent is a perishable product Do not cover dishes with large bowls or lids Avoid placing very tall glasses in the corners of the baskets Dishes loaded incorrectly Load the dishes securelyGlasses and cups have toppled over during the program Check that the filter handle is locked in the stop position The handle should point straight out from the dishwasher The filters are not fitted correctly Check that the colored stop on the right in the bottom drain is in place See the chapter Care and maintenance instructions Drain pump stop missing Rinse off these types of food if not starting the dishwasher immediately Use the Rinse and hold program Some types of food such as mustard mayonnaise lemon vinegar salt and dressings can mark stainless steel if left for too long Spots on stainless steel or silver In order to avoid marks and tarnishing separate dishes made from different metals such as silver stainless steel and aluminum All stainless steel can cause spots on silver if they come into contact during dishwashing Aluminum can also cause spots on dishes See the chapter SettingsIncorrect rinse aid dosage settingSpots or films on the dishes Wash crystal at a low temperature and with a conservative amount of detergent Contact the detergent manufacturer Too high temperature andor too much detergent can cause etching on crystal Unfortunately this cannot be repaired only prevented Reduce the dosage See the chapter Settings If you have very soft water you may want to dilute the rinse aid 5050 with water Rinse aid dosage setting too highThe dishes have a sticky whiteblue film Use a detergent with a bleaching agentLipstick and tea can be difficult to wash offSpots left after washing The detergent compartment must be dry when adding detergent The detergent compartment was damp when adding detergent Detergent residue in the detergent compartment after dishwashing Check that the dishes are not preventing the detergent compartment from opening The detergent compartment has been blocked Check that the dishes are placed securely Spin the spray arms to make sure they can rotate The dishes are not correctly placed or the spray arms are not rotating Rattling sound when dishwashing If you want the dishwashing program to continue press StartStop and close the door within four seconds The dishwasher door has been opened while a program is in progress quotProgram pausedquot is shown on the display If you want to cancel the dishwashing program press and hold StartStop for three seconds
• Page 18 - English - : ActionPossible causesProblem Clean the coarse and fine filtersThe filters are blockedWater remains in the dishwasher above the filters Check that the filter handle is locked in the stop position The handle should point straight out from the dishwasher The filters are not fitted correctly Clean the drain pump See the chapter Care and maintenance instructions Debris in the drain pump Check that the colored stop on the right in the bottom drain is in place See the chapter Care and maintenance instructions Drain pump stop missing Check that the hose is free from kinks and sharp bends Kink in drain hose Loosen the drain hose from where it terminates Check that no debris has clogged the hose Is the coneshaped part of the drain boot cut to the maximum size of the fitting where it attaches Blocked drain hose Clean with dish brush and low foaming cleanerDirt around the seals and in cornersBad odor in dishwasher Run a program with a higher temperature once or twice a month Or run a selfcleaning program See Selfcleaning in the chapter Using the dishwasher Low temperature programs have been selected for a prolonged period Cleaning the garbage disposer connected to the dishwasher can eliminate odors Follow the disposer manufacturers cleaning instructions The dishwasher is connected to a garbage disposer Activate the Extra Dry optionDepending on the load the programs drying cycle may be insufficient The dishes are not dry enough Fully load the dishwasherThe dishwasher is not fully loaded Top up with rinse aid or increase the rinse aid dosage level See the chapter Settings Rinse aid needs topping up or dosage is set too low Open the door a little once the program has finished
• Page 19 - English - : Technical information Technical data 32 34 34 78quot 1 Height 24quotWidth 22quotDepth 100 lb 45 kg 2 Weight 42140 psiWater pressure See serial number plateElectrical connection See serial number plateRated power 1 If a height of 32 14 is required for ADA compliance remove the upper trim kit Also lower the trim kit on the sides 2 Weight can vary due to different specifications
• Page 20 - English - : Installation instructions 32 34 34 78 28 18 24 5 18 7 38 4 14 47 18 Nominal dimensions Actual measurements may vary Remove lock nuts for an installed height of 32 34 If European widths of 23 58 600 mm is required remove the trim kit If a height of 32 14 is required for ADA compliance remove the upper trim kit Also lower the trim kit on the sides Important safety instructions Connections to electricity water and drainage must be performed by a qualified professional Always follow applicable regulations for water drainage and electricity Take care during installation Wear protective gloves There must always be two people Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks Before screwing the dishwasher into place test the dishwasher by running the Rinse and hold program Check that the dishwasher fills with water and drains Also check that none of the connections leak WARNING Turn off the water supply when installing the dishwasher The plug must be disconnected or power to the outlet turned off while installing the dishwasher Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher REMOVE Trim kit The dishwasher is equipped with a trim kit to fit the 24 cutout standard If a European width of 23 58 600 mm is required remove the trim kit Adjust the trim kit The trim kit can be adjusted backward to level the dishwasher tub
• Page 21 - English - : ADA compliance If a height of 32 14 is required for ADA compliance remove the upper trim kit Also lower the trim kit on the sides Placing the dishwasher The dishwasher is intended to be built in under a countertop The builtin measurements are shown in the illustration Make sure that the cord and hose holes edges are even and will not damage the drain and inlet hoses or the power cord 5 38 32 34 34 34 32 14 The electrical and water supplies should enter through the area indicated by the shading on the illustration Remove the trim kit NOTE Framed cabinets require additional finished filler material behind the face frame for a proper installation A minimum 3½ 89 mm finished return is required on all sides of the opening 3½ ¾ 3½ Frameless cabinetry Filler Framed cabinetry If the dishwasher is builtin the surrounding furnishings must be resistant to any condensation from the dishwasher Fit the protective film Fit the protective film packed in the document bag to the underside of the countertop The protective film is to protect the countertop from moisture NOTE The surface to which the protective film is fitted must be clean and dry
• Page 22 - English - : Adjust the height and slide the dishwasher into place 1 Start by measuring the height from the floor to the bottom edge of the countertop 2 Measure the height from the floor to the top edge of the dishwasher 3 Lean the dishwasher forward a little and adjust the rear foot with the screw at the front of the dishwasher Turn clockwise to lower or counterclockwise to raise Max 04 Nm 5 Adjust the front feet by turning them clockwise to raise and counterclockwise to lower the dishwasher 2x 1 58 6 Verify there is an air gap of at least 18 between the underside of the countertop and the top edge of the dishwasher 7 Slide the dishwasher into place Pull the drain and supply hoses through the opening as the dishwasher is slid into place Check that the hoses have no kinks or sharp bends and check that there is nothing that can damage the hoses 8 Make any final adjustments to the feet the dishwasher may lean no more than 14 and tighten the lock nuts on the front feet Drain connection This dishwasher is suitable for installing in a raised recess to attain an ergonomic working height This means that the dishwasher can be placed so that the drain hose runs to a lower level than the bottom of the dishwasher such as by routing it directly to a floor drain The dishwasher is fitted with an integrated antisiphon device to prevent the machine from being emptied of water during the wash cycle min 12 Max 3738 The drain hose can also be connected to a connection nipple on the sink units water trap The connection nipple must have an internal diameter of at least 12 The drain hose may be extended by a maximum of 87quot 22 m the total length of the drain hose must not exceed 177quot 45 m Any joins and connecting pipes must have an internal diameter of at least 12 However the drain hose should ideally be replaced with a new hose without joins No part of the drain hose may be more than 37 38 above the bottom of the dishwasher Attach the drain hose with a hose clamp Ensure that the drain hose has no kinks Connection to water supply Use only the inlet hose supplied with the dishwasher Do not reuse old or other spare hoses The supply pipe must be fitted with a water supply valve The water supply valve must be easily accessible so that the water can be shut off if the dishwasher has to be moved Once the installation is complete turn on the water supply valve and allow the pressure to settle for a while Check that all connections are watertight Water supply The machine can be connected to either a cold or a hot max 160 F 70 C water supply The water pressure should be 42140 psi
• Page 23 - English - : Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil electricity or gas Connection to hot water supply Connect the dishwasher to the hot water supply max 160 F 70 C if the building is heated using an energyefficient means such as district heating solar power or geothermal power Choosing a hot water connection cuts dishwashing times and reduces the dishwashers energy consumption NOTE Do not exceed the permitted water supply temperature Certain materials used in some cookware cannot withstand strong heat See Fragile dishes in the chapter Loading the dishwasher Electrical connection Information about the electrical connection can be found on the serial number plate This specification must match the electricity supply The power supply receptacle for the appliance must be installed in a cabinet or on a wall adjacent to the undercounter space in which the appliance is to be installed Do not use an extension cord for this appliance The access hole for the the electrical supplie must be round and smooth and no bigger than 1 12 in diameter If the partition is metal it needs to be covered with an edge protector Use caution when the appliance is installed or removed to reduce the likelihood of damage to the power supply cord Grounding Instructions This appliance must be grounded In the event of a malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This appliance is equipped with a cord fitted with an equipment grounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances WARNING Improper connection of the equipment grounding conductor can result in a risk of electric shock Check with a qualified electrician or service representative if you are in doubt as to whether the appliance is properly grounded Do not modify the plug provided with the appliance If it does not fit the outlet have an appropriate outlet installed by a qualified electrician Screwing the dishwasher into place Applicable only to builtin dishwashers 2x After fastening the machine check that the front feet still touch the floor Screw the dishwasher into place with two extra screws If there is an air gap of more than 18 between the underside of the countertop and the top edge of the dishwasher the dishwasher ought to be screwed into place with two extra screws 2x KNOCK OUT

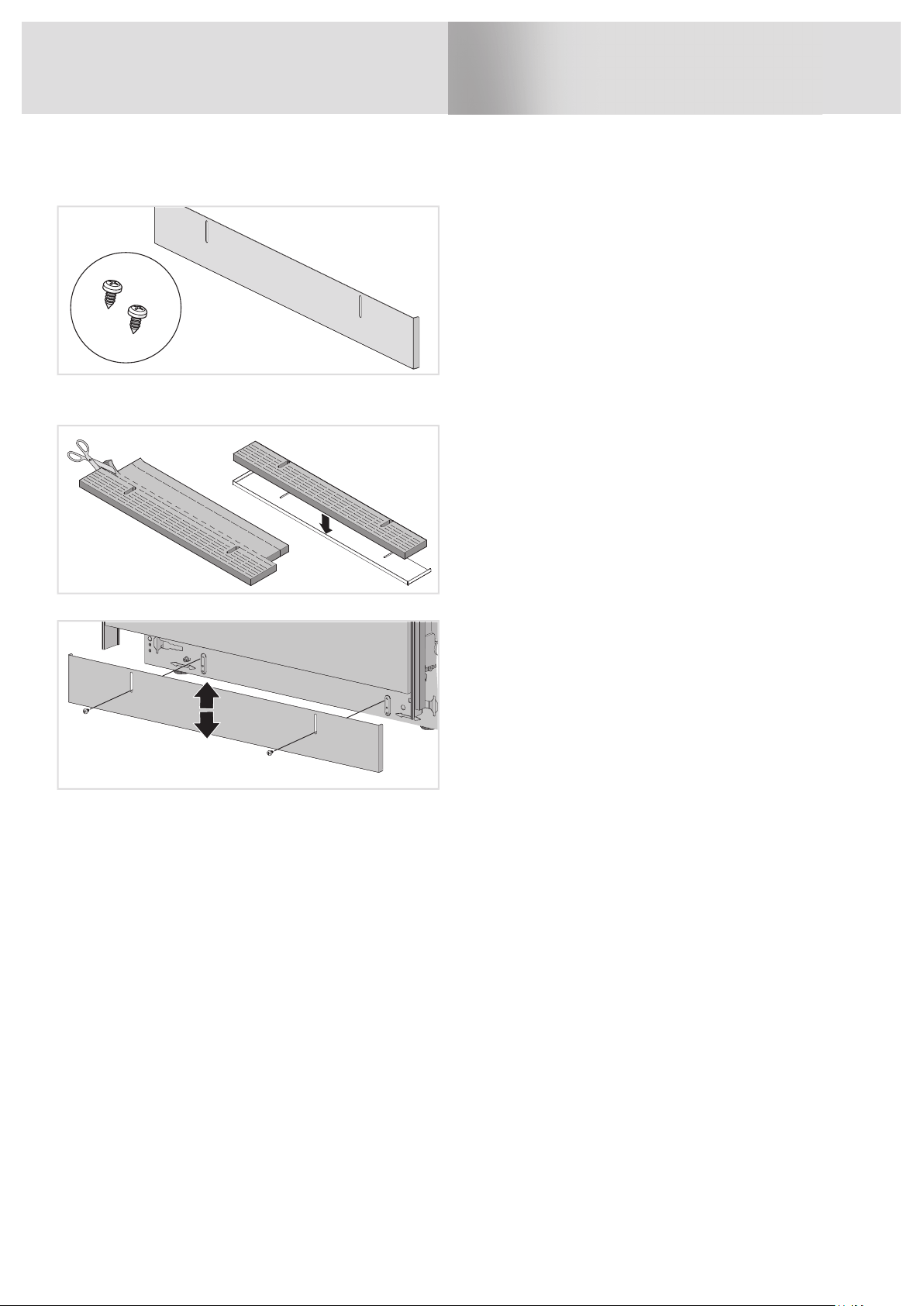

• Page 24 - English - : Dishwasher toe kick The dishwasher is supplied with a toe kick Fit the sound insulation only certain models Fit the toe kick Ensure the floor underneath the toe kick is at same height as the floor underneath the dishwasher Service Limited Warranty Residential Appliances ASKO Distribution North America LLC ASKO warrants to the original purchaser the ASKO Customer of the ASKO product the ASKO Product who purchased the ASKO Product from a distributor dealer manufacturers representative or other seller who has been authorized by ASKO that this ASKO Product is free of defects in materials andor workmanship subject to the terms and conditions set forth herein This Limited Warranty covers parts and labor except as set forth in this Limited Warranty Service must be provided by an authorized ASKO service company YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN This Limited Warranty is valid only when the ASKO Product is used in the country in which it was purchased Proof of original purchase date is required to obtain service under this Limited Warranty Residential ASKO Products Used Exclusively for HouseholdPersonal Purposes Two 2 Years limited Warranty Any warranty service claims for residential ASKO Products must be filed with ASKO within two 2 years from date of purchase Service will be provided during normal business hours Residential ASKO Products Not Used Exclusively for HouseholdPersonal Purposes or used Commercially or used in Marine Mobile or Aeronautical Applications One 1 Year limited Warranty Any warranty service claims for ASKO Products not used exclusively for household and personal use or used commercially or used in marine mobile or aeronautical applications must be filed with ASKO within one 1 year from date of purchase Service will be provided during normal business hours Items excluded from warranty This limited warranty does not cover 1 Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent with published user or operator instructions andor installation instructions 2 Service calls to correct the installation of the ASKO Product to instruct you on how to use the ASKO Product to replace or repair house fuses or to correct house wiring or plumbing 3 Consumable items and parts such as filters 4 Damage resulting from accident alteration misuse abuse negligence fire flood acts of God improper use improper installation installation not in accordance with electrical or plumbing codes or use of products not approved by ASKO as well as any attempted repair by other than authorized ASKO service companies 5 Cosmetic damage including scratches dents chips or other damage to the finish of the ASKO Product unless such damage results from defects in materials or workmanship and is reported to ASKO within 5 days from date of purchase 6 Pickup and delivery The ASKO Product is intended to be repaired in your home 7 Repairs to parts or systems resulting from unauthorized modifications made to the ASKO Product 8 Expenses for travel and transportation for product service if the ASKO Product is located in a remote area where service by an authorized ASKO service company is not available 9 The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location or is not installed in accordance with ASKOs published installation instructions 10 Replacement parts or repair labor on ASKO Products with original modelserial numbers that have been removed altered or cannot be easily determined Disclaimer YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN
• Page 25 - English - : EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE Some jurisdictions do not allow exclusion or limitations regarding warranty rights This Limited Warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction Attempted repair by any person other than an authorized ASKO service company will void this Limited Warranty Limitation of liability IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL INCIDENTAL EXEMPLARY PUNITIVE OR SPECIAL DAMAGES IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE Some jurisdictions do not allow the exclusion or limitation of incidental consequential or other damages so these limitations and exclusions may not apply to you This Limited Warranty gives you specific legal rights You also may have other rights that vary from jurisdiction to jurisdiction Troubleshooting amp ASKO Customer Care If you think you need repair service first see the Troubleshooting section of the Use amp Care Guide If you are unable to resolve the problem after checking Troubleshooting then additional help can be obtained by calling ASKO Customer Care at 18008981879 Read the chapter Troubleshooting before contacting the Customer Care Center If you have encountered a problem that you cannot resolve please contact your nearest dealer see wwwaskocom When making contact provide the details on the serial number plate Include the service number 1 the article number 2 and the serial number 3 SERIAL NO ART NO Service no Service after expiration of limited warranty For information about obtaining parts and labor after expiration of this Limited Warranty or arising outside the scope of this Limited Warranty please contact ASKO Customer Care at 18008981879 After your purchase and prior to first use of the ASKO Product register your ASKO Product with ASKO by utilizing the address information below Should you need further assistance as well contact us at the address information below ASKO Distribution North America LLC Customer Care Center PO Box 44848 MADISON WI 53744

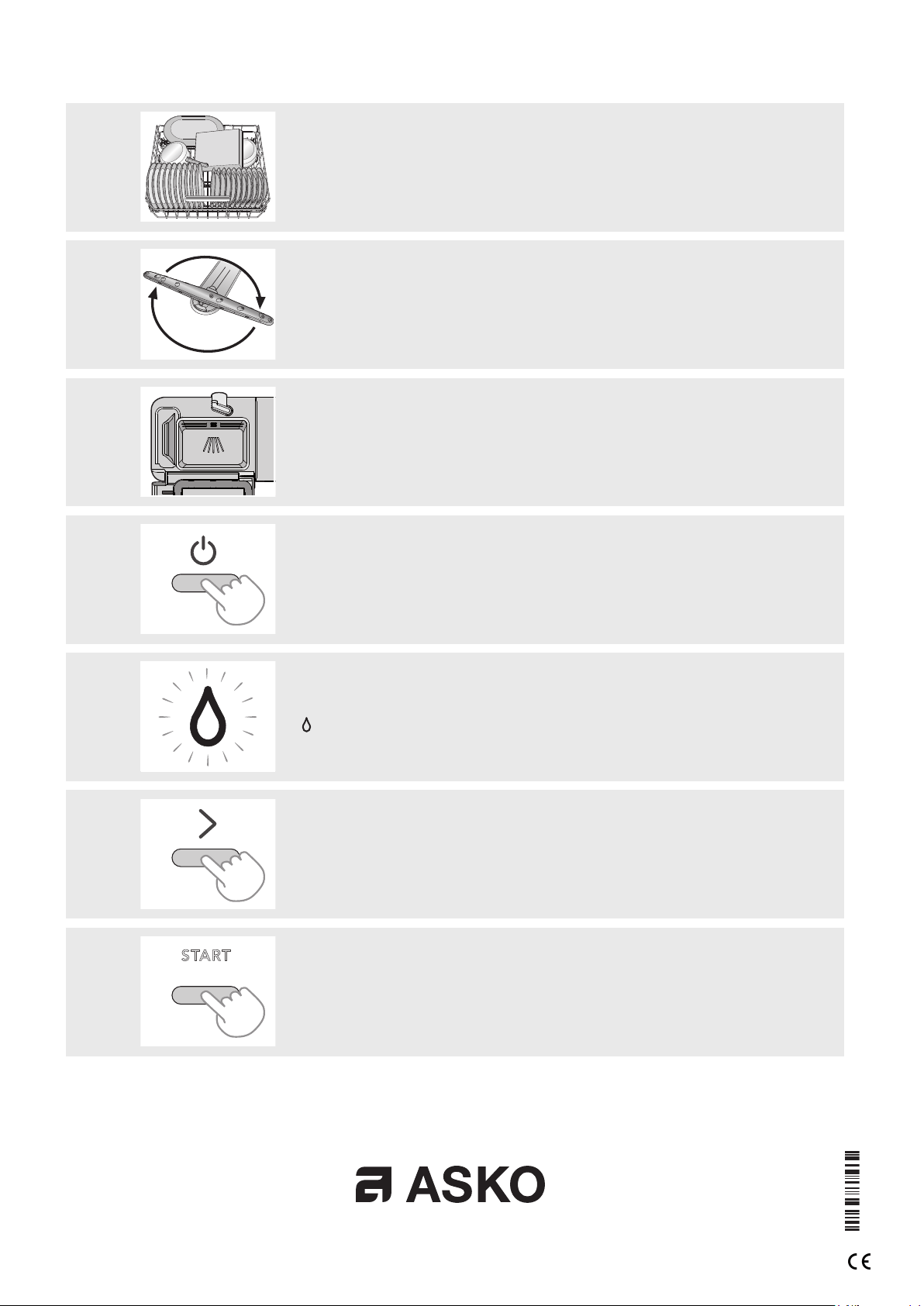

• Page 28 - English - : Quick start guide Load the baskets See page 5 Do not rinse dishes under running water before loading them in the dishwasher Simply scrape off large food particles before loading the dishwasher Check that the spray arms can rotate freely Check also that the water supply valve is on Dont forget Empty the coarse filter and clean the fine filter when necessary See page 14 Add detergent The detergent compartment has a small compartment for prewash and a large compartment for the main wash See page 8 Open the door and press the main power switch CheckAdd rinse aid Top up rinse aid for optimal washing and drying results See page 4 Refill rinse aid indicator Select a program program mode and any options See page 9 Press StartStop close the door START STOP Press and hold StartStop until the display shows quot Program started close door in 4 secquot This indicates that the dishwasher is ready to start Close the door properly within four seconds otherwise the dishwasher will not start Item No 655804 Rev 08 We reserve the right to make changes Customer Care Center 18008981879 wwwaskonacom en 0320
