CONTENTS
1. SAFETY INFORMATION.............................................................................................2
2. SAFETY INSTRUCTIONS.............................................................................................4
3. INSTALLATION............................................................................................................6
4. PRODUCT DESCRIPTION...........................................................................................9
5. DAILY USE..................................................................................................................11
6. HINTS AND TIPS........................................................................................................14
7. CARE AND CLEANING.............................................................................................15
8. TROUBLESHOOTING............................................................................................... 15
9. TECHNICAL DATA.................................................................................................... 17
10. ENERGY EFFICIENCY.............................................................................................18
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
1.
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
www.aeg.com2
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
• Children of less than 3 years of age should be kept
away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2
General Safety
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements.
• Do not operate the appliance by means of an external
timer or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid
or a fire blanket.
ENGLISH
3
• CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
• WARNING: Danger of fire: Do not store items on the
cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains.
In case the appliance is connected to the mains
directly using junction box, remove the fuse to
disconnect the appliance from power supply. In either
case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2.
SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
WARNING!
Risk of injury or damage to
the appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Keep the minimum distance from
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent
to a door or under a window. This
prevents hot cookware falling from
the appliance when the door or the
window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for
air circulation.
www.aeg.com4
• The bottom of the appliance can get
hot. Make sure to install a separation
panel made from plywood, kitchen
carcass material or other non-
flammable materials under the
appliance to prevent access to the
bottom.
• The separation panel has to cover the
area under the hob completely.
2.2 Electrical Connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation
make sure that the appliance is
disconnected from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.
• Use the correct electricity mains
cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the
cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug (if applicable) or to the
mains cable. Contact our Authorised
Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock.
• Remove all the packaging, labelling
and protective film (if applicable)
before first use.
• This appliance is for household use
only.
• Do not change the specification of
this appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Set the cooking zone to “off” after
each use.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with
wet hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• When you place food into hot oil, it
may splash.
ENGLISH
5
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• Do not keep hot cookware on the
control panel.
• Do not put a hot pan cover on the
glass surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones
with empty cookware or without
cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these
objects up when you have to move
them on the cooking surface.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
2.4 Care and cleaning
• Clean the appliance regularly to
prevent the deterioration of the
surface material.
• Deactivate the appliance and let it
cool down before you clean it.
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
3.
INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down
the information bellow from the rating
plate. The rating plate is on the bottom
of the hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in
units and work surfaces that align to the
standards.
3.3 Connection cable
• The hob is supplied with a connection
cable.
www.aeg.com6
• To replace the damaged mains cable,
use the cable type: H05V2V2-F which
withstands a temperature of 90°C or
higher. Speak to your local Service
Centre.
3.4 Attaching the seal - On-top
installation
1. Clean the worktop around the cut
out area.
2. Attach the supplied 2x6mm seal
stripe to the lower edge of the hob,
along the outer edge of the glass
ceramic. Do not stretch it. Make sure
that the ends of the seal stripe are
located in the middle of one side of
the hob.
3. Add some millimetres to the length
when you cut the seal stripe.
4. Join the two ends of the seal stripe
together.
3.5 Assembly
min.
50mm
min.
500mm
R 5mm
min.
55mm
340
+1
mm
490
+1
mm
50 mm
ENGLISH
7
50 mm
min.
25 mm
min.
20 mm
3.6 Installation of more than
one hob
Supplied accessories: connection bar,
heat-resistant silicone, rubber shape,
sealing stripe.
Use only a special heat-
resistant silicone.
The worktop cutout
Distance
from the
wall
minimum 50 mm
Depth 490 mm
Width sum of all widths of hobs that
you install minus 20 mm
Example:
580 mm
520 mm
490 mm
360 mm
+ - =
20 mm 920 mm
Assembly
1. Calculate correct cutout dimensions.
2. Prepare cutout in the worktop.
3. One by one place the hobs on a soft
surface (for example on a blanket)
with the bottom side up.
4. Attach the supplied seal stripe to the
lower edge of the hob along the
outer edge of the glass ceramic.
5. Loosely screw the fixing plates into
the correct holes in the protective
casing.
6. Insert first hob into the worktop
cutout. Than insert the connection
bar into the worktop cutout. Push it
half of its width under the hob.
7. Loosely screw in the fixing plates
from below to the worktop and to
the connection bar.
8. Insert next hob into the worktop
cutout. Make sure that the front
edges of the hobs are on the same
level.
www.aeg.com8
9. Tighten the fixing plates / retaining
grip screws.
10. Use silicone to seal the gaps
between the hobs and between the
hobs and the worktop.
11. Put some soapy water on the
silicone.
12. Press the rubber shape with some
strength against the glass ceramic
and move it slowly along the space.
13. Do not touch the silicone until it
becomes hard, it can last about a
day.
14. Carefully remove the silicone that
came out with a shaving blade.
15. Clean the glass surface.
4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
120/175/210
mm
145
mm
1
2
1
1
Cooking zone
2
Control panel
4.2 Control panel layout
6 742 31
12 1114 13 10
8 95
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
ENGLISH
9
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Lock / Child Safety Device To lock / unlock the control panel.
3
Pause To activate and deactivate the function.
4
- Heat setting display To show the heat setting.
5
- Timer indicators of cooking
zones
To show for which zone you set the time.
6
- Timer display To show the time in minutes.
7
CountUp Timer To show that the function operates.
8
Count Down Timer / Mi-
nute Minder
To show that the function operates.
9
- To activate and deactivate the outer ring.
10
- To select the Timer function.
11
- To select the cooking zone.
12
/
- To increase or decrease the time.
13
Automatic Heat Up To activate and deactivate the function.
14
- Control bar To set a heat setting.
4.3 Heat setting displays
Display Description
The cooking zone is deactivated.
-
The cooking zone operates.
Pause operates.
Automatic Heat Up operates.
+ digit
There is a malfunction.
/ /
OptiHeat Control (3 step Residual heat indicator): continue cooking /
keep warm / residual heat.
Lock / Child Safety Device operates.
www.aeg.com10
Display Description
Automatic Switch Off operates.
4.4 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
/ / There is a risk of
burns from residual heat.
The indicators show the level
of the residual heat for the
cooking zones you are
currently using. The
indicators may also come on
for the neighbouring
cooking zones even if you
are not using them.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Activating and
deactivating
Touch for 1 second to activate or
deactivate the hob.
5.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after
you activate the hob,
• you spill something or put something
on the control panel for more than 10
seconds (a pan, a cloth, etc.). An
acoustic signal sounds and the hob
deactivates. Remove the object or
clean the control panel.
• you do not deactivate a cooking zone
or change the heat setting. After
some time comes on and the hob
deactivates.
The relation between the heat setting
and the time after which the hob
deactivates:
Heat setting The hob deacti-
vates after
, 1 - 3
6 hours
4 - 7 5 hours
8 - 9 4 hours
10 - 14 1.5 hour
5.3 The heat setting
To set or change the heat setting:
Touch the control bar at the correct heat
setting or move your finger along the
control bar until you reach the correct
heat setting.
ENGLISH
11
5.4 Activating and
deactivating the outer rings
You can adjust the surface you cook to
the dimension of the cookware.
Use sensor field:
To activate the outer ring: touch the
sensor field. The indicator comes on.
To activate more outer rings: touch the
same sensor field again. The subsequent
indicator comes on.
To deactivate the outer ring: touch the
sensor field until the indicator goes out.
When you activate the zone
but do not activate the outer
ring the light that comes out
from the zone may cover the
outer ring. It does not mean
that the outer ring is
activated. To see if the ring
is activated check the
indicator.
5.5 Automatic Heat Up
Activate this function to get a desired
heat setting in a shorter time. When it is
on, the zone operates on the highest
setting in the beginning and then
continues to cook at the desired heating
setting.
To activate the function the
cooking zone must be cold.
To activate the function for a cooking
zone: touch
( comes on).
Immediately touch a desired heat
setting. After 3 seconds comes on.
To deactivate the function: change the
heat setting.
5.6 Timer
Count Down Timer
You can use this function to set how long
the cooking zone should operate for a
single cooking session.
First set the cooking zone then set the
function.The selection of the Timer
function is possible for cooking zones
that are active and after the heat setting
is set.
To set the cooking zone: touch
again and again until the indicator of a
necessary cooking zone comes on. When
this function is active, comes on.
To activate the function: touch of
the timer to set the time (00 - 99
minutes). When the indicator of the
cooking zone starts to flash slowly the
time counts down.
To see the remaining time: set the
cooking zone with . The indicator of
the cooking zone starts to flash quickly.
The display shows the remaining time.
To change the time: set the cooking
zone with
. Touch or .
To deactivate the function: set the
cooking zone with
and touch . The
remaining time counts back to 00. The
indicator of the cooking zone goes out.
When the time comes to an
end, the sound operates and
00 flashes. The cooking
zone deactivates.
To stop the sound: touch .
CountUp Timer (The count up
timer)
You can use this function to monitor how
long the cooking zone operates.
To set the cooking zone (if more than
1 cooking zone operates): touch
again and again until the indicator of a
necessary cooking zone comes on. When
this function is active, comes on.
To activate the function: touch . The
symbol goes out and comes on.
To see how long the cooking zone
operates: set the cooking zone with .
The indicator of the cooking zone starts
to flash quickly. The display shows how
long the zone operates. During the first
minute the display shows the time in
seconds. After the first minute the
display shows the time in minutes.
www.aeg.com12
To deactivate the function: set the
cooking zone with and touch or
. The symbol goes out and
comes on.
If two functions operate at
the same time, the display
shows the CountUp Timer
function first.
Minute Minder
You can use this function as a Minute
Minder when the hob is activated and
the cooking zones do not operate (the
heat setting display shows
).
To activate the function: touch
.
Touch
or of the timer to set the
time. When the time comes to an end,
the sound operates and 00 flashes.
To stop the sound: touch
.
The function has no effect
on the operation of the
cooking zones.
5.7 Pause
This function sets all cooking zones that
operate to the lowest heat setting.
When the function operates, all other
symbols on the control panels are
locked.
The function does not stop the timer
functions.
Touch to activate the function.
comes on. The heat setting is lowered
to 1.
To deactivate the function, touch
. The
previous heat setting comes on.
5.8 Lock
You can lock the control panel while
cooking zones operate. It prevents an
accidental change of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays
on.
To deactivate the function: touch .
The previous heat setting comes on.
When you deactivate the
hob, you also deactivate this
function.
5.9 Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: activate the
hob with
. Do not set the heat setting.
Touch for 4 seconds. comes on.
Deactivate the hob with .
To deactivate the function: activate the
hob with
. Do not set the heat setting.
Touch for 4 seconds. comes on.
Deactivate the hob with
.
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds.
Set the heat setting in 10 seconds. You
can operate the hob. When you
deactivate the hob with
the function
operates again.
5.10 OffSound Control
(Deactivating and activating
the sounds)
Deactivate the hob. Touch for 3
seconds. The display comes on and goes
out. Touch
for 3 seconds. or
comes on. Touch of the timer to
choose one of the following:
•
- the sounds are off
• - the sounds are on
To confirm your selection wait until the
hob deactivates automatically.
When the function is set to you can
hear the sounds only when:
• you touch
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control
panel.
ENGLISH
13
6. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
6.1 Cookware
The bottom of the cookware
must be as thick and flat as
possible.
Ensure pan bases are clean
and dry before placing on
the hob surface.
Cookware made of
enamelled steel and with
aluminium or copper
bottoms can cause a colour
change on the glass-ceramic
surface.
6.2 Öko Timer (Eco Timer)
To save energy, the heater of the
cooking zone deactivates before the
count down timer sounds. The difference
in the operation time depends on the
heat setting level and the length of the
cooking operation.
6.3 Examples of cooking
applications
The data in the table is for
guidance only.
Heat setting Use to: Time
(min)
Hints
- 1
Keep cooked food warm. as nec-
essary
Put a lid on the cookware.
1 - 3 Hollandaise sauce, melt: but-
ter, chocolate, gelatine.
5 - 25 Mix from time to time.
1 - 3 Solidify: fluffy omelettes,
baked eggs.
10 - 40 Cook with a lid on.
3 - 5 Simmer rice and milkbased
dishes, heat up ready-cooked
meals.
25 - 50 Add at least twice as much liq-
uid as rice, mix milk dishes
halfway through the proce-
dure.
5 - 7 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons
of liquid.
7 - 9 Steam potatoes. 20 - 60 Use max. ¼ l of water for 750 g
of potatoes.
7 - 9 Cook larger quantities of food,
stews and soups.
60 - 150 Up to 3 l of liquid plus ingredi-
ents.
9 - 12 Gentle fry: escalope, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts.
as nec-
essary
Turn halfway through.
12 - 13 Heavy fry, hash browns, loin
steaks, steaks.
5 - 15 Turn halfway through.
www.aeg.com14
Heat setting Use to: Time
(min)
Hints
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General information
• Clean the hob after each use.
• Always use cookware with a clean
base.
• Scratches or dark stains on the surface
have no effect on how the hob
operates.
• Use a special cleaner suitable for the
surface of the hob.
• Use a special scraper for the glass.
7.2 Cleaning the hob
• Remove immediately: melted plastic,
plastic foil, sugar and food with sugar,
otherwise, the dirt can cause damage
to the hob. Take care to avoid burns.
Use a special hob scraper on the glass
surface at an acute angle and move
the blade on the surface.
• Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration.
Clean the hob with a moist cloth and
a non-abrasive detergent. After
cleaning, wipe the hob dry with a soft
cloth.
• Remove shiny metallic
discoloration: use a solution of water
with vinegar and clean the glass
surface with a cloth.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Remedy
You cannot activate or oper-
ate the hob.
The hob is not connected to
an electrical supply or it is
connected incorrectly.
Check if the hob is correctly
connected to the electrical
supply. Refer to the connec-
tion diagram.
The fuse is blown. Make sure that the fuse is
the cause of the malfunction.
If the fuse is blown again
and again, contact a quali-
fied electrician.
You do not set the heat set-
ting for 10 seconds.
Activate the hob again and
set the heat setting in less
than 10 seconds.
ENGLISH
15
Problem Possible cause Remedy
You touched 2 or more sen-
sor fields at the same time.
Touch only one sensor field.
Pause operates. Refer to "Daily use".
There is water or fat stains
on the control panel.
Clean the control panel.
An acoustic signal sounds
and the hob deactivates.
An acoustic signal sounds
when the hob is deactivated.
You put something on one
or more sensor fields.
Remove the object from the
sensor fields.
The hob deactivates. You put something on the
sensor field .
Remove the object from the
sensor field.
Residual heat indicator does
not come on.
The zone is not hot because
it operated only for a short
time or the sensor is dam-
aged.
If the zone operated suffi-
ciently long to be hot, speak
to an Authorised Service
Centre.
Automatic Heat Up does not
operate.
The zone is hot. Let the zone become suffi-
ciently cool.
The highest heat setting is
set.
The highest heat setting has
the same power as the func-
tion.
You cannot activate the out-
er ring.
First, activate the inner ring
by changing the heat set-
ting.
There is a dark area on
the multiple zone.
It is normal that there is a
dark area on the multiple
zone.
The sensor fields become
hot.
The cookware is too large or
you put it too near to the
controls.
Put large cookware on the
rear zones if possible.
There is no sound when you
touch the panel sensor
fields.
The sounds are deactivated. Activate the sounds. Refer to
"Daily use".
comes on.
Automatic Switch Off oper-
ates.
Deactivate the hob and acti-
vate it again.
comes on.
Child Safety Device or Lock
operates.
Refer to "Daily use".
www.aeg.com16
Problem Possible cause Remedy
and a number come on.
There is an error in the hob. Deactivate the hob and acti-
vate it again after 30 sec-
onds. If comes on again,
disconnect the hob from the
electrical supply. After 30
seconds, connect the hob
again. If the problem contin-
ues, speak to an Authorised
Service Centre.
You can hear a constant
beep noise.
The electrical connection is
incorrect.
Disconnect the hob from the
electrical supply. Ask a quali-
fied electrician to check the
installation.
comes on.
The second phase of the
power supply is missing.
Check if the hob is correctly
connected to the electrical
supply. Remove the fuse,
wait one minute, and insert
the fuse again.
8.2 If you cannot find a
solution...
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre. Give the
data from the rating plate. Give also
three digit letter code for the glass
ceramic (it is in the corner of the glass
surface) and an error message that
comes on. Make sure, you operated the
hob correctly. If not the servicing by a
service technician or dealer will not be
free of charge, also during the warranty
period. The instructions about the
Service Centre and conditions of
guarantee are in the guarantee booklet.
9. TECHNICAL DATA
9.1 Rating plate
Model HC452021EB PNC 949 595 457 02
Typ 56 FED 02 BO 220 - 240 V 50 - 60 Hz
Made in Germany
Ser.Nr. ................. 3.5 kW
AEG
9.2 Cooking zones specification
Cooking zone
Nominal Power (Max heat set-
ting) [W]
Cooking zone diameter [mm]
Left front 1200 145
Right rear 800 / 1600 / 2300 120 / 175 / 210
ENGLISH
17
For optimal cooking results use
cookware no larger than the diameter of
the cooking zone.
10. ENERGY EFFICIENCY
10.1 Product information according to EU 66/2014
Model identification HC452021EB
Type of hob Built-In Hob
Number of cooking zones 2
Heating technology Radiant Heater
Diameter of circular cook-
ing zones (Ø)
Left front
Right rear
14.5 cm
21.0 cm
Energy consumption per
cooking zone (EC electric
cooking)
Left front
Right rear
188.0 Wh / kg
194.9 Wh / kg
Energy consumption of the
hob (EC electric hob)
191.5 Wh / kg
EN 60350-2 - Household electric cooking
appliances - Part 2: Hobs - Methods for
measuring performance
10.2 Energy saving
You can save energy during everyday
cooking if you follow below hints.
• When you heat up water, use only the
amount you need.
• If it is possible, always put the lids on
the cookware.
• Before you activate the cooking zone
put the cookware on it.
• The cookware bottom should have
the same diameter as the cooking
zone.
• Put the smaller cookware on the
smaller cooking zones.
• Put the cookware directly in the
centre of the cooking zone.
• Use the residual heat to keep the
food warm or to melt it.
11. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
www.aeg.com18
EN

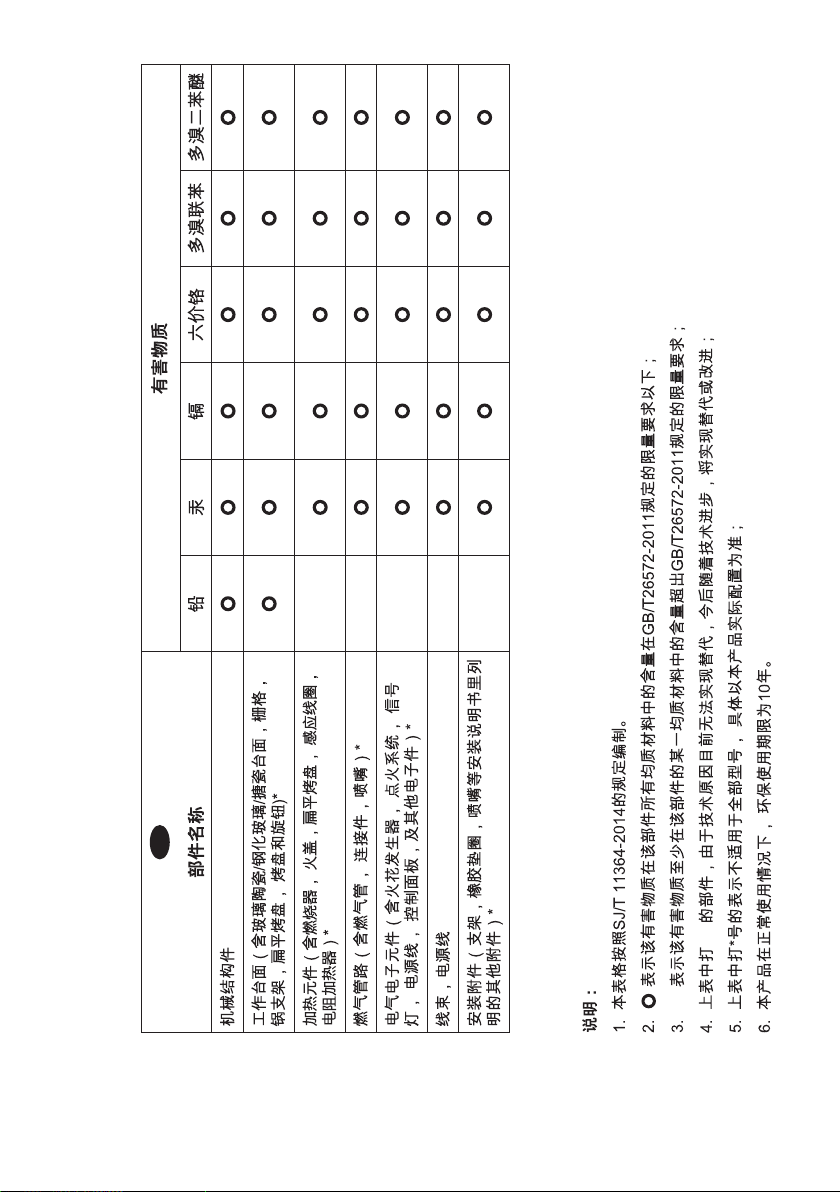

Hazardous substances
Part Name Pb Hg Cd Cr6+ PBBs PBDEs
Mechanical structure
Working top (including glass ceramic/tempered glass/
stainless steel/enamelled steel, grids, pan supports,
hotplates, teppan yaki griddle plate and knobs)*
Heating elements (including burners, crowns, hotplates,
radiant heaters and induction coils) *
X
Gas pipe connection (including gas pipes, taps, injectors)*
X
Electric & electronic components (including spark
generators, ignition system, signal lamps, power board,
user interface and other electronic parts)*
X
Wiring & power cord
X
Fittings: brackets, gaskets, injectors & other parts needed
for installation as reported in the assembly instruction*
X
Notes:
1. This table is compiled according to SJ/T 11364-2014.
2.
means that this kind of hazardous substance content in all of the homogenous materials of this part is under the limitations
regulated in GB/T26572-2011.
3.
X
means that this kind of hazardous substance content in at least one homogenous material of this part exceeds the limitations
regulated in GB/T26572-2011.
4. For the parts with
X
in the above table, there is no replacement solution due to technological limitations in the industry, however, this
may change with technnological improvement.
5. If a part is marked with *, it means that it does not apply to all models, the actual parts depend on specifi c models.
6. Under normal usage conditions, the environment-friendly usage period is 10 years.
ENGLISH
19
内容
1. 安全信息..............................................................................................................20
2. 安全说明..............................................................................................................22
3. 安装.....................................................................................................................23
4. 产品说明..............................................................................................................26
5. 日常使用..............................................................................................................28
6. 建议和提示.......................................................................................................... 30
7. 养护和清洁.......................................................................................................... 31
8. 异常处理..............................................................................................................31
9. 技术数据..............................................................................................................33
10. 能效...................................................................................................................33
力求完美
感谢您选择这款 AEG 产品。我们打造这款产品，旨在多年来始终为您提供完美的性
能，其采用了普通设备上所没有的创新技术，帮助让您的生活变得更加简单。请花
几分钟时间阅读，以便充分了解该款产品的功能。
访问我们的网站：
获取使用建议、手册、故障检修工具、检修信息:
www.aeg.com/webselfservice
注册您的产品以获取更好的服务：
www.registeraeg.com
为您的设备购买配件、耗材和原装备件：
www.aeg.com/shop
客户关怀与服务
务必使用原装备件。
当您联系授权服务中心时，请确保您可以提供以下数据：型号、产品编号、序列号。
该信息可以在标牌上找到。
警告/注意 - 安全信息
一般信息和提示
环境信息
1. 安全信息
请在安装和使用本机之前，仔细阅读随附的说明。对于不
当安装或使用本机而造成的任何伤害或损害，制造商不承
担任何责任。请妥善保管操作说明，并置于易于取用的地
方，供将来参考之用。
www.aeg.com20
1.1 儿童及弱势群体安全
• 本机可供 8 岁及以上未成年人和肢体伤残、感官或精神
上有障碍或缺乏相关经验及知识的人士使用，前提是他
们在使用本机时受到监督或得到安全使用指导，同时了
解使用过程中可能存在的危险。
• 3 至 8 岁的未成年人以及身患大范围复杂残疾的人员应
远离本机，除非始终有人在旁监督。
• 除非有成人始终在旁监督，否则 3 岁以下未成年人应远
离本机。
• 请勿让未成年人玩弄本机。
• 所有包装物都必须远离未成年人，且予以妥善处置。
• 本机运行或冷却过程中，请让未成年人和宠物远离本机。
可触及的部件温度很高。
• 如果本机配备未成年人安全装置，则应将其打开。
• 在无人监管的情况下，未成年人不能擅自清理和维护本
机。
1.2 一般安全信息
• 警告：使用期间，本机及其可接触部件会发热。必须格
外注意，以免碰触发热的部件。
• 请勿通过外部定时器或单独的遥控系统操作本机。
• 警告：在使用油脂或植物油在感应炉上烹制食品时，如
果不加以看守，则存在危险，并可能导致火灾。
• 切勿用水灭火，而应关闭本机，然后用盖子或灭火毯等
盖住火焰。
• 小心：烹饪过程中必须有人看守。短时间烹饪也必须始
终有人看守。
• 警告：火灾危险：请勿在烹调表面存放物品。
• 不应将刀叉、勺子和盖子等金属物品放在感应炉表面，
因为这些物品会发烫。
• 请勿使用蒸汽清洁器来清洁本机。
• 如果玻璃陶瓷表面/玻璃表面出现裂缝，请关闭本机，并
断开电源连接。如果直接使用接线盒将本机与电源连
接，请取出保险丝以断开本机电源连接。无论哪种情况，
都要联系授权服务中心。
• 如果电源线受损，必须由制造商、授权维修商或具备资
质的人员进行更换，以免发生危险。
中文 21
• 警告：仅使用烹饪设备制造商设计的感应炉防护装置，
或者是本机制造商在说明书中指明适合使用的感应炉防
护装置，或者是本机随附的感应炉防护装置。防护装置
使用不当会造成意外事故。
2. 安全说明
2.1 安装
警告!
必须由具备资质的人员安装
本机。
警告!
存在人员受伤或本机受损的
危险。
• 去除所有包装物。
• 请勿安装或使用已损坏的设备。
• 按照本机附带的安装说明书操作。
• 请与其他设备和装置保持最小间距。
• 设备非常重，搬运时请注意。请始终佩
戴安全手套和配套的鞋子。
• 请使用密封剂密封切割表面，以防止因
受潮而隆起。
• 防止本机底部进入蒸汽和受潮。
• 请勿在门附近或窗户下面安装本机。
这样可以防止在打开门或窗户时，热炊
具从本机掉落下来。
• 如果将本机安装在抽屉上面，请确保本
机底部与抽屉顶部之间有充分的空气
流通空间。
• 本机底部可能发烫。请务必在本机下
面安装一个用胶合板、厨房骨架材料或
其他不易燃材料制成的隔离板，以防止
接触底部。
• 分隔板必须完全盖住感应炉下面的区
域。
2.2 电气连接
警告!
存在火灾或触电危险。
• 所有电气连接必须由具备资质的电气
技师完成。
• 设备必须接地。
• 在执行任何操作前，请确保本机已断开
电源。
• 确保铭牌上的参数与主供电电源的电
气额定值兼容。
• 确保正确安装本机。松动、不正确的电
源线或插头（如果适用）会导致端子过
热。
• 请使用正确的电源线。
• 切勿使电源线缠绕。
• 确保安装防触电保护装置。
• 在电源线上使用紧松钩。
• 在将本机连接至附近的插座时，请确保
电源线或插头（如果适用）未接触发热
的本机或热炊具。
• 请勿使用多插头扩展适配器和延长电
缆。
• 切勿损坏电源插头（如果适用）或电源
线。请联系我们的授权服务中心或电
气技师更换损坏的电源电缆。
• 带电和绝缘部件的触电保护装置必须
妥善固定，而且只能通过工具拆卸。
• 只有在安装过程结束后，才能将电源插
头插入电源插座。确保在安装后，仍可
方便地插拔电源插头。
• 如果电源插座松动，切勿连接电源插
头。
• 断开设备与电源的连接时，请勿拉动电
源线，请始终拉动电源插头。
• 仅使用正确的隔离装置：线路保护断流
器、保险丝（可从保险丝座上卸下的螺
旋式保险丝）、接地保护自动断路器和
接触器。
• 进行电气安装时，务必安装隔离装置，
以便可以断开本设备与电源所有电极
的连接。隔离装置的触点开口宽度最
小要达到 3 毫米。
2.3 用途
警告!
存在受伤、烧伤或触电危险。
• 首次使用之前，请去除所有包装物、标
签和保护膜（如适用）。
• 本机仅供家庭使用。
• 请勿更改本机规格。
• 确保通风口不被堵塞。
• 本机运行时，必须有人照看。
• 每次使用后，请将烹饪区域设置为“关
闭”。
• 切勿将餐具或锅盖放置在烹饪区域上。
它们可能会变得很烫。
• 双手潮湿或本机有水分附着时，请勿操
作本机。
www.aeg.com22
• 请勿将本机用作工作台面或储存台面。
• 如果本机表面有裂纹，请立即断开电
源。以防触电。
• 当您将食物放入热油中时，油可能会飞
溅出来。
警告!
存在火灾和爆炸危险
• 油脂和植物油在加热时会产生可燃蒸
汽。在用油脂和植物油烹制食品时，请
远离火焰或发热物体。
• 温度极高的油释放出的蒸汽可能会导
致自燃。
• 与初次使用的油相比，使用过的、可能
包含食品残渣的油在较低的温度下便
可能着火。
• 请勿将易燃品或者蘸有易燃品的物品
放在本设备内部、附近或上面。
警告!
存在本机受损危险。
• 请勿在控制板上放置热炊具。
• 请勿将热锅盖放在感应炉的玻璃表面
上。
• 请勿干烧炊具。
• 请务必小心，不要让物体或炊具砸落在
本机上。否则可能会导致表面损坏。
• 切勿在炊具内没有东西或未使用炊具
的情况下启动烹饪区域。
• 切勿将铝箔放在本机上。
• 采用铸铁、铸铝制成，或是底部损坏的
炊具均可能使玻璃/玻璃陶瓷产生刮痕。
当您必须在烹饪表面移动炊具时，请务
必将这些物品抬起来再移动。
• 本机仅用于烹饪，切勿用于其他目的，
比如房间取暖。
2.4 养护和清洁
• 定期清洁本机，以防止表面材料劣化。
• 在清洁污渍之前，请关闭本机并使其充
分冷却。
• 维修之前，请断开本机电源。
• 请勿使用喷淋水或蒸汽来清洁本设备。
• 请使用湿软布清洁本设备。只可使用
中性清洁剂。请勿使用任何磨料制品、
磨料清洁垫、溶剂或金属物件。
2.5 维护
• 要维修本机，请联系授权服务中心。
• 仅可使用原装备件。
2.6 处置
警告!
存在人员受伤或窒息危险。
• 要了解如何正确报废本设备，请与您的
市政当局联系。
• 断开本机与电源的连接。
• 切断本机附近的电源线并将其丢弃。
3. 安装
警告!
请参阅“安全”一章。
3.1 安装前
安装炉架前，在铭牌上记录如下信息。铭
牌位于炉架底部。
序列号 ....................
3.2 内置感应炉
只有在将感应炉与符合标准的内置装置和
作业表面组装之后，方可使用内置感应炉。
3.3 连接电缆
• 感应炉配有连接电缆。
• 要更换受损的电源线，请使用线缆类
型：H05V2V2-F 可经受 90°C 或更高的
温度。请联系您当地的服务中心。
3.4 连接封口 - 顶上安装
1. 清洁开放区域周围的台面。
2. 沿着玻璃陶瓷的外边缘，将随附的 2x6
毫米封条粘在感应炉的下边缘上。 请
勿拉扯封条。确保封条两端位于感应
炉一侧的中间。
3. 在剪切封条时，可多留出几毫米的长
度。
4. 将封条两端连接在一起。
中文 23
3.5 装配
min.
50mm
min.
500mm
R 5mm
min.
55mm
340
+1
mm
490
+1
mm
50 mm
50 mm
min.
25 mm
min.
20 mm
3.6 安装多个感应炉
提供的附件： 连接杆、耐热硅、橡胶成型、
密封条。
仅使用专用耐热硅。
www.aeg.com24
台面开孔
与墙之间
的距离
最少 50 毫米
深 490 毫米
宽 已安装感应炉的总宽度减去
20 毫米
示例：
580 mm
520 mm
490 mm
360 mm
+ - =
20 mm 920 mm
装配
1. 计算正确的开孔尺寸。
2. 在台面上制作开孔。
3. 逐个将感应炉放在柔软的表面上（例如
毯子上），底部朝上。
4. 沿着玻璃陶瓷的外边缘，将提供的封条
粘贴在感应炉的下边缘。
5. 将固定板轻轻拧入防护罩的孔中。
6. 将第一个感应炉插入台面开孔内。然
后将连接杆插入台面开孔内。在感应
炉下将它推动到一半宽度的位置。
7. 从下面将固定板轻轻拧入台面和连接
杆。
8. 将第二个感应炉插入台面开孔内。确
保感应炉前端处于相同水平。
9. 拧紧固定板/护握螺丝。
10. 使用硅胶密封住感应炉之间的缝隙，以
及感应炉与台面之间的缝隙。
11. 在硅胶上涂一些肥皂水。
12. 稍用力将橡胶成型压到玻璃陶瓷上，并
沿空间慢慢移动它。
13. 请勿触摸硅胶，直到它变硬，这可能会
持续一天。
14. 使用剃须刀刀片小心去除突出的硅胶。
15. 清洁玻璃表面。
中文 25
4. 产品说明
4.1 烹饪面布局
120/175/210
mm
145
mm
1
2
1
1
烹饪区域
2
控制板
4.2 控制板布局
6 742 31
12 1114 13 10
8 95
利用感测区域操作设备。显示屏、指示灯与声响可提示所运行的功能。
感测区
域
功能 备注
1
开/关 启用和停用感应炉。
2
锁定 / 儿童安全锁 锁定/解锁控制面板。
3
暂停 启用和停用功能。
4
- 加热设置显示 显示加热设置。
5
- 烹饪区域的计时器指示灯 显示您设定时间的区域。
6
- 计时器显示屏 以分钟为单位显示时间。
7
CountUp Timer 显示功能运行中。
8
倒计时定时器 / 分钟提示器 显示功能运行中。
www.aeg.com26
感测区
域
功能 备注
9
- 启用和停用外圈。
10
- 选择计时器功能。
11
- 选择烹饪区域。
12
/
- 增加或减少时间。
13
自动加热 启用和停用功能。
14
- 控制栏 设定加热设置。
4.3 加热设置显示屏
显示屏 描述
烹饪区域停用。
-
烹饪区域运行。
暂停 在运行。
自动加热 在运行。
+ 数字
出现故障。
/ /
OptiHeat Control （步骤 3 余热指示灯）：继续烹饪/保温/余热。
锁定 /儿童安全锁 在运行。
自动关机 在运行。
4.4 OptiHeat Control （步骤 3
余热指示灯）
警告!
/ / 小心因余热烫
伤！指示灯显示您当前正在
使用的烹饪区域的余热水平。
即便您没有使用旁边的烹饪
区域，旁边烹饪区域的指示灯
也可能会亮起。
中文 27
5. 日常使用
警告!
请参阅“安全”一章。
5.1 启用和停用
按触 1 秒钟以启用或停用感应炉。
5.2 自动关机
在下列情况下，此功能会自动停用感应炉：
• 所有烹饪区域均停用。
• 启用感应炉后未设定加热设置。
• 有东西溢出到控制面板上或在上面放
置物品超过 10 秒钟（锅、抹布等）。信
号声响起后，感应炉停止工作。移除物
品或者清洁控制面板。
• 未停用烹饪区域或者未更改加热设置。
一段时间后，
会显示，而且感应炉会
停用。
加热设置与时间（此时间后感应炉会停用）
之间的关系：
加热设置 在下列时间后停用感
应炉：
, 1 - 3
6 小时后
4 - 7 5 小时后
8 - 9 4 小时后
10 - 14 1.5 小时
5.3 加热设置
要设定或更改加热设置：
触碰正确加热设置上的控制板，或者用手
指沿着控制板移动，直到碰触到正确的加
热设置。
5.4 启用和停用外圈
您可以按照炊具的尺寸调整加热表面。
使用感测区域：
要启用外圈：按触感测区域。指示灯亮起。
要启用更多外圈：再次按触同一个感测区
域。后续指示灯亮起。
要停用外圈：按触感测区域，直到指示灯
熄灭。
启用该区域但不启用外圈时，
该区域出现的火焰可能会覆
盖外圈。这并不表示会启用
外圈。要查看外圈是否已启
用，请检查指示灯。
5.5 自动加热
启用此功能，可在较短时间内得到所需的
加热设置。启用此功能时，该区域最初会
以最高设置运行，然后以所需的加热设置
继续烹饪。
要启动该功能，烹饪区域必须
冷却下来。
启动烹饪区域的该功能：按触 （ 会显
示）。立即按触所需的加热设置。 3 秒钟
后 亮起。
关闭下述功能： 更改加热设置。
5.6 定时器
倒计时定时器
可以使用此功能来设定单一烹饪阶段的烹
饪区域操作时长。
首先设置烹饪区域，然后设置功能。已启
用的烹饪区域以及在设定加热设置后，可
以选择定时器功能。
要设定烹饪区域： 反复按触 ，直至所需
烹饪区域的指示灯亮起。启用此功能时，
会亮起。
要启用此功能： 按触定时器的 以设定
时间（00 - 99 分钟）。当烹饪区域指示灯
开始缓慢闪烁时，开始倒计时。
www.aeg.com28
要查看剩余时间： 使用 设定烹饪区域。
烹饪区域指示灯开始快速闪烁。显示屏显
示剩余时间。
要更改时间： 使用 设定烹饪区域。按
触
或 。
要停用此功能： 使用 来设定烹饪区域，
并按触 。剩余时间倒计时至 00。烹饪
区域指示灯会熄灭。
当计时要结束时，会发出声音
并且 00 闪烁。烹饪区域停
用。
要停止声音： 按触 。
CountUp Timer（正计时定时器）
可以使用此功能来监视烹饪区域的操作时
长。
要设置烹饪区域（如果运行多个烹饪区
域）： 反复按触
，直至所需烹饪区域的
指示灯亮起。启用此功能时，
会亮起。
要启用此功能： 按触 。符号 消失，
亮起。
要监视烹饪区域的操作时长： 使用 设
定烹饪区域。烹饪区域指示灯开始快速闪
烁。显示屏会显示此区域的操作时长。第
一分钟内，显示屏以秒显示时间。第一分
钟之后，显示屏以分钟显示时间。
要停用此功能： 使用
来设定烹饪区域，
并按触 或 。符号 消失， 亮起。
如果两个功能同时运行，则显
示屏先显示 CountUp Timer
功能。
分钟提示器
如果感应炉已启用，而烹饪区域未运行，
则可以将此功能用作分钟提示器（加热设
置显示屏会显示 ）。
要启用此功能： 按触 。按触定时器的
或 来设定时间。当计时要结束时，
会发出声音并且 00 闪烁。
要停止声音： 按触 。
此功能对烹饪区域的运行没
有影响。
5.7 暂停
此功能会将所有可操作的烹饪区域设为最
低加热设置。
当功能运行时，控制板上的所有其他符号
都会锁定。
此功能不会停止定时器功能。
按触
开启此功能。
亮起。加热设置降低至 1。
要停用此功能，请按触 。显示之前的加
热设置。
5.8 锁定
可以在烹饪区域操作时锁定控制面板。此
功能可防止加热设置意外改变。
先设定加热设置。
要启用此功能：按触
。 会显示 4 秒
钟。定时器保持运行。
要停用此功能： 轻触 。先前的加热设置
会启用。
停用感应炉时，也会停用此功
能。
5.9 儿童安全锁
此功能可防止感应炉意外运行。
要启用此功能：会使用 启用感应炉。请
勿设定加热设置。按触 4 秒钟。 会
显示。使用 停用感应炉。
要停用此功能：会使用 启用感应炉。请
勿设定加热设置。按触 4 秒钟。 会
显示。使用 停用感应炉。
要取代此功能，便于只进行烹饪：使用
启用感应炉。 会显示。按触 4 秒
钟。在 10 秒钟内设定加热设置。您可以
操作感应炉。如果使用 停用感应炉，则
此功能会再次运行。
5.10 OffSound Control（停用和
启用声音）
关闭感应炉。按触 3 秒钟。显示屏会
先显示后熄灭。按触 3 秒钟。 或
中文 29
会显示。按触定时器的 ，以选择下
列其中一项：
• - 声音关闭
• - 声音开启
要确认选择，请等到感应炉自动停用。
如果此功能设为
，则只有在下列情况下
才会听到声音：
• 触碰
• 分钟提示器 熄灭
• 倒计时定时器 熄灭
• 在控制面板上放置物品。
6. 建议和提示
警告!
请参阅“安全”一章。
6.1 炊具
炊具底部必须尽可能厚且平
整。
确保锅底干燥清洁，再将它放
到感应炉表面上。
搪瓷钢炊具和底部为铝或铜
的炊具可导致玻璃陶瓷表面
颜色变化。
6.2 Öko Timer （环保定时器）
为了省电，烹饪区域加热器会在倒计时定
时器发出声响之前关闭。运行时间的差异
取决于加热设置等级与烹煮操作的时间长
度。
6.3 烹饪应用实例
表中数据仅供参考。
加热设置 用途： 时间
（分
钟）
建议
- 1
为煮熟的食物保温。 如有必
要
给炊具盖上盖子。
1 - 3 荷兰酸辣酱，熔化：黄油、巧
克力、明胶。
5 - 25 不时搅拌。
1 - 3 凝固：松软煎蛋卷、烤蛋。 10 - 40 烹制时盖上盖子。
3 - 5 焖米饭与奶类食品，加热速食
饭菜。
25 - 50 加入至少两倍于大米的液体，
并在中途搅拌奶类食品。
5 - 7 蒸蔬菜、鱼、肉。 20 - 45 加入数匙液体。
7 - 9 蒸土豆。 20 - 60 每 750 克土豆最多使用 ¼ 升
水。
7 - 9 烹制较多食品、炖品与汤品。 60 - 150 最多使用 3 升液体调料外加配
料。
9 - 12 轻炒：薄肉片、蓝带烤牛肉烧
烤、厚肉片、炸肉饼/丸、香
肠、肝脏、乳酪面粉糊、蛋、
煎饼、面团。
如有必
要
中途翻面。
www.aeg.com30
加热设置 用途： 时间
（分
钟）
建议
12 - 13 爆炒，洋葱土豆煎饼，板肉、
肉排。
5 - 15 中途翻面。
14 烧水、烹制意大利面条、烧肉（菜炖牛肉、焖炖肉块）、炸土豆片。
7. 养护和清洁
警告!
请参阅“安全”一章。
7.1 一般信息
• 每次使用后，请清洁感应炉。
• 务必使用底部洁净的炊具。
• 表面上的划痕或暗色污渍不会对感应
炉的运行方式产生任何影响。
• 感应炉表面应使用适用的专门清洁剂。
• 使用特殊的玻璃刮刀。
7.2 对炉架的清洁
• 立即去除： 融化的塑料、塑料薄膜、糖
以及含糖的食物，否则脏污会损坏感应
炉。请小心避免烫伤。将特殊的感应
炉刮刀呈锐角放在玻璃表面上，然后在
表面上移动刀片。
• 炉架充分冷却后去除： 水垢圈、水圈、
油渍、光亮金属褪色。使用湿布和非磨
蚀性洗涤剂清洁感应炉。清洁后，用软
布擦干感应炉。
• 去除光亮金属褪色： 使用水和醋混合而
成的溶液，并用布清洁玻璃表面。
8. 异常处理
警告!
请参阅“安全”一章。
8.1 如果出现以下情况，应该如何处理...
故障 可能的原因 补救方法
无法启动或操作感应炉。 感应炉未与电源连接或连接
有误。
检查感应炉是否正确连接到
电源。请参阅连接图。
保险丝断开。 请确认保险丝是否为故障原
因。如果保险丝屡次断开，
请联系有资质的电工。
您在 10 秒内没有设置加热设
置。
重新启动感应炉，并在 10 秒
钟内设定加热设置。
您同时按触了 2 个或多个感
测区域。
只触摸一个感测区域。
暂停 在运行。 参考“日常使用”。
控制板上有水或油渍。 清洁控制板。
中文 31
故障 可能的原因 补救方法
发出声响信号之后，感应炉
停止工作。
感应炉停止工作时会发出声
响信号。
您在一个或多个感测区域上
放置了物品。
移除感测区域上的物品。
电陶灶关闭。
您在感测区域 上放置了物
品。
移除感测区域上的物品。
余热指示灯不亮。 此区域未变热，因为它只工
作了很短时间，或者传感器
受损。
如果此区域已运行足够长时
间并且应变热而未变热时，
请联系授权服务中心。
自动加热 不运转。 此区域变热。 等此区域充分冷却。
已设定最高加热设置。 最高加热设置与此功能的功
率相同。
无法启动外圈。 首先，通过更改加热设置激
活内圈。
多重区域上有黑色区
域。
多重区域上有黑色区域是正
常现象。
感测区域变热。 炊具太大或者太靠近控制装
置。
如果可能，请在后部区域上
放置大型炊具。
当您按触面板感测区域时无
声音。
声音已关闭。 激活声音。参考“日常使用”。
显示 。
自动关机 在运行。 关闭感应炉，然后再次启
动。
显示 。
儿童安全锁 或 锁定 在运行。 参考“日常使用”。
显示 和数字。
感应炉中出错。 关闭感应炉，30 秒之后再次
启动。如果 再次显示，请
断开感应炉电源。30 秒后，
再次连接感应炉。如果问题
仍然存在，请联系授权服务
中心。
您可以听到连续的哔哔声。 电气连接不正确。 断开感应炉电源。请具备资
质的电工来检查安装情况。
显示 。
电源的第二相缺失。 检查感应炉是否正确连接到
电源。取出保险丝，等待一
分钟，然后再次插入保险
丝。
www.aeg.com32
8.2 如果找不到解决方法...
如果自己找不到解决问题的方法，请联系
经销商或授权服务中心。提供铭牌上的数
据。还需提供玻璃陶瓷的三位字母代码
（位于玻璃表面角落）和显示的错误消息。
请确认，您对感应炉的操作正确。如果设
备因人为不当操作造成故障，则即使设备
处于保修期内仍无法享受到服务技术人员
或经销商提供的免费维修服务。有关服务
中心说明与保修条件，请见保修手册。
9. 技术数据
9.1 铭牌
型号 HC452021EB PNC 949 595 457 02
类型 56 FED 02 BO 220 - 240 伏 50 - 60 Hz
德国制造
序列号 ................. 3.5 千瓦
AEG
9.2 烹饪区域规格
烹饪区域 额定功率（最高加热设置）[瓦] 烹饪区域直径 [毫米]
左前 1200 145
右后 800 / 1600 / 2300 120 / 175 / 210
为达到最佳烹饪效果，请使用不大于烹饪
区域直径的炊具。
10. 能效
10.1 根据 EU 66/2014 的产品信息
型号标识 HC452021EB
感应炉类型 内置式感应炉
烹饪区域数量 2
加热技术 辐射式加热炉
圆形烹饪区域直径 (Ø) 左前
右后
14.5 厘米
21.0 厘米
每个烹饪区域的能耗 (EC
electric cooking)
左前
右后
188.0 瓦时/千克
194.9 瓦时/千克
感应炉的能耗 (EC electric
hob)
191.5 瓦时/千克
EN 60350-2 - 家用电气烹饪设备 - 第 2 部
分：感应炉 - 性能测量方法
10.2 节能
如果在日常烹调中遵循下列提示，则可以
节能。
• 需要多少开水，就烧多少水。
中文 33
• 如有可能，请始终盖上炊具盖。
• 先将炊具放在烹饪区域上，再将其启
用。
• 炊具底部直径应与烹饪区域相同。
• 将较小的炊具放在较小的烹饪区域上。
• 将炊具直接放在烹饪区域的中央。
• 请利用余热为食物保温或融化食物。
11. 环保问题
回收带有该标志 的材料。把包装材料
放入适用的容器以循环利用。帮助保护环
境和人类健康，促进电气及电子产品废物
的回收再利用。请勿将带有该标志 的
电器与生活垃圾一起处理。将产品退回到
您当地的回收处，或联系您所在城市的办
事处。
www.aeg.com34
ZH
X
X
X
X
X
X
X
*
中文 35
www.aeg.com/shop
867349407-B-512018
