Use and Care Manual
Dual Fuel Range
Loading ...
Loading ...
Loading ...
User Manual
For HDI7282U/02.
Summary of Contents for Bosch HDI7282U/02:
- About This Manual3
- Safety4
- Getting Started9

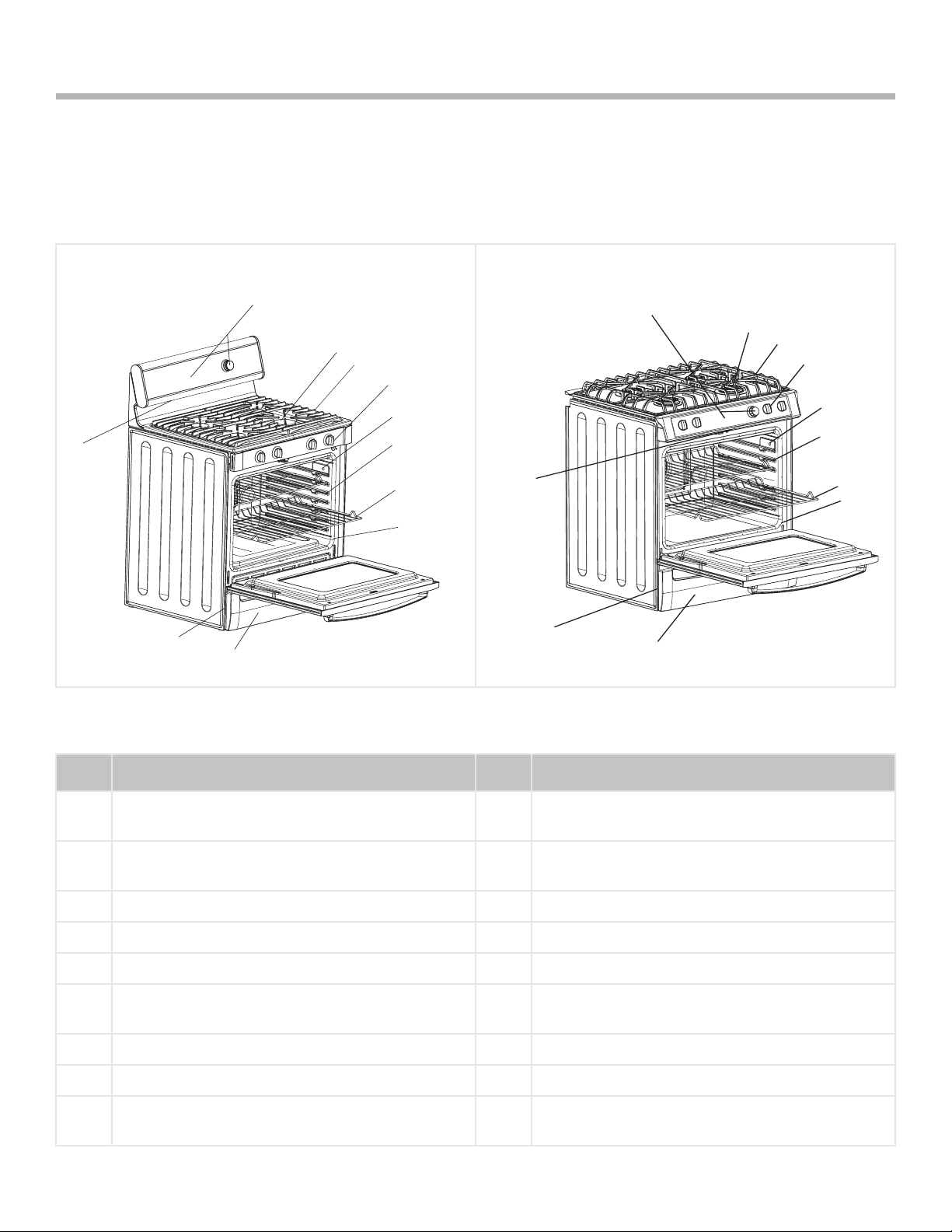

- Parts and Accessories9
- Figure 2: Parts and Accessories9
- Table 1: Parts and Accessories Key9
- Sealed Gas Burners10
- Burner Caps10

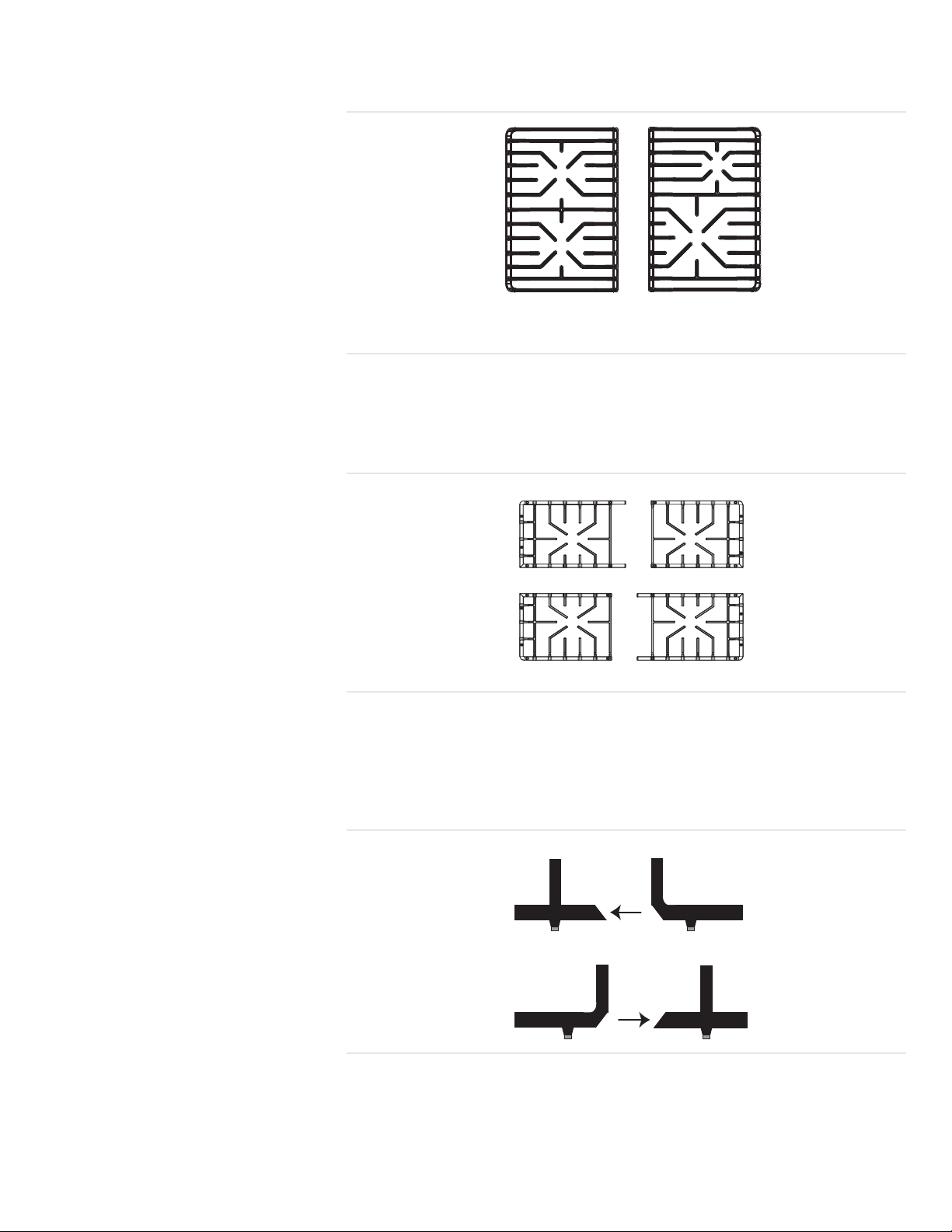

- Burner Grates10
- Electronic Ignitor12
- High Power Burner12
- Precision Burner12
- Oven Racks12

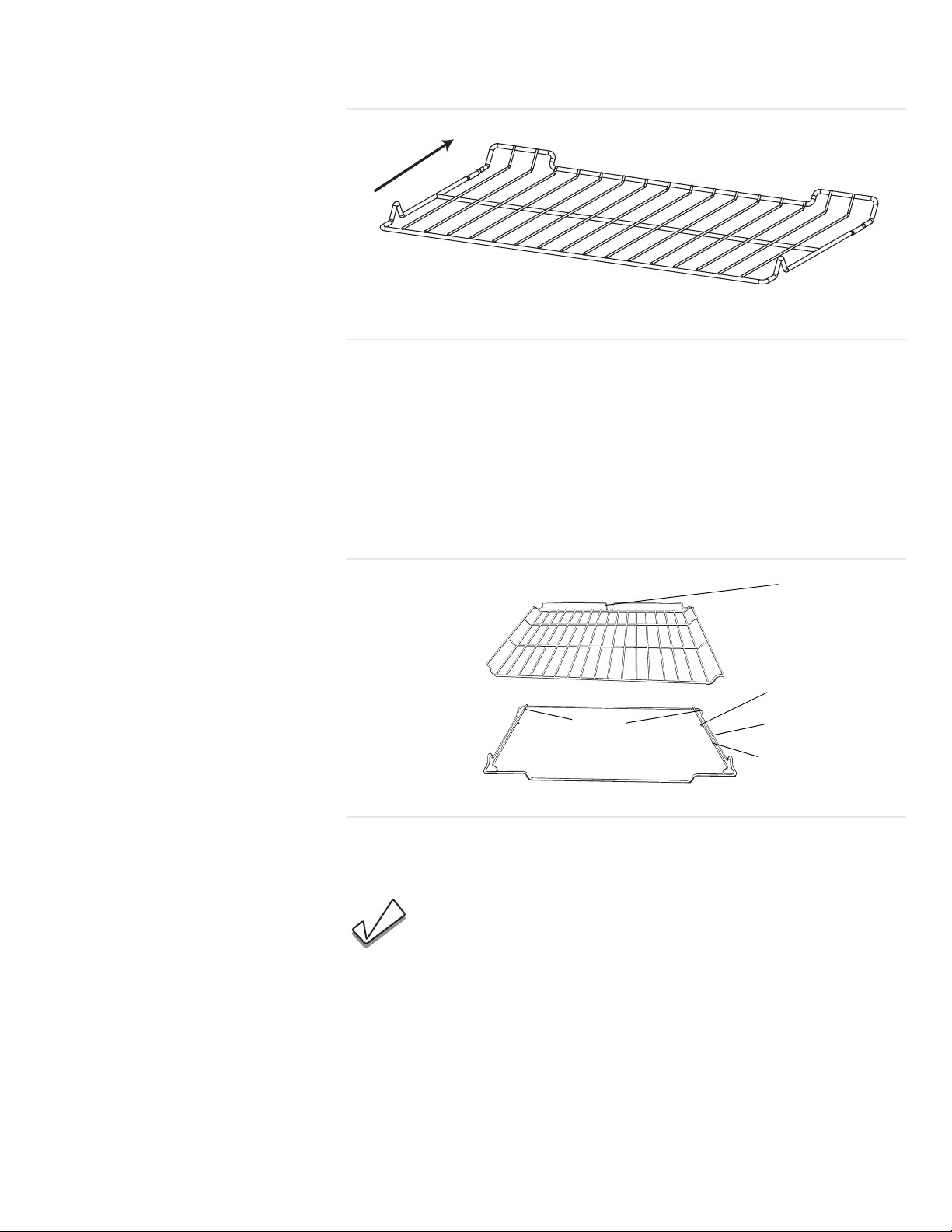

- Flat Oven Racks12
- 1. Grasp rack firmly on both sides.12
- 2. Tilt rack up to allow stop into rack guide.12
- 3. Bring rack to a horizontal position and press the rest of the way in. Rack should be straight and flat, not crooked.13
- 1. Grasp rack firmly on both sides and pull rack toward you.13
- 2. When the stop is reached, tilt rack up and pull the rest of the way out.13
- 1. Grasp the bottom section and pull straight out.13
- 2. Once the stop is reached, grasp the top section and pull straight out until the second stop is reached. If the top rack will not extend fully, it is not installed correctly. Reinstall it so that the pan stop is in the back of the oven.13

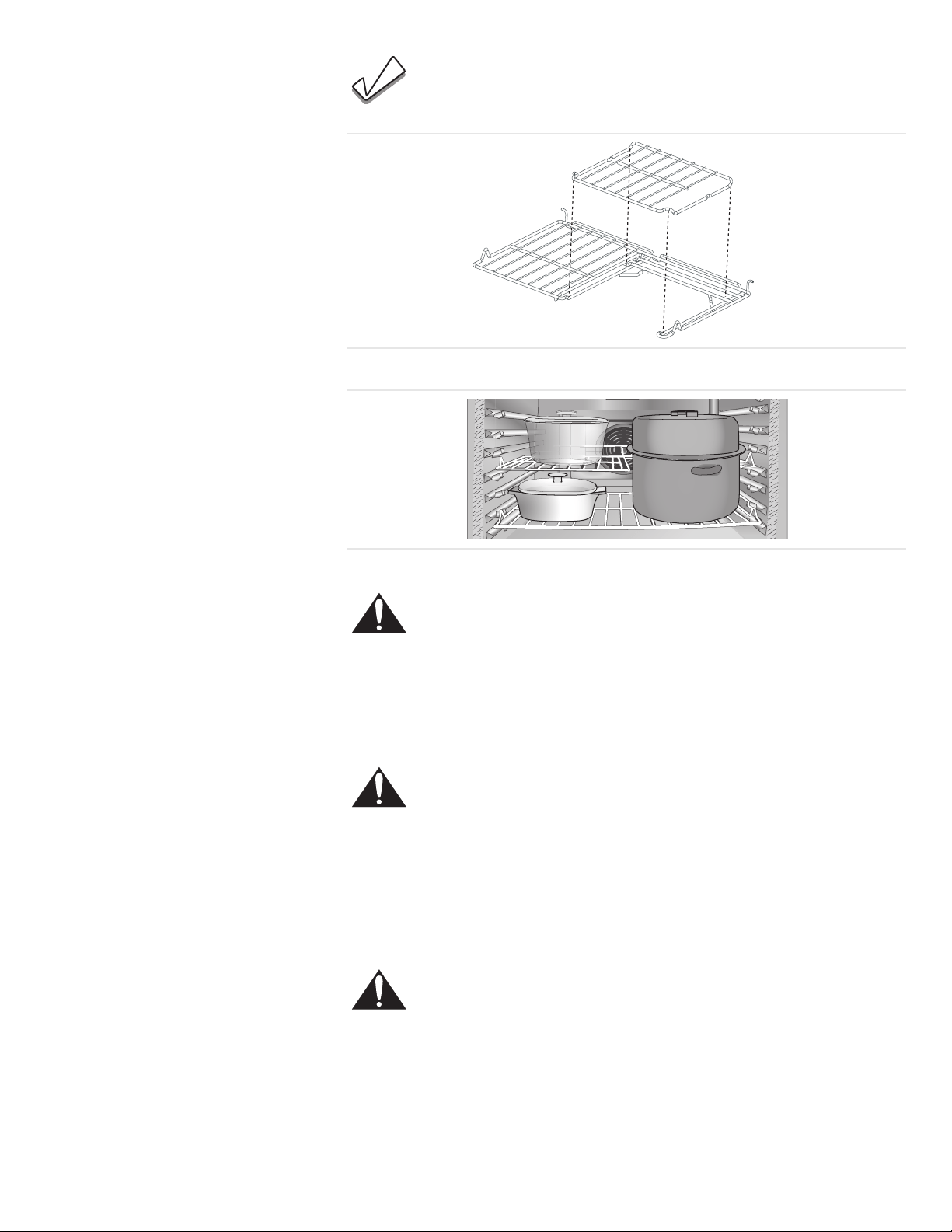

- 1. Place rack on flat surface in the closed position top side up.13
- 2. Rotate one side of top rack towards you until it is past the stop (ball).14
- 3. Pull the rack up and out, rotated side first.14
- 1. To reassemble rack, hold top rack diagonally across bottom rack.14
- 2. Insert one side of top rack to closed position.14
- 3. Rotate the other side toward the back of the rack until it passes the stop (ball).14
- 4. Push top rack the rest of the way in.14
- Control (Panel)17

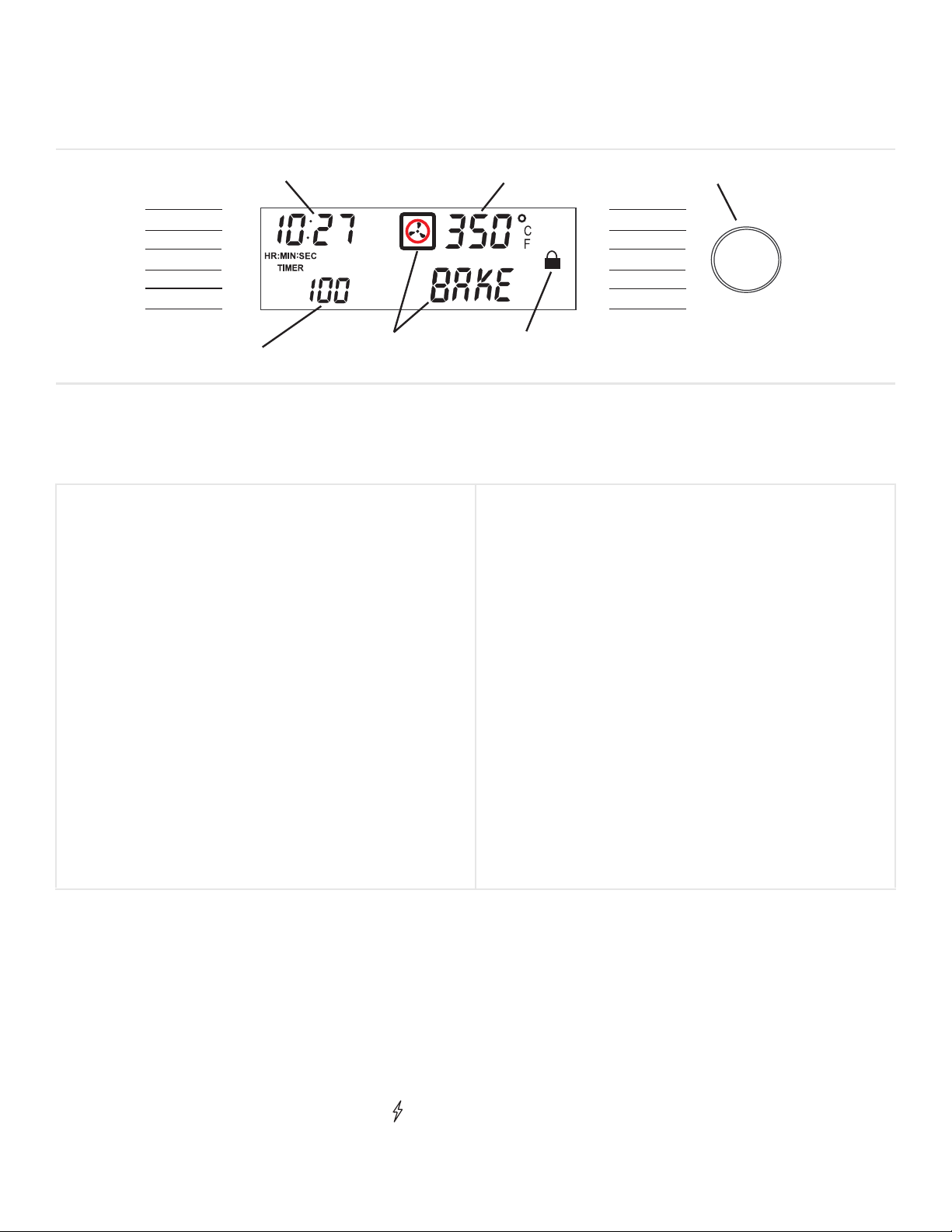

- Oven Control Panel17
- Table 2: Oven Control Panel17
- The Clock18
- About the Clock18
- Setting the Clock18
- 1. CLOCK will be displayed and the hour digits will flash. Turn knob to select hour and AM or PM.18
- 2. Press TIME. CLOCK will still be displayed and the minute digits will flash.18
- 3. Turn knob. Set minutes.18
- 4. Press TIME and the clock is now set.18
- 1. Press TIME. TIMER 1 flashes in display.18
- 2. Turn knob to select CLOCK.18
- 3. Press TIME and hour digits flash.18
- 4. Turn knob to change hours.18
- 5. Press TIME again and minute digits flash.18
- 6. Turn knob to change minutes.18
- 7. Press TIME again and the clock is set.18
- The Select Functions Menu18
- 1. Press and hold COOKING MODE pad for five (5) seconds. SELECT FUNCTION is displayed.18
- 2. Turn knob slowly to desired feature. There will be a slight delay before each message (or feature) can be seen in the display. Turn knob slowly and wait approximately one second for display to show next feature.18
- 3. Press START to choose the function.18
- 4. Turn knob to desired setting and press START. When all settings for the function are complete, SELECT FUNCTION flashes again.18
- 5. Press OFF to exit the Select Functions Menu.18
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until VOLUME is displayed.19
- 3. Press START.19
- 4. Turn knob to select volume level Low, Medium or High.19
- 5. Press START.19
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until SELECT TEMP F-C is displayed.19
- 3. Press START.19
- 4. Turn knob to select Fahrenheit (F) or Celsius (C).19
- 5. Press START to accept new selection.19
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until CLOCK DISPLAY is displayed.19
- 3. Press START.19
- 4. Turn knob to select ON or OFF19
- 5. Press START to accept new selection.19
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until desired language is displayed.19
- 3. Press START.19
- 4. Turn knob clockwise to select a different language.19
- 5. Press START to accept a language change.19
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until LOCK KEYS is flashing.19
- 3. Press START. KEY PAD LOCKED is displayed. The display will beep if a key is pressed to indicate that the keypad is locked.19
- 4. To unlock keypads, press COOKING MODE and hold for 5 seconds. Display will read UNLOCKING KEY PAD.19
- 5. When unlocked, the clock will again appear in the display.19
- 1. Access SELECT FUNCTIONS Menu.19
- 2. Turn knob clockwise until OVEN TEMP OFFSET is displayed.19
- 3. Press START. 0Ë F is displayed.19
- 4. Turn the knob to the right to increase temperature to +25Ë F and to the left to decrease to -25Ë F. The temperature changes by 5Ë F increments.20
- 5. Press START to accept a temperature change.20
- 1. Access SELECT FUNCTIONS Menu.20
- 2. Turn knob clockwise until RESET DEFAULTS is displayed.20
- 3. Press START. Display reads SELECT FUNCTIONS.20
- 1. Verify that the oven is turned off.20
- 2. Access SELECT FUNCTIONS Menu.20
- 3. Turn knob clockwise until SABBATH OPTION appears.20
- 4. Press START. BAKE will show in display and temperature will flash.20
- 5. Turn knob to set oven temperature.20
- 6. Turn oven light on if desired (press LIGHT).20
- 7. Press START. Oven starts after 5 seconds.20
- 1. Turn the warming drawer on to the desired heat setting. See âTurning on the Warming Drawerâ on page 2720
- 2. Verify that the oven is turned off.20
- 3. Access SELECT FUNCTIONS Menu.20
- 4. Turn knob clockwise until SABBATH OPTION appears.20
- 5. Press START. BAKE will show in display and temperature will flash.20
- 6. Turn knob to set oven temperature.20
- 7. Turn oven light on if desired (press LIGHT).20
- 8. Press START. Oven starts after 5 seconds. Sabbath Feature is activated for both the warming drawer and the oven.21
- 1. Access SELECT FUNCTIONS Menu.21
- 2. Turn knob clockwise until TIME FORMAT is displayed.21
- 3. Press START.21
- 4. Turn knob to select 12 hour or 24 hour format.21
- 5. Press START to accept new selection.21
- 1. Access SELECT FUNCTIONS Menu.21
- 2. Turn knob clockwise until AUTO CONVECT BAKE is displayed.21
- 3. Press START.21
- 4. Turn knob to select ON or OFF.21
- 5. Press START to accept new selection.21
- Before Using the Appliance for the First Time21
- Parts and Accessories9
- Operation - Cooktop22
- Operation - Oven24
- About the Oven24
- Operation24
- Setting the Cooking Mode and Temperature24
- 1. Press COOKING MODE.24
- 2. BAKE will flash in the display.24
- 3. If no change is made within 5 seconds, control will beep and flash. If this occurs, press START.24
- 4. To change the cooking mode, turn knob.24
- 5. Press START.24
- 6. The selected mode will appear in the display, along with the default temperature for that mode, which will be blinking.24
- 7. To select a different temperature, turn knob to the right or left (in 5Ë increments) to desired temperature.24
- 8. Press START. If not pressed, oven automatically turns on in 5 seconds.24
- 9. The display alternates between the cooking mode and preheat.24
- 10. To change temperature during cooking, press TEMPERATURE. Turn the knob to select new temperature and press START.24
- 11. Once cooking has been completed, press OFF to turn off oven.24
- Using the Timer25
- To set the timer:25
- 1. Press TIME and TIMER 1 will flash in display.25
- 2. Turn knob to set minutes. If setting only minutes, press START. Otherwise, continue to step 4.25
- 3. Press TIME again and the hours will flash.25
- 4. Turn knob to set hours.25
- 5. Press TIME again. The TIMER is now set.25
- 6. If TIME or START is not pressed, oven will begin beeping and timer display will begin flashing.25
- 1. Press TIME. TIMER 1 will appear in display. Select either TIMER 1 or 2.25
- 2. Press TIME. RESET TIMER 1 (2) appears in the display. Minute digits flash.25
- 3. Turn knob clockwise or counterclockwise to change minutes.25
- 4. Press TIME again and hour digits will flash.25
- 5. Turn knob clockwise or counterclockwise to change hours.25
- 6. Press TIME and new time is set.25
- 1. Press TIME once. TIMER 1 flashes.25
- 2. Turn knob to select CLEAR TIMER 1(2). Press TIME.25
- 3. If TIME pad is not pressed, range will beep and display will continue flashing.25
- 4. Press TIME to return to the main screen.25
- Using Timed or Delayed Cook25
- Setting a Timed Mode25
- 1. Press COOKING MODE.25
- 2. BAKE will be displayed. To select a different cooking mode, turn the knob.25
- 3. Press START.26
- 4. Turn knob to select desired temperature.26
- 5. Press TIME. TIMED BAKE appears.26
- 6. Press TIME. SET BAKE TIME appears in the display and minutes flash.26
- 7. Set minutes. Press TIME.26
- 8. Hours Flash. Set hours. Press START.26
- 9. TIMED BAKE appears in display and the oven begins to preheat.26
- 1. Follow steps 1 through 5 above.26
- 2. Turn knob until DELAYED BAKE appears.26
- 3. Press TIME. SET BAKE TIME appears in display and minutes flash.26
- 4. Set minutes and then press TIME. Hours Flash.26
- 5. Set hours and then press TIME. SET BAKE END appears in the display.26
- 6. Press TIME.26
- 7. Use knob to enter the time of day the oven will stop cooking or turn off.26
- 8. Set hours and then press TIME.26
- 9. Set minutes and then press TIME.26
- 10. At the end of the programmed cooking time, the oven will automatically turn off. Display will show TIME COOK END and reminder beeps will sound. Press OFF to clear.26
- 1. Press TIME.26
- 2. Turn knob to BAKE END or BAKE TIME.26
- 3. Press TIME.26
- Using the Probe (some models)26
- Setting the Probe27
- 1. Prepare meat and place in roasting pan (or on rack in roasting pan as recipe specifies). Insert the probe into the meat. See ...27
- 2. Place roasting pan with meat in cold oven on recommended oven rack. Plug probe into the probe receptacle. The probe symbol will appear in display.27
- 3. Press COOKING MODE and select BAKE, CONVECTION BAKE or CONVECTION ROAST.27
- 4. Press START. The default oven temperature will appear.27
- 5. Turn knob to change oven temperature if necessary.27
- 6. Touch START.27
- 7. Turn knob to set the probe temperature (desired end temperature of the food).27
- 8. Press START.27
- 1. Touch TEMPERATURE. Oven temp will flash in the display.27
- 2. Turn the knob to desired temperature and press START twice.27
- 1. Touch TEMPERATURE. The oven temperature will flash.27
- 2. Press START and PROBE TEMP will flash.27
- 3. Turn the knob to desired temperature and press START again.27
- Setting the Cooking Mode and Temperature24
- Operation - Warming Drawer (some models)28
- About the Warming Drawer28
- Operation29
- Preheating29
- Turning on the Warming Drawer29
- When Only Using the Warming Drawer29
- 1. Press COOKING MODE.29
- 2. Turn knob to select WARMING DRAWER.29
- 3. Press START.29
- 4. Turn knob to select heat setting.29
- 5. Press START.29
- 1. Press COOKING MODE.29
- 2. Press START to select WARMING DRAWER.29
- 3. Turn knob to select heat setting.29
- 4. Press START.29
- 1. Turn the warming drawer on the desired heat level.29
- 2. Activate the Sabbath Feature. See âSet the Sabbath Featureâ on page 18.29
- Turning Off the Warming Drawer29
- Crisping Stale Items30
- Warming Empty Serving Bowls and Plates30

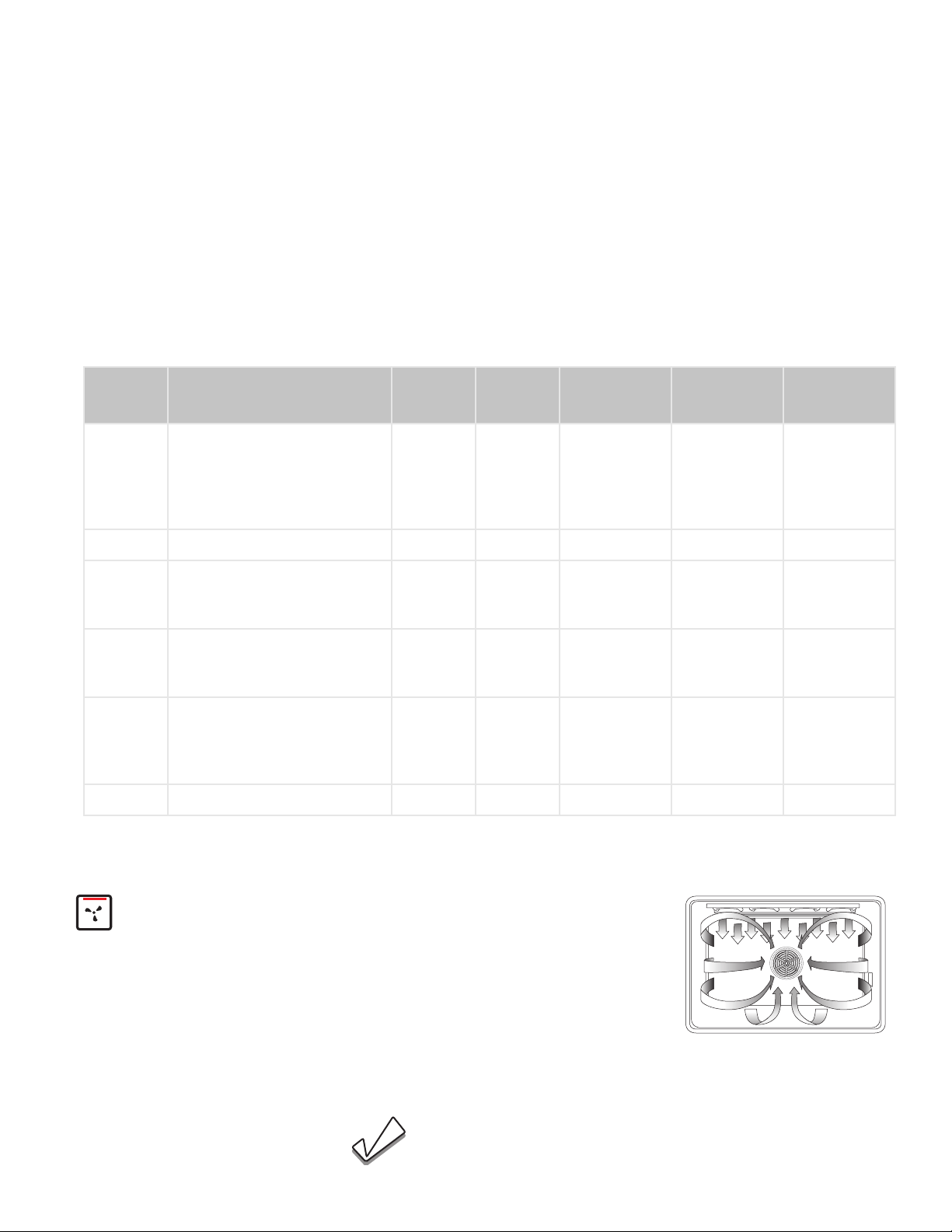

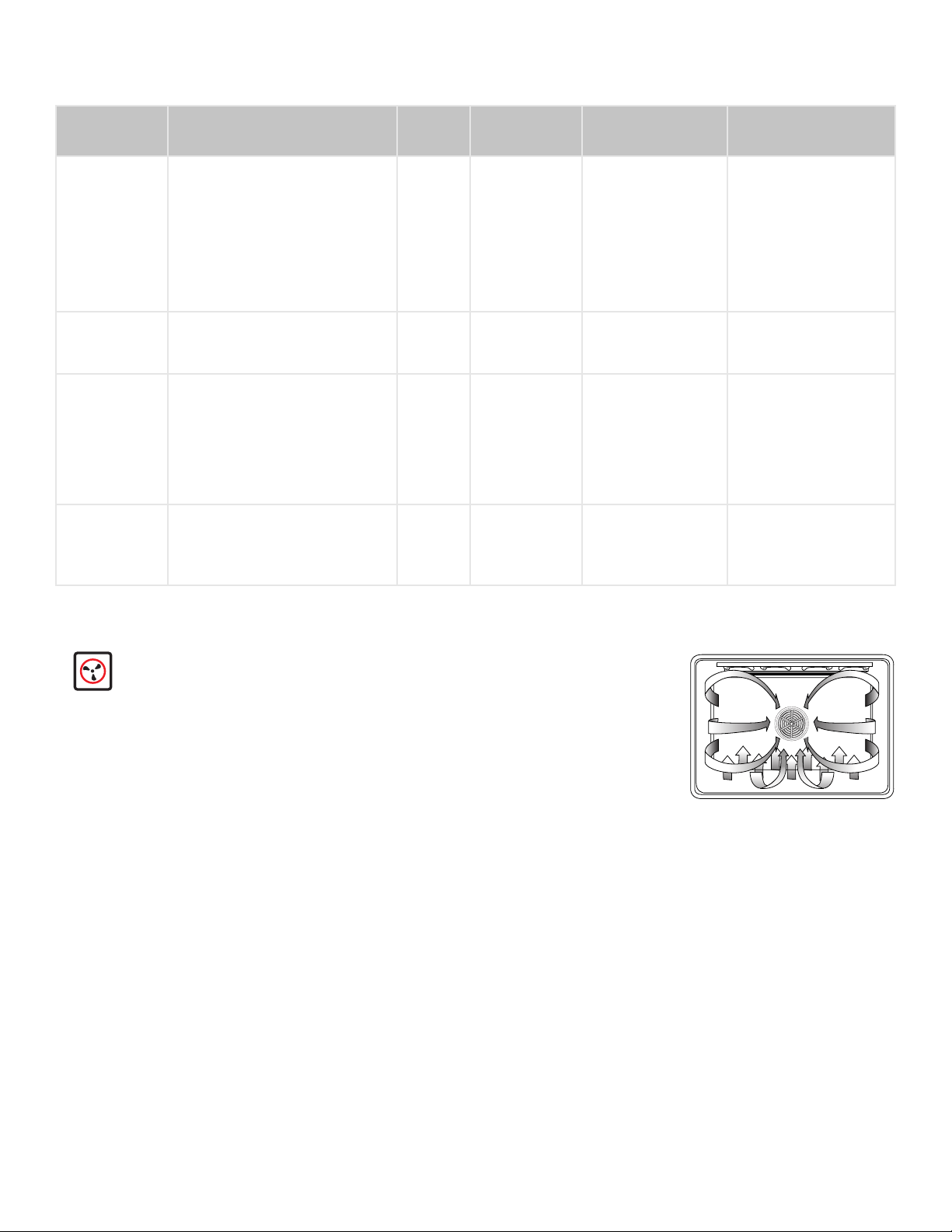

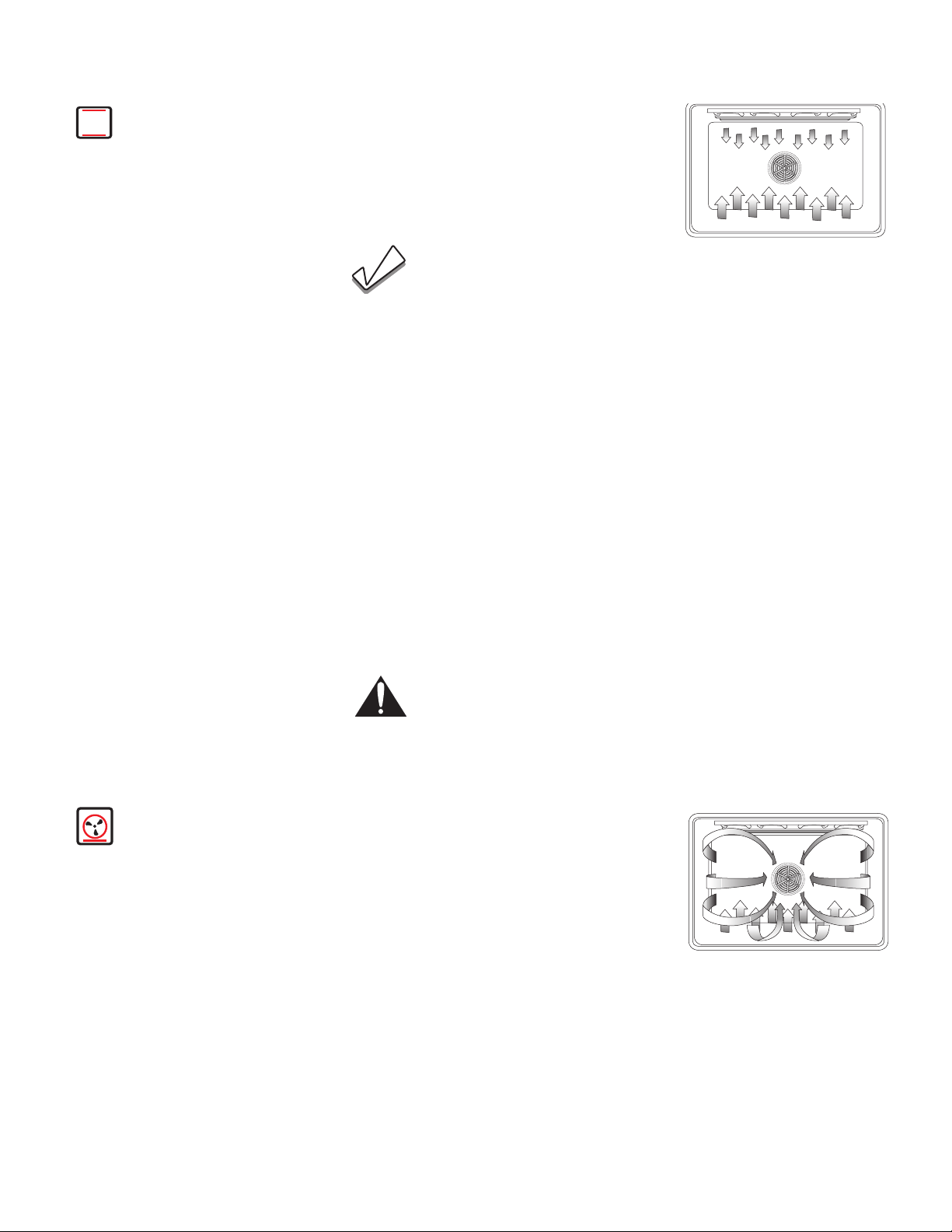

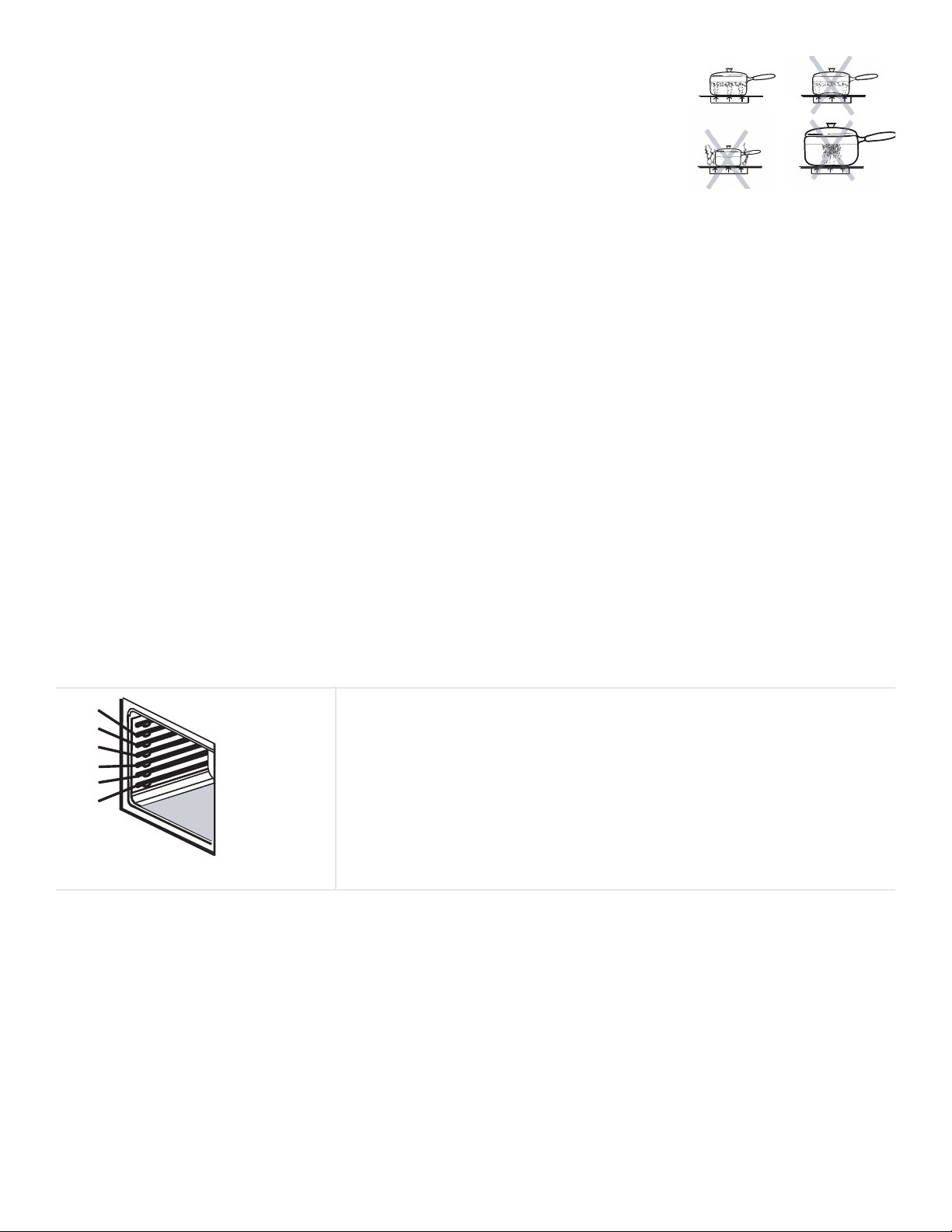

- Getting the Most Out of Your Appliance31
- Cleaning and Maintenance41
- Cleaning - Cooktop41
- Daily Cleaning41
- Cleaning Guidelines41
- Avoid these Cleaners41
- Table 10: Cooktop Cleaning Chart41
- Table 11: Cleaning Techniques for Stubborn Soil (Glass Ceramic Cooktop Models)43
- Using the Razor Blade Scraper (Glass Ceramic Cooktop Models)44
- Cleaning the Control Knobs44
- 1. Pull out and off to remove each knobs. Wipe with hot, soapy cloth, rinse and dry. Do not soak.44
- 2. To replace, push knob straight onto shaft.44
- Cleaning - Oven44
- Daily Cleaning44
- Cleaning Guidelines44
- Avoid these cleaners44
- Table 12: Oven Cleaning Chart44
- Self Cleaning the Oven45
- Preparing the Oven for Self Clean45
- 1. Remove all utensils and bakeware.45
- 2. Remove oven racks. If oven racks are left in the oven during the self-clean cycle, they will permanently lose the shiny finish and change to a dull dark finish. See âOven Cleaning Chartâ on page 42 for proper care.45
- 3. Wipe up excessive soil, spills and grease before self-cleaning the oven. Excess grease will cause flames and smoke inside the oven during self- cleaning.45
- 4. Review illustration above. Some areas of the oven must be cleaned by hand before the cycle begins. Use a soapy sponge or plas...46
- 5. Be sure oven light is turned off and the light bulbs and lens covers are in place. Do not operate oven without light bulb and cover in place.46
- 1. Press COOKING MODE.46
- 2. Turn knob until SELF CLEAN mode appears. Press START.46
- 3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.46
- 4. Press START. SELF CLEAN flashes. Press START.46
- 5. REMOVE RACKS appears in the display as a reminder to remove oven racks.46
- 6. Press START again to begin the self- clean.46
- 1. Press COOKING MODE.46
- 2. Turn knob until SELF CLEAN mode appears. Press START.46
- 3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.46
- 4. Press START.47
- 5. Turn knob until DELAYED CLEAN mode appears. Press START.47
- 6. SELF CLEAN END appears in the display.47
- 7. Turn knob to enter the time of day you want the self-clean to end: Set hours, press time, set minutes.47
- 8. Press START. The display will remind you to remove oven racks.47
- 9. Press START. The display shows DELAYED CLEAN. The self-clean will automatically start at the appropriate time.47
- 1. At the end of the programmed cleaning time, the oven will automatically turn off. SELF CLEAN END appears in the display. Press OFF to clear.47
- 2. The self-clean mode may produce ash which will settle in the bottom of the oven. If this happens, remove ash with a damp cloth before using the oven.47
- 3. Wipe rack edges with cooking oil to allow for proper glide. Wipe off excess.47
- Cleaning - Drawers (Storage or Warming)47
- Maintenance47
- Cooktop Maintenance47
- Oven Maintenance48

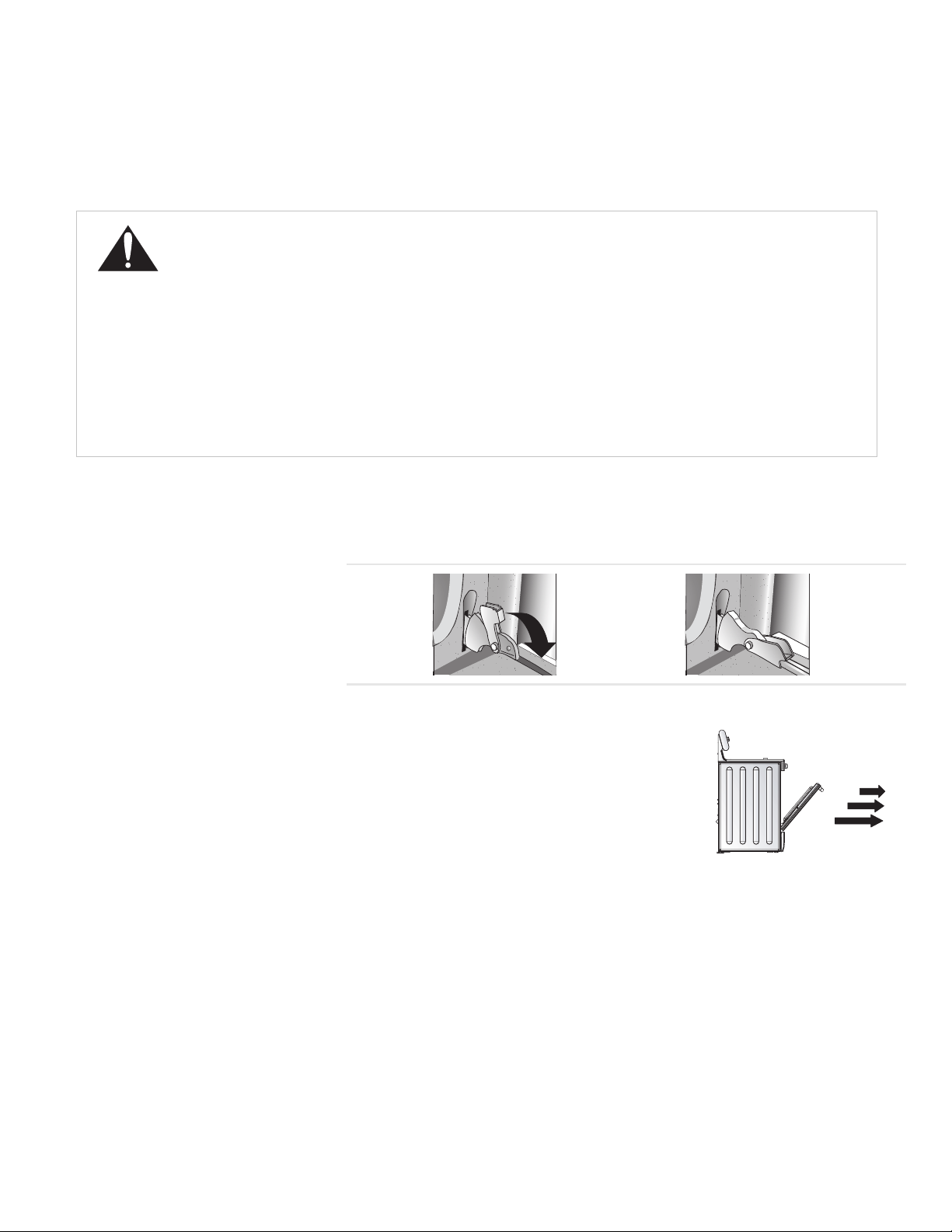

- Removing the Door48
- 1. Be sure to read the above WARNING before attempting to remove oven door.48
- 2. Open the door completely.48
- 3. Flip lever on hinge toward you.48
- 4. Close the door to approximately halfway open.48
- 5. Holding the door firmly on both sides using both hands, pull the door straight out of the hinge slots. Hold firmly, the door is heavy.48
- 6. Place the door in a convenient and stable location for cleaning.48
- 1. Holding the door firmly in both hands, place hinges in hinge slots.48
- 2. Open door all the way to expose hinges and slots. Push lever (one on each hinge) away from you (back toward range).48
- 3. After moving the hinge brackets back down into position, be sure to close and open the door slowly to assure that it is correctly and securely in place.48
- 4. Door should be straight, not crooked.48
- 1. Read the WARNING above.49
- 2. Turn off power at the main power supply (fuse or breaker box).49
- 3. Remove the lens by unscrewing it.49
- 4. Remove the light bulb from its socket by unscrewing it.49
- 5. Replace the bulb with a new 40 watt appliance bulb. Avoid touching the bulb with fingers, as oils from hands can damage the bulb when it becomes hot.49
- 6. Screw the lens back on.49
- 7. Turn power back on at the main power supply (fuse or breaker box).49
- Cleaning - Cooktop41
- Service50
