We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Instructions
50
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door 5
cm for a few seconds, let the
steam come out, then open it fully.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Switch off the appliance
immediately after use.
Instructions
51
EN
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Switch off the burners or the
electric hot plates of the hob
installed above the appliance
during the pyrolytic process
(where available).
• Do not seat on the appliance.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
Instructions
52
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS
.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
Instructions
53
EN
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Always use any necessary/
required personal protective
equipment (PPE) before performing
any work on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any work on
the appliance, switch off the
power supply.
• This appliance can be used up to a
maximum altitude of 4,000 metres
above sea level.
For this appliance
• Take care because steam may not
be visible at certain temperatures.
• Open the appliance door
carefully during or after cooking.
• Dishes must be heat and steam
resistant.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare parts.
Instructions
54
1.4 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
55
EN
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
56
2 Description
2.1 General Description
Multifunction and Pyrolytic models
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf
Description
57
EN
2.2 Control panel
1 Temperature knob
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• The turning on or off of the light inside the
appliance.
2 Display
Displays the current time, the selected
cooking temperature, power and function
and any time set.
3 Function knob
This knob can be used to:
• Turn the appliance on and off
• Select a function
• Temporarily start or stop a function.
2.3 Other parts
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, apart
from the ECO and Vapor Clean
functions (Multifunction models) and the
Pyrolytic and ECO Pyrolytic
functions (Pyrolytic models).
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.
In order to save energy, the light
turns off after a minute at the start of
cooking (this function can be
deactivated via the secondary
menu).
When the door is open, it is not
possible to turn off the interior
lighting.
Description
58
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.

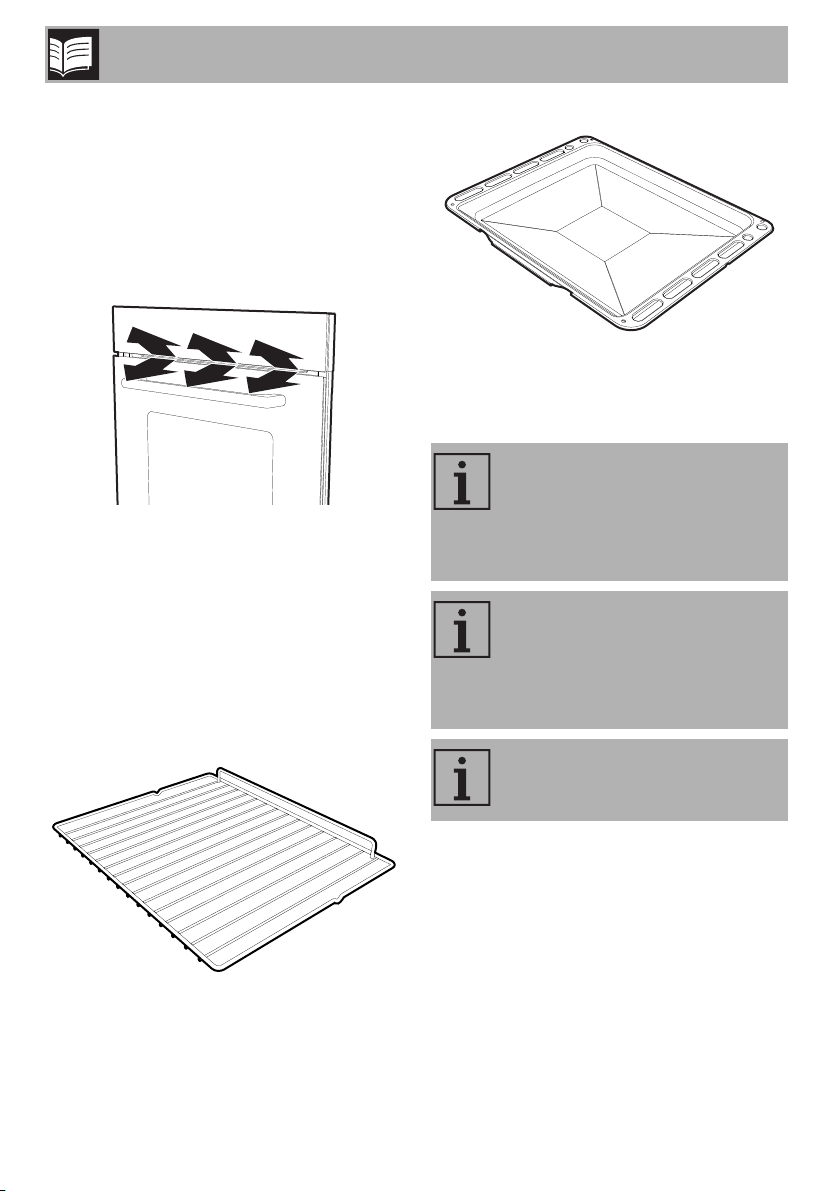

2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
The appliance accessories
intended to come into contact with
food are made of materials that
comply with the provisions of
current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.
Some models are not provided
with all accessories.
Use
59
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
60
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards and
towards the back of the oven cavity.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
3.4 Using the oven
Switching on the oven
1. Press the function knob to turn on the
display.
2. Turn the function knob to the right or left
to select the required function.
3. Press the programming knob.
4. Turn the programming knob to set the
temperature.
5. Wait 3 seconds.
6. Press the function knob to start cooking.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.
Use
61
EN
Display
Multifunction models
Pyrolytic models
Eco-logic indicator light
Pyrolytic function indicator light
(pyrolytic models only)
Showroom indicator light
Minute minder timer indicator light
Timed cooking indicator light
Programmed cooking indicator light
Clock indicator light
Child lock indicator light
Temperature level reached
Operating modes
Standby: When no function is selected, the
display shows the current time
.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the temperature knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Function duration
Programmed cooking duration (if timed
cooking has been selected)
Time display
In all modes it is possible to modify the
value by turning the temperature knob to the
left or right. Keep the knob turned to
produce a faster increase or decrease.
Use
62
Setting the time
When using the appliance for the first time,
or after a power failure, the
symbol will flash on the display. To be able
to start any cooking function, the current
time must be set.
1. Turn the temperature knob to set the
displayed time (keep the knob turned to
produce a faster increase or decrease).
2. Press the temperature knob.
3. Turn the temperature knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the temperature knob to finish
adjustment.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The light flashes to indicate that this
stage is in progress.
When the preheating stage is over, the
indicator light will remain lit steadily
and a buzzer will sound to indicate that the
food can be placed inside the oven.
List of cooking functions
It may become necessary to
change the current time, for
example for daylight saving time.
From the stand-by position, keep
the temperature knob turned to the
right or left until the hours flash.
It is not possible to change the time
if the oven is ON.
Cooking can be interrupted at any
time by pressing and holding the
function knob down for at least 3
seconds.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
It is recommended for all types of
food except those that may
produce a large amount of moisture
(e.g. vegetables).
To obtain maximum energy savings
and reduce cooking times, it is
recommended not to preheat the
oven before placing food in it.
When using the ECO function,
avoid opening the door during
cooking.
Use
63
EN
Cooking (and preheating) times
are longer with the ECO function
and may depend on the amount of
food in the oven cavity.
The ECO function is a delicate
cooking function and is
recommended for cooking that
does not require temperatures
higher than 210°C. It is
recommended that you select a
different function for cooking at
higher temperatures.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted), gives
the food an even browning at the end
of cooking. Perfect for sausages,
spare ribs and bacon. This function
enables large quantities of food,
particularly meat, to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and
4
th
shelf).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1
st
and 4
th
shelf.)
Use
64
Timer
1. Press the temperature knob once (twice if
cooking is already in progress). The
display shows and the
indicator light flashes.
2. Turn the knob to set the duration (from 1
minute to 4 hours). After a few seconds,
the indicator light stops flashing and
the countdown starts.
3. Select the required cooking function and
wait for the buzzer to sound, indicating
that the cooking time is over. The
indicator light flashes.
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrost and proving functions are
brought together under the same
function.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.
Use
65
EN
4. To deactivate the buzzer, press or turn
one of the two knobs.
5. To select a further minute minder, turn the
temperature knob.
Timed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light flashes.
2. Turn the temperature knob right or left to
set the cooking duration from 00:01 to
12:59. Keep the knob turned to produce
a faster increase or decrease.
3. A few seconds after the required
duration is set, the indicator light
stops flashing and timed cooking starts.
4. At the end of cooking, is
shown on the display and a buzzer
sounds.
You must set the value to zero to
remove the minute minder timer.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
Use
66
5. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the indicator light is steady
and cooking is in progress inside the
appliance, press the temperature knob
twice. The indicator light starts
flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
Programmed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light flashes.
2. Turn the knob right or left to set the
cooking duration from 00:01 to 12:59.
Keep the knob turned to increase or
decrease it more quickly.
To deactivate the buzzer and
select a further timed cooking, turn
the temperature knob to the right.
To deactivate the buzzer and
select a different cooking function,
turn the function knob to the right or
left.
Press and hold the function knob
down to switch off the appliance.
Programmed cooking is the
function which allows cooking to
be stopped at an established time
depending on the time set by the
user, after which the appliance will
switch off automatically.
Use
67
EN
3. Press the temperature knob a fourth time.
The indicator light flashes. Turn the
knob right or left to set the cooking end
time.
4. After a few seconds the and
indicator lights stop flashing. The
appliance waits for the set start time.
5. At the end of cooking, is
shown on the display and a buzzer
sounds.
6. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
With programmed cooking, the
oven is switched on ten minutes in
advance to allow the appliance to
reach the cooking temperature
(preheating).
Press and hold the function knob
down to switch off the appliance.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.
Use
68
Modifying the data set during
programmed cooking
During operation, it is possible to modify the
programmed cooking duration:
1. When the and indicator lights
are lit steadily and the appliance is
waiting for cooking to start, press the
temperature knob twice. The
indicator light starts flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
3. Press the temperature knob again. The
indicator light switches off and the
indicator light starts flashing. The display
shows the cooking end time.
4. Turn the temperature knob right or left to
delay the cooking end time.
5. After a few seconds the and
indicator lights stop flashing and
programmed cooking resumes its
operation with the new settings.
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you set the temperature to the
maximum value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
After modifying the cooking
duration, the end of cooking time
must be re-set.
Use
69
EN
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
• (Where fitted) When it is not being used,
remove the pizza stone and put the
cover back in its slot.
3.6 Special functions
Defrost by time
1. Place the food inside the oven.
2. Press and turn the function knob to select
the defrost by time function .
3. Turn the temperature knob to set the
duration (from 1 to 99 minutes).
4. Press the temperature knob to confirm the
set duration. flashes.
5. Press the function knob to start the defrost
by time function.
6. At the end, is displayed and
a buzzer sounds.
7. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
8. Press and hold the function knob for at
least 3 seconds to exit the function.
Use
70
Proving
1. Position the dough for proving on the
second shelf.
2. Press and turn the function knob to select
the proving function .
flashes.
3. Press the function knob to start the
proving function.
4. At the end, is displayed and
a buzzer sounds.
5. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
6. Press and hold the function knob for at
least 3 seconds to exit the function.
Sabbath
When using the proving function
the temperature cannot be altered.
For successful proving, a container
of water should be placed in the
bottom of the oven.
This function allows food to be
cooked in accordance with the
provisions of the Jewish religion
day of rest.
This function results in the appliance
operating in a particular way:
• Cooking can proceed
indefinitely, it is not possible to
set any time.
• No preheating will be performed.
• The cooking temperature which
can be selected varies
between 60-100 °C.
• Oven light disabled, any
operation such as opening the
door or manual activation with
the knob will not activate the light.
• The internal fan remains turned off.
• Knob illumination and audible
prompts remain disabled.
Use
71
EN
1. Press and turn the function knob to select
the Sabbath function .
2. Press and turn the temperature knob to
modify the temperature of the function.
3. Press the temperature knob to confirm the
set temperature. flashes.
4. Press the function knob to start the
Sabbath function.
5. Press and hold the function knob for at
least 3 seconds to exit the function.
Defrost by weight
1. Place the food inside the oven.
2. Press and turn the function knob to select
defrost by weight, marked by
and the illuminated food
symbols .
3. Press the function knob to confirm the
defrost by weight function.
4. Turn the function knob to select the type
of food to defrost.
After activating the Sabbath
function the settings cannot be
altered.
Any action on the knobs will
produce no effect; only the function
knob remains active to allow the
appliance to be turned off.
This function defrosts foods on the
basis of the type and weight of the
frozen products.
Use
72
5. Turn the temperature knob to select the
weight (in grams) of the food to defrost.
6. Press the function knob to confirm the set
parameters and start defrosting.
7. At the end, is displayed and
a buzzer sounds.
8. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
9. Press and hold the function knob for at
least 3 seconds to exit the function.
Pre-set parameters
* Defrosting times may vary according to
the shape and size of the food to be
defrosted.
3.7 Automatic programs
The automatic cooking programs are
divided up according to the type of dish to
be cooked.
1. Press and turn the function knob to select
cooking with automatic programs,
marked by and the
illuminated food symbols
.
2. Press the function knob to confirm
cooking with automatic programs.
3. Turn the function knob to select the
preferred program (see Automatic
programs table).
4. Turn the temperature knob to select the
weight (in grams) of the food to cook.
dE Type
Weight
(g)
Time
(min)*
01 Meat 500 120
02 Fish 300 55
03 Fruit 300 35
04 Bread 300 25
Use
73
EN
5. When preheating has finished,
will flash. Introduce the
food and then press the function knob to
start cooking.
6. At the end, is displayed and
a buzzer sounds.
7. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
8. Press and hold the function knob for at
least 3 seconds to exit the function.
It is possible to set programmed
cooking in automatic programs.
A function can be interrupted at
any time by pressing and holding
the function knob for at least 3
seconds.
Use
74
Automatic programs table
MEAT (01 - 05)
FISH (06 - 07)
VEGETABLES (08 - 10)
(1)
When grilling, it is recommended to cook foods on both sides, making reference to the
times given in the table. The greater time always refers to the first side to be cooked, starting
with raw foodstuffs.
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
01 Roast beef (medium)
1000 2 200 40
02 Roast pork
1000 2 190 75
03 Lamb (well done)
1000 2 190 110
04 Veal
1000 2 190 65
05 Whole roast chicken
1000 2 200 64
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
06 Fresh fish (whole)
500 2 160 35
07 Frozen fish
500 2 160 45
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
08 Mixed grilled
500 4 250
15 + 10
(1)
09 Roasted
1000 2 200 45
10 Roast potatoes
1000 2 220 40
Use
75
EN
DESSERTS/PASTRIES (11 - 13)
BREAD - PIZZA - PASTA (14 -20)
(2)
(Models without Pizza stone) The stone must be placed on the bottom of the oven.
Frozen pizza cooked on the stone does not require different cooking times depending on
weight.
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
11 Biscuits
600 2 160 18
12 Muffins
500 2 160 18
13 Tart
800 2 170 40
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
14 Leavened bread (loaf)
1000 2 200 30
15 Pan baked pizza
1000 1 280 7
16 Stone baked pizza
500
1
(2)
280 4
17 Pasta bake
2000 1 220 40
18 Lasagne
2000 1 230 35
19 Paella
500 2 190 25
20 Quiche
1000 1 200 40
The times indicated in the tables do
not include preheating times and
refer to cooking whole pieces. If
the foodstuffs are cut into smaller
portions, the cooking times will
decrease.
Use
76
3.8 Secondary menu
The appliance has a drop-down secondary
menu allowing the user to:
• Activate or deactivate the Child lock.
• Activate or deactivate Showroom mode
(which disables all the heating elements
so that only the control panel works).
• Activate or deactivate Low Power
(Eco-Logic) mode.
• Activate or deactivate Keep warm
mode.
• Activate or deactivate Timed light
(Eco-light) mode.
With the appliance in Stand-By
1. Activate the internal light by turning the
temperature knob quickly.
2. Press and hold the temperature knob
down for at least 5 seconds.
3. Turn the temperature knob right or left to
change the setting status (ON/OFF).
4. Press the temperature knob to move to
the next mode.
Child lock mode
This mode allows the appliance to lock the
controls automatically after one minute of
normal operation without any intervention
from the user.
During normal operation it is indicated by
the
indicator light coming on.
To release the lock temporarily during
cooking, hold the temperature knob down
for 5 seconds. One minute after the last
setting the lock will become active again.
When the position of the knobs
is changed, the display will
show for a few
seconds.
It is still possible to turn the
appliance off instantaneously by
pressing and holding the function
knob down for 3 seconds when in
child lock mode.
Use
77
EN
Showroom mode (for exhibitors only)
This mode allows the appliance to
deactivate all heating elements, while
keeping the control panel active.
To use the appliance normally, set this
mode to OFF.
Low Power (Eco-logic) mode
This mode allows the appliance to limit the
power used.
Suitable for simultaneous use with further
home appliances.
HI: normal power.
LO: low power.
If the mode is active, the
indicator light lights up on the
display.
Activating eco-logic mode means
that preheating and cooking times
may be extended.
If the mode is active, the
indicator light lights up on the
display.
Use
78
Keep warm mode
This mode allows the appliance to keep
cooked food warm (at low temperatures)
for around an hour after cooking finishes
with a cooking cycle for which a duration
has been set (if this is not manually
interrupted).
Timed light (Eco-light) mode
For greater energy savings, the light is
automatically deactivated one minute from
the start of cooking.
To stop the appliance from automatically
deactivating the light after one minute, set
this mode to OFF.
The manual off/on control is
always available with both settings
by turning the temperature knob to
the right.
Cleaning and maintenance
79
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the oven
cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
• The door
• The rack/tray support frames
• The seal (excluding pyrolytic models).
4.3 Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:

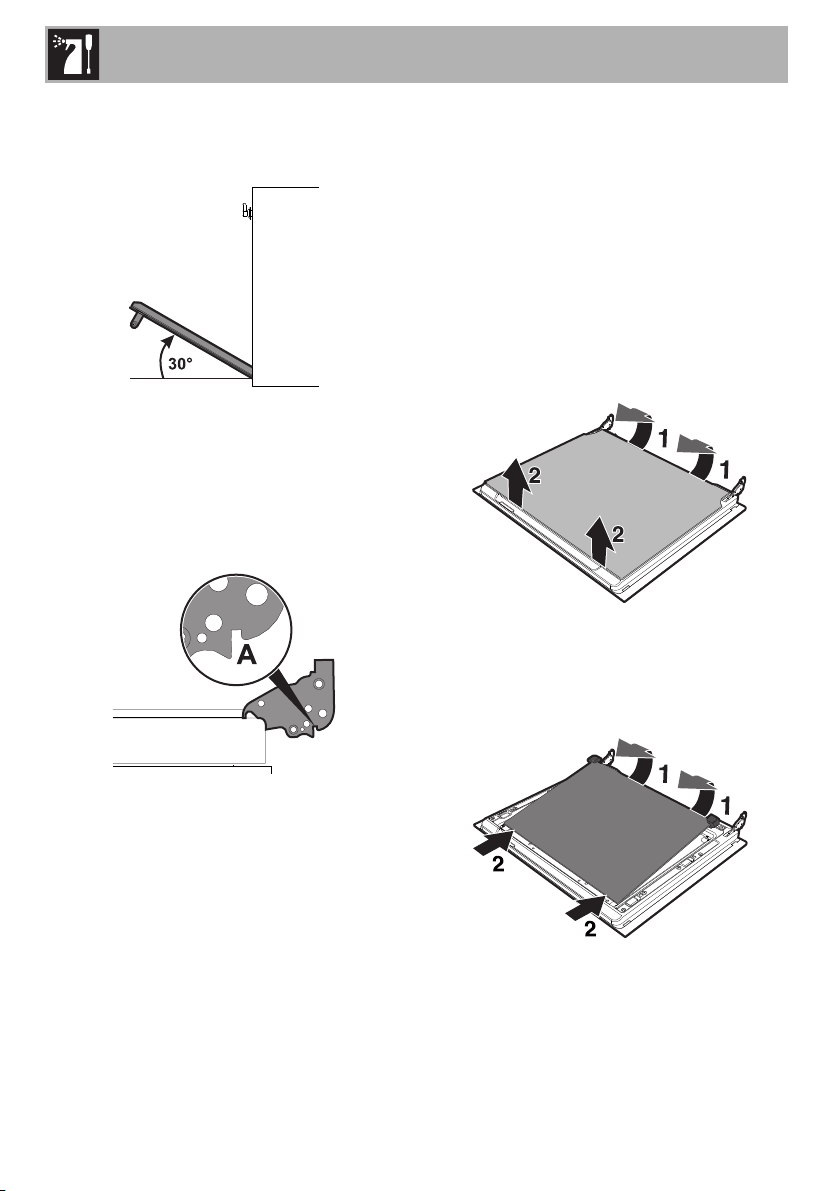

1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
80
2. Grasp the door on both sides with both
hands, lift it forming an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2).
This way, the 4 pins attached to the
glass detach from their housings in the
oven door.
3. Some models are fitted with a pair of
intermediate glass panes. Remove the
intermediate glass panes by lifting them
upwards.
Cleaning and maintenance
81
EN
4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily. This operation should be performed
each time the automatic cleaning cycle is
used (on some models only).
To remove the rack/tray support frames:
1. Pull the frame towards the inside of the
oven cavity to unhook it from groove A.
2. Then slide it out of the seats at the
back B.
3. When cleaning is complete, repeat the
above procedures to put the rack/tray
support frames back in.
Cleaning and maintenance
82
Cleaning the top section
The appliance is equipped with a tilting grill
element that allows for easy cleaning of the
upper part of the oven cavity.
1. Free the upper heating element by
gently lifting it and rotating its retaining
latch by 90 degrees.
2. Gently lower the heating element until it
stops.
When you have finished cleaning, place
the heating element back in position and
turn the retaining latch to lock it in place.
4.5 Vapor Clean (on some models
only)
Preliminary operations
Before starting the Vapor Clean cycle:
• Completely remove all accessories from
inside the oven.
• Pour approx. 40 cc of water onto the
floor of the oven. Make sure it does not
overflow out of the cavity.
High temperature inside the oven
during use
Danger of burns
• The following operations must be
performed only with the oven switched
off and completely cool.
Improper use
Risk of damage to the appliance
• Do not excessively flex the element
during cleaning.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
Cleaning and maintenance
83
EN
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
• During the assisted cleaning cycle, wash
the self-cleaning panels (where fitted),
which were previously removed,
separately in warm water and a small
amount of detergent.
Vapor Clean cycle setting
1. Press and turn the function knob to select
the Vapor Clean function . The
duration and temperature of the cleaning
cycle will appear on the display.
2. Press the function knob to start the
automatic cleaning cycle.
We recommend spraying approx.
20 times at the most.
If the internal temperature is
greater than that required for the
Vapor Clean cycle, the cycle will
be stopped immediately and the
message will appear
on the display. Let the appliance
cool down before activating the
assisted cleaning cycle.
The temperature and time
parameters cannot be modified by
the user.
Cleaning and maintenance
84
Programmed Vapor Clean cycle
Like for the normal cooking functions, it is
also possible to set an end time for the
Vapor Clean function.
1. After selecting the Vapor Clean function,
press the temperature knob. The
indicator light starts flashing. The
display shows the function end time.
2. Turn the temperature knob right or left to
delay the cooking end time.
3. Press the temperature knob to confirm the
function end time.
4. Press the function knob. The appliance
waits for the set start time.
End of the Vapor Clean cycle
When finished, appears on
the display and a buzzer will sound that
can be deactivated by pressing the
temperature knob.
1. Press and hold the function knob for at
least 3 seconds to exit the function.
2. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
3. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
4. In case of grease residues use specific
oven cleaning products.
5. Remove the residual water inside the
oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan-assisted function at 160°C for
approximately 10 minutes.
We recommend wearing rubber
gloves for these operations.
We recommend removing the
door in order to make the manual
cleaning of the parts that are
difficult to reach easier.
Cleaning and maintenance
85
EN
4.6 Pyrolytic (on some models only)
Preliminary operations
Before starting the pyrolytic cycle:
• Clean the internal glass pane following
the usual cleaning instructions.
• For very stubborn encrustations spray an
oven cleaning product onto the glass
(read the warnings on the product);
leave for 60 minutes, then rinse and dry
the glass using kitchen roll or a microfibre
cloth.
• Completely remove all accessories from
inside the oven.
• Remove the rack/tray support frames.
• Detach removable guides, where fitted.
• Close the door.
Pyrolytic function setting
1. Select one of the cleaning functions
or with the function knob.
2. Turn the temperature knob to the right or
to the left to set the cleaning cycle
duration from a minimum of 2 hours to a
maximum of 3 hours (except for the
function whose duration is 120 minutes).
3. Press the temperature knob to start the
pyrolytic cycle.
Pyrolytic cycle
1. The display shows or and
the remaining time to indicate that the
appliance is carrying out the automatic
cleaning cycle.
2. Two minutes after the pyrolytic cycle has
started the door is locked (the door lock
indicator light
comes on) by a
device that prevents the door from being
opened.
Pyrolytic cleaning is an automatic,
high-temperature cleaning
procedure that causes dirt to
dissolve. Thanks to this process, it is
possible to clean the inside of the
oven very easily.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
Recommended pyrolytic cycle
duration:
• Light dirt: 2 hours.
• Medium dirt: 2 ½ hours.
• Heavy dirt: 3 hours.
Cleaning and maintenance
86
3. At the end of the pyrolytic cycle, the door
remains locked as long as the
temperature inside the oven cavity returns
to safety levels. Wait for the oven to cool
down and collect the residue deposited
inside it using a damp microfibre cloth.
Setting of programmed pyrolytic cycle
It is possible to program the pyrolytic cycle
start time like all other cooking functions.
1. After selecting the pyrolytic cycle
duration, press the temperature knob.
The display shows the current time and
the indicator light comes on.
2. Turn the temperature knob to set the time
at which you wish to complete the
pyrolytic cycle.
3. After a few seconds, the and
indicator lights remain on steadily and
the appliance waits for the set start time
to start the cleaning cycle.
It is not possible to select any
function once the door lock device
has been activated.
During the first pyrolytic cycle,
unpleasant odours may occur due
to the normal evaporation of oily
manufacturing substances. This is
an absolutely normal phenomenon
which disappears after the first
pyrolytic cycle.
During the pyrolytic cycle the fans
produce a more intense level of
noise due to a greater rotation
speed. This is an absolutely normal
operation, intended to provide
more effective heat dispersal. At
the end of the pyrolytic cycle, the
fans will continue to operate for
long enough to avoid overheating
the walls of adjacent units and the
front of the oven.
If the pyrolytic cycle gives
unsatisfactory results at minimum
duration, it is recommended to set
a longer time for successive
cleaning cycles.
It is not possible to select any
function once the door lock device
has been activated.
Cleaning and maintenance
87
EN
4.7 Extraordinary maintenance
Removing and installing the oven seal
(not on pyrolytic models)
To remove the oven seal:
• Unhook the clips located in the 4 corners
then pull the oven seal outwards.
To install the oven seal:
• Hook the fasteners located in the 4
corners onto the oven seal.
Oven seal maintenance tips
The seal should be soft and elastic.
• To keep the oven seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
Live parts
Danger of electrocution
• Unplug the appliance.
Pay attention not to scratch the oven
cavity enamel.
Cleaning and maintenance
88
4. Slide out and remove the light bulb.
5. Replace the light bulb with one of the
same type (40W).
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.
Installation
89
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance operates at 220-240 V~.
Use a three-core cable (3 x 1.5 mm
2
internal conductors).
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Fixed connection
Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of burns.
5.2 Cable replacement
1. Unscrew the rear casing screws and
remove the casing to access the terminal
board.
2. Replace the cable.
3. Make sure that the cables (for the oven
or any hob) follow the best route in order
to avoid any contact with the appliance.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Installation
90
5.3 Positioning
Position of the power cable
(rear view)
Front panel seal
Glue the supplied seal to the rear part of
the front panel to avoid water or other
liquids from leaking in.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not install the appliance in a recess
which can be closed with a door, or in a
cupboard.
Installation
91
EN

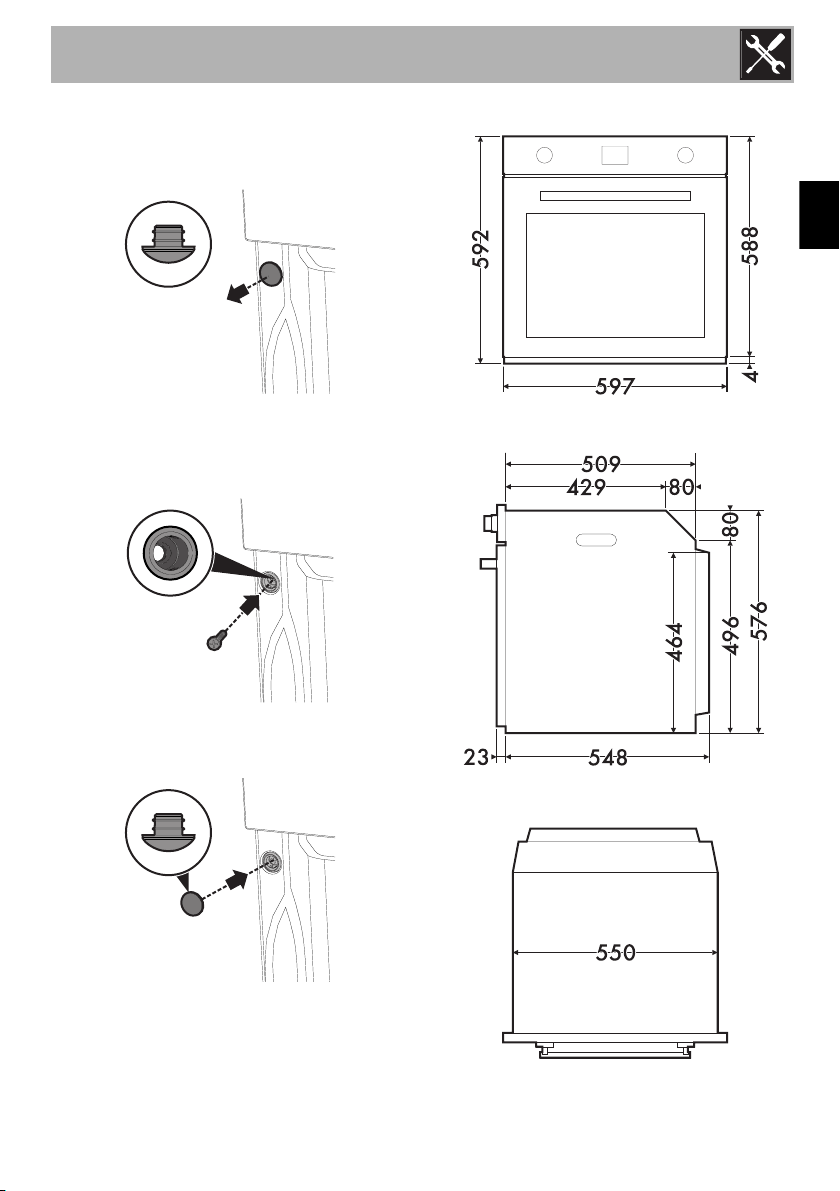

Fastening bushings
1. Remove the bushing covers on the front
of the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the carcase
using the screws.
4. Cover the bushings with the previously
removed covers.
Appliance overall dimensions (mm)
Installation
92

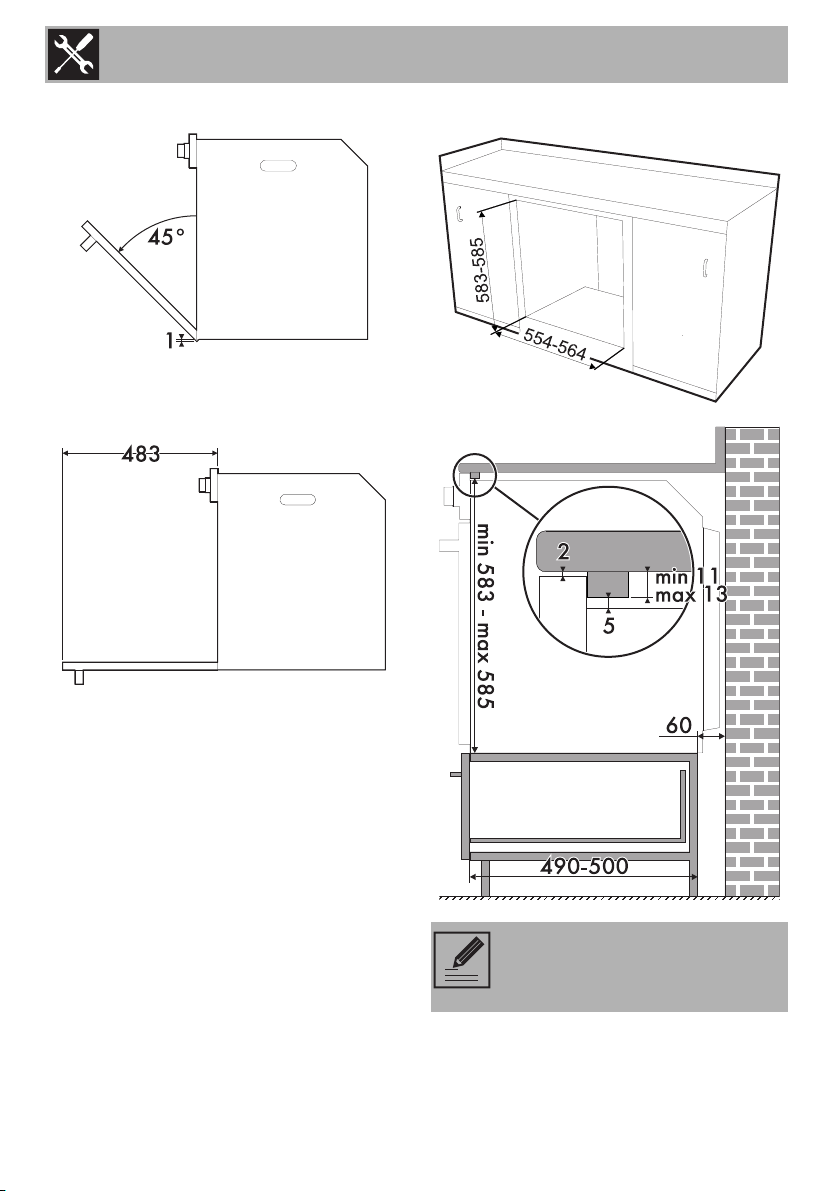

Mounting under worktops (mm)
Make sure that the carcase rear/
bottom section has an opening of
approx. 60 mm.
Installation
93
EN

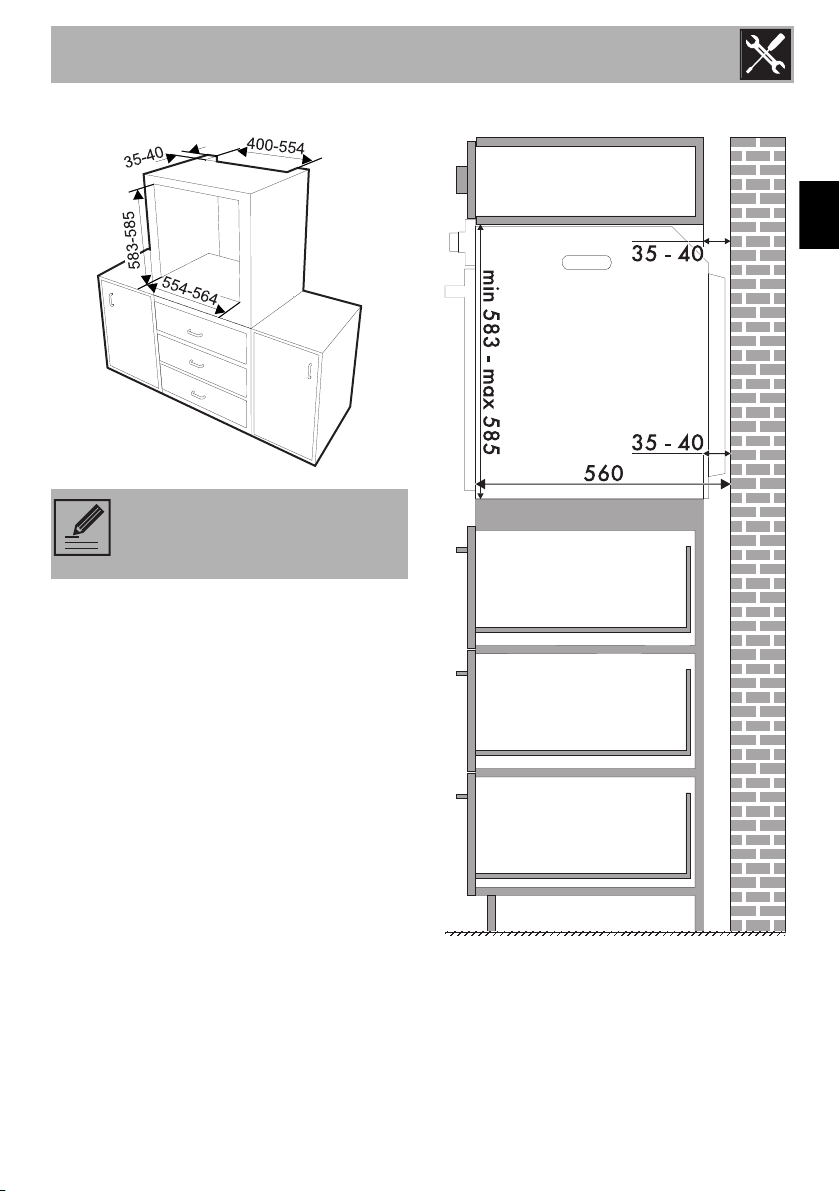

Mounting into a column (mm)
Make sure that the carcase top/
rear section has an opening
approx. 35-40 mm deep.
