Owner's Manual
IPS LED MONITOR
(LED MONITOR)
34UC97
Please read the safety information carefully
before using the product.
IPS LED Monitor (LED Monitor) Model List
ENGLISH
2
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Composition
5 Product and Button Description
5 - How to Use the Joystick Button
6 - Input Connector
7 Moving and Lifting the
Monitor
8 Installing the Monitor
8 - Assembling the Stand
9 - Installing on a Table
10 - Tidying up Cables
10 - Adjusting the Angle
11 - Using the Kensington Lock
12 USING THE MONITOR
12 Connecting to a PC
12 - HDMI Connection
13 - DisplayPort Connection
13 - Thunderbolt ( ) Connection
14 Connecting AV Devices
14 - HDMI Connection
14 Connecting Peripherals
14 - USB Cable connection - PC
15 - Connecting Headphones
16 INSTALLING THE LG
MONITOR SOFTWARE
18 USER SETTINGS
18 Activating the Main Menu
18 - Main Menu Features
19 User Settings
19 - Menu Settings
20 - Ratio
21 - Function
22 - PBP
23 - Picture
24 - Color
25 - Settings
26 - Reset
27 TROUBLESHOOTING
29 PRODUCT SPECIFICATION
30 Factory Support Mode
(Preset Mode, HDMI/DisplayPort/
Thunderbolt PC)
30 HDMI Timing (Video)
30 Power LED
31 PROPER POSTURE
31 Proper Posture for Using the Monitor
ENGLISH
3
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort
compliance logo for dual-mode source devices are all registered trademarks of
the Video Electronics Standards Association.
MaxxAudio and additional MAXX trademarks are trademarks and/or registered
trademarks of Waves Audio Ltd.
ENGLISH
4
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Product Composition

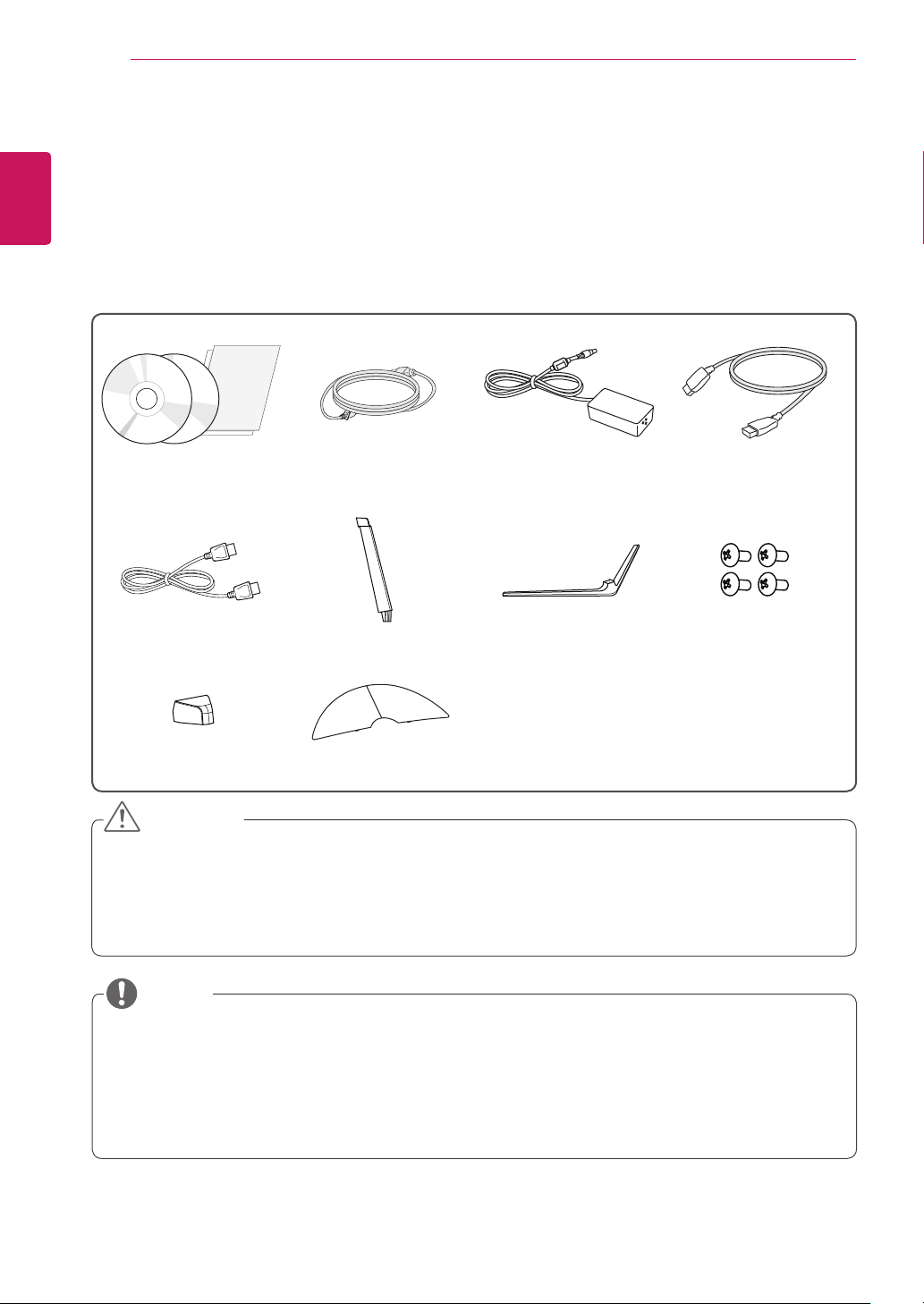

Please check whether all the components are included in the box before using the product. If there are
any missing components, contact the retailer where you purchased the product. Note that the product and
related components may look different from those shown here.
CD (Owner's Manual /
Software / Guides) /
Cards
Power cord AC/DC Adapter HDMI cable
DisplayPort Cable Stand Body Stand Base
4 Screws
(M4 x 10)
Screw Cover Input connector cover
y
Always use genuine LG components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of unauthorized components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image
noises.
CAUTION
y
The components may look different from those illustrated here.
y
Without prior notice, all product information and specifications contained in this manual are subject to
change to improve the performance of the product.
y
To purchase optional accessories, visit an electronics store or an online shopping site, or contact the
retailer from which you purchased the product.
y
The power cord provided may differ depending upon the region.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
Product and Button Description
Joystick Button
/
Power LED
y
On Power on
y
Off Power off
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/right.
y
The joystick button is located at the bottom of the monitor.
y
Before turning on the monitor, please make sure that the DC switch on the rear side of product is On.
NOTE
ENGLISH
6
ASSEMBLING AND PREPARING
Input Connector
ON
USB IN 2
5 V 1.1 A
DC-IN
(19 V )
DP IN
HDMI IN 1
H/P
USB UP USB IN 1
5 V 1.1 A
HDMI IN 2
DC switch
ENGLISH
7
ASSEMBLING AND PREPARING
Moving and Lifting the
Monitor

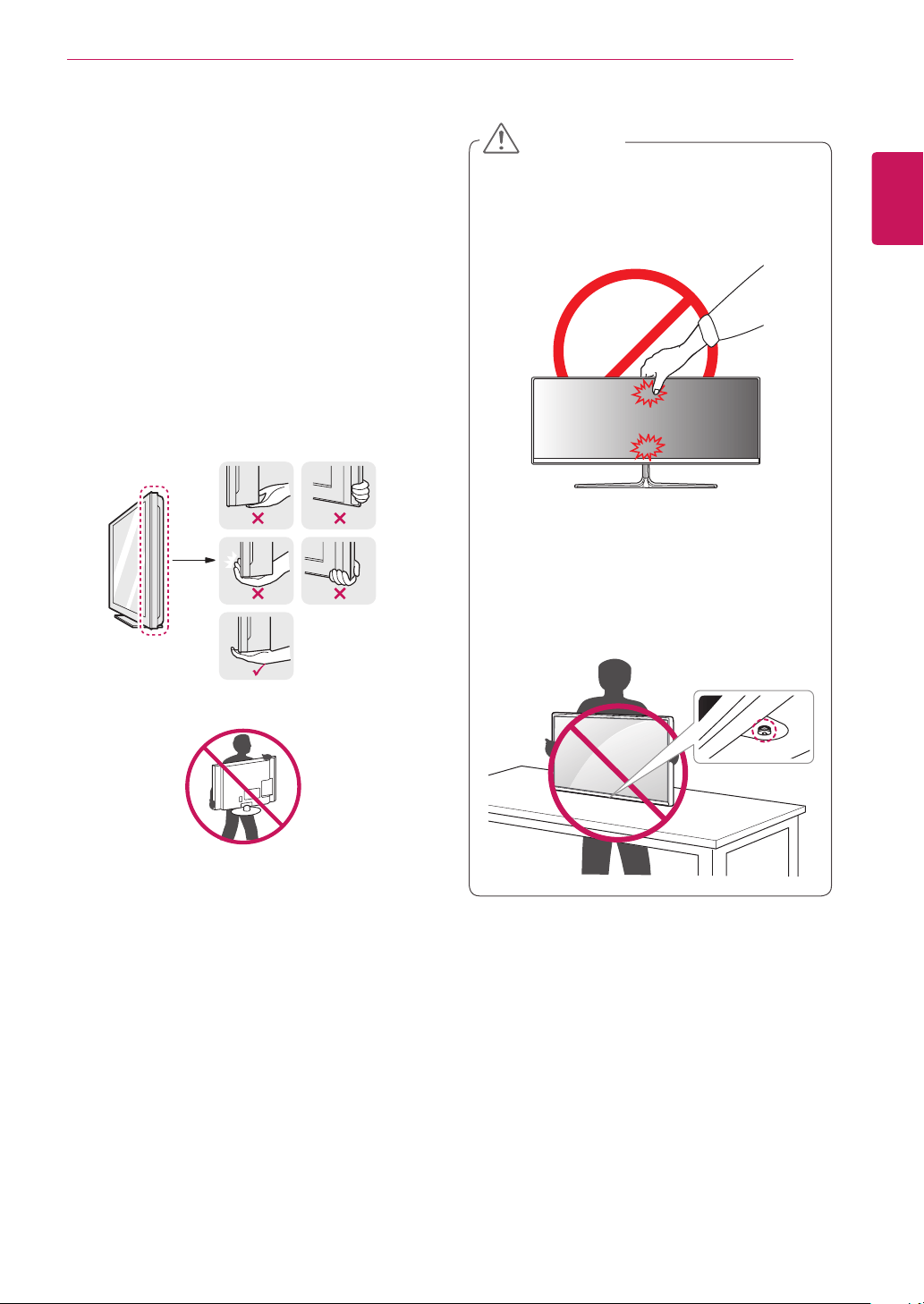

When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation, regardless of its shape or size.
y
Place the monitor in the original box or pack-
ing material before attempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all other cables.
y
Hold the bottom and side of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face toward you to prevent it from being
scratched.
y
When transporting the monitor, do not expose
the monitor to shock or excessive vibration.
y
When moving the monitor, keep it upright and
never turn the monitor on its side or tilt it side-
ways.
y
Avoid touching the monitor screen as much as
possible.
- This may result in damage to the screen or
some of the pixels used to create images.
y
If you use the monitor panel without the stand
base, its joystick button may cause the moni-
tor to become unstable and fall, resulting in
damage to the monitor or human injury. In
addition, this may cause the joystick button to
malfunction.
CAUTION
ENGLISH
8
ASSEMBLING AND PREPARING
Installing the Monitor

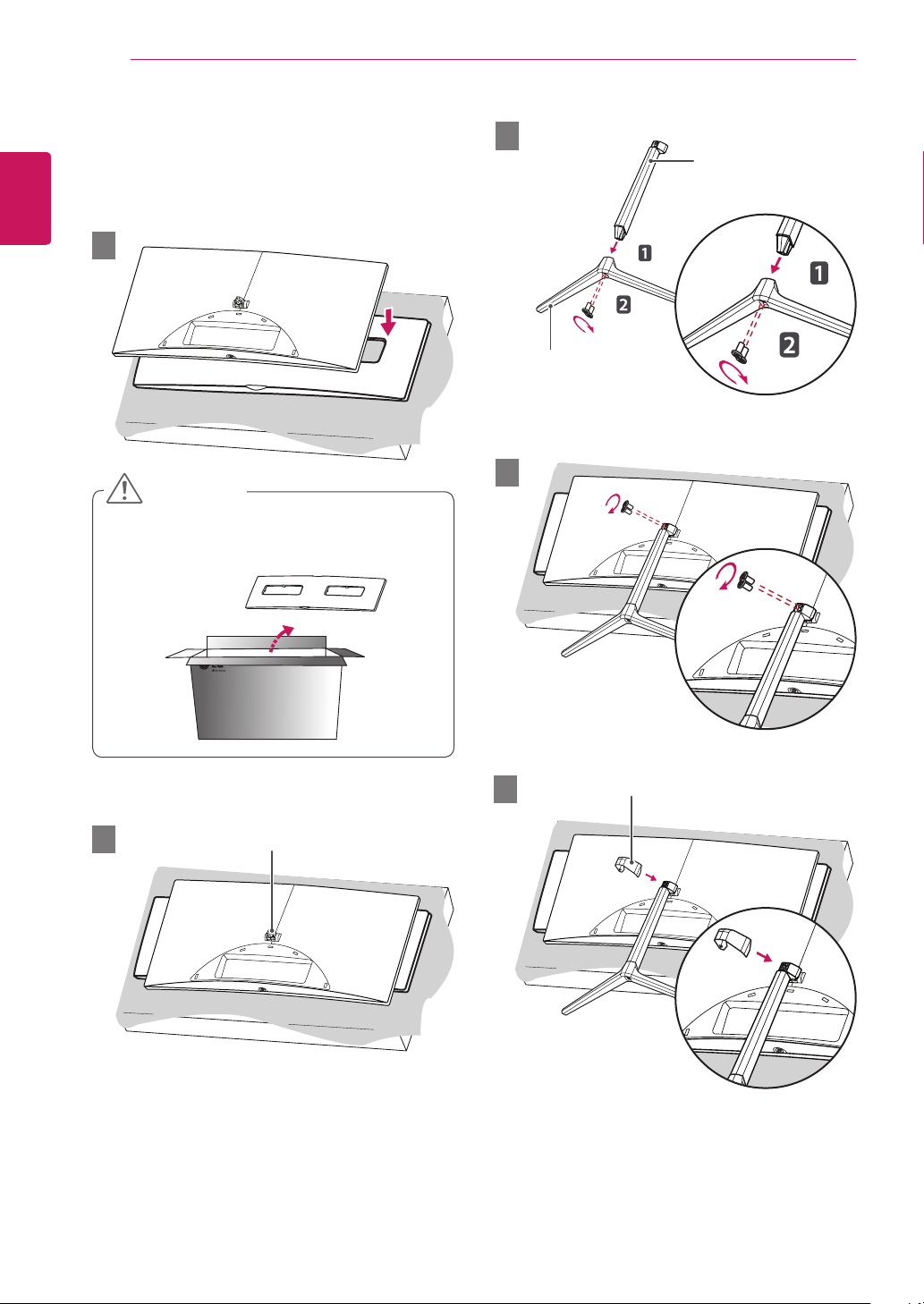

Assembling the Stand
Stand Base
Stand Body
y
To protect the screen, place the screen face
down on the screen pad which is inside the
box.
CAUTION
Stand Hinge
1
2
3
4
Screw Cover
5
ENGLISH
9
ASSEMBLING AND PREPARING
y
Illustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
Be careful not to hurt your hand on the edges
of the screw covers.
y
Do not carry the monitor upside down by just
holding the base. This may cause the moni-
tor to fall off the stand and could result in
personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
CAUTION
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
Installing on a Table
1
Lift the monitor and place it on the table in an
upright position. Place the monitor at least
10 cm away from the wall to ensure sufficient
ventilation.
10 cm
10 cm
10 cm
10 cm
2
Connect the power adapter to the monitor and
then plug the power cord into the wall outlet.
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
y
Unplug the power cord before moving or
installing the monitor. There is risk of electric
shock.
CAUTION
Input connector cover
6
ENGLISH
10
ASSEMBLING AND PREPARING
Adjusting the Angle
1
Place the monitor mounted on the stand base
in an upright position.
2
Adjust the angle of the screen. The angle of
the screen can be adjusted forward or back-
ward from -5° to 15° for a comfortable
viewing experience.
-515
FrontRear
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
-515
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
-515
WARNING
Cautions When Connecting Power Cord
220 V 110 V
y
Make sure to use the power cord that is pro-
vided in the product package and connect it to
a grounded power outlet.
y
If you need another power cord, please con-
tact your local dealer or the nearest retail
store.
Tidying up Cables
Arrange the cables using the input connector cover
as shown in the illustration.
ENGLISH
11
ASSEMBLING AND PREPARING
Using the Kensington Lock
The connector for the Kensington security system
is located at the bottom of the monitor.
For more information on installation and usage,
refer to the Kensington lock owner's manual or visit
the website at http://www.kensington.com.
Connect the monitor to a table using the Kensing-
ton security system cable.
y
The Kensington security system is optional.
You can obtain optional accessories from most
electronics stores.
NOTE
ENGLISH
12
USING THE MONITOR
USING THE MONITOR
Press the joystick button, go to Menu → Easy con-
trol → Input, and then select the input option.
y
Do not press the screen for a prolonged time.
This may cause image distortion.
y
Do not display a still image on the screen
for a prolonged time. This may cause image
retention. Use a screensaver if possible.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) power strip or a
grounded power outlet.
y
The monitor may flicker when turned on in
an area where the temperature is low. This is
normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
NOTE
Connecting to a PC
y
This monitor supports the *Plug and Play fea-
ture.
* Plug and Play: A feature that allows you to add a
device to your computer without having to recon-
figure anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor
using the HDMI cable as shown in the illustration
below.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
y
Make sure to use the supplied HDMI cable of
the product. Otherwise, this may cause the
device to malfunction.
y
Connecting your PC to the monitor using the
HDMI cable may cause device compatibility
issues.
y
Using a DVI to HDMI / DP (DisplayPort) to
HDMI cable may cause compatibility issues.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a con-
nection error may occur.
y
Recommended HDMI cable types
-
High-Speed HDMI
®/TM
cable
-
High-Speed HDMI
®/TM
cable with Ethernet
CAUTION
ENGLISH
13
USING THE MONITOR
DisplayPort Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect the monitor to your PC
using the display port cable as shown in the illus-
tration below:
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
NOTE
y
There may be no video or audio output de-
pending on the DP (DisplayPort) version of the
PC.
y
Make sure to use the supplied DisplayPort
cable of the product. Otherwise, this may
cause the device to malfunction.
y
For using Mini DP to DP (Mini DisplayPort to
DisplayPort) cable, it is recommended that you
use DisplayPort 1.2 cable.
Thunderbolt ( ) Connection
You can connect your high-resolution display or
high-performance data device to the monitor via a
Thunderbolt port. Connect your external device to
the monitor using the Thunderbolt cable as illus-
trated below.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
(sold separately)
y
The maximum data transmission rate of each
port is 20 Gb/s.
y
Make sure to use a Thunderbolt (
) certified
cable. Otherwise, this may cause the device to
malfunction.
y
Thunderbolt (
) is supported in such environ-
ments as Windows 7, Windows 8, and Mac
product.
y
In accordance with Mac products may not
support the recommended resolution or the
some features. For more information, refer to
the support information card of Mac which is
provided separately.
y
The ability to set up dual monitors using the
Thunderbolt (
) and daisy-chaining technology
depends on the performance of your video
card.
NOTE
ENGLISH
14
USING THE MONITOR
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals
from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as
shown in the illustration below.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
y
Make sure to use the supplied HDMI cable of
the product. Otherwise, this may cause the
device to malfunction.
y
Using a DVI to HDMI / DP (DisplayPort) to
HDMI cable may cause compatibility issues.
y
Use a certified cable with the HDMI logo at-
tached. If you do not use a certified HDMI
cable, the screen may not display or a connec-
tion error may occur.
y
Recommended HDMI cable types
-
High-Speed HDMI
®/TM
cable
-
High-Speed HDMI
®/TM
cable with Ethernet
NOTE
Connecting Peripherals
USB Cable connection - PC
The USB port on the product functions as a USB
hub.
y
Make sure to install the most recent Windows
OS service pack before using the product.
y
Peripheral devices are sold separately.
y
A keyboard, mouse, or USB device can be
connected to the USB port.
NOTE
Cautions When Using a USB Device
y
A USB device with an automatic recognition
program installed, or that uses its own driver,
may not be recognized.
y
Some USB devices may not be supported or
may not work properly.
y
It is recommended to use a USB hub or hard
disk drive with power supplied. (If the power
supply is not adequate, the USB device may
not be recognized properly.)
CAUTION
ENGLISH
15
USING THE MONITOR
HDMI/DP (DisplayPort) connection
To use USB 3.0, connect the A-B type USB 3.0
cable of the product to the PC.
Peripheral devices connected to the USB IN port
can be controlled from the PC.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
(sold separately)
(sold separately)
Thunderbolt ( ) connection
Peripheral devices connected to the USB IN port
can be controlled from the PC.
If you change the input on the menu while a device
is in connection via the Thunderbolt port, then the
device in connection via the USB port may not
work properly.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
(sold separately)
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
HDMI IN 1 HDMI IN 2
HDMI IN 1 HDMI IN 2
H/P
DP IN
DP OUT
USB IN 2
5 V 1.1 A
USB UP
US
B
U
P
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB IN 1
5 V 1.1 A
(sold separately)
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause
a problem with connecting another external
device to the monitor. Therefore, it is recom-
mended to use straight earphones.
Angled Straight
y
Depending on the audio settings of the PC
and external device, headphones and speaker
functions may be limited.
NOTE
ENGLISH
16
INSTALLING THE LG MONITOR SOFTWARE
INSTALLING THE LG MONITOR SOFTWARE
Insert the software CD included in the product packaging into your PC's CD drive and install the Screen
Split.
The installation screen images are for reference only. The actual installation screen images may vary de-
pending on the model.
1
Set up Internet Explorer as the default web
browser.
2
Click Screen Split on the CD's main screen.
When the file download window appears, click
Run. (Although the screen below may differ
depending upon your operating system or
Internet Explorer version, the installation meth-
ods are the same.)
y
Windows 7 must be updated to Service Pack
1 or higher.
CAUTION
3
Follow the instructions to proceed with the
installation.
4
Check the I accept the terms of the agree-
ment checkbox on the License Agreement
screen and then click the Next button.
5
The Screen Split starts the installation as
shown below:
ENGLISH
17
INSTALLING THE LG MONITOR SOFTWARE
6
When the installation is complete, restart your
system.
y
Screen Split This program automatically
splits the program window as desired.
y
When you run Screen Split, the Screen Split
icon [
] appears in the system tray at the
bottom right of the PC screen.
y
Right-click the Screen Split icon and select the
desired layout.
NOTE
ENGLISH
18
USER SETTINGS
USER SETTINGS
Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3
Press the joystick button once more to exit the main menu.
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off
the monitor this way at any time, including when the OSD is on.)
◄
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the PBP feature.
▲
Main menu disabled Enables the main menu.
Main menu enabled Enters the MaxxAudio feature.
▼
Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
Main Menu Features
Long press: Monitor off
MaxxAudio
Exit
Menu PBP
Monitor off
Main Menu Description
Menu Configures the screen settings.
MaxxAudio Sets the sound quality.
PBP Displays the screens of two input modes on one monitor.
Monitor off Turns off the monitor.
Exit Exits the main menu.
ENGLISH
19
USER SETTINGS
User Settings
Menu Settings
1
To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the
Menu.
2
Configure the options by moving the joystick up/down/left/right.
3
To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
4
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
y
When you enter the menu, instructions on how to use the button will appear in the bottom right corner
of the screen.
Easy control Function PBP Screen Settings Reset
Each option is described below.
Menu Description
Easy control Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume level.
y
You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume
menu.
NOTE
Input Selects the input mode.
Ratio Adjusts the aspect ratio of the screen.
Function Adjusts MaxxAudio, Reader Mode, Picture Mode, and SMART ENERGY SAVING.
PBP PBP Displays the screens of two input modes on one monitor.
Screen Picture Adjusts the Sharpness, Black level, and Response Time of the screen.
Color Adjusts Gamma, Color Temperature, Red, Green, Blue, and Six Color.
Settings Adjusts Language, Power LED, Automatic Standby, DisplayPort 1.2, and OSD Lock.
Reset Restores the default settings.
◄ Exit Exits the OSD menu.
ENGLISH
20
USER SETTINGS
Ratio
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Easy control > Ratio by moving the joystick.
3
Configure the options following the instructions that appear
in the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Easy control > Ratio Description
Wide Displays the video in widescreen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the
bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.
y
The display may look the same for Wide, Original, and 1:1 options at the recommended resolution
(3440 x 1440).
y
The ratio is disabled in the interlaced signal.
NOTE
Easy control
Easy control
Brightness
100
>
Contrast 70
>
Function
Volume
30
>
Input HDMI1
>
PBP
Ratio Wide
>
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
21
USER SETTINGS
Function
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Function by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Function Description
MaxxAudio
(Move the joystick to
▲ in the main menu
to enter the function
directly.)
MaxxAudio On MaxxAudio® by Waves, recipient of a Technical GRAMMY
Award® is a suite of studio-quality sound tools for a superior
listening experience.
Off Disables the MaxxAudio function.
MaxxAudio
Settings
The user can set the sound quality manually.
MaxxBass Bass Enhancement.
MaxxTreble Treble Enhancement.
MaxxDialog Dialog Enhancement.
Maxx3D Enhances the three dimensional effect of the sound.
Reset Returns the sound quality to the default settings.
Midnight Mode Lets you enjoy rich and full sound at a low volume.
Reader Mode Reader 1 Optimizes the screen for browsing newspapers. You can brighten the screen
in the OSD menu.
Reader 2 Optimizes the screen for looking at cartoons. You can brighten the screen in
the OSD menu.
Reader Off Reader Mode is off.
Picture Mode Custom Allows the user to adjust settings. You can adjust the color mode of the main
menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for videos.
Game Optimizes the screen for games.
SMART ENERGY
SAVING
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the SMART ENERGY SAVING feature.
Function
Easy control
MaxxAudio
>
Reader Mode Off
>
Function
Picture Mode Custom
>
SMART ENERGY SAVING Low
>
PBP
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
22
USER SETTINGS
PBP
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to PBP by movingthe joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > PBP Description
PBP Displays the screens of two input modes on one monitor.
PBP Connection
Sub Screen (Right)
HDMI 1 HDMI 2 DisplayPort
Thunderbolt
( )
Main
Screen
(Left)
HDMI 1
-
O
X X
HDMI 2
O - X X
DisplayPort
O O - X
Thunderbolt ( )
O O X -
Input Main Selects the video signal input of the main screen.
Sub Selects the video signal input of the sub screen.
Audio Changes the audio output in PBP mode.
Swap Toggles between the main screen and sub screen in PBP mode.
Sub Full Converts the sub screen in PBP mode to wide screen.
Ratio Adjusts the aspect ratio of the main screen or sub screen.
Main Wide Displays the video to fit the PBP screen, regardless of the
video signal input.
Original Displays the video in the aspect ratio of the video signal input
on the PBP screen.
Sub Wide Displays the video to fit the PBP screen, regardless of the
video signal input.
Original Displays the video in the aspect ratio of the video signal input
on the PBP screen.
y
When the PBP mode is Off, Input, Audio, Swap, Sub Full, and Ratio menus become disabled. The
Main/Sub options for Ratio become disabled if there is no signal.
NOTE
PBP
Easy control
PBP Off
>
Input
>
Function
Audio HDMI1
>
Swap
PBP
Sub Full
Ratio
>
Screen
Settings
Reset
PBP Preview
HDMI1
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
23
USER SETTINGS
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Screen > Picture by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Screen > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
• Offset: as a reference for a video signal, this is the darkest color the monitor can dis-
play.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Middle. For a fast-moving
picture, it is recommended that you use high.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
Easy control
Sharpness
5
>
Black Level High
>
Function
Response Time Middle
>
PBP
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
24
USER SETTINGS
Color
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Screen > Color by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Screen > Color Description
Gamma Custom gamma settings: When using the gamma 0, gamma 1, and gamma 2 monitor set-
tings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Custom Selects the factory default picture color.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color to between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors by adjusting the hue and saturation of the six colors
(red, green, blue, cyan, magenta, and yellow) and then saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation Adjusts the saturation of the screen colors. The lower the value, the less satu-
rated and brighter the colors become. The higher the value, the more saturated
and darker the colors become.
Reset Returns color to the default settings.
Color
Easy control
Gamma Gamma 1
>
Color Temp Custom
>
Function
Red
50
>
Green 50
>
PBP
Blue
50
>
Six Color
>
Screen
Reset
>
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
25
USER SETTINGS
Settings
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Settings by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Settings Description
Language Sets the menu screen to the desired language.
Power LED Turns the power LED on the front of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
Automatic
Standby
Feature that automatically turns off the monitor when there is no movement on the screen for a
period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
DisplayPort 1.2 Enables or disables DisplayPort 1.2.
y
Be sure to configure this option according to the DisplayPort version supported by your
graphics card. Set this option to Disable if your graphics card does not support DisplayPort
1.2.
NOTE
OSD Lock Prevents incorrect key input.
On Disables key input
Off Enables key input
y
All features are disabled except Brightness, Contrast, Volume, Input, OSD Lock in Settings,
and the Exit button.
NOTE
Settings
Easy control
Language English
>
Power LED On
>
Function
Automatic Standby Off
>
DisplayPort 1.2 Disable
>
PBP
OSD Lock Off
>
Screen
Settings
Reset
▲/▼: Move
/ ►: OK
◄: Back
ENGLISH
26
USER SETTINGS
Reset
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Reset by moving the joystick.
3
Configure the options following the instructions that appear in
the bottom right corner.
4
To return to the upper menu or set other menu items, move
the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄
until you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Restores the default settings.
Cancel Cancel the reset.
Reset
Easy control
Do you want to reset your settings?
Reset
Function
Cancel
PBP
Screen
Settings
Reset
▲/▼:Move
/►:OK
◄:Back
ENGLISH
27
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord
plugged in?
y
Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?
y
Check the power cable connection and press the power button.
Is the power on and the power
LED displaying white?
y
Check that the connected input is enabled (Menu - Input).
Is the power LED blinking?
y
If the monitor is in sleep mode, move the mouse, or press any key
on the keyboard, to switch the display on.
y
Check if the computer is turned on.
Is the OUT OF RANGE mes-
sage being displayed?
y
This occurs when signals transferred from the PC (video card) are
out of the horizontal or vertical frequency range of the monitor.
Please see the Product Specification section of this manual to set
the appropriate frequency.
Is the No Signal message be-
ing displayed?
y
This is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect
it.
The screen may not be dis-
played properly when
configuring DisplayPort 1.2 in a
Mac product.
y
DisplayPort 1.2 may not be supported depending upon the Mac
product. Please contact the manufacturer.
The OSD Lock message is being displayed.
Are some functions not avail-
able when you press the Menu
button?
y
The OSD is locked. Go to Menu > Settings and set OSD Lock to Off.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to
the screen, resulting in the retention of the image.
y
To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the
screen may be flickering. Change the resolution to 1080P or the
recommended resolution.
y
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second, like a fluorescent lamp. The number of times the screen is refreshed per second is called
vertical frequency, or refresh rate, and is represented by Hz.
y
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle. If
1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second.
This is called horizontal frequency and is represented by kHz.
NOTE
ENGLISH
28
TROUBLESHOOTING
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set it to
the recommended (optimal) resolution in Control Panel > Display > Settings.
y
Not setting the video card to the recommended (optimal) resolution may result in blurred text, a dimmed
screen, a truncated display area or misalignment of the display.
y
The setting methods may be different depending on the computer or operating system, and some reso-
lutions may not be available depending on the performance of the video card. If this is the case, contact
the manufacturer of the computer or video card for assistance.
y
Some video cards may not support 3440 x 1440 resolution. If the resolution cannot be displayed, con-
tact the manufacturer of your video card.
NOTE
The display color is abnormal.
Does the display appear discol-
ored (16 colors)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Con-
trol Panel > Display > Settings > Color Quality.
Does the display color appear
unstable or monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white, or
black) may appear on the screen. This is normal for an LCD screen.
It is not an error, nor is it related to the monitor's performance.
No sound from the headphone port.
Are images displayed using
DP (DisplayPort) or HDMI input
without sound?
y
Make sure that the headphone port connections are made properly.
y
Try increasing the volume with the joystick.
y
Set the audio output of the PC to the monitor you are using. On
Microsoft Windows, go to Control Panel > Hardware and Sound >
Sound > set the monitor as default device.
ENGLISH
29
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
LCD Screen Type 87 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 87 cm
Color Depth HDMI 8-bit color is supported.
DP (DisplayPort) 10-bit color is supported.
Thunderbolt ( )
8-bit color is supported.
Pixel Pitch 0.2325 mm x 0.2325 mm
Resolution HDMI Max Resolution
3440 x 1440 @ 50 Hz
Recommended Resolution
3440 x 1440 @ 50 Hz
DP (DisplayPort)
Thunderbolt ( )
Max Resolution
3440 x 1440 @ 60 Hz
Recommended Resolution
3440 x 1440 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 61 Hz
Synchronization Separate Sync.
Input Connector
H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ), USB UP,
USB IN 1, 2
Power Sources Power Rating
19 V
6.0 A
Power Consumption
(Typical)
Operating Mode: 80 W (Typical, USB excluded)
100 W (Max, USB included, Audio Output 50%)
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.5 W
Off Mode ≤ 0.3 W (DC switch is off.)
AC/DC Adapter LCAP31 type, manufactured by Lienchang
Output: 19 V 7.37 A
Stand Angle Forward/Backward: -5° to 15° (Head)
Environmental
Conditions
Operating Conditions Temperature 10°C to 35°C
Humidity 10% to 80%
Storing Conditions Temperature -20°C to 60°C
Humidity 5% to 90%
Audio Output 7 W + 7 W
Supported
Operating System
Win XP, Win Vista, Win 7, Win 8, Mac OS*
Thunderbolt ( )
Win 7, Win 8, Mac OS*
Dimensions Monitor Size (Width x Height x Depth)
With Stand 830.5 mm x 472.9 mm x 225.6 mm
Without Stand 830.5 mm x 370.3 mm x 99 mm
Weight (Without
Packaging)
With Stand 9.0 kg
Without Stand 8.25 kg
Specifications are subject to change without notice.
* In accordance with Mac products may not support the recommended resolution or the some features.
(For more information, refer to the support information card of Mac which is provided separately.)
ENGLISH
30
PRODUCT SPECIFICATION
Factory Support Mode
(Preset Mode, HDMI/DisplayPort/Thunderbolt PC)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
3440 x 1440 43.82 29.99 +/+
3440 x 1440 73.68 49.99 +/+
3440 x 1440 88.82 59.97 +/+ HDMI is not supported.
HDMI Timing (Video)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Remarks
480P 31.5 60
720P 45 60
1080P 67.5 60
Power LED
Mode LED Color
On Mode White
Sleep Mode Flashing White
Off Mode Off
ENGLISH
31
PROPER POSTURE
PROPER POSTURE
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye
level.
y
Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged
usage.
y
The stand of the touch monitor allows the product to be used in the optimum position.
y
Adjust the stand angle from -5° to 15° to obtain the best view of the screen.
You should be looking
slightly down at the
screen.
Place your hands gently
on the keyboard,
keeping your arms bent at
the elbows and extended
horizontally in front of you.
Stand Angle
-5° to 15°
Adjust the position of
the screen to mini-
mize reflections.
This device meets the EMC requirements for
home appliances (Class B) and is intended
for home usage. This device can be used in
all regions. Read the owner's manual (CD)
carefully and keep it at hand. Please note that
the label attached to the product provides
information for technical support.
Model
Serial No.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
Refer to ENERGY STAR.gov for more
information on the ENERGY STAR program.
As an ENERGY STAR Partner LGE
U. S. A., Inc. has determined that
this product meets the ENERGY
STAR guidelines for energy
efficiency.
