DEADBOLT KEYPAD ASSEMBLY

  • Ensure the latch bolt is retracted.

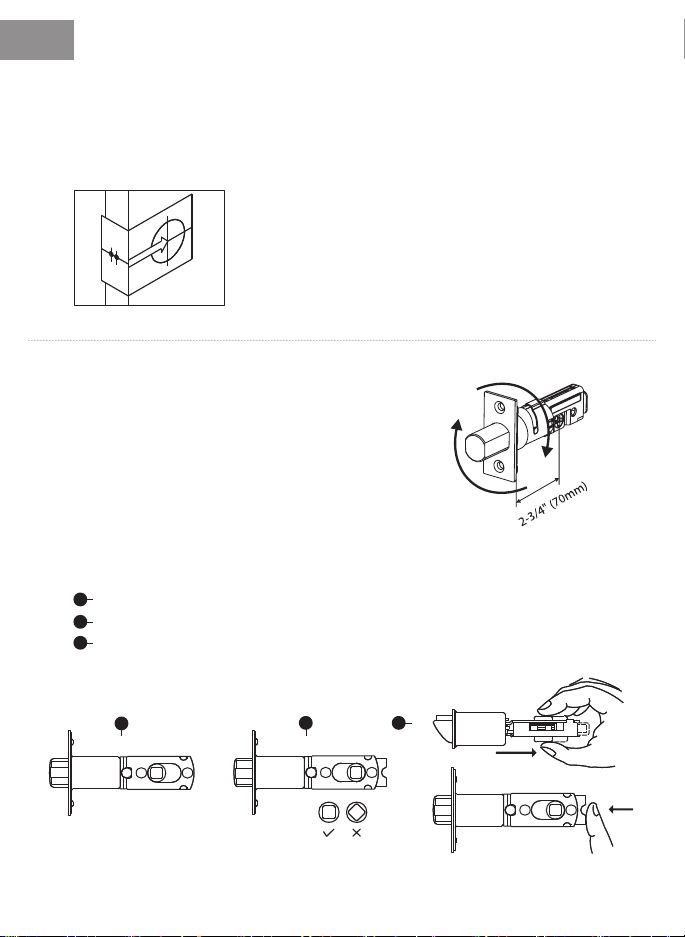

  • Please refer to diagram B for cylinder installation. Place deadbolt against keypad with tailpiece in horizontal position inserted through hub of the latch.
  • Pass the IC wire under the latch to the interior side of the door.

LEVER KEYPAD ASSEMBLY

  • Place the leverset against keypad with tailpiece in vertical position inserted through cam of the latch.
  • Pass the IC wire over the latch to the interior side of door.

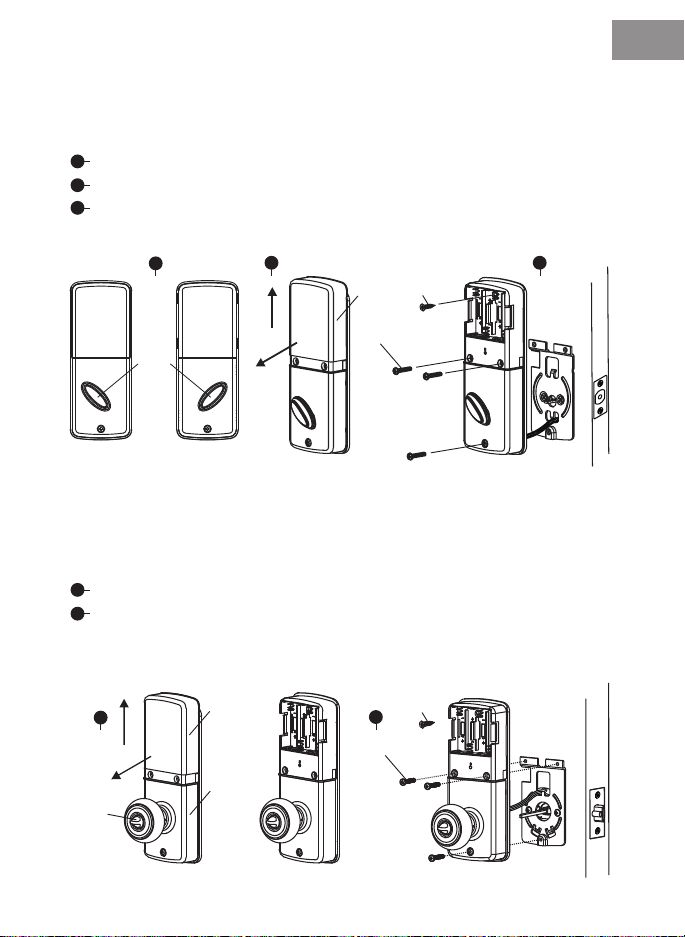

DEADBOLT RECEIVER INSTALL

  1. Adjust turn piece as shown in diagram A.
  2. Remove the battery cover (push it up and pull it out).
  3. Connect the IC wire then attach receiver module to the door with screws. It’s optional to use the included wood screw (wood screw only for wood doors).

LEVER RECEIVER INSTALL

  • Remove the battery cover (push it up and pull it out).
  • Connect the IC wire then attach reciever module to the door with screws. It’s optional to use the included wood screw (wood screw only for wood doors).

INSTALL BATTERIES

  1. Insert 4 AA Alkaline or Lithium batteries and put the battery cover back on the receiver module.
  2. Do not use rechargeable (NiCD, NiHM, LiPo, etc.) batteries or batteries with a voltage rating of under/over 1.5v * Please

Note: Deadbolt model will not function until door handing is programmed on the lock

CHANGE LEVER HANDING

  • Be sure the levers are unlocked. Insert the provided pin wrench into the small hole on the neck of lever and apply pressure to depress the catch and pull out the lever from the stem.
  • Follow the same steps to remove interior lever and exchange the position of inside and outside levers.


Newest Added: LS-L5i-SN-B LS-L5i-RB-B
