3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
7 Parts and buttons
8 Lifting and moving the TV
9 Setting up the TV
9 - Attaching the Stand Base
9 - Detaching the Stand Base
11 - Mounting on a table
12 - Using the Kensington security system
12 - Tidying cables
12 - Mounting on a wall
14 WATCHING TV
14 Turning the TV on for the first time
16 MAKING CONNECTIONS
16 Connecting an antenna
17 Connecting to a HD receiver, DVD Player,
VCR or Gaming device
17 - HDMI Connection
18 - HDMI to DVI Connection
19 - Component Connection
20 - Composite Connection
21 Connecting a USB Device
22 Connecting to a PC
23 - HDMI connection
24 - HDMI to DVI connection
25 - RGB connection
26 REMOTE CONTROL
28 CUSTOMIZING SETTINGS
28 Accessing the Main Menus
29 USING THE USER GUIDE
29 Accessing the On-Screen User Guide
29 - Using the TV menu
29 - Using the Remote Control
30 MAINTENANCE
30 Cleaning Your TV
30 Screen and frame
30 Cabinet and stand
30 Power cord
31 Preventing “Image burn” or “Burn-in” on
your TV screen
32 TROUBLESHOOTING
32 General
33 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
ENGLISH
4
INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1
Open the package and make sure all the accessories are included.
2
Attach the stand to the TV.
3
Connect an external device to the TV.
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you are
using.
y
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

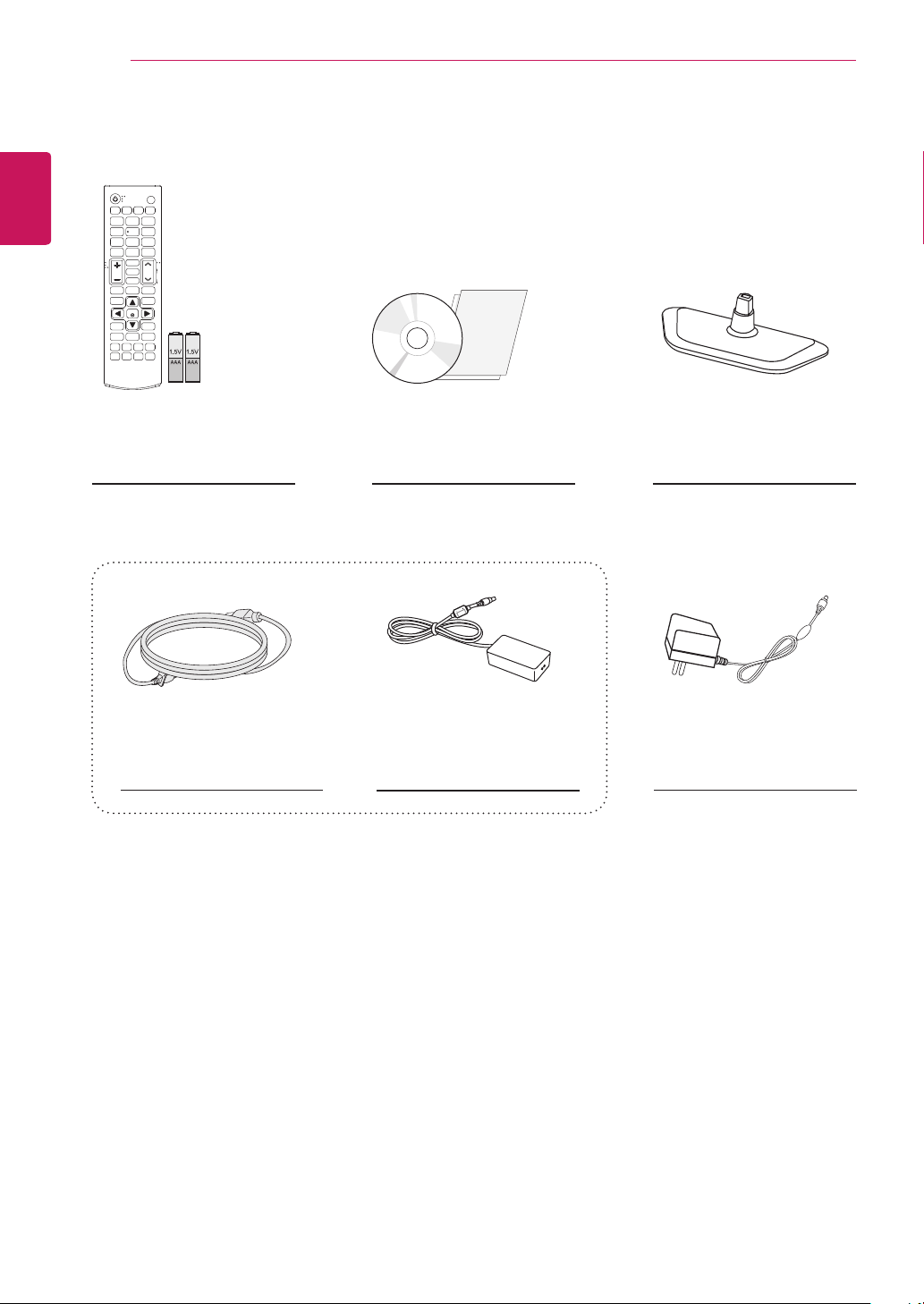

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
y
Do not use any pirated items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved or counterfeit parts or accessories are not covered
by the warranty.
CAUTION
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B
18 mm
A
B
A
B
ENGLISH
7
ASSEMBLING AND PREPARING
Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved channels.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
INPUT
OK
SETTINGS
Connection panel ( on page 16)
Touch Buttons
Remote Control
Sensor
Standby Light
y
Lighting On: Turned off
y
Lighting Off: Turned on
or
(Depending on the
model)
ENGLISH
8
ASSEMBLING AND PREPARING
y
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
y
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
y
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y
Before moving or lifting the TV, disconnect
the power cord and all cables.
y
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
ENGLISH
9
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
2
1
Stand Base
Attaching the Stand Base Detaching the Stand Base
y
When Detaching the stand from TV, Detach
the stand with lifting up the lever in the
direction of the arrow.
NOTE
1
Stand Base
2
CAUTION
y
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
y
When attaching the stand to the TV set,
place the screen facing down on a cushioned
table or flat surface to protect the screen
from scratches.
CAUTION
y
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
y
When Detaching the stand to the TV set,
place the screen facing down on a cushioned
table or flat surface to protect the screen
from scratches.
ENGLISH
10
ASSEMBLING AND PREPARING
CAUTION
y
Do not carry the TV upside-down as this
may cause it to fall off its stand, resulting in
damage or injury.
y
The illustration shows a general example of
installation and may look different from the
actual product.
ENGLISH
11
ASSEMBLING AND PREPARING

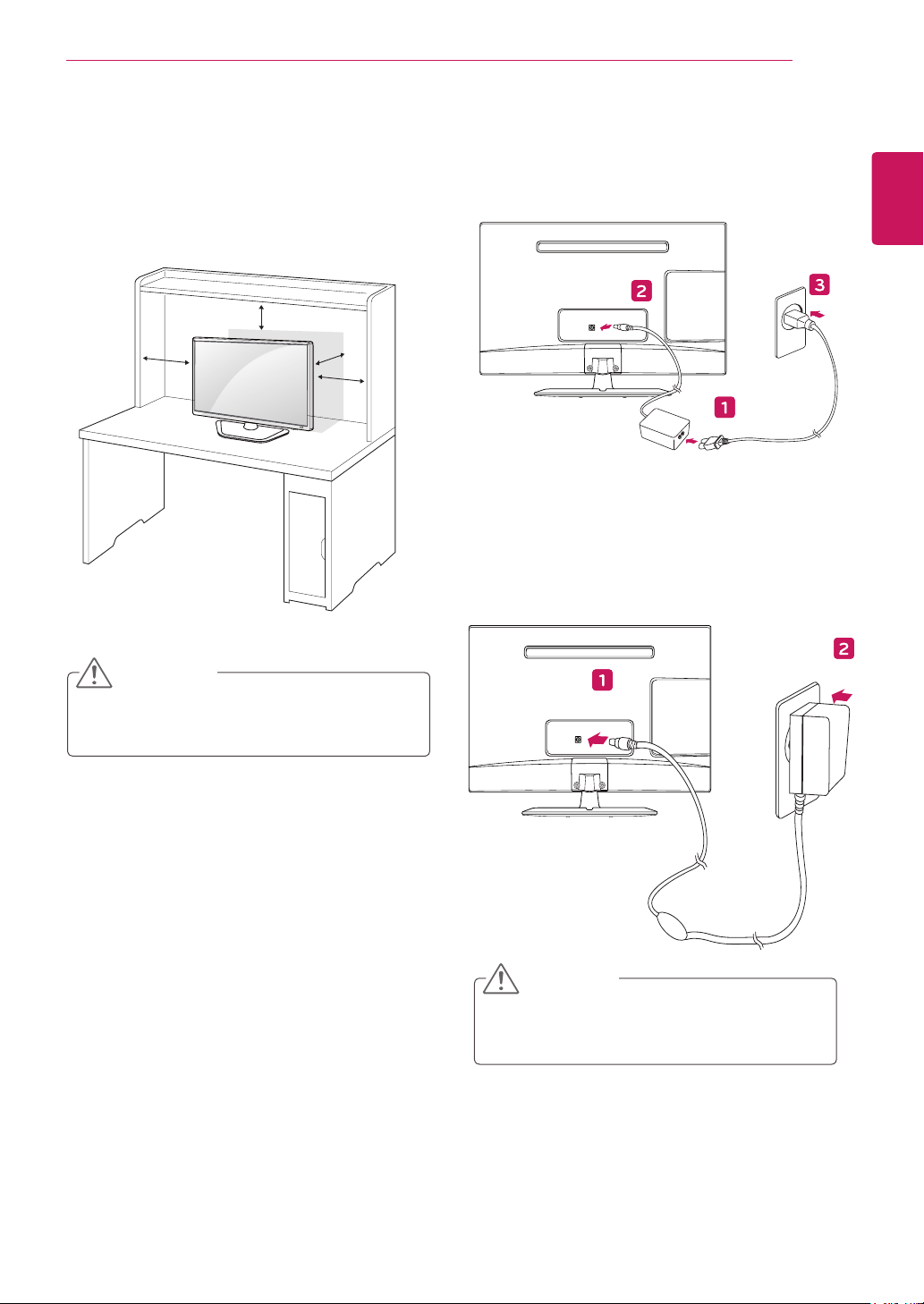

Mounting on a table
1
Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm(minimum) space from the wall
for proper ventilation.
Disconnect the power cord first, and then move
or install the TV. Otherwise electric shock may
occur.
CAUTION
10 cm
10 cm
10 cm
10 cm
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Do not place the TV near or on sources of
heat, as this may result in fire or other damage.
CAUTION
or
ENGLISH
12
ASSEMBLING AND PREPARING

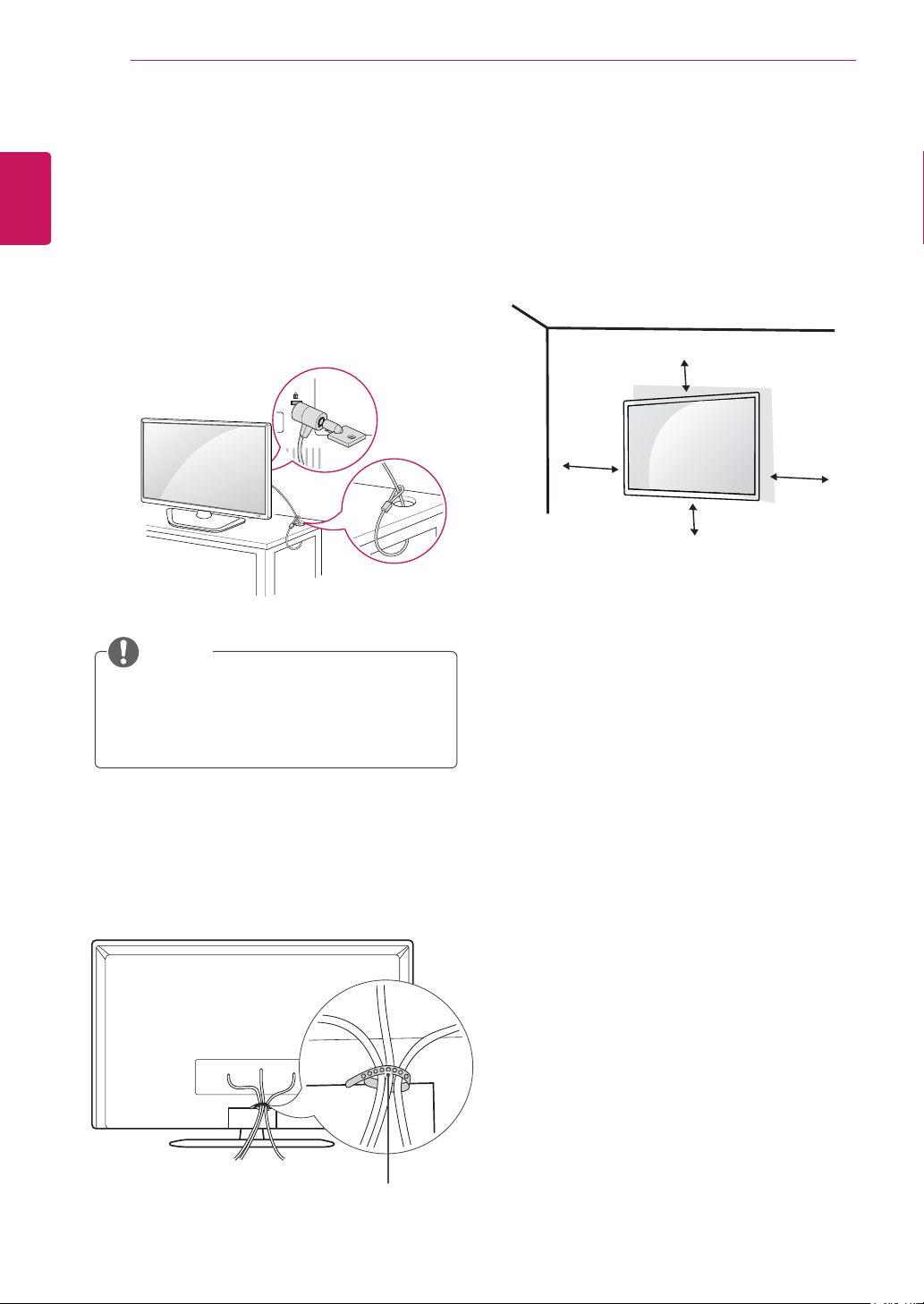

Using the Kensington security
system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
Tidying cables
Gather and bind the cables with the supplied cable
tie.
Cable Tie
Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
If you intend to mount the TV to a wall, attach Wall
mounting interface (optional parts) to the back of
the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the TV
might be damaged internally.
3
If you use improper screw, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
10 cm
10 cm
10 cm
10 cm
(Not Provided)
ENGLISH
13
ASSEMBLING AND PREPARING
5
Please use VESA standard as below.
y
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw :
Φ
4.0 mm x Pitch 0.7 mm x
Length 10 mm
y
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket
(optional)
RW120
y
VESA (A x B)
A
B
y
Disconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
y
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
CAUTION
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the instructions
supplied with the wall mount.
NOTE
ENGLISH
14
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1
Connect the power cord to a power outlet.
2
Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
3
The initial setting screen appears if you access the TV for the first time.
When the TV is in Power saving mode, the Standby Light turns amber.
NOTE
If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
NOTE
WATCHING TV
4
Follow the on-screen instructions to customize your TV according to your preferences.
Language
Mode Setting
Power Indicator
Time Zone
User Guide and Tips for
FAQ Utilization
Auto Tuning
Selects Home Use for the home environment.
Selects the time zone and daylight saving.
Shows how to use User Guide and FAQ.
Selects the Standby Light. If you select On, the TV turns on the Standby Light in
the front panel when the TV is off.
Selects a language for the display.
Scans and saves available programs automatically.
ENGLISH
15
WATCHING TV
y
For those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
y
To display images in the best quality for your home environment, select Home Use mode.
y
Store Demo mode is suitable for the retail environment.
y
If you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 5 minutes.
NOTE
y
You can also switch the TV from PC mode to TV mode, press TV/PC.
y
You can also access Factory Reset by accessing OPTION in the main menus.
NOTE
5
When the basic settings are complete, press OK.
6
To turn the TV off, press on the TV.
The Standby Light is turned on.
If you do not complete the initial setting, it will appear whenever you access the TV.
NOTE
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
CAUTION
ENGLISH
16
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
y
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
y
The external device connection may differ from the model.
y
Connect external devices to the TV regardless of the order of the TV port.
MAKING CONNECTIONS
Connecting an antenna

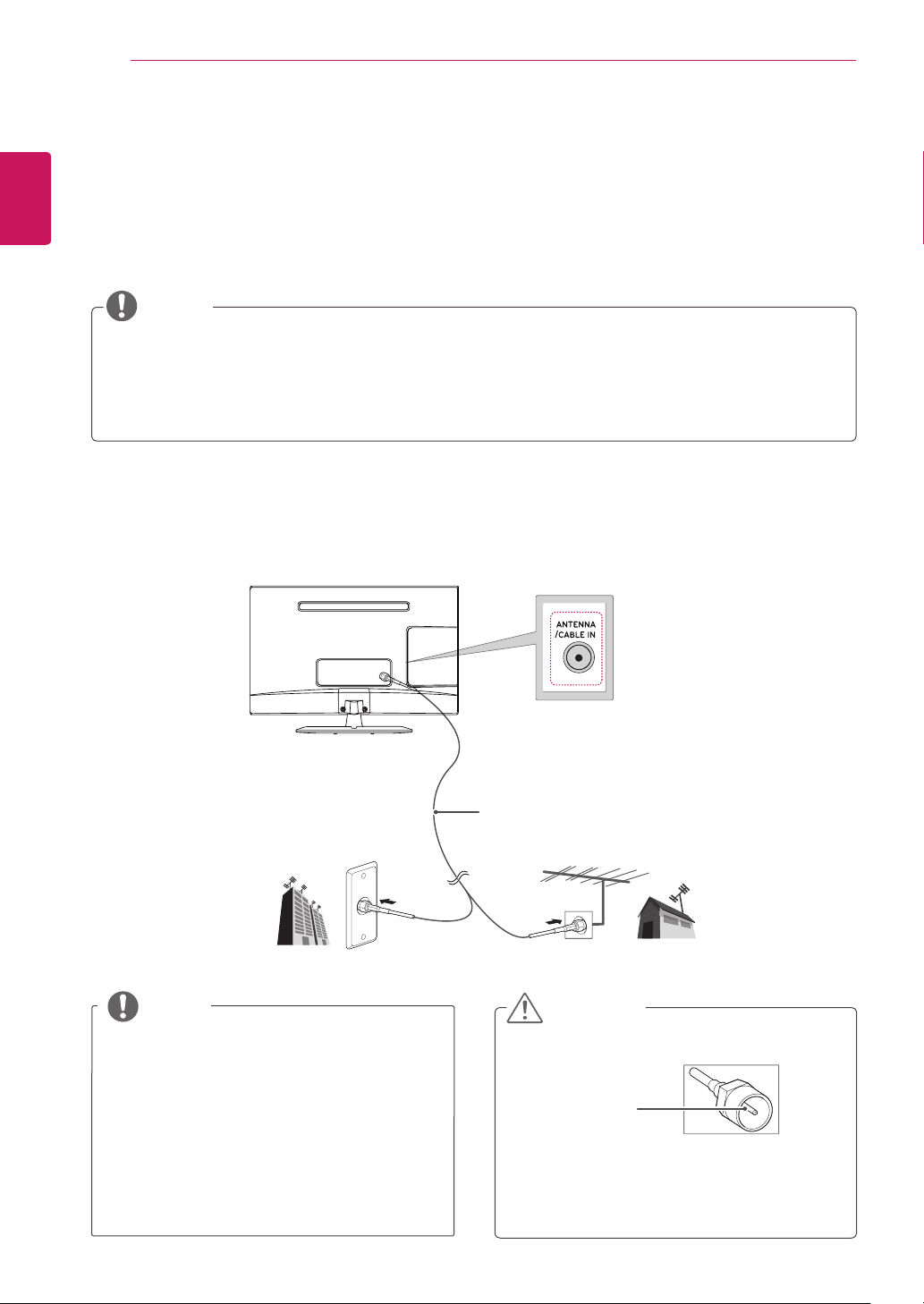

Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
y
Use a signal splitter to use more than 2 TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an antenna
connected, aim the antenna to the proper
direction.
y
Visit
http://AntennaWeb.org
for more
information about the antenna and cable
connection.
NOTE
y
Make sure not to bend the copper wire of
the RF cable.
y
Complete all connections instructions
between devices, and then connect the
power cord to the power outlet to prevent
damages to your TV.
CAUTION
Copper wire
Wall Antenna Socket
Outdoor Antenna
y
VHF Antenna
y
UHF Antenna
(Not Provided)
NOTE
ENGLISH
17
MAKING CONNECTIONS
Connecting to a HD receiver, DVD Player, VCR or Gaming device
Connect a HD receiver, DVD Player, VCR or Gaming device to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with an HDMI cable as shown on the following illustration.
y
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
y
Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/
192k, DTS Not supported.)
NOTE
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
ENGLISH
18
MAKING CONNECTIONS
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
HDMI to DVI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the
TV with an HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an
optional audio cable.
y
If you do not use an optional external speaker, connect the external device to the TV with an optional
audio cable.
y
When using the HDMI/DVI cable, only Single link is supported.
NOTE
(Not Provided)
(Not Provided)
or
(Depending on the
model)
ENGLISH
19
MAKING CONNECTIONS
Component Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the component cable as shown on the following illustration. Component connections
support HD, but some devices will not output HD on Component (due to copyright issues).
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided) (Not Provided)
y
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
color.
y
Check to ensure each cable is matched with the corresponding color connection.
NOTE
ENGLISH
20
MAKING CONNECTIONS
Composite Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown on the following illustration.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
Check to ensure each cable is matched with the corresponding color connection.
NOTE
ENGLISH
21
MAKING CONNECTIONS
Connecting a USB Device
Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB
memory card reader to the TV and access the USB menu to use various multimedia files.
or
USB
(Not Provided)
ENGLISH
22
MAKING CONNECTIONS
Connecting to a PC
Your TV supports the Plug & Play* feature and has the built-in speakers with Virtual Surround that
reproduces sound clearly and rich bass.
* Plug & Play: The function when a PC recognizes a connected device and requires no driver to be installed.
y
It is recommended to use the TV with an HDMI connection for the best image quality.
y
If you do not use an optional external speaker, connect the PC to the TV with the optional audio
cable.
y
If you turn the TV on when the set is cold, the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear on the screen. This is normal.
y
Connect the signal input cable and tighten it by turning the screws clockwise.
y
Do not press the screen with your finger for a long time as this may result in temporary distortion on
the screen.
y
Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a
screensaver if possible.
y
When using the HDMI/DVI cable, only Single link is supported.
NOTE
y
If you select "Yes" the size and image quality are optimised for your PC.
y
If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top
box, gaming device).
y
If you select "Do not show message again" this message does not appear until the TV is reset. You
can change the set value in SETTINGS INPUT Input Label.
Is the input connected to your PC?
Do not show message again.
NoYes
y
If you want to use HDMI-PC mode, you must set the input label to PC mode.
y
The OSD (On Screen Display) is displayed on the screen as shown below.
» When turning the product on in HDMI input.
» When switching to HDMI input.
NOTE
ENGLISH
23
MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with an
HDMI cable as shown in the following illustrations. You should change the input label on the TV's HDMI port
(this can be done in the input menu).
PC
(Not Provided)
y
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
y
If you want to use HDMI-PC mode, you must set the input label to PC or DVI mode.
y
Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/
192k, DTS Not supported.)
NOTE
ENGLISH
24
MAKING CONNECTIONS
PC
HDMI to DVI connection
Transmits the digital video signal from your PC to the TV. Connect the PC and the TV an the HDMI to DVI
cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
y
If you want to use HDMI-PC mode, you must set the input label to DVI mode.
y
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
y
When using the HDMI/DVI cable, only Single link is supported.
NOTE
(Not Provided)
(Not Provided)
or
(Depending on the
model)
ENGLISH
25
MAKING CONNECTIONS
(Not Provided)
(Not Provided)
RGB connection

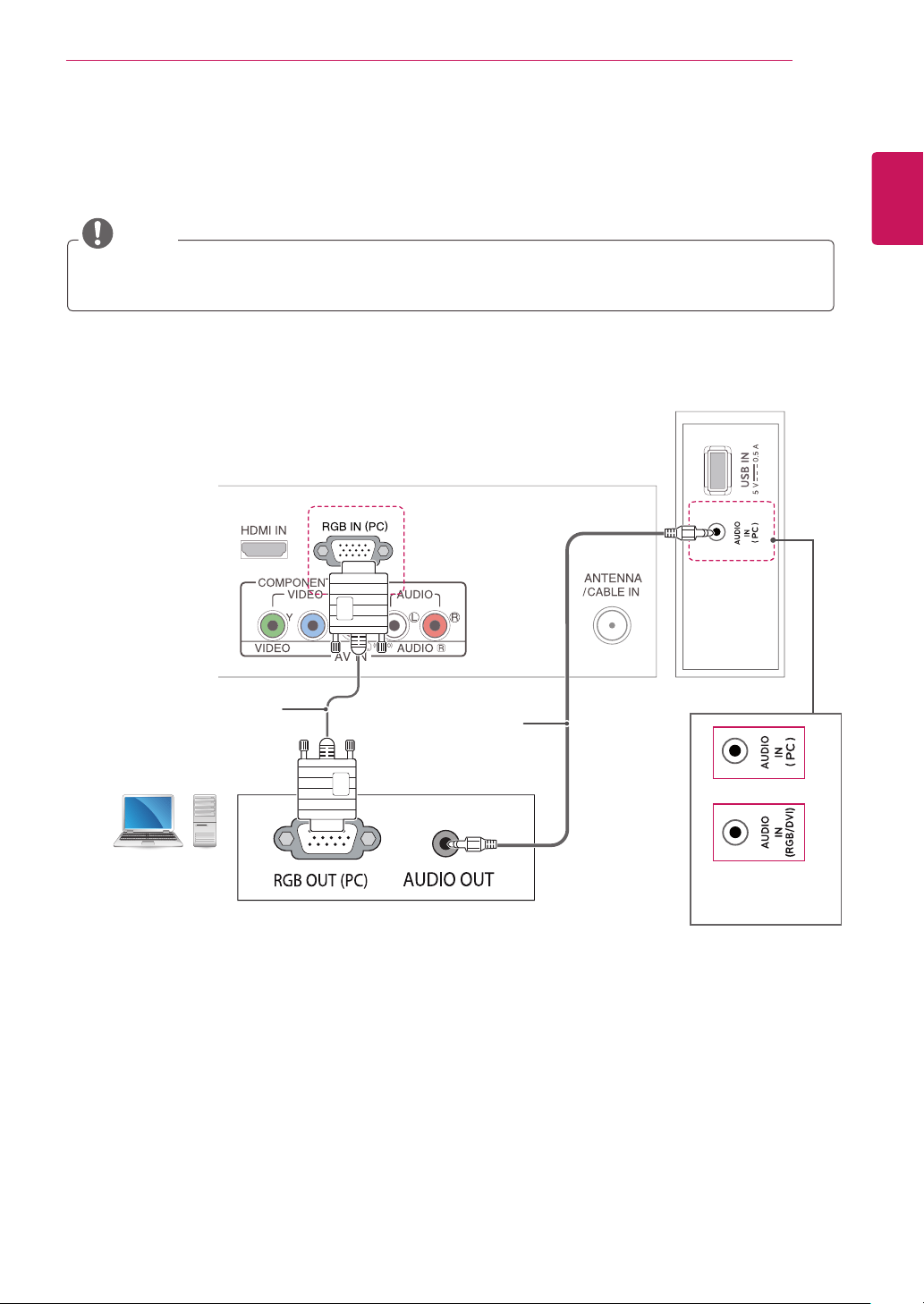

Transmits analog video from your PC to the TV. Connect the PC and the TV with an D-sub 15 pin cable as
shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
NOTE
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
PC
or
(Depending on the
model)
ENGLISH
26
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control to the remote control sensor on the TV.
Image shown may differ from your TV.
CAUTION
Do not mix old and new batteries, as this may
damage the remote control.
REMOTE CONTROL
PAGE
(POWER)
Turns the TV on or off.
LIST
Displays the channel table.
INPUT
Selects the input mode.
TV/PC
Selects TV or PC mode.
FLASHBK
Alternates between the two last
channels selected (pressing
repeatedly).
(User Guide)
Accesses the User Guide menu.
AV MODE
Selects an AV Mode.
AUDIO
Digital signal: Changes the
audio language.
Analog signal: Changes the
MTS sound.
Number buttons
Enters numbers.
FAV
Accesses your favorite channel list.
CH
Selects a channel.
PAGE
Moves to the previous or next
screen.
MUTE
Mutes all sounds.
VOL
Adjusts the volume level.
CAPTION
On or Off.
ENGLISH
27
REMOTE CONTROL
*
EXIT
Clears all on-screen displays
and returns to TV viewing from
any menu.
Changes the image mode.
SOUND
Changes the sound mode.
SIMPLINK
Accesses the AV devices
connected with the HDMI cable
through HDMI-CEC.
Opens the SIMPLINK menu.
Control buttons
Controls the SIMPLINK
compatible devices
(USB,SIMPLINK).
Colored buttons
These access special
functions in some menus.
OK
Selects menus or options and
confirms your input.
Q.MENU
Accesses the quick menus.
SETTINGS
Accesses the main menu.
Navigation buttons
Scrolls through menus or
options.
BACK
Returns to the previous level.
INFO
ⓘ
Views the information of the
currently program and the
screen.
Backlight
Adjusts the brightness of
the screen by controlling the
screen backlight.
ENGLISH
28
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing the Main Menus
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Press OK( ) to set your option settings.
Customer Support FAQ
Exit
y
Press RED button to access the Customer Support menus.
y
Press GREEN Button to access the FAQ menus.
Customer Support
Using Customer Support feature.
y
Picture Test
y
Sound Test
y
Product/Service Info.
y
User Guide
y
Patent Information
FAQ
Shows answers to frequently asked
questions about TV viewing and sets
the related menus.
LOCK
CHANNEL
INPUT
AUDIO
OPTION
TIME
MY MEDIA
Adjusts the image size, quality or effect.
Locks or unlocks channels and programs.
Sets up and edit channels.
Views the input sources with their labels.
Adjusts the sound quality, effect or volume level.
Customizes the general settings.
Sets the time, date or Timer feature.
Using integrated media feature.
ENGLISH
29
USING THE USER GUIDE
USING THE USER GUIDE
Accessing the On-Screen
User Guide
Using the TV menu
1
Press SETTINGS to access the main menus.
2
Press the RED button to access the Customer
Support menus.
3
Press the Navigation button to scroll to User
Guide and press OK.
4
Press the Navigation buttons to scroll to the
option you want and press OK.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using the Remote Control
1
Press (User Guide) to access the User
Guide.
2
Press the Navigation buttons to scroll to the
option you want and press OK.
3
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
y
Image shown may differ from your TV.
User Guide
OPTION
CHANNEL Setting
PICTURE, SOUND Setting
Advanced Function
To use input device
To use PIP (Picture In Picture)
To set TV lock options
To set language
To set caption
To set time options
To set ODC(Over Driving Circuit)
Information
2
3
1
1
1
2
2
3
Allows to select the category you want.
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
Allows to browse the description of the
function you want from the index.
Shows the description of the selected menu.
You can use
ꕌ
/
ꕍ
to move between pages.
Zooms in or out the screen.
User Guide
OPTION > To set language
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
y
Menu Language : Selects a screen menu language.
y
Audio Language [In Digital mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
Close
Zoom In
OPTION
CHANNEL Setting
PICTURE, SOUND Setting
Advanced Function
Information
Close
Zoom Out
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
y
Menu Language : Selects a screen menu language.
y
Audio Language [In Digital mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
1
2
2
ENGLISH
30
MAINTENANCE
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product's lifespan.
Screen and frame
To remove dust, wipe the surface with a dry and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a clean and dry cloth.
Cabinet and stand
To remove dust, wipe the cabinet with a dry and soft cloth.
To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a
small amount of mild detergent.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
y
Make sure to turn the power off and disconnect the power cord and all other cables first.
y
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
y
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
y
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discolorations.
CAUTION
y
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
y
Do not use any chemicals as this may deteriorate the surface.
CAUTION
ENGLISH
31
MAINTENANCE
y
If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become
a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the
warranty.
y
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the
letterboxed area of the screen.
y
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD)
to prevent image burn.
Preventing “Image burn” or “Burn-in” on your TV screen
ENGLISH
32
TROUBLESHOOTING
TROUBLESHOOTING
General
Problem Resolution
Cannot control the TV with
the remote control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed ( to , to ).
No image display and no
sound is produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the Auto sleep feature is activated in the Time settings.
y
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
ENGLISH
33
SPECIFICATIONS
SPECIFICATIONS
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
Panel Screen Type 24" class Wide (23.6" diagonal)
Visible diagonal size : 599 mm
Pixel Pitch 0.382 mm (H) x 0.382 mm (V)
Video Signal Max. Resolution 1366 × 768 @ 60 Hz
Recommended Resolution 1366 × 768 @ 60 Hz
Horizontal Frequency
30 kHz to 61 kHz
Vertical Frequency
56 Hz to 75 Hz
Synchronization Type
Separate Sync, Digital
Input Connector TV, D-Sub Analog, PC Audio In, Component, AV(CVBS),
HDMI, USB
Power Rated Voltage 19 V 1.6 A
Power Consumption On Mode : 30 W (typ.)
Off Mode 0.4 W
AC/DC Adapter
Manufacturer : Lien Chang, Model : LCAP25A
Manufacturer : Honor, Model : ADS-40SG-19-2 19032G
Dimensions (Width x Depth x Height)
Weight
With Stand
556.5 mm x 140.1 mm x 391 mm
3.7 kg
Without Stand
556.5 mm x 62.9 mm x 343.1 mm
3.5 kg
Environmental
conditions
Operating Temperature
Operating Humidity
10 °C to 35 °C (50
℉
to 86
℉
)
20 % to 80 %
Storage Temperature
Storage Humidity
-10 °C to 60 °C (14
℉
to 140
℉
)
5 % to 90 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
ENGLISH
34
SPECIFICATIONS
Component supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 480 15.730 59.940
720 x 480 15.750 60.000
720 x 576 15.625 50.000
720 x 480 31.470 59.940
720 x 480 31.500 60.000
720 x 576 31.250 50.000
1280 x 720 44.960 59.940
1280 x 720 45.000 60.000
1280 x 720 37.500 50.000
1920 x 1080 33.720 59.940
1920 x 1080 33.750 60.000
1920 x 1080 28.125 50.000
1920 x 1080 56.250 50.000
1920 x 1080 67.432 59.940
1920 x 1080 67.500 60.000
Component port connecting information
Component ports on the
TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 480 31.469
31.500
59.940
60.000
720 x 576 31.250 50.000
1280 x 720 37.500 50.000
1280 x 720 44.960
45.000
59.940
60.000
1920 x 1080 33.720
33.750
59.940
60.000
1920 x 1080 28.125 50.000
1920 x 1080 27.000 24.000
1920 x 1080 33.750 30.000
1920 x 1080 56.250 50.000
1920 x 1080 67.430
67.500
59.940
60.000
RGB (PC) / HDMI (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 400 31.468 70.080
640 x 480 31.469 59.940
640 x 480 37.500 75.000
800 x 600 37.879 60.317
800 x 600 46.875 75.000
1024 x 768 48.363 60.004
1024 x 768 60.023 75.029
1280 x 800 49.702 59.810
1366 x 768 47.717 59.790
The optimal display resolution is 1366 x 768 @
60 Hz. The optimal timing is vertical frequency
60Hz in each mode.
NOTE
ENGLISH
35
SPECIFICATIONS
NOTE
y
Avoid keeping a fixed image on the set’s screen for prolonged periods of time. The fixed image may
become permanently imprinted on the screen. Use a screen saver when possible.
y
There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode.
Change the PC mode to another resolution or change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic
card.
y
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
y
Connect the signal cable from the TV output port of the PC to the RGB IN (PC) port of the TV or the
signal cable from the HDMI output port of the PC to the HDMI IN port on the TV.
y
Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included
with the TV).
y
If using a sound card, adjust PC sound as required.
y
If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only
one of either RGB IN (PC) or HDMI IN to display the PC output on the TV.
y
If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to
either RGB or HDMI. (The other mode is set to Plug and Play automatically by the TV.)
y
DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
y
If you use too long an RGB-PC cable that is too long, there may be interference on the screen. We
recommend using under 5 m of cable. This provides the best picture quality.
Congratulations on your purchase! As you enjoy your new product, please
keep these safety tips in mind:
THE ISSUE
• Thehometheaterentertainmentexperienceisagrowingtrendand
largeratpaneldisplaysarepopularpurchases.However,atpanel
displaysarenotalwayssupportedontheproperstandsorinstalled
accordingtothemanufacturer’srecommendations.
• Flatpaneldisplaysthatareinappropriatelysituatedondressers,
bookcases,shelves,desks,speakers,chestsorcartsmayfalloverand
causeinjury.
THIS MANUFACURER CARES!
• Theconsumerelectronicsindustryiscommittedtomakinghome
entertainmentenjoyableandsafe.
TUNE INTO SAFETY
• OnesizedoesNOTtall.Followthemanufacturer’s
recommendationsforthesafeinstallationanduseofyouratpanel
display.
• Carefullyreadandunderstandallenclosedinstructionsforproper
useofthisproduct.
• Don’tallowchildrentoclimbonorplaywithfurnitureandtelevision
sets.
• Don’tallowplaceatpaneldisplaysonfurniturethatcaneasilybe
usedassteps,suchasachestofdrawers.
• Rememberthatchildrencanbecomeexcitedwhilewatchinga
program,especiallyona“largerthanlife”atpaneldisplay.
Careshouldbetakentoplaceorinstallthedisplaywhereitcannot
bepushed,pulledover,orknockeddown.
• Careshouldbetakentorouteallcordsandcablesconnectedto
theatpaneldisplaysothattheycannotbepulledorgrabbedby
curiouschildren.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
• Useamountthathasbeenrecommendedbythedisplay
manufacturerand/orlistedbyanindependentlaboratory
(suchasUL,CSA,ETL).
• Followallinstructionssuppliedbythedisplayandwallmount
manufacturers.
• Ifyouhaveanydoubtsaboutyourabilitytosafelyinstallyourat
paneldisplay,contactyourretaileraboutprofessionalinstallation.
• Makesurethatthewallwhereyouaremountingthedisplayis
appropriate.Somewallmountsarenotdesignedtobemountedto
wallswithsteelstudsoroldcinderblockconstruction.
Ifyouareunsure,contactaprofessionalinstaller.
• Aminimumoftwopeoplearerequiredforinstallation.
Flatpaneldisplayscanbeheavy.
CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Make sure to read the Safety Precautions
before using the product.
Keep the Owner’s Manual (CD) in an
accessible place for future reference.
The model and serial number of the TV is
located on the back and one side of the
TV. Record it below should you ever need
service.
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
Declaration of Conformity
Trade Name: LG
Model : 24LN451B
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
MODEL
SERIAL
This product qualifies for ENERGY
STAR in the “factory default (Home
Use)” setting.
Changing the factory default settings
or enabling other features may
increase power consumption that
could exceed the limits necessary to
quality for ENERGY STAR.
