ACR17 Drawer Instructions
This pharmacy refrigerator can hold up to nine drawers, but it is best to use no more
than seven to make sure air is evenly distributed throughout the interior. You can mix
shelves and drawers as needed.
How to Install the ACR17 Drawer

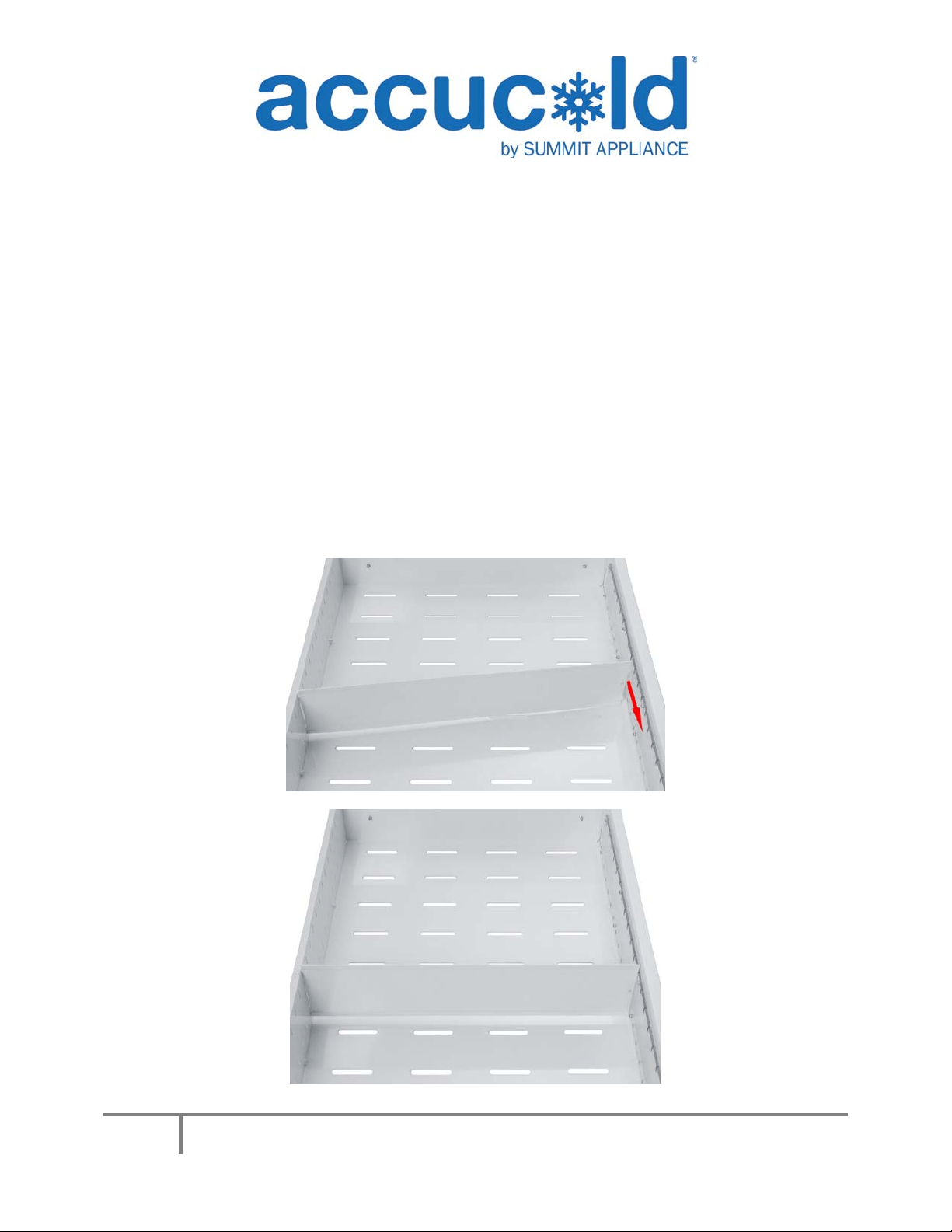

1. Each drawer ships with two interior dividers for optional storage organization. If
using these dividers, install them inside the drawer BEFORE inserting the drawer
into the refrigerator. To install, place the divider diagonally inside the drawer,
hooking one side in the desired position. Slide the other side of the divider in
until it snaps into place.
2
AccuCold Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com
Note: If drawers are being installed towards the bottom of the refrigerator, start at
the fourth notch up.

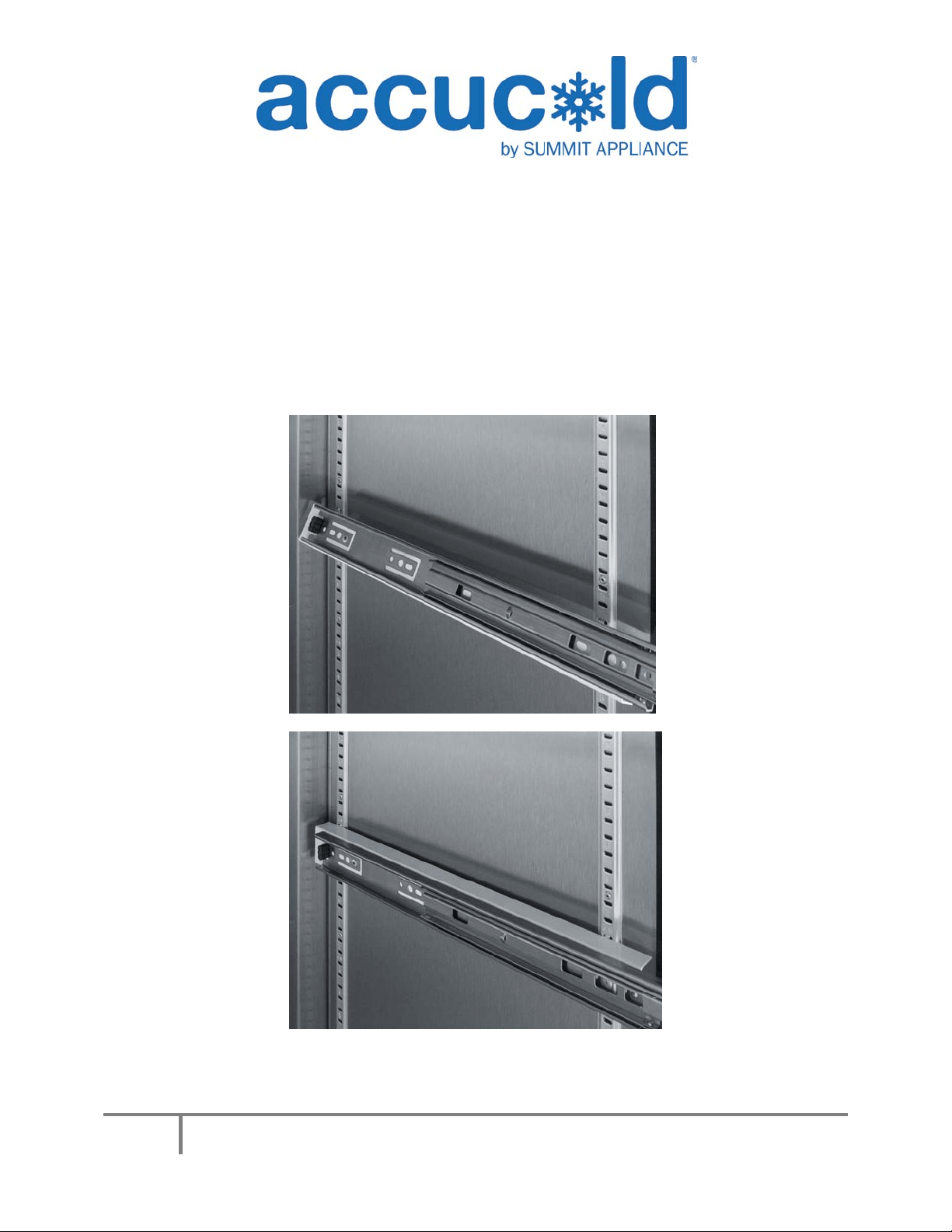

2. Align the hooks of the bracket at a 45° angle upwards and push down to secure in
place. You can use the number or letter code printed above the holes to make
sure the brackets are lined up evenly.
3
AccuCold Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com

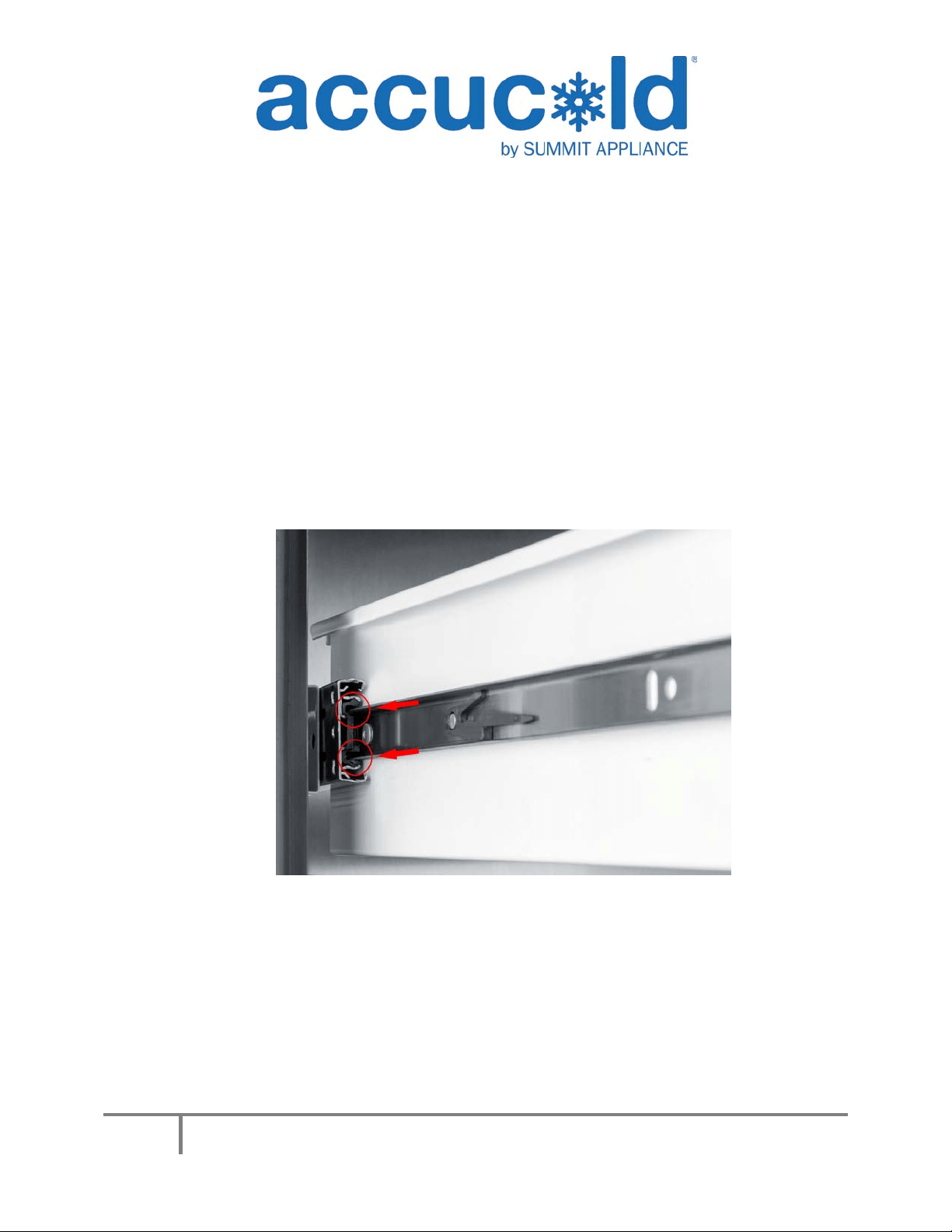

3. Slide the drawer into the tracks one side at a time by guiding the drawer into the
track until you hear a click. Repeat this same step for the other side. Slide the
drawer in and out to make sure it is correctly aligned and leveled.
NOTE: If the drawer gets stuck or does not feel level, DO NOT try to push it in, as you
may damage the glides. Instead, remove the drawer (see next page for instructions)
and try again, slowly aligning each side and gently pushing the drawer into place.
4
AccuCold Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com
Removing the ACR17 Drawer
1. Empty all stored contents from the drawer before removing it from the unit.
2. Pull the drawer all the way out.

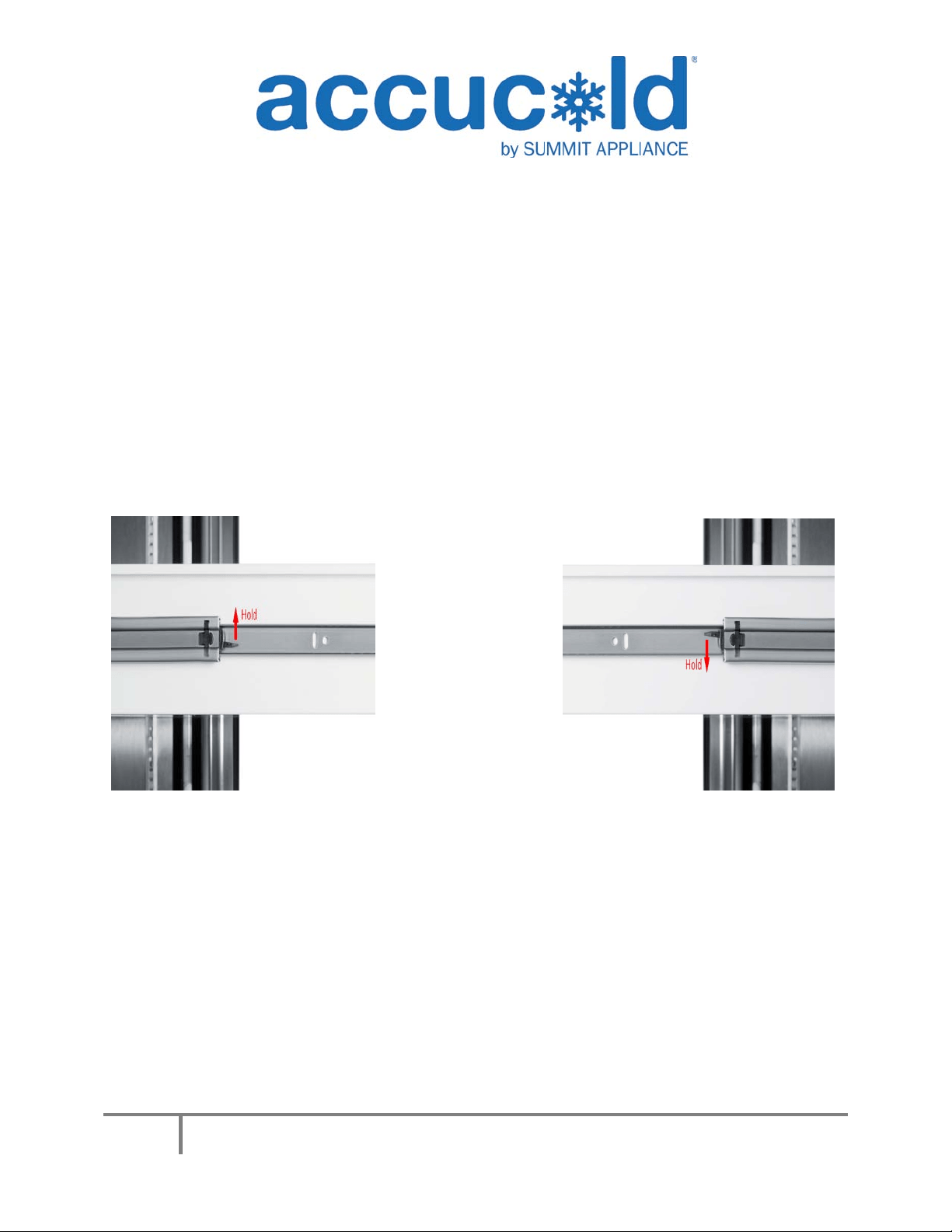

3. You will see a small black latch on each side of the drawer. Push the latch on the
left side up and pull the latch on the right side down at the same time. Proceed to
slide the drawer out.
4. To remove the tracks, simply tilt each bracket up and pull the track out.
LEFT SIDE RIGHT SIDE
