Installation and operating instructions
Tumble dryer
WTG86402GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTG86402GB:
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programmes and buttons 22
3
1 Operating the appliance 25
3
M Signal setting 28
3
D Cleaning 29
3
3 Faults and what to do about them 31
3
J After-sales service 33
3
[ Consumption values 34
3
J Technical data 35
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Use the programme selector to select any programme.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15

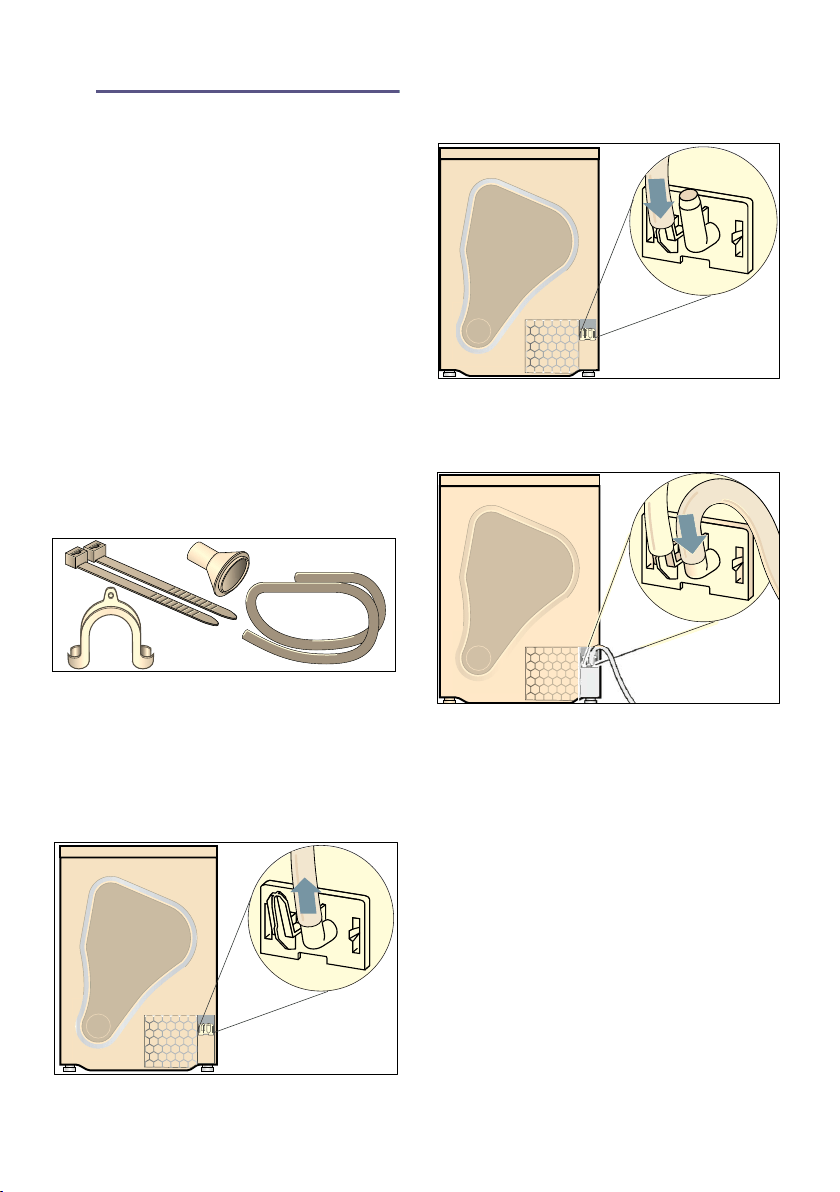

4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
Note:
16
Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion/fire!
21
Caution!
21
The dryer drum and fabrics could be damaged.
21
Notes
21
Sorting washing according to:
21
Note:
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programmes and buttons
22
Programmes and buttons
22
Programmes
22
Programme and fabrics
22
Maximum load and programme settings/info
22
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
1. Place the laundry in the drum.
25
2. Turn the programme selector to any programme to switch the dryer on.
25
3. Close the dryer door.
25
Caution!
25
Possibility of material damage to the dryer or laundry.
25
Setting a programme
25
Note:
25
1. Select the required programme; detailed information on the programmes can be found from ~ Page 22 onwards.
25
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
25
Note:
25
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 22 onwards.
25
Starting the programme
25
Note:
25
Programme sequence
25
Note:
25
Changing the programme or adding laundry
26
1. To pause the programme, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another programme or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
Cancelling the programme
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Programme end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the programme selector to the "off" position.
26

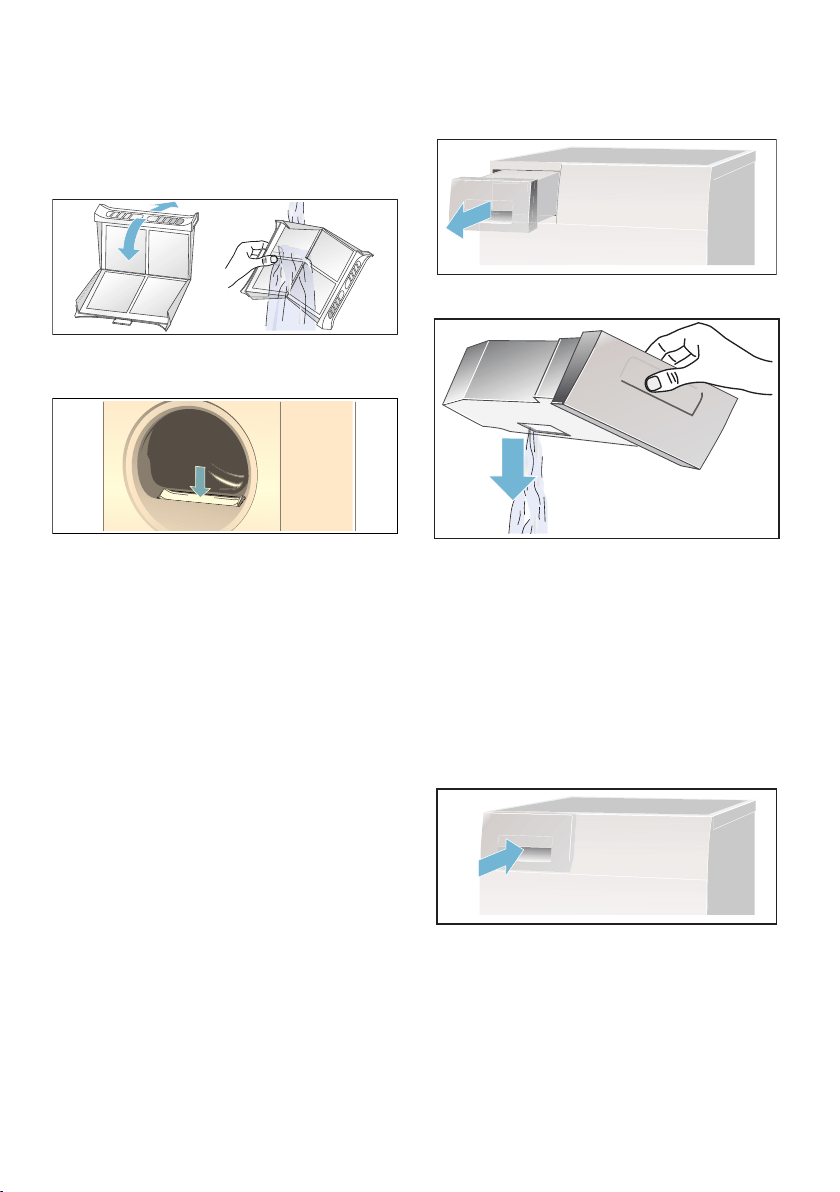

Clean the fluff filter
26
Note:
26
1. Open the dryer door and remove all fluff from the door.
26
2. Remove the fluff filter.
26
3. Remove the fluff from the recess in the fluff filter.
26
Note:
26
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
27
1. Pull out the condensate container horizontally.
27
2. Pour out the condensation water.
27
Caution!
27
Dirty condensation water may be harmful to your health and cause material damage.
27
3. Push in the condensate container until you feel it lock back into place in the dryer.
27
M Signal setting
28
Signal setting
28
Activating setting mode
28
1. Switch the dryer on.
28
2. Select the "Cottons" programme in position 1 and wait for five seconds.
28
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
28
2. The spin speed is shown in the display.
28
3. Press the "Ready in" time button or the drying time button to change the spin speed.
28
4. Turn the programme selector clockwise to position 3.
28
5. The volume of the audible signal at the end of the programme is shown in the display.
28
6. Press the "Ready in" time button or the drying time button to change the volume.
28
7. Turn the programme selector clockwise to position 4.
28
8. The volume for the audible button signal is shown in the display.
28
9. Press the "Ready in" time button or the drying time button to change the volume.
28
D Cleaning
29
Cleaning
29
Cleaning the dryer and the control panel
29
: Warning
29
Risk of death!
29
Cleaning the heat exchanger
29
Notes
29
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
29
Note:
29
2. Open the maintenance flap fully.
29
3. Turn both locking levers towards each other.
29
4. Remove the top cap from the heat exchanger.
29
5. Remove the heat exchanger.
29
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
29
Caution!
29
There is a risk of damage to the heat exchanger.
29
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
29
8. Allow all the water to drip off.
29
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
30
10. Turn both locking levers back and close the maintenance flap until it locks into place.
30
11. Close the maintenance flap and press on it until you feel it click in place.
30
Cleaning the moisture sensor
30
Note:
30
Caution!
30
Moisture sensor may be damaged.
30
3 Faults and what to do about them
31
Faults and what to do about them
31
Faults
31
Cause/remedy
31
Note:
31
Note:
32
J After-sales service
33
After-sales service
33
[ Consumption values
34
Consumption values
34
Consumption values table
34
Programme
34
8 kg
34
4 kg
34
8 kg
34
4 kg
34
1400 rpm
34
117 min
34
70 min
34
3.97 kWh
34
2.24 kWh
34
1000 rpm
34
137 min
34
82 min
34
4.63 kWh
34
2.61 kWh
34
800 rpm
34
158 min
34
95 min
34
5.29 kWh
34
2.98 kWh
34
1400 rpm
34
91 min
34
54 min
34
2.86 kWh
34
1.61 kWh
34
1000 rpm
34
108 min
34
65 min
34
3.61 kWh
34
2.04 kWh
34
800 rpm
34
124 min
34
74 min
34
4.37 kWh
34
2.46 kWh
34
3.5 kg
34
3.5 kg
34
800 rpm
34
46 min
34
1.42 kWh
34
600 rpm
34
56 min
34
1.74 kWh
34
Most efficient programme for cotton fabrics
34
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
34
Standard programmes for cottons in accordance with current EU regulation 932/2012
34
Programme
34
Load
34
Energy consumption
34
Programme length
34
J Technical data
35
Technical data
35
File type: PDF
File name: Bosch WTG86402GB Dryer.pdf
File size: 2.28 MB
File Language: English
Pages: 36
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WTG86402GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WTH85200GB
WTM85230GB
WTW85492GB
WTWH7660GB
WTW87561GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTX88M20AU
Bosch WTG86402
Bosch WTG86402UC
Bosch WTG86402NL
Bosch WTG864H2
Bosch WTG864H1
Bosch WTG86482
Bosch WTG86402UC/01
Bosch WTG86401UC
Bosch WTG86400UC
Bosch WTG86400AU
Bosch WTG86403UC
Bosch WTG86492NL
Bosch WTG864C2NL
Bosch WTG86472NL
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programmes and buttons 22
3
1 Operating the appliance 25
3
M Signal setting 28
3
D Cleaning 29
3
3 Faults and what to do about them 31
3
J After-sales service 33
3
[ Consumption values 34
3
J Technical data 35
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Use the programme selector to select any programme.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15
4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
Note:
16
Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion/fire!
21
Caution!
21
The dryer drum and fabrics could be damaged.
21
Notes
21
Sorting washing according to:
21
Note:
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programmes and buttons
22
Programmes and buttons
22
Programmes
22
Programme and fabrics
22
Maximum load and programme settings/info
22
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
1. Place the laundry in the drum.
25
2. Turn the programme selector to any programme to switch the dryer on.
25
3. Close the dryer door.
25
Caution!
25
Possibility of material damage to the dryer or laundry.
25
Setting a programme
25
Note:
25
1. Select the required programme; detailed information on the programmes can be found from ~ Page 22 onwards.
25
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
25
Note:
25
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 22 onwards.
25
Starting the programme
25
Note:
25
Programme sequence
25
Note:
25
Changing the programme or adding laundry
26
1. To pause the programme, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another programme or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
Cancelling the programme
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Programme end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the programme selector to the "off" position.
26
Clean the fluff filter
26
Note:
26
1. Open the dryer door and remove all fluff from the door.
26
2. Remove the fluff filter.
26
3. Remove the fluff from the recess in the fluff filter.
26
Note:
26
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
27
1. Pull out the condensate container horizontally.
27
2. Pour out the condensation water.
27
Caution!
27
Dirty condensation water may be harmful to your health and cause material damage.
27
3. Push in the condensate container until you feel it lock back into place in the dryer.
27
M Signal setting
28
Signal setting
28
Activating setting mode
28
1. Switch the dryer on.
28
2. Select the "Cottons" programme in position 1 and wait for five seconds.
28
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
28
2. The spin speed is shown in the display.
28
3. Press the "Ready in" time button or the drying time button to change the spin speed.
28
4. Turn the programme selector clockwise to position 3.
28
5. The volume of the audible signal at the end of the programme is shown in the display.
28
6. Press the "Ready in" time button or the drying time button to change the volume.
28
7. Turn the programme selector clockwise to position 4.
28
8. The volume for the audible button signal is shown in the display.
28
9. Press the "Ready in" time button or the drying time button to change the volume.
28
D Cleaning
29
Cleaning
29
Cleaning the dryer and the control panel
29
: Warning
29
Risk of death!
29
Cleaning the heat exchanger
29
Notes
29
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
29
Note:
29
2. Open the maintenance flap fully.
29
3. Turn both locking levers towards each other.
29
4. Remove the top cap from the heat exchanger.
29
5. Remove the heat exchanger.
29
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
29
Caution!
29
There is a risk of damage to the heat exchanger.
29
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
29
8. Allow all the water to drip off.
29
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
30
10. Turn both locking levers back and close the maintenance flap until it locks into place.
30
11. Close the maintenance flap and press on it until you feel it click in place.
30
Cleaning the moisture sensor
30
Note:
30
Caution!
30
Moisture sensor may be damaged.
30
3 Faults and what to do about them
31
Faults and what to do about them
31
Faults
31
Cause/remedy
31
Note:
31
Note:
32
J After-sales service
33
After-sales service
33
[ Consumption values
34
Consumption values
34
Consumption values table
34
Programme
34
8 kg
34
4 kg
34
8 kg
34
4 kg
34
1400 rpm
34
117 min
34
70 min
34
3.97 kWh
34
2.24 kWh
34
1000 rpm
34
137 min
34
82 min
34
4.63 kWh
34
2.61 kWh
34
800 rpm
34
158 min
34
95 min
34
5.29 kWh
34
2.98 kWh
34
1400 rpm
34
91 min
34
54 min
34
2.86 kWh
34
1.61 kWh
34
1000 rpm
34
108 min
34
65 min
34
3.61 kWh
34
2.04 kWh
34
800 rpm
34
124 min
34
74 min
34
4.37 kWh
34
2.46 kWh
34
3.5 kg
34
3.5 kg
34
800 rpm
34
46 min
34
1.42 kWh
34
600 rpm
34
56 min
34
1.74 kWh
34
Most efficient programme for cotton fabrics
34
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
34
Standard programmes for cottons in accordance with current EU regulation 932/2012
34
Programme
34
Load
34
Energy consumption
34
Programme length
34
J Technical data
35
Technical data
35
Search:
×
Search
