• Page 1 - English - : Operation Manual MULTIMEDIA NAVIGATION RECEIVER AVIC8100NEX AVIC7100NEX AVIC6100NEX AVIC5100NEX Notice to all users This software requires that the product is properly connected to your vehicles parking brake and depending on your vehicle additional installation may be required For more information please contact your Authorized Pioneer Electronics retailer or call us at 800 4211404 Be sure to read Important Information for the User first Important Information for the User includes the important information that you must understand before using this product English
• Page 2 - English - : Thank you for buying this Pioneer product Please read through these instructions so you will know how to operate your model properly After you have finished reading the instructions keep this document in a safe place for future reference Important The screens shown in the examples may differ from actual screens which may be changed without notice for performance and function improvements Introduction Manual overview 11 How to use this manual 11 Conventions used in this manual 11 Terms used in this manual 11 Notes on internal memory 12 Before removing the vehicle battery 12 Data subject to erasure 12 Resetting the microprocessor 12 Basic operation Checking part names and functions 13 Remote control 14 Use and care of the remote control 15 Installing the battery 15 Using the remote control 15 Protecting your product against theft 16 Removing the detachable faceplate 16 Attaching the detachable faceplate 16 Notes on using the LCD panel 16 Adjusting the LCD panel angle 17 Insertingejectingconnecting media 17 Inserting and ejecting a disc 17 Inserting and ejecting an SD memory card 18 Connecting and disconnecting an iPod 19 Plugging and unplugging a USB storage device 19 Startup and termination 19 On firsttime startup 19 Regular startup 20 A message about the map database 20 Turning off the display 20 When the Application screen is available 20 When the Application screen is not available 20 How to use the screens 22 Switching screens using the touch panel keys 22 Switching screens using the hardware buttons 23 Supported AV source 24 Displaying the AV operation screen 24 Selecting a front source on the AV source selection screen 25 Selecting a front source on the source list 25 Selecting a rear source 25 Turning off the AV source 25 Changing the display order of source icons 25 Changing the display order of source keys 26 Using the touch panel 26 Using the common touch panel keys 26 Operating list screens 27 Operating the time bar 27 Operating the onscreen keyboard 27 On firsttime startup of the navigation system 28 How to use the Navigation menu screen Operating the Navigation menu screen 29 How to use the map How to read the Map screen 31 AV information bar 31 Operating the Map screen 32 Changing the scale of the map 32 Contents En
• Page 3 - English - : Smart Zoom 32 Switching between 2D 3D and 2D North up views 32 Scrolling the map to the position you want to see 33 Control keys on the scrolled map 33 Understanding the route guidance 34 Frequently shown route events 34 Browsing the data field 35 When the system cannot receive a GPS signal 35 Searching for a destination Searching for a location by address 37 Searching for Points of Interest POI 38 Searching for POIs using preset categories 38 Searching for POIs by categories or directly from the name of the facilities 39 Searching for providers nearby that offer emergency or roadside assistance services 40 Selecting a destination from stored locations 41 Selecting a destination from stored routes 41 Selecting a location you searched for recently 42 History 42 Smart History 42 Searching for a location using Combined Search 43 Searching for a location by the coordinates 44 Searching for a location by scrolling the map 44 Using the Map Location screen 45 Checking and modifying the current route Modifying the route 46 Building a route using Route Planner 46 Adding waypoints 47 Checking route alternatives 47 Checking detour routes 48 Checking route information and preferences 48 Canceling the current route guidance 49 Watching the simulation of the route 50 Registering and editing locations and routes Storing a location in Saved Location 51 Storing your home and your workplace location 51 Storing your favorite locations 51 Editing stored locations 51 Storing a route in Saved Routes 52 Editing the stored route 53 Renaming stored routes 53 Deleting stored routes 53 Saving a location as an alert point 53 Editing the stored alert points 54 Receiving realtime traffic information TMC Viewing the traffic list 55 Checking the traffic incidents on the map 55 When traffic incidents occur on your route 56 Turning the traffic information on or off 56 Checking useful information about your trip Checking useful information 57 Recording your travel history 58 Activating trip logger temporarily 58 Browsing the trip log 58 Setting the trip logger 59 En Contents
• Page 4 - English - : Editing a trip log 59 Using the Trip Computer mode 59 Calculating the fuel consumption 60 Setting the initial odometer value 60 Entering the fuel consumption information 60 Setting the car maintenance schedule 61 Customizing preferences of the navigation Customizing the navigation settings 62 Restoring the default settings 63 Information on each option of Settings 63 Route Preferences settings 63 Sound settings 65 Warnings settings 66 Navigation Map settings 66 Regional settings 68 Display settings 69 Traffic settings 69 Weather settings 69 Fuel settings 69 Trip Monitor settings 69 Online Services settings 69 Usage Reports settings 70 Setting the alert point warnings 70 Expanding the use of the navigation functions 71 Be sure to read before you use AVICSYNC function 71 What is the AVICSYNC App 72 Compatibility and connectivity 72 AVICSYNC compatibility 72 Preparations before using the AVICSYNC function 73 Getting the map update 73 Registering and connecting a Bluetooth device Preparing communication devices 74 Registering your Bluetooth devices 74 Searching for nearby Bluetooth devices 74 Pairing from your Bluetooth devices 75 Connecting to a Bluetooth device automatically 76 Deleting a registered device 76 Connecting a registered Bluetooth device manually 77 Switching visibility 77 Entering the PIN code for Bluetooth wireless connection 77 Displaying the Bluetooth address 78 Clearing the Bluetooth memory 78 Updating Bluetooth software 78 Displaying the Bluetooth software version 79 Using handsfree phoning Displaying the phone menu 80 Touch panel keys 80 Reading the screen 80 Making a phone call 81 Direct dialing 81 Calling a number in the phone book 81 Dialing from the history 82 Using the preset dial lists 83 Receiving a phone call 83 Answering an incoming call 84 Minimizing the dial confirmation screen 84 Changing the phone settings 85 Answering a call automatically 85 Switching the ring tone 85 Inverting names in the phone book 85 Setting the private mode 85 Adjusting the other partys listening volume 86 Using the voice recognition function 86 Notes for handsfree phoning 86 Contents En

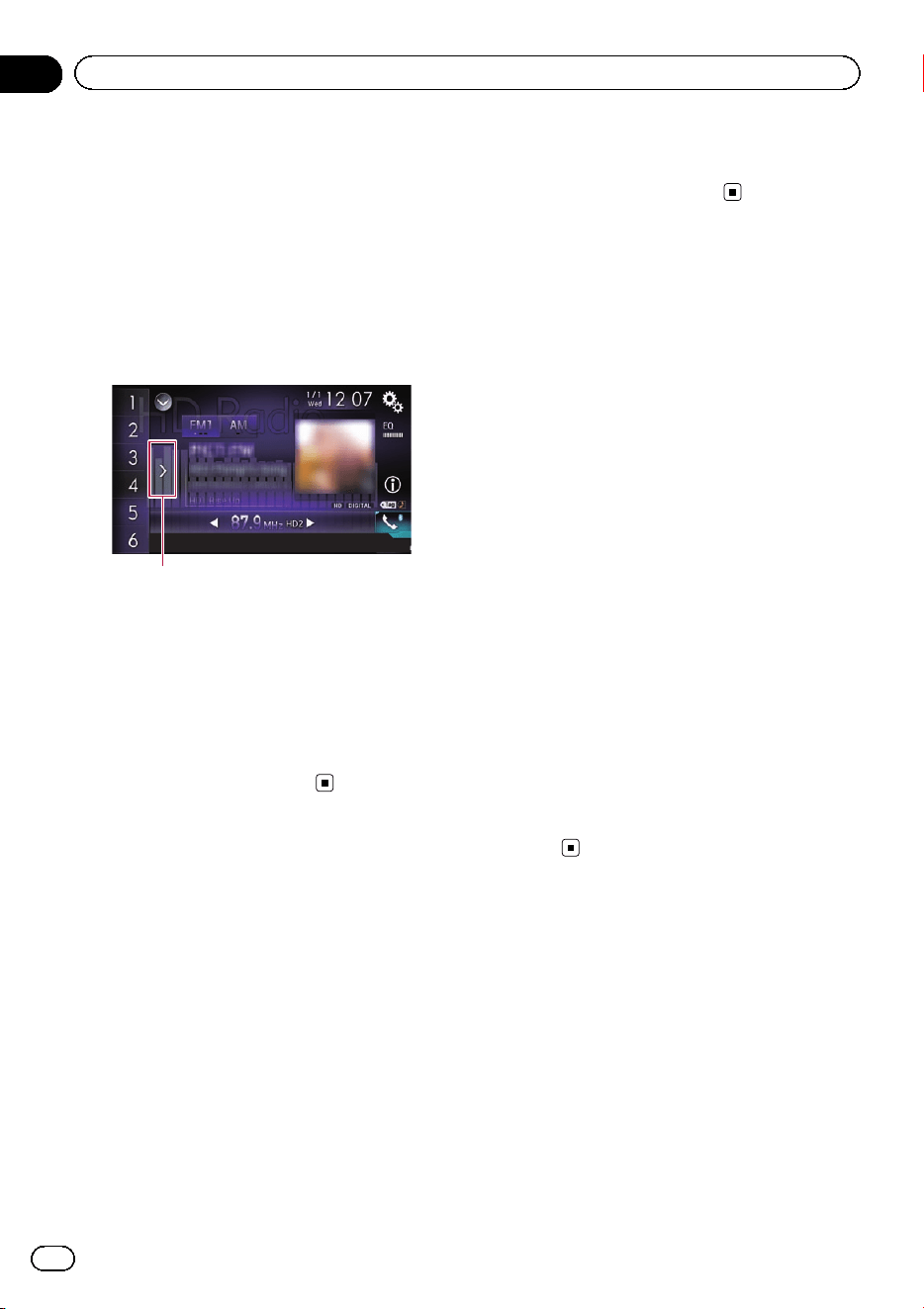

• Page 5 - English - : iPod iPhone or smartphone setup operation The basic flow of iPod iPhone or smartphone setup 88 Setting the device connection method 88 iPod compatibility 88 Android device compatibility 89 AppRadio Mode Compatibility 89 MirrorLink device compatibility 89 Information on the connections and functions for each device 90 Using the radio Using the touch panel keys 93 Reading the screen 93 Starting procedure 94 Selecting a band 94 Manual tuning 94 Seek tuning 94 Selecting a preset channel from the preset channel list 95 Storing broadcast frequencies 95 Storing the strongest broadcast frequencies 95 Tuning into strong frequencies 95 Storing song information to an iPod iTunes Tagging 96 Operating with the hardware buttons 96 HD Radio reception HD Radio stations 97 Using the touch panel keys 97 Reading the screen 98 Starting procedure 99 Selecting a band 99 Manual tuning 99 Seek tuning 99 Selecting a preset channel from the preset channel list 100 Storing broadcast frequencies 100 Storing the strongest broadcast frequencies 100 Tuning into strong frequencies 100 Switching the seek mode 101 Switching the reception mode 102 Storing song information to an iPod iTunes Tagging 102 Operating with the hardware buttons 102 Playing a disc Using the touch panel keys for audio 103 Using the touch panel keys for video 103 Reading the screen for audio 105 Reading the screen for video 105 Starting procedure 106 Selecting files from the file name list 106 Playing tracks in random order 106 Setting a repeat play range 106 Switching the media file type 107 Searching for the part you want to play 107 Operating the DVD menu 107 Switching the subtitle language 108 Switching the audio language 108 Framebyframe playback 108 Slow motion playback 108 Returning to a specified scene 108 Resuming playback Bookmark 109 Operating the DVD menu using touch panel keys 109 Switching the multiangle DVD display 109 Selecting the audio output 109 Operating with the hardware buttons 110 Playing compressed audio files Using the touch panel keys 111 Reading the screen 112 Starting procedure for Disc 113 Starting procedure for USBSD 113 Switching the browse mode 113 Selecting files from the file name list 114 Selecting a file from the list related to the song currently playing link search 114 Playing files in random order 114 Setting a repeat play range 115 En Contents
• Page 6 - English - : Switching the media file type 115 Operating with the hardware buttons 115 Playing compressed video files Using the touch panel keys 116 Reading the screen 117 Starting procedure for Disc 117 Starting procedure for USBSD 117 Selecting files from the file name list 117 Setting a repeat play range 118 Framebyframe playback 118 Slow motion playback 118 Switching the media file type 118 Operating with the hardware buttons 118 Playing compressed still image files Using the touch panel keys 119 Reading the screen 119 Starting procedure 119 Selecting files from the file name list 120 Playing files in random order 120 Setting a repeat play range 120 Switching the media file type 120 Setting the slideshow interval 120 Operating with the hardware buttons 121 Using an iPod Using the touch panel keys for audio 122 Using the touch panel keys for video 122 Using the touch panel keys for iTunes Radio 123 Reading the screen for audio 123 Reading the screen for video 124 Reading the screen for iTunes Radio 124 Starting procedure 125 Setting the shuffle play 125 Setting a repeat play range 125 Selecting song or video sources from the playlist screen 126 Using iTunes Radio 127 Playing back songs similar to the current song 127 Setting the current song not to be played back again 127 Adding the current song to the wish list 127 Using this products iPod function from your iPod 128 Changing the speed of audiobook playback 128 Displaying lists related to the song currently playing link search 129 Operating with the hardware buttons 129 Playing back music from a music app other than iPod music as the iPod source 129 Using the touch panel keys 129 Reading the screen 130 Playing music output from the Android Autocompatible device Using the touch panel keys 131 Reading the screen 131 Starting procedure 132 Using your iPhone or smartphone applications Using AppRadio Mode 133 Using the touch panel keys App control side bar 133 Starting procedure 134 Using the keyboard 135 Adjusting the image size For smartphone users 136 Displaying the image of your application iPhone with 30pin connector 137 Displaying the image of your application iPhone with Lightning connector 137 Displaying the image of your application smartphone 138 Using Android Auto 138 Starting procedure 139 Setting the driving position 139 Contents En

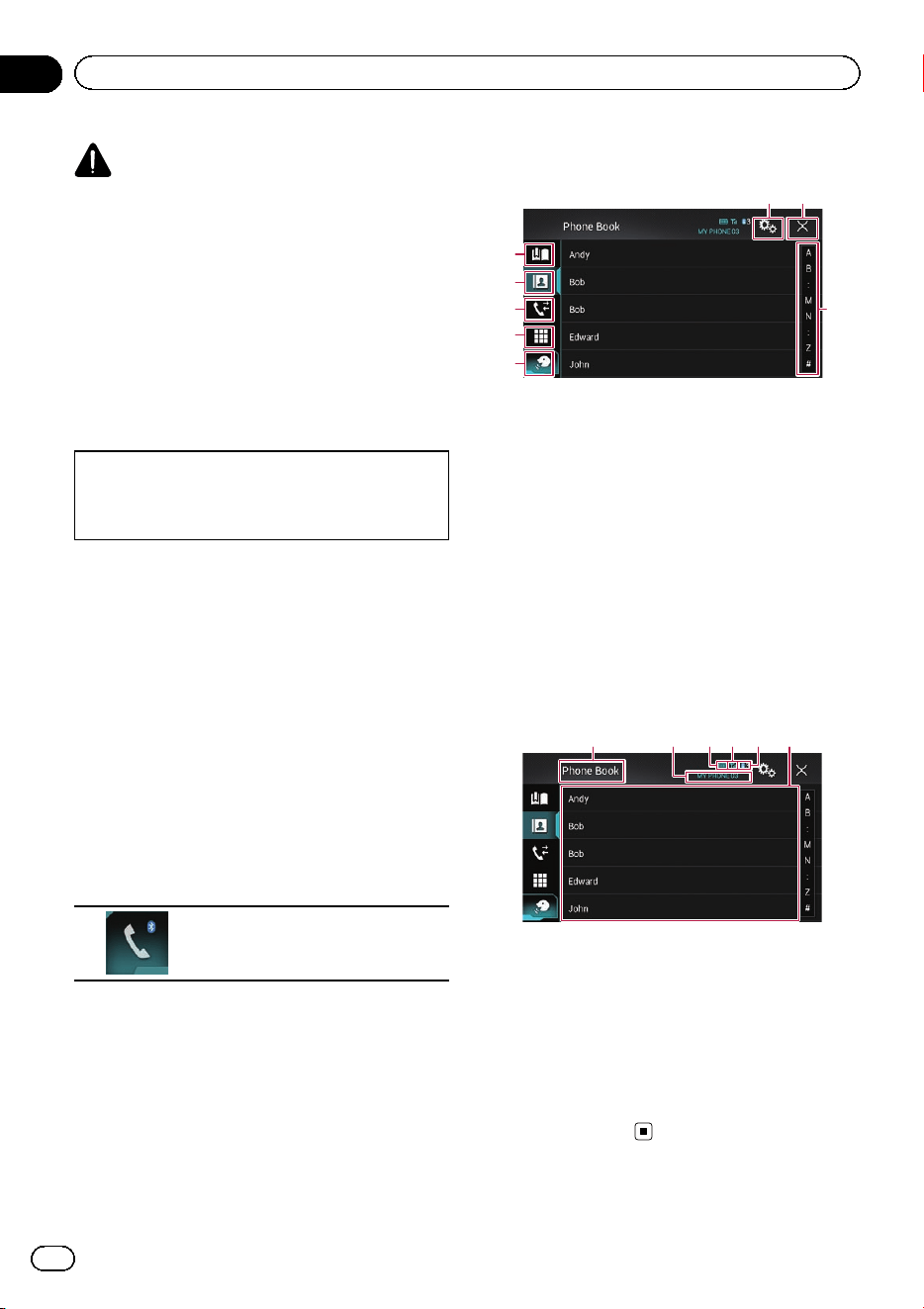

• Page 7 - English - : Adjusting the volume 140 Using MirrorLink mode 140 Using the touch panel keys App control side bar 140 Starting procedure 140 Using the audio mix function 141 Streaming Pandora Pandora operations 142 Using the touch panel keys 142 Reading the screen 143 Starting procedure 143 For iPhone with a 30pin connector users 144 For iPhone with a Lightning connector users 144 For smartphone users 144 Selecting a Pandora station from the list 145 Creating a station 145 Operating with the hardware buttons 145 Using Aha Radio Using the touch panel keys 146 Reading the screen 147 Starting procedure 147 For iPhone with a 30pin connector users 147 For iPhone with a Lightning connector users 147 For smartphone users 148 Operating with the hardware buttons 148 Using iDatalink Activating iDatalink Maestro 149 Updating the iDatalink Maestro module 149 Starting procedure 149 Handsfree phone 151 Setting Bluetooth 151 Phone Book screen 152 History list screen 152 Dial screen 152 Dial confirmation screen 152 Using a Bluetooth audio player Using the touch panel keys 153 Reading the screen 154 Starting procedure 154 Selecting files from the file name list 155 Playing files in random order 155 Setting a repeat play range 155 Operating with the hardware buttons 155 Using the SiriusXM satellite radio SiriusXM satellite radio operations 156 Subscribing to the SiriusXM Satellite Radio service 156 Using the touch panel keys 156 Reading the screen 157 Starting procedure 158 Manual tuning 159 Selecting a preset channel from the preset channel list 159 Storing broadcast channels 159 Selecting a SiriusXM channel directly 159 Selecting a channel from a list of all channels 160 Selecting a channel from the category list 160 Switching the displayed list 160 Using the Replay function 161 Setting SiriusXM TuneStart 161 Using TuneScan 162 Using category scan 162 Using TuneMix 162 Checking the update Traffic and Weather information 163 Registering the city 163 Setting parental lock 164 Setting the passcode 164 Locking the channel 164 En Contents

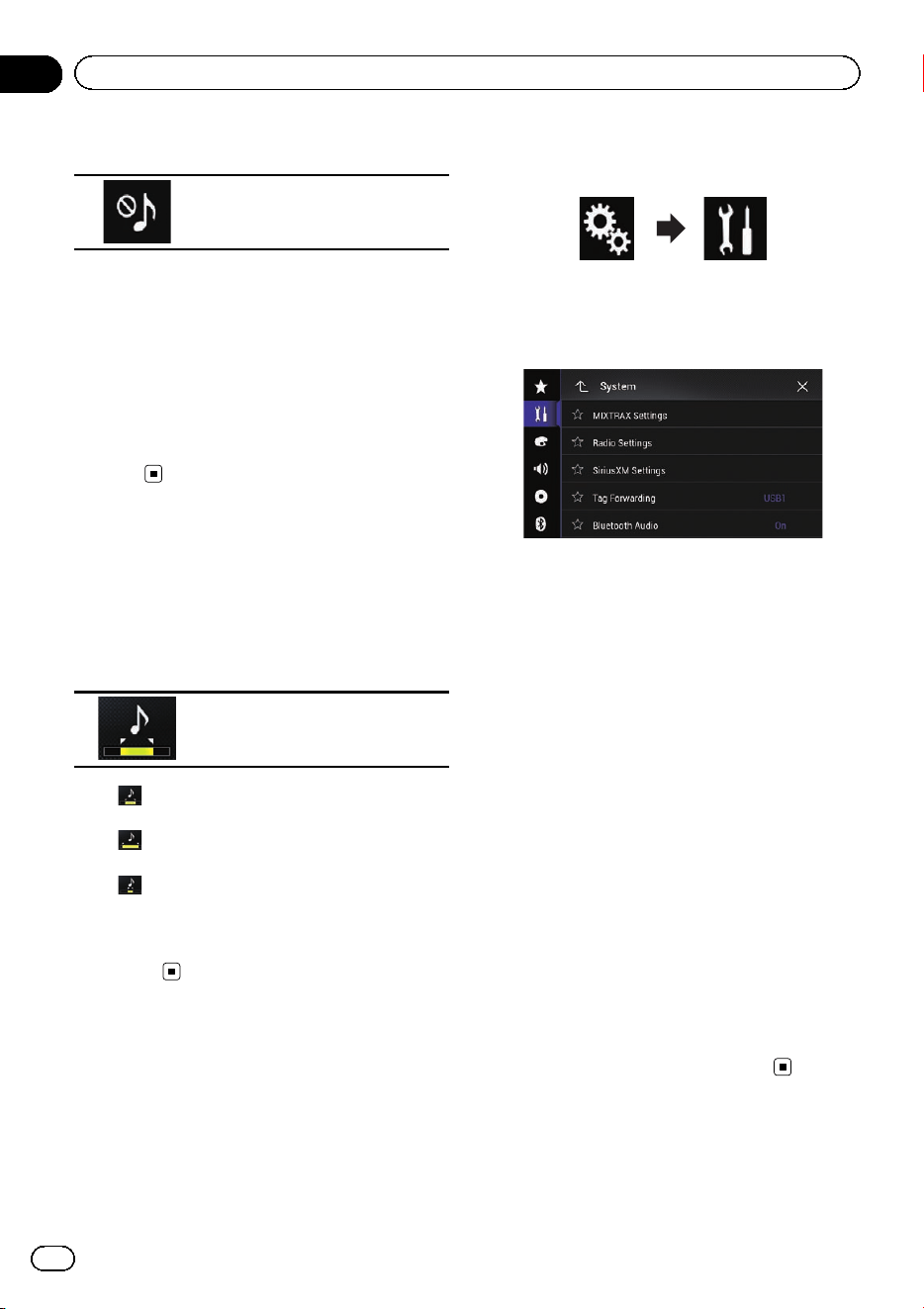

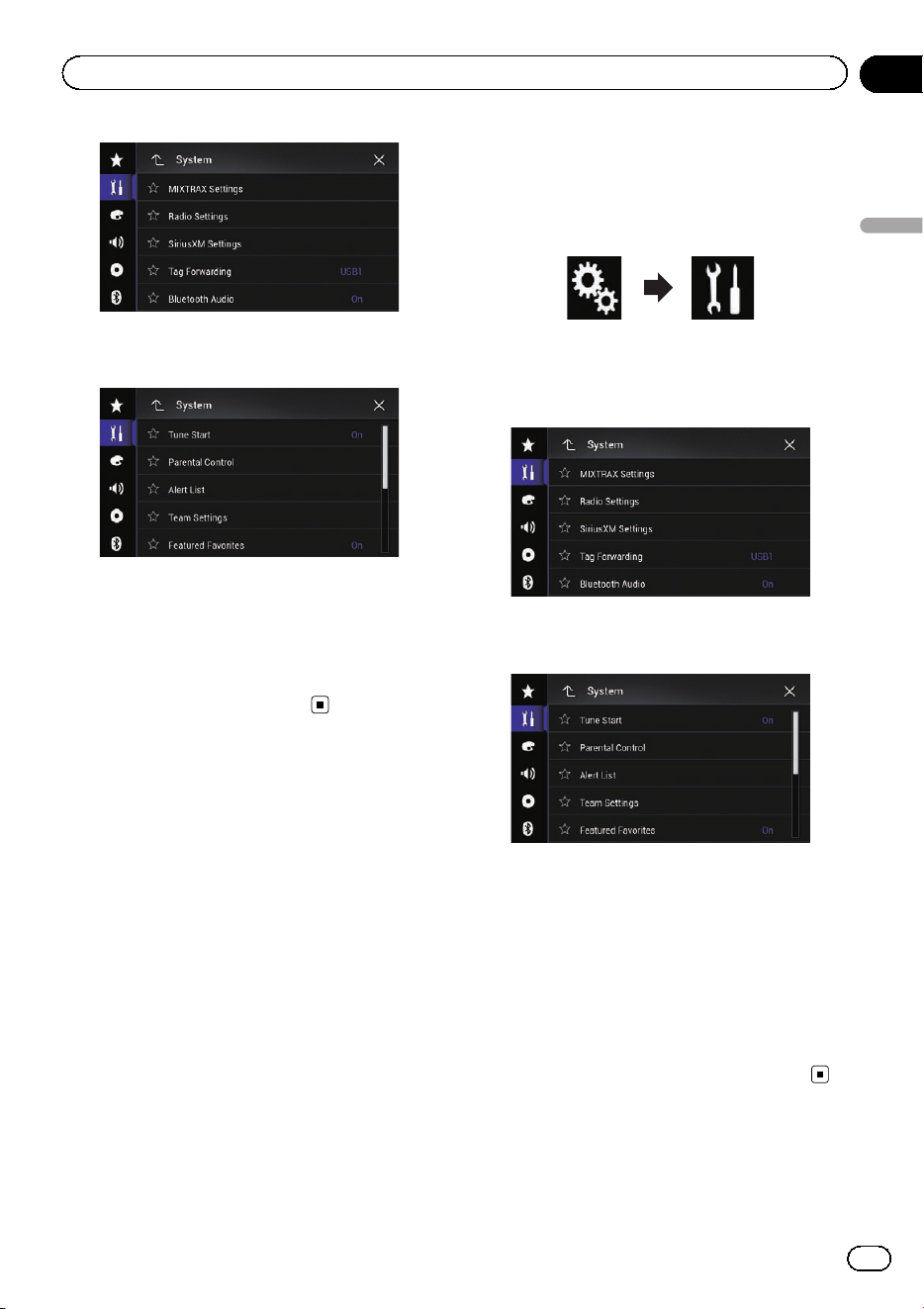

• Page 8 - English - : Using the content alerts function such as Song Alerts Artist Alerts and Game Alerts 165 Memorizing the current contents 165 Setting the program you want to be alerted for 165 Selecting teams for Game Alert 166 Setting the Featured Favorites function 167 Setting the update notification for Featured Favorites 168 Using the SportsFlash function 168 Selecting teams for SportsFlash 169 Restoring the SiriusXM settings to the default 170 Storing song information to an iPod iTunes Tagging 170 Operating with the hardware buttons 171 Using an HDMI source Using the touch panel keys 172 Reading the screen 172 Starting procedure 172 Using an AUX source Using the touch panel keys 173 Reading the screen 173 Starting procedure 173 Setting the video signal 174 Switching the operation screen 174 Using AV input Using the touch panel keys 175 Reading the screen 175 Starting procedure 175 Setting the video signal 176 Using MIXTRAX Touch panel keys 177 Selecting an item to play songs 177 Selecting songs not to be played 177 Specifying the playback portion 178 Setting the flash pattern 178 System settings Navigation info window 179 Setting automatic switching to the navigation screen 179 Activating the Bluetooth audio source 179 Setting the ever scroll 180 Setting AV input 180 Setting the rear view camera 180 Setting rear view camera activation 181 Setting the polarity of the rear view camera 181 Setting the reversed image display for the rear view image 182 Setting the camera for Camera View mode 182 Displaying the parking assist guidelines 183 Setting guidelines on the rear view image 183 Setting the second camera input 184 Setting the second camera activation 185 Setting the reversed image setting for the second camera input image 185 Turning off the demo screen 185 Selecting the system language 186 Setting the keyboard language with the application for iPhone 186 Setting the beep sound 186 Adjusting the response positions of the touch panel touch panel calibration 187 Setting the dimmer function 187 Setting whether to activate the dimmer function 188 Setting the duration of time for the dimmer function to be active 188 Adjusting the picture 189 Displaying the firmware version 190 Updating firmware 190 Contents En

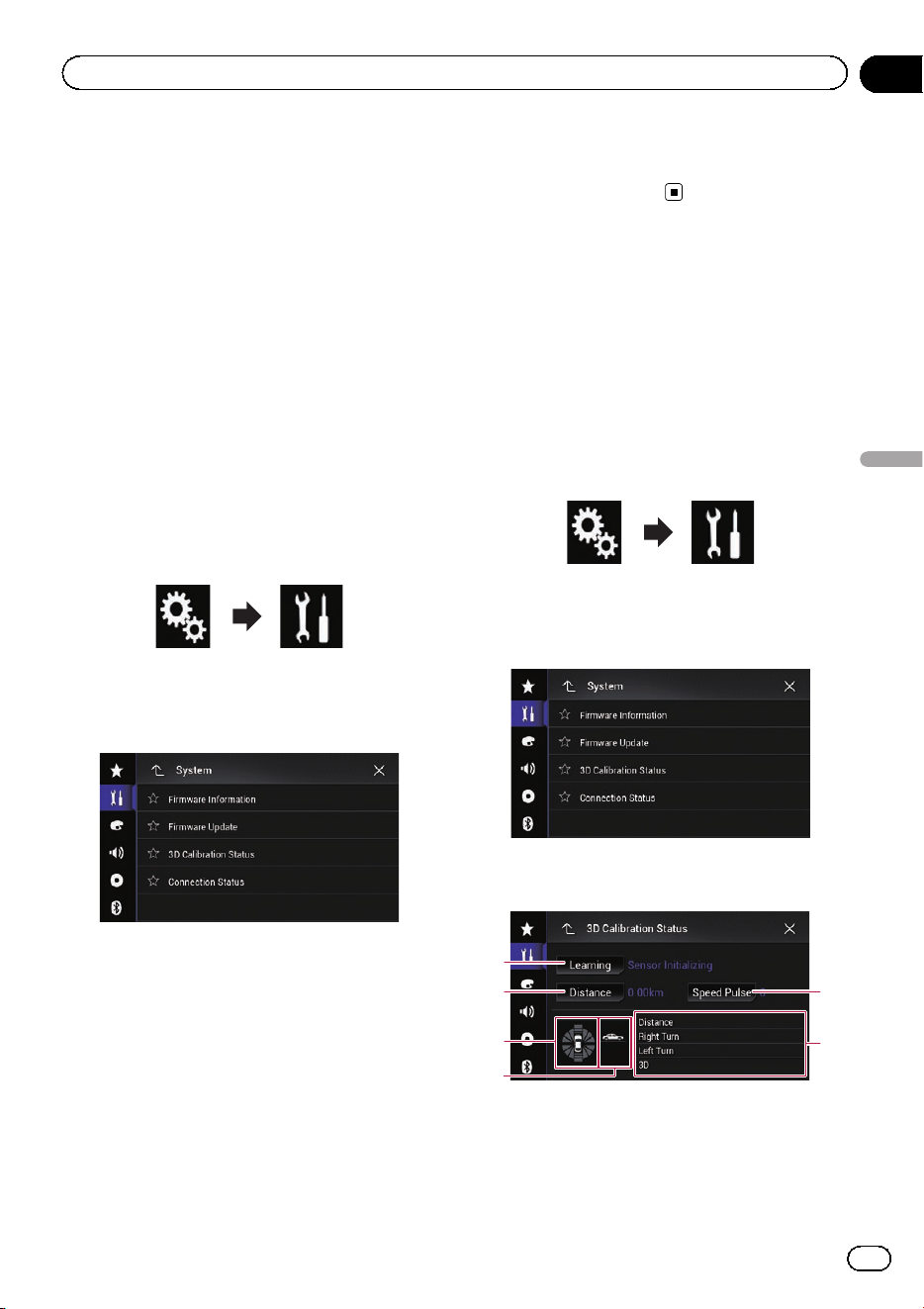

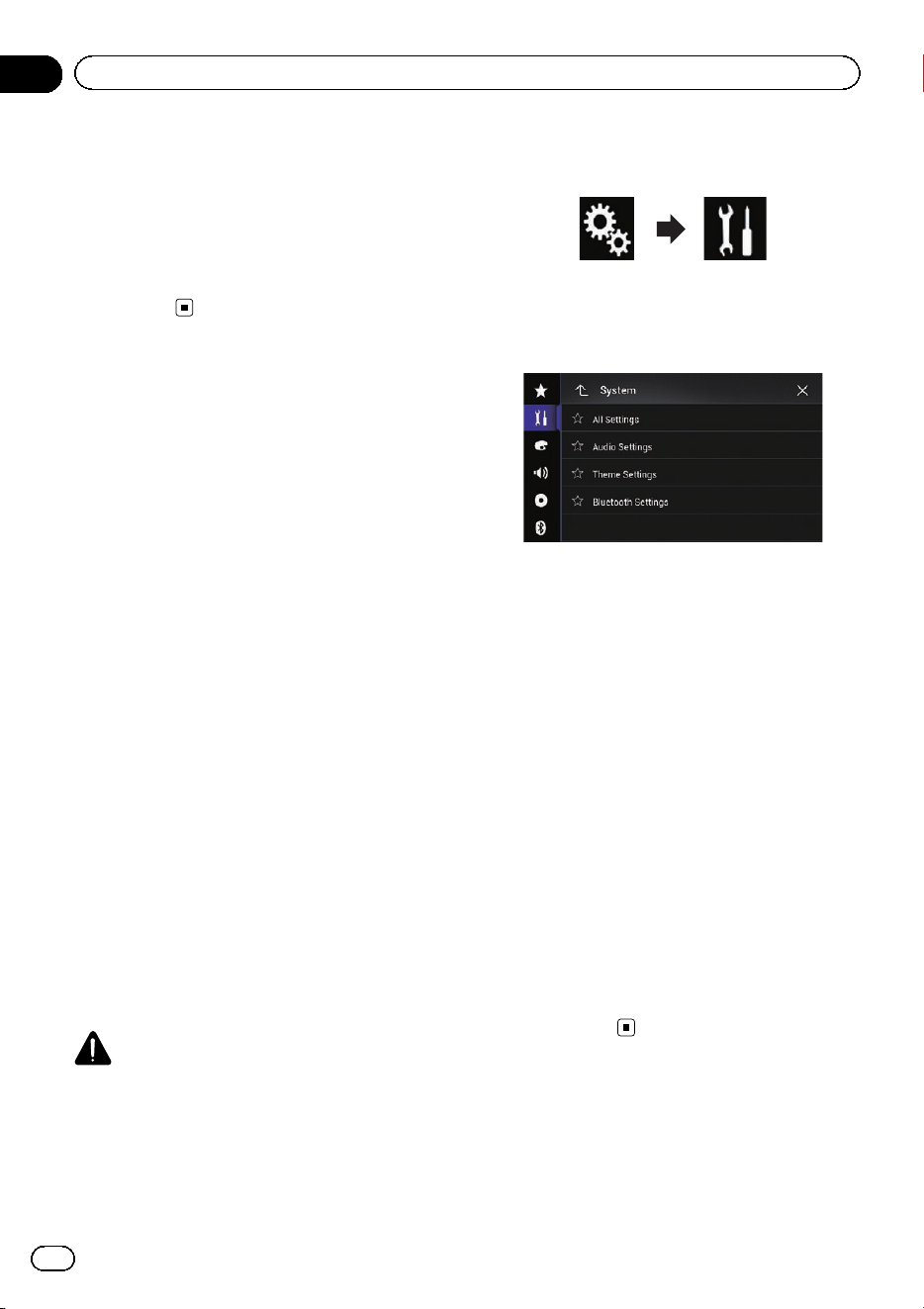

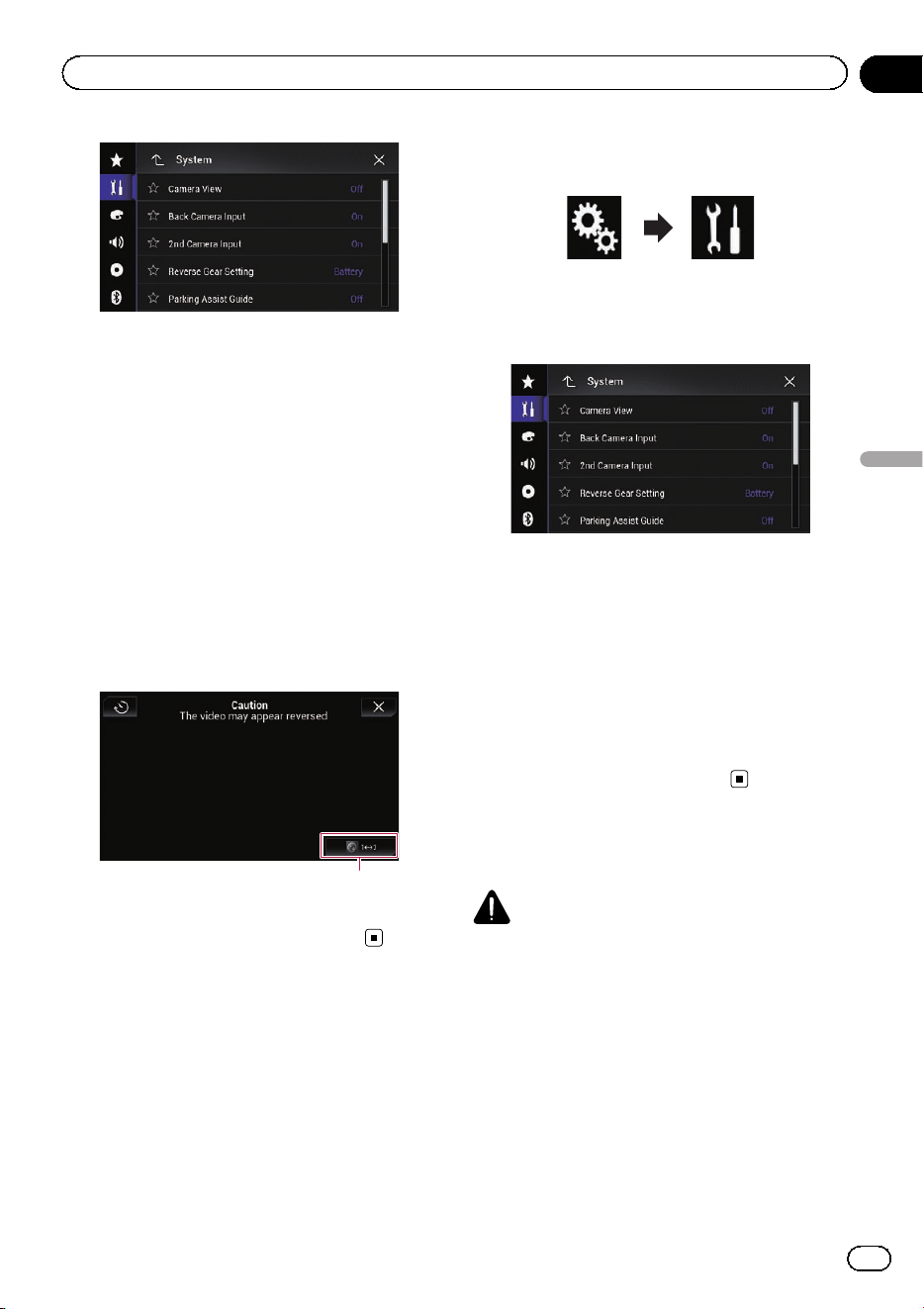

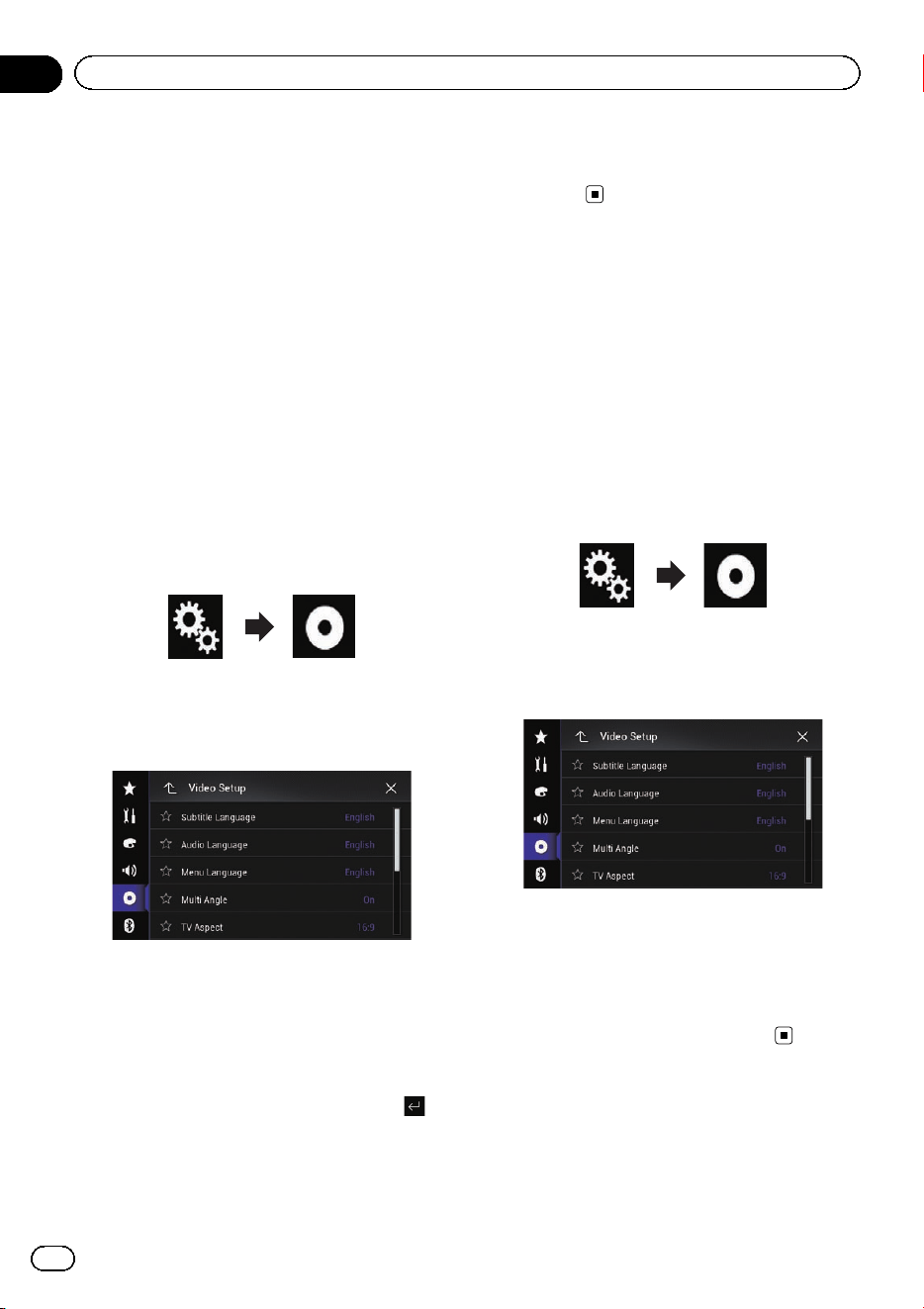

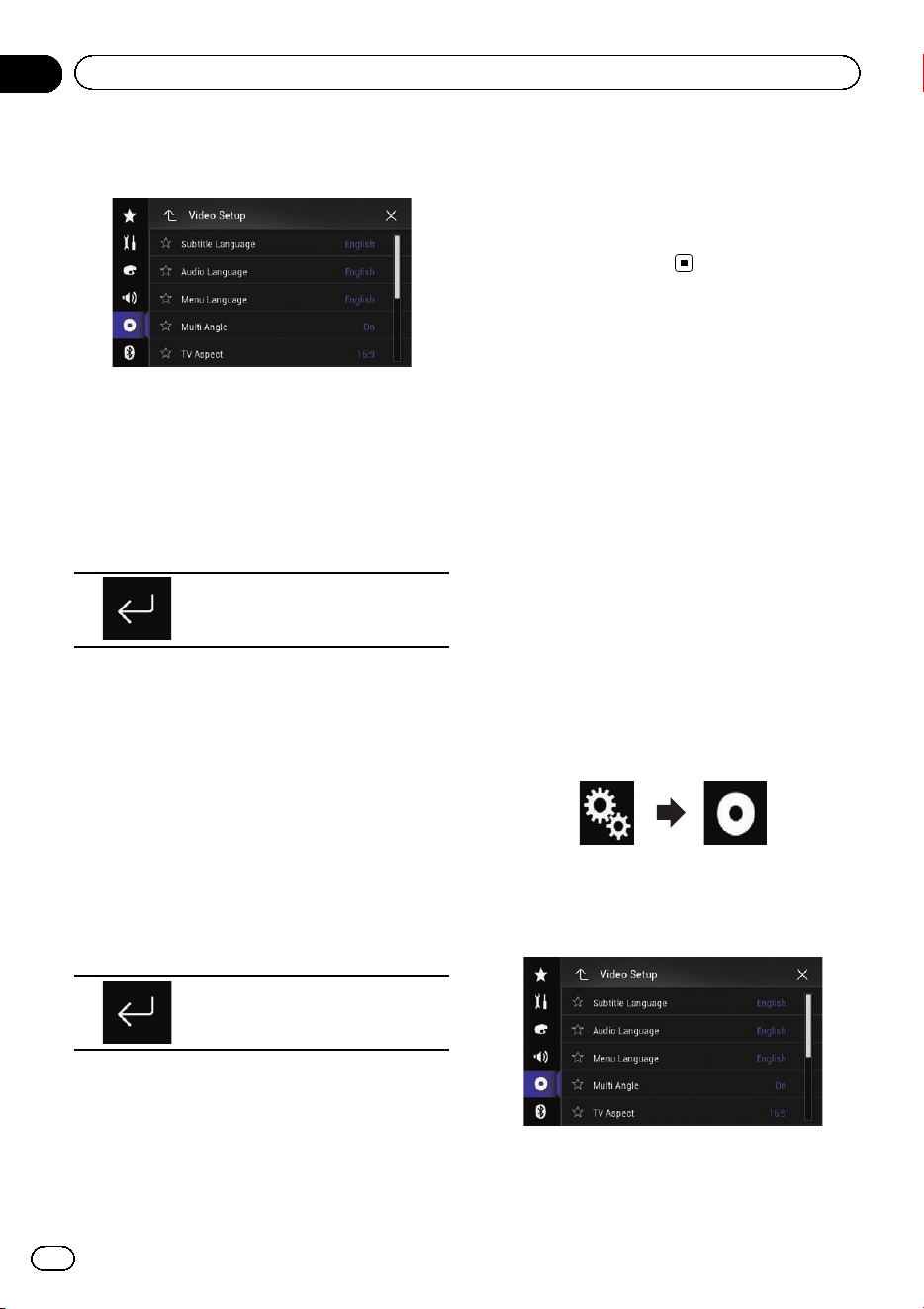

• Page 9 - English - : Checking sensor learning status and driving status 191 Clearing the status 192 Checking the connections of leads 192 Audio adjustments Using faderbalance adjustment 194 Using balance adjustment 194 Switching sound mutingattenuation 195 Adjusting source levels 195 Adjusting the filter 198 Adjusting the front and rear speaker output 198 Using the subwoofer output 198 Selecting the listening position 199 Adjusting the speaker output levels finely 199 Adjusting the time alignment 200 Using the automatic sound levelizer 202 Using the equalizer 202 Recalling equalizer curves 202 Customizing the equalizer curves 203 Using the autoadjusted equalizer 203 Adjusting the equalizer curve automatically Auto EQ 203 Before operating the Auto EQ function 204 Performing Auto EQ 204 Theme menu Selecting the background display 207 Changing to the background display image stored on the external storage device USB SD 207 Setting the illumination color 208 Selecting the color from the preset colors 208 Creating a userdefined color 209 Selecting the theme color 209 Selecting the clock image 209 Changing the preinstalled splash screen 210 Changing to the splash screen stored on the external storage device USB SD 210 Replicating the settings 211 Exporting Theme settings 211 Importing Theme settings 212 Setting up the video player Setting the toppriority languages 213 Setting the subtitle language 213 Setting the audio language 213 Setting the menu language 214 Setting the angle icon display 214 Setting the aspect ratio 215 Setting parental lock 215 Setting the code number and level 215 Displaying your DivX VOD registration code 216 Displaying your DivX VOD deregistration code 217 Automatic playback of DVDs 217 Setting the video signal for the rear view camera 218 Language code chart for DVDs 219 Favorite menu Creating a shortcut 220 Selecting a shortcut 220 Removing a shortcut 220 Common operations Setting the time and date 221 Storing song information to an iPod iTunes Tagging 221 Setting the Sound Retriever function 222 Changing the wide screen mode 223 Other functions Selecting the video for the rear display 224 Setting the antitheft function 224 Setting the password 224 Entering the password 225 En Contents

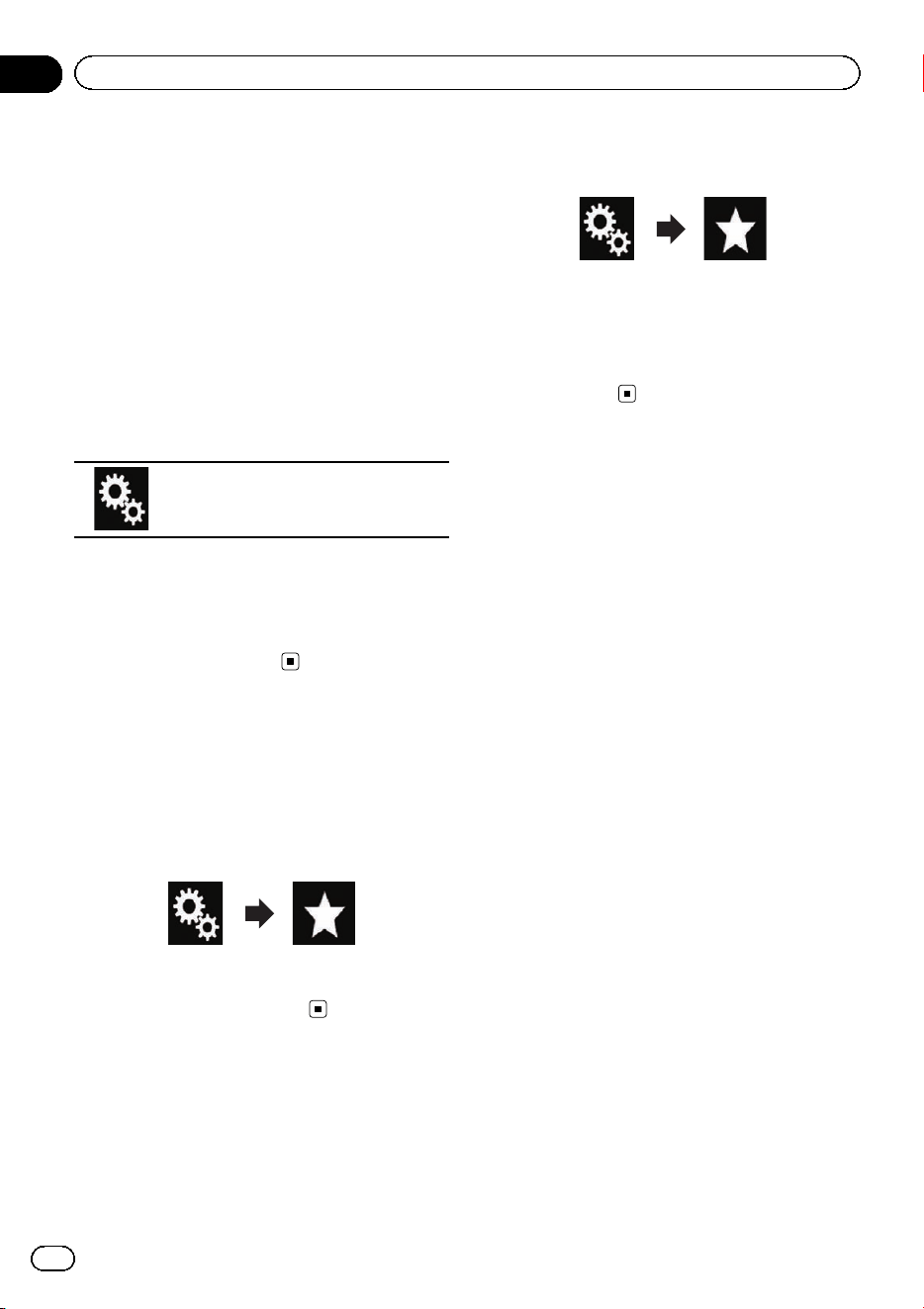

• Page 10 - English - : Deleting the password 225 Forgotten password 226 Restoring this product to the default settings 226 Restoring the default settings 226 Appendix Troubleshooting 227 Error messages 229 Positioning technology 236 Positioning by GPS 236 Positioning by dead reckoning 236 How do GPS and dead reckoning work together 236 Handling large errors 237 When positioning by GPS is impossible 237 Conditions likely to cause noticeable positioning errors 238 Route setting information 240 Route search specifications 240 Handling and care of discs 240 Builtin drive and care 241 Ambient conditions for playing a disc 241 Playable discs 241 DVDVideo and CD 241 AVCHD recorded discs 242 Playing DualDisc 242 Dolby Digital 242 Detailed information for playable media 242 Compatibility 242 Media compatibility chart 245 Bluetooth 249 SiriusXM satellite radio 249 HD Radio Technology 249 SDHC 249 WMAWMV 249 DivX 249 AAC 250 Google Google Play Android and Android Auto 250 MirrorLink 250 MIXTRAX 250 Detailed information regarding connected iPod devices 250 iPod and iPhone 250 Lightning 251 App Store 251 iOS 251 iTunes 251 iTunes Radio 251 Using appbased connected content 251 Pandora Aha Radio 252 HDMI 252 MHL 252 IVONA TexttoSpeech 252 Notice regarding video viewing 252 Notice regarding DVDVideo viewing 252 Notice regarding MP3 file usage 253 Notice regarding open source licenses 253 Map coverage 253 Using the LCD screen correctly 253 Handling the LCD screen 253 Liquid crystal display LCD screen 253 Maintaining the LCD screen 253 LED lightemitting diode backlight 254 Display information 255 Phone menu 255 System menu 255 Theme menu 256 Audio menu 257 Video Setup menu 257 Bluetooth menu 258 Specifications 259 Contents En
• Page 11 - English - : Manual overview Before using this product be sure to read Im portant Information for the User a separate manual which contains warnings cautions and other important information that you should note The screen examples shown in this manual are those for AVIC8100NEX The screens may vary according to the models How to use this manual Finding the operation procedure for what you want to do When you have decided what you want to do you can find the page you need from the Con tents Finding the operation procedure from a menu name If you want to check the meaning of an item displayed on screen you will find the neces sary page from the Display information at the end of this manual Conventions used in this manual Before moving on take a few minutes to read the following information about the conven tions used in this manual Familiarity with these conventions will help you greatly as you learn how to use your new equipment Buttons on this product are described in ALL CAPITALS BOLD lettering eg HOME button MODE button Menu items screen titles and functional components are described in bold with double quotation marks eg System screen or Audio screen Touch panel keys that are available on the screen are described in bold in brackets eg Disc AV Source Settings Extra information alternatives and other notes are presented in the following for mat eg p If the home location has not been stored yet set the location first Functions of other keys on the same screen are indicated with at the beginning of the description eg If you touch OK the entry is deleted References are indicated like this eg For details of the operations refer to How to use the screens on page 22 Model icons shown in this manual indicate that the description is intended for the models indicated by the icons If the following icons are shown the de scription is applied only to the models shown eg 8100NEX 7100NEX Terms used in this manual Front display and Rear display In this manual the screen that is attached to the body of this product will be referred to as the Front display Any additional screen that is commercially available and can be con nected to this product will be referred to as the Rear display Video image Video image in this manual indicates mov ing images of DVDVideos VideoCDs ROM Videos DivX iPod and any equipment that is connected to this product such as general purpose AV equipment En Chapter Introduction Introduction
• Page 12 - English - : External storage device USB SD The SD memory card SDHC memory card and USB memory device are collectively re ferred to as the external storage device USB SD If it indicates the USB memory only it is referred to as the USB storage device SD memory card The SD memory card and SDHC memory card are collectively referred to as the SD memory card iPod In this manual iPod and iPhone will be re ferred to as iPod Notes on internal memory Before removing the vehicle battery If the battery is disconnected or discharged the memory will be erased and must be repro grammed p Some of the settings and recorded con tents will not be reset Data subject to erasure The information is erased by disconnecting the yellow lead from the battery or removing the battery itself p Some of the settings and recorded con tents will not be reset Resetting the microprocessor CAUTION Pressing the RESET button resets settings and re corded contents to the factory settings p Do not perform this operation when a device is connected to this product p Some of the settings and recorded contents will not be reset The microprocessor must be reset under the following conditions Prior to using this product for the first time after installation If this product fails to operate properly If there appears to be problems with the op eration of the system If your vehicle position is shown on the map with a significant positioning error 1 Turn the ignition switch OFF 2 Press the RESET button with a pen tip or other pointed implement Settings and recorded contents are reset to the factory settings 8100NEX 7100NEX 6100NEX 5100NEX 1 RESET button En Chapter Introduction
• Page 13 - English - : Checking part names and functions This chapter gives information about the names of the parts and the main features using the but tons 8100NEX 7100NEX 1 3 4 6 7 8 92 b c a 6100NEX 5100NEX b e d 1 LCD screen 2 Remote control sensor p The remote control CDR33 sold sepa rately is available For details concerning operations see the remote control manual 3 VOL button Press to adjust the AV Audio and Video source volume 4 MAP button Press to display the Map screen For details of the operations refer to How to use the screens on page 22 Press and hold to display the rear view camera image p This function is available only when Back Camera Input or 2nd Cam era Input is set to On 5 HOME button Press to display the Top menu screen For details of the operations refer to How to use the screens on page 22 Press and hold to activate the voice re cognition function For details refer to Using the voice re cognition function on page 86 6 MODE button Press to switch between the Application screen and the AV operation screen p If the display cannot switch from the AV operation screen to the Applica tion screen when the MODE button is pressed the display will turn off For details of the operations refer to How to use the screens on page 22 Press and hold to turn the display off when the Application screen is available For details refer to Turning off the dis play on page 20 7 TRK button Press to perform manual seek tuning fast forward reverse and track search controls 8 h button 9 RESET button For details of the operations refer to Re setting the microprocessor on page 12 En Chapter Basic operation Basic operation

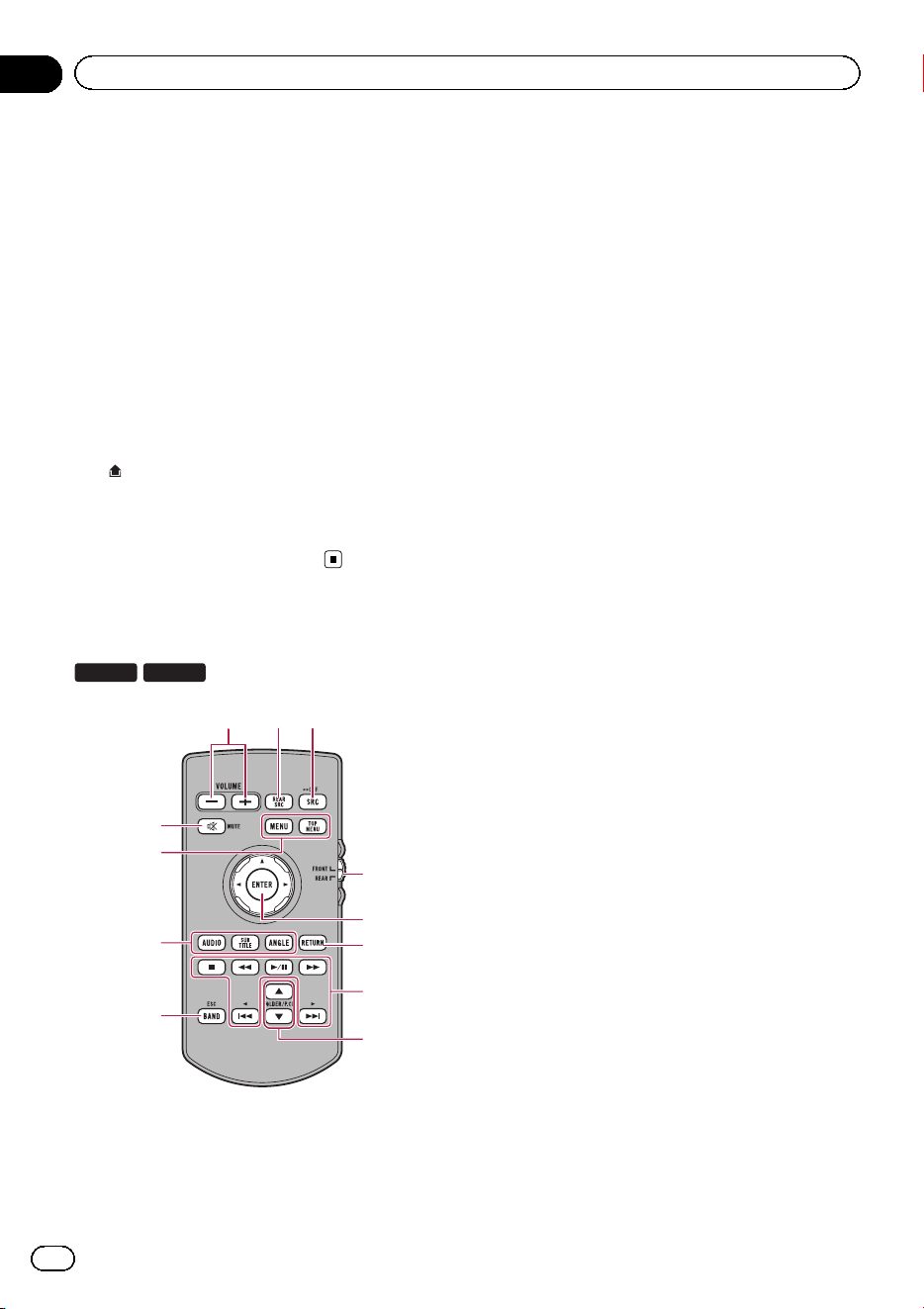

• Page 14 - English - : a Auto EQ microphone input jack Use to connect a microphone for acoustical measurement sold separately b Discloading slot Insert a disc to play For details refer to Inserting and ejecting a disc on page 17 c SD card slot For details refer to Inserting and ejecting an SD memory card on page 18 d Detachable faceplate e button Press to remove the detachable faceplate from this product For details refer to Removing the detach able faceplate on page 16 Remote control 8100NEX 6100NEX b a c 1 VOLUME 2 REAR SRC Press to cycle through all the available rear sources Press and hold to turn the rear source off 3 SRCOFF Press to cycle through all the available front sources Press and hold to turn the front source off 4 Source mode select switch Use to switch the source mode between the front source and the rear source 5 Thumb pad Use to select a menu on the DVD menu 6 RETURN Returns to the specified point and starts playback from there 7 f Press to pause or resume playback m For audio Press and hold to perform fast reverse For video Press to perform fast reverse Press to change the fast reverse speed n For audio Press and hold to perform fast forward For video Press to perform fast forward Press to change the fast for ward speed o Press to return to the previous track chap ter p Press to go to the next track chapter g Press to stop playback If you resume playback playback will start from the point where you stopped Touch the key again to stop playback completely 8 FOLDERPCH Press to select the next or previous disc or folder En Chapter Basic operation
• Page 15 - English - : Press to recall radio station frequencies assigned to preset channel keys 9 MUTE Press to mute Press again to unmute a MENU Press to display the DVD menu during DVD playback TOP MENU Press to return to the top menu during DVD playback b AUDIO Press to change the audio language during DVD playback SUBTITLE Press to change the subtitle language dur ing DVD playback ANGLE Press to change the viewing angle during DVD playback c BANDESC Press to select the tuner band when tuner is selected as a source Press to cancel the control mode of func tions Press to switch between media file types when playing the following types of data Disc External storage device USB SD Use and care of the remote control Installing the battery Slide the tray on the back of the remote con trol out and insert the battery with the plus and minus poles aligned properly When using for the first time pull out the film protruding from the tray WARNING Keep the battery out of the reach of children Should the battery be swallowed consult a doctor immediately Batteries battery pack or batteries installed must not be exposed to excessive heat such as sunshine fire or the like CAUTION Remove the battery if the remote control is not used for a month or longer There is a danger of explosion if the battery is incorrectly replaced Replace only with the same or equivalent type Do not handle the battery with metallic tools Do not store the battery with metallic objects If the battery leaks wipe the remote control completely clean and install a new battery When disposing of used batteries comply with governmental regulations or environmen tal public institutions rules that apply in your countryarea Using the remote control Point the remote control in the direction of the front panel to operate The remote control may not function prop erly in direct sunlight Important Do not store the remote control in high tem peratures or direct sunlight Do not let the remote control fall onto the floor where it may become jammed under the brake or gas pedal En Chapter Basic operation Basic operation
• Page 16 - English - : Protecting your product against theft 6100NEX 5100NEX The detachable faceplate can be detached from this product to discourage theft as de scribed below CAUTION Do not expose the detachable faceplate to ex cessive shock or disassemble it Never grip the buttons tightly or use force when removing or attaching the detachable faceplate Keep the detachable faceplate out of reach of small children to prevent them from placing it in their mouths After removing the detachable faceplate keep it in a safe place so it is not scratched or da maged Do not expose the detachable faceplate to di rect sunlight and high temperatures When removing or attaching the detachable faceplate do so after turning off the ignition switch ACC OFF Removing the detachable faceplate p This product cannot be operated while the detachable faceplate is removed from this product 1 Press the button When you release your finger the bottom of the detachable faceplate separates slightly from this product 2 Gently grip the bottom of the detach able faceplate and slowly pull it outward 1 Detachable faceplate Attaching the detachable faceplate 1 Slide the detachable faceplate all the way into this product Make sure the detachable faceplate is se curely connected to the mounting hooks of this product 2 Push the lower part of the detachable faceplate until you hear a click If you fail to successfully attach the detach able faceplate to this product try again but be careful not to force it as the panel could be damaged Notes on using the LCD panel 8100NEX 7100NEX WARNING Keep hands and fingers clear of this product when opening closing or adjusting the LCD panel Be especially cautious of childrens hands and fingers Do not use with the LCD panel left open If the LCD panel is left open it may result in injury in the event of an accident En Chapter Basic operation

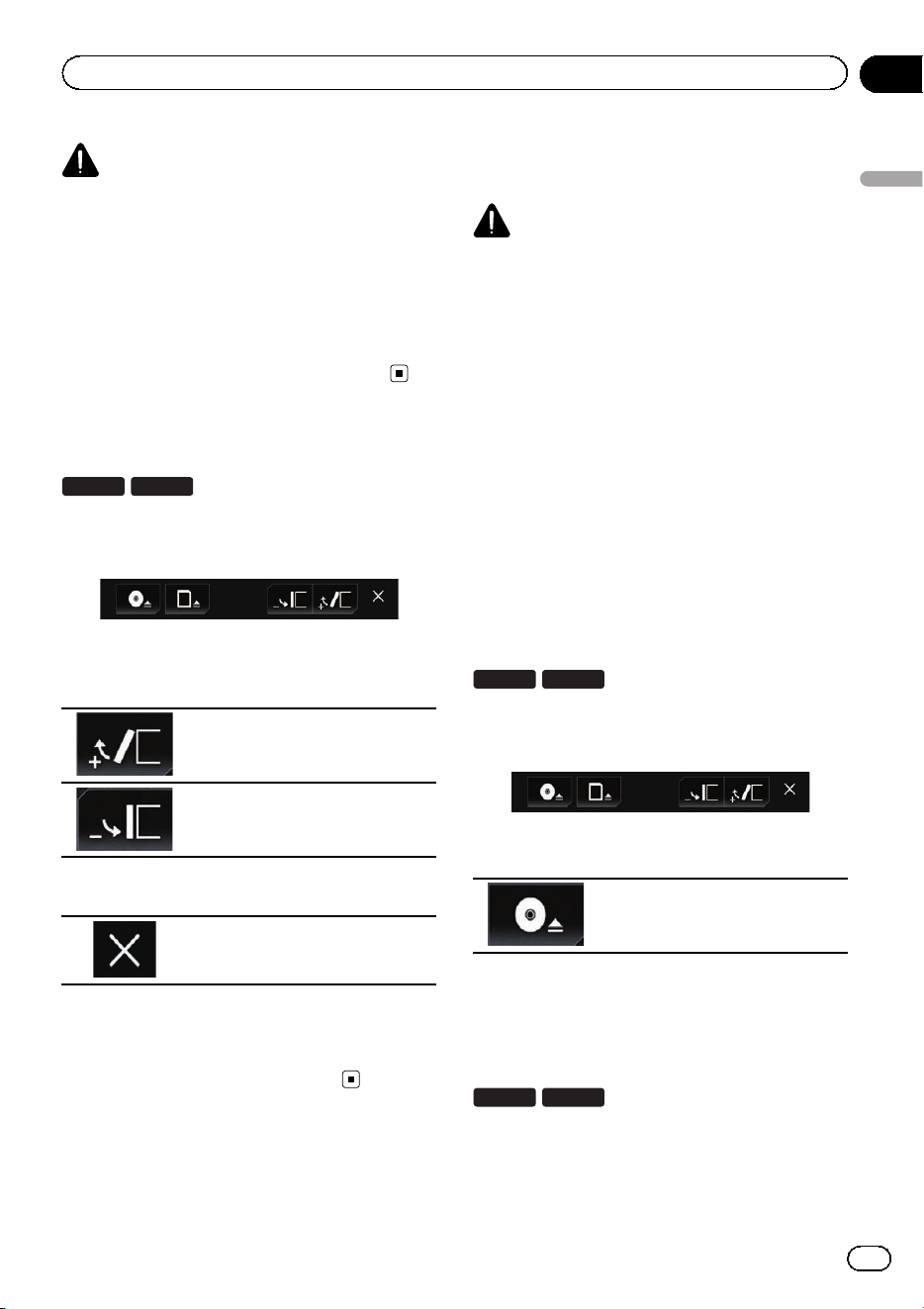

• Page 17 - English - : CAUTION Do not open or close the LCD panel by force This may cause a malfunction Do not operate this product until the LCD panel has completely opened or closed If this product is operated while the LCD panel is opening or closing the LCD panel may stop at that angle for safety Do not place a glass or can on the open LCD panel Doing so may break this product Adjusting the LCD panel angle 8100NEX 7100NEX 1 Press the h button The following screen appears 2 Touch the following keys to adjust the angle of the LCD panel Laying the panel down Returning the panel to the upright position 3 Touch the following key Returns to the previous screen p The adjusted angle of the LCD panel will be memorized and the LCD panel will automa tically return to that angle the next time the LCD panel is opened or closed Insertingejecting connecting media CAUTION Do not insert anything other than a disc into the discloading slot Do not insert anything other than SD memory cards into the SD card slot Ejecting an SD memory card during data transfer can damage the SD memory card Be sure to eject the SD memory card by the pro cedure described in this manual Do not press the h button when an SD mem ory card is not fully inserted Doing so may da mage the card Do not press the h button before an SD mem ory card has been completely removed Doing so may damage the card Inserting and ejecting a disc Inserting a disc 8100NEX 7100NEX 1 Press the h button The following screen appears 2 Touch the following key Opens the LCD panel 3 Insert a disc into the discloading slot The disc is loaded and the LCD panel closes Ejecting a disc 8100NEX 7100NEX 1 Press the h button The following screen appears En Chapter Basic operation Basic operation

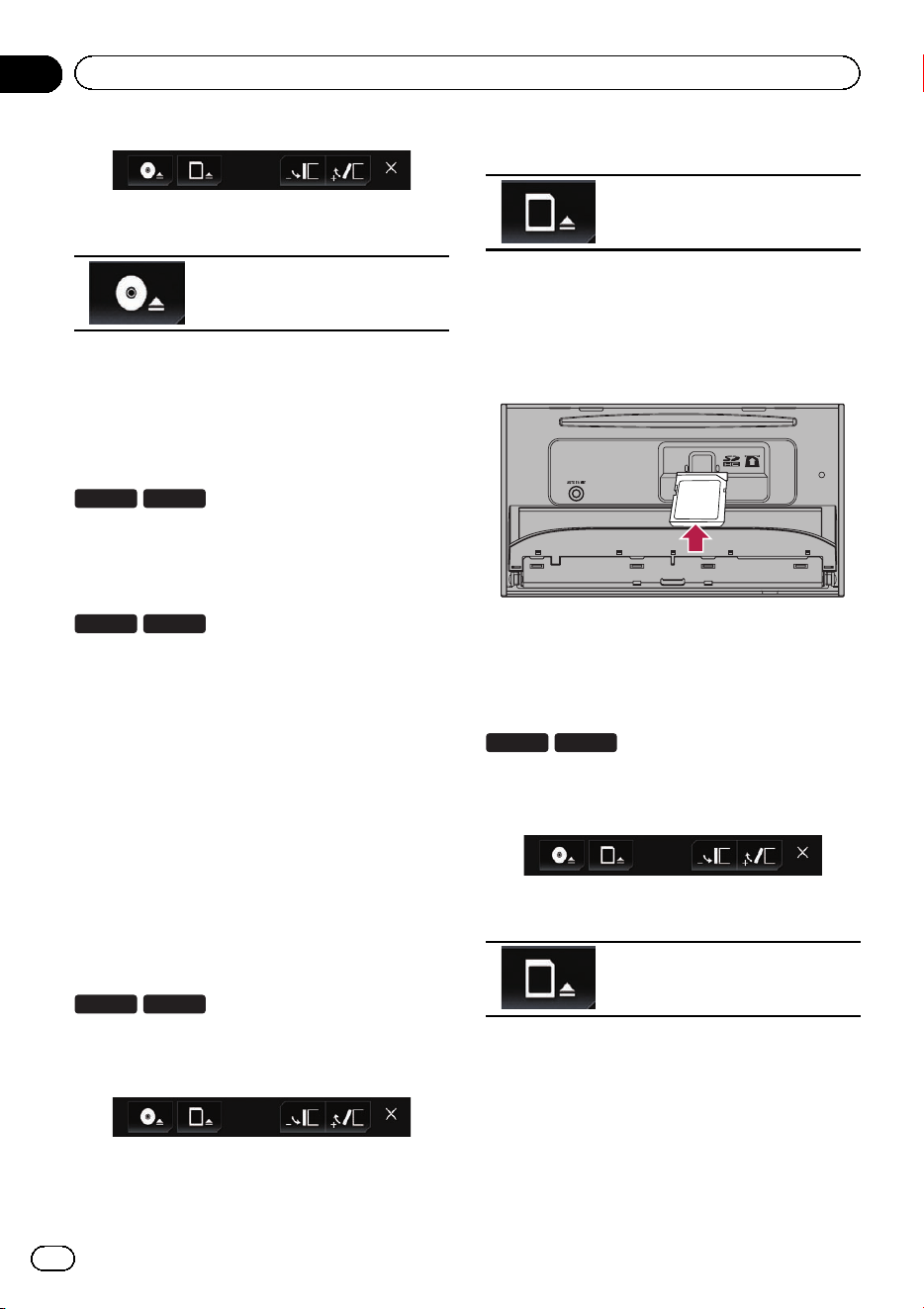

• Page 18 - English - : 2 Touch the following key The LCD panel opens and the disc is ejected 3 Remove the disc and press the h but ton The LCD panel closes Inserting a disc 6100NEX 5100NEX Insert a disc into the discloading slot Ejecting a disc 6100NEX 5100NEX Press the h button The disc is ejected Inserting and ejecting an SD memory card p This system is not compatible with the Multi Media Card MMC p Compatibility with all SD memory cards is not guaranteed p This product may not achieve optimum per formance with some SD memory cards Inserting an SD memory card 8100NEX 7100NEX 1 Press the h button The following screen appears 2 Touch the following key Opens the LCD panel 3 Insert an SD memory card into the SD card slot Insert it with the label surface faceup and press the card until it clicks and completely locks 4 Press the h button The LCD panel closes Ejecting an SD memory card 8100NEX 7100NEX 1 Press the h button The following screen appears 2 Touch the following key Opens the LCD panel 3 Press the middle of the SD memory card gently until it clicks The SD memory card is ejected 4 Pull the SD memory card out straight 5 Press the h button The LCD panel closes En Chapter Basic operation

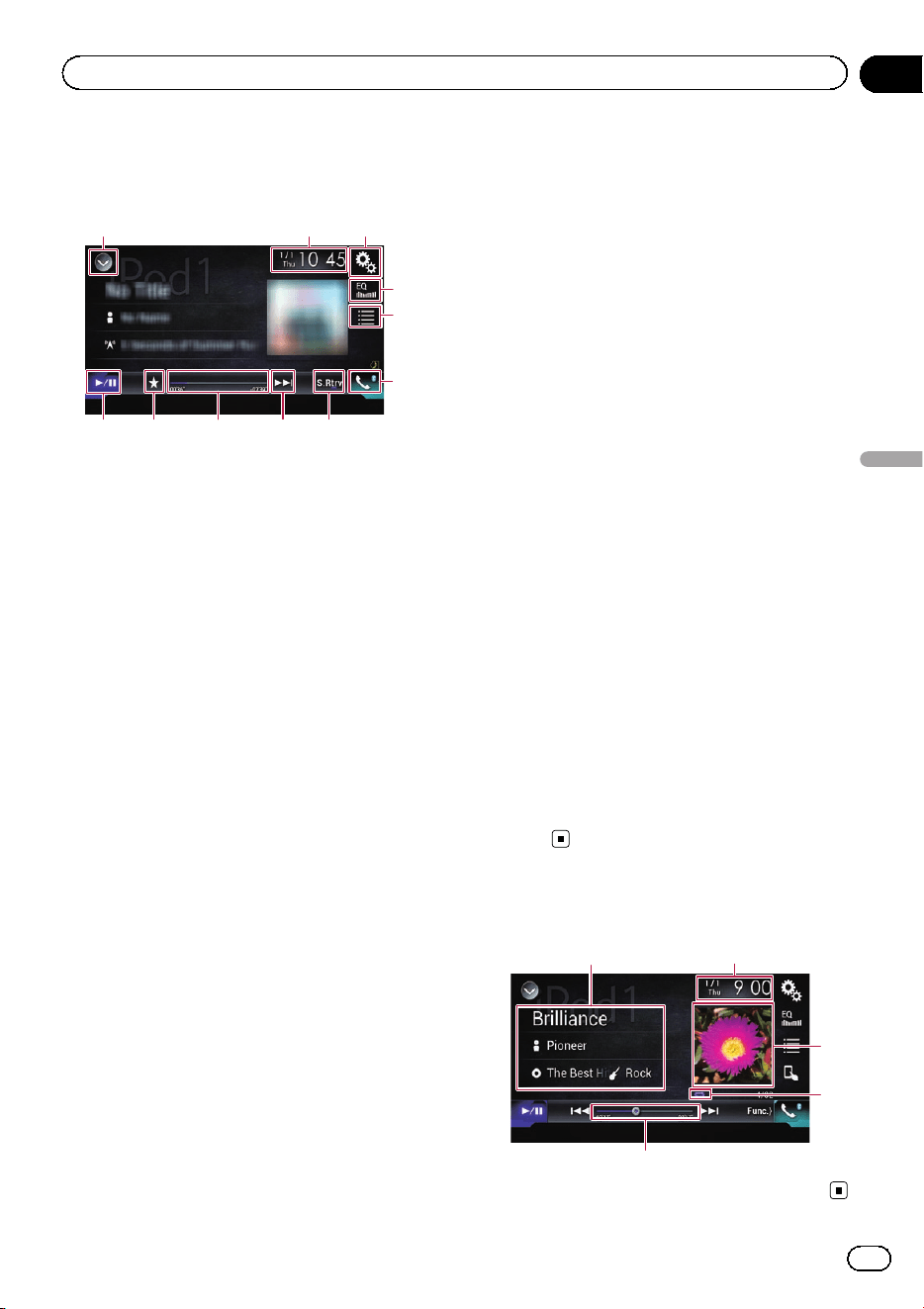

• Page 19 - English - : Connecting and disconnecting an iPod Connecting your iPod For details of the connections refer to the Installation Manual Disconnecting your iPod Pull out the cables after confirming that no data is being accessed Plugging and unplugging a USB storage device p This product may not achieve optimum per formance with some USB storage devices p Connection via a USB hub is not possible p A USB cable is required for connection Plugging in a USB storage device Plug a USB storage device into the USB cable 1 USB cable 2 USB storage device Unplugging a USB storage device Pull out the USB storage device after checking that no data is being accessed Startup and termination 1 Start the engine to boot up the system After a short pause the splash screen comes on for a few seconds 2 Turn off the vehicle engine to termi nate the system This product is also turned off On firsttime startup When you use this product for the first time select the language that you want to use 1 Start the engine to boot up the system After a short pause the splash screen comes on for a few seconds The Select Program Language screen ap pears 2 Touch the language that you want to use on screen 3 Touch the following key Displays the Smartphone Setup screen 4 Touch the item you want to set For details refer to Information on the con nections and functions for each device on page 90 5 Touch the following key Displays the Top menu screen If you touch the display returns to the pre vious screen En Chapter Basic operation Basic operation
• Page 20 - English - : Regular startup Start the engine to boot up the system After a short pause the splash screen comes on for a few seconds p The screen shown will differ depending on the previous conditions p Enter the password for the antitheft func tion if the password entry screen appears p The terms appear if the screen displayed last was the navigation screen Read the terms carefully checking the de tails and then touch OK if you agree to the conditions After you touch OK the screen that was displayed just before turning off the ignition switch ACC OFF is displayed A message about the map database After you start using this product a message related to map data may be displayed p This message is displayed the first time you turn on this product each month Tur ning off the display You can turn off the display at night or when the screen is too bright When the Application screen is available Press and hold the MODE button The display turns off p If you touch the screen when the display is off it reverts to the original screen When the Application screen is not available Press the MODE button The display turns off p If you touch the screen when the display is off it reverts to the original screen En Chapter Basic operation
• Page 21: En Chapter Basic operation Basic operation

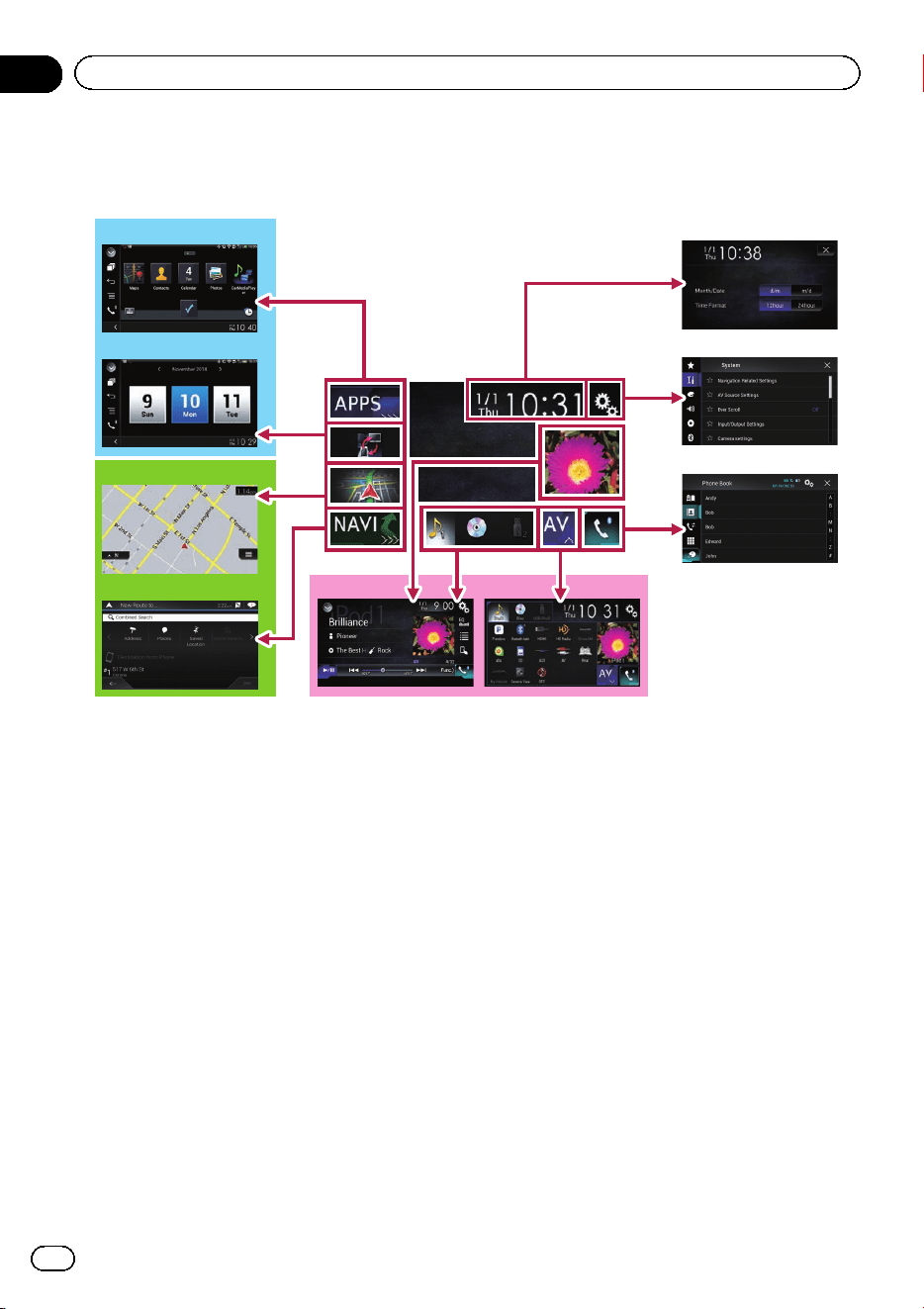

• Page 22: How to use the screens Switching screens using the touch panel keys a b En Chapter Basic operation

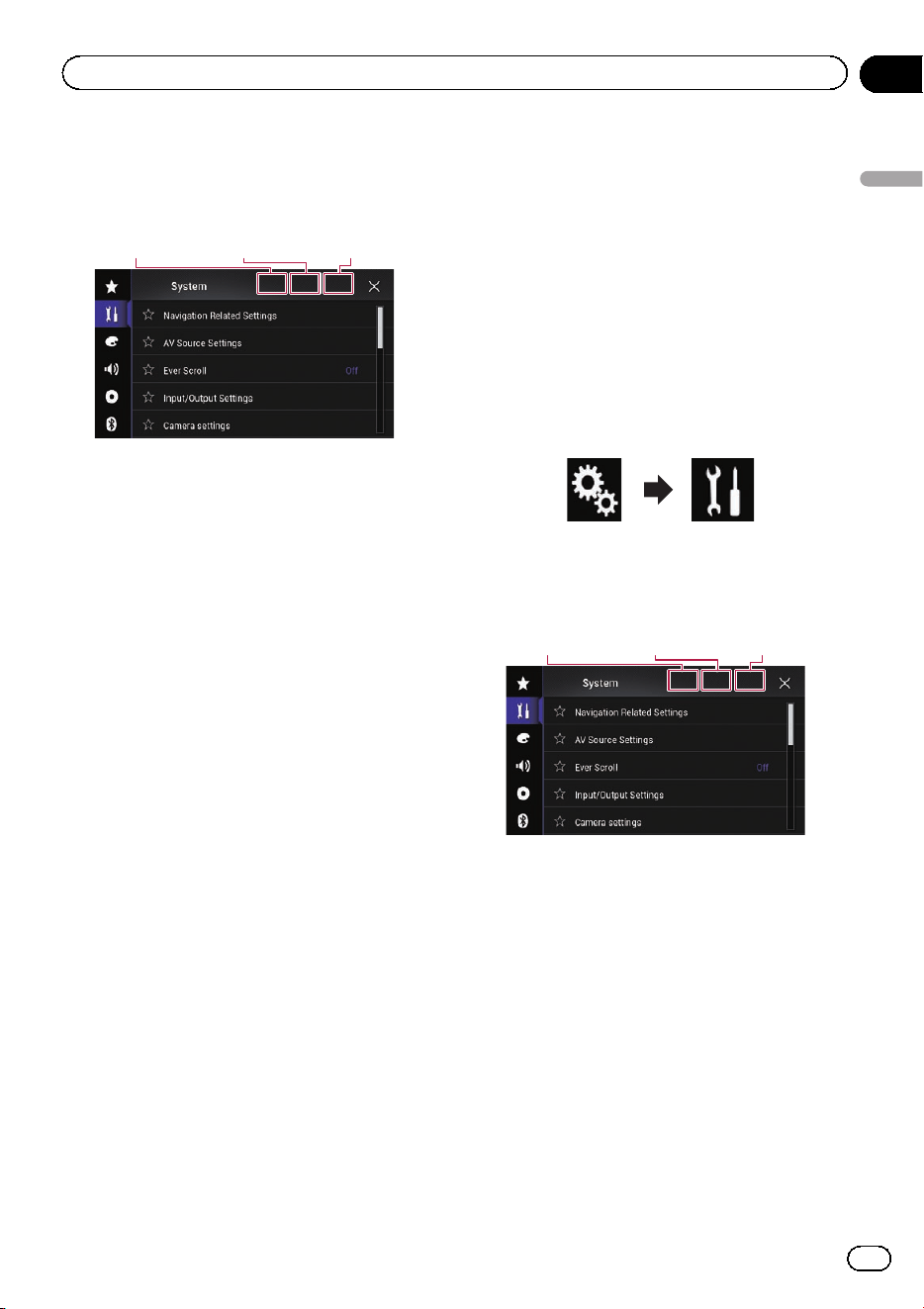

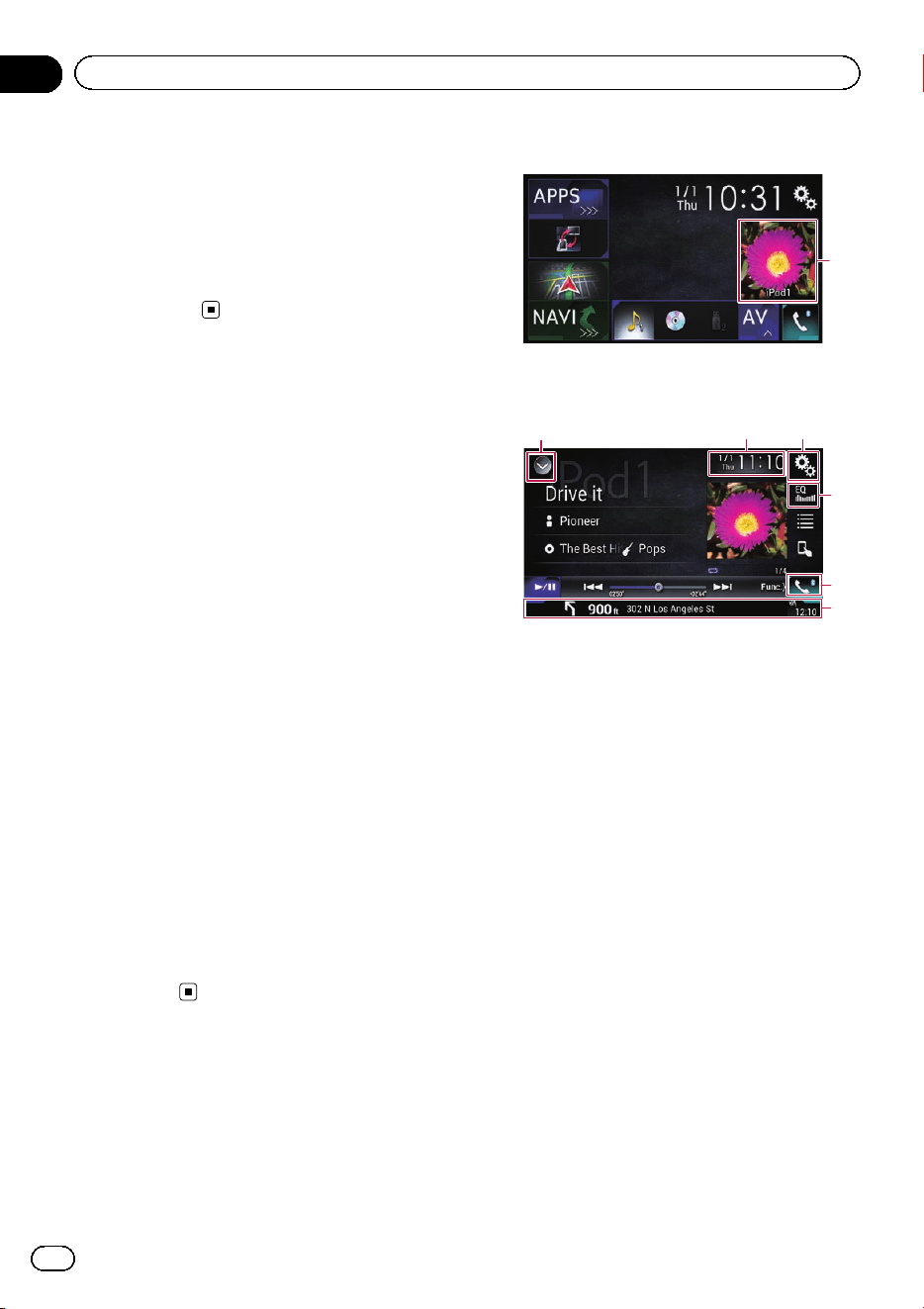

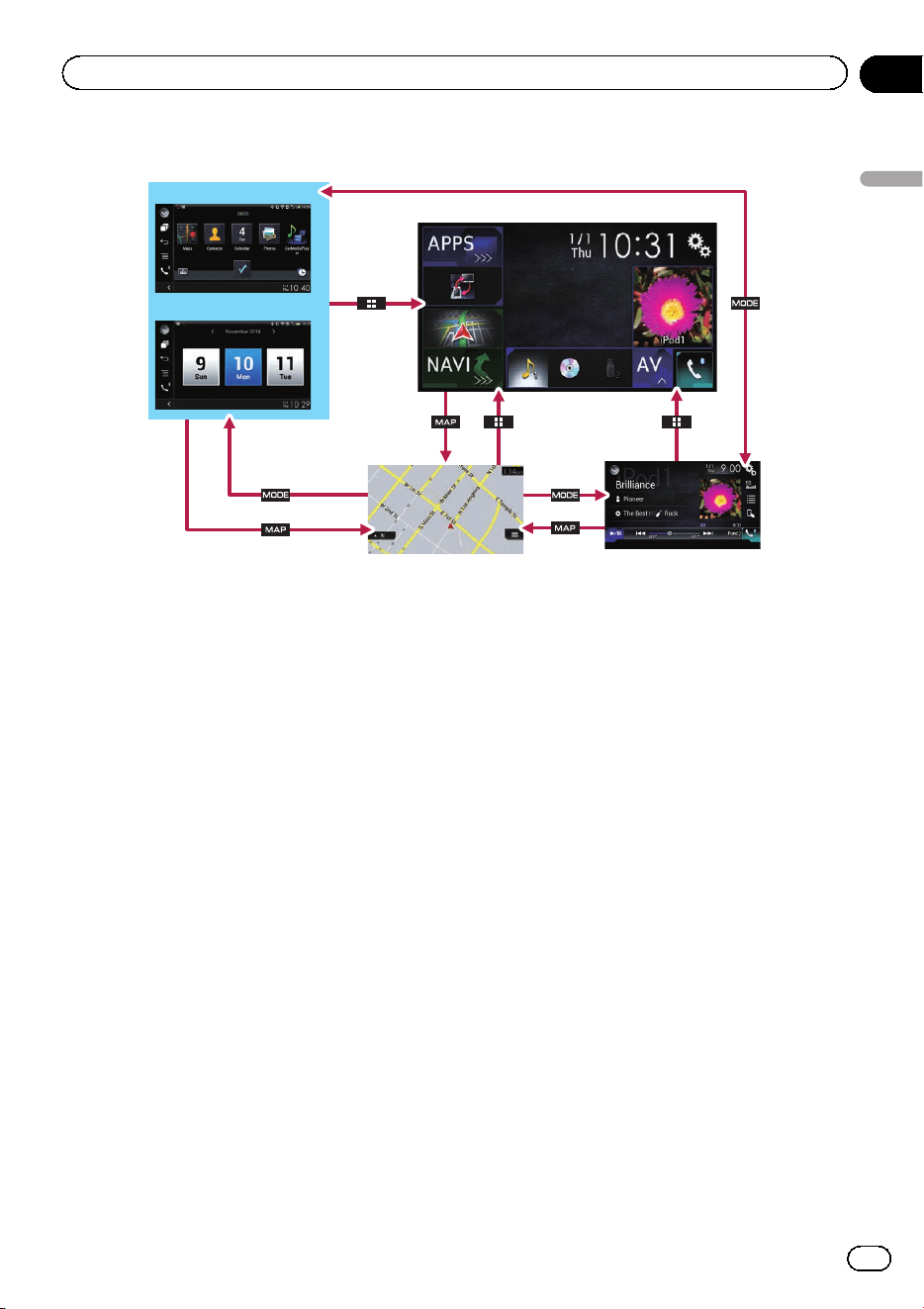

• Page 23 - English - : Switching screens using the hardware buttons a b 1 Top menu screen This is the starting menu to access the de sired screens and operate the various func tions p If you press the HOME button the Top menu screen is displayed p APPS is displayed when AppRadio Mode or MirrorLink mode is on p Android Auto is displayed when Android Auto is on for AVIC8100NEX and AVIC7100NEX 2 Time and date setting screen You can set the time and date settings 3 Setting menu screen You can customize the system and audio settings etc 4 Phone menu screen You can access the screen that is related to handsfree phoning 5 AV source selection screen You can select the AV source 6 Favorite source icons You can display the icons of frequently used sources by dragging the icons to the display area For details of the operation refer to Changing the display order of source icons on page 25 7 AV operation screen You can operate each source 8 Navigation menu screen You can specify way points and a destina tion 9 Map screen You can use this screen to check the cur rent vehicle position information and route to the destination You can customize navigation settings p If you press the MAP button the Map screen is displayed a Application operation screen You can control the iPhone or smartphone applications directly on this product p If applications are not available the Ap plication operation screen will not be dis played En Chapter Basic operation Basic operation
• Page 24 - English - : b Application menu screen This product can switch to the application menu on which you can display and oper ate the application for an iPhone or a smart phone on the screen p If application menus are not available the Application menu screen will not be displayed Supported AV source You can play or use the following sources with this product Radio FM AM 1 HD Radio HD Radio tuner 2 CD ROM compressed audio or video files DVDVideo VideoCD The following sources can be played back or used by connecting an auxiliary device USB SD 3 iPod My Vehicle Pandora Aha Radio Bluetooth audio SiriusXM Satellite Radio AV input AV AUX HDMI 2 p 1 Available for AVIC5100NEX p 2 Available for AVIC8100NEX AVIC 7100NEX and AVIC6100NEX p 3 Available for AVIC8100NEX and AVIC 7100NEX Displaying the AV operation screen 1 Press the HOME button to display the Top menu screen 2 Touch the AV operation key 1 AV operation key The AV operation screen appears 1 Displays the source list For details refer to Selecting a front source on the source list on page 25 2 Displays the Time and date setting screen For details refer to Setting the time and date on page 221 3 Displays the Setting menu screen 4 Recalls equalizer curves For details refer to Using the equalizer on page 202 5 Displays the Phone menu screen For details refer to Displaying the phone menu on page 80 6 Shows the navigation information The distance to the next guidance point the name of the street on which the next gui dance point is located the name of the street that the vehicle is currently traveling on the estimated time of arrival and warn ing icons etc are displayed p This is not displayed for some sources p This is not displayed when Navigation info window is set to Off En Chapter Basic operation

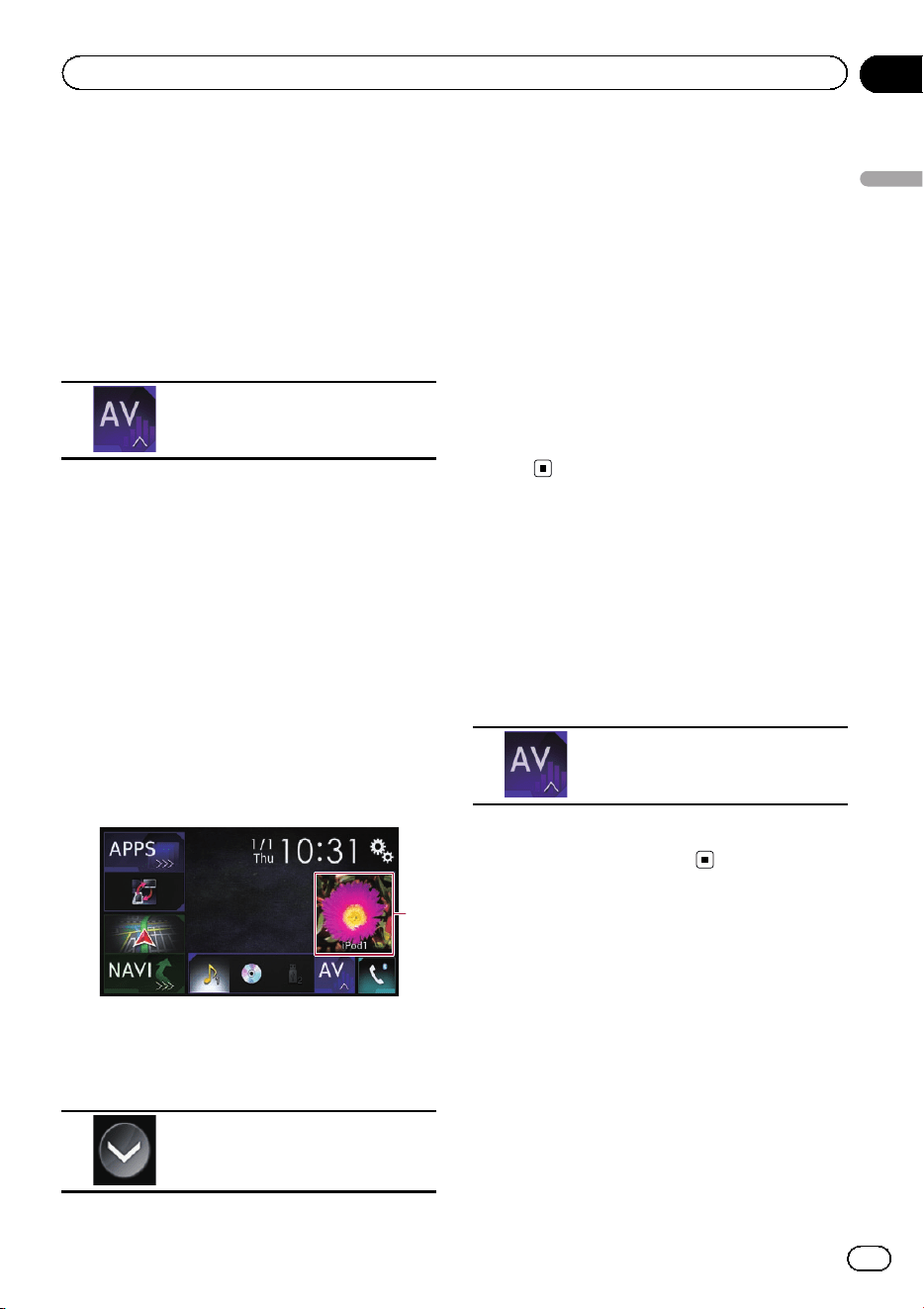

• Page 25 - English - : For details refer to Navigation info win dow on page 179 Selecting a front source on the AV source selection screen 1 Press the HOME button to display the Top menu screen 2 Touch the following key Displays the AV source selection screen 3 Touch the source icon you want to se lect The AV operation screen of the selected source appears Selecting a front source on the source list p This function is not available during a call via this product 1 Press the HOME button to display the Top menu screen 2 Touch the AV operation key 1 AV operation key The AV operation screen appears 3 Touch the following key Displays the source list 4 Touch the source key you want to se lect The AV operation screen of the selected source appears p Camera View is available only when Back Camera Input or 2nd Camera Input is set to On Selecting a rear source You can select a source output to the rear dis play For details of the operations refer to Select ing the video for the rear display on page Tur ning off the AV source Turn off the AV source to stop playing or re ceiving the AV source 1 Press the HOME button to display the Top menu screen 2 Touch the following key Displays the AV source selection screen 3 Touch OFF The AV source is turned off Changing the display order of source icons You can change the display order of source icons on the AV source selection screen p This setting is available only when you stop your vehicle in a safe place and apply the parking brake p This function is not available during a call via this product 1 Press the HOME button to display the Top menu screen En Chapter Basic operation Basic operation

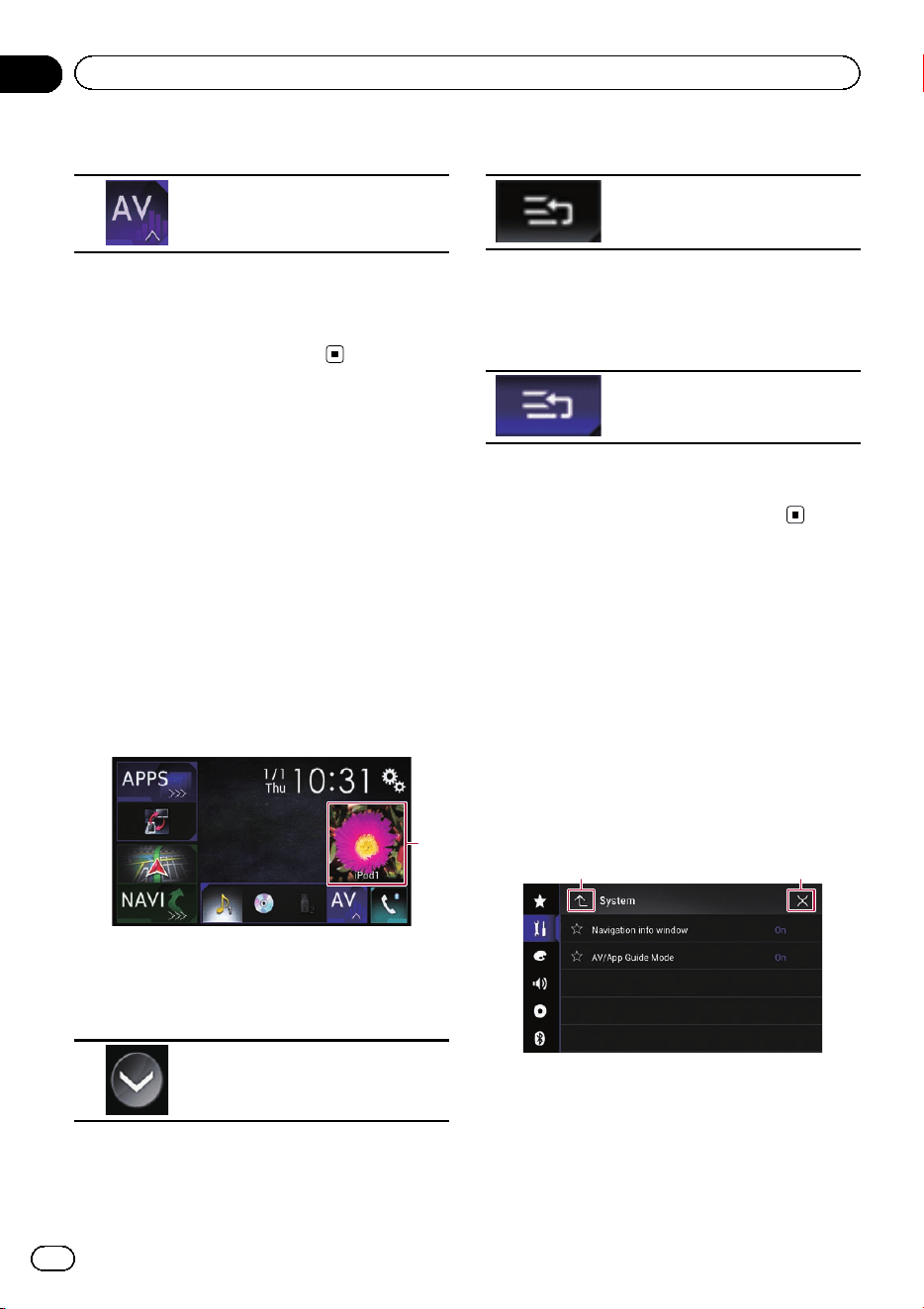

• Page 26 - English - : 2 Touch the following key Displays the AV source selection screen 3 Touch and hold a source icon and drag the icon to the desired position p If the source icon is moved the order of the source list is also changed Changing the display order of source keys You can change the display order of source keys on the source list p This setting is available only when you stop your vehicle in a safe place and apply the parking brake p This function is not available during a call via this product 1 Press the HOME button to display the Top menu screen 2 Touch the AV operation key 1 AV operation key The AV operation screen appears 3 Touch the following key Displays the source list 4 Touch the following key The source keys can be moved 5 Drag the source key to the desired posi tion 6 Touch the following key Returns to the previ ous screen p If the source key is moved the source icons displayed on the Top menu screen and the AV source screen are also moved Using the touch panel You can operate this product by touching the marks and items touch panel keys displayed on the screen directly with your fingers p To protect the LCD screen from damage be sure to touch the touch panel keys only with your finger and do so gently Using the common touch panel keys 1 2 1 Returns to the previous screen 2 Closes the screen En Chapter Basic operation

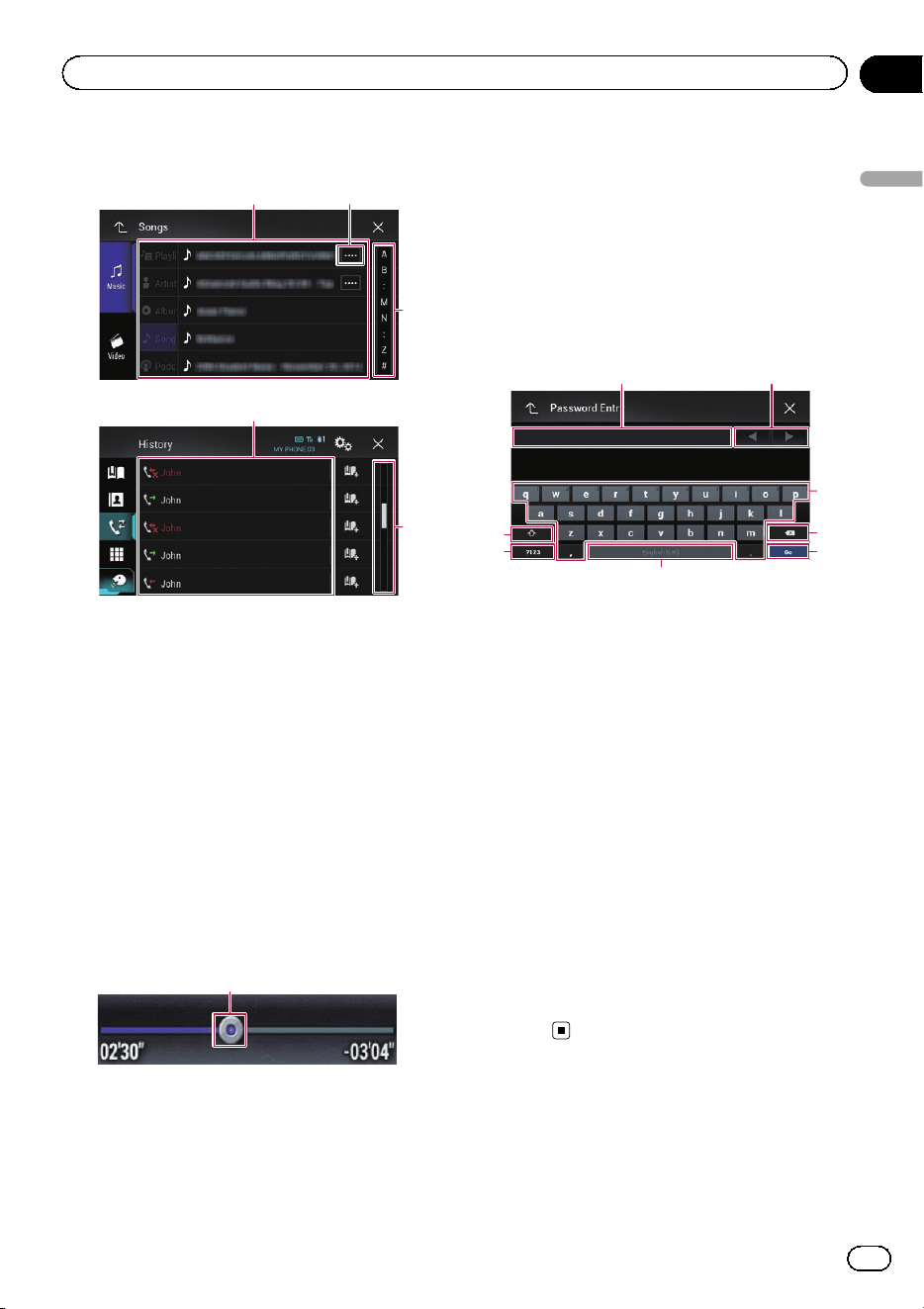

• Page 27 - English - : Operating list screens 1 Touching an item on the list selects the item or narrows down the options 2 Appears when all characters are not displayed on the display area If you touch the key the rest of the characters are scrolled for display 3 Appears when items cannot be displayed on a single page only Drag the slider bar to view any hidden items Also you can drag the list to view any hidden items Operating the time bar 1 You can change the playback point by drag ging the key p Playback time corresponding to the po sition of the key is displayed while drag ging the key p This function is not available when using iPod function with an iPhone 6 Plus iPhone 6 iPhone 5s iPhone 5c iPhone 5 or iPod touch 5th genera tion p This function is not available for some media or sources Operating the onscreen keyboard 1 Displays the characters that are entered If there is no text in the box an informative guide with text appears 2 Moves the cursor to the right or left for a num ber of characters equivalent to the number of touches 3 Enters the characters in the text box 4 Deletes the input text to the left of the cursor one letter at a time Continuing to touch the key deletes all of the text 5 Confirms the entry and proceeds to the next step 6 Enters a space A space equivalent to the number of touches is inserted 7 Switches between alphabet and numbers symbols 8 Switches between capital and lower case letters En Chapter Basic operation Basic operation

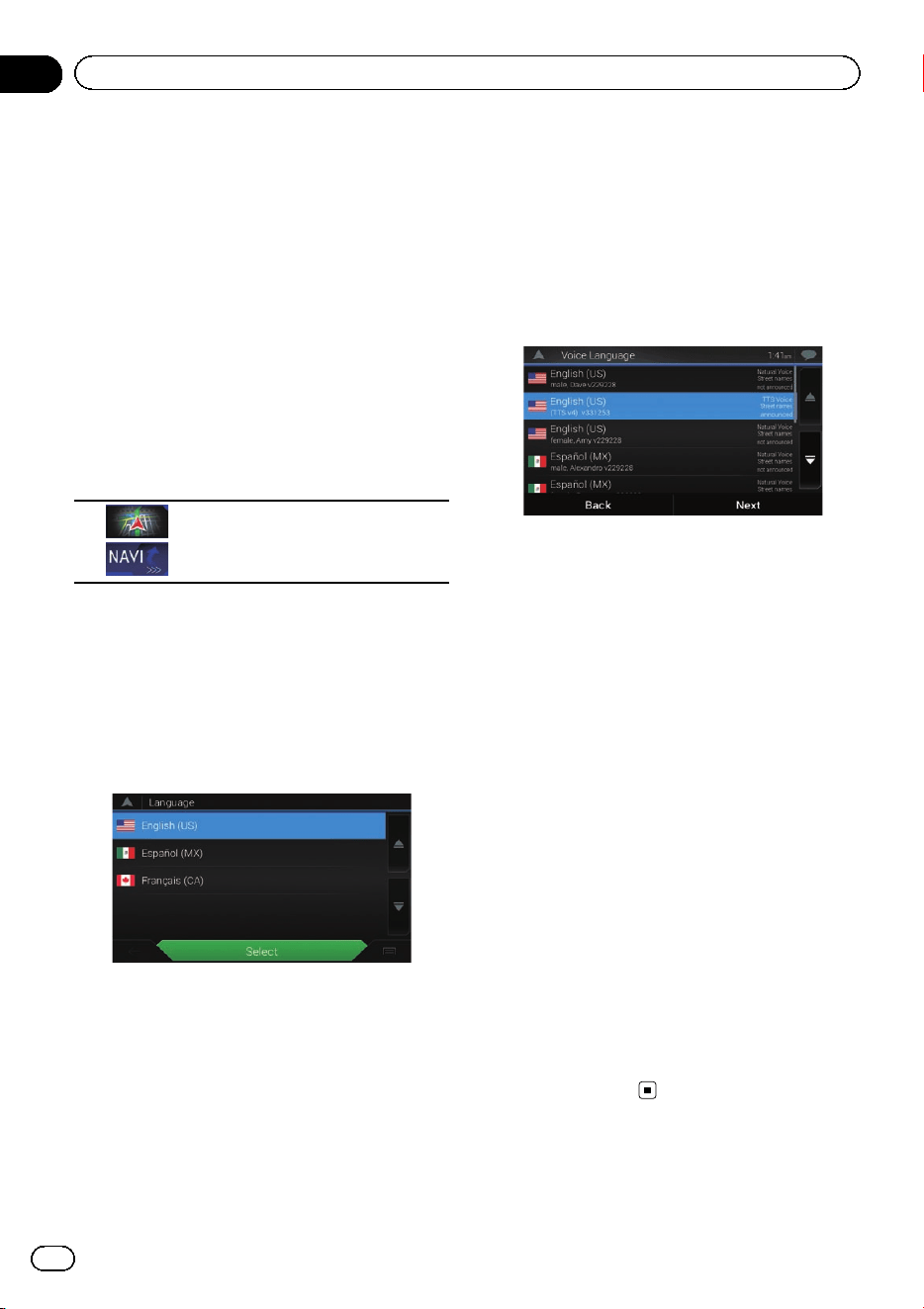

• Page 28 - English - : On firsttime startup of the navigation system When you use the navigation function for the first time an initial setup process starts auto matically Follow the steps below p You can change the language and GPS log setting later using Regional and Usage Reports in the Settings screen Other settings can be restarted later using Start Configuration Wizard in the Settings screen 1 Press the HOME button to display the Top menu screen 2 Touch the following keys Initiates the initial startup of the navigation system p The first time that the MAP button is pressed the navigation system also begins its initial startup After a short pause the splash screen comes on for a few seconds The Language screen appears 3 Select the language that you want to use on the screen then touch Select The EULA screen appears 4 Read the terms carefully checking the details and then touch Accept if you agree to the conditions The Usage Reports screen appears 5 Touch Yes If you touch Yes the software collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps p If you do not wish to activate information collection touch No The configuration wizard starts 6 Touch Next The Voice Language screen appears 7 Select the language that you want to use for voice guidance messages then touch Next 8 If needed modify the unit settings then touch Next The Route Preferences screen appears 9 If needed modify the default route planning options then touch Next 10 Touch Activate then Next A message saying that the connected online features are activated appears if you activate these services right away For details refer to Online Services set tings on page 69 p You will need to install the AVICSYNC App on your iPhone or smartphone first in order to be able to use online services which re quire a paid subscription Service coverage for each online service may vary depending on the content provider providing the ser vice For details refer to Expanding the use of the navigation functions on page 71 11 Select the connected services you want to use then touch Next The initial setup is now complete The Map screen appears and you can start using the navigation system En Chapter Basic operation

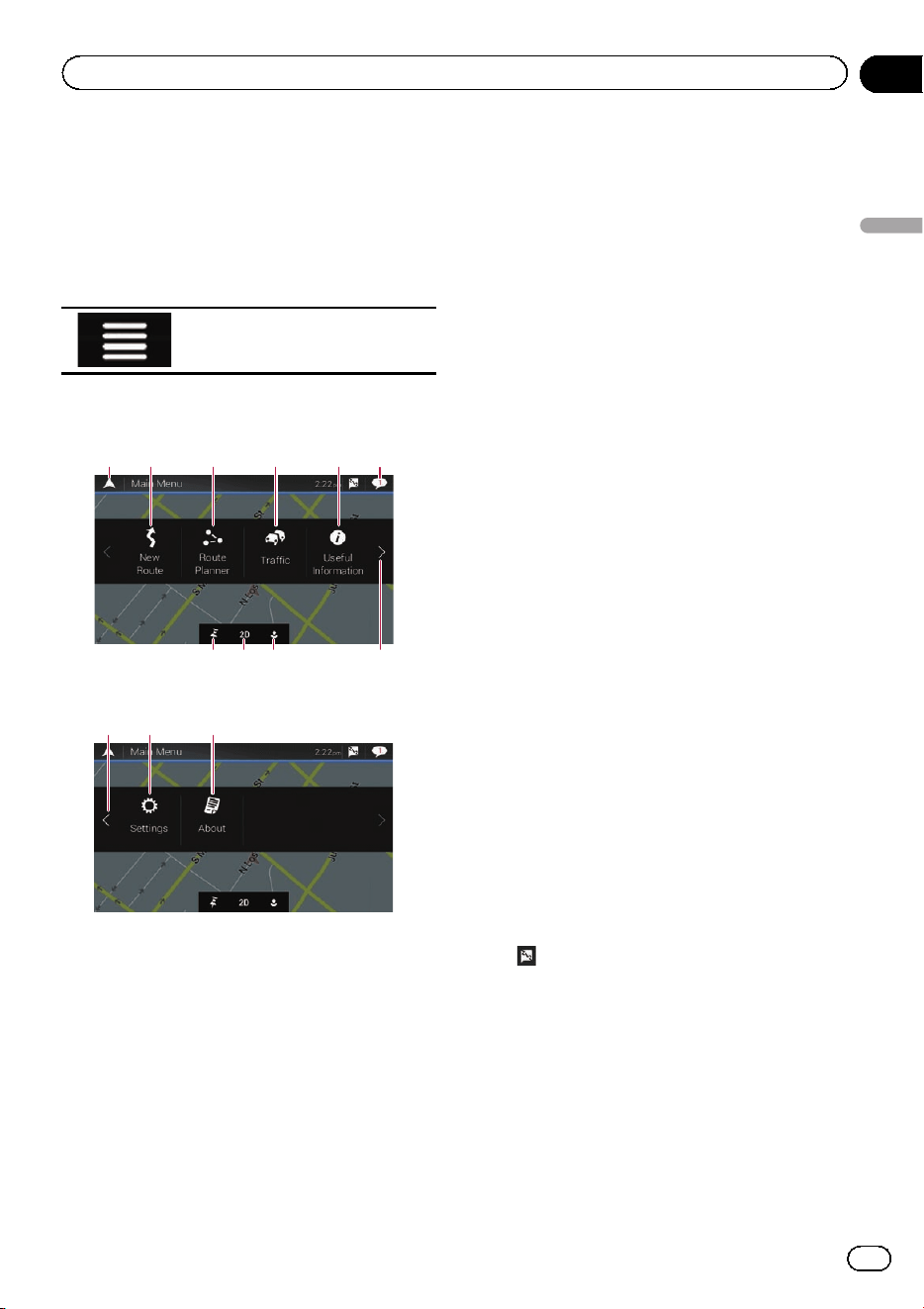

• Page 29 - English - : Operating the Navigation menu screen 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen The following screen appears Touch panel keys Page 1 21 63 4 a Touch panel keys Page 2 cb d You will see the following keys when you are navigating without a planned route 1 Returns to the Map screen 2 Searches for your destination by the ad dress or coordinates or searches for the se lected place of interest etc For details refer to Chapter 5 3 Builds your route or edits the route cur rently set For details refer to Building a route using Route Planner on page 46 4 Displays the Traffic Summary screen For details refer to Checking the traffic incidents on the map on page 55 p For AVIC5100NEX this key becomes ac tive when the online traffic feature is available 5 Displays useful information to support your driving For details refer to Chapter 9 6 Displays notifications that contain impor tant information 7 Displays the location that you saved as a fa vorite For details refer to Selecting a destina tion from stored locations on page 41 8 Switches among 2D 3D and 2D North up view modes 9 Displays the User Profiles screen where you can create new profiles or edit the exist ing profiles If multiple drivers are using this product they can create their own profiles with their own settings If you select a new profile this product restarts so that the new set tings can take effect a Displays the next page of the navigation menu b Displays the previous page of the naviga tion menu c Configures the navigationrelated settings and enables you to access the SyncTool screen For details refer to Chapter 10 d Displays the information of your navigation system the version information or li censes for example p on the upper right corner of the screen is used for AVICSYNC App connection Be sure read Expanding the use of the navigation functions page 71 before using the AVICSYNC function p When you are navigating a planned route the following routerelated keys are avail able En Chapter How to use the Navigation menu screen How to use the Navigation menu screen

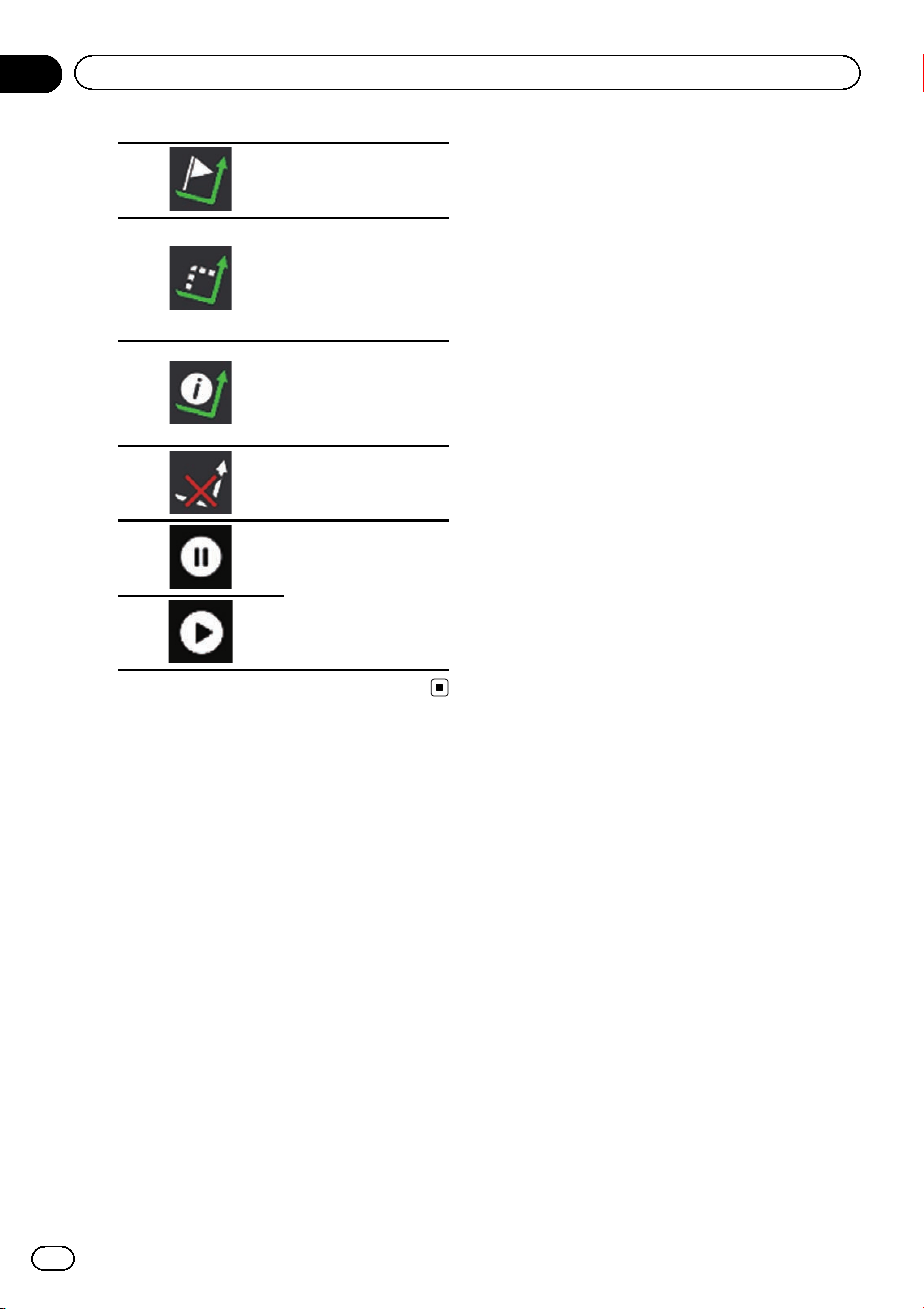

• Page 30 - English - : Adds a waypoint Displays route alter natives parts of the route to avoid or spe cific roads in your planned route to avoid Displays the route in its full length on the map and displays route parameters and route alternatives Deletes your route or removes a waypoint Suspends and re sumes the route gui dance En Chapter How to use the Navigation menu screen

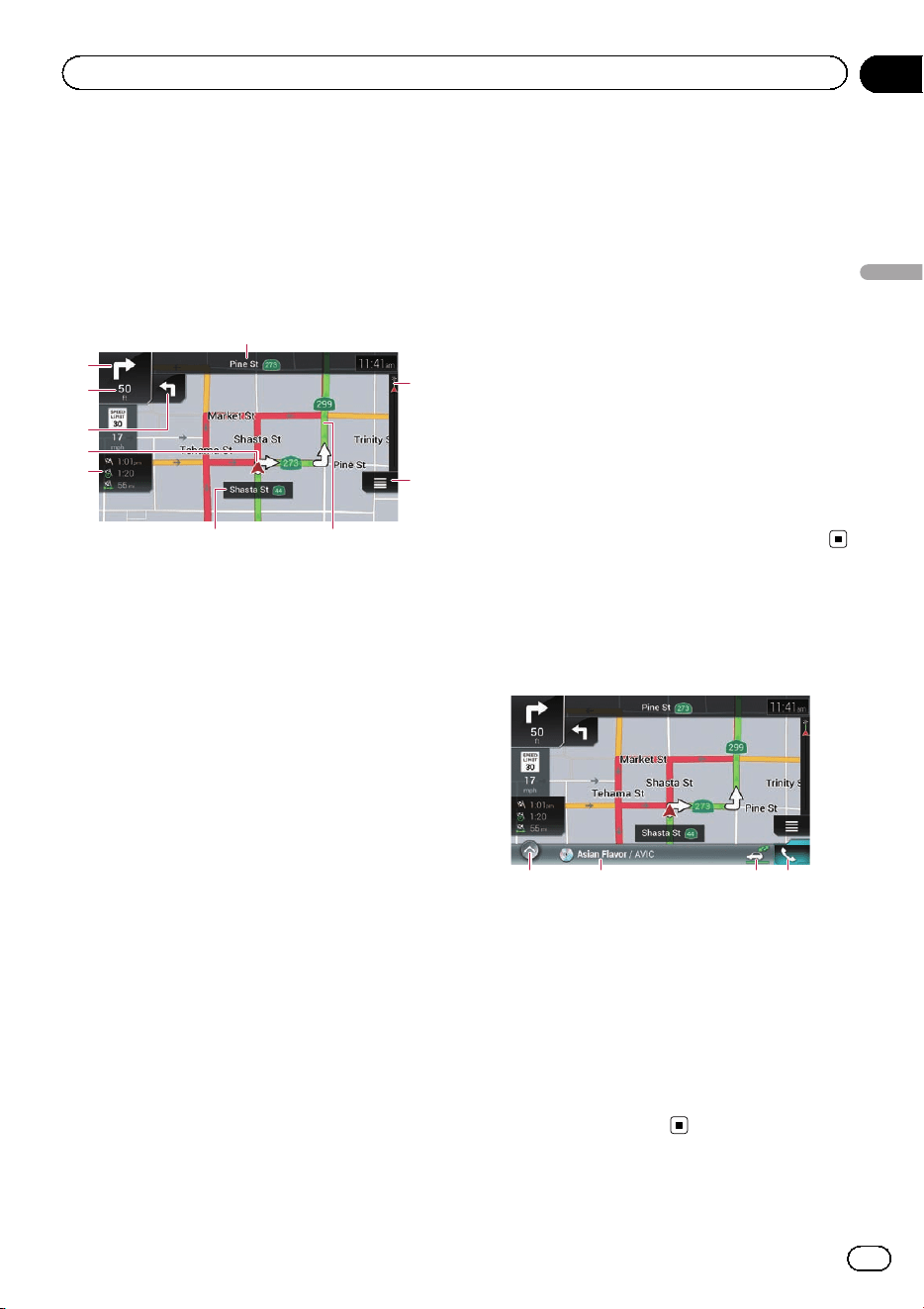

• Page 31 - English - : Most of the information provided by your naviga tion system can be seen on the map You need to become familiar with how information appears on the map How to read the Map screen a p The following information marked with an asterisk appears only when a route is set p Depending on the conditions and settings some items may not be displayed p AV information is displayed at the bottom of the Map screen p You can select whether you want to see the speed limit sign on the map all the time If you exceed the speed limit the sign color will change For details refer to Warnings settings on page 66 1 Shows the number and name of the street to be used or next guidance point 2 Shows the next guidance point maneuver Both the type of the event turn traffic circle exiting freeway etc and its distance from the current position are displayed A smaller icon shows the type of the second next maneuver if it is near the next maneuver For details refer to Frequently shown route events on page 34 3 Shows the distance to the next guidance point maneuver 4 Shows the second maneuver arrow 5 Indicates the current location of your vehicle The apex of the triangular mark indicates your orientation and the display moves automati cally as you drive 6 Displays the data field Touching this field displays the Trip Compu ter screen Touch and hold down this key and then select the values that you wish to have displayed to customize the data fields in the corner of the Map screen For details refer to Data Fields on page 7 Shows the name of the street or city that your vehicle is traveling on or in 8 Indicates the current route The route currently set is highlighted in color on the map 9 Displays the Navigation menu screen a Indicates the progress to the final destination AV information bar AV information is displayed at the bottom of the Map screen 12 34 1 Displays the source list For details refer to Selecting a front source on the source list on page 25 2 Shows the current status of AV source briefly 3 You can turn on or off the communication be tween the AVICSYNC App and the navigation system by touching the key 4 Displays the Phone menu screen For details refer to Displaying the phone menu on page 80 En Chapter How to use the map How to use the map

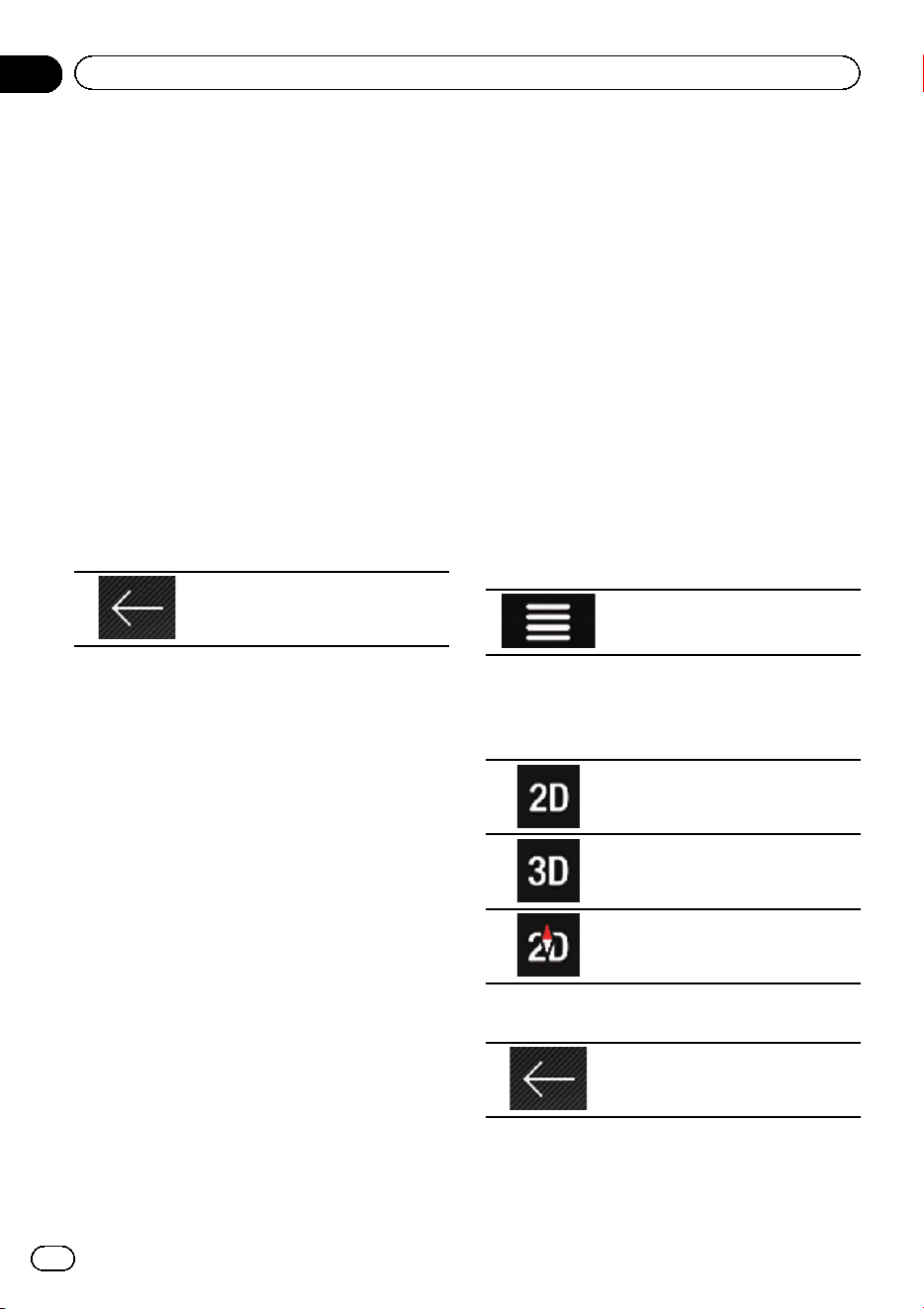

• Page 32 - English - : Operating the Map screen Changing the scale of the map p There is a limit to map scaling in 3D map view mode If the map scale is zoomed out further the map is zoomed out in 2D map For details refer to Switching between 2D 3D and 2D North up views on page 1 Press the MAP button The Map screen appears 2 Pinch or expand the map to zoom out or in Touch anywhere on the map during naviga tion 3 Touch the following key The map returns to the current po sition p If you press the MAP button the map re turns to the current position p For information on the controls when the scrolled map is displayed refer to Control keys on the scrolled map on page 33 Smart Zoom Your navigation system features Smart Zoom that works in two ways When the route is set When approaching a turn Smart Zoom will zoom in and raise the view angle to en able you to easily recognize your maneuver at the next junction If the next turn is at a distance it will zoom out and lower the view angle to be flat so you can see the road in front of you When the route is not set Smart Zoom will zoom in if you drive slowly and zoom out when you drive at high speed Switching between 2D 3D and 2D North up views You can switch how the map is displayed For 2D map view mode you can select between Heading up and North up Heading up The map display always shows the vehicles direction as proceeding toward the top of the screen North up The map display always has north at the top of the screen p The map orientation is fixed at Heading up when the 3D map screen is displayed 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch the following key Each time you touch the key the setting changes Indicates 2D Heading up view mode is currently selected Indicates 3D Heading up view mode is currently selected Indicates 2D North up view mode is currently selecte d 4 Touch the following key Returns to the Map screen p If you press the MAP button you can return to the Map screen En Chapter How to use the map

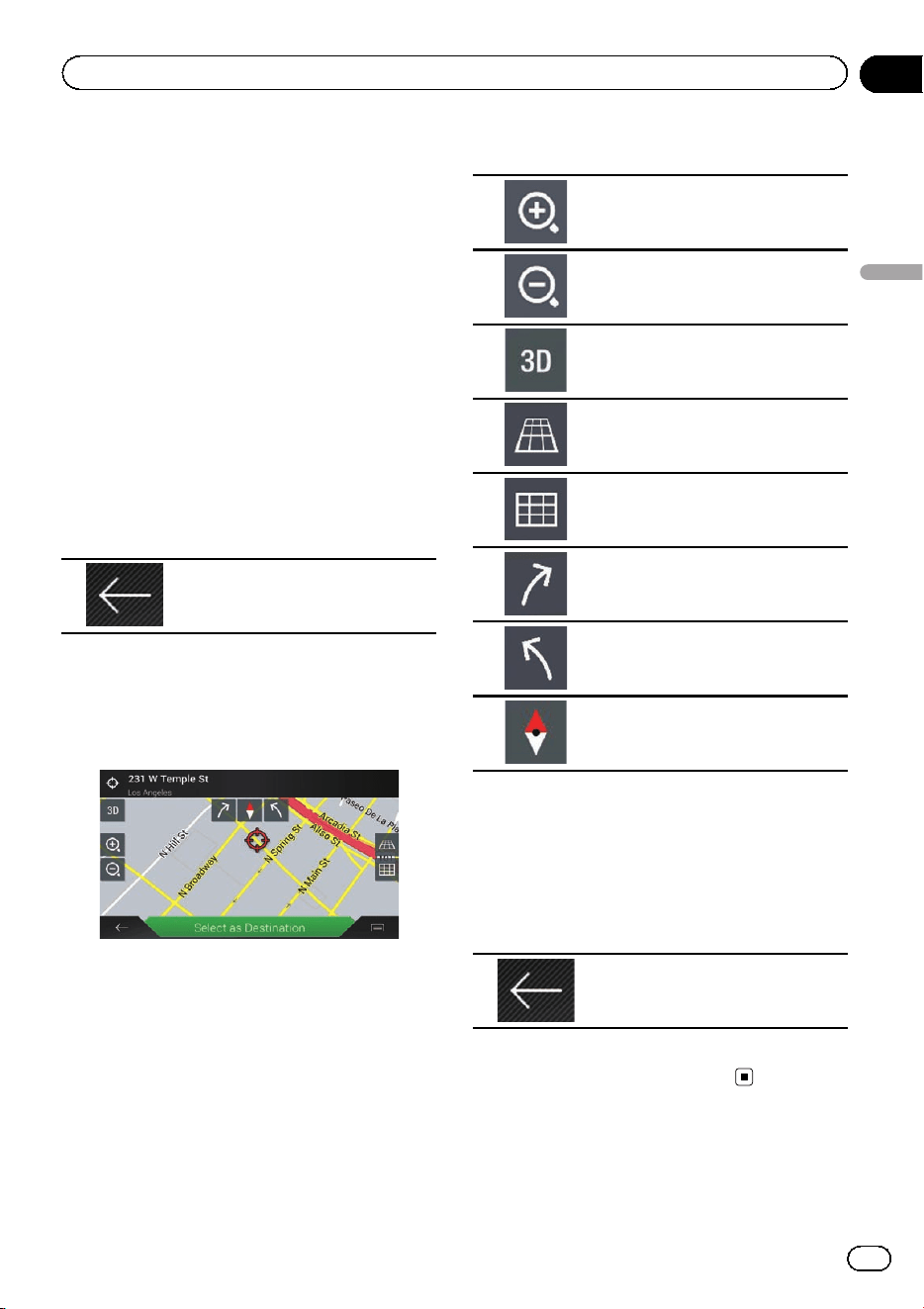

• Page 33 - English - : p For information on the controls when the scrolled map is displayed refer to Control keys on the scrolled map on page 33 Scrolling the map to the position you want to see 1 Press the MAP button The Map screen appears 2 Touch and drag the map in the desired direction to scroll If you place the cursor on the desired location a brief overview about the location will appear at the top of the screen showing the street name and other information for the location 3 Touch the following key The map returns to the current po sition p If you press the MAP button the map re turns to the current position Control keys on the scrolled map 1 Press the MAP button The Map screen appears 2 Touch anywhere on the map The cursor and control keys appear 3 Touch the following key Zooms in Zooms out Changes the map view mode the map mode currently selected is shown Tilts up Tilts down Rotates left Rotates right Cancels map rotation p You can change the vertical view angle of the map in 3D mode only For details refer to Switching between 2D 3D and 2D North up views on page 4 Touch the following key The map returns to the current po sition p If you press the MAP button the map re turns to the current position En Chapter How to use the map How to use the map

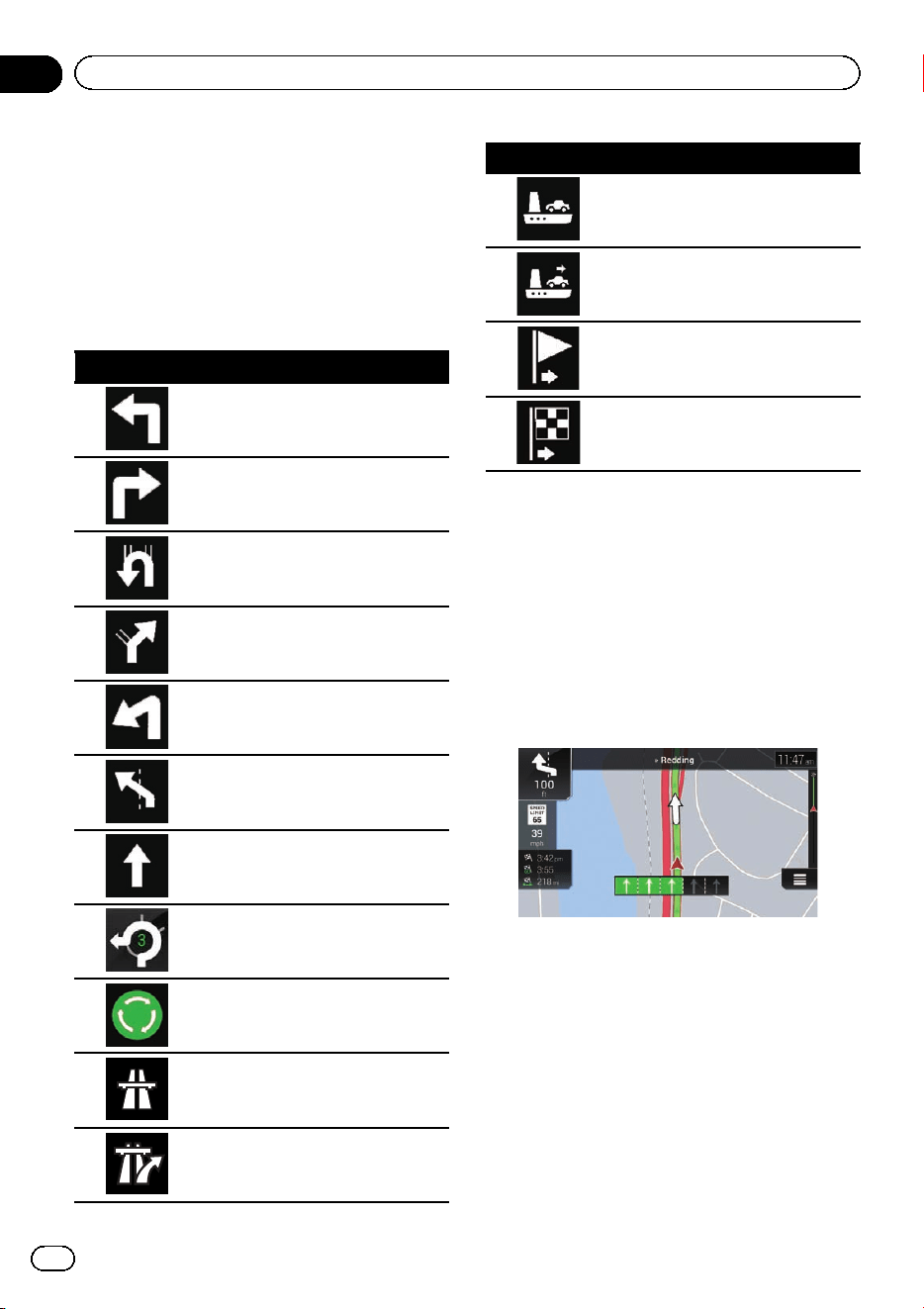

• Page 34 - English - : Understanding the route guidance Once the route guidance begins the system provides various guides by voice text indica tions and signs Frequently shown route events Icon Meaning Turn left Turn right Turn back Bear right Turn sharp left Keep left Continue straight though the inter section Go left on the traffic circle 3rd exit next maneuver Enter traffic circle maneuver after the next maneuver Enter freeway Exit freeway Icon Meaning Board ferry Leave ferry Approaching a waypoint Approaching the destination When navigating on multilane roads you will need to make sure to take the proper lane for the recommended route If there is lane information available in the map data the navigation system will display the lanes and corresponding directions of tra vel at the bottom of the map using small ar rows Highlighted arrows represent the lane and direction that you need to take for the re commended route Lane information Signs are displayed at the top of the map Sign colors and design styles are similar to those of the actual signs in place above or along the in dicated roads These signs display select desti nations and the road number of the road that the relevant lane leads to En Chapter How to use the map

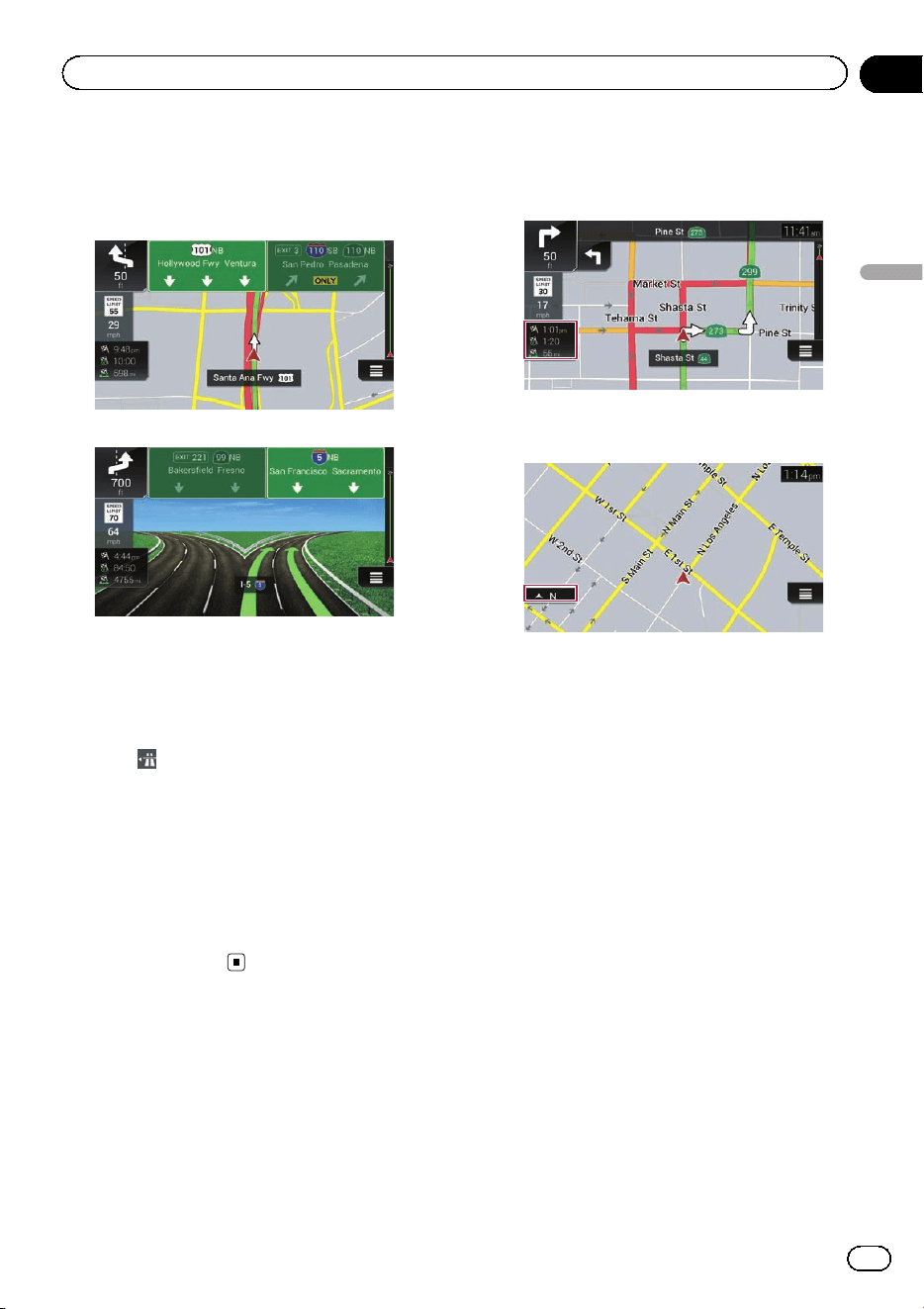

• Page 35 - English - : If you are approaching a complex intersection and the necessary information exists the map is replaced with a 3D view of the junction Signposts Junction view p If the data for these items is not contained in the map data the information is not available even if there are signs on the ac tual road When you set Offer Freeway Services to on the icon appears while you are driving on freeways Touch the icon to open the details of the next few exits or service stations In ad dition touch an item to show its location on the map You can set it as a waypoint easily p If you want to display other types of POIs for the exits you can change the icons in Services Displayed For details refer to Navigation Map set tings on page 66 Browsing the data field The data fields are different when you are navi gating a route and when you have no specified destination For example the data field pro vides the following information When the route is set Distance to final destination time needed to reach the final destination and estimated arrival time are shown When the route is not set Direction or altitude is shown p Touching and holding the field allows you to display the setting screen for the field p The estimated time of arrival is an ideal value calculated based on the speed limit value set in Max Speed of vehicle type setting and the actual driving speed The estimated time of arrival is only a reference value and does not guarantee arrival at that time For details refer to Route Preferences settings on page 63 When the system cannot receive a GPS signal A triangular mark shows the current position of your vehicle En Chapter How to use the map How to use the map

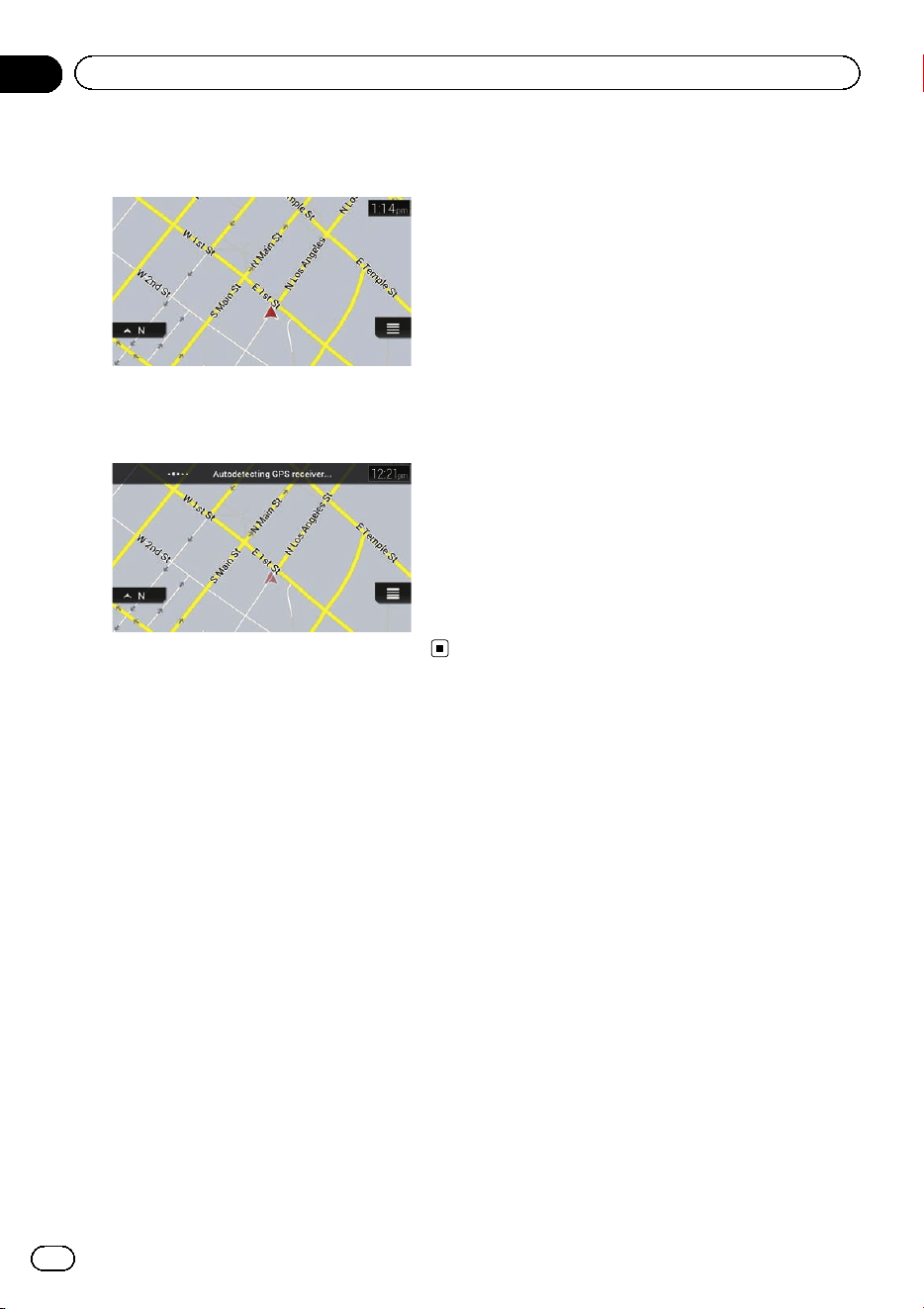

• Page 36 - English - : When a GPS position is available the triangu lar mark is displayed in full color When there is no GPS position the triangular mark is transparent It shows your last known position En Chapter How to use the map

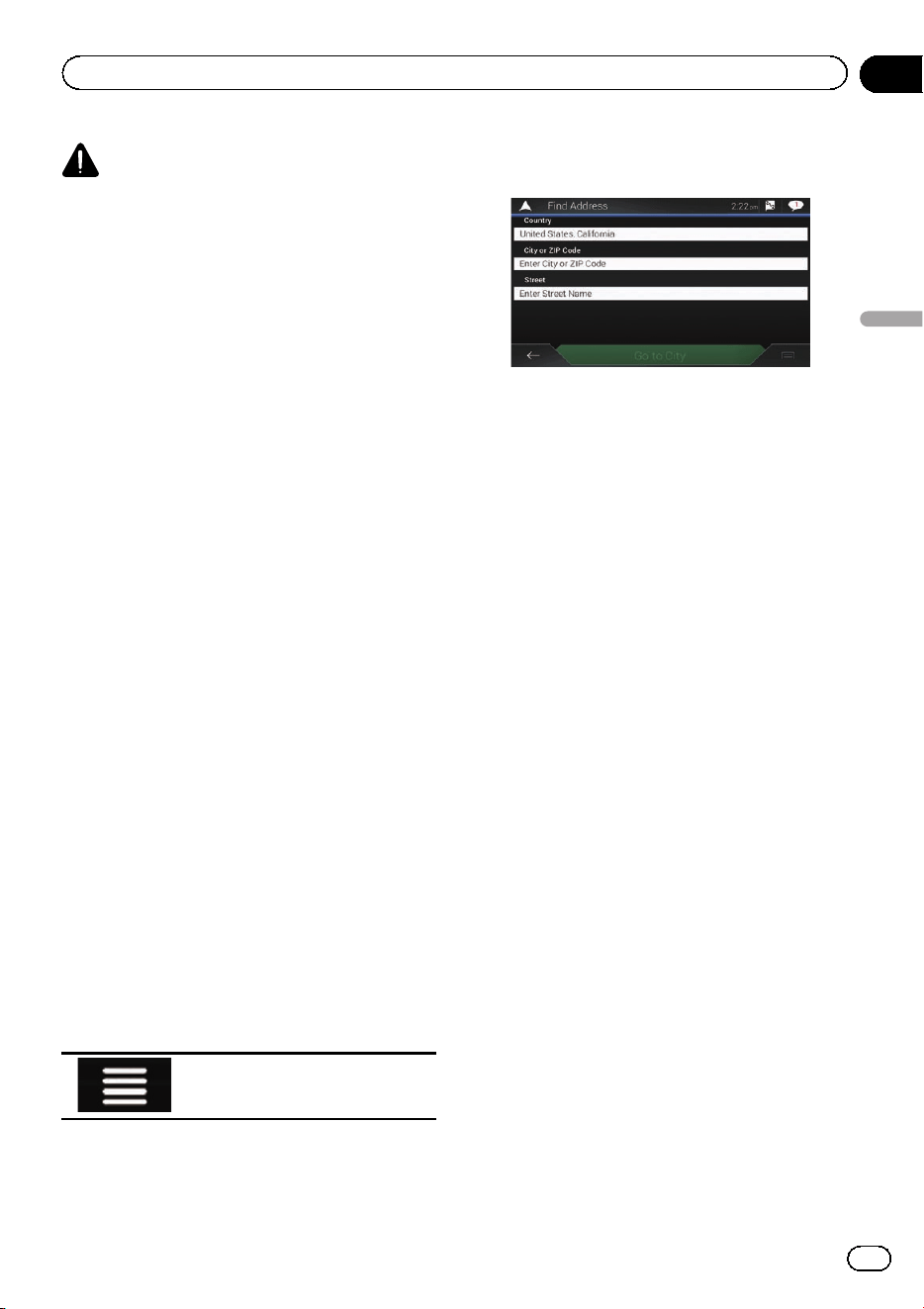

• Page 37 - English - : CAUTION For safety reasons these routesetting functions are not available while your vehicle is in motion To enable these functions you must stop in a safe place and put on the parking brake p Some information regarding traffic regula tions depends on the time when the route calculation is performed Thus the infor mation may not correspond with a certain traffic regulation when your vehicle actually passes through the location in question Also the information on the traffic regula tions provided applies for a passenger vehi cle and not for a truck or other delivery vehicles Always follow the actual traffic regulations when driving p Destination from Phone and Online Search on the New Route to screen can be used when the AVICSYNC App con nection is established Be sure read Expanding the use of the navigation functions page 71 before using the AVICSYNC function Searching for a location by address The most frequently used function is Ad dress in which the address is specified and the location is searched p Depending on the search results some steps may be skipped 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch Address The Find Address screen appears 5 Touch the following text box and set the destination you are looking for Country By default your navigation system proposes the country where you are If you want to change the area to search set another country City or ZIP Code By default your navigation system proposes the citytown where you are You can select the citytown using its postal code instead of its name Street If the street name is not available touch Go to City and select the citytown This way the center of the selected citytown be comes the destination of the route Select House Number or Intersection This item will be displayed after you have set a street If the house number is not available touch Go to Street and select the street This way the center of the se lected street becomes the destination of the route After you touch the selected address to finish the address search the searched location ap pears on the Map screen 6 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 En Chapter Searching for a destination Searching for a destination

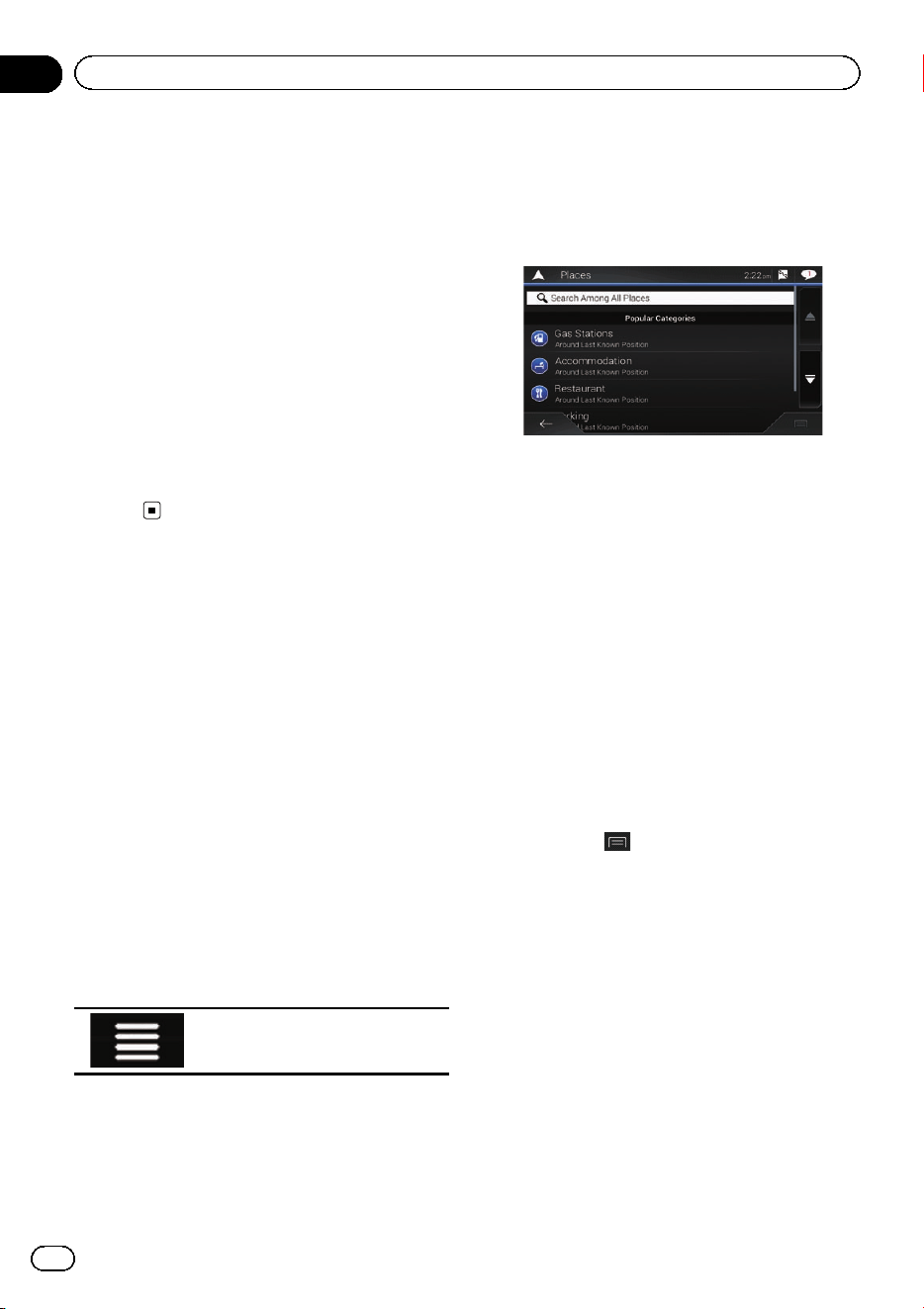

• Page 38 - English - : After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 7 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Searching for Points of Interest POI Information about various facilities Points Of Interest POI such as gas stations parking lots or restaurants is available You can search for a POI by selecting the category or entering the POI Name Searching for POIs using preset categories The preset search allows you to quickly find the most frequently selected types of POIs 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch Places The Places screen appears The preset search categories are as follows Gas Station Accommodation Restaurant Parking p When a route is not set POIs are searched for around the current position p When the current position is not available either no GPS signal POIs are searched for around the last known position p When a route is set Gas Station and Restaurant are searched for along the route and Accommodation and Park ing are searched for around the destina tion 5 Touch the category you want The results appear in a list 6 Touch the POI you want The searched location appears on the Map screen If you touch you can sort the results or show the locations of all facilities on the map 7 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is En Chapter Searching for a destination

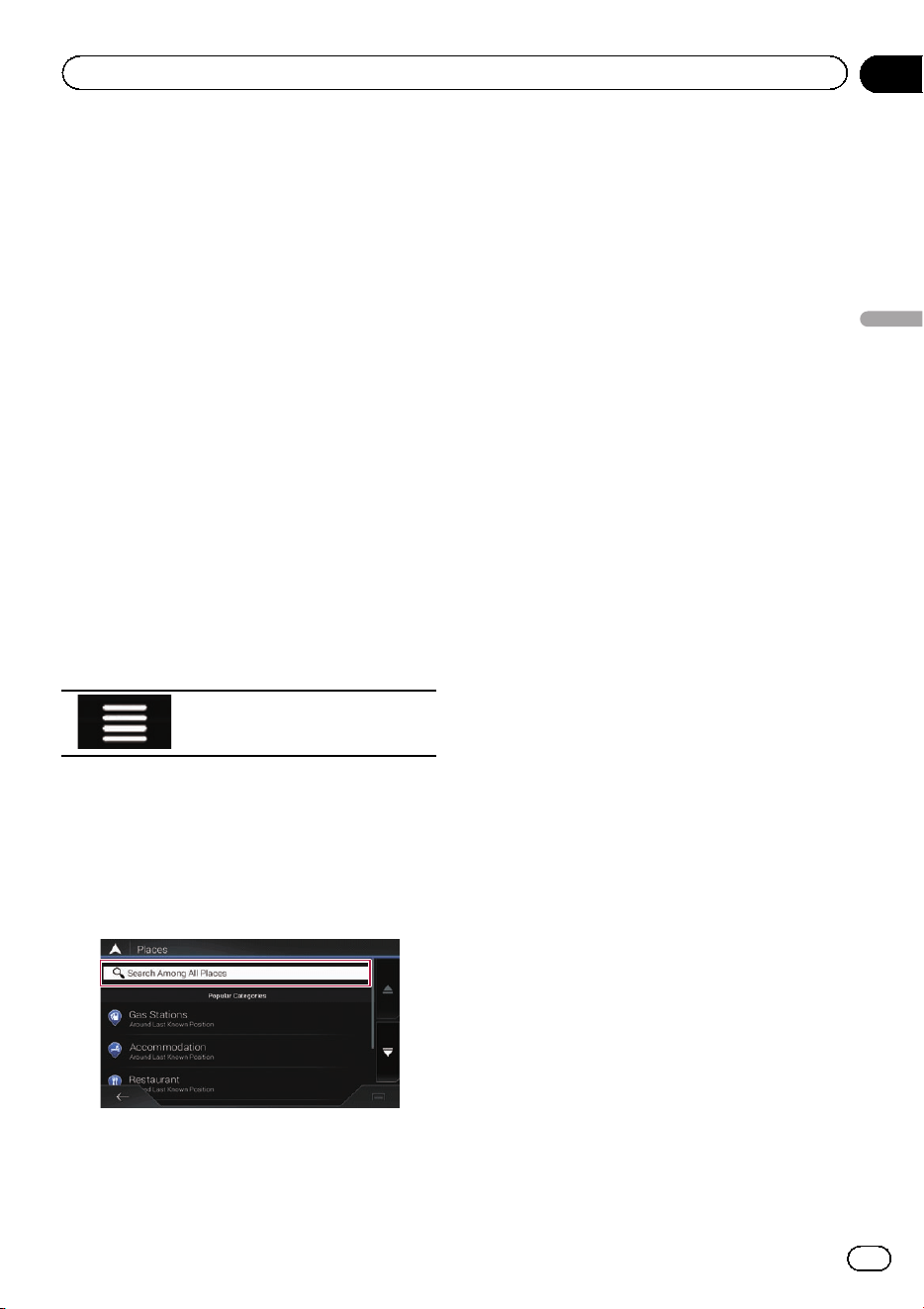

• Page 39 - English - : For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 8 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Searching for POIs by categories or directly from the name of the facilities You can search for POIs by their categories and subcategories You can also search for POIs by their names in each of their cate gories 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch Places The Places screen appears 5 Touch Search Among All Places The Search by Category screen appears 6 Touch Around Here and then select the area in which the POIs should be searched for Category View You can select whether or not POI cate gories are displayed Around Here Searches around the current position Or around the last known position if the cur rent position is not available The results will be listed in order of the distance from this position In a City Searches for a place within a selected city town The results will be listed in order of the distance from the center of the selected citytown Around Destination Searches for a place around the destination of the current route The results will be listed in order of the distance from the des tination p This key is active only when the route is set Along Route Searches along the current route and not around a point already set This is useful when searching for a stopover that results in a minimal detour such as searching for gas stations or restaurants The results will be listed in order of the length of the neces sary detour p This key is active only when the route is set 7 Select one of the categories subcate gories or brands to narrow down the places The screen appears showing all places in the selected main category around the selected lo cation or along the route Touch Search by Name and enter the name of the place using the keyboard 8 Touch the POI you want The searched location appears on the Map screen En Chapter Searching for a destination Searching for a destination

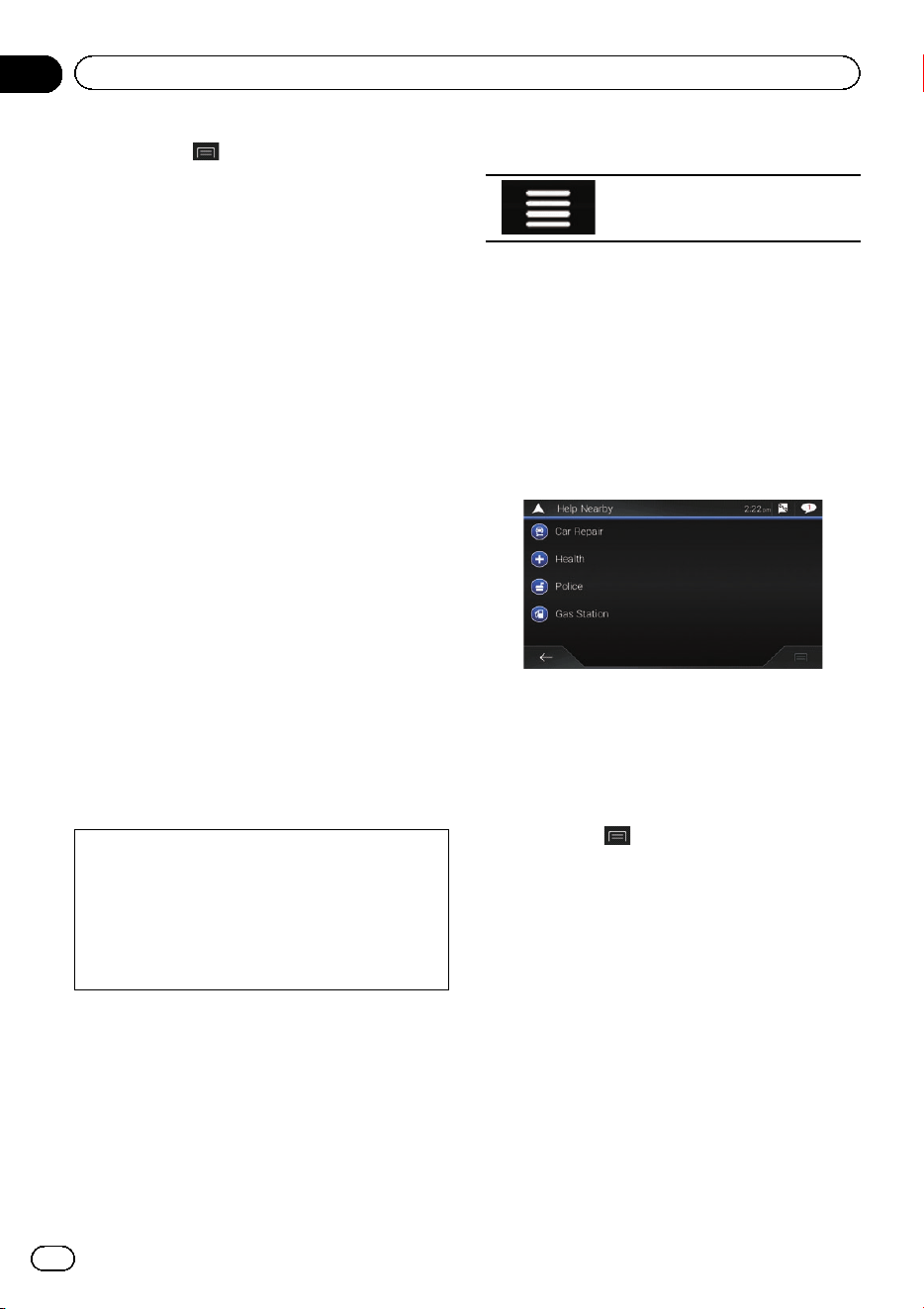

• Page 40 - English - : If you touch you can change the sort method of the results 9 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 10 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Searching for providers nearby that offer emergency or roadside assistance services IMPORTANT Never use this product to route to hospitals police stations or similar facilities in an emer gency Stop using any functions relating to the handsfree phoning and please call the appro priate emergency number You can search for locations that provide emergency or roadside assistance in the sur rounding areas p This information does not necessarily cor respond to actual information Utilize the information for your reference 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Useful Information The Useful Information screen appears 4 Touch Help Nearby The Help Nearby screen appears The preset search categories are as follows Car Repair Health Police Gas Station 5 Touch the category you want The results appear in a list 6 Touch the POI you want The searched location appears on the Map screen If you touch you can change the sort method of the results 7 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is En Chapter Searching for a destination
• Page 41 - English - : For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 8 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Selecting a destination from stored locations Storing locations you visit frequently saves time and effort Selecting an item from the list provides an easy way to specify the position The list of saved locations contains two preset categories Home and Work p This function is available if locations have been registered in Saved Location For details refer to Storing a location in Saved Location on page 51 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch Saved Location The Saved Location screen appears If you touch and then Edit you can edit the details of saved locations 5 Touch the entry you want The searched location appears on the Map screen 6 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 7 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Selecting a destination from stored routes Storing routes you use frequently saves time and effort p This function is not available if no routes have been registered in Saved Routes For details refer to Storing a route in Saved Routes on page 52 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch to show the next page En Chapter Searching for a destination Searching for a destination
• Page 42 - English - : 5 Touch Saved Routes The Saved Routes screen appears 6 Touch the entry you want The Route Planner screen appears p You can add waypoints or change the final destination on the Route Planner screen For details refer to Building a route using Route Planner on page 46 7 Touch Show Route After touching Show Route the Route Summary screen appears and countdown begins When the countdown ends the gui dance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 8 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Selecting a location you searched for recently The places that were previously set as destina tions or waypoints have been automatically stored in History History 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch History The list of recent destinations appears 5 Touch the entry you want The searched location appears on the Map screen 6 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 7 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Smart History Smart History suggests these previously used locations as destinations based on your navi gation habits using parameters like the cur rent time of day the day of week and the current location En Chapter Searching for a destination

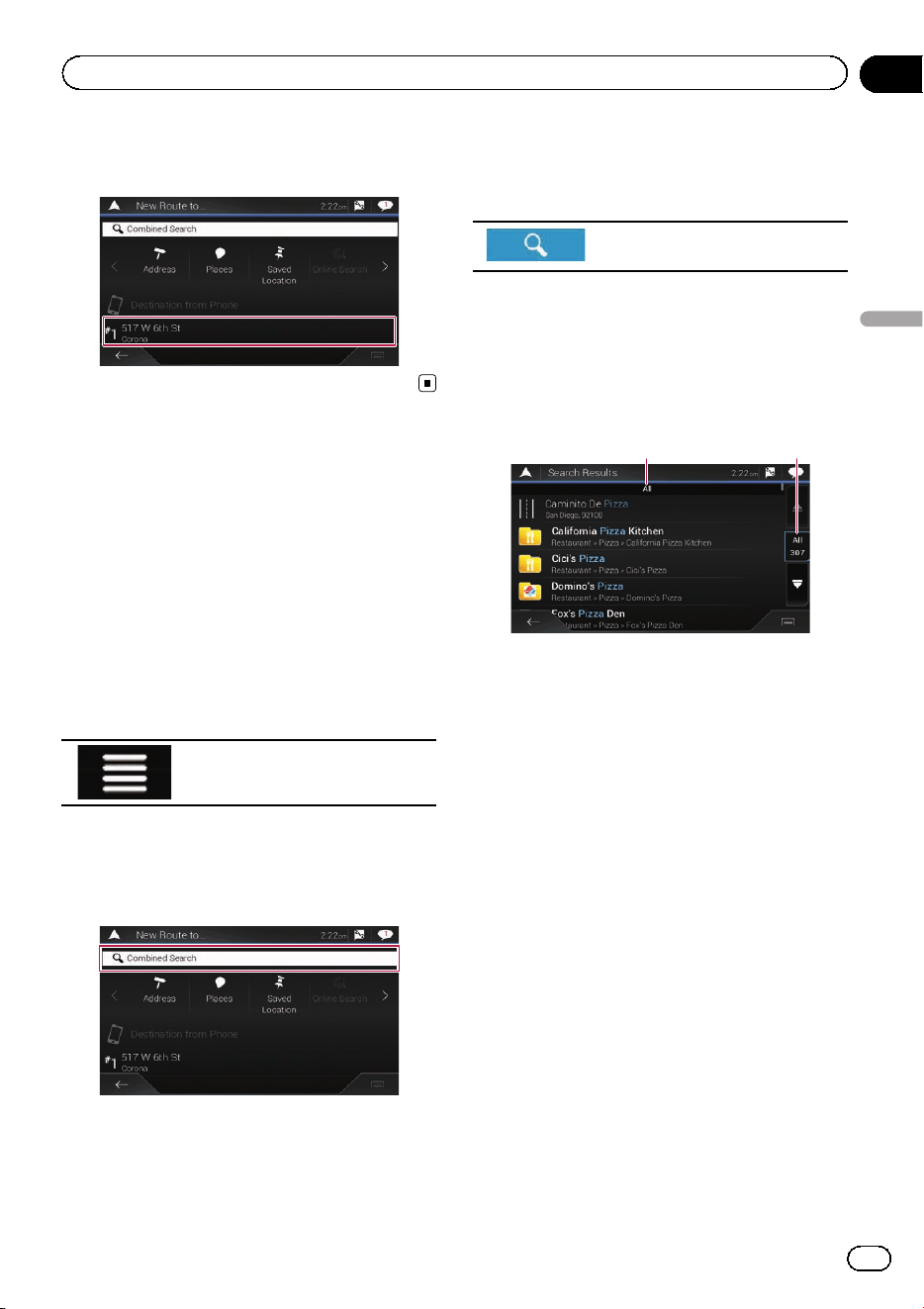

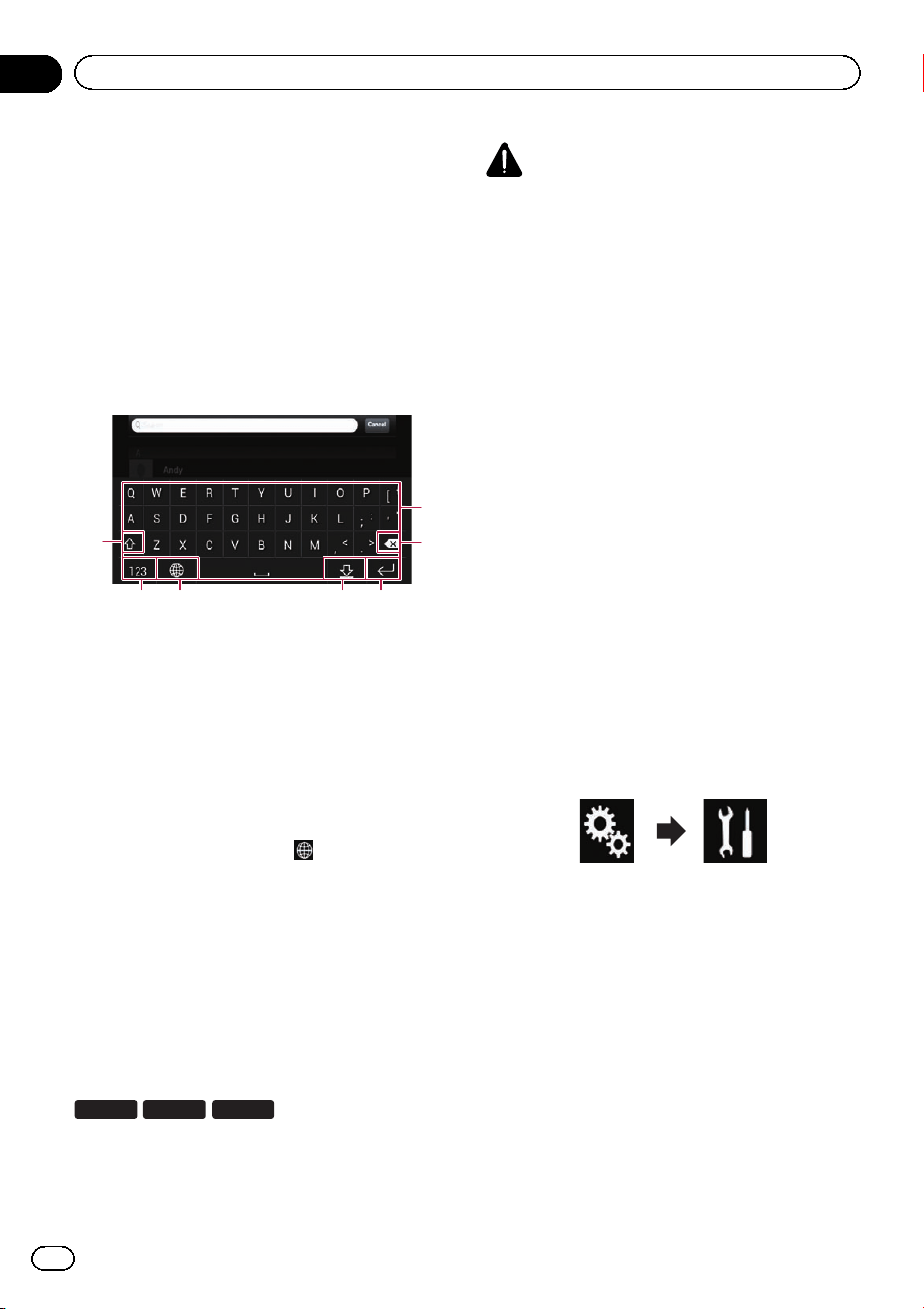

• Page 43 - English - : Smart History items are shown in the New Route to screen for easy access Searching for a location using Combined Search The Combined Search feature lets you quickly find a place by its name and search area p The Combined Search function also searches your stored data 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch Combined Search The Combined Search screen appears 5 Touch the right text box to enter the country and citytown you want search 6 Enter the name address or category of the destination you are looking for then touch the following key Displays the Search Results screen 7 Touch the entry you want The searched location appears on the Map screen 8 Touch the right of the list to narrow down the search results 1 Shows the conditions that are currently se lected 2 Touch this key to show the other conditions If you touch a map data provider logo you can narrow down the list of results by showing the re sults from the provider 9 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 En Chapter Searching for a destination Searching for a destination
• Page 44 - English - : 10 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Searching for a location by the coordinates Entering a latitude and longitude pinpoints the location 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch New Route The New Route to screen appears 4 Touch to show the next page 5 Touch Coordinates The Coordinates screen appears 6 Enter the latitude value and touch OK p When a value is already entered in the text field touch or to delete the value first p You can change the display format of the la titude and longitude to any of the following formats decimal degrees degrees and dec imal minutes or degrees minutes and deci mal seconds When entering the coordinates in UTM for mat touch then UTM Coordinates 7 Enter the longitude value and touch Go p When a value is already entered in the text field touch or to delete the value first The searched location appears on the Map screen 8 Touch Select as Destination on the Map Location screen For details on the operations in the Map Location screen refer to Using the Map Location screen on page 45 After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 9 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Searching for a location by scrolling the map Specifying a location after scrolling the map enables you to set the position as a destina tion or waypoint 1 Press the MAP button The Map screen appears 2 Touch and drag the screen to scroll the map to the position you want 3 Touch the location that you want to se lect as your destination The cursor appears En Chapter Searching for a destination

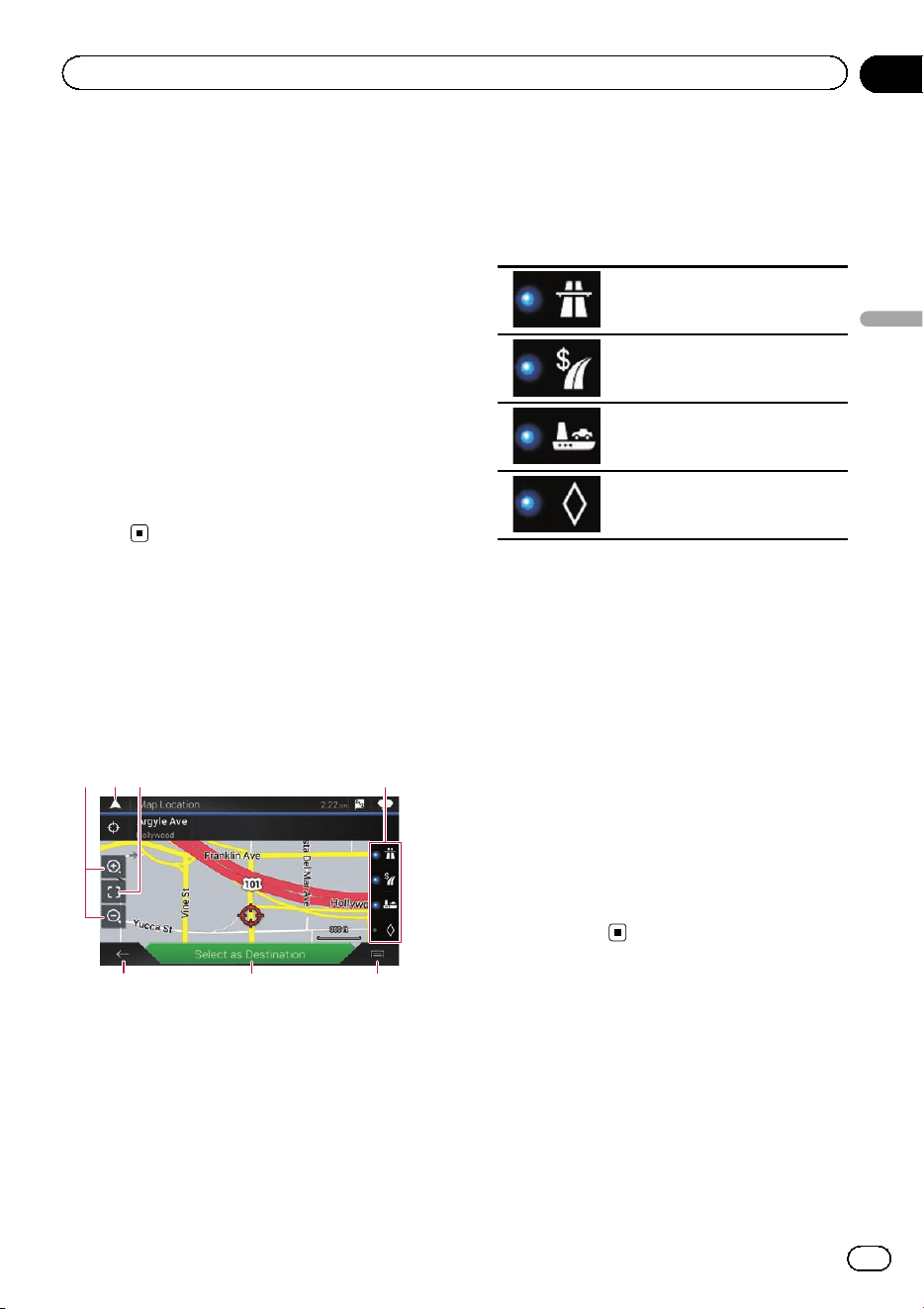

• Page 45 - English - : 4 Touch Select as Destination After touching Select as Destination the Route Summary screen appears and count down begins When the countdown ends the guidance automatically starts If the screen is touched anywhere during the countdown the countdown stops and the screen will stay as it is For details on the operations in the Route Summary screen refer to Checking route information and preferences on page 48 5 Touch Start Navigation Your navigation system starts the route gui dance For details of the route guidance refer to Understanding the route guidance on page Using the Map Location screen Once a location is searched the Map Loca tion screen appears You can select some op tions for the route or displayed map location before route calculation 13 42 p If you touch the map the cursor is placed at that position Also you can scroll the map by dragging the map 1 Zoom inzoom out p You can also pinch or expand the map to zoom in or out 2 Cancels the Map Location screen and dis plays the map of the current position 3 Returns the cursor to the initial position and the map scale to the initial scale 4 Shows the route setting preferences for route calculation Touch the keys to activate or deac tivate the preference Calculates the route prioritizing the use of freeways when the key is activated Calculates the route prioritizing the use of peruse charged toll roads when the key is activated Calculates the route prioritizing the use of ferries when the key is activated Calculates the route prioritizing the use of carpool and HOV lanes when the key is activated 5 Returns to the previous screen 6 Sets the cursor position to your destination or waypoint 7 Displays the shortcuts Detailed Information Shows the detailed information of the point Save Location Saves the displayed location as your fa vorite location The saved location can be easily recalled later Places Around Cursor Searches for POIs around the displayed location Touch the POI to show the Map Location screen and also set the POI as the destination or waypoint En Chapter Searching for a destination Searching for a destination

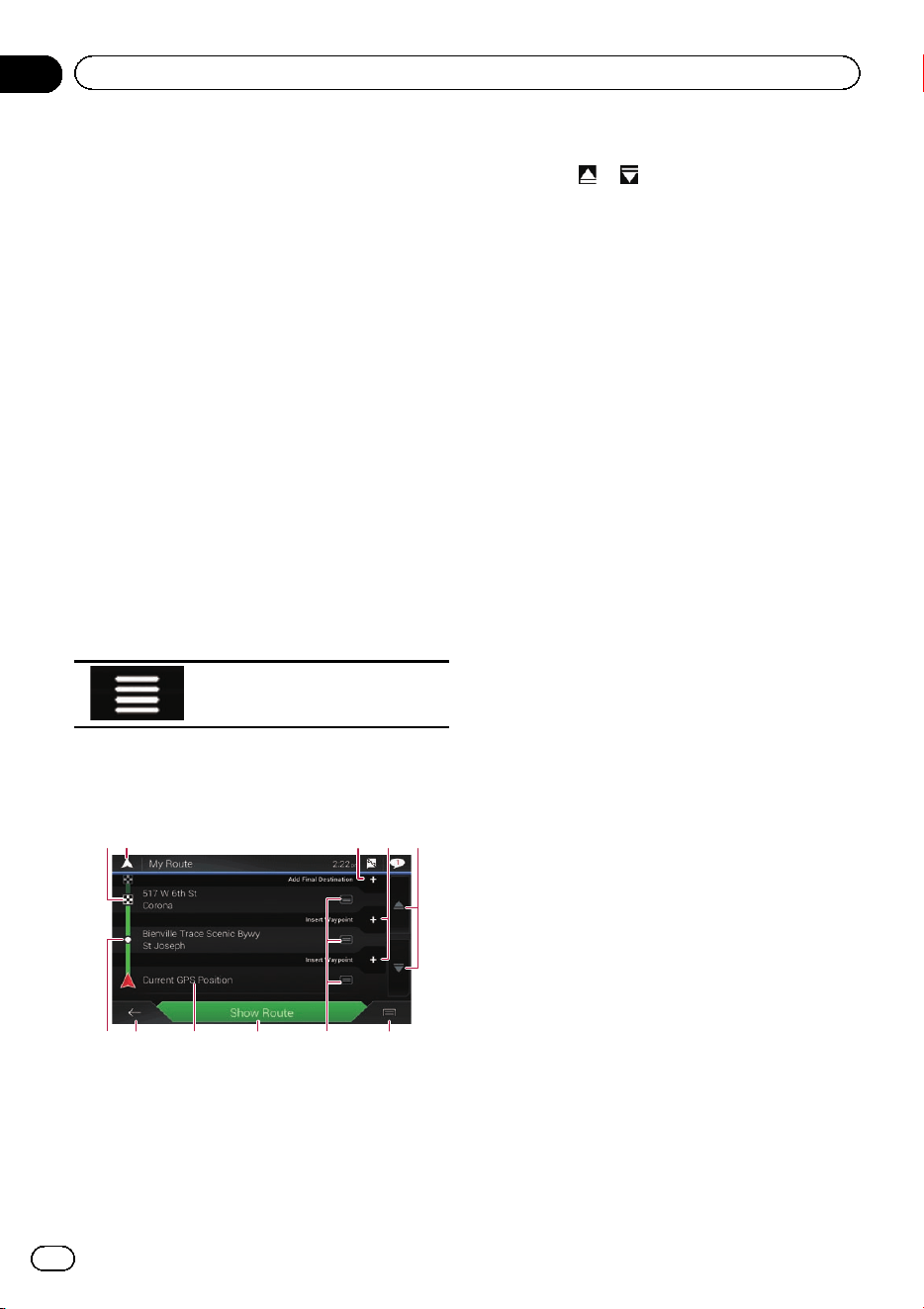

• Page 46 - English - : Modifying the route When navigation is already started there are several ways to modify the current route The following sections describe some of those op tions Building a route using Route Planner The Route Planner or My Route feature lets you build your route using the list of desti nations Editing the list allows you to plan your route easily p Once you set the route you can edit your route using the menu displayed as My Route 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Route Planner or My Route 4 Touch one of the options ab 1 Destination 2 Cancels the Route Planner or My Route screen and displays the map of the current position 3 Adds a new destination and changes the current destination to the last waypoint 4 Inserts a new waypoint 5 Touch or to scroll the list 6 Waypoint 7 Returns to the previous screen 8 Starting position The current vehicle posi tion is set as default and Current GPS Po sition is displayed For details refer to Changing the starting position on page 47 9 Calculates the route and shows the Route Summary screen a Displays the options for the location Move UpMove Down Edits the order you want to visit the loca tions Delete Deletes the destination or waypoint Save Location Stores the location in Saved Location For details refer to Storing a location in Saved Location on page 51 Change Changes the destination or waypoint to another location Show on Map Shows the selected location on the map b Displays the shortcuts Delete All Deletes all waypoints and the destina tion Touch Continue Without Route to cancel the planned route Optimize Waypoints Changes the order of waypoints automa tically so that the route can be easily tra veled If the resulting order is the same as the current order this option is inva lid Optimize Route Changes the order of all waypoints and the destination automatically so that the route can be easily traveled If the re sulting order is the same as the current order this option is invalid En Chapter Checking and modifying the current route
• Page 47 - English - : Changing the starting position The starting position for route can be changed from the current position 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Route Planner or My Route 4 Touch Current GPS Position The popup menu appears 5 Touch Set Start Point or Change Start Point and then touch OK 6 Search for a location 7 Touch Set Start Point or Change Start Point The selected position is set as the starting po sition for route calculation 8 Touch Show Route or Continue With out Route The system starts route recalculation after Show Route is touched and then the Route Summary screen appears After Start Navigation is touched your navigation system starts the route guidance After Continue Without Route is touched the current position map appears Restoring the current position as the starting position 1 Touch Route Planner or My Route 2 Touch Current GPS Position The popup menu appears 3 Touch Back to GPS position and then touch Delete Start Point The starting position for route calculation re turns to the current position Adding waypoints 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Add Waypoint 4 Search for a location 5 Touch Select as Waypoint The route is recalculated and the Route Summary screen appears When the way point is already set the My Route screen ap pears Touch Show Route and proceed to the next step 6 Touch Start Navigation Your navigation system starts the route gui dance Checking route alternatives You can select another route and compare dif ferent route alternatives 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Detours amp Alternatives 4 Touch Alternative Routes The Alternative Routes screen appears En Chapter Checking and modifying the current route Checking and modifying the current route

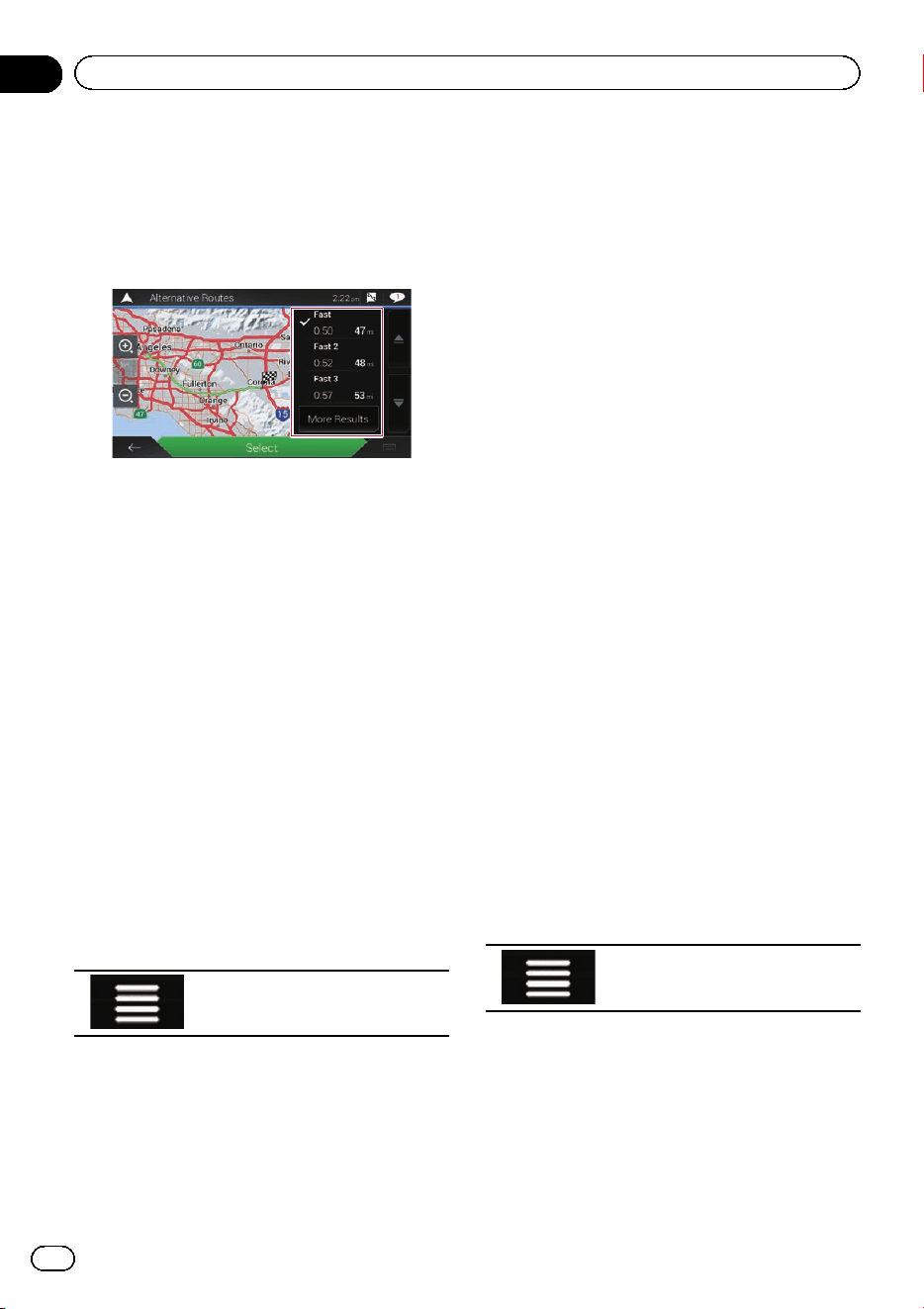

• Page 48 - English - : 5 Touch any of the conditions you want to display on the map You can see the approximate time required and total distance of selected route alterna tives Touch any of the route alternatives to see it on the map p If more than three route alternatives have been found More Results appears Touch More Results to show the other routes For information about route calculation conditions refer to Route Planning Method on page 64 6 Touch Select The selected route is applied as your current route Checking detour routes You can check for detour routes that avoid the selected sections or streets or that avoid the road ahead You can also check for alternative routes 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Detours amp Alternatives 4 Touch one of the options Alternative Routes Shows the alternative routes For details refer to Checking route alter natives on page 47 Avoid Special Sections Shows the route avoiding certain sections Touch the list item to select the section you want to avoid The distance and time differ ence suggested route current route and the section avoided are shown Touch Ac cept to apply the suggested route Avoid Specific Road Shows the route avoiding certain road Touch the list item to select the road you want to avoid Distance and time difference suggested route current route section avoided are shown Touch Accept to apply the suggested route Avoid Road Ahead Shows the route avoiding the road ahead Touch or to set the distance you want to avoid Touch Avoid to apply the sug gested route Restore Original Route Cancels the route with avoidances and re stores the previous route p The route set by Alternative Routes cannot be canceled Checking route information and preferences Once you set the route you can check a sum mary of the current route 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Route Summary The Route Summary screen appears En Chapter Checking and modifying the current route

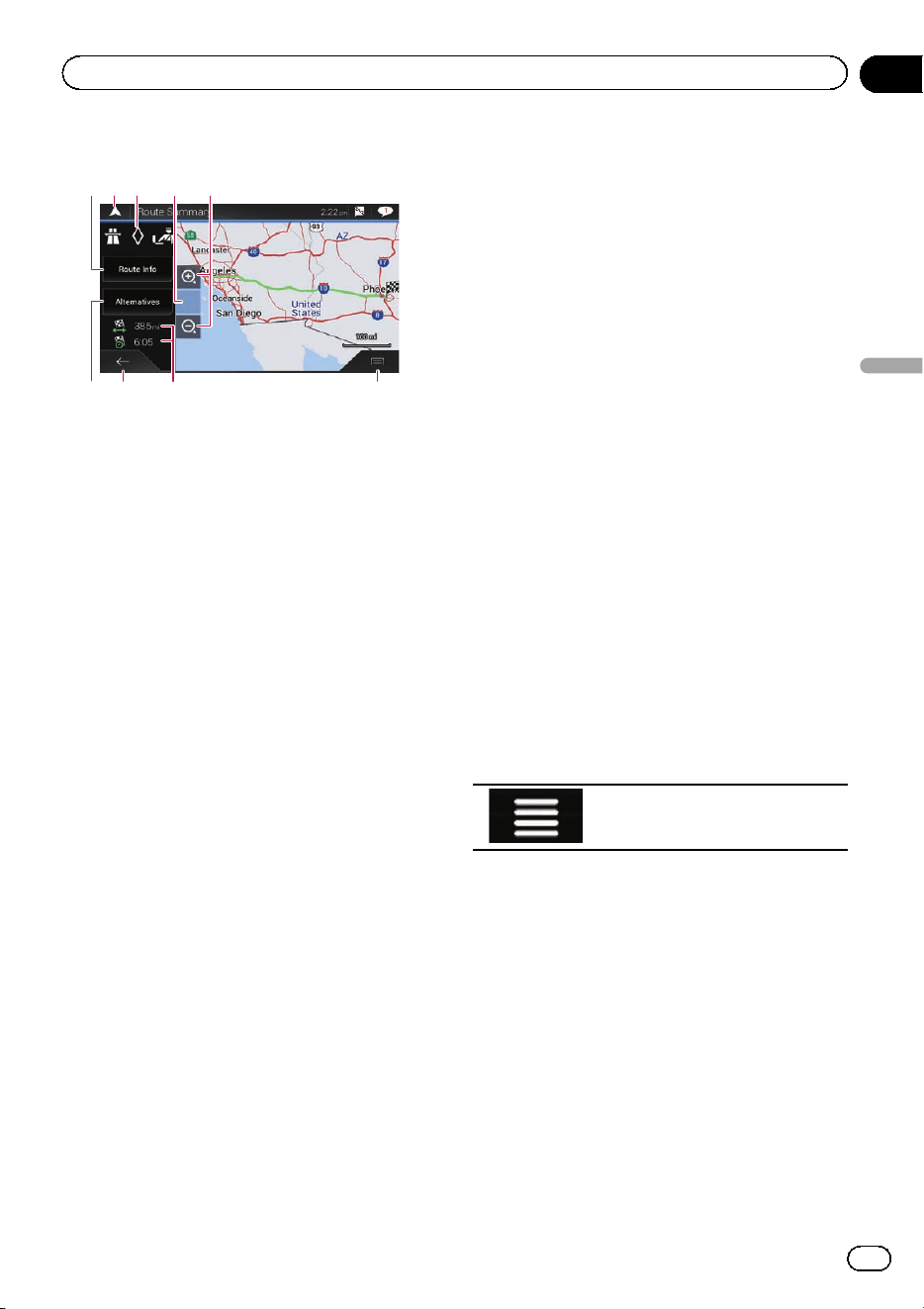

• Page 49 - English - : 4 Touch one of the options p You can scroll the map by dragging the map 1 Shows the information for a transit point on the route Touching the items allows you to see the location on the map Touch Avoid and Accept to set the location as a loca tion to avoid 2 Cancels the Route Summary screen and displays the map of the current position 3 Shows the conditions of the displayed route 4 The screen returns to the initial position and the map scale returns to the initial scale 5 Zoom inzoom out p You can also pinch or expand the map to zoom in or out 6 Shows alternative routes For details refer to Checking route alter natives on page 47 7 Returns to the previous screen 8 Shows the total length of the route and ap proximate required time for the route 9 Displays the shortcuts Route Preferences Shows the route setting preferences If you change the preferences the route is recalculated Itinerary Shows all transit points in detail Touch a transit point to show its position on the map If you touch Avoid on the map screen the route is recalculated avoiding the transit point as much as possible Save Route Saves the displayed route The saved route can be recalled later Places Along Route Searches for POIs along the displayed route Touch the POI to show the Map Location screen and also set the POI as a waypoint Simulation You can run a simulation of the naviga tion for the current route as a demon stration For details refer to Checking route al ternatives on page 47 Canceling the current route guidance If you no longer need to travel to your destina tion follow the steps below to cancel the route guidance 1 Press the MAP button The Map screen appears 2 Touch the following key Displays the navigation menu on the Map screen 3 Touch Cancel Route or Delete Way point The message screen appears 4 Touch one of the options If there are no waypoints on the route touch Cancel Route to cancel the route If there are waypoints on the route touch Cancel Route to cancel the route Touch Delete Waypoint to delete only the nearest waypoint In such case the route is recalcu lated En Chapter Checking and modifying the current route Checking and modifying the current route

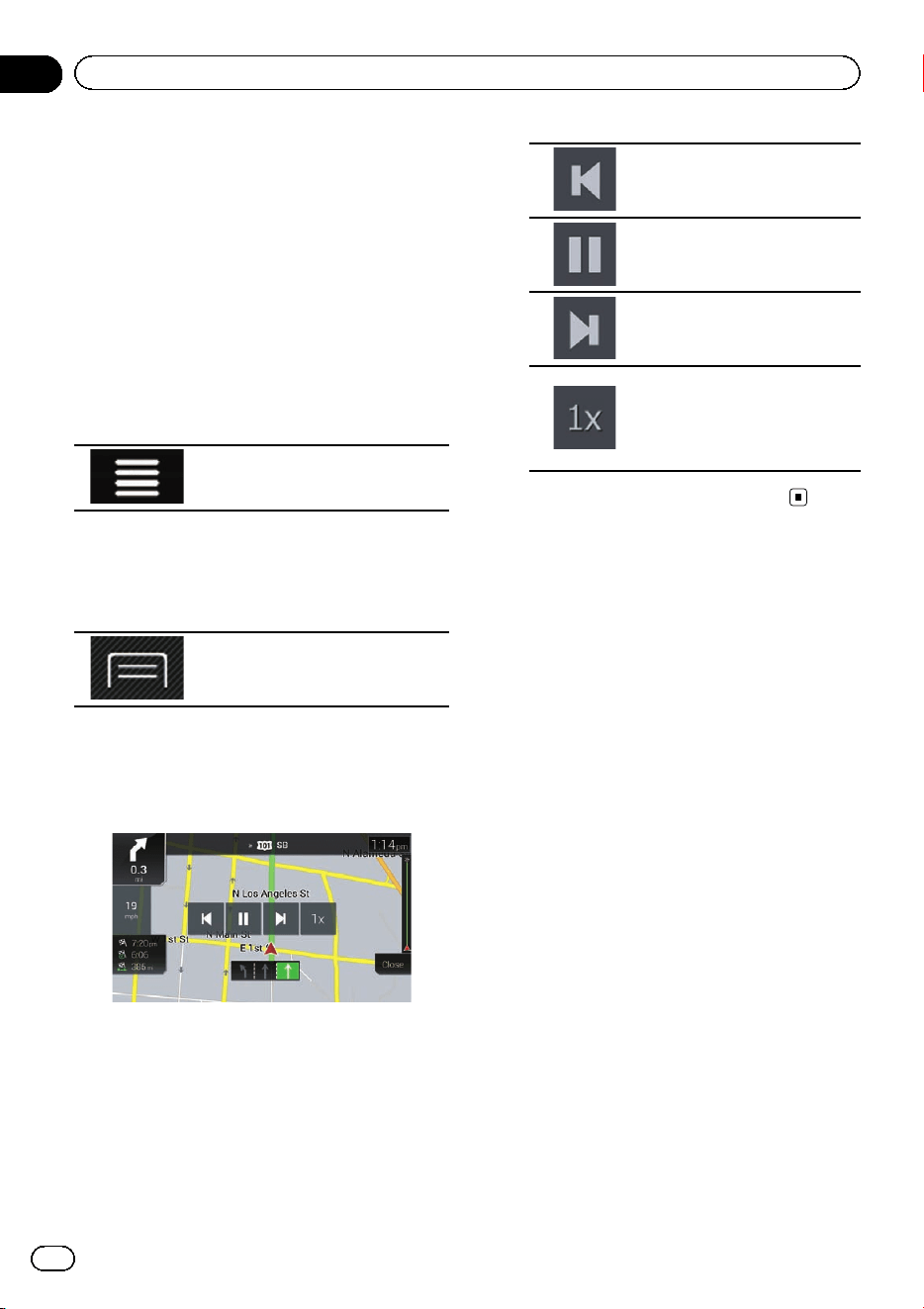

• Page 50 - English - : Watching the simulation of the route You can run a simulation of the navigation for the current route as a demonstration Follow the steps below 1 Set a route to your destination For details refer to Chapter 5 2 Press the MAP button The Map screen appears 3 Touch the following key Displays the navigation menu on the Map screen 4 Touch Route Summary The Route Summary screen appears 5 Touch the following key Displays the shortcuts 6 Touch Simulation The simulation starts from the starting point of the route and using a realistic speed it leads you through the whole recommended route p During simulation you can use the follow ing control keys they disappear after a few seconds but you can view them again by touching the map Jumps to the previous gui dance point maneuver Pauses the simulation Jumps to the next guidance point maneuver Increases the speed of the si mulation to four eight or 16 times the normal speed Touching the key again returns to the normal speed Touch Close to stop the simulation En Chapter Checking and modifying the current route
