Operating instructions
Multi-slider GAS411/421/641/951
Gas hob
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family Appliance class
GAS411GSBZ 31063 Class 3
DIN EN 30-1-1
GAS421GSBZ 31064
GAS641GSBZ 31071
GAS951GSBZ 31072
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2016
2
Contents
1 Safety precautions 5
1.1 Symbols used ........................................................................................................ 5
1.2 General safety precautions ................................................................................. 6
1.3 Appliance-specific safety precautions............................................................... 7
1.4 Instructions for use ............................................................................................... 8
1.5 Warnings...............................................................................................................10
2 Disposal 11
3 Using for the first time 12
4 Appliance description 13
4.1 Appliance overview.............................................................................................13
4.2 Operating and display elements ......................................................................14

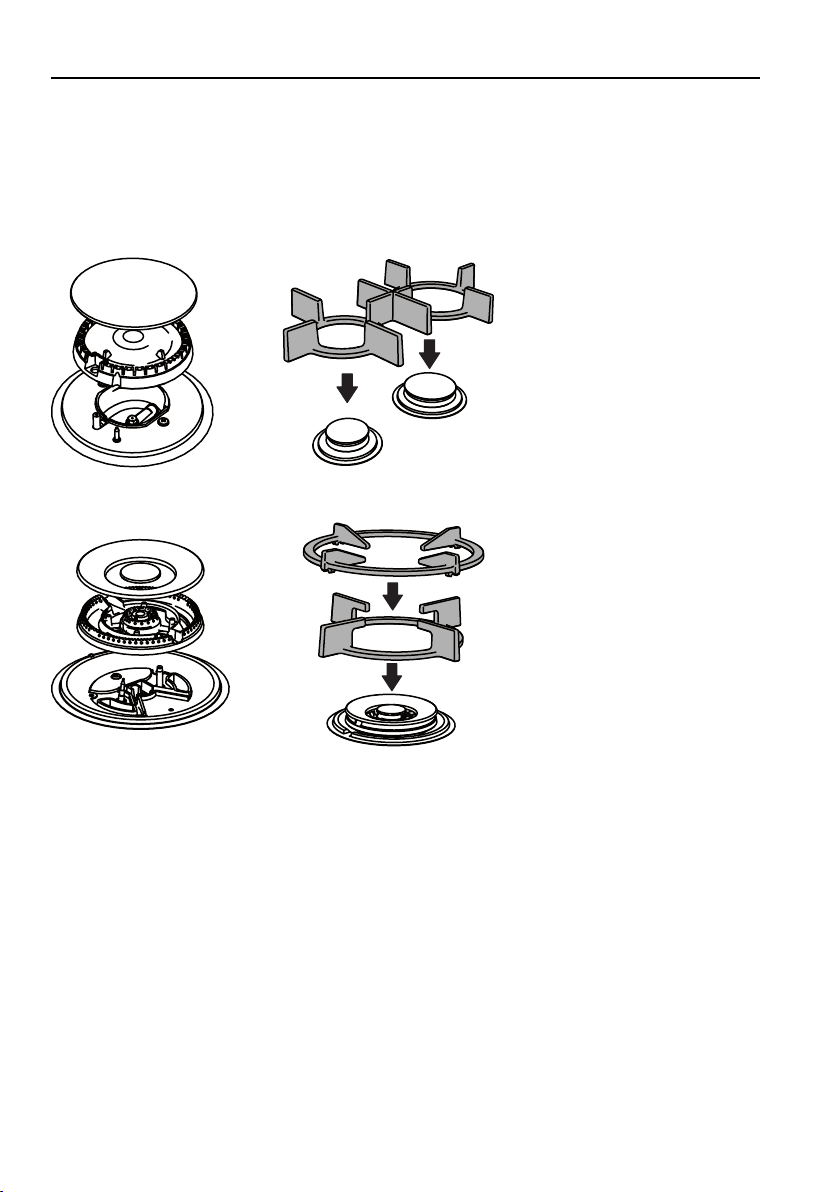

4.3 Gas burners .........................................................................................................16
4.4 Automatic re-ignition...........................................................................................17
4.5 Safety system.......................................................................................................17
4.6 Cookware .............................................................................................................18
5 Operating the appliance 21
5.1 Switching the appliance on and off.................................................................21
5.2 Selecting a cooking zone..................................................................................21
5.3 Switching a cooking zone off ...........................................................................21
5.4 Residual heat indicator ......................................................................................21
5.5 Overview of power levels...................................................................................22
5.6 Bridging function.................................................................................................23
5.7 Melting function ...................................................................................................24
5.8 Keep warm function............................................................................................24
5.9 Simmer function ..................................................................................................24
5.10 Automatic boost ..................................................................................................25
5.11 Operating time.....................................................................................................26
5.12 Timer......................................................................................................................28
5.13 Childproof lock ....................................................................................................29
5.14 Pause cooking.....................................................................................................30
5.15 Restore function ..................................................................................................30
5.16 Wipe protection ...................................................................................................30
6 User settings 31
6.1 Changing user settings......................................................................................32
7 Care and cleaning 33
3
7.1 Care .......................................................................................................................33
7.2 Cleaning................................................................................................................33
8 Trouble-shooting 34
9 Accessories and spare parts 37
10 Technical data 38
10.1 Product fiche........................................................................................................38
11 Index 39
13 Service & Support 43
4
1 Safety precautions
1.1 Symbols used
Caution, risk of fire!
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 14 and above
and by persons with reduced physical, sensory or mental cap-
abilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without su-
pervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable or gas supply line of this appliance is dam-
aged, it must be replaced by the manufacturer or its Cus-
tomer Services or a similarly qualified person in order to avoid
hazard.
6
1 Safety precautions
1.3 Appliance-specific safety precautions
▪ WARNING: In the event the hob glass breaks, immediately
switch off all the burners and disconnect the appliance from
the electricity supply, do not touch the surface of the appli-
ance or use the appliance.
▪ WARNING: If the surface is cracked, switch the appliance off
and disconnect it from the mains to avoid possible electric
shock. Disconnect the gas supply to the appliance.
▪ WARNING: The appliance and its accessible parts get hot
during use. Do not touch the burners, the pan supports or the
surface of the hob.
▪ WARNING: It can be dangerous to leave the hob unattended
when cooking with fat or oil, as this can lead to fires. NEVER
attempt to extinguish a fire with water. Switch the appliance
off and carefully smother the flames with a lid or a fire
blanket.
▪ WARNING: Never store objects on the hob. Risk of fire!
▪ Do not operate the appliance using an external time switch or
a separate remote control system.
▪ Under no circumstances use a steam cleaner to clean this ap-
pliance.
7
1 Safety precautions
1.4 Instructions for use
Operate the appliance competently and follow the advice given in the
«Appliance description» (see page 13) section.
Before using for the first time
▪ The appliance must be installed and connected to the gas and electricity
supply in accordance with the separate installation instructions. Have a cer-
tified installer carry out the necessary work.
Correct use
▪ CAUTION: This appliance is only intended for cooking purposes. It may not
used for other purposes, such as heating a room.
▪ The appliance is designed for use in the home for preparing food. No liabil-
ity is assumed for any damage caused by improper use or incorrect hand-
ling.
▪ Any repairs, modifications or manipulations to the appliance, especially any
gas pipes or electrically live parts, may only be carried out by the manufac-
turer, its customer service department or a similarly qualified person. Re-
pairs if carried out incorrectly may cause serious injury, damage to the ap-
pliance and fittings, as well as affect the functioning of the appliance. If the
appliance is not working properly or in case a repair is needed, follow the
instructions given in the «Service and support» section. Contact our Cus-
tomer Services if necessary.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the installation instructions.
▪ The appliance corresponds to recognized technology standards and the rel-
evant safety regulations. However, proper use of the appliance is essential
to avoid damage and accidents. Please therefore follow the precautions
given in these operating instructions.
▪ The heated surface of the hob, the pan supports and the burners will remain
hot for some time after the appliance is switched off and will cool down only
slowly to room temperature. Please allow sufficient time for the appliance to
cool down before, for instance, cleaning it.
Caution: Risk of deflagration!
▪ Unburned gas can accumulate in enclosed areas. Please read the warnings
carefully.
8
1 Safety precautions
Caution: Risk of toxic fumes!
▪ A gas hob produces heat, moisture and combustion by-products in the
room in which it is used. Ensure the kitchen is well ventilated, especially
when the hob is in use: keep natural ventilation holes open or install a
mechanical ventilation device (extractor hood). Prolonged intensive use of
the appliance may call for additional or more effective ventilation: open a
window or increase the extraction rate of the range hood.
Caution: Fire hazard!
▪ The cooking zones become very hot. Do not rest any objects on the hob.
▪ Do not store or use corrosive, chemical or flammable cleaning products or
products underneath or near to this household appliance.
Caution: Burns hazard!
▪ Overheated fat and oil can easily catch fire. Never attempt to extinguish
burning oil or fat with water. Danger of explosion! Smother the flames with a
fire blanket. Keep doors and windows closed.
▪ Exercise care when touching cookware handles as they can become hot.
Caution: Risk of injury!
▪ Cookware that is damaged, is not the right size or is not positioned cor-
rectly can cause serious damage. Check the cookware is fit for purpose be-
fore use. Centre the cookware in the middle of the relevant cooking zone.
Follow the tips and warnings that come with suitable cookware.
▪ In the event of a malfunction, turn off the gas and electrical supply to the ap-
pliance. Call our Customer Services.
▪ Do not tamper inside the appliance. If necessary, please call our Customer
Services.
▪ Use of unsuitable protective guards can cause accidents.
▪ Keep pets away from the appliance.
Caution: Risk to life!
▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
How to avoid damaging the appliance
▪ Under no circumstances place hot pots or pans on the display!
▪ In case of overheating, switch the hob off and allow it to cool down com-
pletely. Do not put any dishes on it. Under no circumstances use cold water
to cool it down quickly.
9
1 Safety precautions
▪ Do not climb on to the appliance.
▪ Do not cut or prepare food on the surface and avoid impact with hard ob-
jects. Do not drag cookware across the surface.
▪ Do not allow food to get onto the surfaces when they are hot, as it can dam-
age them. If food were to get onto the surfaces when they are hot, it must
be cleaned off straightaway.
▪ Do not leave the appliance unattended when in use.
▪ Only use cookware that is suitable for cooking with gas.
▪ Moving pans and cookware around causes scratches. This can be largely
prevented by lifting pans and cookware up and then placing them down in
position.
▪ The hob is designed to be used – signs of use, such as scratches or the
wear and tear from pans and cookware, are normal. The more intensively it
is used, the greater the signs of use; however, the appliance remains in per-
fect working order and therefore does not give a right of complaint. Safety is
guaranteed at all times.
1.5 Warnings
Please observe the notes on use in the «Cookware» (see page 18)
section.
▪ It is normal for a new appliance to give off an unpleasant smell when it is
first used. It does not indicate the existence of a danger or a defect. The
smell will fade over time.
▪ The colour of the flame can sometimes be orange. This is normal. It occurs
when there is dust in the air, when some liquid spills over, etc.
▪ A noise can be heard a few seconds after the burner is turned on and off.
This is normal. It indicates that the safety system has opened or shut down
the flow of gas.
▪ Ensure that the appliance is kept clean. If the ignition sparkers or thermo-
couples are dirty, the burners will not light or work properly. Clean the igni-
tion sparkers and thermocouples periodically using a small non-wire brush.
Ensure that the ignition sparkers and thermocouples receive no hard
knocks.
10
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the electricity and gas supply. With a fixed
appliance, this is to be carried out by a certified installer!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
11
3 Using for the first time
The appliance must be installed and connected to the electricity and
gas supply in accordance with the separate installation instructions.
Have a certified installer carry out the necessary work.
During the first few hours of use, a cooking zone can give off an un-
pleasant smell. This is normal for brand new appliances. Ensure that
the room is well ventilated.
Where is the identification plate?
The identification plate is located on
the underside of the hob.
1
1
Identification plate with serial number (FN)
A second identification plate is supplied and should be affixed in the fitted unit
underneath the hob.
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
The serial number is required for identifying the appliance. Only then
can customer services guarantee a faultless service.
12
4 Appliance description
4.1 Appliance overview
GAS951GSAZ
▪ 1 wok burner (left)
▪ 1 rapid burner (top right)
▪ 2 standard burners (centre)
▪ 1 economy burner (bottom right)
GAS641GSAZ
▪ 1 rapid burner (top right)
▪ 2 standard burners (left)
▪ 1 economy burner (bottom right)
GAS421GSAZ
▪ 1 rapid burner (top)
▪ 1 standard burner (bottom)
GAS411GSAZ
▪ 1 wok burner
13
4 Appliance description
4.2 Operating and display elements
Control buttons
1
3
2
5 7
4 6
1
Timer – Function as minus button in operating time / timer mode
2
Operating time – Function as plus button in operating time / timer mode
3
Multi-function button – duty-cycle function selection
4
Slider (for setting the power level)
5
Pause cooking ON/OFF and restore function
6
Appliance ON/OFF
7
Wipe protection ON/OFF
14
4 Appliance description
Displays
3 4 6 7 8 109
12 13
11
52
1
1
Bridging function activated
2
Melting function activated
3
Keep warm function activated
4
Simmer function activated
5
Duty-cycle function activated
6
Power level of the cooking zone
7
Operating time activated
8
Cooking zone indicator light for the operating time
9
Display for operating time / timer
10
Timer activated
11
Corresponding cooking zone for slider
12
Pause activated / restoration of saved settings possible
13
Wipe protection activated
15
4 Appliance description
4.3 Gas burners
The pan supports and all the parts of the burners must be positioned correctly
in order that the appliance can be operated correctly. Do not swap the burner
caps around.
Standard burner
Wok burner
16
4 Appliance description
4.4 Automatic re-ignition
All hobs have automatic re-ignition.
If a flame is extinguished, the appliance automatically attempts to re-
ignite it. If the attempt to reignite it fails, the burner switches off.
Risk of deflagration: Ventilate the room well!
If the flame does not ignite after 15 seconds, switch off the burner and
open a door or window. Wait for at least a minute before trying again.
4.5 Safety system
The appliance has a safety system which continuously monitors the flame of
each burner. It prevents the flow of gas if a burner accidentally goes out.
If the flame does not touch the thermocouple, the appliance automatically at-
tempts to ignite a flame again. If the attempt to ignite it fails, a valve stops the
flow of gas to the relevant burner.
Ignition sparker Thermocouple Ignition sparker Thermocouple
Wok burner
Standard burner
17
4 Appliance description
4.6 Cookware
Suitable cookware
Burner Top rim diameter
Min. Max. Recommended
Wok burner with wok
extension ring
26cm 40cm 35cm
Burner Base diameter
Min. Max. Recommended
Rapid burner 18cm 26cm 24cm
Standard burner 14cm 20cm 18cm
Economy burner 12cm 16cm 14cm
Wok burner without wok
extension ring
14cm 26cm 26cm
Wok extension ring
▪ The wok extension ring is only suitable
for use with round bottom cookware with
a diameter of over 26cm.
Mocha support
The mocha support is included in the scope of delivery with certain appli-
ances. It is also available as an accessory.
18
4 Appliance description
▪ The mocha support is only suitable for
use with mocha coffee makers and pots
with a diameter of at least 8 cm.
▪ The mocha support fits on all cooking
zones. The best heat transfer is achieved
on the economy and wok burners (inner
ring).
Take care that the burner flame only reaches as far as the base of
the mocha pot. The mocha pot handle could otherwise get hot.
We recommend the mocha support be used on the wok, economy or
standard burners.
Note on use
The following tips will help you to save energy and prevent damaging the
cookware and the appliance:
▪ The diameter of the base of the cook-
ware should correspond to the size of
the relevant burner.
▪ Do not place small-diameter cookware
on the large burners. The flame should
not touch the sides of the cookware.
▪ Cookware bases should not be de-
formed and stand stably on the cooking
zone. There is otherwise a risk of tipping
if the base is deformed.
▪ Only use cookware with a flat, thick
base.
▪ Always use a lid and make sure that it
fits properly, otherwise a lot of energy
will be wasted.
19
4 Appliance description
▪ Always centre the cookware over the
burner, otherwise it could tip over.
▪ Do not place large pans on the burners
near the operating elements, as these
could overheat and become damaged.
Ensure that the cookware does not protrude over the edge of the
hob.
▪ Place pans on the pan supports, never
directly on the burners.
▪ Make sure that the pan supports, the
gas burners and the burner caps are po-
sitioned correctly before use.
▪ Cookware standing on a cooking zone
should be handled carefully.
▪ Do not strike the cooking zone or put
heavy objects on it.
▪ Place the wok horizontally on the wok
support.
20
5 Operating the appliance
5.1 Switching the appliance on and off
All the appliances are operated in the same way.
▸ To switch the appliance on: Depress the button for 1second.
– flashes in all the power level displays.
– If no other entry is made, the appliance switches off again after about
10seconds for safety reasons.
▸ To switch the appliance off: Press the button.
5.2 Selecting a cooking zone
▸ Touch the slider for the required cooking zone or swipe it to
set the power level.
– To ignite the flame, sparks are produced between the ignition sparkers
and the burner caps on all burners and during the ignition process.
5.3 Switching a cooking zone off
▸ Touch power level «0» on the slider.
– If no other entry is made and the other cooking zones are switched off,
the appliance switches off after 10seconds.
5.4 Residual heat indicator
After the appliance is switched off, remains illuminated in the display for the
corresponding cooking zone as long as there is a risk of being burned.
21
5 Operating the appliance
5.5 Overview of power levels
Power level Cooking method Use
Melting Butter, chocolate,
gelatine, sauces, approx. 40–60°C
Keeping warm Keeps food warm, approx. 50–65°C
Simmering Water temperature stays below boiling
point, approx. 70–94°C
1
Melting,
gentle warming
Butter, chocolate, gelatine, sauces
2
3
Swelling Rice
4
Continued cooking,
reducing,
stewing, steaming
Vegetables, potatoes, sauces,
fruit, fish
5
6
Continued cooking,
braising
Pasta, soup, braised meat
7
Gentle frying Rösti, omelettes, breaded fried foods,
sausages
8
Frying, deep frying Meat, chips
9
Flash frying Steak
Select suitable cookware and burner for the amount of food being
used.
22
5 Operating the appliance
5.6 Bridging function
Only applies to appliances GAS641/GAS951
The bridging function allows two standard burners lying one behind the other
to be switched on together and to be regulated together.
Switching the bridging function on
▸ Depress both sliders for the standard burners at the same time for 1
second.
– The symbol illuminates next to the power level displays for the
bridged cooking zones.
▸ An acoustic signal is emitted.
If, when the bridging function is switched on, a cooking zone is
already running, the power level and operating time of this cooking
zone will be taken over for both zones. If both cooking zones are
already running, the power levels and operating times are cleared and
flashes in the power level displays.
Switching the bridging function off
▸ Depress both sliders for the standard burners at the same time for 1
second.
– The cooking zones can be regulated individually again.
23
5 Operating the appliance
5.7 Melting function
With the melting function , butter, chocolate or honey, for instance, can be
gently melted at approx. 40–60°C.
It is recommended that the smallest burner be used for the melting
function.
Switching the melting function on
▸ Touch the button.
– The symbol illuminates.
Switching the melting function off
▸ Use the slider to set any power level or switch off via «0».
5.8 Keep warm function
The keep warm function keeps cooked food warm at approx. 65°C.
Switching the keep warm function on
▸ Touch the button 2×.
– The symbol illuminates.
Switching the keep warm function off
▸ Use the slider to set any power level or switch off via «0».
5.9 Simmer function
With the simmer function , sausages, dumplings and stuffed pasta, for in-
stance, can be cooked in hot water, just below boiling point.
Switching the simmer function on
▸ Touch the button 3×.
– The symbol illuminates.
Switching the simmer function off
▸ Use the slider to set any power level or switch off via «0».
24
5 Operating the appliance
5.10 Automatic boost
Do not leave the hob unattended when using the automatic boost.
Risk of boiling over, burning on and igniting!
All the cooking zones are equipped with a selectable automatic boost. When
the function is turned on cookware heats up quickly. A cooking zone heats at
power level for a certain duration (see table).
The automatic boost function must be selected anew each time a
cooking zone is switched on.
The automatic boost is activated when the appliance is delivered from
the factory. The automatic boost can be deactivated under user set-
ting P3. See the «User settings» section.
Burner
Economy
burner
Standard
burner
Rapid burner Wok burner
Automatic boost
duration in
mins.:secs.
04:00 02:40 02:15 01:50
Switching the automatic boost on
▸ Hold the desired power level on the slider depressed for 3seconds.
– and the power level illuminate alternately in the display when the
automatic boost is activated.
– When the automatic boost is over, the heat output is reduced again to
the power level selected.
Switching the automatic boost off before time
▸ Use the slider to set a lower power level or to switch off the cooking
zone.
– The automatic boost continues to run if a higher power level is selected.
25
5 Operating the appliance
5.11 Operating time
Do not leave the hob unattended during use. Risk of boiling over,
burning on and igniting!
With the operating time function, a Cooking zone switches off automatically
after a set time 1 min.–1 hr. 59 mins..
Setting the operating time
▸ Select the required cooking zone.
▸ Touch the button.
– flashes in the display.
▸ Touch the slider for the required cooking zone.
– The symbol for the cooking zone selected illuminates.
– The indicator light for the cooking zone selected illuminates.
▸ Use the button to increase the operating time or use the button to
reduce the operating time.
– The first time the button is pressed, illuminates in the display.
– The first time the button is pressed, illuminates in the display.
The standard value can be adjusted in the user settings.
Changing the operating time
▸ Touch the button.
– flashes in the display.
▸ Touch the slider for the required cooking zone.
– The remaining operating time for the cooking zone selected is dis-
played.
– The indicator light for the cooking zone illuminates.
▸ Use the or button to change the operating time.
To quickly change the operating time, press and hold the or
button.
If the setting is not changed, it will be automatically accepted after 5 seconds.
Alternatively, the setting can also be confirmed manually by touching the slider
for the corresponding cooking zone.
26
5 Operating the appliance
Switching the operating time function off before time
▸ Touch the button.
▸ Touch the slider for the required cooking zone.
▸ Touch the and buttons at the same time.
– flashes in the display.
– The cooking zone continues to run.
End of the operating time
When the operating time finishes
– the relevant cooking zone switches off
– An acoustic signal is emitted.
– and flash above the slider.
Press the or button to switch off the acoustic signal and the display.
– If no buttons are pressed, the acoustic signal switches off automatic-
ally after 1 minute.
Several operating times
If operating times are set for several cooking zones,
– the shortest operating time is displayed.
– the corresponding cooking zone indicator light illuminates.
– the symbol illuminates with the set operating time for each cooking
zone.
To display another operating time:
▸ Touch the button.
▸ Touch the slider for the required cooking zone.
– The operating time is displayed and can be changed.
27
5 Operating the appliance
5.12 Timer
The timer functions like an egg timer (1 min.–9 hrs. 59 mins.).
It can be used at any time and independently of all other functions.
Setting the timer
▸ Switch the appliance on.
▸ Touch the button.
– The symbol illuminates.
– flashes in the display.
▸ Use the button to increase the duration of the timer or use the but-
ton to reduce the duration of the timer.
– The first time the button is pressed, illuminates in the display.
▸ The first time the button is pressed, illuminates in the display.
The standard value can be adjusted in the user settings.
To quickly change the duration of the timer, press and hold the or
button.
Changing the timer
If no Frying zone is in use, first switch the appliance on.
▸ Touch the button.
– The time left on the timer flashes.
▸ Use the or button to change the duration of the timer.
Switching the timer off before time
If no Frying zone is in use, first switch the appliance on.
▸ Touch the button.
▸ Touch the and buttons at the same time.
– flashes in the display.
28
5 Operating the appliance
5.13 Childproof lock
The childproof lock is to prevent the appliance from being accidentally
switched on.
Switching the childproof lock on
▸ Switch the appliance on.
Ensure all cooking zones are switched off.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Touch the button again.
– An acoustic signal is emitted.
– The childproof lock is now switched on.
– illuminates in all the power level displays for 10seconds.
Operating the appliance with the childproof lock activated
▸ Switch the appliance on.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
– The childproof lock is overridden. The appliance can now be used as
normal.
The childproof lock is reactivated within one minute of switching off
the appliance.
Switching the childproof lock off
▸ Switch the appliance on.
Ensure all cooking zones are switched off.
▸ Touch the and buttons at the same time.
– An acoustic signal is emitted.
▸ Touch the button again.
– A double acoustic signal is emitted.
– The childproof lock is now switched off.
– flashes in all the power level displays for 10seconds.
29
5 Operating the appliance
5.14 Pause cooking
With this function, all the cooking zones that are switched on can be temporar-
ily operated for up to 10minutes using the «Keep warm» duty-cycle function.
Thereafter, the appliance can continue to be operated using the previous set-
tings.
▸ Touch the button.
– The keep warm function is activated for each cooking zone.
– The operating time is interrupted.
– The timer continues to run.
– All buttons except , and are inactive.
If the pause cooking function is not turned off within 10minutes, the
appliance switches off completely.
▸ Press the button again to resume cooking.
– The cooking zones resume operation using the previous settings.
5.15 Restore function
If the appliance has been inadvertently switched off with the button, the set-
tings can be restored within 6seconds.
▸ Switch the appliance on.
– The indicator light for the button flashes.
▸ Touch the button.
– Cooking zones that were switched on when the appliance was acci-
dentally switched off come back on automatically.
5.16 Wipe protection
This function prevents the power level from being changed accidentally, for in-
stance when wiping the control panel with a cloth.
▸ Touch the button.
– The indicator light for the button illuminates.
▸ Wipe protection is switched off by touching the button again or automat-
ically after 30seconds.
Press the button to switch the appliance off at any time.
30
6 User settings
The following user settings can be set and stored individually:
User setting Default value Factory
setting
P0
Acoustic signal
volume
0 Low 2
1 Medium
2 High
P1
Acoustic signal
at end of operating
time / timer
0 No acoustic signal 2
1 Automatically off after
10secs.
2 Automatically off after 1min.
P3
Automatic boost 0 Automatic boost off 1
1 Automatic boost on
P4
Default operating
time / timer duration
0 Default duration 0mins. 3
1–9 Adjustable in steps from
10–90mins.
P5
Acoustic signal
when buttons
are pressed
0 Acoustic signal off 1
1 Acoustic signal on
P6
Restore factory
settings
0 Restore factory settings:
Hold the button depressed
for 2secs.
31
6 User settings
6.1 Changing user settings
▸ With the appliance switched off, simultaneously hold the and but-
tons depressed for 3seconds.
– An acoustic signal is emitted.
▸ Touch both sliders left of display
3
. For appliances with only one slider,
simply touch the available slider.
– An acoustic signal is emitted.
– The indexed user setting, e.g. , appears in display
3
.
– The current default value of the user setting is shown in display
2
.
2 31
▸ Use the button to select the next highest and the button the next
lowest user setting.
▸ Touch the left or right side of the active slider
1
to select a higher or lower
setting value.
Saving entry
▸ Hold the button depressed for 2seconds.
– An acoustic signal is emitted.
– The «User settings» mode is ended.
Cancelling user settings
▸ Press the button.
– Any changes made to the default values are not saved.
– The «User settings» mode is ended.
32
7 Care and cleaning
Do not use any flammable, abrasive, chlorine- or bleach-containing
cleaning agents to clean the appliance. Only use standard food-grade
cleaning agents.
Under no circumstances use metal or steel brushes, copper cloths or
products that contain sand or scratch for cleaning.
Do not use a steam cleaner to clean the hob, as this could damage it.
Do not use abrasive cleaners, metal scourers, sharp objects, knives or
the like, for removing dried-on food residue from the hob.
7.1 Care
▪ If any liquid boils over, clean it off immediately to prevent it from burning on.
▪ Remove any grains of sand (e.g. from cleaning vegetables) immediately, as
they could scratch the surface of the hob.
7.2 Cleaning
▪ After cooking, allow the appliance to cool down before cleaning it. Clean
the surface with a sponge, water and a mild cleaning agent. For hobs with a
stainless steel surface, use a chrome steel cleaner for the best cleaning res-
ults. Always clean in the direction of the original polish lines.
▪ If dirty, clean the surface of each individual part of the burner when cold
with a sponge, water and mild cleaning agent and rinse off thoroughly with
water. Residue (food that has boiled over, fat splashes, etc.) can eat into
the surface and be very difficult to remove later. For a uniform flame, the
holes and grooves in the burner must always be kept clean.
▪ Pan supports can be cleaned in a dishwasher or by hand. Ensure that the
silicone feet do not come off the pan supports.
▪ Always dry the burners and the pan supports after cleaning them. Water
droplets or damp patches on the hob at the start of cooking may damage
the enamel. After cleaning and drying the burner rings and caps, position
them centrally on the corresponding burners.
33
8 Trouble-shooting
What to do if …
… the ignition is not working?
Possible cause Solution
▪ Food or cleaning product
residue stuck between the
ignition sparkers and the
burners.
▸ Clean the area between the ignition sparker
and the burner.
▪ The burners are wet. ▸ Dry the burner caps carefully.
▪ The burner caps are not
positioned correctly.
▸ Check that the caps are positioned cor-
rectly.
▪ The appliance is not
earthed, is not earthed
correctly or the earthing is
damaged.
▸ Notify our Customer Services.
▪ The thermocouple is dirty. ▸ Clean the area between the thermocouple
and the burner.
Notify Customer Services if the thermo-
couple is not working properly.
… the flame is not uniform?
Possible cause Solution
▪ The parts of the burners
are not positioned cor-
rectly.
▸ Position the burner parts correctly once they
have cooled down.
▪ The grooves on the burner
are dirty.
▸ Clean the grooves on the burner.
... the gas flow is not normal or there is no gas?
Possible cause Solution
▪ Check the gas supply to
the hob.
▸ Open valve in the main distributor or inter-
mediate valves.
▪ If the gas is supplied from
a gas cylinder, check
whether it is empty.
▸ Replace the empty gas cylinder.
34
8 Trouble-shooting
... The kitchen smells of gas?
Possible cause Solution
▪ Incorrect coupling of the
gas cylinder.
▸ Check that the coupling of the gas cylinder
is sound.
▪ Possible gas leak. ▸ Turn off the gas tap, ventilate the room and
immediately notify Customer Services. Do
not use the appliance until ensuring that
there is no gas leak in the installation or ap-
pliance itself.
Ventilate the room well!
... illuminates in the displays?
Possible cause Solution
▪ The childproof lock is ac-
tivated.
▸ For operating the appliance with the child-
proof lock activated, see «Operating the ap-
pliance» section.
▸ Switch the childproof lock off.
... A continuous acoustic signal is emitted, flashes in a display and the appli-
ance switches off?
Possible cause Solution
▪ A button or a slider was
touched for longer than
10seconds.
▸ Remove object or food that has boiled over.
▸ The appliance can be used again as nor-
mal.
▪ Object (e.g. pan, dish) on
the control panel.
▪ Food boiled over onto the
control panel.
... and flash alternately in the display?
Possible cause Solution
▪ The automatic safety shut-
off was triggered.
▸ Switch the cooking zone back on again if
required.
35
8 Trouble-shooting
If a cooking zone has been running for longer without any settings be-
ing changed, the appliance switches the cooking zone off automatic-
ally, after how much time depends on the power level set.
Power level
1 2 3 4
Safety shut-off after hrs.:mins.
02:00 08:30 06:30 05:30 04:30
Power level
5 6 7 8 9
Safety shut-off after hrs.:mins.
03:30 03:00 02:30 02:00 01:30
... flashes in the display?
Possible cause Solution
▪ Excess temperature protec-
tion was triggered.
▸ Allow the cooking zone to cool down.
▸ Check cookware.
... flashes in the display?
Possible cause Solution
▪ An interruption in the power
supply.
▸ Press any button to quit the error mes-
sage.
▸ The appliance can be used again as nor-
mal.
… or and a number illuminate in the display?
Possible cause Solution
▪ Internal error occurred. ▸ Check the gas supply.
▸ Clean the thermocouples.
▸ Quit error message (confirm using the
slider).
▸ Switch the hob off, allow it to cool down
and then switch it back on again.
▸ Disconnect the power supply to the hob
for 1 minute by removing the fuse or
switching off the circuit breaker.
▸ If the error cannot be
remedied.
▸ Note down the error number.
▸ Note down the serial number (FN) of the
appliance. See the identification plate for
this.
▸ Call Customer Services.
36
9 Accessories and spare parts
Please give product family of the appliance and exact designation of the ac-
cessory or spare part when ordering parts.
Accessories
Mocha support
Spare parts
Pan support
Wok pan support
Wok extension ring
Wok burner
in black or made from brass
Standard burner
in black or made from brass
37
10 Technical data
10.1 Product fiche
Model number 31063
Type designation GAS411GSBZ
Type of burner Wok
Nominal heat input (MJ/h)
natural gas, 1.0 kPa
24
Nominal heat input (MJ/h)
universal liquid gas, 2.75 kPa
20
Model number 31064
Type designation GAS421GSBZ
Type of burner Rapid Standard Total
Nominal heat input (MJ/h)
natural gas, 1.0 kPa
11.5 6.5 18
Nominal heat input (MJ/h)
universal liquid gas, 2.75 kPa
10 5.8 15.8
Model number 31071
Type designation GAS641GSBZ
Type of burner Rapid 2 × Standard Economy Total
Nominal heat input (MJ/h)
natural gas, 1.0 kPa
11.5 6.5 4 28.5
Nominal heat input (MJ/h)
universal liquid gas, 2.75 kPa
10 5.8 3.3 24.9
Model number 31072
Type designation GAS951GSBZ
Type of burner Wok Rapid 2 × Standard Economy Total
Nominal heat input (MJ/h)
natural gas, 1.0 kPa
24 11.5 6.5 4 52.5
Nominal heat input (MJ/h)
universal liquid gas, 2.75 kPa
20 10 5.8 3.3 44.9
38
11 Index
A
Appliance
Switching on and off......................... 21
Appliance overview ...................................... 13
Appliance-specific safety precautions
.................................................................... 7
Automatic boost ............................................ 25
Switching off before time ................. 25
Switching on....................................... 25
Automatic re-ignition..................................... 17
B
Bridging function........................................... 23
Switching off....................................... 23
Switching on....................................... 23
C
Care................................................................. 33
Childproof lock .............................................. 29
Operating appliance with childproof
lock activated..................................... 29
Switching off....................................... 29
Switching on....................................... 29
Cleaning.......................................................... 33
Cooking zone ................................................ 21
Cookware ....................................................... 18
D
Disconnection................................................ 11
Disposal.......................................................... 11
G
Gas burner ..................................................... 16
I
Identification plate......................................... 12
Instructions for use ......................................... 8
K
Keep warm function ..................................... 24
M
Melting function............................................. 24
Mocha support .............................................. 18
Model number ................................................. 2
N
Notes............................................................... 41
O
Operating and display elements
Control buttons .................................. 14
Displays............................................... 15
Operating time............................................... 26
Changing ............................................ 26
Finished............................................... 27
Setting ................................................. 26
Several operating times ................... 27
Switching off before time ................. 27
Overview of power levels ............................ 22
P
Packaging ...................................................... 11
Pause cooking............................................... 30
Product family.................................................. 2
Product fiche.................................................. 38
R
Residual heat indicator................................ 21
Restore function ............................................ 30
S
Safety .............................................................. 11
Safety precautions
General...................................................6
Safety shut-off ................................................ 36
Safety system ................................................ 17
Serial number (FN) ....................................... 12
Service & Support......................................... 43
Simmer function ............................................ 24
Symbols ............................................................ 5
T
Technical questions...................................... 43
Timer ............................................................... 28
Changing ............................................ 28
Ending before time............................ 28
Setting ................................................. 28
Trouble-shooting ........................................... 34
Type................................................................... 2
U
User settings.................................................. 31
39
Cancelling........................................... 32
Changing ............................................ 32
Using for the first time.................................. 12
V
Validity............................................................... 2
W
Warranty extensions ..................................... 43
Where is the identification plate?............... 12
Wipe protection ............................................. 30
Wok extension ring....................................... 18
40
41
12 Notes
42
13 Service & Support
The «Troubleshooting» chapter provides valuable information for dealing with
minor operating faults. This saves you the time, effort and potential cost of having
to call out a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty in-
formation. Please read this information carefully.
Please register your V-ZUG appliance online immediately at www.vzug.com →Service
→Warranty registration. This will allow you to take advantage of the best possible support
in the event of an fault in the appliance during the warranty period. You will require the
serial number (FN) and appliance designation to complete the registration process. This
information can be found on the identification plate for your appliance.
My appliance information:
FN:
___________________
Appliance
: _____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
The identification plate is located on the underside of the gas hob.
Your repair order
At www.vzug.com →Service→Service number you will find the telephone number of your
nearest V‑ZUG service centre.
Technical questions, accessories, warranty extensions
V-ZUG is happy to help you with any general administrative or technical queries, to take
your orders for accessories and spare parts and to inform you about our progressive ser-
vice agreements.
43
Quick instructions
Please first read the safety precautions in the operating instructions!
To switch appliance on
▸ Depress the button for 1 second.
To select cooking zone
▸ Touch the slider for the required cooking zone or swipe it to set the power
level.
To switch cooking zone off
▸ Touch power level 0 on the slider.
To switch appliance off
▸ Touch the button.
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
1007523-R03
