OWNER’S MANUAL
Network Media Player
(Product Name: Smart TV Upgrader)
Please read this manual carefully before operating
your set and retain it for future reference.
SP520
1 Getting Started
Getting Started 3
Getting Started
1
Safety information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION concerning the Power Cord
To disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
Getting Started4
Getting Started
1
FCC Compliance Statement
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment o and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
y
Reorient or relocate the receiving antenna.
y
Increase the separation between the equipment
and receiver.
y
Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
y
Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
FCC RF Radiation Exposure Statement : This
equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated
with minimum distance 20 cm between the
radiator and your body. End users must follow the
specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Regulations of the FCC and FAA prohibit
airborne operation of radio-frequency wireless
devices because their signals could interfere with
critical aircraft instruments.
Getting Started 5
Getting Started
1
Notes on Copyrights
Recording equipment should be used only for
lawful copying and you are advised to check
carefully what is lawful copying in the area in which
you are making a copy. Copying of copyright
material such as lms or music is unlawful unless
permitted by a legal exception or consented to by
the rights owner.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury from tip-
over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
Table of Contents6
Table of Contents
1 Getting Started
3 Safety information
8 Introduction
8 – About the “7” symbol display
8 – File requirement
10 – About DLNA
10 – Certain system requirements
10 – Compatibility notes
11 Main unit
11 Remote control
2 Connecting

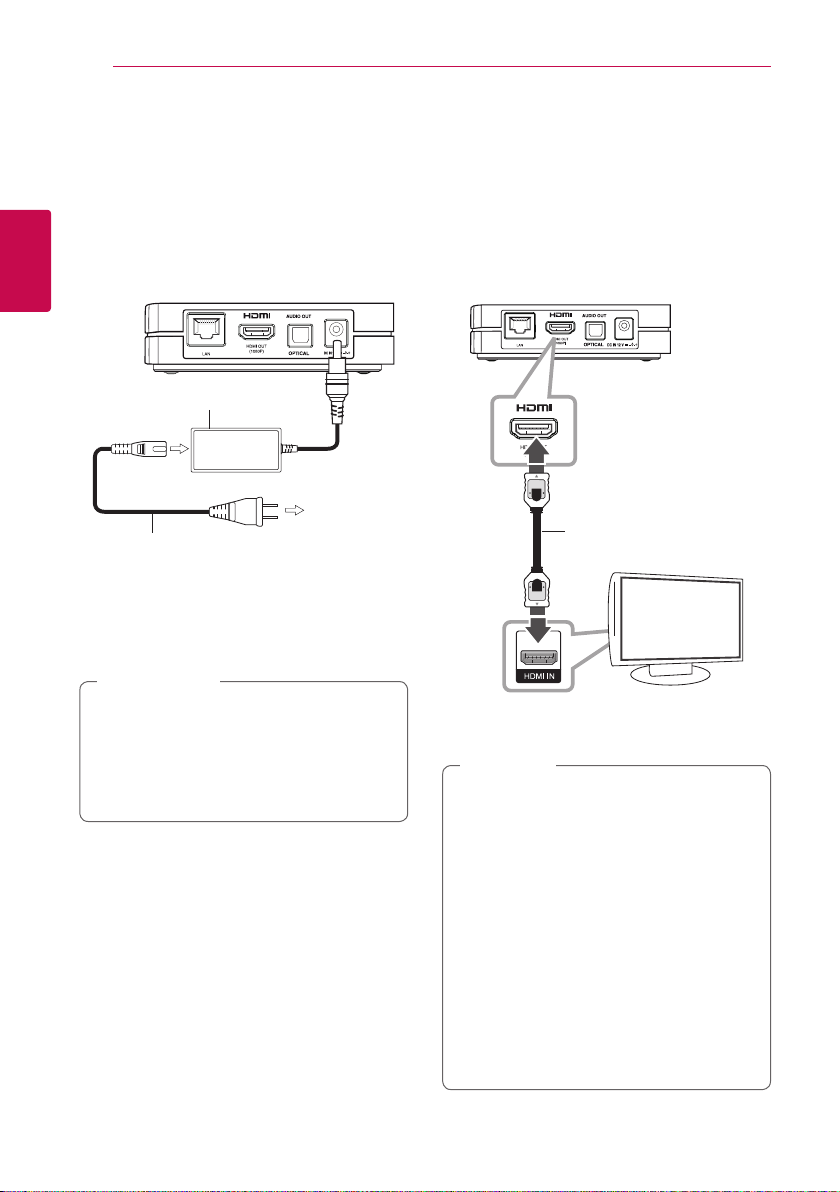

12 Connecting the AC adapter
12 HDMI connecting to your TV
13 – Resolution setting
14 Connecting to an amplifier

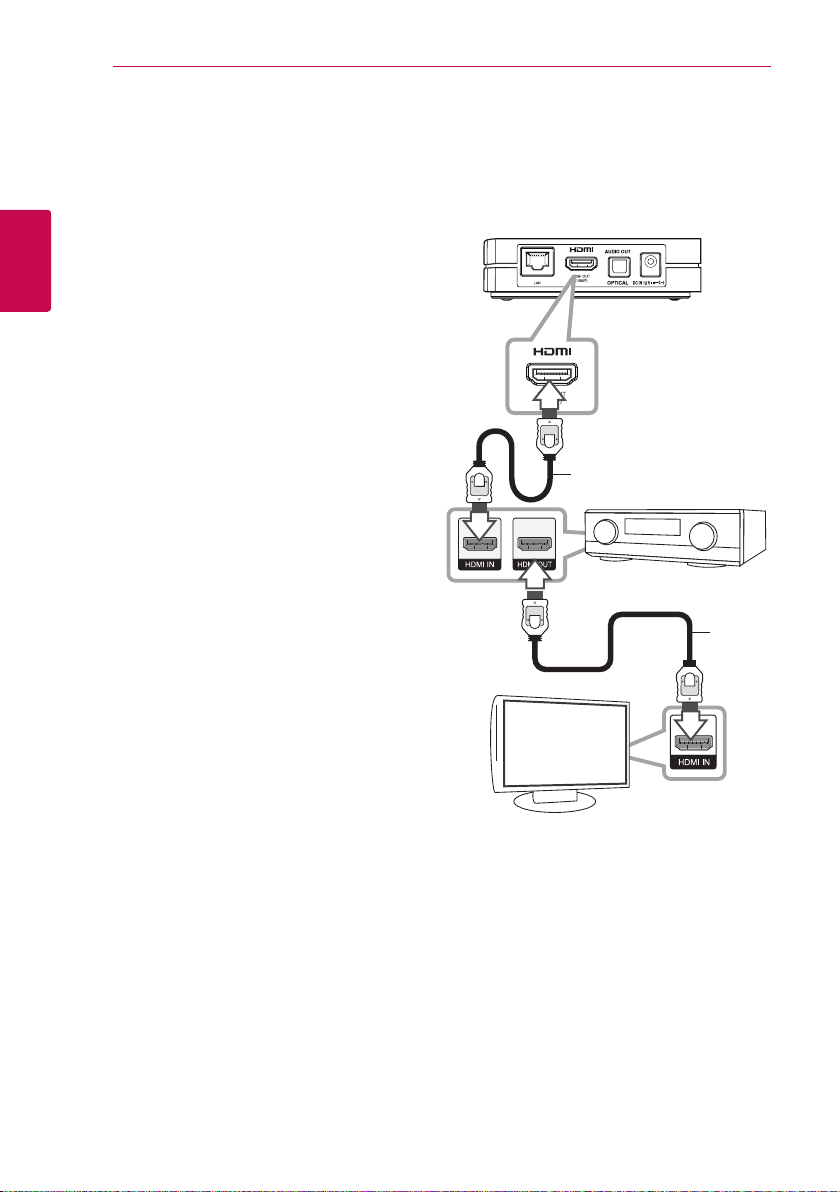

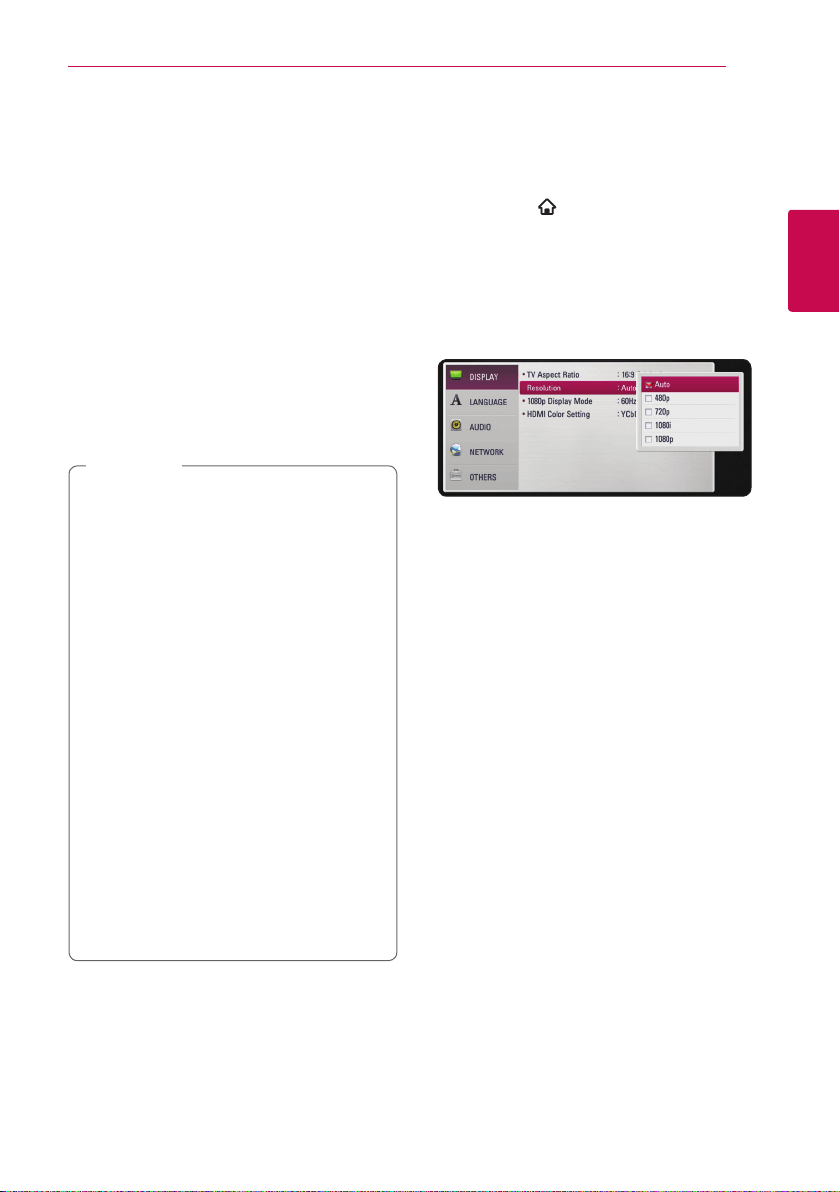

14 – Connecting to an amplifier via HDMI
Output
15 – Connecting to an amplifier via Digital
Audio Output
16 Connecting to your home network
16 – Wired network connection

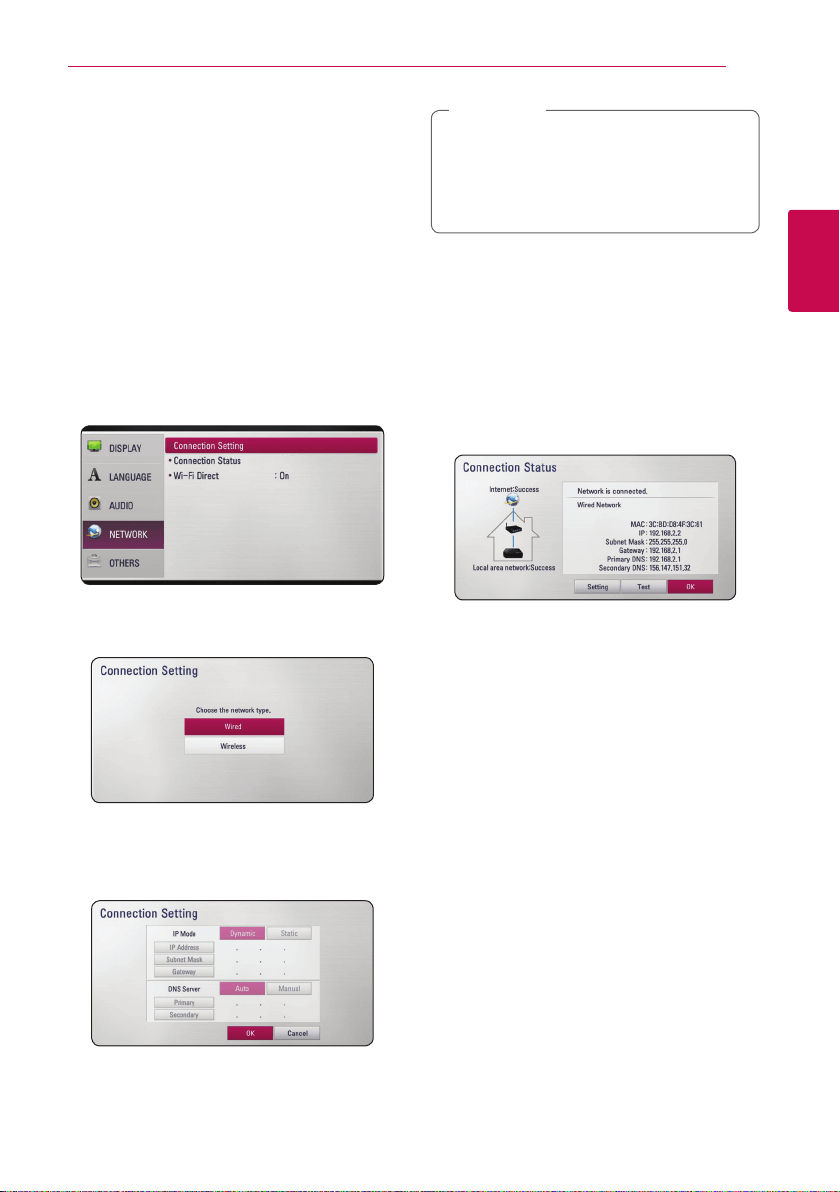

17 – Wired network setup
18 – Wireless network connection

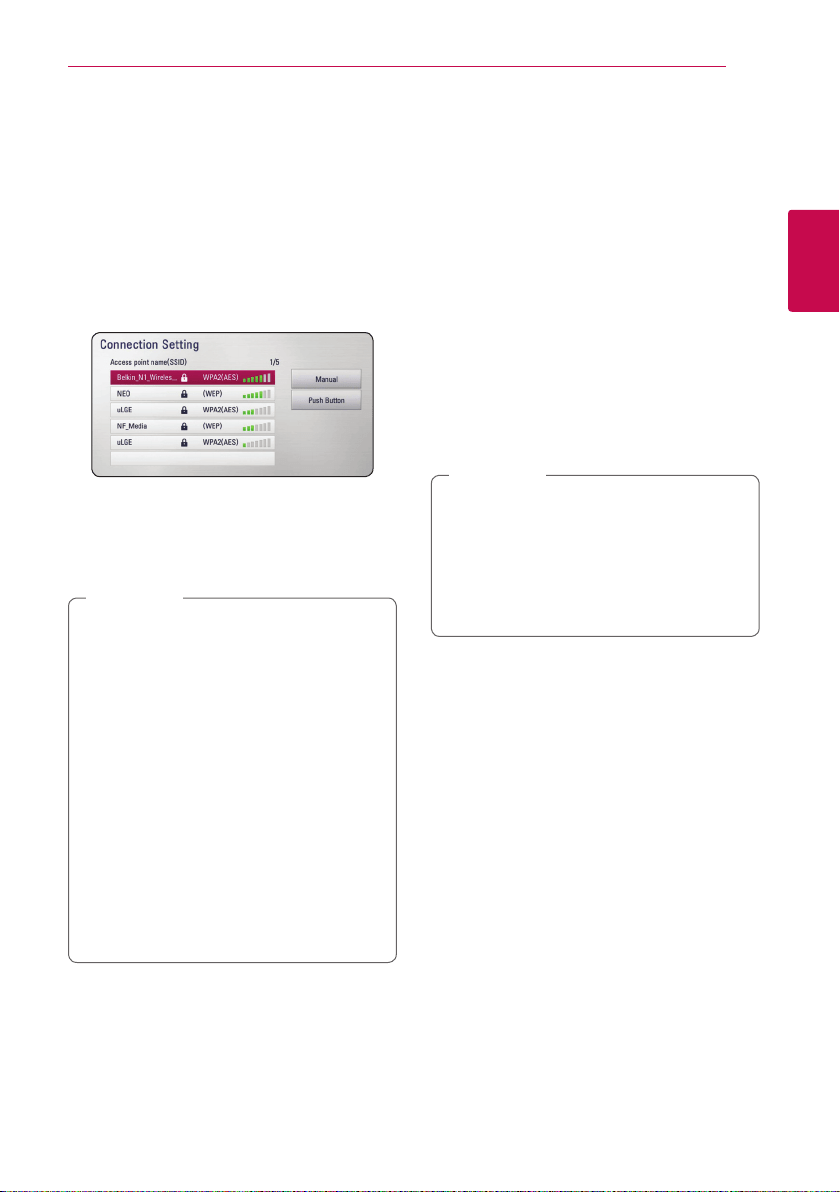

18 – Wireless network setup
21 USB device connection
21 – Playback content in the USB device
3 System Setting
22 Settings

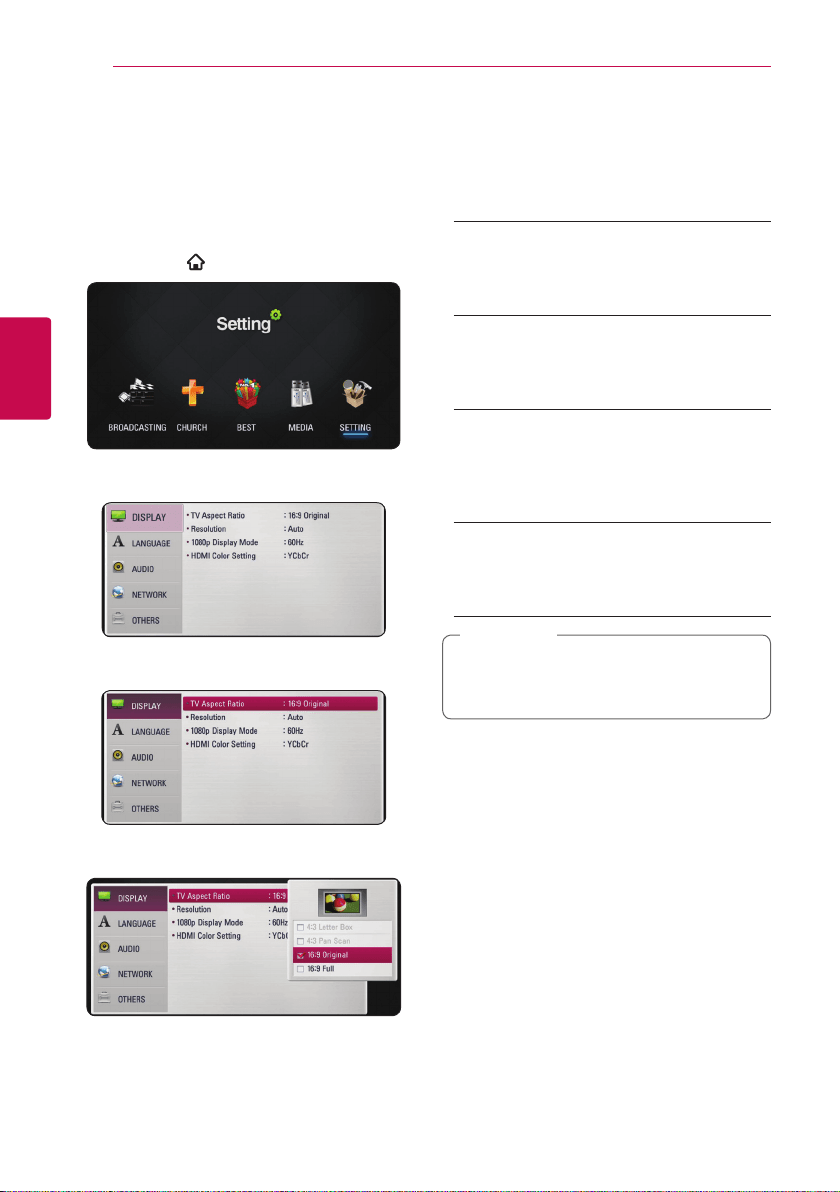

22 – Adjust the setup settings
22 – [DISPLAY] menu
23 – [LANGUAGE] menu
24 – [AUDIO] menu
25 – [NETWORK] menu
25 – [OTHERS] menu
4 Operating
27 General playback
27 – Using [HOME] menu

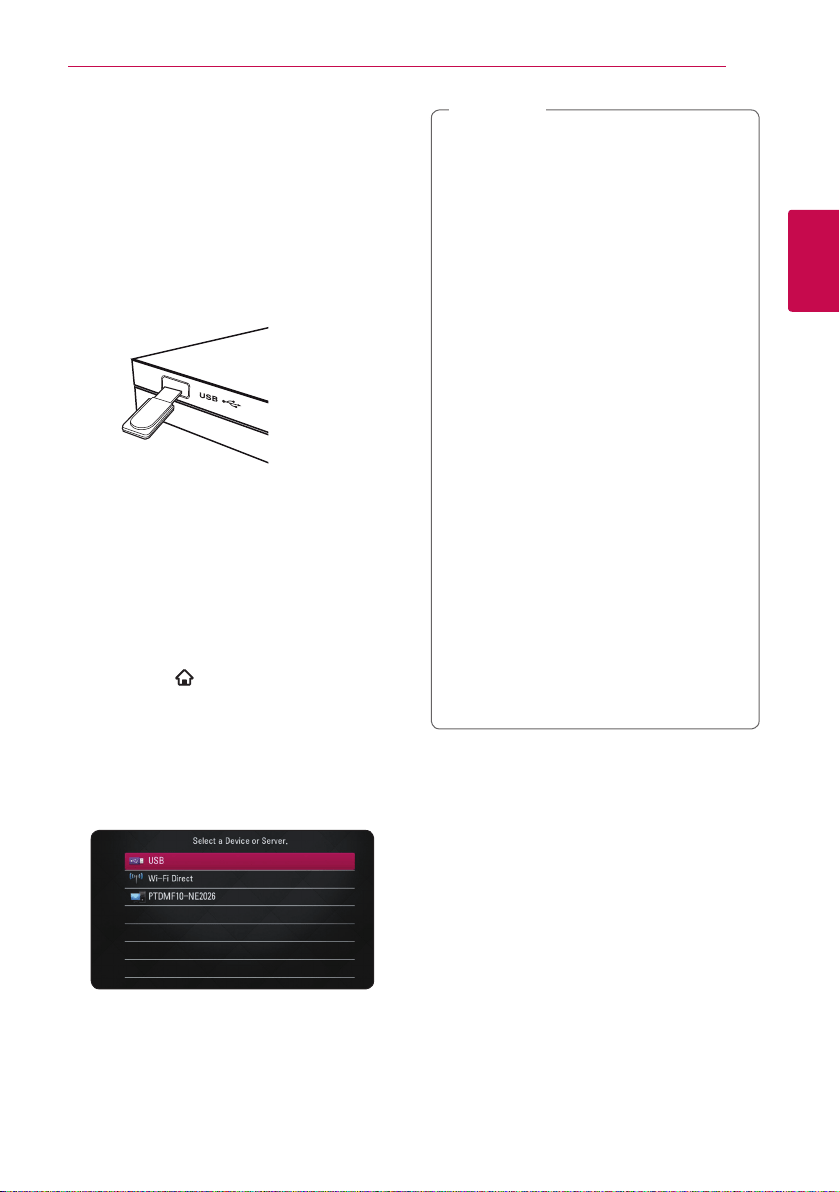

27 – Playing a file media from a USB
device

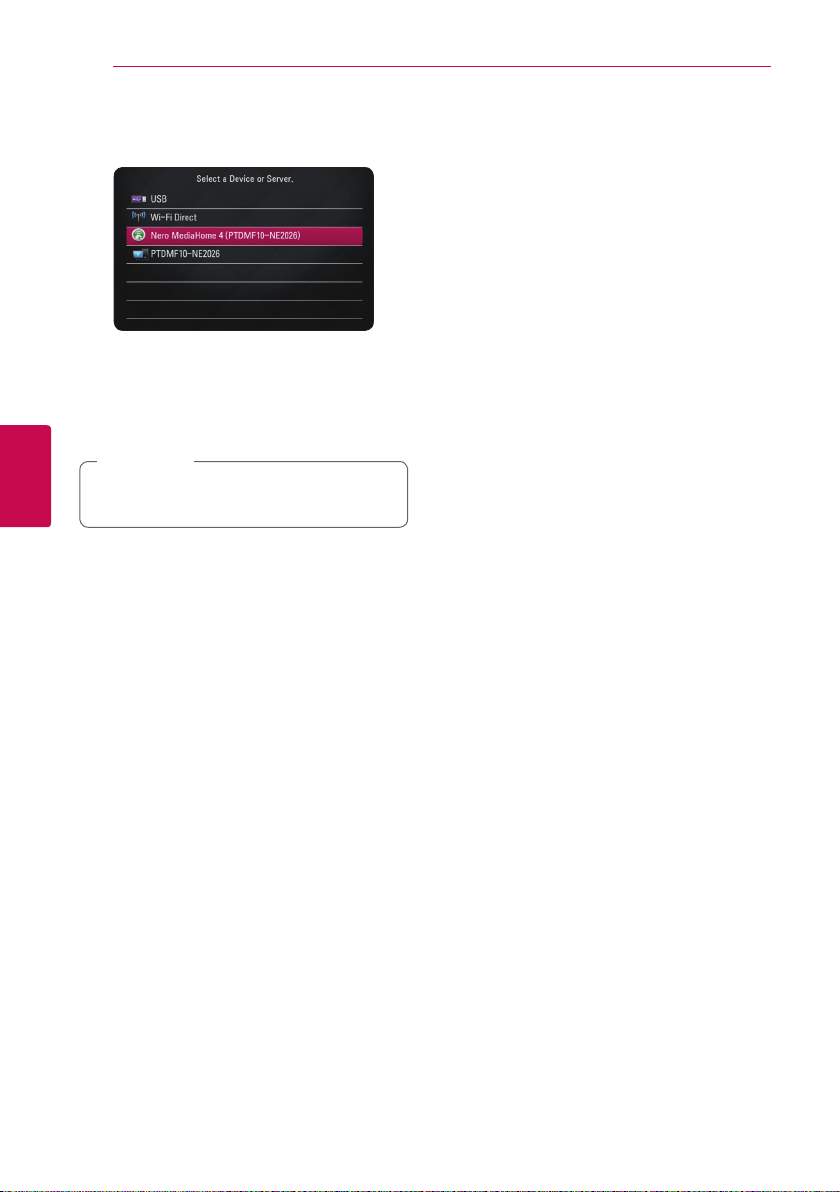

27 – Playing a file media from a network
server

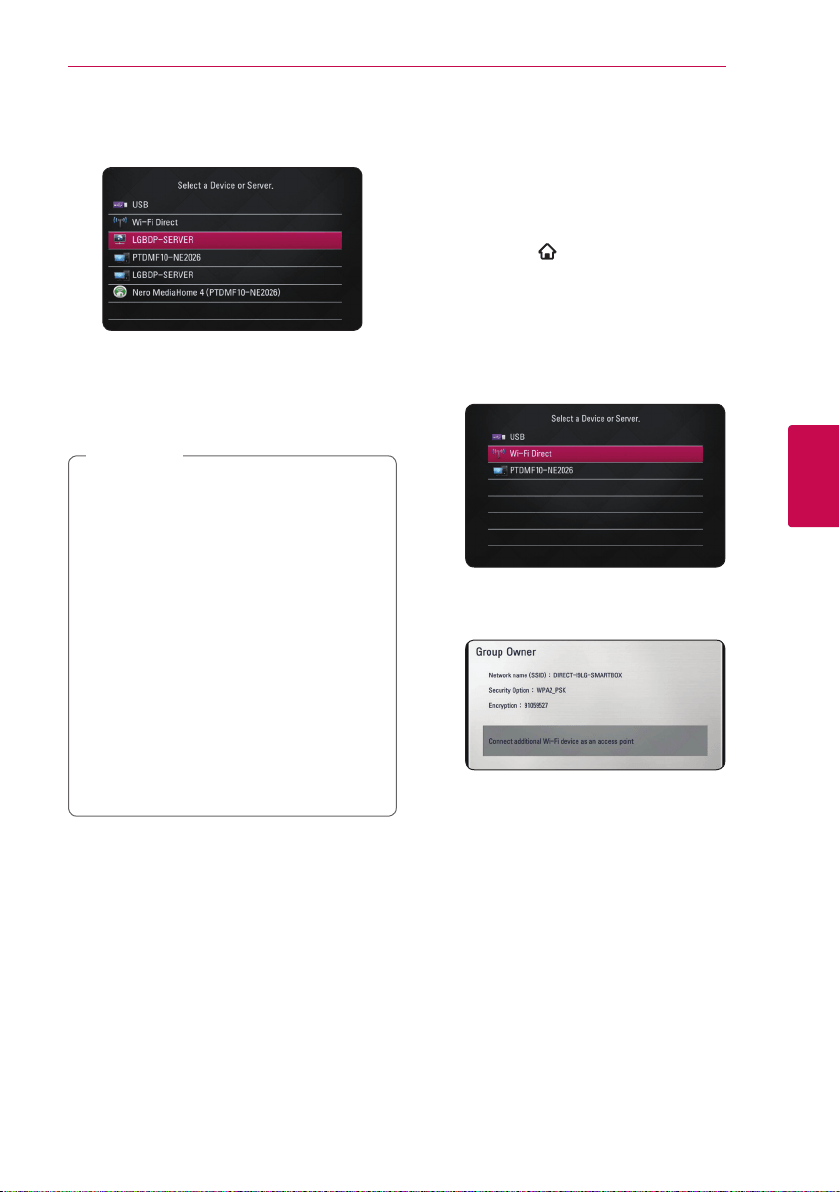

28 – Wi-Fi Direct™ connection
30 – Basic operations for video and audio
content
31 – Basic operations for photo content
31 Advanced playback
31 – Enlarge the playback image
31 – Repeat playback
31 – Viewing content information
32 – Changing content list view
32 – Selecting a subtitle file
33 – Options while viewing a photo
33 – Listening to music while slide show
34 On-Screen display

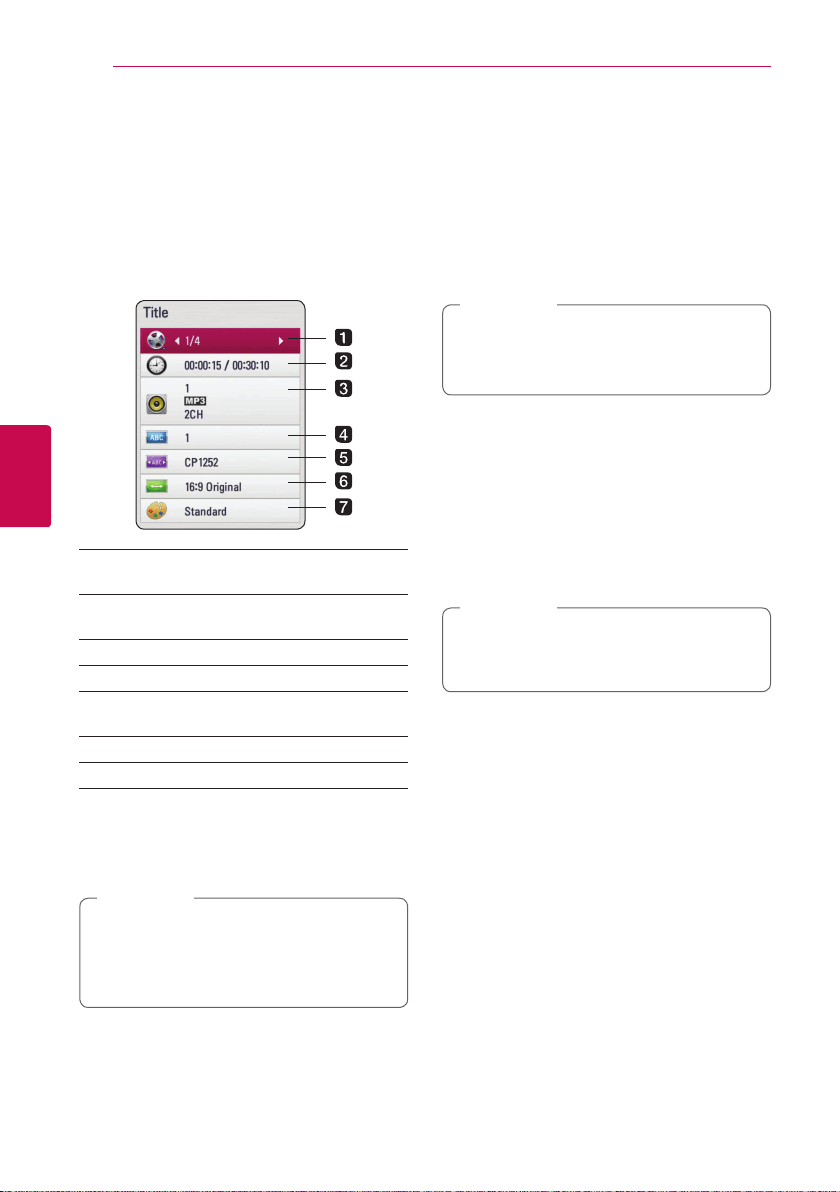

34 – Displaying content information
34 – Playing from selected time
34 – Listening to a different audio track
34 – Selecting a subtitle language
Table of Contents 7
1
2
3
4
5
6
5 Troubleshooting
35 Troubleshooting
35 – General
35 – Picture
36 – Resetting
36 – Network
6 Appendix
37 About Nero MediaHome 4 Essentials
37 – System requirements
37 – Installing Nero MediaHome 4
Essentials
38 – Sharing files and folders
39 Trademarks and licenses
40 Audio output specifications
41 Specifications
42 Maintenance
42 – Handling the unit
42 Important information relating to network
services
Getting Started8
Getting Started
1
Introduction
About the “
7
” symbol display
“
7
” may appear on your TV display during operation and indicates that the function explained in this
owner’s manual is not available on that specic media.
File requirement
Video files
File
Location
File
Extension
Codec Format Audio Format Subtitle
USB, DLNA,
Windows
PC
“.avi”, “.divx”,
“.mpg”,
“.mpeg”,
“.mkv”, “.mp4”,
“.asf”, “.wmv”,
“.m4v” (DRM
free)
DIVX3.xx, DIVX4.xx,
DIVX5.xx, DIVX6.xx
(standard playback
only), XVID, H.264/
MPEG-4 AVC, VC-1
SM (WMV3), MPEG1,
MPEG2
Dolby Digital,
MP3, WMA,
AAC, Dolby
Digital Plus
SubRip (.srt / .txt), SAMI (.smi),
SubStation Alpha (.ssa/.txt),
MicroDVD (.sub/.txt), VobSub
(.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), TMUnit
(.txt), DVD Subtitle System (.txt)
USB, DLNA,
Mac PC
“.avi”, “.divx”,
“.mpg”,
“.mpeg”,
“.mkv”, “.mp4”,
“.m4v” (DRM
free)
DIVX3.xx, DIVX4.xx,
DIVX5.xx, DIVX6.xx
(standard playback
only), XVID, H.264/
MPEG-4 AVC, VC-1
SM (WMV3), MPEG1,
MPEG2
Dolby Digital,
MP3, WMA,
AAC, Dolby
Digital Plus
SubRip (.srt / .txt), SAMI (.smi),
SubStation Alpha (.ssa/.txt),
MicroDVD (.sub/.txt), SubViewer
1.0 (.sub), SubViewer 2.0 (.sub/.
txt), TMUnit (.txt), DVD Subtitle
System (.txt)
Audio files
File
Location
File
Extension
Sampling Frequency Bitrate Note
USB,
DLNA,
Windows PC
“.mp3”, “.wma”,
“.m4a” (DRM
free)
within 32 - 48 kHz
(WMA), within 16 - 48
kHz (MP3)
within 20 - 320 kbps
(WMA), within 32 - 320
kbps (MP3)
Some audio les are
not supported on
this unit.
DLNA, Mac
PC
“.mp3”, “.m4a”
(DRM free)
within 16 - 48 kHz
(MP3)
within 32 - 320 kbps
(MP3)
Photo files
File
Location
File
Extension
Recommanded
Size
Note
USB,
DLNA,
Windows PC
“.jpg”, “.jpeg”,
“.png”,
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
Progressive and lossless
compression photo image les
are not supported.
DLNA, Mac
PC
“.jpg”, “.jpeg”,
“.png”,
Getting Started 9
Getting Started
1
y
The le name is limited to 180 characters.
y
Maximum les/Folder: Less than 2000 (total number of les and folders)
y
Depending on the size and number of the les, it may take several minutes to read the content on
the media.
y
File compatibility may dier depending on the server.
y
Because the compatibility on DLNA server are tested on the bundle DLNA server (Nero MediaHome
4 Essentials) environment, le requirements and playback functions may dier depending on media
servers.
y
Supplied bundle DLNA server for Macintosh edition has limitations in le compatibility, such as ASF,
WMA and WMV.
y
The le requirements on page 8 are not always compatible. There may have some restrictions by le
features and media server’s ability.
y
Playing a video subtitle les are only available on share folder of a PC or DLNA media server created
by supplied Nero MediaHome 4 Essentials software on this unit package.
y
The les from removable media such as USB drive etc. on your media server may not be shared
properly.
y
This unit cannot support the ID3 Tag embedded MP3 le.
y
The total playback time of audio le indicated on the screen may not correct for VBR les.
y
HD video les contained on the USB 1.0/1.1 may not played properly. USB 2.0 are recommended to
play back HD video les.
y
This unit supports H.264/MPEG-4 AVC prole Main, High at Level 4.1. For a le with higher level, the
warning message will appear on the screen.
y
This unit does not support les that are recorded with GMC or Qpel.
y
GMC – Global Motion Compensation
y
Qpel – Quarter pixel
,
Note
Getting Started10
Getting Started
1
About DLNA
This Unit is a DLNA Certied digital media unit
that can display and play movie, photo and music
content from your DLNA-compatible digital media
server (PC and Consumer Electronics).
The Digital Living Network Alliance (DLNA) is a
cross-industry organization of consumer electronics,
computing industry and mobile device companies.
Digital Living provides consumers with easy sharing
of digital media through your home network.
The DLNA certication logo makes it easy
to nd products that comply with the DLNA
Interoperability Guidelines. This unit complies with
DLNA Interoperability Guidelines v1.5.
When a PC running DLNA server software or other
DLNA compatible device is connected to this unit,
some setting changes of software or other devices
may be required. Please refer to the operating
instructions for the software or device for more
information.
Certain system requirements
For high denition video playback:
y
High denition display that has HDMI input jacks.
For Dolby® Digital Plus audio playback:
y
An amplier/receiver with a built-in (Dolby
Digital, Dolby Digital Plus) decoder.
y
Main, center, surround speakers and subwoofer
as necessary for chosen format.
Compatibility notes
y
If you experience compatibility problems, please
contact an authorized Customer Service Center.
y
Dolby Digital Plus are supported with maximum
7.1 channels if you use HDMI connection for the
audio output of the unit.
Getting Started 11
Getting Started
1
Main unit
e
f
g
h
a
b
c d
a
LAN port
b
HDMI OUT (1080p)
c
OPTICAL AUDIO OUT
d
DC IN 12V (AC adapter input)
e
Power indicator
f
Remote sensor
g
USB port
h
RESET
* RESET button is located at the bottom of
the unit.
ENTER
a
1
(POWER): Switches the
unit ON or OFF.
b
m
(INFO/MENU): Displays or
exits On-Screen Display.
c
Direction buttons: Selects
an option in the menu.
d
ENTER (
b
): Enters the
selected item.
e
HOME (
): Displays or exits
the Home Menu.
f
BACK (
1
): Exits the menu or
return to the previous screen.
g
Colored (R, G, Y, B) buttons:
Use to navigate screen
menus.
h
d
(Play): Starts playback.
M
(Pause): Pauses playback.
i
c/v
: Searches
backward or forward.
C/V
: Press and hold for
two seconds to skip previous/
next chapter or le.
Z
(Stop): Stops playback.
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert two R03 (size AAA)batteries
with
4
and
5
matched correctly.
Remote control
2 Connecting
Connecting12
Connecting
2
Connecting the AC
adapter
Connect the unit to the power supply with the
supplied AC adapter.
Connect the power cord to the adapter, and then
plug the other end into an AC outlet.
Rear of the unit
Plug into a
power source
AC power cord
AC adapter
y
Contact an electrical parts distributor for
assistance in selecting a suitable AC plug adapter
or AC power cord set.
y
This AC adapter is manufactured by Asian Power
Devices Inc.
Only use the AC adapter supplied with this
device. Do not use a power supply from
another device or manufacturer. Using any
other power cable or power supply may cause
damage to the device and void your warranty.
>
Caution
HDMI connecting to
your TV
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable). Connect the HDMI jack on
the unit to the HDMI jack on a HDMI compatible TV
or monitor.
Rear of the unit
TV
HDMI cable
(not supplied)
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
y
If you select a resolution manually and then
connect the HDMI jack to TV and your TV
does not accept it, the resolution setting is
set to [Auto].
y
If you select a resolution that your TV
does not accept, the warning message
will appear. After changing resolution,
if you cannot see the screen, please
wait 20 seconds and the resolution will
automatically revert back to the previous
resolution.
y
The 1080p video output frame rate may
be automatically set to either 24 Hz or 60
Hz depending both on the capability and
preference of the connected TV.
,
Note
Connecting 13
Connecting
2
Additional Information for HDMI
y
When you connect a HDMI or DVI compatible
device make sure of the following:
-
Try switching o the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
-
The connected device’s video input is set
correctly for this unit.
-
The connected device is compatible with
720x480p, 1280x720p, 1920x1080i or
1920x1080p video input.
y
Not all HDCP-compatible HDMI or DVI devices
will work with this unit.
-
The picture will not be displayed properly
with non-HDCP device.
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
y
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 13)
y
Select the type of video output from the
HDMI OUT jack using [HDMI Color Setting]
option on the [SETTING] menu (see page
23).
y
Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.
y
When the HDMI connection with HDCP
is not veried, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
y
If there are noises or lines on the screen,
please check the HDMI cable (length is
generally limited to 4.5 m(15 ft.)).
,
Note
Resolution setting
The unit provides several output resolutions for
HDMI OUT. You can change the resolution using
[SETTING] menu.
1. Press HOME (
).
2. Use
A/D
to select the [SETTING] and press
ENTER (
b
). The [SETTING] menu appears.
3. Use
W/S
to select [DISPLAY] option then
press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option
then press ENTER (
b
) to move to the third level.
5. Use
W/S
to select the desired resolution then
press ENTER (
b
) to confirm your selection.
Connecting14
Connecting
2
Connecting to an
amplifier
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
HDMI Audio connection (page 14)
y
Digital Audio connection (page 15)
Since many factors aect the type of audio output,
see “Audio Output Specications” on page 40 for
details.
About Digital Multi-channel sound
A digital multi-channel connection provides the
best sound quality. For this, you need a multi-
channel Audio/Video Receiver that supports one or
more of the audio formats supported by your unit.
Check the logos on the front of the Audio/Video
receiver and the manual. (PCM Stereo, Dolby Digital,
Dolby Digital Plus)
Connecting to an amplifier via
HDMI Output
Connect the unit’s HDMI OUT jack to the
corresponding in jack on your amplier using a
HDMI cable.
HDMI cable
HDMI
cable
TV
Receiver/Amplier
Rear of the unit
Connect the amplier’s HDMI output jack to HDMI
input jack on your TV using a HDMI cable if your
amplier has HDMI output jack.
You will need to activate the unit’s digital output.
(See “[AUDIO] Menu” on page 24)
Connecting 15
Connecting
2
Connecting to an amplifier via
Digital Audio Output
Connect the unit’s OPTICAL AUDIO OUT jack to the
corresponding in jack (OPTICAL) on your amplier
using an optional digital audio cable.
DIGITAL INPUT
OPTICAL
Optical cable
Receiver/Amplier
Rear of the unit
You will need to activate the unit’s digital output.
(See “[AUDIO] Menu” on page 24.)
Connecting16
Connecting
2
Connecting to your
home network
This unit can be connected to a local area network
(LAN) via the LAN port on the rear panel or the
internal wireless module.
By connecting the unit to a broadband home
network, you have access to services such as
software updates and online content services.
Wired network connection
Using a wired network provides the best
performance, because the attached devices
connect directly to the network and are not subject
to radio frequency interference.
Please refer to the documentation for your network
device for further instructions.
Connect the unit’s LAN port to the corresponding
port on your Modem or Router using a
commercially available LAN or Ethernet cable.
y
When plugging or unplugging the LAN
cable, hold the plug portion of the cable.
When unplugging, do not pull on the LAN
cable but unplug while pressing down on
the lock.
y
Do not connect a modular phone cable to
the LAN port.
y
Since there are various connection
congurations, please follow the
specications of your telecommunication
carrier or internet service provider.
y
If you want to access content from PCs or
DLNA servers, this unit must be connected
to the same local area network with them
via a router.
,
Note
WAN
LAN 1
LAN 2
LAN 3
Rear of the unit
Router
Broadband
service
PC and/or DLNA
certied server
Connecting 17
Connecting
2
Wired network setup
If there is a DHCP server on the local area
network (LAN) via wired connection, this unit will
automatically be allocated an IP address. After
making the physical connection, a small number
of home networks may require the unit’s network
setting to be adjusted. Adjust the [NETWORK]
setting as follow.
Preparation
Before setting the wired network, you need to
connect the broadband internet to your home
network.
1. Select [Connection Setting] option in the
[SETTING] menu then press ENTER (
b
).
2. The [Connection Setting] menu appear on the
screen. Use
W/S
to select the [Wired] and
press ENTER (
b
).
3. Use
W/S/A/D
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
If there is no DHCP server on the network and
you want to set the IP address manually, select
[Static] then set [IP Address], [Subnet Mask],
[Gateway] and [DNS Server] using
W/S/A/
D
.
,
Note
4. Select [OK] and press ENTER (
b
) to apply
network settings.
5. The unit will ask you to test the network
connection. Select [OK] and press ENTER (
b
) to
complete the network connection.
6. If you select [Test] and press ENTER (
b
) at
step 5 above, the network connection status is
displayed on the screen.
You can also test it on the [Connection Status]
in the [SETTING] menu.
Connecting18
Connecting
2
Wireless network connection
Another connection option is to use an Access Point
or a wireless router. The network conguration and
connection method may vary depending on the
equipment in use and the network environment.
Wireless
Communication
PC and/or
DLNA certied server
Access Point or
Wireless Router
Broadband
service
Refer to the setup instructions supplied with
your access point or wireless router for detailed
connection steps and network settings.
For best performance, a direct wired connection
from this unit to your home network’s router or
cable/DSL modem is always the best option.
If you do chose to use the wireless option, note that
performance can sometimes be aected by other
electronic devices in the home.
Wireless network setup
For the wireless network connection, the unit needs
to be set up for network communication. This
adjustment can be done from the [SETTING] menu.
Adjust the [NETWORK] setting as follow. Setting up
the access point or the wireless router is required
before connecting the unit to the network.
Preparation
Before setting the wireless network, you need to:
-
Connect the broadband internet to the wireless
home network.
-
Set the access point or wireless router.
-
Note the SSID and security code of the network.
1. Select [Connection Setting] option in the
[SETTING] menu then press ENTER (
b
).
Connecting 19
Connecting
2
2. The [Connection Setting] menu appear on the
screen. Use
W/S
to select [Wireless] and press
ENTER (
b
).
3. Select [Yes] and press ENTER (
b
) to continue.
The new connection settings reset the current
network settings.
4. The unit scans the all available access points or
wireless routers within range and display them
as a list. Use
W/S
to select an access point or
wireless router on the list, and then press ENTER
(
b
).
If you have security on your access point or
wireless router, verify that the WEP or WPA key
that was entered into the unit matches the
router’s information exactly. You need to input
the security code as necessary.
y
WEP security mode generally have 4 keys
available on an access point or wireless
router’s setting. If your access point or
wireless router use WEP security, enter the
security code of the key “No.1” to connect
on your home network.
y
An Access Point is a device that allows you
to connect to your home network wirelessly.
y
If your access point or wireless router
supports the PIN Code conguration
method based on WPS(Wi-Fi Protected
Setup), press yellow (Y) colored button and
note the code number on the screen. And
then, enter the PIN number on a setting
menu of your access point or wireless router
to connect. Refer to the documentation for
your network device.
,
Note
[Manual] – Your access point may not be
broadcasting its access point name (SSID).
Check your router settings through your
computer and either set your router to
broadcast SSID, or manually enter the access
point name (SSID) in [Manual].
[Push Button] – If your access point or
wireless router that supports the Push Button
Configuration method, select this option and
press the Push Button on your access point or
wireless router within 120 counts. You do not
need to know the access point name (SSID) and
security code of your access point or wireless
router.
5. Use
W/S/A/D
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
If there is no DHCP server on the network and
you want to set the IP address manually, select
[Static] then set [IP Address], [Subnet Mask],
[Gateway] and [DNS Server] using
W/S/
A/D
. If you make a mistake while entering
a number, press [<–] to clear the highlighted
part.
,
Note
6. Select [OK] and press ENTER (
b
) to apply
network settings.
7. The unit will ask you to test the network
connection. Select [OK] and press ENTER (
b
) to
complete the network connection.
8. If you select [Test] and press ENTER (
b
) at
step 7 above, the network connection status is
displayed on the screen. You can also test it on
the [Connection Status] in the [SETTING] menu.
Connecting20
Connecting
2
Notes on Network Connection:
y
Many network connection problems during set
up can often be xed by re-setting the router or
modem. After connecting the unit to the home
network, quickly power o and/or connect the
power cable of the home network router or
cable modem. Then power on and/or connect
the power cable again.
y
Depending on the internet service provider (ISP),
the number of devices that can receive internet
service may be limited by the applicable terms
of service. For details, contact your ISP.
y
Our company is not responsible for any
malfunction of the unit and/or the internet
connection feature due to communication
errors/malfunctions associated with your
broadband internet connection, or other
connected equipment.
y
Some internet content may require a higher
bandwidth connection.
y
Even if the unit is properly connected and
congured, some internet content may not
operate properly because of internet congestion,
the quality or bandwidth of your internet service,
or problems at the provider of the content.
y
Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
y
Any fees charged by an ISP including, without
limitation, connection charges are your
responsibility.
y
A 10 Base-T or 100 Base-TX LAN port is required
for wired connection to this unit. If your internet
service does not allow for such a connection,
you will not be able to connect the unit.
y
You must use a Router to use xDSL service.
y
A DSL modem is required to use DSL service and
a cable modem is required to use cable modem
service. Depending on the access method of and
subscriber agreement with your ISP, you may not
be able to use the internet connection feature
contained in this unit or you may be limited to
the number of devices you can connect at the
same time. (If your ISP limits subscription to one
device, this unit may not be allowed to connect
when a PC is already connected.)
y
The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
y
The wireless network operate at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can be
aected by interference from them.
y
Turn o all unused network equipment in
your local home network. Some devices may
generate network trac.
y
For the purpose of the better transmission,
placing the unit from the access point as close as
possible.
y
In some instances, placing the access point or
wireless router at least 0.45 m (1.5 ft.) above the
oor may improve the reception.
y
Move closer to the access point if possible or re-
orient the unit so there is nothing between it
and the access point.
y
The reception quality over wireless depends on
many factors such as type of the access point,
distance between the unit and access point, and
the location of the unit.
y
Set your access point or wireless router to
Infrastructure mode. Ad-hoc mode is not
supported.
Connecting 21
Connecting
2
USB device connection
This unit can play video, audio and photo les
contained in the USB device.
Playback content in the USB
device
1. Insert a USB device to the USB port until it fits
into place.
When you connect the USB device on the HOME
menu, the unit plays an audio le contained in the
USB storage device automatically. If the USB storage
device is containing various types of les, a menu
for the le type selection will appear.
File loading may takes few minutes depending on
the number of content stored in the USB storage
device. Press ENTER (
b
) while [Cancel] is selected
to stop loading.
2. Press HOME (
).
3. Select [MEDIA] using
A/D
, and press ENTER
(
b
).
4. Select [Movie], [Photo] or [Music] using
A/D
,
and press ENTER (
b
).
5. Select the [USB] option using
W/S
, and press
ENTER (
b
).
6. Select a file using
W/S/A/D
, and press
d
(Play) or ENTER (
b
) to play the file.
7. Withdraw the USB device carefully.
y
This unit supports USB ash drive/external
HDD formatted in FAT16, FAT32 and NTFS
when accessing les (audio, photo, video).
y
This unit can support up to 8 partitions of
the USB device.
y
Do not extract the USB device during
operation (play, etc.).
y
A USB device which requires additional
program installation when you have
connected it to a computer, is not
supported.
y
USB device: USB device that supports
USB1.1 and USB2.0.
y
Movie, music and photo les can be played.
For details of operations on each le, refer to
relevant pages.
y
Regular back up is recommended to
prevent data loss.
y
If you use a USB extension cable, USB HUB
or USB Multi-reader, the USB device may not
be recognized.
y
Some USB device may not work with this
unit.
y
Digital camera and mobile phone are not
supported.
y
USB Port of the unit cannot be connected
to PC. The unit cannot be used as a storage
device.
,
Note
3 System Setting
System Setting22
System Setting
3
Settings
Adjust the setup settings
You can change the settings of the unit in the
[SETTING] menu.
1. Press HOME (
).
2. Use
A/D
to select the [SETTING] and press
ENTER (
b
). The [SETTING] menu appears.
3. Use
W/S
to select the first setup option, and
press
D
to move to the second level.
4. Use
W/S
to select a second setup option, and
press ENTER (
b
) to move to the third level.
5. Use
W/S
to select a desired setting, and press
ENTER (
b
) to confirm your selection.
[DISPLAY] menu
TV Aspect Ratio
Select a TV aspect ratio option according to your TV
type.
[4:3 Letter Box]
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking bars
above and below the picture.
[4:3 Pan Scan]
Select when a standard 4:3 TV is connected.
Displays pictures cropped to ll your TV screen.
Both sides of the picture are cut o.
[16:9 Original]
Select when a 16:9 wide TV is connected. The
4:3 picture is displayed with an original 4:3
aspect ratio, with black bars appearing at the
left and right sides.
[16:9 Full]
Select when a 16:9 wide TV is connected. The
4:3 picture is adjusted horizontally (in a linear
proportion) to ll the entire screen.
You cannot select [4:3 Letter Box] and
[4:3 Pan Scan] option when the resolution is
set to higher than 720p.
,
Note
System Setting 23
System Setting
3
Resolution
Sets the output resolution of the HDMI video signal.
Refer to page 13 for details about the resolution
setting.
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p]
Outputs 480 lines of progressive video.
1080p Display Mode
When the resolution is set to 1080p, select
[24 Hz] for smooth presentation of lm material
(1080p/24 Hz) with a HDMI-equipped display
compatible with 1080p/24 Hz input.
y
When you select [24 Hz], you may
experience some picture disturbance when
the video switches video and lm material.
In this case, select [60 Hz].
y
Even when [1080p Display Mode] is set to
[24 Hz], if your TV is not compatible with
1080p/24 Hz, the actual frame frequency of
the video output will be 60 Hz to match the
video source format.
,
Note
HDMI Color Setting
Select the type of output from the HDMI OUT jack.
For this setting, please refer to the manuals of your
display device.
[YCbCr]
Select when connecting to a HDMI display
device.
[RGB]
Select when connecting to a DVI display
device.
[LANGUAGE] menu
Display Menu
Select a language for the [SETTING] menu and on-
screen display.
System Setting24
System Setting
3
[AUDIO] menu
Set the unit’s Audio options according to the type
of audio system you use.
Since many factors aect the type of audio
output, see “Audio Output Specications” on
page 40 for details.
,
Note
HDMI / Digital Output
[PCM Stereo]
Select if you connect this unit’s HDMI OUT or
DIGITAL AUDIO OUT jack to a device with two-
channel digital stereo decoder.
[Primary Pass-Thru]
Select if you connect this unit’s DIGITAL AUDIO
OUT and HDMI OUT jack to a device with LPCM
and Dolby Digital, Dolby Digital Plus.
Sampling Freq.
(Digital Audio Output)
[192 kHz]
Select this if your A/V Receiver or Amplier is
capable of handling 192 kHz signals.
[96 kHz]
Select this if your A/V Receiver or Amplier is
not capable of handling 192 kHz signals. When
this choice is made, this unit
automatically converts any 192 kHz signals to
96 kHz so your system can decode them.
[48 kHz]
Select this if your A/V Receiver or Amplier is
not capable of handling 192 kHz and 96 kHz
signal. When this choice is made, this unit
automatically converts any 192 kHz and 96 kHz
signals to 48 kHz so your system can decode
them.
Check the documentation for your A/V Receiver or
Amplier to verify its capabilities.
DRC (Dynamic Range Control)
This function allows you to listen to a movie at a
lower volume without losing clarity of sound.
[O ]
Turns o this function.
[On]
Compress the dynamic range of the Dolby
Digital or Dolby Digital Plus audio output.
[Auto]
The dynamic range of the Dolby Digital and
Dolby Digital Plus are operated as same as the
[On] mode.
The DRC setting can be changed only the unit
is in complete stop mode.
,
Note
System Setting 25
System Setting
3
[NETWORK] menu
The [NETWORK] settings are needed to use the
online content services.
Connection Setting
If your home network environment is ready to
connect the unit, the unit needs to be set the
wired or wireless network connection for network
communication. (See “Connecting to your Home
Network” on page 16.)
Connection Status
If you want to check the network status on this unit,
select the [Connection Status] options and press
ENTER (
b
) to check whether a connection to the
network and the internet have been established.
Wi-Fi Direct
This player is a Wi-Fi Direct™ certied device. Wi-Fi
Direct™ is the technology that devices to connect
each other without connecting to an Access point
or a router. Set this option to [On] for activating the
Wi-Fi Direct™ mode. Refer to page 28 for the device
connection.
[OTHERS] menu
DivX® VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an ocial DivX Certied® device
that plays DivX video. Visit divx.com for more
information and software tools to convert your les
into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.
[Register]
Displays the registration code of your unit.
[Deregister]
Deactivate your unit and display the
deactivation code.
All the downloaded videos from DivX(R) VOD
with this unit’s registration code can only be
played on this unit.
,
Note

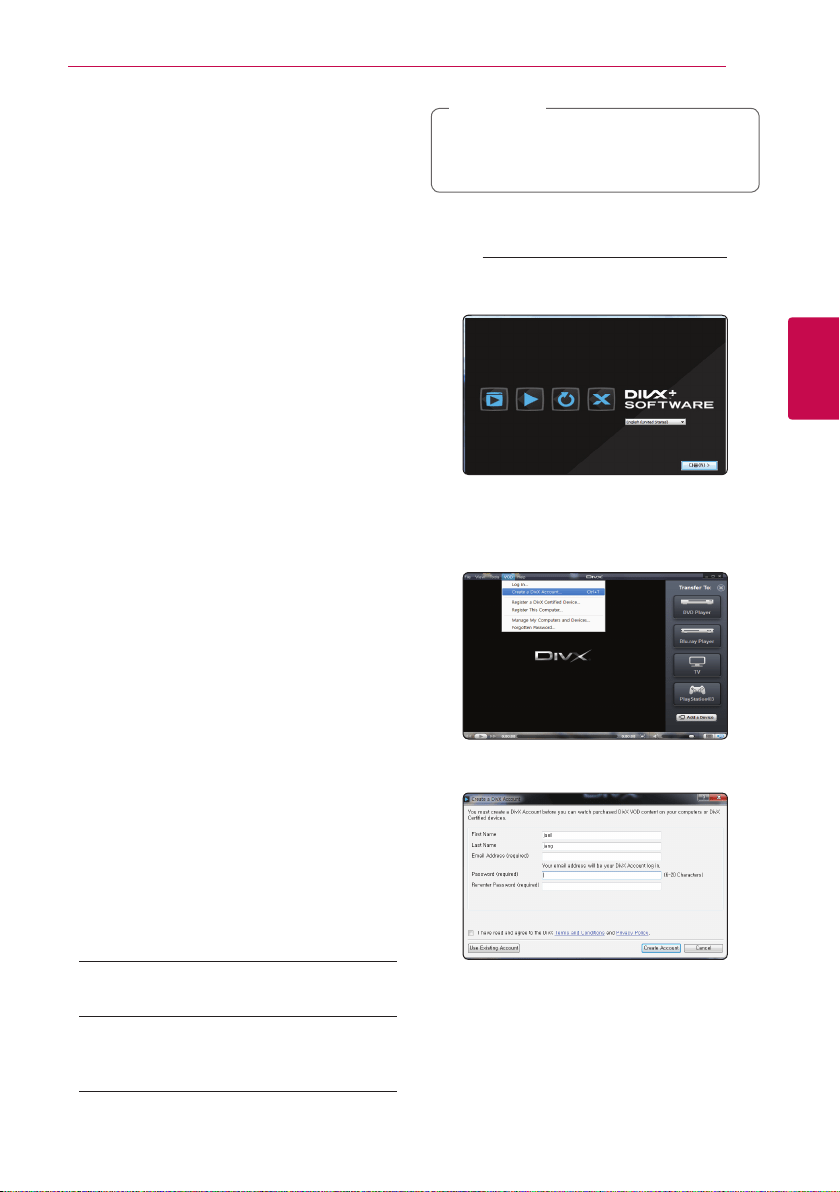

How to Register
DivX Certified® device
1. Visit http://www.divx.com/downloads/divx, and
download to your windows or Mackintosh.
2. Run the downloaded program file.
3. Choose [Divx Plus player] and install it fallowing
the instruction.
4. Navigate to the [VOD] menu
/
[Create a DivX
Account] menu, and create new account.
5. Enter your information and email address as
below, and click [Create Account].
6. Click the link in email sent to verify your email
address.
System Setting26
System Setting
3

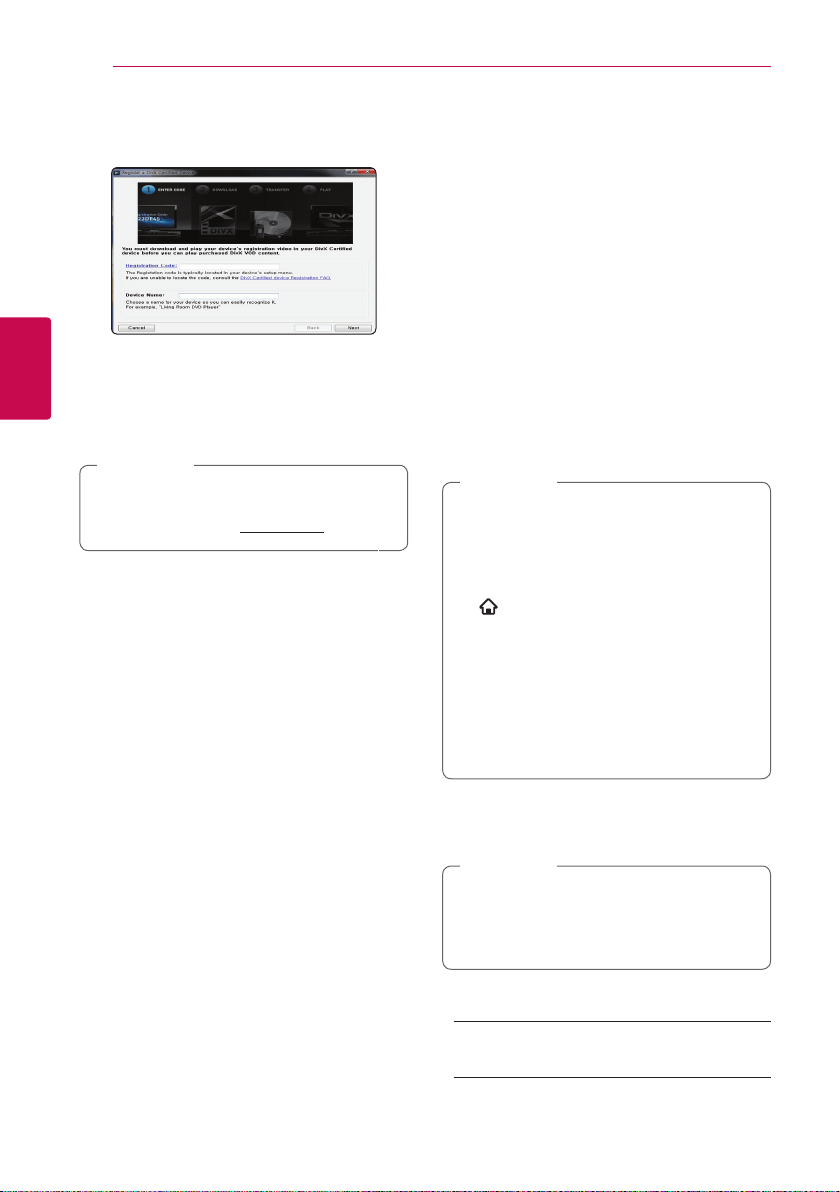

7. Click [Register a DivX Certification code] in the
player screen and enter “Registration code” and
“Device name”.
8. Designate the location you want to save files in.
9. Once registration code is entered, proceed
[DOWNLOAD]
/
[TRANSFER]
/
[PLAY].
10. Check whether the filename extension is “*.DviX”
when video files is made.
Divx Registration process may be changed
depending on the situation. Please make sure
the process by visiting vod.divx.com
,
Note
Auto Power Off
The screen saver appears when you leave the unit
in Stop mode for about ve minutes. If you set
this option to [On], the unit automatically turns
o within 25 minutes since the Screen Saver is
displayed. Set this option to [O] to leave the
screen saver until the unit is operated by the user.
Network Play
This function allows you to control the playback
of media streamed from DLNA media server by a
DLNA certied smartphone. Most DLNA certied
smartphone has a function to control the playback
media on your home network. Set this option to
[On] for allowing your smartphone to control this
unit. Refer to instructions of your DLNA certied
smartphone or the application for more detailed
information.
y
This unit and the DLNA Certied
Smartphone must be connected to the
same network.
y
To use the [Network Play] function using a
DLNA certied smartphone, press HOME
(
) to display the home menu before
connecting to this unit.
y
While controlling the unit using the
[Network Play] function, the remote control
may not work.
y
Available le formats described on page 8
are not always supported on [Network Play]
function.
,
Note
Factory Reset
You can reset the unit to its original factory settings.
If you reset the unit to its original factory
settings using [Factory Reset] option, you have
to set all the activation for the online services
and network settings again.
,
Note
Software
[Information]
Displays the current software version.
4 Operating
Operating 27
Operating
4
General playback
Using [HOME] menu
The home menu appears when you press HOME
(
). Use
A/D
to select a category and press
ENTER (
b
).
a
[BROADCASTING] - Play CTS Contents.
b
[CHURCH] - Display Church Apps Home
Screen.
c
[BEST] - Enjoy the popular Apps of the box.
d
[MEDIA] - Display Smart Media Home
Screen.
e
[SETTING] - Adjusts the system settings.
Playing a file media from a
USB device
This unit can play video, audio and photo les
contained in the USB device.
1. Insert a USB device into the USB port until it fits
into place.
2. Press HOME (
).
3. Select [MEDIA] using
A/D
, and press ENTER
(
b
).
4. Select [Movie], [Photo] or [Music] using
A/D
,
and press ENTER (
b
).
5. Select [USB] option using
W/S
, and press
ENTER (
b
).
6. Select a file using
W/S/A/D
, and press
d
(PLAY) or ENTER (
b
) to play the file.
Playing a file media from a
network server
This unit can play video, audio and photo les
located in a PC or a DLNA server through your
home network.
1. Check the network connection and settings
(page 16).
2. Press HOME (
).
3. Select [MEDIA] using
A/D
, and press ENTER
(
b
).
4. Select [Movie], [Photo] or [Music] using
A/D
,
and press ENTER (
b
).
5. Select a DLNA media server or a share folder
on your PC on the list using
W/S
, and press
ENTER (
b
).
If you want to rescan available media server,
press the green (G) colored button.
6. Select a le using
W/S/A/D
, and press
ENTER (
b
) to play the le.
y
The le requirements are described on page
8.
y
The thumbnail of the unplayable les can
be displayed, but those cannot be played
on this unit.
y
The subtitle le name and video le name
have to be the same and located at the
same folder.
y
The playback and operating quality may be
aected by your home network condition.
y
You may experience connection problems
depending on your server’s environment.
,
Note
Operating28
Operating
4
Entering a network user ID and the
password
Depending on your PC’s environment, you may
need to enter a network user ID and the password
for accessing a shared folder.
1. The keyboard menu appears automatically if the
network user ID and the password are required.
2. Use
W/S/A/D
to select a character then
press ENTER (
b
) to conrm your selection on
the virtual keyboard.
To enter a letter with an accent mark, press
m
(INFO/MENU) to display the extended character
set.
[Cancel] – Clear all entered characters.
[Space] – Inserts a space at the cursor position.
[<–] – Deletes the previous character at the
cursor position.
[ABC / abc / #+-=&] – Change the keyboard
menu settings to capital letters, small letters or
symbols.
3. When you nish entering the network user ID
and password, select [OK] using
W/S/A/D
and press ENTER (
b
) to access the folder.
The network user ID and password will be
remembered after accessing the folder for your
convenience. If you do not want the network user
ID and password to be remembered, press red (R)
colored button to un-tick the [Remember] check
box before accessing the folder.
Wi-Fi Direct™ connection
Connecting to a Wi-Fi Direct™
certified device
This player can play movie, music and photo les
located in a Wi-Fi Direct™ certied device. The Wi-Fi
Direct™ technology make the player to be directely
connected to a Wi-Fi Direct™ certied device
without connecting to a network device such as an
access point.
1. Set the [Wi-Fi Direct] option on the [SETTING]
menu to [On] (page 25).
2. Press HOME (
).
3. Select [MEDIA] using
A/D
, and press ENTER
(
b
).
4. Select [Movie], [Photo] or [Music] using
A/D
,
and press ENTER (
b
).
5. Select [Wi-Fi Direct] option using
W/S
, and
press ENTER (
b
).
6. Select a Wi-Fi Direct™ device on the list using
W/S
, and press ENTER (
b
).
Wi-Fi Direct™ connection will be automatically
proceeded.
If the Wi-Fi Direct™ device supports the PIN
Code configuration method based on WPS(Wi-
Fi Protected Setup), select a device on the list
and press yellow (Y) coloured button. Note the
PIN number on the screen. And then, enter the
PIN number on a setting menu of the device to
connect.
If you want to rescan equipped Wi-Fi Direct™
device, press the green (G) coloured button.
Operating 29
Operating
4
7. Select a server that shared from the connected
Wi-Fi Direct™ device using
W/S
, and press
ENTER (
b
) to navigate the server.
To select a server from the device list, files or
folders must be shared by DLNA server from the
connected Wi-Fi Direct™ device.
8. Select a le using
W/S/A/D
, and press
ENTER (
b
) to play the le.
y
For the purpose of the better transmission,
placing the player from the Wi-Fi Direct™
certied server as close as possible.
y
This unit can connect only 1 device at a
time. Multiple connection is not available.
y
If you try to connect wireless network while
a device is connected by Wi-Fi Direct™
function , Wi-Fi Direct™ connection will be
force disconnected.
y
If this player and Wi-Fi Direct™ device
are connected to the different local area
network, Wi-Fi Direct™ connection may not
available.
y
If a Wi-Fi Direct™ certified device is not
in Wi-Fi Direct standby mode, this player
cannot find the device.
,
Note
Connecting to a Wi-Fi equipped
devices
This player can connect to a general Wi-Fi device
using Wi-Fi Direct™ function.
1. Set the [Wi-Fi Direct] option on the [SETTING]
menu to [On] (page 25)
2. Press HOME (
).
3. Select [MEDIA] using
A/D
, and press ENTER
(
b
).
4. Select [Movie], [Photo] or [Music] using
A/D
,
and press ENTER (
b
).
5. Select [Wi-Fi Direct] option using
W/S
, and
press ENTER (
b
).
6. Press red (R) coloured button to display the
[Network name (SSID)], [Security Option] and
[Encription] of the player.
7. On your Wi-Fi device, make a network
connection to this player, using [Network name
(SSID)], [Security Option] and [Encription] at
step 6 above.
8. Press BACK (
1
) twice to display the device list.
Operating30
Operating
4
9. Select a server that shared from the connected
Wi-Fi device using
W/S
, and press ENTER (
b
)
to navigate the server.
To select a server from the device list, files or
folders must be shared by DLNA server from the
connected device.
10. Select a le using
W/S/A/D
, and press
ENTER (
b
) to play the le.
In case of connection to a Wi-Fi equipped
device, PIN connection does not work.
,
Note
Basic operations for video and
audio content
To stop playback
Press
Z
(STOP) while playback.
To pause playback
Press
M
(PAUSE) while playback.
Press
d
(PLAY) to resume playback.
To play frame-by-frame (Video)
Press
M
(PAUSE) while movie playback.
Press
M
(PAUSE) repeatedly to play Frame-by-Frame
playback.
To scan forward or backward
Press
c
or
v
to play fast forward or fast reverse
during playback.
You can change the various playback speeds by
pressing
c
or
v
repeatedly.
To slow down the playing speed
While the playback is paused, press
v
repeatedly
to play various speeds of slow motion.
To skip to the next/previous file
During playback, press
C
or
V
and hold for
two seconds to go to the next le or to return to
the beginning of the current track/le.
Press
C
twice briey to step back to the previous
le.
In the le list menu of a server, there may have
many types of content in a folder together. In this
case, press
C
or
V
and hold for two seconds
to go to the previous or next content with same
type.
Operating 31
Operating
4
Basic operations for photo
content
To play a slide show
Press
d
(PLAY) to start slide show.
To stop a slide show
Press
Z
(STOP) while slide show.
To pause a slide show
Press
M
(PAUSE) while slide show.
Press
d
(PLAY) to re-start the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press
A
or
D
to go to the previous or next photo.
Advanced playback
Enlarge the playback image
1. During playback, press green (G) colored button
to display the [Zoom] menu.
2. Use red (R) or green (G) colored button to zoom
out or in the picture. You can move through the
zoomed picture using
W/S/A/D
buttons.
3. To return to the normal picture size, press yellow
(Y) colored button.
4. Press BACK (
1
) to exit the [Zoom] menu.
Repeat playback
During playback, press red (R) colored button
repeatedly to select a desired repeat mode.
Music les
;
Track– The current track or le will be played
back repeatedly.
:
All – All the tracks or les will be played back
repeatedly.
l
– The tracks or les will be played back in
random order.
l:
All – All the tracks or les will be played
back repeatedly in random order.
To return to normal playback, press red (R) colored
button repeatedly to select [O ].
Viewing content information
The unit can display the content information.
1. Select a le using
W/S/A/D
.
2. Press
m
(INFO/MENU) to display the option
menu.
3. Select the [Information] option using
W/S
,
and press ENTER (
b
).
The le information appears on the screen.
The information displayed on the screen
may not correct comparing actual content
information.
,
Note
Operating32
Operating
4
Changing content list view
On the [Movie], [Music] or [Photo] menu, you can
change the content list view.
Method 1
Press red (R) colored button repeatedly.
Method 2
1. On the content list, press
m
(INFO/MENU) to
display the option menu.
2. Use
W/S
to select the [View Change] option.
3. Press ENTER (
b
) to change the content list
view.
Selecting a subtitle file
If the subtitle le name is dierent from the video
le name, you need to select the subtitle le on the
[Movie] menu before playing the movie.
1. Use
W/S/A/D
to select the subtitle le you
wish to play in the [Movie] menu.
2. Press ENTER (
b
).
Press ENTER (
b
) again to deselect the subtitle
le. Selected subtitle le will be displayed when
you play the video le.
y
If you press
Z
(STOP) while playback, the
subtitle selection is cancelled.
y
This function is not available for playing le
on a server via home network.
,
Note
Operating 33
Operating
4
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press INFO/
MENU(
m
) to display the option menu.
2. Select an option using
W/S
.
a Current photo/Total number of photos
– Use
A/D
to view previous/next photo.
b Slide Show – Press ENTER (
b
) to start or
pause slide show.
c Music Select – Select the background
music for the slide show (page 33).
d Music –Press ENTER (
b
) to start or pause
background music.
e Rotate – Press ENTER (
b
) to rotate the
photo clockwise.
f Zoom – Press ENTER (
b
) to display the
[Zoom] menu.
g Eect – Use
A/D
to select a transition
effect between photos in a slide show.
h Speed – Use
A/D
to select a delaying
speed between photos in a slide show.
3. Press BACK (
1
) to exit the option menu.
Listening to music while slide
show
You can display photo les while listening to audio
les.
1. While viewing a photo in full screen, press
m
(INFO/MENU) to display the option menu.
2. Use
W/S
to select [Music Select] option, and
press ENTER (
b
) to display the [Music Select]
menu.
3. Use
W/S
to select a device, and press ENTER
(
b
).
Device that you can select are differ depending
on the location of the photo file you are
displaying in full screen.
Photo location Available Device
USB USB
Share Folder (PC) Share Folder (PC)
DLNA server DLNA server
4. Use
W/S
to select a file or a folder you wish to
play.
Select
g
and press ENTER (
b
) to display the
upper directory.
When selecting the audio le from a server,
folder selection is not available. Only le
selection is available.
,
Note
5. Use
D
to select [OK], and press ENTER (
b
) to
complete music selection.
Operating34
Operating
4
On-Screen display
You can display and adjust various information and
settings about the content.
Displaying content information
1. While playback, press
m
(INFO/MENU) to show
various playback information.
a Title – current title number/total number of
titles
b Time – elapsed playing time/total playback
time
c Audio – selected audio language or channel
d Subtitle – selected subtitle.
e Code Page – selected subtitle code page
(page 32).
f TV Aspect Ratio – selected TV aspect Ratio.
g Picture Mode – selected picture mode.
2. Select an option using
W/S
.
3. Use
A/D
to adjust the selected option value.
4. Press BACK (
1
) to exit the On-Screen display.
y
If no button is pressed for a few seconds,
the on-screen display disappears.
y
Available items may dier depending on
titles.
,
Note
Playing from selected time
1. Press
m
(INFO/MENU) during playback. The
time search box shows the elapsed playing
time.
2. Select the [Time] option using
W/S
.
3. Press
A/D
to skip the playback 60 seconds
forward or backward.
4. Starts playback from selected time.
y
This function may not work on some titles.
y
This function may not work depending on
the le type and ability of the DLNA server.
,
Note
Listening to a different audio
track
1. During playback, press
m
(INFO/MENU) to
display the On-Screen display.
2. Use
W/S
to select the [Audio] option.
3. Use
A/D
to select desired audio language,
audio track or audio channel.
Immediately after you have switched sound,
there may be a temporary discrepancy
between the display and actual sound.
,
Note
Selecting a subtitle language
1. During playback, press
m
(INFO/MENU) to
display the On-Screen display.
2. Use
W/S
to select the [Subtitle] option.
3. Use
A/D
to select desired subtitle language.
4. Press BACK (
1
) to exit the On-Screen.
5 Troubleshooting
Troubleshooting 35
Troubleshooting
5
Troubleshooting
General
Symptom Cause & Solution
No Power.
y
Plug the power cord into the wall outlet securely.
Cannot play movie, photo or
audio les.
y
The les are not recorded in a format that the unit can play.
y
The unit does not support the codec of the video le.
The remote control does not
work properly.
y
The remote control is not pointed at the remote sensor of the unit.
y
The remote control is too far from the unit.
y
There is an obstacle in the path of the remote control and the unit.
y
The batteries in the remote control are exhausted.
y
We recommend using alkaline batteries.
The connected USB storage
device is not recognized.
y
Try another dierent USB cable, some of USB cable may not support
enough current for normal USB operation.
y
If you use a USB extension cable or USB HUB, the USB devices may not
be recognized.
y
An USB device which requires additional program installation when
you have connected it to a computer is not supported.
y
This unit supports only USB Flash Drive and USB External HDD with
FAT16, FAT32 or NTFS format.
Symptom Cause & Solution
There is no picture.
y
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
y
Check the [HDMI Color Setting] in the [SETTING] menu is set to the
appropriate item that conforms to your video connection.
y
Your TV may not support the resolution you have set on the unit.
Change the resolution that your TV accepts.
y
The player’s HDMI OUT jack is connected to a DVI device that does
not support copyright protection.
Picture noise appears
y
Set the resolution which your TV accepts.
Troubleshooting36
Troubleshooting
5
Resetting
Symptom Cause & Solution
You can reset the unit as
follows.
y
Press RESET button on the unit. This will force the unit to power o.
y
Unplug the power cord, wait at least ve seconds, and then plug it in
again.
Network
Symptom Cause & Solution
Streaming video services are
often stopped or “buer” during
playback.
y
Your broadband service speed may not be fast enough to stream
video services. Contact your Internet Service Provider (ISP) and
increase the broadband speed is recommended.
Shared folder or les from your
PC or a media server are not
displayed on the device list.
y
The re wall or anti-virus software on your media server is running.
Turn o the re wall or anti-virus software running on your PC or
media server.
y
The unit is not connected to the local area network that your PC or
the media server are connected.
Cannot connect the unit to the
access point or wireless LAN
router.
y
The wireless communication may be interrupted from household
devices that are using radio frequencies. Move the unit away from
them.
Access point is not displayed on
the “Access point name” list.
y
The access point or wireless LAN router may not broadcast its SSID.
Set your access point to broadcast its SSID through your computer.
y
Your network device such as access point may not set with
available frequency range and channel that this unit can support.
Try setting the frequency range and channel on the network
device setting.
6 Appendix
Appendix 37
Appendix
6
About Nero
MediaHome 4
Essentials
Nero MediaHome 4 Essentials is a software for
sharing video, audio and photo les stored on
your computer to this unit as a DLNA-compatiable
digital media server.
y
The Nero MediaHome 4 Essentials CD-
ROM is designed for PCs and should not be
inserted in this unit or in any product other
than a PC.
y
The supplied Nero MediaHome 4 Essentials
CD-ROM is a customized software edition
only for sharing les and folders to this unit.
y
The supplied Nero MediaHome 4 Essentials
software does not support following
functions: Transcoding, Remote UI, TV
control, Internet services and Apple iTunes
y
The supplied Nero MediaHome 4 Essentials
software can be downloaded at
-
Windows : http://www.nero.com/
download.php?id=nmhlgewin
-
Mac OS : http://www.nero.com/
download.php?id=nmhlgemac
y
This manual explains operations with
the English version of Nero MediaHome
4 Essentials as examples. Follow the
explanation referring to the actual
operations of your language version.
,
Note
System requirements
Windows PC
y
Windows® XP (Service Pack 2 or higher), Windows
Vista® (no Service Pack required), Windows® 7
(no Service Pack required), Windows® XP Media
Center Edition 2005 (Service Pack 2 or higher),
Windows Server® 2003
y
Windows Vista® 64-bit edition (application runs
in 32-bit mode)
y
Windows® 7 64-bit edition (application runs in
32-bit mode)
y
Hard drive space: 200 MB hard drive space for a
typical installation of Nero MediaHome stand-
alone
y
1.2 GHz Intel® Pentium® III or AMD
Sempron™ 2200+ processors
y
Memory: 256 MB RAM
y
Graphics card with at least 32 MB video memory,
minimum resolution of 800 x 600 pixels, and 16-
bit color settings
y
Windows® Internet Explorer® 6.0 or higher
y
DirectX® 9.0c revision 30 (August 2006) or higher
y
Network environment: 100 Mb Ethernet, WLAN
Macintosh
y
Mac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)
y
Macintosh computer with an Intel x86 processor
y
Hard drive space: 200 MB hard drive space for a
typical installation of Nero MediaHome stand-
alone
y
Memory: 256 MB RAM
Installing Nero MediaHome 4
Essentials
Windows
Start up your computer, and insert the supplied CD-
ROM disc into your computer’s CD-ROM drive. An
installation wizard will walk you through the quick
and uncomplicated installation process. To install
Nero MediaHome 4 Essentials, proceed as follows:
1. Close all Microsoft Windows programs and exit
any anti-virus software that may be running.
2. Insert the supplied CD-ROM disc into your
computer’s CD-ROM drive.
3. Click [Nero MediaHome 4 Essentials].
4. Click [Run] to start installation.
5. Click [Nero MediaHome 4 Essentials]. The
installation is prepared and the installation
wizard appears.
6. Click the [Next] button to display the serial
number input screen. Click [Next] to go to the
next step.
7. If you accept all conditions, click [I accept
the License Conditions] check box and click
[Next]. Installation is not possible without this
agreement.
Appendix38
Appendix
6
8. Click [Typical] and click [Next]. The installation
process is started.
9. If you want to take part in the anonymous
collection of data, select the check box and click
the [Next] button.
10. Click the [Exit] button to complete the
installation.
MAC OS X
1. Start up your computer, and insert the supplied
CD-ROM disc into your computer’s CD-ROM
drive.
2. Browse the CD-ROM drive and open the
“MediaHome_4_Essentials_MAC” folder.
3. Double-click the “Nero MediaHome.dmg” image
le. The Nero MediaHome window is opened.
4. In the Nero MediaHome window, drag the Nero
MediaHome icon either to the Applications
folder within the window or to any other
desired location.
5. You can now start the application by double-
clicking the Nero MediaHome icon in the
location you dragged it to.
Sharing files and folders
On your computer, you must share the folder
contained video, audio and/or photo content to
play them on this player.
This parts explains the procedure for selecting the
shared folders on your computer.
1. Double-click the “Nero MediaHome 4 Essentials”
icon.
2. Click [Network] icon on the left and dene your
network name in the [Network name] eld. The
Network name you enter will be recognized by
your player.
3. Click [Shares] icon on the left.
4. Click [Local Folders] tab on the [Shares] screen.
5. Click [Add] icon to open the [Browse Folder]
window.
6. Select the folder containing the les you want
to share. The selected folder is added to the list
of shared folders.
7. Click [Start Server] icon to start the server.
y
If the shared folders or les are not displayed
on the unit, click the folder on the [Local
Folders] tab and click [Rescan Folder] at the
[More] button.
y
Visit www.nero.com for more information
and software tools.
,
Note
Appendix 39
Appendix
6
Trademarks and
licenses
HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
DLNA®, the DLNA Logo and DLNA CERTIFIED® are
trademarks, service marks, or certication marks
of the Digital Living Network Alliance.
The Wi-Fi CERTIFIED Logo is a certication mark
of the Wi-Fi Alliance.
DivX®, DivX Certied® and associated logos are
trademarks of Rovi Corporation or its subsidiaries
and are used under license.
DivX Certied® to play DivX® video up to HD
1080p, including premium content.
Covered by one or more of the following
U.S. patents : 7,295,673; 7,460,668; 7,515,710;
7,519,274
Appendix40
Appendix
6
Audio output specifications
Jack/Setting
Source
Digital Output (DIGITAL AUDIO OUT)
*
3
PCM Stereo
Primary Pass-Thru
Dolby Digital PCM 2ch Dolby Digital
Dolby Digital Plus PCM 2ch Dolby Digital
Linear PCM 2ch PCM 2ch PCM 2ch
Linear PCM 5.1ch PCM 2ch PCM 2ch
Linear PCM 7.1ch PCM 2ch PCM 2ch
Jack/Setting
Source
HDMI OUT
PCM Stereo
Primary Pass-Thru
*
1
*
2
Dolby Digital PCM 2ch Dolby Digital
Dolby Digital Plus PCM 2ch Dolby Digital Plus
Linear PCM 2ch PCM 2ch Linear PCM 2ch
Linear PCM 5.1ch PCM 2ch Linear PCM 5.1ch
Linear PCM 7.1ch PCM 2ch Linear PCM 7.1ch
*1 The secondary and interactive audio may not
be included in the output bitstream if [Digital
Output] or [HDMI] option is set to [Primary Pass-
Thru]. (Except LPCM Codec: the output always
include interactive and secondary audio.)
*2 This unit automatically selects the HDMI audio
according to the decoding capability of the
connected HDMI device even though [HDMI]
option is set to [Primary Pass-Thru].
*3 On the [Digital Output] audio output, the
sampling frequency of DIGITAL AUDIO OUT is
limited to 96 kHz.
y
If the HDMI OUT jack is connected to your
TV with High Speed HDMI™ Cable and Dolby
Digital Plus is outputted from HDMI OUT jack,
DIGITAL AUDIO OUT jack is limited to “PCM 2ch”
(When the HDMI and DIGITAL AUDIO OUT are
connected simultaneously).
y
The audio is outputted as PCM 48 kHz/16 bit for
MP3/WMA le.
y
You must select a digital audio output and
a maximum sampling frequency that your
Amplier (or AV receiver) accepts using [Digital
Output], [HDMI] and [Sampling Freq.] options on
the [SETTING] menu (see page 24).
y
If the audio format of the digital output does
not match the capabilities of your receiver, the
receiver will produce a strong, distorted sound
or no sound at all.
y
Multi-channel Digital Surround Sound via digital
connection can only be obtained if your receiver
is equipped with a Digital Multi-channel decoder.
Appendix 41
Appendix
6
Specifications
General
Power Supply
Refer to the main label or refer to the main label on the bottom
Power consumption
AC adapter DA-18B12
Dimensions (W x H x D) Approx. 110 x 29 x 110 mm (4.3 x 1.1 x 4.3 inches)
Net Weight (Approx.) 0.28kg (0.62 lbs)
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
Outputs
HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector)
DIGITAL AUDIO OUT (OPTICAL) 3 V (p-p), Optical jack x 1
System
Signal system Standard NTSC color TV system
LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX
Wireless LAN (internal antenna) IEEE 802.11b/g/n (2.4 GHz band)
Bus Power Supply (USB) DC 5 V
0
500 mA
y
Design and specifications are subject to change without notice.
Appendix42
Appendix
6
Maintenance
Handling the unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Cleaning the unit
To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Keeping the exterior surfaces clean
y
Do not use volatile liquids such as insecticide
spray near the unit.
y
Wiping with strong pressure may damage the
surface.
y
Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Important information
relating to network
services
All information, data, documents, communications,
downloads, les, text, images, photographs,
graphics, videos, webcasts, publications, tools,
resources, software, code, programs, applets,
widgets, applications, products and other content
(“Content”) and all services and oerings (“Services”)
provided or made available by or through any
third party (each a “Service Provider”) is the sole
responsibility of the Service Provider from whom it
originated.
The availability of and access to Content and
Services furnished by the Service Provider through
the Device are subject to change at any time,
without prior notice, including, but not limited to
the suspension, removal or cessation of all or any
part of the Content or Services.
Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-to-
date information. LGE is neither responsible nor
liable for customer service related to the Content
and Services. Any question or request for service
relating to the Content or Services should be made
directly to the respective Content and Service
Providers.
Please note that LGE is not responsible for any
Content or Services provided by the Service
Provider or any changes to, removal of, or cessation
of such Content or Services and does not warrant
or guaranty the availability of or access to such
Content or Services.
