Summary of Contents for Bosch HDS7282U/01:
About This Manual
3
How This Manual Is Organized
3
Safety
4
Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS
4
Important Safety Instructions
4
Fire Safety
4
Gas Safety
5
Burn Prevention
6
Child Safety
6
Cleaning Safety
7
Cookware Safety
7
Proper Installation and Maintenance
7
Figure 1: Tipping Precautions
8
Food Safety
8
Getting Started
9
Parts and Accessories
9
Figure 2: Parts and Accessories
9
Table 1: Parts and Accessories Key
9
Sealed Gas Burners
10
Figure 3: Right Side Burner - Side View
10
Burner Caps
10
Burner Grates
10
Figure 4: Grates for Free-standing Models
11
Figure 5: Grates for Slide-in Models - Top View
11
Figure 6: Installing Grates for Slide-in Models - Side View
11
Figure 7: Grates for Slide-in Models - Locating Pins
12
Electronic Ignitor
12
High Power Burner
12
Precision Burner
12
Oven Racks
12
Flat Oven Racks
12
1. Grasp rack firmly on both sides.
12
2. Tilt rack up to allow stop into rack guide.
12
3. Bring rack to a horizontal position and press the rest of the way in. Rack should be straight and flat, not crooked.
13
Figure 8: Inserting a Rack
13
1. Grasp rack firmly on both sides and pull rack toward you.
13
2. When the stop is reached, tilt rack up and pull the rest of the way out.
13
Extension Oven Rack (some models)
13
Figure 9: Full Extension Rack
13
1. Grasp the bottom section and pull straight out.
13
2. Once the stop is reached, grasp the top section and pull straight out until the second stop is reached. If the top rack will not extend fully, it is not installed correctly. Reinstall it so that the pan stop is in the back of the oven.
13
1. Place rack on flat surface in the closed position top side up.
13
2. Rotate one side of top rack towards you until it is past the stop (ball).
14
3. Pull the rack up and out, rotated side first.
14

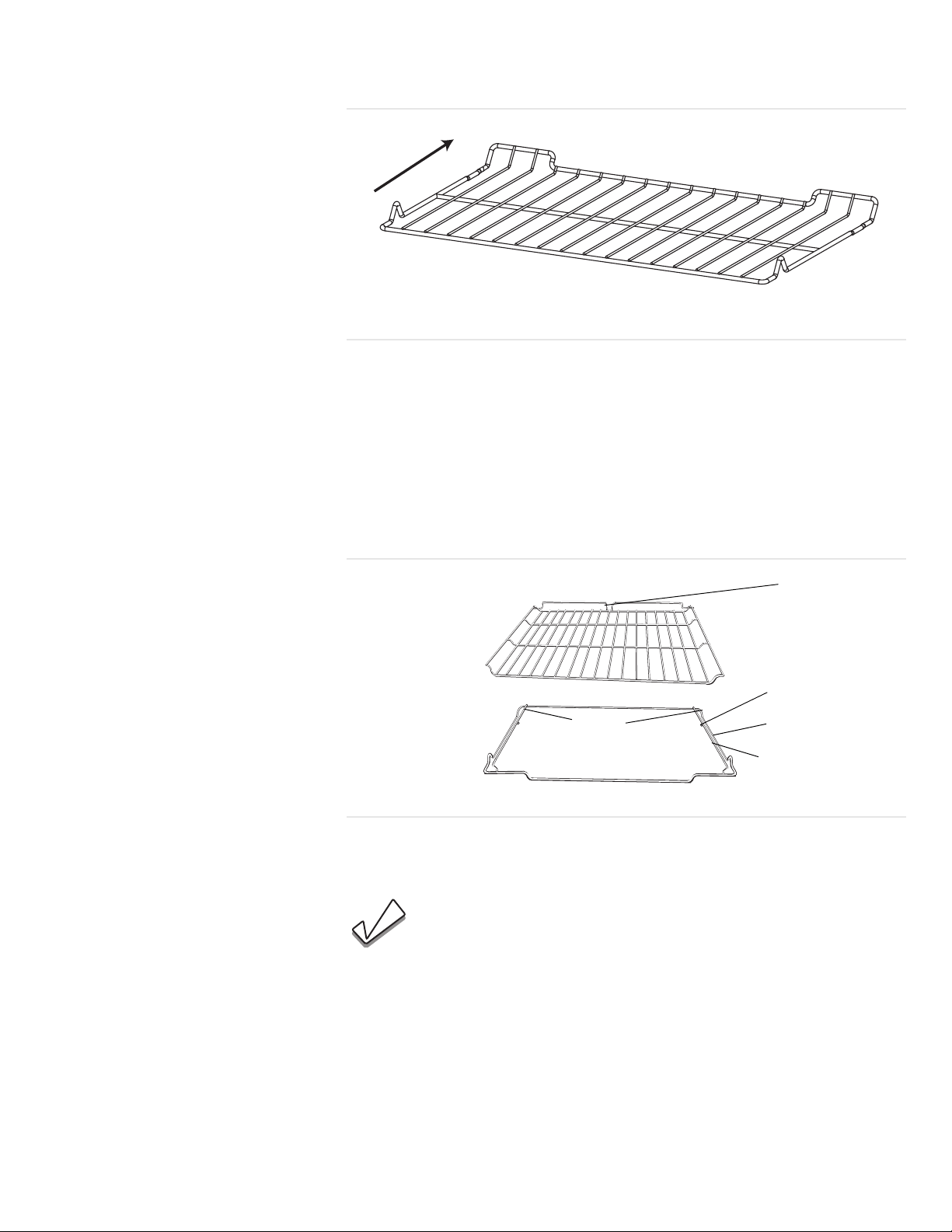

Figure 10: Disassembly
14
1. To reassemble rack, hold top rack diagonally across bottom rack.
14
2. Insert one side of top rack to closed position.
14
3. Rotate the other side toward the back of the rack until it passes the stop (ball).
14
4. Push top rack the rest of the way in.
14
Figure 11: Reassembly
14
Half Oven Rack (Some Models)
14
Figure 12: Half Oven Rack
15
Figure 13: Half Oven Rack in Use
15
Oven Bottom
15
Combustion Vents (slide-in models only)
15
Oven Vent
15
Automatic Shutoff
16
Self Cleaning
16
Indicators and Other Features
16
Cooling Fan (Slide-in models only)
16
Convection Fan
16
Control (Panel)
17
Oven Control Panel
17
Figure 14: Oven Control Panel
17
Table 2: Oven Control Panel
17
The Clock
18
About the Clock
18
Setting the Clock
18
1. CLOCK will be displayed and the hour digits will flash. Turn knob to select hour and AM or PM.
18
CLOCK
18
2. Press TIME. CLOCK will still be displayed and the minute digits will flash.
18
3. Turn knob. Set minutes.
18
4. Press TIME and the clock is now set.
18
Changing the Clock
18
1. Press TIME. TIMER 1 flashes in display.
18
2. Turn knob to select CLOCK.
18
3. Press TIME and hour digits flash.
18
4. Turn knob to change hours.
18
5. Press TIME again and minute digits flash.
18
6. Turn knob to change minutes.
18
7. Press TIME again and the clock is set.
18
The Select Functions Menu
18
1. Press and hold COOKING MODE pad for five (5) seconds. SELECT FUNCTION is displayed.
18
2. Turn knob slowly to desired feature. There will be a slight delay before each message (or feature) can be seen in the display. Turn knob slowly and wait approximately one second for display to show next feature.
18
3. Press START to choose the function.
18
4. Turn knob to desired setting and press START. When all settings for the function are complete, SELECT FUNCTION flashes again.
18
5. Press OFF to exit the Select Functions Menu.
18
Change the Beep Volume
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until VOLUME is displayed.
19
3. Press START.
19
4. Turn knob to select volume level Low, Medium or High.
19
5. Press START.
19
Change the Temperature Scale
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until SELECT TEMP F-C is displayed.
19
3. Press START.
19
4. Turn knob to select Fahrenheit (F) or Celsius (C).
19
5. Press START to accept new selection.
19
Turn Clock Display ON or OFF
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until CLOCK DISPLAY is displayed.
19
3. Press START.
19
4. Turn knob to select ON or OFF
19
5. Press START to accept new selection.
19
Access Demo Mode
19
Change the Display Language
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until desired language is displayed.
19
3. Press START.
19
4. Turn knob clockwise to select a different language.
19
5. Press START to accept a language change.
19
Lock / Unlock the Oven Control Panel
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until LOCK KEYS is flashing.
19
3. Press START. KEY PAD LOCKED is displayed. The display will beep if a key is pressed to indicate that the keypad is locked.
19
4. To unlock keypads, press COOKING MODE and hold for 5 seconds. Display will read UNLOCKING KEY PAD.
19
5. When unlocked, the clock will again appear in the display.
19
Change the Oven Temperature Offset
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until OVEN TEMP OFFSET is displayed.
19
3. Press START. 0Ë F is displayed.
19
4. Turn the knob to the right to increase temperature to +25Ë F and to the left to decrease to -25Ë F. The temperature changes by 5Ë F increments.
20
5. Press START to accept a temperature change.
20
Reset the Factory Settings
20
1. Access SELECT FUNCTIONS Menu.
20
2. Turn knob clockwise until RESET DEFAULTS is displayed.
20
3. Press START. Display reads SELECT FUNCTIONS.
20
Set the Sabbath Feature
20
1. Verify that the oven is turned off.
20
2. Access SELECT FUNCTIONS Menu.
20
3. Turn knob clockwise until SABBATH OPTION appears.
20
4. Press START. BAKE will show in display and temperature will flash.
20
5. Turn knob to set oven temperature.
20
6. Turn oven light on if desired (press LIGHT).
20
7. Press START. Oven starts after 5 seconds.
20
1. Turn the warming drawer on to the desired heat setting. See âTurning on the Warming Drawerâ on page 27
20
2. Verify that the oven is turned off.
20
3. Access SELECT FUNCTIONS Menu.
20
4. Turn knob clockwise until SABBATH OPTION appears.
20
5. Press START. BAKE will show in display and temperature will flash.
20
6. Turn knob to set oven temperature.
20
7. Turn oven light on if desired (press LIGHT).
20
8. Press START. Oven starts after 5 seconds. Sabbath Feature is activated for both the warming drawer and the oven.
21
Change the Time Format
21
1. Access SELECT FUNCTIONS Menu.
21
2. Turn knob clockwise until TIME FORMAT is displayed.
21
3. Press START.
21
4. Turn knob to select 12 hour or 24 hour format.
21
5. Press START to accept new selection.
21
Turn Automatic Convection Conversion ON or OFF
21
1. Access SELECT FUNCTIONS Menu.
21
2. Turn knob clockwise until AUTO CONVECT BAKE is displayed.
21
3. Press START.
21
4. Turn knob to select ON or OFF.
21
5. Press START to accept new selection.
21
Before Using the Appliance for the First Time
21
Operation - Cooktop
22
About the Cooktop
22
Operation
22
Setting the Burner Heat Level
22
Burner Control Knobs (some models)
22
Figure 15: Burner Control Knobs (some models)
22
Lighting the Burner
22
Setting the Flame Size
22
Turning the Burner off
23
Operation - Oven
24
About the Oven
24
Operation
24
Setting the Cooking Mode and Temperature
24
1. Press COOKING MODE.
24
2. BAKE will flash in the display.
24
BAKE
24
3. If no change is made within 5 seconds, control will beep and flash. If this occurs, press START.
24
4. To change the cooking mode, turn knob.
24
5. Press START.
24
6. The selected mode will appear in the display, along with the default temperature for that mode, which will be blinking.
24
7. To select a different temperature, turn knob to the right or left (in 5Ë increments) to desired temperature.
24
8. Press START. If not pressed, oven automatically turns on in 5 seconds.
24
9. The display alternates between the cooking mode and preheat.
24
10. To change temperature during cooking, press TEMPERATURE. Turn the knob to select new temperature and press START.
24
11. Once cooking has been completed, press OFF to turn off oven.
24
Automatic Convection Conversion (models with convection bake)
24
Hot Oven Indicator
25
Using the Timer
25
To set the timer:
25
1. Press TIME and TIMER 1 will flash in display.
25
TIMER 1
25
1 : 00
25
2. Turn knob to set minutes. If setting only minutes, press START. Otherwise, continue to step 4.
25
Set TIMER 2
25
3. Press TIME again and the hours will flash.
25
4. Turn knob to set hours.
25
5. Press TIME again. The TIMER is now set.
25
6. If TIME or START is not pressed, oven will begin beeping and timer display will begin flashing.
25
Changing the Timer/s
25
1. Press TIME. TIMER 1 will appear in display. Select either TIMER 1 or 2.
25
0: 00
25
2. Press TIME. RESET TIMER 1 (2) appears in the display. Minute digits flash.
25
3. Turn knob clockwise or counterclockwise to change minutes.
25
4. Press TIME again and hour digits will flash.
25
5. Turn knob clockwise or counterclockwise to change hours.
25
6. Press TIME and new time is set.
25
Clearing the Timer/s
25
1. Press TIME once. TIMER 1 flashes.
25
2. Turn knob to select CLEAR TIMER 1(2). Press TIME.
25
CLEAR TIMER 1
25
3. If TIME pad is not pressed, range will beep and display will continue flashing.
25
4. Press TIME to return to the main screen.
25
Cancelling
25
Using Timed or Delayed Cook
25
Setting a Timed Mode
25
1. Press COOKING MODE.
25
2. BAKE will be displayed. To select a different cooking mode, turn the knob.
25
3. Press START.
26
4. Turn knob to select desired temperature.
26
5. Press TIME. TIMED BAKE appears.
26
350Ë
26
6. Press TIME. SET BAKE TIME appears in the display and minutes flash.
26
7. Set minutes. Press TIME.
26
8. Hours Flash. Set hours. Press START.
26
9. TIMED BAKE appears in display and the oven begins to preheat.
26
Delaying the Start of a Timed Mode
26
1. Follow steps 1 through 5 above.
26
2. Turn knob until DELAYED BAKE appears.
26
DELAYED BAKE
26
3. Press TIME. SET BAKE TIME appears in display and minutes flash.
26
4. Set minutes and then press TIME. Hours Flash.
26
5. Set hours and then press TIME. SET BAKE END appears in the display.
26
6. Press TIME.
26
7. Use knob to enter the time of day the oven will stop cooking or turn off.
26
8. Set hours and then press TIME.
26
9. Set minutes and then press TIME.
26
10. At the end of the programmed cooking time, the oven will automatically turn off. Display will show TIME COOK END and reminder beeps will sound. Press OFF to clear.
26
To Check the Cooking Time and Stop Time After a Delay Has Been Set
26
1. Press TIME.
26
2. Turn knob to BAKE END or BAKE TIME.
26
3. Press TIME.
26
Setting the Sabbath Feature
26
Using the Probe (some models)
26
Setting the Probe
27
1. Prepare meat and place in roasting pan (or on rack in roasting pan as recipe specifies). Insert the probe into the meat. See ...
27
2. Place roasting pan with meat in cold oven on recommended oven rack. Plug probe into the probe receptacle. The probe symbol will appear in display.
27
3. Press COOKING MODE and select BAKE, CONVECTION BAKE or CONVECTION ROAST.
27
4. Press START. The default oven temperature will appear.
27
5. Turn knob to change oven temperature if necessary.
27
6. Touch START.
27
7. Turn knob to set the probe temperature (desired end temperature of the food).
27
8. Press START.
27
Changing the Oven Temperature When Using the Probe
27
1. Touch TEMPERATURE. Oven temp will flash in the display.
27
2. Turn the knob to desired temperature and press START twice.
27
Changing the Probe Temperature
27
1. Touch TEMPERATURE. The oven temperature will flash.
27
2. Press START and PROBE TEMP will flash.
27
3. Turn the knob to desired temperature and press START again.
27
Operation - Warming Drawer (some models)
28
About the Warming Drawer
28
Warming Drawer Specifications
28
1. Stainless Steel Drawer Interior
28
2. Gasket
28
3. Rail Lock
28
Figure 16: Warming Drawer Parts
28
Figure 17: Warming Drawer Settings
28
Operation
29
Preheating
29
Preheat Times:
29
Turning on the Warming Drawer
29
When Only Using the Warming Drawer
29
1. Press COOKING MODE.
29
2. Turn knob to select WARMING DRAWER.
29
3. Press START.
29
4. Turn knob to select heat setting.
29
5. Press START.
29
When Also Using The Oven
29
1. Press COOKING MODE.
29
2. Press START to select WARMING DRAWER.
29
3. Turn knob to select heat setting.
29
4. Press START.
29
Setting the Sabbath Feature
29
1. Turn the warming drawer on the desired heat level.
29
2. Activate the Sabbath Feature. See âSet the Sabbath Featureâ on page 18.
29
Turning Off the Warming Drawer
29
When Only Using the Warming Drawer
29
1. Press OFF.
29
When Using the Warming Drawer and the Oven
29
1. Press OFF.
29
2. Turn knob to select CANCEL DRWR, CANCEL OVEN, or CANCEL BOTH.
29
3. Press OFF.
29
Crisping Stale Items
30
Warming Empty Serving Bowls and Plates
30
Getting the Most Out of Your Appliance
31
Getting the Most Out of Your Cooktop
31
Cooktop Cooking Guide
31
Boiling Water
31
Recommended Settings
31
Table 3: Cooking Guide
31
Cookware Selection Guide
31
Cookware Characteristics
31
To Test the Flatness of Your Pans
31
Match Pan Diameter to Flame Size
32
Cookware Tips
32
Specialty Pans
32
Getting the Most Out of Your Oven
32
Oven Cooking Guide
32
Rack Position
32
Figure 18: Rack Positions
32
Multiple Rack Cooking
32
Pan Placement
32
Figure 19: Pan Placement
33
Baking Pans
33
Preheating the Oven
33
The Probe (some models)
33
Oven Cooking Modes
34
Bake, Proof and Warm
34
Convection Bake
34
Automatic Convection Conversion
35
Table 4: Convection Baking Chart
35
Broil
35
Table 5: Broiling Chart
36
Convection Broil (some models)
36
Table 6: Convection Broiling Chart
37
Convection Roast
37
Table 7: Convection Roast Chart
38
Dehydrate
38
Table 8: Dehydrate Chart
39
Getting the Most Out of Your Warming Drawer
39
General Tips
39
Table 9: Warming Drawer Chart
40
Cleaning and Maintenance
41
Cleaning - Cooktop
41
Daily Cleaning
41
Cleaning Guidelines
41
Avoid these Cleaners
41
Table 10: Cooktop Cleaning Chart
41
Table 11: Cleaning Techniques for Stubborn Soil (Glass Ceramic Cooktop Models)
43
Using the Razor Blade Scraper (Glass Ceramic Cooktop Models)
44
Figure 20: Scraper
44
Cleaning the Control Knobs
44
1. Pull out and off to remove each knobs. Wipe with hot, soapy cloth, rinse and dry. Do not soak.
44
2. To replace, push knob straight onto shaft.
44
Cleaning - Oven
44
Daily Cleaning
44
Cleaning Guidelines
44
Avoid these cleaners
44
Table 12: Oven Cleaning Chart
44
Self Cleaning the Oven
45
Preparing the Oven for Self Clean
45
1. Remove all utensils and bakeware.
45
2. Remove oven racks. If oven racks are left in the oven during the self-clean cycle, they will permanently lose the shiny finish and change to a dull dark finish. See âOven Cleaning Chartâ on page 42 for proper care.
45
3. Wipe up excessive soil, spills and grease before self-cleaning the oven. Excess grease will cause flames and smoke inside the oven during self- cleaning.
45
Figure 21: Cleaning Guidelines
46
4. Review illustration above. Some areas of the oven must be cleaned by hand before the cycle begins. Use a soapy sponge or plas...
46
5. Be sure oven light is turned off and the light bulbs and lens covers are in place. Do not operate oven without light bulb and cover in place.
46
Setting the Self-Clean Mode
46
1. Press COOKING MODE.
46
2. Turn knob until SELF CLEAN mode appears. Press START.
46
3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.
46
3
46
4. Press START. SELF CLEAN flashes. Press START.
46
5. REMOVE RACKS appears in the display as a reminder to remove oven racks.
46
REMOVE RACKS
46
6. Press START again to begin the self- clean.
46
Delaying the Start of the Self-Clean
46
1. Press COOKING MODE.
46
2. Turn knob until SELF CLEAN mode appears. Press START.
46
3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.
46
4. Press START.
47
5. Turn knob until DELAYED CLEAN mode appears. Press START.
47
3: 00
47
6. SELF CLEAN END appears in the display.
47
5: 45
47
7. Turn knob to enter the time of day you want the self-clean to end: Set hours, press time, set minutes.
47
8. Press START. The display will remind you to remove oven racks.
47
9. Press START. The display shows DELAYED CLEAN. The self-clean will automatically start at the appropriate time.
47
After Self-Cleaning
47
1. At the end of the programmed cleaning time, the oven will automatically turn off. SELF CLEAN END appears in the display. Press OFF to clear.
47
2. The self-clean mode may produce ash which will settle in the bottom of the oven. If this happens, remove ash with a damp cloth before using the oven.
47
3. Wipe rack edges with cooking oil to allow for proper glide. Wipe off excess.
47
Cleaning - Drawers (Storage or Warming)
47
Daily Cleaning
47
Maintenance
47
Cooktop Maintenance
47
Glass Ceramic Cooktop Models
47
Stainless Steel Cooktop Models
48
Oven Maintenance
48
Removing the Door
48
1. Be sure to read the above WARNING before attempting to remove oven door.
48
2. Open the door completely.
48
3. Flip lever on hinge toward you.
48
Figure 22: Hinge Positions
48
4. Close the door to approximately halfway open.
48
5. Holding the door firmly on both sides using both hands, pull the door straight out of the hinge slots. Hold firmly, the door is heavy.
48
6. Place the door in a convenient and stable location for cleaning.
48
Replacing the Oven Door
48
1. Holding the door firmly in both hands, place hinges in hinge slots.
48
2. Open door all the way to expose hinges and slots. Push lever (one on each hinge) away from you (back toward range).
48
3. After moving the hinge brackets back down into position, be sure to close and open the door slowly to assure that it is correctly and securely in place.
48
4. Door should be straight, not crooked.
48
Replacing an Oven Light
49
1. Read the WARNING above.
49
2. Turn off power at the main power supply (fuse or breaker box).
49
3. Remove the lens by unscrewing it.
49
4. Remove the light bulb from its socket by unscrewing it.
49
5. Replace the bulb with a new 40 watt appliance bulb. Avoid touching the bulb with fingers, as oils from hands can damage the bulb when it becomes hot.
49
6. Screw the lens back on.
49
7. Turn power back on at the main power supply (fuse or breaker box).
49
Service
50
Before Calling Service
50
Troubleshooting Charts
50
The Cooktop
50
Table 13: Cooktop Troubleshooting Chart
50
The Oven
51
Table 14: Oven Troubleshooting Chart
51
How to Obtain Service or Parts
52
Product Data Plate
52
Figure 23: Data Plate
52
Warranty
52
What this Warranty Covers & Who it Applies to:
52
How Long the Warranty Lasts:
53
Repair/Replace as Your Exclusive Remedy:
53
Out of Warranty Product:
53
Warranty Exclusions:
53
How to Obtain Warranty Service:
54
File type: PDF
File name: hds7282u-01.pdf
File size: 5.78 MB
File Language: English
Pages: 56
Author: Bosch
Updated: 2023-07-23
Download File
Specifications
Brand:
Bosch
Model: HDS7282U/01
Category:
Ovens
View in the file:
Full Specifications
See other models:
WFVC8440UC/29
B36CL80SNS
WTC82100US/05
DHD3014UC/01
HMV5052U/01
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch HDS7052U/01
Bosch HDS7282U/08
Bosch HDS7282U/06
Bosch HDS7022U/01
Bosch HDI7282U/02
Bosch HDS7052U/08
Bosch HDI7282U/05
Bosch HDS7052U/06
Bosch HDS7052U/04
Bosch HDS7052U/03
Bosch HDI7282U/09
Bosch HDI7052U/01
Bosch HDI7282U/03
Bosch HDS7052U
Bosch HDI7052U/07
Table of Contents
×
About This Manual
3
How This Manual Is Organized
3
Safety
4
Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS
4
Important Safety Instructions
4
Fire Safety
4
Gas Safety
5
Burn Prevention
6
Child Safety
6
Cleaning Safety
7
Cookware Safety
7
Proper Installation and Maintenance
7
Figure 1: Tipping Precautions
8
Food Safety
8
Getting Started
9
Parts and Accessories
9
Figure 2: Parts and Accessories
9
Table 1: Parts and Accessories Key
9
Sealed Gas Burners
10
Figure 3: Right Side Burner - Side View
10
Burner Caps
10
Burner Grates
10
Figure 4: Grates for Free-standing Models
11
Figure 5: Grates for Slide-in Models - Top View
11
Figure 6: Installing Grates for Slide-in Models - Side View
11
Figure 7: Grates for Slide-in Models - Locating Pins
12
Electronic Ignitor
12
High Power Burner
12
Precision Burner
12
Oven Racks
12
Flat Oven Racks
12
1. Grasp rack firmly on both sides.
12
2. Tilt rack up to allow stop into rack guide.
12
3. Bring rack to a horizontal position and press the rest of the way in. Rack should be straight and flat, not crooked.
13
Figure 8: Inserting a Rack
13
1. Grasp rack firmly on both sides and pull rack toward you.
13
2. When the stop is reached, tilt rack up and pull the rest of the way out.
13
Extension Oven Rack (some models)
13
Figure 9: Full Extension Rack
13
1. Grasp the bottom section and pull straight out.
13
2. Once the stop is reached, grasp the top section and pull straight out until the second stop is reached. If the top rack will not extend fully, it is not installed correctly. Reinstall it so that the pan stop is in the back of the oven.
13
1. Place rack on flat surface in the closed position top side up.
13
2. Rotate one side of top rack towards you until it is past the stop (ball).
14
3. Pull the rack up and out, rotated side first.
14
Figure 10: Disassembly
14
1. To reassemble rack, hold top rack diagonally across bottom rack.
14
2. Insert one side of top rack to closed position.
14
3. Rotate the other side toward the back of the rack until it passes the stop (ball).
14
4. Push top rack the rest of the way in.
14
Figure 11: Reassembly
14
Half Oven Rack (Some Models)
14
Figure 12: Half Oven Rack
15
Figure 13: Half Oven Rack in Use
15
Oven Bottom
15
Combustion Vents (slide-in models only)
15
Oven Vent
15
Automatic Shutoff
16
Self Cleaning
16
Indicators and Other Features
16
Cooling Fan (Slide-in models only)
16
Convection Fan
16
Control (Panel)
17
Oven Control Panel
17
Figure 14: Oven Control Panel
17
Table 2: Oven Control Panel
17
The Clock
18
About the Clock
18
Setting the Clock
18
1. CLOCK will be displayed and the hour digits will flash. Turn knob to select hour and AM or PM.
18
CLOCK
18
2. Press TIME. CLOCK will still be displayed and the minute digits will flash.
18
3. Turn knob. Set minutes.
18
4. Press TIME and the clock is now set.
18
Changing the Clock
18
1. Press TIME. TIMER 1 flashes in display.
18
2. Turn knob to select CLOCK.
18
3. Press TIME and hour digits flash.
18
4. Turn knob to change hours.
18
5. Press TIME again and minute digits flash.
18
6. Turn knob to change minutes.
18
7. Press TIME again and the clock is set.
18
The Select Functions Menu
18
1. Press and hold COOKING MODE pad for five (5) seconds. SELECT FUNCTION is displayed.
18
2. Turn knob slowly to desired feature. There will be a slight delay before each message (or feature) can be seen in the display. Turn knob slowly and wait approximately one second for display to show next feature.
18
3. Press START to choose the function.
18
4. Turn knob to desired setting and press START. When all settings for the function are complete, SELECT FUNCTION flashes again.
18
5. Press OFF to exit the Select Functions Menu.
18
Change the Beep Volume
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until VOLUME is displayed.
19
3. Press START.
19
4. Turn knob to select volume level Low, Medium or High.
19
5. Press START.
19
Change the Temperature Scale
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until SELECT TEMP F-C is displayed.
19
3. Press START.
19
4. Turn knob to select Fahrenheit (F) or Celsius (C).
19
5. Press START to accept new selection.
19
Turn Clock Display ON or OFF
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until CLOCK DISPLAY is displayed.
19
3. Press START.
19
4. Turn knob to select ON or OFF
19
5. Press START to accept new selection.
19
Access Demo Mode
19
Change the Display Language
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until desired language is displayed.
19
3. Press START.
19
4. Turn knob clockwise to select a different language.
19
5. Press START to accept a language change.
19
Lock / Unlock the Oven Control Panel
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until LOCK KEYS is flashing.
19
3. Press START. KEY PAD LOCKED is displayed. The display will beep if a key is pressed to indicate that the keypad is locked.
19
4. To unlock keypads, press COOKING MODE and hold for 5 seconds. Display will read UNLOCKING KEY PAD.
19
5. When unlocked, the clock will again appear in the display.
19
Change the Oven Temperature Offset
19
1. Access SELECT FUNCTIONS Menu.
19
2. Turn knob clockwise until OVEN TEMP OFFSET is displayed.
19
3. Press START. 0Ë F is displayed.
19
4. Turn the knob to the right to increase temperature to +25Ë F and to the left to decrease to -25Ë F. The temperature changes by 5Ë F increments.
20
5. Press START to accept a temperature change.
20
Reset the Factory Settings
20
1. Access SELECT FUNCTIONS Menu.
20
2. Turn knob clockwise until RESET DEFAULTS is displayed.
20
3. Press START. Display reads SELECT FUNCTIONS.
20
Set the Sabbath Feature
20
1. Verify that the oven is turned off.
20
2. Access SELECT FUNCTIONS Menu.
20
3. Turn knob clockwise until SABBATH OPTION appears.
20
4. Press START. BAKE will show in display and temperature will flash.
20
5. Turn knob to set oven temperature.
20
6. Turn oven light on if desired (press LIGHT).
20
7. Press START. Oven starts after 5 seconds.
20
1. Turn the warming drawer on to the desired heat setting. See âTurning on the Warming Drawerâ on page 27
20
2. Verify that the oven is turned off.
20
3. Access SELECT FUNCTIONS Menu.
20
4. Turn knob clockwise until SABBATH OPTION appears.
20
5. Press START. BAKE will show in display and temperature will flash.
20
6. Turn knob to set oven temperature.
20
7. Turn oven light on if desired (press LIGHT).
20
8. Press START. Oven starts after 5 seconds. Sabbath Feature is activated for both the warming drawer and the oven.
21
Change the Time Format
21
1. Access SELECT FUNCTIONS Menu.
21
2. Turn knob clockwise until TIME FORMAT is displayed.
21
3. Press START.
21
4. Turn knob to select 12 hour or 24 hour format.
21
5. Press START to accept new selection.
21
Turn Automatic Convection Conversion ON or OFF
21
1. Access SELECT FUNCTIONS Menu.
21
2. Turn knob clockwise until AUTO CONVECT BAKE is displayed.
21
3. Press START.
21
4. Turn knob to select ON or OFF.
21
5. Press START to accept new selection.
21
Before Using the Appliance for the First Time
21
Operation - Cooktop
22
About the Cooktop
22
Operation
22
Setting the Burner Heat Level
22
Burner Control Knobs (some models)
22
Figure 15: Burner Control Knobs (some models)
22
Lighting the Burner
22
Setting the Flame Size
22
Turning the Burner off
23
Operation - Oven
24
About the Oven
24
Operation
24
Setting the Cooking Mode and Temperature
24
1. Press COOKING MODE.
24
2. BAKE will flash in the display.
24
BAKE
24
3. If no change is made within 5 seconds, control will beep and flash. If this occurs, press START.
24
4. To change the cooking mode, turn knob.
24
5. Press START.
24
6. The selected mode will appear in the display, along with the default temperature for that mode, which will be blinking.
24
7. To select a different temperature, turn knob to the right or left (in 5Ë increments) to desired temperature.
24
8. Press START. If not pressed, oven automatically turns on in 5 seconds.
24
9. The display alternates between the cooking mode and preheat.
24
10. To change temperature during cooking, press TEMPERATURE. Turn the knob to select new temperature and press START.
24
11. Once cooking has been completed, press OFF to turn off oven.
24
Automatic Convection Conversion (models with convection bake)
24
Hot Oven Indicator
25
Using the Timer
25
To set the timer:
25
1. Press TIME and TIMER 1 will flash in display.
25
TIMER 1
25
1 : 00
25
2. Turn knob to set minutes. If setting only minutes, press START. Otherwise, continue to step 4.
25
Set TIMER 2
25
3. Press TIME again and the hours will flash.
25
4. Turn knob to set hours.
25
5. Press TIME again. The TIMER is now set.
25
6. If TIME or START is not pressed, oven will begin beeping and timer display will begin flashing.
25
Changing the Timer/s
25
1. Press TIME. TIMER 1 will appear in display. Select either TIMER 1 or 2.
25
0: 00
25
2. Press TIME. RESET TIMER 1 (2) appears in the display. Minute digits flash.
25
3. Turn knob clockwise or counterclockwise to change minutes.
25
4. Press TIME again and hour digits will flash.
25
5. Turn knob clockwise or counterclockwise to change hours.
25
6. Press TIME and new time is set.
25
Clearing the Timer/s
25
1. Press TIME once. TIMER 1 flashes.
25
2. Turn knob to select CLEAR TIMER 1(2). Press TIME.
25
CLEAR TIMER 1
25
3. If TIME pad is not pressed, range will beep and display will continue flashing.
25
4. Press TIME to return to the main screen.
25
Cancelling
25
Using Timed or Delayed Cook
25
Setting a Timed Mode
25
1. Press COOKING MODE.
25
2. BAKE will be displayed. To select a different cooking mode, turn the knob.
25
3. Press START.
26
4. Turn knob to select desired temperature.
26
5. Press TIME. TIMED BAKE appears.
26
350Ë
26
6. Press TIME. SET BAKE TIME appears in the display and minutes flash.
26
7. Set minutes. Press TIME.
26
8. Hours Flash. Set hours. Press START.
26
9. TIMED BAKE appears in display and the oven begins to preheat.
26
Delaying the Start of a Timed Mode
26
1. Follow steps 1 through 5 above.
26
2. Turn knob until DELAYED BAKE appears.
26
DELAYED BAKE
26
3. Press TIME. SET BAKE TIME appears in display and minutes flash.
26
4. Set minutes and then press TIME. Hours Flash.
26
5. Set hours and then press TIME. SET BAKE END appears in the display.
26
6. Press TIME.
26
7. Use knob to enter the time of day the oven will stop cooking or turn off.
26
8. Set hours and then press TIME.
26
9. Set minutes and then press TIME.
26
10. At the end of the programmed cooking time, the oven will automatically turn off. Display will show TIME COOK END and reminder beeps will sound. Press OFF to clear.
26
To Check the Cooking Time and Stop Time After a Delay Has Been Set
26
1. Press TIME.
26
2. Turn knob to BAKE END or BAKE TIME.
26
3. Press TIME.
26
Setting the Sabbath Feature
26
Using the Probe (some models)
26
Setting the Probe
27
1. Prepare meat and place in roasting pan (or on rack in roasting pan as recipe specifies). Insert the probe into the meat. See ...
27
2. Place roasting pan with meat in cold oven on recommended oven rack. Plug probe into the probe receptacle. The probe symbol will appear in display.
27
3. Press COOKING MODE and select BAKE, CONVECTION BAKE or CONVECTION ROAST.
27
4. Press START. The default oven temperature will appear.
27
5. Turn knob to change oven temperature if necessary.
27
6. Touch START.
27
7. Turn knob to set the probe temperature (desired end temperature of the food).
27
8. Press START.
27
Changing the Oven Temperature When Using the Probe
27
1. Touch TEMPERATURE. Oven temp will flash in the display.
27
2. Turn the knob to desired temperature and press START twice.
27
Changing the Probe Temperature
27
1. Touch TEMPERATURE. The oven temperature will flash.
27
2. Press START and PROBE TEMP will flash.
27
3. Turn the knob to desired temperature and press START again.
27
Operation - Warming Drawer (some models)
28
About the Warming Drawer
28
Warming Drawer Specifications
28
1. Stainless Steel Drawer Interior
28
2. Gasket
28
3. Rail Lock
28
Figure 16: Warming Drawer Parts
28
Figure 17: Warming Drawer Settings
28
Operation
29
Preheating
29
Preheat Times:
29
Turning on the Warming Drawer
29
When Only Using the Warming Drawer
29
1. Press COOKING MODE.
29
2. Turn knob to select WARMING DRAWER.
29
3. Press START.
29
4. Turn knob to select heat setting.
29
5. Press START.
29
When Also Using The Oven
29
1. Press COOKING MODE.
29
2. Press START to select WARMING DRAWER.
29
3. Turn knob to select heat setting.
29
4. Press START.
29
Setting the Sabbath Feature
29
1. Turn the warming drawer on the desired heat level.
29
2. Activate the Sabbath Feature. See âSet the Sabbath Featureâ on page 18.
29
Turning Off the Warming Drawer
29
When Only Using the Warming Drawer
29
1. Press OFF.
29
When Using the Warming Drawer and the Oven
29
1. Press OFF.
29
2. Turn knob to select CANCEL DRWR, CANCEL OVEN, or CANCEL BOTH.
29
3. Press OFF.
29
Crisping Stale Items
30
Warming Empty Serving Bowls and Plates
30
Getting the Most Out of Your Appliance
31
Getting the Most Out of Your Cooktop
31
Cooktop Cooking Guide
31
Boiling Water
31
Recommended Settings
31
Table 3: Cooking Guide
31
Cookware Selection Guide
31
Cookware Characteristics
31
To Test the Flatness of Your Pans
31
Match Pan Diameter to Flame Size
32
Cookware Tips
32
Specialty Pans
32
Getting the Most Out of Your Oven
32
Oven Cooking Guide
32
Rack Position
32
Figure 18: Rack Positions
32
Multiple Rack Cooking
32
Pan Placement
32
Figure 19: Pan Placement
33
Baking Pans
33
Preheating the Oven
33
The Probe (some models)
33
Oven Cooking Modes
34
Bake, Proof and Warm
34
Convection Bake
34
Automatic Convection Conversion
35
Table 4: Convection Baking Chart
35
Broil
35
Table 5: Broiling Chart
36
Convection Broil (some models)
36
Table 6: Convection Broiling Chart
37
Convection Roast
37
Table 7: Convection Roast Chart
38
Dehydrate
38
Table 8: Dehydrate Chart
39
Getting the Most Out of Your Warming Drawer
39
General Tips
39
Table 9: Warming Drawer Chart
40
Cleaning and Maintenance
41
Cleaning - Cooktop
41
Daily Cleaning
41
Cleaning Guidelines
41
Avoid these Cleaners
41
Table 10: Cooktop Cleaning Chart
41
Table 11: Cleaning Techniques for Stubborn Soil (Glass Ceramic Cooktop Models)
43
Using the Razor Blade Scraper (Glass Ceramic Cooktop Models)
44
Figure 20: Scraper
44
Cleaning the Control Knobs
44
1. Pull out and off to remove each knobs. Wipe with hot, soapy cloth, rinse and dry. Do not soak.
44
2. To replace, push knob straight onto shaft.
44
Cleaning - Oven
44
Daily Cleaning
44
Cleaning Guidelines
44
Avoid these cleaners
44
Table 12: Oven Cleaning Chart
44
Self Cleaning the Oven
45
Preparing the Oven for Self Clean
45
1. Remove all utensils and bakeware.
45
2. Remove oven racks. If oven racks are left in the oven during the self-clean cycle, they will permanently lose the shiny finish and change to a dull dark finish. See âOven Cleaning Chartâ on page 42 for proper care.
45
3. Wipe up excessive soil, spills and grease before self-cleaning the oven. Excess grease will cause flames and smoke inside the oven during self- cleaning.
45
Figure 21: Cleaning Guidelines
46
4. Review illustration above. Some areas of the oven must be cleaned by hand before the cycle begins. Use a soapy sponge or plas...
46
5. Be sure oven light is turned off and the light bulbs and lens covers are in place. Do not operate oven without light bulb and cover in place.
46
Setting the Self-Clean Mode
46
1. Press COOKING MODE.
46
2. Turn knob until SELF CLEAN mode appears. Press START.
46
3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.
46
3
46
4. Press START. SELF CLEAN flashes. Press START.
46
5. REMOVE RACKS appears in the display as a reminder to remove oven racks.
46
REMOVE RACKS
46
6. Press START again to begin the self- clean.
46
Delaying the Start of the Self-Clean
46
1. Press COOKING MODE.
46
2. Turn knob until SELF CLEAN mode appears. Press START.
46
3. The default cleaning time is 4 hours. To change cleaning time, turn knob to change number of hours. Otherwise, continue to step 4.
46
4. Press START.
47
5. Turn knob until DELAYED CLEAN mode appears. Press START.
47
3: 00
47
6. SELF CLEAN END appears in the display.
47
5: 45
47
7. Turn knob to enter the time of day you want the self-clean to end: Set hours, press time, set minutes.
47
8. Press START. The display will remind you to remove oven racks.
47
9. Press START. The display shows DELAYED CLEAN. The self-clean will automatically start at the appropriate time.
47
After Self-Cleaning
47
1. At the end of the programmed cleaning time, the oven will automatically turn off. SELF CLEAN END appears in the display. Press OFF to clear.
47
2. The self-clean mode may produce ash which will settle in the bottom of the oven. If this happens, remove ash with a damp cloth before using the oven.
47
3. Wipe rack edges with cooking oil to allow for proper glide. Wipe off excess.
47
Cleaning - Drawers (Storage or Warming)
47
Daily Cleaning
47
Maintenance
47
Cooktop Maintenance
47
Glass Ceramic Cooktop Models
47
Stainless Steel Cooktop Models
48
Oven Maintenance
48
Removing the Door
48
1. Be sure to read the above WARNING before attempting to remove oven door.
48
2. Open the door completely.
48
3. Flip lever on hinge toward you.
48
Figure 22: Hinge Positions
48
4. Close the door to approximately halfway open.
48
5. Holding the door firmly on both sides using both hands, pull the door straight out of the hinge slots. Hold firmly, the door is heavy.
48
6. Place the door in a convenient and stable location for cleaning.
48
Replacing the Oven Door
48
1. Holding the door firmly in both hands, place hinges in hinge slots.
48
2. Open door all the way to expose hinges and slots. Push lever (one on each hinge) away from you (back toward range).
48
3. After moving the hinge brackets back down into position, be sure to close and open the door slowly to assure that it is correctly and securely in place.
48
4. Door should be straight, not crooked.
48
Replacing an Oven Light
49
1. Read the WARNING above.
49
2. Turn off power at the main power supply (fuse or breaker box).
49
3. Remove the lens by unscrewing it.
49
4. Remove the light bulb from its socket by unscrewing it.
49
5. Replace the bulb with a new 40 watt appliance bulb. Avoid touching the bulb with fingers, as oils from hands can damage the bulb when it becomes hot.
49
6. Screw the lens back on.
49
7. Turn power back on at the main power supply (fuse or breaker box).
49
Service
50
Before Calling Service
50
Troubleshooting Charts
50
The Cooktop
50
Table 13: Cooktop Troubleshooting Chart
50
The Oven
51
Table 14: Oven Troubleshooting Chart
51
How to Obtain Service or Parts
52
Product Data Plate
52
Figure 23: Data Plate
52
Warranty
52
What this Warranty Covers & Who it Applies to:
52
How Long the Warranty Lasts:
53
Repair/Replace as Your Exclusive Remedy:
53
Out of Warranty Product:
53
Warranty Exclusions:
53
How to Obtain Warranty Service:
54
Search:
×
Search
