Use & Care / Installation Manual
Models 233.51403, 233.51413
Kenmore Elite®
Range Hood

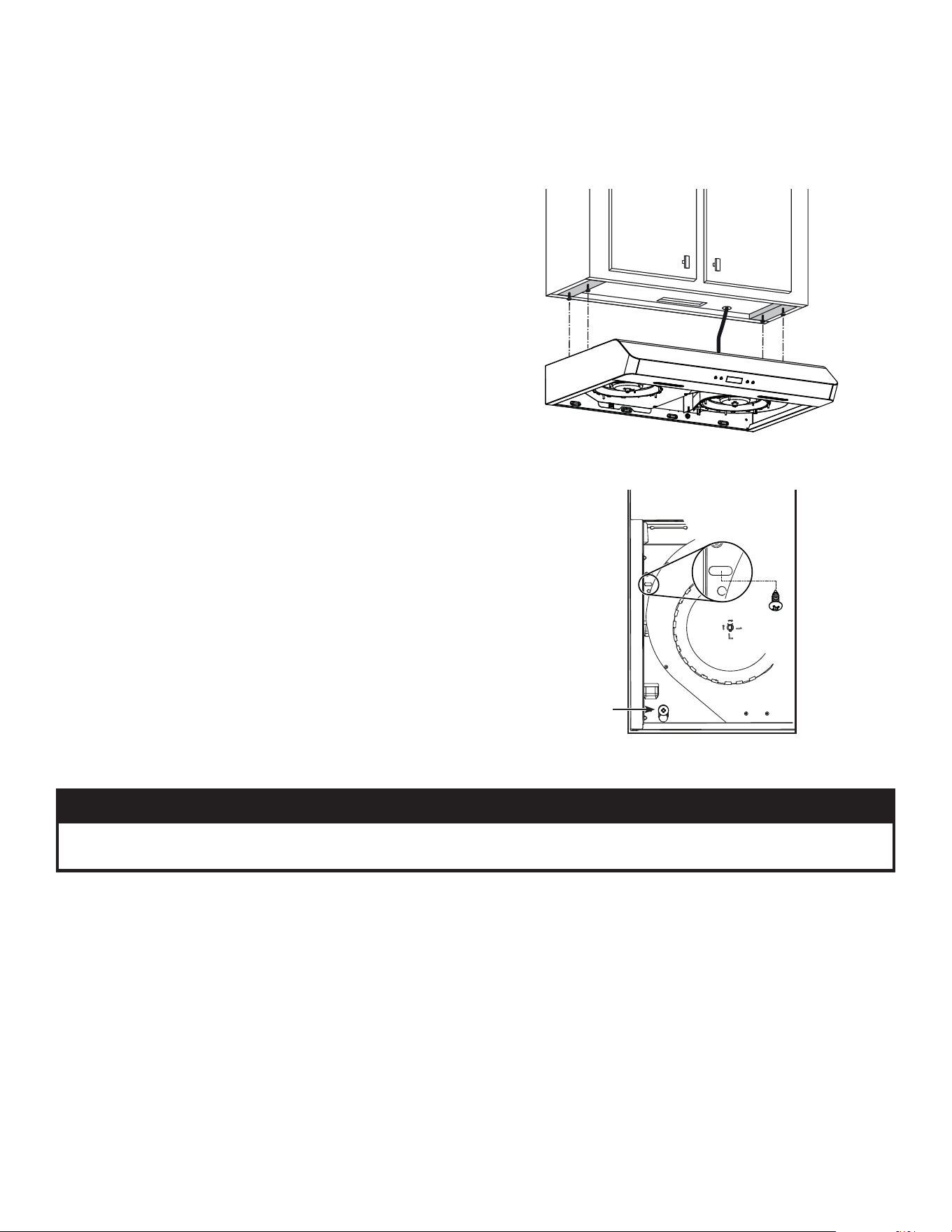

Install the Hood (Standard Installation)
NOTE: Two installers are recommended because of the weight of this hood.
1. Run house power cable between service panel and hood location. For hood with power cable access located on back of hood, run the house power cable into the hood through the strain relief previously installed in step 5 on page 9. For hood with power cable access located on top, tighten the strain relief to the power cable before inserting the strain relief in the knockout hole.

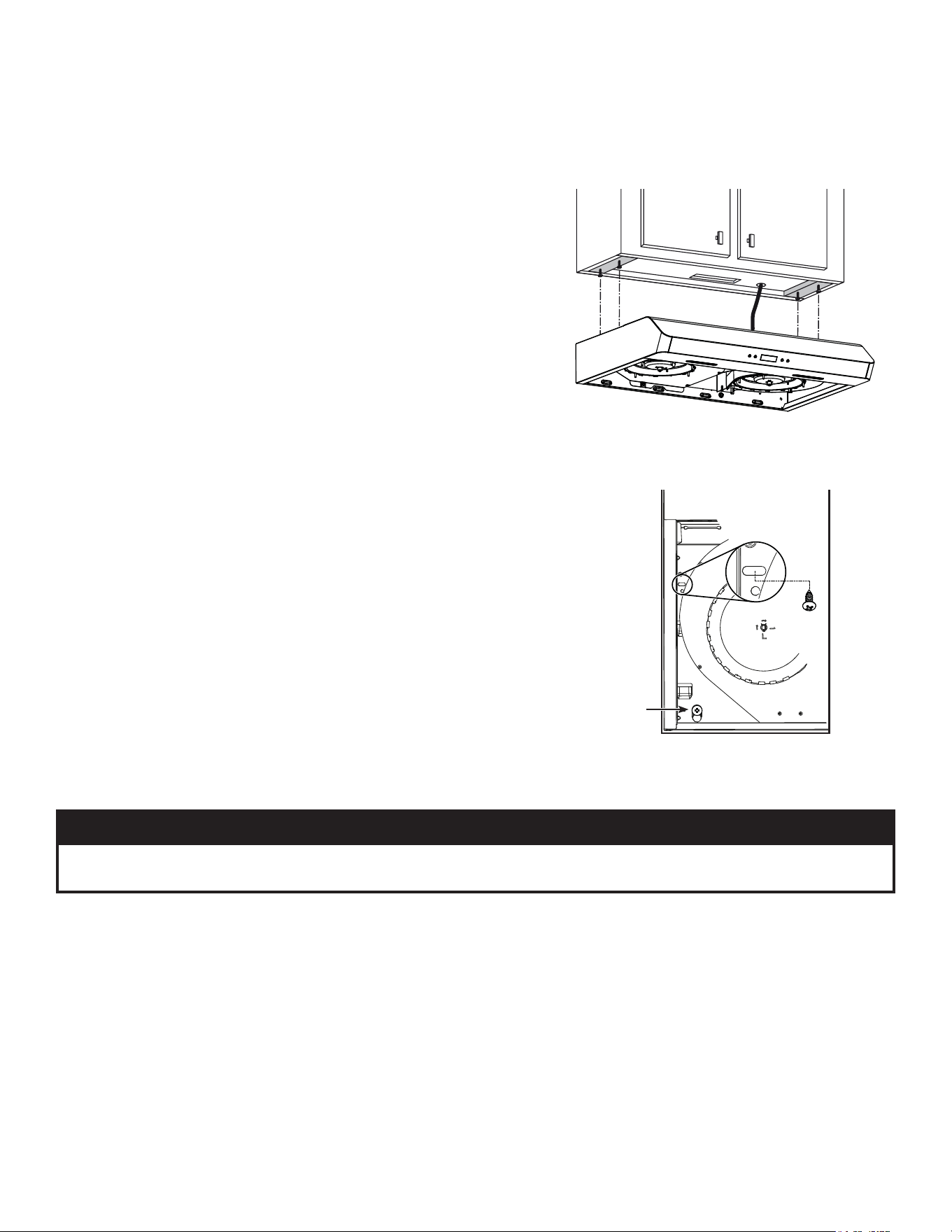

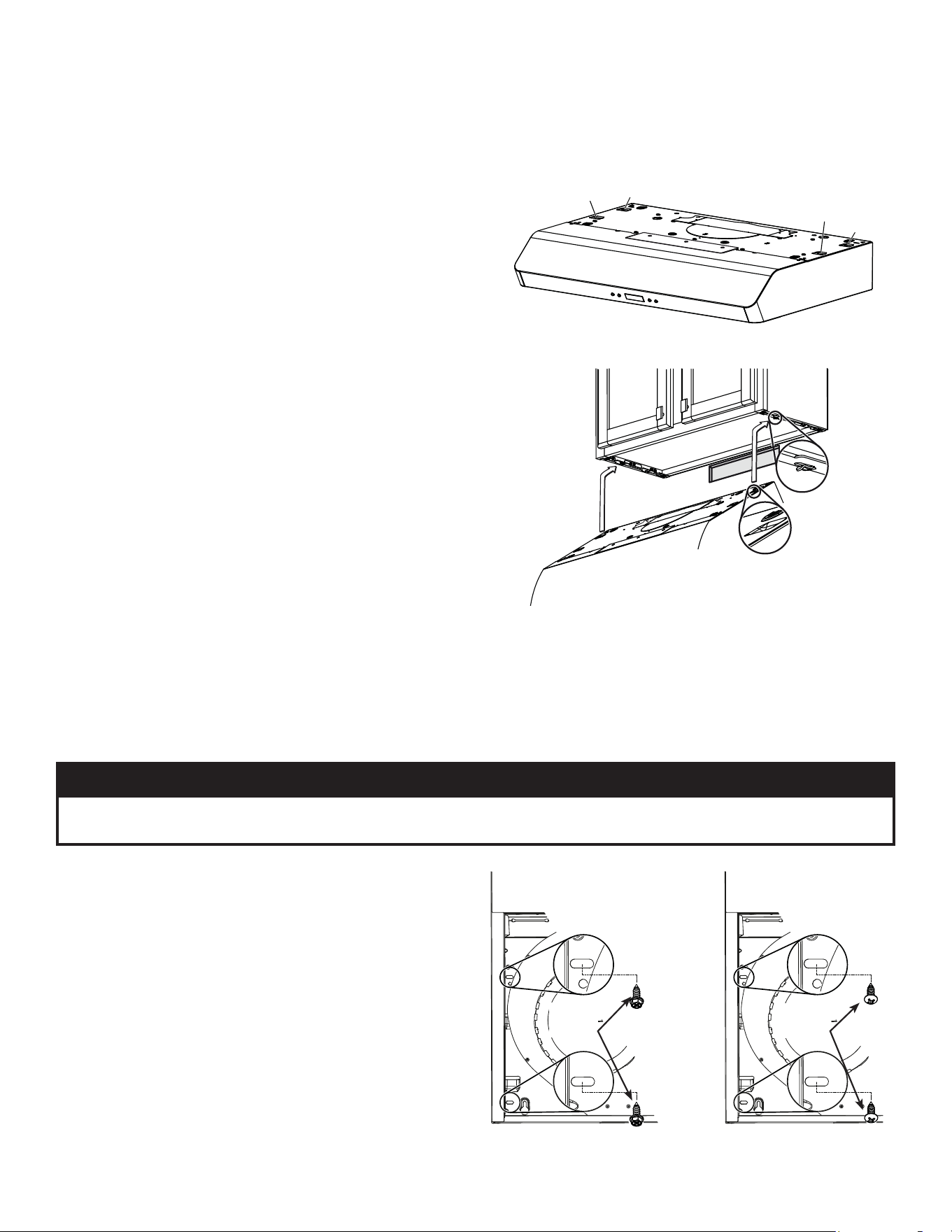

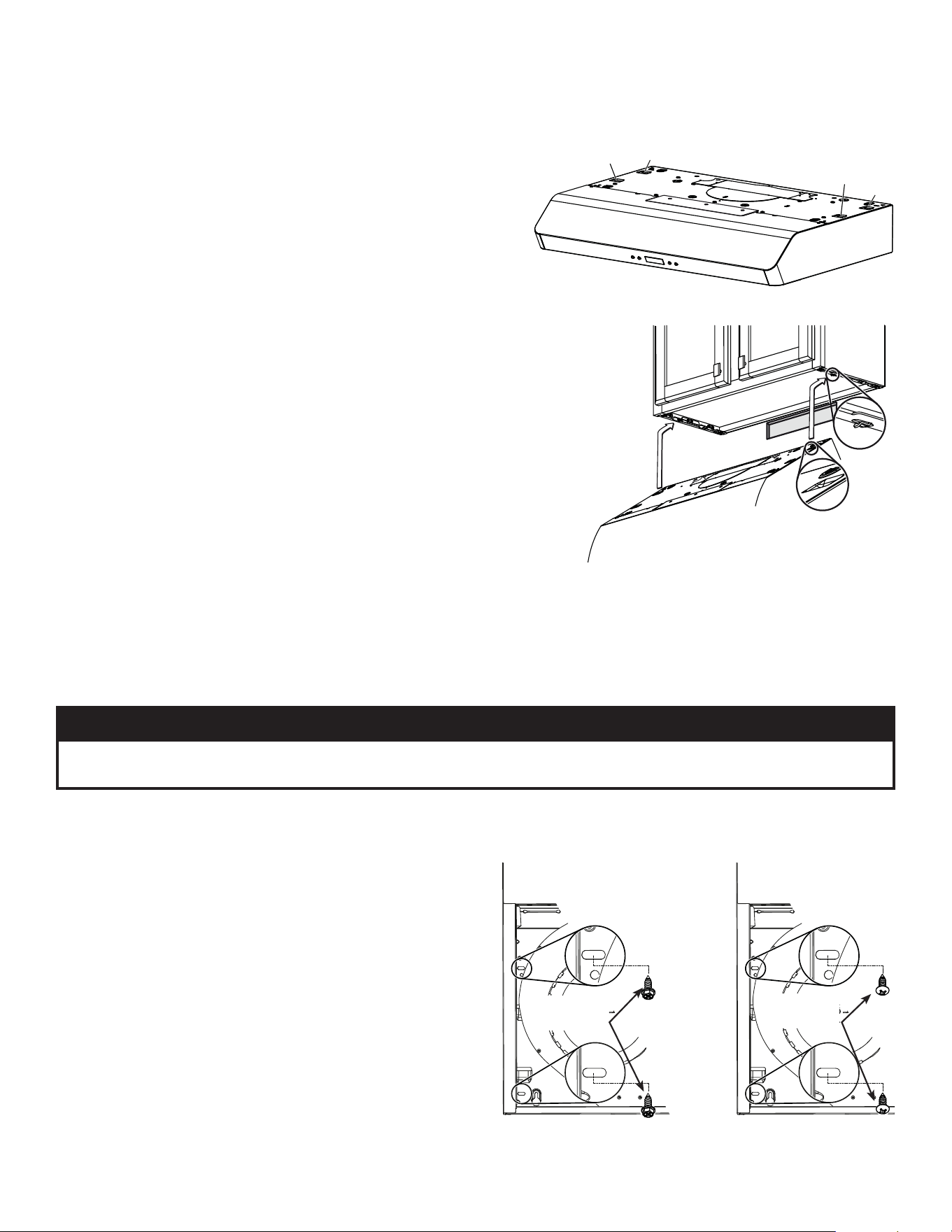

2. Hang hood from (2) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely and maintain a hold on the hood until completing step 3.
3. Secure the hood to the cabinet using 2 no. 8 x 5/8” round head wood screws (screws ncluded in parts bag). Insert 1 screw per side, in the slots (as shown beside. Attach power cable to the hood using the strain relief.
DUCTED INSTALLATIONS ONLY
4. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely

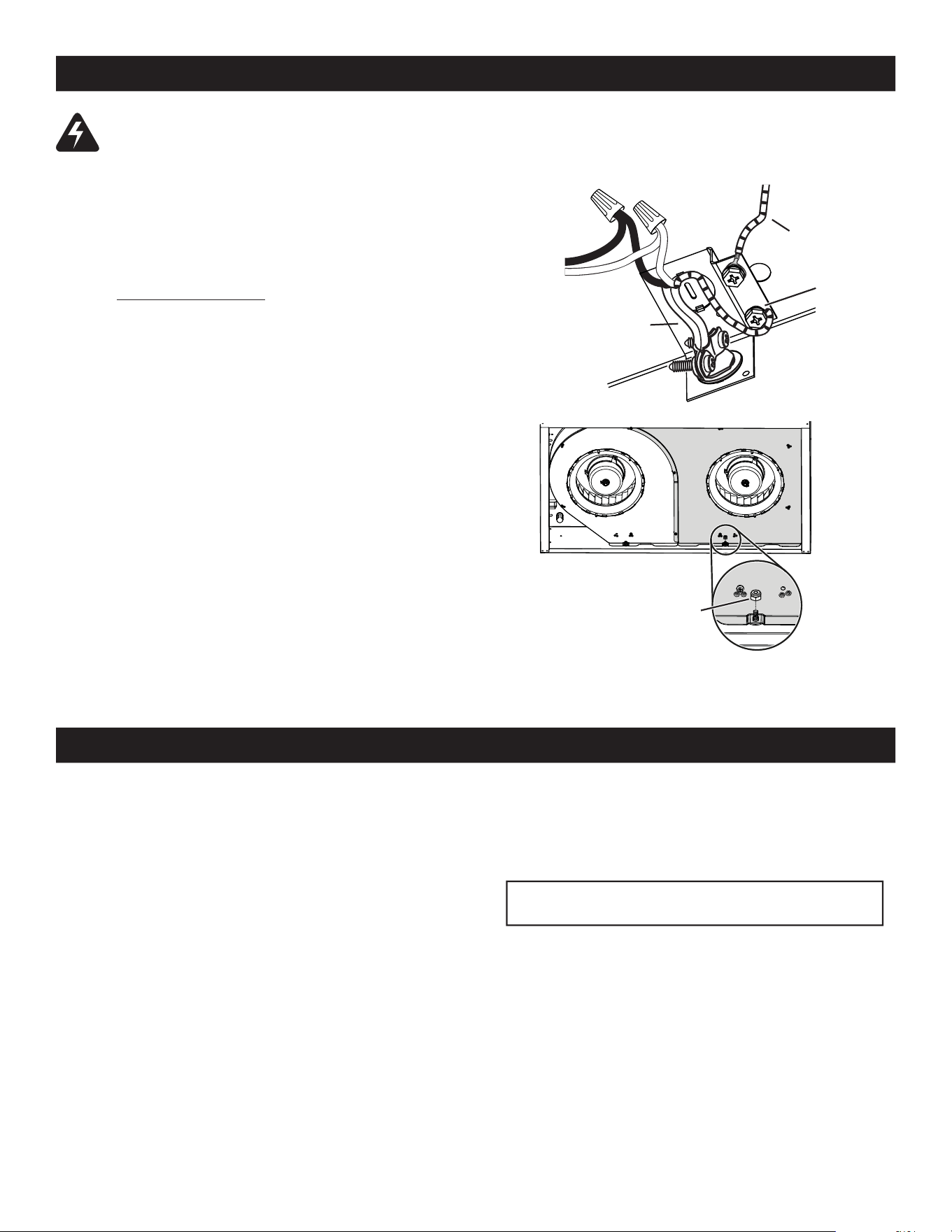

CONNECT THE WIRING
WARNING: Risk of electric shock. Electrical wiring must be done by qualifi ed personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

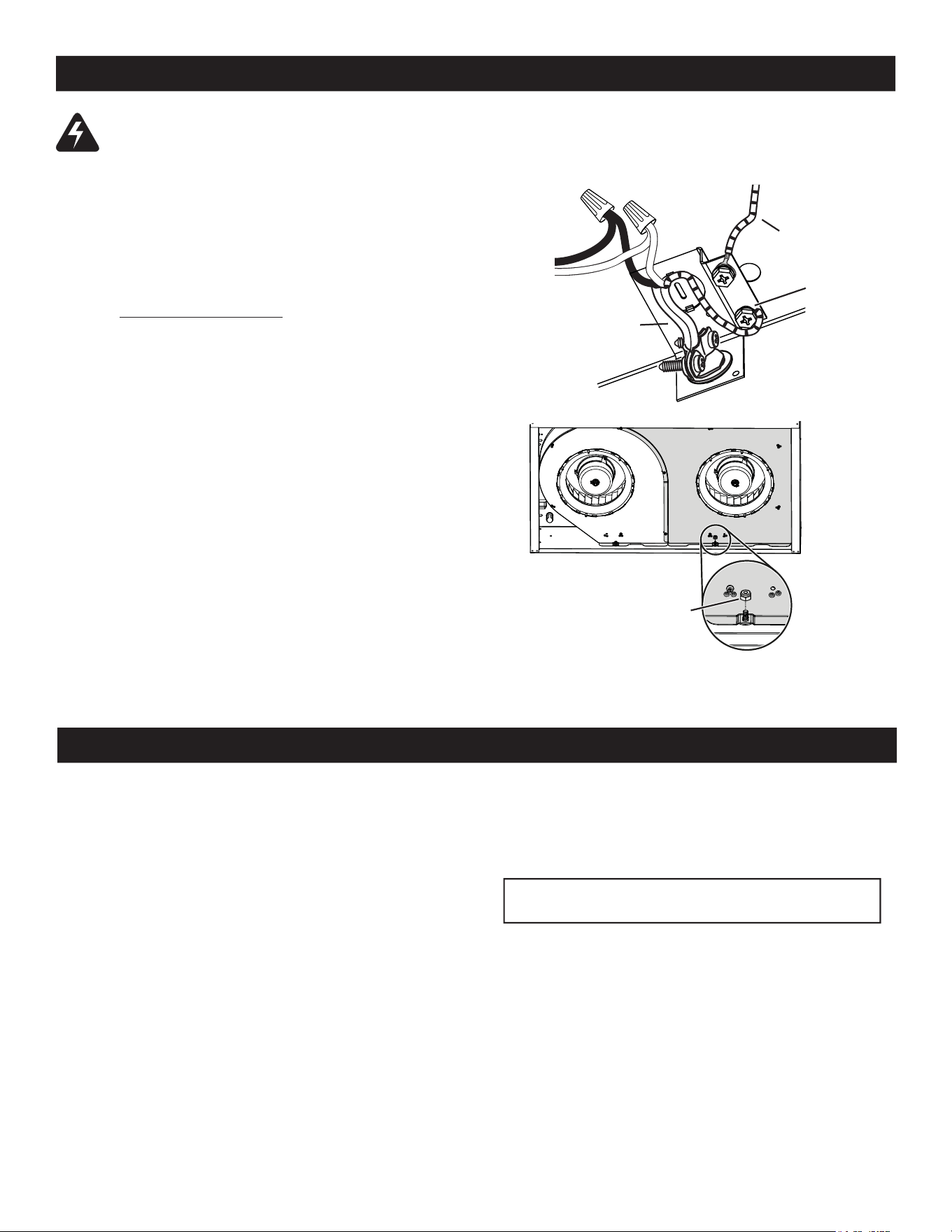

1. Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.
2. Reinstall the blower cover plate (shaded part on illustration beside) using the lock nut and 7 screws previously removed in step 3 on page 9. Pay attention to screw 1 location; from back of hood point of view, it must be located on left side of the lock nut (see inset).
Manual de Uso y Cuidado / Instalación English / Español
Models/Modelos 233.51403, 233.51413 Kenmore Elite® Range Hood Campana de cocina
P/N 99045662-002A
Sears Brands Management Corporation, Hoff man Estates, IL 60179 USA
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
See other models: 73234 52444 45203 95053 94179
SECTION ... PAGE Warranty ...
Safety Instructions ...
Operation ...
Cleaning ...

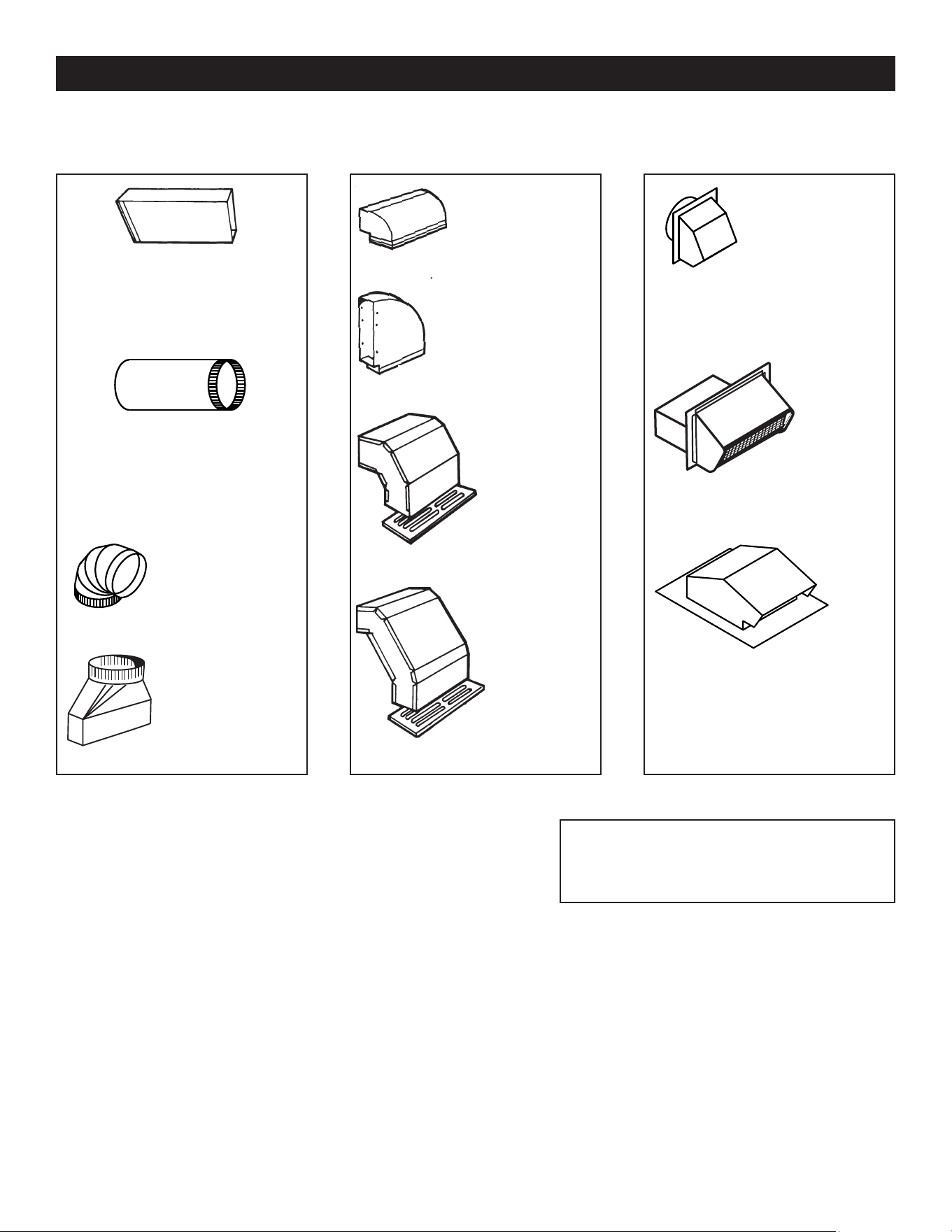

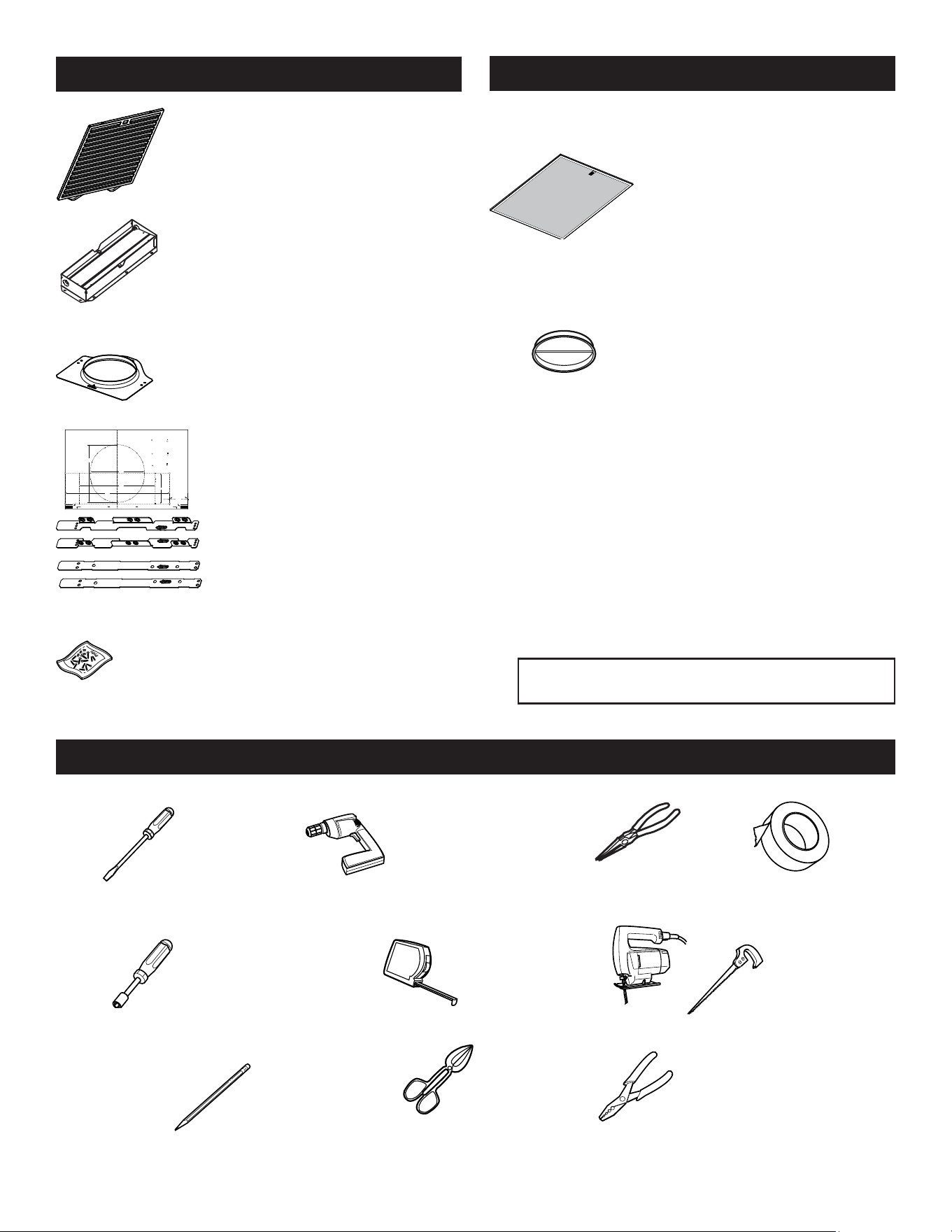

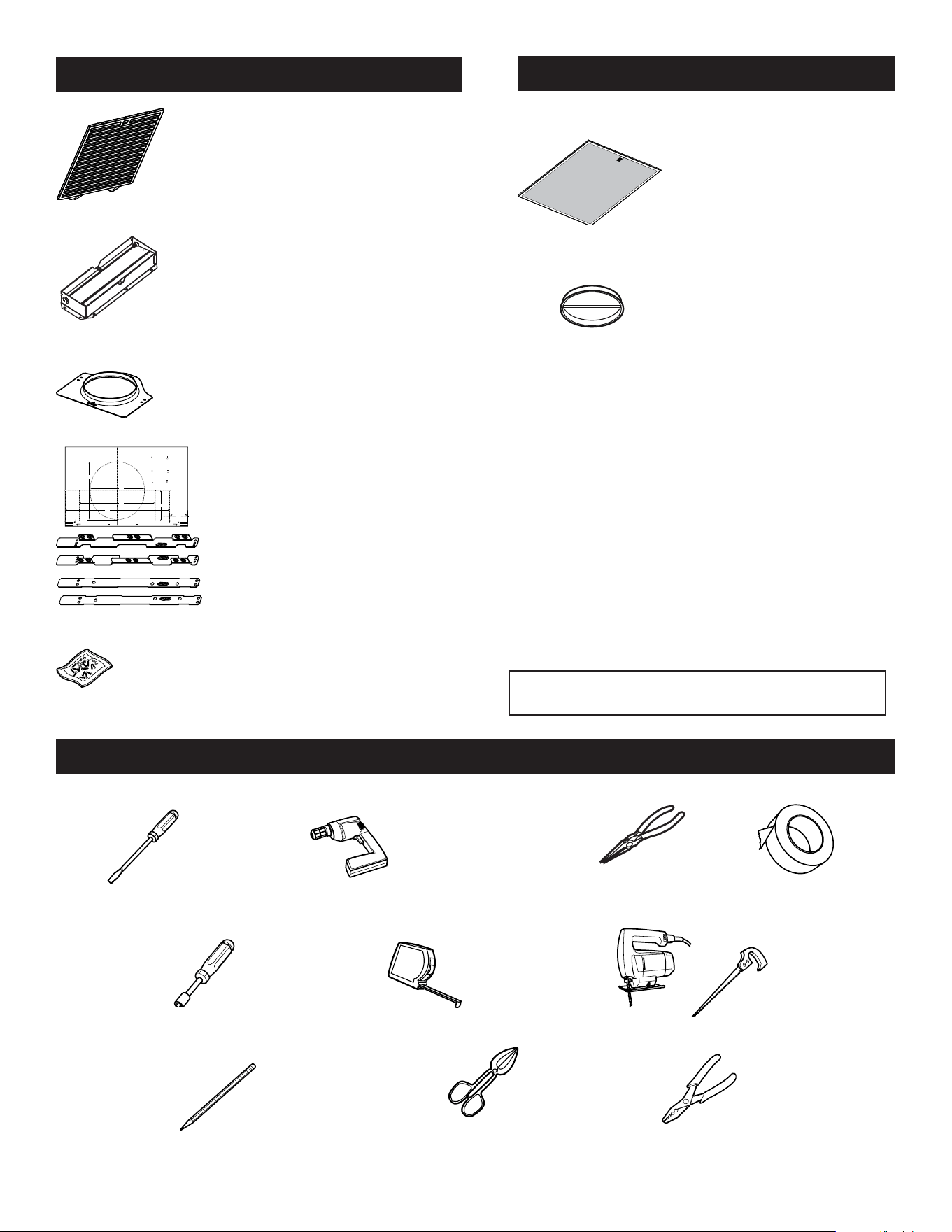

Parts Included With Hood ...
Parts Not Included With Hood ...
Tools Needed ...

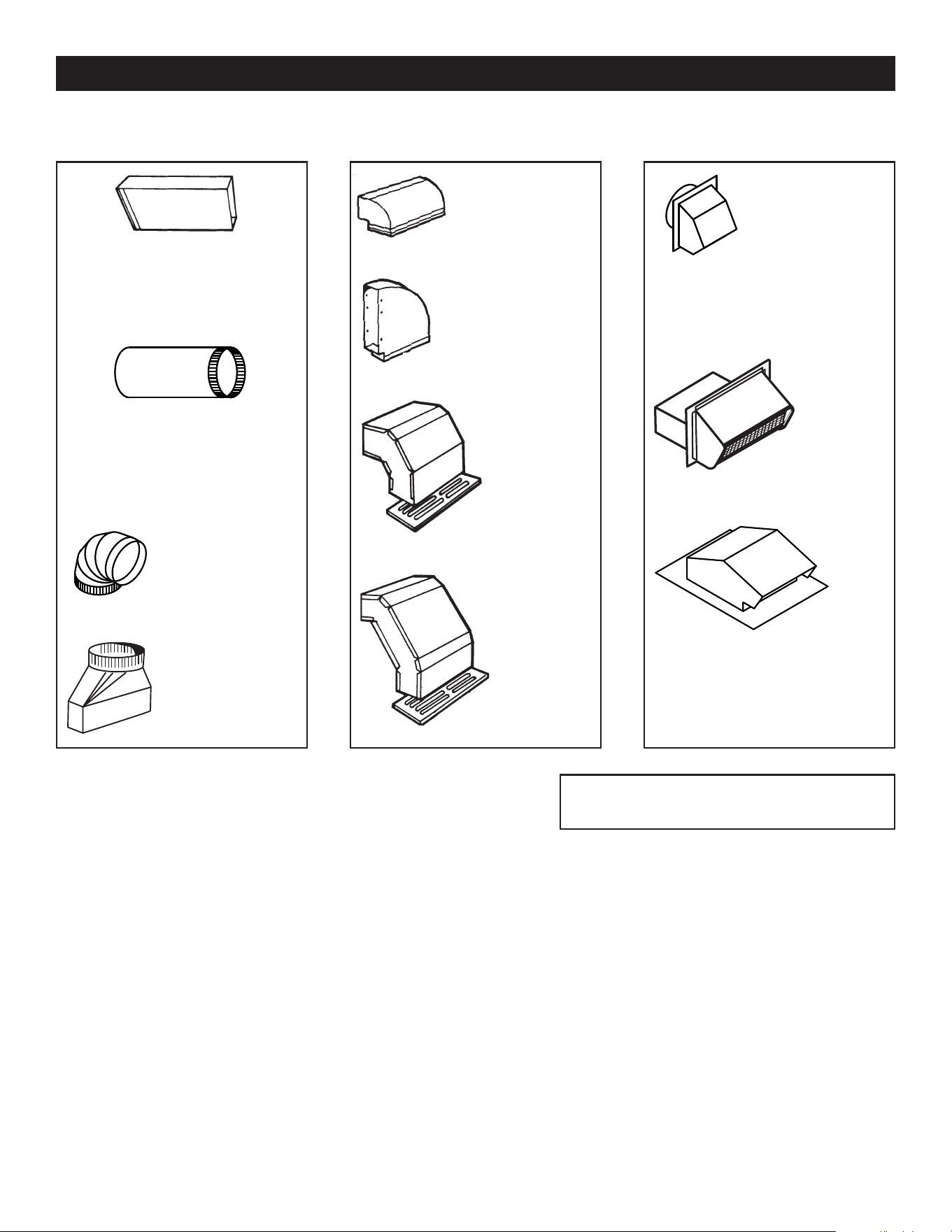

Equivalent Duct Length Chart ...

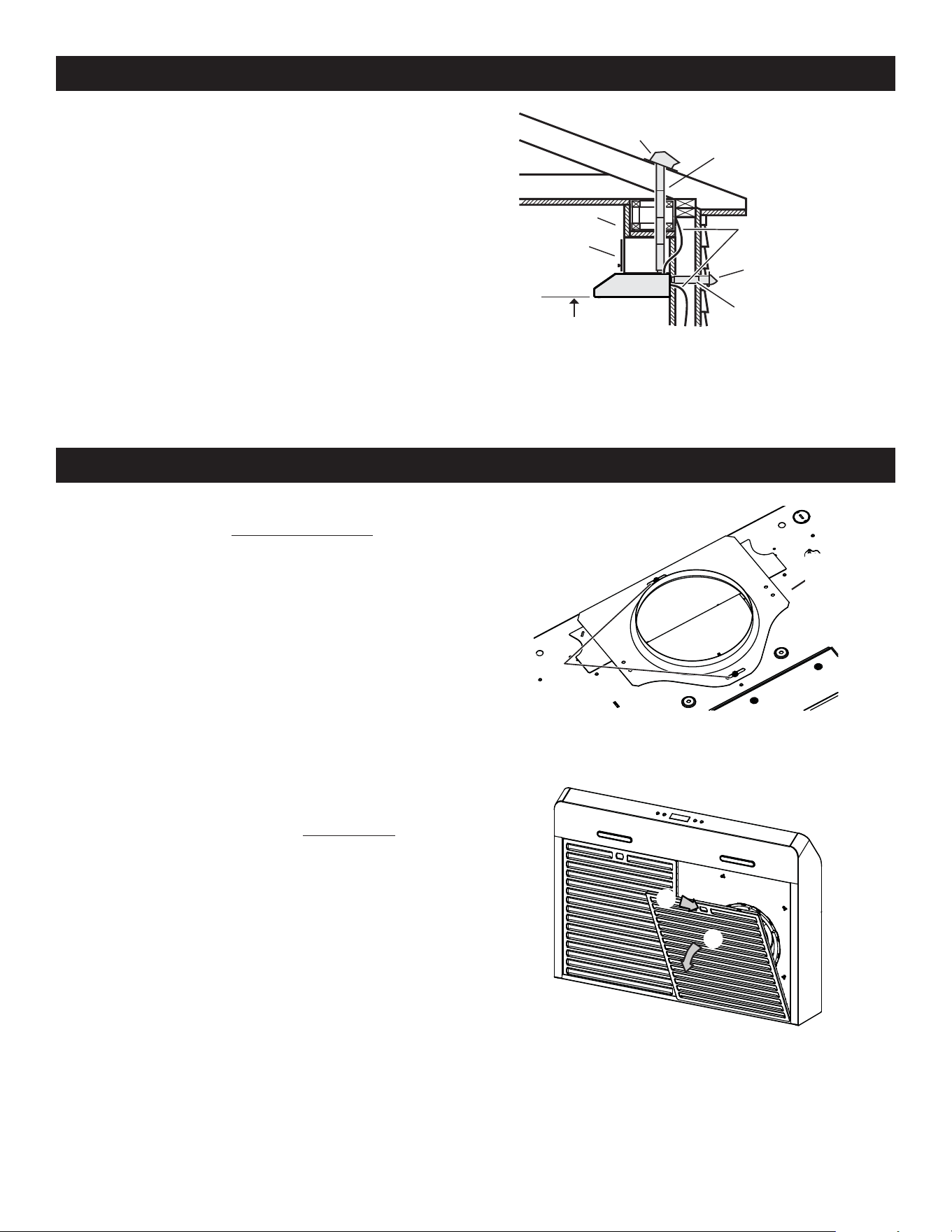

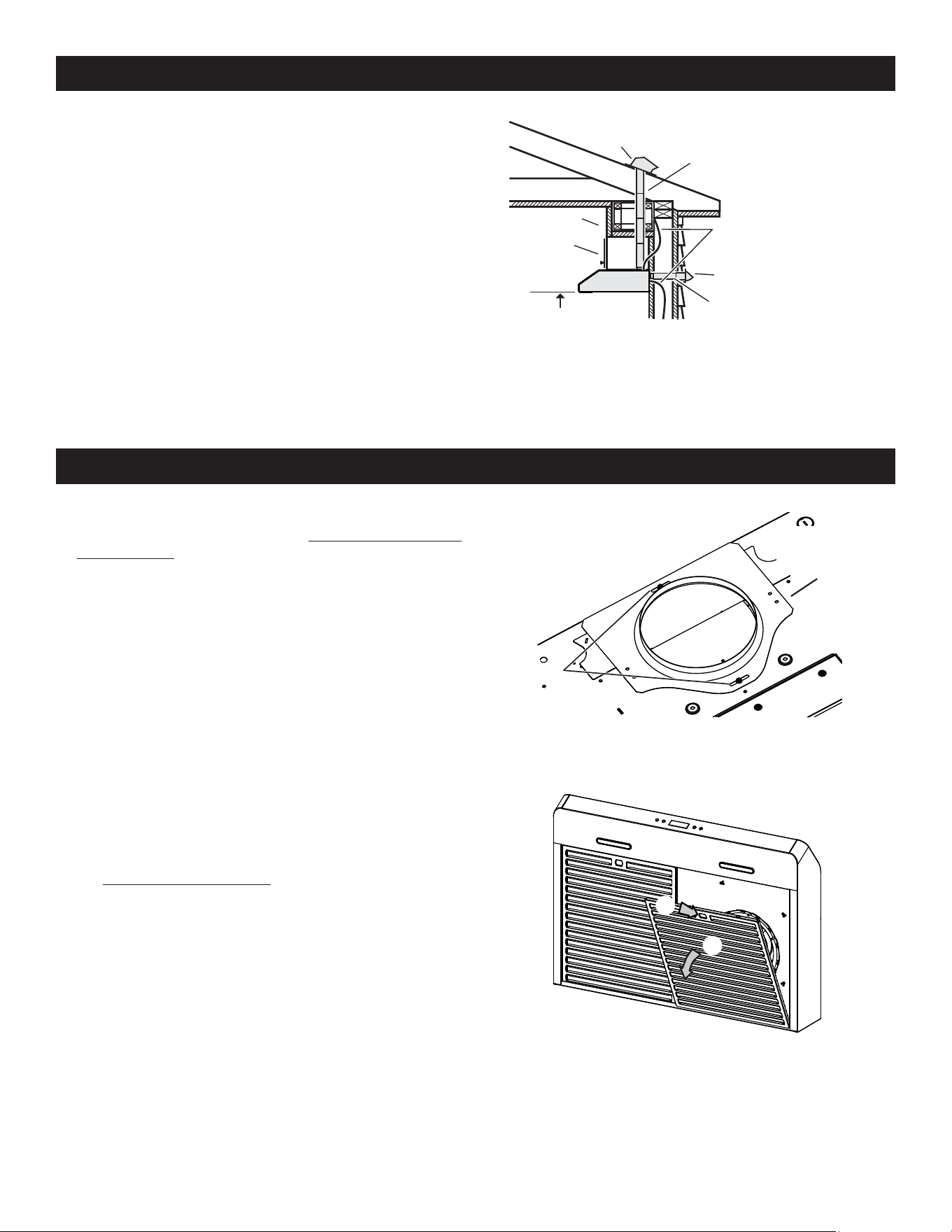

Install Ductwork ...

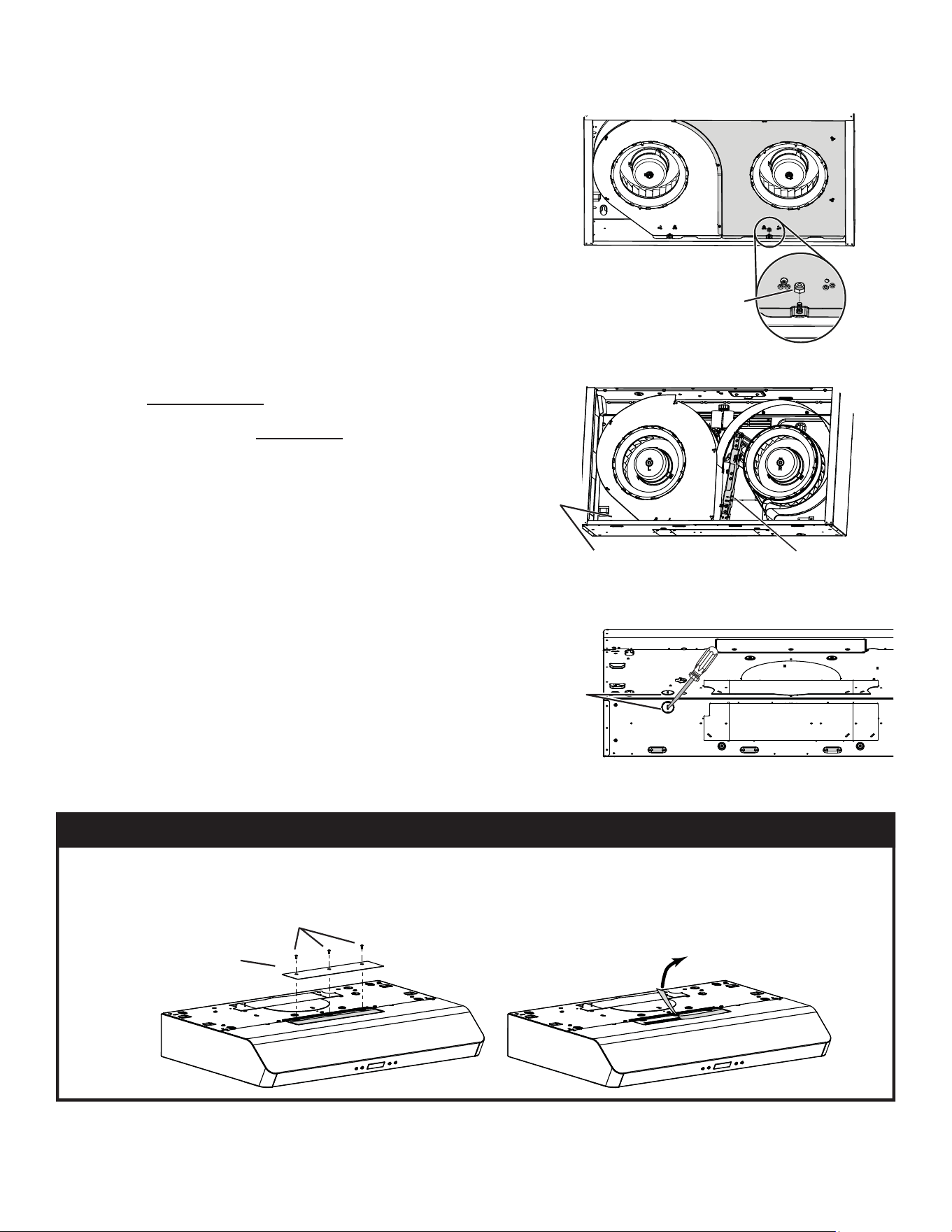

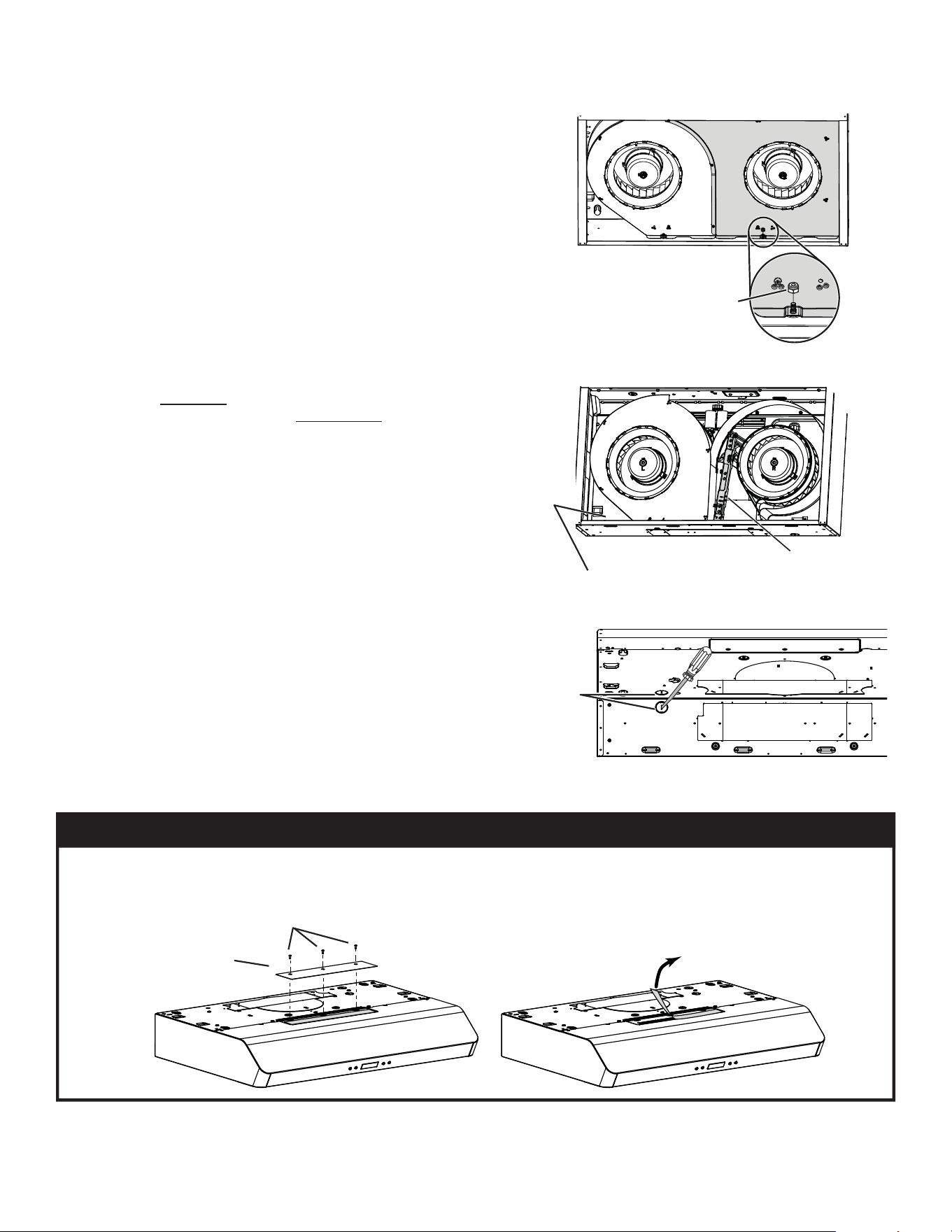

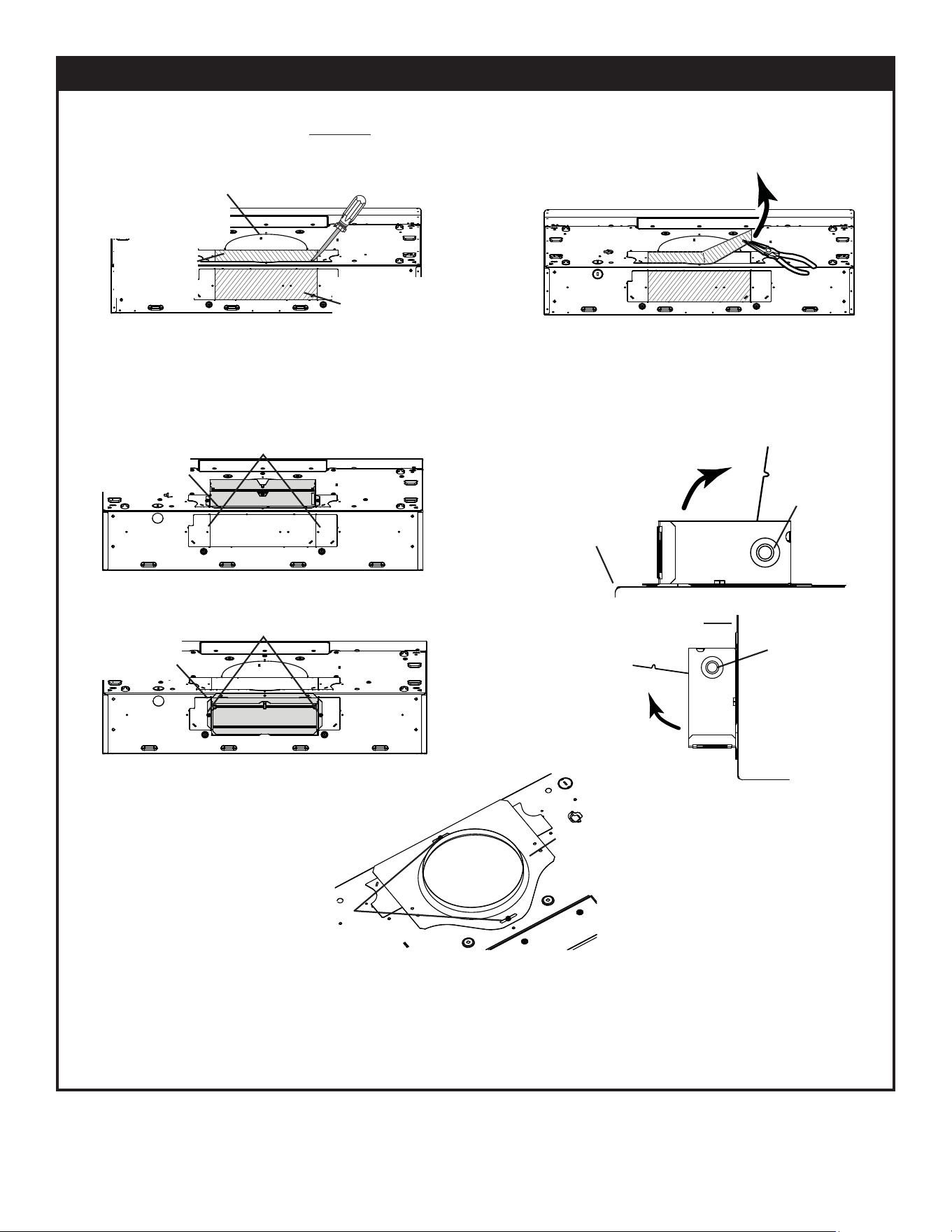

Prepare The Hood ...

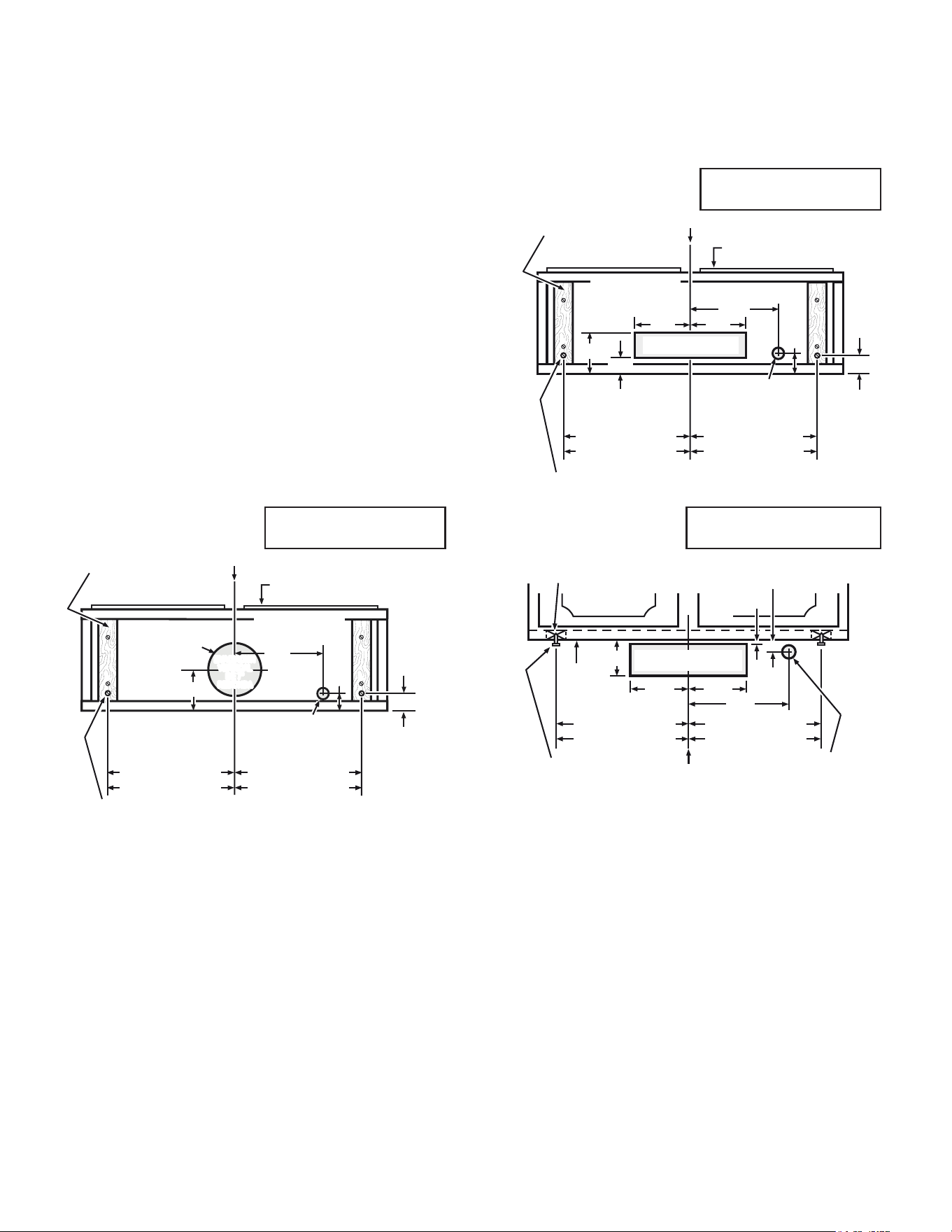

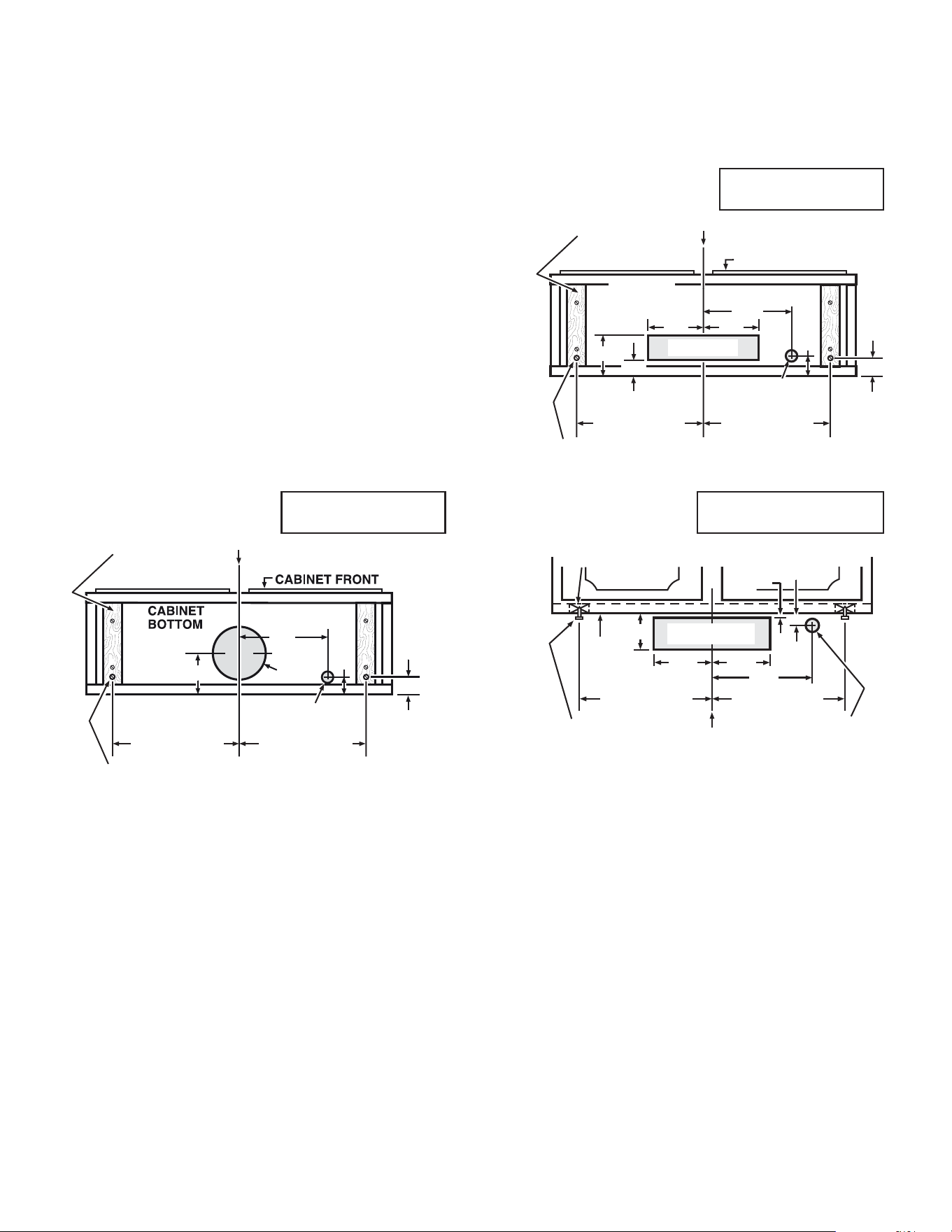

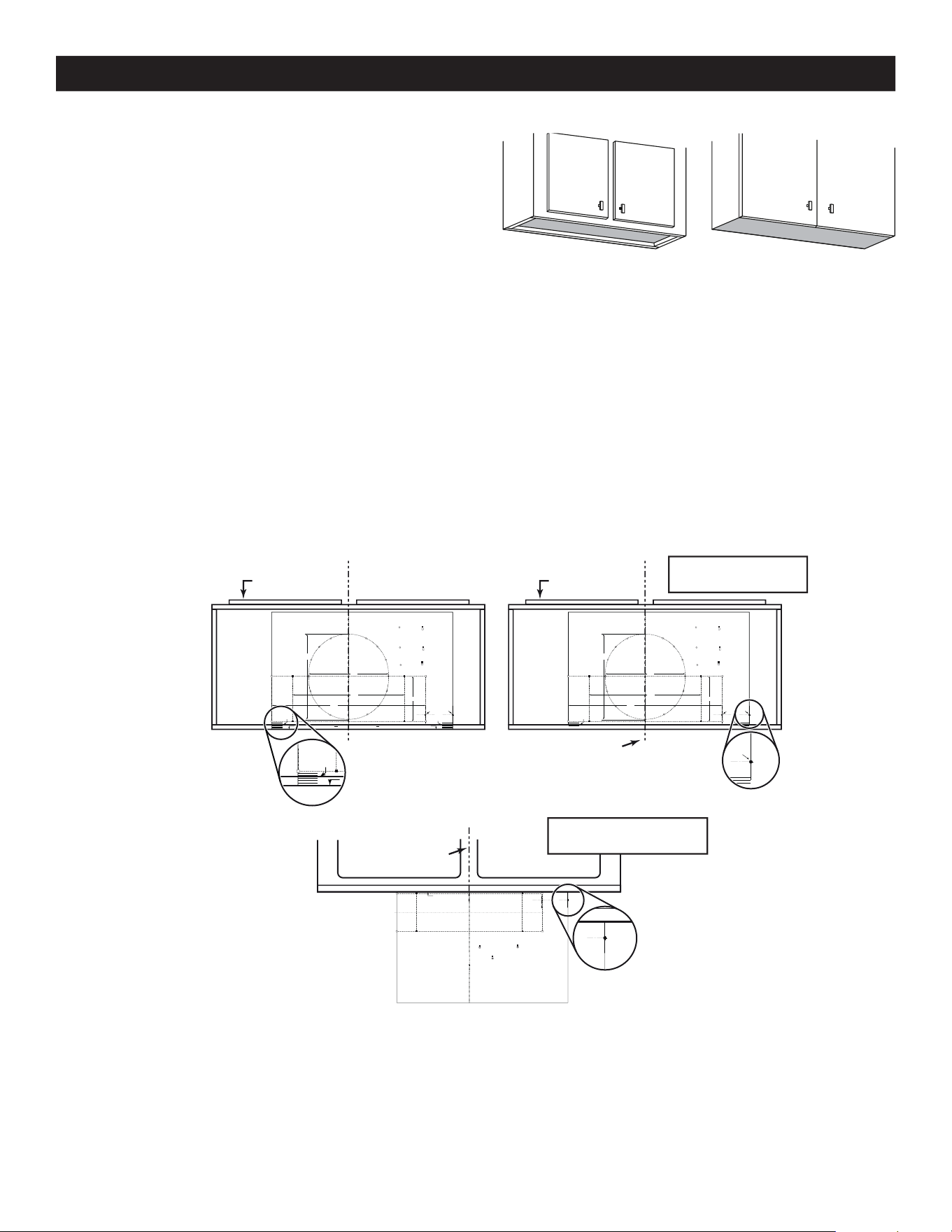

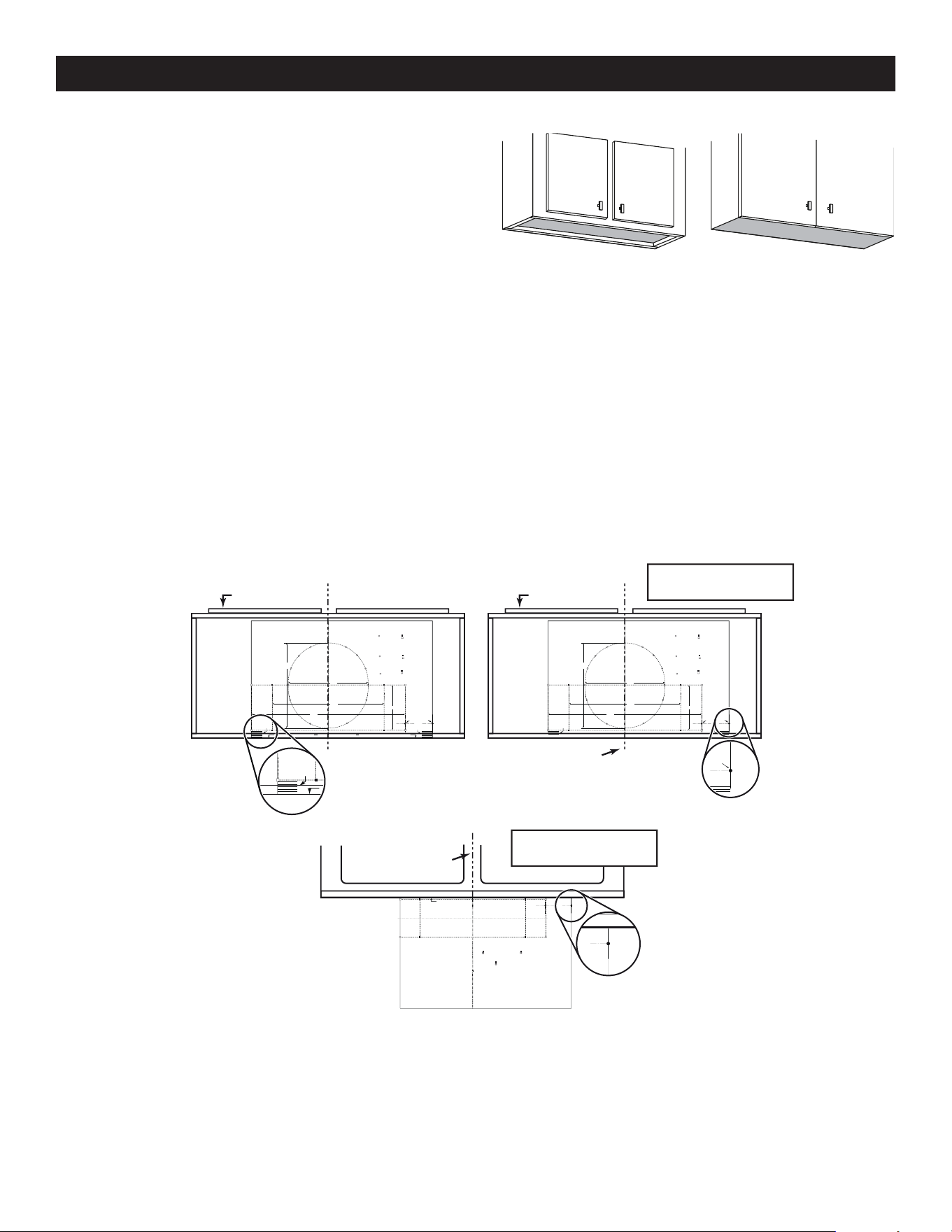

Prepare The Hood Location ...

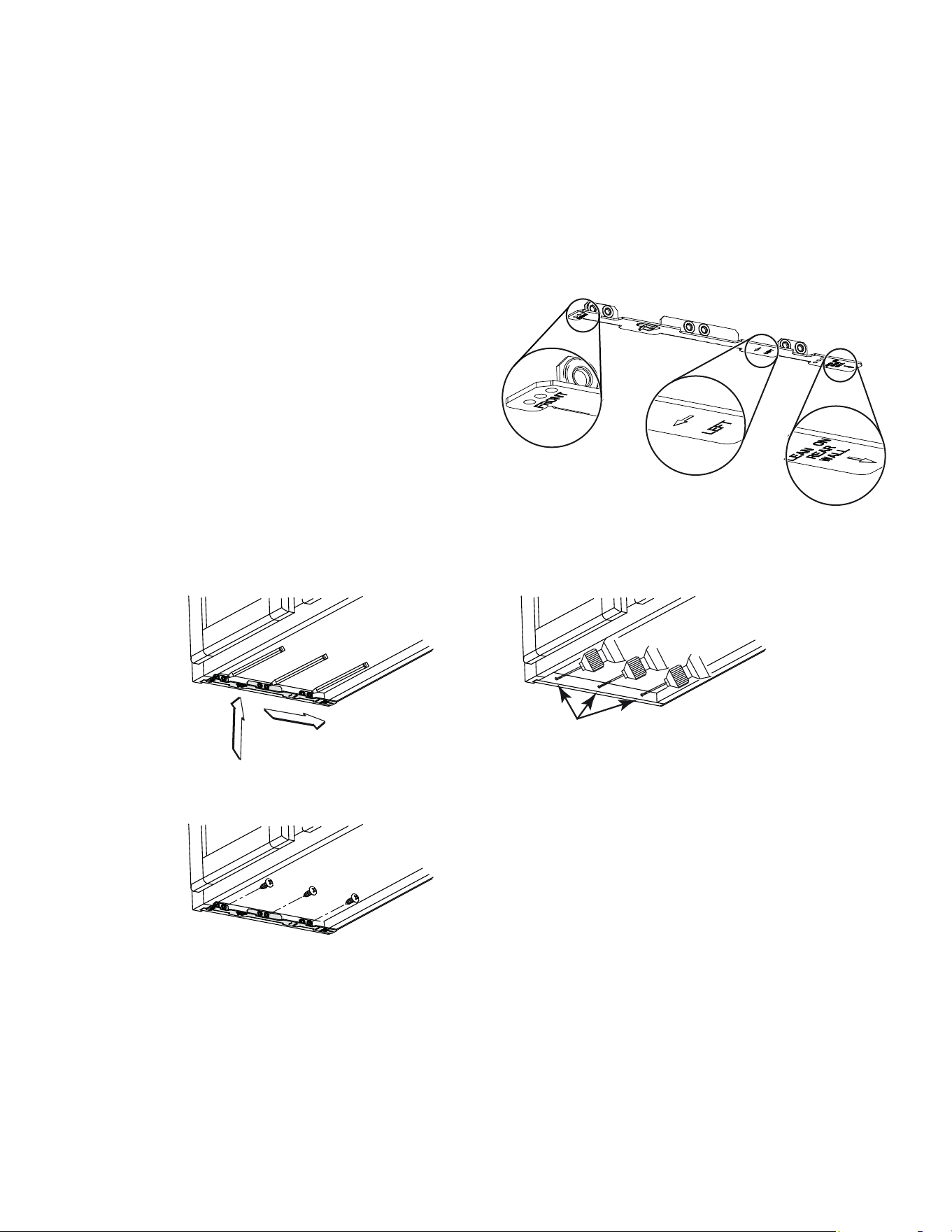

One-Person Installation ...

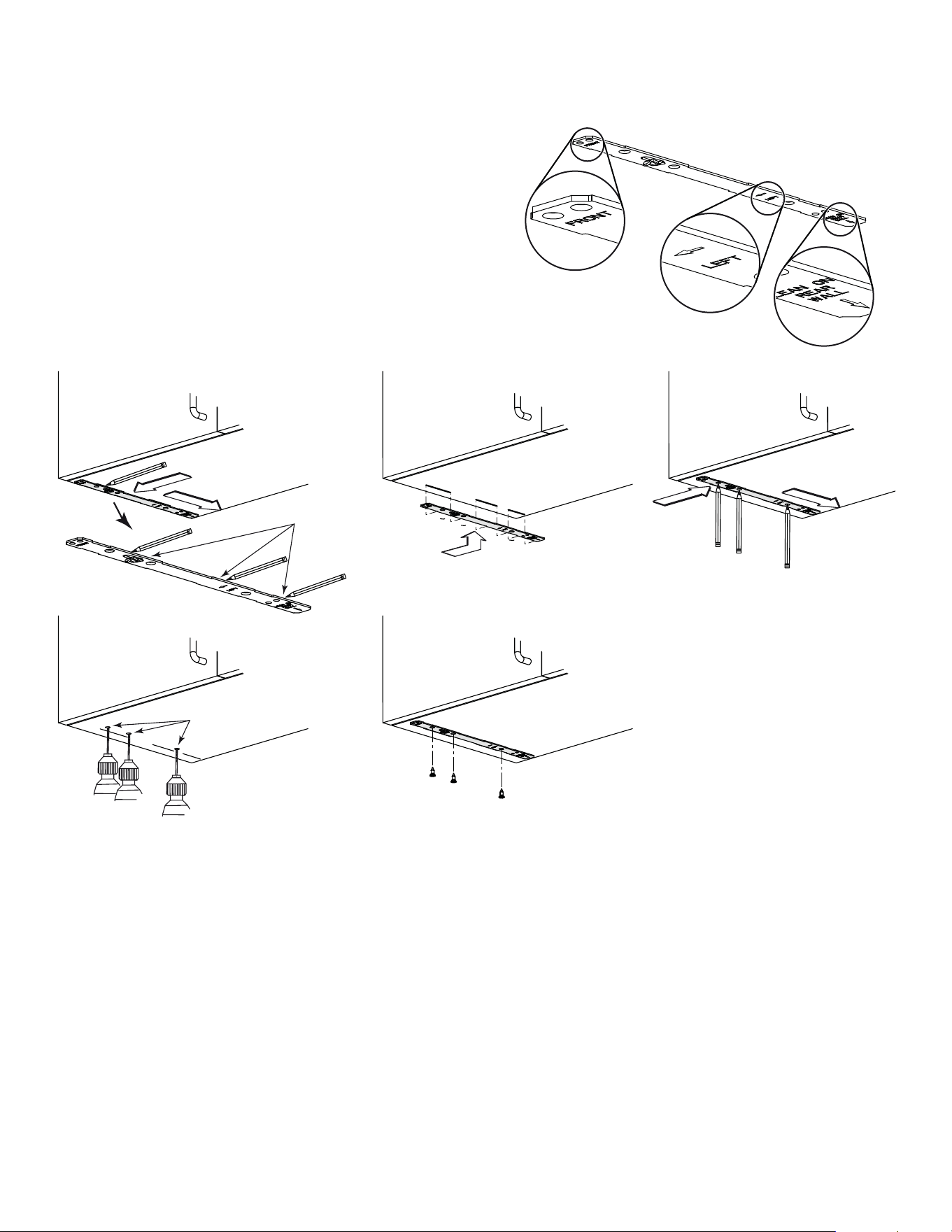

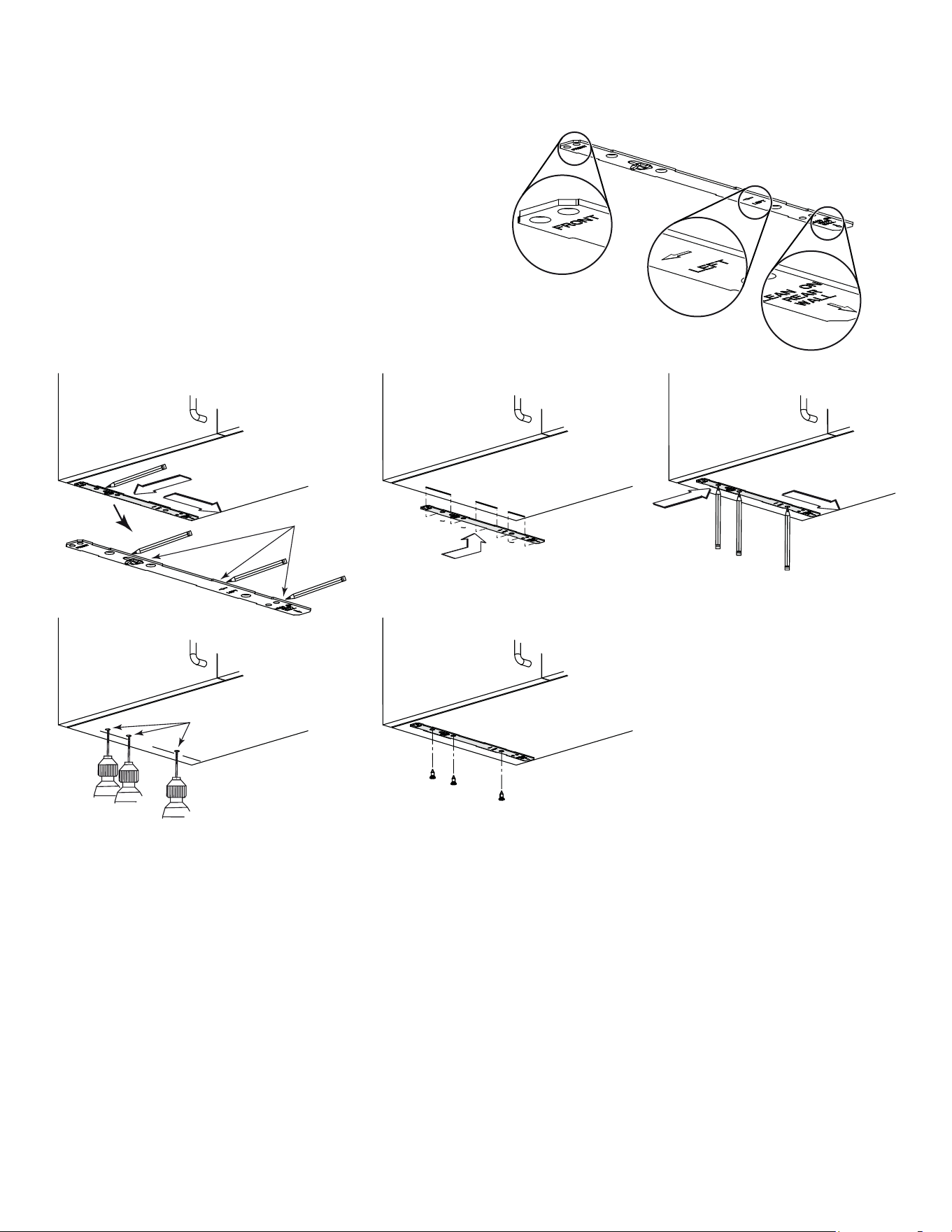

Install The Hood (EZ
Brackets) ...
Standard Installation (without EZ
Brackets) ...
Install The Hood (Standard Installation) ...
Connect The Wiring ...

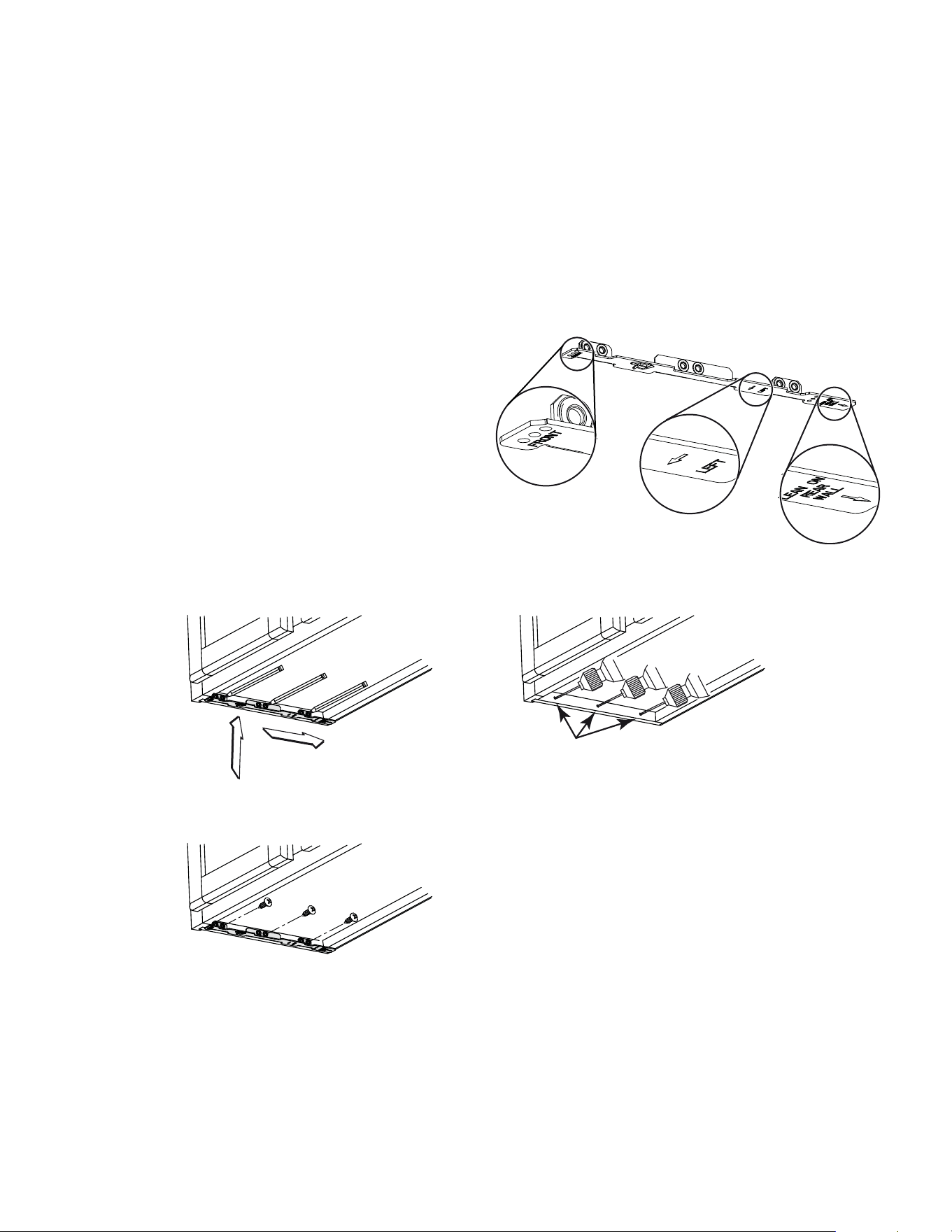

Install The Filters ...

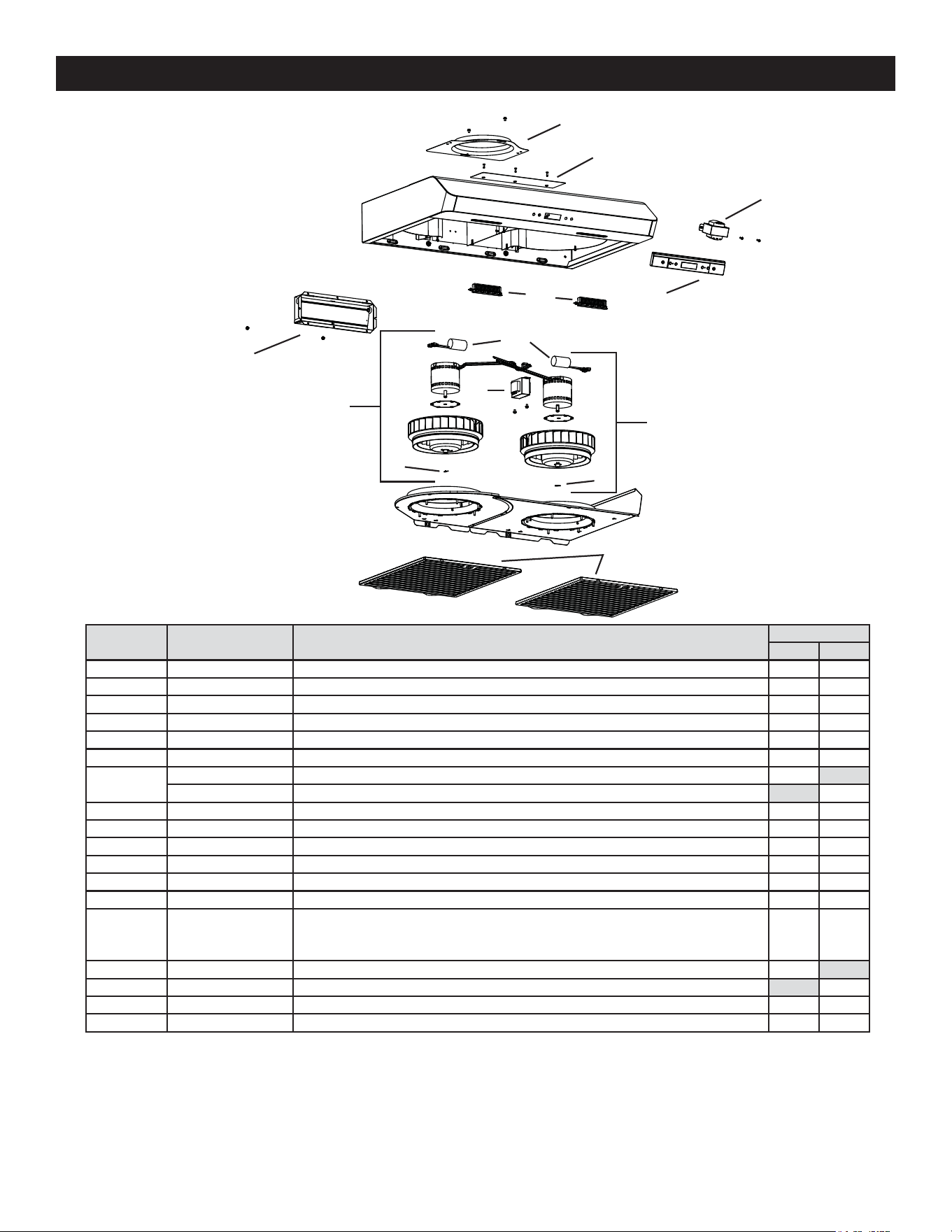

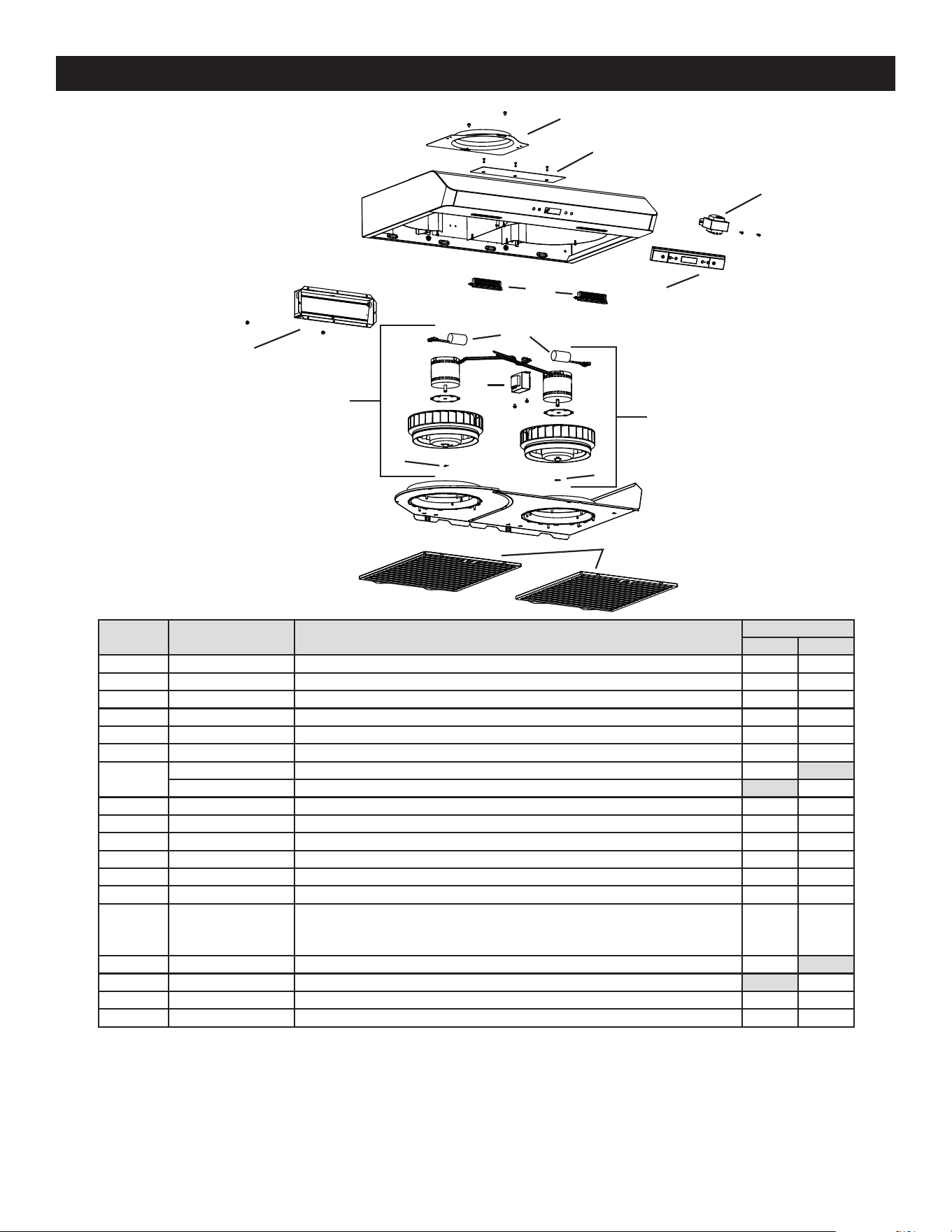

Service Parts ...
