[en] Instruction manual
Free standing cooker
HGA23315.M
Table of contents[en] Instruction manual
: Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
These instructions are only valid if the appropriate country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concern...
Appliance category: Category 1
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only allow a licensed professional to connect the appliance and to convert the appliance to a different type of gas. The appliance must be installed (electric and gas connections) in accordance with the instruction and installation manual. An incorre...
Caution:This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
Caution:The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural v...
Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
This appliance is not designed for operation with an external timer or by remote control.
Do not use inappropriate child safety shields or hob guards. These can cause accidents.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.
Risk of fire!
■ A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof...
Risk of fire!
■ Combustible objects that are left in the cooking compartment may ignite. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug the mains plug or switc...
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
Risk of fire!
■ The appliance becomes very hot, and flammable materials can easily catch fire. Do not store or use any flammable objects (e.g. aerosol cans, cleaning agents) under or in the vicinity of the oven. Do not store any flammable objects inside or on to...
Risk of fire!
■ When gas hotplates are in operation without any cookware placed on them, they can build up a lot of heat. The appliance and the extractor hood above it may become damaged or be set on fire. Grease residue in the filter of the extractor hood may i...
Risk of fire!
■ The rear of the appliance becomes very hot. This may cause damage to the power cables. Electricity and gas lines must not come into contact with the rear of the appliance.
Risk of fire!
■ Never place flammable objects on the burners or store them in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance. Pull out the mains plug or switch off the appliance at the circuit breaker in...
Risk of fire!
■ The surfaces of the plinth drawer may become very hot. Only store oven accessories in the drawer. Flammable and combustible objects must not be stored in the plinth drawer.
Risk of burns!
■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
Risk of serious burns!
■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
Risk of burns!
■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care
Risk of burns!
■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.
Risk of burns!
■ During operation, the surfaces of the appliance become hot. Do not touch the surfaces when they are hot. Keep children away from the appliance.
Risk of burns!
■ Empty cookware becomes extremely hot when set on a gas hotplate that is in operation. Never heat up empty cookware.
Risk of burns!
■ The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
Risk of burns!
■ Caution: Accessible parts may be hot when the grill is in use. Young children should be kept away from the appliance.
Risk of burns!
■ If the liquefied gas bottle is not upright, liquefied propane/butane can enter the appliance. Intense darting flames may therefore escape from the burners. Components may become damaged and start to leak over time so that gas escapes uncontrollab...
Risk of scalding!
■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
Risk of scalding!
■ When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
Risk of scalding!
■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.
Risk of injury!
■ Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
Risk of injury!
■ Incorrect repairs are dangerous. Repairs may only be carried out, and damaged power and gas lines replaced, by an after- sales engineer trained by us. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Shut ...
Risk of injury!
■ Faults or damage to the appliance are dangerous. Never switch on a faulty appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Shut off the gas supply. Contact the after-sales service.
Risk of injury!
■ Unsuitable pan sizes, damaged or incorrectly positioned pans can cause serious injury. Observe the instructions which accompany the cookware.
Risk of injury!
■ Caution: Glass lids may shatter when heated. Turn off all the burners before shutting the lid. Wait until the oven has cooled down before closing the glass cover.
Risk of injury!
■ If the appliance is placed on a base and is not secured, it may slide off the base. The appliance must be fixed to the base.
Risk of tipping!
Warning: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
Risk of electric shock and serious injury!
■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
Risk of electric shock!
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Risk of electric shock!
■ When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
Risk of electric shock!
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Causes of damage
Caution!
Damage to the oven
Caution!
Damage to the plinth drawer
Caution!
Set-up, gas and electricity connection
Gas connection
For the licensed expert or after-sales service
Caution!
Safety information
: If the gas pressure in your gas supply grid!
Faults in the gas installation/smell of gas
Moving the appliance by the gas line or door handle
Electrical connection
Caution!
For the after-sales service
Caution!
Levelling the cooker
1. Pull out the plinth drawer and lift it up and out. There are adjustable feet at the front and rear on the inside of the plinth.
2. Use an Allen key to raise or lower the adjustable feet as necessary until the cooker is level (picture A).
3. Push the plinth drawer back in (picture B).
Wall fixing
Setting up the appliance
Measures to be noted during transport
If the original packaging is no longer available
Your new appliance
General information
Cooking area
Control panel
Function selector
Timer
Setting procedure
The time has elapsed
Light button
Ignition button
Burner knob

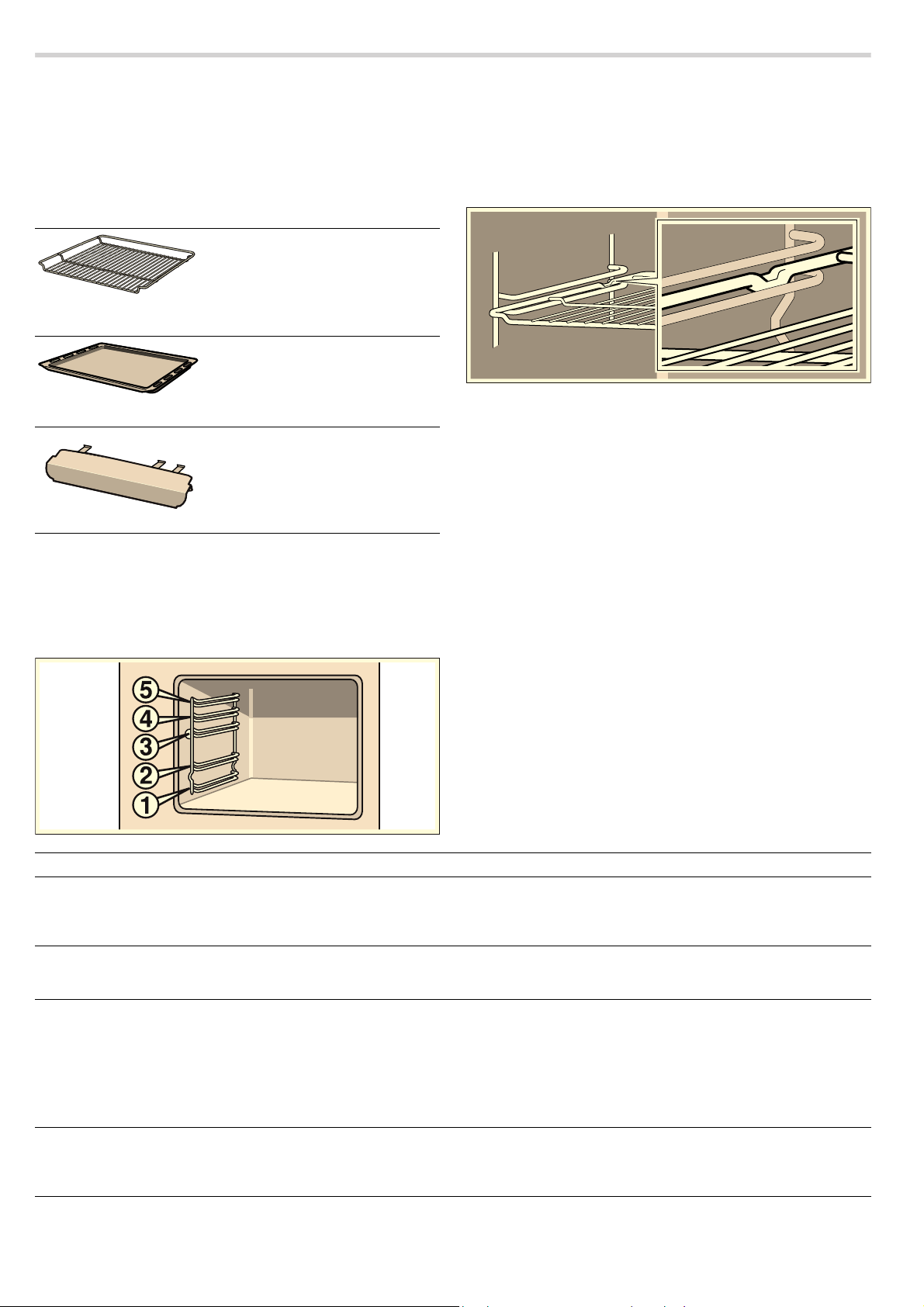

Your accessories
Note
Inserting the accessories
Note
Optional accessories
After-sales service products
Before using the oven for the first time
Heating up the oven

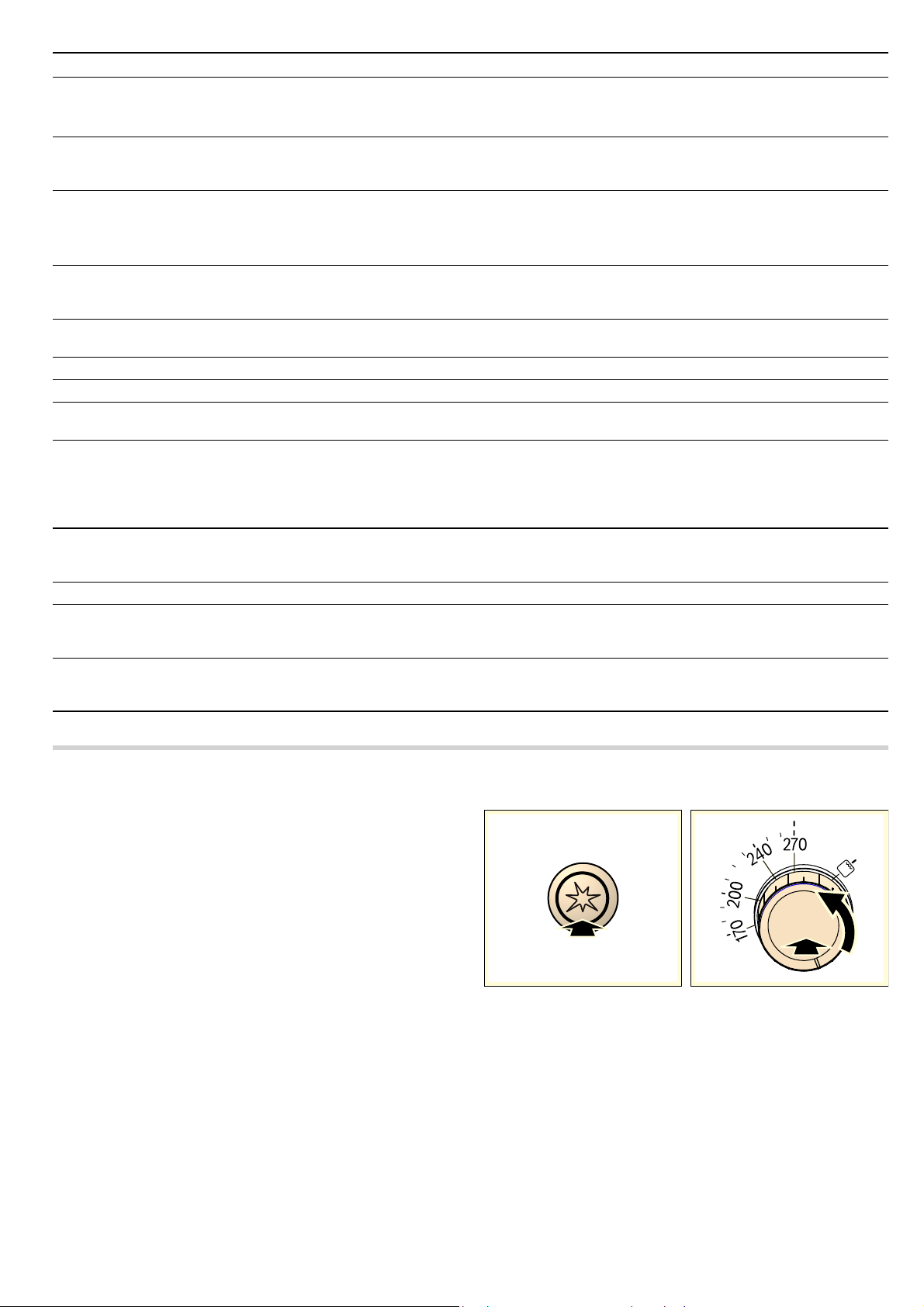

Setting procedure for the lower gas burner
1. Open the top cover. The top cover must remain open for as long as the oven is in operation.
2. Open the main gas supply to the appliance. Connect the plug in the socket. Open the oven door.
3. Push in the switch for the lower gas burner and turn it to 270 °C.
4. While holding the switch for the oven's lower gas burner depressed, press the ignition button 8 .
5. The gas escaping from the oven's lower gas burner is ignited using the ignition button. To activate the safety pilot, press and hold the lower gas burner on the oven for 10 seconds.
6. Look through the inspection port to make sure that the flame is lit. If it is not, repeat the process from step 3.
7. Close the oven door slowly.
8. Turn off the switch for the lower gas burner after 30 minutes.

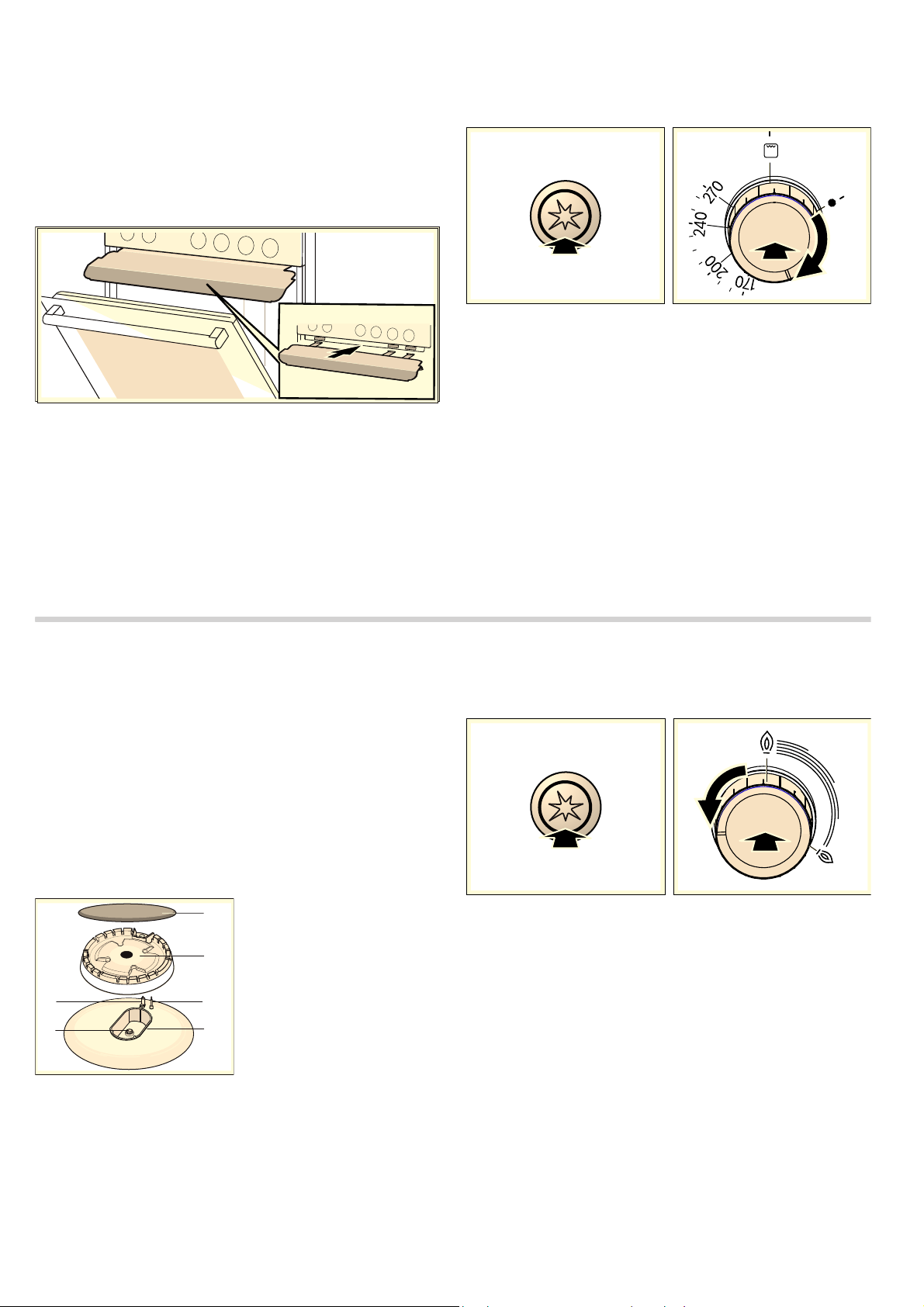

Setting the gas grill
1. Open the top cover. The top cover must remain open for as long as the cooker is in operation.
2. Turn on the main gas supply to the appliance. Insert the plug into the socket.
3. Insert the protecting plate into the groove below the control panel.
Insert the protecting plate with the longer edge at the front and the curvature at the bottom.
Secure the protecting plate in the groove below the control panel using the retainers.
4. Close the oven door so that it is as close as possible to the protecting plate.
5. Push in the function selector and turn it clockwise to the grill setting ( .
6. Keep the function selector pressed in and press the ignition button 8 at the same time.
7. The gas coming from the gas grill is ignited using the ignition button. Keep the function selector pushed in for 10 seconds so that the safety pilot starts up.
8. Check whether the flame is lit. If the flame goes out, repeat the process from step 5.
9. Switch off the function selector after 30 minutes. Once the oven has cooled down, remove the protecting plate.
Caution!
Cleaning the accessories
Making settings on the hob
Advance cleaning of burner cup and cap
Igniting the gas burners
1. Open the upper cooker cover. The upper cover must remain open whilst the cooker is in operation.
2. Turn the control for the required hotplate anti-clockwise to the symbol with the large flame —.
3. With the hotplate control pressed in, press the ignition button. Gas begins to flow out and the gas burner ignites.
4. Press and hold the hotplate control for 1-3 seconds. This activates the safety pilot. If the gas flame goes out, the gas supply is automatically cut off by the safety pilot.
5. Set the required flame size. Between the Off û setting and the — setting, the flame is not stable. Therefore, always choose a setting between the large flame — and small flame ˜.
6. If the flame goes out again, repeat the process from step 2.
7. To finish cooking, turn the hotplate control clockwise to the Off û position.
The gas burner does not ignite
Table – Cooking
Suitable pans
Precautions for use
Setting the oven
This is how you adjust the lower gas burner in the oven
1. Open the top cover. The top cover must remain open for as long as the oven is in operation.
2. Open the main gas supply to the appliance. Connect the plug to the socket. Open the oven door.
3. Push in the switch for the lower gas burner and turn it to 170 °C.
4. While holding the switch for the lower gas burner depressed, press the ignition button 8 .
5. The gas escaping from the oven's lower gas burner is ignited using the ignition button. To activate the safety ignition, press and hold the lower gas burner on the oven for 10 seconds.
6. Look through the inspection port to make sure that the flame is lit. If it is not, repeat the process from step 3.
7. Close the oven door slowly.
8. Preheat the empty oven for approximately 15 minutes before baking.
9. When the dish has finished cooking, turn off the switch for the lower gas burner.
: Caution:!
Setting the gas grill
1. Open the top cover. The top cover must remain open for as long as the cooker is in operation.
2. Turn on the main gas supply to the appliance. Insert the plug into the socket.
3. Insert the protecting plate into the groove below the control panel.
Insert the protecting plate with the longer edge at the front and the curvature at the bottom.
Secure the protecting plate in the groove below the control panel using the retainers.
4. Close the oven door so that it is as close as possible to the protecting plate.
5. Push in the function selector and turn it clockwise to the grill setting ( .
6. Keep the function selector pressed in and press the ignition button 8 at the same time.
7. The gas coming from the gas grill is ignited using the ignition button. Keep the function selector pushed in for 10 seconds so that the safety pilot starts up.
8. Check whether the flame is lit. If the flame goes out, repeat the process from step 5.
9. Once the food is cooked, switch off the function selector. Once the oven has cooled down, remove the protecting plate.
: Caution!
Caution!
Care and cleaning
Notes
Cleaning agents
When cleaning the hob do not use
When cleaning the oven do not use
Upper glass cover
Detaching and refitting the rails
Unhooking the rails
1. Hold the shelf frames from underneath and pull slightly forward. Pull the extension pins at the bottom of the rails out of the mounting holes (Fig. A).
2. Then fold the rails upwards and carefully remove them (Fig. B).
Installing the frames
1. Insert the two hooks carefully into the upper holes. (Figure A- B)
: Incorrect assembly!
2. the two hooks must be inserted fully into the upper holes. Now move the frame slowly and carefully downwards and insert in the lower holes (figure D).
3. Insert both frames into the side walls of the oven (figure E).
Detaching and attaching the oven door
: Risk of injury!
Detaching the door
1. Open the oven door fully.
2. Fold up the two locking levers on the left and right (figure A).
3. Close the oven door as far as the limit stop. With both hands, grip the door on the left and right-hand sides. Close the door a little further and pull it out (figure B).
Attaching the door
1. When attaching the oven door, ensure that both hinges are inserted straight into the opening (figure A).
2. The notch on the hinge must engage on both sides (figure B).
3. Fold back both locking levers (figure C). Close the oven door.
: Risk of injury!
Oven door - Additional safety precautions
Troubleshooting
Fault table
: Risk of electric shock!
Replacing the bulb in the oven ceiling light
: Risk of electric shock!
1. Place a tea towel in the cold oven to prevent damage.
2. Unscrew the glass cover by turning it anti-clockwise.
3. Replace the bulb with one of the same type.
4. Screw the glass cover back in.
5. Remove the tea towel and switch on the circuit breaker.
Glass cover
After-sales service
E number and FD number
Energy and environment tips
Saving energy
Saving energy with the gas hob
Environmentally-friendly disposal
Tested for you in our cooking studio.
Notes
Caution!
Cakes and pastries
Cake tins
Baking tables for the lower burner in the gas oven
Baking tips
Meat, poultry, fish, toast
Table - cooking - gas grill
Tips for roasting and grilling
Acrylamide in foodstuffs
Page 1/24
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
[en]
Instruction manual
F
ree standing cook
er
HGA23315.M
Loading ...
Loading ...
Loading ...
File type: PDF
File name: hga233150m-07.pdf
File size: 3.1 MB
File Language: English
Pages: 24
Author: Bosch
Published:
2020-01-19
Updated: 2023-06-01
Download File
Other documents for Bosch HGA233150M/07
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Other Documents
Installation Manual - (English)
Download
Installation Manual - (English)
Download
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: HGA233150M/07
Category:
Cookers
View in the file:
Full Specifications
See other models:
MSM66150/01
SHX98M09UC/70
KIL20V60/05
KGN36XLDP/01
SMV50E60EU/27
Related Products
Smeg CC9GPX
AEG CGB6130ACM
Neff L2530W1/01
Neff E2431B1/03
Bosch HGA233150M
Bosch HGG233127R/03
Bosch HGB320E50M/01
Bosch HGD64D120E/07
Bosch B20CS30SNS
Bosch SMI46GS01A
Bosch WTW87564AU
Bosch SMU88TS02A
Bosch HDI8054U
Bosch NGM8055UC/02
Bosch SHXM63W55N
Table of Contents
×
[en] Instruction manual
1
Free standing cooker
1
HGA23315.M
1
Table of contents[en] Instruction manual
3
: Important safety information
4
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
4
These instructions are only valid if the appropriate country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concern...
4
Appliance category: Category 1
4
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
4
Only allow a licensed professional to connect the appliance and to convert the appliance to a different type of gas. The appliance must be installed (electric and gas connections) in accordance with the instruction and installation manual. An incorre...
4
Caution:This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
4
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
4
Caution:The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural v...
4
Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
4
This appliance is not designed for operation with an external timer or by remote control.
4
Do not use inappropriate child safety shields or hob guards. These can cause accidents.
4
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
4
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
4
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
4
Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.
4
Risk of fire!
4
■ A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof...
4
Risk of fire!
4
■ Combustible objects that are left in the cooking compartment may ignite. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug the mains plug or switc...
4
Risk of fire!
4
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
4
Risk of fire!
5
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
5
Risk of fire!
5
■ The appliance becomes very hot, and flammable materials can easily catch fire. Do not store or use any flammable objects (e.g. aerosol cans, cleaning agents) under or in the vicinity of the oven. Do not store any flammable objects inside or on to...
5
Risk of fire!
5
■ When gas hotplates are in operation without any cookware placed on them, they can build up a lot of heat. The appliance and the extractor hood above it may become damaged or be set on fire. Grease residue in the filter of the extractor hood may i...
5
Risk of fire!
5
■ The rear of the appliance becomes very hot. This may cause damage to the power cables. Electricity and gas lines must not come into contact with the rear of the appliance.
5
Risk of fire!
5
■ Never place flammable objects on the burners or store them in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance. Pull out the mains plug or switch off the appliance at the circuit breaker in...
5
Risk of fire!
5
■ The surfaces of the plinth drawer may become very hot. Only store oven accessories in the drawer. Flammable and combustible objects must not be stored in the plinth drawer.
5
Risk of burns!
5
■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
5
Risk of serious burns!
5
■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
5
Risk of burns!
5
■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care
5
Risk of burns!
5
■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.
5
Risk of burns!
5
■ During operation, the surfaces of the appliance become hot. Do not touch the surfaces when they are hot. Keep children away from the appliance.
5
Risk of burns!
5
■ Empty cookware becomes extremely hot when set on a gas hotplate that is in operation. Never heat up empty cookware.
5
Risk of burns!
5
■ The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
5
Risk of burns!
5
■ Caution: Accessible parts may be hot when the grill is in use. Young children should be kept away from the appliance.
5
Risk of burns!
5
■ If the liquefied gas bottle is not upright, liquefied propane/butane can enter the appliance. Intense darting flames may therefore escape from the burners. Components may become damaged and start to leak over time so that gas escapes uncontrollab...
5
Risk of scalding!
5
■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
5
Risk of scalding!
5
■ When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
5
Risk of scalding!
5
■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.
5
Risk of injury!
5
■ Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
5
Risk of injury!
5
■ Incorrect repairs are dangerous. Repairs may only be carried out, and damaged power and gas lines replaced, by an after- sales engineer trained by us. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Shut ...
5
Risk of injury!
5
■ Faults or damage to the appliance are dangerous. Never switch on a faulty appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Shut off the gas supply. Contact the after-sales service.
6
Risk of injury!
6
■ Unsuitable pan sizes, damaged or incorrectly positioned pans can cause serious injury. Observe the instructions which accompany the cookware.
6
Risk of injury!
6
■ Caution: Glass lids may shatter when heated. Turn off all the burners before shutting the lid. Wait until the oven has cooled down before closing the glass cover.
6
Risk of injury!
6
■ If the appliance is placed on a base and is not secured, it may slide off the base. The appliance must be fixed to the base.
6
Risk of tipping!
6
Warning: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.
6
Risk of electric shock!
6
■ Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
6
Risk of electric shock and serious injury!
6
■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
6
Risk of electric shock!
6
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
6
Risk of electric shock!
6
■ When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
6
Risk of electric shock!
6
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
6
Causes of damage
7
Caution!
7
Damage to the oven
7
Caution!
7
Damage to the plinth drawer
7
Caution!
7
Set-up, gas and electricity connection
7
Gas connection
7
For the licensed expert or after-sales service
7
Caution!
7
Safety information
7
: If the gas pressure in your gas supply grid!
7
Faults in the gas installation/smell of gas
8
Moving the appliance by the gas line or door handle
8
Electrical connection
8
Caution!
8
For the after-sales service
8
Caution!
8
Levelling the cooker
8
1. Pull out the plinth drawer and lift it up and out. There are adjustable feet at the front and rear on the inside of the plinth.
8
2. Use an Allen key to raise or lower the adjustable feet as necessary until the cooker is level (picture A).
8
3. Push the plinth drawer back in (picture B).
8
Wall fixing
8
Setting up the appliance
8
Measures to be noted during transport
8
If the original packaging is no longer available
8
Your new appliance
9
General information
9
Cooking area
9
Control panel
10
Function selector
10
Timer
10
Setting procedure
10
The time has elapsed
10
Light button
10
Ignition button
10
Burner knob
10
Your accessories
11
Note
11
Inserting the accessories
11
Note
11
Optional accessories
11
After-sales service products
12
Before using the oven for the first time
12
Heating up the oven
12
Setting procedure for the lower gas burner
12
1. Open the top cover. The top cover must remain open for as long as the oven is in operation.
12
2. Open the main gas supply to the appliance. Connect the plug in the socket. Open the oven door.
12
3. Push in the switch for the lower gas burner and turn it to 270 °C.
12
4. While holding the switch for the oven's lower gas burner depressed, press the ignition button 8 .
12
5. The gas escaping from the oven's lower gas burner is ignited using the ignition button. To activate the safety pilot, press and hold the lower gas burner on the oven for 10 seconds.
12
6. Look through the inspection port to make sure that the flame is lit. If it is not, repeat the process from step 3.
12
7. Close the oven door slowly.
12
8. Turn off the switch for the lower gas burner after 30 minutes.
12
Setting the gas grill
13
1. Open the top cover. The top cover must remain open for as long as the cooker is in operation.
13
2. Turn on the main gas supply to the appliance. Insert the plug into the socket.
13
3. Insert the protecting plate into the groove below the control panel.
13
Insert the protecting plate with the longer edge at the front and the curvature at the bottom.
13
Secure the protecting plate in the groove below the control panel using the retainers.
13
4. Close the oven door so that it is as close as possible to the protecting plate.
13
5. Push in the function selector and turn it clockwise to the grill setting ( .
13
6. Keep the function selector pressed in and press the ignition button 8 at the same time.
13
7. The gas coming from the gas grill is ignited using the ignition button. Keep the function selector pushed in for 10 seconds so that the safety pilot starts up.
13
8. Check whether the flame is lit. If the flame goes out, repeat the process from step 5.
13
9. Switch off the function selector after 30 minutes. Once the oven has cooled down, remove the protecting plate.
13
Caution!
13
Cleaning the accessories
13
Making settings on the hob
13
Advance cleaning of burner cup and cap
13
Igniting the gas burners
13
1. Open the upper cooker cover. The upper cover must remain open whilst the cooker is in operation.
13
2. Turn the control for the required hotplate anti-clockwise to the symbol with the large flame —.
13
3. With the hotplate control pressed in, press the ignition button. Gas begins to flow out and the gas burner ignites.
13
4. Press and hold the hotplate control for 1-3 seconds. This activates the safety pilot. If the gas flame goes out, the gas supply is automatically cut off by the safety pilot.
13
5. Set the required flame size. Between the Off û setting and the — setting, the flame is not stable. Therefore, always choose a setting between the large flame — and small flame ˜.
13
6. If the flame goes out again, repeat the process from step 2.
13
7. To finish cooking, turn the hotplate control clockwise to the Off û position.
13
The gas burner does not ignite
13
Table – Cooking
14
Suitable pans
14
Precautions for use
14
Setting the oven
15
This is how you adjust the lower gas burner in the oven
15
1. Open the top cover. The top cover must remain open for as long as the oven is in operation.
15
2. Open the main gas supply to the appliance. Connect the plug to the socket. Open the oven door.
15
3. Push in the switch for the lower gas burner and turn it to 170 °C.
15
4. While holding the switch for the lower gas burner depressed, press the ignition button 8 .
15
5. The gas escaping from the oven's lower gas burner is ignited using the ignition button. To activate the safety ignition, press and hold the lower gas burner on the oven for 10 seconds.
15
6. Look through the inspection port to make sure that the flame is lit. If it is not, repeat the process from step 3.
15
7. Close the oven door slowly.
15
8. Preheat the empty oven for approximately 15 minutes before baking.
15
9. When the dish has finished cooking, turn off the switch for the lower gas burner.
15
: Caution:!
15
Setting the gas grill
15
1. Open the top cover. The top cover must remain open for as long as the cooker is in operation.
15
2. Turn on the main gas supply to the appliance. Insert the plug into the socket.
15
3. Insert the protecting plate into the groove below the control panel.
15
Insert the protecting plate with the longer edge at the front and the curvature at the bottom.
15
Secure the protecting plate in the groove below the control panel using the retainers.
15
4. Close the oven door so that it is as close as possible to the protecting plate.
15
5. Push in the function selector and turn it clockwise to the grill setting ( .
15
6. Keep the function selector pressed in and press the ignition button 8 at the same time.
15
7. The gas coming from the gas grill is ignited using the ignition button. Keep the function selector pushed in for 10 seconds so that the safety pilot starts up.
15
8. Check whether the flame is lit. If the flame goes out, repeat the process from step 5.
16
9. Once the food is cooked, switch off the function selector. Once the oven has cooled down, remove the protecting plate.
16
: Caution!
16
Caution!
16
Care and cleaning
16
Notes
16
Cleaning agents
16
When cleaning the hob do not use
16
When cleaning the oven do not use
16
Upper glass cover
18
Detaching and refitting the rails
18
Unhooking the rails
18
1. Hold the shelf frames from underneath and pull slightly forward. Pull the extension pins at the bottom of the rails out of the mounting holes (Fig. A).
18
2. Then fold the rails upwards and carefully remove them (Fig. B).
18
Installing the frames
18
1. Insert the two hooks carefully into the upper holes. (Figure A- B)
18
: Incorrect assembly!
18
2. the two hooks must be inserted fully into the upper holes. Now move the frame slowly and carefully downwards and insert in the lower holes (figure D).
18
3. Insert both frames into the side walls of the oven (figure E).
18
Detaching and attaching the oven door
18
: Risk of injury!
18
Detaching the door
19
1. Open the oven door fully.
19
2. Fold up the two locking levers on the left and right (figure A).
19
3. Close the oven door as far as the limit stop. With both hands, grip the door on the left and right-hand sides. Close the door a little further and pull it out (figure B).
19
Attaching the door
19
1. When attaching the oven door, ensure that both hinges are inserted straight into the opening (figure A).
19
2. The notch on the hinge must engage on both sides (figure B).
19
3. Fold back both locking levers (figure C). Close the oven door.
19
: Risk of injury!
19
Oven door - Additional safety precautions
19
Troubleshooting
19
Fault table
19
: Risk of electric shock!
19
Replacing the bulb in the oven ceiling light
20
: Risk of electric shock!
20
1. Place a tea towel in the cold oven to prevent damage.
20
2. Unscrew the glass cover by turning it anti-clockwise.
20
3. Replace the bulb with one of the same type.
20
4. Screw the glass cover back in.
20
5. Remove the tea towel and switch on the circuit breaker.
20
Glass cover
20
After-sales service
20
E number and FD number
20
Energy and environment tips
20
Saving energy
20
Saving energy with the gas hob
20
Environmentally-friendly disposal
20
Tested for you in our cooking studio.
21
Notes
21
Caution!
21
Cakes and pastries
21
Cake tins
21
Baking tables for the lower burner in the gas oven
21
Baking tips
22
Meat, poultry, fish, toast
22
Table - cooking - gas grill
22
Tips for roasting and grilling
23
Acrylamide in foodstuffs
23
Search:
×
Search
