REFRIGERATOR USE
Opening and Closing Doors
There are two refrigerator compartment doors. The doors can be opened and closed either separately or together. There is a vertically-hinged seal on the left refrigerator door.

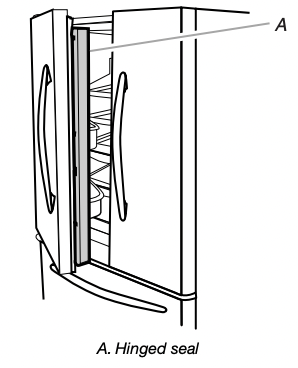

■ When the left-hand refrigerator door is opened, the hinged seal automatically folds inward so that it is out of the way.
■ When both doors are closed, the hinged seal automatically forms a seal between the 2 doors.
Using the Controls
IMPORTANT:
■ Wait 24 hours for your refrigerator to cool completely before adding food. If you add food before the refrigerator has cooled completely, your food may spoil.
NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.
■ The recommended setting should be correct for normal household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.
■ If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.
Control Panel
Depending on your model, your refrigerator has either an internal control panel, located at the top of the refrigerator compartment, or an external control panel, located above the external water dispenser. Follow the instructions specific to your model.
Internal Control Panel

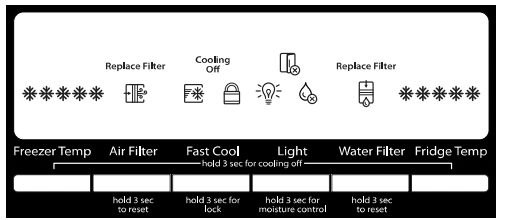

External Control Panel
IMPORTANT (External Control only):
The display screen on the dispenser control panel will turn off automatically and enter “sleep” mode when the control buttons and dispenser paddles have not been used for 2 minutes or more. While in “sleep” mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter “sleep” mode.
■ Touch any control button on the dispenser panel to activate the display screen.
Temperature Control
For your convenience, the temperature control is preset at the factory. When you first install your refrigerator, make sure the control is still set to the recommended setting as shown.
Recommended Setting “3 Snowflakes”
Adjusting the Controls
If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the following chart as a guide.
■ Press the Temp button to display the desired number of snowflakes from 1 snowflake (least cold) to all 5 snowflakes (coldest).
NOTE: Except when starting the refrigerator, do not adjust the control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm FRIDGE TEMP one more snowflake
FREEZER too warm/too little ice FREEZER TEMP one more snowflake
REFRIGERATOR too cold FRIDGE TEMP one less snowflake
FREEZER too cold FREEZER TEMP one less snowflake
Cooling On/Off
Your refrigerator and freezer will not cool when cooling is turned off. Follow the directions specific to your model.
Internal Control Panel

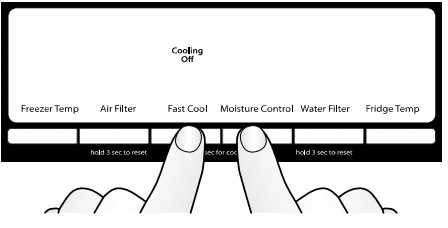

■ To turn cooling off, press and hold both the Fast Cool and Moisture Control buttons at the same time for 3 seconds. When cooling is OFF, “Cooling Off” will appear on the display screen.
■ To turn cooling back on, press and hold both the Fast Cool and Moisture Control buttons at the same time for 3 seconds. When cooling is ON, “Cooling Off” will disappear and the previously selected settings will appear on the display screen.
External Control Panel

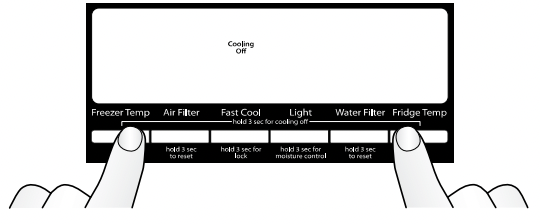

■ To turn cooling off, press and hold both the Freezer Temp and Fridge Temp buttons at the same time for 3 seconds. When cooling is off, “Cooling Off” will appear on the display screen.
■ To turn cooling back on. Press and hold both the Freezer Temp and Fridge Temp buttons at the same time for 3 seconds. When cooling is on, “Cooling Off” will disappear and the previously selected settings will appear on the display screen.
Additional Features Door Open Alarm
■ The Door Open icon lights up whenever either door is opened.
■ When either door is open for 5 minutes and cooling is on, an alert tone will sound three times, and the Door Open icon will flash seven times. This pattern will repeat every 2 minutes until all the doors are closed properly. The feature then resets and will reactivate when either door is left open again for 5 minutes.
NOTES:
■ To mute the audible alarm while keeping the doors open, such as while cleaning the inside of the refrigerator, press any button on the control panel. The alarm sound will be temporarily turned off, but the Door Open icon will still be displayed on the dispenser control panel.
■ Both doors must be fully closed to turn off the Door Open icon.
Fast Cool
The Fast Cool feature assists during times of high refrigerator use, full grocery loads or temporarily warm room temperatures.
■ Press FAST COOL to set the freezer and refrigerator to the coldest temperature settings. Press FAST COOL again to return to the selected temperature set point.
NOTES:
■ The Fast Cool icon will be illuminated while the refrigerator is in Fast Cool mode.
■ The Fast Cool feature will turn off automatically after 24 hours.
Moisture Control
The moisture control feature turns on a heater to help reduce moisture on the door hinge seal. Use in humid environments or when you notice moisture on the door hinge seal. The refrigerator uses more energy when Moisture Control is ON.
NOTE: The moisture control icon will light up to indicate the feature is ON.
To turn on/off the moisture control feature:
■ Internal Control Panel - Press and hold MOISTURE CONTROL for 3 seconds.
■ External Control Panel - Press and hold LIGHT for 3 seconds.
Water Filter Status Light and Reset
The filter reset control allows you to restart the water filter status tracking feature each time you replace the water filter. See “Water Filtration System.”
■ Press and hold WATER FILTER for 3 seconds, to reset the water filter status to Good. The water filter icon will turn blue.
Air Filter Status Light and Reset
The filter reset control allows you to restart the air filter status tracking feature each time you replace the air filter. See “Install Air Filter.”
■ Press and hold AIR FILTER for 3 seconds, to reset the air filter status to Good. The air filter icon will turn blue.
Water Dispenser (on some models)
IMPORTANT:
■ Allow 3 hours for the refrigerator to cool down and chill water.
■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.
■ The dispensing system will not operate when the refrigerator door is open.
Flush the Water System
Air in the water dispensing system can cause the water dispenser to drip. After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Flushing the water dispensing system forces air from the water line and filter and prepares the water filter for use. Additional flushing may be required in some households.
NOTE: As air is cleared from the system, water may spurt out of the dispenser.
1. Using a sturdy container, depress and hold the water dispenser paddle for 5 seconds.
2. Release the dispenser paddle for 5 seconds.
3. Repeat steps 1 and 2 until water begins to flow.
4. Once water begins to flow, continue depressing and releasing the dispenser paddle (5 seconds on, 5 seconds off) until a total of 4 gal. (15 L) has been dispensed.
Dispense Water
IMPORTANT:
■ The dispensing system will not operate when the refrigerator door is open.
■ The display screen on the dispenser control panel will turn off automatically and enter “sleep” mode when the control buttons and dispenser paddles have not been used for 2 minutes or more. While in “sleep” mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter “sleep” mode.
To dispense water:
1. Press a sturdy glass against the water dispenser paddle.
2. Remove the glass to stop dispensing.
Dispenser Light
When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may turn on the light. The light icon will illuminate when the light is ON.
ON: Press LIGHT quickly to turn on the dispenser light.
OFF: Press LIGHT quickly to turn off the dispenser light.
■ If you unintentionally press and hold the Light button for 3 seconds or longer, you will turn on the Moisture Control feature. If this happens, press and hold LIGHT for 3 seconds again to turn off the Moisture Control feature.
■ The dispenser lights are LEDs that cannot be changed. If it appears that your dispenser lights are not working, see “Troubleshooting” for more information.
Dispenser Lock
The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the refrigerator, to the ice maker, or to the dispenser light. It simply deactivates the controls and dispenser paddles. To turn off the ice maker, see “Ice Maker and Storage Bin.”
■ Press and hold FAST COOL for 3 seconds to lock the dispenser.
■ Press and hold FAST COOL for 3 seconds again to unlock the dispenser. The lock icon will illuminate when the dispenser is locked.
Ice Maker
IMPORTANT: For models with a water filter, after connecting the refrigerator to a water source or replacing the water filter, fill and discard 3 full containers of ice to prepare the water filter for use.
Turning the Ice Maker On/Off
To turn on the ice maker, simply lower the wire shut-off arm. To manually turn off the ice maker, lift the wire shut-off arm to the OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shut-off arm to the OFF (arm up) position. Do not force the wire shut-off arm up or down.
Ice Storage Bin
1. Wash the ice storage bin with mild soap and warm water.
2. Slide the ice storage bin under the ice maker and push it toward the back as far as it will go.
3. Lower the arm on the ice maker to the ON position.
NOTE: It usually takes approximately 24 hours for the ice maker to begin producing ice. You may notice the ice has an “off-taste.” If so, discard the first 3 batches of ice produced. After that the “off-taste” should be gone.
Ice Production Rate
■ The ice maker should produce approximately 8 to 12 batches of ice in a 24-hour period. Allow 3 days to completely fill the ice container.
■ To increase ice production, lower the freezer and refrigerator temperature. See “Using the Control(s).” Wait 24 hours between adjustments.
Remember
■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
■ Do not use anything sharp to break up the ice in the bin. This can cause damage to the ice storage bin and the dispenser mechanism.
■ Do not store anything on top of or in the ice maker or ice storage bin.
REFRIGERATOR FEATURES
NOTE: Your model may have some or all of these features.
Important information to know about glass shelves and covers:
Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.
Refrigerator Shelves
The shelves in your refrigerator are adjustable to match your individual storage needs.
Glass Shelves
To remove a shelf:
1. Remove items from the shelf.
2. Slide the shelf straight out to the stop.
3. Depending on your model, lift the back or front of the shelf past the stop. Pull the shelf out the rest of the way.
To replace a shelf:
1. Slide the back of the shelf into the track in the wall of the cabinet.
2. Guide the front of the shelf into the shelf track. Be sure to slide the shelf in all the way
Foldaway Shelf (on some models)
To retract the foldaway shelf:
■ Retract the foldaway section of the shelf by holding the front of the shelf with one hand and lifting up on the center front of the shelf. Then push back and down on the shelf until it slides beneath the back section of the shelf.
To replace the foldaway shelf:
■ Replace the foldaway section of the shelf by holding the front of the shelf with one hand and pulling the center of the shelf until the foldaway section is returned to its full shelf position.
Pantry Drawer
Pantry Drawer
To remove and replace the pantry drawer:
1. Slide pantry drawer out to the stop.
2. Lift front of pantry drawer with one hand while supporting bottom of drawer with other hand. Slide drawer out the rest of the way.
3. Replace the drawer by sliding it back in fully past the drawer stop.
Pantry Drawer Cover
To remove and replace the pantry drawer cover:
1. Remove the pantry drawer.
2. From underneath, push up on the glass cover and pull it out.
3. Replace the pantry drawer cover by lowering it into place.
4. Replace the pantry drawer.
Pantry Drawer Control
The amount of air flowing through the pantry drawer affects the temperature inside the drawer. The airflow control is located on the left side of the pantry drawer.
To adjust the airflow:
■ Colder - Slide the control forward, toward the front of the pantry drawer. The airflow is open.
■ Cold - Slide the control all the way toward the rear of the pantry drawer. The airflow is closed, as shown.
Crisper Crisper Drawers
To remove and replace the crisper drawer:
1. Slide the crisper drawer straight out to the stop. Lift the front and slide the drawer out the rest of the way.
2. Replace the drawer by sliding the drawer in fully past the stop.
Crisper Cover
To remove and replace the glass crisper cover:
1. Pull the glass straight out.
2. Replace the glass by pushing it straight in.
Crisper Humidity Control (on some models)
You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.
■ Fruit: Wash, let dry and store in refrigerator in plastic bag or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in original container in crisper, or store in a loosely closed paper bag on a refrigerator shelf.
■ Vegetables with skins: Place in plastic bag or plastic container and store in crisper. HIGH (closed) keeps moist air in the crisper for best storage of fresh, leafy vegetables.
■ Leafy vegetables: Wash in cold water, drain and trim or tear off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper.
DOOR FEATURES
NOTE: Your model may have some or all of these features.
Condiment Bins
To remove and replace the condiment bins:
1. Tilt the bin by pulling it outward.
2. Remove the bin by lifting it upward off the glides.
3. Replace the bin by sliding it back onto the glides and then push it closed.

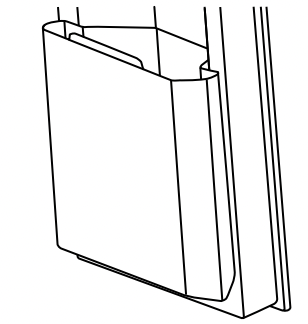

Fresh Bin (on some models)
To remove and replace the fresh bin:
1. Open the bin by grasping the top center lip of the bin and tilting the bin outward.
2. Remove the bin by grasping both sides of the bin and lifting the bin upward off the glides.
3. Replace the bin by sliding it back into its tilted position on the glides and then push it closed.

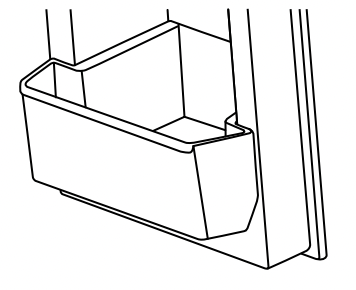

Half-Height Bin (on some models)
To remove and replace the half-height bin:
1. Tilt the bin by pulling it outward.
2. Remove the bin by lifting it upward off the glides.
3. Replace the bin by sliding it back onto the glides and then push it closed.
REFRIGERATOR CARE
Cleaning
Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.
IMPORTANT:
■ Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.
■ For stainless steel models, stainless steel is corrosion-resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.
3. Clean the exterior surfaces.
Painted metal: Wash painted metal exteriors with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
NOTE: When cleaning stainless steel, always wipe in the direction of the grain to avoid cross-grain scratching.
4. There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.
If you need to clean the condenser:
■ Remove the base grille.
■ Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.
■ Replace the base grille when finished. 5. Plug in refrigerator or reconnect power.
Changing the Light Bulbs
IMPORTANT:
■ Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape and wattage.
■ To ensure optimum refrigerator performance, replace light bulbs as soon as they burn out.
Freezer Compartment Light (on some models)
1. Unplug the refrigerator or disconnect power.
2. Remove the light shield (on some models).
■ Top of the freezer compartment
- Slide the light shield toward the back of the compartment to release it from the light assembly.
3. Replace the burned-out bulb with an appliance bulb(s) no greater than 25 watts.
4. Replace the light shield.
5. Plug in refrigerator or reconnect power.
TROUBLESHOOTING
Operation
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.
The refrigerator will not operate
POSSIBLE CAUSES
- Check electrical supply
- Check controls
- New installation
SOLUTIONS
- Plug the power cord into a grounded 3 prong outlet.
- Do not use an extension cord.
- Make sure there is power to the outlet.
- Plug in a lamp to see if the outlet is working. Reset a tripped circuit breaker. Replace any blown fuses.
NOTE: If problems continue, contact an electrician.
- Make sure the controls are turned on. See “Using the Controls.”
- Allow 24 hours following installation for the refrigerator to cool completely. NOTE: Adjusting the temperature controls to the coldest setting will not cool either compartment quicker.
The motor seems to run too much
POSSIBLE CAUSES
- High-efficiency compressor and fans
- The room or outdoor temperature is hot
- A large amount of warm food has been recently added
- The door(s) are opened too frequently or for too long
- The refrigerator door or freezer drawer is ajar
- The refrigerator control is set too cold
- The door or drawer gasket is dirty, worn, or cracked
SOLUTIONS
- This is normal. Larger, more efficient refrigerators run longer.
- It is normal for the refrigerator to work longer under these conditions. For optimum performance, place the refrigerator in an indoor, temperature-controlled environment. See “Location Requirements.”
- Warm food will cause the refrigerator to run longer until the air cools to the desired temperature.
- Warm air entering the refrigerator causes it to run more. Open the door less often.
- Make sure the refrigerator is level. See “Door Closing and Door Alignment.” Keep food and containers from blocking the door.
- Adjust the refrigerator control to a less cold setting until the refrigerator temperature is as desired. See “Using the Controls.”
- Clean or change the gasket. Leaks in the door seal will cause the refrigerator to run longer in order to maintain desired temperatures.
- Tighten or replace the light bulb. See “Changing the Light Bulbs.”
- On some models, the dispenser light will operate only when a dispenser paddle is pressed. If you want the dispenser light to stay on continuously, see “Water Dispenser.”
- Turn off Sabbath Mode. See “Using the Controls.”
Noise
The refrigerator seems noisy Below are listed some normal sounds with explanations.
POSSIBLE CAUSES
The compressor in your new refrigerator regulates temperature more efficiently while using less energy, and operates quietly. Due to the reduction in operating noise, you may notice more intermittent noises.
Sound of the compressor running longer than expected
POSSIBLE CAUSES
High-efficiency compressor and fans
SOLUTIONS
This is normal. Larger, more efficient refrigerators run longer.
Pulsating/Whirring
POSSIBLE CAUSES
Fans/compressor adjusting to optimize performance during normal compressor operation
SOLUTIONS
This is normal.
Popping
POSSIBLE CAUSES
Contraction/expansion of inside walls, especially during initial cool-down
SOLUTIONS
This is normal.
Hissing/Dripping
POSSIBLE CAUSES
- Flow of refrigerant, or flow of oil in the compressor
SOLUTIONS
- This is normal.
Vibration
POSSIBLE CAUSES
The refrigerator may not be steady
SOLUTIONS
Adjust the leveling screws and lower the leveling foot firmly against the floor. See “Door Closing and Door Alignment.”
Rattling/Banging
POSSIBLE CAUSES
Movement of the water lines against the refrigerator cabinet, or of items placed on top of the refrigerator cabinet
SOLUTIONS
Move excess water line away from the refrigerator cabinet or fasten excess tubing to the cabinet. See “Connect the Water Supply,” or remove items from the top of the refrigerator.
Sizzling
POSSIBLE CAUSES
Water dripping on the heater during defrost cycle
SOLUTIONS
This is normal
Water running/Gurgling
POSSIBLE CAUSES
May be heard when ice melts during the defrost cycle and water runs into the drain pan
SOLUTIONS
This is normal.
Buzzing
POSSIBLE CAUSES
Heard when the water valve opens to fill the ice maker
SOLUTIONS
This is normal.
Creaking/Cracking
POSSIBLE CAUSES
May be heard as ice is being ejected from the ice maker mold
SOLUTIONS
This is normal.
POSSIBLE CAUSES
Ker-plunk
POSSIBLE CAUSES
May be heard when the ice falls into the ice storage bin
POSSIBLE CAUSES
This is normal.
Temperature is too warm
POSSIBLE CAUSES
- The refrigerator has just been installed
- Cooling is turned off
- The controls are not set correctly for the surrounding conditions
- The door(s) are opened often or not closed completely
- A large load of food was recently added
SOLUTIONS
- Allow 24 hours following installation for the refrigerator to cool completely.
- Turn on cooling. See “Using the Controls.”
- Adjust the controls a setting colder. Check the temperature in 24 hours. See “Using the Control(s).”
- Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed.
- Allow several hours for refrigerator to return to normal temperature.
Temperature is too cold in the refrigerator/crisper
POSSIBLE CAUSES
- The refrigerator air vent(s) are blocked
- The controls are not set correctly for the surrounding conditions
- The ice storage bin is not in the correct position
SOLUTIONS
- If the air vent located in the top, left, rear corner of the refrigerator compartment is blocked by items placed directly in front of it, the refrigerator will get too cold. Move items away from the air vent.
- Adjust the controls a setting warmer. Check the temperature in 24 hours. See “Using the Controls.”
- See “Ice Maker.”
Temperature is too cold in the pantry drawers
POSSIBLE CAUSES
The control is not set correctly for the items stored in drawer
SOLUTIONS
Adjust the control setting. See “Refrigerator Features.”
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
POSSIBLE CAUSES
- The room is humid
- The door(s) are opened often or not closed completely
- The door is blocked open
- A bin or shelf is in the way
- Storing liquid in open containers
SOLUTIONS
- A humid environment contributes to moisture buildup
- Allows humid air to enter the refrigerator. Minimize door openings and close doors completely
- Move food packages away from door.
- Push bin or shelf back into the correct position.
- This adds humidity to the refrigerator interior. Keep all containers tightly covered.
There is frost/ice buildup in the freezer compartment
POSSIBLE CAUSES
- The doors are opened often or left open
- Poor door seal
- Temperature controls are not set correctly
SOLUTIONS
- Minimize door openings and keep doors fully closed.
- Ensure door seals are making full contact with the refrigerator cabinet to allow for an adequate seal.
- See “Using the Controls” for recommended temperature settings.
See other models: WRS571CIHZ WRSA88FIHZ WRS321SDHZ WRFA32SMHZ WUB50X24HZ
