User Manual
Getting to know your appliance
The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. ~ Page 2

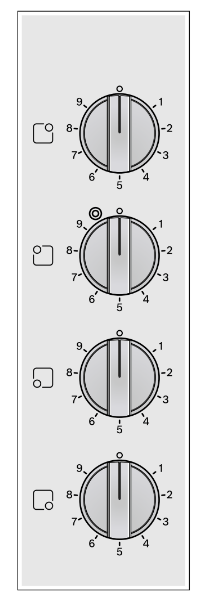

The control panel
Hotplate controls
The hotplate controls are permanently fixed. They must not be removed. Forcibly removing the hotplate controls leads to them being destroyed.

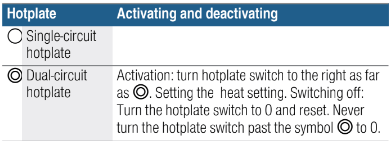

The hotplates
Notes
- Any dark areas in the glow pattern of the hotplate are due to technical reasons. The function of the hotplate is not affected.
- Hotplate temperature is regulated by the heat switching on and off.The heat may also switch on and off at the highest setting.This ensures e.g.:
- sensitive components are protected from overheating
- the appliance is protected from electrical overload
- better cooking results are achieved
- With multi-circuit hotplates the heater elements of the inner filament circuits and the heater element of the activations may switch on and off at different times.
Hotplate and residual heat indicators
The hotplate and residual heat indicators light up when a hotplate is warm:
- Hotplate indicator - during operation, shortly after you have switched on a hotplate.
- Residual heat indicator - after cooking, when the hotplate is still warm.
You can use the residual heat to save energy, e.g. to keep a small dish warm or to melt chocolate.
Operating the appliance
In this section, you can find out how to set the hotplates. The table shows heat settings and cooking times for various meals.
Switching the hob on or off
You can switch the hob on and off with the hotplate switch.
Setting the hotplates
You can use the hotplate control to adjust the heat output of the hotplate
The symbol in the display panel indicates the hotplate which the display refers to, e.g.
for the right rear hotplate.

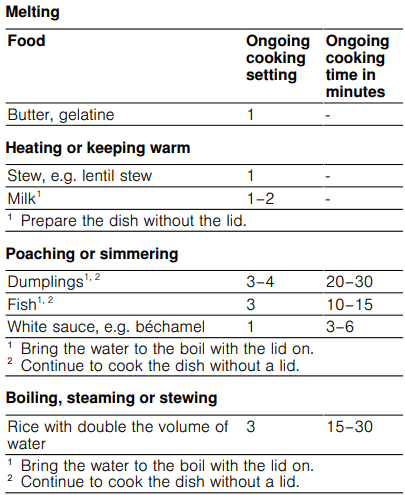

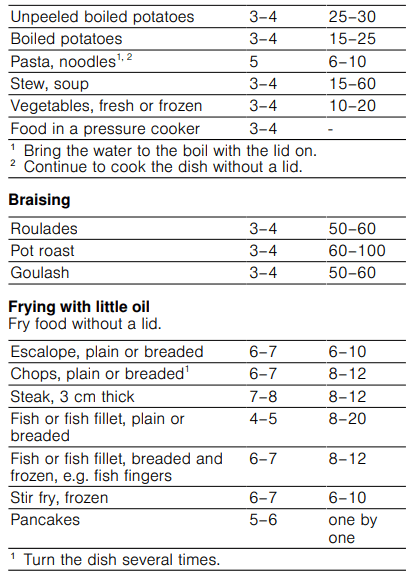

Recommended cooking settings
You can find an overview of different foods with appropriate power levels here. The cooking time varies depending on the type, weight, thickness and quality of the food. The ongoing power level depends on the cookware used.
Cooking tips
- To bring food to the boil, use heat setting 9.
- Stir thick liquids occasionally
- Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small portions.
- Tips for saving energy when cooking. → Page 5
Cleaning
Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop.
Ceramic
Clean the hob after each use. This will prevent spills from burning onto the ceramic.
Only clean the hob when it has cooled down sufficiently.
Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging.
Never use:
- Undiluted washing-up liquid
- Detergent intended for dishwashers
- Scouring agents
- Harsh cleaning agents such as oven spray or stain remover
- Abrasive sponges
- High-pressure cleaners or steam jet cleaners
Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions.
You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop.
Using special sponges to clean glass ceramic achieves great cleaning results.
Hob surround
To prevent damage to the hob surround, observe the following instructions:
- Use only hot soapy water.
- Wash new sponge cloths thoroughly before use.
- Do not use any sharp or abrasive agents.
- Do not use the glass scraper.
Cleaning products
You can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer.
ATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.
- Never use unsuitable cleaning products.
Unsuitable cleaning products
- Undiluted detergent
- Detergent intended for dishwashers
- Abrasive cleaners
- Aggressive cleaning products such as oven spray or stain remover
- Abrasive sponges
- High-pressure or steam jet cleaners
Cleaning the glass ceramic
Clean the hob after every use to stop cooking residues from getting burnt on.
Note: Note the information on unsuitable cleaning products. → Page 7
Requirement: The hob has cooled down.
- Remove heavy soiling using a glass scraper.
- Clean the hob with a cleaning product for glass ceramic. Follow the cleaning instructions on the product packaging.
Tip: You can achieve good cleaning results using a special sponge for glass ceramic.
Cleaning the hob surround
Clean the hob frame after use if dirty or stained.
Notes
Note the information on unsuitable cleaning products. → Page 7
- Do not use the glass scraper.
- Clean the hob frame with hot soapy water and a soft cloth.
- Wash new sponge cloths thoroughly before use.
- Dry with a soft cloth.
Customer service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits.
E number and FD number
Please quote the E-number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.
Please note that a visit from an after-sales service engineer is not free of charge in the event of misuse of the appliance, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
