MULTIMEDIA PROJECTOR
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
User’s Manual
ENG
2
Quick Reference – How to start projection
Computer
1. Install the projector. P32-33
z Install the projector at the desired distance from the screen.
2. Connect the projector. P36-39

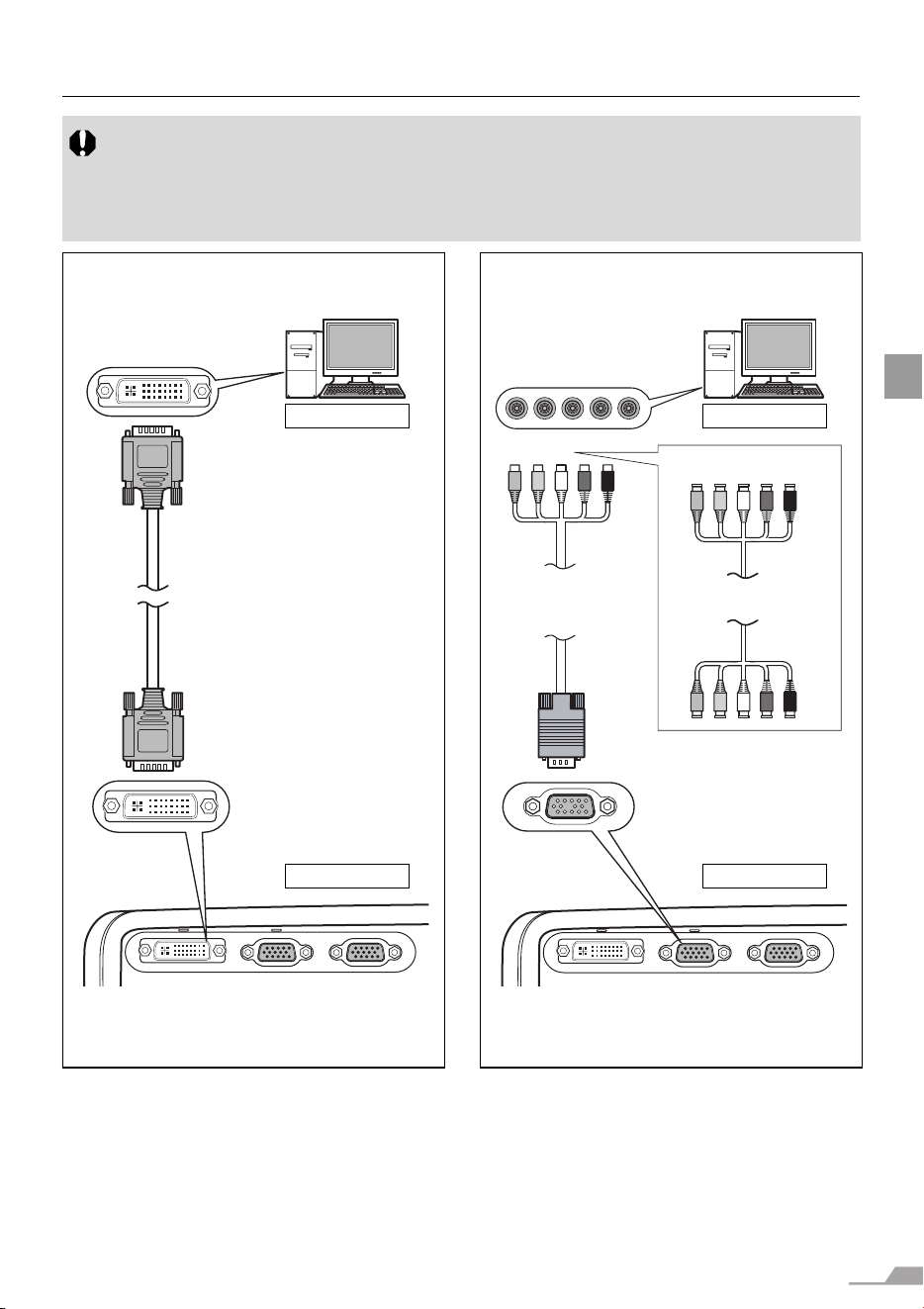

z Connect the projector and the computer with a cable.
3. Turn on the projector. P40-41
z Connect the power cord and turn on the projector.
z Adjust the height of the projecting image (P43).
z Select a display language when turning on the projector for the first time (P41).
4. Press the button twice. P46-47

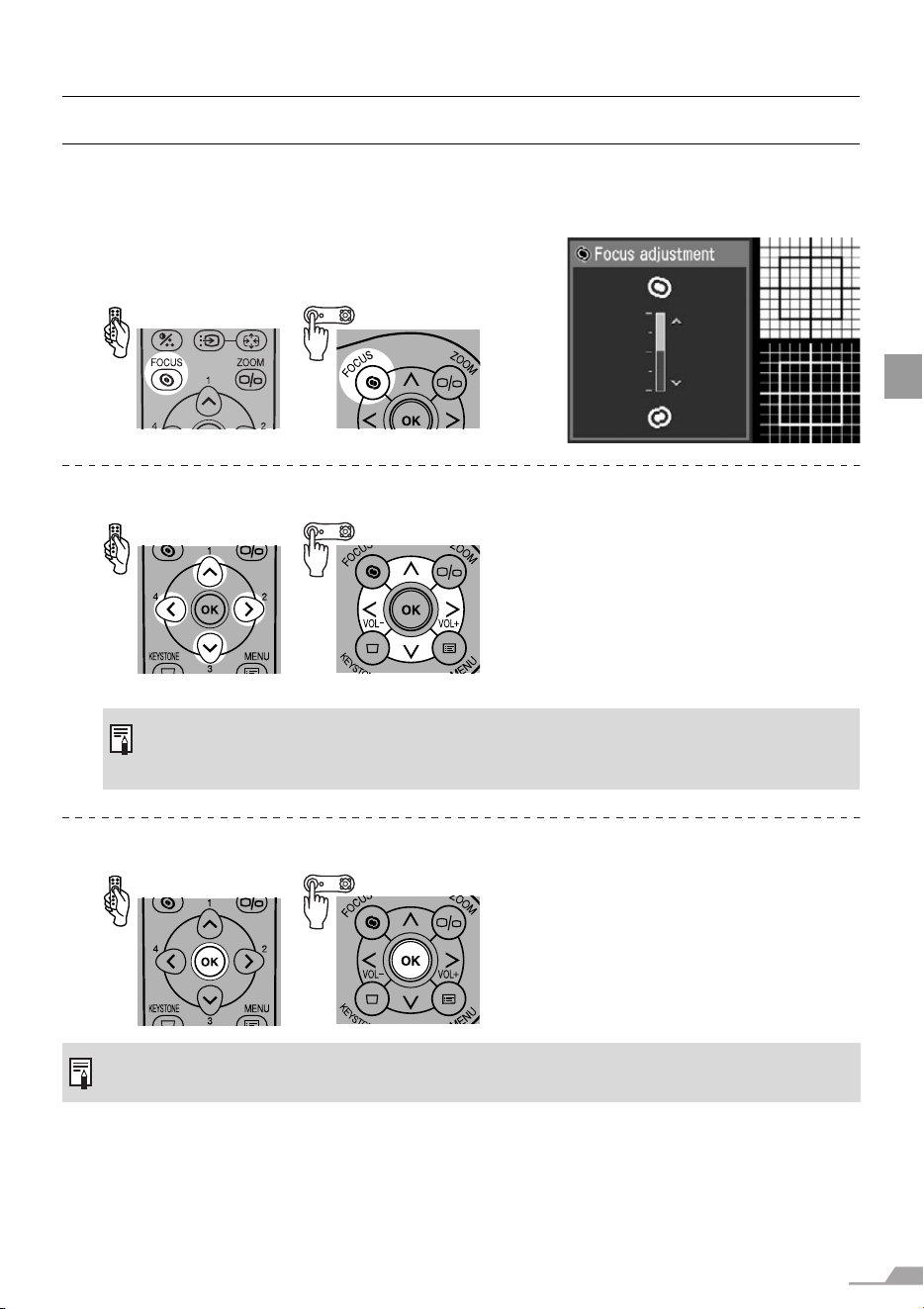

z Adjust the focus of the screen.
5. Set up the computer. P44-45

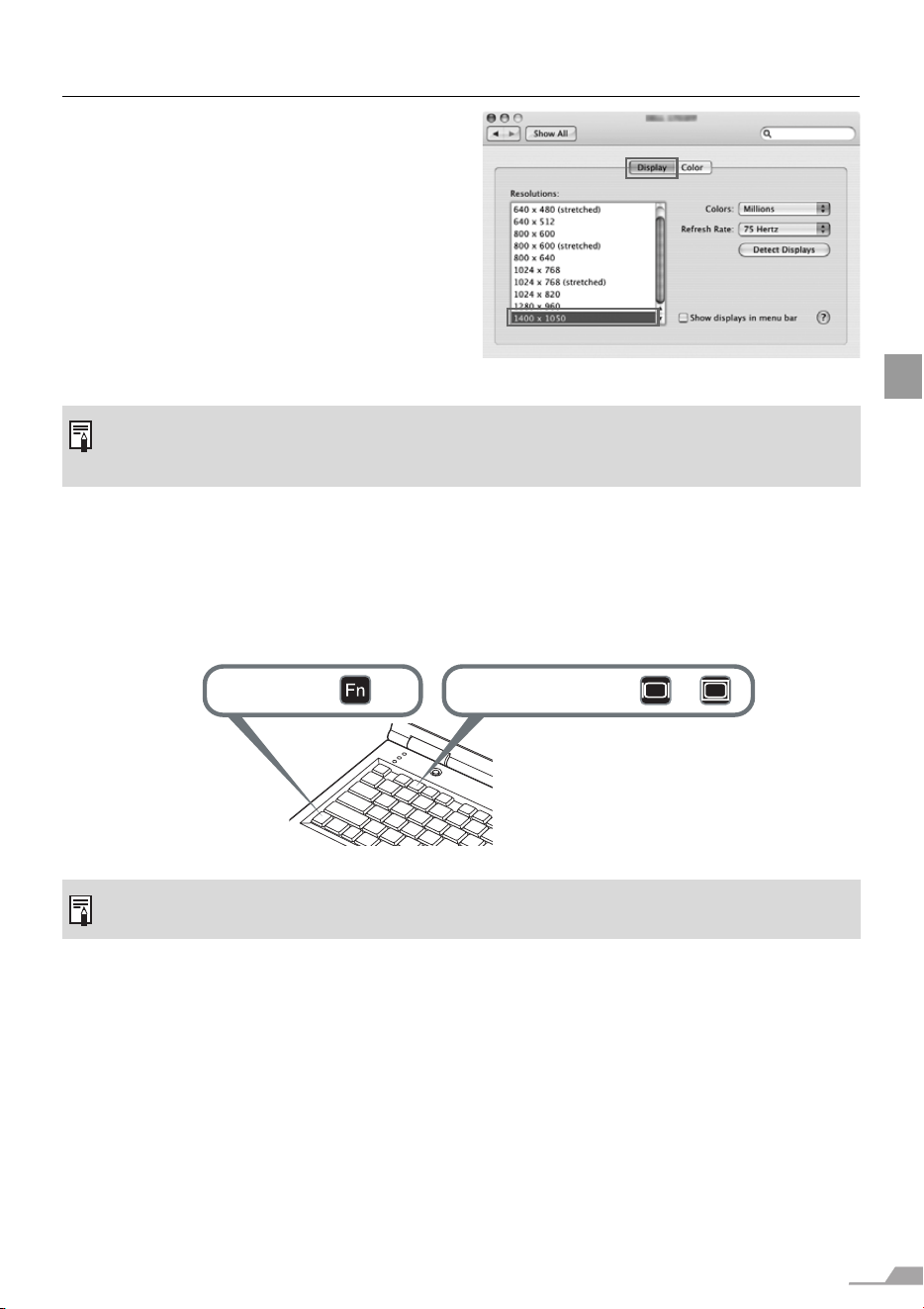

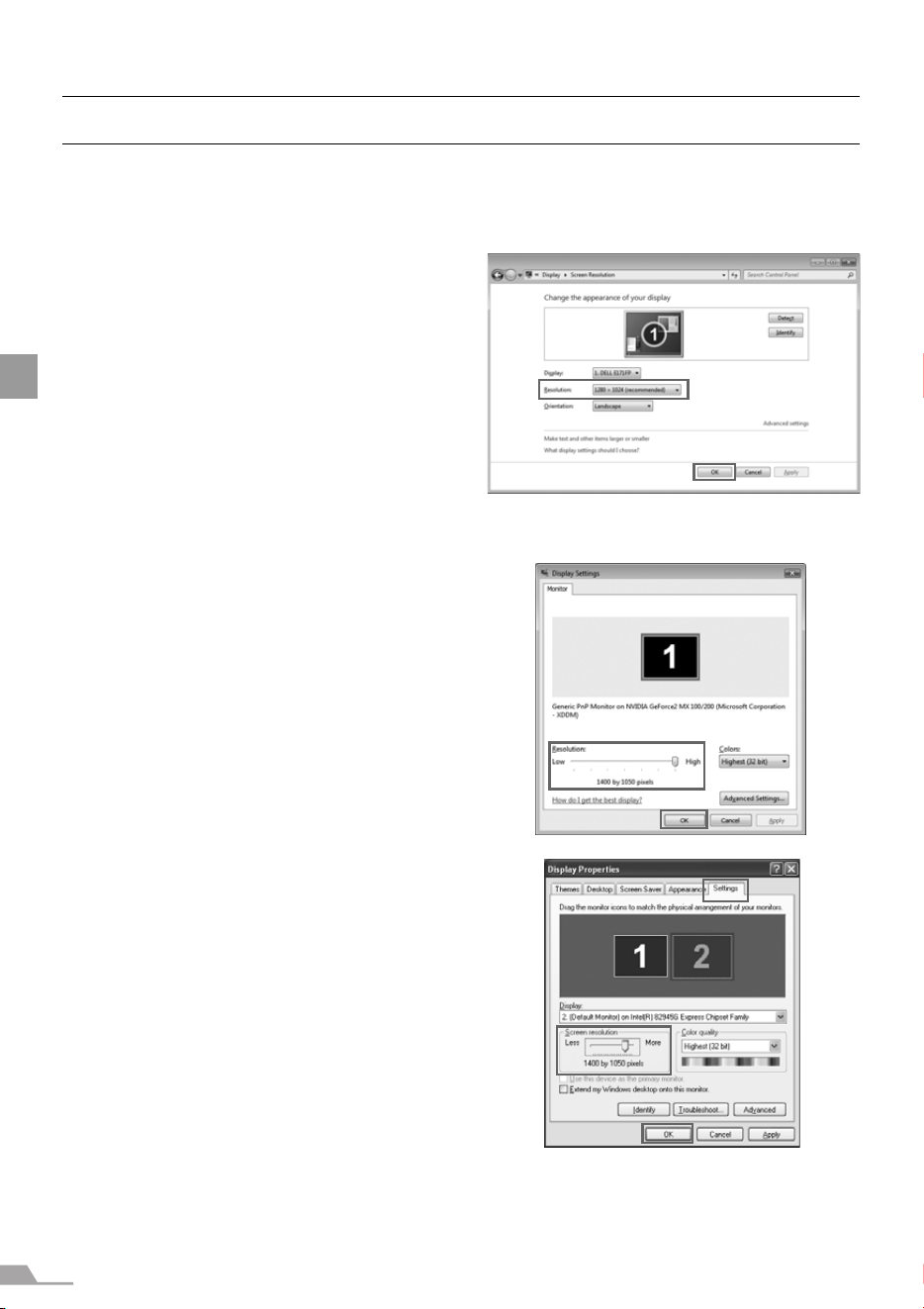

z Turn on the computer and set the resolution.

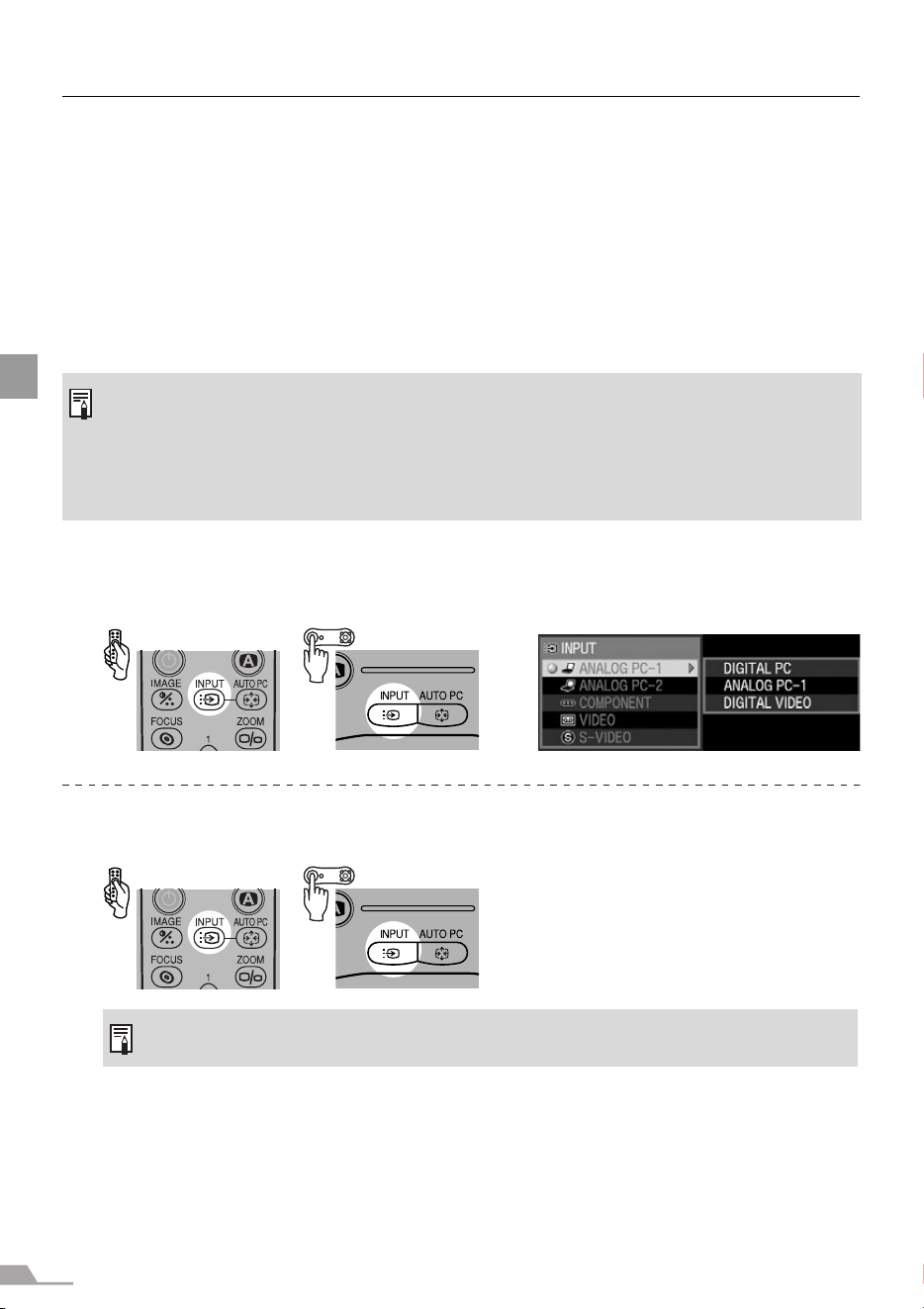

6. Select the input signal by pressing the button. P48-50
z Select an appropriate input signal in accord with the signal from the computer.
7. Press the button twice again. P46-47
z Adjust the input signal, focusing, keystone distortion, etc. automatically with the
auto setup function.
8. Press the button. P54
z Optimize the input signal with the auto PC function (Skip this step if the projector
is projecting an image properly.)
9. Select the image mode with the button. P55-56

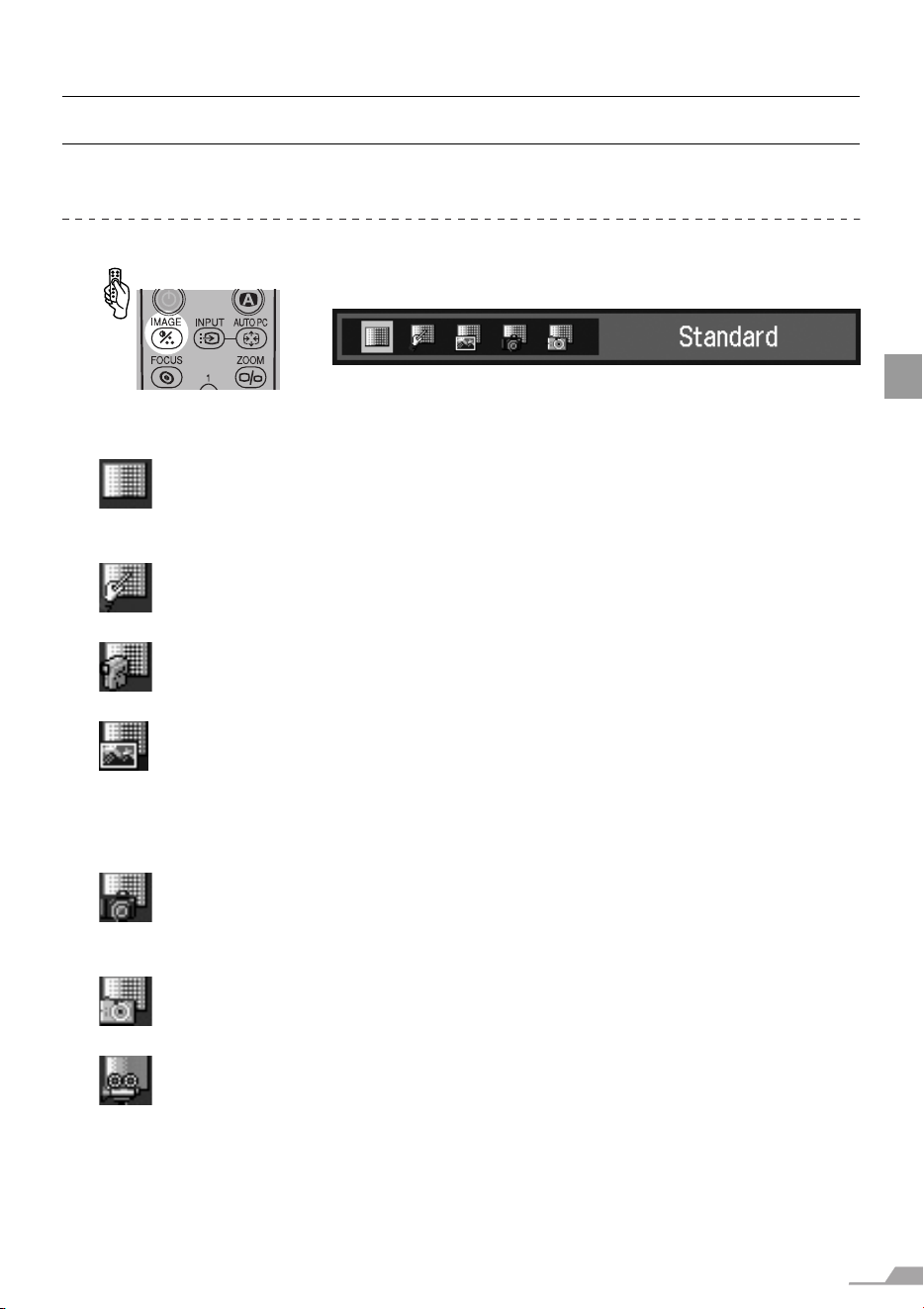

z Select an appropriate image mode for projection.
z Specify the aspect ratio or display area in the [Aspect] menu as required (P57,
90).
10. Start the presentation. P78-83
z Set the useful functions available during the presentation from the remote control.

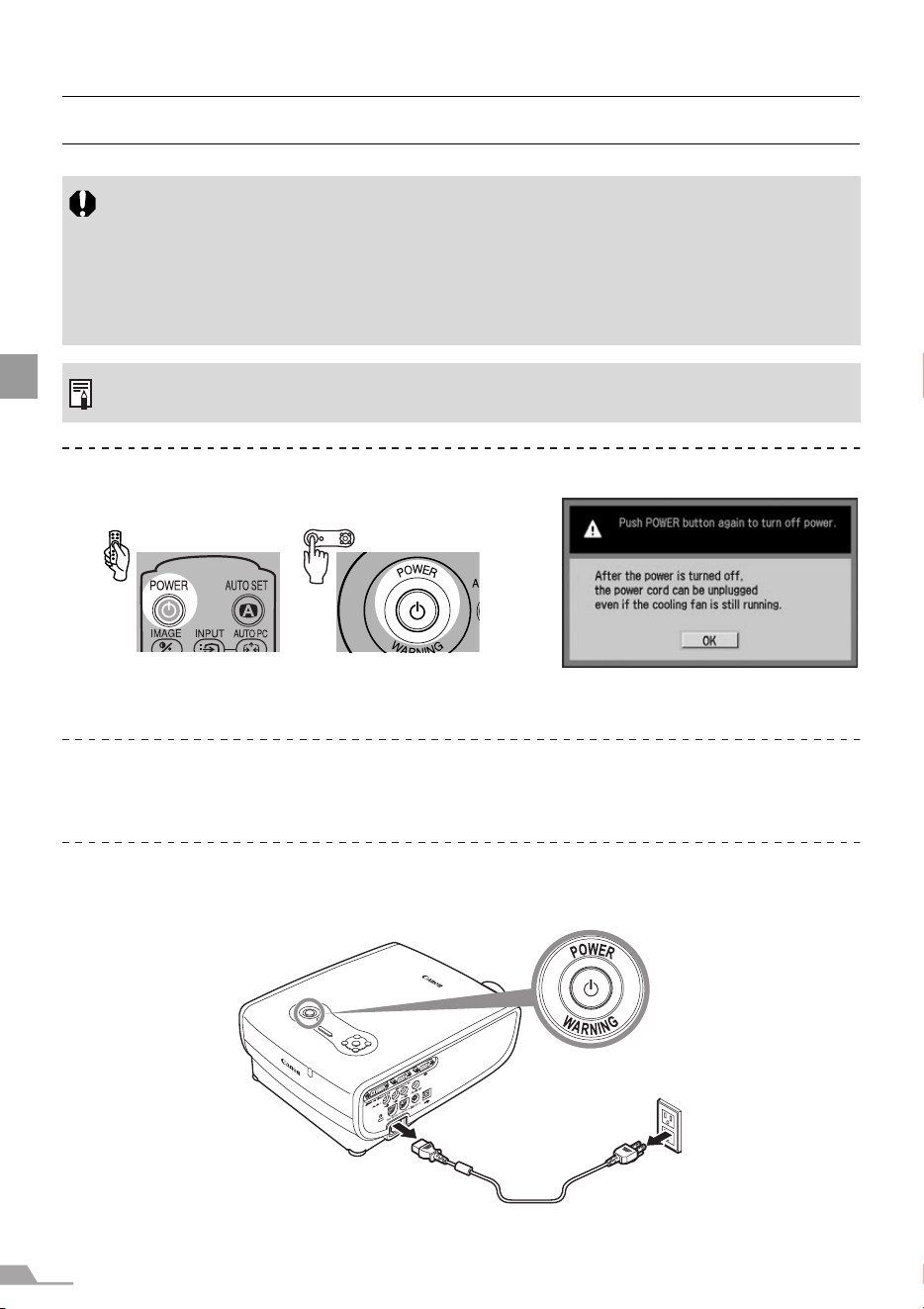

Turn off the projector P60-61
z Turn off the projector and unplug the power cord.
Finishing the projection...
3
AV Equipment
1. Install the projector. P32-33
z Install the projector at the desired distance from the screen.
z Install batteries in the remote control (P29)
2. Connect the projector. P64-68
z Connect the projector and the AV equipment with a cable* (see P38, 39 for the
instruction on connecting a audio cable).
3. Turn on the projector. P40-41
z Connect the power cord and turn on the projector.
z Adjust the height of the projecting image (P43).
z Select a display language when turning on the projector for the first time (P41).
4. Press the button twice. P46-47
z Adjust the focus of the screen.
5. Set up the AV equipment.
z Turn on the AV equipment and play the video image.
6. Select the input signal by pressing the button. P70-72
z Select DIGITAL VIDEO as the input signal for a digital video image.*
For the other video image, go to step 7.
7. Press the button twice again. P70
z Adjust the input signal, focusing, keystone distortion, etc. automatically with the
auto setup function.
8. Select the image mode with the button. P55-56
z Select an appropriate image mode for projection.
z Specify the aspect ratio or display area in the [Aspect] menu as required (P73,
90, 91).
Turn off the projector P60-61
z Turn off the projector and unplug the power cord.
* Connect the projector and the AV equipment with a HDMI/DVI cable to project a digital video
image (P65).
Finishing the projection...
4
TABLE OF CONTENTS
Table of Contents
Quick Reference – How to start projection............................................................. 2
Table of Contents ................................................................................................... 4

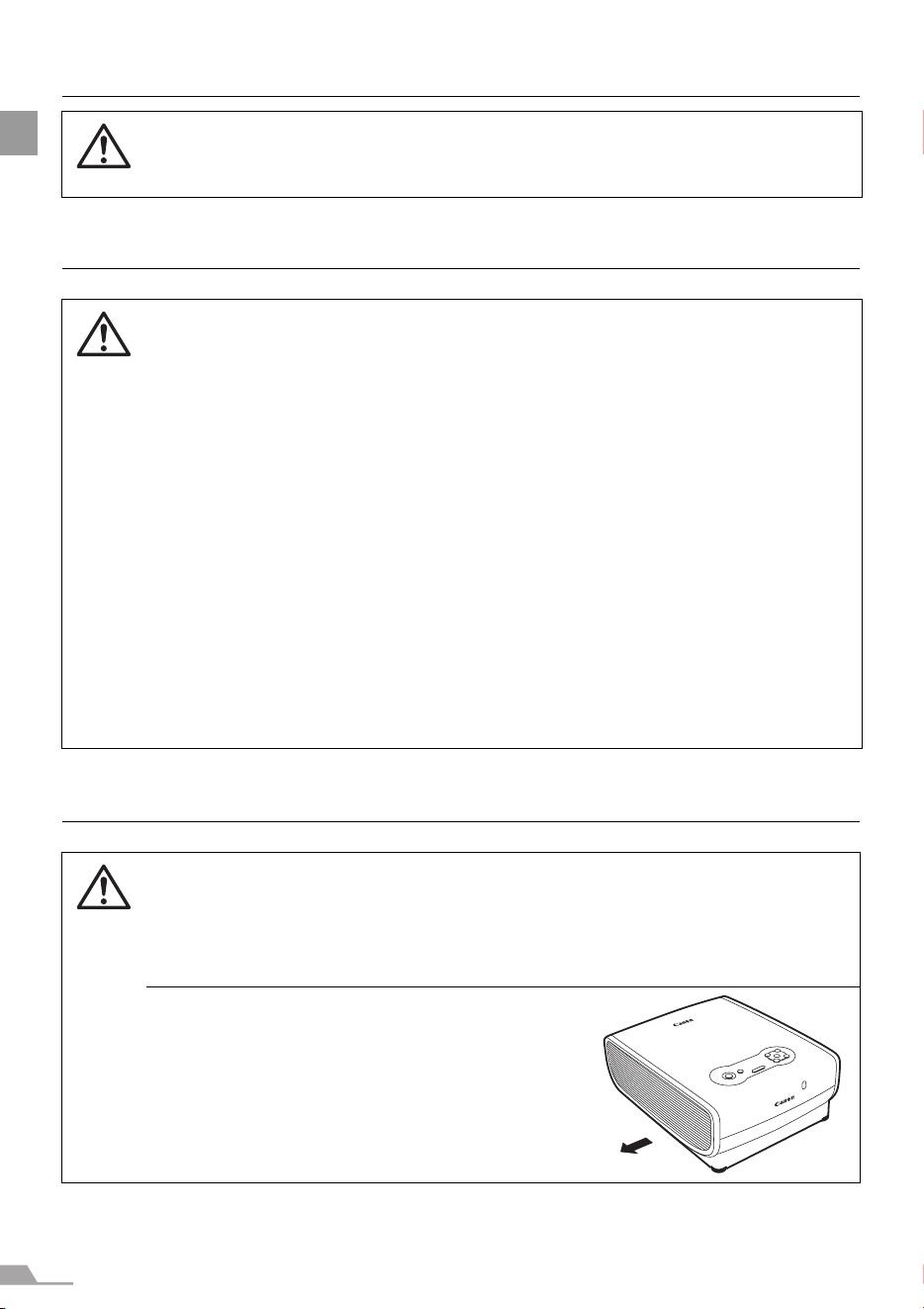

Safety Instructions.................................................................................................. 7
Safety Precautions............................................................................................................ 8
AC Power Cord Requirement ......................................................................................... 11
Federal Communication Commission Notice ................................................................. 12
Canadian Radio Interference Regulations ..................................................................... 12
Precautions on Handling the Batteries in the Remote Controller ................................... 13
Lamp Handling Precautions........................................................................................... 13
Carrying/Transporting the Projector ............................................................................... 14
Installation Precautions .................................................................................................. 14
Features of the Multimedia Projector SX7 MarkII/SX60....................................... 16
Supplied Manuals and Symbols Used in This Manual ......................................... 17
Supplied Manuals........................................................................................................... 17
Before Use ........................................................................................................... 20

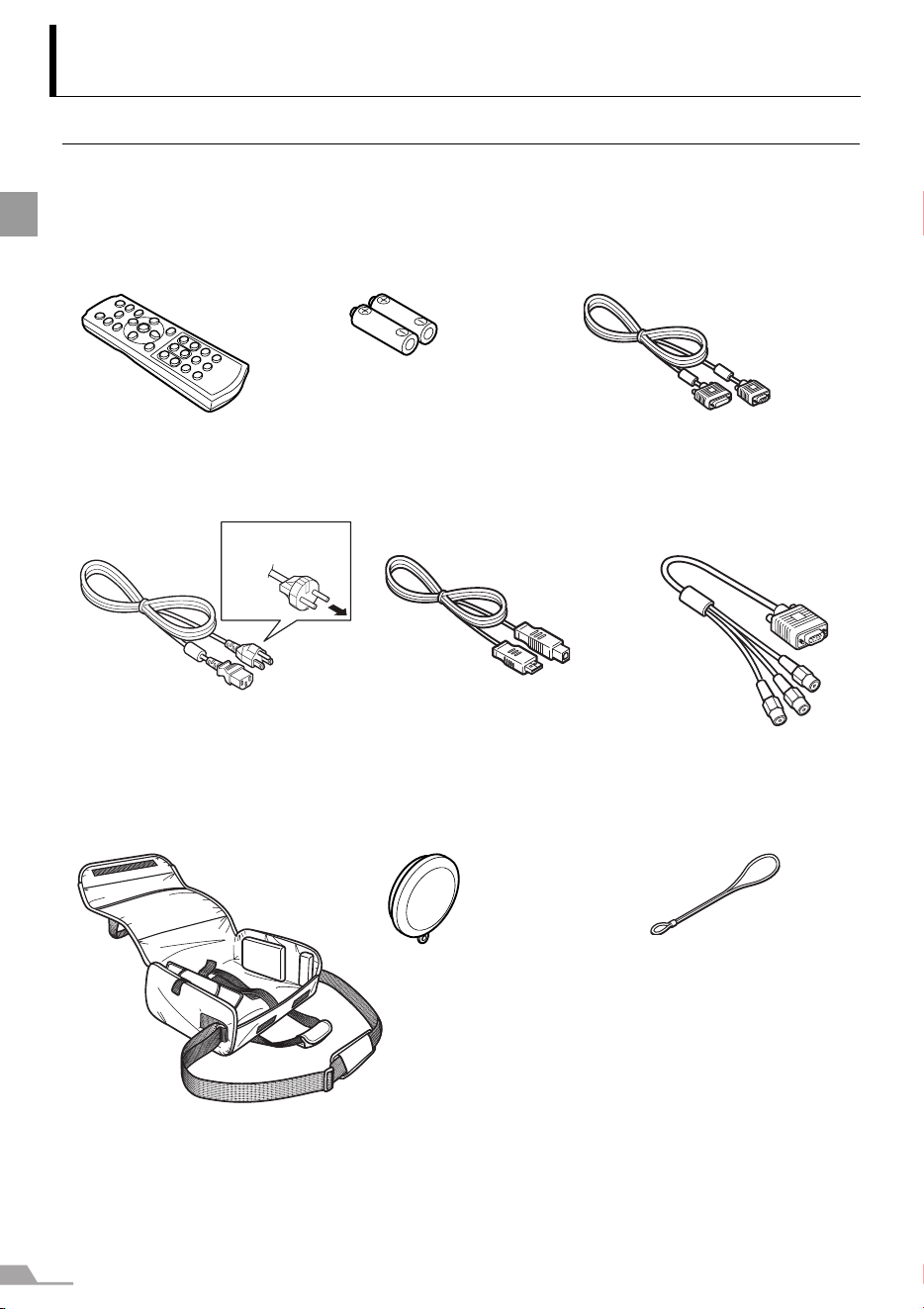

Supplied Accessories .................................................................................................... 20

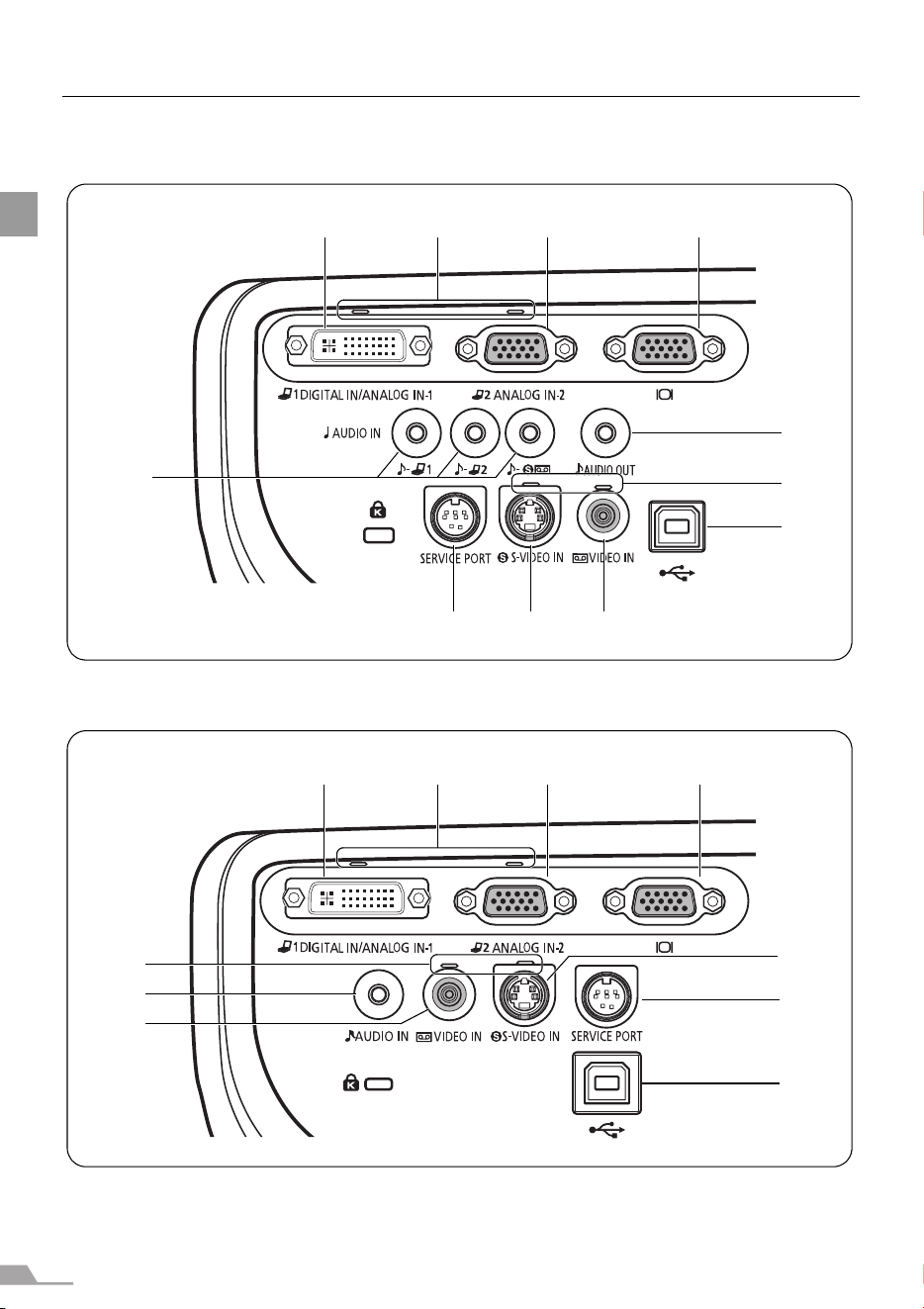

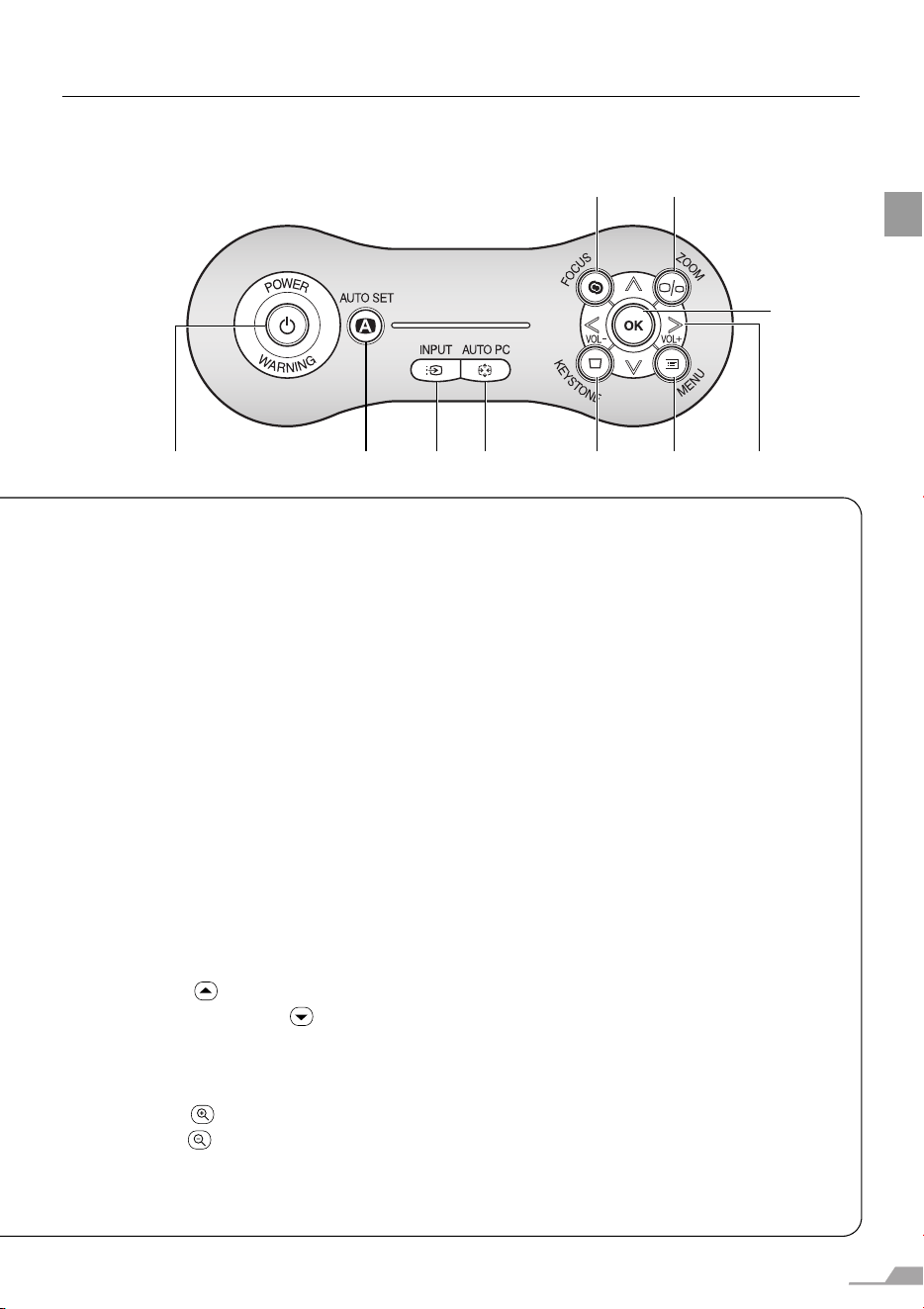

Part Names..................................................................................................................... 22

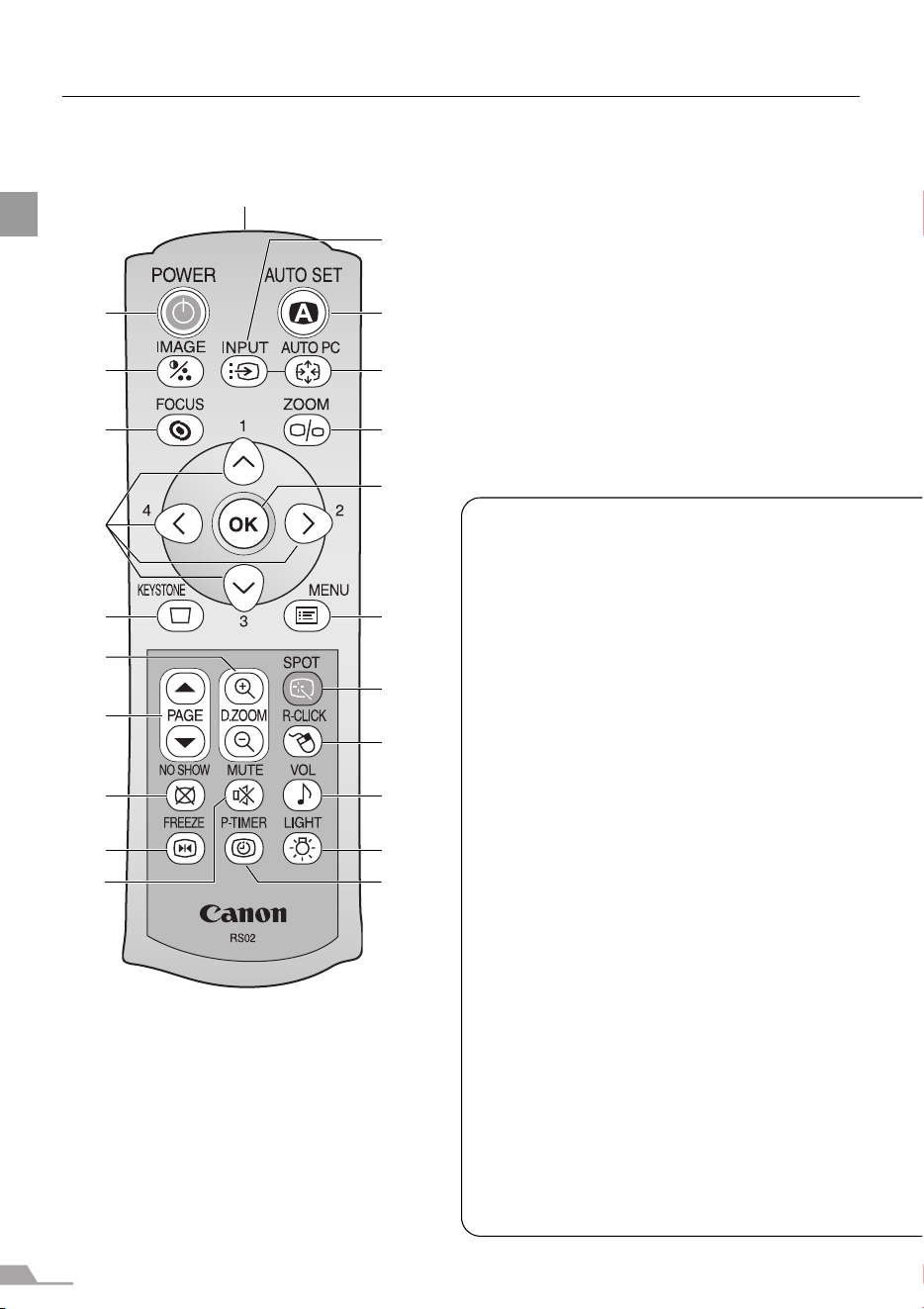

Preparing the Remote Control........................................................................................ 29
Setting Up the Projector ....................................................................................... 32
Determining the Distance to the Screen ........................................................................ 32

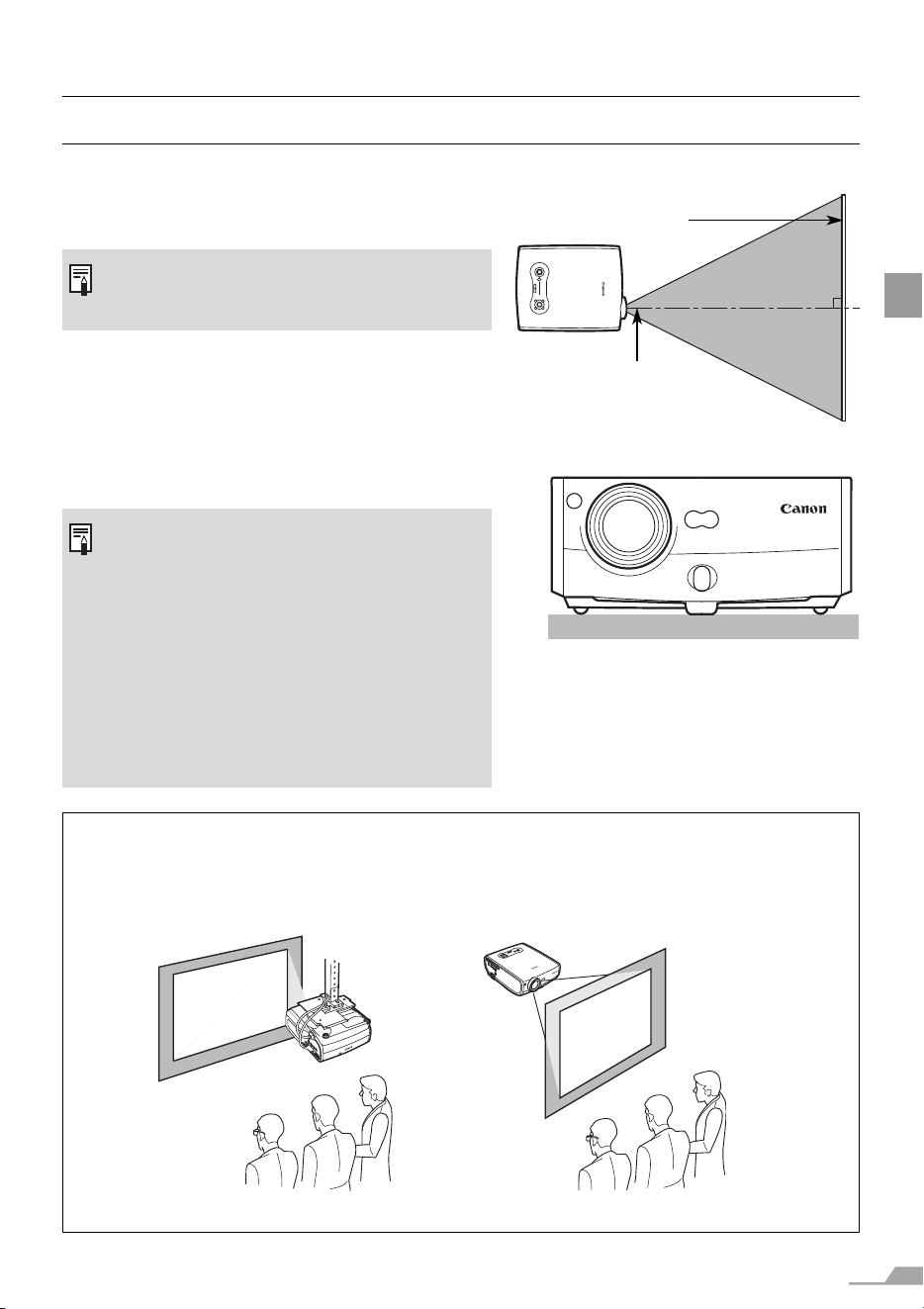

Determining the Installation Position .............................................................................. 33
Projecting an Image from the Computer .............................................................. 36

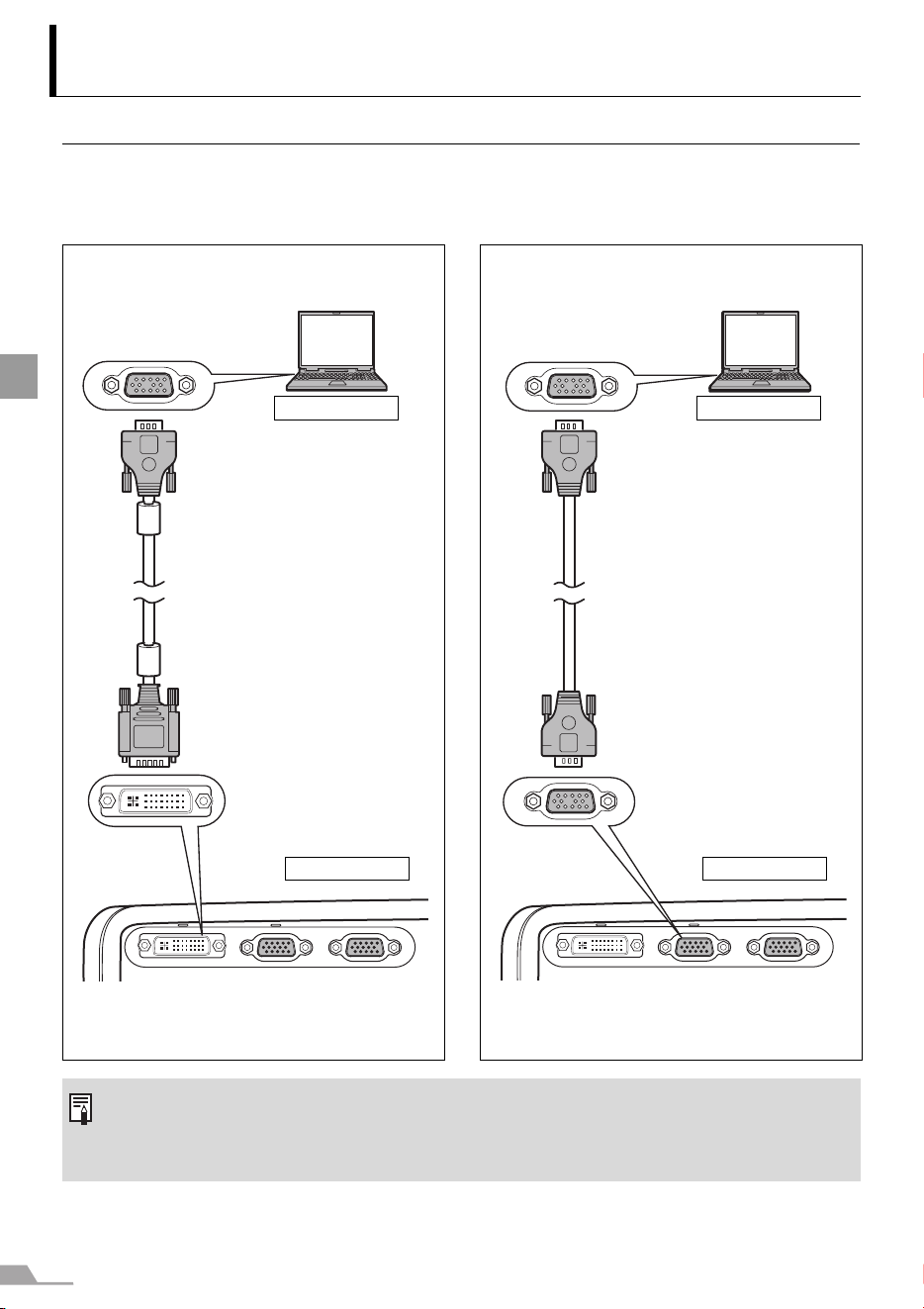

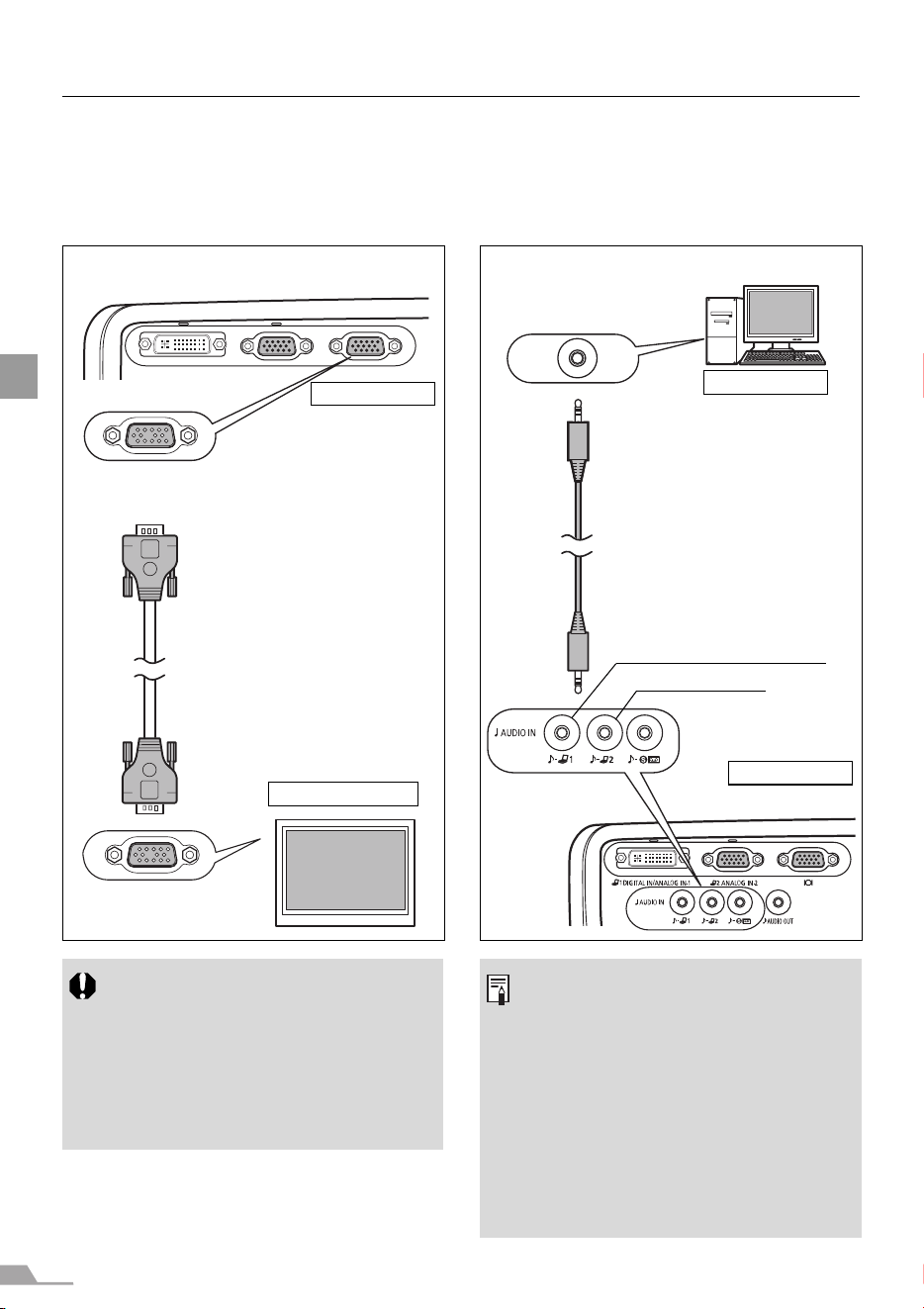

Connecting the Projector to the Computer..................................................................... 36
Starting Projection .......................................................................................................... 40
Adjusting the Image ....................................................................................................... 42
Preparing the Computer................................................................................................. 44

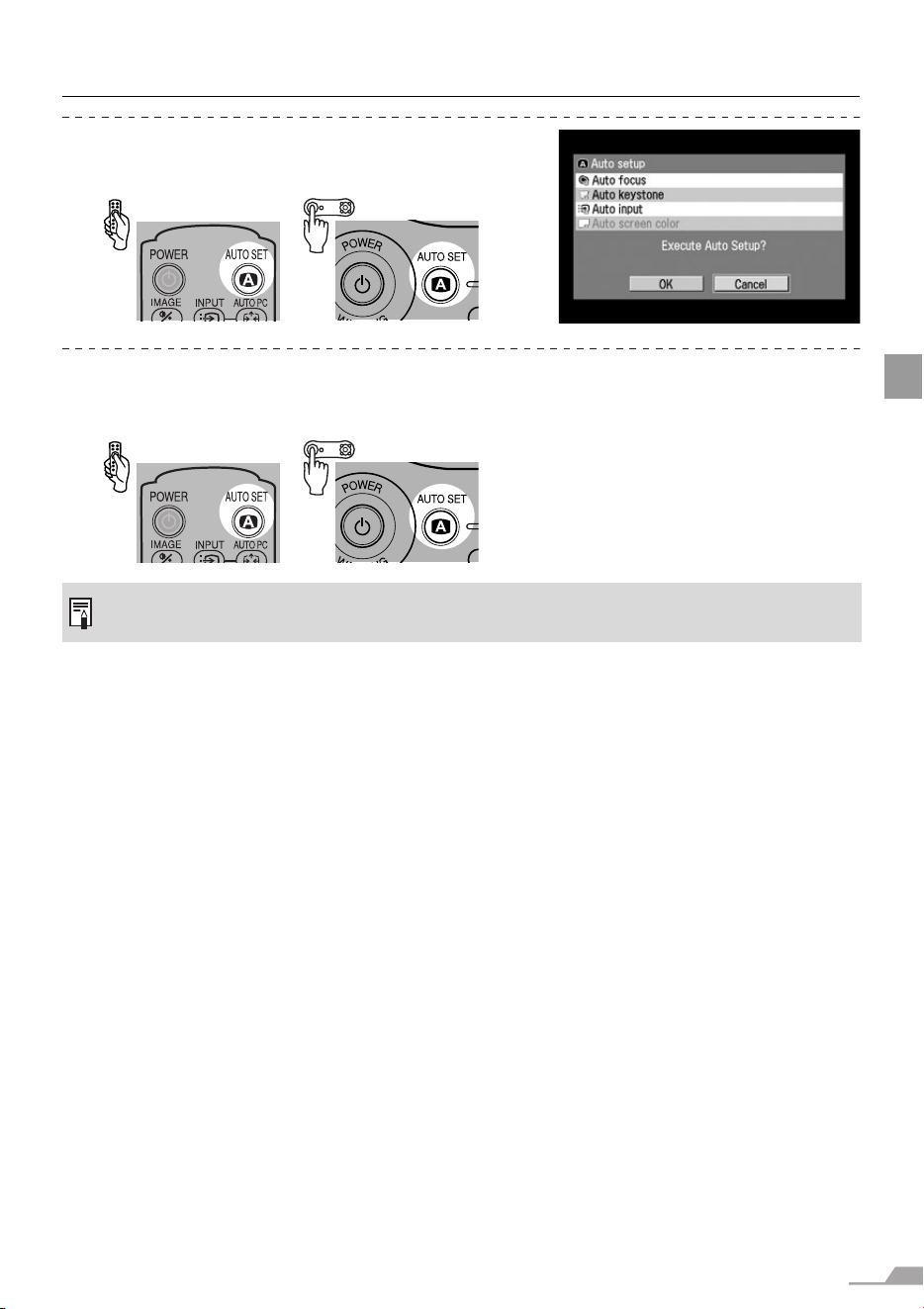

Performing the Auto Setup ............................................................................................. 46
Adjusting the Focus........................................................................................................ 51
Adjusting Keystone Distortion ........................................................................................ 52
Setting Up the Computer Screen Automatically (AUTO PC).......................................... 54
Selecting an Image Mode (IMAGE) ............................................................................... 55

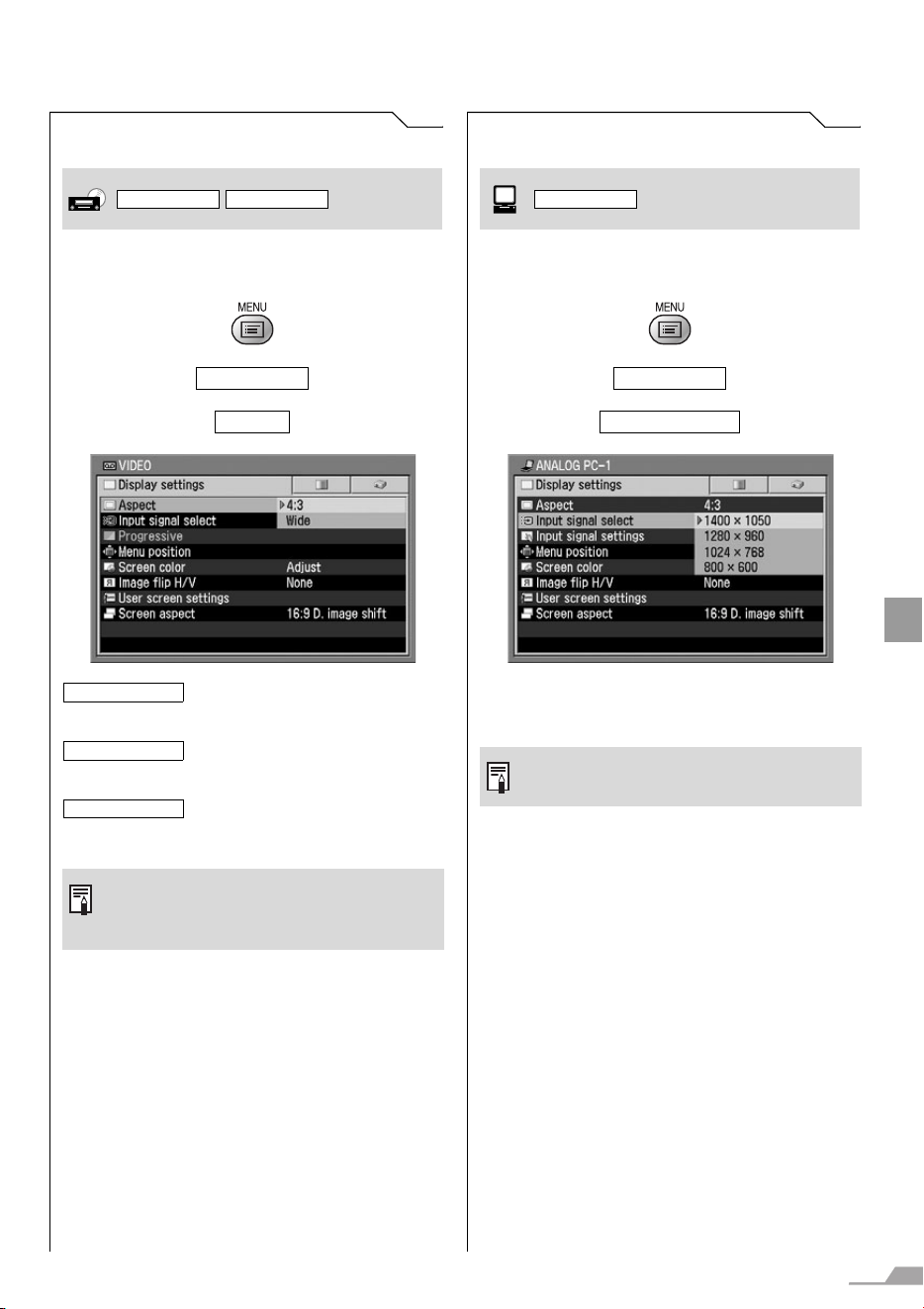

Selecting a Screen Mode (Aspect) ................................................................................ 57

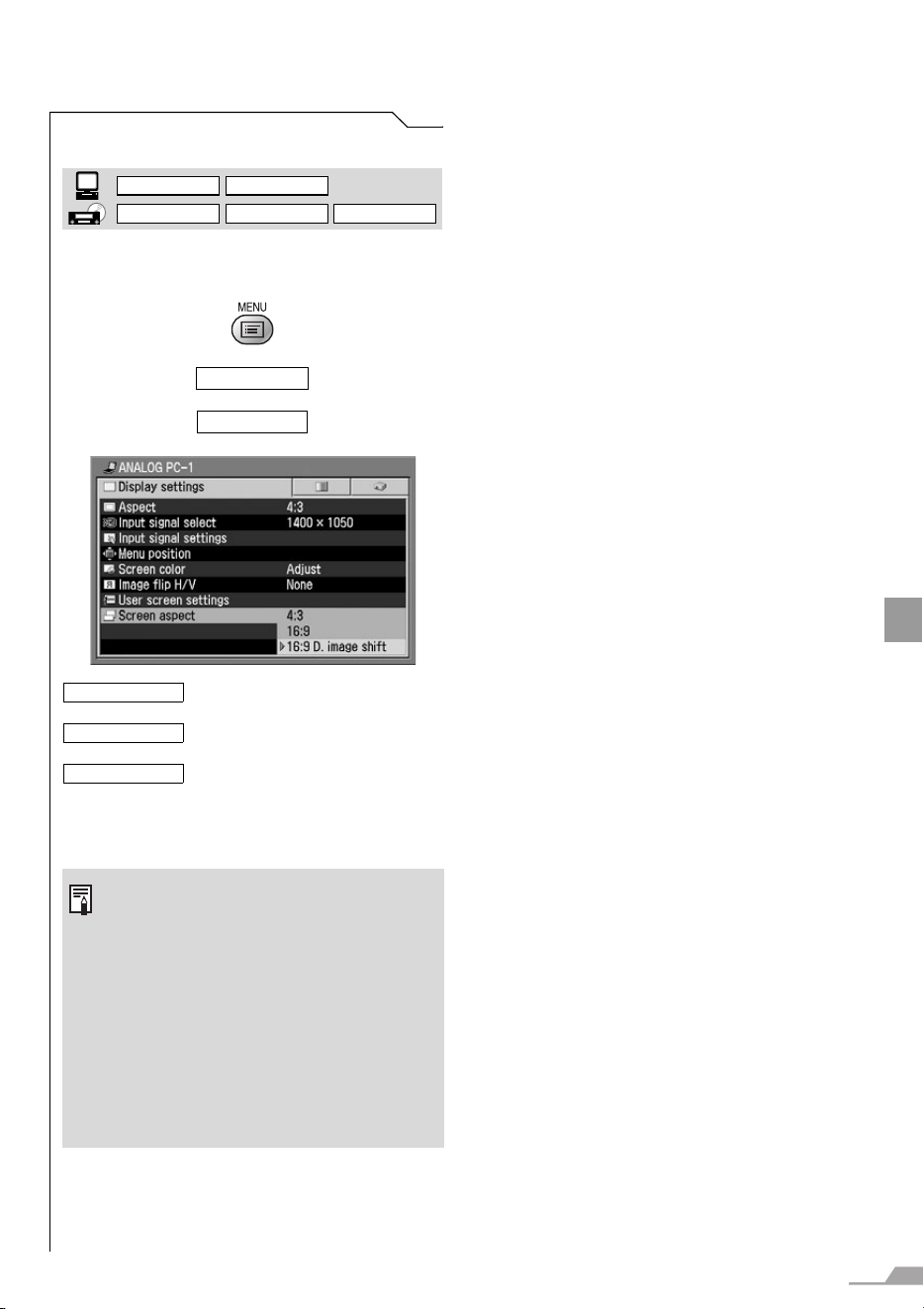

Selecting Aspect Ratio of the Projecting Image (Screen aspect).................................. 59
Turning Off the Projector ................................................................................................ 60
Projecting an Image from AV Equipment ............................................................. 64
Connecting the Projector to an AV Equipment............................................................... 64
Projecting a Video Image from an AV Equipment.......................................................... 69

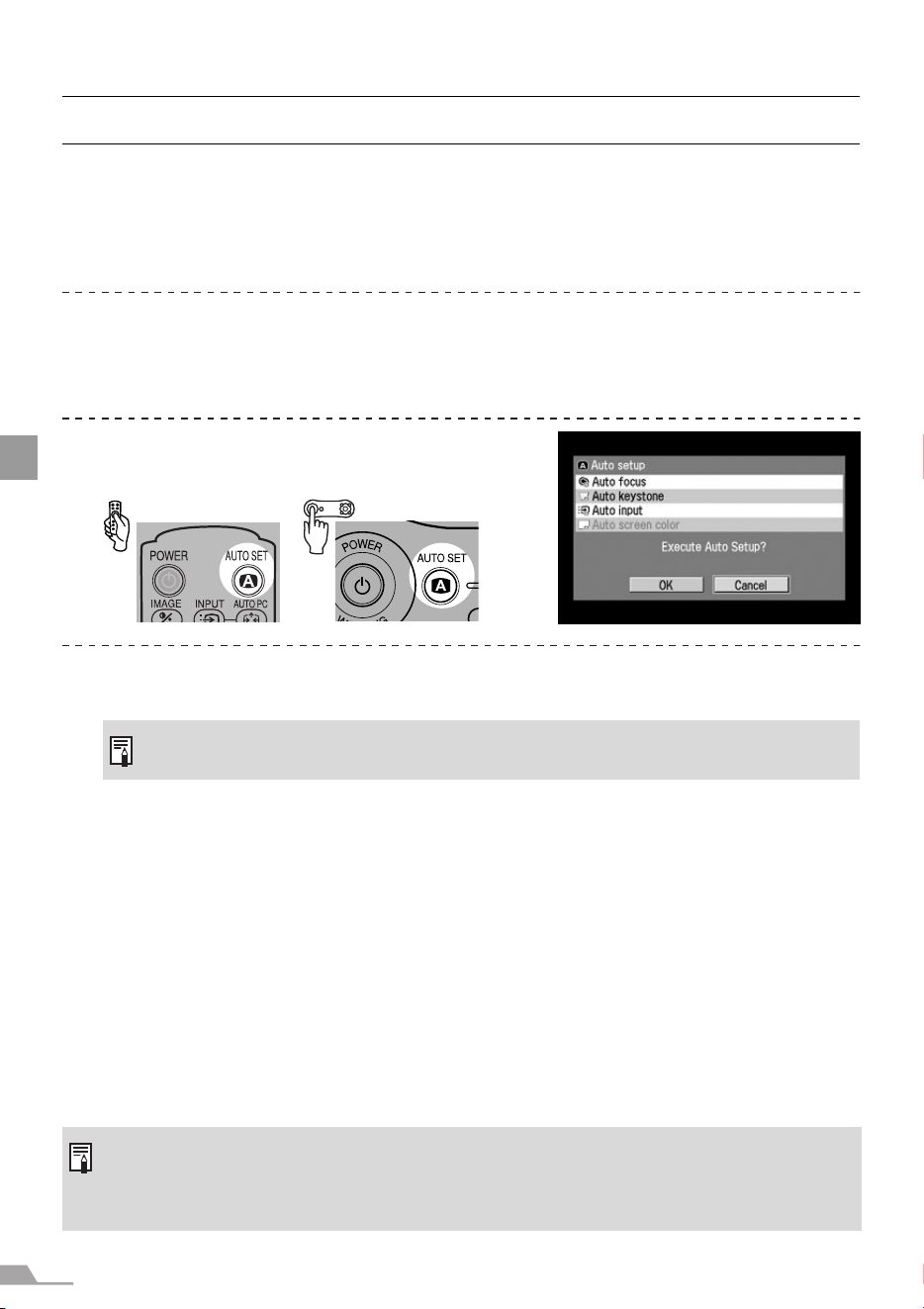

Performing the Auto Setup ............................................................................................. 70
Selecting a Screen Mode (Aspect) ................................................................................ 73
Selecting Aspect Ratio of the Projecting Image (Screen aspect).................................. 74
5
TABLE OF CONTENTS
Useful Functions Available During a Presentation ............................................... 78

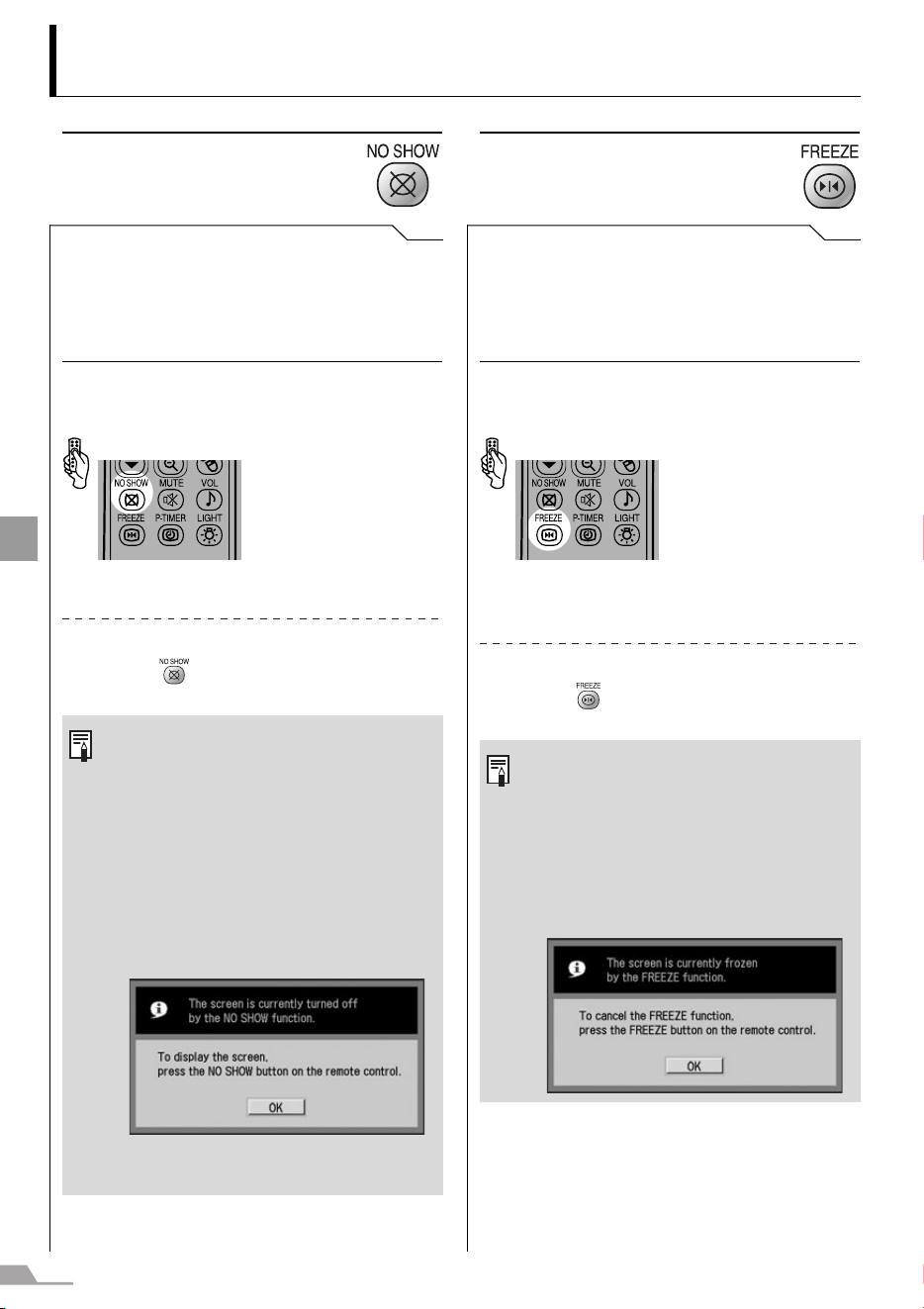

Blackened Out an Image Temporarily ........................................................................... 78
Freezing the Picture ....................................................................................................... 78

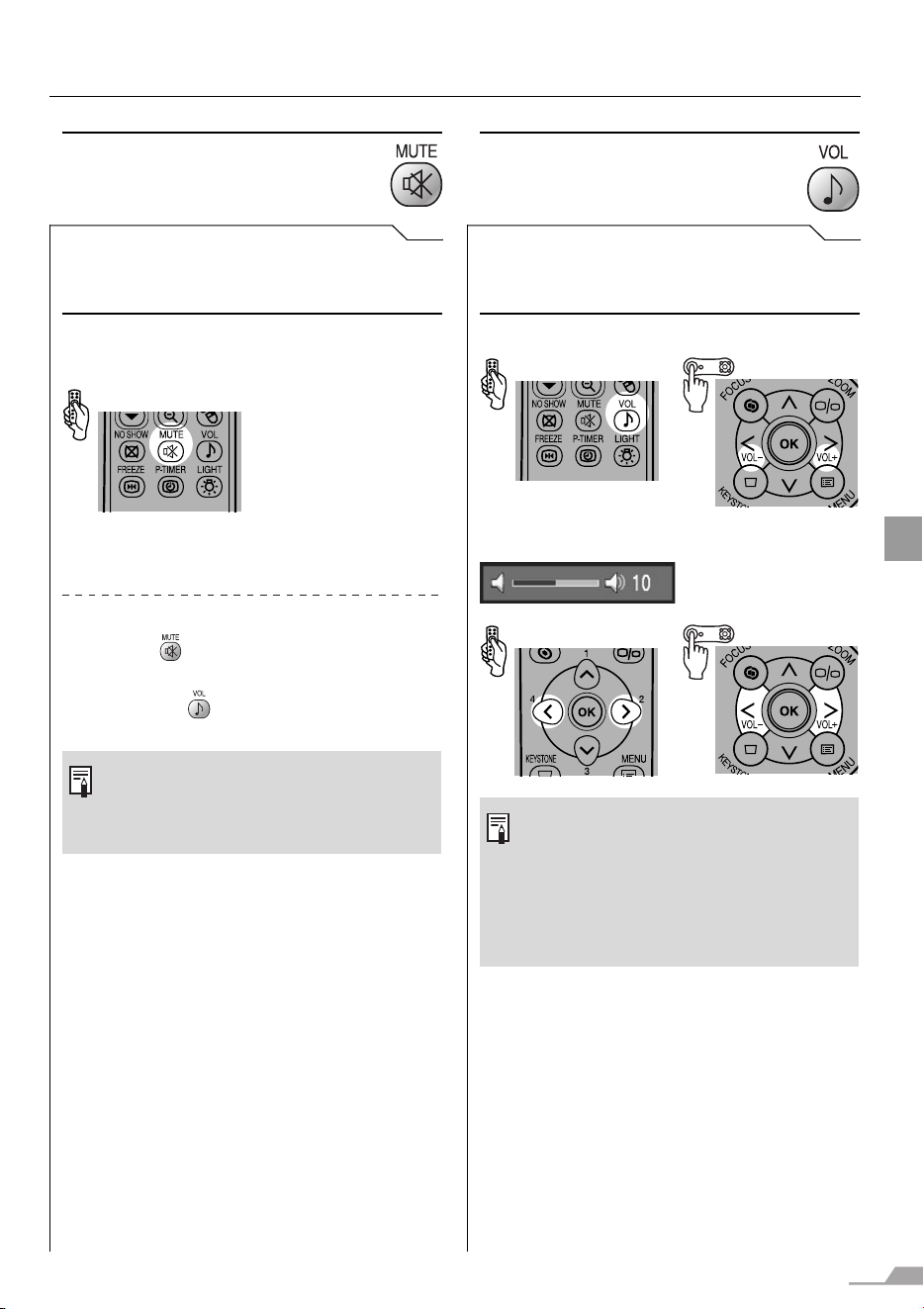

Muting the Sound ........................................................................................................... 79
Adjusting the Volume ..................................................................................................... 79

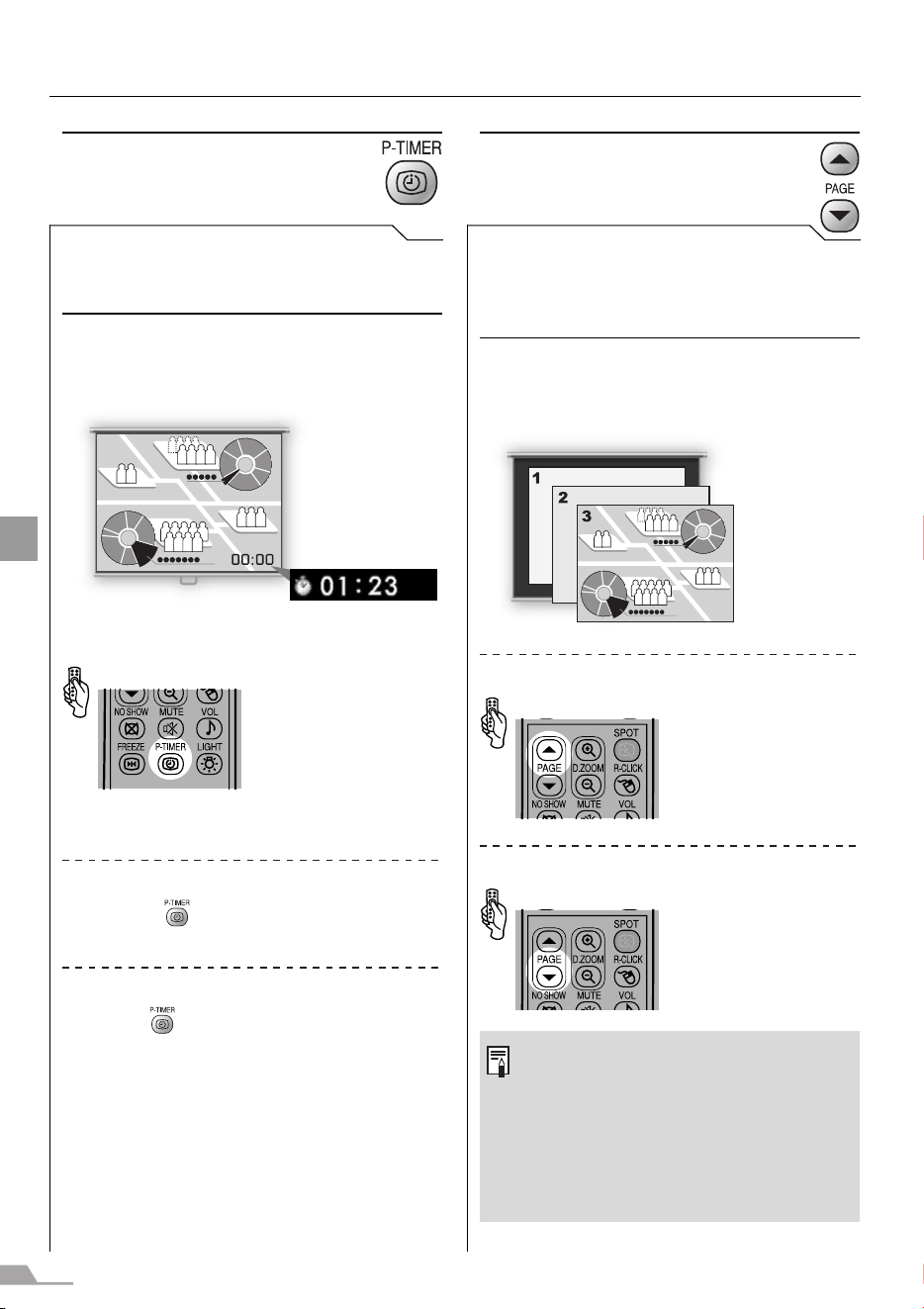

Showing the Elapsed Time............................................................................................. 80
Page Up or Down through the Pages ............................................................................ 80

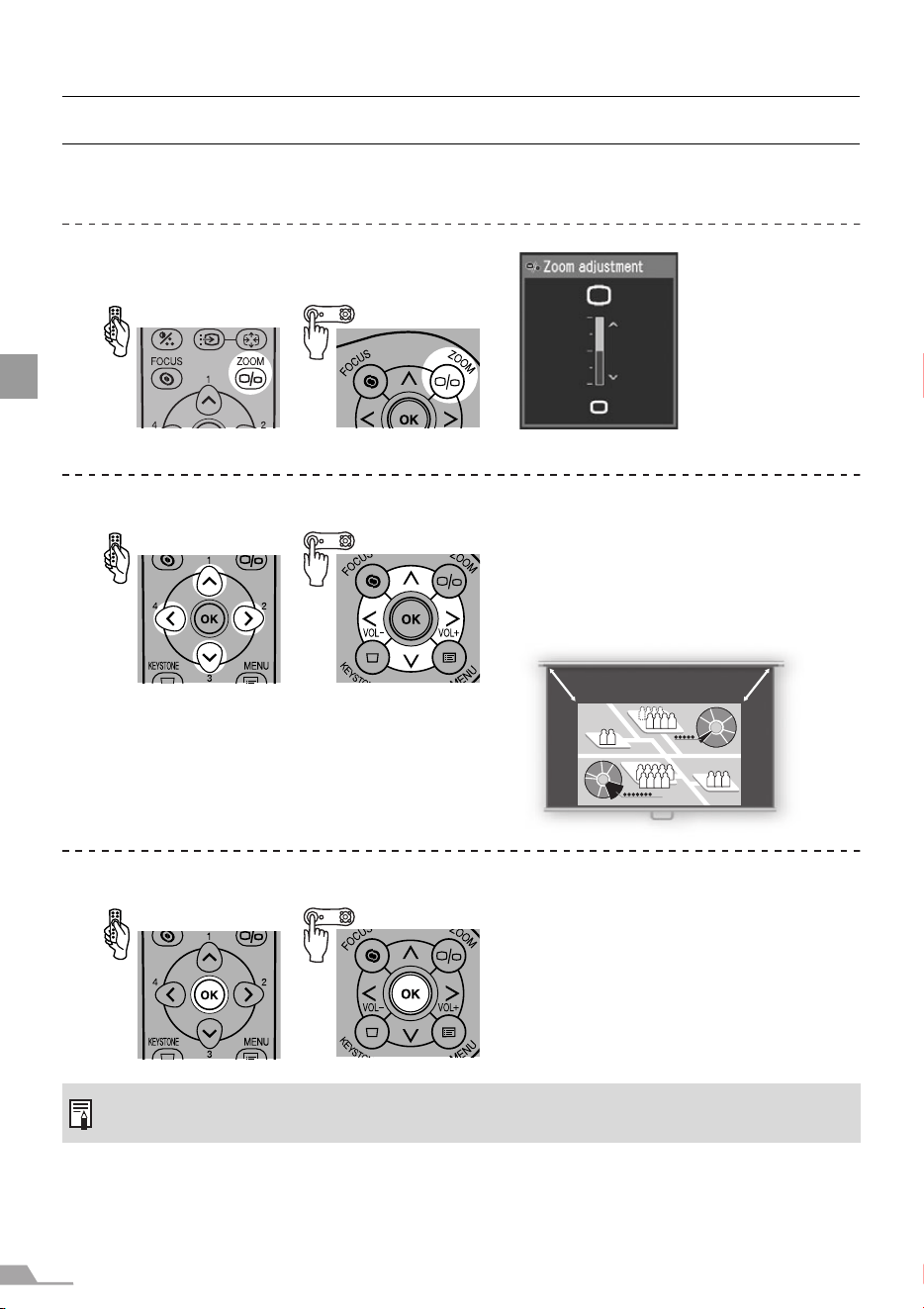

Zooming an Image ......................................................................................................... 81

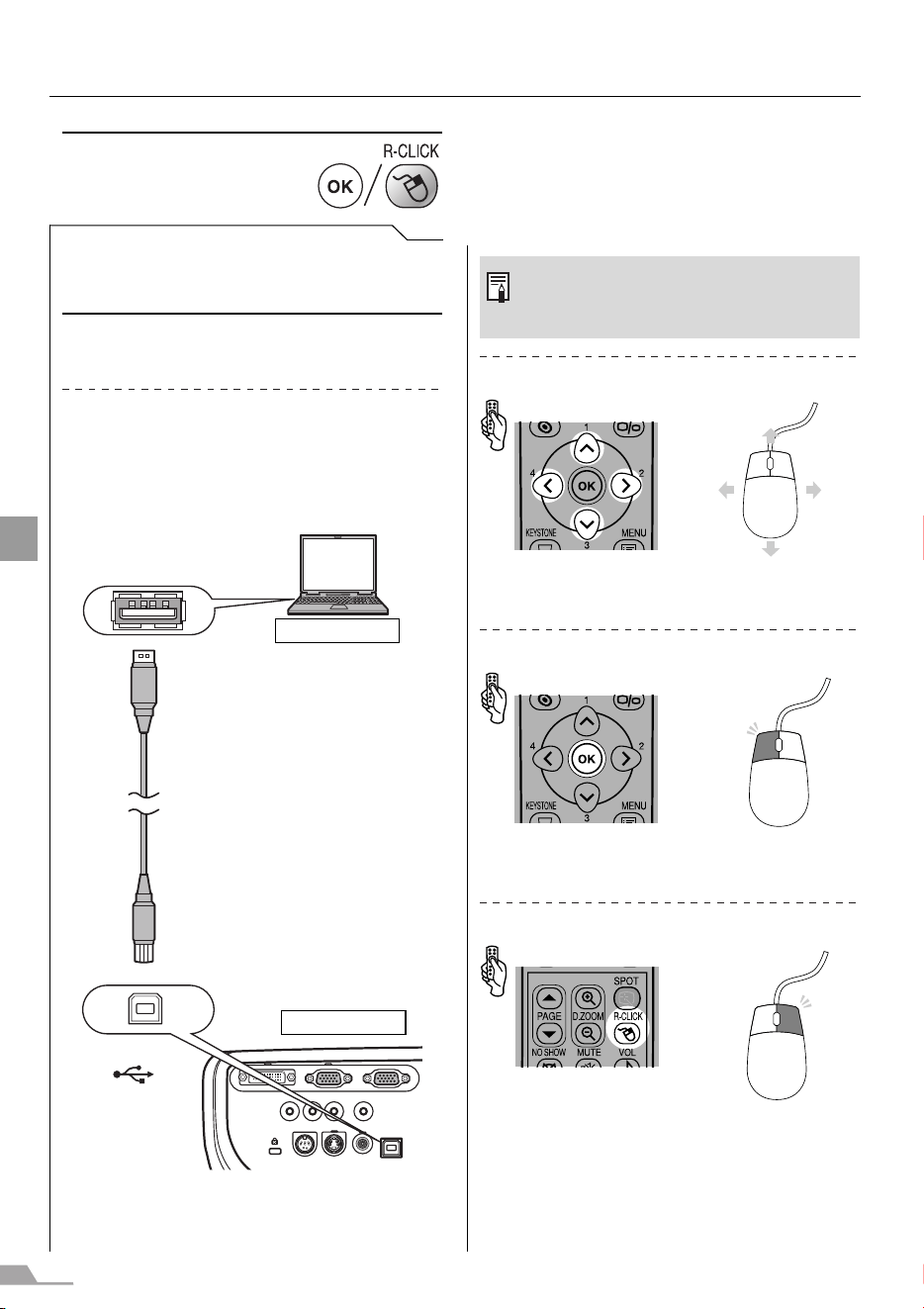

Operating a Mouse with the Remote Control ................................................................. 82

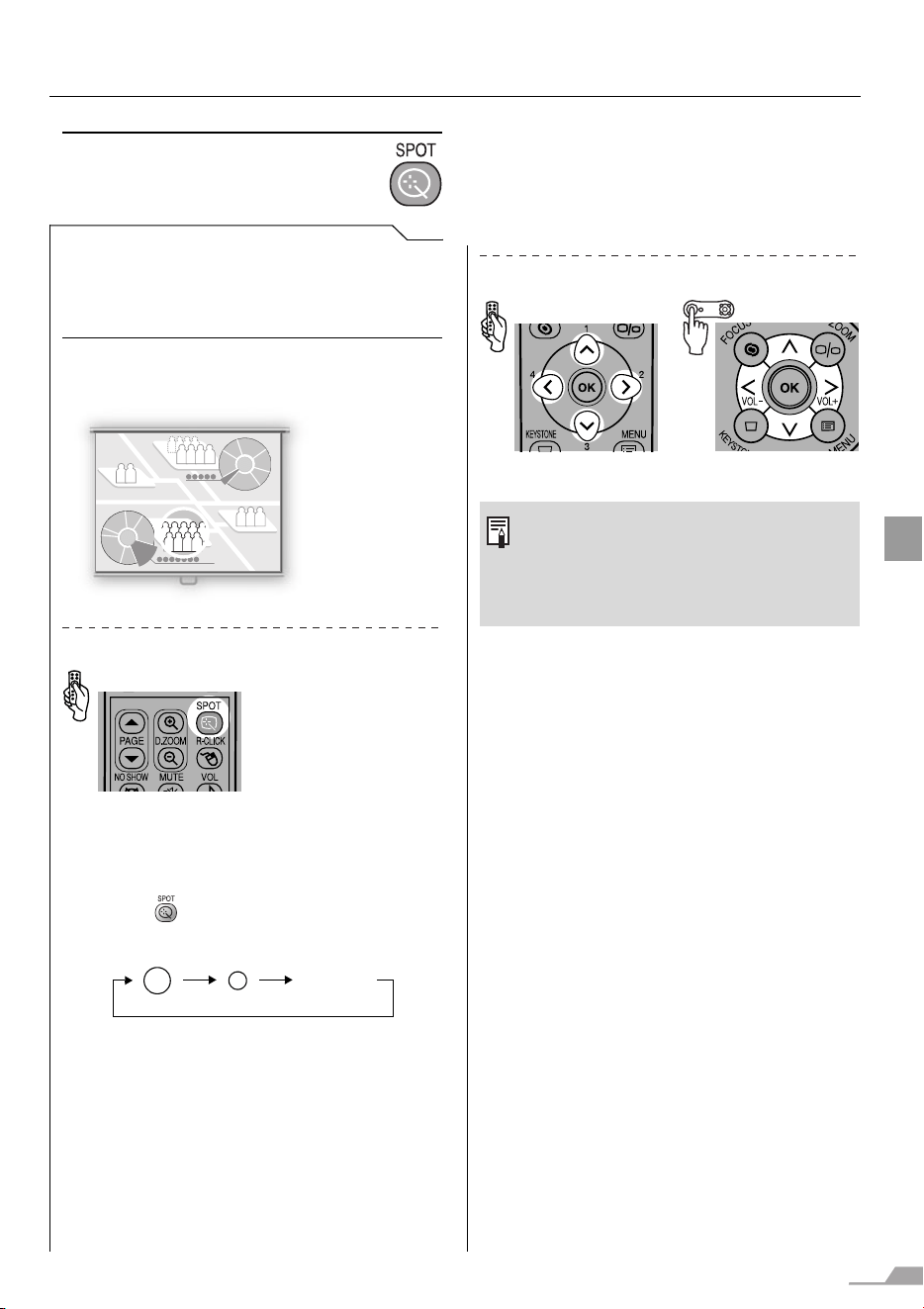

Pointing with a Spotlight ................................................................................................. 83
Setting Up Functions from Menus ........................................................................ 86

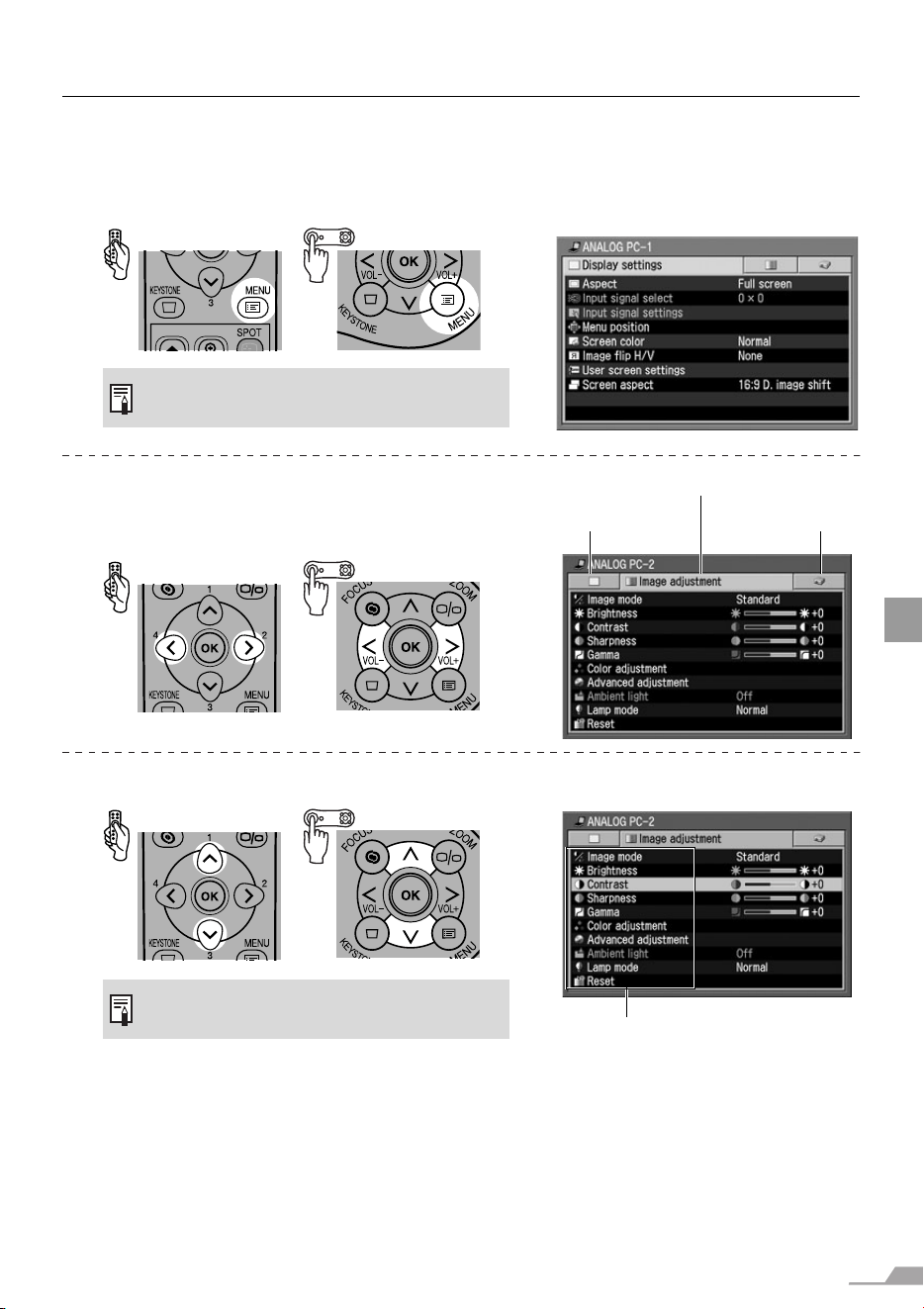

How to Use Menus ......................................................................................................... 86
Setting Display Status .......................................................................................... 90
Selecting a Screen Mode (1).......................................................................................... 90
Selecting a Screen Mode (2).......................................................................................... 90
Selecting a Screen Mode (3).......................................................................................... 91

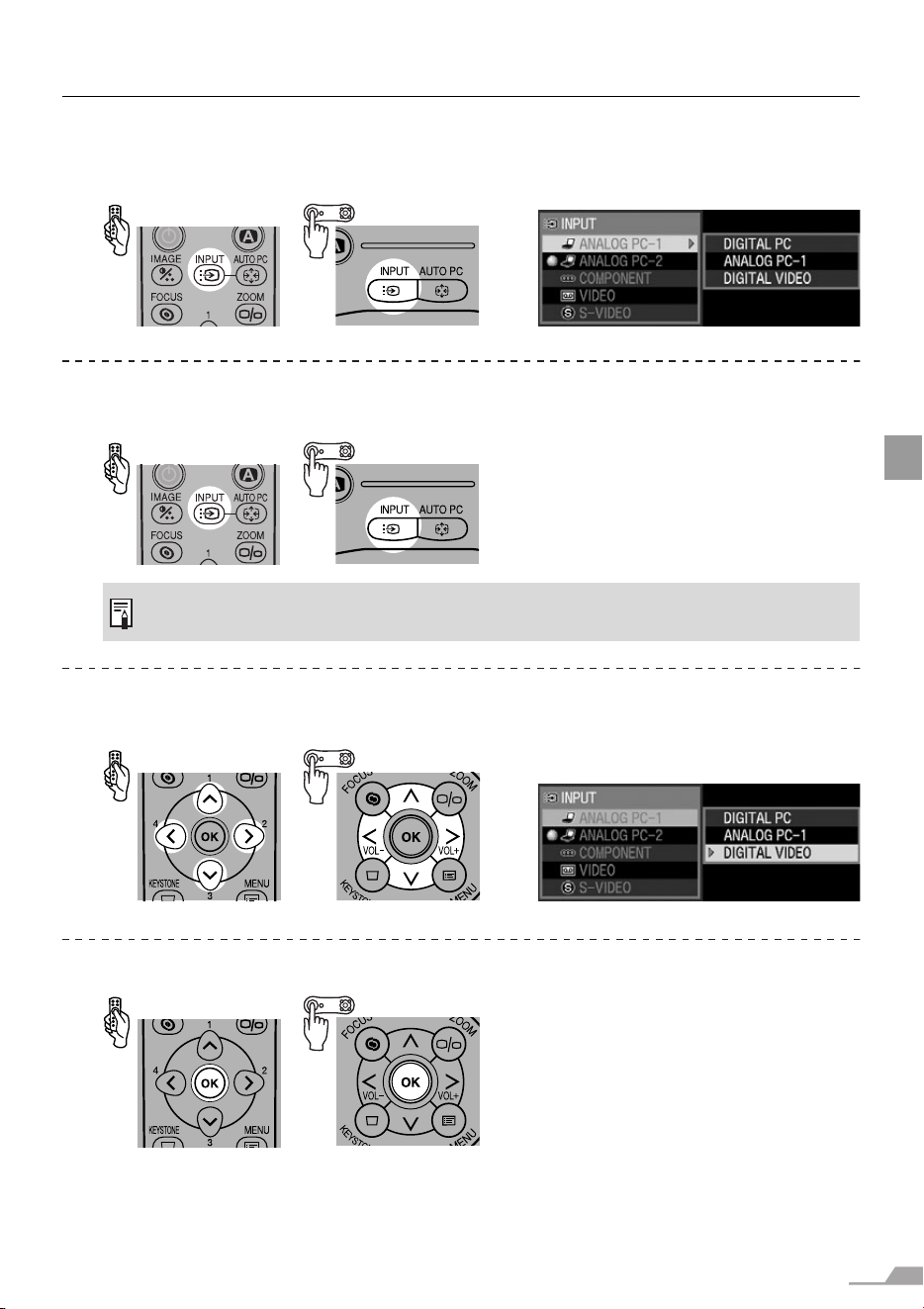

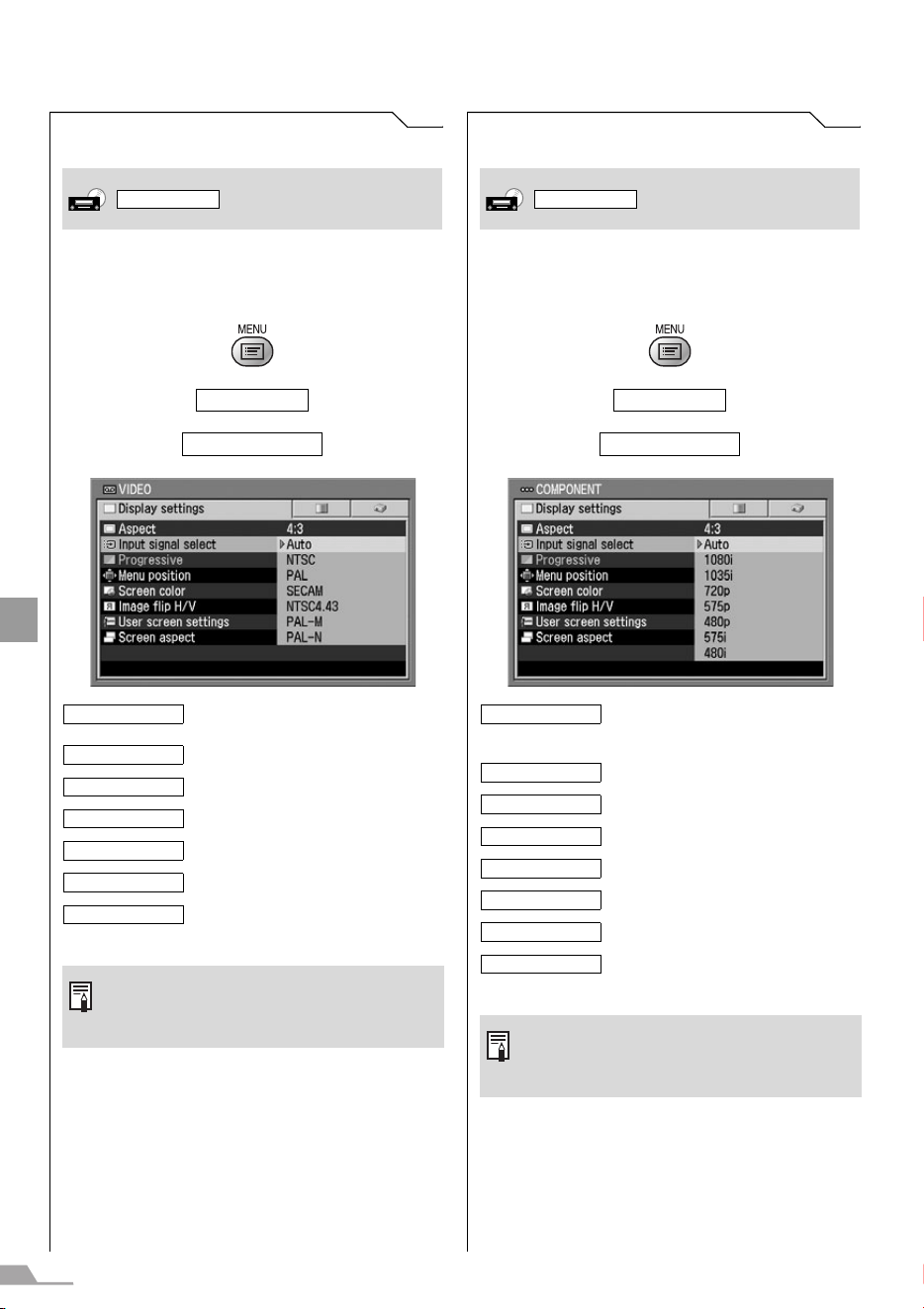

Selecting an Input Signal Type (1) ................................................................................. 91
Selecting an Input Signal Type (2) ................................................................................. 92
Selecting an Input Signal Type (3) ................................................................................. 92

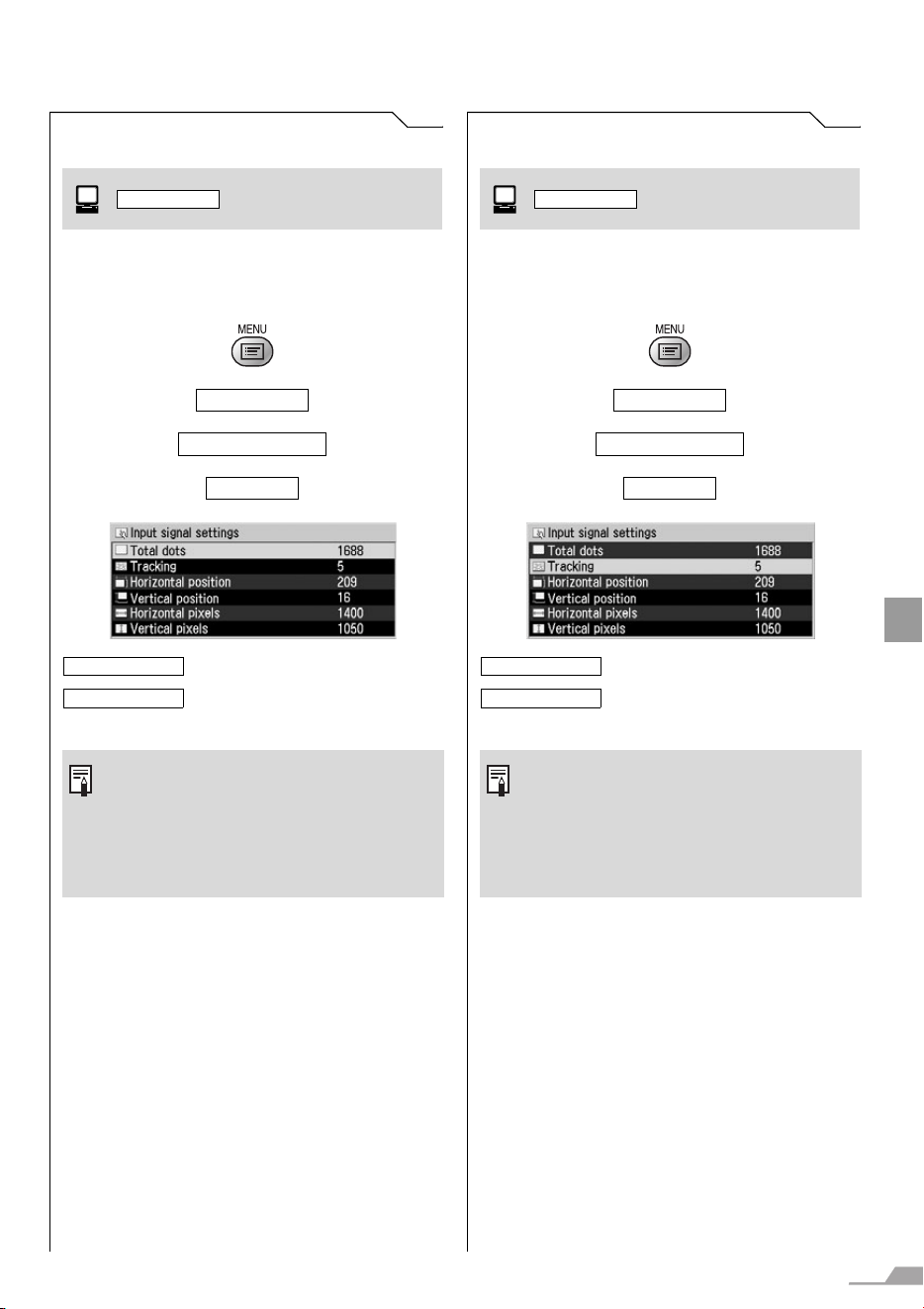

Adjusting the Total Number of Dots ............................................................................... 93
Adjusting the Tracking ................................................................................................... 93

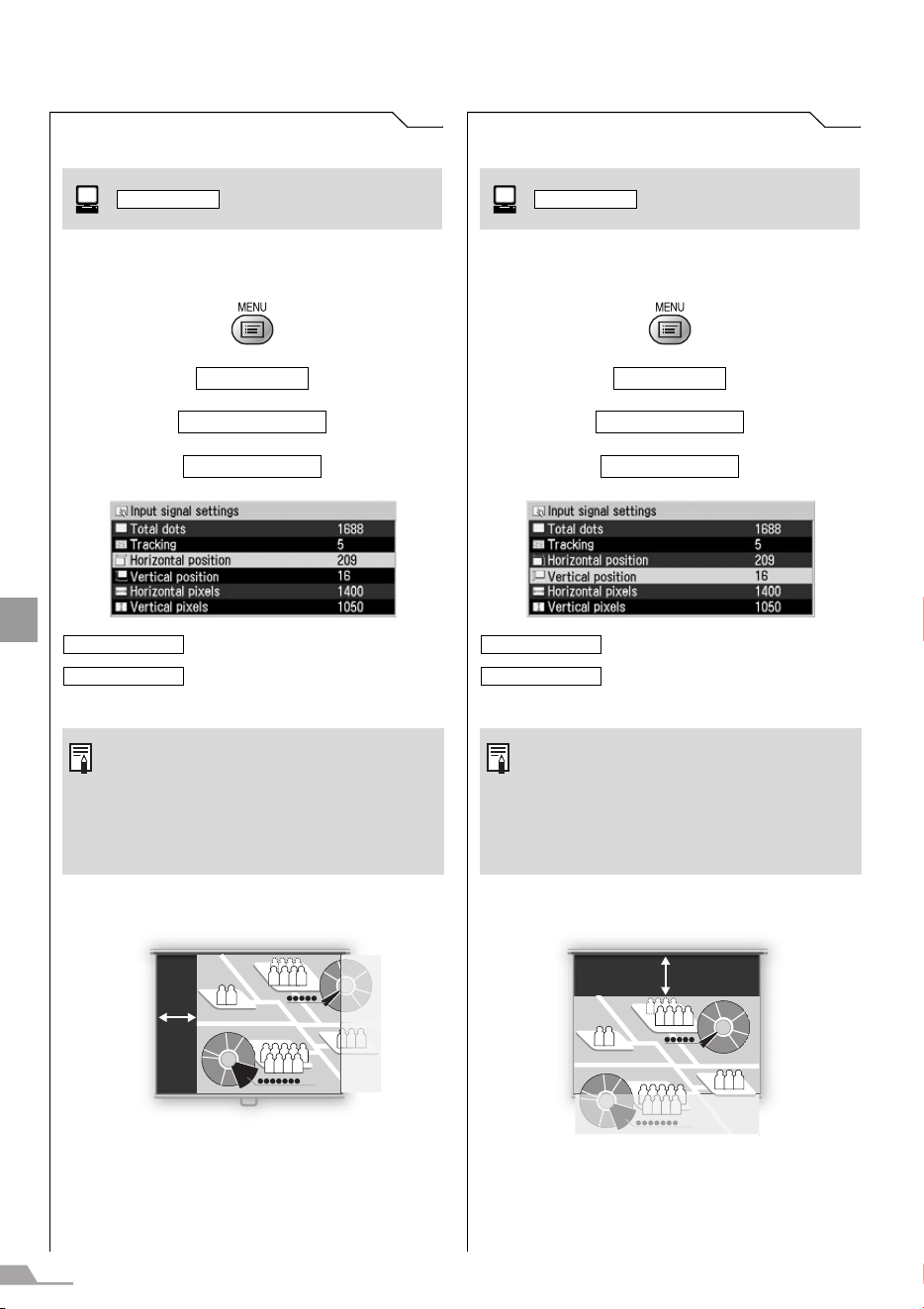

Adjusting the Horizontal Position.................................................................................... 94
Adjusting the Vertical Position........................................................................................ 94
Adjusting the Number of Horizontal Pixels..................................................................... 95
Adjusting the Number of Vertical Pixels ......................................................................... 95
Performing Progressive Processing ............................................................................... 96
Selecting a Menu Position .............................................................................................. 96
Performing the Ceiling-mounted/Rear Projection........................................................... 97

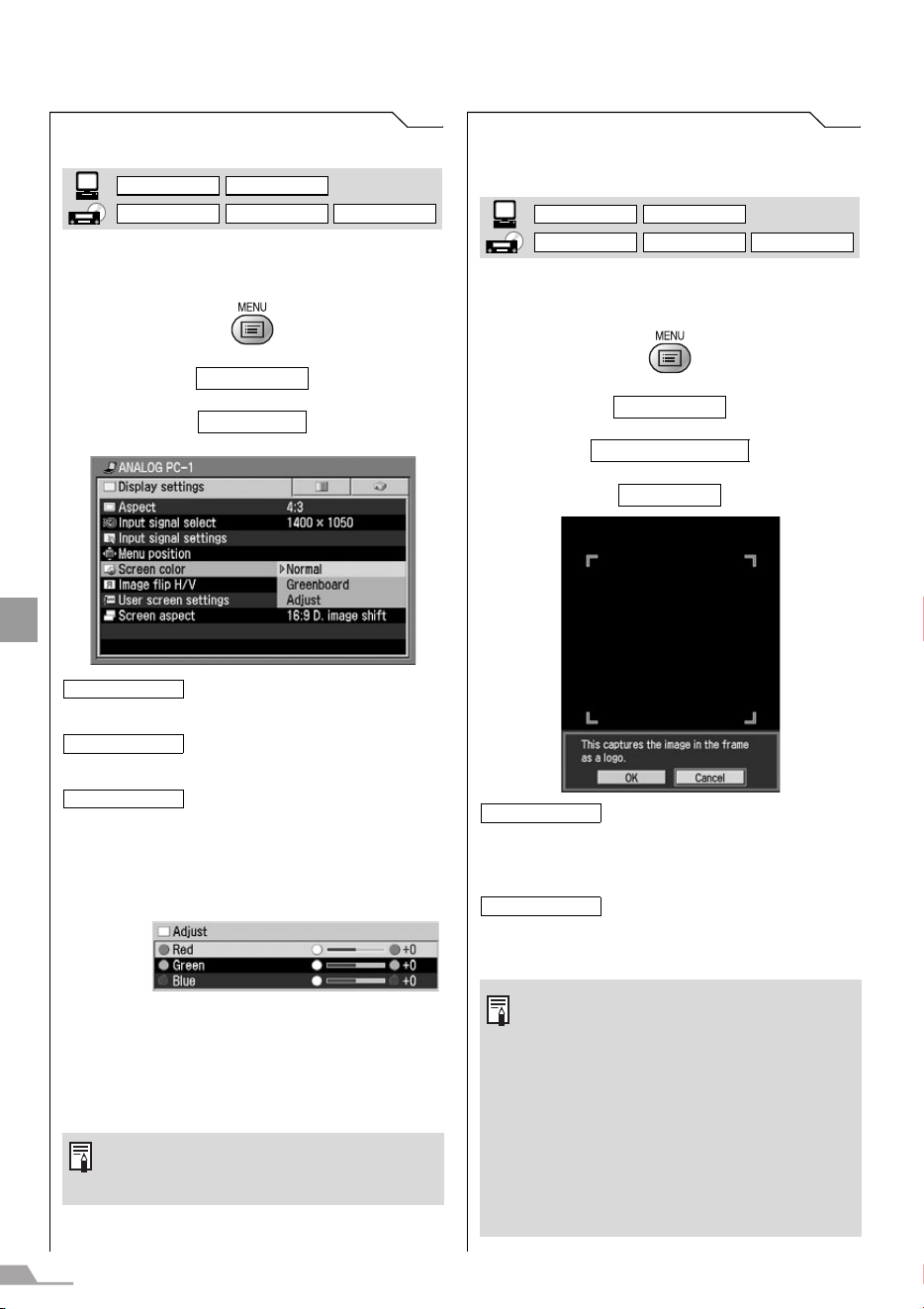

Correcting the Screen Color........................................................................................... 98
Capturing a Logo to Be Projected (SX60)...................................................................... 98

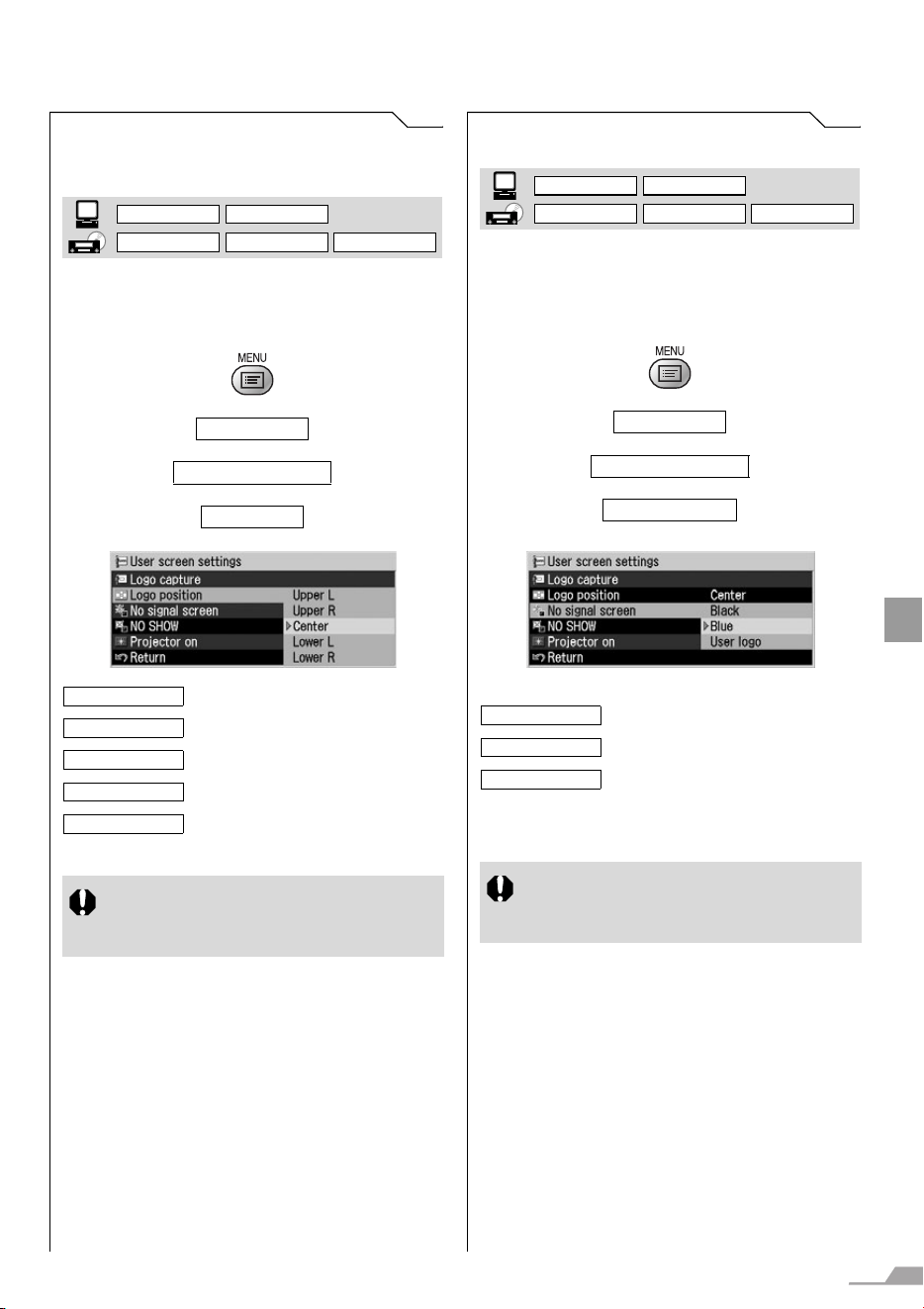

Selecting a Logo Display Position (SX60) ...................................................................... 99
Displaying a Logo (No signal screen)............................................................................ 99

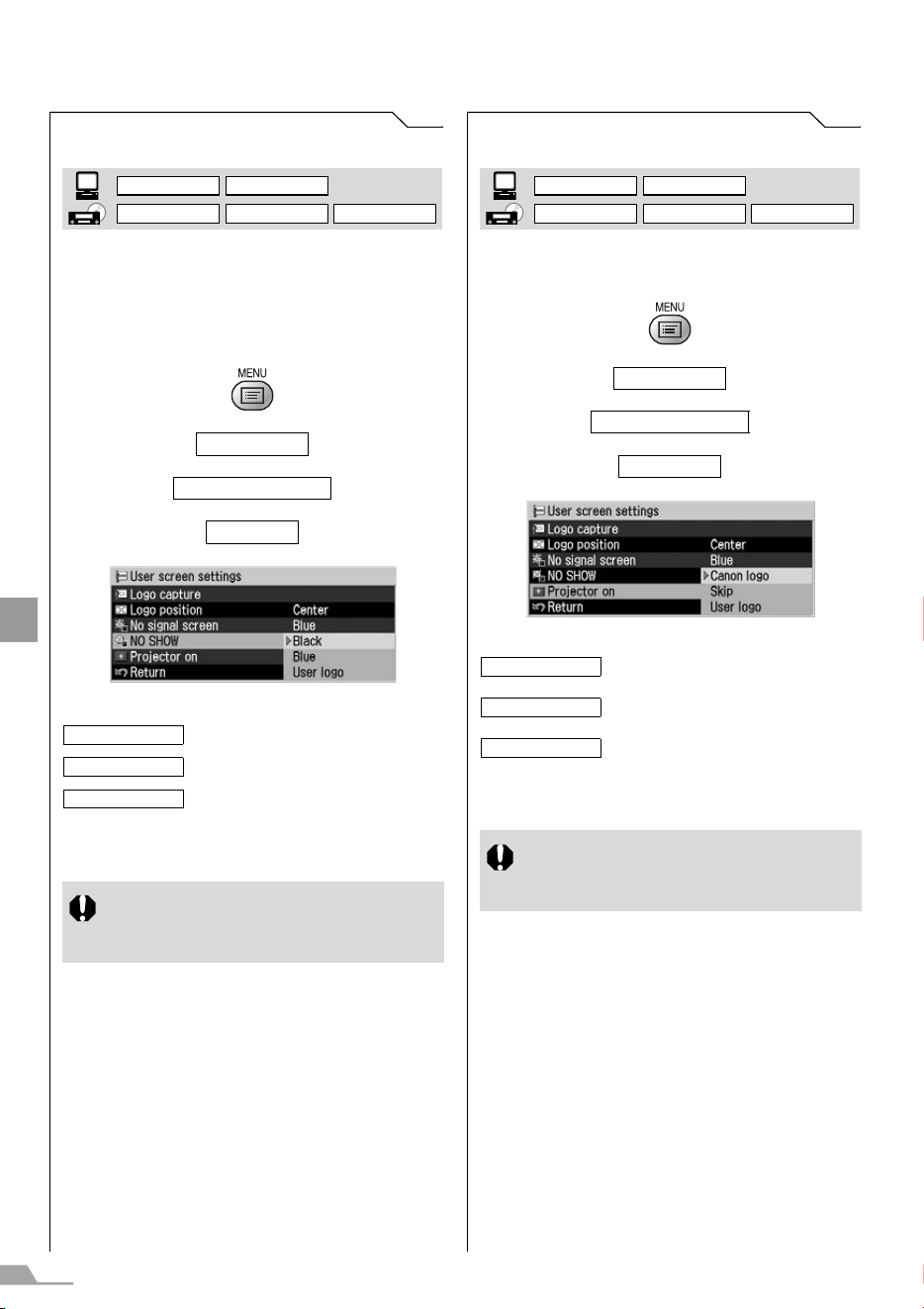

Displaying a Logo (NO SHOW).................................................................................... 100
Selecting a Logo at Startup.......................................................................................... 100
Selecting Aspect Ratio of the Screen........................................................................... 101
Setting the Image Quality ................................................................................... 102
Selecting an Image Mode ............................................................................................ 102

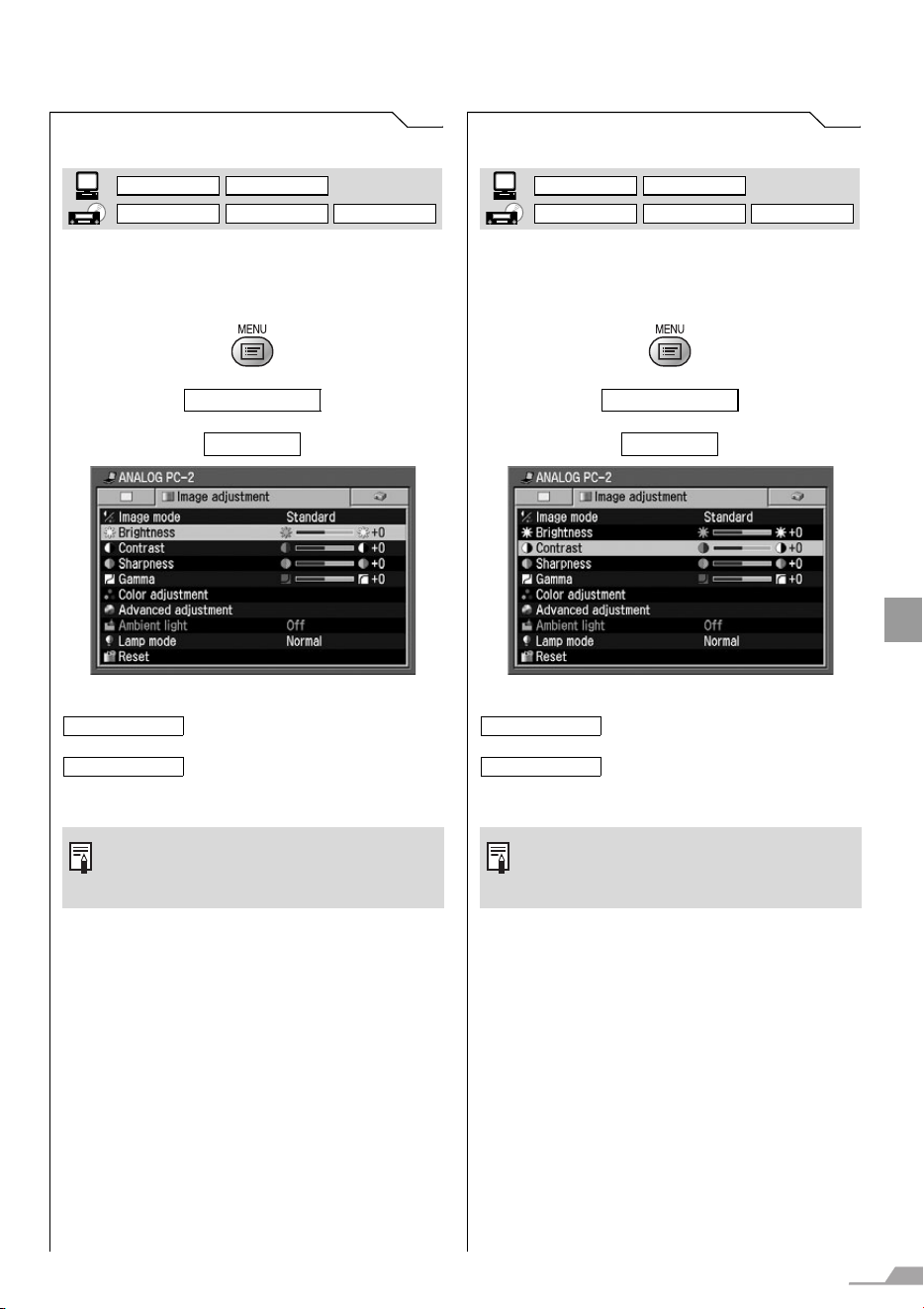

Adjusting the Brightness .............................................................................................. 103
Adjusting the Contrast.................................................................................................. 103
Adjusting the Sharpness .............................................................................................. 104
Making a Gamma Correction ....................................................................................... 104
Making Color Adjustment (1) (SX7 II)........................................................................... 105
Making Color Adjustment (2)........................................................................................ 105
Making Color Adjustment (3)........................................................................................ 106

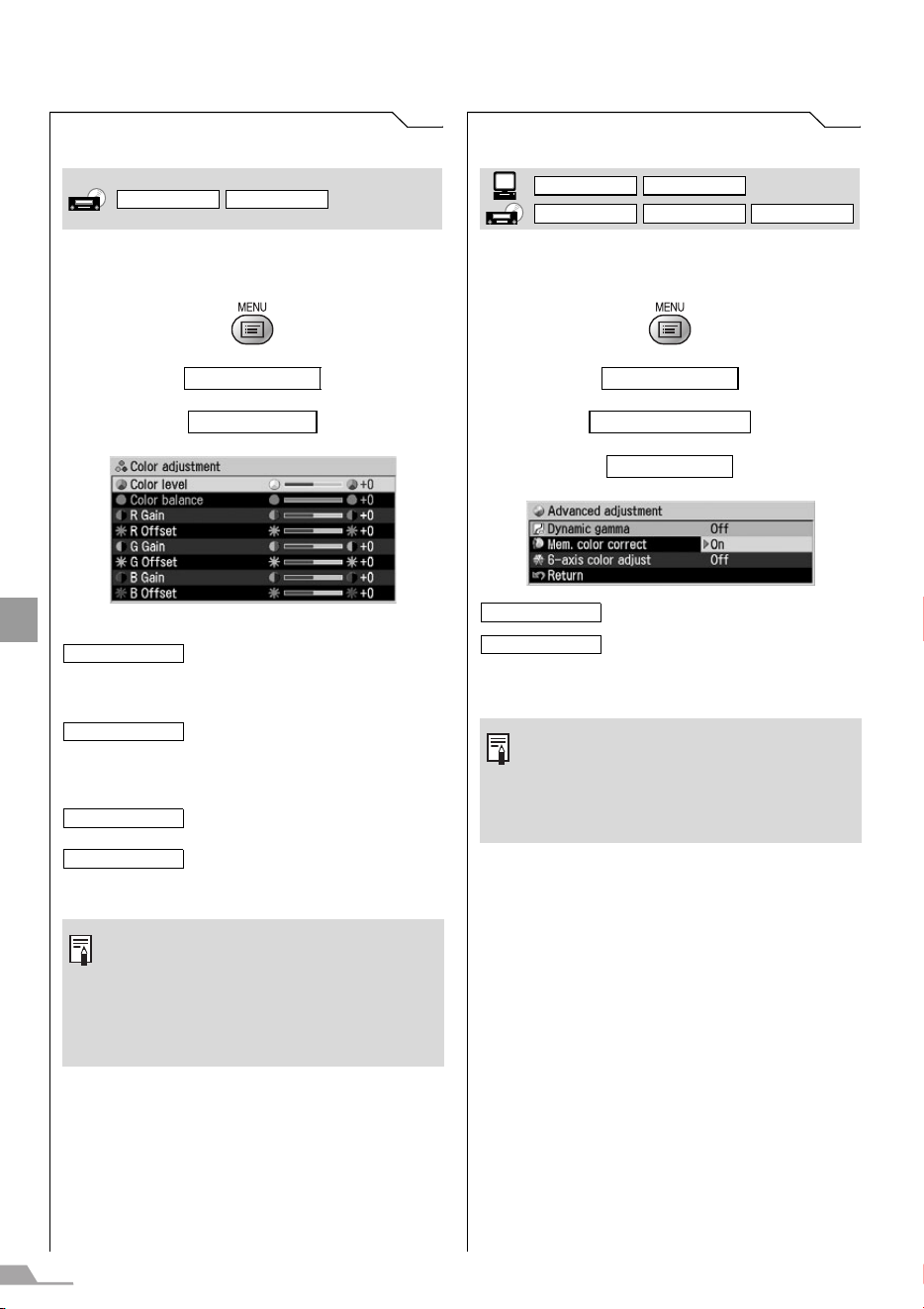

Making Advanced Color Adjustment (1) ...................................................................... 106
6
TABLE OF CONTENTS

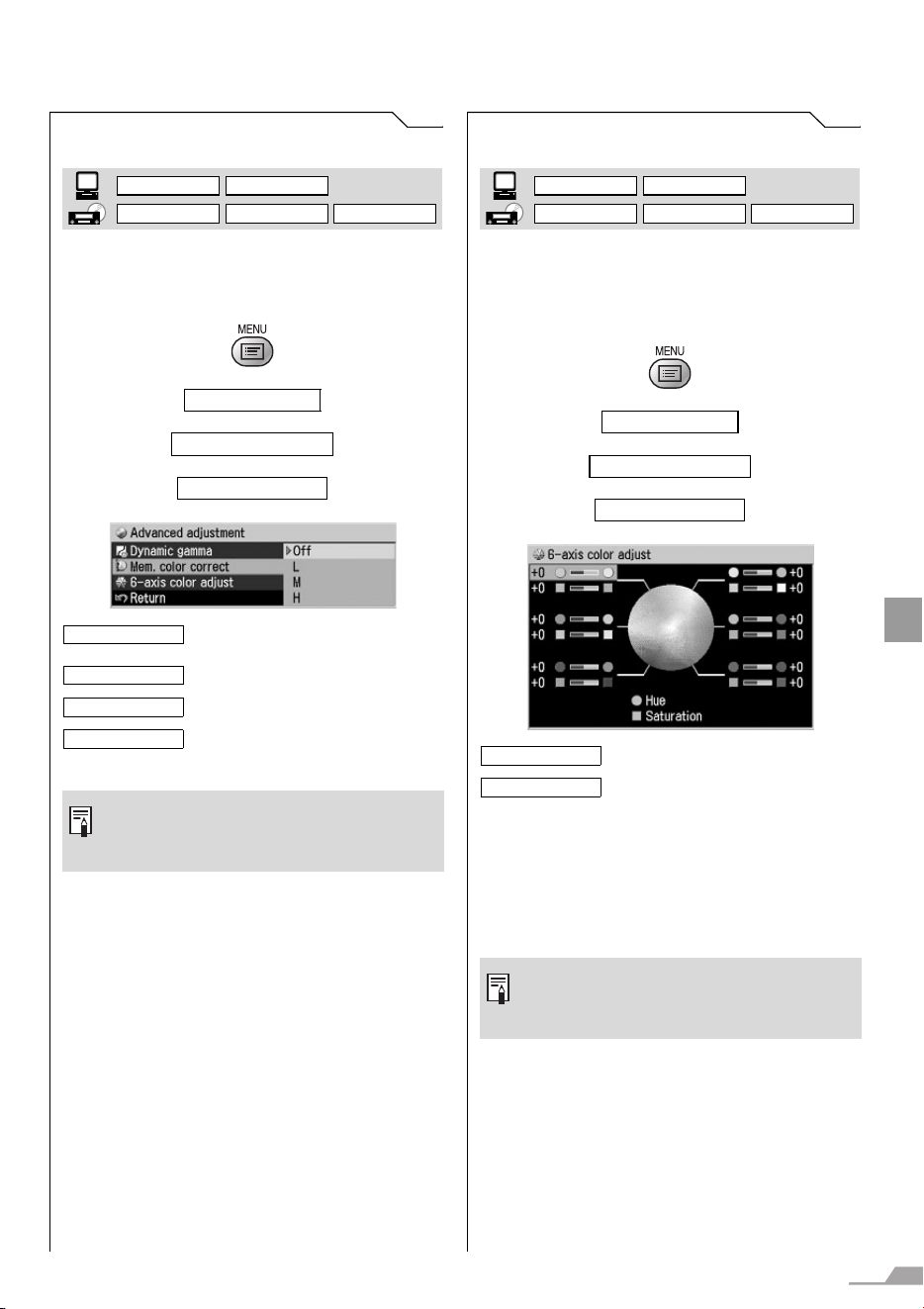

Making Advanced Color Adjustment (2) ...................................................................... 107
Making Advanced Color Adjustment (3) ...................................................................... 107
Correcting the Image According to the Ambient Light (SX7 II) ................................... 108

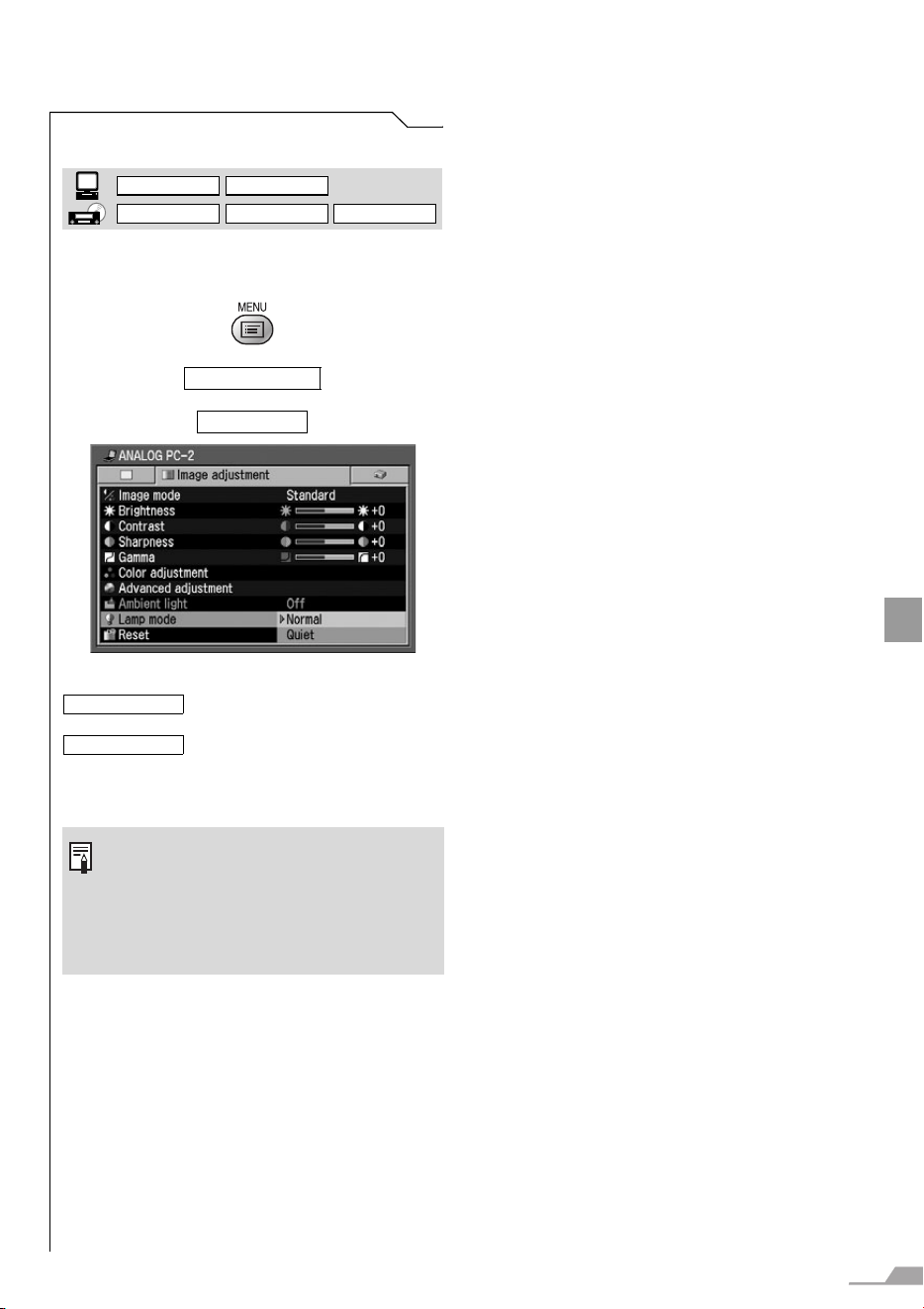

Reducing the Lamp Brightness.................................................................................... 109
Resetting the Image Settings ....................................................................................... 110
Setting Various Function .................................................................................... 111
Setting Auto Setup Function......................................................................................... 111
Selecting the Power Management Mode ..................................................................... 111

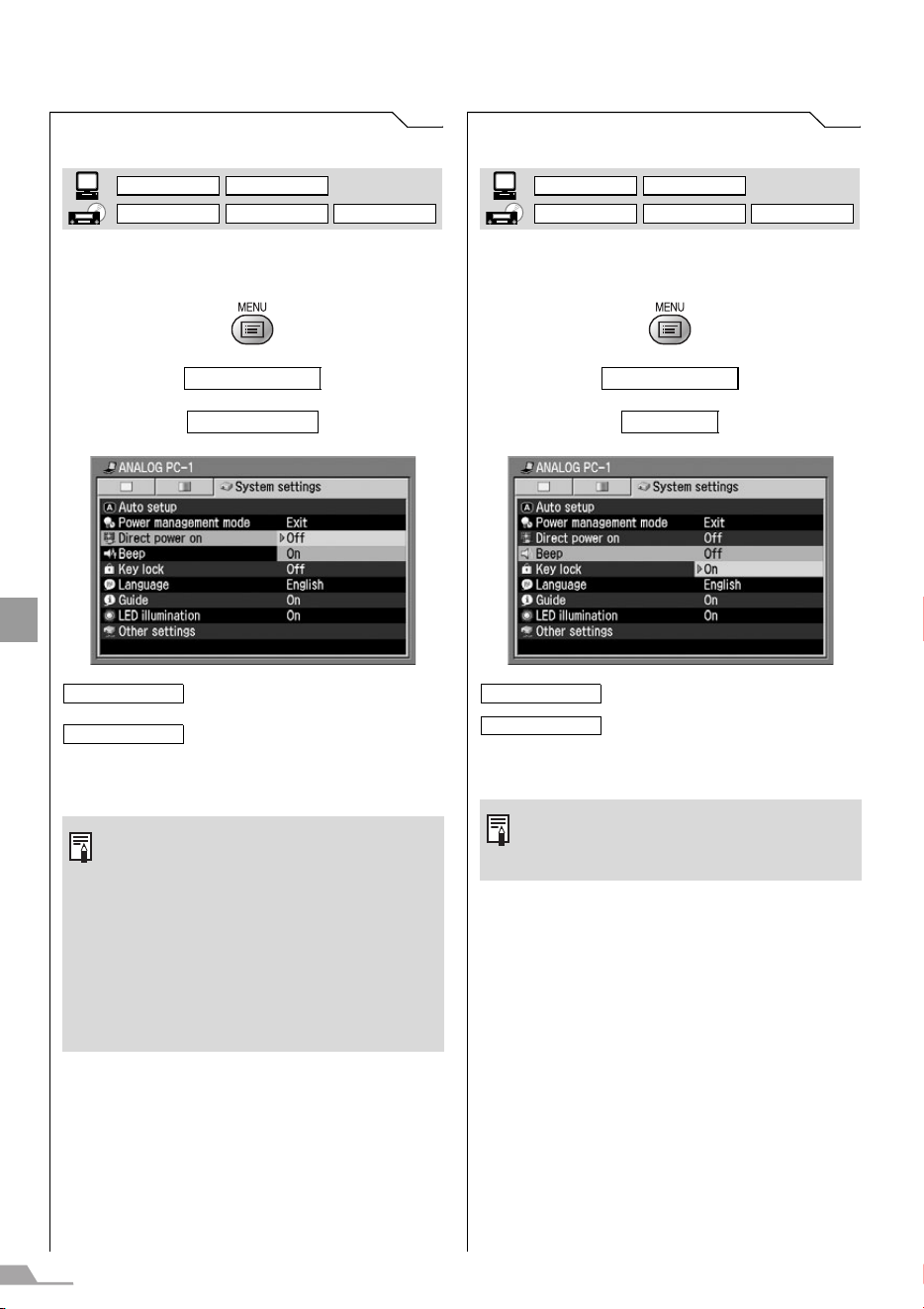

Skip the POWER Button Operation .............................................................................. 112
Enabling/Disabling the Beep........................................................................................ 112

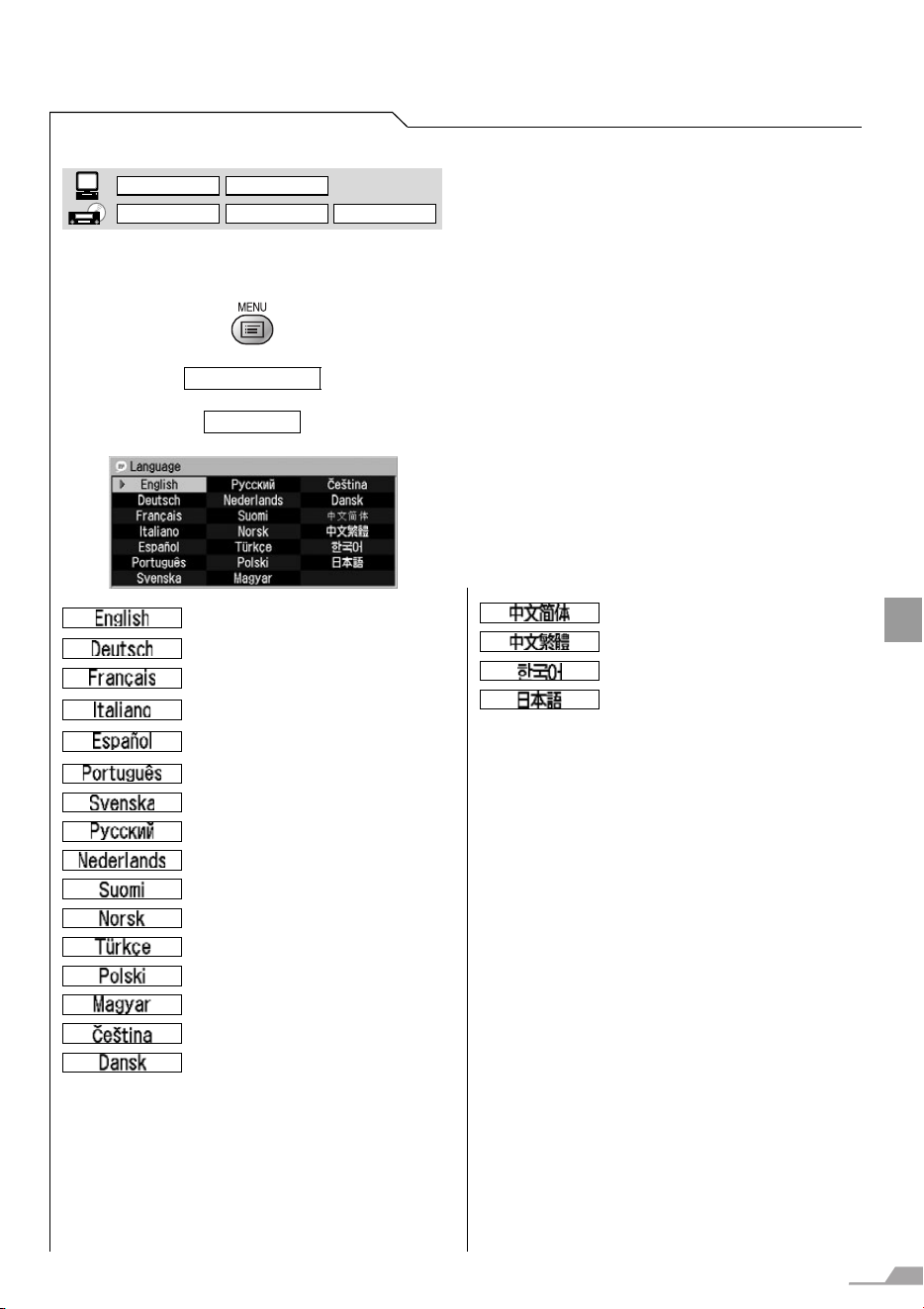

Selecting a Display Language ..................................................................................... 113

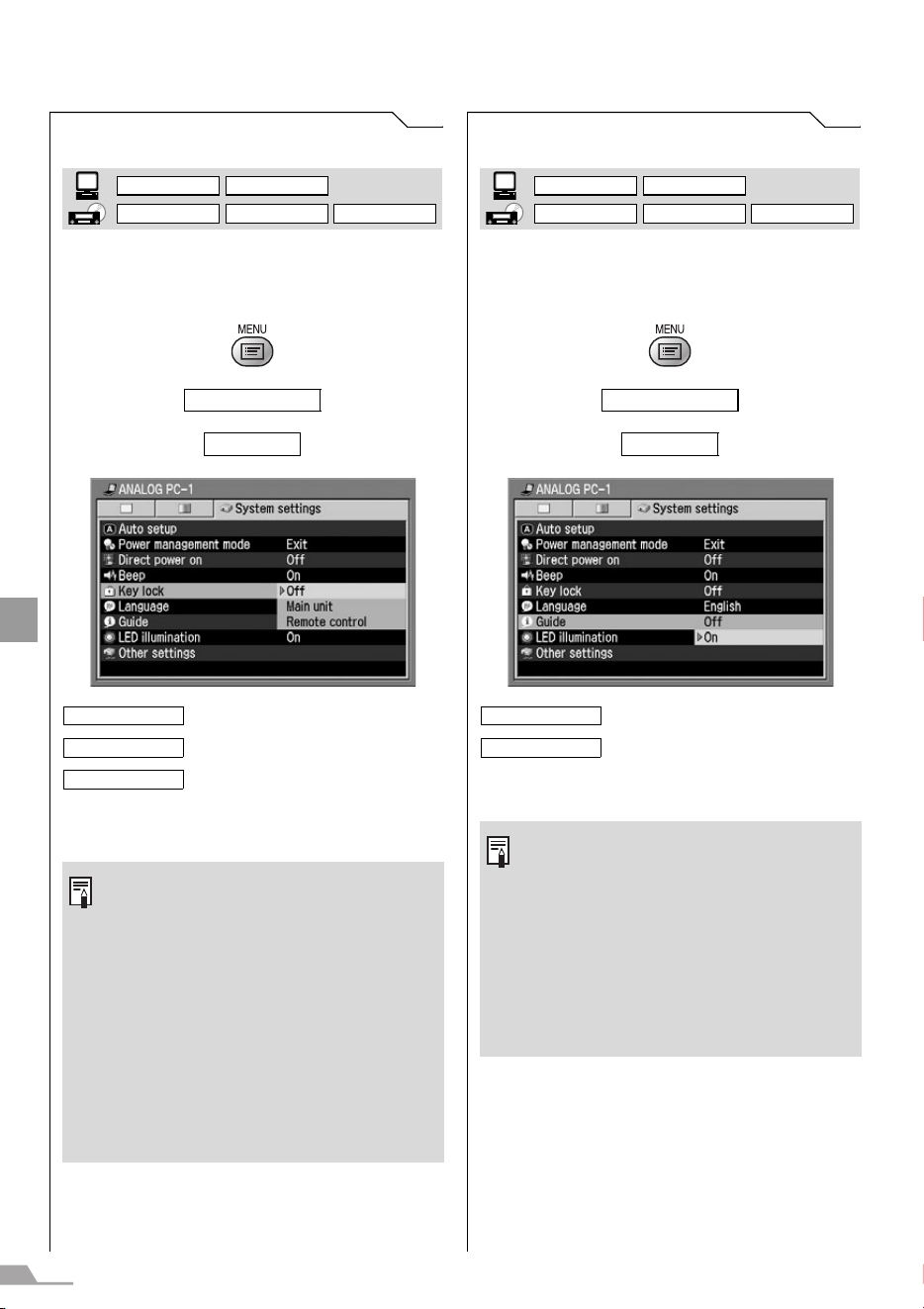

Prohibiting the Projector Operation .............................................................................. 114
Enabling/Disabling the Guide Message....................................................................... 114
Turning On/Off the LED Illumination............................................................................. 115
Setting up the Remote Control ..................................................................................... 115

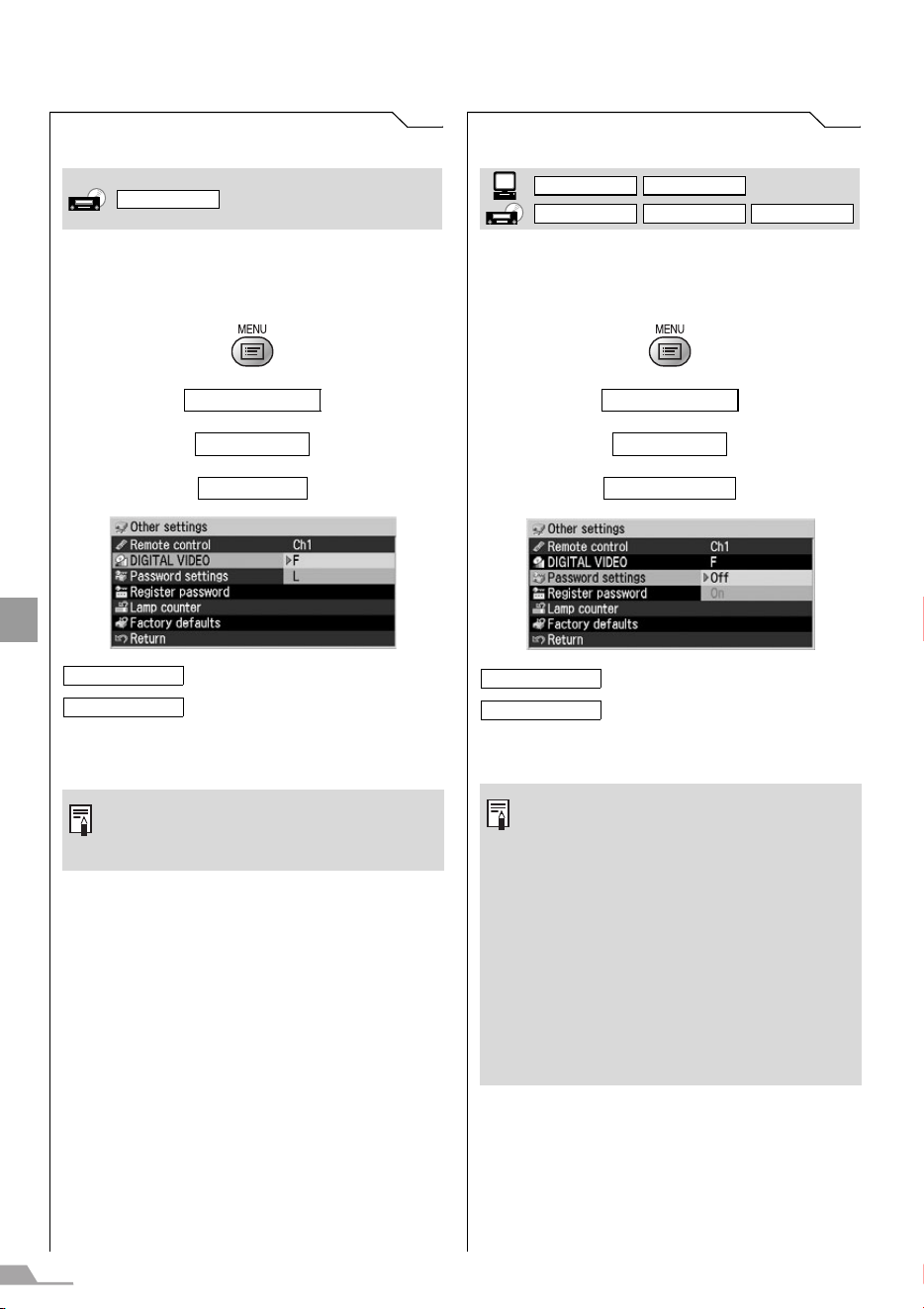

Setting up the Digital Video Input Signal ..................................................................... 116
Setting a Password....................................................................................................... 116

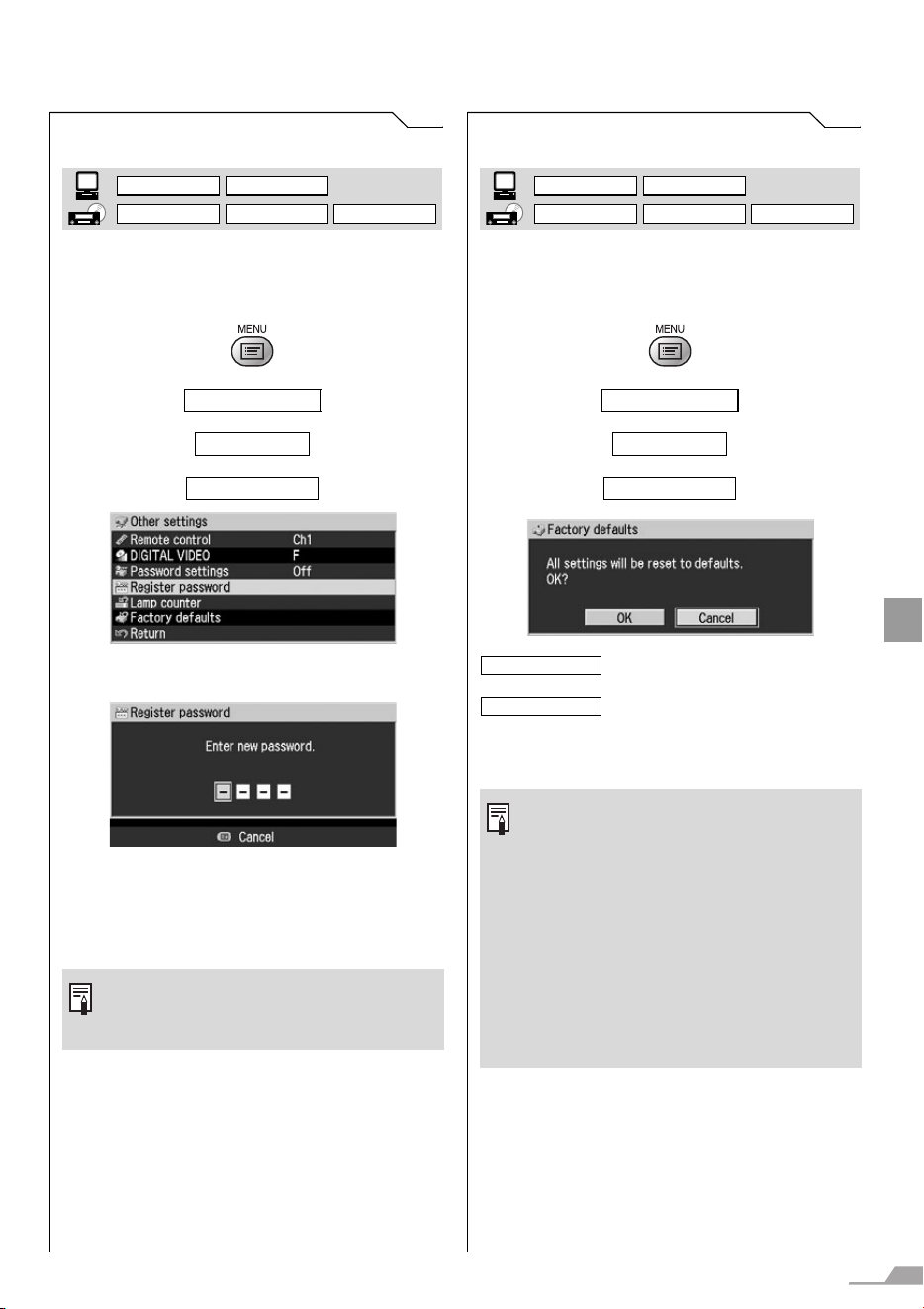

Registering a Password ............................................................................................... 117
Resetting to the Default Setting.................................................................................... 117

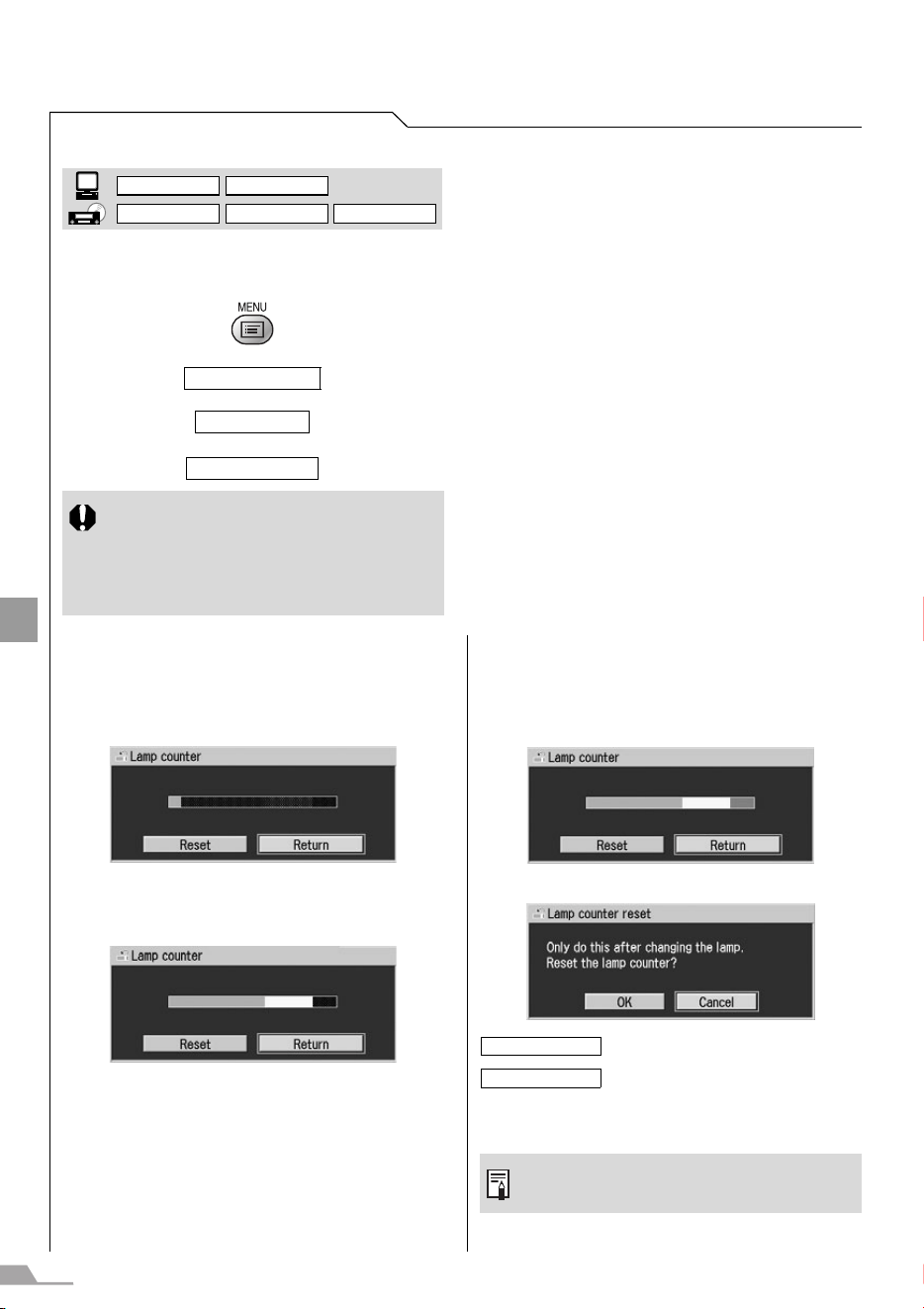

Resetting the Lamp Counter ........................................................................................ 118
Maintenance....................................................................................................... 120
Cleaning the Projector.................................................................................................. 120

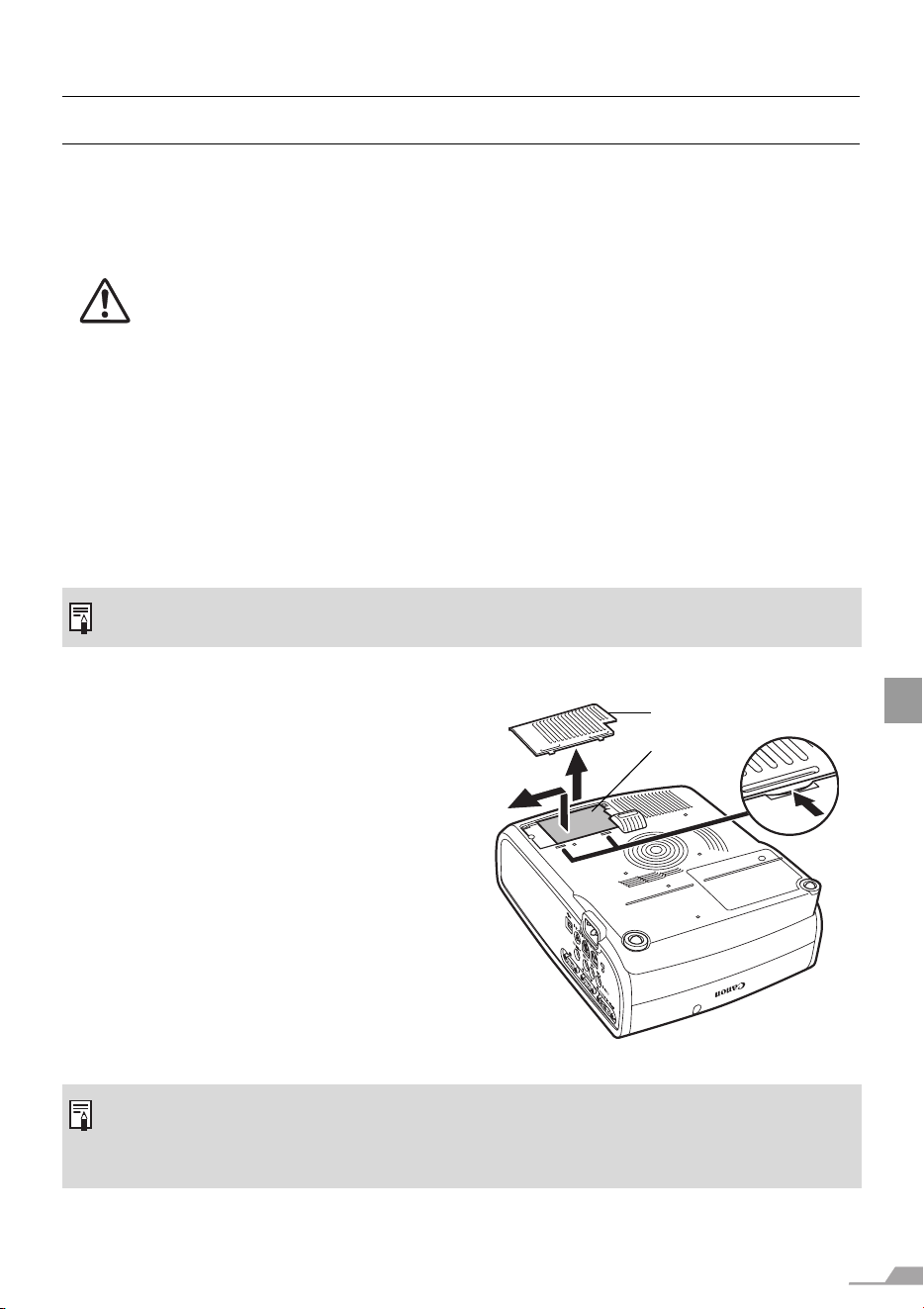

Cleaning and Replacing the Air Filter .......................................................................... 121

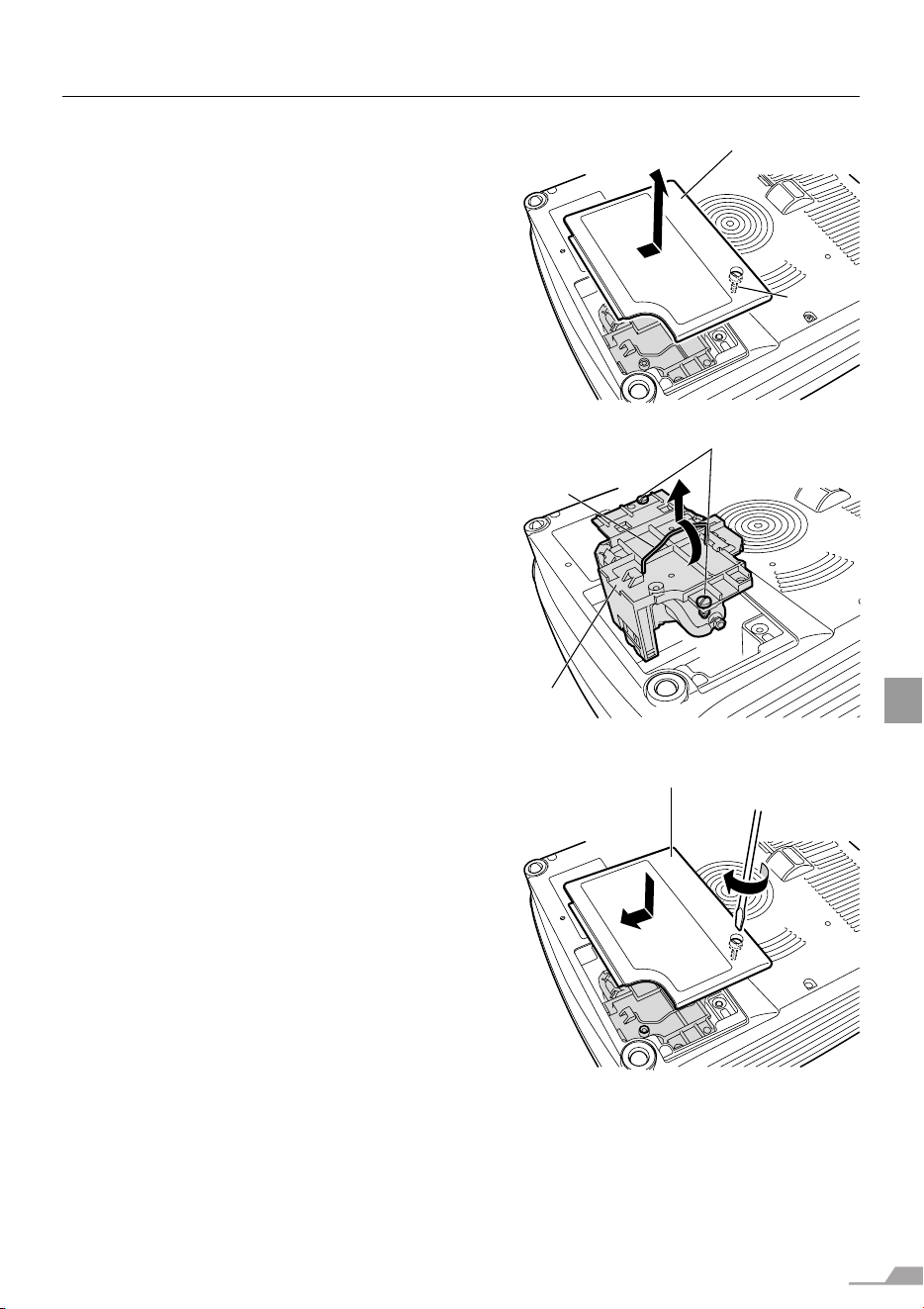

Replacing the Lamp ..................................................................................................... 122
Troubleshooting.................................................................................................. 126
WARNING Lamp Flash Patterns................................................................................... 126
Symptoms and Solutions.............................................................................................. 127
Appendix ............................................................................................................ 132
Supported Computer Signal Types.............................................................................. 132
Relationship between Screen Size and Projecting Distance ....................................... 133

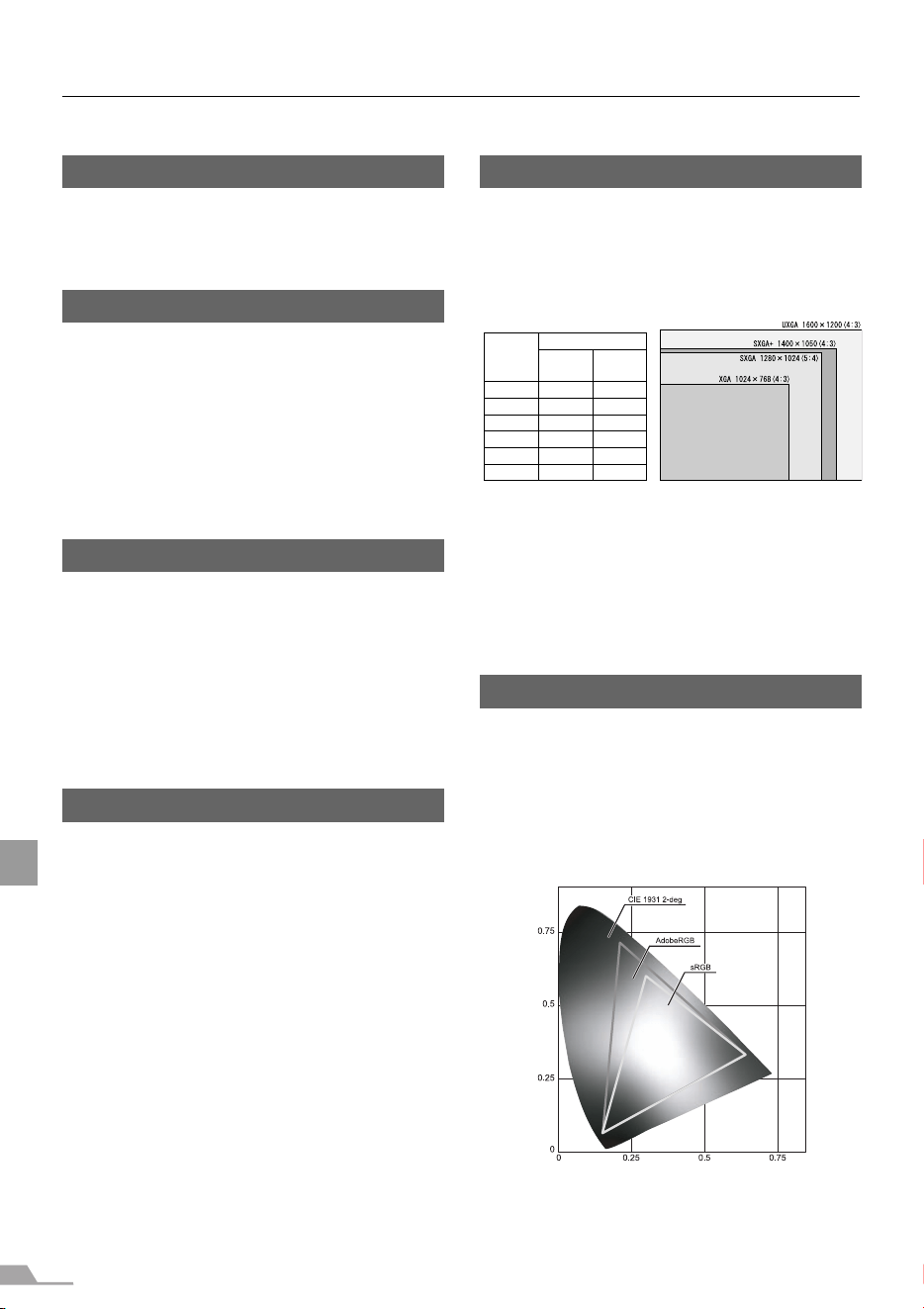

Glossary ....................................................................................................................... 134
Specifications ............................................................................................................... 138
Index .................................................................................................................. 140
Menu Configuration ............................................................................................ 144
7
SAFETY INSTRUCTIONS
Safety Instructions
Before operating this projector, read this manual thoroughly in order to operate the
projector properly.
This projector offers many convenient features and functions. Operating the projector
properly enables you to manage those features and maintain it in good condition for a long
period.
Improper operation may result in not only reducing the product-life, but also malfunctions,
fire hazards, or other accidents.
If your projector is not operating correctly, read this manual again, check operations and
cable connections, and try the solutions shown in the "Troubleshooting" section at the end
of this booklet. If the problem still persists, contact the service center or the dealer where
you purchased the projector.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMPS. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUT-
ING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS FOR THIS UNIT IN THE OWNER'S
MANUAL.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of Electronic
Computer/Data Processing Equipment, ANSI/NFPA 75.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
8
SAFETY INSTRUCTIONS
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
z This projector projects intense light from the projection lens. Do not stare directly into
the lens if possible, as doing so may result in eye damage. Be especially careful that
children do not stare directly into the beam.
z Install the projector in an appropriate position.
Installing the projector in an inappropriate position may result in a fire hazard.
z Allow for appropriate space above beside and behind of the projector cabinet for
allowing air circulation and cooling of the projector. Minimum clearances must be
maintained. If the projector is to be built into a compartment or similarly space, the
minimum distances must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your projector, and can also be
dangerous.
z Do not put any flammable objects or spray cans near the projector, as the hot air
exhausted from the ventilation holes may result in an explosion.
z If the projector is not to be used for an extended period of time, unplug it from the
power outlet.
SIDE and TOP REAR
1 m (3.3') 1 m (3.3') 1 m (3.3')
1 m (3.3')
9
SAFETY INSTRUCTIONS
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
All the safety and operating instructions should be read before beginning to operate the
product.
Read all of the instructions given here and retain them for later use. Unplug this projector
from the AC power supply before cleaning. Do not use liquid or aerosol cleaners on the
projector. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection of the projector during a lightning storm, or when it is left unattended
or unused for long periods of time, unplug it from the wall outlet. This will prevent damage
due to lightning and power surges.
Do not expose this unit to rain or use near water... for example, in a wet basement, near a
swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may result in
hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall,
causing serious injury to a child or adult, and serious damage to the projector. Use only
with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or
shelf mounting should be carried out in accordance with the manufacturer's directions, and
should use a mounting kit approved by the manufacturers.
An appliance and cart combination should be moved with care.
Sudden stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided
for ventilation, to insure reliable operation of the equipment and to
protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom
opening should not be blocked by placing the projector on a bed, sofa, rug, or other
similar surface. This projector should never be placed near or over a radiator or heat
register.
This projector should not be placed in a built-in installation such as a book case unless
proper ventilation is provided.
10
SAFETY INSTRUCTIONS
Never push objects of any kind into this projector through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind onto the projector.
Do not install the projector near the ventilation duct of air-conditioning equipment.
This projector should be operated using only the type of power source indicated on the
marking label. If you are not sure of the type of power supplied, consult your authorized
dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock.
Do not allow anything to rest on the power cord. Do not locate this projector where the
cord may be damaged by people walking on it.
Do not attempt to service this projector yourself as opening or removing covers may
expose you to dangerous voltages or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally after following the operating instructions.
Adjust only those controls that are covered in the operating instructions as improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the projector to normal operating condition.
e. If the projector has been dropped or the cabinet has been damaged.
f. When the projector exhibits a distinct change in performance-this indicates a need for
servicing.
When replacement parts are required, be sure the service technician uses replacement
parts specified by the manufacturer that have the same characteristics as the original
parts. Unauthorized substitutions may result in fire, electric shock, or injury.
Upon completion of any service or repairs to this projector, ask the service technician to
perform routine safety checks to determine that the projector is in safe operating condition.
11
SAFETY INSTRUCTIONS
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirements for use in the
country you purchased it.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY
ACCESSIBLE.
AC Power Cord for the United States and Canada:
The AC Power Cord used in the United States and Canada is
listed by the Underwriters Laboratories (UL) and certified by the
Canadian Standard Association (CSA).
The AC Power Cord has a grounding-type AC line plug. This is a
safety feature to ensure the plug fits into the power outlet. Do
not try to tamper with this safety feature. Should you be unable
to insert the plug into the outlet, contact your electrician.
NOTE FOR CUSTOMERS IN THE US
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED
OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.
European Union (and EEA) only.
These symbols indicate that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2002/96/EC), the
Battery Directive (2006/66/EC) and/or your national laws implementing
those Directives. If a chemical symbol is printed beneath the symbol shown
above, in accordance with the Battery Directive, this indicates that a heavy
metal (Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery
or accumulator at a concentration above an applicable threshold specified
in the Battery Directive. This product should be handed over to a
designated collection point, e.g., on an authorized one-for-one basis when
you buy a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (EEE) and batteries
and accumulators. Improper handling of this type of waste could have a
possible impact on the environment and human health due to potentially
hazardous substances that are generally associated with EEE. Your
cooperation in the correct disposal of this product will contribute to the
effective usage of natural resources. For more information about the
recycling of this product, please contact your local city office, waste
authority, approved scheme or your household waste disposal service or
visit
www.canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
Ground
12
SAFETY INSTRUCTIONS
Federal Communication Commission Notice
Multimedia Projector, Model: SX7 MarkII/SX60
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
The cable with a ferrite core provided with the projector must be used with this
equipment in order to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Use of a shielded cable is required to comply with class B limits in Subpart B of Part 15
of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified
in the instructions. If such changes or modifications should be made, you could be
required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
Tel No. (516) 328-5600
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
13
SAFETY INSTRUCTIONS
Precautions on Handling the Batteries in the Remote Controller
Lamp Handling Precautions
This projector uses a high-pressure mercury lamp which must be handled carefully and
correctly as mentioned below.
The mercury lamp has the following characteristics.
z A lamp may explode with a loud sound or burn out due to a shock, scratch, or use
beyond its expiry date.
z The lamp life may differ from lamp to lamp and according to the usage environment.
There is no guarantee that all lamps will last for the same period of time. Some lamps
may fail in a shorter period of time than other similar lamps.
z A lamp gradually becomes darker over time.
Observe the following precautions when handling the batteries. Failure to do so
may cause explosion, heat generation, fire, or leakage of the battery fluid.
z Do not heat or disassemble the batteries, or throw them into fire.
z Do not attempt to recharge the batteries.
Observe the following precautions when handling the batteries. Failure to do so
may cause explosion, heat generation, fire or leakage of the battery fluid.
z Remove the batteries when they have been exhausted or not in use for an
extended period of time.
z Be sure to replace both batteries at the same time. Do not mix batteries of
different types.
z Insert batteries correctly according to the "+" and "–" markings.
z If a fluid from a battery leaks and comes in contact with your skin, rinse the
affected skin thoroughly as soon as possible.
If a Lamp Explodes
z If a lamp explodes, gas or dust may come out of the exhaust vent. Open
windows and doors for ventilation.
z The gas contains toxic mercury. Always keep your face away from the
exhaust vent when the projector is operating to avoid inhaling mercury
vapors or to prevent it from getting in your eyes or mouth.
z If you inhale the gas or the shards of the broken lamp contact your eyes or
mouth, consult a doctor immediately.
z If a lamp explodes, its shards may scatter inside the projector. Ask the
Canon service representative to clean and check the inside of the projector
and replace the lamp.
If the projector indicates that the lamp should be replaced (i.e., the LAMP
REPLACE indicator lights up twice),
z The chances of an explosion increase. Replace the lamp with a new one
immediately if such is the case.
Caution
Warning
Warning
Caution
14
SAFETY INSTRUCTIONS
Carrying/Transporting the Projector
Installation Precautions
Disposal of Waste Lamp
z Dispose of the projector's mercury lamp according to local regulations just
like the fluorescent lamps.
z This projector is a precision machine. Do not subject the projector to strong
shocks or vibrations or turn it down.
z Install the lens cap to protect the lens and put the projector in the carrying
bag to protect it from dust and scratches on the surface of it when you carry
the projector. For details, see P21.
z Wait until the cooling fan stops before putting the projector in the carrying
bag. Do not put the projector in the carrying bag until the cooling fan stops
rotating. The projector may be damaged due to the heat.
z Replace the adjustable foot before putting the projector in the carrying bag.
The projector may be damaged if you put it in the bag without replacing the
adjustable foot.
z The carrying bag is not designed to protect the projector from external
shocks. When carrying the projector with it put in the carrying bag, do not
give a shock to it, drop it, or place anything on it. The projector may be
damaged or malfunctioned.
z Do not transport the projector through a courier or transport service with the
carrying bag. Put the projector in an impact-resistant transport case if such
is the case.

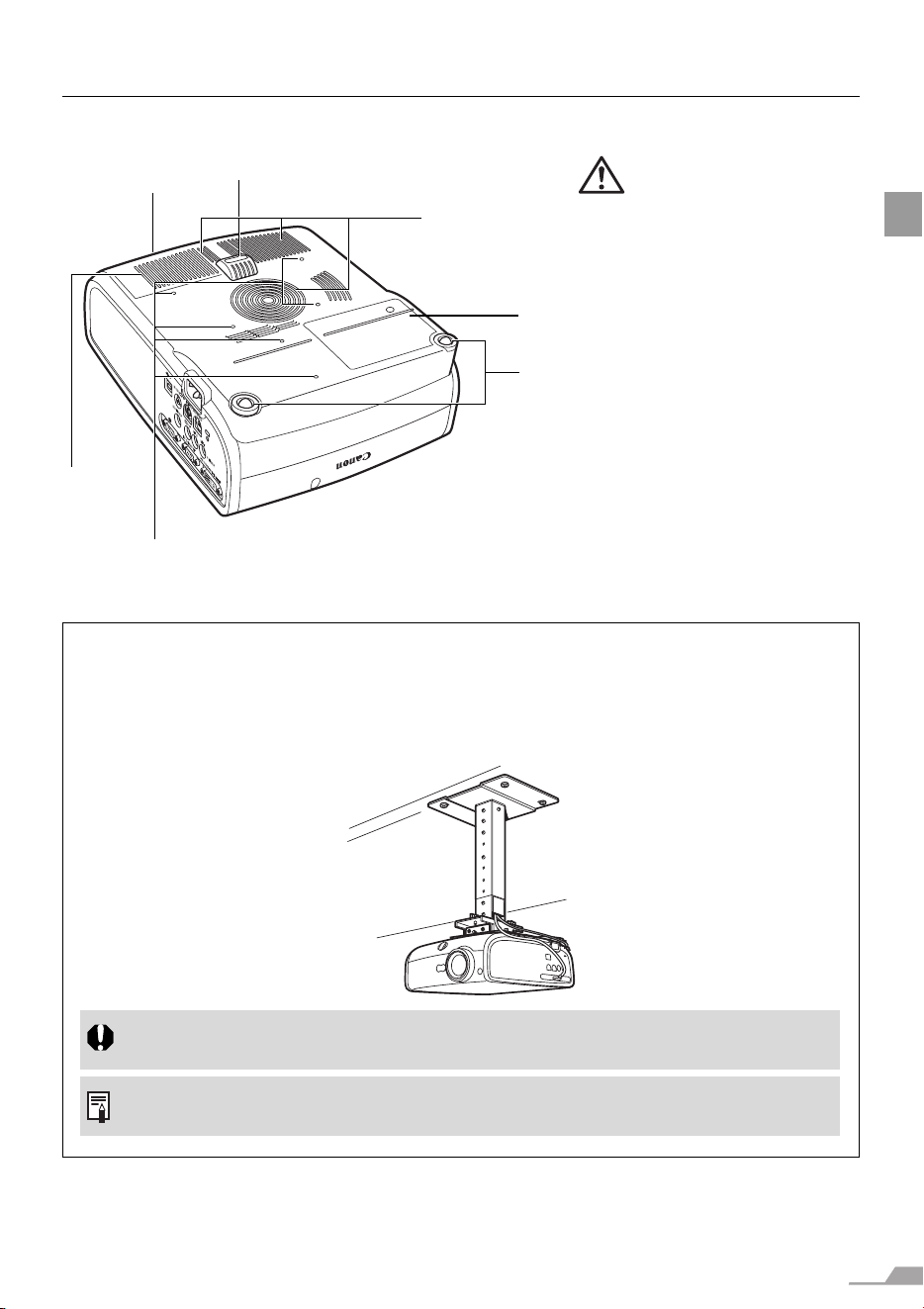

The area around the exhaust vent and the cabinet above the exhaust vent
become hot when the projector is operating.
z Do not touch these areas, or you may get burnt. In particular, keep children
away from these areas. Do not put anything that may deform or discolor due
to heat on the projector.
Hot air is exhausted from the exhaust vent.
Observe the following:
z Do not put any metallic object on the
projector. It may become hot, resulting in
accident or injury.
z Do not seat anyone near the exhaust vent.
Otherwise, you may get burned.
Caution
Caution
Caution
Hot air
15
SAFETY INSTRUCTIONS
When placing the projector on a castered stand or table, be sure to lock the
casters.
z Failure to do so may cause the projector to move or topple, resulting in an
injury.

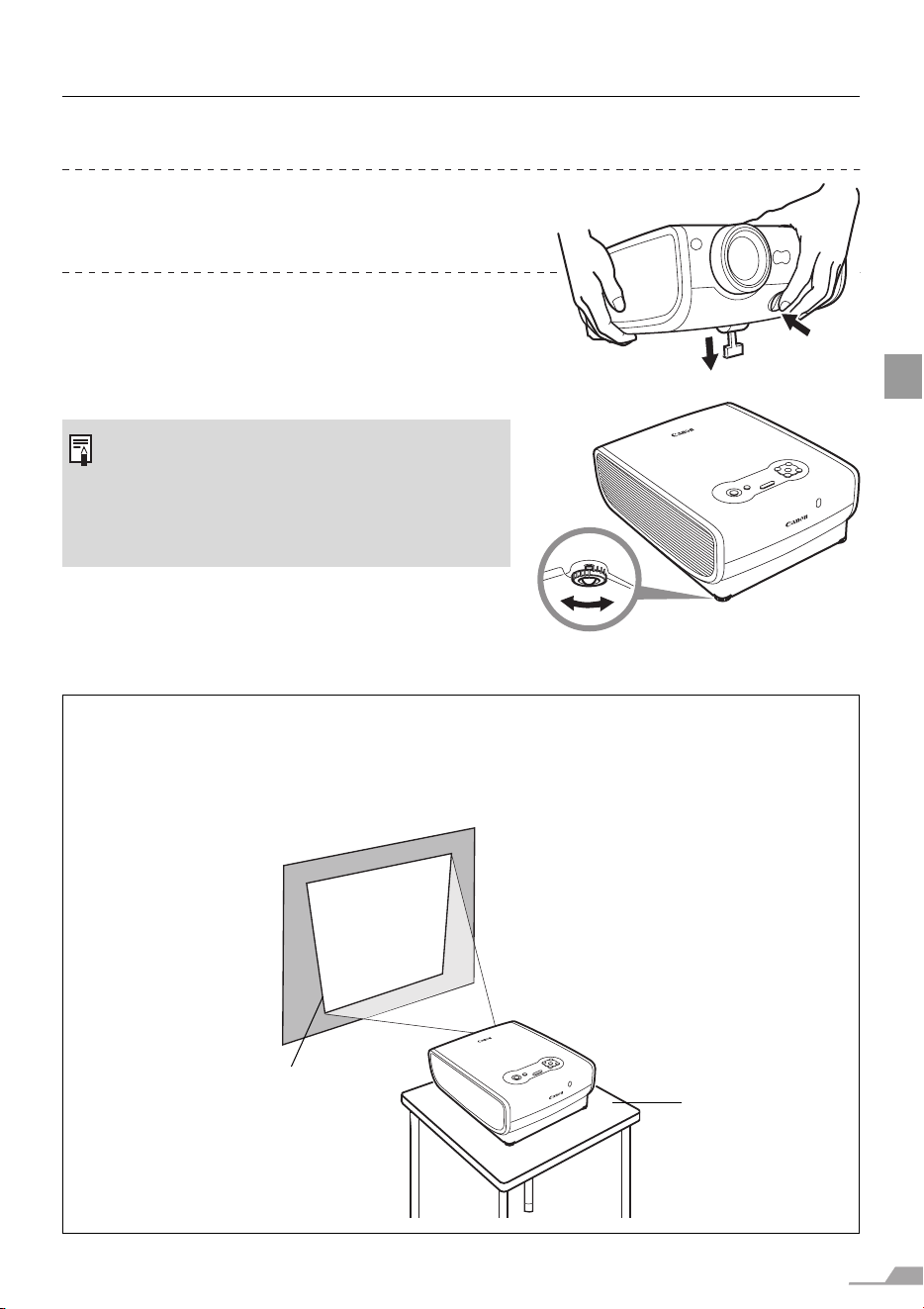

Position the projector in a horizontal position. Incorrect installation may cause
troubles and accidents.
z Do not tilt the projector more than 20
degrees above and below the horizontal.
z When you want to use your projector
pointing up or down, make sure to place
the projector straight up or down.
Do Not Use in the Following Environments
z Do not place the projector on an unstable or slanted surface. The projector
may fall causing a personal injury.
z Do not place it in an oily, smoky, or damp location (e.g., near a cooking table
or a humidifier). It may cause a fire or an electric shock.
z Place the projector with a minimum distance of 1 m (3.3') from its left, right,
rear, and top panels to the neighboring object such as a wall. Otherwise, it
may damage the projector due to bad exhaust ventilation.
z Do not put anything near the exhaust vent that may deform or deteriorate
due to heat.
z Do not install the projector in a humid or dusty location or a position where
there is a lot of oily or cigarette smoke. Optical parts such as a lens and
mirror may be stained, resulting in poor picture quality.
z Do not place it near an exhaust outlet of air-conditioning equipment.
Otherwise, it may be damaged.
If the projector is carried from a cold place to a warm place or the room
temperature is raised rapidly, condensation may form on the lens and mirror due
to the moisture in the atmosphere, resulting in a blurred picture. Wait until
condensation evaporates and normal picture is shown.
Do not use the projector in a place subject to either very high or very low
temperatures. Doing so may cause malfunction. The ranges of the operating
and storage temperatures are as shown below:
Operating temperature: +5°C to +35°C (Humidity: 85% or below)
Storage temperature: -10°C to +60°C
Using the Projector at 2300 Meters or More Above Sea Level
z If you use the projector at 2300 meters or more above sea level, the special
configuration is required to cool down the projector properly. Contact your
dealer.
Caution
20°
20°
16
Features of the Multimedia Projector
SX7 MarkII/SX60
Thank you for purchasing a Canon projector.
The MULTIMEDIA PROJECTOR SX7 MarkII/SX60 are high-performance projectors which
project the data from the computer and the moving picture from the DVD player to the big
screen.
Major Features
Smooth and Beautiful Imaging Capability
Incorporation of AISYS, Canon's unique optical engine, and LCOS (Liquid Crystal On Sili-
con) achieves high brightness, high contrast ratio, and smooth and beautiful lattice-free
images.
Super-Silent Operation of 27dB* (SX60)
This projector achieves super-silence operation as low as 27dB which creates a comfort-
able atmosphere where you can concentrate on watching a movie.
* At the [Quiet] lamp mode.
Native SXGA+ Resolution
Native SXGA+ resolution (1400 by 1050 dots) ensures projection of a high-quality image in
a wider projection area with a high degree of resolution.
High-powered 1.7X Zoom Lens
1.7X zoom aspheric lens can project a 100-inch image when placed 3 m (9.8') to 4.9 m
(16.0') away.
"Auto Setup Function" for Easy Installation
The "Auto Setup Function" allows you to install the projector easily by automatically adjust-
ing focus and keystone distortion.
Adobe
®
RGB Color Space Compatibility (SX7 II)
AdobeRGB color space compatibility achieves faithful color reproduction.
"Home Cinema" Mode Reproducing the Atmosphere of a Movie Theater (SX60)
You can reproduce the atmosphere of a full-scale movie theater in your home by selecting
"Home Cinema" from the image mode.
"Off and Go" Function Allowing the Carriage Immediately After the Use
You can carry the projector immediately after the use because the cooling fan keeps rotat-
ing even if the power cord is removed from the electrical outlet.
* Never put the projector in the bag when the cooling fan is rotated.
Various Image Modes for a Particular Use of Your Projector (SX7 II)
When projecting a digital still photo image or an image that has been processed on an
sRGB-compatible monitor, you can project the image with higher tone on the screen by
incorporating the appropriate image correction function for the particular lighting environ-
ment.
It is useful when projecting the image in a photo studio, portrait studio, wedding reception
hall, art museum, gallery, etc.
17
Supplied Manuals and Symbols Used in This
Manual
Supplied Manuals
User’s Manual (This Document)
This is a universal manual for the projector, SX7 MarkII/SX60. This manual provides
detailed information on how to use the projectors. Read this manual thoroughly to make the
most of your projector and ensure safety.
Important Information and Quick Start Guide
First read document. It provides information about projector safety, cautions, quick start
guide*, cleaning and replacing the air filter and lamp replacement.
* This guide shows an outline flowchart of the steps to start and stop the projector, as well
as the functions available for projecting images.

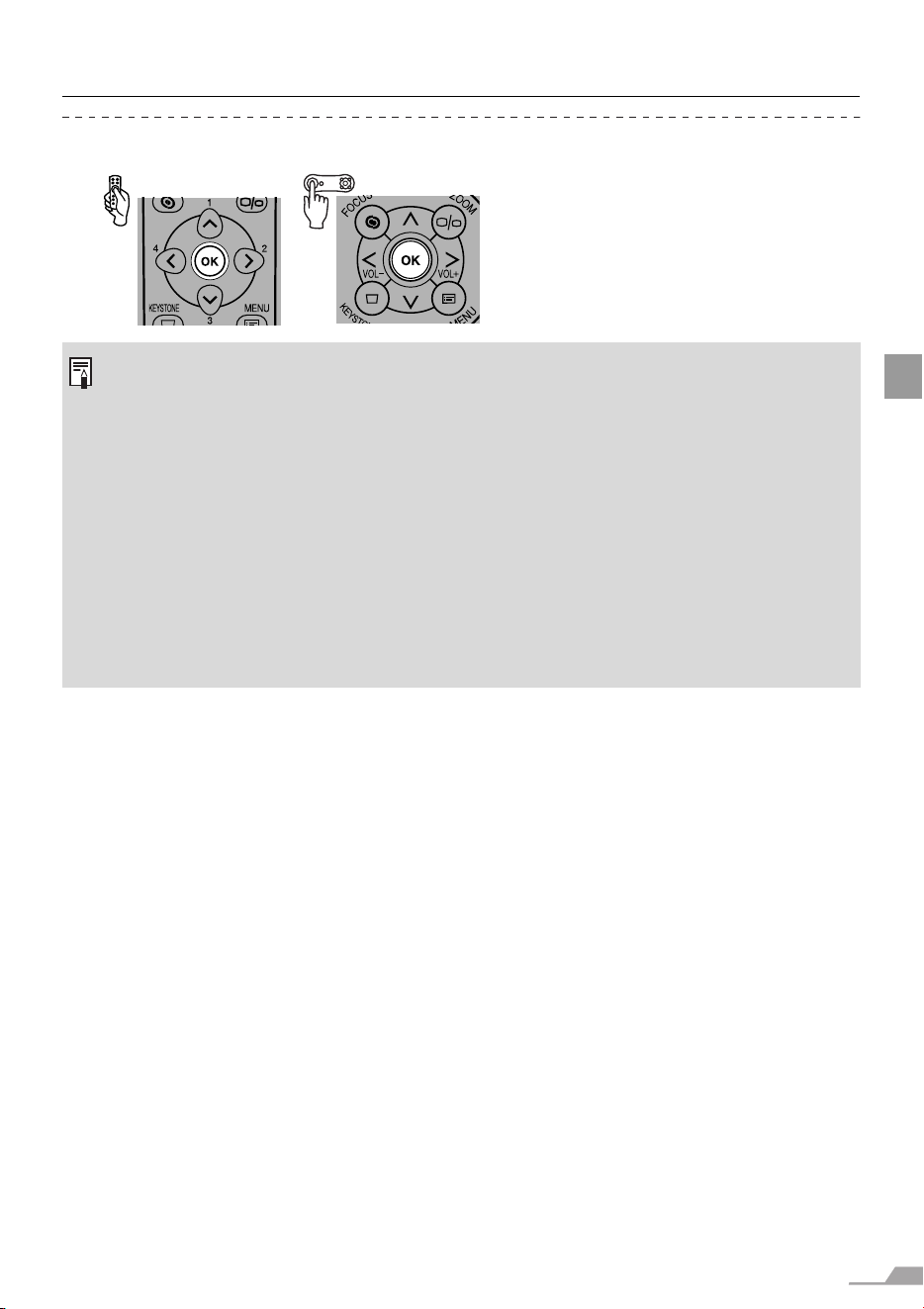

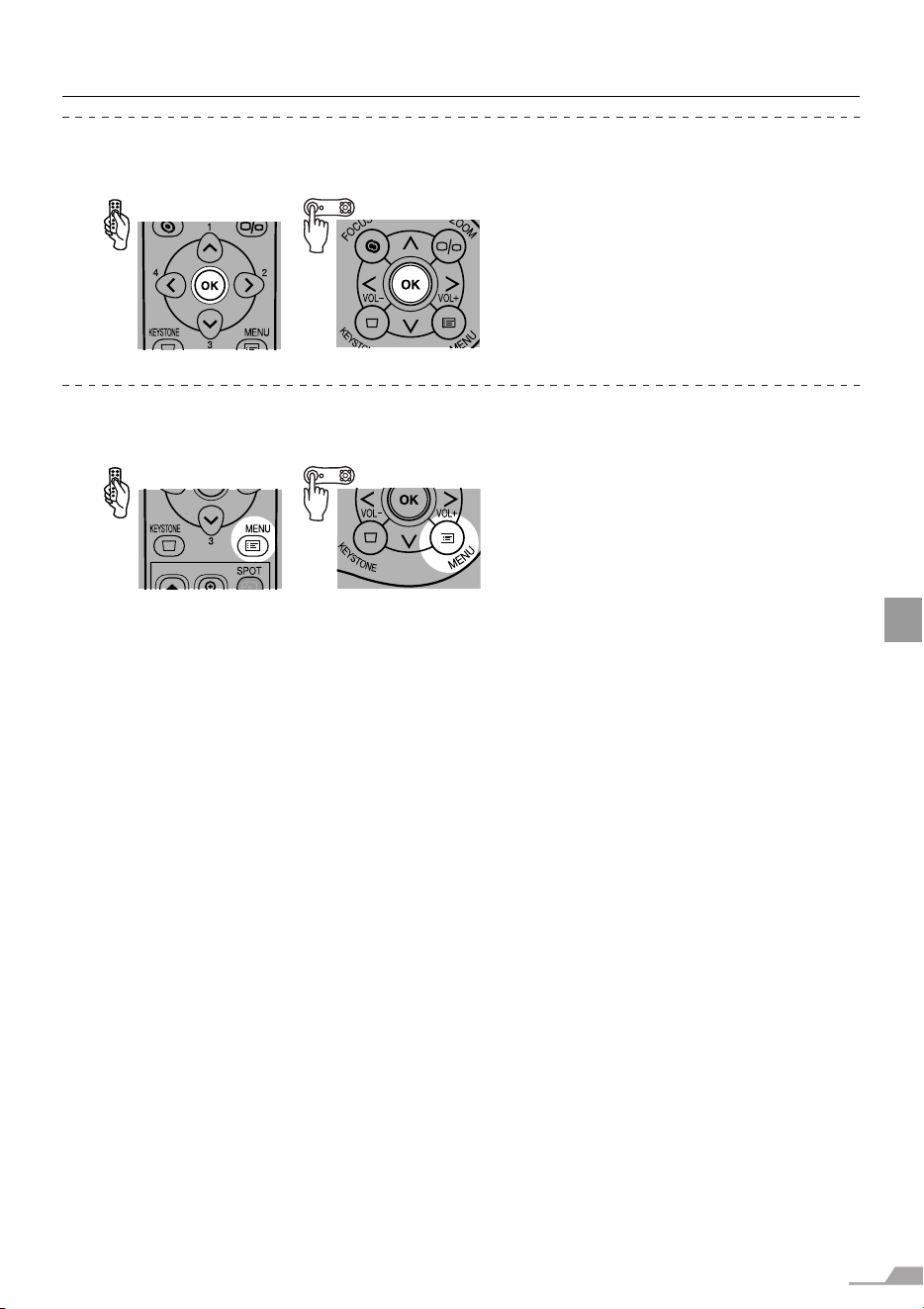

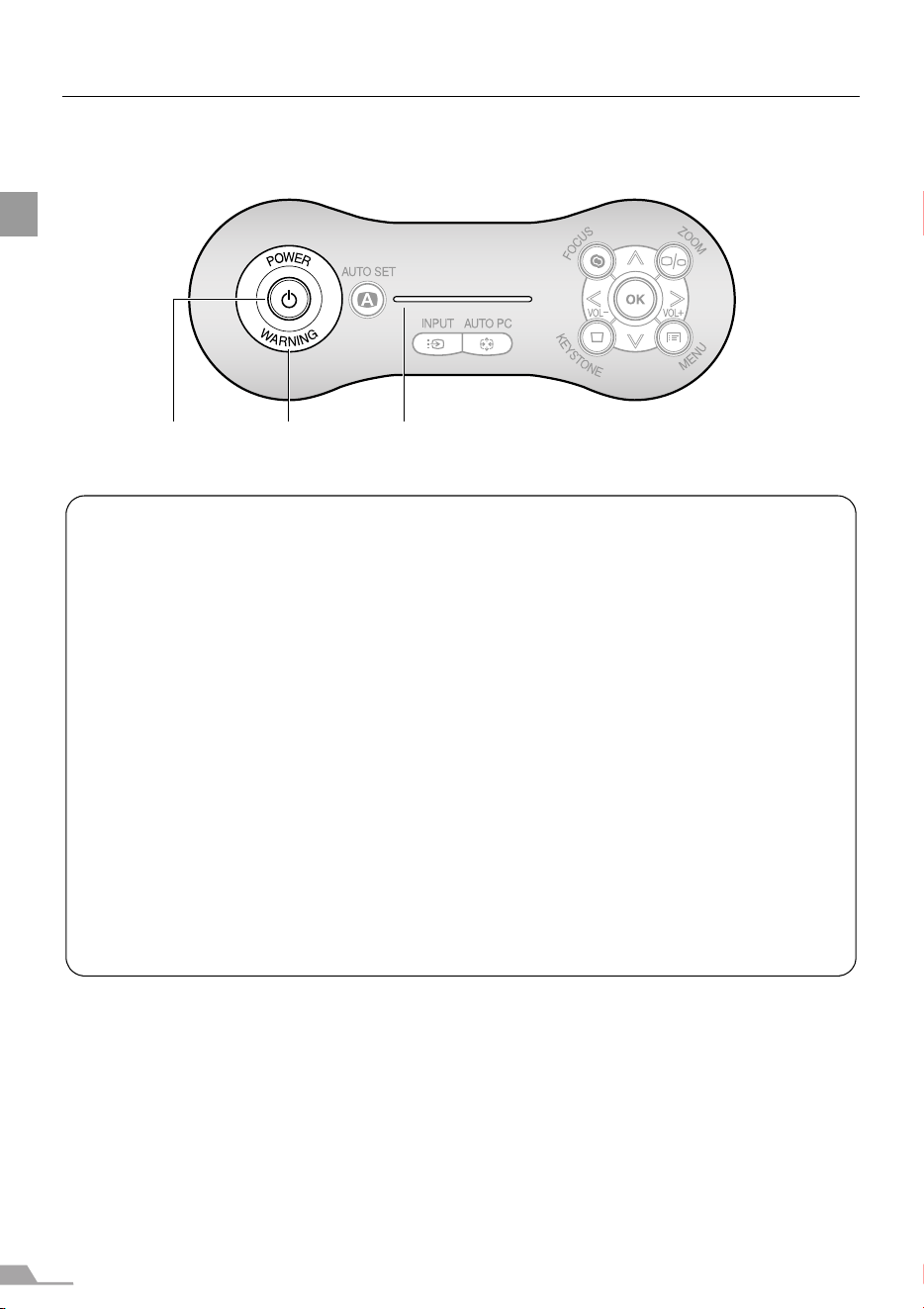

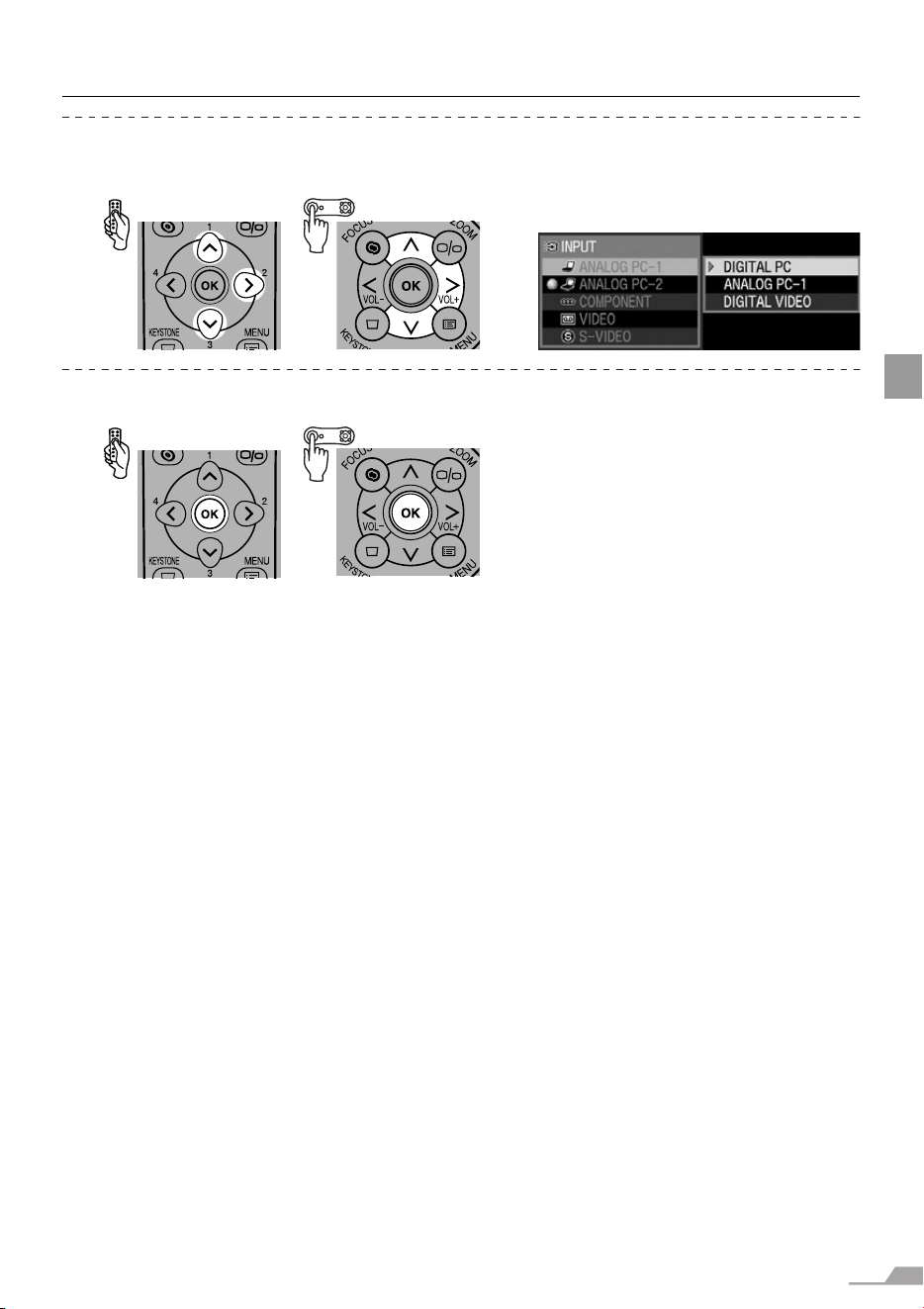

Symbols of Button Operations
This projector can be operated using buttons on the remote control or the top control on
the main unit. The remote control allows you to operate all functions of the projector.
In this manual, the button operation is shown as below.
Symbols Used in This Manual
Meanings of the following symbols used in this manual are as follows:
(SX7 II) Function or description only applicable to SX7 MarkII.
A precaution about operation or restriction is given here.
An important matter that you should be aware of before operation or a useful tip is pro-
vided here.
Indicates the button oper-
ation on the top control.
Indicates the button opera-
tion on the remote control.
Indicates the button to be
pressed.
Adjusting the Focus
You can adjust the focus.
Follow the steps below to adjust the focus manually if the Auto setup function (Aut
o
not adjust the focus appropriately.
1 Press the [FOCUS] button.
The Focus adjustment window appears.
18
COPYRIGHT NOTICE
Please note that enlarging or reducing the size of an image for commercial purposes or
public presentation may infringe on the legally protected copyright or the copyright holder
of the original material.
About Trademarks
z Microsoft, Windows, Windows XP, Windows Vista and Windows 7 are registered trade-
marks or trademarks of Microsoft Corporation in the United States and/or other coun-
tries.
z Macintosh and Mac are registered trademarks of Apple Computer, Inc., registered in
the United States and/or other countries.
z Adobe is a registered trademark or trademark of Adobe Systems Incorporated in the
U.S. and other countries.
z The "HD ready" logo is a trademark of EICTA.
z HDMI is a registered trademark or trademark of HDMI Licensing, LLC.
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
BEFORE USE
20
BEFORE USE
Before Use
Supplied Accessories
Check whether the following accessories are supplied with the projector.
z Remote control z Batteries (type AAA, two)
for remote control
z Computer connection cable
(DVI/Mini D-sub, 15-pin) (1.8m/5.9')
YH7-2052
z Power cord (1.8m/5.9') z USB cable (1.8m/5.9')
YH7-2054
z Component cable
(RCA/Mini D-sub, 15-pin)
(0.4m/1.3') YH7-2084
z Carrying bag z Lens cap
z User's Manual (CD-ROM)
z Warranty card
z Important Information
and Quick Start Guide
z Lens cap strap
For the U.S.A and Canada
For Continental
Europe
21
BEFORE USE

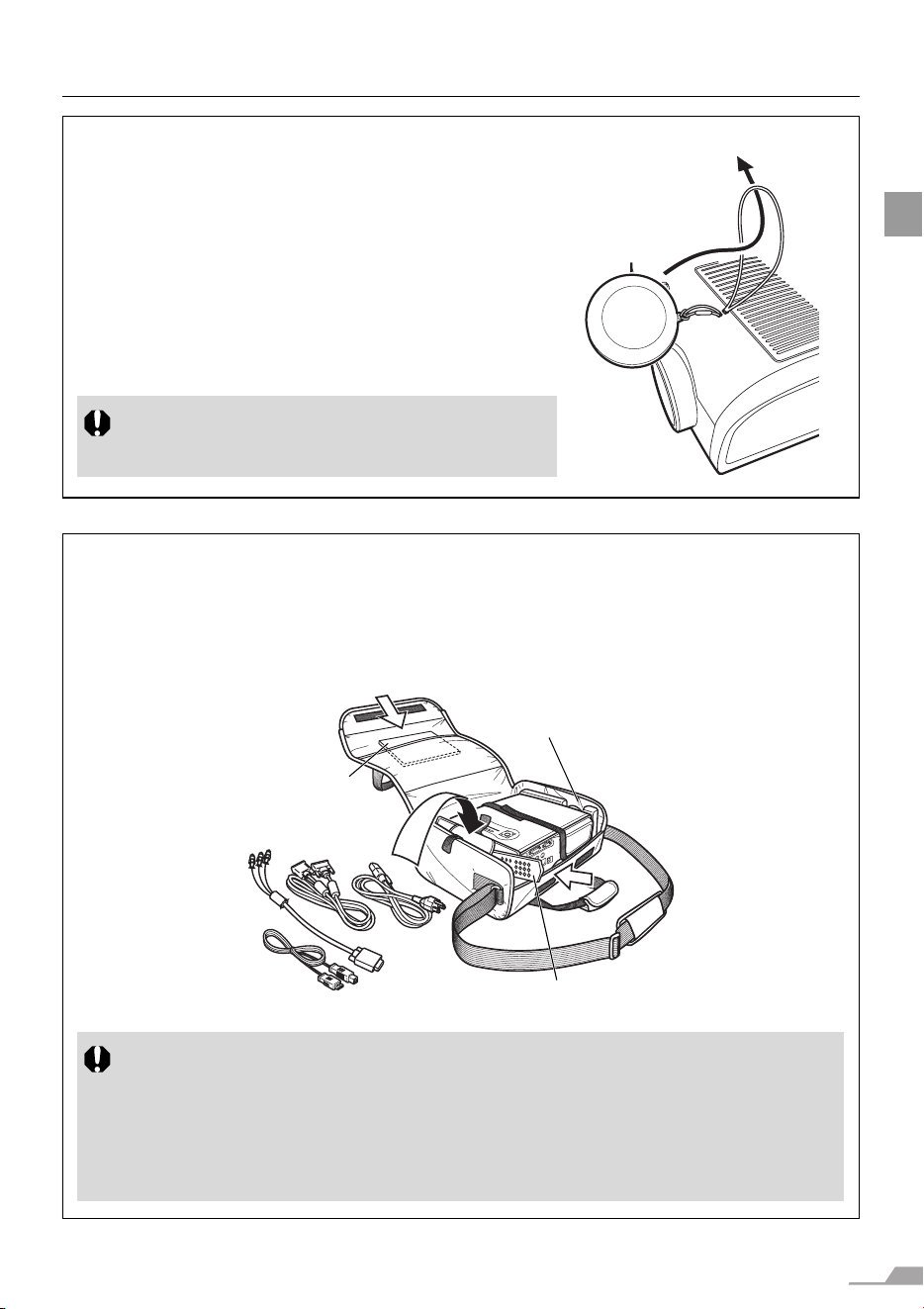

Installing the Lens Cap
As shown in the illustration on the right, let the lens
cap strap through the hole on the lens cap, and then
the lens cap strap insertion hole.
z When the projector is not in use, attach the lens
cap to protect the lens from dust and other foreign
objects.
Putting the Projector in the Carrying Bag
Store the projector and the accessories in the carrying bag as shown in the illustration
below.
The carrying bag is intended to protect the surfaces of the projector from dust or
scratches, and is not designed to protect the projector from external shocks.
z Wait until the cooling fan stops before putting the projector in the carrying bag. Do not
put the projector in the carrying bag until the cooling fan stops rotating. The projector
may be damaged due to the heat.
z Attach the lens cap to the lens to protect it and put the projector in the carrying bag.
Replace the adjustable foot to prevent the damage on the projector.
z When carrying the projector with it put in the carrying bag, do not give a shock to it,
drop it, or place anything on it. The projector may be damaged or malfunctioned.
Align the lens with the dimple
on the cushioning material.
z User's Manual (CD-ROM)
z Important Information
and Quick Start Guide
Cables
Remote control
22
BEFORE USE
Part Names
Main Unit of Projector
Front Side
Rear Side
(SX7 MarkII is used in the following illustrations)
Infrared Remote Receiver (P29)
Ranging Window
Lens
Lens Cap (P21)
Terminals and
Connectors
Power Cord Connector (P40)
Anti-theft Lock Hole
An anti-theft wire cable on the market
can be connected.
Do not place any obstacle
between the projector and the
screen, as the auto focusing
function may fail to operate cor-
rectly.
Be sure to remove the lens cap
during projection. Failure to do
so will result in cap deformation
or fire hazards.
Caution
Caution
Adjustable Foot Lock Button (P43)
Top Control (P24, 25, 28)
Exhaust Vent
Speaker
Infrared Remote Receiver (P29)
Do not block the air exhaust.
Failure to do so will result in mal-
functions or fire hazards.
Caution
23
BEFORE USE
Bottom Side
Lens Cap Strap
Insertion Hole
Adjustable Foot (P43)
Air Intake Vent
Lamp Cover (P123)
Rear Adjustable Foot
(for fine adjustment)
Air Filter
(P121)
Do not block the air intake. Fail-
ure to do so will result in malfunc-
tions or fire hazards.
Caution
Screw Holes for installation of ceiling
mounting bracket (M4 x 6) (P139)
Mounting the Projector on the Ceiling
You can mount the projector on the ceiling.
You need an optional ceiling-mount hanger (part number: RS-CL07) and an optional
ceiling-mount pipe (part number: RS-CL08 or RS-CL09) when appropriate.
Contact the dealer where you purchased the projector for more detailed information.
z Make sure to use the optional ceiling mounting bracket.
z You should never install the ceiling mounting bracket by yourself.
z If you mount the projector on the ceiling, you have to invert the projected image by
selecting [Image flip H/V] from the menu (P97).
24
BEFORE USE
Buttons on the Remote Control and Top Control
Remote Control
This projector can be operated using but-
tons on the remote control or the top con-
trol on the main unit.
The remote control allows you to operate
all functions of the projector.
(1) Infrared Remote Emitter
Sends a signal to the infrared remote
receiver on the main unit.
(2) POWER button (P40, 60)
Turns the projector on or off.
(3) AUTO SET button (P46, 70)
Performs auto adjustment on focus-
ing, keystone distortion, screen color
correction, and so on (Auto Setup
Function).
(4) IMAGE button (P55)
Switches among image modes
(image qualities).
(5) INPUT button (P48, 50, 70)
Switches among input signals.
(6) AUTO PC button (P54)
Adjusts tracking and so on automati-
cally in accordance with signal from a
computer when ANALOG PC-1 or
ANALOG PC-2 is selected.
(7) FOCUS button (P51)
Adjusts focusing.
(8) ZOOM button (P42)
Adjusts the image size.
(9) OK button (P89)
Determines the item selected from the
menu. Also works as the left button of
a mouse under the USB connection
(P82).
(1)
(2)
(4)
(7)
(10)
(11)
(13)
(17)
(20)
(18)
(3)
(5)
(6)
(8)
(9)
(12)
(15)
(14)
(16)
(19)
(22)
(21)
25
BEFORE USE
Top Control
(10)POINTER button (P87)
Selects the upper, lower, left, or right
item in the menu. Also moves the
mouse cursor under the USB connec-
tion.
On the top control, the [<] and [>]
buttons also turn the volume up and
down, respectively (P79).
(11)KEYSTONE button (P52, 59)
Corrects keystone distortion. The [D.
image shift adjustment] screen will be
displayed if you select [16:9 D. image
shift] for [Screen aspect].
(12)MENU button (P87)
Displays a menu on the screen.
(13)PAGE button (P80)
Acts as the Page Up and Page Down
keys on the computer keyboard under
the USB connection.
Pressing scrolls to the previous
page and pressing scrolls to the
next page.
(14)D.ZOOM button (P81)
Zooms the image in or out digitally.
Pressing enlarges the image and
pressing reduces the image.
(15)SPOT button (P83)
Performs the spot light function.
(16) R-CLICK button (P82)
Acts as the right button of a mouse
under the USB connection.
(17) NO SHOW button (P78)
Switch display/non-display of image.
(18)MUTE button (P79)
Mutes the sound.
(19) VOL button (P79)
Adjusts the sound volume.
(20) FREEZE button (P78)
Freezes the projected image.
(21) P-TIMER button (P80)
Displays the time elapsed since this
button was pressed.
(22) LIGHT button (P29)
Turns on or off the lights of the remote
control buttons.
(2) (3) (5) (6) (11) (12)
(7) (8)
(9)
(10)
26
BEFORE USE
Input Terminals on Main Unit
SX7 MarkII
SX60
(1) (2) (3)
(7) (6)
(5)
(4)
(8)
(9)
(10)
(10)
(1) (2) (3)
(7)
(6)
(5)
(8)
(9)
(10)
(10)
27
BEFORE USE
(1) Input Terminal-1 (DIGITAL IN/ANALOG IN-1) (P36, 37, 65)
Receives a digital (DIGITAL PC) and analog PC signal (ANALOG PC-1).
Receives a digital content image signal (DIGITAL VIDEO).
(2) Input Terminal-2 (ANALOG IN-2) (P36, 37, 64)
Receives an analog PC signal (ANALOG PC-2).
Receives a component and SCART image signal (COMPONENT/SCART).
(3) Monitor Output Terminal ( ) (P38)
Outputs an analog PC signal to display an image on an external monitor.
(4) AUDIO OUT terminal (SX7 II) (P68)
The audio output terminal to output an audio to an external audio device.
It outputs the audio signal corresponding to the projected image signal.
(5) AUDIO IN terminal (P38, 39)
SX7 II: The audio input terminals corresponding to 3 image input systems.
Each terminal receives the audio signal corresponding to "DIGITAL PC/
ANALOG PC-1", "ANALOG PC-2", and "S-VIDEO or VIDEO" from the left.
The internal speaker outputs the audio signal corresponding to the
selected image signal.
SX60: The input terminal of an audio signal.
The internal speaker outputs the audio signal no matter what the image
signal is inputted.
(6) VIDEO IN terminal (P66)
Receives a composite video signal from an AV equipment.
(7) S-VIDEO IN terminal (P66)
Receives an S-Video signal from an AV equipment.
(8) SERVICE PORT jack
Exclusively used by the service personnel (it is not used normally).
(9) USB terminal (P82)
Connected to the computer with a USB cable when the remote control is used
as the mouse of the computer. (you cannot use this terminal to receive any
video image)
(10)Input Terminal Indicator (P48, 70)
Indicates the input signal status.
Green : The input signal is confirmed and an image is projected.
Flashing green : The input signal is confirmed but no image is projected.
Off : An input signal is not confirmed (a cable is not connected).
28
BEFORE USE
Indicators on the Top Control
Top Control
(1) POWER indicator (P40, 60, 111)
Indicates the projector status.
Red: The projector can be turned on.
Flashing red: The projector is being turned off (the lamp is being
cooled).
Green: The projector is on.
Flashing green: The projector is being turned on.
Blink between red and green: The projector is under the power management
mode.
(2) WARNING lamp (P126)
Flashes red when a problem has been detected on the projector.
(3) LED illumination lamp (P115)
Indicate the projector status with 3 blue LEDs.
Blinking from the left: The projector is being turning on.
Blinking from the right: The projector is being turned off.
Middle LED flashing slowly: The image is blackened out (NO SHOW).
Left and right LEDs flashing slowly:
The image is stopped (FREEZE).
(1) (2) (3)
29
BEFORE USE
Preparing the Remote Control
Installing Remote Control Batteries
Remote Control Operating Range
Point the remote control to the infrared
remote receiver on the front or rear of the
projector whenever pressing any button.
z Use the remote control within a distance
of approximately 5 m (16.4') from the pro-
jector.
z Use the remote control within an angle of
30° in any direction from directly in front
of the infrared remote receiver.
z You can check the batteries of the remote control by pressing the [LIGHT] button.
If all buttons on the remote control do not light when the [LIGHT] button is pressed, or but-
tons are inoperative when you attempt to operate the projector, replace with new batteries.
z It is recommended to check the batteries before a presentation.
The remote control may be inoperative if:
z There is an obstacle between the remote control and main unit.
z The infrared remote receiver on the main unit is exposed to direct sunlight or strong light of
lighting equipment.
z The remote control uses infrared light.
z When you use two projectors at the same time, you can change the channel settings to pre-
vent the two remote controls from interfering with each other (P115).
1 Open the battery com-
partment lid.
Slide the lid with it
pressed down.
2 Insert batteries.
Insert new two AAA-size
batteries in the compart-
ment with the + and -
poles positioned cor-
rectly.
3 Replace the compart-
ment lid.
30°
30°
30°
30°
5 m
(16.4')
5 m
(16.4')
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
SETTING UP THE
PROJECTOR
32
SETTING UP THE PROJECTOR
Setting Up the Projector
Determining the Distance to the Screen
The projected image size is determined by the distance between the projector lens and the
screen. Select the place where the desired image size is obtained according to the illustra-
tion shown below.
H1 and H2: The height of the screen from the intersection of optical axis and screen surface when an
image is projected at right angle to the screen.
z Install the projector at the position where the projection distance is between approxi-
mately 1.2 m (3.9') to 9 m (29.5'). If the installation position is too close or too far, the
image is out of focus or the screen becomes dark, respectively.
z The sizes in the above table have been obtained assuming that the aspect ratio is 4:3.
They may vary from the actual sizes depending on the type of the projected image.
z Select the appropriate setting for [Screen aspect] with respect to the your screen (4:3
or 16:9).
Refer to pages 59, 74, and 101 for more detailed information on [Screen aspect].
Screen size
(W x H) cm
40"
81 x 61
60"
122 x 91
80"
163 x 122
100"
203 x 152
150"
305 x 229
182"
370 x 277
200"
406 x 305
250"
508 x 381
300"
610 x 457
Projection
distance
Zoom
(max)
1.2 m
(3.9')
1.8 m
(5.9')
2.4 m
(7.9')
3.0 m
(9.8')
4.5 m
(14.8')
5.4 m
(17.7')
5.9 m
(19.4')
7.4 m
(24.2')
8.9 m
(29.2')
Zoom
(min)
2.0 m
(6.6')
2.9 m
(9.6')
3.9 m
(12.9')
4.9 m
(16.1')
7.4 m
(24.2')
9.0 m
(29.5')
–––
H1
55 cm
(1.8')
82 cm
(2.7')
110 cm
(3.6')
137 cm
(4.5')
206 cm
(6.8')
250 cm
(8.2')
274 cm
(9.0')
343 cm
(11.3')
411 cm
(13.5')
H2
6 cm
(0.2')
9 cm
(0.3')
12 cm
(0.4')
15 cm
(0.5')
23 cm
(0.8')
28 cm
(0.9')
30 cm
(1.0')
38 cm
(1.2')
46 cm
(1.5')
z For the relationship between the screen size and projection distance, see the table on page
133.
z You can also adjust the image size with the zoom function (P42).
Optical axis when image is projected
at right angle to the screen.
Screen
H1:H2=9:1
8.9 m (29.2')
5.9 m (19.4')
4.5 m (14.8')
2.4 m (7.9')
1.2 m (3.9')
40"
80"
48"
150"
90"
200"
120"
300"
182"
H1
H2
Zoom (max.)
Zoom (min.)
33
SETTING UP THE PROJECTOR
Determining the Installation Position
Placing in Front of the Screen
Place the projector perpendicular to the screen
as far as possible.
Placing on a Level Place
Place the projector on a level place as far as pos-
sible.
z A slight error in the projection angle can be
corrected using the [KEYSTONE] button
(P52).
z A slight tilt can be corrected using the rear
adjustable foot. (P43)
z Make sure that the installation position is
free from any obstacle that may block the
exhaust vent (fan) on the right side of the
projector and the air intake vent on the bot-
tom of the projector.
z The screen must not be exposed to direct
sunlight or light from lighting equipment. In a
bright room, it is recommended to limit
ambient lighting in order to improve the
image quality.
Screen
Optical axis
Ceiling Mounting or Rear Projection
You can mount the projector on the ceiling (Ceiling mounted) with it turned up side
down or place it behind the screen (Rear) if you use a translucent screen. For ceiling
mounting or rear projection, you have to invert the projected image. (P97).
Ceiling Mounting Rear Projection
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
PROJECTING AN
IMAGE FROM
THE COMPUTER
36
PROJECTING AN IMAGE FROM THE COMPUTER
Projecting an Image from the Computer
Connecting the Projector to the Computer
Connect the projector to the computer.
Connecting to Video Terminals
Supplied computer connection cable
To monitor output terminal
(mini D-sub 15-pin terminal)
Input Terminal-1
(ANALOG IN-1)
Supplied computer
connection cable
Input Signal: Select [ANALOG PC-1] (P48)
Computer
Projector
VGA cable
To monitor output terminal
(mini D-sub 15-pin terminal)
Input Terminal-2
(ANALOG IN-2)
Commercial VGA cable
Input Signal: Select [ANALOG PC-2] (P50)
Computer
Projector
z To ensure projection of high-resolution high-quality images, it is recommended to use high-
performance cables.
z An adapter may be required depending on the shape of the connector on the computer.
For more detailed information, refer to your computers instruction manual.
37
PROJECTING AN IMAGE FROM THE COMPUTER
z Before connecting cables, turn off both the projector and computer.
z It may project an image inappropriately when projecting the digital PC signal in 1280 x 1024
or 1400 x 1050 depending on the type of computer or DVI cable.
z The USB terminal is used to use the remote control as the computer mouse. An image can-
not be projected simply by connecting the USB cable.
DVI cable
Computer
Projector
To monitor output terminal
(DVI terminal)
Input Terminal-1
(DIGITAL IN)
Optional DVI digital cable
[LV-CA29]
Input Signal: Select [DIGITAL PC] (P48)
5-BNC cable
Computer
Projector
To monitor output terminal
(5-BNC output terminal)
Input Terminal-2
(ANALOG IN-2)
Commercial 5-BNC
cable (for 5-BNC/
mini D-Sub 15-pin)
Input Signal: Select [ANALOG PC-2] (P50)
Extension cable
Commercial 5-BNC
extension cable
38
PROJECTING AN IMAGE FROM THE COMPUTER
Connecting to an External Monitor
You can display an image from the projec-
tor to an external monitor.
Connecting to AUDIO IN Termi-
nals (SX7 II)
Connect an audio cable to the AUDIO IN ter-
minal corresponding to the input image sig-
nal if you want to use the projector's speaker.
z You can connect one external monitor.
The multi-monitor display is not sup-
ported.
z The projected image is displayed on
the external monitor.
z You cannot output the input signal to
the external monitor if it is DIGITAL
PC.
VGA cable
To monitor output terminal
(mini D-sub 15-pin terminal)
Image input terminal
(mini D-sub 15-pin terminal)
Commercial VGA cable
External monitor
Projector
z The speaker outputs the audio signal
corresponding to the selected image
signal.
z Use an audio cable without a built-in
resistor. Using an audio cable with a
built-in resistor turns down the sound.
z Connect the audio cable between the
AUDIO OUT terminal and an external
audio-visual equipment if you want to
output the audio signal to the audio-
visual equipment (P68).
z The built-in speaker is monaural.
Audio cable
AUDIO OUT terminal
AUDIO IN terminal
Commercial Audio cable
Computer
Projector
SX7 MarkII
You can input an audio signal
corresponding to 3 image
input systems.
Connect to the AUDIO IN ter-
minal corresponding to the
type of the input image signal.
for DEGITAL IN/ANALOG IN-1
for ANALOG IN-2
39
PROJECTING AN IMAGE FROM THE COMPUTER
Connecting to AUDIO IN Termi-
nals (SX60)
Connect the audio cable to the AUDIO IN
terminal if you want to use the projectors
speaker.
z Use an audio cable without a built-in
resistor. Using an audio cable with a
built-in resistor turns down the sound.
z The built-in speaker is monaural.
z The speaker plays the sound from the
equipment which the audio cable is
connected to regardless of the image
input signal.
Audio cable
AUDIO OUT terminal
AUDIO IN terminal
Commercial Audio cable
Computer
Projector
SX60
40
PROJECTING AN IMAGE FROM THE COMPUTER
Starting Projection
Connect the power cord and turn on the projector to start the projection.
1 Connect the power cord.
Fully insert the power cord plug into the socket.
The [POWER] indicator flashes red.
2 Remove the lens cap and press the [POWER] button.
The [POWER] indicator flashes green, and
then lights in green.
z Once the projector is turned off, it cannot be turned on for a while. Wait until the lamp is
cooled down and the [POWER] indicator lights in red.
Caution
Connect the Ground Terminal
Connect the ground terminal on the power plug to ground. Otherwise, the operating
computer may suffer electromagnetic radiation problems and poor reception by TV and
radio.
Unplug the Power Cord When the Projector is Not in Use
The projector constantly consumes approximately 7W power even when it is turned off.
To ensure safety, malfunction prevention, and power saving, remove the power plug
from the AC outlet when the projector is not used for an extended period of time.
41
PROJECTING AN IMAGE FROM THE COMPUTER
The countdown window is displayed for approximately 20 seconds, and then the guid-
ing message for the auto setup function appears.
Adjust the focus by performing the auto setup or the focus adjustment if you cannot
read the message due to out of focus. (P46, 51)
The LED illumination lamp blinks blue until the projection is started.
To project an image immediately, press the [OK] button.
z Enter a password if the Password input screen appears (P116, 117).
z You can turn on the projector by connecting the power cord without pressing the [POWER]
button (direct power on) (P112).
z You can display a specified Logo on the countdown screen (P100).
z You can specify whether to enable or disable the LED illumination lamp (P115).
z You can skip the countdown window (P100).
Selecting a Language
A window appears when the projector is turned on for the first time. You can select a
language to be used by the projector for displaying menus and so on in the window.
Select your language as shown below.
Select a language with the POINTER buttons and press the [OK] button.
z Adjust the focus by performing the focus adjustment if it is out of focus (P51).
z You can change the language from the menu at a later time (P113).
An item highlighted in orange will be selected.
42
PROJECTING AN IMAGE FROM THE COMPUTER
Adjusting the Image
Adjusting the Image Size (ZOOM)
Adjust the image size in accordance with the screen.
1 Press the [ZOOM] button.
The Zoom adjustment window appears.
2 Adjust the image size.
3 Press the [OK] button.
z Change the projector installation position if your desired image size is too large or too small
to adjust with the zoom function (P32).
Zoom in:
Press [ ] for rough adjustment.
Press [>] for fine adjustment.
Zoom out:
Press [ ] for rough adjustment.
Press [<] for fine adjustment.
<
<
43
PROJECTING AN IMAGE FROM THE COMPUTER
Adjusting the Projection Angle
You can adjust the projection angle with the adjustable foot.
1 Lift the front side of the projector and push the
adjusting foot lock button.
The adjustable foot extends.
2 Adjust the projection angle while pushing the
adjustable foot lock button, and then release
the lock button.
The adjustable feet is fixed.
z With the adjustable foot, the projection angle
can be adjusted up to 10 degrees.
z If the projector is tilting in the lateral direction,
use the rear adjustable feet on both sides to
adjust its angle. You can adjust up to 10mm
with one foot.
If Keystone Distortion is Too Large
Extending the adjustable foot too far causes keystone distortion. If the distortion is too
large, adjust the height of the projector with a pedestal.
The keystone distortion can be corrected with the Auto keystone function or by pressing
the [KEYSTONE] button. (P46, 52, 70)
Keystone Distortion
Pedestal
44
PROJECTING AN IMAGE FROM THE COMPUTER
Preparing the Computer
Determining the Output Resolution of the Computer
To make the most of the display performance of this projector, set output signal resolution
of the computer to an optimum value.
Windows 7
1. Open the [Control Panel] from the start
menu, then select [Appearance and Per-
sonalization] – [Adjust screen resolution] in
the [Control Panel Home].
2. Click the [Resolution] pull-down menu and
move the slider to select "1400 x 1050". If
this resolution is not available, select the
highest resolution under 1400 x 1050.
3. Click the [OK] button.
Windows Vista
1. Open the [Control Panel] from the start
menu, then select [Appearance and Per-
sonalization] – [Adjust screen resolution] in
the [Control Panel Home].
2. Select "1400 x 1050 pixels" or a resolution
closest to the output signal resolution of the
computer.
3. Click the [OK] button.
Windows XP
1. Right-click on the desktop background and
select [Properties] to open the [Display
Properties].
2. Click the [Settings] tab, and under [Screen
Resolution], select "1400 x 1050 pixels" or a
resolution closest to the output signal reso-
lution of the computer.
3. Click the [OK] button.
45
PROJECTING AN IMAGE FROM THE COMPUTER
Macintosh OSX
1. Open the Apple Menu and select [System
Environment Setting].
2. In the System Environment Setting win-
dow, click the [Displays] icon to display
the Display window.
3. Select the [Display] tab and select "1400 x
1050" or a resolution closest to the output
signal resolution of the computer from the
[Resolution] list.
4. Close [System Environment Setting] win-
dow.
Projecting the Image from the Notebook Computer
You can turn on the external monitor output via keyboard operation.
To turn on the external monitor output, press an icon for an external monitor or a function
key ([F1] to [F12]) while holding [Fn] key down.
For SX7 MarkII/SX60
z If the display resolution of the computer is set to SXGA (1280 by 1024 dots) or WXGA (1280
by 768 dots), it is recommended to select [True size] as the screen mode (P90).
z The function keys you use and the method used to turn on the external monitor output vary
depending on the model. For details, see the instructions of your notebook computer.
While holding key Press a key such as or
46
PROJECTING AN IMAGE FROM THE COMPUTER
Performing the Auto Setup
With the auto setup function, the following set of adjustments is performed automatically
when projecting an image from a computer. You can start the projection only with this oper-
ation if the input signal has been appropriately selected.
1 Select an input signal.
Select an appropriate input signal by following the steps in the "Selecting an Input Sig-
nal" section at the page 48 if you change the input signal due to changing the connec-
tion to the computer or so.
Skip this step if you have not changed the input signal since the last projection.
Auto focus
Adjusts the focusing automatically.
Auto keystone
Corrects the keystone distortion (in the vertical direction) automatically.
Auto input
Sets the image input signal automatically.
Auto screen color*
Performs the screen color correction (white balance adjustment) automati-
cally.
*: This is not enabled at the factory.
z Among 4 functions above, the function that has been enabled in the menu is performed
during the auto setup. "Auto focus", "Auto keystone", and "Auto input" are enabled in the fac-
tory.
z You can manually set or adjust each function. You can set or adjust a specific function inde-
pendently if you press the [AUTO SET] button during the manual adjustment.
z Select [Greenboard] from [Screen color] when using a greenboard (dark green) as a screen
(P98).
z The auto focusing and the screen color correction may not be performed properly depend-
ing on the brightness of the room or the condition of the screen. Adjust the image manually
if such is the case.
z If you select [16:9] for [Screen aspect], [Auto screen color] may not correct the screen color
properly. If such is the case, correct it manually.
z If you select [16:9 D. image shift] for [Screen aspect], the auto setup function will be dis-
abled.
z If you project an image straight up or down, [Auto focus] and [Auto keystone] will be dis-
abled.
47
PROJECTING AN IMAGE FROM THE COMPUTER
2 Press the [AUTO SET] button.
The Auto setup window appears.
3 Press the [AUTO SET] button again.
One or more functions highlighted in black are performed automatically.
z You can perform this step by selecting [OK] with the [<] button, and then pressing the [OK]
button.
48
PROJECTING AN IMAGE FROM THE COMPUTER
Selecting an Input Signal
You can select an input signal type.
Select an input signal from the followings:
ANALOG PC-1 : Analog signal Connecting with a DVI/Mini D-sub 15-pin cable
(supplied cable)
DIGITAL PC : Digital signal Connecting with a DVI digital cable
ANALOG PC-2 : Analog signal Connecting with a VGA cable or 5-BNC cable
Select an appropriate input signal before starting the auto setup function by following the
steps below if you change the input signal due to changing the connection to the computer
or so.
Selecting [ANALOG PC-1] or [DIGITAL PC]
1 Press the [INPUT] button.
The [INPUT] window appears.
2 Select [ANALOG PC-1] or [DIGITAL PC] in the menu with the [INPUT] button.
The selection is toggled through available input signal types from above.
z An LED for a terminal flashes in green if a cable is connected and an input signal is con-
firmed. An LED for a terminal turns on if the projected image is obtained through the termi-
nal (P26, 27).
z Connecting a DVI cable to Input Terminal-1, select the appropriate input signal with the
[INPUT] button in accordance with the setting on the computer (digital signal/analog sig-
nal).
z You can select any input signal type from all options through the [ ] / [ ] button.
<
<
49
PROJECTING AN IMAGE FROM THE COMPUTER
3 If the target input signal is unavailable from the list at the left, press the [>] button, and
then press the [ ] / [ ] button to select the target input signal from the list at the right.
4 Press the [OK] button.
<
<
50
PROJECTING AN IMAGE FROM THE COMPUTER
Selecting ANALOG PC-2
1 Press the [INPUT] button.
The [INPUT] window appears.
2 Select the second top item in the menu with the [INPUT] button.
The selection is toggled through available input signals from above.
3 If the ANALOG PC-2 is unavailable from the list at the left, press [>], and then press [ ]
/ [ ] to select the ANALOG PC-2 from the list at the right.
4 Press the [OK] button.
z Select [ANALOG PC-2] for Input Terminal-2.
z You can select any input signal type from all options through the [ ] / [ ] button.
<
<
<
<
51
PROJECTING AN IMAGE FROM THE COMPUTER
Adjusting the Focus
You can adjust the focus.
Follow the steps below to adjust the focus manually if the Auto setup function (Auto focus)
does not adjust the focus appropriately.
1 Press the [FOCUS] button.
The Focus adjustment window appears.
2 Press the POINTER buttons to adjust the focus.
3 Press the [OK] button.
z You can activate the Auto focus function if you press the [AUTO SET] button now.
However, if you select [16:9 D. image shift] for [Screen aspect], the auto focus function
will be disabled.
z The projected image may be out of focus if the projection distance is beyond the range of
1.2 m (3.9') to 9 m (29.5'). Move the projector installation position if such is the case (P32).
Rough adjustment: [ ] [ ]
Fine adjustment : [<] [>]
<
<
52
PROJECTING AN IMAGE FROM THE COMPUTER
Adjusting Keystone Distortion
The Auto setup function (Auto keystone) automatically adjusts the keystone distortion in a
longitudinal direction. Follow the steps below if the function does not adjust the distortion
appropriately or you want to adjust the keystone distortion in a horizontal direction.
1 Press the [KEYSTONE] button.
The [Keystone adjustment] windows appears.
2 Press the POINTER buttons to adjust the focus.
z You can activate the Auto keystone function if you press the [AUTO SET] button now.
To reduce the length of the
upper edge, press [ ].
<
To reduce the length of the
lower edge, press [ ].
<
To reduce the length of the left
edge, press [<].
To reduce the length of the
right edge, press [>].
53
PROJECTING AN IMAGE FROM THE COMPUTER
3 Press the [OK] button.
z The result of keystone adjustment is memorized. If you place the projector at the same posi-
tion, the keystone adjustment is not necessary.
z When the Keystone adjustment is selected, signals are processed digitally. The image may
look different from the original one.
z The aspect ratio of the image may change after the keystone adjustment.
z Keystone can be adjusted vertically and horizontally within the range of +/-20 degrees. The
amount of adjustment may be less than +/-20 degrees depending on the combination of the
amount of optical zooming, input signal type, and adjustment direction (vertical or horizon-
tal).
z If the keystone distortion is too large to adjust, move the projector installation position (P32).
z To reset the keystone adjustment to 0, press the [KEYSTONE] button again to display the
[Keystone reset] window. On the window, select [OK] with the [<] button, and then press the
[OK] button.
z If you select [16:9 D. image shift] for [Screen aspect], the keystone adjustment will be dis-
abled. Project the image at right angle to the screen.
54
PROJECTING AN IMAGE FROM THE COMPUTER
Setting Up the Computer Screen Automatically (AUTO PC)
This projector automatically makes optimum settings for the total number of dots and track-
ing depending on a signal type (SXGA+, XGA, etc.).
The auto PC adjustment function does not need to be performed if the projector is project-
ing an image properly with [Auto Setup].
You can use this function if the input signal is [ANALOG PC-1] or [ANALOG PC-2].
1 Press the [AUTO PC] button.
The auto PC adjustment function is activated and the projected image is optimized.
z For some computers, the auto PC adjustment function does not optimize the projected
image. If such is the case, you need to make settings (input signal select, total dots, track-
ing, horizontal/vertical positions, horizontal/vertical pixels, etc.) for the input signal (P91, 93-
95).
z The previous signal type ([ANALOG PC-1] or [ANALOG PC-2]) is recorded. If you connect
the projector to the same computer, you can project the image with the same settings as
before simply by selecting the input signal.
55
PROJECTING AN IMAGE FROM THE COMPUTER
Selecting an Image Mode (IMAGE)
You can select an image mode depending on the projecting image. You can also adjust the
image quality (sharpness, gamma, color correction, etc.) as you like.
1 Press the [IMAGE] button.
The Image mode window appears. The selection is toggled among following modes
by pressing the button.
[Standard] Select this to project an image with near-original quality and a
high regard for reproduction of white. It is also suited to project
moving pictures such as a TV program or a DVD movie in a
bright room.
[Presentation] Select this to project an image with quality suited for the pre-
sentation. It also suited to project moving pictures with a high
regard for the brightness.
[Movie]
*1
Select this to project moving pictures of all kinds. Its bright-
ness is suited to easily enjoy the atmosphere of a movie the-
ater in a dim room.
[Photo]
*2
If you select [Photo] for [Image mode], make sure to set
[Ambient light] in the [Image adjustment] as well.
You can correct an image according to the ambient light
based on [sRGB] in [Image mode] and project the image with
higher tone on the screen by setting [Ambient light]. It is suited
to project an ornamental photo, etc. under an ambient light.
[AdobeRGB] Select this if you want to project an image in the display mode
conforming to Adobe RGB color space. You can project an
image with more accurate color reproduction since It has
wider color gamut than sRGB.
[sRGB] Select this if you want to project an image in the display mode
conforming to Windows standard color space. It is suited to
project an image shot by an sRGB-compatible digital camera.
[Home Cinema] Select this to project a movie with quality suited to seriously
enjoy the atmosphere of a movie theater in a dark room.
*1 It is available if the input signal is [DIGITAL VIDEO], [COMPONENT], [VIDEO] or [S-VIDEO].
*2 It is available if the input signal is [ANALOG PC-1], [ANALOG PC-2], or [DIGITAL PC].
(SX7 MarkII)
56
PROJECTING AN IMAGE FROM THE COMPUTER
SX7 MarkII SX60
Standard
Presentation
Movie
AdobeRGB
sRGB
Standard
Presentation
Movie
Home Cinema
sRGB

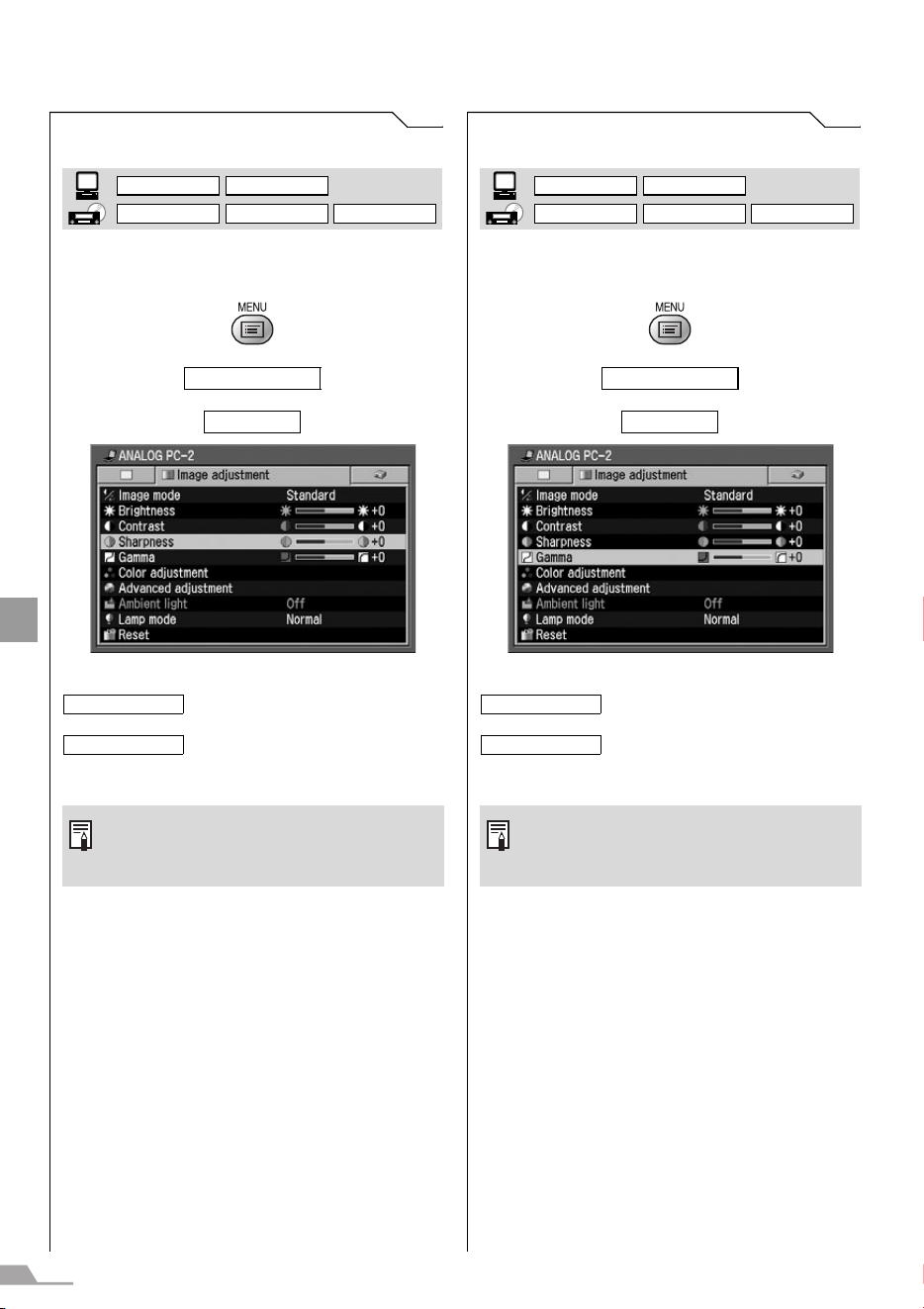

z You can adjust the followings for each image mode. For detailed information on the proce-
dures, refer to "Image Adjustment Menu" (P102 to 110).
- Brightness Adjust this when the image is too bright or dark.
- Contrast Adjust this to decrease or increase contrast of the entire image.
- Sharpness Adjust this to soften or sharpen an image.
- Gamma Adjust this when light or dark portions of an image are obscure.
- Color adjustment
Adjust this to adjust the color level and balance.
- Advanced adjustment
Adjust this when color tones are different from those of the original image.
z The results of adjustments are saved for each input signal. Once you save them, you can
project images with the same settings.
z You can set an image mode from the menu. Refer to [Image mode] section in the menu
(P102)
57
PROJECTING AN IMAGE FROM THE COMPUTER

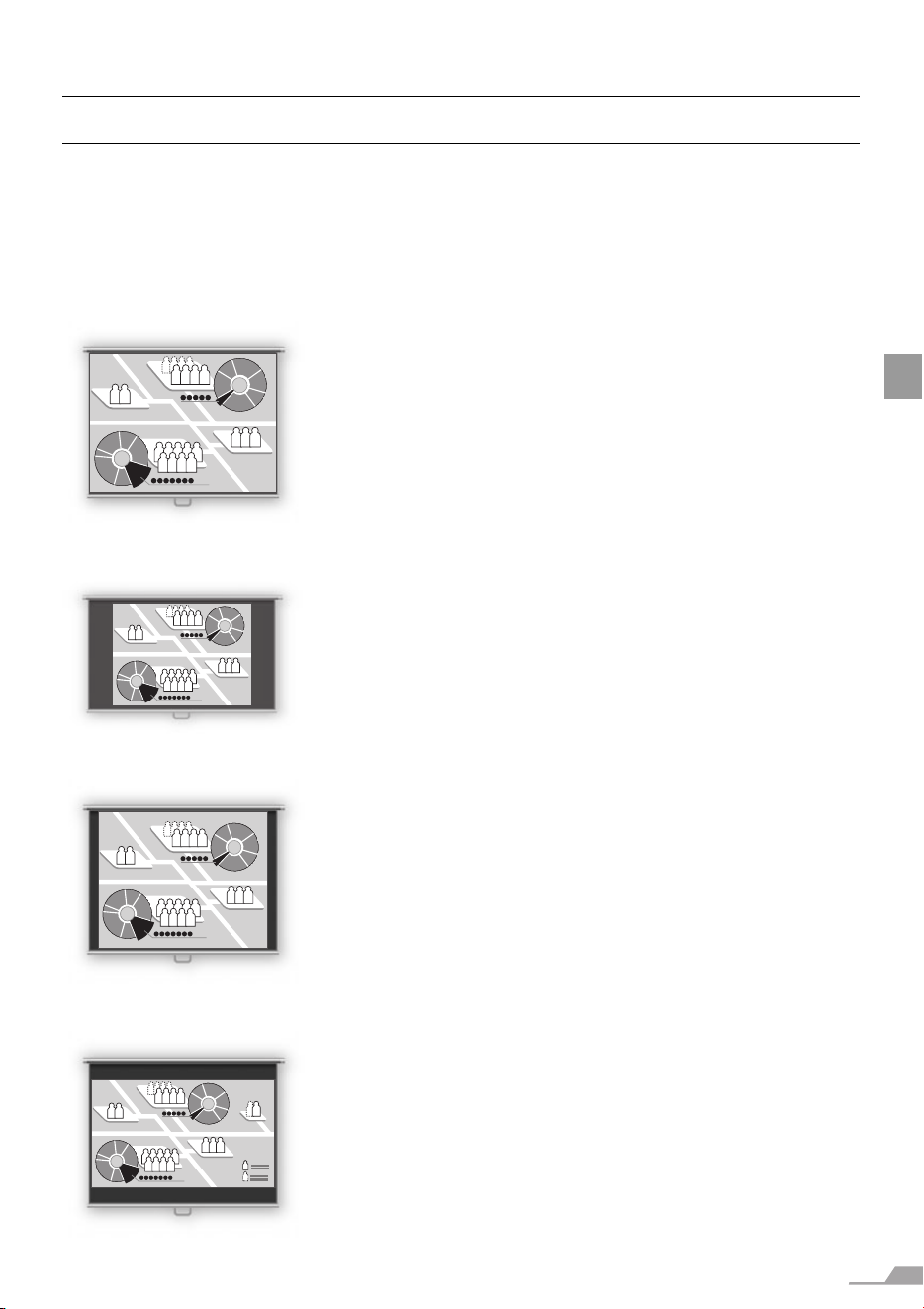

Selecting a Screen Mode (Aspect)
You can select one of the following screen modes depending on the aspect ratio or display
resolution of your computer.
z You can specify the aspect ratio from the menu. Refer to [Aspect] in the menu (P90).
z The available screen mode will be different depending on the setting of [Screen
aspect]. Refer to the section [Screen aspect] (P59).
Full screen
Select this to project a computer screen with aspect ratio of
4:3 (SXGA+ [1400 by 1050 dots] or XGA [1024 by 768 dots]).
If you select this mode to project the computer screen with
aspect ratio of 5:4 (SXGA [1280 by 1024 dots]), it is com-
pressed vertically or horizontally.
Select this mode under normal conditions.
[Full screen] will be disappeared from the menu screen if you
select [16:9] or [16:9 D. image shift] for [Screen aspect].
4:3
Select this to display a computer screen with aspect ratio of
4:3 on the 16:9 screen if you have selected [16:9 D. image
shift] for [Screen aspect].
Auto
Select this to project a wide screen or computer screen with
aspect ratio of 5:4 (SXGA).
Since the image is projected with it fitted to either the width or
length of the computer screen, it does not display the top and
bottom portions or the leftmost and rightmost portions of the
image.
Wide
Select this to project a computer screen with aspect ratio of
16:9.
Since the image is projected with it fitted to the width of the
computer screen, it blackens the top and bottom portions of
the screen.
58
PROJECTING AN IMAGE FROM THE COMPUTER
True size
Select this if you want to project a computer screen in its orig-
inal size.
A clear image can be obtained because of no image pro-
cessing.
z If the display resolution of the computer is higher than 1400 by 1050 dots, select a lower
resolution before starting projection.
z The upper, lower, left, and/or right portions of a projected image may be missing depending
on the Aspect setting.
59
PROJECTING AN IMAGE FROM THE COMPUTER

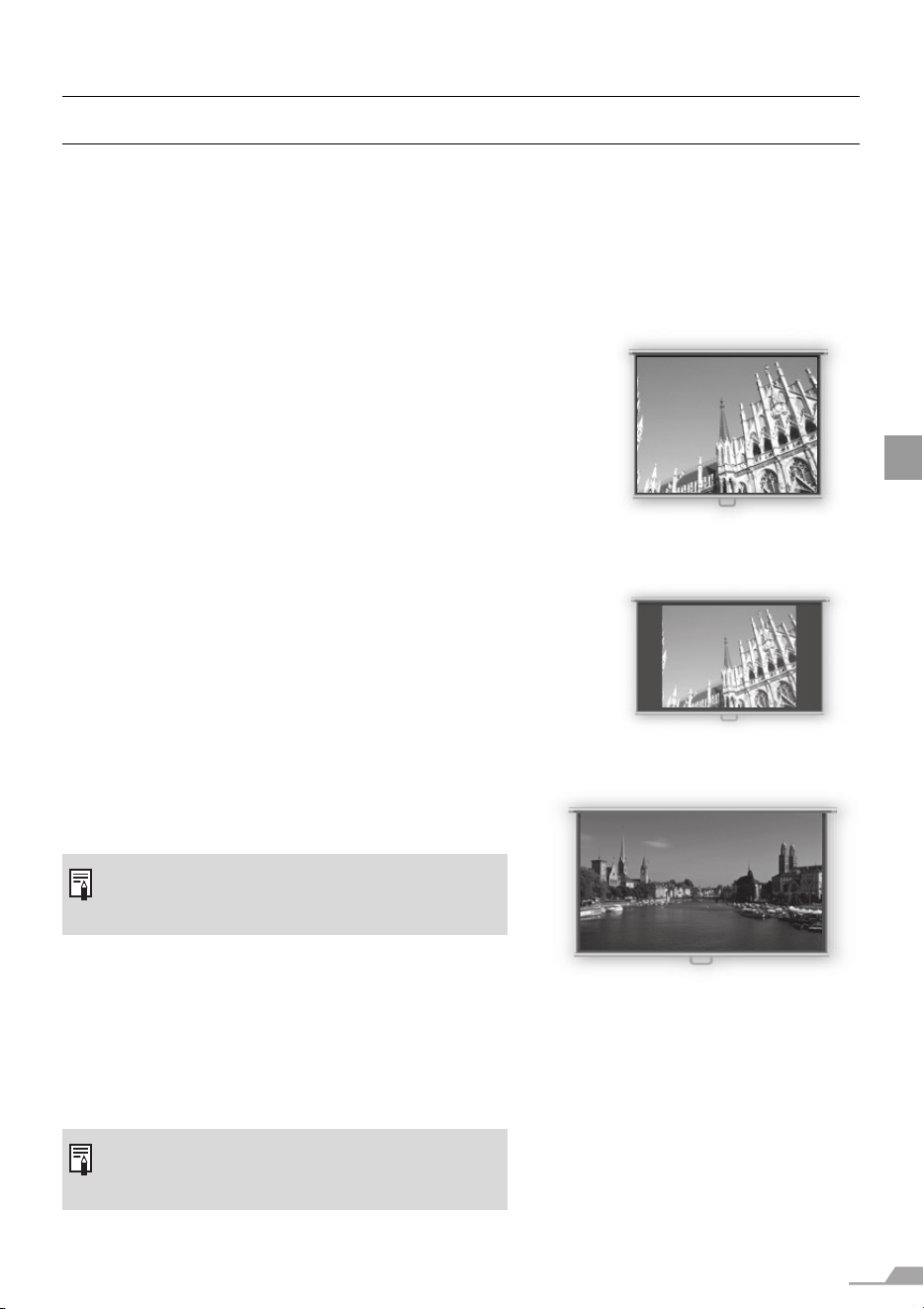

Selecting Aspect Ratio of the Projecting Image
(Screen aspect)
You can select among three aspect ratios of the projecting image according to the aspect
ratio of the projected screen.
You can project an image on the whole screen by setting [Screen aspect].
z You can set [Screen aspect] from menu. Refer to the section [Screen aspect] on the
menu for details. (P101)
4:3
Select this when you use a screen with aspect ratio of 4:3.
16:9
Select this when you use a screen with aspect ratio of 16:9.
16:9 D. image shift
Perform the following steps to shift the projected image.
1 Press the [KEYSTONE] button on the top control or remote control to open the [D.
image shift adjustment] screen.
2 Press [ ] / [ ] on the top control or remote control to adjust its vertical position.
3 Press the [OK] button.
Select [4:3] from the [Aspect] menu if you want to project a video image with aspect ratio of
4:3 in this mode. (P57)
z [Wide] is automatically selected for [Aspect].
z [Auto screen color] may not correct the screen color properly. If such is the case, correct it
manually. (P98)
z Keystone adjustment will be disabled. Project the image at right angle to the screen.
z [Auto focus], [Auto keystone], and [Auto screen color] are disabled in the [Auto setup] func-
tion.
z You cannot register the image for [Projector on], [No signal screen], or [NO SHOW].
z [SPOT] will be disabled.
[ ]: Moves up the image.
<
[ ]: Moves down the image.
<
<
<
60
PROJECTING AN IMAGE FROM THE COMPUTER
Turning Off the Projector
1 Press the [POWER] button.
A confirmation message appears on the screen.
To continue projection, wait until the confirmation message disappears (approximately
4 seconds) or press a button other than the [POWER] button.
2 Press the [POWER] button again while the confirmation message is displayed.
The lamp goes off, the [POWER] indicator starts flashing in red, and it starts cooling
the lamp.
3 Remove the power cord from the AC outlet.
It continues to cool down the lamp even after removing the power cord.
z You may shorten the lamp life if turning off the projector while its lamp is still in an unstable
state shortly after turning on the projector. Wait at least 5 minutes before turning off the pro-
jector.
z Wait at least 5 minutes before turning on the projector when you turn off the projector. It may
shorten the lamp life if you turn on the projector immediately after turning it off.
z Using the projector for a long time may shorten the life of the lamp and internal optical com-
ponents.
z When the projector is turned off, it starts cooling the lamp. You cannot turn it on during the
process.
61
PROJECTING AN IMAGE FROM THE COMPUTER
Setting Up the Power Management Function
You can use the power management function that turns off the lamp if the projector
receives no signal input for a while.
If you enable the power management mode, the projector displays a countdown timer if the
projector is receiving no signal input and is not operated for 30 seconds, and approxi-
mately 5 minutes later the lamp is turned off and the projector goes into the power man-
agement mode.
You can select one of the following power management modes from the menu (P111).
Standby mode
Select this mode if you want to start projection soon.
In the standby mode, the lamp is turned off and cooled down. When the lamp has been
cooled down, the [POWER] indicator starts flashing in red and green to indicate it is
standby. It will start projection if the input signal is inputted or any button on the top control
or remote control is pressed.
Exit mode
Select this mode to turn off the projector automatically.
In the exit mode, the lamp is turned off and cooled down. When the lamp has been cooled
down, the [POWER] indicator stops flashing in red and stays on and the power is turned
off.
z Wait until the cooling fan stops before putting the projector in the carrying bag. Do not put
the projector in the carrying bag until the cooling fan stops rotating. The projector may be
damaged due to the heat.
z Attach the lens cap to the lens to protect it and put the projector in the carrying bag.
Replace the adjustable foot to prevent the damage on the projector.
z You can carry the projector immediately after the use ("Off & Go" function).
z You can turn off the projector by disconnecting the power cord without pressing the
[POWER] button.
z The LED illumination lamp turns on to indicate the lamp is being cooled when the power
cord is connected.
z The projector becomes inoperative when the lamp is being cooled in a power management
mode.
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
PROJECTING AN
IMAGE FROM
AV EQUIPMENT
64
PROJECTING AN IMAGE FROM AV EQUIPMENT
Projecting an Image from AV Equipment
Connecting the Projector to an AV Equipment
Connect the projector and AV equipment.
Connecting to Video Terminals
z Before connecting cables, turn off both the projector and AV equipment.
z The above illustrations are just examples. For more detailed information, refer to the manual
for the connecting AV equipment.
About the Component Cable
The projector cannot be connected to an AV equipment only with the supplied component
cable (RCA/Mini D-sub 15-pin). Please purchase either of the following cables according to the
type of the terminal on the AV equipment:
z RCA terminal: RCA x 3/RCA x 3 cable
z D-terminal: D-terminal/RCA x 3 cable
Supplied component cable
Video output terminal
INPUT Signal: [COMPONENT] is selected automatically
AV equipment
Projector
(RCA component terminal) (D terminal)
Commercial
component cable
(RCA x 3)
Commercial
component cable
(D terminal/RCA x 3)
Component input terminal
(ANALOG IN-2)
Supplied
component cable
(RCA/Mini D-sub
15-pin)
Connecting to the RCA
component terminal
Connecting to the D terminal
Supplied
component cable
(RCA/Mini D-sub
15-pin)
Connect the RCA
cables according
to color code.
z Green (Y)
z Blue (Cb/Pb)
z Red (Cr/Pr)
65
PROJECTING AN IMAGE FROM AV EQUIPMENT

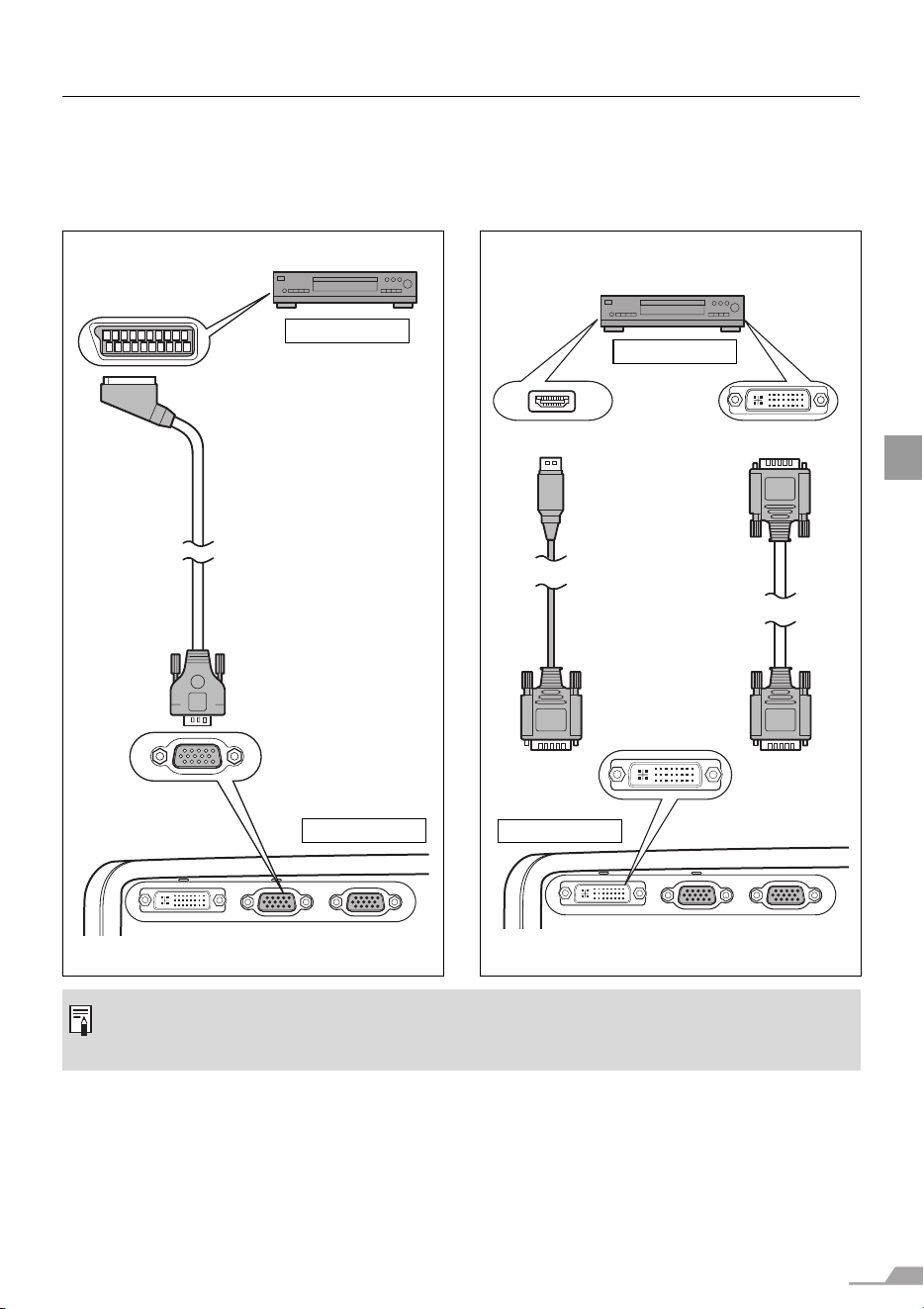

SCART cable
INPUT Signal: Select [SCART] (P72)
AV equipment
Projector
(SCART terminal)
Input Terminal-2
(ANALOG IN-2)
LV-CA31 cable
Digital cable
You can project digital content via the HDMI or DVI
terminal.
Digital video
output
terminal
INPUT Signal: Select [DIGITAL VIDEO] (P71)
AV equipment
Projector
(HDMI terminal) (DVI terminal)
Input Terminal-1
(DIGITAL IN)
Commercial HDMI adapter cable
Commercial DVI cable
z Set the input signal as [COMPONENT] by referring to "Projecting an Image from the Com-
puter" and "5-BNC cable" if you want to connect the projector to an AV equipment using a 5-
BNC extension cable via an video control apparatus in a hall or so (P37).
66
PROJECTING AN IMAGE FROM AV EQUIPMENT

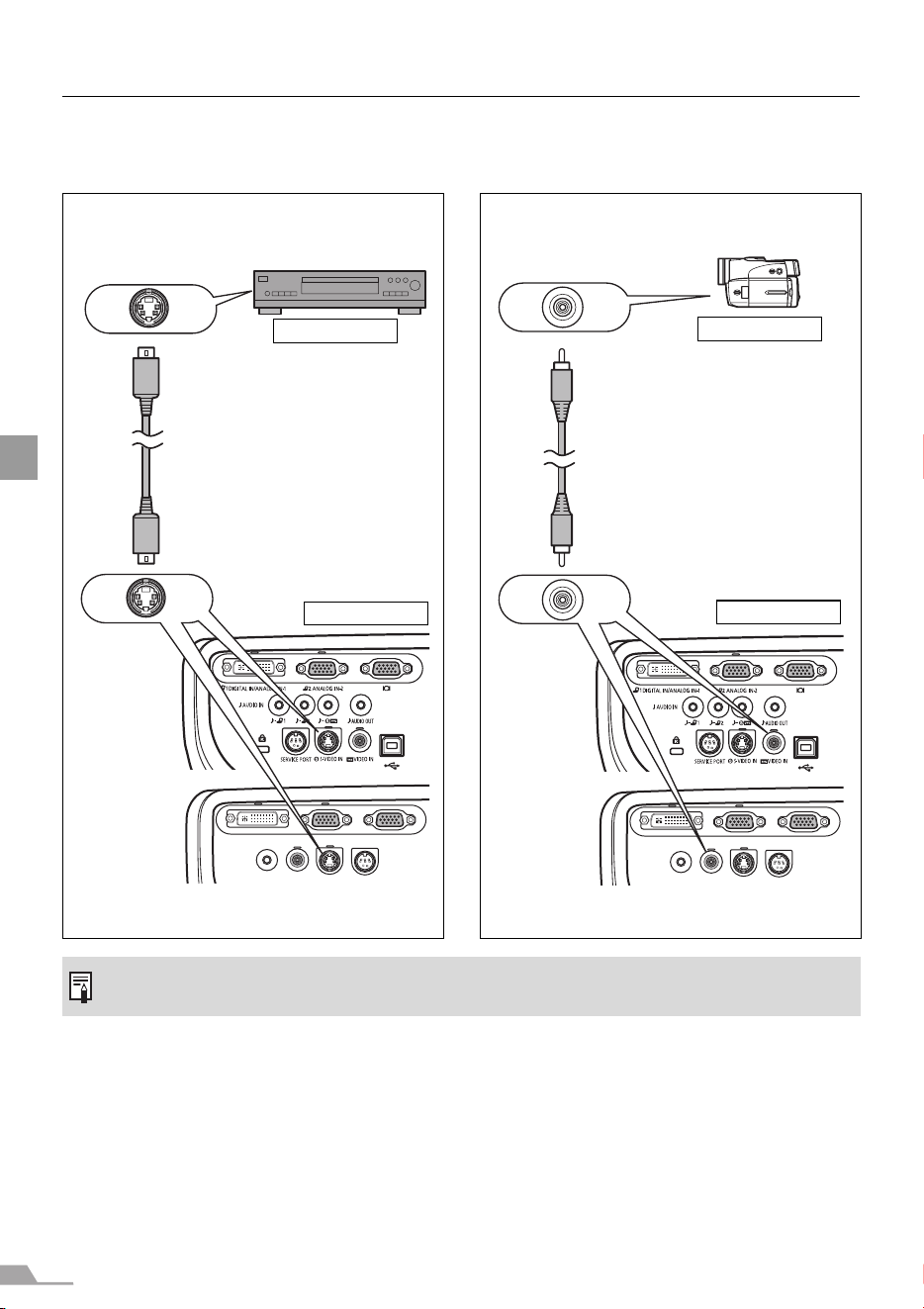

S-VIDEO cable
INPUT Signal: [S-VIDEO] is selected automati-
cally
AV equipment
Projector
S-VIDEO input
terminal
(S-VIDEO IN)
Commercial S-VIDEO video cable
S-VIDEO output terminal
(S-VIDEO OUT terminal)
SX7 MarkII
SX60
INPUT Signal: [VIDEO] is selected automati-
cally
AV equipment
Projector
Video input
terminal
(VIDEO IN)
Commercial Video cable
Video output terminal
(VIDEO OUT terminal)
Video cable
SX60
SX7 MarkII
z Connect an audio cable if you want to use the projector's speaker.
(SX7 II: P67, SX60: P39)
67
PROJECTING AN IMAGE FROM AV EQUIPMENT
Connecting to AUDIO IN Terminals (SX7 II)
Connect an audio cable to the AUDIO IN terminal corresponding to the input image signal
if you want to use the projector’s speaker.
z The speaker outputs the audio signal corresponding to the selected image signal.
z Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor
turns down the sound.
z Connect the audio cable between the AUDIO OUT terminal and an external audio-visual
equipment if you want to output the audio signal to the audio-visual equipment (P68).
z The built-in speaker is monaural.
Audio cable
AV equipment
Projector
Commercial audio cable
AUDIO OUT terminal
(RCA terminal) (Stereo mini jack)
(Stereo mini jack)(RCA/Stereo
mini jack)
Audio input terminal
(AUDIO IN)
for DEGITAL IN/ANALOG IN-1
SX7 MarkII
for ANALOG IN-2
for VIDEO IN/S-VIDEO IN
You can input an audio signal
corresponding to 3 image
input systems.
Connect to the AUDIO IN ter-
minal corresponding to the
type of the input image signal.
68
PROJECTING AN IMAGE FROM AV EQUIPMENT
Connecting to AUDIO OUT Termi-
nals (SX7 II)
Connect the audio cable between the
AUDIO OUT terminal and an external audio-
visual equipment if you want to output the
audio signal to the audio-visual equipment.
Audio cable
AV equipment
Audio output terminal
(AUDIO OUT)
Commercial audio cable
AUDIO IN terminal
(RCA terminal) (Stereo mini jack)
(RCA/Stereo
mini jack)
(Stereo mini jack)
Projector
The audio-visual
equipment outputs
the audio signal
corresponding to
the selected image
signal.
SX7 MarkII
z Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor
turns down the sound.
z You can adjust the volume level of the audio signal to the audio-visual equipment with the
remote controller or the buttons on the top control of the projector.
z The internal speaker is disabled if you input the audio cable to the AUDIO OUT terminal.
z If you connect the projector directly to a speaker, make sure to use the amplified speaker.
69
PROJECTING AN IMAGE FROM AV EQUIPMENT
Projecting a Video Image from an AV Equipment
You can project a video image with the steps similar to those for projecting an image from a
computer.
This section provides information specific to the projection from an AV equipment.
For more detailed information for each step, refer to the corresponding page.
1 Turn on the projector. P40*
z Connect the power cord and turn on the projector. P40
z Adjust the height of the projecting image. P43
z Select a display language for the first time. P41
z Adjust the focus by performing the auto setup or the focus adjustment if you can-
not read the message due to out of focus. P46, 51
2 Prepare the AV equipment.
z Turn on the AV equipment and start playing the video image.
3 Press the button to switch the input signal. P70
z Select [DIGITAL VIDEO] as the input signal.
4 Press the button twice. P70
z Adjust the input signal, focusing, keystone distortion, and so on automatically
using the auto setup function.
5 Press the button.
z Select an appropriate image mode depending on the projecting image. P55*
z Select an appropriate screen mode from the [Aspect] menu. P73, 90, 91
Turn off the projector. P60*
z Turn off the projector and remove the power cord from the AC outlet.
* Those steps are same as those for projecting the computer screen.
For digital content video image:
S
topping projection...
70
PROJECTING AN IMAGE FROM AV EQUIPMENT
Performing the Auto Setup
With the auto setup function, a series of screen adjustment and settings, such as Auto
focus and Auto keystone is performed automatically when projecting a video image from
an AV equipment. You can start the projection only with this operation if the input signal has
been appropriately selected.
Refer to page 46 for detailed information on items adjusted by performing the auto setup.
1 Select [DIGITAL VIDEO].
Perform the steps shown in the "Selecting DIGITAL VIDEO" section on page 71 before
performing the auto setup if you want to project a digital content video image.
Skip this step if [DIGITAL VIDEO] has been selected at the previous projection.
2 Press the [AUTO SET] button.
The [Auto setup] window appears.
3 Press the [AUTO SET] button again.
One or more functions highlighted in black are performed automatically.
Selecting an Input Signal
Select [DIGITAL VIDEO] among the following input signals by following the steps shown in
the "Selecting DIGITAL VIDEO" section below if you want to project a digital content video
image.
DIGITAL VIDEO : Digital signal Connecting with an HDMI/DVI cable or DVI digital
cable
COMPONENT : Component signal Connecting with a supplied component cable
SCART : SCART signal Connecting with a supplied SCART cable
VIDEO : Video signal Connecting with a video cable
S-VIDEO : S-VIDEO Connecting with an S-Video cable
The component, video, and S-VIDEO signals are automatically set if a cable is connected
and the input signal is confirmed.
z You can perform this step by selecting [OK] with the [<] button, and then pressing the
[OK] button.
z A LED (green) on a terminal flashes when an input signal is confirmed. The LED turns on if
the signal is selected and projected (P26, 27).
z Connecting with a HDMI/DVI cable, the image may be projected with the minimum resolu-
tion (480p or 575p) due to the specification of the AV equipment.
71
PROJECTING AN IMAGE FROM AV EQUIPMENT
Selecting DIGITAL VIDEO
1 Press the [INPUT] button.
The [INPUT] window appears.
2 Select the top item in the menu with the [INPUT] button.
The selection is toggled through available input signal types from above.
3 If [DIGITAL VIDEO] is unavailable from the list at the left, press [>], and then press [ ] /
[ ] to select it from the list at the right.
4 Press the [OK] button.
z You can select any input signal type from all options through the [ ] / [ ] button.
<
<
<
<
72
PROJECTING AN IMAGE FROM AV EQUIPMENT
Selecting SCART
1 Press the [INPUT] button.
The [INPUT] window appears.
2 Select the second top item in the menu with the [INPUT] button.
The selection is toggled through available input signals from above.
3 If the SCART is unavailable from the list at the left, press [>], and then press [ ] / [ ] to
select the SCART from the list at the right.
4 Press the [OK] button.
z Select [SCART] for Input Terminal-2.
z You can select any input signal type from all options through the [ ] / [ ] button.
<
<
<
<
73
PROJECTING AN IMAGE FROM AV EQUIPMENT
Selecting a Screen Mode (Aspect)
You can select one of the following screen modes depending on the aspect ratio of your AV
equipment or content software.
z You can specify the aspect ratio from the menu. Refer to [Aspect] in the menu (P90,
91).
z The available screen mode will be different depending on the setting of [Screen
aspect]. Refer to the section [Screen aspect] for details (P74).
Full screen
Select this to project a video image with aspect
ratio of 4:3.
[Full screen] will be disappeared from the menu
screen if you select [16:9] or [16:9 D. image shift]
for [Screen aspect].
4:3
Select this to project a screen with aspect ratio of
4:3 on the 16:9 screen if you have selected [16:9]
or [16:9 D. image shift] for [Screen aspect].
Wide
Select this to project a video image with aspect
ratio of 16:9.
Auto ([DIGITAL VIDEO]/[COMPONENT])
Select this to switch between [Full screen] and
[Wide] automatically in accordance with the video
image.
z Refer to the table on the page 133 for more
detailed information on the screen size for the
wide screen.
z The upper, lower, left and right portions of a
projected image may be missing depending
on the [Aspect] setting.
74
PROJECTING AN IMAGE FROM AV EQUIPMENT
Selecting Aspect Ratio of the Projecting Image
(Screen aspect)
You can select among three aspect ratios of the projecting image according to the aspect
ratio of the projected screen.
You can project an image on the whole screen by setting [Screen aspect].
z You can set [Screen aspect] from menu. Refer to the section [Screen aspect] on the
menu for details (P101).
4:3
Select this when you use a screen with aspect ratio of 4:3.
The following table shows the available [Aspect] mode for each input signal.
16:9
Select this when you use a screen with aspect ratio of 16:9.
Select [4:3] from the [Aspect] menu if you want to project a video image with aspect ratio of
4:3 in this mode (P73).
The following table shows the available [Aspect] mode for each input signal.
Input signal Available [Aspect] mode
VIDEO
S-VIDEO
SCART
Full screen
Wide
COMPONENT
DIGITAL VIDEO
Full screen
Auto
Wide
Input signal Available [Aspect] mode
VIDEO
S-VIDEO
SCART
4:3
Wide
COMPONENT (480i/575i/480p/575p)
DIGITAL VIDEO (480p/575p)
4:3
Wide
COMPONENT (720p/1035i/1080i)
DIGITAL VIDEO (720p/1080i)
Wide
z [Auto screen color] may not correct the screen color properly. If such is the case, correct it
manually. (P98)
75
PROJECTING AN IMAGE FROM AV EQUIPMENT
16:9 D. image shift
Select this when you use a screen with aspect ratio of 16:9. You can vertically shift or fine-
tune the position of the undistorted image without the keystone adjustment.
Refer to P59 for detailed information on shifting the image.
The following table shows the available [Aspect] mode for each input signal.
Select [4:3] from the [Aspect] menu if you want to project a video image with aspect ratio of
4:3 in this mode (P73).
Input signal Available [Aspect] mode
VIDEO
S-VIDEO
SCART
4:3
Wide
COMPONENT (480i/575i/480p/575p)
DIGITAL VIDEO (480p/575p)
4:3
Wide
COMPONENT (720p/1035i/1080i)
DIGITAL VIDEO (720p/1080i)
Wide
z Keystone adjustment will be disabled. Project the image at right angle to the screen.
z [Auto focus], [Auto keystone], and [Auto screen color] are disabled in the [Auto setup] func-
tion.
z You cannot register the image for [Projector on] or [No signal screen].
z [SPOT] will be disabled.
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
USEFUL
FUNCTIONS
AVAILABLE
DURING A
PRESENTATION
78
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Useful Functions Available During
a Presentation
Blackened Out an Image
Temporarily
X Useful when:
X You finished the presentation.
X You want to divert attendees' attention
from the screen.
Blacken out the image temporarily.
Blackening out an Image
The screen changes to black or blue.
Showing the Image Again
Press the button to show the image
again.
Freezing the Picture
X Useful when:
X You want to perform a computer opera-
tion which is irrelevant to the proceed-
ings of the presentation.
X You want to stop a moving image.
Freeze the moving image.
Freezing an Image
The "FREEZE" message is shown on the
screen.
Canceling the FREEZE function
Press the button again to cancel the
FREEZE function.
z You can capture a specified logo
(SX60) (P98).
z You can show a logo such as a com-
pany logo while blackening out the
image (SX60) (P100).
z The (middle) LED illumination lamp on
the top control flash slowly while
blackening out the image.
z A guiding message appears if you
press an invalid button while the NO
SHOW function is on.
z The lamp keeps a turn-on state while
the NO SHOW function is on.
z You can expand or reduce the frozen
image (P81).
z The (left and right) LED illumination
lamps on the top control flashes
slowly while stopping the image.
z A guiding message appears if you
press an invalid button while the
FREEZE function is on.
79
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Muting the Sound
X Useful when:
X You want to immediately mute the sound
from the projector.
Mute the sound temporarily.
Muting the Sound
The projector shows the [MUTE] icon on
the screen.
Canceling the MUTE function
Press the button again to cancel the
MUTE function.
Pressing the button also cancels the
MUTE function.
Adjusting the Volume
X Useful when:
X You want to adjust the volume level of
the projectors speaker.
Adjusting the Volume
Volume bar appears on the screen.
z For SX7 MarkII, you can also mute the
audio with the same operation when
you output the audio to the external
audio-visual equipment.
z Adjust the volume or mute setting on
the computer if the volume level is too
low.
z For SX7 MarkII, you can also adjust
the volume level with the same opera-
tion when you output the audio to the
external audio-visual equipment.
80
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Showing the Elapsed Time
X Useful when:
X You want to manage the proceedings of
the presentation.
The elapsed time from 00:00 to 59:59 is
displayed at the lower right corner of the
screen.
Starting the Countdown
Press this button once to display the timer
and start counting.
Stopping the Countdown
Press the button again to stop the
countdown.
Canceling the Countdown
Press the button again to disappear the
timer.
Page Up or Down through
the Pages
X Useful when:
X You want to page up or down through
the projected application pages with the
remote control.
You can page up or down in the projected
application with the supplied remote con-
trol.
Page Up
Page Down
z This function is available only if the
projector and the computer are con-
nected via the USB cable that came
with your projector (P82).
z This function acts as the Page Up and
Page Down keys on the computer
keyboard. You can not use this func-
tion depending on the application.
81
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Zooming an Image
X Useful when:
X Zoom in an object such as a small
graph during a presentation.
X Moving unnecessary information off the
screen to focus on the current subject.
Zoom the projected image.
Zooming In an Image
Press this button repeatedly until the image
becomes the desired size.
Moving an Image to the Desired Position
If the image you want to zoom in stays out
of the screen or out of the center of the
screen, you can move it to the desired
position.
Zooming Out an Image
Press this button repeatedly until the image
becomes the desired size.
You can restore the original size of the
image by pressing the [OK] button.
z The magnification appears on the
screen when you press the [D.ZOOM]
button.
z The zoom ratio is 1x to 12x.
z You can freeze the enlarged image.
z Press the [OK] button to cancel the
digital zoom function.
z The following guiding message
appears if you press an invalid button
during operating the digital zoom
function.
82
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Operating a Mouse with
the Remote Control
X Useful when:
X You want to operate a mouse with the
remote control.
You can use the supplied remote control as
the wireless mouse for your computer.
Connecting a USB Cable
Make sure that both the computer and pro-
jector are turned off, and then connect the
supplied USB cable between the USB ter-
minals on the computer and the projector.
Moving the Cursor
You can move the mouse cursor vertically
and horizontally.
Using the Left Button of the Mouse
You can click, double-click, or drag an
object with this button.
Using the Right Button of the Mouse
USB terminal
USB cable
Computer
Projector
USB terminal
z This function is supported on Windows
7, Windows Vista, Windows XP, or Mac
OS 9.2 and later.
83
USEFUL FUNCTIONS AVAILABLE DURING A PRESENTATION
Pointing with a Spotlight
X Useful when:
X You want to point to a portion of an
image that should draw attendees'
attention.
Highlight a desired portion of the projected
image with a spotlight.
Showing the Spotlight
A spotlight appears at the center of the
screen and the image becomes dark
except for the spotlight.
Press the button repeatedly to change
the shape of the spotlight.
Moving the Spotlight
Move the spotlight to a desired position.
No mark
z If you select [16:9 D. image shift] for
[Screen aspect], the SPOT function
will be disabled.
z Press the [OK] button to cancel the
SPOT function.
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
SETTING UP
FUNCTIONS
FROM MENUS
86
SETTING UP FUNCTIONS FROM MENUS
Setting Up Functions from Menus
How to Use Menus
Some of the projector's function are used through the menu screen.
It consists of following three menus.
* The menu items may differ depending on the input signal.
The projector stores the settings for each input signal (8) and image mode (up to 5).
Display settings menu (P90)
This menu is used to select an input
signal and make various settings
related to display.
System settings menu (P111)
This menu is used to set various func-
tions of the projector.
You can set them regardless of the
input signal.
Image adjustment menu (P102)
This menu is used to make various
adjustments to the projected image.
You can make the adjustments
according to your preference while
checking the image.
Symbols Indicating Item Categories
Menu items are classified into two categories, menu items used to project the image
from the computer and menu items used to project the image from the AV equipment.
Menu item used when projecting an image
from the computer.
Menu item used when projecting an
image from AV equipment.
DIGITAL PC input DIGITAL VIDEO input
ANALOG PC-1/ANALOG PC-2 input COMPONENT input
SCART input
COMPONENT input/SCART input
VIDEO input/S-VIDEO input
DIGITAL PC
DIGITAL VIDEO
ANALOG PC
COMP.
SCART
COMP./SCART
VIDEO/S-VIDEO
87
SETTING UP FUNCTIONS FROM MENUS
This section provides the basic operation on the menu.
1 Press the [MENU] button.
A menu window appears.
2 Press [<] / [>] to select the appropriate tab.
Press [ ] to move the cursor on the tab if it is
not on it.
3 Press [ ] / [ ] to select a menu item you want to set.
(Continue to the next page.)
z Press the [MENU] button again to close
the menu window.
z Some menu items provide more detailed
menu items.
Display settings
tab
System settings
tab
Image adjustment tab (Image adj.)
<
Menu items
<
<
88
SETTING UP FUNCTIONS FROM MENUS

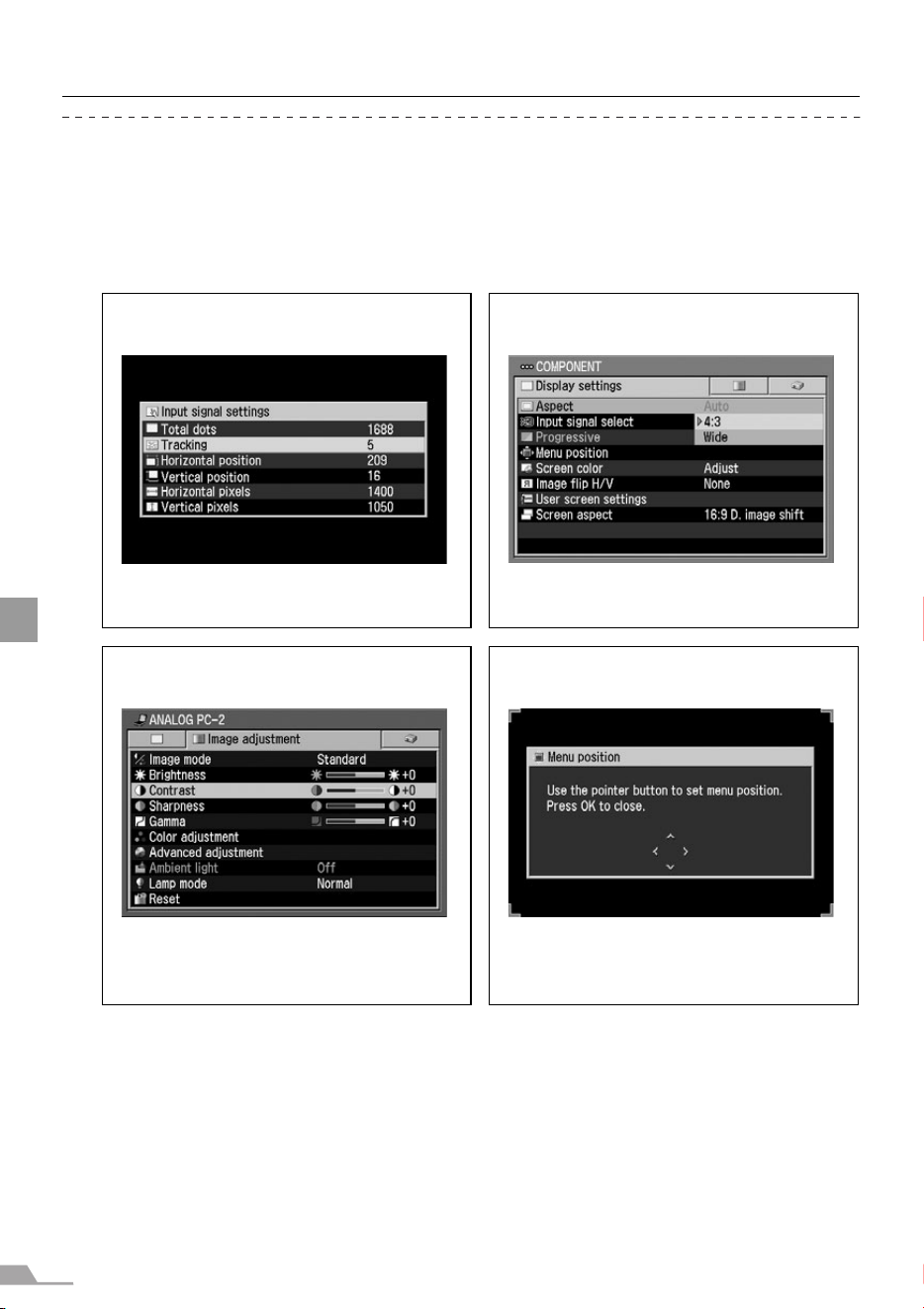

4 Set the menu item.
There are four types of menu items that you make a setting:
z Directly
z From a list
z With a slider
z In a different screen
z Directly
Example: Tracking
Press [<] [>] to increase/decrease the
setting.
z From a list
Example: Aspect
Press the [OK] button to display a list.
Press [ ] [ ] to select a desired setting.
z With a slider
Example: Contrast
Press [<] [>] to move the slider.
z In a different screen
Example: Menu position
Press the [OK] button to display a dif-
ferent screen. Then follow the instruc-
tion on the screen.
<
<
(SX7 MarkII)
89
SETTING UP FUNCTIONS FROM MENUS
5 Press the [OK] button.
In some menu items, the setting is enabled just by making a selection.
6 Press the [MENU] button when you finish.
The menu disappears.
90
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Selecting a Screen Mode (1)
[Aspect]
You can adjust the aspect ratio of the image pro-
jected on the screen.
T
T
Press the [MENU] button when you finish.
Selecting a Screen Mode (2)
[Aspect]
You can adjust the aspect ratio of the image pro-
jected on the screen.
T
T
Press the [MENU] button when you finish.
Display settings
Aspect
Projects a computer screen with
aspect ratio of 4:3 fully on the
screen with aspect ratio of 4:3.
Projects a computer screen with
aspect ratio of 4:3 within the screen
with aspect ratio of 16:9.
Projects an input signal image in the
maximum size with the aspect ratio
unchanged.
Projects a computer screen at 16:9
aspect ratio with its width matching
to the width of the projecting area.
Projects a computer screen in its
original size (no enlargement/reduc-
tion).
z Each item may become unavailable
depending on the setting of the input
signal or other menu items.
DIGITAL PC ANALOG PC
Full screen
4:3
Auto
Wide
True size
Display settings
Aspect
Switches among [Full screen], [4:3],
and [Wide] automatically in accor-
dance with the video image from the
AV equipment.
Projects a normal image with aspect
ratio of 4:3 on the screen with
aspect ratio of 4:3.
Projects a image with aspect ratio of
4:3 within the screen with aspect
ratio of 16:9.
Projects a video image with aspect
ratio of 16:9.
z Each item may become unavailable
depending on the setting of [Screen
aspect].
DIGITAL VIDEO COMP.
Auto
Full screen
4:3
Wide
91
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Selecting a Screen Mode (3)
[Aspect]
You can adjust the aspect ratio of the image pro-
jected on the screen.
T
T
Press the [MENU] button when you finish.
Selecting an Input Signal Type (1)
[Input signal select]
You can select a desired input signal type if the
auto PC adjustment function detects more than
one input signal types.
T
T
Select an input signal type suitable for the com-
puter from the displayed signal types.
Press the [MENU] button when you finish.
Display settings
Aspect
Projects a normal image with aspect
ratio of 4:3 on the screen with
aspect ratio of 4:3.
Projects an image with aspect ratio
of 4:3 within the screen with aspect
ratio of 16:9.
Projects a video image with aspect
ratio of 16:9.
z Each item may become unavailable
depending on the setting of [Screen
aspect].
VIDEO/S-VIDEO SCART
Full screen
4:3
Wide
Display settings
Input signal select
z See P132 for the signal types sup-
ported by this projector.
ANALOG PC
92
SETTING UP FUNCTIONS FROM MENUS
Selecting an Input Signal Type (2)
[Input signal select]
You can select an input signal type manually if a
video image from a AV equipment is not pro-
jected correctly (irregular color or no image).
T
T
Press the [MENU] button when you finish.
Selecting an Input Signal Type (3)
[Input signal select]
You can select an input signal type manually if a
video image from a AV equipment is not pro-
jected correctly.
T
T
Press the [MENU] button when you finish.
Display settings
Input signal select
Selects the input signal automati-
cally.
Select one of input signal types
shown on the left if video image is
not projected correctly in the [Auto]
mode.
z Confirm the input signal type accord-
ing to the User's Manual that came
with the AV equipment connected.
VIDEO/S-VIDEO
Auto
NTSC
PAL
SECAM
NTSC4.43
PAL-M
PAL-N
Display settings
Input signal select
Selects the component format auto-
matically according to the input sig-
nal.
Select one of input signal types
shown on the left if video image is
not projected correctly in the [Auto]
mode. ("575i" is selected automati-
cally for the SCART input.)
z Confirm the input signal type accord-
ing to the User's Manual that came
with the AV equipment connected.
COMP./SCART
Auto
1080i
1035i
720p
575p
480p
575i
480i
93
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Adjusting the Total Number of Dots
[Total dots]
You can select the total number of dots in the
horizontal direction. Adjust the number of dots
when the image distorts or noise is displayed on
the screen at both sides.
T
T
T
Press the [MENU] button when you finish.
Adjusting the Tracking
[Tracking]
You can fine-tune the timing for generating an
image from the image signal. Adjust the tracking
when the image flickers or distorts.
T
T
T
Press the [MENU] button when you finish.
Display settings
Input signal settings
Total dots
Increases the total number of dots.
Decreases the total number of dots.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
Display settings
Input signal settings
Tra ck in g
Increases the set value.
Decreases the set value.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
94
SETTING UP FUNCTIONS FROM MENUS
Adjusting the Horizontal Position
[Horizontal position]
You can adjust the horizontal position of the
screen when the projected image is shifted in
the horizontal direction.
T
T
T
Press the [MENU] button when you finish.
Adjusting the Vertical Position
[Vertical position]
You can adjust the vertical position of the screen
when the projected image is shifted in the verti-
cal direction.
T
T
T
Press the [MENU] button when you finish.
Display settings
Input signal settings
Horizontal position
Moves the screen to the right.
Moves the screen to the left.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
Display settings
Input signal settings
Vertical position
Moves the screen up.
Moves the screen down.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
95
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Adjusting the Number of Horizontal Pixels
[Horizontal pixels]
You can adjust the number of the pixels in the
horizontal direction if the length of the screen is
too long or too short in the horizontal direction.
T
T
T
Press the [MENU] button when you finish.
Adjusting the Number of Vertical Pixels
[Vertical pixels]
You can adjust the number of the pixels in the
vertical direction if the length of the screen is too
long or too short in the vertical direction.
T
T
T
Press the [MENU] button when you finish.
Display settings
Input signal settings
Horizontal pixels
Increases the number of pixels in
the horizontal direction.
Decreases the number of pixels in
the horizontal direction.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
Display settings
Input signal settings
Vertical pixels
Increases the number of pixels in
the vertical direction.
Decreases the number of pixels in
the vertical direction.
z Perform this adjustment if the auto PC
adjustment function cannot adjust the
project image correctly.
z The setting is recorded for [ANALOG
PC-1] and [ANALOG PC-2] sepa-
rately.
ANALOG PC
>
<
96
SETTING UP FUNCTIONS FROM MENUS
Performing Progressive Processing
[Progressive]
You can accumulate and composite information
for a signal for a low resolution image to convert
it to a high resolution image.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Selecting a Menu Position
[Menu position]
You can select the position of the menu dis-
played on the screen.
T
T
Move the menu to the desired position with [ ],
[<], [ ], and [>], and then press the [OK] button.
Press the [MENU] button when you finish.
Display settings
Progressive
Does not perform the progressive
processing.
Performs the progressive process-
ing.
Performs the appropriate progres-
sive processing depending on the
input signal.
z You can use this function if the input
signal is VIDEO/S-VIDEO or the com-
ponent signal is 575i or 480i.
You cannot use this function if the
component signal is 1080i, 1035i,
720p, 575p, or 480p.
z This setting is saved for the currently
selected input signal.
z Select [Off] when flickers and horizon-
tal lines are noticeable on a fast-mov-
ing picture.
z See P136 for more detailed informa-
tion on the progressive processing.
VIDEO/S-VIDEOCOMP.
Off
On
Auto
Display settings
Menu position
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
<
<
97
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Performing the Ceiling-mounted/Rear
Projection
[Image flip H/V]
You can make this setting if you want to hang the
projector from the ceiling or project an image on
a transmissive screen.
T
T
Press the [MENU] button when you finish.
Display settings
Image flip H/V
Select this if you project an image
normally.
Select this if you project an image
with the projector hung from the
ceiling. The projected image is
inverted in both vertical and hori-
zontal directions.
Select this if you project an image
from behind the screen. The pro-
jected image is inverted in the hori-
zontal direction.
Select this if you project an image
from behind the screen with the pro-
jector hung from the ceiling. The
projected image is inverted in the
vertical direction.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
None
Ceiling mounted
Rear
Rear, Ceiling mounted
z When hanging the projector from the
ceiling, make sure to use optional
brackets. Contact your Canon dealer.
z The keystone adjustment will be reset.
None (Normal image)
Ceiling mounted
Rear
Rear, Ceiling mounted
98
SETTING UP FUNCTIONS FROM MENUS
Correcting the Screen Color
[Screen color]
You can adjust the while balance so that white
portions of the image are displayed correctly.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Capturing a Logo to Be Projected
(SX60)
[Logo capture]
You can project a desired image (logo) when
you turn on the projector, there is no input signal,
or you blacken a projecting image temporarily.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Display settings
Screen color
Projects an image in a color tone
similar to that of natural light on a
standard screen.
Projects an image in an almost natu-
ral color tone on a greenboard (dark
green).
Adjusts color tone with the level
meter. To adjust the color tone auto-
matically, press the [AUTO SET]
button when the following level
meter is displayed. Use this function
if the [Greenboard] setting is inade-
quate.
If you manually adjust it, press [ ] or [ ]
button to select red, green, or blue.
[>] Increases the color tone of each color.
[<] Decreases the color tone of each color.
z If you select [16:9 D. image shift] for
[Screen aspect], the auto screen color
correction function will be disabled.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Normal
Greenboard
Adjust
<
<
Display settings
User screen settings
Logo capture
Projects the image to be captured
on the screen. Surround the captur-
ing area with the red frame and
press [OK]. The image in the red
frame is captured.
Cancels the image capturing.
z You can capture only one image.
z For projecting the captured logo on a
screen, select [User logo] on the [Pro-
jector on], [No signal screen], or [NO
SHOW] menu item.
z You may not capture an image
depending on the resolution and scan
system.
z If you select [16:9] or [16:9 D. image
shift] for [Screen aspect], you cannot
capture an image.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
OK
Cancel
99
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Selecting a Logo Display Position
(SX60)
[Logo position]
You can select a logo display position. You can
place the logo at the center or a corner of the
screen.
T
T
T
Press the [MENU] button when you finish.
Displaying a Logo (No signal screen)
[No signal screen]
You can display a user logo on a screen when
there is no input signal. (SX60)
For SX7 MarkII, you can display either of a black
or blue screen.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Display settings
User screen settings
Logo position
Select a position you want to dis-
play a logo and press the [OK] but-
ton.
z You cannot select [Logo position] if
you have not captured a logo on the
[Logo capture] screen.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Upper L
Upper R
Center
Lower L
Lower R
Display settings
User screen settings
No signal screen
Displays no logo (black screen).
Displays no logo (blue background).
Displays a logo captured on the
[Logo capture]
screen. (SX60)
z You cannot select [User logo] if you
have not captured a logo on the [Logo
capture] screen. (SX60)
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX60)
Black
Blue
User logo
100
SETTING UP FUNCTIONS FROM MENUS
Displaying a Logo (NO SHOW)
[NO SHOW]
You can display a user logo on a screen when
the projected image is blackened out tempo-
rarily by pressing the [NO SHOW] button on the
remote control. (SX60)
For SX7 MarkII, you can display either of a black
or blue screen.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Selecting a Logo at Startup
[Projector on]
You can display a specified logo on a screen
from the moment the projector is turned on to the
moment it is ready for projection.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Display settings
User screen settings
NO SHOW
Displays no logo (black screen).
Displays no logo (blue background).
Displays a logo captured on the
[Logo capture] screen. (SX60)
z You cannot select [User logo] if you
have not captured a logo on the [Logo
capture] screen. (SX60)
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX60)
Black
Blue
User logo
Display settings
User screen settings
Projector on
Displays the Canon logo captured
at the factory.
Projects an image immediately after
turning on the projector.
Displays a logo captured on the
[Logo capture] screen. (SX60)
z You cannot select [User logo] if you
have not captured a logo on the [Logo
capture] screen. (SX60)
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX60)
Canon logo
Skip
User logo
101
SETTING UP FUNCTIONS FROM MENUS
Setting Display Status
Selecting Aspect Ratio of the Screen
[Screen aspect]
You can select the aspect ratio of the projecting
screen.
T
T
Press the [MENU] button when you finish.
Display settings
Screen aspect
Select this when you use a screen
with aspect ratio of 4:3.
Select this when you use a screen
with aspect ratio of 16:9.
Select this when you use a screen
with aspect ratio of 16:9 and you
want to move the projecting position
vertically.
z If you select [16:9] or [16:9 D. image
shift], [Wide] will be selected for
[Aspect]. If you want to project an
image with aspect ratio of 4:3 when
selecting [16:9 D. image shift], select
[4:3] for [Aspect].
z If you select [16:9 D. image shift], the
keystone adjustment will be reset.
z An item may become unavailable in
this setting depending on the select-
ing input signal and screen aspect
(P74).
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
4:3
16:9
16:9 D. image shift
102
SETTING UP FUNCTIONS FROM MENUS
Setting the Image Quality
Selecting an Image Mode
[Image mode]
You can select an image mode suitable for the
projecting image.
T
T
*1 It is available if the input signal is [DIGITAL VIDEO],
[COMPONENT], [VIDEO] or [S-VIDEO].
*2 It is available if the input signal is [ANALOG PC-1],
[ANALOG PC-2], or [DIGITAL PC].
Press the [OK] button to confirm, and then press
the [MENU] button.
Image adjustment
Image mode
Select this to project an image with
near-original quality and a high
regard for reproduction of white. It is
also suited to project moving pic-
tures such as a TV program or a
DVD movie in a bright room.
Select this to project an image with
quality suited for the presentation. It
also suited to project moving pic-
tures with a high regard for the
brightness.
Select this to project moving pic-
tures of all kinds. Its brightness is
suited to easily enjoy the atmo-
sphere of a movie theater in a dim
room.
If you select [Photo] for [Image
mode], make sure to set [Ambient
light] in the [Image adjustment] as
well.
You can correct an image according
to the ambient light based on
[sRGB] in [Image mode] and project
the image with higher tone on the
screen by setting [Ambient light]. It
is suited to project an ornamental
photo, etc. under an ambient light.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
Standard
Presentation
Movie
Select this to project a movie with
quality suited to seriously enjoy the
atmosphere of a movie theater in a
dark room.
Select this if you want to project an
image in the display mode conform-
ing to Adobe RGB color space. You
can project an image with more
accurate color reproduction since
Its has wider color gamut than
sRGB.
Select this if you want to project an
image in the display mode conform-
ing to Windows standard color
space. It is suited to project an
image shot by an sRGB-compatible
digital camera.
SX7 MarkII SX60
Standard
Presentation
Movie
*1
*2
AdobeRGB
sRGB
Standard
Presentation
Movie
Home Cinema
sRGB
z You can adjust the image quality
(brightness, contrast, etc.) for each
image mode as you wish.
z The results of adjustments are saved
for each input signal. Once you save
them, you can project images with the
same settings.
Home Cinema
AdobeRGB
sRGB
103
SETTING UP FUNCTIONS FROM MENUS
Setting the Image Quality
Adjusting the Brightness
[Brightness]
You can adjust the brightness of an image when
it is too bright or dark.
T
T
Press the [MENU] button when you finish.
Adjusting the Contrast
[Contrast]
You can adjust the contrast of an image if you
want to make it more or less vivid, adjust the dif-
ference in tone between the lightest and darkest
portions of the image.
T
T
Press the [MENU] button when you finish.
Image adjustment
Brightness
Increases the brightness of an
image.
Decreases the brightness of an
image.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
>
<
Image adjustment
Contrast
Increases the contrast of an image.
The image becomes more vivid.
Decreases the contrast of an image.
The image becomes less vivid.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
>
<
104
SETTING UP FUNCTIONS FROM MENUS
Adjusting the Sharpness
[Sharpness]
You can adjust the sharpness when you want to
make an image sharper or softer.
T
T
Press the [MENU] button when you finish.
Making a Gamma Correction
[Gamma]
You can make a gamma correction if light or
dark portions of an image are obscure.
T
T
Press the [MENU] button when you finish.
Image adjustment
Sharpness
Increases the sharpness of an
image.
Decreases the sharpness of an
image.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
>
<
Image adjustment
Gamma
Makes dark and obscure portions of
an image visible.
Makes light and obscure portions of
an image visible.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
>
<
105
SETTING UP FUNCTIONS FROM MENUS
Setting the Image Quality
Making Color Adjustment (1) (SX7 II)
[Color adjustment]
You can adjust color level and color balance and
make color adjustment for each color (red,
green, and blue).
T
T
* You can set this if you have selected [Photo]
for [Image mode].
Press the [MENU] button when you finish.
Making Color Adjustment (2)
[Color adjustment]
* is only applicable to SX60
You can make color adjustment for each color
(red, green, and blue).
T
T
Press the [MENU] button when you finish.
Image adjustment
Color adjustment
Adjusts the color temperature of the
image.
[>] Changes to the blue color (cold
color).
[<] Changes to the red color (warm
color).
Adjusts the intensity of each color.
[>] Increases the color intensity.
[<] Decreases the color intensity.
Adjusts the color reproducibility of
dark portions of each color.
[>] Increases the color reproducibil-
ity of color.
[<] Decreases the color reproduc-
ibility of color.
z This setting is saved for the currently
selected input signal and image
mode.
z If you change R/G/B Gain or Offset
once color temperature has been
specified, the "*" mark is displayed at
the right side of the setting value to
indicate the color temperature has
been specified.
DIGITAL PC ANALOG PC
Color temperature*
R/G/B Gain
R/G/B Offset
Image adjustment
Color adjustment
(Refer to "Making Color Adjustment
(1)")
(Refer to "Making Color Adjustment
(1)")
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC * ANALOG PC *
DIGITAL VIDEO SCART
R/G/B Gain
R/G/B Offset
106
SETTING UP FUNCTIONS FROM MENUS
Making Color Adjustment (3)
[Color adjustment]
You can adjust color level and color balance and
make color adjustment for each color (red,
green, and blue).
T
T
Press the [MENU] button when you finish.
Making Advanced Color Adjustment (1)
[Dynamic gamma]
You can adjust the gradation representation of
light and dark portions of an image automati-
cally.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Image adjustment
Color adjustment
Adjusts the intensity of each color.
[>] Increases the intensity of color.
[<] Decreases the intensity of color.
Adjusts the color balance of a red-
dish or greenish image.
[>] Corrects a reddish image.
[<] Corrects a greenish image.
(Refer to "Making Color Adjustment
(1)")
(Refer to "Making Color Adjustment
(1)")
z You cannot make color adjustment if
the video format is PAL, PAL-M, PAL-N,
or SECAM.
z This setting is saved for the currently
selected input signal and image
mode.
COMP. VIDEO/S-VIDEO
(SX60)
Color level
Color balance
R/G/B Gain
R/G/B Offset
Image adjustment
Advanced adjustment
Dynamic gamma
Disables dynamic gamma.
Enables dynamic gamma.
z Dynamic gamma automatically opti-
mizes image quality.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
107
SETTING UP FUNCTIONS FROM MENUS
Setting the Image Quality
Making Advanced Color Adjustment (2)
[Mem. color correct]
You can correct colors (e.g. blue sky) in our
memory so that they can be projected more viv-
idly.
T
T
T
Press the [MENU] button when you finish.
Making Advanced Color Adjustment (3)
[6-axis color adjust]
You can make fine color adjustment with the 6-
axis color adjustment box (RGB (red/green/blue)
and CMY (cyan/ magenta/yellow)).
Refer to Glossary for information on the 6-axis
color adjustment.
T
T
T
The 6-axis color adjustment box appears on the
screen if you select [Adjust].
Press [ ] / [ ] to select the [Hue] or [Saturation]
slider, and press [<] / [>] to make an adjust-
ment.
Press the [MENU] button when you finish.
Image adjustment
Advanced adjustment
Mem. color correct
Disables the memorized color cor-
rection function.
Specifies the intensity of the memo-
rized color correction in three steps.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
L
M
H
Image adjustment
Advanced adjustment
6-axis color adjust
Enables the 6-axis color adjustment.
Disables the 6-axis color adjust-
ment.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Adjust
Off
<
<
108
SETTING UP FUNCTIONS FROM MENUS
Correcting the Image According to
the Ambient Light (SX7 II)
[Ambient light]
You can correct and project an image more
appropriately according to the ambient light on
the screen if you have selected [Photo] for
[Image mode].
T
T
An Example of the Ambient Light Setting
Press the [OK] button to accept your setting and
then press the [MENU] button.
Image adjustment
Ambient light
Projects an image with no correc-
tion.
You can specify the type and level
(brightness) of the ambient light.
Select this if the ambient light
source is a light bulb or bulb color
fluorescent.
Select this if the ambient light
source is a day white fluorescent.
Select this if the ambient light
source is a daylight fluorescent.
DIGITAL PC ANALOG PC
Off
Adjust
Type Tungsten
Fluorescent
Fluorescent H
Select this if the ambient light is
dark.
Select this if the ambient light is
moderate.
Select this if the ambient light is
bright.
Level Example Location
L A projection room, bar
M Photo studio, galley
H Conference room, lecture room
z [Off] is the factory default.
z You can set this if you have selected
[Photo] for [Image mode].
Level L
M
H
109
SETTING UP FUNCTIONS FROM MENUS
Setting the Image Quality
Reducing the Lamp Brightness
[Lamp mode]
You can reduce the lamp brightness if you want
to make the image darker or reduce the fan
noise.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Image adjustment
Lamp mode
Projects an image at the normal
brightness level.
Reduces the lamp brightness and
the fan noise.
z You can reduce the power consump-
tion of the lamp if you select in the
quiet mode.
z This setting is saved for the currently
selected input signal and image
mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
(SX7 MarkII)
Normal
Quiet
110
SETTING UP FUNCTIONS FROM MENUS
Resetting the Image Settings
[Reset]
You can reset the current image settings to the
default settings if you want to make all image
settings all over again.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Image adjustment
Reset
Resets the image settings.
Cancels resetting of the image set-
tings.
z The projector stores the image set-
tings for each input signal (8) and
image mode (up to 5) separately. If
you select [OK], the settings saved for
the currently selected set of the input
signal and image mode are reset.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
OK
Cancel
Performing [Color adjustment] or [Advanced
adjustment]:
A check mark ( ) appears on the Image
Adjustment menu if you perform [Color
adjustment] or [Advanced adjustment
(Dynamic gamma, Mem. color correct, or
6-axis color adjust)].
(SX7 MarkII)
111
SETTING UP FUNCTIONS FROM MENUS
Setting Various Function
Setting Auto Setup Function
[Auto setup]
You can select an item you want to enable in the
auto setup function.
T
T
Select [On] or [Off] for the following items if you
want to enable or disable them in the auto setup
function, respectively.
Selecting the Power Management Mode
[Power management mode]
You can turn off the lamp or projector automati-
cally for saving power.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Auto setup
Enables/disables the auto focusing.
Enables/disables the auto keystone
correction.
Enables/disables the auto input
selection.
Enables/disables the auto screen
color correction.
z A confirmation screen appears during
the auto setup so that you can check
which functions are enabled/disabled
(P46, 70).
z You can manually adjust each item.
[Auto focus]: [FOCUS] button (P51)
[Auto keystone]: [KEYSTONE] button
(P52)
[Auto input]: [INPUT] button (P48, 71)
[Auto screen color]: Menu function
(P98)
z If you select [16:9 D. image shift] for
[Screen aspect], you cannot change
the setting of each item. The auto
setup function will also be disabled.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Auto focus
Auto keystone
Auto input
Auto screen color
System settings
Power management mode
Disables the power management
mode.
Enters the power management
mode. The projector restarts projec-
tion when a signal is inputted or any
operation button is pressed.
Enters the exit mode and turns off
the projector automatically.
z You cannot enable the [Direct Power
on] function if you select [Off].
z The [POWER] indicator flashes red
and green when the projector is in the
[Standby] power management mode.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
Standby
Exit
112
SETTING UP FUNCTIONS FROM MENUS
Skip the POWER Button Operation
[Direct power on]
You can set the projector to be turned on when
you connect the power cord.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Enabling/Disabling the Beep
[Beep]
You can enable/disable the beep when you
press a button on the top control or remote con-
trol.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Direct power on
Disables the direct power on func-
tion.
Enables the direct power on func-
tion.
z Wait at least 5 minutes before turning
on the projector when you turn off the
projector with the direct power on
function. It may shorten the lamp life if
you turn on the projector immediately
after turning it off.
z Set the previous [Power management
mode] to [Standby] or [Exit] in addi-
tion to this setting if you want to
enable the direct power on function.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
System settings
Beep
Disables the beep.
Enables the beep.
z It does not beep if you mute the pro-
jector sound temporarily with the
[MUTE] button.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
113
SETTING UP FUNCTIONS FROM MENUS
Setting Various Function
Selecting a Display Language
[Language]
You can select a language to be used in the
menu from 20 different languages.
T
T
Press the [OK] button and all words in the menu
will be displayed in the selected language.
Press the [MENU] button when you finish.
System settings
Language
English
Germany
French
Italian
Spanish
Portuguese
Swedish
Russian
Dutch
Finnish
Norwegian
Turk ish
Polish
Hungarian
Czech
Danish
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Simplified Chinese
Traditional Chinese
Korean
Japanese
114
SETTING UP FUNCTIONS FROM MENUS
Prohibiting the Projector Operation
[Key lock]
You can prohibit the use of the buttons on the
top control or remote control to prevent them
from being pressed by mistake.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Enabling/Disabling the Guide Message
[Guide]
You can enable/disable the guide message
showing how to use the projector.
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Key lock
Disables the key lock function.
Prohibits the use of the top control.
Prohibits the use of the remote con-
trol.
z The key lock function becomes effec-
tive from the moment when the [OK]
button is pressed after selecting [Main
unit] or [Remote control]. Be sure to
press the [OK] button on the top con-
trol or remote control which is not
locked.
z To unlock the key lock function forc-
ibly, remove the power plug from the
AC outlet after the projection, and
then insert the power plug while hold-
ing down the [OK] button until the pro-
jector beeps.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
Main unit
Remote control
System settings
Guide
Disables the guide message.
Enables the guide message.
z The guide message appears on the
screen when:
- The projector is turned on (P40).
- The projector is turned off (the
[POWER] button is pressed) (P60).
- No input signal is confirmed (P36,
64).
- The invalid button is pressed under
NO SHOW, FREEZE, or D.ZOOM
(P78, 81).
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
115
SETTING UP FUNCTIONS FROM MENUS
Setting Various Function
Turning On/Off the LED Illumination
[LED illumination]
You can turn on/off the LED illumination lamp
and the LEDs on the terminals (P26, 27, 28).
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Setting up the Remote Control
[Remote control]
You can change the channel settings to prevent
the two remote controls from interfering with
each other when you use two projectors at the
same time.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Selecting a Channel on the Remote Control
Press the [LIGHT] button for 3 seconds while
holding down the [OK] button on the remote
control.
The above operation toggles the channel
between Ch1 (the button flashes once) and Ch2
(the button flashes twice).
System settings
LED illumination
Turns off all LEDs.
Turns on LEDs as necessary.
z This setting does not effect the
POWER indicator or WARNING lamp.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
System settings
Other settings
Remote control
Selects the channel on the projector
you use.
z Make sure to set the same channel for
both remote control and projector.
z Performing this operation with the
remote control, you cannot control the
projector after pressing the [OK] but-
ton. Make sure to change the channel
for the remote control at the same
time.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Ch1
Ch2
116
SETTING UP FUNCTIONS FROM MENUS
Setting up the Digital Video Input Signal
[Digital video]
You can select the standard of the digital video
input signal.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
Setting a Password
[Password settings]
You can set a password to the projector.
Once you set the password, you will need to
enter the password each time you turn on the
projector.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Other settings
Digital video
Projects a full range digital signal.
Projects a limited range digital sig-
nal.
z Refer to the User's Manual that came
with the AV equipment for more
detailed information on settings.
DIGITAL VIDEO
F
L
System settings
Other settings
Password settings
Disables the password protection.
Enable the password protection.
z Once you set a password, the pass-
word entry screen appears at power-
on. Enter a 4-digit password with [ ],
[ ], [<], and [>]. If the password is
valid, projection starts. If you enter a
wrong password three times, the pro-
jector will be turned off.
z To cancel the password, remove the
power plug from the AC outlet after
the projection, and then insert the
power plug while holding down the
[MENU] button until the projector
beeps.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Off
On
<
<
117
SETTING UP FUNCTIONS FROM MENUS
Setting Various Function
Registering a Password
[Register password]
You can register a password that you need to
enter when turning on the projector.
T
T
T
Press the [OK] button to display the password
entry screen.
Enter a 4-digit password from the left. You can
enter a value 1, 2, 3, and 4 by pressing [ ], [ ],
[<], and [>], respectively. Once you enter a
value for all four digits, the password is regis-
tered automatically.
Resetting to the Default Setting
[Factory defaults]
You can reset the menu item settings and restore
the system settings to the factory defaults.
T
T
T
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Other settings
Register password
z Press the [MENU] button without
entering a password if you want to
cancel registering the password.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
<
<
System settings
Other settings
Factory defaults
Resets the projector's menu item
settings.
Cancels resetting the menu item
settings.
z All adjustments are reset to default if
you perform [Factory defaults].
z The language selection screen
appears when you turn on the projec-
tor for the next time if you perform
[Factory defaults] (P41).
z The settings of [Lamp counter],
[Language] and [Remote control] will
not be reset even after resetting to the
factory defaults.
z For the factory defaults, see P144,
145.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
OK
Cancel
118
SETTING UP FUNCTIONS FROM MENUS
Resetting the Lamp Counter
[Lamp counter]
You can reset the lamp counter that indicates the
timing to replace the projector when you replace
it.
T
T
T
Display Examples of Lamp Counter
z If the time of use is:
SX7 MarkII : 1800 hours or less
SX60 : 2300 hours or less
z If the time of use is:
SX7 MarkII : 1800 to 2000 hours
SX60 : 2400 to 2500 hours
z If the time of use is:
SX7 MarkII : 2000 hours or more
SX60 : 2500 hours or more
z If you replace the lamp
Press the [OK] button to confirm, and then press
the [MENU] button.
System settings
Other settings
Lamp counter
z Do not reset the lamp counter except
when you have replaced the lamp.
Otherwise, the lamp counter cannot
indicate the correct timing for replac-
ing the lamp.
DIGITAL PC ANALOG PC
DIGITAL VIDEO COMP./SCART VIDEO/S-VIDEO
Resets the lamp counter.
Cancels resetting the lamp counter.
z See P122 for more detailed informa-
tion on replacing the lamp.
OK
Cancel
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
MAINTENANCE
120
MAINTENANCE
Maintenance
Cleaning the Projector
Clean the projector frequently to prevent dust from settling on the surface.
A dirty lens may ruin the quality of the projected image.
Wipe the projector's main unit softly with a soft cloth.
If the projector is heavily soiled, soak the cloth in water with a small amount of detergent in
it, squeeze the cloth very well, and then wipe the projector with it. After cleaning, wipe the
projector with a dry cloth.
Caution
z The main unit is very hot immediately after turning off the projector. Wait until the pro-
jector cools down sufficiently (more than 1 hour) before cleaning the projector. Other-
wise, you may get burned or injured.
z Before cleaning the projector, be sure to remove the power plug from the AC outlet.
Otherwise, electric shock or fire may result.
Caution
z Never use volatile cleaning liquid or benzine, as these may damage the finish of the
projector. When using a chemical dust cloth, make sure to read the instructions thor-
oughly.
z When cleaning the projector's lens, use a commonly available air blower or lens
cleaning paper. The lens surface is easily damaged, so do not use a hard cloth or tis-
sues.
When Not Used for an Extended Period of Time
Be sure to attach the lens cap on the lens and store in the supplied carrying bag.
121
MAINTENANCE
Cleaning and Replacing the Air Filter
An air filter is installed in the air intake vent on the bottom of the main body to protect the
internal lens and mirror from dust. Should the air filter become clogged with dust, the pro-
jector may be damaged since it will block the air flow into the projector and raises the inter-
nal temperature of the projector.
Cleaning the Air Filter
Turn the projector upside down, remove the cover by pushing the latch, remove the air fil-
ter, and clean it with a vacuum cleaner.
When cleaning dust off the side exhaust vent and the bottom air intake vent, bring the vac-
uum cleaner nozzle close to them directly.
Replacing the Air Filter
1 Turn off the projector, remove the power
plug from the AC outlet, and let the pro-
jector stand for at least 1 hour.
2 Remove the filter cover by pushing the
position of the arrow.
3 Remove the air filter.
4 Install a new air filter.
5 Install the filter cover securely without any
space.
Caution
z The main unit is very hot immediately after turning off the projector. Wait until the pro-
jector cools down sufficiently (more than 1 hour) before cleaning the projector. Other-
wise, you may get burned or injured.
z Before cleaning or replacing the air filter, be sure to remove the power plug from the
AC outlet. Otherwise, electric shock or fire may result.
z Do not insert any object into the projector through the air filter opening. You may suffer
electric shock or injury due to the high-voltage parts or rotating parts.
z Clean the air filter frequently.
z After cleaning the air filter, install it by following the removal steps 1 to 5 in reverse.
z Attach the lens cap when replacing the air filter.
z Handle the air filter carefully. If damaged, the air filter will not work appropriately.
z Replace the air filter whenever you replace the lamp.
z An air filter can be ordered from your dealer.
Filter cover
Air filter
Push
122
MAINTENANCE
Replacing the Lamp
When the time of use of the lamp exceeds the certain amount of time, the following mes-
sage (two types) is displayed for 10 seconds every time the projector is turned on.
z If the time of use is:
SX7 MarkII: 1800 to 2000 hours
SX60 : 2400 to 2500 hours
z If the time of use is:
SX7 MarkII: 2000 hours or more
SX60 : 2500 hours or more
Replacing Lamp
This projector uses the following lamp.
Lamp type No. SX7 MarkII: RS-LP04
SX60 : RS-LP03
z This message will not be displayed again if you select [Cancel] in response to the message
"Do you want to display this message again?".
z You can check the time of use of the lamp in [Lamp counter] in the [System settings] menu
(P118).
Caution
z When replacing the lamp, turn off the projector, wait until the cooling fan stops,
remove the power plug from the AC outlet, and let the projector stand for at least 1
hour. Otherwise, you may get burned because the main unit is very hot immediately
after the projector is turned off.
z Do not touch the inner glass surface when you replace the lamp. Otherwise, the pro-
jector's performance may degrade.
z Make sure to handle the lamp carefully and correctly since it may explode if it is
scratched or shocked.
z Do not remove screws unless specified.
z Be sure to use the specified lamp.
z A lamp can be ordered from your dealer or Canon home page.
* [<], [>], the [OK] button, and the [POWER]
button are available during this message
is displayed.
* The [POWER] button is available during
this message is displayed.
123
MAINTENANCE
Replacing the Lamp
1 Turn off the projector, disconnect the power
plug from the AC outlet, and then let the pro-
jector stand for at least 1 hour.
2 Loosen a screw with a flathead screwdriver
and remove the lamp cover.
3 Loosen two screws, pull up the handle, and
then remove the lamp.
4 Fully insert a new lamp and secure it with two
screws.
* After the installation, be sure to push down
the handle.
5 Replace the lamp cover and tighten the
screw.
6 Turn on the projector.
7 Bring up the menu and select [System set-
tings] -> [Other settings] -> [Lamp counter]
(P118).
8 Select [Reset] -> [OK] to reset the lamp
counter.
Lamp cover
Screw
Screw
Lamp
Handle
Lamp cover
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
TROUBLE-
SHOOTING
126
TROUBLESHOOTING
Troubleshooting
WARNING Lamp Flash Patterns
The WARNING lamp on the Control Panel flashes in red after the projector is turned off
when there is a trouble in the projector.
z Wait until the cooling fan stops and disconnect the power plug from the AC outlet before
dealing with the trouble.
Flash Pattern Meaning Countermeasure
One flash Temperature
abnormality
The temperature inside the projector is too high for some rea-
son or the outside air temperature is higher than the specified
one. If the problem is inside the projector, check whether the
projector is installed and operated normally, unplug the pro-
jector from the power outlet to cool down the inside of it and
retry projection. If the air intake or exhaust vent is blocked,
remove the obstacle. If the same warning occurs again, the
projector may be defective. Contact your dealer.
Two flashes Faulty lamp The lamp has burnt out. Replace the lamp with a new one. If
the same warning is experienced again, the lamp drive circuit
may be defective. Contact your dealer.
Three flashes Faulty lamp
cover
The lamp cover is open. Unplug the projector from the power
outlet, then install the lamp cover and turn on the projector
again.
If the lamp cover has been installed properly, the lamp cover
detection switch may be defective. Contact your dealer.
Four flashes Faulty cooling
fan
The cooling fan or another component may be defective.
Unplug the projector from the power outlet, then plug it to the
outlet and turn on the projector again. Contact your dealer if
the same warning is given.
Five flashes Faulty power
supply
The abnormal voltage is applied to some parts in the power
supply or any other failure may be occurred. Unplug the pro-
jector from the power outlet, then plug it to the outlet and turn
on the projector again. Contact your dealer if the same warn-
ing is given.
Six flashes System failure Some of the functions may be defective. Turn off the projector
and retry projection. If the same warning is experienced again,
contact your dealer.
127
TROUBLESHOOTING
Symptoms and Solutions
You cannot turn on the projector.
You cannot project an image from the projector.
Cause Countermeasure
The power cord is not connected
correctly.
Check whether the power cord is connected correctly (P40).
The power cord has just been con-
nected.
You cannot turn on the projector until the [POWER] indicator
turns red after connecting the power plug (P40).
You attempted to turn on the pro-
jector immediately after turning it
off.
The projector cannot be turned on for a while after it is turned
off. Wait for a while before pressing the [POWER] button again
(P60).
The safety device has activated
because you put the projector in
the carrying bag during the cooling
fan was rotating.
You cannot release the safety device. Contact your dealer.
The safety device is activated
because the air intake or the
exhaust vent is blocked and the
internal temperature of the projec-
tor is increased.
You cannot release the safety device for safety reasons. Con-
tact your dealer.
Cause Countermeasure
Any connection cable is connected
incorrectly.
Check whether the projector is connected to the computer or
AV equipment correctly (P36, 64).
20 seconds have not passed since
the projector was turned on.
When the projector is turned on, the Opening window is dis-
played for approximately 20 seconds. To project an image
immediately, press the [OK] button on the remote control or
top control (P40).
No image is sent from the AV
equipment.
Check that an image is played on the connected digital cam-
era, video camcorder, DVD, etc.
The wrong video terminal or signal
type is selected.
Check that the correct video terminal and signal type are
selected (P48, 70).
The [NO SHOW] function has been
selected.
Press the [NO SHOW] button on the remote control (P78).
No image is sent due to the prob-
lem in the computer.
Turn on the projector and computer in this order again.
128
TROUBLESHOOTING
You cannot hear sound.
The projected image is blur.
You cannot project an image appropriately.
Cause Countermeasure
The audio cable is not connected
correctly.
Check the cable connection of the audio cable (P38).
The [MUTE] function is enabled. Press the [MUTE] button on the remote control (P79).
The volume level is adjusted to the
minimum.
Press the [VOL+] button on the remote control or top control to
adjust the volume level (P79).
An audio cable with a built-in resis-
tor is used.
Use an audio cable without a built-in resistor.
Cause Countermeasure
The image is out of focus. Adjust the focus (P51).
The lens cap is not removed. Remove the lens cap.
The distance to the screen is too
short.
Check whether the distance to the screen is appropriate. If the
distance is shorter than approximately 1.2 m (3.9'), the projec-
tor cannot focus on the screen (P32, 133).
The projector is not placed straight
in front of the screen.
Check whether the projector is placed obliquely to the screen.
A slight error in the projection angle can be corrected through
the keystone adjustment function (P43, 52).
The projector has been moved to a
place where the temperature varies
a lot.
When the projector is moved from a low-temperature place to
a high-temperature place, condensation may form on the lens.
The condensation will evaporate a while later and the projec-
tor will be able to project a normal image.
The lens is stained. Clean up the lens (P120).
Cause Countermeasure
The projected image is inverted in
the vertical or horizontal direction.
The ceiling mounted/rear projection setting is incorrect. Check
the [Image flip H/V] setting in the [Display settings] menu
(P97).
129
TROUBLESHOOTING
You cannot project an image from a notebook computer.
The projector is forced to be turned off.
Cause Countermeasure
The connection cable is not con-
nected correctly.
Check whether the connection cable is connected to the
video terminal of the computer correctly (P36, 37).
The video signal type is incorrect. Check whether the selected signal type is correct (P91, 92,
132).
It is not set the external monitor out-
put setting on the notebook cor-
rectly.
Turn on the external monitor output on the notebook computer.
To turn on the external monitor output, press the [LCD] or
[VGA] function key or a key with an icon for the external moni-
tor while holding down the [Fn] key on the keyboard of the
notebook computer (P45).
The combination of keys used to perform this operation varies
among computer manufacturers. For more detailed informa-
tion, refer to the User's Manual that came with your computer.
The displayed image is not the
same as that displayed on the
notebook computer.
Check whether the dual screen (multi-display) mode is
selected on the notebook computer.
If the dual screen mode has been selected, change it to the
simultaneous display mode on the notebook computer.
The output setting method varies among computer manufac-
turers. For more detailed information, refer to the User's Man-
ual that came with your computer.
Cause Countermeasure
The air intake or exhaust vent is
blocked.
Check whether the air intake or exhaust vent is blocked. If the
air intake or exhaust vent is blocked, the temperature inside
the projector rises and the power is automatically turned off to
protect the projector. Wait until the internal temperature gets
down, and then turn on the projector without blocking the
intake and exhaust vents (P22, 23, 40).
The air filter is dirty. Check whether the bottom air filter is clogged with dust.
If the air filter is clogged, clean or replace the air filter (P121).
The lamp has exploded (or it is
defective).
Check whether the lamp has exploded.
If the lamp has exploded, replace it. The lamp may be defec-
tive if it has not exploded. Check the lamp by replacing it with
a spare lamp if you have one (P13, 122, 123).
The operating temperature is inap-
propriate.
Check whether the operating temperature is 5 to 35°C (P15).
Other reasons The projector may be damaged. Contact your dealer.
130
TROUBLESHOOTING
You cannot operate the remote control.
You cannot use the wireless mouse function.
Cause Countermeasure
Batteries are not installed properly
or they have run out.
Check whether batteries are installed correctly. If batteries are
installed correctly, replace them with new batteries (P29).
You are operating the remote con-
trol from the outside of the remote
control operating range.
Check whether you are operating the remote control within the
remote control operating range.
Also check whether there is any obstacle between the infrared
remote receiver of the projector and the remote control (P29).
You are operating the remote con-
trol under an inappropriate operat-
ing environment.
Check whether the infrared remote receiver of the projector is
exposed to direct sunlight or strong light of lighting apparatus
(P29).
The channel setting of the remote
control does not match with the set-
ting of the projector.
Check whether the channel setting of the remote control has
been changed. You can check the [Remote control] setting in
the [System settings] menu (P115).
The key lock function is prohibiting
the remote control operation.
Check whether [Key lock] is enabled to disable the remote
control operation.
In the System settings menu, set [Key lock] to [Off] (P114).
Cause Countermeasure
The USB cable is not connected
correctly.
Check whether the USB cable is connected between the pro-
jector and computer correctly (P82).
A mouse driver is not installed. Check whether the mouse is functioning on the computer. If it
is not, install a mouse driver to the computer.
The mouse is not recognized due
to a problem in the computer.
Turn on the projector and computer in this order again.
Table of contents/Safety Instructions
Before Use
Setting Up the Projector
Projecting an Image from the Computer
Projecting an Image from AV Equipment
Useful Functions Available During a Presentation
Setting Up Functions from Menus
Maintenance
Troubleshooting
Appendix
Index
APPENDIX
Table of contents for Appendix
Supported Computer Signal Types............ P132
Relationship between Screen Size and
Projecting Distance.................................... P133
Glossary .................................................... P134
Specifications ............................................ P138
Index.......................................................... P140
Menu Configuration ................................... P144
132
APPENDIX
Appendix
Supported Computer Signal Types
This projector supports following signal types.
If your computer or AV equipment is compatible with any one of these signal types, the pro-
jector's auto PC function select the input signal type to project an image appropriately.
ANALOG PC DIGITAL PC
* Only for SX7 MarkII/SX60
DIGITAL VIDEO
** Interlaced signal
COMPONENT
** Interlaced signal
- The specifications in the table above are sub-
ject to change without prior notice.
- This projector does not support any computer
signal of which dot clock is 170MHz or higher.
- Use a full connected VGA cable in which all
pins are connected; otherwise, an image may
be projected improperly.
Resolution
(dots)
Signal
type
Horizontal fre-
quency (KHz)
Vertical fre-
quency (Hz)
640 x 480 VGA
31.469 59.94
31.469 70.09
37.50 75.00
37.861 72.81
37.861 74.38
43.269 85.01
720 x 400 – 31.469 70.09
800 x 600 SVGA
34.50 55.38
35.156 56.25
37.879 60.32
37.898 61.03
38.00 60.51
38.60 60.31
46.875 75.00
48.077 72.19
53.674 85.06
1024 x 768 XGA
44.028 54.63
46.897 58.19
47.00 58.31
48.363 60.00
48.496 60.02
56.476 70.07
58.032 72.00
60.023 75.03
60.314 74.92
60.994 75.77
62.04 77.07
63.478 79.35
68.677 85.00
1280x768
WXGA
47.986 59.83
1280x800
(SX7 MarkII)
49.702 60.03
1360x768 – 47.712 60.02
1152 x 864 – 64.196 70.39
1152 x 900 –
61.17 65.28
61.846 66.00
71.399 75.64
1280 x 960 – 60.00 60.00
1280 x 1024 SXGA
62.50 58.63
63.337 59.98
63.364 59.95
63.735 60.01
63.791 60.18
63.899 60.00
63.981 60.02
71.694 67.19
76.97 72.00
79.976 75.03
81.135 76.11
1400 x 1050 SXGA+ 63.981 60.02
1600 x 1200 UXGA 75.00 60.00
640 x 480 MAC LC 13 34.967 66.60
640 x 480 MAC 13 35.00 66.67
832 x 624 MAC 16 49.725 74.55
1024 x 768 MAC 19 60.248 75.08
1152 x 870 MAC 21 68.681 75.06
1280 x 960 MAC 75.00 75.08
1280 x 1024 MAC 80.00 75.08
Resolution
(dots)
Signal
type
Horizontal fre-
quency (KHz)
Vertical fre-
quency (Hz)
640 x 480 D-VGA 31.469 59.94
800 x 600 D-SVGA 37.879 60.32
1024 x 768 D-XGA 48.363 60.00
1280 x 1024 D-SXGA* 63.981 60.02
1400 x 1050 D-SXGA+* 63.981 60.02
Signal
type
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
D-480p 31.469 59.94
D-575p 31.250 50.00
D-720p 44.955 59.94
D-1080i** 28.125 50.00
D-1080i** 33.716 59.94
Signal
type
Horizontal frequency
(KHz)
Vertical frequency
(Hz)
480p 31.469 59.94
480i** 15.734 59.94
575p 31.250 50.00
575i** 15.625 50.00
720p 44.955 59.94
1035i** 33.750 60.00
1080i**
28.125 50.00
33.716 59.94
133
APPENDIX
Relationship between Screen Size and Projecting Distance
Screen size at 4:3
aspect ratio
Type – W x D (cm)
Projecting distance at (m)
H1 (cm) H2 (cm)
Screen size at 16:9
aspect ratio
Type – W x D (cm)
Max. zooming Min. zooming
40" 81 x 61 1.2 (3.9') 2.0 (6.6') 55 (1.8') 6 (0.2') 37" 81 x 46
50" 102 x 76 1.5 (4.9') 2.5 (8.2') 69 (2.3') 8 (0.26') 46" 102 x 57
60" 122 x 91 1.8 (5.9') 2.9 (9.6') 82 (2.7') 9 (0.3') 55" 122 x 69
70" 142 x 107 2.1 (6.9') 3.4 (11.2') 96 (3.1') 11 (0.36') 64" 142 x 80
80" 163 x 122 2.4 (7.9') 3.9 (12.9') 110 (3.6') 12 (0.4') 74" 163 x 91
90" 183 x 137 2.7 (8.9') 4.4 (14.6') 123 (4.0') 14 (0.46') 83" 183 x 103
100" 203 x 152 3.0 (9.8') 4.9 (16.1') 137 (4.5') 15 (0.49') 91" 203 x 114
110" 224 x 168 3.3 (10.8') 5.4 (17.7') 151 (5.0') 17 (0.5') 101" 224 x 126
120" 244 x 183 3.6 (11.8') 5.9 (19.4') 165 (5.4') 18 (0.59') 110" 244 x 137
130" 264 x 198 3.9 (12.8') 6.4 (21') 178 (5.8') 20 (0.66') 119" 264 x 149
140" 284 x 213 4.2 (13.8') 6.9 (22.6') 192 (6.3') 21 (0.69') 128" 284 x 160
150" 305 x 229 4.5 (14.8') 7.4 (24.2') 206 (6.8') 23 (0.75') 138" 305 x 171
160" 325 x 244 4.8 (15.5') 7.9 (25.9') 219 (7.2') 24 (0.79') 147" 325 x 183
170" 345 x 259 5.1 (16.8') 8.4 (27.4') 233 (7.6') 26 (0.85') 156" 345 x 194
180" 366 x 274 5.4 (17.7') 8.9 (29.2') 247 (8.1') 27 (0.86') 165" 366 x 206
182" 370 x 277 5.4 (17.7') 9.0 (29.5') 250 (8.2') 28 (0.9') 167" 370 x 208
190" 386 x 290 5.6 (18.4') – 261 (8.6') 29 (0.95') 174" 386 x 217
200" 406 x 305 5.9 (19.4') – 274 (9.0') 30 (0.98') 184" 406 x 229
210" 427 x 320 6.2 (20.3') – 288 (9.4') 32 (1.05') 193" 427 x 240
220" 447 x 335 6.5 (21.3') – 302 (9.9') 34 (1.12') 202" 447 x 251
230" 467 x 351 6.8 (22.3') – 315 (10.3') 35 (1.15') 211" 467 x 263
240" 488 x 366 7.1 (23.3') – 329 (10.8') 37 (1.21') 220" 488 x 274
250" 508 x 381 7.4 (24.3') – 343 (11.3') 38 (1.25') 233" 508 x 286
260" 528 x 396 7.7 (25.3') – 357 (11.7') 40 (1.31') 239" 528 x 297
270" 549 x 411 8.0 (26.3') – 370 (12.1') 41 (1.35') 248" 549 x 309
280" 569 x 427 8.3 (27.2') – 384 (12.6') 43 (1.41') 257" 569 x 320
290" 589 x 442 8.6 (28.2') – 398 (13.1') 44 (1.44') 266" 589 x 331
300" 610 x 457 8.9 (29.2') – 411 (13.5') 46 (1.51') 276" 610 x 343
134
APPENDIX
Glossary
* is only applicable to SX7 MarkII
6-axis color adjust (P107)
The color adjustment function for an
advanced user. You can adjust color balance
and color level for 6 axis of RGB (red/green/
blue) and CMY (cyan/magenta/yellow) of the
projected image to make a fine color adjust-
ment. You can perform the 6-axis color
adjustment in the image adjustment menu.
AdobeRGB (P55, 102)
A color space specification set up by Adobe
systems Incorporated which is applied to
high performance digital cameras, displays
and others. You can project an image with
more accurate color reproduction since Its
has wider color gamut than sRGB.
In SX7 MarkII, if you select [AdobeRGB] in
the [Image mode] setting, the projector can
project the best-quality image conforming to
the AdobeRGB Standard. Please be aware
that color of the projected image may vary
with that of the original image if you project
an AdobeRGB compatible image in sRGB
mode or project an sRGB compatible image
in AdobeRGB mode.
Ambient light* (P108)
Lightning environment around the projector.
You can correct and project an image more
appropriately according to the ambient light
on the screen via the setting of [Ambient
light] if you have selected [Photo] for [Image
mode].
Analog PC (P27, 36, 93)
A signal system used to send analog signal
information of R (red), G (green), and B
(blue). It is a typical system for connecting a
color monitor to a computer. Connect the
analog PC output terminal on the computer
and Input Terminal-1 or Input Terminal-2 on
this projector with a monitor cable. Select
[ANALOG PC-1] for Input Terminal-1 and
[ANALOG PC-2] for Input Terminal-2 at pro-
jection.
Aspect (P57, 73, 90)
The aspect ratio is the ratio of the horizontal
(longer) dimension to the vertical (shorter)
dimension of a screen. It is expressed as
"longer dimension: shorter dimension." The
following aspect ratio is normally used:
[4:3]
The aspect ratio widely accepted in the stan-
dard screen resolution, for example the tradi-
tional television screen and VGA (640 x 480)
and XGA (1024 x 768) in PC. The aspect ratio
for this projector is 4:3.
[5:4]
This aspect ratio is used if you select the res-
olution such as SXGA (1280X1024) in PC.
The shorter dimension in [5:4] is a little longer
than that in [4:3]. An image with aspect ratio
of 5:4 is properly displayed if you select
[Auto] for [Aspect]; however, the margins are
displayed on both sides of the screen.
[16:9]
The aspect ratio for the high definition or
wide-screen. WXGA (1280 x 768 and 1360 x
768) is used as the aspect ratio close to 16:9
for the wide screen monitor in PC. An image
with aspect ratio of 16:9 is properly displayed
if you select [Auto] for [Aspect]; however, the
margins are displayed at the top and bottom
of the screen.
For the aspect ratio for movie screens, "vista
vision size" and "cinema scope size", etc. are
used.
“Vista vision size”
The aspect ratio close to 16:9. Select [Auto]
or [Wide] for [Aspect]. The black belts are
added at the top and bottom of the image.
“Cinema scope size”
The landscape-oriented aspect ratio of 8:3.
Select [Auto] or [Wide] for [Aspect]. The
black belts are added at the top and bottom
of the image.
135
APPENDIX
Color temperature* (P105)
A value that represents the related color in a
light source in general. In this projector, the
color temperature is used to adjust the RGB
color balance for the projected image to cor-
rect the related color influence by the ambi-
ent light. If you increase and decrease the
color temperature, white changes to blue and
red, respectively. You can set the color tem-
perature in the [Color adjustment] menu if
[Photo] has been selected for [Image mode].
Component (P27, 64, 92)
A signal system in which an image is trans-
mitted by being broken down the brightness
signal (Y) and the color signal (C) into the B-Y
color difference signal and the R-Y color dif-
ference signal. Its image quality is higher
than that of the composite video. This system
can project a better-quality image as com-
pared with the composite signal system.
Connect the component video terminal on
the AV equipment and the ANALOG IN-2 ter-
minal on this projector with a component
cable. Select [COMPONENT] at projection.
Composite (P27, 66)
A video signal system used to send a bright-
ness signal (Y) and a color signal (C)
together. Connect the composite output
(RCA) terminal on the AV equipment and the
VIDEO IN terminal on this projector with a
video cable. Select [VIDEO] at projection.
Digital PC (P27, 37)
A signal system used to send digital informa-
tion of individual display dots. This system is
free from deterioration of image quality
because of no analog conversion. Connect
the DVI output terminal on the computer and
Input Terminal-1 on this projector with a DVI
connection cable. Select [DIGITAL PC] at
projection.
DVI (P37, 48, 65, 70)
A digital video signal connection interface for
a computer and AV equipment. This interface
allows digital data to be transmitted without
converting to analog data, assuring high
image quality with no signal degradation. The
DVI-I (integrated) connector can be used to
transmit both an analog video signal and dig-
ital video signal.
Gain (P105)
A parameter that adjusts the reproduction
range of a brightness signal from black to
white within the image signal to naturally
reproduce it on the screen. The reproducibil-
ity of the bright tone is mainly changed. Since
you can adjust the gain for each RGB color in
this projector, you can also adjust colors. The
gain is normally adjusted with the offset.
Gamma Correction (P104, 106)
A tone adjustment system used during pro-
jection of image data. The gamma correction
function works effectively when portions of an
image are obscure because they are too light
or dark.
This projector supports manual gamma cor-
rection and dynamic gamma correction
which performs the gamma correction auto-
matically.
HDCP
An abbreviation of High-bandwidth Digital
Content Protection which is an encryption
technology for copy protection of digital
image signals. In this projector, you can
project digital contents copy-protected with
the HDCP technology. To project the con-
tents, connect the Input Terminal-1 on the
projector and an HDMI terminal or DVI termi-
nal on an AV equipment with a dedicated
cable, and then select [DIGITAL VIDEO] from
the [INPUT] menu.
136
APPENDIX
HDMI (P65, 70)
A digital video signal connection interface for
an AV equipment. Its terminal is more com-
pact than the DVI terminal. It allows to trans-
mit video and audio signals simultaneously.
Memorized Color Correction (P107)
A memorized color is a color in our memory.
The memorized color such as blue for the sky
is more vivid than the real color, so you may
feel colors of a projected image are dull. If
such is the case, enable the memorized color
correction function to make the colors close
to the ones in our memory. You can enable
the memorized color correction function in
the image adjustment menu.
Offset (P105)
A parameter that shifts the reproduction
range of a brightness signal from black to
white within an image signal toward the
higher or lower level of brightness. The repro-
ducibility of the dark tone is mainly changed.
Since you can adjust the offset for each RGB
color in this projector, you can also adjust
colors. The offset is normally adjusted with
the gain.
Progressive (P96)
An image display system used to display the
entire screen per scan. For an interlace sig-
nal (video signal) that displays one screen by
two scans (one for odd lines and one for
even lines) is input, progressive processing
is required. When the progressive function is
turned off, one screen is displayed using
image signals per interlace signal, deteriorat-
ing the vertical resolution of the image. When
the progressive function is turned on, one
screen is displayed using image signals per
two interlace signals, improving the vertical
resolution of the image. Turn off the progres-
sive function when flickering and horizontal
lines are noticeable on a fast-moving picture.
Resolution (P44, 91)
The number of dots (horizontal dots x vertical
dots) that can be displayed on a computer is
called “resolution of display”. Resolution indi-
cates the size of the display area (amount of
information).
If you select SXGA+ (1400 dots x 1050 dots)
as the display resolution for the connecting
computer, this projector can project high-res-
olution images. If your computer does not
have the SXGA+ option, select the maximum
resolution among the selectable options.
sRGB (P55, 102)
An international standard of color representa-
tion (color space) which is applied to general
digital cameras, displays and others. In this
projector, if you select [sRGB] in the [Image
mode] setting, the projector can project the
best-quality image conforming to the sRGB
Standard.
Resolu-
tion
Number of dots
Hori-
zontal
Vertical
VGA 640 480
SVGA 800 600
XGA 1024 768
SXGA 1280 1024
SXGA+ 1400 1050
UXGA 1600 1200
Number of pixels in each
resolution
137
APPENDIX
S-video (P27, 66, 92)
A signal system (YC separation signal) used
to send a brightness signal (Y) and color sig-
nal (C) separately. Connect the S-video ter-
minal on the AV equipment and the S-VIDEO
IN terminal on this projector with an S-video
cable. Select [S-VIDEO] at projection.
Tracking (P93)
To reproduce an image from an analog
image signal, the process to accumulate
image information at the appropriate timing
with reference to the synchronization signal
within the image signal. This process is
called the tracking. This projector can dis-
play an image properly by automatically
adjust the tracking with the auto PC adjust-
ment function even if there is a small differ-
ence in the synchronization signal from an
analog imaging device.
Video (P27, 66, 92)
An output terminal widely used in an AV
equipment. It is also called as a composite
output terminal (pin terminal or RCA termi-
nal). For more details, refer to "Composite".
138
APPENDIX
Specifications
Projector
* 99.99% or more of the LCD panel pixels are effective. During projection, 0.01% or less of pixels may stay lit or unlit due to the charac-
teristics of the LCD panel.
* Using the projector continuously for an extended period of time may accelerate the deterioration of optical parts.
Remote Control
Model name SX7 MarkII/SX60
Display system RGB liquid crystal system
Optical system Color separation by dichroic mirror/polarizing beam splitter and color composition by prism
Display
device
Type Reflective liquid crystal panel
Size/Aspect rat 0.7" x 3 panels/4 : 3
Drive system active matrix system
Number of pixels/
Total Number of pixels
SX7 MarkII/SX60: 1,470,000 (1400 x 1050) x 3 panels/4,410,000
Projection
lens
Zoom ratio/Focal length/F value 1.7x/f=21.7 to 35.8 mm/F1.85 to F2.5
Zooming and focusing system Electronic operation/electronic operation (with auto focusing function)
Lens shift 9 : 1 (fixed)
Light source SX7 MarkII: 275W high-pressure lamp, SX60: 180W high-pressure lamp
Screen size (projection distance) 40" to 300" (1.2 to 9 m)
Number of reproducible colors 16,770,000 colors (full color)
Brightness SX7 MarkII: 4000 lm, SX60: 2500 lm
Contrast ratio 1000:1 (full white : full black)/2000:1 (SX60 in Home Cinema mode)
Uniformity 88%
Speaker 1W monaural x 1
Maximum input resolution 1600 x 1200 dots (compression)
Video signals
ANALOG PC input
UXGA/SXGA+/WXGA/SXGA/XGA/SVGA/VGA
(scan rate: horizontal: 15 to 100KHz, vertical 50 to 100Hz)
DIGITAL PC input SX7 MarkII/SX60: SXGA+/SXGA/XGA/SVGA/VGA
COMPONENT input 1080i, 1035i, 720p, 575i, 575p, 480i, 480p
RGB SCART input 575i
DIGITAL VIDED input 1080i, 720p, 575p, 480p
VIDEO/S-VIDEO input NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Input terminals
Input Terminal-1 Digital PC, analog PC, digital video (DVI-I connector 29-pin)
Input Terminal-2 Analog PC, component, SCART (mini D-sub 15-pin)
VIDEO IN terminal composite (RCA)
S-VIDEO IN terminal S-Video (mini DIN 4-pin)
AUDIO IN terminal Audio signal (SX7 MarkII: stereo mini jack x 3, SX60: stereo mini jack x 1)
USB terminal For mouse control (USB type B)
SERVICE PORT RS-232C (mini DIN 8-pin)
Video Output terminal Analog PC (mini D-sub 15-pin)
Audio Output terminal Audio signal (SX7 MarkII: stereo mini jack)
Input signals
Digital PC TMDS (Transition Minimized Differential Signaling)
Analog PC
0.7Vp-p, positive polarity, impedance = 75Ω
Horizontal/vertical synchronization: TTL level, negative or positive polarity
Composite synchronization in G signal: 0.3Vp-p, negative polarity, impedance = 75Ω
Video
Video:1Vp-p, negative synchronization, impedance = 75Ω
S-video: Separate YC signal, Y: 1Vp-p, negative synchronization, impedance = 75Ω
C: 0.286Vp-p (burst signal), impedance = 75Ω
Component: Separate Y Cb/Pb Cr/Pr signal
Y: 1Vp-p, Negative synchronization, impedance = 75Ω
Cb/Pb: 0.7Vp-p, impedance = 75Ω Cr/Pr: 0.7Vp-p, impedance = 75Ω
Audio 142mVrms, impedance = 47 KΩ or more
Noise (Lamp mode: Normal/Quiet) SX7 MarkII: 35/31 db, SX60: 30/27 db
Operating temperature 5 °C to 35 °C
Power supply AC 100 – 240 V, 50/60 Hz
Power consumption (Lamp mode:
Normal/Quiet, standby state)
SX7 MarkII: 360W/290W, 7W, SX60: 250W/225W, 7W
Dimensions 266 (W) x 114 (H) x 336 (D) mm / 10.6 (W) x 4.6 (H) x 13.4 (D) in (excluding protrusions)
Weight SX7 MarkII: 4.8 kg/10.6 lbs, SX60: 4.6 kg/10.1 lbs
Accessories
Remote control, batteries for remote control, power cord, computer connection cable, USB
cable, component cable, carrying bag, lens cover, string for lens cover, User's Manual and
Warranty Card.
Power supply Two 3.0 V, AAA-size batteries
Operating range About 5 m (16.4') (to infrared remote receiver)
Dimensions 42 (W) x 22 (H) x 135 (D) mm / 1.7 (W) x 0.9 (H) x 5.3 (D) in
Weight (not including batteries) 55 g
139
APPENDIX
External View
Input terminal-2 (ANALOG IN-2) (Analog PC-2 input/component input terminal)
This terminal is used as a computer analog PC input or component input terminal. Use a D-
sub computer cable for connection.
Mini D-sub 15-pin
1R 9+5 V power
2 G 10 Ground (Vertical sync.)
3 B 11 Monitor ID0
4 Monitor ID2 12 DDC data
5 Ground (Horizontal sync.) 13 Horizontal sync.
6 Ground (R) 14 Vertical sync.
7 Ground (G) 15 DDC clock
8 Ground (B)
z The terminal specifications for the analog PC-2 input and component input are the same.
Screw Holes for
installation of ceiling-
mount hanger
(M4 x 6)
140
INDEX
Index
Numerics
6-axis color adjust ........................ 107, 134
A
Adjusting keystone distortion ................. 52
AdobeRGB ............................. 56, 102, 134
Air filter ................................................. 121
Ambient light (SX7 MarkII) ................... 108
ANALOG IN-1 .................................. 26, 36
ANALOG IN-2 ............................ 26, 36, 64
Analog PC ................................ 36, 48, 134
Aspect ................................ 57, 73, 90, 134
AUDIO IN terminal (SX60) ...................... 39
AUDIO IN terminal
(SX7 MarkII) .................................. 38, 67
AUDIO OUT terminal
(SX7 MarkII) ........................................ 68
Auto focus ...................................... 46, 111
Auto input ....................................... 46, 111
Auto keystone ................................ 46, 111
AUTO PC ................................................ 54
Auto screen color ........................... 46, 111
AUTO SET ........................................ 47, 70
Auto setup ................................ 46, 70, 111
B
Beep ..................................................... 112
Brightness ............................................ 103
C
Carrying bag .................................... 14, 21
Ceiling mounted ............................... 33, 97
Channel setting .................................... 115
Color adjustment ..................................105
Color temperature (SX7 MarkII) ........... 105
Component .................................... 64, 135
Composite ............................................ 135
Contrast ................................................ 103
D
D.ZOOM ................................................. 81
DIGITAL IN ....................................... 26, 65
DIGITAL PC ...................................... 37, 48
Digital PC ............................................. 135
Digital video ......................................... 116
Direct power on .................................... 112
Display settings menu ...................... 86, 90
Displaying a logo (SX60) ............... 99, 100
DVI ........................................... 37, 65, 135
Dynamic gamma .................................. 106
E
External monitor ..................................... 38
F
Factory defaults ........................... 110, 117
FOCUS ................................................... 51
Focusing ................................................ 51
FREEZE .................................................. 78
G
Gain .............................................. 105, 135
Gamma correction ....................... 104, 135
Guide ................................................... 114
H
HDCP ................................................... 135
HDMI .............................................. 65, 136
Horizontal pixels ..................................... 95
Horizontal position ................................. 94
I
IMAGE .................................................... 55
Image adjustment menu ................ 86, 102
Image flip H/V (Ceiling mounted/Rear) .. 97
Image mode ......................................... 102
Image mode (quality) ..................... 55, 102
INPUT ............................................... 48, 71
Input signal select (AV equipment) ........ 70
Input signal select (computer) ............... 48
Input signal select
(Display settings menu) ...................... 91
Input terminal ......................................... 26
Input terminal (for AV equipment) .......... 64
Input terminal (for computer) ................. 36
K
Key lock ............................................... 114
KEYSTONE ............................................. 52
L
Lamp counter ....................................... 118
Lamp mode .......................................... 109
Lamp replacement ............... 118, 122, 123
LED illumination ................................... 115
Lens cap ................................................ 21
Logo capture (SX60) .............................. 98
Logo position (SX60) .............................. 99
141
INDEX
M
Mem. color correct ............................... 107
Memorized color correction ................. 136
Menu ...................................................... 86
Menu configuration .............................. 144
Menu position ......................................... 96
Mouse operation .................................... 82
MUTE ..................................................... 79
N
NO SHOW ...................................... 78, 100
No signal screen .................................... 99
O
Offset ............................................ 105, 136
Output resolution
(Preparing the computer) ................... 44
P
PAGE ...................................................... 80
Page Up/Down ....................................... 80
Password settings ................................ 116
POWER indicator ................................... 28
Power management ............................... 61
Power management mode (setting) ..... 111
Progressive .................................... 96, 136
Projection distance ........................ 32, 133
Projector installation ......................... 14, 33
Projector on .......................................... 100
P-TIMER ................................................. 80
R
Rear projection ................................. 33, 97
Register password ............................... 117
Remote control ......................... 24, 29, 115
Reset ............................................ 110, 117
Resolution ...................................... 57, 136
S
Screen aspect .......................... 59, 74, 101
Screen color ........................................... 98
Screen mode (Aspect) ..................... 57, 73
Screen size .......................................... 133
Selecting a display language ........ 41, 113
Sharpness ............................................ 104
Signal type ........................................... 132
SPOT ...................................................... 83
Spotlight ................................................. 83
sRGB ...................................... 56, 102, 136
S-VIDEO ......................................... 66, 137
Switching to external monitor
(Preparing the notebook computer) ... 45
System settings menu .................... 86, 111
T
Top control ............................................. 25
Total dots ............................................... 93
Tracking ......................................... 93, 137
V
Vertical pixels ......................................... 95
Vertical position ...................................... 94
Video .................................................... 137
VOL ........................................................ 79
Volume adjustment ................................ 79
W
WARNING lamp ............................. 28, 126
Z
ZOOM .................................................... 42
Zoom (image size) ................................. 42
Zooming ................................................. 81
142
Options
* This part is used to hang the projector from a ceiling.
For more detailed information, refer to the instruction manual that comes with the ceiling-mount hanger
RS-CL07.
z Replacement lamp
Part No.:
SX7 MarkII: RS-LP04
SX60: RS-LP03
z Ceiling-mount hanger
Part No.: RS-CL07
z Ceiling-mount pipe
(35 cm/13.8 in to 55 cm/21.7 in)
Part No.: RS-CL08*
z Ceiling-mount pipe
(55 cm/21.7 in to 95 cm/37.4 in)
Part No.: RS-CL09*
z DVI digital cable
Part No.: LV-CA29
z SCART cable
Part No.: LV-CA31
z Network adapter
Part No.: RS-NA01 (SX60)
143
144
Menu Configuration
The Display settings menu
* Factory defaults (settings after reset)
** You can set this if you have selected [Photo]
for [Image mode].
***SX7 II: It is available if the input signal is
[DIGITAL VIDEO], [COMPONENT], [VIDEO] or
[S-VIDEO].
Aspect DIGITAL PC/ANALOG PC
P90
Full screen *
4:3
Auto
Wide
True size
VIDEO/S-VIDEO/SCART
P91
Full screen *
4:3
Wide
DIGITAL VIDEO/COMPO-
NENT
P90
Auto *
Full screen
4:3
Wide
Input signal select
ANALOG PC
P91
640 x 480
1280 x 1024
VIDEO/S-VIDEO
P92
Auto *
NTSC
PAL
SECAM
NTSC4.43
PAL-M
PAL-N
COMPONENT
P92
Auto *
1080i
1035i
720p
575p
480p
575i
480i
SCART
P92
575i
Input signal settings
ANALOG PC
Total dots
P93
Tracking
P93
Horizontal position
P94
Vertical position
P94
Horizontal pixels
P95
Vertical pixels
P95
Progressive COMPONENT/VIDEO/
S-VIDEO
P96
Off
On
Auto *
...
Menu position
P96
Screen color Normal *
P98
Greenboard
Adjust Red/Green/Blue
Image flip H/V None *
P97
Ceiling mounted
Rear
Rear, Ceiling mounted
User screen settings
Logo capture (SX60)
OK/Cancel
P98
Logo position (SX60)
Upper L
P99
Upper R
Center *
Lower L
Lower R
No signal screen Black
P99
Blue *
User logo (SX60)
NO SHOW Black *
P100
Blue
User logo (SX60)
Projector on Canon logo *
P100
Skip
User logo (SX60)
Return
Screen aspect 4:3
P101
16:9
16:9 D. image shift
145
The Image adjustment menu The System settings menu
Image mode
DIGITAL PC/ANALOG PC
P102
Photo (SX7 II)
COMMON
Standard *
Presentation
Movie***
Home Cinema (SX60)
AdobeRGB (SX7 II)
sRGB
Brightness
P103
Contrast
P103
Sharpness
P104
Gamma
P104
Color adjustment COMPONENT/VIDEO/
S-VIDEO
P106
Color level
Color balance
DIGITAL PC/ANALOG PC
P105
Color temperature**
(SX7 II)
COMMON
P105
R Gain
R Offset
G Gain
G Offset
B Gain
B Offset
Advanced adjustment
Dynamic gamma Off *
P106
On
Mem. color correct Off *
P107
L
M
H
6-axis color adjust Off *
P107
Adjust Hue/Saturation
Return
DIGITAL PC/ANALOG PC
P108
Ambient light** (SX7 II) Off
Adjust
Type Tungsten
Fluorescent
Fluorescent H
Level L
M
H
Lamp mode Normal
P109
Quiet
Reset OK/Cancel
P110
Auto setup
P111
Auto focus Off
On *
Auto keystone Off
On *
Auto input Off
On *
Auto screen color Off *
On
Return
Power management mode
Off *
P111
Standby
Exit
Direct power on Off *
P112
On
Beep Off
P112
On *
Key lock Off *
P114
Main unit
Remote control
Language English Turkish
P113
Germany Polish
French Hungarian
Italian Czech
Spanish Danish
Portuguese
Chinese
(Simplified)
Swedish
Russian
Chinese
(Traditional)
Dutch
Finnish Korean
Norwegian Japanese
Guide Off
P114
On *
LED illumination Off
P115
On *
Other settings
Remote control Ch1
P115
Ch2
Digital Video F *
P116
L
Password settings Off *
P116
On
Register password Password input
P117
Lamp counter Return
P118
Reset (OK/Cancel)
Factory defaults OK/Cancel
P117
Return
©CANON INC.2010
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo
146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-
1198, U.S.A.
For all inquires concerning this product, call toll
free in the U.S.
1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T
1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T
