30052
Charcoal Grill
30052_080709
Kay Home Products
TM
WARNING:
• Your grill is intended for residential outdoor use only. Do not use for commercial cooking. Do not use in or on boats
or recreational vehicles. Do not use for indoor cooking or heating. Toxic carbon monoxide fumes may accumulate
and cause death.
• Designate the grilling area as a no play zone and keep kids and pets away. Do not wear loose fitting clothing
when cooking.
• Only use your grill on a hard, level, non-combustible surface. Keep away from house, garage, trailer, building, tent
or under overhead construction.
• Grill must be kept at a distance of 36” from any building to ensure that there is no fire or melting of materials from
building. Live hot briquettes and coals can create a fire hazard.
• Do not use this product without reading all warning and operating instructions. Death, serious injury or damage to
property may occur if all warnings are not followed.
• Do not force parts together as this can cause personal injury or damage to the product. Use protective gloves when
assembling this grill. Do not use grill until it is completely assembled and all fasteners are tight. Do not modify grill.
• Check to make sure the air vents are free of debris and ash before lighting charcoal and during use. This grill
should be thoroughly clean and inspected on a regular basis.
• Do not place charcoal briquettes, wood or lump charcoal directly into bottom of grill. Place only on charcoal grid.
• Do not use gasoline, kerosene, or alcohol for lighting charcoal. Only use starter fluid made for barbecue grill to
start charcoal.
• During initial start up remove lid until charcoal turn to white coals. Use caution when opening the lid. Do not
expose any part of your body directly above grill when lighting and cooking as high heat and steam can escape
and severely burn you.
• Never handle grill while in use. Use long handled barbecue tools to avoid burns from heat, flare ups, and splatters.
Use oven mitts to protect hands from burns.
• Do not use hot grill near electrical cords, in high winds, near flammable liquids, gases or where flammable vapor
is present.
• Do not cover entire cooking area with aluminum foil. Always use a meat thermometer to ensure food is cooked to
a safe temperature.
• Never move or remove the ashes until the grill is completely cool. Always empty ashes from grill after use.
90 McMillen Road • Antioch, IL 60002
Customer Service (800) 635-3831 • Fax: (847) 395-3305
Made in China
2

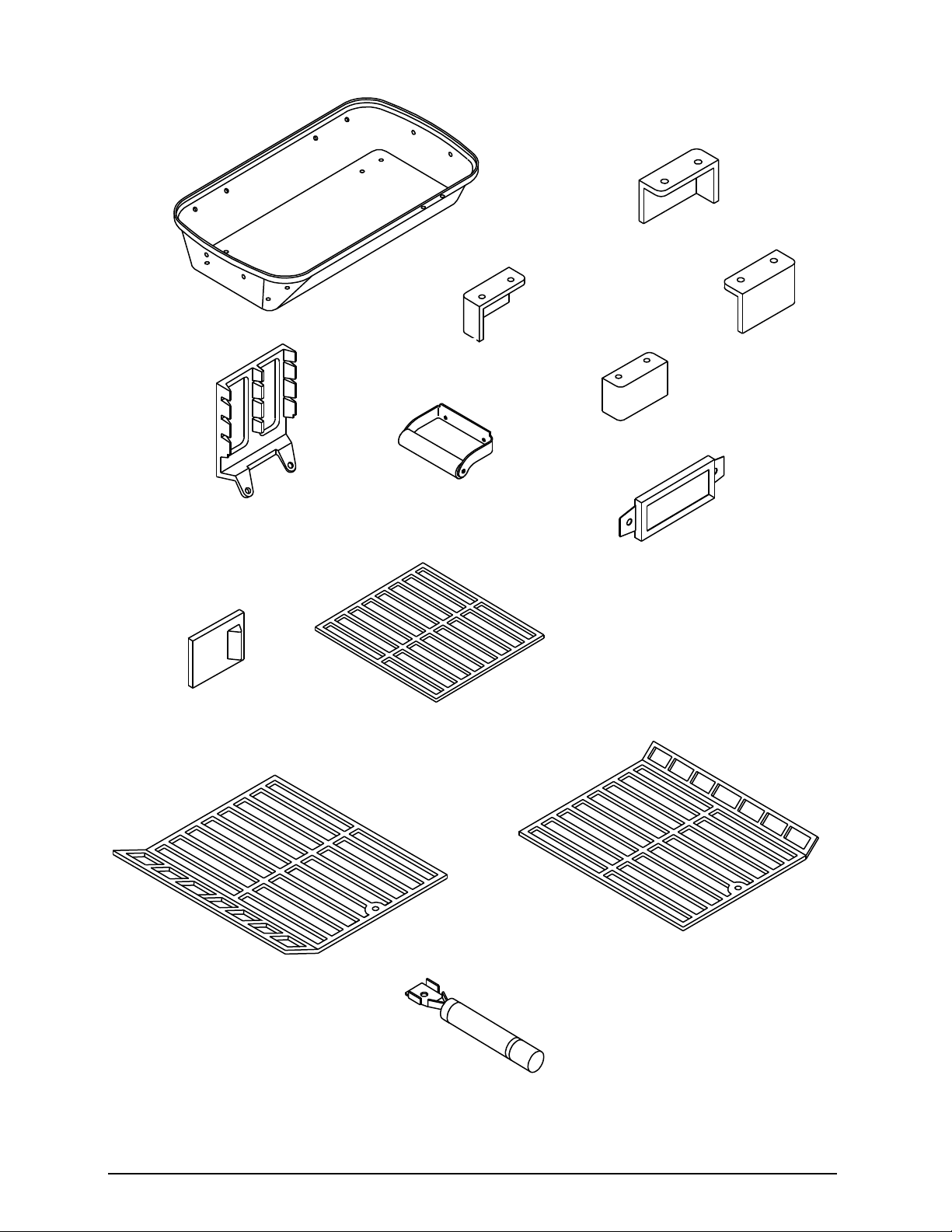

Parts List
Item Qty
Part Name
Item
Qty
Part Name
A
1
Bowl H 2
Vent Door Bracket
B
1
Leg (Right Rear)
I 2
Vent Door
C
1
Leg (Right Front)
J
2
Charcoal Grid
D
1
Leg (Left Front)
K 1
Cooking Grid (Left)
E 1
Leg (Left Rear)
L 1 Cooking Grid (Right)
F
2
Grid Support
M
2
Cooking Grid Handle
G
2 Side Handle
Hardware List
Item Qty
Part Name
S1
14
Long Screw
S2
8
Short Screw
N1 22
Hex Nut
Parts List
S1
S2
N1
Thoroughly inspect contents of box before assembly to ensure that there are no
missing or damaged parts. If you have missing or damaged parts DO NOT RETURN
PRODUCT TO STORE. Contact the Kay Home Products Customer Service
Department at the toll free number listed on the front of this manual.
Approximate Assembly Time: One Hour
3
A
B
C
D
E
G
F
H
I
J
K
L
M
4
A
B
C
D
E
G
G
F
F
S1
N1
S2
N1
S1
N1

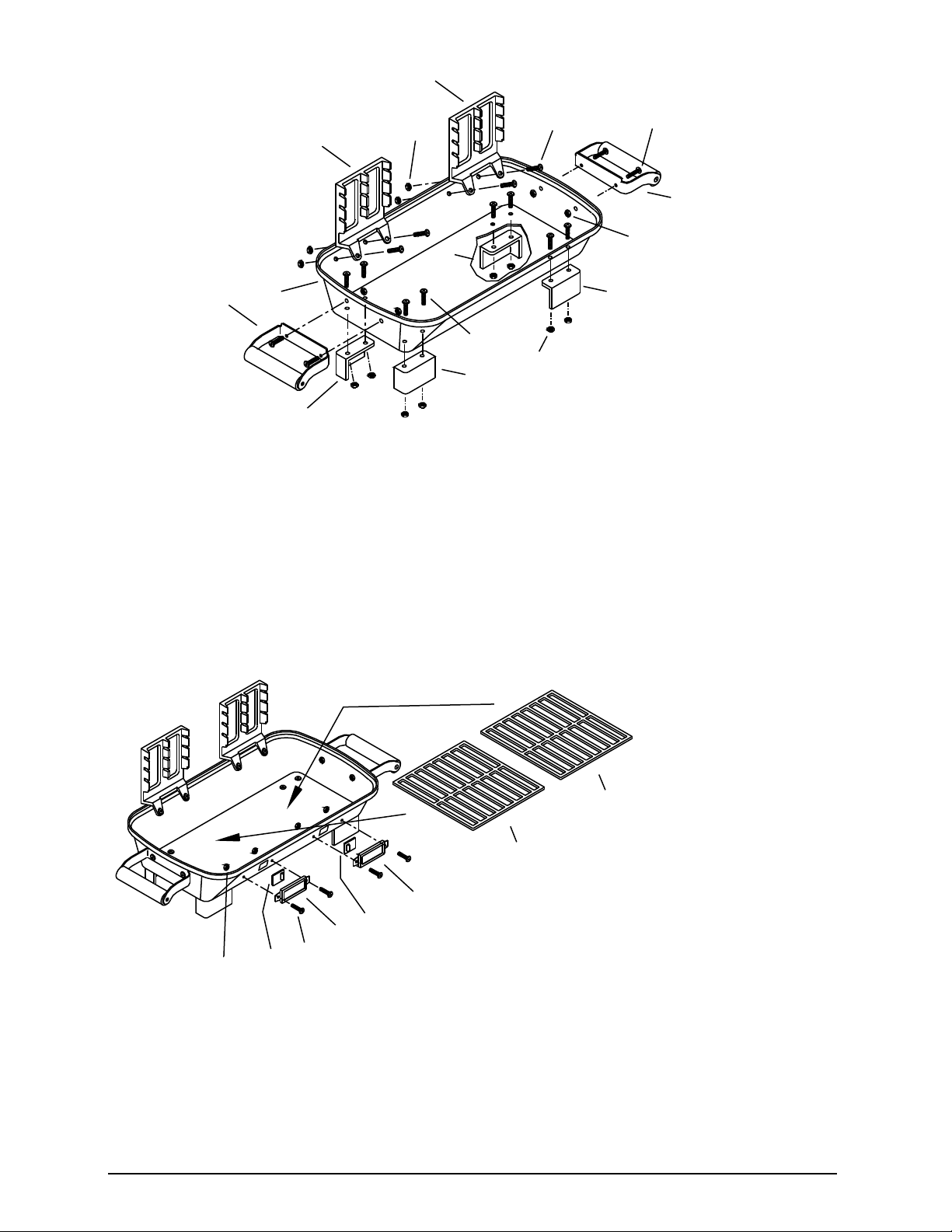

Figure 1
1. Attach Legs(Items B, C, D, and E) to bottom of Bowl (Item A) as shown in Figure 1
using Long Screws(S1) and Nuts (N1).
2. Attach Grid Supports (Item F) to inside rear of Bowl (Item A) as shown in Figure 1
using Long Screws (S1) and Nuts (N1).
3. Attach Side Handles (Item G) to sides of Bowl (Item A) as shown in Figure 1 using
Short Screws (S2), and Nut (N1).
H
I
H
I
J
J
S2
N1
Figure 2
4. Attach Vent Doors (Item I) and Vent Door Brackets (Item H) to outside front
of Bowl (Item A) as shown in Figure 2 using Short Screws (S2), and Nuts (N1).
The vent door fits in between the bracket and the bowl.
5. Place Charcoal Grids (Item J) inside of Bowl (Item A) as shown in Figure 2.
When in use, the charcoal must be placed on top of these grids.
5
K
L
M
M
S1
N1

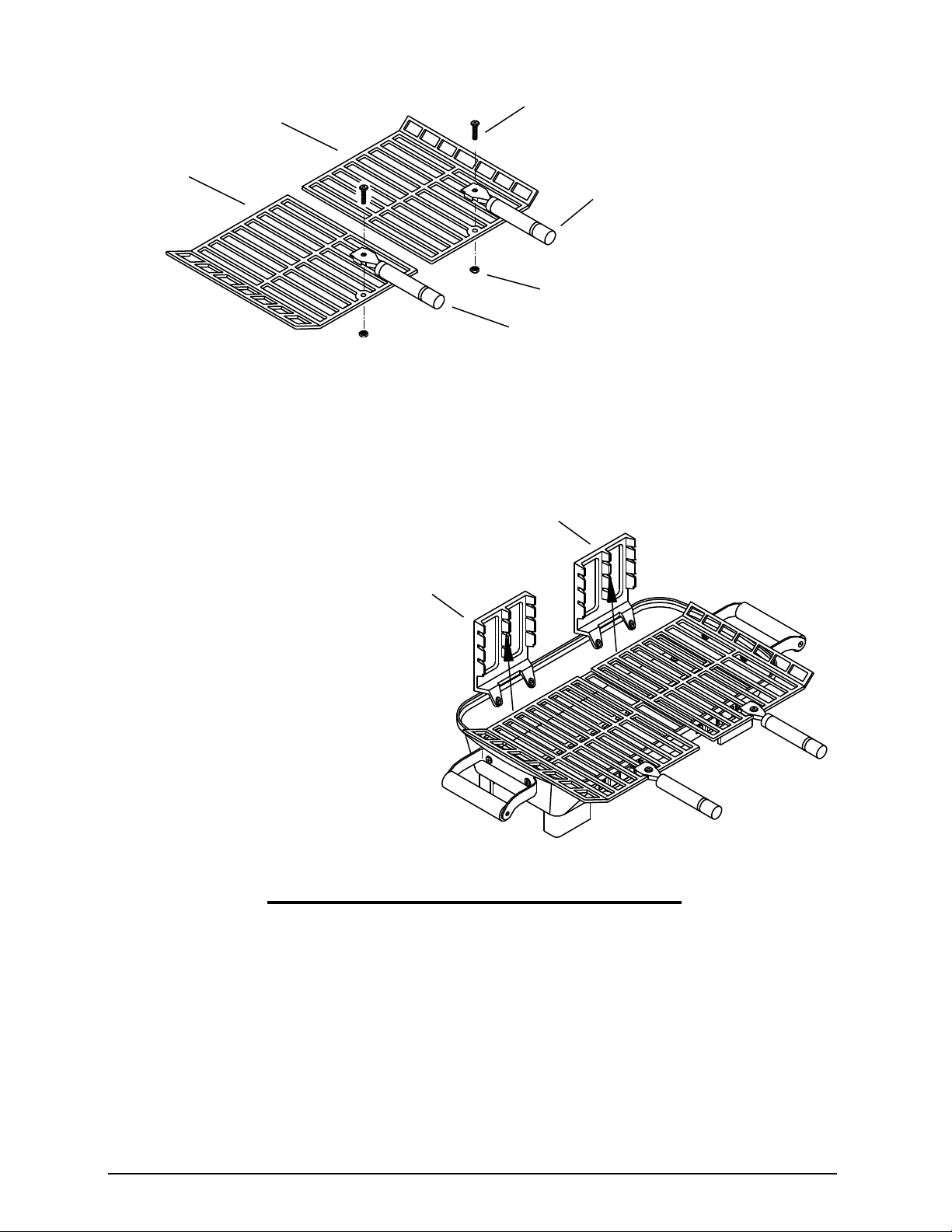

Figure 3
6. Attach Cooking Grid Handles (Item M) to Cooking
Grids (Item K, L) as shown in Figure 3 using Long
screws (S1) and Nuts (N1).
F
F
Figure 4
7. Insert the rear edge of
the cooking grids into slots
in Grid Supports(Item F) as
shown in Figure 4. Using the
lower slots will provide higher
cooking temperature. Using the
higher slots will produce a lower
cooking temperature.
Cleaning
Allow grill to cool completely before cleaning. Disassemble grill and scrape off
grease. Clean with hot, soapy water and rinse completely. Use a wire brush if
necessary on cooking grid. Do not use a self-cleaning oven agent to clean any
part of the grill.
Storage
Allow grill to cool completely before transporting or storing. Place grill on a firm,
level surface.
