EN FREEZER / REFRIGERATOR
FR RÉFRIGÉRATEUR / CONGÉLATEUR
ES REFRIGERADOR CON CONGELADOR
808733401 September 2013
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
2
Finding Information
Please read and save this
guide
Thank you for choosing Electrolux, our new
premium brand in home appliances. This
Use & Care Guide is part of our commitment
to customer satisfaction and product quality
throughout the service life of your new
appliance.
Purchase date
Electrolux model number
Electrolux serial number
Keep a record for quick
reference
Finding Information ....................................2
Safety ..........................................................3
Installation ..................................................5
Removing The Doors ..................................8
Installing Door Handles ............................11
Connecting The Water Supply .................12
Feature Overview ......................................14
Controls ....................................................15
Storage Features ......................................20
Automatic Ice & Water
Maker/Dispenser ....................................28
Changing The Filter ..................................31
Storing Food & Saving Energy .................33
Normal Operating Sounds & Sights .........34
Care & Cleaning ........................................35
Warranty ....................................................38
Before You Call .........................................39
Table of contents
Questions?
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX
(1-877-435-3287)
For online support and product information
visit http://www.electroluxappliances.com
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at
www.electroluxappliances.com or by
dropping your Product Registration Card in
the mail.
3
Safety
Important Safety Instruc-
tions
Safety Precautions
Do not attempt to install or operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning or
Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
General Safety
• Do not store or use gasoline, or other
flammable liquids, near this or any
other appliance. Read product labels
for warnings regarding flammability and
other hazards.
• Do not operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
the automatic ice maker.
• Remove all staples from the carton
to avoid cut injuries. Staples can also
damage finishes if they come in contact
with other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs,
bedspreads, plastic sheets or stretch
wrap may become airtight chambers and
can quickly cause suffocation.
• Destroy or recycle the product’s carton,
plastic bags, and any other exterior
wrapping material immediately after the
refrigerator is unpacked. Children should
never play with these items.
Child Entrapment And Suffocation:
• These problems are not limited to the
past. Whether junked, abandoned or
temporarily stored (even for a few hours),
unattended refrigerators and freezers are
dangerous. Please take the precautions
listed below.
Proper Disposal Of Refrigerators/
Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your
utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove the doors.
• Leave the shelves
in place so
children may not
easily climb inside.
• Have refrigerant
removed by a
qualified service
technician.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious
injury.
IMPORTANT
Indicates installation, operation or
maintenance information which is important
but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or moderate
injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING
Please read all safety instructions before
using your new refrigerator.
4 Safety
• The refrigerator must be plugged
into its own dedicated 115 Volt, 60
Hz., AC-only electric outlet. The
power cord of the appliance is equipped
with a three-prong grounding plug for
your protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local codes
and ordinances. Consult a qualified
electrician. Do not use an extension
cord or adapter plug.
• If the power cord is damaged, it should
be replaced by the manufacturer, service
technician or a qualified person to
prevent any risk.
• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly, and pull straight out from
the receptacle to prevent damaging the
power cord.
• Unplug the refrigerator before cleaning
and before replacing a LED light to avoid
electrical shock.
• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with insufficient
power can damage the compressor.
Such damage is not covered under your
warranty.
• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the refrigerator from being
turned off accidentally.
• Avoid connecting refrigerator to a
Ground Fault Interrupter (GFI) circuit.
Electrical information
Grounding type wall receptacle
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
Power cord with
3-prong gounded plug
WARNING
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
IMPORTANT
To turn off power to your refrigerator, unplug
the power cord from the wall outlet.
5
This Use & Care Guide provides general
operating instructions for your model. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigerator,
follow these important first steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker.
Installation
Installation clearances
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜ inch
Back 1 inch
Door opening
Installation
CAUTION
DO NOT install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside the
refrigerator.
DO NOT block the toe grille on the lower
front of your refrigerator. Sufficient air
circulation is essential for the proper
operation of your refrigerator.
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
To remove toe grille
1 With both doors closed, unfasten right
and left side clips of toe grille from
bottom hinge groove.
2 Open both doors. Press firmly on top of
toe grille until top of toe grille pops off.
3 Pull toe grille outward towards your body
and off of lower hinges.
1
2
3
2
3
1
Removing Toe Grille
4
4
5
5
Installing Toe Grille
4
5
Toe Grille Installation and Removal
To install toe grille
1 Open both doors. Slide left and right
sides of toe grille over lower hinges of
refrigerator.
4 Close the doors. Fasten right and left side
of clips into groove of bottom hinge by
pulling outwards on the edge.
5 Ensure the triangle flap is resting on top
of the door hinge.
2 While pushing toe grille firmly against
cabinet, fasten bottom clips of toe grille
to cabinet.
3 Fasten top clips to cabinet.
6
Raise
Installation
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of drawers and
freezer baskets, the refrigerator should be
in a position where both the refrigerator and
freezer doors can be fully opened.
Guidelines for final positioning of your
refrigerator:
• All four corners of the cabinet must rest
firmly on the floor.
• The cabinet should be level at the front
and rear.
• The sides should tilt ¼ inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
• Doors should align with each other and
be level.
All of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:
1 Open both doors and remove the toe
grille (see “Toe Grille Installation and
Removal” in the “Installation” section).
2 Close the doors and use a flat-blade
screwdriver or ⅜ inch socket wrench to
raise or lower the front rollers.
3 Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides.
NOTE
The refrigerator doors are designed to shut
by themselves within a 20 degree opening.
4 After leveling, verify door stop contacts
lower hinge and top of door does
not contact upper hinge through full
movement of door (from fully closed to
fully open).
5 Reinstall set screw, locking the door
height.
Raise
Door
Raise
Door
Door Door
6 Replace the toe grille by fitting it into
place (see “Toe Grille Installation and
Removal” in the “Installation” section).
To level the doors using the adjustable
lower hinge (some models):
1 Before leveling either door, remove
set screw that locks door height into
position. (The door cannot be adjusted
without set screw removed).
2 If the refrigerator door is lower than
the freezer door, raise the refrigerator
door by turning the adjustment screw
clockwise using a 7/16 inch wrench.
(See illustration.)
3 If the freezer door is lower than the
refrigerator door, raise the freezer
door by turning the adjustment screw
clockwise using a 7/16 inch wrench.
(See illustration.)
Set Screw
(some models)
Hinge
Hinge
Flange
Open Door
7/16" Wrench and
3/32" Hex Key (some models)
Door Stop
Flange
NOTE: Level the unit with the adjustable
rollers before leveling the doors.
7Installation
Installing Shelves
Your refrigerator was shipped with the shelf
hanger and shelf locking clip installed in their
shipping position. Below are the instructions
to install the shelves in your desired locations.
1 Remove shelf from its locked position by
pulling the slide mechanism toward you.
2 Lift the hanger directly upwards and pull
toward you to remove it from the ladder.
3 Place top hooks of the hanger into the
desired slot, and lower straight down
until lower hooks rest on the ladder.
4 Relock shelf by pushing the slide
mechanism away from you.
6 Gently set the shelf onto the hanger
once the back is secured by the hanger.
5 While holding shelf at a 45-degree angle
with the gray handle facing you, push the
shelf into the back of the hanger.
CAUTION
Shelves must be removed prior to
moving the refrigerator.
8 Removing The Doors
Getting through narrow
spaces
If your refrigerator will not fit through an
entrance area, you can reduce its size by
removing the doors. Check first by measuring
the entrance.
Required Tools
You will need the following tools:
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open both doors and remove the toe
grille (as explained in the Installation
Instructions that came with your
appliance).
Top
Hinge
Screw
Bottom
Hinge
Screw
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
To remove the refrigerator door:
1 Trace lightly around the door’s top hinge
with a pencil. This makes reinstallation
easier.
Rear Cover
Screw
Front Cover
Screws
Top
Hinge
Cover
Hinge
Screws
Top
Hinge
2 Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
Adjustable
Wrench
3/8" Fixed
Wrench
Phillips™
Head
Tools Necessary:
Socket
Wrench Set
and
oror
3 Remove any food from the door shelves.
4 Close the doors.
To remove the refrigerator top hinge cover:
1 Remove the three screws from each
cover over the top door hinges.
2 Lift hinge cover straight up and off.
9
Adjustable Hinge
(some models)
Door
Hinge
Assembly
Closer
Pin
Hinge
Screws
Screws
Hinge
Assembly
Door
Non-Adjusting Hinge
(some models)
3 Remove the two bottom hinge screws
and hinge if necessary.
To reinstall the refrigerator door, reverse the
above steps.
Removing The Doors
To remove the freezer top hinge cover:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
Front
Cover Screws
Rear Cover
Screw
Top Hinge
Cover
Hinge
Screws
Multi-Wire
Cable
Top
Hinge
To remove the freezer door:
1 Detach the multi-wire cable connector
located above the top hinge. Grasp both
sides of the connector firmly and pull
apart.
2 Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
10 Removing The Doors
3 Detach the water tube from the
connector located below the freezer
door. The connector releases when you
press and hold its outer sleeve inward.
With the sleeve held in this position, the
tube can be removed.
4 Remove the screws from the top hinge
and pull the multi-wire cable through it.
Lift the door off of the bottom hinge.
5 Remove the two bottom hinge screws
and hinge if necessary.
6 Lay the door on its side to avoid damage
to the water tube extending from the
bottom hinge.
Door
Hinge
Assembly Screws
Water
Line
Tubing
Non-Adjusting Hinge (some models)
Closer
Pin
Hinge
Door
Water
Line
Tubing
Screws
Hinge
Assembly
Adjustable Hinge (some models)
To reinstall the freezer door, reverse the above
steps.
Once both doors are in place, ensure they are
aligned with each other and level (Please see
“To level the doors using the lower hinge” for
models with adjustable lower hinges or “To
level the cabinet using the front rollers” for
models with the non-adjustable lower hinges
in the “Installation” section.), then replace the
top hinge cover.
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury.
11Installing Door Handles
Door Handle Mounting Instructions
1 Remove handles from carton and any other
protective packaging.
2 Position freezer handle end caps over upper
and lower pre-installed shoulder bolts (A) that
are fastened into door, ensuring the holes
for the set screws are facing towards the
refrigerator door.
3 While holding handle firmly against door, fasten
upper and lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to install refrigerator
handle. Ensure the holes for the set screws are facing towards the freezer door.
Ensure handle set screws are facing
each other with doors closed
Freezer Lower End Cap Refrigerator Lower End Cap
Freezer Upper End Cap Refrigerator Upper End Cap
NOTE
All set screws should be tightened and sub-flush (Allen set screw should be seated just below
the surface of the end cap) of handle end cap. The end caps should be drawn tight to freezer
and refrigerator doors with no gaps.
A
B
A
B
A
B
A
B
12 Connecting The Water Supply
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line
with water pressure between 30 and
100 psi.
• A water supply line made of ¼ inch
(6.4mm) OD, copper or stainless steel
tubing. To determine the length of tubing
To Connect Water Supply Line To Ice
Maker Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into sink
or bucket. Turn ON water supply and
flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far as
it will go (¼ inch/6.4 mm). Slide ferrule
(sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
over tighten. See Figure 1.
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
IMPORTANT
Ensure that your water supply line
connections comply with all local plumbing
codes.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is
not recommended to be used.
Plastic tubing greatly increases the
potential for water leaks, and the
manufacturer will not be responsible
for any damage if plastic tubing is
used for the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Do not reuse compression fitting or
use thread seal tape.
• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending on your
local/state building codes, Electrolux
recommends for homes with existing
valves its Smart Choice® water line
kit 5305513409 (with a 6 ft. Stainless
Steel Water Line) and for homes without
an existing valve, Electrolux recommends
its Smart Choice® water line kit
5305510264 (with a 20 ft. Copper Water
Line with self-tapping saddle valve). Please
refer to www.electroluxappliances.com
for more information.
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
• A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing type
shutoff valve.
• Do not reuse compression fitting or use
thread seal tape.
• A compression nut and ferrule (sleeve)
for connecting a copper water supply
line to the ice maker inlet valve.
13Connecting The Water Supply
Steel
Clamp
Stainless
Steel
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Plastic Water Tubing
to Ice Maker
Fill Tube
6 ft. Stainless Steel water line from
household water supply
Figure 2
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System”
for important information about priming an
empty water supply system.
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, a water valve, and a water tank.
To ensure that your water dispenser
works properly, this system must be
completely filled with water when your
refrigerator is first connected to the
household water supply line.
If you use stainless steel tubing - The
nut and ferrule are already assembled on
the tubing. Slide compression nut onto
valve inlet and finger tighten compression
nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten.
See Figure 2.
5. With steel clamp and screw, secure
water supply line (copper tubing only) to
rear panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils
so they do not vibrate or wear against
any other surface.
7. Turn ON water supply at shutoff valve
and tighten any connections that leak.
8. Reconnect refrigerator to electrical power
source.
9. To turn ice maker on, lower wire signal
arm (side mounted) or set the ice
maker’s On/Off power switch to the “I”
position (rear mounted).
10. Test system before use. Check for leaks
again after 24 hours.
14 Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. Use the
illustration below to familiarize yourself with product features and terminology.
*Soft Freeze
Ice Cream
or Fixed
Door Bin
Toe Grille
*Perfect Door Bin
or Door Bin
Door Bin
Crisper Pan
and Cover
*Tilt Out
or Fixed
Door Bin
Large Basket
Small Basket
and Cover
Large
Glide Out
Basket
Glass Shelf
Ice
Container
Water Filter
Air Filter
Ice Cream Shelf
Door Light Switch
Door Light Switch
*Meat Keeper
or Perfect
Temp Drawer
*Can Rack
or Fixed
Door Bin
*Door Bin or
Dairy
Compartment
*Tilt Out
or Fixed
Door Bin
*Tilt Out
or Fixed
Door Bin
Ice Maker
*SpillProof
TM
Sliding or
Lift Off Shelves
*SpillProof
TM
Sliding or
Lift Off Shelves
NOTE
*Features may vary according to model.
IMPORTANT
Features not included with your refrigerator can be purchased at
www.electroluxappliances.com or by calling 1-877-435-3287.
15Controls

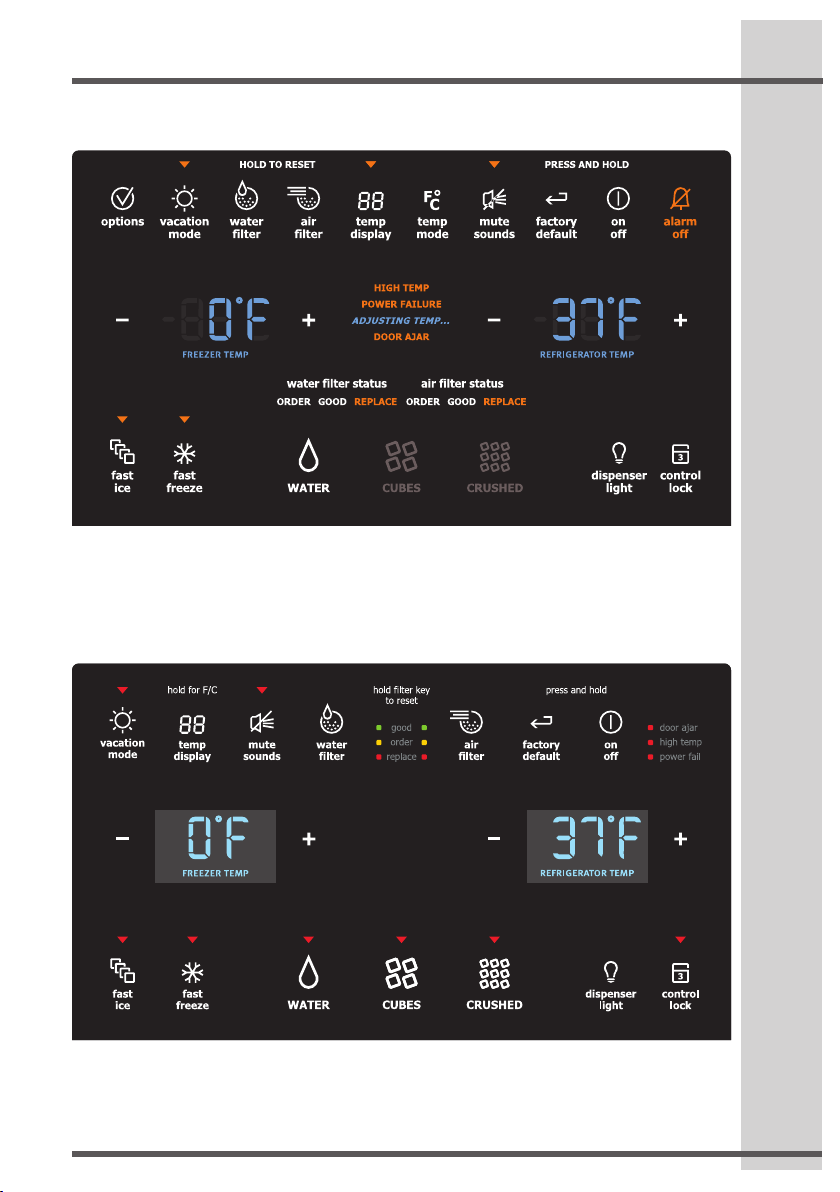

Wave-Touch
TM
IQ-Touch
TM
16 Controls
Wave-Touch
TM
(some models)
Your refrigerator is equipped with a
Wave-Touch
TM
Panel user interface display.
It is only necessary to touch the panel. There
is no need to press with force. There are three
levels of display.
1
st
Level: Sleep Mode
Sleep mode displays only the water, cubes
and crushed options. Touch an icon to
activate the desired dispenser mode. The
active dispenser mode is more brightly
illuminated.
2
nd
Level: Awakened Display Mode
The display is awakened by touching
anywhere on the panel where there is an
indicator. Black space will not awaken the
display. After 10 seconds of inactivity, the
display will return to the “Sleep Mode”.
The following dispenser options are
illuminated:
3
rd
Level: User Variable Options
Touching the options icon displays the
following options:
fast ice
Increases the production
of ice.
fast freeze
Activates a faster rate for
freezing food.
dispenser
light
On / Off
control lock
Press and hold for three
seconds to activate and
deactivate. This restricts
undesired changes to the
refrigerators settings and
prevents use of the ice and
water dispenser.
vacation
mode
Conserves energy by
increasing the time between
automatic defrost. This
feature is automatically
activated during long periods
between door openings.
Vacation mode is manually
activated when the red
indicator is lit.
water filter
Touch to display filter
condition status. Press and
hold for three seconds to
reset.
air filter
Touch to display filter status.
Press and hold for three
seconds to reset.
temp display
When active, it allows
the display of the freezer
and refrigerator temps
during “Sleep Mode”. The
temperature is displayed
when the red indicator is lit.
temp mode
Touch to toggle display from
Fahrenheit to Celsius.
mute sounds
Tones emitted by each
keypress can be turned off
based on user preference.
The sounds are muted
when the red indicator is
lit. Warning signals will stay
active.
factory
default
Resets all refrigerator
settings such as temp, temp
display, and alarm tones to
their factory default settings.
on off
Press and hold for three
seconds to turn off the
cooling system to clean the
refrigerator. It also turns off
all dispenser functions. The
temperature display will read
OFF.
17Controls
Setting cooling temperatures
1 Touch the panel to illuminate the 2nd
level of display.
2 Select the options icon. Plus (+) and
minus (-) indicators will appear on either
side of the displayed temperatures.
3 Press the + or – indicator to adjust the
temperature to the desired setting.
The temperature display will begin
to blink with the first touch. After five
seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times out
and returns to the basic display.
Alarms
IMPORTANT
Pressing the system off icon does not turn
off power to your refrigerator. You must
unplug the power cord from the wall outlet.
Door Ajar
If the door has been left
open for an extended period
of time, an alarm will sound
and the door ajar indicator
will display in the middle. The
alarm is turned off by closing
the door. The alarm off key
will illuminate to prompt the
reset of any pending alarms.
Press this key to reset any
system Alarms.
High Temp
In the event of a high
temperature condition,
the temperature display
will display “HI”. After 20
minutes, the high temp alert
will be displayed and the
alarm off icon will illuminate
until pressed, acknowledging
the alarm, at which time the
highest temperature reached
will be displayed and the
refrigerator will resume
normal operation. All other
modes are turned off until the
alarm is acknowledged.
Power Fail
In the event of a power
failure, the power fail alert will
be displayed and the alarm
off key will be illuminated
and you will hear an audible
alarm until the alarm off icon
is pressed, acknowledging
the alarm. Other modes may
be turned off until the alarm
is acknowledged. When the
power fail alert is turned off,
the refrigerator will resume
normal operation. The
high temp alarm may also
be illuminated until a safe
operating range temperature
has been reached.
18
Wave-Touch
TM
/IQ-Touch
TM
“Sabbath Mode” (some models)
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
for both Wave-Touch
TM
and IQ-Touch
TM
, in
accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the freezer “-” and
the refrigerator “+” indicators for five seconds
for both the Wave-Touch
TM
and IQ-Touch
TM
modes. The display shows “Sb” while in
Sabbath mode.
In the Sabbath Mode, the high temp alarm is
active for health reasons. If a high temperature
alarm is activated during this time, for example
due to a door left ajar, the alarm will sound
intermittently for about 10 minutes. The alarm
will then silence on its own and a red high
temperature icon will display. The high temp
icon will continue to display, even if the door is
closed, until the Sabbath mode is exited and
the icon reset. The refrigerator will function
normally once the door is closed, without any
violation of the Sabbath/Holidays.
For further assistance, guidelines for proper
usage and a complete list of
models with the Sabbath feature,
please visit the web at http:\\
www.star-k.org.
NOTE
Although you have entered the Sabbath
mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
Controls
Your refrigerator is equipped with a
IQ-Touch
TM
Panel user interface display. It
is only necessary to touch the panel. There is
no need to press with force. There are three
dispenser modes:
1 Water
2 Ice Cubes
3 Crushed Ice
A red indicator light will be illuminated above
the active mode.
Touch the icon to activate the options below.
Any of the following options that are activated
have a red indicator light above the icon.
IQ-Touch
TM
(some models)
fast ice
Increases the production
of ice
fast freeze
Activates a faster rate for
freezing food
dispenser
light
On / Off
control lock
Press and hold for three
seconds to activate and
deactivate. This restricts
undesired changes to the
refrigerators settings and
prevents use of the ice and
water dispenser.
vacation
mode
Conserves energy by
increasing the time between
automatic defrost. This
feature is automatically
activated during long periods
between door openings.
Vacation mode is manually
activated when the red
indicator is lit.
water filter
Touch to display filter
condition status. Press and
hold for three seconds to
reset.
19Controls
Alarms
Setting cooling temperatures
1 Touch the panel to illuminate the display
to the plus (+) and minus (-) indicators
which appear on either side of the
displayed temperatures.
2 Press the + or – indicator to adjust the
temperature to the desired setting.
The temperature display will begin to
blink with the first touch. The display
times out after five seconds and returns
to the basic display.
IMPORTANT
Pressing the system off icon does not turn
off power to your refrigerator. You must
unplug the power cord from the wall outlet.
air filter
Touch to display filter status.
Press and hold for three
seconds to reset.
temp display
Touch to toggle the freezer
and refrigerator temps
display on and off.
Touch and hold temp display
to toggle display from
Fahrenheit to Celsius.
mute sounds
Tones emitted by each
keypress can be turned off
based on user preference.
The sounds are muted
when the red indicator is
lit. Warning signals will stay
active.
factory
default
Resets all refrigerator
settings such as temp, temp
display and ring tones to
their factory default settings.
on off
Press and hold for three
seconds to turn off the
cooling system to clean the
refrigerator. It also turns off
all dispenser functions. The
temperature display will read
OFF.
Door Ajar
If the door has been left
open for an extended period
of time, an alarm will sound
and the door ajar indicator
will display on the right side
of the display. The alarm
is turned off by closing the
door. The mute sounds key
will illuminate to prompt the
reset of any pending alarms.
Press this key to reset any
system alarms.
High Temp
In the event of a high
temperature condition, the
temperature display will
display “HI”. After 20 minutes,
the high temp alert will be
displayed and the mute
sounds icon will illuminate
until pressed, acknowledging
the alarm, at which time the
highest temperature reached
will be displayed and the
refrigerator will resume normal
operation. All other modes
are turned off until the alarm
is acknowledged.
Power Fail
In the event of a power
failure, the power fail alert
will be displayed and the
mute sounds icon will be
illuminated and you will
hear an audible alarm until
the mute sounds icon is
pressed, acknowledging the
alarm. Other modes may be
turned off until the alarm is
acknowledged. When the
power fail alert is turned off
the refrigerator will resume
normal operation. The
high temp alarm may also
be illuminated until a safe
operating range temperature
has been reached.
20 Storage Features
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
shelves to stabilize to room temperature
before cleaning. Do not wash in
dishwasher.
NOTE
Features may vary according to model.
Shelf features
To change the position of a shelf:
1 Remove shelf from its locked position by
pulling the slide mechanism toward you.
2 Lift the hanger directly upwards and pull
toward you to remove it from the ladder.
3 Place top hooks of the hanger into the
desired slot, and lower straight down
until lower hooks rest on the ladder.
4 Relock shelf by pushing the slide
mechanism away from you.
5 While holding shelf at a 45-degree angle
with the gray handle facing you, push the
shelf into the back of the hanger.
21
CAUTION
Shelves must be removed prior to
moving the refrigerator.
6 Gently set the shelf onto the hanger
once the back is secured by the hanger.
Storage Features
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets which
attach to slotted supports at the rear of
each compartment. The glass can be easily
removed for cleaning.
CAUTION
To avoid injury from breakage, handle
tempered glass shelves carefully.
NOTE
Features may vary according to model.
NOTE
Some Cantilever Sliding Glass Shelves have
spacers (side screws) on the sides of the
brackets to securely hold the shelves in
place.
To relocate the shelf to a different
location, the spacers must be turned in
(clockwise). To secure the shelf in a new
location, remember to turn the spacers
out (counterclockwise) until they touch the
sides of the compartment. These shelves
slide out for easy access to food and faster
cleaning.
Sliding shelves can be pulled forward as far
as their built-in stops allow. Sliding shelves
cannot be separated from their mounting
brackets.
Shelf features (some models)
Your refrigerator includes Luxury-Design
TM
glass shelves, which are designed to catch
and hold accidental spills.
To change the position of a shelf (some
models):
1 Lift the front edge up.
2 Slide shelf out.
22
NOTE
Leafy vegetables keep best when stored
with the Humidity Control set on Higher
Humidity, or in a drawer without a Humidity
Control. This keeps incoming air to a
minimum and maintains maximum moisture
content.
Storage Features
Upper Crisper
Lower Crisper
Special items rack (some models)
The innovative design of the special items
rack allows you to store four bottles of wine or
soft drink bottles.
Colder
Warmer
Special
Items
Rack
Meat
Pan
Drawers
Your refrigerator includes a variety of storage
drawers. These drawers usually are located in
fixed positions at the bottom of the fresh food
compartment. Some models are supplied with
soft close slides which close by themselves
the last 1½ inches of travel.
Meat keeper (some models)
Some models are equipped with a meat
keeper drawer for short-term storage of bulk
meat items. This drawer includes a sliding
control for adjusting the temperature inside.
Any meat to be kept longer than two days
should be frozen. If you store fruits or
vegetables in this drawer, set it to a warmer
temperature to prevent freezing.
Crisper
Pan
Tab
Crisper humidity control
Crisper drawers include a sliding control for
adjusting the humidity inside the crisper. This
feature can extend the life of certain fresh
vegetables that keep longer in high humidity.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce. Before
storing items in a crisper:
• Wash items in clear water and remove
excess water.
• Wrap any items that have strong odors
or high moisture content.
To remove the Crisper Drawer:
1 Using your thumb, press down on the
plastic tab (some models).
2 While holding down the plastic tab, lift
front slightly and pull drawer up and out.
NOTE
If there are no plastic tabs on your model,
just lift front of drawer and pull up and out.
23
Opening Perfect Temp
TM
Drawer
Setting Perfect Temp
TM
Drawer Temperature
Storage Features
Perfect Temp
TM
Drawer (some models)
The Perfect Temp
TM
Drawer (PTD) was
designed to keep food items at a precise
temperature that is cooler, the same, or warmer
than the fresh food side of the refrigerator.
The PTD is shipped turned OFF. When first
turned on or after a power outage the PTD may
show “HI°F” if it is set to a temperature before
the freezer and fresh food temperatures have
stabilized. To avoid this message, leave the PTD
in the “OFF” setting until the freezer and fresh
food compartment temperatures have stabilized.
To operate:
1 Turn the drawer on by pressing the On/
Off button. The numeric display will show
a temperature like “32°F” when on and
“OFF” when off.
2 Select if Fahrenheit “F” or Celsius “C”
temperature display is desired by pressing
the F/C button.
3 Press either the up ∧ or down ∨ scroll
buttons to illuminate the desired item.
4 The drawer will begin controlling to the
temperature shown for the item selected.
5 One of the three favorite selections can be
chosen by illuminating it. The temperature
can then be adjusted up by pressing
the + button or down by pressing the –
button. The drawer will store the selected
temperature setting until it is changed.
Three favorite settings can be chosen and
stored in this way.
6 A custom temp between 28°F and 42°F
can be set by pressing the – or + buttons
while in one of the nine preset positions.
The “custom temp” indicator will
illuminate in this mode.
7 The control buttons can be locked to
prevent accidental changes by pressing
the control lock button for three seconds.
When in this mode, the display will show
“LOC” when any button is pressed.
Deactivate by pressing the control lock
button again for three seconds. The display
will then show “ULC” when the buttons are
unlocked.
Turning Perfect Temp
TM
Drawer ON/OFF
24
IMPORTANT
The two drop-in insulating inserts need to
remain in place while the Perfect Temp
TM
Drawer is on. Removing the inserts will
cause the temperature of the crispers
below it to be affected.
The drop-in insulating inserts can be hand
washed with mild soap. Do not wash in a
dishwasher.
Do not clean the display area of the Perfect
Temp
TM
Drawer with abrasive or caustic
cleaners. Wipe clean with a moist sponge.
CAUTION
The Perfect Temp
TM
Drawer and frame
can be removed for cleaning but the
control unit, attached to the back of
the fridge, cannot be removed. Do not
immerse the Perfect Temp
TM
Drawer
frame in water. Clean with a damp cloth
or sponge but prevent any liquid from
getting into the connector.
NOTE
When turned off, the Perfect Temp
TM
Drawer functions as a non temperature-
controlled drawer.
The Perfect Temp
TM
Drawer is intended
for packaged food products only. Leafy
vegetables and unpackaged fruits are best
kept in one of the lower crisper drawers.
The thaw setting holds a temperature for
thawing frozen foods for a specific amount
of time. At the end of that time, it then
switches to the snacks setting to store the
thawed food.
To remove the Perfect Temp
TM
Drawer
frame and pan for cleaning:
1 Using your thumb, press down on the
plastic tab.
2 While holding down the plastic tab, lift
front slightly and pull drawer up and out.
To remove the Perfect Temp
TM
Shelf Assembly:
1 Carefully unplug the connector (located at
the top right corner) from the control unit
under the shelf by pressing the catch release.
Connector
Catch
Release
2 Pull the connector out.
3 Lift the front of the shelf assembly up off
of the front support pins.
Storage Features
NOTE
If there are no plastic tabs on your model,
just lift front of drawer and pull up and out.
25Storage Features
4 Pull the shelf assembly forward off of the
rear support pins and out of the refrigerator.
To reinstall the Perfect Temp
TM
Drawer
Shelf Assembly:
1 Position rear of shelf assembly so that
the rear support pins on the fridge liner
slide into the support grooves in the rear
of the shelf assembly.
2 Slide the shelf assembly fully to the back
of the fridge.
3 Lower the front of the shelf assembly so
that the front support groves in the shelf
align with and the front support pins on
the fridge liner.
Doors
Storage bins
The doors to your freezer and fresh food
compartments use a system of modular
storage bins. All of these bins are removable
for easy cleaning. Some of them have fixed
positions, while others can be adjusted to
your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.
4 Drop the shelf down insuring that the
support pins fully snap into the grooves
in the shelf.
5 Reconnect the frame connector to the
control unit and reinstall the drawer.
Refrigerator on/off button and the
Perfect Temp
TM
Drawer
When the refrigerator is turned off by pressing
the main Wave-Touch
TM
or IQ-Touch
TM
on/
off button the Perfect Temp
TM
Drawer will
also be turned off. When the refrigerator is
turned back on the Perfect Temp
TM
Drawer
will resume operation at the temp setting that
was set before the refrigerator was turned off.
Sabbath Mode and the Perfect
Temp
TM
Drawer
The Perfect Temp
TM
Drawer should be
turned off for the Sabbath/Holidays. Before
putting the refrigerator into the Sabbath mode,
turn the Perfect Temp
TM
Drawer off by
pressing the drawer on/off button. The display
will show “OFF” and the drawer will turn off.
Then enter the Sabbath mode function on the
main refrigerator display. See Wave-Touch
TM
/
IQ-Touch
TM
“Sabbath Mode” section. The
drawer display will now not illuminate and the
drawer will remain off. The drawer can still be
used as a non temp controlled drawer in this
mode. When the refrigerator is taken out of
Sabbath mode the Perfect Temp
TM
Drawer
will have to be turned back on.
26
Adjustable
Door Bins
Fixed
Door Bins
Storage Features
To change the position of an adjustable
door bin:
1 Before adjusting a bin, remove all food.
2 Grip the bin firmly with both hands and
lift it upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked
in place.
Fixed
Door
Bin
Accessories (varies by model)
Can rack
The can rack allows you to efficiently and
securely store 12-ounce cans of beverage.
A rubber liner sits behind the cans to help
keep them secure. Liner may be removed for
storing larger items.
Perfect Door Bin (some models)
The Perfect Door Bin is especially designed to
hold gallon-sized containers like milk gallons.
The door bin tilts out to provide convenient
storage for fresh greens and other items.
27Storage Features
Soft Freeze Bin (some models)
The soft freeze bin in the top of the freezer
door is designed to maintain temperatures a
few degrees above the freezer temperature to
provide soft serve ice cream.
Special item mat (some models)
The innovative design of the special item mat
allows you to store four bottles of wine or soft
drink bottles, or any item that you want to
prevent moving around.
NOTE
Any meat to be kept longer than two days
should be frozen. If you store fruits or
vegetables in this drawer, set it to a higher
humidity.
Pizza rack (some models)
This rack is attached to the freezer wall beside
the ice dispenser container. This convenient
area allows for storage of pizza and other
tall items placed vertically between the ice
dispenser container and the freezer wall.
28 Automatic Ice & Water Maker/Dispenser
Priming the water supply
system
Your refrigerator’s water supply system
includes several tubing lines, an advanced
water filter, a distribution valve bank, and a
reserve tank to ensure ample supply to the ice
and water dispenser at all times. This system
needs to be completely filled with water when
first connected to an external supply line.
To prime the water supply system:
1 Begin filling the tank by pressing and
holding a drinking glass against the
water dispenser paddle.
2 Keep the glass in this position until water
comes out of the dispenser. It may take
about 1½ minutes.
3 Continue dispensing water for about
three minutes to flush the system and
plumbing connections of any impurities
(stopping to empty the glass as
necessary).
Ice maker operation & care
The ice maker, ice bin, and dispenser feeding
mechanism are located in the top of the
freezer compartment. After the refrigerator is
installed properly and has cooled for several
hours, the ice maker can produce ice within
24 hours. It can completely fill an ice bin in
about two days.
The ice maker produces four to six pounds
of ice every 24 hours depending on usage
conditions. Ice is produced at a rate of eight
cubes every 75 to 90 minutes.
Using the ice maker after installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not flushed, the first ice cubes may
be discolored or have an odd flavor.
Wire
Signal Arm
Off On
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, turn the ice maker’s On/Off switch
to Off. Otherwise, the ice maker’s fill valve
may make a loud chattering noise when it
attempts to operate without water.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause water
filter to malfunction.
NOTE
The ice maker also has a built-in wire
signal arm, which automatically stops ice
production when the ice bin is full. This
signal arm should not be used to manually
stop the ice maker.
NOTE
The water dispenser has a built-in device
that shuts off the water flow after three
minutes of continuous use. To reset this
shutoff device, simply release the dispenser
paddle.
Turning the ice maker on and off
Ice production is controlled by the ice maker’s
On/Off power switch. To gain access to
the ice maker, pull the extra shelf out (some
models). Press the switch to the “O” position
to turn it Off and press to the “I” position to
turn it On.
29
IMPORTANT
Small ice cubes or ice chips jamming in
the ice maker may be a sign that your
water filter needs changing. If you have
a side mounted ice maker you may also
experience hollow cubes -- partially frozen
cubes with water inside. When these cubes
are harvested they break open and spill
water over the other ice cubes in the ice
bin, forming a solid mass of ice. As the
water filter nears the end of its useful life
and becomes clogged with particles, less
water is delivered to the ice maker during
each cycle. The ice maker can’t fill every
cube in the ice maker mold, leading to
small cubes or chips that can get caught
between the ice ejector blades and the
stripper. Remember, if your ice maker is
jamming with small ice cubes or it’s been
six months or longer since you last changed
your water filter -- replace the water filter
with a new one. Poor quality household
water may require the filter to be changed
more frequently.
Automatic Ice & Water Maker/Dispenser
Ice maker/dispenser tips
• Ice cubes stored too long may develop
an odd flavor. Empty the ice bin as
explained below.
• Occasionally shake the ice bin to keep
ice separated.
• If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
pressing the On/Off switch.
• If you need a large quantity of ice at one
time, it is best to get cubes directly from
the ice bin.
• The following sounds are normal when
the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Ice loosening from tray
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
• Turn off the ice maker when cleaning the
freezer and during vacations.
- If you turn off the ice maker for a
long period of time, you should also
turn off the water supply valve.
• To avoid splashing, dispense ice into
your container before adding liquids.
• It is normal for ice to fill to the top of the
ice bin.
CAUTION
Chemicals from a malfunctioning water
softener can damage the ice maker. If
the water supply to your refrigerator
is softened, be sure the softener is
maintained to work properly.
ON
OFF
Wire
Signal Arm
Wire
Signal Arm
Off On
30 Automatic Ice & Water Maker/Dispenser
IMPORTANT
When removing or replacing the ice bin,
DO NOT rotate the auger in the ice bin.
If the auger is accidentally rotated, you
must realign the auger by turning it in 90
degree turns (see below) until the ice bin
fits into place with the drive mechanism.
If the auger is not properly aligned when
replacing the ice bin, the refrigerator will
only dispense Crushed Ice. The freezer
door may also not close properly causing
warm air to leak into the freezer.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice storage bin and
dispenser mechanism.
Auger
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, particularly before you take a
vacation or move.
To clean the ice maker:
1 Turn off ice production by pressing the
ice maker’s Off/On switch.
2 Remove the ice bin by lifting up and out.
3 Empty and carefully clean the ice bin
with mild detergent. Rinse with clear
water. Do not use harsh or abrasive
cleaners.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Remove ice chips and clean the ice bin
shelf and the freezer door chute.
6 Replace the ice bin. Press the ice
maker’s Off/On switch to resume ice
production.
Remove and empty the ice storage bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the ice
storage bin to melt and freeze together,
jamming the dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze together
in the bin, jamming the dispenser
mechanism.
Remove the ice storage bin and shake to
loosen the cubes or clean as explained above.
31
Changing The Filter
Locating the filters
Your refrigerator is equipped with separate
water and air filtering systems. The water filter
system filters all dispensed drinking water, as
well as the water used to produce ice. The air
filter removes odors and impurities from the
refrigerator compartment.
Water filter
The water filter is located at the top right side
of the fresh food compartment.
Air filter
The air filter is located at the top of the fresh
food compartment next to the water filter.
Replacing the air filter
In general, you should change the air filter
every six months (the filter status light on
the Touch Panel prompts you to replace
the filter after six months) to ensure optimal
filtering of refrigerator odors. You may want
to adjust this time period depending on the
types and amounts of food you typically
store in your refrigerator. To replace your
PureAdvantage
TM
air filter:
1 Pull the air filter housing straight out.
2 Remove the old filter and discard it.
3 Unpack the new filter and place it inside
the housing.
4 Slide the housing back into position.
5 Press and hold the Air Filter Reset
button on the electronic control panel
for three seconds. When the display
changes from “Replace” to “Good,” the
status has been reset.
6 The Air Filter Reset will turn itself off
after a few seconds.
Ordering replacement filters
Order new filters by calling toll-free, 877/808-4195,
visiting www.electroluxappliances.com, or seeing
the dealer where you bought your refrigerator.
Electrolux recommends that you order extra filters
when you first install your refrigerator, and that you
replace your filters at least once every six months.
Here is the product number to request when
ordering:
PureAdvantage
TM
Water Filter - Part #EWF01
Air Filter - Part #EAFCBF
Replacing the water filter
In general, you should change the water filter
every six months to ensure highest possible
water quality. The Water Filter Status light
on the Touch Panel prompts you to replace
the filter after a standard amount of water
(400 gallons for PureAdvantage
TM
) has
flowed through the system.
If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
Push
Button
To
Release
Slide
Out to
Remove
Filter Cartridge
Air Filter
NOTE
The electronic touch panel, located at the
freezer door, includes controls to monitor
the status of your air filter. See the Controls
section for more information about these
controls.
32 Changing The Filter
More about your advanced water
filter
6 Press a drinking glass against the water
dispenser while checking for any leaks
at the filter housing. Any spurts and
sputters that occur as the system purges
air out of the dispenser system are
normal.
7 After filling one glass of water, continue
flushing the system for about three
minutes.
8 Turn On the ice maker.
9 Press and hold the Filter Status button
on the Ice & Water Dispenser control
panel for three seconds. When the
display changes from “Replace” to
“Good,” the status has been reset.
Do not use with water that is microbiologically
unsafe or of unknown quality without
adequate disinfection before or after the
system. Systems certified for cyst reduction
may be used on disinfected waters that may
contain filterable cysts.
Test & certification results:
• Rated Capacity - 400 gallons for
PureAdvantage
TM
ice and water filter
• Rated service flow - .5 gallons per
minute
• Maximum Rated Pressure - 100 pounds
per square inch
• Operating Temp.: Min. 33°F, Max. 100°F
• Recommended Minimum Operating
Pressure: 30 pounds per square inch
To replace your PureAdvantage
TM
water
filter:
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the
filter replacement.
1 Turn Off the ice maker power switch.
2 Push the filter release button below the
cartridge to disconnect it.
3 Slide the old water filter cartridge straight
out of the housing and discard it.
4 Unpackage the new filter cartridge and
slide it gently into the filter housing until
it stops against the snap-in connector at
the back of the housing.
5 Push firmly until the cartridge snaps
into place (you should hear a click
as the cartridge engages the snap-in
connector). When fully engaged, the
front of the filter cartridge should be flush
with the filter release button.
The PureAdvantage
TM
ice
and water filter system is
tested and certified by NSF
International to NSF/ANSI
Standards 42 and 53 for the
reduction of claims specified
on the performance data
sheet.
33
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preserve food quality for longer time
periods.
Meat
• Wrap raw meat and poultry securely
so leakage and contamination of other
foods or surfaces does not occur.
• Use the meat keeper drawer for short-
term storage. Any meat to be kept
longer than two days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F or
lower.
• A freezer operates most efficiently when
it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags or airtight containers.
Force as much air out of the packages
as possible and seal them tightly.
Trapped air can cause food to dry out,
change color, and develop an off-flavor
(freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely
thawed.
Loading the freezer
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of frozen
foods.
• Leave a space between packages, so
cold air can circulate freely, allowing food
to freeze as quickly as possible.
Storing Food & Saving Energy
• Avoid storing hard-to-freeze foods on the
freezer door shelves. These foods are
best stored in the freezer interior where
the temperature varies less.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest part
of the room, out of direct sunlight, and
away from heating ducts or registers.
Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is not
possible, a section of cabinetry or an
added layer of insulation between the
two appliances will help the refrigerator
operate more efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
• Refer to the “Controls” section in this
Use & Care Guide for procedures on
temperature settings.
Food storage
• Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so causes
the refrigerator to run longer and use
more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as
needed at one time and close the door
as soon as possible.
34 Normal Operating Sounds & Sights
Understanding the sounds you may hear
Your new, high-efficiency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is operating
correctly. Some surfaces on floors, walls, and
kitchen cabinets may make these sounds
more noticeable.
Following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air being
forced through the refrigerator by the
evaporator fan.
C Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
occur.
D Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on and
off.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than in the
past. The compressor may have a high-
pitched hum or pulsating sound.
H Water valve Makes a buzzing sound
each time it opens to fill the ice maker.
I Drain pan (not removable) You may hear
water dripping into the drain pan during
the defrost cycle.
J Condenser May create minimal sounds
from forced air.
K Motorized damper May produce a light
humming during operation.
L Ice dispensing paddle When
dispensing ice, you will hear a snapping
or clicking sound when the solenoid
opens and closes the ice chute.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your freezer
compartment is normal.
NOTE
Energy efficient foam in your refrigerator is
not a sound insulator.
M Perfect Temp
TM
Drawer (some
models) Fans run intermittently when
door is closed but turn off when door is
opened (except when fridge is in Sabbath
Mode). Air control valve may produce a
light humming during operation.
35Care & Cleaning
Protecting your investment
Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up
any spills immediately and clean the freezer and fresh food compartments at least twice a year.
When cleaning, take the following precautions:
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments
which can scratch the appliance surface.
• Do not remove the serial plate.
Refer to the guide on the next page for details on caring and cleaning specific areas of your
refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions
on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the
water supply system. Failure to do so could result in water leaks when the refrigerator is put
back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with
wet or damp hands.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical
components will continue until you unplug the power cord from the wall outlet.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids,
cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum
products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels,
scouring pads, or other abrasive cleaning materials.
36 Care & Cleaning
Care & cleaning tips
Part Cleaning Agents Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda
and water
• Use 2 tablespoons of baking soda in 1 quart of
warm water.
• Be sure to wring excess water out of sponge or
cloth before cleaning around controls, LED lights
or any electrical part.
Door Gaskets
• Soap and water • Wipe gaskets with a clean soft cloth.
Drawers &
Bins
• Soap and water • Use a soft cloth to clean drawer runners and
tracks.
• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Glass Shelves
• Soap and water
• Glass cleaner
• Mild liquid
sprays
• Allow glass to warm to room temperature before
immersing in warm water.
Toe Grille
• Soap and water
• Mild liquid
sprays
• Vacuum
attachment
• Vacuum dust from front of toe grille.
• Remove toe grille (see Installation Instructions).
• Vacuum backside and wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive
glass cleaner
• Do not use commercial household cleaners
containing ammonia, bleach or alcohol to clean
handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with bleach
to clean stainless steel.
• Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth. Rinse
with clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department stores.
Always follow manufacturer’s instruction. Do not
use household cleaners containing ammonia or
bleach.
• NOTE: Always clean, wipe and dry with grain to
prevent scratching.
• Wash the rest of the cabinet with warm water
and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
User Interface
Panel
• Soap and water • Do not use commercial household cleaners
containing ammonia, bleach or alcohol to clean
user interface panel.
• Use a soft cloth to clean user interface panel.
• Do not use a dry cloth to clean user interface
panel.
37Care & Cleaning
Replacing LED Lights
Both the freezer and fresh food compartments of
your refrigerator include LED lights. Always use
Electrolux parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator’s power cord.
2 Remove light cover by pushing up and out.
3 Hold the LED cover with one hand and pull
the connector with the other hand while
pressing the connector latch.
4 Replace LED light and snap in place
assuring the light is facing in toward the
unit (inside fresh food and freezer) or facing
outward on bottom of fresh food doors.
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online
at www.electroluxicon.com, or through the dealer
where you bought the refrigerator.
LED Light Harness Removal
LED Light Removal
NOTE
LED lights are in series so if one is bad or
unplugged, several lights may not light up.
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bin, even if you will only be
gone for a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see “Controls” section for location of On/Off
button) and disconnect power cord.
• Turn off automatic ice maker and turn water supply valve to closed
position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors
open if necessary.
Moving
• Remove all food and ice.
• If using handcart, load from side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Vacation & moving tips
38 Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in
the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables,
or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation, including
but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR
OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep
all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
39Before You Call
Before you call...
If you experience a problem with your refrigerator or notice a product behavior or condition you
do not understand, you can usually avoid a call to your service representative by referring to
this section for an answer. Beginning with the following table, this information includes common
problems, causes, and suggested solutions.
Running Your Refrigerator
Concern Cause Solution
Compressor does
not run.
• Cooling system is
turned Off.
• Refrigerator is in
defrost cycle.
• Plug at wall outlet is
disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Turn cooling system On. See Controls
Section for location of cooling system
On/Off button.
• This is normal for a fully automatic
defrost refrigerator. The defrost cycle
occurs periodically, lasting about 30
minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit breaker.
• Check house lights. Call local Electric
Company.
Refrigerator runs
too much or too
long.
• Room or outside
weather is hot.
• Refrigerator has
recently been
disconnected for a
period of time.
• Automatic ice maker
is operating.
• Doors are opened too
frequently or too long.
• Refrigerator/freezer
door may be slightly
open.
• Freezer control is
set too cold (control
found in fresh food
section).
• Fresh food/freezer
gasket is dirty, worn,
cracked, or poorly
fitted.
• It’s normal for the refrigerator to work
longer under these conditions.
• It takes 8-12 hours for the refrigerator
to cool down completely.
• Ice maker operation causes
refrigerator to run slightly more.
• Warm air entering the refrigerator
causes it to run more. Open doors less
often.
• Ensure refrigerator is level. Keep food
and containers from blocking door.
See Problem section, Opening/Closing
of Doors/ Drawers.
• Set freezer control to warmer setting
until refrigerator temperature is
satisfactory. Allow 24 hours for
temperature to stabilize.
• Clean or change gasket. Leaks in
door seal will cause refrigerator to run
longer in order to maintain desired
temperatures.
Compressor does
not run.
• Electronic control
system keeps the
refrigerator at a
constant temperature.
• This is normal. Refrigerator goes on
and off to keep temperature constant.
Digital temperature
displays are
flashing.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative, who can interpret any
messages or number codes flashing
on the digital displays.
40
Temperatures Are Too Cold
Concern Cause Solution
Freezer
temperature too
cold. Refrigerator
temperature is
satisfactory.
• Freezer control is set
too cold.
• Set freezer control to a warmer setting.
Allow 24 hours for temperature to
stabilize.
Refrigerator
temperature too
cold. Freezer
temperature is
satisfactory.
• Refrigerator control is
set too cold.
• Set refrigerator control to a warmer
setting. Allow 24 hours for temperature
to stabilize.
Food stored in
drawers freezes.
• Refrigerator control is
set too cold.
• See solution above.
Food stored in Meat
Keeper freezes
(some models).
• Meat Keeper
temperature control is
set too cold.
• Adjust Meat Keeper temperature
control to a lower setting. Meat should
be stored at a temperature just below
the freezing point for maximum fresh
storage time. It is normal for ice
crystals to form due to the moisture
content of meat.
Before You Call
Temperatures Are Too Warm
Concern Cause Solution
Freezer/Refrigerator
temperature is too
warm.
• Doors are opened too
frequently or too long.
• Door is slightly open.
• Warm air enters the refrigerator
whenever the door is opened. Open
the door less often.
• See Problem section, Opening/Closing
of Doors/Drawers.
Freezer temperature
is too warm.
Refrigerator
temperature is
satisfactory.
• Freezer control is set
too warm.
• Set freezer control to a colder setting.
Allow 24 hours for temperature to
stabilize.
Refrigerator
temperature is
too warm. Freezer
temperature is
satisfactory.
• Refrigerator control is
set too warm.
• Set refrigerator control to a colder
setting. Allow 24 hours for temperature
to stabilize.
Temperature in the
Meat Keeper is
too warm (some
models).
• Meat Keeper
temperature control is
set too warm.
• Adjust Meat Keeper temperature
control to a colder setting.
41Before You Call
Water/Moisture/Frost Inside Refrigerator
Concern Cause Solution
Moisture collects on
inside of refrigerator
walls.
• Weather is hot and
humid.
• Door is slightly open.
• Door is opened too
often or too long.
• Open containers.
• The rate of frost buildup and internal
sweating increases.
• See Problem section, Opening/Closing
of Doors/Drawers.
• Open door less often to allow internal
temperature to stabilize.
• Keep containers covered.
Water collects on
bottom side of
drawer cover.
• Vegetables contain
and give off moisture.
• Moisture on the bottom side of the
cover is not unusual.
• Move humidity control (some models)
to lower setting.
Moisture collects in
bottom of drawer.
• Washed vegetables
and fruit drain while in
the drawer.
• Fruits and vegetables
are kept past their
prime
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
• Routinely clean out old fruits and
vegetables especially if they begin to
break down.
Moisture collects
on outside of
refrigerator or
between doors.
• Weather is humid.
• Door is slightly open,
causing cold air from
inside refrigerator to
meet warm air from
outside.
• This is normal in humid weather. When
humidity is lower, the moisture should
disappear.
• See Problem section, Opening/Closing
of Doors/Drawers.
Perfect Temp
TM
Drawer (some models)
Concern Cause Solution
Display does not
illuminate or shows
“CE”.
• Connector not
connected or loose.
• Remove pan and insure connector is
fully engaged. (See Storage Features
section)
Display shows
“LOC” when buttons
are pressed.
• Drawer in control lock
mode.
• Press and hold control lock button
for three seconds to take drawer out
of control lock mode. (See Storage
Features section)
42
Automatic Ice Maker
Concern Cause Solution
Ice maker is
not making
any ice.
• Ice maker power switch
is Off.
• Water supply is not
connected to refrigerator.
• Household water line
valve is not open.
• Freezer is not cold
enough.
• Household water line to
the refrigerator is kinked.
• Valve on cold water pipe
is clogged or restricted by
foreign material. If valve is
of the self-piercing type,
it may not have created
a sufficiently sized hole
in tube for water to pass
through.
• Check to see if the water
dispenser is dispensing
water.
• Water filter is not
completely seated.
• Turn on power switch.
• Connect water supply (see Installation
Instructions).
• Turn on household water line valve.
• See Problem section, Temperatures Are
Too Warm.
• Unkink the water line. If it is a copper line,
it should be replaced because of possible
leaks at the kink. A copper line should be
coiled behind the unit to avoid kinking.
• Turn off household water line valve.
Remove valve. Ensure that valve is not a
self-piercing valve. Clean valve. Replace
valve if necessary.
• If not, the ice & water filter cartridge
is clogged or restricted, and must be
replaced.
• Push firmly until the water filter snaps into
place (you should hear two clicks).
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• Freezer is not cold
enough.
• Household water line valve
is not completely open.
• Check to see if water
dispenser is dispensing
slower than normal.
• Freezer control is set too
warm.
• Ice maker should produce approximately
4-5 pounds of ice every 24 hours. Fast
Ice should produce up to 6 pounds of ice
every 24 hours.
• See Problem section, Temperatures Are
Too Warm.
• Turn on household water line valve.
• If it is, replace the ice & water filter
cartridge.
• Set freezer control to colder setting to
improve performance of the ice maker.
Allow 24 hours for temperature to stabilize.
Ice maker
will not stop
making ice.
• Ice maker wire signal arm
is being held down by
some item in the freezer.
• Move item and release wire signal arm.
Remove any ice cubes frozen together
over wire signal arm.
Ice maker
is not
separating
the ice cubes.
• Ice cubes are not being
used frequently enough.
• Ice cubes are hollow or
smaller than normal.
• Remove and shake ice bin to separate
cubes.
• The ice & water filter cartridge may be
clogged. Replace filter cartridge.
Ice has bad
odor and
taste.
• Ice has picked up
odor or flavor from
strong food stored in
refrigerator or freezer.
• Ice not used frequently
enough.
• Cover foods tightly. Discard stale ice. Ice
maker will produce fresh supply.
• Discard stale ice.
Before You Call
43Before You Call
Ice Dispenser
Concern Cause Solution
Dispenser will not
dispense ice.
• Water supply is not
connected.
• Household water line
to the refrigerator is
kinked.
• Ice storage bin is
empty.
• Freezer temperature
is set too warm.
• Household water line
valve is not open.
• Freezer door is not
closed.
• Ice dispensing arm
has been held in
for more than 4-5
minutes.
• Connect water supply (see Connecting
The Water Supply section).
• Unkink the water line. If it is a copper
line, it should be replaced because of
possible leaks at the kink. A copper
line should be coiled behind the unit to
avoid kinking.
• Ensure ice maker is turned on. When
the first supply of ice is dropped into
the bin, the dispenser should operate.
• Turn freezer control to a higher setting
so that ice cubes will be made. When
first supply of ice is made, dispenser
should operate.
• Open household water line valve.
Allow sufficient time for the ice to
be made. When ice is made, the
dispenser should operate.
• Ensure freezer door is closed. (See
Problem Section, Opening/Closing of
Doors/Drawers)
• Motor is overloaded. Motor overload
protector will reset in approximately 3
minutes. Ice can then be dispensed.
Ice dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent
use, temperature
fluctuations, and/or
power outages.
• Ice cubes are jammed
between ice maker
and back of ice bin.
• Ice cubes are frozen
together.
• Ice cubes are hollow
or smaller than
normal.
• Remove ice bin, thaw, and empty the
contents. Clean bin, wipe dry, and
replace in proper position. When new
ice is made, dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
• Use the dispenser often so that cubes
do not freeze together.
• The ice & water filter cartridge
could be clogged. Replace the filter
cartridge. Dispensing system operates
best at 30-100 psi water pressure. Well
water pressures should fall within this
range.
44 Before You Call
Water Dispenser
Concern Cause Solution
Dispenser will not
dispense water.
• Water supply is not
connected.
• Household water line
to the refrigerator is
kinked.
• Household water line
valve is not open.
• Freezer door is not
closed.
• Ice & water filter
cartridge is clogged.
• Front filter not fully
installed, if equipped.
• Connect water supply (see Connecting
The Water Supply section).
• Unkink the water line. If it is a copper
line, it should be replaced because of
possible leaks at the kink. A copper
line should be coiled behind the unit to
avoid kinking.
• Open household water line valve. See
Problem section Ice Maker Is Not
Making Ice.
• Ensure that freezer door is closed.
(See Problem Section, Opening/
Closing of Doors/Drawers)
• Replace filter cartridge.
• Push filter in until you hear two
“clicks”. Filter should be flush with the
plastic housing.
Water has an odd
taste and/or odor.
• Water has been in the
tank for a period of
time.
• Unit not properly
connected to cold
water line.
• Tubing used in the
household water
supply and installation
may affect water taste
and odor.
• Water has a high
mineral content.
• Draw and discard 10-12 glasses
of water to freshen the supply and
completely rinse out the tank.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
• For best results, use copper tubing for
water connections.
• Contact water treatment plant for help
in checking water supply source.
Water dispenses
slowly.
• Cut-off and cut-on
pressures are too low
(well systems only).
• Reverse osmosis
system is in
regenerative phase.
• The Ice & Water filter
is clogged.
• Have someone turn up the cut-off and
cut-on pressure on the water pump
system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.
• Replace filter cartridge.
45Before You Call
Odors In Refrigerator
Concern Cause Solution
Interior is dirty.
• Interior needs to be
cleaned.
• Food with strong
odors is stored in
refrigerator.
• See Care & Cleaning Tips.
• Cover food tightly. Turn on air filtration
system. Air filter may need to be
changed more frequently if foods with
strong odors are routinely stored in
refrigerator.
Opening/Closing Of Doors/Drawers
Concern Cause Solution
Door(s) will not
close.
• Door was closed too
hard, causing other
door to open slightly.
• Refrigerator is not
level. It rocks on the
floor when moved
slightly.
• Refrigerator is
touching a wall or
cabinet.
• Close both doors gently.
• Ensure floor is level and solid, and can
adequately support the refrigerator.
Contact a carpenter to correct a
sagging or sloping floor.
• Ensure floor is level and solid, and can
adequately support the refrigerator.
Contact a carpenter to correct a
sagging or sloping floor.
Drawers are difficult
to move.
• Food is touching shelf
on top of drawer.
• Track that drawers
slide on is dirty.
• Keep less food in drawer.
• Clean drawer, runners, and tracks. See
Care & Cleaning Tips.
LED Light Is Not On
Concern Cause Solution
LED light is not on.
• LED light is burned
out.
• No electric current is
reaching refrigerator.
• Control system
has disabled lights
because one or both
doors were left open
too long.
• See Replacing LED Lights in Care and
Cleaning section.
• See Problem section, Running Your
Refrigerator.
• Close and reopen door(s) to enable
lights.
